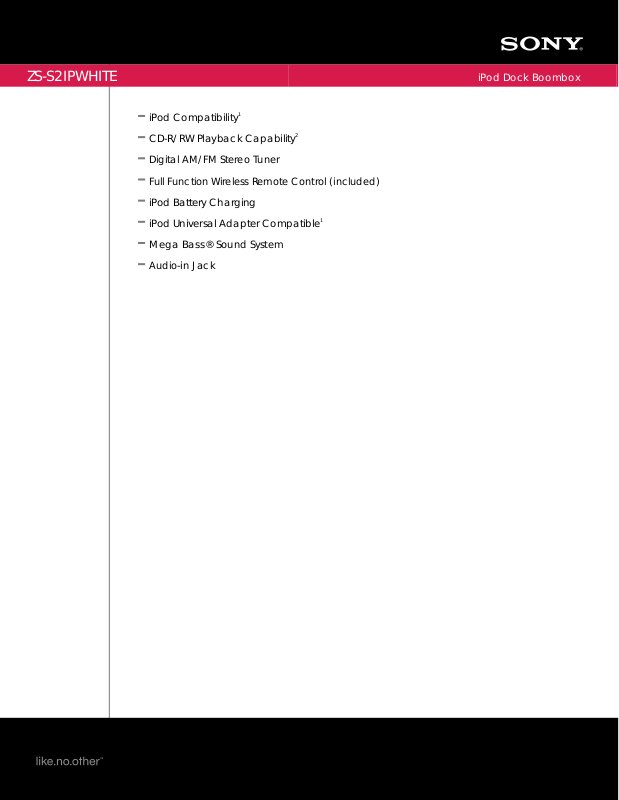

Sony ZS-S2IP BROCHURE

ZS-S2IPWHITE

iPod Dock Boombox

iPod Compatibility

CD-R/RW Playback Capability

Digital AM/FM Stereo Tuner

Full Function Wireless Remote Control (included)

iPod Battery Charging

iPod Universal Adapter Compatible

Mega Bass®

Sound System

Audio-in Jack

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 06/12/2008

ZS-S2IPWHITE

iPod Dock Boombox

Please visit the Dealer Network for current information at

www.sony.com/dn

Features

iPod Compatibility allows you to listen to your iPod by using

the built-in iPod Dock. Simply connect your iPod and press play.

CD-R/RW Playback Capability Plays back most CD-R/RW

discs burned from either a PC or a home recording deck. Create custom mixes from your existing music collection and always have the right music at hand.

Digital AM/FM Stereo Tuner Provides the most accurate, drift

free tuning of AM and FM radio stations and lets you choose from the wide variety of radio talk shows and music programs with the added enjoyment of stereo sound.

30 Station Memory Preset uses electronic settings for easy, one-button tuning of up to 20 FM and 10 AM stations.

Full Function Wireless Remote Control (included) Allows access to all the music on your iPod from across the room.

iPod Battery Charging While your iPod is on the dock it will charge, so you never have to worry about running low on battery life.

iPod Universal Adapter Compatible Allows most iPod

models to fit securely in the unit.

Mega Bass Sound System Produces rich, deep, bass tones for more powerfull overall sound.

Audio-in Jack Let's you easily connect other digital music players to the boombox for easy access to all your music.

Specifications

General

Type of Use: Portable Boombox Tray Type:

Top Loading Single CD

Disc Capacity: 1

Audio

Frequency Response: 20-20000Hz, / -dB Format(s) Supported:

iPod

, CD-R/RW Playback Compatibility

Tuning:

Auto Scan Radio

Antenna System: FM: Telescopic Antenna, AM: Built-in ferrite bar

antenna

Frequency Range: FM: 87.5 - 108MHz, AM: 530 - 1710kHz Station Preset(s): 10 AM, 20 FM Sound Enhancer: Mega Bass

Tuner Type: Digital

Power

Battery Life (Approx.): Up to 20 hours (with Sony® Alkaline

Batteries in FM mode)

Power Requirements: 120 V AC, 60Hz

9 V DC, 6 R14(size C) batteries (sold separately)

Output Power: 1.7W + 1.7W (at 4ohms, 10% harmonic distortion) Power Consumption: AC 13W

Speaker

Speaker System: Full Range: 3 1/4" (8cm)

Inputs and Outputs

Input(s): Audio In jack (stereo minijack) Headphone Input(s): 1 (Stereo Mini)

Dimensions

Weight: 5lbs 11oz (2.6kg) Measurements: 14 1/4 x 5 5/8 x 9 3/8 (360 x 141 x 235mm)

Supplied Accessories

AC Power Cord Remote Control

Color:

Black, White

UPC Code:

027242721173

1. Works with iPod 4th generation, iPod 4th generation (color display), iPod 5th generation (video), iPod mini 1st and 2nd generation, iPod nano 1st generation, iPod nano 2nd generation (aluminum, iPod Touch, iPod Nano 3rd generation (video) and iPod Classic.

2. CD-R/RW media/formats are not universally compatible.

© 2008 Sony Electronics, Inc. Features and Specifications are subject to change without notice. Non-metric weights and measures are approximate. Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Mega Bass and like.no.other are trademarks of Sony. iPod is a trademark of Apple Inc.
