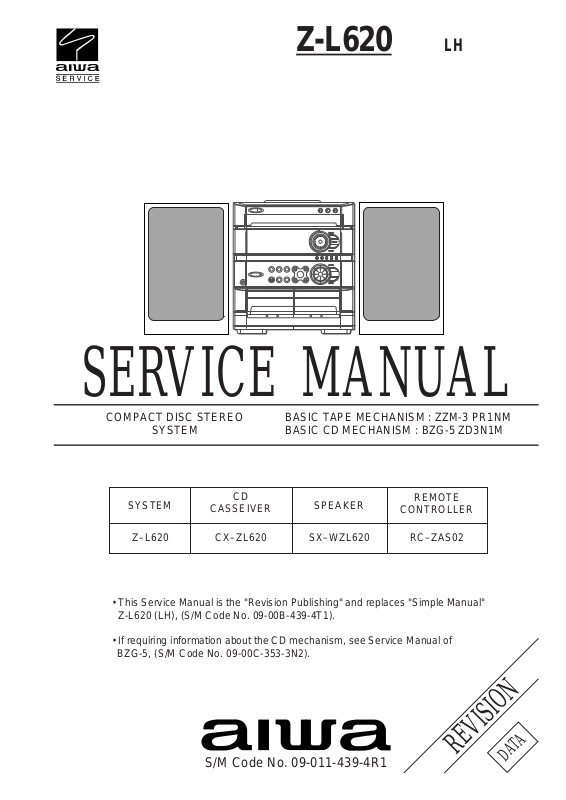

Z-L620

SERVICE MANUAL

COMPACT DISC STEREO

SYSTEM

CASSEIVER

Z–L620

• This Service Manual is the "Revision Publishing" and replaces "Simple Manual" Z-L620 (LH), (S/M Code No. 09-00B-439-4T1).

• If requiring information about the CD mechanism, see Service Manual of

BZG-5, (S/M Code No. 09-00C-353-3N2).

BASIC TAPE MECHANISM : ZZM-3 PR1NM BASIC CD MECHANISM : BZG-5 ZD3N1M

SPEAKERSYSTEM

SX–WZL620CX–ZL620

REMOTE

CONTROLLER

RC–ZAS02

S/M Code No. 09-011-439-4R1

REVISION

DATA

Page 2

SPECIFICATIONS

<FM tuner section> Tuning range 87.5 MHz to 108 MHz Usable sensitivity (IHF) 13.2 dBf Antenna terminals 75 ohms (unbalanced)

<AM tuner section> Tuning range 530 kHz to 1710 kHz (10 kHz step)

531 kHz to 1602 kHz (9 kHz step)

Usable sensitivity 350 µV/m Antenna Loop antenna

<Amplifier section> Power output Rated: 100 W + 100 W (6 ohms,

T.H.D. 1 %, 1 kHz) Reference: 120 W + 120 W (6 ohms, T.H.D. 10 %, 1 kHz)

Total harmonic distortion 0.1% (50 W, 1 kHz, 6 ohms, DIN

AUDIO)

Inputs VIDEO/AUX/PHONO : 500 mV Outputs SPEAKERS:

accept speakers of 6 ohms or more PHONES (stereo jack): accepts headphones of 32 ohms or more

<Cassette deck section> Track format 4 tracks, 2 channels stereo Frequency response 50 Hz – 12500 Hz Recording system AC bias Heads Deck 1 : Playback head x 1

Deck 2 : Recording/playback head x 1, erase head x 1

<Compact disc player section> Laser Semiconductor laser (λ =780 nm) D-A converter 1 bit dual Signal-to-noise ratio 85 dB (1 kHz, 0 dB) Harmonic distortion 0.05 % (1 kHz, 0 dB) Wow and flutter Unmeasurable

<Speaker system SX–WZL620> Cabinet type 3 way, built-in subwoofer Speakers Subwoofer:

220 mm (83/4 in.) cone type Full range: 140 mm (55/8 in.) cone type Super tweeter: 20 mm (13/16 in.) ceramic type

Impedance 6 ohms Output sound pressure level 89 dB/W/m Dimensions (W x H x D) 275 x 495 x 297 mm

(107/8 x 191/2 x 113/4 in.)

Weight 6.5 kg (14 lbs. 5 oz.)

<General> Power requirements 120 V/220 - 230 V/240 V AC,

switchable: 50/60 Hz

Power consumption 130 W Dimensions of main unit 360 x 395.3 x 350.6 mm (W x H x D) (141/4 x 155/8 x 151/4 in.) Weight of main unit 10 kg (22 lbs.)

• Design and specifications are subject to change without notice.

– 2 –

Page 3

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING

This set employs laser. Therefore, be sure to follow carefully the instructions below when servicing.

WARNING!!

WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 30cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.

s Caution: Invisible laser radiation when

open and interlocks defeated avoid exposure to beam.

s Advarsel: Usynlig laserståling ved åbning,

når sikkerhedsafbrydere er ude af funktion. Undgå udsættelse for stråling.

VAROITUS!

Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saataa altistaa käyt-täjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.

VARNING!

Om apparaten används på annat sätt än vad som specificeras i denna bruksanvising, kan användaren utsättas för osynling laserstrålning, som överskrider gränsen för laserklass 1.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herin may result in hazardous radiation exposure.

ATTENTION

L’utillisation de commandes, réglages ou procédures autres que ceux spécifiés peut entraîner une dangereuse exposition aux radiations.

ADVARSEL

Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude af funktion. Undgå udsættelse for stråling.

This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT

Precaution to replace Optical block

(KSS-213F)

Body or clothes electrostatic potential could

ruin laser diode in the optical block. Be sure

ground body and workbench, and use care the

clothes do not touch the diode.

1) After the connection, remove solder shown in right figure.

PICK-UP Assy PWB

Solder

– 3 –

Page 4

NOTE ON BEFORE STARTING REPAIR

1. Forced discharge of electrolytic capacitor of power supply block

When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect can occur. In order to prevent the secondary trouble, perform the following measures before starting repair work.

Discharge procedure

1 Remove the AC power cord.

11 22

2 Connect a discharging resistor at an end of lead wire that

has clips at both ends. Connect the other end of the lead wire to metal chassis.

3 Contact the other end of the discharging resistor to the

positive (+) side (+VH) of C101. (For two seconds)

4 Contact the same end of the discharging resistor as step

3 to the negative (-) side (-VH) of C102 in the same way.

(For two seconds)

5 Check that voltage across C101 and C102 has decreased

to 1 V or less using a multimeter or an oscilloscope.

Select a discharging resistor referring to the following table.

Charging voltage (V) Discharging

(C101, 102) resistor (Ω)

25-48 100 3 87-A00-247-090

49-140 220 5 87-A00-232-090

Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the

reference numbers of the charging capacitors on schematic diagram before starting the discharging work.

Rated power (W) Parts number

MAIN C.B

D101

C101 C102

Fig-1

2. Check items before exchanging the MICROCOMPUTER

Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming that the MICROCOMPUTER is surely defective.

2-1. Regarding the HOLD terminal of the MICROCOMPUTER

When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly. When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD terminal before exchange. When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.

• Good or no good judgement of the MICROCOMPUTER

1 Turn on the AC main power.

11 22

2 Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.

22 33

3 When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the

MICROCOMPUTER is judged to be good.

– 4 –

Page 5

In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.

2-2. Regarding reset

There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed. When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no good of the MICROCOMPUTER.

1 Remove the AC power cord.

FRONT C.B

MICROCOMPUTER

FRONT C.B

2 Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.

22 33

3 Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is

good.

Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending

on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.

C113

Short with tweezers.

Fig-2-2

C113

VSS

VDD

MICROCOMPUTER

2-3. Confirmation of soldering state of MICROCOMPUTER

Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.

– 5 –

Page 6

ELECTRICAL MAIN PARTS LIST

PART NO.

NO.

8B-MA5-651-010 C-IC,LC876572 87-A21-419-040 C-IC,NJM14558MD-TE2 87-A21-577-040 C-IC,M61506FP 87-A21-893-040 C-IC,NJM14558V-TE2 87-A21-831-010 IC,SPS-442-1-F1

87-A21-443-040 C-IC,M62495AFP 87-070-289-040 IC,BU2092F 87-A21-695-010 IC,LA1845L 87-070-127-010 IC,LC72131D 87-A21-269-010 IC,EW732

TRANSISTOR

87-A30-515-080 TR,2SA1979O/Y 87-A30-559-010 TR,CSB1370EF 87-A30-492-080 TR,2SC5343G 87-A30-076-080 C-TR,2SC3052F 87-A30-075-080 C-TR,2SA1235F

87-A30-107-070 C-TR,CMBT5401 87-A30-484-080 C-TR,KRA102S 87-026-610-080 TR,KTC3198GR 87-A30-074-080 C-TR,RT1P 141C 87-026-609-080 TR,KTA1266GR

87-A30-190-080 TR,CC5551 87-A30-106-040 C-TR,CMBT5551 87-026-227-080 C-TR,DTA114EK 87-A30-087-080 C-FET,2SK2158 87-A30-098-010 TR,FP 1016

87-A30-097-010 TR,FN 1016 87-A30-162-010 FET,2SK2937 87-A30-091-080 FET,2SJ460 87-A30-090-080 FET,2SK2541 87-A30-062-080 C-TR,KRC104S

87-A30-582-080 TR,CDA1585BC 87-A30-495-080 TR,2SA1981Y 87-A30-142-040 C-TR,DTA123EKA 87-A30-218-080 TR,2SB1237(Q) 89-327-143-080 TR,2SC2714O

87-A30-489-080 C-TR,KRA107S 89-503-602-080 C-FET,2SK360E 87-A30-521-080 C-TR,2SC5345S(O) 87-A30-234-080 TR,CSC4115BC

DIODE

87-017-447-010 DIODE,GBU4DL-6419 87-A40-553-080 DIODE,1N4003 LES 87-A40-780-080 ZENER,UZ33BSD 87-020-465-080 DIODE,1SS133 (110MA) 87-A40-764-080 ZENER,UZ10BSC

87-A40-270-080 C-DIODE,MC2838 87-A40-269-080 C-DIODE,MC2836 87-A40-234-080 ZENER,MTZJ5.6A 87-A40-646-010 DIODE,FMB-G16L 87-A40-202-080 ZENER,UZ5.1BSB

87-A40-749-080 ZENER,UZ5.6BSB 87-A40-539-080 ZENER,MTZJ2.4A 87-A40-291-080 DIODE,1N4148 (CPT) 87-017-149-080 ZENER,HZS6A2L

MAIN C.B

C3 87-A12-317-080 C-CAP,U 0.1-50 Z F C4 87-A12-317-080 C-CAP,U 0.1-50 Z F C5 87-A12-317-080 C-CAP,U 0.1-50 Z F C6 87-A12-317-080 C-CAP,U 0.1-50 Z F C9 87-A12-317-080 C-CAP,U 0.1-50 Z F

C10 87-A12-317-080 C-CAP,U 0.1-50 Z F C11 87-A12-317-080 C-CAP,U 0.1-50 Z F

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

C12 87-A12-317-080 C-CAP,U 0.1-50 Z F C19 87-016-520-000 CAP,E 3300-65 M SMG C20 87-016-520-000 CAP,E 3300-65 M SMG C21 87-A10-520-000 CAP,E 3300-35 M SMG C22 87-A10-520-000 CAP,E 3300-35 M SMG

C25 87-010-247-080 CAP, ELECT 100-50V C26 87-010-247-080 CAP, ELECT 100-50V C27 87-010-247-080 CAP, ELECT 100-50V C28 87-010-247-080 CAP, ELECT 100-50V C30 87-010-430-080 CAP, ELECT 100-63

C31 87-A12-062-080 CAP,E 100-10 SMG C32 87-012-286-080 CAP, U 0.01-25 C33 87-A12-062-080 CAP,E 100-10 SMG C34 87-010-247-080 CAP, ELECT 100-50V C35 87-A12-066-080 CAP,E 47-16 SMG

C36 87-010-381-080 CAP, ELECT 330-16V C38 87-012-286-080 CAP, U 0.01-25 C60 87-A12-089-080 CAP,E 3.3-50 SMG C61 87-A12-071-080 CAP,E 47-25 SMG C83 87-A12-074-080 CAP,E 470-25 SMG

C97 87-010-759-080 C-CAP,U, 0.1-25F C99 87-010-759-080 C-CAP,U, 0.1-25F C101 87-012-279-080 C-CAP,U 2700P-50 B C102 87-012-279-080 C-CAP,U 2700P-50 B C103 87-A12-090-080 CAP,E 4.7-50 SMG

C104 87-A12-090-080 CAP,E 4.7-50 SMG C107 87-A12-091-080 CAP,E 10-50 SMG C108 87-A12-091-080 CAP,E 10-50 SMG C109 87-012-199-080 C-CAP,U 220P-50 J CH C110 87-012-199-080 C-CAP,U 220P-50 J CH

C111 87-010-392-080 CAP ELECT 33-35 SME C112 87-010-392-080 CAP ELECT 33-35 SME C113 87-A10-596-080 C-CAP,S 100P-100 J CH C114 87-A10-596-080 C-CAP,S 100P-100 J CH C115 87-012-167-080 C-CAP,U 5P-50 CH

C116 87-012-167-080 C-CAP,U 5P-50 CH C117 87-A12-317-080 C-CAP,U 0.1-50 Z F C118 87-A12-317-080 C-CAP,U 0.1-50 Z F C119 87-A12-317-080 C-CAP,U 0.1-50 Z F C120 87-A12-317-080 C-CAP,U 0.1-50 Z F

C121 87-A12-090-080 CAP,E 4.7-50 SMG C122 87-A12-090-080 CAP,E 4.7-50 SMG C123 87-010-986-080 C-CAP,S 820P-50 J CH C124 87-010-986-080 C-CAP,S 820P-50 J CH C133 87-012-282-080 CAP, U 4700P-50

C140 87-012-278-080 C-CAP,U 2200P-50 B C186 87-010-759-080 C-CAP,U, 0.1-25F C187 87-A10-119-080 CAP,E 10-100 REA C188 87-A10-119-080 CAP,E 10-100 REA C191 87-A10-812-080 C-CAP,S 220P-200 J CH

C192 87-A10-812-080 C-CAP,S 220P-200 J CH C225 87-A12-317-080 C-CAP,U 0.1-50 Z F C226 87-A12-317-080 C-CAP,U 0.1-50 Z F C227 87-A12-317-080 C-CAP,U 0.1-50 Z F C228 87-A12-317-080 C-CAP,U 0.1-50 Z F

C229 87-012-287-080 C-CAP,U 0.015-25 F C230 87-012-287-080 C-CAP,U 0.015-25 F C231 87-012-286-080 CAP, U 0.01-25 C232 87-012-286-080 CAP, U 0.01-25 C241 87-010-759-080 C-CAP,U, 0.1-25F

C301 87-012-274-080 C-CAP,U 1000P-50 K B C302 87-012-274-080 C-CAP,U 1000P-50 K B C303 87-012-275-080 C-CAP,U 1200P-50 K B C304 87-012-275-080 C-CAP,U 1200P-50 K B C307 87-A12-062-080 CAP,E 100-10 SMG

C308 87-A12-062-080 CAP,E 100-10 SMG C309 87-012-195-080 C-CAP,U 100P-50CH C310 87-012-195-080 C-CAP,U 100P-50CH C313 87-012-284-080 CAP, U 6800P-50 C314 87-012-284-080 CAP, U 6800P-50

DESCRIPTIONREF. NO. KANRI

– 6 –

Page 7

PART NO.

NO.

C315 87-A12-062-080 CAP,E 100-10 SMG C317 87-A12-085-080 CAP,E 0.33-50 SMG C318 87-A12-085-080 CAP,E 0.33-50 SMG C326 87-016-118-080 C-CAP,U0.022-25JB C327 87-A12-317-080 C-CAP,U 0.1-50 Z F

C360 87-A12-087-080 CAP,E 1-50 SMG C365 87-010-759-080 C-CAP,U, 0.1-25F C399 87-012-270-080 CAP, U 470P-50 C401 87-A12-083-080 CAP,E 0.1-50 SMG C402 87-A12-083-080 CAP,E 0.1-50 SMG

C403 87-012-193-080 C-CAP,U 82P-50 CH C404 87-012-193-080 C-CAP,U 82P-50 CH C405 87-012-286-080 CAP, U 0.01-25 C406 87-012-286-080 CAP, U 0.01-25 C407 87-012-286-080 CAP, U 0.01-25

C408 87-012-286-080 CAP, U 0.01-25 C409 87-012-278-080 C-CAP,U 2200P-50 B C410 87-012-278-080 C-CAP,U 2200P-50 B C411 87-A12-091-080 CAP,E 10-50 SMG C412 87-A12-091-080 CAP,E 10-50 SMG

C452 87-A12-092-080 CAP,E 22-50 SMG C453 87-012-279-080 C-CAP,U 2700P-50 B C454 87-012-279-080 C-CAP,U 2700P-50 B C455 87-012-279-080 C-CAP,U 2700P-50 B C456 87-012-286-080 CAP, U 0.01-25

C457 87-A12-361-080 CAP,M 5600P-100 J CP C458 87-012-274-080 CHIP CAP,U 1000P-50B C459 87-012-271-080 CAP, U 560P-50 C460 87-010-759-080 C-CAP,U, 0.1-25F C461 87-012-269-080 C-CAP,U 390P-50 B

C462 87-012-269-080 C-CAP,U 390P-50 B C470 87-018-127-080 CAP, CER 470P-50V C605 87-012-275-080 C-CAP,U 1200P-50 B C606 87-012-275-080 C-CAP,U 1200P-50 B C609 87-012-287-080 C-CAP,U 0.015-25 F

C610 87-012-287-080 C-CAP,U 0.015-25 F C611 87-A12-084-080 CAP,E 0.22-50 SMG C612 87-A12-084-080 CAP,E 0.22-50 SMG C613 87-A12-084-080 CAP,E 0.22-50 SMG C614 87-A12-084-080 CAP,E 0.22-50 SMG

C615 87-012-172-080 C-CAP,U 10P-50 D CH C616 87-010-221-080 CAP, ELECT 470-10V C617 87-010-221-080 CAP, ELECT 470-10V C618 87-A12-091-080 CAP,E 10-50 SMG C620 87-010-263-080 CAP, ELECT 100-10V

C623 87-010-402-080 CAP, ELECT 2.2-50V C624 87-010-402-080 CAP, ELECT 2.2-50V C630 87-010-759-080 C-CAP,U, 0.1-25F C669 87-012-195-080 C-CAP,U 100P-50CH C670 87-012-195-080 C-CAP,U 100P-50CH

C677 87-012-286-080 CAP, U 0.01-25 C771 87-A12-062-080 CAP,E 100-10 SMG C772 87-012-286-080 CAP, U 0.01-25 C782 87-012-286-080 CAP, U 0.01-25 C783 87-012-286-080 CAP, U 0.01-25

C784 87-012-286-080 CAP, U 0.01-25 C785 87-012-286-080 CAP, U 0.01-25 C786 87-012-286-080 CAP, U 0.01-25 C788 87-012-167-080 C-CAP,U 5P-50 CH C789 87-A12-052-080 C-CAP,S 0.033-25 J B

C790 87-A12-052-080 C-CAP,S 0.033-25 J B C791 87-010-831-080 C-CAP,U,0.1-16F C792 87-012-286-080 CAP, U 0.01-25 C793 87-A12-090-080 CAP,E 4.7-50 SMG C795 87-012-286-080 CAP, U 0.01-25

C796 87-012-286-080 CAP, U 0.01-25 C797 87-A12-091-080 CAP,E 10-50 SMG C798 87-012-286-080 CAP, U 0.01-25 C799 87-A12-093-080 CAP,E 33-50 SMG C800 87-010-829-080 CAP, U 0.047-16

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

C801 87-A12-089-080 CAP,E 3.3-50 SMG C802 87-010-829-080 CAP, U 0.047-16 C803 87-010-787-080 CAP, U 0.022-25 C804 87-A12-062-080 CAP,E 100-10 SMG C807 87-A12-086-080 CAP,E 0.47-50 SMG

C808 87-A12-087-080 CAP,E 1-50 SMG C809 87-A12-087-080 CAP,E 1-50 SMG C810 87-010-831-080 C-CAP,U,0.1-16F C814 87-012-286-080 CAP, U 0.01-25 C815 87-A12-086-080 CAP,E 0.47-50 SMG

C816 87-A12-086-080 CAP,E 0.47-50 SMG C821 87-A12-091-080 CAP,E 10-50 SMG C823 87-010-986-080 C-CAP,S 820P-50 J CH C824 87-A12-090-080 CAP,E 4.7-50 SMG C825 87-010-829-080 CAP, U 0.047-16

C842 87-012-286-080 CAP, U 0.01-25 C844 87-012-286-080 CAP, U 0.01-25 C850 87-A12-071-080 CAP,E 47-25 SMG C851 87-012-286-080 CAP, U 0.01-25 C852 87-012-286-080 CAP, U 0.01-25

C853 87-012-286-080 CAP, U 0.01-25 C858 87-010-831-080 C-CAP,U,0.1-16F C901 87-018-145-080 CAP,TC-U 6.8P-50 CH C904 87-012-286-080 C-CAP,U 0.01-25 C905 87-012-286-080 C-CAP,U 0.01-25

C907 87-012-286-080 C-CAP,U 0.01-25 C908 87-A10-915-080 C-CAP,U 1000P-25 J CH C909 87-012-286-080 C-CAP,U 0.01-25 C910 87-012-174-080 C-CAP,U 12P-50 J CH C911 87-012-170-080 C-CAP,U 8P-50 CH

C912 87-012-195-080 C-CAP,U 100P-50CH C913 87-012-286-080 C-CAP, U 0.01-25 C914 87-012-166-080 C-CAP,U 4P-50 C CH C915 87-012-174-080 C-CAP,U 12P-50 J CH C916 87-012-180-080 C-CAP,U 22P-50 CH

C917 87-012-186-080 C-CAP,U 39P-50 CH C918 87-A10-039-080 C-CAP,U 470P-50 J CH C921 87-012-195-080 C-CAP,U 100P-50CH C922 87-012-174-080 C-CAP,U 12P-50-J CH C959 87-010-831-080 C-CAP,U,0.1-16F

C960 87-010-831-080 C-CAP,U,0.1-16F C961 87-012-167-080 C-CAP,U 5P-50 CH C963 87-015-785-080 C-CAP,0.1-25 Z F C971 87-A12-067-080 CAP,E 330-16 SMG C972 87-A12-090-080 CAP,E 4.7-50 SMG

C973 87-012-286-080 CAP, U 0.01-25 C974 87-012-286-080 CAP, U 0.01-25 C979 87-012-195-080 C-CAP,U 100P-50CH C981 87-A12-071-080 CAP,E 47-25 SMG C982 87-010-831-080 C-CAP,U,0.1-16F

C983 87-012-286-080 CAP, U 0.01-25 C984 87-012-286-080 CAP, U 0.01-25 C987 87-012-286-080 CAP, U 0.01-25 C991 87-012-176-080 C-CAP,U 15P-50 J CH C992 87-012-176-080 C-CAP,U 15P-50 J CH

C993 87-012-274-080 CHIP CAP,U 1000P-50B C995 87-012-274-080 CHIP CAP,U 1000P-50B C997 87-010-831-080 C-CAP,U,0.1-16F C998 87-A12-071-080 CAP,E 47-25 SMG C999 87-A11-155-080 CAP,TC U 0.01-16 Z F

CF831 87-008-261-010 FILTER, SFE10.7MA5 CF832 87-008-261-010 FILTER, SFE10.7MA5 CN301 87-A60-620-010 CONN,3P V 2MM JMT CN351 87-A60-625-010 CONN,8P V 2MM JMT CN501 87-099-564-010 CONN,4P TUC-P4P-B1

CN601 87-099-719-010 CONN,30P TYK-B(X) CN602 87-A60-131-010 CONN,6P V FE CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480) D902 87-A40-128-080 C-VARI-CAP,HVU202A D903 87-A40-128-080 C-VARI-CAP,HVU202A

DESCRIPTIONREF. NO. KANRI

– 7 –

Page 8

PART NO.

NO.

FFC602 88-906-321-110 FF-CABLE,6P 1.25 320MM J201 87-A61-480-010 JACK,DIA6.3 BLK ST W/SW MSC16A J203 87-A60-238-010 TERMINAL,SP 4P (MSC) J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02

JR123 87-A10-596-080 C-CAP,S 100P-100 J CH JR124 87-A10-596-080 C-CAP,S 100P-100 J CH L201 87-A50-610-010 COIL,1UH K(MDEC) L202 87-A50-610-010 COIL,1UH K(MDEC) L451 87-007-342-010 COIL,OSC 85K BIAS

L801 87-A50-608-010 COIL,FM DET-N(TOK) L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK) L811 87-005-847-080 COIL,2.2UH(CECS) L832 87-005-847-080 COIL,2.2UH(CECS) L902 88-ZA1-602-110 COIL,FM-RF-U2 2G

L903 88-ZA1-601-010 COIL,FM-RF-U1 2G L904 87-005-847-080 COIL,2.2UH(CECS) L905 88-ZA1-624-010 COIL,FM IFT 7-6.2 (COILS) L906 88-ZA1-603-010 COIL,FM-OSC-U 2G L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)

R129 87-A00-262-080 RES,M/F 0.15-2W J R130 87-A00-262-080 RES,M/F 0.15-2W J R131 87-A00-262-080 RES,M/F 0.15-2W J R132 87-A00-262-080 RES,M/F 0.15-2W J R243 87-A00-441-050 RES,270-1/2W J RP

R244 87-A00-441-050 RES,270-1/2W J RP R245 87-A00-442-050 RES,330-1/2W J RP R246 87-A00-442-050 RES,330-1/2W J RP R790 87-012-286-080 CAP, U 0.01-25 R991 87-012-195-080 C-CAP,U 100P-50CH

R993 87-012-195-080 C-CAP,U 100P-50CH R995 87-012-195-080 C-CAP,U 100P-50CH SFR451 87-024-435-080 SFR 33K RH 063MC SFR452 87-024-435-080 SFR 33K RH 063MC TH101 87-A91-042-080 C-THMS,100K 55001

TH102 87-A91-042-080 C-THMS,100K 55001 WH1 87-A90-510-010 HLDR,WIRE 2.5-9P X992 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST

FRONT C.B

C100 87-A10-047-080 C-CAP,U 1-10 Z F C106 87-010-248-040 CAP,E 220-10 M 11L SME C107 87-010-759-080 C-CAP,U, 0.1-25F C108 87-012-278-080 C-CAP,U 2200P-50 B C110 87-010-248-040 CAP,E 220-10 M 11L SME

C111 87-A10-260-080 C-CAP,U 0.1-16 K B C112 87-010-493-040 CAP,E 0.47-50 M 5L SRE C113 87-012-274-080 CHIP CAP,U 1000P-50B C116 87-010-759-080 C-CAP,U 0.1-25F C117 87-010-872-080 C-CAP,U 470P-50 SL

C122 87-012-369-080 C-CAP,S 0.047-50F C123 87-010-408-040 CAP,E 47-50 SME C124 87-010-421-040 CAP,E 4.7-50 5L C125 87-010-421-040 CAP,E 4.7-50 5L C132 87-012-199-080 C-CAP,U 220P-50 J CH

C133 87-012-184-080 C-CAP,U 33P-50 CH C135 87-018-209-080 CAP, CER 0.1-50V C137 87-012-178-080 C-CAP,U 18P-50 CH C138 87-010-759-080 C-CAP,U, 0.1-25F C251 87-010-759-080 C-CAP,U, 0.1-25F

C252 87-012-199-080 CAP 220P C253 87-012-195-080 C-CAP,U 100P-50CH C301 87-012-358-080 C-CAP,S 0.47-10 Z F C302 87-012-335-080 C-CAP,U 270P-50 J SL C303 87-012-358-080 C-CAP,S 0.47-10 Z F

C304 87-012-358-080 C-CAP,S 0.47-10 Z F C305 87-010-759-080 C-CAP,U, 0.1-25F C306 87-010-759-080 C-CAP,U, 0.1-25F C310 87-010-759-080 C-CAP,U, 0.1-25F

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

C311 87-010-405-040 CAP,E 10-50 C411 87-012-157-080 C-CAP,S 330P-50 CH C412 87-010-405-040 CAP,E 10-50 C421 87-012-274-080 C-CAP,U 1000P-50 K B C422 87-012-274-080 C-CAP,U 1000P-50 K B

C651 87-012-274-080 C-CAP,U 1000P-50 K B C652 87-012-274-080 C-CAP,U 1000P-50 K B C940 87-012-145-080 C-CAP,S 270P-50 J CH C941 87-012-145-080 C-CAP,S 270P-50 J CH C942 87-012-145-080 C-CAP,S 270P-50 J CH

C943 87-012-145-080 C-CAP,S 270P-50 J CH C944 87-012-145-080 C-CAP,S 270P-50 J CH C945 87-012-145-080 C-CAP,S 270P-50 J CH C946 87-012-145-080 C-CAP,S 270P-50 J CH C947 87-012-145-080 C-CAP,S 270P-50 J CH

C948 87-012-145-080 C-CAP,S 270P-50 J CH C949 87-012-145-080 C-CAP,S 270P-50 J CH C950 87-012-145-080 C-CAP,S 270P-50 J CH C951 87-012-145-080 C-CAP,S 270P-50 J CH C952 87-012-145-080 C-CAP,S 270P-50 J CH

CN101 87-099-720-010 CONN,30P TYK-B(P) CN104 87-A60-136-010 CONN,11P V FE CN1000 87-A60-133-010 CONN,8P V FE CNA302 8B-MA5-652-010 CONN ASSY,2P V (100MM) FFC104 88-911-151-110 FF-CABLE,11P 1.25 15

FFC1000 88-908-271-210 FF-CABLE,8P 1.25 27 FL101 8B-MA5-671-010 FL,BJ823GNK L101 87-A50-333-010 COIL,OSC 9.43MHZ LED131 87-A40-317-080 LED,SLR-342VCT31 RED LED202 87-A41-056-040 LED,HLMF-D405 ORANGE

LED205 87-A41-056-040 LED,HLMF-D405 ORANGE LED210 87-A41-056-040 LED,HLMF-D405 ORANGE LED212 87-A41-056-040 LED,HLMF-D405 ORANGE LED682 87-A41-056-040 LED,HLMF-D405 ORANGE LED683 87-A41-056-040 LED,HLMF-D405 ORANGE

LED684 87-A41-056-040 LED,HLMF-D405 ORANGE LED685 87-A41-056-040 LED,HLMF-D405 ORANGE LED698 87-A41-056-040 LED,HLMF-D405 ORANGE S401 87-A90-095-080 SW,TACT EVQ11G04M S402 87-A90-095-080 SW,TACT EVQ11G04M

S405 87-A90-095-080 SW,TACT EVQ11G04M S421 87-A92-071-010 SW,RTRY EC12E24508-30MM S651 87-A91-542-010 SW,RTRY EC12E12504 S805 87-A90-095-080 SW,TACT EVQ11G04M S806 87-A90-095-080 SW,TACT EVQ11G04M

S807 87-A90-095-080 SW,TACT EVQ11G04M S808 87-A90-095-080 SW,TACT EVQ11G04M S809 87-A90-095-080 SW,TACT EVQ11G04M S821 87-A90-095-080 SW,TACT EVQ11G04M S822 87-A90-095-080 SW,TACT EVQ11G04M

S823 87-A90-095-080 SW,TACT EVQ11G04M S825 87-A90-095-080 SW,TACT EVQ11G04M S826 87-A90-095-080 SW,TACT EVQ11G04M S827 87-A90-095-080 SW,TACT EVQ11G04M S828 87-A90-095-080 SW,TACT EVQ11G04M

S829 87-A90-095-080 SW,TACT EVQ11G04M S830 87-A90-095-080 SW,TACT EVQ11G04M S831 87-A90-095-080 SW,TACT EVQ11G04M S842 87-A90-095-080 SW,TACT EVQ11G04M S843 87-A90-095-080 SW,TACT EVQ11G04M

S845 87-A90-095-080 SW,TACT EVQ11G04M S846 87-A90-095-080 SW,TACT EVQ11G04M S849 87-A90-095-080 SW,TACT EVQ11G04M S851 87-A90-095-080 SW,TACT EVQ11G04M

KEY CD C.B

CNA702 87-A60-666-010 CONN,2P H 2MM JMT S751 87-A90-095-080 SW,TACT EVQ11G04M S752 87-A90-095-080 SW,TACT EVQ11G04M

DESCRIPTIONREF. NO. KANRI

– 8 –

Page 9

PART NO.

DESCRIPTIONREF. NO. KANRI

NO.

S753 87-A90-095-080 SW,TACT EVQ11G04M S754 87-A90-095-080 SW,TACT EVQ11G04M S755 87-A90-095-080 SW,TACT EVQ11G04M

FAN C.B

C501 87-010-401-080 CAP, ELECT 1-50V C502 87-010-374-080 CAP, ELECT 47-10V C503 87-010-380-080 CAP, ELECT 47-16V CN502 87-A60-688-010 CONN,4P H GRY TUC-P04X-C1 CN503 87-A60-619-010 CONN,2P V 2MM JMT

PT C.B

CN101 87-A61-110-010 CONN,9P V TID-A

F1 87-035-194-010 FUSE,6.3A 250V T 218

FC1 87-033-213-080 FUSE CLAMP,PFC5000

FC2 87-033-213-080 FUSE CLAMP,PFC5000

PT1 8B-MA5-663-010 PT,BMA-5 LH

PT2 8B-MA6-673-010 PT,SUB BMA H (VRK)

RY101 87-A91-300-010 RELAY,AC 12V-ALA2PF12

S101 87-A90-165-010 SW,SL 1-2-3 SWS2301

T1 87-A60-317-010 TERMINAL,1P MSC

T2 87-A60-317-010 TERMINAL,1P MSC

DECK C.B

CN1 87-099-753-010 CONN,11P H 9604 CNA301 86-ZM3-604-210 CONN ASSY,3P-PB CNA351 86-ZM3-605-110 CONN ASSY,8P-RPB SFR1 87-024-581-010 SFR,3.3K H KVSF637A SW1 87-A90-673-010 SW,MICRO ESE11SH1C

SW2 87-A90-673-010 SW,MICRO ESE11SH1C SW3 87-A90-673-010 SW,MICRO ESE11SH1C SW4 87-A90-673-010 SW,MICRO ESE11SH1C SW5 87-A90-673-010 SW,MICRO ESE11SH1C

PART NO.

NO.

DESCRIPTIONREF. NO. KANRI

– 9 –

Page 10

TRANSISTOR ILLUSTRATION

E C B

KTA1266GR KTC3198GR CSC4115BC CDA1585BC CC5551

B C E

CSB1370EF

E C B

2SA1981Y 2SA1979O/Y 2SC5343G

S D G

2SJ460 2SK2541

B C E

FN1016 FP1016

E C B

2SB1237(Q)

G D S

2SK2937

2SA1235F 2SC2714O 2SC3052F 2SC5345S(O) CMBT5551 CMBT5401

DTA114EK DTA123EKA KRA102S KRA107S KRC104S RT1P141C

2SK360E

CHIP RESISTOR PART CODE

2SK2158

Chip Resistor Part Coding

Resistor Code

Chip resistor

Wattage Type Tolerance 1/16W 1005 5% CJ

1/16W 1/10W

1/8W

1608 2125

3216

5% 5%

Symbol

CJ CJ

Figure

Value of resistor

Form

Dimensions (mm)

0.55

Resistor Code

108 118

128

LW t

1.0 0.5 0.35 104

1.6 0.8 0.45 2 1.25 0.45

3.2

1.6

: A : A

– 10 –

Page 11

WIRING  1 (MAIN)

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 1 1 10 9 8 7 6 5 4 3 2 1

 11 

Page 12

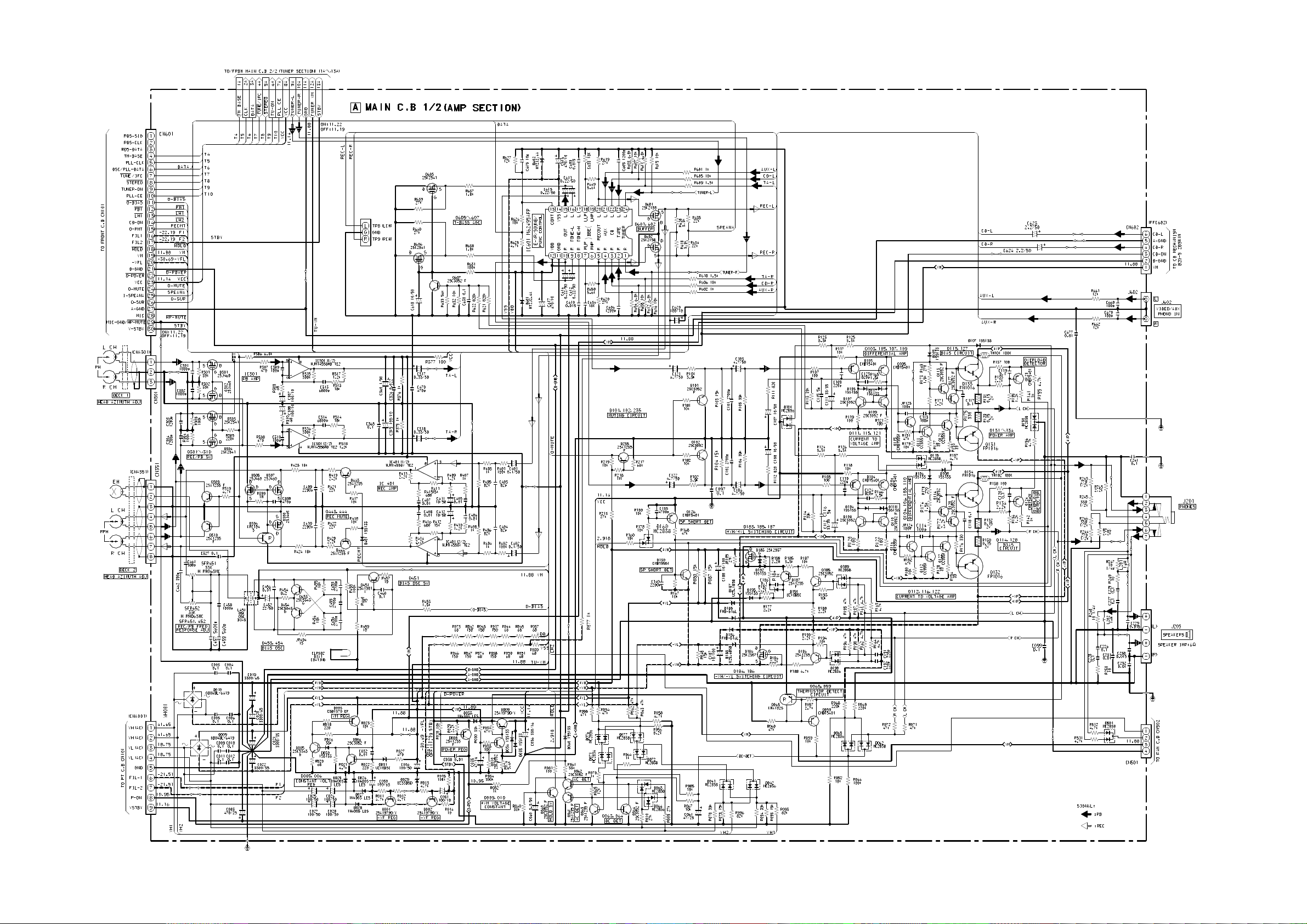

SCHEMATIC DIAGRAM – 1 (MAIN 1 / 2 : AMP SECTION)

– 12 –

Page 13

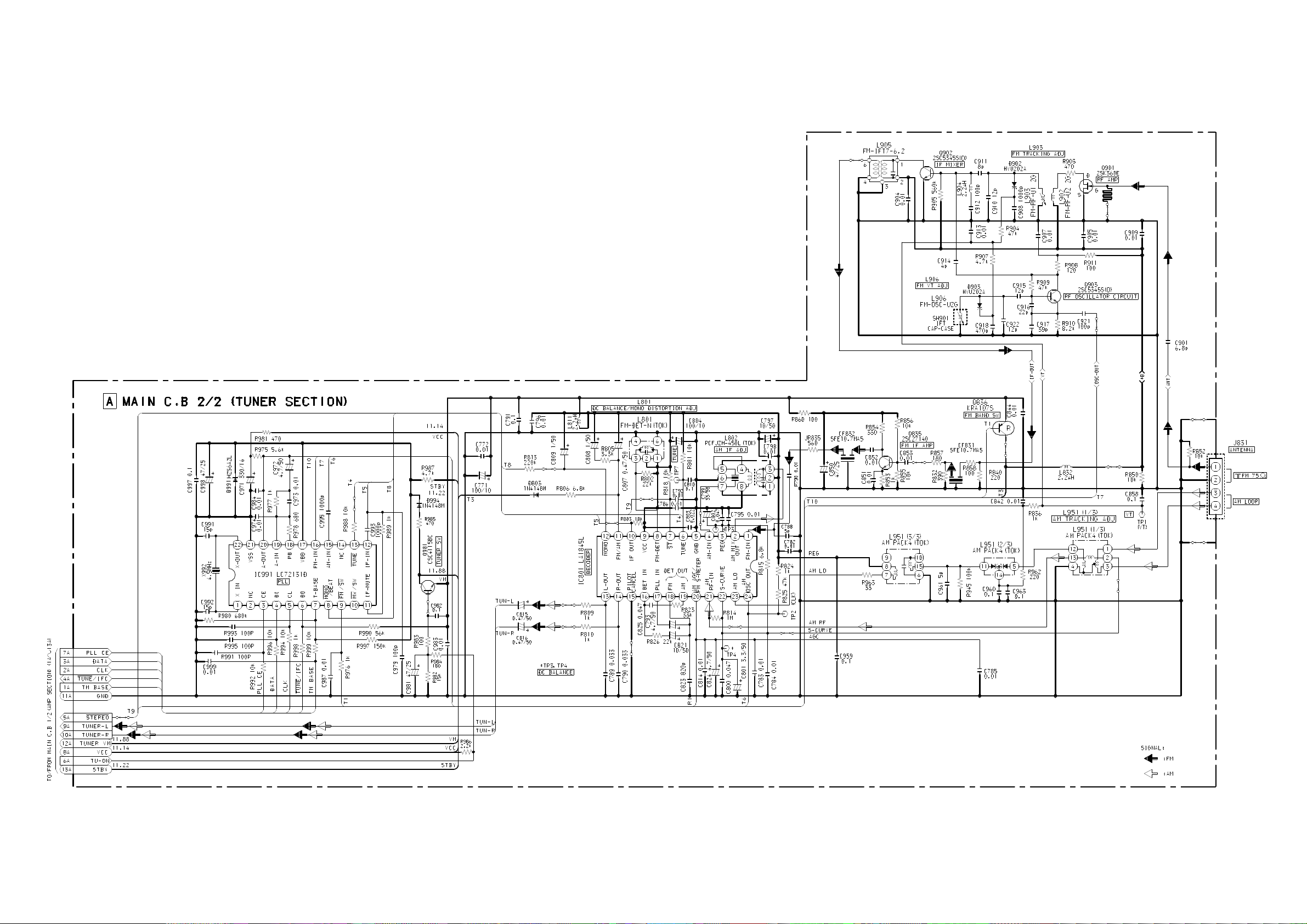

SCHEMATIC DIAGRAM – 2 (MAIN 2 / 2 : TUNER SECTION)

– 13 –

Page 14

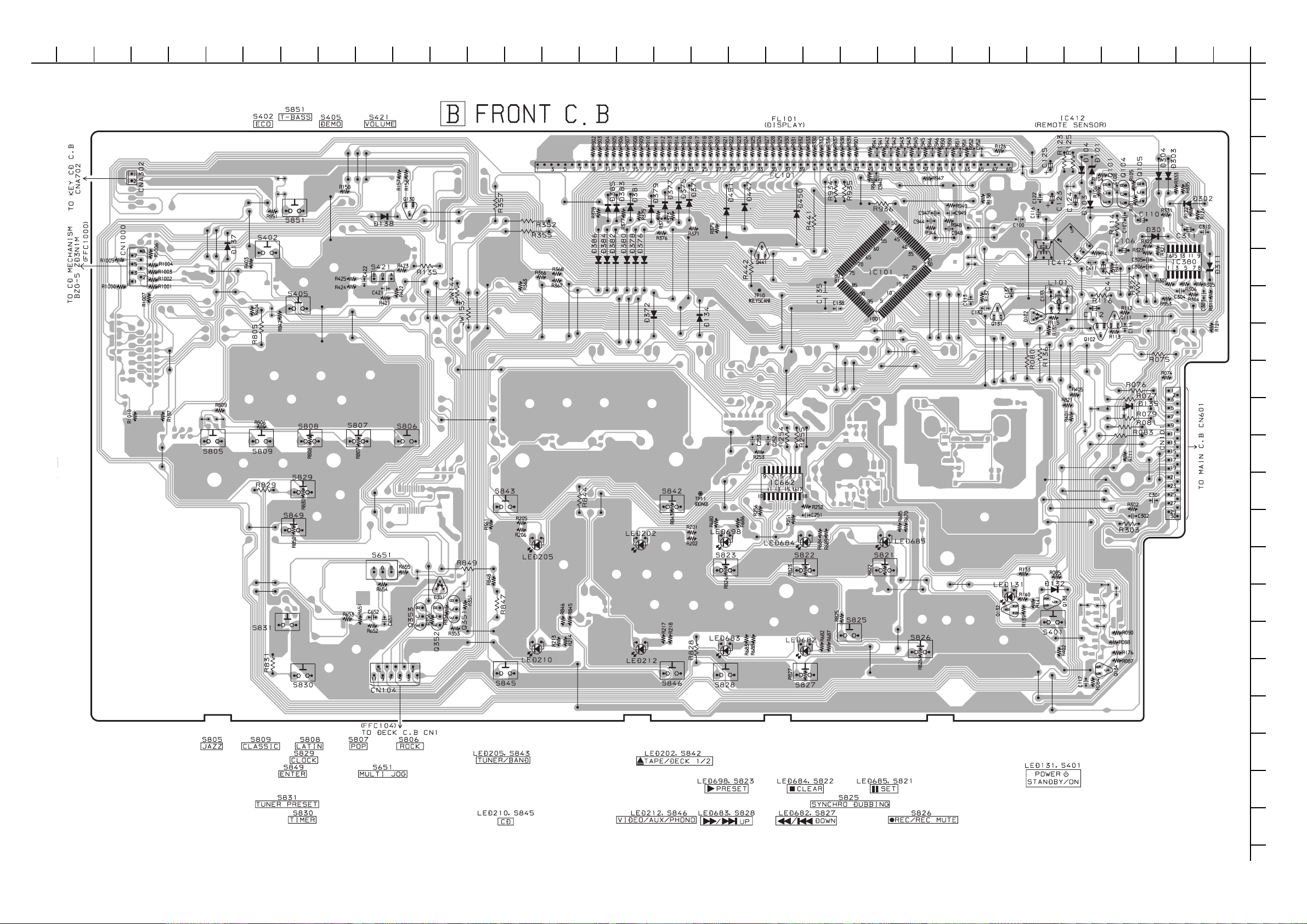

WIRING  2 (FRONT)

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 1 1 10 9 8 7 6 5 4 3 2 1

 14 

Page 15

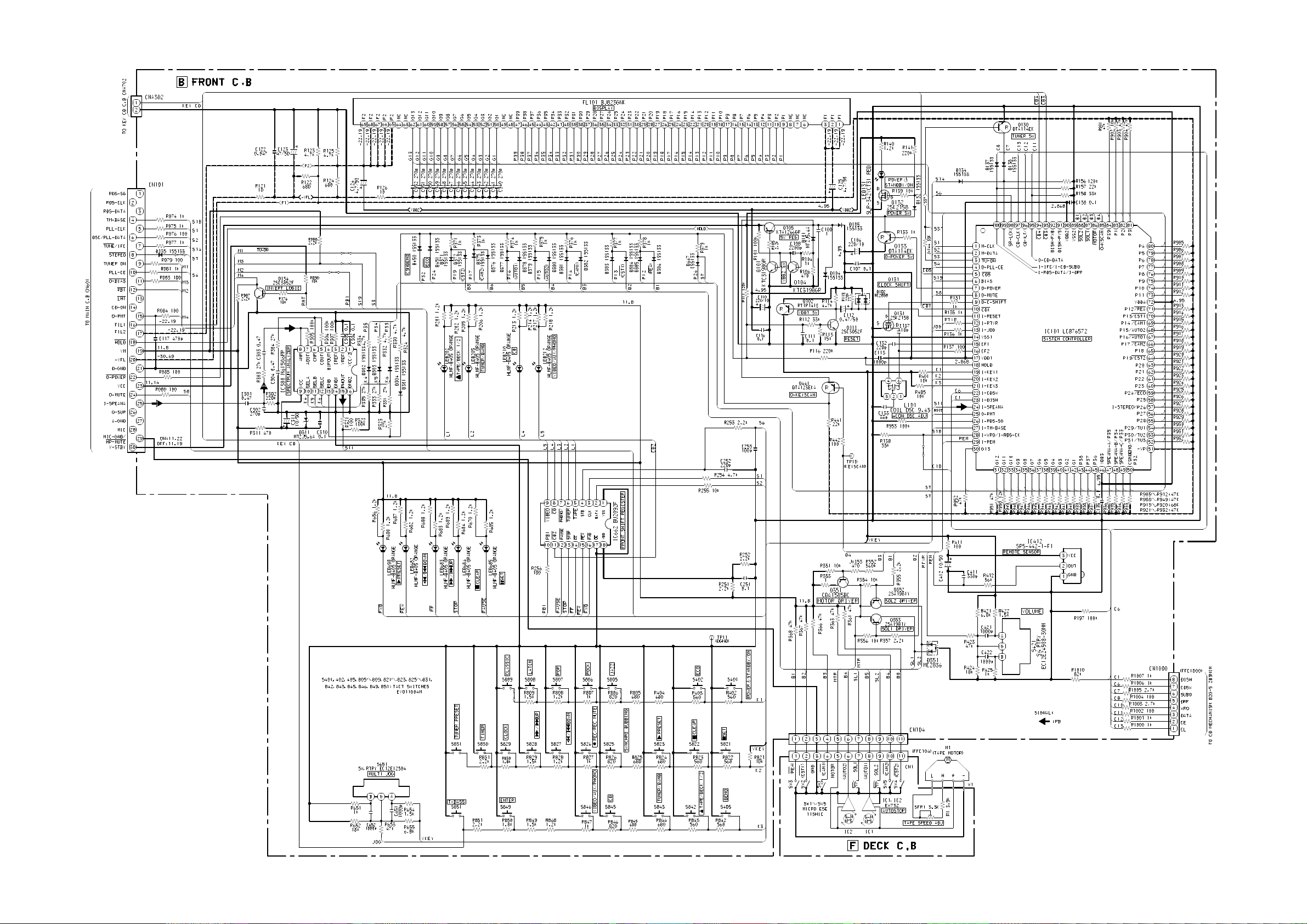

SCHEMATIC DIAGRAM – 3 (FRONT / DECK)

– 15 –

Page 16

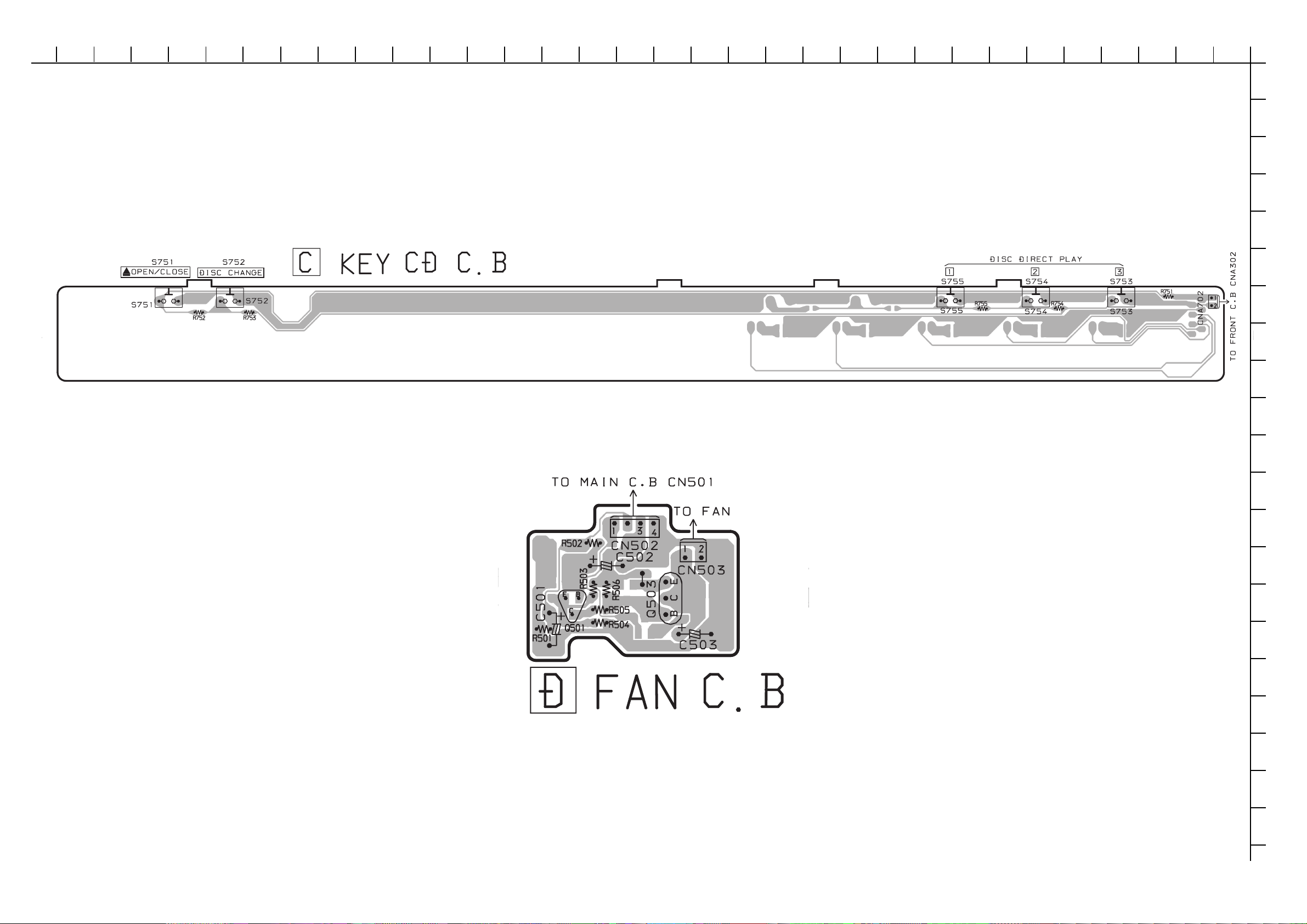

WIRING  3 (KEY CD / FAN)

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 1 1 10 9 8 7 6 5 4 3 2 1

 16 

Page 17

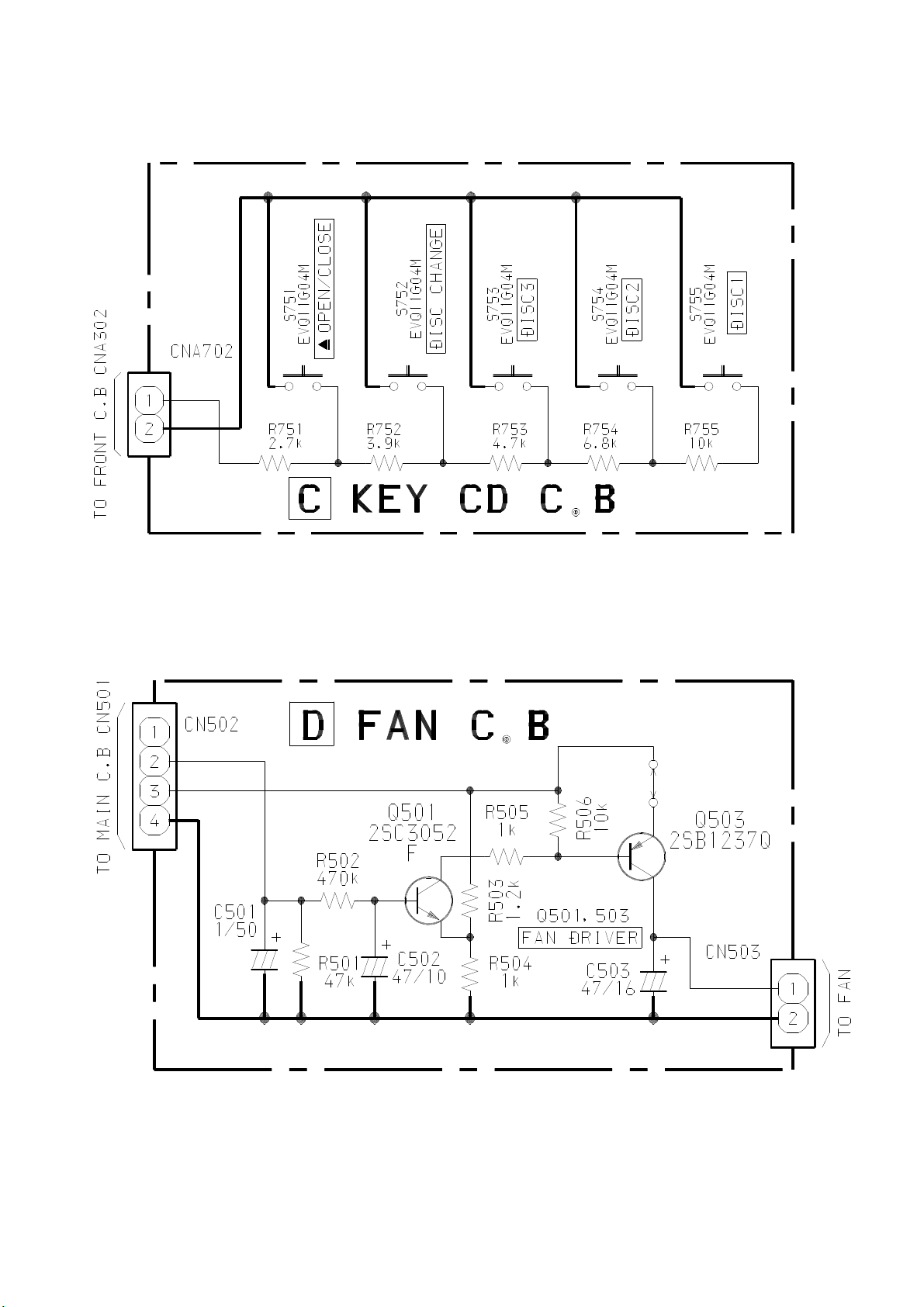

SCHEMATIC DIAGRAM – 4 (KEY CD / FAN)

– 17 –

Page 18

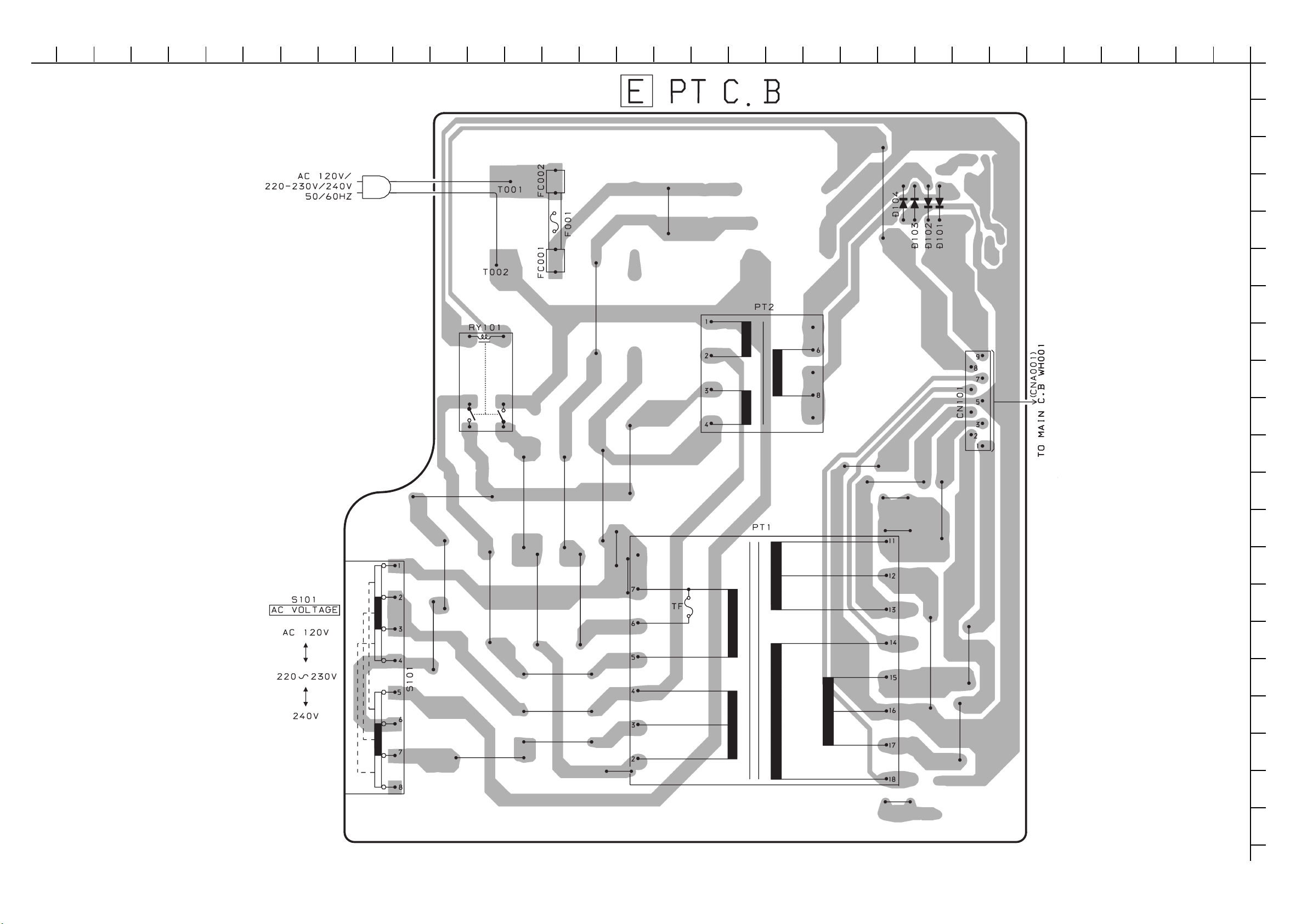

WIRING  4 (PT)

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 1 1 10 9 8 7 6 5 4 3 2 1

 18 

Page 19

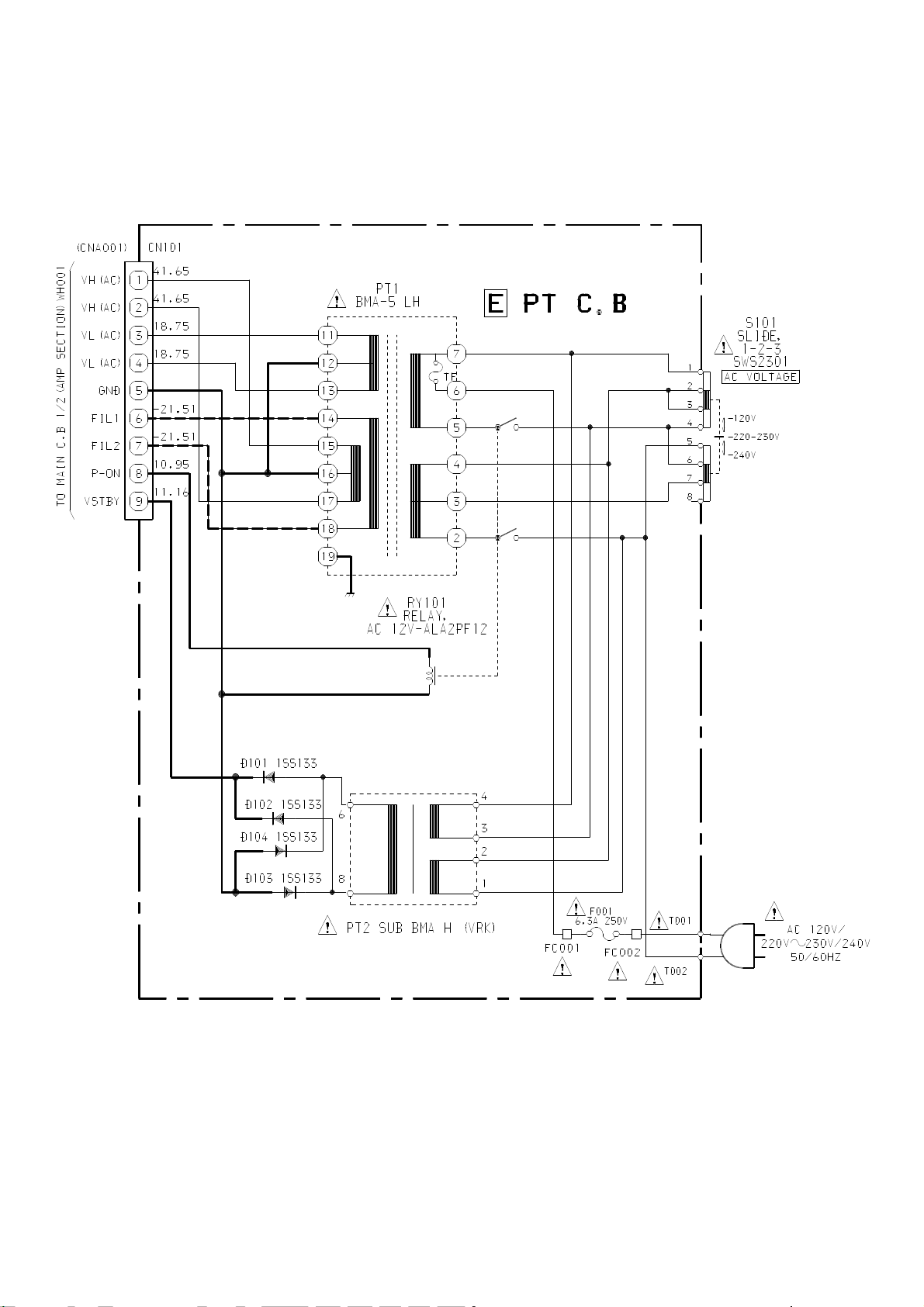

SCHEMATIC DIAGRAM – 5 (PT)

– 19 –

Page 20

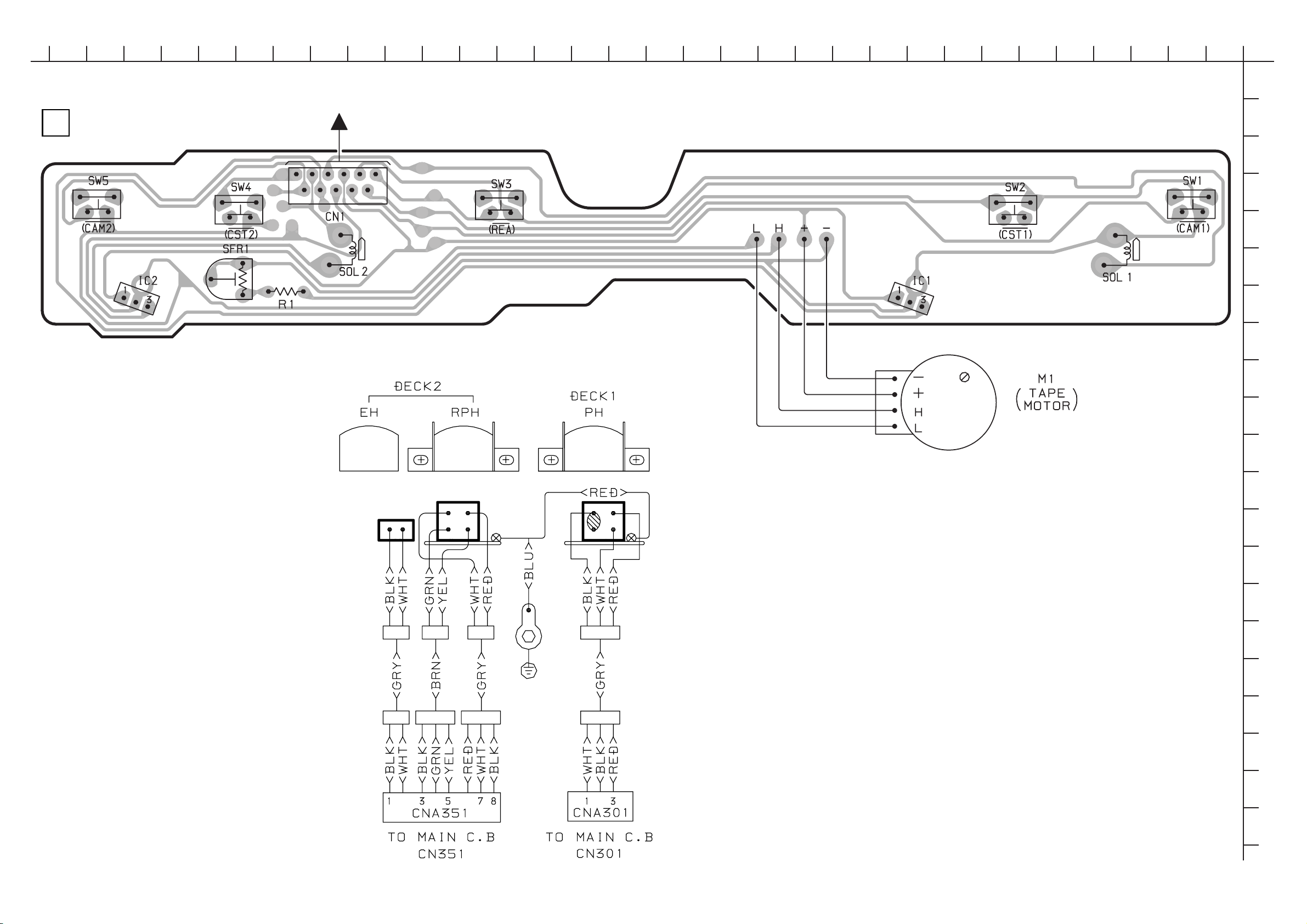

WIRING – 5 (DECK)

F DECK C . B

FRONT C. B CN104

(FFC104)

101112131415161718192021222324

1234567892526272829303132

11 9 7 5 3 1

10 8 6 4 2

– 20 –

Page 21

IC DESCRIPTION

IC, LC876572

Pin No.

1 M-CLK O Common serial clock. 2 M-DATA O Common serial data. 3 TU-ON O Tuner supply control. H: ON. 4 O-PLL-CE O Tuner PLL IC chip enable. 5 CD5 O CD dish LED5. L: ON. 6 BIAS O Recording bias control. L: ON. 7 O-POWER O Audio power ON/OFF. 8 O-MUTE O System mute ON/OFF.

9 O-C-SHIFT O Clock shift output. L: Shift. 10 CD1 O CD dish LED1. L: ON. 11 I-RESET I System reset input. 12 I-RTVR I Volume rotary encoder. 13 I-JOG I Dial jog rotary encoder. 14 VSS1 – Connected to GND. 15 CF1 I Oscillator circuit input. 16 CF2 O Oscillator circuit output.

Pin Name I/O

Description

17 VDD1 – Power supply. 18 HOLD I System hold input.

19 ~ 21 I-KEY1 ~ 3 I Tact key matrix 1 ~ 3 input.

22 I-CDSW I CD MECHA SW matrix input. 23 I-DISH I CD turntable photo sensor. 24 I-SPEANA I Spectrum analyzer level detection. 25 O-RMT O Record ON/OFF control. H: ON. 26 I-RDS-SG I RDS Signal level input. (Not used) 27 I-TM-BASE I Time base clock input. 28 I-WRQ/I-RDS-CK I CD WRQ input/Tuner RDS clock input. (Not used) 29 I-REM I Remote control signal input.

30 ~ 42 G13 ~ G1 O FL grid G13 ~ G1 output. 43 ~ 45 P38 ~ P36 O FL segment P38 ~ P36 output.

46 VDD3 – Power supply. 47 SPEANA–A/P35 O Spectrum analyzer band control A/FL segment P35 output. 48 SPEANA–B/P34 O Spectrum analyzer band control B/FL segment P34 output. 49 SPEANA–C/P33 O Spectrum analyzer band control C/FL segment P33 output. 50 CSNDEMO/P32 I/O Initial DEMO mode detect. H: OFF/FL segment P32 output. 51 –VP – Power supply for FL input. 52 P31/TU3 O/I FL segment P31 output/TUNER series, TU3 select. 53 P30/TU2 O/I FL segment P30 output/TUNER series, TU2 select. 54 P29/TU1 O/I FL segment P29 output/TUNER series, TU1 select. 55 P28 O FL segment P28 output. 56 P27 O FL segment P27 output. 57 I-STEREO/P26 I/O Tuner stereo signal input/FL segment P26 output. 58 P25 O FL segment P25 output.

– 21 –

Page 22

Pin No.

59 P24/ECO O/I FL segment P24 output/ECO setting switching input. H: ECO mode off.

60 ~ 63 P23 ~ P20 O FL segment P23 ~ P20 output.

64 P19/CST2 O/I FL segment P19 output/Deck 2 cassette detection. L: YES. 65 P18 O FL segment P18 output. 66 P17/CAM2 O/I FL segment P17 output/Deck 2 cam SW input. L: ON. 67 P16/AUTO1 O/I FL segment P16 output/Deck 1 auto stop input. 68 P15/AUTO2 O/I FL segment P15 output/Deck 2 auto stop input. 69 P14/CAM1 O/I FL segment P14 output/Deck 1 cam SW input. L: ON. 70 P13/CST1 O/I FL segment P13 output/Deck 1 cassette detection SW. L: YES. 71 P12/REA O/I FL segment P12 output/Deck 2 side-A recordable SW. L: REC. 72 VDD4 – Power supply.

73 ~ 83 P11 ~ P1 O FL segment P11 ~ P1 output.

84 P39 O FL segment P39 output. 85 O-KSCAN O Keyscan output. L: IN. 86 MOTOR O Deck motor ON/OFF control. L: ON. 87 SOL1 O Deck 1 solenoid control. L: ON. 88 SOL2 O Deck 2 solenoid control. L: ON. 89 VSS2 – Connected to GND.

Pin Name I/O

Description

90 VDD2 – Power supply. 91 DISH-RVS O CD dish reverse output. H: REV(2). (Not used) 92 DISH-FWD O CD dish forward output. H: FWD(2). (Not used) 93 CD3 O CD dish LED3. L: ON. 94 CD4 O CD dish LED4. L: ON. 95 O-CD-DATA O Serial data output to CD. 96 CD-XLT O CD DSP serial latch output. 97 CD-CLK O CD DSP serial clock output. 98 SR-LCK O Shift register IC latch clock. 99 I-IFC/I-CD-SUBQ I Tuner IF count data input/CD SUBQ serial data input.

100

I-RDS-DATA/

I-CD-DRF CD RF detect input.

RDS serial data input. (Not used)/

– 22 –

Page 23

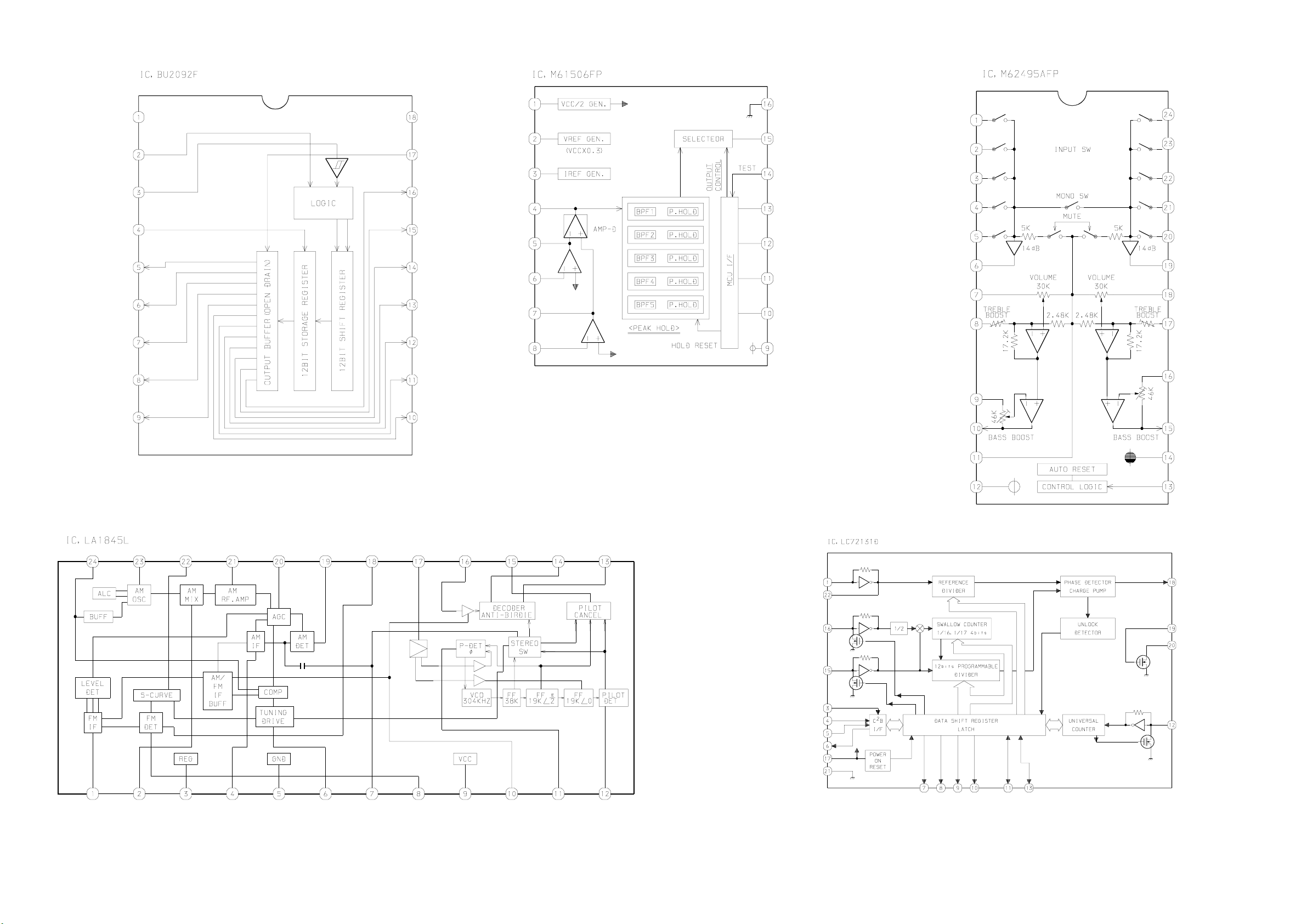

IC BLOCK DIAGRAM

 23 

Page 24

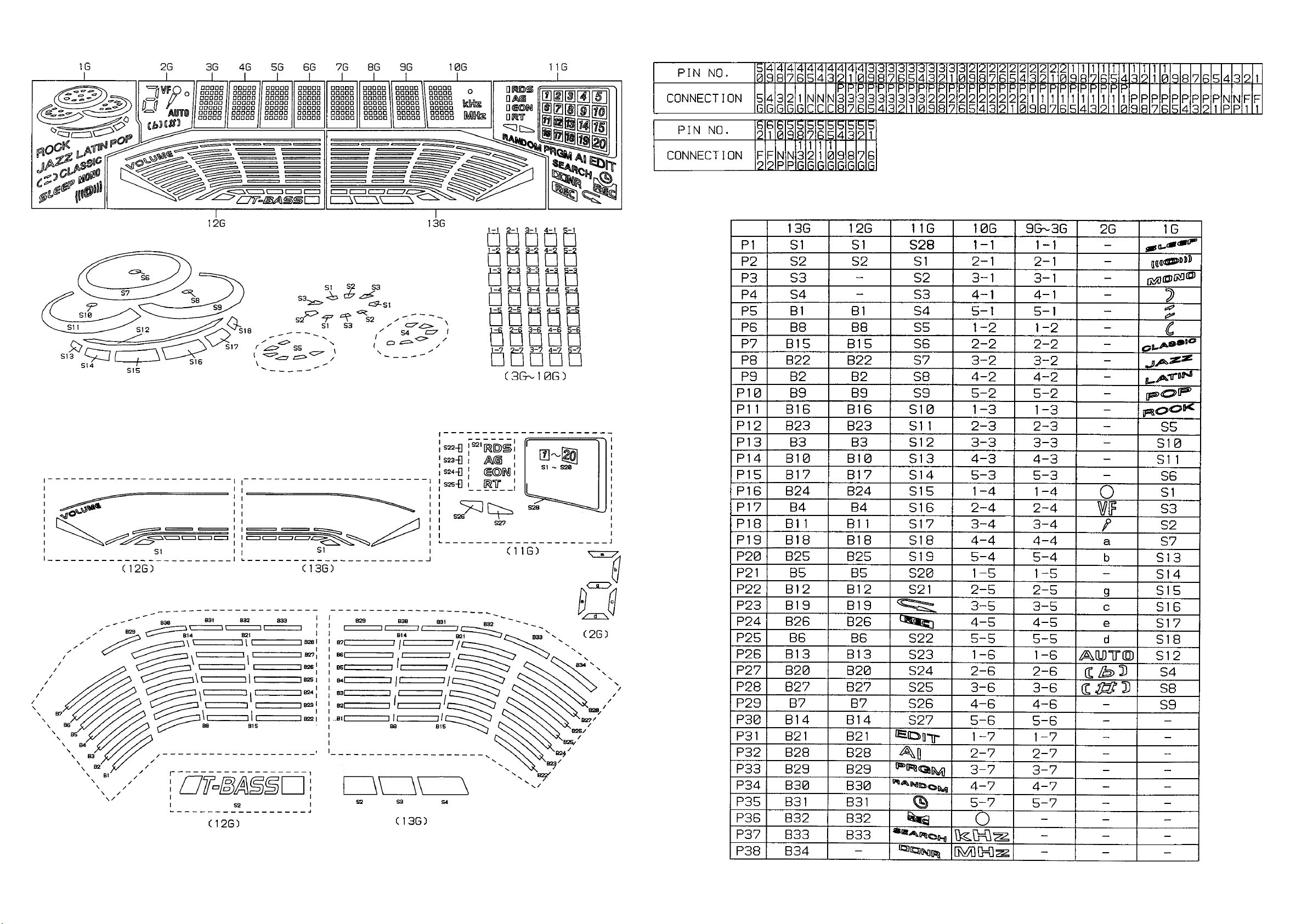

FL (BJ823GNK) GRID ASSIGNMENT & PIN CONNECTION & ANODE CONNECTION

GRID ASSIGNMENT

PIN CONNECTION

ANODE CONNECTION

 24 

Page 25

ADJUSTMENT < TUNER / DECK / FRONT >

< TUNER SECTION >

1. Clock Frequency Check Settings : • Test point : TP2 (CLK) Method : Set to AM 1710 kHz and check that the test point is

2160 kHz ± 45 Hz.

2. AM VT Check Settings : • Test point : TP1 (VT) Method : Set to AM 1710 kHz and check that the test point is

less than 8.5 V. Then set to AM 530 kHz and check that the test point is more than 0.6 V.

3. FM VT Adjustment Settings : • Test point : TP1 (VT)

• Adjustment location : L906

Method : Set to FM 108.0 MHz and adjust L906 so that the test

point becomes 7.0 V ± 0.1 V. Then set to FM 87.5 MHz and check that the test point is more that 0.4 V.

4. AM Tracking Adjustment Settings : • Test point : TP8 (Lch), TP9 (Rch)

• Adjustment location : L951 (1/3)

Method : Set to AM 1000 kHz and adjust L951 (1/3) so that the

test point becomes maximum.

5. FM Tracking Adjustment Settings : • Test point : TP8 (Lch), TP9 (Rch)

• Adjustment location : L903

Method : Set to FM 87.5 MHz and adjust L903 so that the test

point is less than 9dbµV.

7. DC Balance / Mono Distortion Adjustment Settings : • Test point : TP3, TP4 (DC balance)

• Adjustment location :L801

• Input level : 60dBµV

Method : Set to FM 98.0 MHz and adjust L801 so that the

voltage between TP3 and TP4 is 0 V ± 500 mV. Next, check that the distortion is less that 1.2%.

8. Output Level Check <AM> Settings : • Test point : TP8 (Lch), TP9 (Rch)

• Input level : 74dBµV

Method : Set to AM 1000 kHz and check that the test point is

40 mV ± 3dB.

<FM> Settings : • Test point : TP8 (Lch), TP9 (Rch)

• Input level : 60dBµV

Method : Set to FM 98.0 MHz and check that the test point is

200 mV ± 3dB.

9. FM Separation Check Settings : • Test point : TP8 (Lch), TP9 (Rch)

• Input level : 60dBµV

Method : Set to FM 98.0 MHz and check that the test point is

more than 25dB.

6. AM IF Adjustment Settings : • Test point : TP8 (Lch), TP9 (Rch)

• Adjustment location :

L802 ........................... 1000 kHz

– 25 –

Page 26

< DECK SECTION >

10. Tape Speed Adjustment (DECK 2) Settings : • Test tape : TTA–100

• Test point : TP8(Lch), TP9(Rch)

• Adjustment location : SFR1

Method : Play back the test tape and adjust SFR1 so that the fre-

quency counter reads 3000 Hz ± 5 Hz (FWD) and FWD speed ± 45 Hz (REV) with respect to forward speed.

11. Head Azimuth Adjustment (DECK 1, DECK 2) Settings : • Test tape : TTA–330

• Test point : TP8(Lch), TP9(Rch)

• Adjustment location : Head azimuth adjustment screw

Method : Play back (FWD) the 8 kHz signal of the test tape and

adjust screw so that the output becomes maximum. Next, perform on REV PLAY mode.

12. PB Frequency Response Check (DECK 1, DECK 2) Settings : • Test tape : TTA–330

• Test point : TP8(Lch), TP9(Rch)

Method : Play back the 315 Hz and 8 kHz signals of the test tape

and check that the output ratio of the 8 kHz signal with respect to that of the 315 Hz signal is within 5dB.

13. PB Sensitivity Check (DECK 1, DECK 2) Settings : • Test tape : TTA–200

• Test point : TP8(Lch), TP9(Rch)

Method : Play back the test tape and check that the output level of the

test point is 140 mV ± 3dB.

15. REC/PB Sensitivity Check (DECK 2) Settings : • Test tape : TTA–602

• Test point : TP8(Lch), TP9(Rch)

• Input signal : 1 kHz (LINE IN) (OVU)

Method : Apply a 1 kHz signal and REC mode. Then adjust

OSC attenuator so that the output level at TP8, TP9 becomes 0dB (100 mV). Record and play back the 1 kHz signals and check that the output is -1dB ± 3.5dB.

< FRONT SECTION >

16. µ-CON OSC Adjustment Settings : • Test point : TP10 (KEYSCAN)

TP11 (DGND)

• Adjustment location : L101

Method : Insert AC plug while pressing POWER key and TUNER

function key. Connect a frequency counter across TP10 and TP11. Then adjust L101 so that the frequency at the test point is 208.80 Hz ± 0.21 Hz.

[Manual Reset] Make up for RESET after adjustment. * Reset is to press POWER key while pressing CLEAR (STOP) key.

14. REC/PB Frequency Response Adjustment (DECK 2) Settings : • Test tape : TTA–602

• Test point : TP8(Lch), TP9(Rch)

• Input signal : 1 kHz / 10 kHz (LINE IN) (-20VU)

• Adjustment location : SFR451 (Lch) SFR452 (Rch)

Method : Apply a 1 kHz signal and REC mode. Then adjust

OSC attenuator so that the output level at the TP8, TP9 becomes 0dB (10 mV). Record and play back the 1 kHz and 10 kHz signals and adjust SFRs so that the output of the 10 kHz signals becomes 0dB ± 1dB with respect to that of the 1 kHz signal.

– 26 –

Page 27

CD TEST MODE

1. How to Activate CD Test Mode

While pressing and holding the function button, insert the AC plug. When the test mode starts, the message, “TEST” appears on the display.

2. How to Cancel CD Test Mode

Press the POWER button or remove the AC plug. * The test mode is cancelled by other function keys during play.

3. Function and Usage of CD Test Mode

No Mode Button for Display Operation Contents

Activation

1 Start Mode All lights are All FL are lit. • FL check

lit. • Microcomputer check

2 Search Mode STOP button Reading • Laser diode is lit during the • APC circuit check

mode. • Laser current measurement

• Focus search continuous • Focus-search waveform check operation. *1 • Focus-error waveform check

• Spindle motor continuous kick. (DRF is ignored during search

mode)

3 Play Mode PLAY button Normal • Normal playback. • All servo circuits check

• Focus search continues if • DRF check TOC READ cannot be read.

4 Traverse PAUSE Normal • Tracking Servo OFF/ON. • Tracking balance check

Mode button The OFF/ON operation repeats

each time the PAUSE button is pressed.

5 Sled Mode FF button TEST • PU moves to inner track. *2

At the same time, the lens is • Sled circuit check kicked to inner track. • Tracking circuit check

RWD button TEST • PU is moves to outer track. *2 • Mechanism operation check

At the same time, the lens is • PU check kicked to outer track.

6 Spindle Mode REC button All lights are • When the button is pressed, • Spindle circuit check

lit. the spindle motor operates in • Spindle motor check

forward rotation (rough speed). Then, the button is pressed again, it operates in reverse rotation. When the button is pressed again, operation stops.

*1 … When focus search operates continuously more than 10 minutes, the protection circuit may start due to generation of heat in the

driver IC. If this happens, turn off the power, leave the unit for a while, and then, restart.

*2 … Carefully monitor the gear against damage, as the sled motor rotates while the FF or RWD button is pressed even when the

pickup is located at innermost or outermost.

– 27 –

Page 28

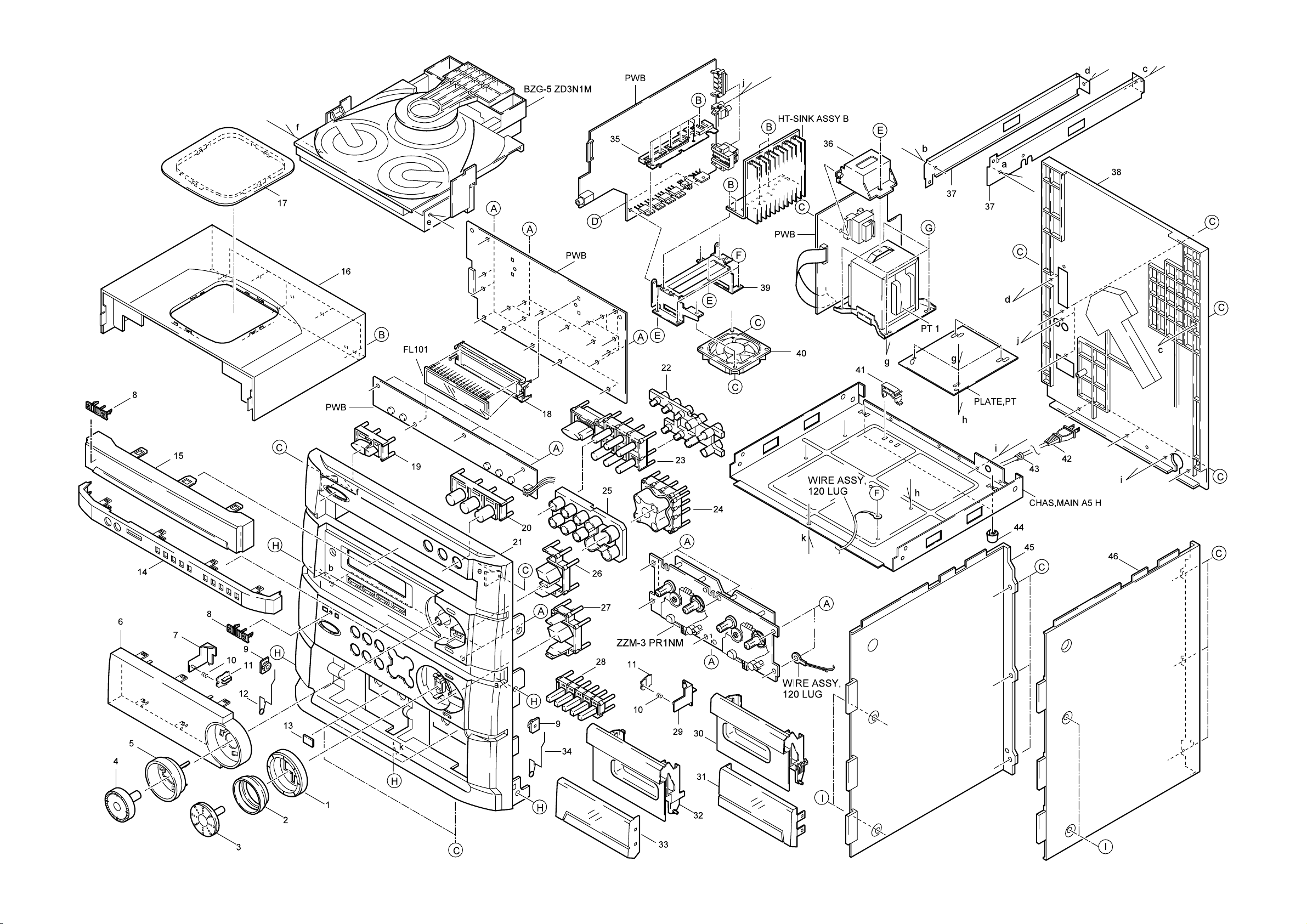

MECHANICAL EXPLODED VIEW 1 / 1

– 28 –

Page 29

MECHANICAL PARTS LIST 1 / 1

PART NO.

NO.

1 8B-MA3-087-010 RING,JOG 2 8B-MA3-088-010 RING,IND 3 8B-MA3-081-010 KNOB,RTRY JOG 4 8B-MA3-105-010 KNOB ASSY,RTRY VOL 5 8B-MA3-086-010 RING,VOL

6 8B-MA5-050-010 WINDOW,DISP A5 7 87-NF4-216-010 HLDR,LOCK 1 8 87-B00-002-010 BADGE,AIWA 30 ABS SIL 9 87-NF8-220-010 DMPR,150 10 86-NF9-224-010 SPR-C,LOCK

11 82-NF5-229-010 PLATE,LOCK 12 8A-MA5-207-010 SPR-T,EJECT 1 13 81-532-080-010 LABEL, CASS. COMPT 14 8B-MA5-031-010 PANEL,GEQ A5 15 8B-MA5-030-010 PANEL,TRAY A5

16 8B-MA6-019-010 CABI,TOP U 17 8A-MA3-057-010 WINDOW,TOP 18 87-MA5-203-110 GUIDE,FL 19 8B-MA3-061-010 KEY,OPEN 20 8B-MA5-063-010 KEY,DIRECT A5

21 8B-MA5-001-010 CABI,FR A5 22 8B-MA3-206-010 GUIDE,LED OPE 23 8B-MA3-102-010 KEY ASSY,OPE 24 8B-MA5-103-010 KEY ASSY,FUNC A5 25 8B-MA3-084-010 RING,OPE

26 8B-MA3-064-010 KEY,T-BASS A3 27 8B-MA3-065-010 KEY,ENTER 28 8B-MA3-066-010 KEY,GEQ 29 87-NF4-217-110 HLDR,LOCK 2 30 8B-MA3-026-010 BOX,CASS R A3

DESCRIPTIONREF. NO. KANRI

PART NO.

31 8B-MA3-056-010 WINDOW,CASS R A3 32 8B-MA3-025-010 BOX,CASS L A3 33 8B-MA3-055-010 WINDOW,CASS L A3 34 8A-MA5-208-010 SPR-T,EJECT 2 35 8B-MA3-207-010 HLDR,TR A3

36 8A-DB8-209-010 HLDR,PWB PT 37 88-MA1-208-210 JOINT,CABI 38 8B-MA5-011-010 CABI,REAR LH A5 39 8B-MA3-202-010 HLDR,HT-SINK 40 87-A91-736-010 FAN,DSB0812M-S382 -300MM

41 87-NF4-221-010 HLDR,CABLE 42 87-A80-148-010 AC CORD ASSY,E BLK

43 87-085-185-010 BUSHING, AC CORD (E) 44 87-MA3-062-010 FOOT, H17 45 8B-MA3-047-010 PANEL,SIDE L (U)

46 8B-MA3-048-010 PANEL,SIDE R (U) A 87-078-060-010 BVIT3PB+3-10 B 87-067-758-010 BVT2+3-12 W/O SLOT C 87-067-703-010 TAPPING SCREW, BVT2+3-10 D 87-NF4-224-010 S-SCREW,IT3B+3-8 CU

E 87-067-689-010 TAPPING SCREW, BVTT+3-8 F 87-B10-315-010 BVIT3B+3-8 R W/O G 87-078-200-010 S-SCREW,ITC+4-8 R H 87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD) I 87-067-641-010 UTT2+3-8(W/O SLOT)BL

NO.

DESCRIPTIONREF. NO. KANRI

COLOR NAME TABLE

Basic color symbol Color Basic color symbol Color Basic color symbol Color

B Black C Cream D Orange

G Green H Gray L Blue

LT Transparent Blue N Gold P Pink

R Red S Silver ST Titan Silver T Brown V Violet W White

WT Transparent White Y Yellow YT Transparent Yellow

LM Metallic Blue LL Light Blue GT Transparent Green LD Dark Blue DT Transparent Orange GM Metallic Green

YM Metallic Yellow DM Metallic Orange PT Transparent Pink

LA Aqua Blue GL Light Green

– 29 –

Page 30

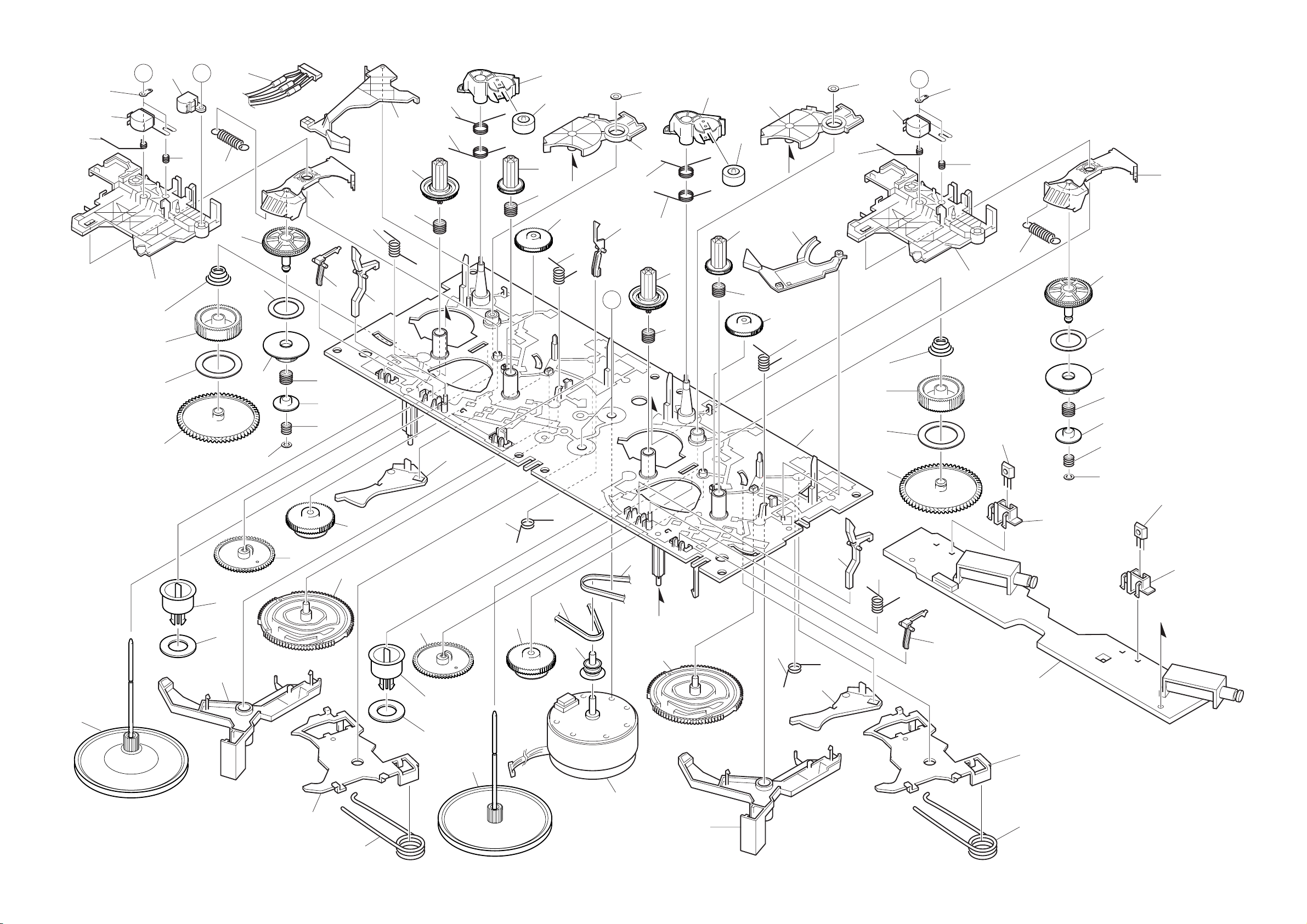

TAPE MECHANISM EXPLODED VIEW 1 / 1

TERMINAL, LB1

30 21

25 24

43 42

46 47

TERMINAL,LB1

IC, EW732

PWB

IC, EW732

– 30 –

Page 31

TAPE MECHANISM PARTS LIST 1 / 1

PART NO.

NO.

1 8Z-ZM3-227-010 BELT,MAIN M3 2 8Z-ZM3-235-010 BELT,MAIN L 3 8Z-ZM1-235-010 PULLEY,MOT 4 87-045-347-010 MOT,SHU2L 70 5 8Z-ZM1-232-010 GEAR,IDL FF/REW

6 8Z-ZM3-244-010 GEAR,CAM TD20 7 8Z-ZM3-256-010 FLY-WHL ASSY,M3 R 8 8Z-ZM3-255-010 FLY-WHL ASSY,M3 L 9 8Z-ZM3-231-010 SPR-T,TRIG 10 8Z-ZM3-213-010 CLR,MG

11 82-ZM3-616-010 RING MAGNET 4 12 8Z-ZM3-243-010 LEVER ASSY,HD UP 13 8Z-ZM3-238-010 SPR-T,HD UP 14 8Z-ZM3-219-010 GEAR,CAM M3 15 8Z-ZM3-206-010 LEVER,TRIG

16 8Z-ZM3-209-010 LEVER,CAM FR 17 8Z-ZM3-203-010 CHAS ASSY,M3 18 8Z-ZM1-228-010 GEAR,SLIP T-UP B 19 8Z-ZM1-265-010 FELT,T-UP 20 8Z-ZM1-227-010 GEAR,SLIP T-UP A

21 8Z-ZM1-251-110 SPR-C,T-UP SLIP 22 8Z-ZM1-275-010 W-L,1,47-4-0.25 23 8Z-ZM1-257-010 SPR-C,F/R 24 8Z-ZM1-236-010 CLR,SLIP FF/REW 25 8Z-ZM3-226-010 SPR-C,FR M3

26 8Z-ZM3-250-010 GEAR,SLIP F/R A M3 27 8Z-ZM1-269-010 FELT,FF/REW 2 28 8Z-ZM1-238-110 GEAR,SLIP FF/REW B 2 29 8Z-ZM3-220-010 LEVER,FR M3 30 8Z-ZM3-205-010 LEVER,PLAY M3

DESCRIPTIONREF. NO. KANRI

PART NO.

NO.

31 8Z-ZM3-233-010 SPR-T,BRG M3 32 84-ZM2-227-310 SPR-C,AZIMUTH 33 87-A90-403-110 HEAD,RPH MS15R 34 87-A90-404-010 HEAD,EH LE15B 35 8Z-ZM3-239-010 SPR-E,FR

36 8Z-ZM3-211-010 LEVER,EJECT R 37 8Z-ZM3-225-010 LEVER,STOP 38 8Z-ZM3-221-010 LEVER,CAS 39 8Z-ZM3-234-010 SPR-T,LVR CAS 40 8Z-ZM3-223-010 SPR-C,REEL R M3

41 8Z-ZM1-225-110 GEAR,REEL R 42 8Z-ZM3-240-010 SPR-T,T-UP M3 43 8Z-ZM3-237-010 SPR-T,PINCH M3 44 8Z-ZM3-215-010 LEVER,PINCH M3 45 8Z-ZM1-261-110 ROLLER ASSY,PINCH

46 8Z-ZM1-226-010 GEAR,REEL L 47 8Z-ZM3-222-010 SPR-C,REEL L M3 48 8Z-ZM3-251-010 GEAR,IDL REW M3 49 8Z-ZM3-236-010 SPR-T,PLAY M3 50 82-ZM1-240-110 LVR,REC(*)

51 8Z-ZM3-216-010 LEVER,T-UP M3 52 87-B10-301-010 W-L,1.63-3.2-05 SLIT 53 8Z-ZM3-212-010 LEVER,EJECT L 54 8Z-ZM3-214-010 HLDR,IC 55 86-ZM3-605-110 CONN ASSY,8P -RPB

A 84-ZM2-242-010 S-SCREW,AZ1-2-6.4 B 8Z-ZM2-220-110 V+2.6 ZZM-2

DESCRIPTIONREF. NO. KANRI

– 31 –

Page 32

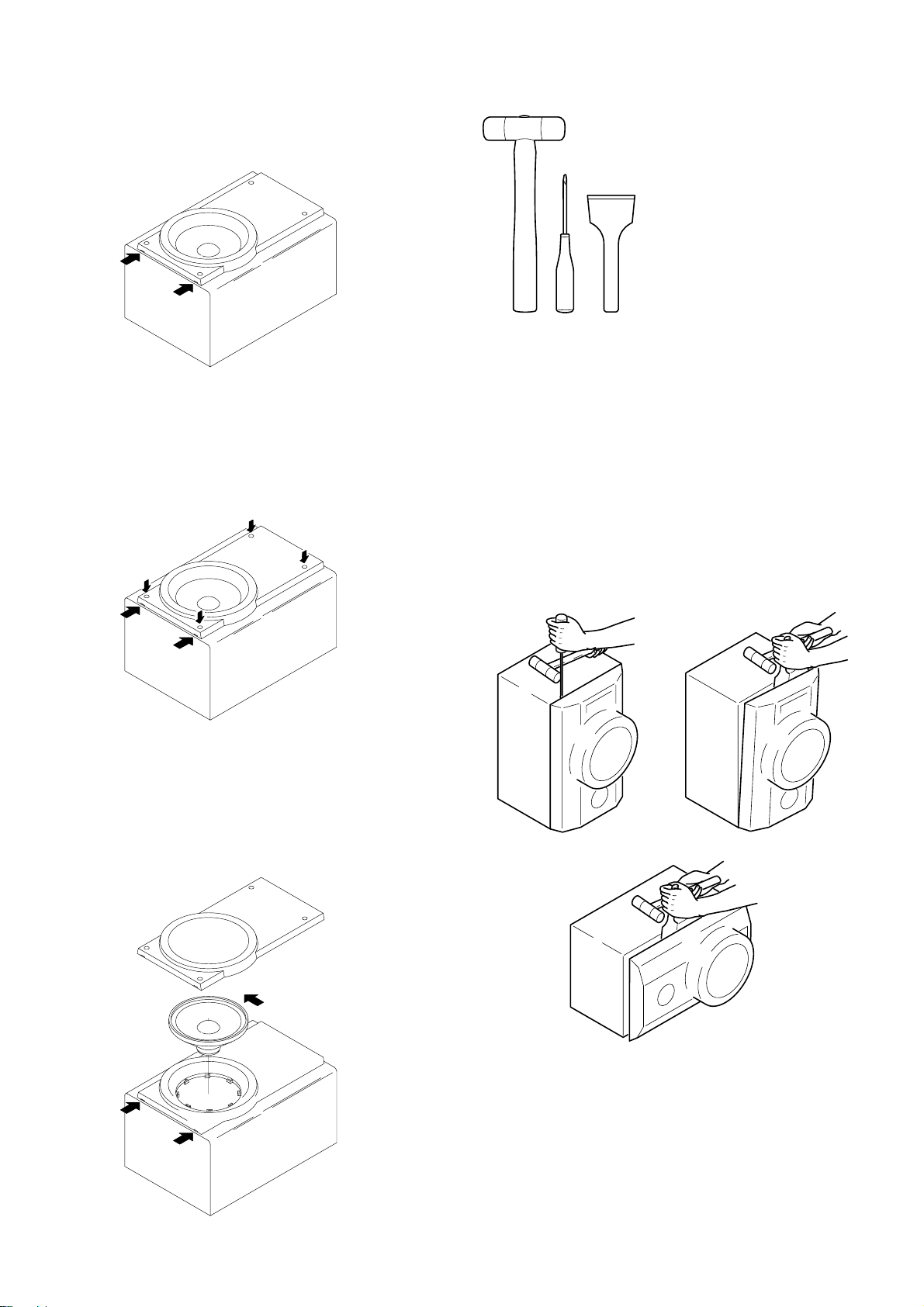

GENERAL SPEAKER DISASSEMBLY INSTRUCTIONS (FOR REFERENCE)

Type.1

Insert a flat-bladed screwdriver into the position indicated by the arrows and remove the panel. Remove the screws of each speaker unit and then remove the speaker units.

Type.2

Remove the grill frame and four pieces of rubber caps by pulling out with a flat-bladed screwdriver. Remove the screws from hole where installed rubber caps. Insert a flat-bladed screwdriver into the position indicated by the arrows and remove the panel. Remove the screws of each speaker unit and then remove the speaker units.

Type.4

TOOLS

1 Plastic head hammer 2 (() flat head screwdriver 3 Cut chisel

12 3

How to Remove the PANEL, FR

1. Insert the (() flat head screwdriver tip into the gap between the PANEL, FR and the PANEL, SPKR. Tap the head of the (() flat head screwdriver with the plastic hammer head, and create the clearance as shown in Fig-1.

2. Insert the cut chisel in the clearance, and tap the head of the cut chisel with plastic hammer as shown in Fig-2, to remove the PANEL, FR.

Type.3

Insert a flat-bladed screwdriver into the position indicated by the arrows and remove the panel. Turn the speaker unit to counterclockwise direction while inserting a flat-bladed screwdriver into one of the hollows around speaker unit, and then remove the speaker unit. After replacing the speaker unit, install it turning to clockwise direction until "click" sound comes out.

3. Place the speaker horizontally. Tap head of the cut chisel with plastic hammer as shown in Fig-3, and remove the PANEL, FR completely.

Fig-1 Fig-2

How to Attach the PANEL, FR

Attach the PANEL, FR to the PANEL, SPKR. Tap the four corners of the PANEL, FR with the plastic hammer to fit the PANEL, FR into the PANEL, SPKR completely.

– 32 –

Fig-3

Page 33

SPEAKER PARTS LIST SX-WZL620 (YLSL)

PART NO.

NO.

1 8B-MS3-015-010 PANEL,FR A 2 8B-MS3-004-010 PANEL,TW A 3 8B-MS3-005-010 PANEL,TW B 4 8B-MS3-006-010 PANEL,DUCT A 5 8B-MS3-007-010 PANEL,DUCT B

6 8B-MS3-008-010 PANEL,DUCT C 7 8B-MS3-009-010 PROTECTOR,SQ 8 88-NS5-610-010 CORD,SPKR 9 88-NSK-610-010 SPKR,CERAMIC ASSY 10 8B-MS3-602-010 SPKR,W 200

11 8B-MS3-604-010 SPKR,M 140

DESCRIPTIONREF. NO. KANRI

ACCESSORIES / PACKAGE LIST

PART NO.

1 8B-MA5-902-010 IB,LH(ESP)M 2 8Z-NF9-702-010 RC UNIT,ZAS02 3 87-043-115-010 ANT,FEEDER FM 4 87-006-268-010 ANT,LOOP AM 5 87-099-789-010 PLUG,ADPTR IR44

NO.

DESCRIPTIONREF. NO. KANRI

– 33 –

Page 34

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111

Printed in Singapore2000075 9630472 0251431
