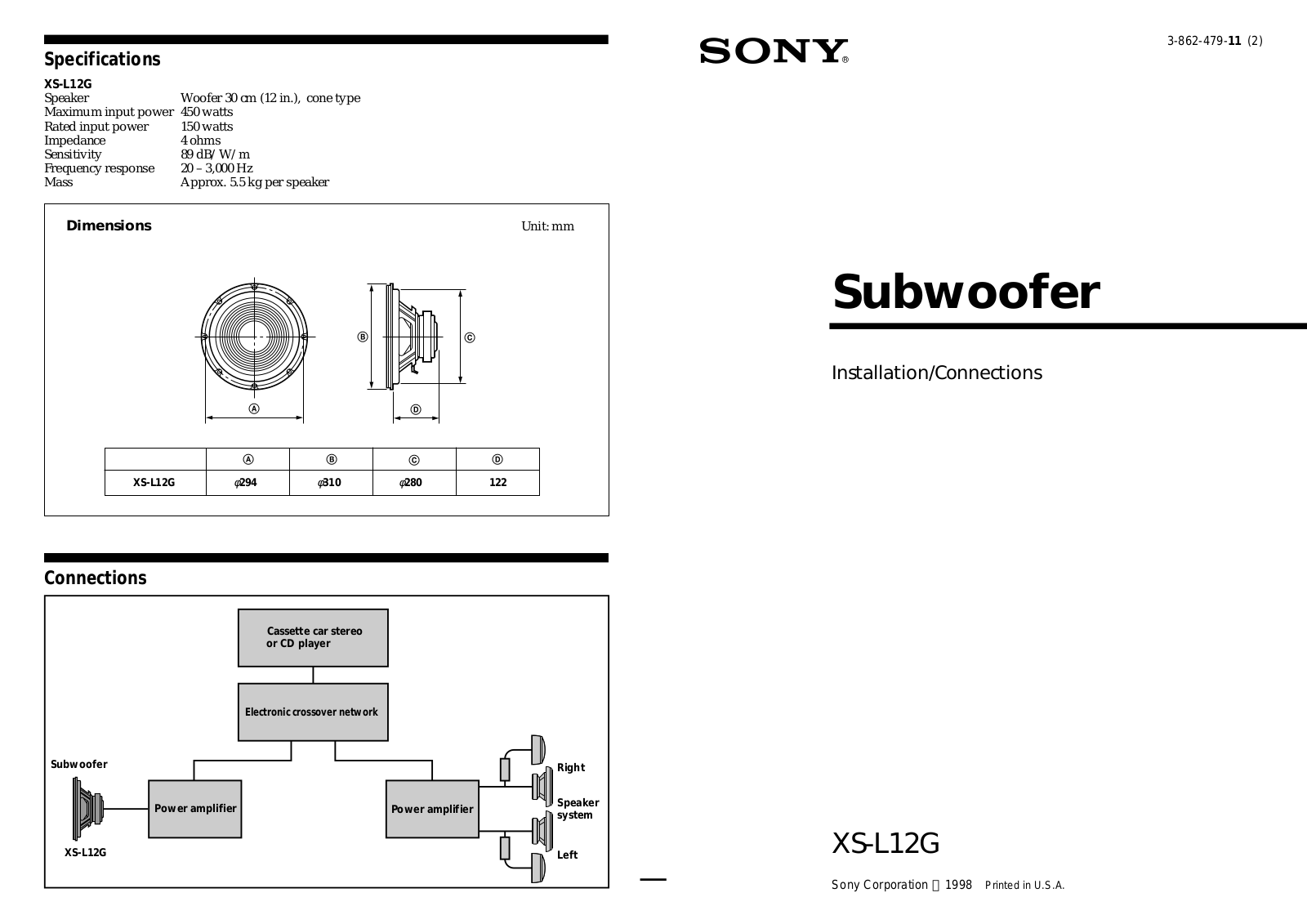

Specifications
XS-L12G
Speaker Woofer 30 cm (12 in.), cone type
Maximum input power 450 watts
Rated input power 150 watts
Impedance 4 ohms
Sensitivity 89 dB/W/m
Frequency response 20 – 3,000 Hz
Mass Approx. 5.5 kg per speaker
3-862-479-11 (2)
Dimensions
XS-L12G
Connections
B
A
AB
φ
294
Cassette car stereo
or CD player
φ
310
C
D
C
φ
280 122
Unit: mm
Subwoofer
Installation/Connections
D
Subwoofer
XS-L12G
Power amplifier
Electronic crossover network
Power amplifier
Right
Speaker
system
Left
XS-L12G
Sony Corporation 1998 Printed in U.S.A.

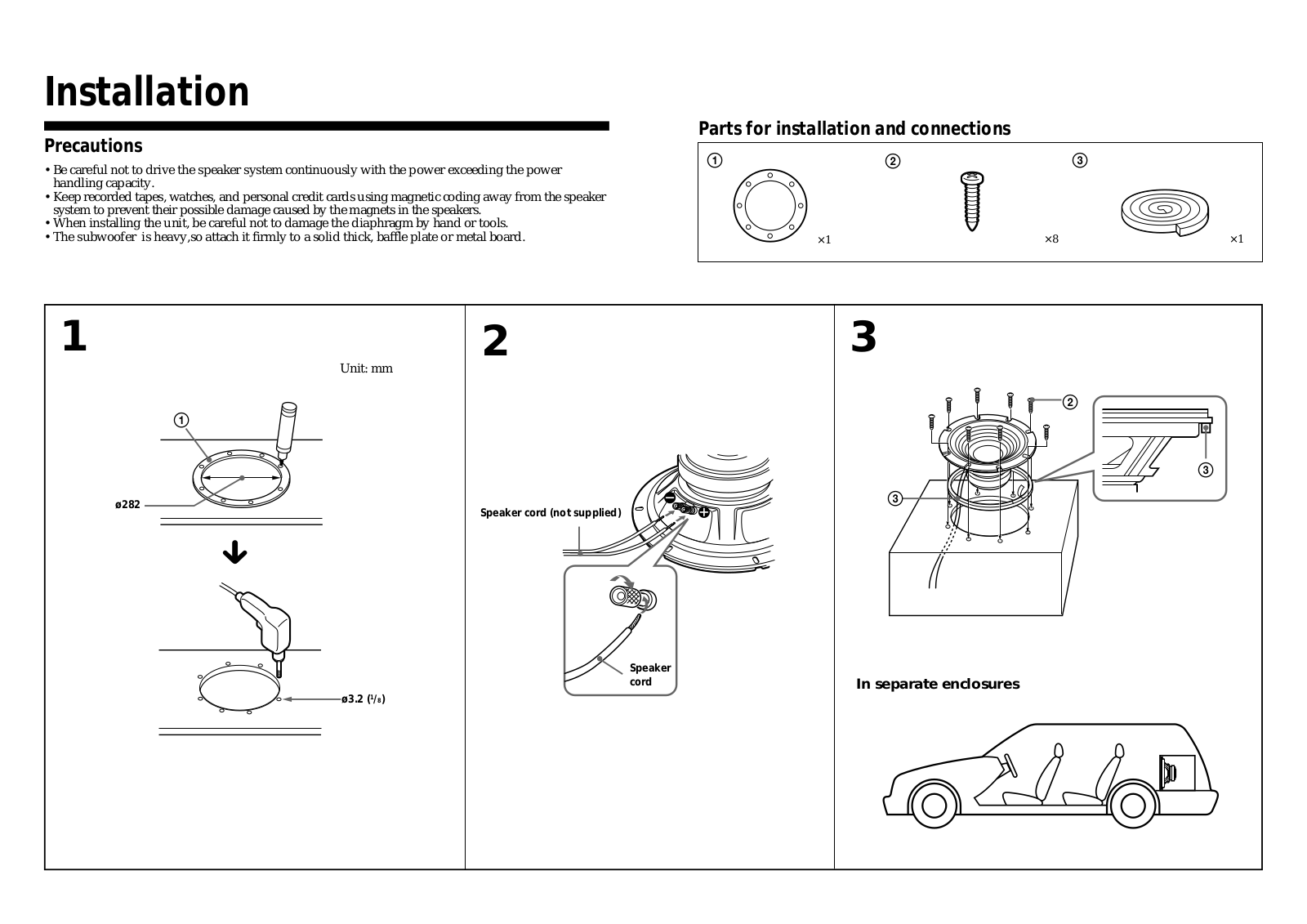

Installation
Precautions
• Be careful not to drive the speaker system continuously with the power exceeding the power
handling capacity.
• Keep recorded tapes, watches, and personal credit cards using magnetic coding away from the speaker
system to prevent their possible damage caused by the magnets in the speakers.
• When installing the unit, be careful not to damage the diaphragm by hand or tools.
• The subwoofer is heavy,so attach it firmly to a solid thick, baffle plate or metal board.
Parts for installation and connections
1
× 1
2
× 8
3
× 1
1
ø282
1
µ
Unit: mm
ø3.2 (1/8)
2
Speaker cord (not supplied)
Speaker
cord
3
2
3
3
In separate enclosures
