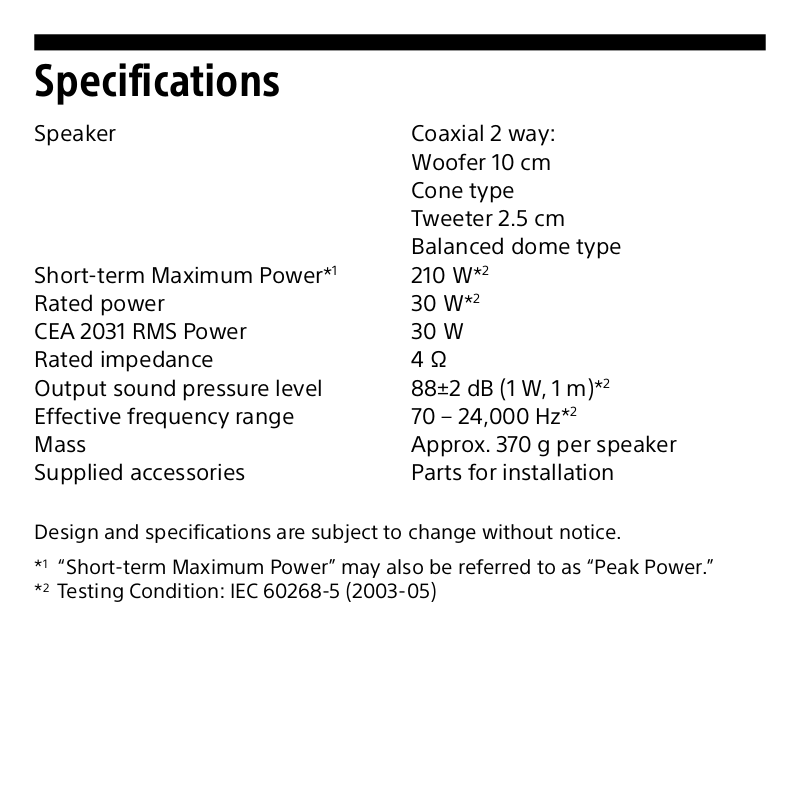

Specifications
Speaker Coaxial 2 way:
Woofer 10 cm
Tweeter 2.5 cm
Short-term Maximum Power*
Rated power 30 W*
CEA 2031 RMS Power 30 W
Rated impedance 4 Ω
Output sound pressure level 88±2 dB (1 W, 1 m)*
Effective frequency range 70 – 24,000 Hz*
Mass Approx. 370 g per speaker
Supplied accessories Parts for installation
Design and specifications are subject to change without notice.
1
“Short-term Maximum Power” may also be referred to as “Peak Power.”
*
*2 Testing Condition: IEC 60268-5 (2003-05)
Cone type
Balanced dome type
1
210 W*
2
2
2
2
Page 2
Precautions
• Do not continuously use the speaker system beyond the peak
power handling capacity.
• Keep recorded tapes, watches, and personal credit cards using
magnetic coding away from the speaker system to protect
them from damage caused by the magnets in the speakers.
• Please note the following when installing the units; otherwise
malfunction and/or deterioration in sound quality may result.
– Do not touch the diaphragms and/or speaker cones by hand
or with tools.
– Do not put your fingers through the holes of the frame.
– Do not drop foreign objects in the units.
If you cannot find an appropriate mounting location, consult
your car dealer or your nearest Sony dealer before mounting.
Before mounting
A depth of at least 43 mm is required for flush mounting. Measure
the depth of the area where you are to mount the speaker, and
ensure that the speaker is not obstructing any other components
of the car. Keep the following in mind when choosing a mounting
location:
• Make sure that nothing is obstructing around the mounting
location of the door (front or rear) where you are to mount the
speaker.
• A hole for mounting may already be cut out of the inner panel
of the door (front or rear). In this case, you need to modify the
board only.
• If you are to mount this speaker system in the door (front or
rear), make sure that the speaker terminals, frame or magnet
do not interfere with any inner parts, such as the window
mechanism in the door (when you open or close the window),
etc.
Also make sure that the speaker grille does not touch any inner
fittings, such as the window cranks, door handles, arm rests,
door pockets, lamps or seats etc.
• If you are to mount this speaker system in the rear tray, make
sure that the speaker terminals, frame or magnet do not touch
any inner parts of the car, such as the torsion bar springs (when
you open or close the trunk (boot) lid), etc.
Also make sure that the speaker grille does not touch any inner
fittings, such as seat belts, head rests, center brake lights, inner
covers of the rear wipers, curtains or air purifiers, etc.
Page 3

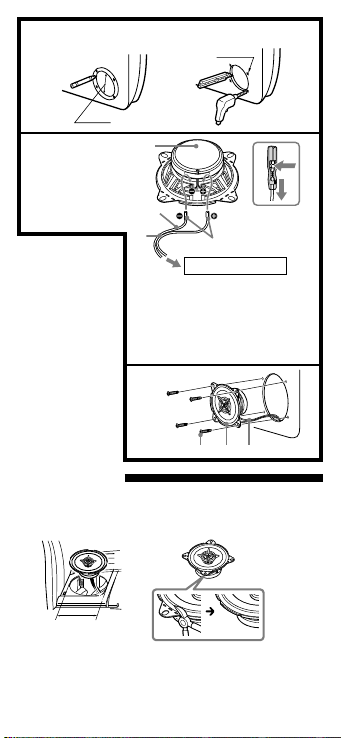

Mark the 4 bolt holes and make them 3.2 mm in
1
diameter.
ø 3.2
91
2
Black-striped
cord
Power amplifier, etc.
*1 Note
When releasing , push down on the
catch firmly and release carefully.
If excessive force is used, damage to
the speaker or terminal cable may
result.
*2 White cord — Left speaker
Grey cord — Right speaker
Unit: mm
2
*1 *
3
Flat mounting (installed
flush with the surface of the dash)
Unit: mm
91
This speaker can be made to fit in almost any type of car by
removing the mounting tabs. Use clippers or pliers, etc. to cut or
snap two of the mounting tabs off so that it is even with the edge
of the speaker frame as illustrated.
•After removing the mounting tabs, handle the speaker frame
with care, as the edges may be sharp.
