Sony XR-TC80 Operating Manual [en, fr]

CD Stereo System

OPERATING INSTRUCTIONS

En (English)

XR-TC80

U

Owner’s record

For your convenience, record the model number and serial
number (you will find them on the rear of your set) in the space
provided below. Please refer to them when you contact your
Aiwa dealer in case of difficulty.

Model No. Serial No. (Lot No.)

For assistance and information

(United States and Puerto Rico)

8C-DC1-903-01
020610AMI-H-BF

C

MANUAL DE INSTRUCCIONES

MODE D'EMPLOI

E (Español)

F (Français)

En

WARNING

To reduce the risk of fire or electric shock, do not expose
this appliance to rain or moisture.

Explanation of Graphical Symbols:

The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.

The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.

2

IMPORTANT SAFETY INSTRUCTIONS

Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions for
future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well as
the safety suggestions below.

Warning

To prevent electric shock or injury, these safety instructions should
be followed in the installation, use and servicing the unit.

Installation

Attachments - Do not use attachments not recommended by the
unit manufacturer as they may result in the risk of fire, electric shock
or injury to persons.
Water and Moisture - Do not use this unit near water - for
example, near a bathtub, washbowl, kitchen sink, or laundry tub, in
a wet basement, or near a swimming pool, and the like.
Heat - Do not use this unit near sources of heat, including heating
vents, stoves, or other appliances that generate heat. It also should
not be placed in temperatures less than 5˚C (41˚F) or greater than
35˚C (95˚F ).

Mounting surface - Place the unit on a flat, even surface.
Accessories - Do not place this unit on an unstable cart, stand,

tripod, bracket, or table. The unit may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use
only with a cart, stand, tripod, bracket, or table recommended by
the manufacturer, or sold with the unit. Any mounting of the
appliance should follow the manufacturer’s instructions, and should
use a mounting accessory recommended by the manufacturer.
Portable cart - An appliance and cart
combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may
cause the appliance and cart combination to
overturn.

Ventilation - The unit should be situated with adequate space
around it so that proper heat ventilation is assured. Allow 10 cm
clearance from the rear and the top of the unit, and 5 cm from the
each side.
Slots and openings in the cabinet and the back or bottom are
provided for ventilation, and to ensure reliable operation of the unit
and to protect it from overheating, these openings must not be
blocked or covered. The openings should never be blocked by
placing the unit on a bed, sofa, rug or other similar surface. This
unit should not be placed in a built-in installation such as a bookcase
unless proper ventilation is provided.
Object and Liquid Entry - Never push objects of any kind into
this unit through the cabinet slots as they may touch dangerous
voltage points or short-circuit parts that could result in a fire or
electric shock. Never spill liquid of any kind on the unit.

Electric Power

Power Sources - This unit should be operated only from the type
of power source indicated on the marking label. If you are not sure
of the type of power supply to your home, consult your appliance
dealer or local power company. To operate unit on batter y power, or
other sources, refer to the operating instructions.
Grounding or Polarization - This unit is provided with a polarized
alternating-current line plug (a plug having one blade wider than
the other). This plug will fit into the power outlet only one way.
This is a safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the plug. If the plug should still fail to fit,
contact your electrician to replace your obsolete outlet. Do not defeat
the safety purpose of the polarized plug.
Power-Cord Protection - Power-supply cords should be routed
so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords at
plugs, convenience receptacles, and the point where they exit from
the product.
Overloading - Do not overload wall outlets, extension cords,
integral convenience receptacles as this can result in a risk of fire
or electric shock.

Outdoor Antenna

Power lines - An outside antenna system should not be located
in the vicinity of overhead power lines or other electric light or power
circuits, or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be taken
to keep from touching such power lines or circuits as contact with
them might be fatal.
Outdoor Antenna Grounding - If an outside antenna or cable
system is connected to the unit, be sure the antenna or cable system
is grounded so as to provide some protection against voltage surges
and built-up static charges. Section 810 of the National Electrical
Code, ANSI/NFPA No.70, provides information with regard to proper
grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.
See the figure.

Lightning

For added protection for this unit receiver during a lightning storm,
or when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the unit due to lightning and
powerline surges.

Maintenance

Cleaning - Unplug this unit from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.

Damage Requiring Service

Unplug this unit from the wall outlet and refer servicing to qualified
service personnel under the following conditions:

1) When the power cord or plug is damaged.

2) If liquid has been spilled, or objects have fallen into the unit.

3) If the unit has been exposed to rain or water.

4) If the unit does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions as improper adjustment of other controls
may result in damage and will often require extensive work by a
qualified technician to restore the unit to normal operation.

5) If the unit has been dropped or the cabinet has been damaged.

6) When the unit exhibits a distinct change in performance - this
indicates a need for service.

Do not attempt to service this unit yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer
all servicing to qualified service personnel.
Replacement Parts - When replacement parts are required, be
sure the service technician has used replacement parts specified
by the manufacturer or having the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric shock
or other hazards.
Safety Check - Upon the completion of any service or repairs to
this unit, ask the service technician to perform safety checks to
determine that the unit is in proper operating condition.

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ......... 2

PREPARATIONS ................................... 4

PARTS AND CONTROLS ......................... 5

ADJUSTMENTS BEFORE OPERATION.......... 7

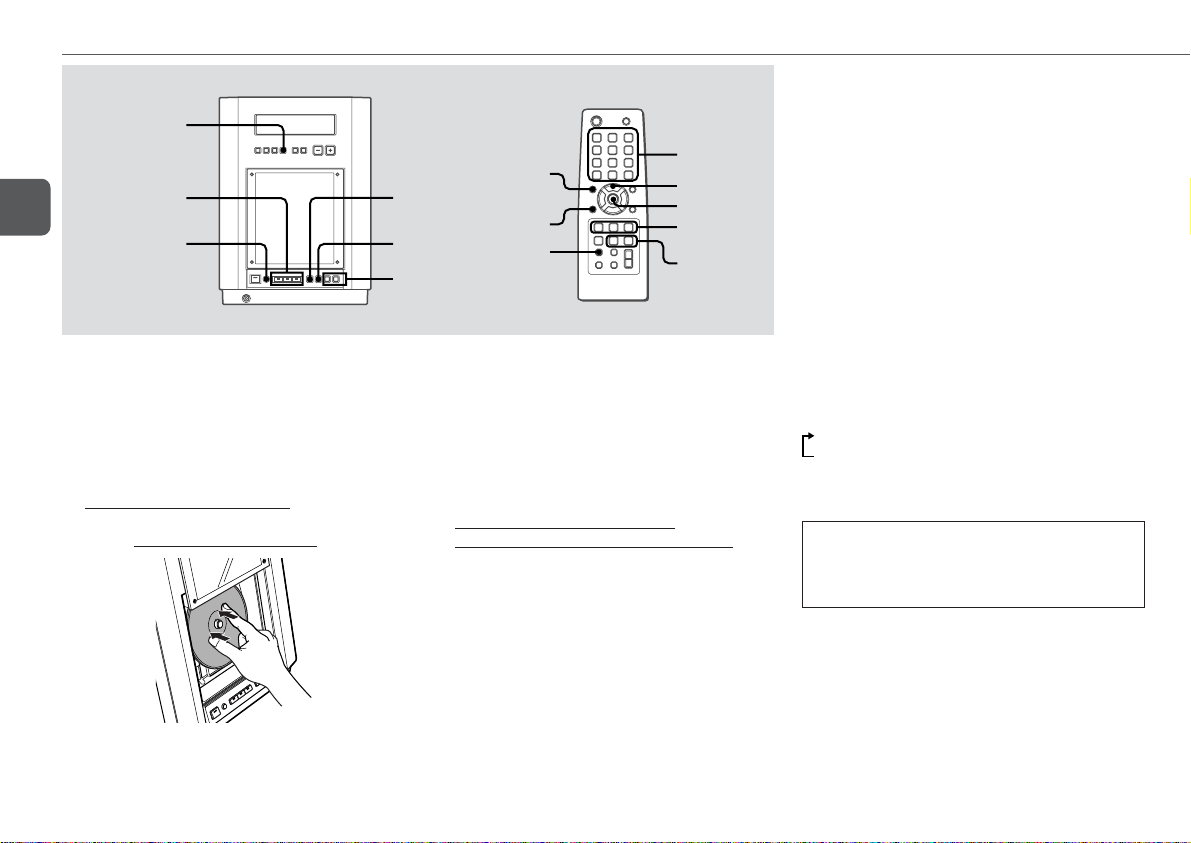

CD OPERATIONS .................................. 8

RADIO OPERATIONS ........................... 10

SOUND ADJUSTMENTS ........................ 11

TIMER OPERATIONS ........................... 12

REFERENCE ..................................... 14

System and accessories

Main unit CX-LTC80
Speakers SX-LTC80
Remote control
FM antenna
AM antenna
Speaker cords

En

3

PREPARATIONS

Connection

Plug in the AC power cord to the AC outlet after all other
connections are made.

1

Connect the speaker cords to the speakers.

Connect the copper cords to the + terminals and the silver

En

cords to the – terminals.

2

Connect the speakers to the main unit.

Connect the right speaker to the SPEAKERS R terminals
and the left to the SPEAKERS L terminals. The copper
cords go to the 0 terminals.

3

SPEAKERS

SPEAKER

Ω

P:6

IM

3

Connect the supplied antennas.

Connect the FM antenna to the FM 75 Ω terminals and
the AM antenna to the AM LOOP jack. Connect the FM

antenna to the FM 75 Ω terminal with the
illustrated.

AM antenna

4

Connect the AC power cord to an AC outlet.

The clock will flash on the display.
For setting the clock, see page 12.

Speakers

•Do not short-circuit the 0 and 9 speaker cord leads.

•Do not leave objects generating magnetism or objects
affected by magnetism near the speakers.

Antennas

Keep antennas away from metallic objects, electrical
equipment and cords.

•FM antenna: Extend fully and position for the best
reception. If reception is poor, connect an optional outdoor
antenna to the FM 75 Ω terminals. When connecting an
optional outdoor antenna, be sure to connect the shield braid
of the antenna to the 2 terminal.

•AM antenna: Rotate to find best reception.

FM antenna

mark, as

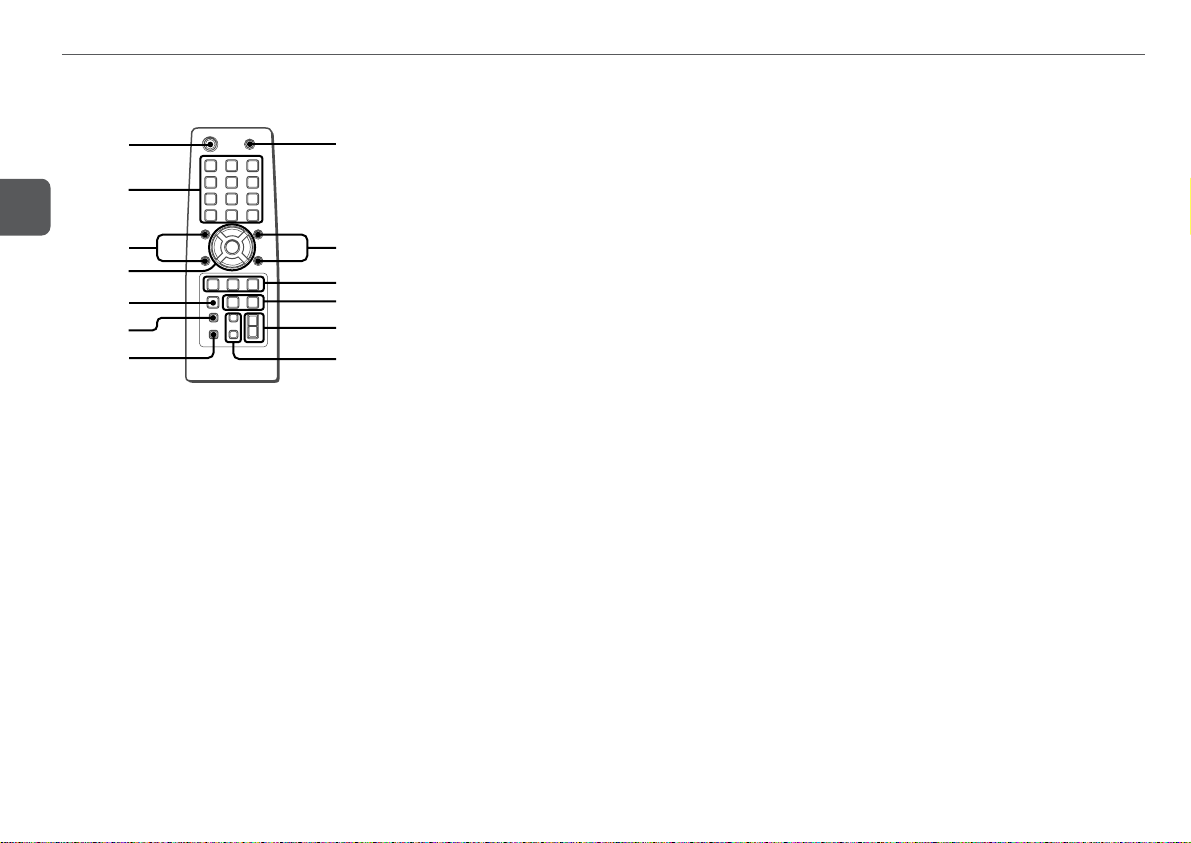

Remote control

Detach the battery compartment lid at the rear of the remote
control and insert two R6 (size AA) batteries with correct
polarity.

R6(AA)

•Replace the batteries with new ones when the operational
distance between the remote control and main unit becomes
shorter.

•Remove the batteries if the unit is not going to be used for
an extended period of time.

•The remote control may not operate if it is used under intense
sunlight or if its line of sight is obstructed.

4

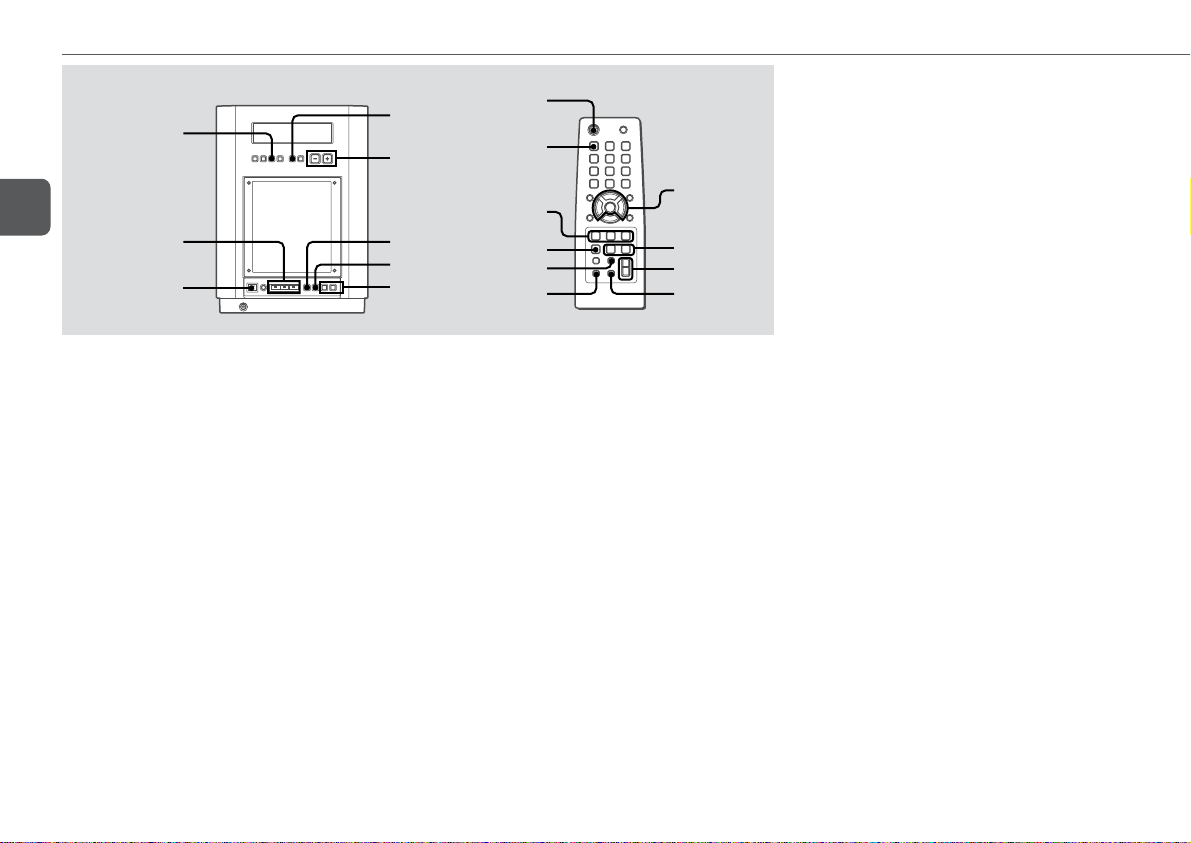

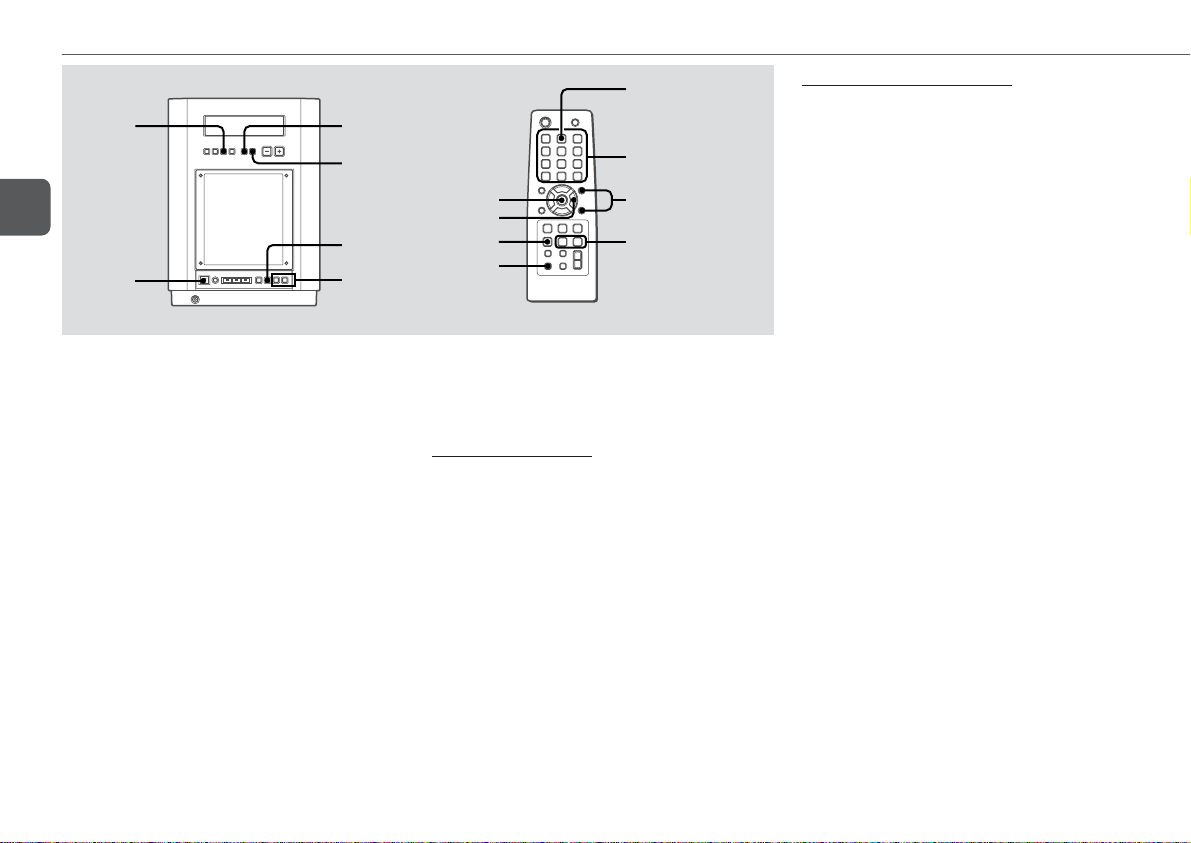

PARTS AND CONTROLS

Main unit

6

1

2

3

4
5

1 ECO/DIMMER

Selects ECO mode and dimmer mode.

TONE

Adjusts the bass or treble level.

SET

Determines the mode.
Stores the received station to preset.

DISPLAY

Changes the display in CD playback mode.

2 CD window
3 zOPEN/CLOSE

Opens or closes the CD window.

4 POWER 6STANDBY/ON

Switches the unit on and off (standby).

5 PHONES jack

Plug in optional headphones set with a stereo mini plug
(ø3.5 mm). Speaker output is canceled.

7

8

9

0
!
@

#
$

%

6 TUNER/AUX / BAND

Selects Radio function, the radio band, and the function
of external equipment connected to AUX IN jacks.

DEMO/PRESET

When the unit is turned off: switches DEMO on and off.
When the unit is turned on: tunes in a preset station.

7 VOLUME -, +

Adjusts the volume.

8 DISC DIRECT PLA Y 1-3 / DISC CHANGE

Selects a disc tray.

9 CDE

Starts and pauses play.

sCLEAR

CD: stops playback.
Radio: clears a preset station.

f/r, t/g (TUNING -, +)

CD: skips to a previous or a succeeding track when
pressed, searches a track in fast forward or reverse
playback when held down.
Radio: manually tunes up or down within the band.

0 AM LOOP jack and FM 75 Ω terminal

Plug in the supplied AM and FM antennas.

! AUX IN jacks

Accept analog sound signals from external equipment.
Connect external equipment using an optional connecting
cable with RCA phono plugs (red plug to R jack, white
plug to L jack). Refer also to the operating instructions
for your equipment.
To switch function to external input, press TUNER/AUX
(AUX on the remote control) repeatedly to display "AUX".

To change a source name in the display of the
AUX function

Select AUX function with TUNER/AUX, then hold down
DEMO/PRESET and press POWER while the power is
on.

AUX VIDEO TV

@ LINE OUT jacks

Analog sound signals for all functions can be output
through these jacks. Use a cable with RCA phono plugs
to connect audio equipment.
Signals input through the AUX IN jacks are not output
from the LINE OUT jacks.

# SUB WOOFER3 jack

Connect an optional sub woofer with a built-in amplifier
to the jack.

$ SPEAKERS3 terminals

Connect the supplied speaker cords.

% AC power cord

En

5

Remote control

1

2

En

3
4

5
6
7

Buttons with the same or similar names on the main unit
basically have the same function.

1 POWER
2 0–10, +10

CD: selects a track of the specified number.
Radio: tunes in the station with the specified preset
number.

8

9

0
!

@

#

The numbered buttons take on these functions when pressed with
SHIFT held down:

CLOCK

Selects clock mode.

TUNER MODE

Switches between stereo or monaural FM reception.

3 RANDOM/REPEAT

Selects random or repeat CD playback mode.

PROGRAM

Selects programmed CD playback mode.

4 ECD

AUX
TONE

Selects the sound adjusting mode, "BAS" (bass) or
"TRE" (treble).

TUNER/BAND
sCLEAR

5 SET
6 DISPLAY
7 SHIFT

Hold down when pressing a numbered button to change
its function to that printed above the number.

8 FUNCTION

Switches the active function among TUNER, AUX and
CD.

9 PRESET +, -
0 DISC DIRECT PLA Y 1, 2, 3

! f/r, t/g
@ VOLUME +, -
# TIMER

Selects timer mode.

SLEEP

Selects sleep-timer mode.

6

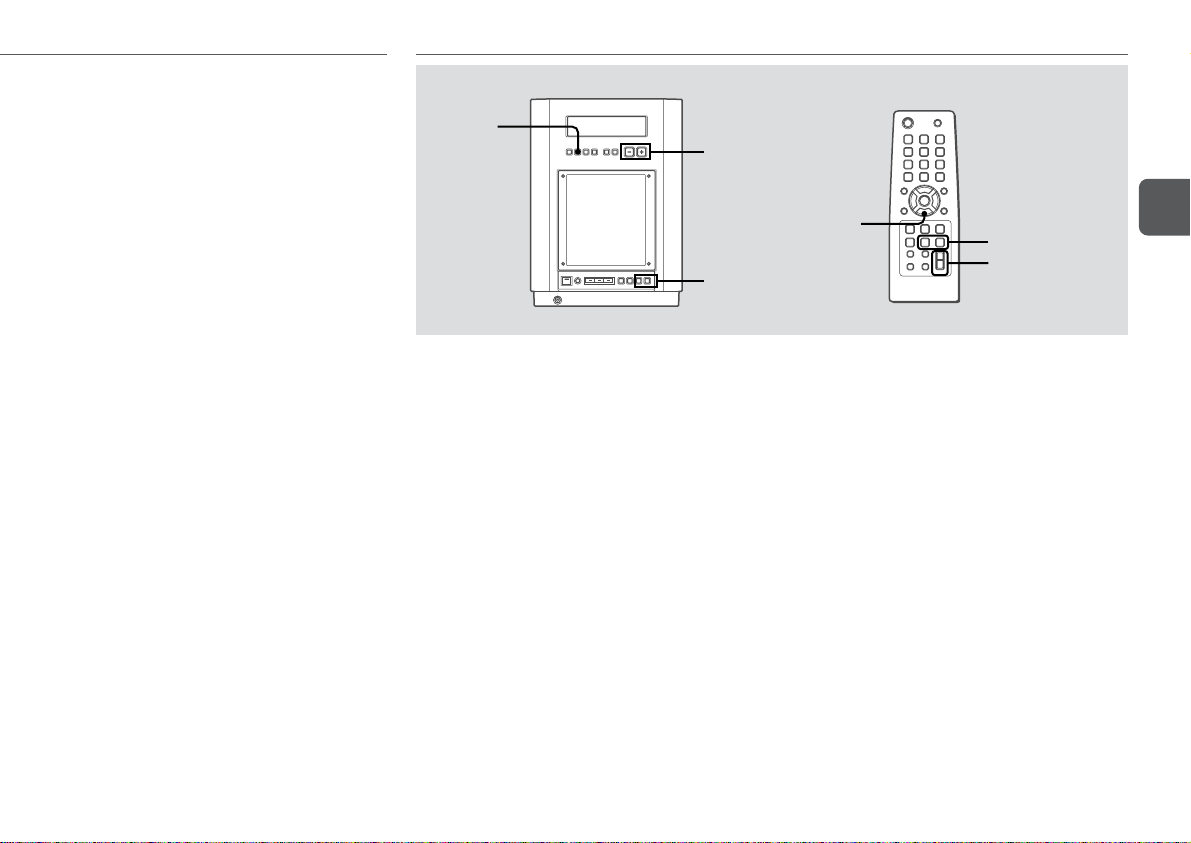

ADJUSTMENTS BEFORE OPERATION

SET

ECO/DIMMER

DISC DIRECT

PLAY 1-3

POWER

6STANDBY/ON

Power

Tur ning the unit on

Press POWER 6 STANDBY/ON (POWER on the remote
control).
Alternatively, press TUNER/AUX (TUNER/BAND and AUX on
the remote control), DISC DIRECT PLAY1-3 or CDE.
Playback will start automatically if a disc is loaded.

Tur ning the unit off

Press POWER 6STANDBY/ON again.
The unit goes into standby.

DEMO

If the clock has not been set, a DEMO appears on the display
when the unit is turned off.

To deactivate and activate the DEMO

Press DEMO/PRESET

when the unit is turned off.

TUNER/
AUX

DEMO/
PRESET

CDE

f,g

POWER

DISC DIRECT

PLAY 1-3

SET

ECO mode

Reduces power consumption in standby mode with the following
operations.

Press ECO/DIMMER while the power is off (standby).

Each press of the button changes the mode as follows;

ECO ON: Power economizing mode is activated.
When the unit turns off, everything on the display clears and
only the red indicator on POWER 6STANDBY/ON to show
that the power is being supplied. The DEMO is deactivated.
ECO OFF: Power economizing mode is canceled.
When the unit turns off, the clock display appears.

•Initial mode is ECO OFF.

CDE,AUX
TUNER/BAND

f,g

When operating while the power is on

1

Press ECO/DIMMER once and press SET.

2

Within 6 seconds, press f or g to select
the desired mode and press SET.

Standby power consumption

ECO ON: 0.6 W
ECO OFF: 15 W

Dimmer

The display window brightness can be adjusted to the following
four levels: "
"

DIMMER 2

"

DIM OFF

When "

1

Press ECO/DIMMER twice while the unit is turned
on.

"DIM MODE" is displayed.

2

Within 6 seconds, press SET.

The currently selected brightness is displayed.

3

Within 6 seconds, press f or g to select
the desired brightness.

4

Within 6 seconds, press SET.

DIM OFF

", and "

" is the brightest level.

DIMMER 3

", "

DIMMER 3

DIMMER 1

".

" is selected, the display is darkest.

En

",

7

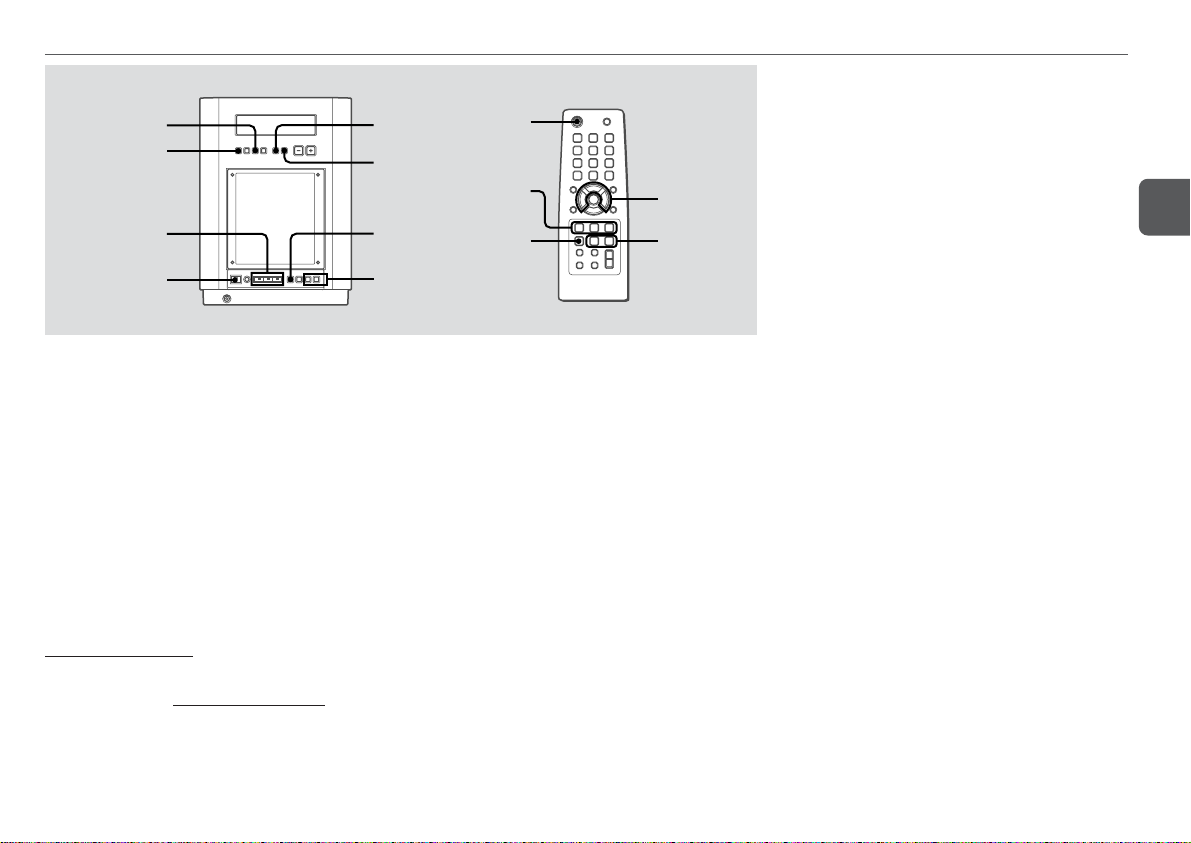

CD OPERATIONS

DISPLAY

En

DISC DIRECT

PLAY 1-3

zOPEN/CLOSE

This unit plays back finalized CD-R/RW discs as well as audio
CDs.

Playing CDs

1

Press zOPEN/CLOSE to open the CD window
and load disc(s).

Fit the disc center hole to the pivot of the tray with the
label side facing you and press down the part around
the hole

until the disc is securely locked.

RANDOM/

CDE

s
f,g

2

REPEAT

PROGRAM

DISPLAY

To play two or three discs, press the desired DISC

0–10, +10
CDE

s

DISC DIRECT
PLAY1-3

f,g

DIRECT PLAY 1-3 / DISC CHANGE to rotate the
tray and load a disc in the same way as step 1.

The selected tray number appears in the display.

3

Press zOPEN/CLOSE to close the CD window.

Total track number and total playing time of the currently
selected disc will be displayed after the unit reads it.

4

To play all the discs (all disc play), press CDE.
To play one desired disc (single disc play), press
DISC DIRECT PLAY 1-3.

Playing disc number appears in the display.

To switch between all disc play and single disc play
during play

Press one flashing button (a currently playing disc number
button) of DISC DIRECT PLAY 1-3 during play.

•In single disc play, only one button of DISC DIRECT PLAY
1-3 lights up and flashes.

To stop play

Press s.

To pause play

Press CDE. Press again to resume play.

To skip to the beginning of the current/preceding/
succeeding track

Press f or g repeatedly .

To search (playback in fast forward or reverse)

Hold down f or g. Release at the desired point.

To select a track with the remote control (Direct play)

Press the numbered buttons to select a track.

-To select the 25th track, press +10, +10 and 5.

-To select the 11th track, press +10 and 1.

To change the display in playback mode

Press DISPLAY during play.
The display changes in the following order:

Track number being played and elapsed playing time
Remaining time of play

•Remaining time of play cannot be displayed during " 1,
random or programmed play.

To remove the disc

Press zOPEN/CLOSE to open the CD window, hold the
disc in hand and press PUSH on the pivot so that the disc is
released.

8

Random/Repeat play

In random play mode the unit plays all the tracks in random
order. In repeat play mode it repeatedly plays all the discs or
the track being played. You can select random and repeat all
play at the same time.

1

Press RANDOM/REPEAT repeatedly on the
remote control.

The mode changes as follows:
"" 1": Plays one track repeatedly. Select the track with
f or g.
""": Plays all the tracks repeatedly.
"RANDOM": Plays all the tracks randomly.
"RANDOM "": Plays all the tracks repeatedly in
random order.

2

To play all discs: press CDE.
To play a single disc: press the desired DISC
DIRECT PLAY 1-3.

To cancel random/repeat play

Press RANDOM/REPEAT on the remote control repeatedly until
"RANDOM" or """ disappears.
Direct selection of the tracks with the numbered buttons (Direct
play) cancels random play mode.

To repeat a selected set of tracks

First select the tracks with programmed play (see
"Programmed play").
Then select repeat playback.

Programmed play

Up to 30 tracks can be programmed from any of the loaded
discs.

1

Press PROGRAM on the remote control in stop
mode.

"PRGM" flashes on the display.

2

Press one of DISC DIRECT PLAY 1-3 to select a
disc.

Wait for a while until the disc tray is selected.

3

Press the numbered buttons on the remote
control to program a track.

-To select the 25th track, press +10, +10 and 5.

-To select the 11th track, press +10 and 1.
The selected track number lights up on the display.

4

Repeat steps 2 and 3 to program other tracks.

The total number of selected tracks and total playing time
will be displayed.

5

Press CDE.

•During programmed play, you cannot select a track with the
numbered buttons. "Can’t USE" is displayed when you
try to select a track .

•If the total playing time of the program exceeds 99 minutes
and 59 seconds, or if a track with a track number exceeding
30 is programmed, the playing time is displayed as
"- - : - -".

•You cannot program more than 30 tracks. "FULL" is
displayed.

To check the program

Press f or g repeatedly in stop mode. The track
number and program number are displayed in succession.

To clear the program

Press s in stop mode. "PRGM" disappears from the display.

To add tracks to the program

Repeat steps 2 and 3 before starting playback. The tracks are
added to the end of the program.

To change the programmed tracks

Clear the program and repeat all the steps again.

Notes on CDs

•Do not place more than one disc.

•Do not tilt the unit with a disc loaded.

•The unit may not play CD-R/RW discs recorded on personal
computers or certain kinds of CD-R/RW recorders.

•Do not attach adhesive label to either side of
CD-R/RW discs, as doing so may cause malfunction.

•Do not load an unrecorded CD-R/RW disc. The disc may be
damaged.

•Do not use irregular-shaped CDs.

Inside light

The inside light of the unit can be turned off and on.

Hold down s and press zOPEN/CLOSE on the unit.

En

9

RADIO OPERATIONS

SET

En

POWER

Manual tuning

1

Press TUNER/AUX / BAND (TUNER/BAND on the
remote control) repeatedly to select a band.

The unit switches to the radio from any other function
and alternates between FM and AM.

2

Press f or g repeatedly to tune in a station.

"TUNE" is displayed when a station is tuned in.
"1" is displayed for FM stereo reception.

To search for a station automatically (Auto search)

Hold down f or g.
The unit searches for a station and stops at reception.
To stop the search manually, press f or g.

•Auto search may not stop at stations with weak signals.

TUNER/AUX
BAND

DEMO/
PRESET

TUNER/BAND

s
f,g

TUNER MODE

0–10, +10

s

SET

SHIFT

PRESET +,-

f,g

Preset tuning

Preset up to 32 of your favourite stations and tune them in
directly.

Presetting stations

1

Tune in the desired station.

2

Press SET to store the station.

The preset number, beginning from "1" appears on the
display.

3

Repeat steps 1 and 2 to preset other stations.

The next station will not be stored if a total of 32 preset
stations have already been stored. ("FULL" is displayed.)

•If power is interrupted for more than approximately 12 hours,
all settings stored in memory after purchase need to be reset.

Tuning in preset stations

1

Select the band.

2

Press DEMO/PRESET (PRESET +,- on the
remote control) repeatedly.

With each press, the station with the succeeding (or
preceding) preset number is tuned in.
You can tune in the desired preset station directly by
pressing the numbered buttons on the remote control.

-To select preset number 11, press +10 and 1.

-To select preset number 15, press +10 and 5.

To clear a preset station

1Tune in the station by preset tuning.
2 Press s, then press SET within 6 seconds.

Preset station numbers in the band which are higher than
the cleared number decrease by one.

10

Adjustments

SOUND ADJUSTMENTS

To switch to monaural FM reception

Hold down SHIFT and press TUNER MODE on the remote
control so that "MONO" is displayed.

To cancel, repeat the above so that “STEREO” is displayed.

Tip:

When FM stereo reception is poor, switching to monaural
reduces noise.

To switch the AM tuning interval

The default setting of the AM tuning interval is 10 kHz/step. If
you use this unit in an area where the frequency allocation
system is 9 kHz/step, change the tuning interval.
Hold down DEMO/PRESET and press POWER on the main
unit when the radio function is selected.

Tip:

When the AM tuning interval is changed, all preset stations
are cleared.

TONE

VOLUME -,+

f,g

Volume

Press VOLUME -,+.

Adjust from 0 (minimum) to 30 and MAX (maximum).

Tip:

Volume level setting is retained during power-off standby. If
the unit is turned off with the volume set to 17 or higher, it is
automatically turned down to 16 the next time the unit is turned
on.

TONE

f,g
VOLUME +,-

Bass and treble

1

Press TONE repeatedly to display “BAS” or “TRE.

2

Within 6 seconds, press VOLUME -,+ (f
or g).

The bass or treble level can be adjusted from “–2” to “+5”.

• If the sound becomes distorted, lower the level.

En

11

TIMER OPERATIONS

En

DISC DIRECT

6STANDBY/ON

Setting the clock

1

Hold down SHIFT and press CLOCK on the remote
control.

When the unit is turned off, you can also press SET.

2

Within 6 seconds, press f or g to set the
time.

Each press changes the time in 1-minute steps.
Holding these buttons down will vary the time in 10-minute
units.

3

Press SET.

The time display stops flashing and the clock starts from
00 seconds.

SET

PLAY 1-3

POWER

TUNER/
AUX

VOLUME -,+

CDE

s
f,g

POWER

CLOCK

TUNER/BAND,

DISC DIRECT

PLAY 1-3

SET

TIMER

SHIFT

To display the time while the power is on

Hold down SHIFT and press CLOCK on the remote control.
The time will be displayed for 6 seconds.

To switch to the 24-hour standard

Display the time and press s within 6 seconds.
With each press, the clock alternates between 12- and 24­hour standard time.

Tip:

In the 12-hour standard, "AM12:00" indicates midnight and
"PM12:00" noon.

If the clock display flashes when the unit is turned
off

There has been a power interruption. Reset the clock.

AUX, CDE,
s

f,g

V
SLEEP

OLUME+,-

Sleep timer

Turns off the unit automatically after a specified time.

1

Press SLEEP on the remote control.

"SLEEP" is displayed.

2

Within 6 seconds, press f or g repeatedly
to set the sleep timer duration.

With each press, the timer duration changes in 5-minute
steps between 5 to 240 minutes. If there is no button input
for 6 seconds, the current setting is entered automatically.
The unit turns off after the selected time.

To check the remaining time until the unit turns off

Press SLEEP on the remote control. The remaining time is
displayed for 6 seconds.

To cancel the sleep timer

Press SLEEP on the remote control repeatedly so that "SLEEP
oFF" is displayed.

12

Timer playback

Turns on the unit at a specified time for the specified duration.
Make sure the clock is set correctly.

1

Press TIMER on the remote control.

"5" lights up and "5 PLAY" is displayed.

2

Within 12 seconds, press SET.

3

Press f or g to set the timer-on time, and
press SET.

Each press changes the time in 1-minute steps.
Holding these buttons down will vary the time in 10-minute
units.

4

Press f or g (TUNER/AUX or CDE ) to
select the source, and press SET.

•For timer play of a CD, select "CD".

•For timer play of a radio broadcast, select "TUNER".
You will select the band later in step 7.

•For timer play of the equipment connected to the AUX
IN jacks, select "AUX (VIDEO or TV)".

5

Press f or g to set the timer-activated
duration, then press SET.

With each press, the timer-activated duration changes in
5-minute steps between 5 to 240 minutes.

6

Press f or g (VOLUME -,+) to adjust
the volume for timer playback, and press SET.

The volume level can be adjusted from 0 to 16.

7

Prepare the source.

To play CD, load a disc. The currently selected disc is
played. If you want to play a CD on another tray, play the
desired CD, and then stop play.
To play the radio, select the band and tune in the desired
station.
To play external equipment connected to the AUX IN jacks,
set an external timer for the equipment so that its playback
begins at the same time.

8

Press POWER 6STANDBY/ON (POWER) to turn
the unit off.

"5" remains on the display to indicate the timer standby
mode (when ECO mode is deactivated).
At timer-on time, the unit turns on and plays the selected
source. After the specified timer-activated duration, the
unit turns off again.

•Timer playback will not begin unless the unit is turned off
first.

•Connected equipment cannot be turned on or off by the built­in timer of this unit. Use an external timer.

To check the timer setting

Press TIMER on the remote control so that "5 PLAY"
appears on the display.
After 6 seconds, the timer-on time, the source and the timer­activated duration are displayed for 6 seconds.

To change the timer setting

Reset the timer again.

To cancel the timer

Press TIMER on the remote control twice until "5 OFF" is
displayed. "5" disappears from the display.

Tip:

Your timer setting is retained even if the timer is cancelled.
Next time the timer is activated, you can change your previous
setting, or simply use the same setting again.

En

13

REFERENCE

Care and maintenance

Occasional care and maintenance of the unit and the software
are needed to optimize the performance of your unit.

To clean the cabinet

Use a soft and dry cloth. If the unit surfaces are extremely
dirty, use a soft cloth lightly moistened with mild detergent

En

solution. Do not use strong solvents such as alcohol, benzine
or thinner.

Care of CDs

When a CD becomes dirty, wipe it from the center out with a
cleaning cloth. After playing a CD, store it in its case. Do not
keep it in hot or humid places.

Troubleshooting

If your unit fails to perform properly, check the following guide
and the relevant sections of the Operating Instructions.

There is no sound

•Are the speakers and AC power cord connected properly?

The unit shut off suddenly

•Possibly a short circuit in the speaker terminals. Disconnect
the AC power cord from the AC outlet and reconnect the
speaker cords correctly.

Erroneous display

•Reset the unit. (See "Resetting the unit".)

Poor radio reception

•Check antenna connection. Adjust the antenna to find the
best reception.

•Move the unit and antenna away from other electric
appliances and cords.

The CD player works poorly

•Is the disc correctly loaded?

•Is the disc dirty?

•Is the lens affected by condensation? If so, wait
approximately one hour and try again.

Condensation

Moisture may form on the CD pickup lens when:

•The unit is moved from a cold spot to a warm spot

•The heating system has just been turned on

•The unit is used in a very humid room

•The unit is cooled by an air conditioner

When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for a few hours,
then try to operate again.

Resetting the unit

If an unusual condition occurs in the display window, reset
the unit as follows:
1Press POWER to turn off the power.

If the power cannot be turned off, disconnect the AC power
cord, then plug it in again.

2 Hold down s and press POWER on the main unit.

Everything stored in memory after purchase is cleared.

14

Specifications

MAIN UNIT CX-LTC80
TUNER

FM tuning range 87.5 MHz to 108 MHz
FM usable sensitivity (IHF) 13.2 dBf
FM antenna terminal 75 ohms (unbalanced)
AM tuning range 530 kHz to 1710 kHz (10 kHz step)

531 kHz to 1602 kHz (9 kHz step)
AM usable sensitivity 350 µV/m
AM antenna Loop antenna

AMPLIFIER

Power output 16 W + 16 W (40 Hz - 20 kHz, THD

less than 1 %, 6 ohms)

20 W + 20 W (1 kHz, THD 10 %,

6 ohms)
Total harmonic distortion 0.06 % (15 W, 1 kHz, 6 ohms, DIN

AUDIO)
Input AUX IN: 500 mV
Outputs LINE OUT: 200 mV

SPEAKERS: 6 ohms or more

PHONES: 32 ohms or more

CD PLAYER

Laser Semiconductor laser (λ = 780 nm)
D/A converter 1 bit dual
Signal-to-noise ratio 88 dB (1 kHz, 0 dB)
Wow and flutter Unmeasurable

GENERAL

Power requirements 120 V AC, 60 Hz
Power consumption 46 W
Power consumption in standby mode

With ECO mode on: 0.6 W
With ECO mode off: 15 W

Dimensions (W × H × D) 235 × 317 × 292 mm

(9 3/8 × 12 1/2 × 11 1/2 in.)

Weight 4.7 kg (10 lbs 6 oz)

SPEAKER SYSTEM SX-LTC80

Speaker system 2 way, bass reflex (magnetic

shielded)

Speaker units Woofer: 120 mm cone

Tweeter: 25 mm dome
Impedance 6 ohms
Dimensions (W × H × D) 150 × 319 × 215 mm

(6 × 12 5/8 × 8 1/2 in.)
Weight 2.3 kg (5 lbs 1 oz)

Specifications and external appearance are subject to change
without notice.

COPYRIGHT

Check copyright laws relevant to recordings from discs or radio
for the country where the unit is to be used.

En

15

NOTE

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on circuit different
from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician
for help.

CAUTION

Modifications or adjustments to this product, which are not
expressly approved by the manufacturer, may void the user’s
right or authority to operate this product.

REMARQUE

Cet appareil a été testé et jugé conforme aux limites des
appareils numériques de Classe B, conformément à la Partie
15 des Règles FCC. Ces limites sont conçues pour fournir
une protection raisonnable contre les interférences néfastes
dans une installation résidentielle.
Cet appareil produit, utilise et peut rayonner une énergie de
fréquence radio et, s'il n'est pas installé et utilisé
conformément aux instructions, peut provoquer des
interférences gênantes pour les communications radio. Mais
rien ne garantit qu'une telle interférence ne se produira pas
dans une installation particulière. Si cet appareil produit des
interférences gênantes pour la réception radio ou de télévision,
ce qui peut se déterminer en allumant et éteignant l'appareil,
il est recommandé à l'utilisateur d'essayer de corriger cette
interférence en appliquant une ou plusieurs des mesures
suivantes:

- Réorientation ou déplacement de l'antenne réceptrice.

- Éloignement de l'appareil du récepteur.

- Raccordement de l'appareil à une prise d'un circuit différent
de celui du récepteur.

- Consultez le revendeur ou un technicien radio/télévision
expérimenté.

PRÉCAUTION

Les modifications ou ajustements de ce produit, non
expressément approuvés par le fabricant, peuvent invalider le
droit ou l'autorité de l'utilisateur à utiliser ce produit.

CAUTION

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS
(POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

This Class B digital apparatus complies with Canadian
ICES-003.

Only for C models.

ATTENTION

POUR PREVENIR LES CHOCS ELECTRIQUES NE PAS
UTILISER CETTE FICHE POLARISEE AVEC UN
PROLONGATEUR, UNE PRISE DE COURANT OU UNE AUTRE
SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE
INSEREES A FOND SANS EN LAISSER AUCUNE PARTIE A
DECOUVERT.

Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.

Pour les modèles C uniquement.

Printed in China
