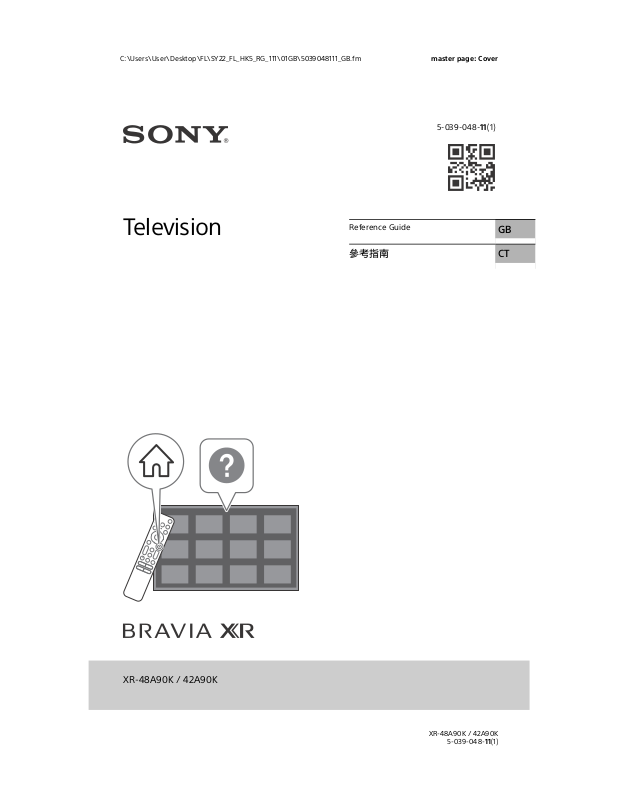

Sony XR-48A90K Users guide

5-039-048-11(1)
Television
Reference Guide
參考指南
CT
XR-48A90K / 42A90K
About Manuals
https://rd1.sony.net/ help/tv/jga1/h_ga/
This TV comes with the following manuals. Please retain the manuals for future reference.
Setup Guide
• TV installation and setup.
Reference Guide (this manual) / Safety Documentation
• Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.
Help Guide (On screen Manual)
• Settings, functions, Internet connection, troubleshooting, etc.
• To open it, press (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].
IMPORTANT - Read the End User Software Licence Agreement before using your Sony product. Using your
product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (https:// www.sony.net/tv-software-licenses/) or on your product screen. Press (Quick Settings) on the remote control and select [Settings] t [System] t [About] t [Legal information] t [Notices and licences].
Note
• Before operating the TV, please read the “Safety Information”.
• Read the supplied safety documentation for additional safety information.
• Instructions about “Installing the TV to the Wall” are included within this TV’s instruction manual.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• Setting menus are subjec t to change without notice due to software updates. For latest information, visit Sony support website.
Location of the identification label
Labels for the TV Model No. and Power Supply rating are located on the rear of the TV. They can be found by removing the terminal cover.
This television is designed for use in Hong Kong and ensured the usage in Hong Kong only.
Safety Information
• You can refer to the Help Guide with your smartphone.
• Install the TV so that the TV’s Table-Top Stand does not protrude
out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.
Tran spo rti ng
• Before transporting the TV set, disconnect all cables.
• Before transporting the TV set, remove the terminal covers.
• Two or more persons are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below.
Do not put stress on the panel and the frame around the screen.
• When lifting or moving the TV set, hold it firmly from the
bottom.
• When handling or mounting the TV
set, do not lay down the TV.
Installation/Set-up
Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.
Installation
• The TV set should be installed near an easily accessible AC power outlet (mains socket).
• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
• Install the TV where it cannot be pulled, pushed, or knocked over.
GB
2
• When transporting the TV set, do not subject it to jolts or excessive v ibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.
2
4
1
3
9 mm – 13 mm
M6 screw (not supplied)
Screw (not supplied)
Cord (not supplied)
1.5 N·m {15 kgf·cm}
S-CENTER
OUT
HDMI (eARC/ARC) connection
TV centre speaker mode cable
Topple prevention
Protecting the TV Screen (OLED TV)
Precautions to Protect the Screen from Damage
Image retention
OLED TV’s are susceptible to image retention (burn-in) due to the characteristics of the materials used. Image retention may occur if images are displayed in the same location on the screen repeatedly or over extended periods of time. This is not a malfunction of the TV. Avoid displaying images that may cause image retention.
The following are examples of images that may cause image retention:
• Content with black bars either on the top and bottom and/or the left and right sides of the screen. (for example, Letterboxed, 4:3 screen, Standard definition)
• Static images such as photos.
• On-screen menus, programme guides, channel logos etc.
• Static content from applications.
• On-screen tickers, such as those used for news and headlines.
To reduce the risk of image retention:
• Sony recommends that you turn off the TV normally by pressing
• Fill the screen by changing [Wide mode] to eliminate the black
• Turn off the OSD (On Screen Display) by pressing (Control
• Avoid displaying static images with bright colours (including
• Set the picture settings based on the ambient conditions. The
The TV has following features to help reduce/prevent image retenti on.
Pane l re fre sh
A panel refresh will adjust the panel uniformity. Panel refresh can be performed and should only be used when image retention is very noticeable.
the power button on the remote control or the TV.
bars. Select [Wide mode] other than [Normal].
menu) button and select [Info], and turn off the menus from connected equipment.
white), clocks or logos on any portion of the screen.
Standard Picture is recommended for home use and when viewing content that often di splays the station logos , etc.
Caution:
• The Panel refresh function may affect the panel. Do not perform Panel refresh more than once a year as it may affect the usable life of the panel.
• Panel refresh takes about ten minutes to complete.
• The effectiveness of a panel refresh may vary depending on the image retention condition.
Pixel shift
Automatically moves the image on the screen to prevent image retenti on.
Other feature
The screen brightness is automatically reduced when displaying still images, clocks, bright colours or logos etc.
Using TV as Part of Audio System
Note
• Before connecting cables, disconnect the AC power
cord (mains lead) of both TV and AV receiver.
• Refer to the instruction manual of the Audio system
with S-CENTER OUT terminal for detail.
3
GB
Remote Control and TV
ȩ
ȫ
Ȭ
Ȫ
Light sensor*
2
MIC
Buzzer*
3
ȯȰ
The remote control shape, layout, availability and function of remote control buttons may vary depending on your region/country/TV model/TV settings*1.
(Power)
TV:
Display TV channel list or switch to
input.
(Quick settings): Display Quick Settings.
(Input select): Display and select the
input source, etc.
(Control menu): Display the Control
menu.
/ / / /: On screen menu
navigation and selection.
(Back) (Home)
(Google Assistant) / (Microphone):
Use Google Assistant*
+/– (Volume)
(Mute)*
6
CH + / – (Channel)
/
(Guide):
guide.
App buttons
Display the digital programme
4*5
or voice search*5.
(Power)
BUILT-IN MIC SWITCH*
4
: Turn on/off the
built-in MIC.
Built-in MIC*
4*5*7
: To enable the built-in
MIC, press the Google Assistant/ microphone button on the remote control and follow the on-screen instructions.
Remote Control sensor / Light sensor /
LED
*1 For other remote control models, refer to the online
Help Guide for details.
*2 The remote control backlight will illuminate when
the light sensor detects the ambient light is low. Automatic illumination of the backlight can be turned off.
*3 The buzzer will emit a sound when you use the
remote finder function. Refer to the online Help Guide for details.
*4 Only for limited region/country/model/language. *5 Google Assistant or voice search requires an Internet
connection.
*6 Accessibility shortcut is available by pressing and
holding (Mute).
*7 Power consumption will increase when the built-in
MIC is enabled as it is always listening.
For more information, refer to the Help Guide. Press (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].
GB
4
Installing the TV to the Wall
9 mm – 13 mm
Screw (M6)
Wall-Mount Bracket TV’s rear cover
Using the optional Wall-Mount Bracket (SU-WL850 or SU-WL450)* (not supplied)
To Customers:
For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the installation, periodic maintenance and examination of this product.
Wall-Mount Bracket Installation Information
For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model. https://www.sony-asia.com/support
• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight.
• Sony is not liable for any damage or injury caused by mishandling or improper installation.
• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including:
Wall-Mount Bracket SU-WL850Wall-Mount Bracket SU-WL450
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.
• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.
* Only for limited region/country/model.
Optional Camera and Microphone Unit (not supplied) Cable Management
Table-Top Stand position
Note
• Do not attach a cable holder to the terminal cover to avoid any difficulty when removing the terminal cover.
Wall-mount position
GB
