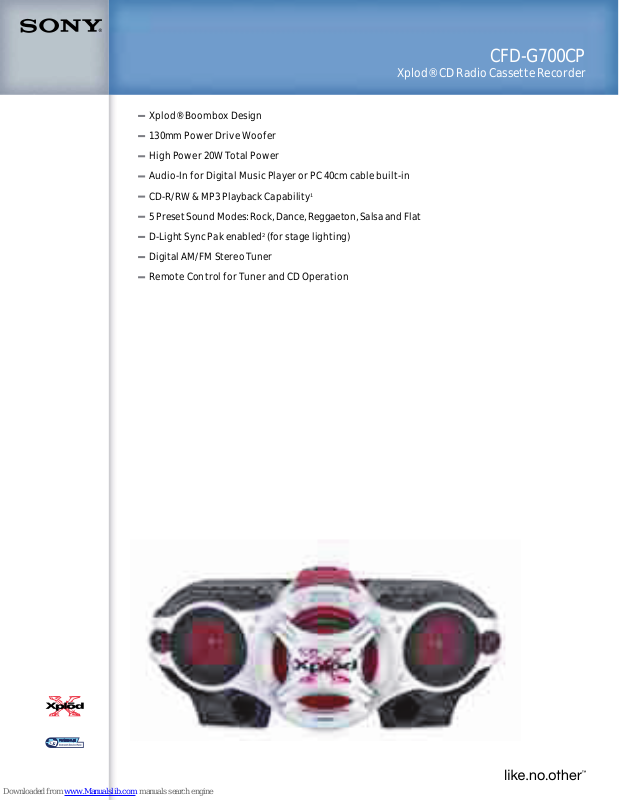

Sony Xplod CFD-G700CP Specifications

CFD

-G700CP

Xplod® CD Radio Cassette Recorder

Xplod® Boombox Design

130mm Power Drive Woofer

High Power 20W Total Power

Audio-In for Digital Music Player or PC 40cm cable built-in

CD-R/RW & MP3 Playback Capability

1

5 Preset Sound Modes: Rock, Dance, Reggaeton, Salsa and Flat

D-Light Sync Pak enabled (for stage lighting)

2

Digital AM/FM Stereo Tuner

Remote Control for Tuner and CD Operation

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 08/02/2007

CFD

-G700CP

Xplod® CD Radio Cassette Recorder

Please visit the Dealer Network for current information at www.sony.com/dn

Features

Xplod® Boombox Design represents high quality and power with a

new aggressive look.

130mm Power Drive Woofer for greater bass response.

High Power 20W Total Output provides plenty of power to drive

the woofer and fill any room with sound.

Audio-In for Digital Music Player or PC with 40cm cable built­in allows for simple plug-and-play integration with a digital music

player or PC making it easy to listen to your favorite music no
matter where you are.

CD-R/RW and MP3 Playback Capability Create custom MP3 mixes
burned to CD-R/RW discs, from your existing personal music

collection, and easily play them back.

1

5 Preset Sound Modes Select an appropriate sound adjustment to
fit the type of music you are listening to, choose from Rock,
Dance, Reggaeton, Salsa and Flat.

D

-Light Sync allows you to connect American DJ D-Light Sync Pak

Stage Lights (sold separately) for stunning visual effects.

2

Digital AM/FM Stereo Tuner

provides the most accurate, drift-free
tuning of AM and FM radio stations and lets you choose from a
wide variety of radio, talk and music programs with the added
enjoyment of stereo sound.

Remote Control for Tuner and CD Operation includes keys to
directly access tracks on a CD as well as pre-set stations
programmed into tuner memory.

Specifications

General

Type of Use: Portable Bombox
Tray Type:

Top Loading Single CD

Disc Capacity: 1

Audio

Digital

-to-Analog Converter: 1 Bit

Frequency Response: CD: 20-20000Hz (+1/-2dB); Cassette: 50-13000Hz

±

3dB)

Format(s) Supported: CD-R/RW MP3 Playback Compatibility
Tuning: Auto Scan Radio

Antenna System: AM: Built-in Ferrite Bar Antenna; FM: Telescopic

Antenna

Tape System:

4 Track, 2 channel Stereo Cassette, Synchronized

CD/Cassette Dubbing

Frequency Range: AM: 530-1710kHz; FM: 87.5-108.0MHz
CD Play Mode(s): Program, Shuffle, Repeat, 20 Track RMS Programming
Station Preset(s):

30(10 AM, 20 FM)

Sound Enhancer: Power Drive Woofer
Equalizer:

5 presets (Rock, Dance, Reggaeton, Salsa, Flat)

Tape Operation:

Single Stereo Cassette (fast winding)

Tuner Type:

Digital

1

Hardware

Remote Control: Yes

Power

Battery Life (Approx.):

Unit: up to 18 hours (w/ SONY Alkaline

Batteries)

Power Requirements: AC 120V, 60Hz
Output Power: 20W Total (4W + 4W (at 3.2 ohms, 10% harmonic

distortion); 12W (at 4 ohms, 10% harmonic distortion) (Woofer))

Battery Type:

Unit: “D” x 8 (optional); Remote: “

AAA

” x 2

Power Consumption (in Operation): 30W
Power Handling Capacity: With 3.2-ohm loads, both channels driven

from 150-10000Hz; rated 3 W per channel minimum RMS power, with
no more than 10% total harmonic distortion in AC operation
Woofer with 4 ohm loads, driven at 50-150Hz; rated 7 W minimum
RMS power, with no more than 10% total harmonic distortion in AC
operation.

Speaker

Speaker System:

Built-In Stereo

Speaker Dimensions: 4" (10cm) x 2
Woofer Size(s): 5" (13cm)
Tweeter Size:

0.8" (2cm)

Inputs and Outputs

Headphone Output(s): stereo mini jack
DC-In: Yes
PC Audio Input(s): stereo mini jack and direct cable

Dimensions

Weight:

17 lbs 10 oz (8Kg)

Measurements: 21 3/4 x 14 9/16 x 9 11/16" (551 x 370 x 246mm)

Supplied Accessories

AC Power Cord
Remote Control

Color: Black
UPC Code: 027242700062

1. CD-R/RW media/formats are not universally compatible.

2. Works with D-Light Sync Pak lighting from American DJ (sold separately). Requires DLS-1 light controller sold
separately by Sony.

3. Battery life may vary due to usage patterns, product settings, environment and battery condition.

©2007 Sony Electronics Inc.
Sony, like no other and Xplod are trademarks of Sony. All other trademarks are property of their respective
owners.
Features and specifications are subject to change without notice. Non-metric weights and measures are
approximate.
