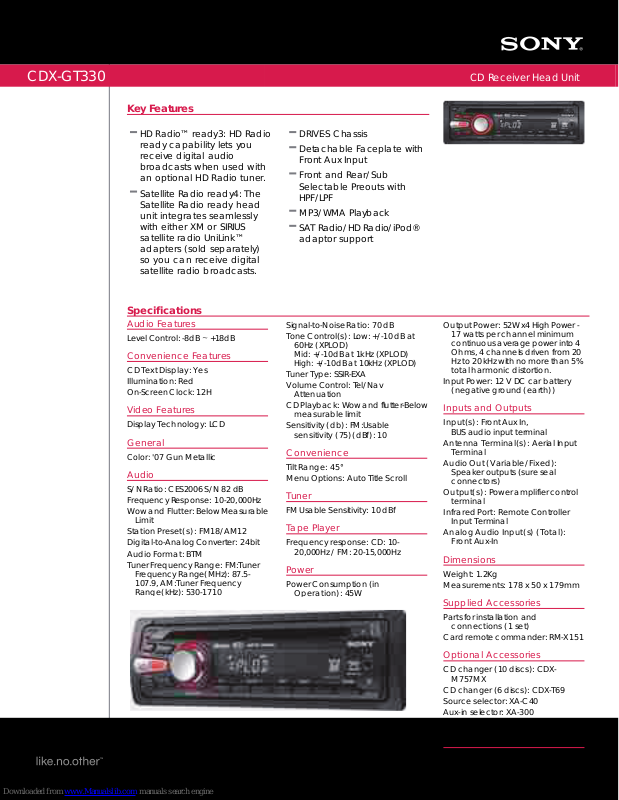

Sony Xplod CDX-GT330, CDX-GT330 Specifications
CDX
-GT330
CD Receiver Head Unit
Key Features
Specifications
HD Radio
™ ready3: HD Radio
ready capability lets you
receive digital audio
broadcasts when used with
an optional HD Radio tuner.
Satellite Radio ready4: The
Satellite Radio ready head
unit integrates seamlessly
with either XM or SIRIUS
satellite radio UniLink™
adapters (sold separately)
so you can receive digital
satellite radio broadcasts.
DRIVE-S Chassis
Detachable Faceplate with
Front Aux Input
Front and Rear/Sub
Selectable Preouts with
HPF/LPF
MP3/WMA Playback
SAT Radio/HD Radio/iPod
®
adaptor support
Audio Features
Level Control: -8dB ∼ +18dB
Convenience Features
CD Text Display: Yes
Illumination: Red
On-Screen Clock:
12H
Video Features
Display Technology: LCD
General
Color:
'07 Gun Metallic
Audio
S/N Ratio: CES2006 S/N 82 dB
Frequency Response: 10-20,000Hz
Wow and Flutter: Below Measurable
Limit
Station Preset(s): FM18/AM12
Digital-to-Analog Converter: 24bit
Audio Format: BTM
Tuner Frequency Range: FM:Tuner
Frequency Range(MHz): 87.5
-
107.9, AM:Tuner Frequency
Range(kHz): 530-1710
Signal-to-Noise Ratio: 70 dB
Tone Control(s): Low: +/-10 dB at
60Hz (XPLOD)
Mid: +/-10dB at 1kHz (XPLOD)
High: +/-10dB at 10kHz (XPLOD)
Tuner Type: SSIR-EXA
Volume Control: Tel/Nav
Attenuation
CD Playback: Wow and flutter-Below
measurable limit
Sensitivity (db):
FM:Usable
sensitivity (75)(dBf): 10
Convenience
Tilt Range: 45
°
Menu Options: Auto Title Scroll
Tuner
FM Usable Sensitivity: 10 dBf
Tape Player
Frequency response: CD: 10
-
20,000Hz / FM: 20-15,000Hz
Power
Power Consumption (in
Operation): 45W
Output Power: 52W x4 High Power -
17 watts per channel minimum
continuous average power into 4
Ohms, 4 channels driven from 20
Hz to 20 kHz with no more than 5%
total harmonic distortion.
Input Power: 12 V DC car battery
(negative ground (earth))
Inputs and Outputs
Input(s): Front Aux In,
BUS audio input terminal
Antenna Terminal(s): Aerial Input
Terminal
Audio Out (Variable/Fixed):
Speaker outputs (sure seal
connectors)
Output(s): Power amplifier control
terminal
Infrared Port: Remote Controller
Input Terminal
Analog Audio Input(s) (Total):
Front Aux-In
Dimensions
Weight: 1.2Kg
Measurements: 178 x 50 x 179mm
Supplied Accessories
Parts for installation and
connections (1 set)
Card remote commander: RM-X151
Optional Accessories
CD changer (10 discs): CDX
-
M757MX
CD changer (6 discs): CDX-T69
Source selector: XA-C40
Aux-in selector: XA-300
iPod® interface adaptor: XA-120IP
HD Radio™ tuner: XT-100HD
Color:
Gun Metallic
UPC Code:
027242744431
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 03/05/2009
CDX
-GT330
CD Receiver Head Unit
Please visit the Dealer Network for more information at www.sony.com/dn
This unit cannot be connected to a digital preamplifier or an equalizer which is Sony BUS compatible.
Note: Design and specifications are subject to change without notice.
MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
iPod
® connectivity may require optional adaptor.
Ability to use all generations of iPod products may vary as not all products are compatible.
Compatible iPod products must be updated with the latest software before use.
Satellite radio capability requires an optional satellite radio tuner and service subscription.
HD Radio capability requires an optional HD Radio tuner (XT-
100HD).
Not all MP3, WMA, and AAC files may playback due to file variations.
Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.
©2008 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited.
Sony, Quick-BrowZer, Walkman, Xplod, ZAPPIN and their respective logos are trademarks of Sony. All other trademarks are property of their respective owners.
Features and specifications are subject to change without notice. Non-metric weights and measures are approximate
