1287-4317 Rev 2
Sony Mobile Communications AB – Company Internal
Component Replacement
- electrical -
Xperia
TM
Z2
D6502, D6503, D6543, L50w
1287-4317 Rev 2
Sony Mobile Communications AB – Company Internal
2(11)
CONTENTS
1 Replaceable Components ............................................................. 3
2 Component Placing ........................................................................ 5
3 Additional Repair info .................................................................... 6
4 Revision History ........................................................................... 10
For general information about electrical repair related issues, refer to
1220-1336: Generic Repair Manual - electrical
Test after electrical replacement: refer to 1273-1772 Mechanical Test Instruction
Do not remove shield can lids (Heat pasta are added and RF performance will be damaged)
1287-4317 Rev 2
Sony Mobile Communications AB – Company Internal
3(11)
1 Replaceable Components
EXPLANATION OF ABBREVIATIONS USED IN THE COLUMN ‘COMMENTS’ BELOW
COMPONENT LOCATION
P = Primary side
S = Secondary side
REPAIR METHOD
HA = Hot Air (removal & mounting)
ST = Soldering Tool (removal & mounting)
HA/ST = Hot Air for removal - Soldering Tool for mounting
BGA = BGA Station
BH = Bottom Heater
ADDITIONAL INFORMATION
1 (2,3,4, etc.) = Proceed to ‘Additional Repair Info’ for further instructions in the indicated section(s).
1287-4317 Rev 2
Sony Mobile Communications AB – Company Internal
4(11)
Position
Component
Part no.
Comments
B3504
Microphone
1210-7410
S HA+BH or BGA 1
F5100
Fuse 0.25A 1.0*0.5mm
1265-7224
S HA+BH 2
R1304
Resistor 0.01 Ohm +/-1% 200.0 mW (1.6x0.
1238-2147
S HA+BH 3
R2200
Resistor 0.0 Ohm +/-50m 63.0 mW K0603
1000-0257
P HA+BH 4
V7800
LED flash LED 2.03mmx1.63mmx0.70mm
1277-7270
S HA+BH 5
X1300
Conn BtB Plug 4p HIROSE/BM22
1264-8491
S HA+BH 6
X1301
Conn BtB Receptacle 4p HIROSE/BM22
1264-6156
S HA+BH 7
X2200
Conn USB B Receptacle 5p
1268-3388
P HA+BH or BGA 8
X2801
Conn Coax Receptacle 1p
1237-5326
S HA+BH 9
X2804
Conn Coax Receptacle 1p
1237-5326
S HA+BH 10
X4000
Card Conn SIM
1271-9742
P HA+BH or BGA 11
X8000
Conn Leaf Spring Plug 1p Antenna/GND Spr
1239-2123
P HA+BH 12
X8003
Conn Coax Receptacle 1p
1261-3585
S HA+BH 13
X8004
Conn Leaf Spring Plug 1p Antenna/GND Spr
1239-2123
P HA+BH 12
X8005
Conn Leaf Spring Plug 1p Antenna/GND Spr
1239-2123
P HA+BH 12
X8103
Conn Coax Receptacle 0p test switch
1221-6477
S HA+BH 14
X8400
Conn Leaf Spring Plug 1p
1252-2057
S HA+BH 15
X8650
Conn Leaf Spring Plug 1p Antenna/Groundi
1238-5878
S HA+BH 16
X8651
Conn Leaf Spring Plug 1p Antenna/Groundi
1238-5878
P HA+BH 16
1287-4317 Rev 2
Sony Mobile Communications AB – Company Internal
5(11)
2 Component Placing
To access the Component Placing document, double-click the icon below.
Applicable for on-screen viewing only – icon not shown on hard-copies.
Primary side
Secondary side
1287-4317 Rev 2
Sony Mobile Communications AB – Company Internal
6(11)

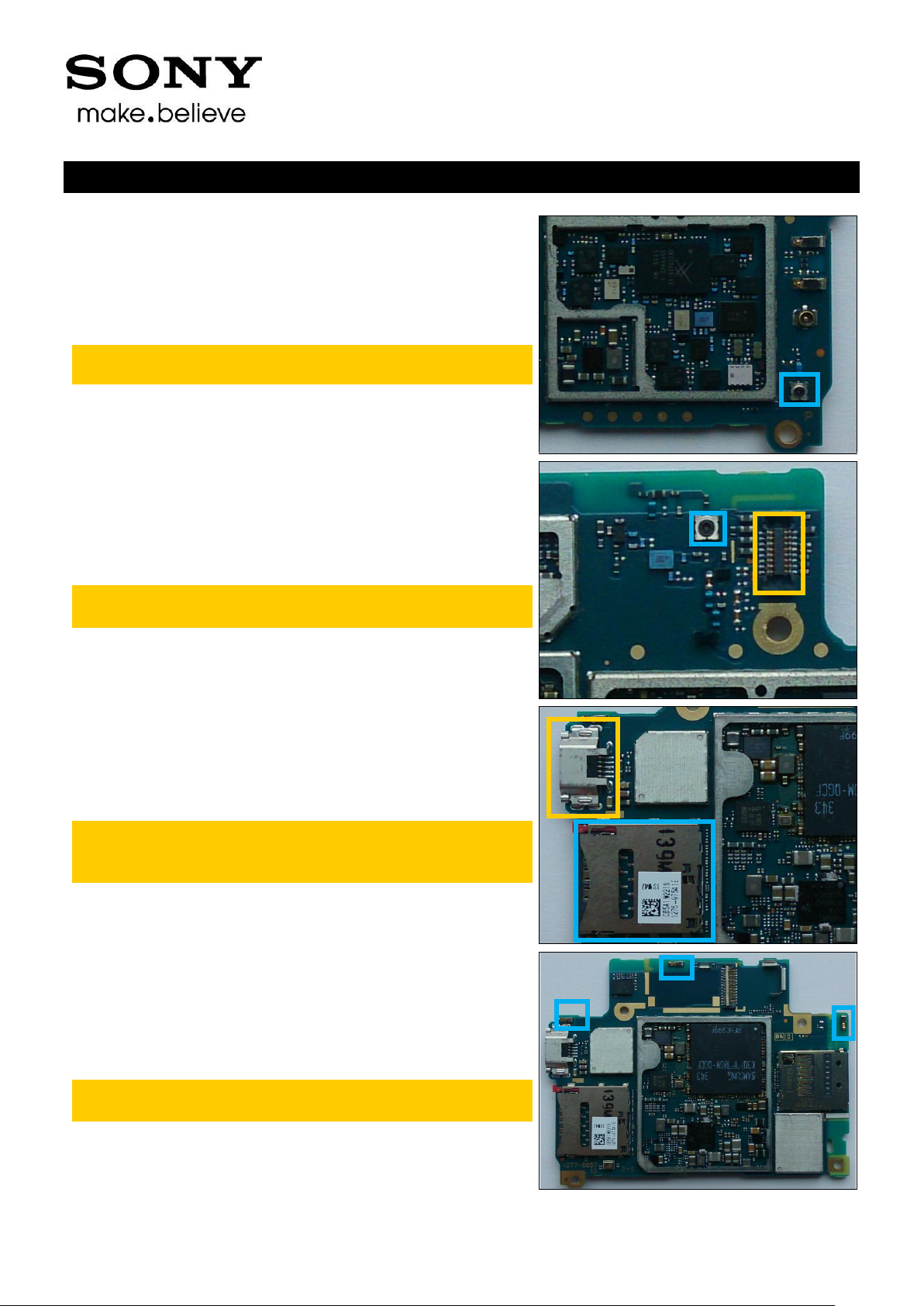

1
B3504
Replace if no audio from secondary mic
Protect the BtB connectors with capton tape!
When replacing protect secondary mic with capton
tape!
2
F5100
Replace if open circuit (Vibrator not working)
Protect the BtB connectors with capton tape!
3
R1304
Replace if open circuit (Phone dead)
Protect the BtB connector with capton tape!
4
R2200
Replace if open circuit (USB charger or data transfer
not working)
Protect the USB and SIM connectors with capton tape!
3 Additional Repair info
1287-4317 Rev 2
Sony Mobile Communications AB – Company Internal
7(11)
5
V7800
Replace if Flash LED not working
6
X1300
Replace if mechanical damaged. (Phone dead or power
off)
Protect the BtB connectors with capton tape!
7
X1301
Replace if mechanical damaged (Main charger not
working)
Protect the BtB connectors with capton tape!
8
X2200
Replace if mechanical damaged (USB charger or data
transfer not working)
Protect the SIM connector with capton tape!
Repair Actions: Additional Repair Info
1287-4317 Rev 2
Sony Mobile Communications AB – Company Internal
8(11)
9
X2801
Replace if open circuit 1-2 (No or bad network, main
antenna)
10
X2804
Replace if open circuit 1-2 (No or bad GPS)
Protect the BtB connector with capton tape!
11
X4000
Replace if mechanical damaged (No network, restart, No
SIM card inserted)
Protect the USB connector with capton tape!
12
X8000,X8001, X8002
Replace if mechanical damaged (No or bad GPS)
Protect the USB connector with capton tape!
Repair Actions: Additional Repair Info
1287-4317 Rev 2
Sony Mobile Communications AB – Company Internal
9(11)
13
X8003
Replace if mechanical damaged (No or bad network,
main antenna)
14
X8103
Replace if open circuit 1-2 ( no or bad WLAN/ BT)
Protect the BtB connector with capton tape!
15
X8400
Replace if mechanical damaged ( no or bad WLAN/ BT)
Protect the RF connector with capton tape!
16
X8650,X8651
Replace if mechanical damaged ( no or bad NFC)
Repair Actions: Additional Repair Info
1287-4317 Rev 2
Sony Mobile Communications AB – Company Internal
10(11)
Rev.
Date
Changes / Comments
1
2014-05-28
Initial release
2
2014-05-28
X1300 and X1301 position corrected
4 Revision History
1287-4317 Rev 2
Sony Mobile Communications AB – Company Internal
11(11)
