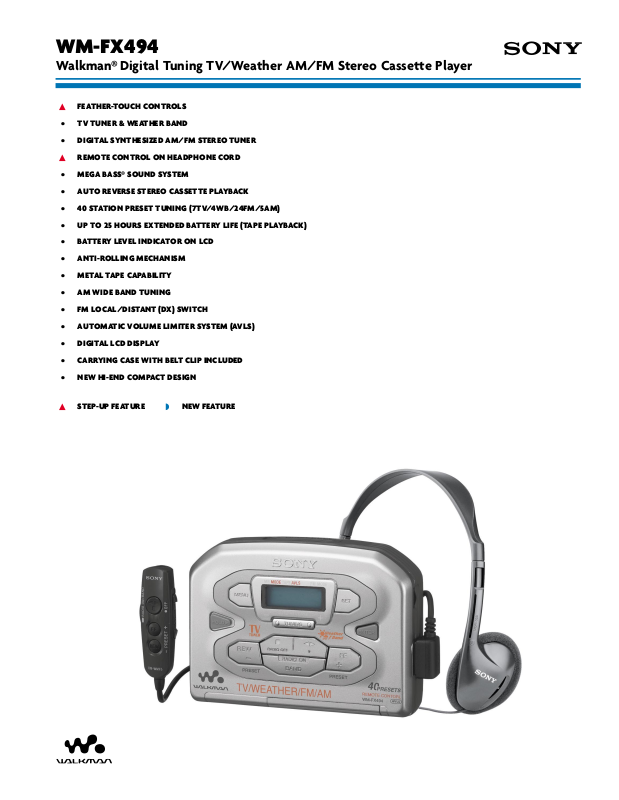

Sony WM-FX494 User Manual
WM-FX494
Walkman®Digital Tuning TV/Weather AM/FM Stereo Cassette Player
▲ FEATHER-TOUCH CONTROLS
• TV TUNER & WEATHER BAND
• DIGITAL SYNTHESIZED AM/FM STEREO TUNER
▲ REMOTE CONTROL ON HEADPHONE CORD
• MEGA BASS® SOUND SYSTEM
• AUTO REVERSE STEREO CASSETTE PLAYBACK
• 40 STATION PRESET TUNING (7TV/4WB/24FM/5AM)
• UP TO 25 HOURS EXTENDED BATTERY LIFE (TAPE PLAYBACK)
• BATTERY LEVEL INDICATOR ON LCD
• ANTI-ROLLING MECHANISM
• METAL TAPE CAPABILITY
• AM WIDE BAND TUNING
• FM LOCAL/DISTANT (DX) SWITCH
• AUTOMATIC VOLUME LIMITER SYSTEM (AVLS)
• DIGITAL LCD DISPLAY
• CARRYING CASE WITH BELT CLIP INCLUDED
• NEW HI-END COMPACT DESIGN
▲ STEP-UP FEATURE ◗ NEW FEATURE
WM-FX494
Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com Printed in USA 2/2002
features
▲
FEATHER-TOUCH CONTROLS
are sensitive and logic-controlled for very
fast, very easy operation
• TV TUNER & WEATHER BAND
lets you listen to audio from TV channels
2-13, and up-to-the-minute weather from your local Weather Band
broadcasts
• DIGITAL SYNTHESIZED AM/FM STEREO TUNER
provides the most
accurate drift-free tuning of AM and FM stereo radio stations
▲
REMOTE CONTROL ON HEADPHONE CORD
offers convenient direct
access to all of the unit's functions
• MEGA BASS®SOUND SYSTEM
produces deep, rich bass tones for more
pleasing overall sound
• AUTO REVERSE STEREO CASSETTE PLAYBACK
lets you enjoy
uninterrupted listening to both sides of a stereo cassette with no need
to remove and turn over the tape
• 40 STATION PRESET TUNING (7TV/4WB/24FM/5AM)
offers convenient
one-button tuning of your choice of 7 TV stations, 4 Weather band
channels, 24 FM and 5 AM stations
• UP TO 25 HOURS EXTENDED BATTERY LIFE (TAPE PLAYBACK)
with 2 “AA”
batteries is made possible by advanced technology that allows extended
battery life beyond previous limits
• BATTERY LEVEL INDICATOR ON LCD
provides visible indication of
battery power
• STEREO CASSETTE PLAYBACK
lets you enjoy your own tapes as well as
prerecorded cassettes with the added enjoyment of stereo sound
• ANTI-ROLLING MECHANISM
maintains stable tape speed to maximize
sound quality while unit is in motion when walking or during use in other
activities
• METAL TAPE PLAYBACK CAPABILITY
with tape selector switch for
Normal or CrO
2
/Metal cassettes provides optimum playback of all major
tape types
• AM WIDE BAND TUNING
with a frequency range up to 1710 kHz allows
reception of all AM radio stations regulated by the FCC in the new
expanded AM band
• FM LOCAL/DISTANT (DX) SWITCH
provides optimal reception of both
near and distant stations
• AUTOMATIC VOLUME LIMITER SYSTEM (AVLS)
automatically adjusts
music passages that vary widely, for improved listener comfort and clear
sound
• DIGITAL LCD DISPLAY
indicates radio station frequency, preset status,
and cassette operation
• CARRYING CASE WITH BELT CLIP INCLUDED
lets you conveniently
“wear” your Walkman®player while walking or during other activities
• NEW HI-END COMPACT DESIGN
offers high performance while still being
easy to carry and grip
specifications
FREQUENCY RANGE:
FM: 87.6-108MHz
AM: 530-1710kHz
TV: Ch. 2-13VHF
Weather: Ch. 1-5
TAPE SYSTEM:
4 track, 2 channel stereo
FREQUENCY RESPONSE:
40-15,000Hz
INPUTS:
DC-In jack 3V
OUTPUTS:
Headphones (Stereo mini jack)
POWER OUTPUT:
Headphones: 8mW/channel x 2 (@32 ohms)
POWER REQUIREMENTS:
DC 3V "AA" x 2
BATTERY LIFE (APPROX.):
Tape Playback: 25 hours w/Sony alkaline batteries
FM Reception: 40 hours w/Sony alkaline batteries
COLOR:
Silver
DIMENSIONS (WHD):
3 1⁄4" x 4 1⁄2" x 1 1⁄8" (83.2 x 115. x 30.1mm)
WEIGHT:
6 7⁄8oz (195g) with batteries
SUPPLIED ACCESSORIES:
MDR-026SP Stereo Headphones, Carry Case with Belt
Clip, RM-WMF5 Remote Control
©2002 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved.
Sony, Mega Bass, Micro Dynamic Receiver and Walkman are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
