Sony WEGA KV-36HS420 Specifications
KV-36HS420
MODEL:
DESCRIPTION:
DESCRIPTION:
DIMENSIONS
DIMENSIONS
(WHD):
(WHD):
WEIGHT:
WEIGHT:
39 1/8 "x 30 5/8 " x 25 "
36" Wega
®
Monitor/Receiver
230 lbs
POWER
REQUIREMENTS:
POWER
CONSUMPTION:
120VAC
60Hz
240 w
1w(stby)

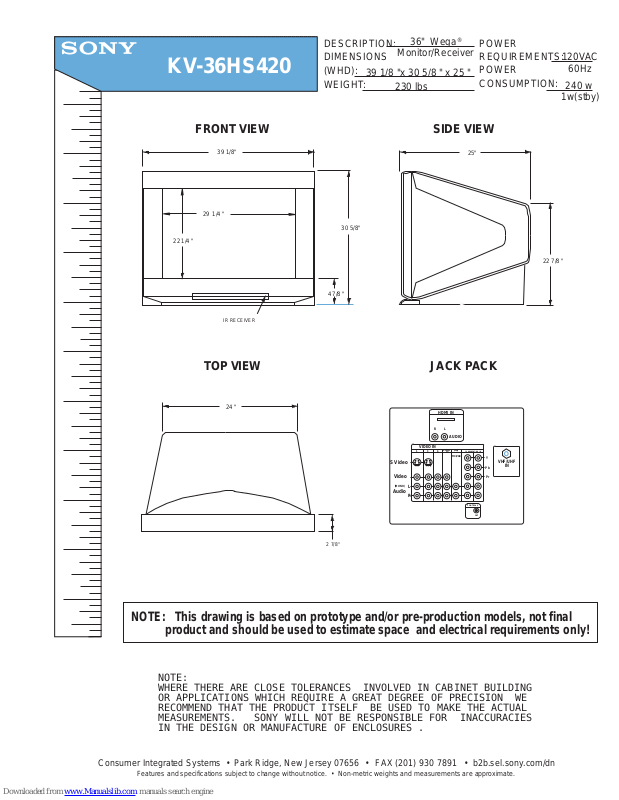

FRONT VIEW
29 1/4 "
22 1/4 "
TOP VIEW JACK P ACK
39 1/8"
IR RECEIVER
24 "
19 1/4"
14 1/2"
4 7/8 "
30 5/8"
S Video
Video
(MONO)
Audio
SIDE VIEW
R L
VIDEO IN
1 3 4
L
R
HDMI IN
MONITOR
OUT
AUDIO
AUDIO
OUT
FIX/VAR
25"
COMPONENT / HD IN
CONTROL S
22 7/8 "
Y
VHF/UHF
IN
Pb
Pr
OUT
NOTE: This drawing is based on prototype and/or pre-production models, not final
product and should be used to estimate space and electrical requirements only!
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 930 7891 • b2b.sel.sony.com/dn
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
