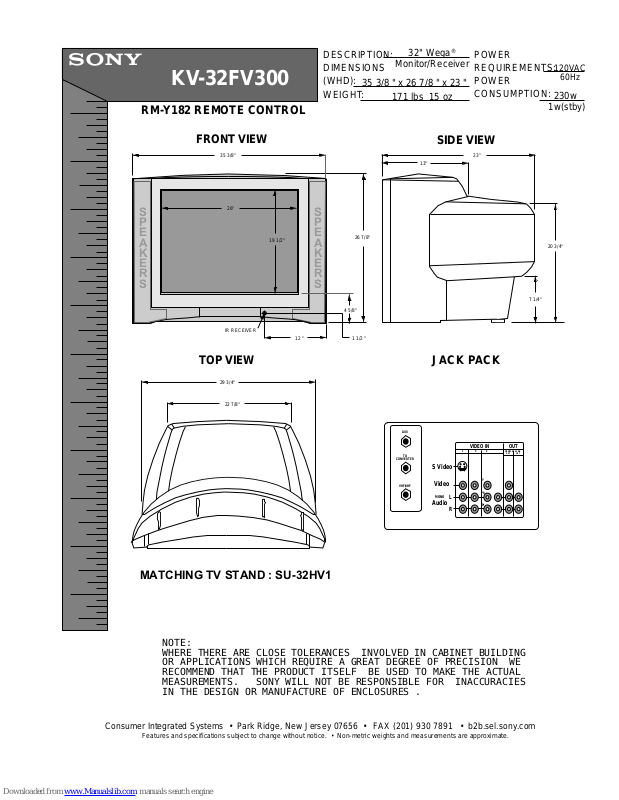

Sony WEGA KV-32FV300 Specifications
KV-32FV300
RM-Y182 REMOTE CONTROL
MODEL:
DESCRIPTION:
DESCRIPTION:
DIMENSIONS
DIMENSIONS
(WHD):
(WHD):
WEIGHT:
WEIGHT:
35 3/8 " x 26 7/8 " x 23 "
32" Wega
®
Monitor/Receiver
171 lbs 15 oz
POWER
REQUIREMENTS:
POWER
CONSUMPTION:
1w(stby)
120VAC
60Hz
230w
S
P
E
A
K
E
R
S
FRONT VIEW
35 3/8"
26"
IR RECEIVER
TOP VIEW
29 3/4"
22 7/8"
19 1/2"
12 " 1 1/2 "
S
P
E
A
K
E
R
S
4 5/8"
26 7/8"
AUX
TO
CONVERTER
VHF/UHF
SIDE VIEW
13"
JACK PACK
1
S Video
Video
MONO
L
Audio
R
23"
VIDEO IN
34
Y
Pb
Pr
MONITOR
OUT
OUT
AUDIO
OUT
20 3/4"
7 1/4"
MATCHING TV STAND : SU-32HV1
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 930 7891 • b2b.sel.sony.com
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
