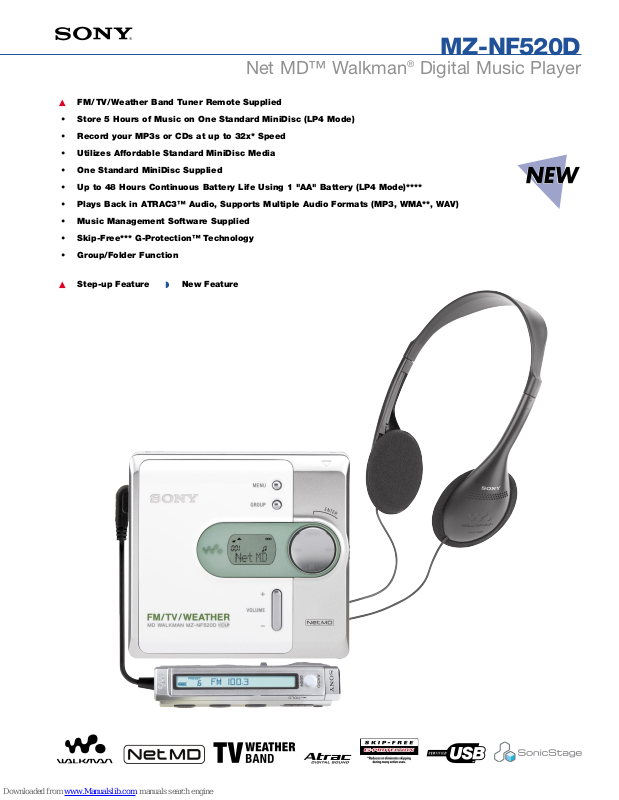

Page 1
MZ-NF520D
Net MD™ Walkman®Digital Music Player
®
▲ FM/TV/Weather Band Tuner Remote Supplied
• Store 5 Hours of Music on One Standard MiniDisc (LP4 Mode)
• Record your MP3s or CDs at up to 32x* Speed
• Utilizes Affordable Standard MiniDisc Media
• One Standard MiniDisc Supplied
• Up to 48 Hours Continuous Battery Life Using 1 "AA" Battery (LP4 Mode)****
• Plays Back in ATRAC3™ Audio, Supports Multiple Audio Formats (MP3, WMA**, WAV)
• Music Management Software Supplied
• Skip-Free*** G-Protection™ Technology
• Group/Folder Function
▲ Step-up Feature ◗ New Feature
Page 2
features
▲FM/TV/Weather Band Tuner Remote Supplied provides direct
access to the player's FM/TV/and Weather stations and has a stereo
mini-jack on the remote for headphones.
• Store 5 Hours of Music on One Standard Minidisc (LP4 Mode)
MiniDisc media can store over 5 hours (LP4 mode) of music and cost
only about $2 per disc.
• Record your MP3s or CDs at up to 32x* Speed Net MD™ products
provide high speed transfer of your music from your PC directly to your
Net MD recorder. The title/track information you create in the jukebox
automatically will be transferred to the Net MD recorder.
• Utilizes Affordable Standard MiniDisc Media MiniDisc media is
re-recordable, scratch resistant, low cost and provides high capacity
storage.
• One Standard MiniDisc Supplied The MZ-NF520D comes supplied
with one standard MiniDisc.
• Up to 48 Hours Continuous Battery Life Using 1 "AA" Battery
(LP4 Mode)****
Net MD Walkman recorders provide super long battery
life (up to 48 hours) with using just 1 "AA" battery.
• Plays Back in ATRAC3™ Audio, Supports Multiple Internet Audio
Formats (MP3, WMA**, WAV)
The Net MD recorder plays back in
ATRAC3 format and supports the most popular Internet audio formats,
including MP3, WMA and WAV.
• Music Management Software Supplied Net MD recorders come
bundled with SonicStage
®
and MD Simple Burner application, which
makes it easy to import, manage and transfer your music collections.
• Skip-Free*** G-Protection™ Technology Net MD recorders come
equipped with Skip-Free G-Protection technology which provides
virtually uninterrupted playback of your music.
• Group/Folder Function allows for easy navigation between multiple file
folders transferred from playlist.
specifications
Format: Digital Audio MiniDisc System
Sampling Frequency: 44.1 kHz
Data Compression Method (Coding) : ATRAC®/ATRAC3™ (Adaptive Transform
Acoustic Coding)
Frequency Response: 20-20,000Hz +/-3dB
Wow and Flutter: Unmeasurable
Inputs: USB (previously called USB1.1)
Outputs: Headphones/(stereo mini)
Power Requirements: "AA" Alkaline Battery x 1 (optional)
Battery Life (Approx.):
SP (Normal Stereo) Continuous Playback
1 x "AA" Alkaline 36 hrs
LP2 Continuous Playback
1 x "AA" Alkaline 42.5 hrs
LP4 Continuous Playback
1 x "AA" Alkaline 48 hrs
Color: White
Dimensions (WHD): 3 1⁄4" x 1 1⁄4" x 3" (81.0 x 30.7 x 74.4mm)
Weight: 4.1 oz (115g) without battery
Supplied Accessories: MDR-027SP Headphones, RM-MC34LT Digital Tuning
Remote Control, SonicStage
®
Software CD-ROM with MD Simple Burner
Application, USB Cable
Optional Accessories: Active Mini Speakers
©2004 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony,
ATRAC, ATRAC3, G-Protection, MD SImple Burner, Net MD, SonicStage and Walkman are trademarks
of Sony.
MiniDisc products sold by manufacturer-authorized outlets include the Serial Copy Management
System which will not prevent you from making a direct digital-to-digital copy from a digital source but
such copies will prevent a second digital-to-digital copy from being made.
*When recording in LP4 mode. Results vary based on PC specifications and does not include title transfer.
**Non secured WMA files.
***Reduces or eliminates skipping during many active uses.
****Actual battery life may vary based on usage patterns.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
MZ-NF520D
Net MD™ Walkman®Digital Music Player
®
Sony Electronics Inc.
1 Sony Drive
Park Ridge, New Jersey 07656
www.sony.com
Printed in USA
