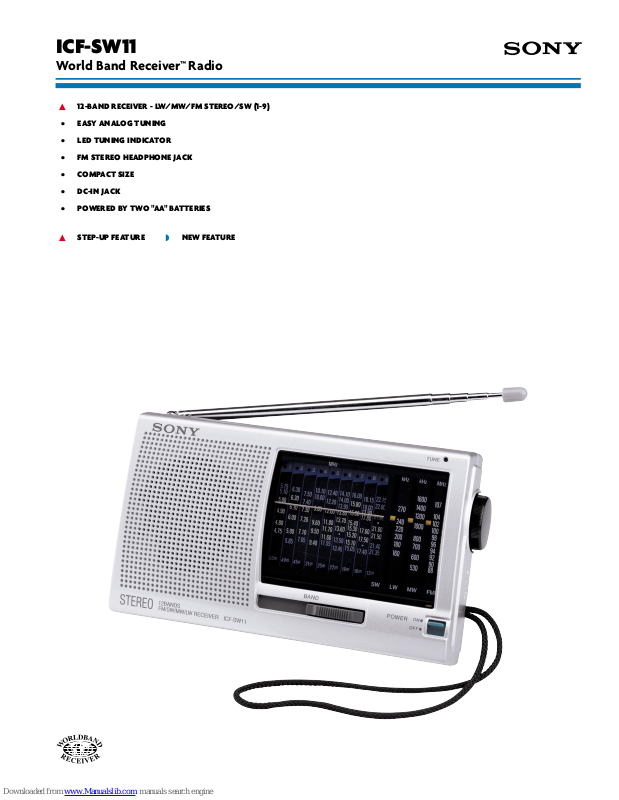

Sony Walkman ICF-SW11, ICF-SW11 Specifications

ICF-SW11

World Band Receiver™Radio

▲ 12-BAND RECEIVER - LW/MW/FM STEREO/SW (1-9)

• EASY ANALOG TUNING

• LED TUNING INDICATOR

• FM STEREO HEADPHONE JACK

• COMPACT SIZE

• DC-IN JACK

• POWERED BY TWO "AA" BATTERIES

▲ STEP-UP FEATURE ◗ NEW FEATURE

ICF-SW11

Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com Printed in USA 2/2002

features

▲

12-BAND RECEIVER – LW/MW/FM STEREO/SW (1-9)

lets you listen to a
worldwide range of frequencies at home and abroad, including FM
stereo, MW, LW, and Shortwave bands 1-9

• EASY ANALOG TUNING

simplifies tuning-in desired stations

• LED TUNING INDICATOR

provides accurate indication of center

frequency

• FM STEREO HEADPHONE JACK

allows for FM stereo reception as well as

private listening and improved sound clarity in noisy environments

• COMPACT SIZE

means you can you slip this lightweight radio into a

jacket pocket or briefcase for easy portability

• DC-IN JACK

lets you use an optional AC Adaptor to operate the radio

• POWERED BY TWO "AA" BATTERIES

for on the go listening anywhere in

the world

specifications

FREQUENCY RANGE:

FM: 87.6-108MHz
AM (MW): 530-1602kHz
SW1: 4750-5060kHz
SW2: 5900-6200kHz
SW3: 7100-7350kHz
SW4: 9400-9990kHz
SW5: 11600-12100kHz
SW6: 13570-13870kHz
SW7: 15100-15800kHz
SW8: 17480-17900kHz
SW9: 21450-21750kHz
LW: 153-279kHz

INPUT:

DC in, 3V

OUTPUT:

headphone jack

ANTENNA SYSTEM:

FM/SW: Telescoping antenna

MW/LW: Built-in ferrite bar antenna

SPEAKER:

2 1⁄4" (57mm)

POWER REQUIREMENTS:

"AA" x 2 batteries (not incl.)

BATTERY LIFE:

Approx. 30 hours

COLOR:

Black

DIMENSIONS (WHD):

6 3⁄8" x 3 5⁄8" x 1 3⁄8" (162 x 93.8 x 33.3mm)

WEIGHT:

12 oz (340g) with batteries

SUPPLIED ACCESSORIES:

Short Wave Guide Book

OPTIONAL ACCESSORIES:

AC Power Adaptor, Car Power Adaptor DCC-E130L

©2002 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved.
Sony and World Band Receiver are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
