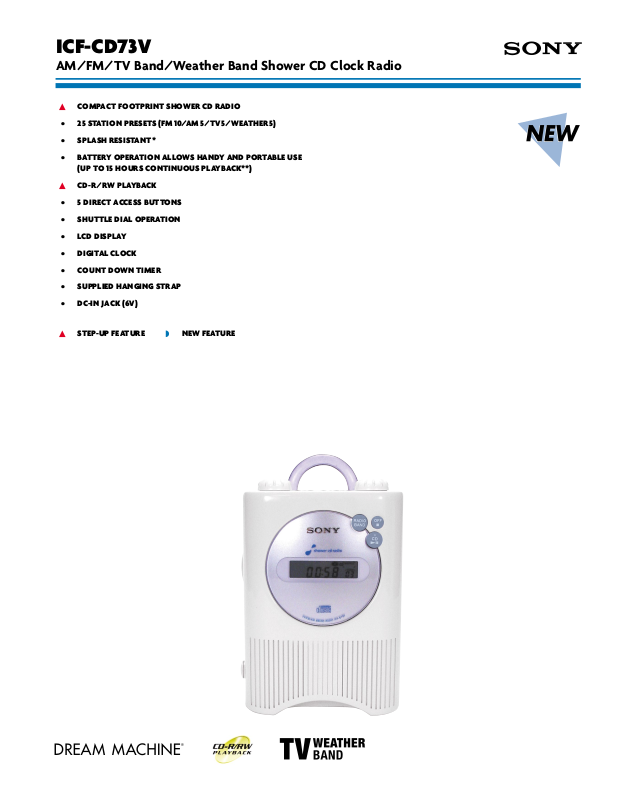

Sony WALKMAN ICF-CD73V QUICK START BROCHURE
ICF-CD73V
AM/FM/TV Band/Weather Band Shower CD Clock Radio
▲ COMPACT FOOTPRINT SHOWER CD RADIO
• 25 STATION PRESETS (FM10/AM5/TV 5/WEATHER5)
• SPLASH RESISTANT*
• BATTERY OPERATION ALLOWS HANDY AND PORTABLE USE
(UP TO 15 HOURS CONTINUOUS PLAYBACK**)
▲ CD-R/RW PLAYBACK
• 5 DIRECT ACCESS BUTTONS
• SHUTTLE DIAL OPERATION
• LCD DISPLAY
• DIGITAL CLOCK
• COUNT DOWN TIMER
• SUPPLIED HANGING STRAP
• DC-IN JACK (6V)
▲ STEP-UP FEATURE ◗ NEW FEATURE
ICF-CD73V
Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com Printed in USA 2/2003
features
▲
COMPACT FOOTPRINT CD SHOWER RADIO
vertical design will take up
minimal space wherever placed.
• 25 STATION PRESETS(FM10/AM5/TV5/WEATHER5)
provides convenient
one-button tuning to your choice of AM/FM/TV/Weather
• SPLASH RESISTANT*
makes this an ideal radio to have in the bathroom,
shower, spa, or sauna.
• BATTERY OPERATION ALLOWS HANDY AND PORTABLE USE (UP TO 15
HOURS CONTINUOUS PLAYBACK)
4C batteries will allow you true
portability when using this CD radio.
▲
CD-R/RW PLAYBACK
plays all compact discs including CD-R (recordable)
and CD-RW (rewritable); your own compilations from CD recorder deck
or PC can be played on the unit, and it provides a great extension of
ability to play network audio music from the internet — a perfect
companion for your CD music.
• 5 DIRECT ACCESS BUTTONS
allows you to electronically tune into any
five stations you set, even if they are in different frequency bands, at the
touch of a single, easy-to-reach button.
• SHUTTLE DIAL OPERATION
speeds tuning of radio frequency as well as
time and alarm settings.
• LCD DISPLAY
is highly visible even in darkness.
• DIGITAL CLOCK
with large high contrast display that shows exact current
time and number of pre-set radio stations.
• COUNT DOWN TIMER
times backwards from a time period you set.
Useful for cooking and timing other activities as well as keeping you
on schedule.
• HANGING STRAP
loops over a door knob or on the shower head
extension.
• DC-IN JACK (6V)
lets you use an optional AC adaptor to operate the radio
specifications
FREQUENCY RANGE:
AM: 530-1710kHz
FM: 87.5-108 MHz
TV: Ch. 2-13
Weather: Ch. 1-7
ANTENNA SYSTEM:
AM: Built-in Ferrite Bar Antenna
FM, TV, Weather: Wire Antenna
SPEAKER:
2 5⁄8" (66mm) Stereo Speaker
SPEAKER OUTPUT:
0.4W + 0.4W
POWER REQUIREMENTS:
“C” x 4 Batteries, DC 6V
POWER BACK-UP:
Self Power
CD PLAYER:
CD-R/CD-RW Playable
CD PLAY MODE:
Shuffle, Repeat
COLOR:
White/Blue
DIMENSIONS (WHD):
6" x 93⁄4" x 31⁄4" (151.5 x 248 x 84mm)
WEIGHT:
3 lbs (1350g)
SUPPLIED ACCESSORIES:
Hanging Strap
OPTIONAL ACCESSORIES:
AC Power Adaptor
©2003 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony
and Dream Machine are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
*Not meant to be immersed or come in continuous contact with water.
**Actual battery life may vary upon usage patterns.
