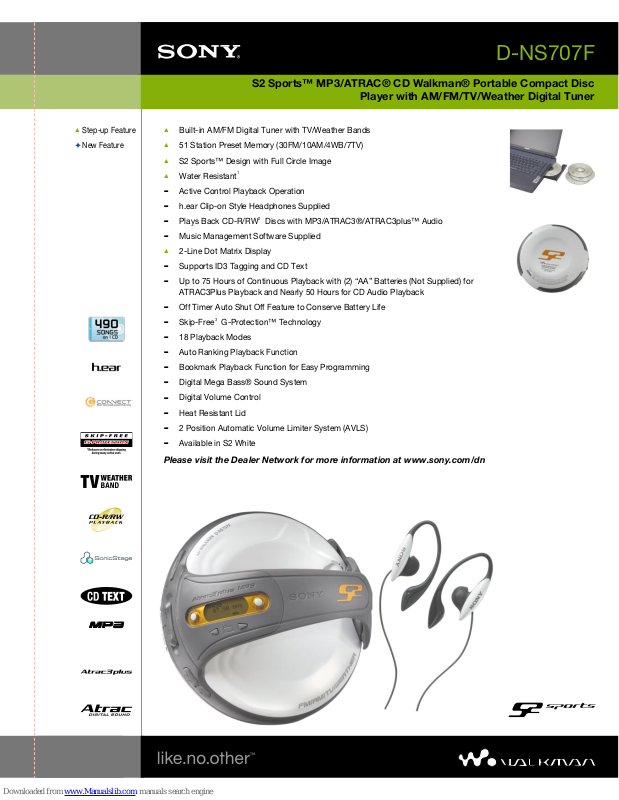

Sony Walkman D-NS707F Specifications

S2 Sports™ MP3/ATRAC® CD Walkman® Portable Compact Disc

Player with AM/FM/TV/Weather Digital Tuner

D-NS707F

L

Step-up Feature

✦

New Feature

L

Built-in AM/FM Digital Tuner with TV/Weather Bands

L

51 Station Preset Memory (30FM/10AM/4WB/7TV)

L

S2 Sports™ Design with Full Circle Image

L

Water Resistant

1

I

Active Control Playback Operation

I

h.ear Clip-on Style Headphones Supplied

I

Plays Back CD-R/RW2Discs with MP3/ATRAC3®/ATRAC3plus™ Audio

I

Music Management Software Supplied

L

2-Line Dot Matrix Display

I

Supports ID3 Tagging and CD Text

I

Up to 75 Hours of Continuous Playback with (2) “AA” Batteries (Not Supplied) for
ATRAC3Plus Playback and Nearly 50 Hours for CD Audio Playback

I

Off Timer Auto Shut Off Feature to Conserve Battery Life

I

Skip-Free3G-Protection™ Technology

I

18 Playback Modes

I

Auto Ranking Playback Function

I

Bookmark Playback Function for Easy Programming

I

Digital Mega Bass® Sound System

I

Digital Volume Control

I

Heat Resistant Lid

I

2 Position Automatic Volume Limiter System (AVLS)

I

Available in S2 White

Please visit the Dealer Network for more information at www.sony.com/dn

features

L

Built-In AM/FM Digital Tuner with TV/Weather Bands provides accurate
drift-free tuning of AM, FM, TV and Weather radio stations

L

51 Station Preset (30FM/10AM/4WB/7TV) Preset up to 30 FM, 10 AM, 4 WB,
7 TV radio stations

L

S2 Sports™ Player Design with Full Circle Image the new generation of
Sony sports CD Walkman® players, created to be durable, stylish, and ready for
go-anywhere outdoor fun

L

Water Resistant1designed with rubber gaskets, bushings, and water resistant

seals that help keep out water, moisture and dirt

I

Active Control Playback Operation Unique control key that permits playback
operation while jogging or participating in other activities

L

2 Line Dot Matrix Display Built into Hand Strap Display is built into the hand
strap and allows for fast and easy identification and location of your ATRAC or
MP3 selections

I

h.ear Clip-on Style Headphones (Supplied) gives you a whole new look in
headphone design, with an individual left and right behind-the-ear headphone
that provides maximum comfort for your listening experience

I

Plays Back CD-R/RW2Discs with MP3/ATRAC3®/ATRAC3plus™ Audio

For customers who already have extensive music libraries, use the included
software and hardware to manage, burn and playback their collection of MP3s.
ATRAC3plus is an advanced audio compression technology offering multiple bit
rates, allowing you to create music compilations tailored to your listening
preference with the ability to get up to 4904songs on 1 CD-R/RW disc @
48kbps.

I

Music Management Software Supplied is easy to use and allows you to
create your own ATRAC3plus music file compilations on CD-R/RW media using
your PC's CD-ROM drive. The ability to add your own titles and edit your music
groups allows for an element of customization in your portable music

I

Supports CD Text and ID3 Tagging to easily view CD text and ID3 tag
information including song title, album title and artist name

I

Up to 75 Hours of Continuous Playback with (2) “AA” Batteries (Not
Supplied) for ATRAC3Plus Playback and Nearly 50 Hours for CD Audio
Playback advanced Sony DSP technology provides dramatically extended

battery life from predecessor models

I

Off Timer Auto Shut Off Feature to Conserve Battery Life Maximizes
battery life by powering down the player when not in use

I

Skip-Free3G-Protection™ Technology continues to provide quick recovery
from both horizontal and vertical shock

I

18 Playback Modes offer many predetermined choices in the playback of CDs,
including hearing one track over and over, hearing a selection of tracks in a
desired order, or listening to tracks randomly

I

Auto Ranking Playback Function Program your favorite song based on the
listening frequency

I

Bookmark Playback Function for Easy Programming You can easily
program your favorite songs from multiple CDs and play them back with the
touch of a button. This feature makes it easy to program and playback a
personalized mix of your favorite songs

I

Digital Mega Bass® Sound uses digital processing technology to produce
rich, deep, bass tones with extremely low harmonic distortion

I

Digital Volume Function provides precise adjustment of volume level, while the
volume level appears on the display

I

Heat Resistant Lid helps protect against high temperature build-up especially
when using the CD Walkman® player in hot climates and in vehicles

I

2 Position Automatic Volume Limiter System (AVLS) maintains volume
output at levels below distortion threshold for cleaner sound reproduction

I

Available In S2 White

specifications

Analog-to-Digital Converter: 1Bit
D/A Conversion: 1 Bit Quart Time-Axis Control
Frequency Response: 20-20000Hz, 1/-2dB
Frequency Range: AM: 531 - 1710kHz; FM: 87.5 - 108MHz; TV: Ch 2 - 13; Weather: Ch 1 - 7
Antenna System: AM: Built-in Ferrite Bar Antenna; FM: Headphones/Earphones Cord Antenna
Input(s): DC-In 4.5V
Output(s): Headphone (stereo mini jack) Approx. 5mW at 16Ω
Power Requirements: DC 1.5V x 2 ("AA" x 2 Batteries); AC Power Adaptor 120V, 60Hz
Battery Life (Approx.): With (2) “AA” Sony Alkaline Batteries 47/43 Hours of Audio CD

Playback, 75/75 Hours of ATRAC playback (recorded at 48kbps ATRAC3Plus), 60/70 hours
of MP3 Playback (recorded at 128 kbps) and up to 65 hours of radio playback

Weight: 10 oz (276 g)
Dimensions (WHD): 5 5/14 x 1 1/5 x 5 5/14" (136 x 30.5 x 136mm)
Color: Sports White
Supplied Accessories: h.ear Stereo Headphones (Type S2)

CD-ROM (SonicStage® Software)

Optional Accessories: AC Adaptor (AC-E45HG)

Car Battery Cord (DCC-E345)
Car Battery Cord with Car Connecting Pack (DCC-E34CP)
Car Connecting Pack (CPA-9C)
Connecting Cord (RK-G129/G136)
Earphones (MDR-E818LP/J10)

UPC Code: 0272426376340

1. Not meant to be immersed or come in continuous contact with water.

2. CD-R/RW media/formats are not universally compatible.

3. Eliminates or reduces skipping during many active uses.

4. Estimated at 4 minutes per song, using 700MB CD-R/RW media, compressing in ATRAC3plus @48kbps.

©2005 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, ATRAC,
ATRAC3, ATRAC3plus, G-Protection, Mega Bass, SonicStage and Walkman are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures are
approximate.

D-NS707F

S2 Sports™ MP3/ATRAC® CD Walkman® Portable Compact
Disc Player with AM/FM/TV/Weather Digital Tuner

®

Sony Electronics, Inc. • 16450 West Bernardo Drive • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com

Last Updated 2005-02-28
