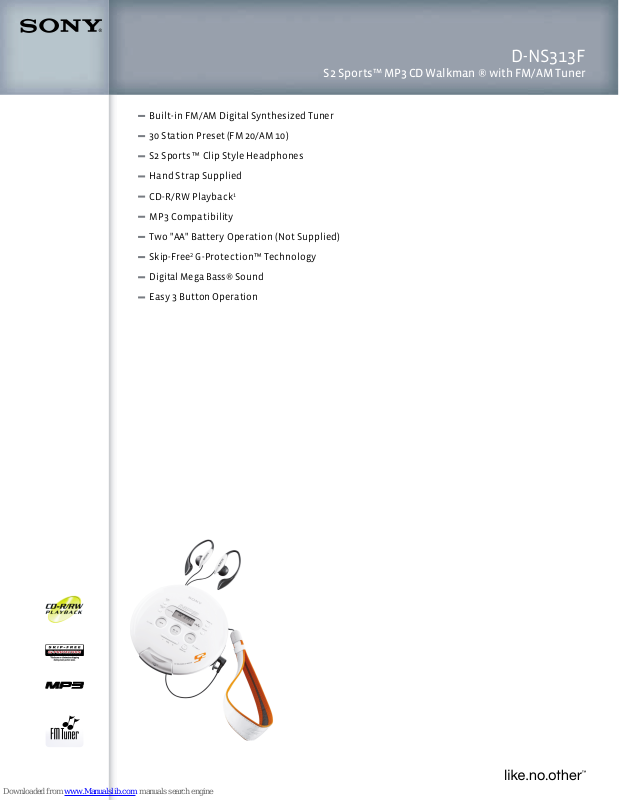

Sony Walkman D-NS313F Specifications

D

-NS313F

S2 Sports™ MP3 CD Walkman ® with FM/AM Tuner

Built-in FM/AM Digital Synthesized Tuner

30 Station Preset (FM 20/AM 10)

S2 Sports ™ Clip Style Headphones

Hand Strap Supplied

CD-R/RW Playback

1

MP3 Compatibility

Two "AA" Battery Operation (Not Supplied)

Skip-

FreeG-Protection™ Technology

2

Digital Mega Bass® Sound

Easy 3 Button Operation

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 800.222.7669 • www.sony.com

Last Updated: 06/26/2006

D

-NS313F

S2 Sports™ MP3 CD Walkman ® with FM/AM Tuner

Please visit the Dealer Network for current information at www.sony.com/dn

Features

Built

-In FM/AM Digital Synthesized Tuner Provides accurate drift-

free tuning of AM and FM radio stations.

30 Station Preset Preset up to 20 FM and 10 AM radio stations.

S2 Sports™ Clip Style Headphones (Supplied) Provide maximum

comfort for your listening experience.

CD-R/RW Playback with MP3 Compatibility For customers who
already have extensive MP3 music libraries they can playback their

collection easily allowing them to create music compilations
tailored to their listening preference.

1

Two "AA" Battery Operation (Not Supplied) Advanced Sony DSP
technology provides extended battery life from predecessor
models.

3

Skip-FreeG-Protection™ Technology continues to provide quick
recovery from both horizontal and vertical shock.

2

Digital Mega Bass

® Sound uses digital processing technology to

produce rich, deep, bass tones with extremely low harmonic
distortion.

Easy 3 Button Operation 3 buttons right on top of the CD Walkman
allow you to easily control your player.

Up to 35 Hours of Battery Life Allows you to use your CD
Walkman and not worry about changing the battery constantly. Up

to 35h with the radio on, up to 23h listening to an MP3 CD copied
at 128kbps and up to 16h listeing to a regular CD with G-Protection
on.

3

Specifications

General

Design:

Sports

Audio

Format(s) Supported: CDDA, CD-R/RW, MP3 on CD-R/RW

Frequency Range: AM: 531-1710kHz; FM: 87.5-108MHz
Station Preset(s):

30 (20 FM, 10 AM)

Tuner: Digital Synthesized Tuner

Convenience

Portability:

Hand Strap

Convenience Features

Skip Protection: G-Protection™ Technology

Hardware

Headphone Type: S2™ Sports Clip Style

Power

Battery Life (Approx.):

Up to 35 Hours

Power Requirements: AA Battery x 2 (4.5V DC)(not supplied)
Output Power: 5 mW + 5 mW (@16 ohms)

Inputs and Outputs

Headphone Output(s): 1 (stereo mini jack)

1 2 3

DC-In: 4.5V

Dimensions

Weight:

11oz (310g) excluding accesories

Measurements: 5-5/8x1-3/8x5-3/4 (142x34x143.9mm)

Supplied Accessories

S2 Sports™ Clip Style Headphones
Hand Strap

Optional Accessories

DCC-E345 Car Battery Cord
RK-G129/G136 Connecting Cord
CPA

-9C Car Connecting Pack
DCC-E34CP Car Connecting Pack/Battery
MDR-E818LP Headphones
MDR-EX71 Headphones

UPC Code: 027242697980

1. CD-R/RW media/format are not universally compatible.

2. Eliminates or reduces skipping during many active uses.

3. Actual battery life may vary based on usage patterns.

©2006 Sony Electronics Inc.
Features and specifications are subject to change without notice. Non-metric weights and measures are
approximate.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, G-Protection,
Mega Bass, Walkman, and like.no.other are trademarks of Sony.
