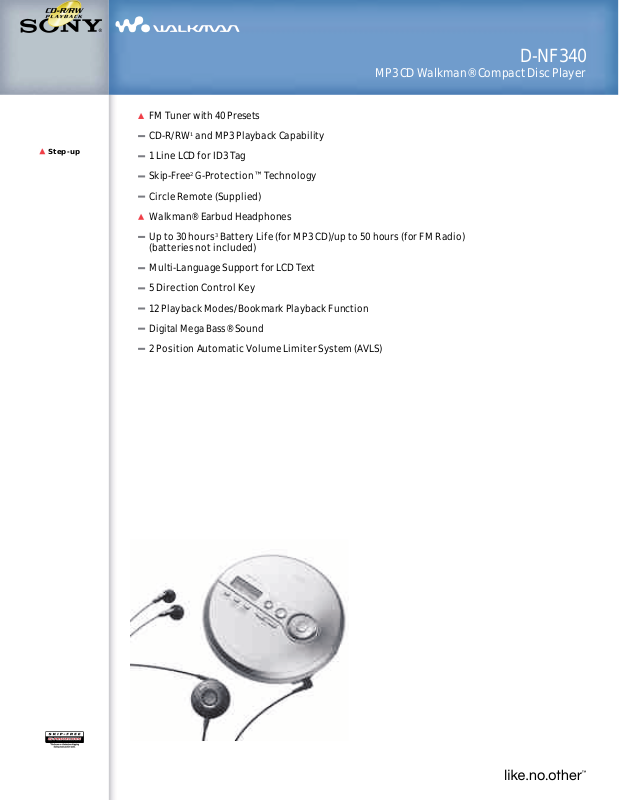

Sony WALKMAN D-NF340 BROCHURE
D
-NF340
MP3 CD Walkman® Compact Disc Player
Step-up
FM Tuner with 40 Presets
CD-R/RW and MP3 Playback Capability
1
1 Line LCD for ID3 Tag
Skip-
FreeG-Protection™ Technology
2
Circle Remote (Supplied)
Walkman® Earbud Headphones
Up to 30 hours Battery Life (for MP3 CD)/up to 50 hours (for FM Radio)
(batteries not included)
3
Multi-Language Support for LCD Text
5 Direction Control Key
12 Playback Modes/Bookmark Playback Function
Digital Mega Bass® Sound
2 Position Automatic Volume Limiter System (AVLS)
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 03/12/2007
D
-NF340
MP3 CD Walkman® Compact Disc Player
Please visit the Dealer Network for current information at www.sony.com/dn
Features
FM Tuner with 40 Presets allows you to program 40 of your
favorite FM radio stations.
CD-R/RW and MP3 Playback Capability plays CD-R/RW discs with
MP3 files burned in either a CD or home recording deck.
1
1-Line LCD for ID3 Tag allows for fast and easy identification and
location of your MP3 formatted selections.
Skip-FreeG-Protection™ Technology continues to provide quick
recovery from both horizontal and vertical shock.
2
Full Circle Design
Compact design mirrors the look of the CD itself.
Multi
-Language Support for LCD Text Displays information on
compact discs that contain encoded text data that can include the
artist name, disc name, and/or track name. (English, French,
German, Italian, Spanish, Portuguese and Russian)
5 Direction Control Key Single button control with 5 individual
functions providing an easy and convenient way to control music
and navigation.
12 Playback Modes/Bookmark Playback Function offer many
predetermined choices in the playback of CDs, including: Normal
Play, Group Play, Single Track Play, Shuffle Play, Group Shuffle Play,
Bookmark Play, and Repeat Play for all play modes.
Digital Mega Bass
® Sound uses digital processing technology to
produce rich, deep, bass tones with extremely low harmonic
distortion.
2 Position Automatic Volume Limiter System (AVLS) maintains
volume output at levels below distortion threshold for cleaner
sound reproduction.
Specifications
General
Design:
Full Circle
Audio
AVLS: Yes
Format(s) Supported: CD-R/CD-RW with MP3 Audio
Frequency Response: 20-20000Hz, 1/-2dB
CD Play Mode(s): 12: Normal Play, Group Play, Single Track Play, Shuffle
Play, Group Shuffle Play, Bookmark Play and Repeat for all Play
modes.
Tuner Type: FM
Boost:
Digital MEGA BASS
®
Convenience
Menu Options: 5 Direction Control Key
Portability:
Circle Remote
Convenience Features
Multiple Language Display:
Yes
Skip Protection: G-Protection™ Technology
Bookmark Function: Yes
Hardware
Headphone Type: Walkman® Earbud
Remote Control: Yes
Power
Battery Indicator: Yes
Battery Life (Approx.):
Up to 30 Hours (MP3 CD recorded at 128kbps/GProtection with 2 "AA" Sony Alkaline Battery) /Up to 50 Hours using
FM Radio
Power Requirements: AA Battery x 2 (1.5V DC)(batteries not included)
Output Power: 5 mW + 5 mW (@16 ohms)
Inputs and Outputs
Headphone Output(s): 1 (stereo mini jack)
DC-In: 4.5V
Dimensions
Weight:
7.5 oz (210g)
Measurements: 5 5/8 x 5/16x 5 5/8" (140 x 32.7 x 140mm)
Supplied Accessories
Walkman® Earbud Headphones (MDR-
E706LP)
Circle Remote
Optional Accessories
DCC-E345 Car Battery Cord
AC-E45A AC Adapter
RK-G129/G136 Connecting Cord
CPA
-9C Car Connecting Pack
DCC-E34CP Car Battery Cord
Color:
Silver
UPC Code: 027242703230
1. CD-R/RW media/formats are not universally compatible.
2. Eliminates or reduces skipping during many active uses.
3. Actual battery life may vary based on product settings, usage patterns, environment and battery conditions.
©2007 Sony Electronics Inc.
Features and specifications are subject to change without notice. Non-metric weights and measures are
approximate.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, G-Protection,
Mega Bass, Walkman, and like.no.other are trademarks of Sony.
