VPL-S500U/S500E/S500M

LCD Data Projector

Page 2

Sony presents to you...

In today’s world, it is easy to create an impactful and colorful presentation full of charts, graphics, video clips and animations. To deliver these effective and interesting presentations, you need a

display device that is compact, portable, reliable and easy to use.Sony presents such a product, the VPL-S500* LCD Data Projector. It can be conveniently used in either desk top mounted or ceiling mounted configuration.This makes it the ideal display for a wide variety of

applications such as business and education. As computers play an increasingly important role in the creation and presentation of multimedia material, this projector has the ability to reproduce SVGA (800x600) signals at true resolution, while advanced compression techniques are used to display XGA (1024x768) signals with outstanding quality. The VPL-S500 LCD Data Projector is engineered by Sony for reliability and long life. It is easy to operate; simply plug it into a computer with the supplied lead, provide power - and make you presentation. It is the perfect way to present information with high impact to audiences large and small.

* The VPL-S500 is available in three different models;the VPL-S500E for

Europe, the VPL-S500M for countries other than Europe operating at AC220 to 240V, the VPL-S500U for countries operating at AC100 to 120V.

Page 3

High Brightness

A newly developed optical unit and a 250W DC drive metal

halide lamp combine to give brilliance of image, a level of per-

formance that is maintained throughout the long operating life

of the lamp. This advanced optical technology gives the high

light output of 450 ANSI lumens, allowing images to be effec-

tively displayed in meeting rooms and classrooms even in

ambient light, making it easier for an audience to take notes

and follow individual texts, workbooks, or reports.

Lightweight, Compact Design

The VPL-S500 is compact and light in weight, and can be easily transported any-

where. The supplied joystick-type wireless RM-PJM500 Remote Commander can be

installed in the remote commander pocket of the VPL-S500 and carried along with

the projector.

Superior Picture Performance

LCD panel Condenser lens Dichroic mirror Total reflection mirror

250W

Metal Halide Lamp

Fly-eye Lens

Precision Prism

High Quality Lens

Newly Developed Optical Unit

Lamp

Fly-eye Lens Fly-eye Lens

LCD Panel

Light Integrators System

Brightness

Left RightCenter

Screen

Conventional LCD projector

VPL-S500

High Resolution

The VPL-S500 offers a high resolution of 832x624 pixels for

RGB input and also provides a high resolution of 600TV lines

for composite video.

Excellent Uniformity

With an innovative optical system featuring light integrators,

precision prism block assembly, and a high quality lens, the

VPL-S500 Projector creates uniform image color and bright-

ness from screen corner to corner.

250W Metal Halide Lamp 1.3-inch p-Si TFT LCD Panel

Convenient Portability

Page 4

Easy Setup

The VPL-S500 is designed for simple, effective presenta-

tions and, as such, does not require complicated hook

up or setup. Using the supplied cable, it accepts video

soures as well as computer input signals from VGA to

XGA sources. No complex adjustments are required.

The VPL-S500 automatically recognizes the input signal

and selects the appropriate data display mode, including

dot phase, horizontal size and shift.

Remote Control Capability

The control panel of the projector and the supplied joy-

stick-type wireless RM-PJM500 Remote Commander

control all adjustments and operation of the VPL-S500.

When the RM-PJ21 Mouse Receiver is connected to a

computer, the RM-PJM500 can operate the computer

remotely. This functions allows the presenter to be free of

the computer mouse and keyboard. The presenter can

concentrate on the presentation, not the changing of

slides.

On-screen Display

The on-screen menu display shows the status of all major

operational functions and adjustments. This display

makes it easy to follow adjustments as they are per-

formed. The on-screen menu also allows the operator to

select any one of seven languages: English, French,

German, Italian, Spanish, Japanese and Chinese.

Installation Position

The VPL-S500 features an optical design which allows

the projector to be installed below the screen. This

means that the projector can be positioned so it does

not intrude into the audience’s view of the screen.

Other

Height Adjuster Function

To easily adjust the projected picture to the required

position, the VPL-S500 has a height adjuster func-

tion on its front and rear sides.

Power Saving Function

When the projector is in power saving mode and it

has not received an input or sync signal for more

than 10 minutes, power consumption is automati-

cally reduced.

Stereo Audio System

The built-in stereo audio system provides dynamic

sound.

Easy Operation

Bottom of the screen

VPL-S500

Control panel

1.6 times zoom lens

Installed remote commander

Connector section

•

Page 5

Center of the lens

Center of the screen

Wall

Floor

Optional Suspension Support PSS-500

Center of the lens

Center of the screen

Wall

Ceiling

Projector lens

VPLL-ZM100

•2 times zoom long focus lens

•f 72.3 to 141.0mm / F 3.0 to 4.6

•Screen coverage: 80 to 300 inches

•

Throwing distance: 100 inches: 5500 to 10430mm

200 inches: 11150 to 20880mm

Signal adapter

(HD D-sub 15-pin to D-sub 9-pin for SIC cable)

ADP-10

Suspension support

PSS-500

Carrying case

VLC-500

00-inch flat screen 120-inch flat screen

VPS-100FH VPS-120FH

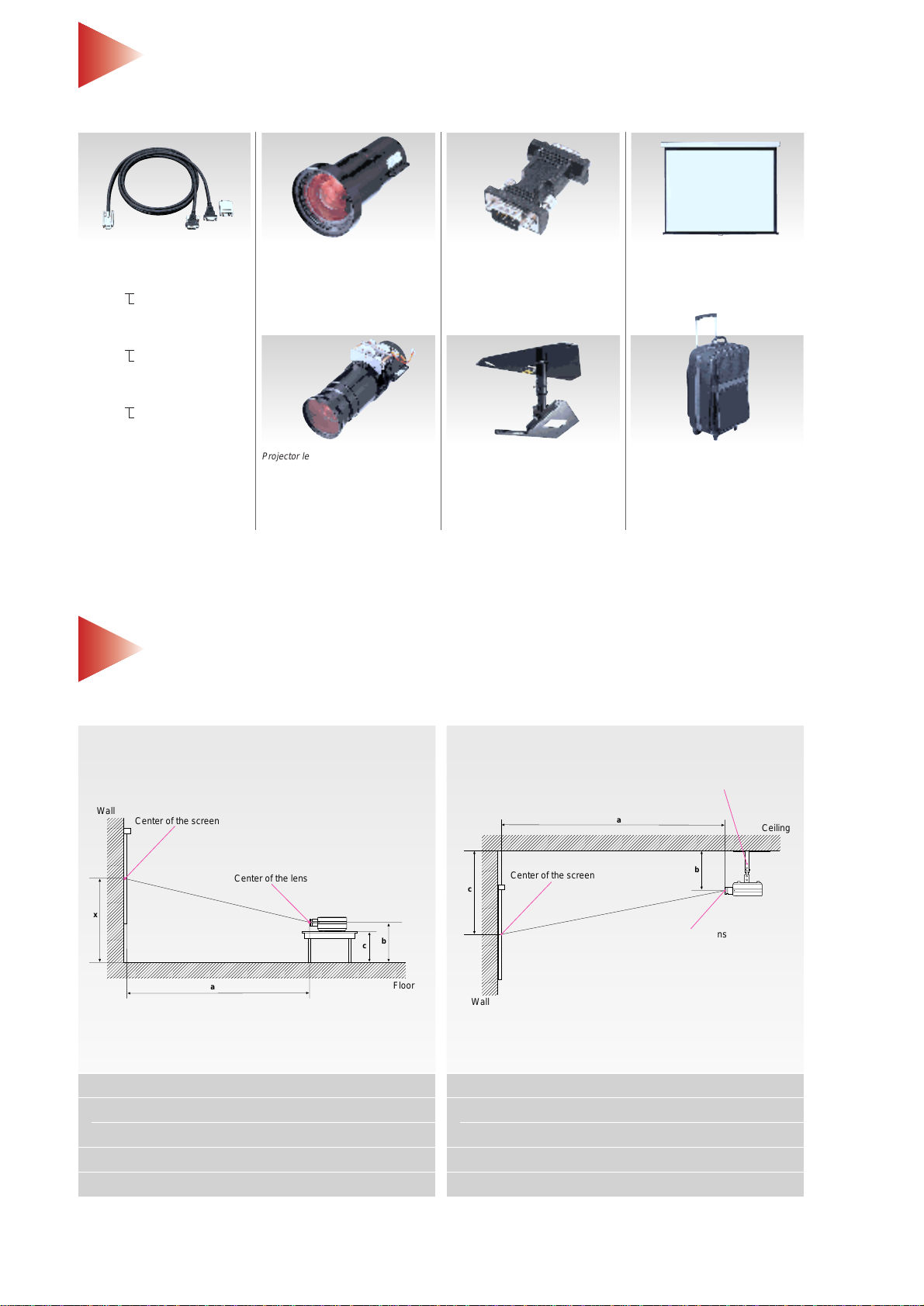

Optional Accessories

Signal interface cable

SIC-20A/20B/20C

•Analog RGB

•D-sub 9-pin D-sub 15-pin (female)

(female) D-sub 15-pin (male)

•Length: overrall 2m (6.6ft), branch 0.2m (0.7ft)

SIC-21

•Analog RGB

•D-sub 9-pin D-sub 9-pin (female)

(female) D-sub 9-pin (male)

•Length: overrall 2m (6.6ft), branch 0.2m (0.7ft)

SIC-22

•Analog RGB with digital sync

•D-sub 9-pin D-sub 15-pin High density (female)

(female) D-sub 15-pin High density (male)

•Length: overrall 2m (6.6ft), branch 0.2m (0.7ft)

Projector lens

VPLL-FM30

•Fixed short focus lens

•f 37mm / F 3.5

•Screen coverage: 40 to 290 inches

•Throwing distance: 100 inches: 2790mm

200 inches: 5640mm

Installation Examples

Screen size

40 60 80 100 120 150 180 200 250 300

(inches)

Minimum

1470 2260 3040 3820 4600 5770 6950 7730 9680 11640

(577/8) (89) (1193/4) (1501/2) (1811/8) (2271/4) (2735/8) (3043/8) (3811/8) (4583/8)

Maximum

2190 3320 4450 5580 6720 8420 10120 11250 14080 16910

(861/4) (1303/4) (1751/4) (2193/4) (2645/8) (3311/2) (3981/2) (443) (5543/8) (6653/4)

b x–336 x–504 x–672 x–840 x–1008 x–1260 x–1511 x–1679 x–2099 x–2519

(131/4) (197/8) (261/2) (331/8) (393/4) (495/8) (591/2) (661/8) (823/4) (991/4)

c x–447 x–615 x–783 x–951 x–1119 x–1371 x–1622 x–1790 x–2210 x–2630

(175/8) (241/4) (307/8) (371/2) (441/8) (54) (637/8) (701/2) (871/8) (1035/8)

Screen size

80 100 120 150 180 200 250 300

(inches)

Minimum

3040 3820 4600 5770 6950 7730 9680 11640

(1193/4) (1501/2) (1811/8) (2271/4) (2735/8) (3043/8) (3811/8) (4583/8)

Maximum

4450 5580 6720 8420 10120 11250 14080 16910

(1751/4) (2193/4) (2645/8) (3311/2) (3981/2) (443) (5543/8) (6653/4)

247/272/297/347/372/397 mm (93/4/ 103/4/ 113/4/ 133/4/ 143/4/ 153/4inches) adjustable

c b+672 b+840 b+1008 b+1260 b+1511 b+1679 b+2099 b+2519

(261/2) (331/8) (393/4) (493/8) (591/2) (661/8) (823/4) (991/4)

Floor Installation

Unit: mm (inches)

a: Distance between the screen and the center of the lens b: Distance from the floor to the center of the lens c: Distance from the floor to the foot of the projector x: free

Ceiling Installation

Unit: mm (inches)

a: Distance between the screen and the center of the lens b: Distance between the ceiling and the center of the lens c: Distance between the ceiling and the center of the screen

Page 6

MK4181OHB9706P2-006.5

Printed in Japan

1997 Sony Corporation

Distributed by

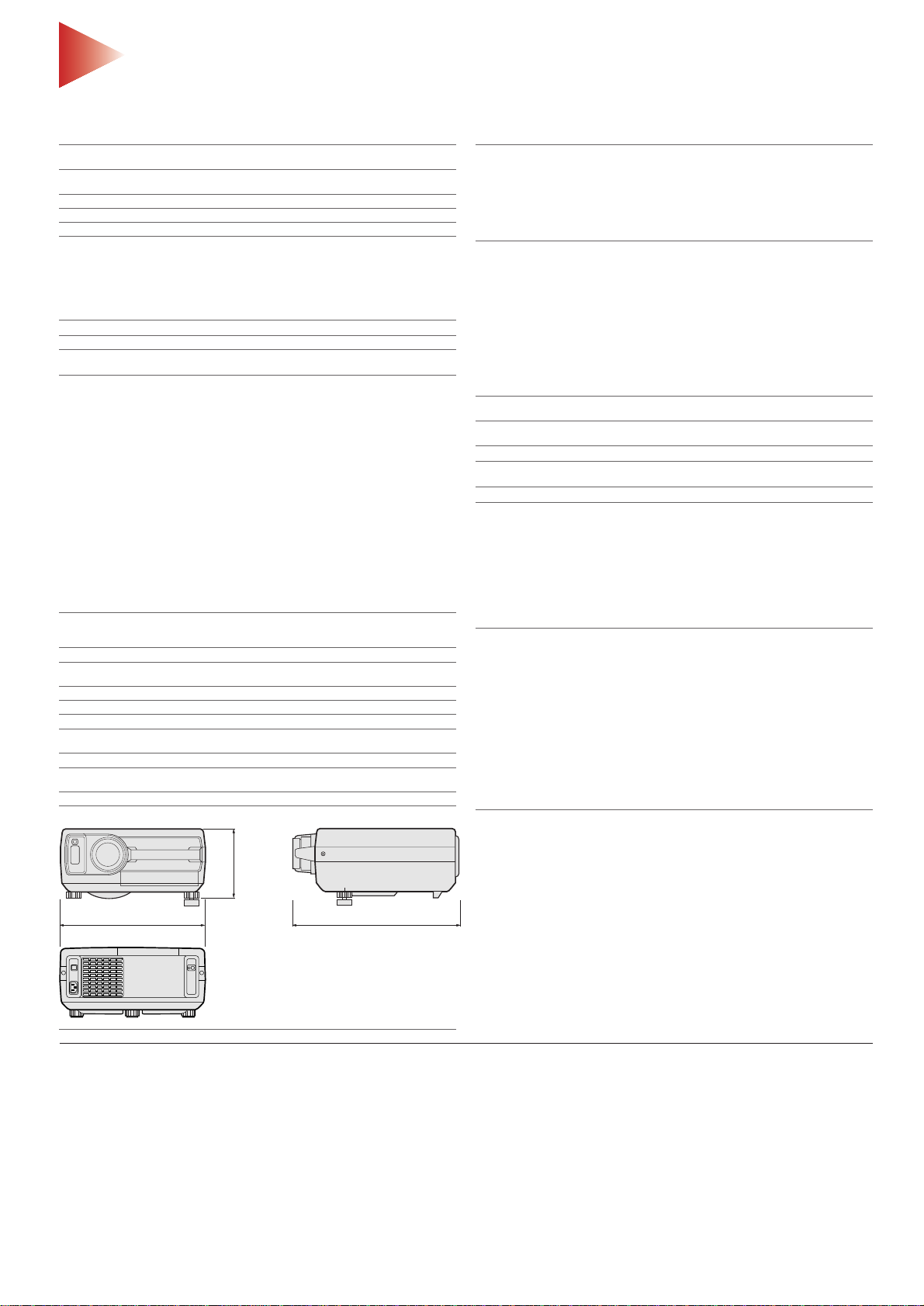

Specifications

Optical

Projection system 3 LCD panels, 1 lens, projection system

1.3-inch p-Si TFT LCD panel, 1,557,504 pixels (519,168 pixels × 3)

ProjectionLens 1.5 times zoom lens

f 50 to 75 mm/F 2.5 to 3.1

Lamp 250 W Metal halide lamp Screen coverage 40 to 300 inch Light output ANSI*1450 lm

Throwing distance 40-inch: 1470 to 2190 mm (57 7/8 to 86 1/4 inches)

80-inch: 3040 to 4450 mm (119 3/4 to 175 1/4 inches) 100-inch: 3820 to 5580 mm (150 1/2 to 219 3/4 inches) 120-inch: 4600 to 6720 mm (181 1/8 to 264 5/8 inches) 200-inch: 7730 to 11250 mm (304 3/8 to 443 inches) 300-inch: 11640 to 16910 mm (458 3/8 to 665 3/4 inches)

General

Color system NTSC/PAL/SECAM/NTSC

4.43

/PAL-M automatically selected

Resolution Video: 600TV lines

RGB: 832 × 624 pixels

Compatible signals 15k RGB/component (NTSC base) fH:15.734 kHz, fV:59.94 Hz

15k RGB/component (PAL/SECAM base) fH:15.625 kHz, fV: 50.0 Hz VGA mode1 (640 × 350 dots) fH:31.468 kHz, fV:70.086 Hz VGA mode2 (640 × 400 dots) fH:31.468 kHz, fV:70.086 Hz VGA mode3 (640 × 480 dots) fH:31.468 kHz, fV:59.94 Hz VGA VESA 72 Hz (640 × 480 dots) fH:37.86 kHz, fV:72.809 Hz VGA VESA 75 Hz (640 × 480 dots) fH:37.5 kHz, fV:75 Hz VGA VESA 85 Hz (640 × 480 dots) fH:43.269 kHz, fV:85.008 Hz Macintosh 13-inch mode (640 × 480 dots) fH:35.0 kHz, fV:66.7 Hz Macintosh 16-inch mode (640 × 480 dots) fH:49.724 kHz, fV:74.55 Hz S VGA VESA 56 Hz (800 × 600 dots) fH:35.156 kHz, fV:56.25 Hz S VGA VESA 60 Hz (800 × 600 dots) fH:37.879 kHz, fV:60.32 Hz S VGA VESA 72 Hz (800 × 600 dots) fH:48.077 kHz, fV:72.188 Hz S VGA VESA 75 Hz (800 × 600 dots) fH:46.875 kHz, fV:75.0 Hz S VGA VESA 85 Hz (800 × 600 dots) fH:53.674 kHz, fV:85.061 Hz XGA VESA 60 Hz (1024 × 768 dots) fH:48.363 kHz, fV:60 Hz*

XGA VESA 70 Hz (1024 × 768 dots) fH:56.476 kHz, fV:70.069 Hz*

Horizontal frequency range of computer input RGB:15 kHz (S on G/Composite sync), 24 to 57 kHz

Speaker Max. 2 W + 2 W, 7 × 4 cm stereo Power requirements VPL-S500U: AC 100 to 120 V/220 to 240 V*3, 50/60 Hz

VPL-S500E/S500M: AC 220 to 240 V, 50/60 Hz

Power consumption Max. 350 W (Standby mode: 10 W) Heat dissipation 1194.4 BTU Mass Approx. 10 kg (22 lb 1 oz) Operating

temperature 0°C to 40°C (32°F to 104°F) Operating humidity 35% to 85% Storage

temperature –20°C to 60°C (–4°F to 140°F) Storage humidity 10% to 90% Dimensions 368(W) × 176(H) × 444(D) mm (141/2 × 7 × 171/2 inches)

368 (14

)

176 (7)

444 (17

)

Input/Output

VIDEO IN Composite video: BNC, 1 Vp-p ±2dB sync negative 75 Ω

S VIDEO: Mini DIN 4-pin

Y (luminance): 1 Vp-p ±2dB sync negative 75 Ω C (chrominance): Burst 0.286 Vp-p ±2dB (NTSC), 75 Ω

0.3 Vp-p ±2dB (PAL), 75 Ω

Audio IN: Phono (×2)

500 mVrms, stereo, impedance more than 47 kΩ

INPUT A

Analog RGB/component:

HD D-sub15-pin (female)

R/R-Y: 0.7 Vp-p ±2dB positive, 75 Ω G: 0.7 Vp-p ±2 dB positive, 75 Ω G with sync/Y: 1 Vp-p ±2 dB sync negative, 75 Ω B/B-Y: 0.7 Vp-p ±2 dB positive, 75 Ω SYNC/HD:

Composite sync:

0.6-8 Vp-p high impedance, sync positive/negative

Horizontal sync:

0.6-8 Vp-p high impedance, sync positive/negative

VD:

Vertical sync: 0.6-8 Vp-p high impedance, positive/negative

AUDIO IN: Stereo minijack

500 mVrms, impedance more than 47 kΩ

AUDIO OUT Phono (×2) (variable out) Max. 1Vrms, when an input is 500 mVrms, impedance less than 5 kΩ

CONTROL S IN/ Stereo minijack PLUG IN POWER 5 Vp-p, Plug in power, DC 5 V maximum output 60 mA

Safety regulations

VPL-S500U: UL1950, CSA950, FCC Class B, IC Class B VPL-S500E/S500M: EN60 950 (TÜV), CE, C-Tick

Accessories

Supplied accessories

Remote commander RM-PJM500 Mouse receiver RM-PJ21 HD D-sub 15-pin (male) to HD D-sub 15-pin (male) cable VGA-Macintosh adapter Ventilation cover Size AA (R6) batteries AC Power cord Operating manual

Optional accessories

Signal Interface cable SIC-20A/20B/20C/21/22 Remote control receiver RM-PJ10 Projector lamp (for replacement) PK PJ-500*

Projection lens VPLL-FM30 Projection lens VPLL-ZM100 Carrying case VLC-500*

Suspension support PSS-500 Signal adapter ADP-10 (HD D-sub 15-pin to HD D-sub 9-pin for SIC Cable) HD D-sub 15-pin to 5 BNC cable SMF-400 100-inch flat screen VPS-100FH*

120-inch flat screen VPS-120FH*

*1ANSI is a measuring method of American National Standard ANSI IT7.228 *

Compressed XGA signal is reproduced.

UL listed for 120V operation.

Some items are not available in some areas. For details, please consult your nearest Sony office.

Unit: mm (inch)
