User Guide
Personal Computer
VPCL2 Series
N
Contents
2
nN
Before Use.......................................................................... 4
Finding More about Your VAIO Computer .................... 5
Ergonomic Considerations............................................ 8
Getting Started.................................................................. 10
Locating Controls and Ports........................................ 11
About the Indicator Lights ........................................... 17
Setting Up Your Computer .......................................... 18
Shutting Down Your Computer Safely ........................ 25
Using the Power Saving Mode.................................... 26
Keeping Your Computer in Optimum Condition .......... 29
Using Your VAIO Computer.............................................. 32
Using the Keyboard.....................................................33
Using the Mouse .........................................................40
Using the Touch Screen..............................................45
Using the Edge Access...............................................49
Using Special-function Buttons ...................................50
Using the Quick Web Access Function ....................... 52
Using the Built-in Camera ........................................... 54
Using the Optical Disc Drive ....................................... 55
Using the 3D Function................................................. 63
Using the HDMI/VIDEO Input Function....................... 65
Using "Memory Stick".................................................. 70
Using Other Modules / Memory Cards ........................77
Using the Internet ........................................................81

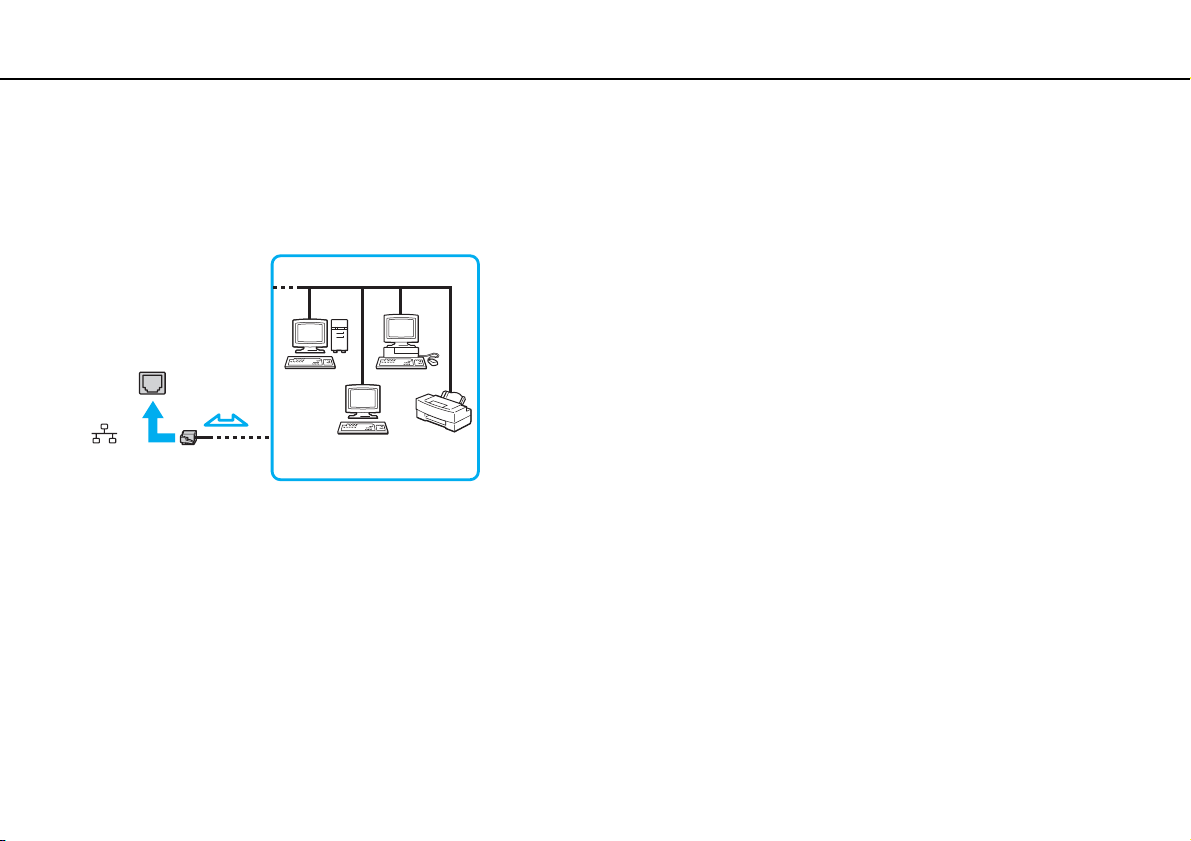

Using the Network (LAN) .............................................82

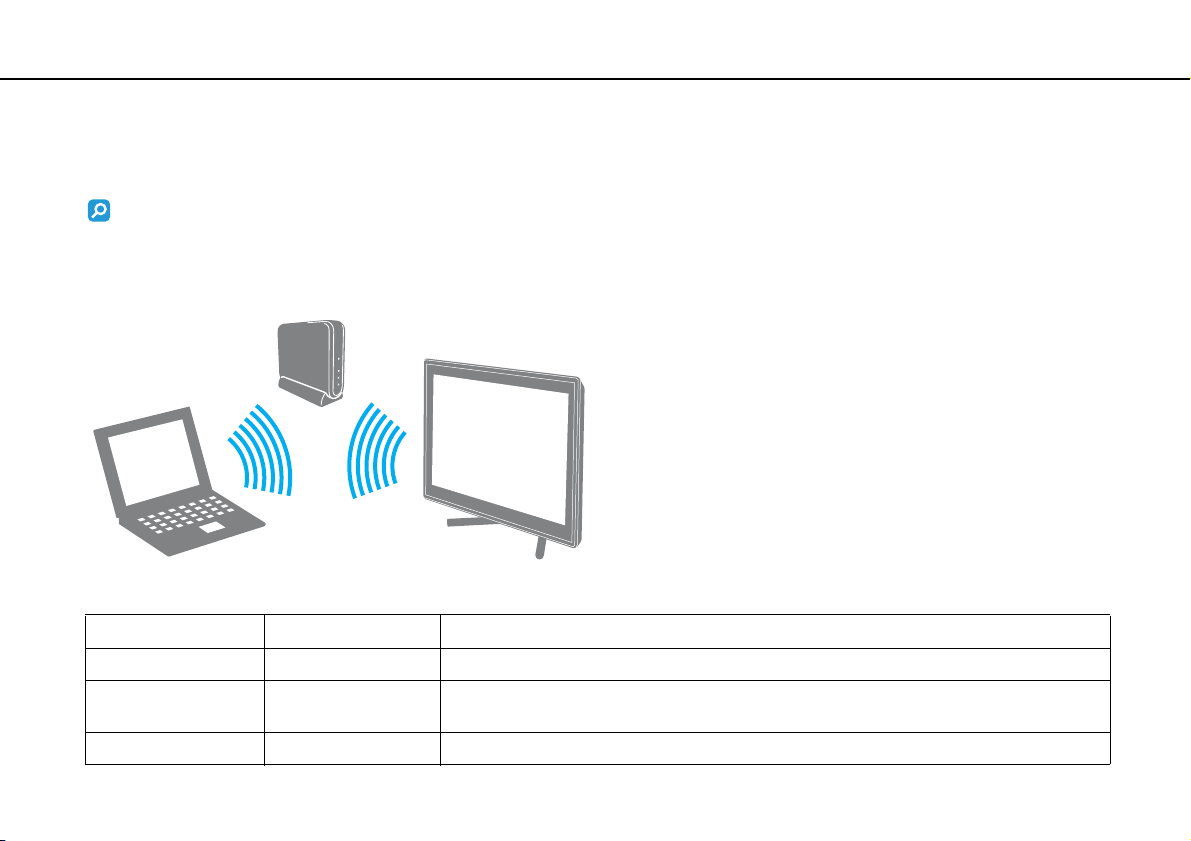

Using the Wireless LAN...............................................83

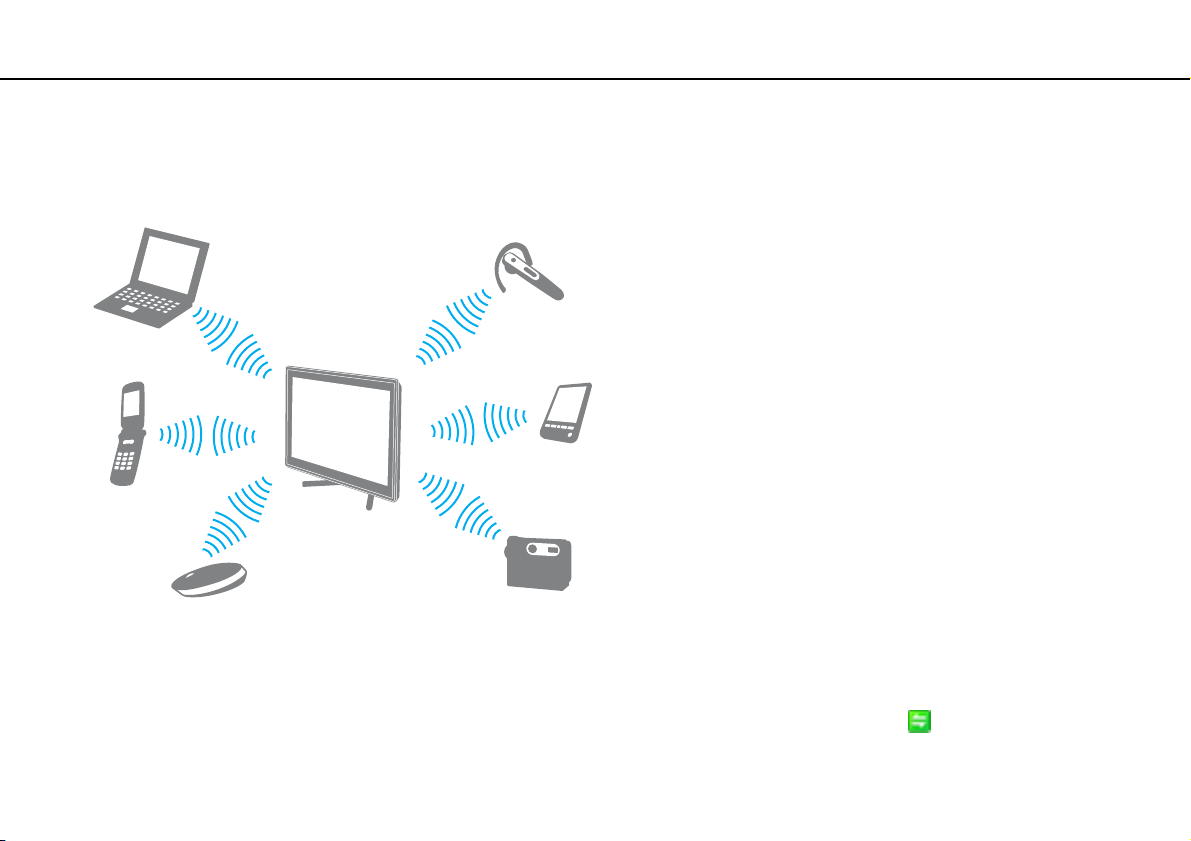

Using the BLUETOOTH Function................................88
Using Peripheral Devices..................................................93
Connecting External Speakers or Headphones ..........94

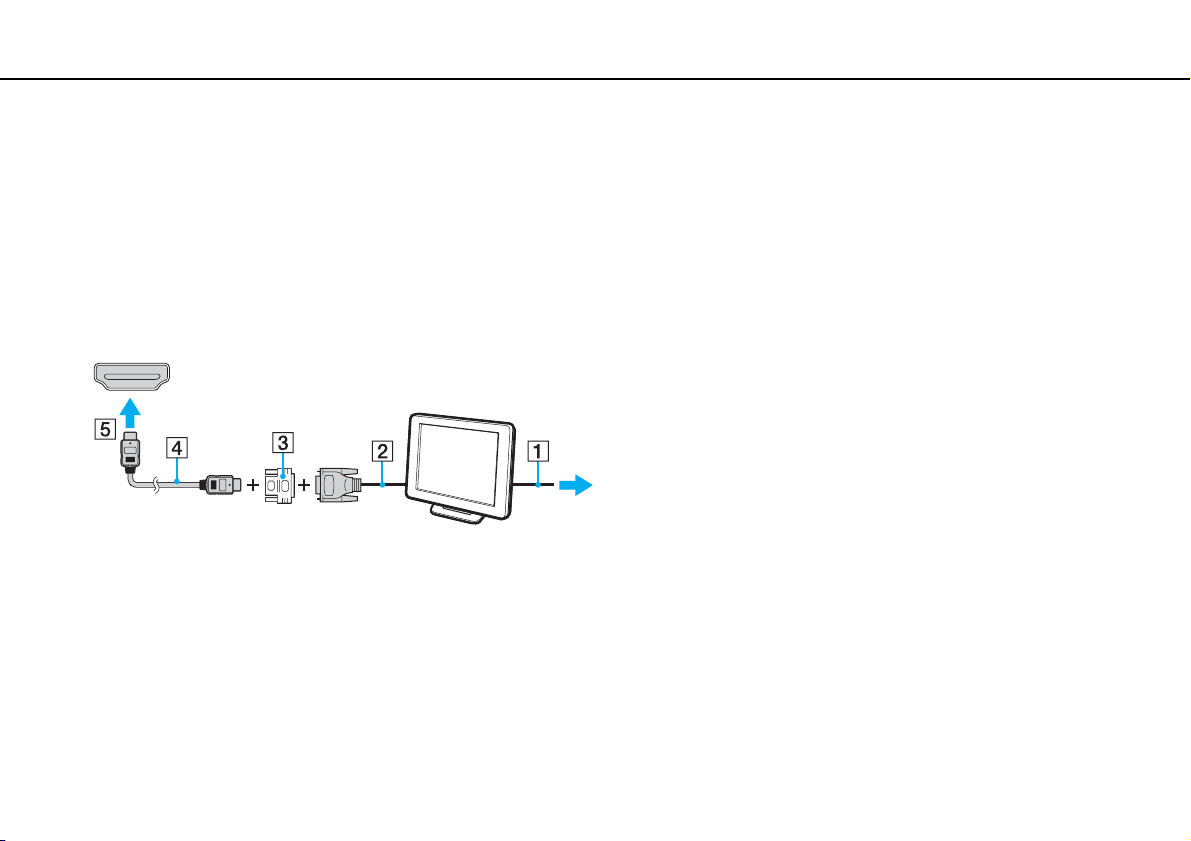

Connecting an External Display ..................................95
Selecting Display Modes ...........................................102
Using the Multiple Monitors Function ........................103
Connecting an External Microphone .........................105
Connecting a USB Device .........................................106
Connecting an i.LINK Device.....................................108
Customizing Your VAIO Computer..................................110
Setting the Password.................................................111
Using the VAIO Control Center .................................117
Upgrading Your VAIO Computer.....................................120
Adding and Removing Memory .................................121
3
nN
Precautions..................................................................... 127
Safety Information ..................................................... 128
Care and Maintenance Information........................... 130
Handling Your Computer...........................................131
Handling the LCD Screen/Touch Screen .................. 133
Using the Power Source ........................................... 134
Handling the Built-in Camera .................................... 135
Handling Discs ..........................................................136
Handling "Memory Stick"........................................... 137
Handling the Built-in Storage Device ........................ 138
Troubleshooting .............................................................. 139
Computer Operations ................................................ 141
System Update / Security..........................................146
Recovery / Recovery Media ...................................... 147
Partition .....................................................................148
Built-in Camera ......................................................... 149
Networking (LAN/Wireless LAN) ...............................151
BLUETOOTH Technology......................................... 155
Optical Discs ............................................................. 158
Display ...................................................................... 163
Printing ...................................................................... 167
Microphone ............................................................... 168
Mouse ....................................................................... 169
Speakers ................................................................... 171
Touch Screen ............................................................173
Keyboard ...................................................................174
Floppy Disks ..............................................................175
Audio/Video ...............................................................176
HDMI/VIDEO Input Function .....................................179
"Memory Stick" ..........................................................180
Peripherals ................................................................181
About the International ENERGY STAR(R) Program......182
Trademarks .....................................................................183
Notice ..............................................................................185
Before Use >
4
nN
Before Use
Congratulations on your purchase of this VAIO® computer and welcome to the on-screen User Guide. Sony has combined
leading-edge technology in audio, video, computing, and communications to provide you with a state-of-the-art computing
experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
How to find specifications
Some features, options, and supplied items may not be available on your computer.
To find out about the configuration of your computer, visit the web site at http://www.sony-asia.com/
.
Before Use >
Finding More about Your VAIO Computer
Finding More about Your VAIO Computer
This section provides support information about your VAIO computer.
1. Printed Documentation
❑ Quick Start Guide — An overview of components connection, set-up information, etc.
❑ Recovery, Backup and Troubleshooting Guide
❑ Enjoying 3D: Information Guide (On selected models only)
❑ Safety Regulations, etc.
✍
Before activating the wireless functions such as the wireless LAN and BLUETOOTH technology, read the Safety Regulations carefully.
5
nN
Before Use >
Finding More about Your VAIO Computer
6
nN
2. On-screen Documentation
❑ VAIO User Guide — General information of your VAIO computer including support and troubleshooting information.
To access VAIO User Guide, click Start , All Programs, and VAIO Manual.
❑ Windows Help and Support — A comprehensive resource for practical advice, tutorials, and demonstrations to help you
learn to use your computer.
To access Windows Help and Support, click Start and Help and Support, or press and hold the Microsoft Windows
key and press the F1 key.
Before Use >
Finding More about Your VAIO Computer
3. Support Web Sites
❑ Sony online support web site
The Sony online support web site provides instant access to information on commonly encountered problems:
http://www.sony-asia.com/support/vaio/onlinesupport
❑ Online registration
You can register your computer online at the following URL:
http://www.sony-asia.com/support/vaio/registration
❑ Contact information
You can contact us at the following URL:
http://www.sony-asia.com/support/vaio/contactus
7
nN
❑ For other Sony products, visit the web site at http://www.sony-asia.com/
.
Before Use >
Ergonomic Considerations
Ergonomic Considerations
Whenever possible, you should attempt to take account of the following ergonomic considerations:
8
nN
❑ Position of your computer – Place the display directly in front of you. Keep your forearms horizontal, with your wrists in
a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at your
sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or
tendons.
❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.
Before Use >
Ergonomic Considerations
9
nN
❑ Viewing angle of the computer display – Use the display tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display
as well.
✍
You can tilt the computer display within the range from about -5 to +25 degrees.
!
While adjusting the viewing angle, do not exert excessive pressure on your computer to eliminate a risk of mechanical damage.
❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
❑ Ventilation – Make sure you leave at least 10 cm of space behind and at least 20 cm of space on each side of the main
unit.
Getting Started >
Getting Started
This section describes how to get started using your VAIO computer.
!
Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Upon completion,
connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturer's instructions.
❑ Locating Controls and Ports (page 11)
❑ About the Indicator Lights (page 17)
❑ Setting Up Your Computer (page 18)
❑ Shutting Down Your Computer Safely (page 25)
❑ Using the Power Saving Mode (page 26)
❑ Keeping Your Computer in Optimum Condition (page 29)
10
nN
Getting Started >
Locating Controls and Ports
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
!
The appearance of your computer may be different from those illustrated in this manual due to variations in specifications.
11
nN
Getting Started >
Locating Controls and Ports
Front
A HDMI input indicator (page 17)
B VIDEO input indicator (page 17)
C WEB indicator (page 17)
12
nN
D WIRELESS indicator (page 17)
E Disc drive indicator (page 17)
F Power indicator (page 17)
G WEB button (page 50)
H Power button
While the HDMI input or the video input is selected as the audio/
video input source, pressing this button switches the audio/
video input source to the computer input or starts the Windows
operating system in the background.
I 3D sync transmitter
*
J Built-in camera (page 54)
K Built-in camera indicator (page 17)
L LCD screen/touch screen (page 45)
!
Due to the mechanical design of the touch screen of your computer, some areas
of the screen surface may become warm while you are using the computer for
an extended period of time. This is normal and does not indicate a malfunction.
M (Edge Access Operation Guide button) (page 49)
N 3D button
*
(page 50)
O SONY logo lamp (page 119)
* On models equipped with a 3D-capable LCD screen only.
Getting Started >
Locating Controls and Ports
Back
A Air exhaust vent
B Foot stand (page 128)
C LAN port (page 82)
D DC IN port (page 18)
E HDMI OUTPUT port
*1
(page 95)
F HDMI INPUT port (page 65)
G VIDEO INPUT jacks (page 65)
H USB ports
*1
There may be no sound from an output device connected to the HDMI
OUTPUT port for the first few seconds after playback starts. This is not a
malfunction.
*2
Compliant with the USB 2.0 standard.
*2
(page 106)
13
nN
!
The area around the air exhaust vent (1) becomes extremely hot while your computer
is on. Be sure to wait until the computer cools down before you touch it.
Getting Started >
Locating Controls and Ports
Right

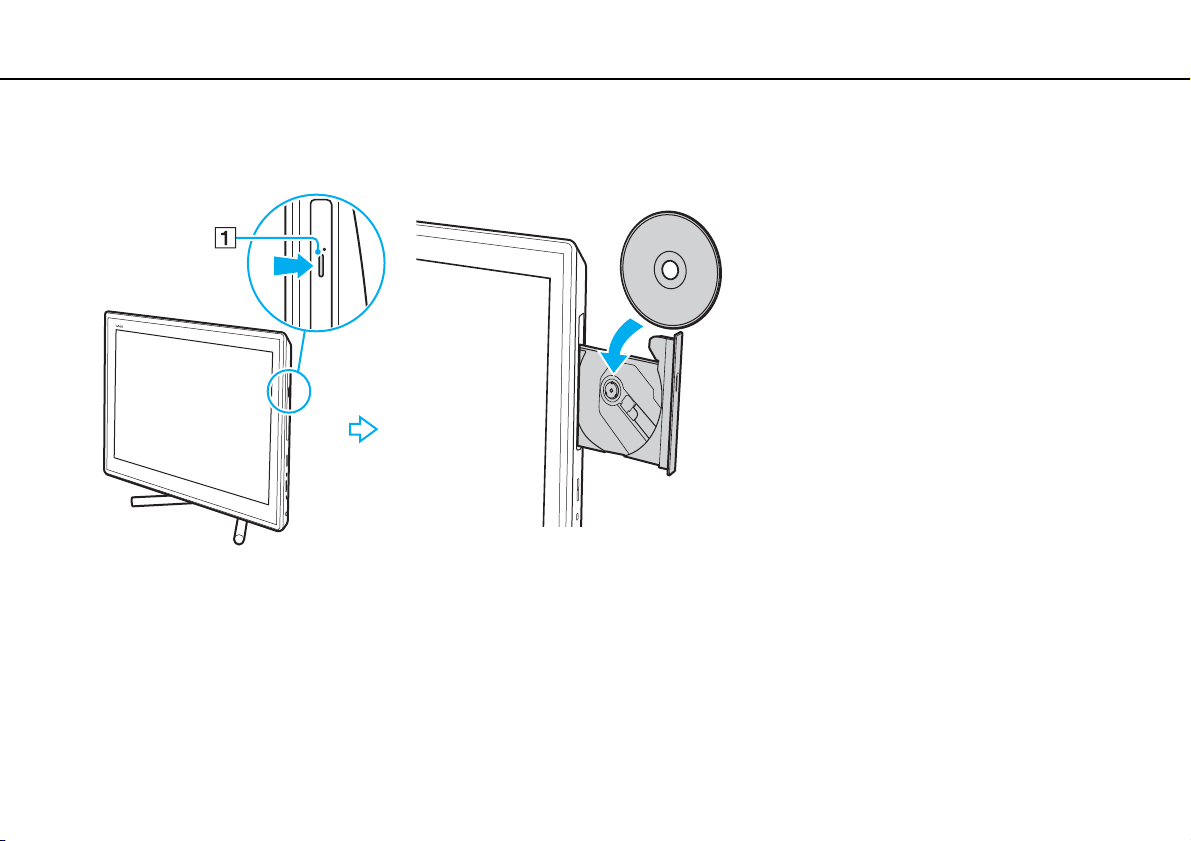

A Optical disc drive (page 55)
B Manual eject hole (page 158)
C Drive eject button (page 55)

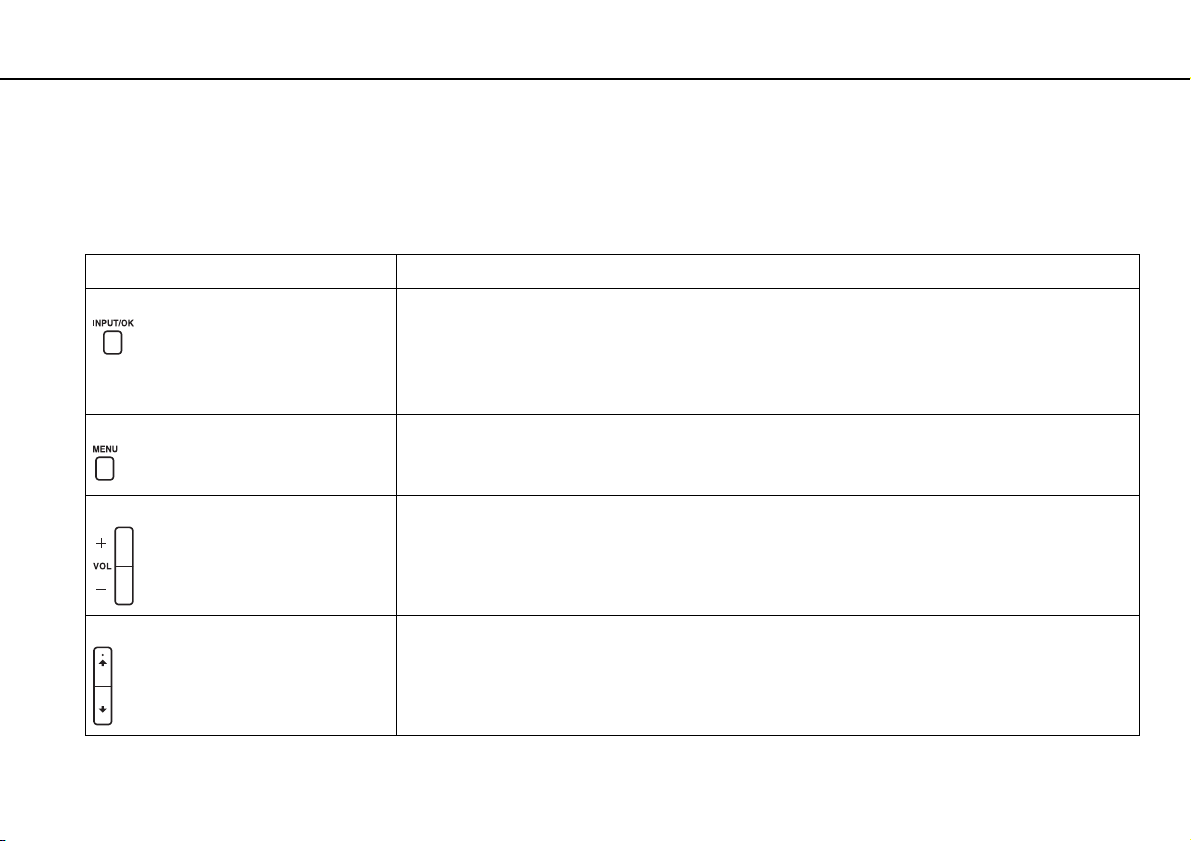

D VOL (+/-) buttons (page 67)
E MENU button (page 67)
F V/v (Up/Down) buttons (page 67)
G INPUT/OK button (page 67)
H DISPLAY OFF button (page 50)
14
nN
Getting Started >
Locating Controls and Ports
Left
A Media access indicator (page 17)

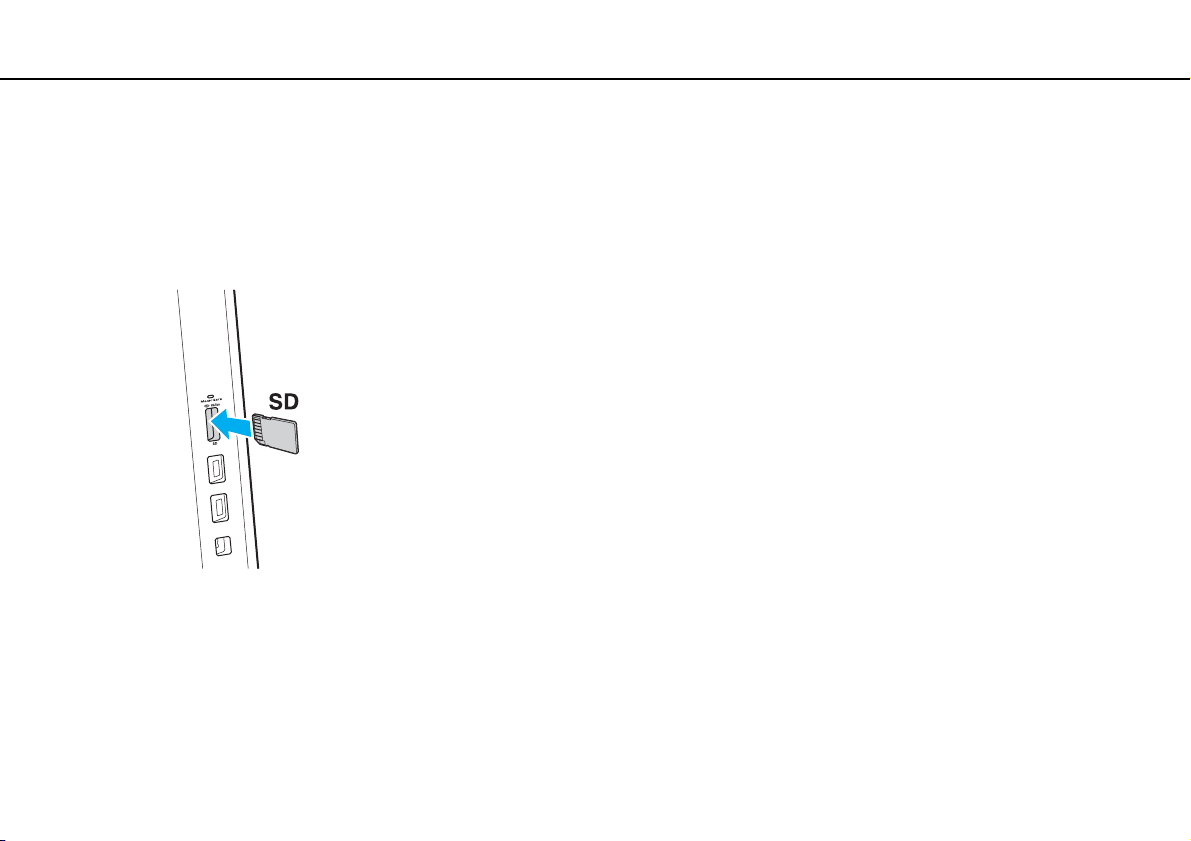

B "Memory Stick Duo"/SD memory card combined slot*
(page 70), (page 77)
C USB ports*
2
(page 106)
D i.LINK 4-pin (S400) port (page 108)
E Headphones jack (page 94)
F Microphone jack (page 105)
G ASSIST button (page 50)
*1
Supports Duo-size "Memory Stick" and the SD memory card. However, they
cannot be used simultaneously.
*2
Compliant with the USB 2.0/3.0 standards. USB ports that are compliant
with the USB 3.0 standard are identifiable by their blue color.
15
nN
1
Getting Started >
Locating Controls and Ports
Bottom
A Built-in microphone (monaural)
B Built-in speakers (stereo)/Air intake vents
16
nN
Getting Started >
About the Indicator Lights
About the Indicator Lights
Your computer is equipped with the following indicator lights:
Indicator Functions
Power 1 Illuminates in green while the computer is in Normal mode, blinks slowly in orange while the computer is in Sleep
HDMI input Illuminates in green while the HDMI input is selected as the audio/video input source.
VIDEO input Illuminates in green while the video input is selected as the audio/video input source.
WEB Illuminates in green while the Quick Web Access function is activated.
Built-in camera Illuminates while the built-in camera is in use.
Media access Illuminates while data access to a memory card, such as "Memory Stick" and an SD memory card, is in
Disc drive
WIRELESS Illuminates while one or more wireless options are enabled.
mode, and turns off when the computer is turned off.
progress. (Do not place the computer into Sleep mode or turn it off while this indicator light is lit.) When the
indicator light is unlit, the memory card is not in use.
Illuminates while data access to the built-in storage device or the optical disc drive is in progress. Do not place
the computer into Sleep mode or turn it off while this indicator light is lit.
17
nN
Getting Started >
Setting Up Your Computer
Setting Up Your Computer
Connecting a Power Source
You need an AC adapter to connect your computer to an AC power source.
✍
Use only the supplied AC adapter for your computer.
To connect the AC adapter
1 Plug one end of the power cord (1) into the AC adapter (2).
2 Plug the other end of the power cord into an AC outlet (3).
18
nN
Getting Started >
Setting Up Your Computer
3 Route the AC adapter cable through the hole of the foot stand and plug it into the DC IN port (4).
!
The shape of the DC In plug varies depending on the AC adapter.
19
nN
If you unplug the AC adapter from your computer while the computer is on, you will lose all unsaved data.
✍
To disconnect your computer completely from an AC power source, turn off the computer and unplug the AC adapter.
Make sure that an AC outlet is easily accessible.
Getting Started >
Setting Up Your Computer
20
nN
Preparing for Wall Mounting
Four M4 x 7 mm screws, which are compliant with the Video Electronics Standards Association (VESA) mounting standard,
are needed for connecting the computer to your mounting system.
!
Before connecting your computer to your mounting system or changing your computer setup from the desktop type to the wall-mount type, make sure
that:
The weight of your computer is within the range of supported weight of your mounting system. See the manual that came with your mounting
system for the weight information.
You shut down the computer, turn off all peripheral devices, disconnect the AC adapter and the peripheral devices from the power source, and then
wait about an hour until the computer cools down before proceeding.
While your computer is wall mounted, do not place any objects on top of your computer so as not to break the frame and cause the main unit to fall
from the wall, resulting in damage to the computer or personal injuries.
Getting Started >
Setting Up Your Computer
To set up the computer for mounting
1 Gently face down your computer on a flat surface.
!
When facing down your computer, be sure to place it on a soft cloth to avoid damage to the screen frame.
2 Remove the four screws and take the foot stand off the computer.
!
The foot stand is securely attached to your computer. While holding down the bottom part of the main unit, firmly grasp the foot stand and pull the
stand out of the unit.
21
nN
Getting Started >
Setting Up Your Computer
3 Remove the 17 screws (1) from the back of the foot stand and take off the mounting base plate (2).
!
Be sure to keep the removed screws for future use.
22
nN
Getting Started >
Setting Up Your Computer
4 Remove the two screws (3) on the back of the computer.
23
nN
Getting Started >
Setting Up Your Computer
24
nN
5 Flip over the mounting base plate (4) and screw it onto the back of the computer using the six screws (5) attached at the
same place in step 3.
!
Be sure to tighten the screws with adequate torque.
6 Secure your wall mount attachment to your computer with four M4 x 7 mm screws (not supplied).
!
Do not use the screws attached to the computer.
7 Follow the instructions described in the manual that came with your mounting system to mount your computer.
Getting Started >
Shutting Down Your Computer Safely
Shutting Down Your Computer Safely
To avoid losing unsaved data, be sure to shut down your computer properly, as described below.
To shut down your computer
1 Turn off any peripherals connected to the computer.
2 Save your data and close all running software applications.
3 Click Start and the Shut down button.
After a short time, the computer automatically turns off. Make sure the power indicator light turns off.
25
nN
Getting Started >
Using the Power Saving Mode
Using the Power Saving Mode
In addition to the normal operating mode, your computer has a distinct power saving mode called Sleep mode.
!
Turn off your computer if you do not intend to use it for an extended period of time.
Mode Description
Normal mode This is the normal state of your computer while it is in use. The green power indicator light is lit while the
computer is in this mode.
Sleep mode Sleep mode turns off the LCD screen and places the built-in storage device(s) and the CPU into a low power
consumption mode. The orange power indicator light blinks slowly while your computer is in this mode.
26
nN
Getting Started >
Using the Power Saving Mode
Using Sleep Mode
To activate Sleep mode
Click Start, the arrow next to the Shut down button, and Sleep.
✍
Alternatively, you can press the sleep button on the wireless keyboard to place your computer into Sleep mode.
To return to Normal mode
❑ Press any key on the wireless keyboard.
❑ Click the wireless mouse button.
❑ Move the wireless mouse.
❑ Press the power button on your computer.
✍
We recommend that you turn off the power switch on the bottom of your wireless mouse when you place your computer into Sleep mode. This will
prevent the computer from returning to Normal mode when the mouse is unintentionally moved.
!
Make sure that the battery of your wireless keyboard is properly installed and not running out of power.
27
nN
If you press and hold the power button for more than four seconds, your computer will turn off automatically. You will lose all unsaved data.
Getting Started >
Using the Power Saving Mode
28
nN
If the computer is not used for a certain period of time, it will enter Sleep mode. To modify this, you can change the Sleep
mode settings.
To change the Sleep mode settings
1 Click Start, Control Panel, Hardware and Sound, and Power Options.
2 Click Change plan settings under the current power plan.
3 Change the time to place the computer into Sleep mode and click Save Changes.
Getting Started >
Keeping Your Computer in Optimum Condition
29
nN
Keeping Your Computer in Optimum Condition
Updating Your Computer
Be sure to update your VAIO computer with the following software applications for enhancing your computer's efficiency,
security, and functionality.
The VAIO Update automatically notifies you of new updates available on the Internet, and downloads and installs them on
the computer.
❑ Windows Update
Click Start, All Programs, and Windows Update and then follow the on-screen instructions.
❑ VAIO Update 5
Click Start, All Programs, and VAIO Update and then follow the on-screen instructions.
!
Your computer must be connected to the Internet to download the updates.
Getting Started >
Keeping Your Computer in Optimum Condition
30
nN
Using the Antivirus Software for Your Computer
Protect your computer against computer viruses by using the antivirus software.
You can keep the antivirus software current with the latest updates by downloading and installing the updates from the web
site of the manufacturer. To update the antivirus software, find the antivirus software installed on your computer from the
following and follow the steps.
!
Your computer must be connected to the Internet to download the updates.
❑ Trend Micro:
1 Click Start, All Programs, Trend Micro Titanium Maximum Security, and Trend Micro Titanium Maximum
Security.
2 Follow the on-screen instructions.
❑ McAfee:
1 Click Start, All Programs, McAfee, and McAfee Internet Security or McAfee Total Protection.
2 Follow the on-screen instructions.
❑ Norton Internet Security:
1 Click Start, All Programs, Norton Internet Security, and LiveUpdate or Norton Internet Security.
2 Follow the on-screen instructions.
✍
See the help file included with your software program for more information.
!
The actual procedure may be different from the above depending on the version of the software installed on your computer. In such a case, follow the
on-screen instructions.
Loading...
