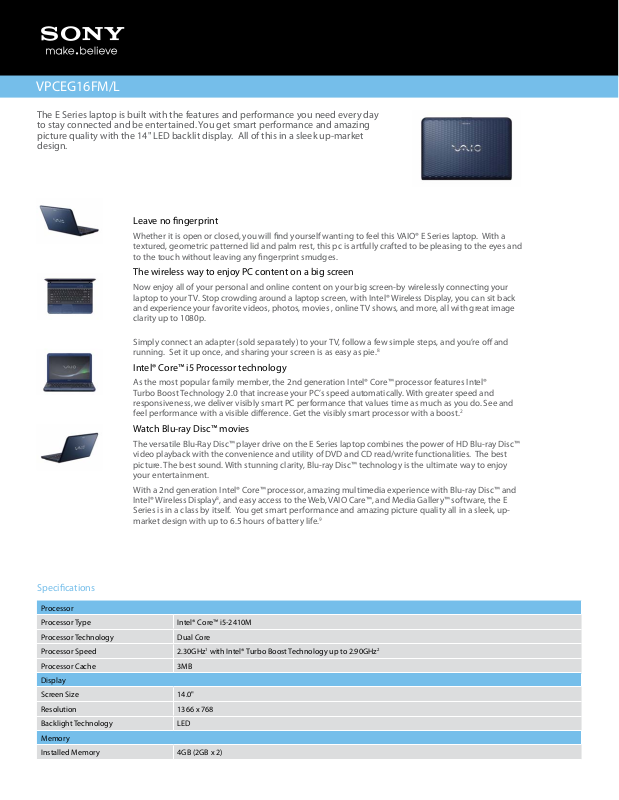

VPCEG16FM/L
The E Series laptop is built with the features and performance you need every day
to stay connected and be entertained. You get smart performance and amazing
picture quality with the 14" LED backlit display. All of this in a sleek up-market
design.
Leave no ngerprint
Whether it is open or closed, you will nd yourself wanting to feel this VAIO® E Series laptop. With a
textured, geometric patterned lid and palm rest, this pc is artfully crafted to be pleasing to the eyes and
to the touch without leaving any ngerprint smudges.
The wireless way to enjoy PC content on a big screen
Now enjoy all of your personal and online content on your big screen-by wirelessly connecting your
laptop to your TV. Stop crowding around a laptop screen, with Intel® Wireless Display, you can sit back
and experience your favorite videos, photos, movies , online TV shows, and more, all with great image
clarity up to 1080p.
Simply connect an adapter (sold separately) to your TV, follow a few simple steps, and you’re o and
running. Set it up once, and sharing your screen is as easy as pie.
Intel® Core™ i5 Processor technology
As the most popular family member, the 2nd generation Intel® Core™ processor features Intel®
Turbo Boost Technology 2.0 that increase your PC’s speed automatically. With greater speed and
responsiveness, we deliver visibly smart PC performance that values time as much as you do. See and
feel performance with a visible dierence. Get the visibly smart processor with a boost.
Watch Blu-ray Disc™ movies
The versatile Blu-Ray Disc™ player drive on the E Series laptop combines the power of HD Blu-ray Disc™
video playback with the convenience and utility of DVD and CD read/write functionalities. The best
picture. The best sound. With stunning clarity, Blu-ray Disc™ technology is the ultimate way to enjoy
your entertainment.
With a 2nd generation Intel® Core™ processor, amazing multimedia experience with Blu-ray Disc™ and
Intel® Wireless Display
Series is in a class by itself. You get smart performance and amazing picture quality all in a sleek, upmarket design with up to 6.5 hours of battery life.
8
, and easy access to the Web, VAIO Care™, and Media Gallery™ software, the E
9
Specications
Processor
Processor Type Intel® Core™ i5-2410M
Processor Technology Dual Core
Processor Speed 2.30GHz1 with Intel® Turbo Boost Technology up to 2.90GHz
Processor Cache 3MB
Display
Screen Size 14.0"
Resolution 1366 x 768
Backlight Technology LED
Memory
Installed Memory 4GB (2GB x 2)
8
2
2
Page 2
Memory Type/Speed DDR3/1333MHz
Max. Memory 8GB
Graphics
Graphics Processor Intel® HD Graphics 3000
Graphics Video RAM Internal
5
Storage
Storage Type Serial ATA
Storage Capacity 640GB
4
Storage Technology 5400rpm
Optical Drive
Optical Drive Type Blu-ray Disc™ Player
Optical Drive Support - Blu-ray Disc™ Read Only
Optical Drive Support - CD/DVD Read / Write
Hardware
Camera Built-in MOTION EYE® camera and microphone
Keyboard QWERTY, 86 keys with 2.0mm stroke and 19.05mm pitch
Audio
Sound System Intel® High Denition Audio
Inputs and Outputs
DC-In 1
USB 2.0 4
VGA Output(s) 1
Headphone Output 1
Microphone Input 1
Secure Digital (SD) Slot 1
HDMI® Output(s) 1
Memory Stick Duo™ 1
Wireless/Networking
Ethernet Protocol 1000BASE-T/100BASE-TX/10BASE-T
WiFi Adapter Intel® Centrino® Wireless-N + WiMAX 6150
WiDi Ready Yes - Intel® Wireless Display Technology
WiMAX Ready Yes (where available)
10
8
Software
Operating System Genuine Windows® 7 Home Premium with Service Pack 1 64-bit
Supplied Software
Anti-Virus Software Norton Internet Security™ 2011 30-Day Trial Oer
Microsoft® Oce Starter with reduced-functionality versions of Word and Excel®
VAIO Edition
11
Service and Warranty Information
Toll-Free Phone Support 888-476-6972
Onsite/In-Home Service Yes
12
7
International Service Yes
Limited Warranty Term 1 Year
Priority Phone Support 239-768-7605
7
Environmental Information
ENERGY STAR® 5.0
6
, VAIO Care™, Media Gallery™, PMB -
Page 3
EPEAT™ Gold
ROHS® Compliant
Weights and Measurements
Dimensions (Approx.) 13.62" (W) x 1.14" - 1.36" (H) x 9.40" (D)
Weight (Approx.) 5.08 lbs. (with Standard Battery)
Power
Battery Type Standard Lithium Ion Battery (5300mAh)
DVD Playback Up to 4.5 hours
Default Brightness Up to 6.5 hours
Maximum Brightness Up to 6 hours
9
9
9
Start-up Times
Average Resume Time from Suspend 2 seconds
Average Boot Time 60 seconds
First Boot Time 5 minutes, excluding end user interaction
General
Action Buttons VAIO, ASSIST, WEB, Wireless On/O
Pointing Device Touchpad (Gesture supported)
Accessories
Supplied Accessories Standard Lithium Ion Battery (5300mAh), AC Adapter, Power Cord
1. GHz denotes maximum microprocessor internal clock speed and may vary based on application.
2. Requires a system with Intel® Turbo Boost Technology capability. Intel Turbo Boost Technology 2.0 is available only on 2nd generation Intel® Core™ i5 and Core™ i7 processors. Performance varies depending on
hardware, software and system conguration.
3. Available on select Intel® Core™ processors. Requires an Intel® HT Technology enabled system. Performance will vary depending on the specic hardware and software used.
4. 1 GB = one billion bytes. Actual formatted capacity will be less.
5. Allocation of system memory to graphics varies depending on operating condition, version of device driver and total system memory size.
6. This PC is preloaded with reduced-functionality versions of Word and Excel that include advertising. Purchase an Oce 2010 Product Key to activate full-featured Oce software on this PC.
7. For some third party software, Sony provides initial support. Additional support may be available from the applicable vendor. Availability may var y by vendor.
8. Requires TV Adapter and compatible television. Does not support Blu-ray Disc™ or other protected content playback.
9. Estimates based upon Sony engineering testing. Actual performance varies based on congurable options, settings, environmental conditions, and usage. Batter y capacity decreases over time and use.
10. Mobile Broadband service sold separately.
11. Norton™ Internet Security 2011 30-day subscription is pre-installed on your Sony VAIO PC. You need to activate the software for the product to work. After your 30-days are nished, buy Norton Internet Security to
continue to be protected from viruses, hackers and identify theft.
12. Availability may be limited. See limited warranty for details.
Specications subject to change. Non-metric weights and measures are approximate.
Certain Microsoft products included with this computer may use technological measures for copy protection. IN SUCH EVENT, YOU WILL NOT BE ABLE TO USE THE PRODUC T IF YOU DO NOT FULLY COMPLY WITH THE
PRODUCT ACTIVATIONPROCEDURES. Produc t activation procedures and M icrosoft’s privacy policy will be detailed dur ing initial launch of the product, or upon certain reinstallations of the software product(s) or
recongurations of the computer and may be completed by Internet or telephone (toll charges may apply).
This product meets the standards of the International Energy Star Program for energy eciency.
©2011 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, VAIO, Memory Stick Duo, MOTION EYE, VAIO Care and Media Gallery are trademarks of
Sony in the U.S. and in other countries. Intel and Core are trademarks of the Intel Corporation in the U.S. and in other countries. Microsoft, Windows and Excel are registered trademarks of the Microsoft Corporation in
the U.S. and in other countries. Blu-ray Disc and its logo is a trademark. Bluetooth and the Bluetooth logo are registered trademarks of Bluetooth SIG, Inc. Dolby and Dolby Home Theater are registered trademarks of
Dolby Laboratories. Norton Internet Security is a trademark of Symantec Corporation or its aliates in the U.S. and other countries. All other trademarks are trademarks of their respective owners.
Certain restrictions apply. See www.sonystyle.com/pcwarranty for more information.
