Sony VPCCW21FX, VPCCW21FX/B, VPCCW21FX/L, VPCCW21FX/P, VPCCW21FX/R User Guide

...

Download

User Guide

Personal Computer

VPCCW2 Series

Contents

Before Use.......................................................................... 4

Finding More about Your VAIO Computer .................... 5

Ergonomic Considerations ............................................ 9

Getting Started.................................................................. 11

Locating Controls and Ports........................................ 12

About the Indicator Lights ........................................... 18

Connecting a Power Source ....................................... 19

Using the Battery Pack................................................ 21

Shutting Down Your Computer Safely ........................ 27

Using the Power Saving Modes .................................. 28

Updating Your Computer ............................................ 31

Using Your VAIO Computer.............................................. 32

Using the Keyboard..................................................... 33

Using the Touch Pad................................................... 35

Using Special-function Buttons ................................... 36

Using the Built-in Camera ........................................... 37

Using the Optical Disc Drive ....................................... 38

Using "Memory Stick".................................................. 45

Using Other Modules / Memory Cards ........................ 51

Using the Internet ........................................................ 57

Using the Network (LAN) ............................................ 58

Using the Wireless LAN .............................................. 59

Using the Bluetooth Function ...................................... 63

Using Peripheral Devices..................................................68

Connecting External Speakers or Headphones ..........69

Connecting an External Display ..................................70

Selecting Display Modes .............................................75

Using the Multiple Monitors Function ..........................76

Connecting an External Microphone ...........................78

Connecting a USB Device ...........................................79

Connecting an i.LINK Device.......................................81

Customizing Your VAIO Computer....................................83

Setting the Password...................................................84

Using Intel(R) VT .........................................................91

Using the VAIO Control Center ...................................92

Using the VAIO Power Management...........................93

Upgrading Your VAIO Computer.......................................94

Adding and Removing Memory ...................................95

Precautions..................................................................... 101

Safety Information ..................................................... 102

Care and Maintenance Information........................... 105

Handling Your Computer........................................... 106

Handling the LCD Screen ......................................... 108

Using the Power Source ........................................... 109

Handling the Built-in Camera .................................... 110

Handling Discs .......................................................... 111

Using the Battery Pack.............................................. 112

Handling "Memory Stick"........................................... 113

Handling the Built-in Storage Device ........................ 114

Troubleshooting .............................................................. 115

Computer Operations ................................................ 117

System Update / Security.......................................... 123

Recovery ................................................................... 125

Battery Pack.............................................................. 127

Built-in Camera ......................................................... 129

Networking (LAN/Wireless LAN) ............................... 131

Bluetooth Technology ............................................... 134

Optical Discs ............................................................. 138

Display ...................................................................... 143

Printing ...................................................................... 147

Microphone ............................................................... 148

Speakers ................................................................... 149

Touch Pad .................................................................151

Keyboard ...................................................................152

Floppy Disks ..............................................................153

Audio/Video ...............................................................154

"Memory Stick" ..........................................................156

Peripherals ................................................................157

Trademarks .....................................................................158

Notice ..............................................................................160

Before Use >

Before Use

Congratulations on your purchase of this Sony VAIO® computer and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide you with a state-of-the-art computing experience.

External views illustrated in this manual may look slightly different from those of your computer.

How to find specifications

Some features, options, and supplied items may not be available on your computer.

To find out about the configuration of your computer, visit the Sony online support web site at the following URLs:

❑ For customers in USA

http://esupport.sony.com/EN/VAIO/

❑ For customers in Canada

http://sony.ca/support/

❑ For customers in Spanish-speaking Latin American countries or areas

http://esupport.sony.com/ES/VAIO/LA

❑ For customers in Brazil

http://esupport.sony.com/BR/

Before Use > Finding More about Your VAIO Computer

Finding More about Your VAIO Computer

This section provides support information about your VAIO computer.

1. Printed Documentation

❑ Quick Start Guide — An overview of components connection, set-up information, etc.

❑ Safety Information — Safety guidelines and owner information.

2. On-screen Documentation

❑ Help and Support — General information and technical assistance for your VAIO computer.

To access Help and Support:

1 Click Start and Help and Support.

2 Choose from the following categories to find the answers you need.

Get started with my VAIO Get help with Internet and wireless setup, security setup, personalizing your VAIO computer, creating

Use my VAIO Access interactive help in the form of VAIO tutorials, how-to articles, the VAIO technology page,

Troubleshoot my VAIO Maintain and troubleshoot your VAIO computer with VAIO Care, system restore, backup and recovery, and

recovery discs, and more.

specifications, and system and software information. You can find useful documentation such as below:

- VAIO User Guide (This manual)

- VAIO Recovery Center User Guide - Information about restoring individual software programs, hardware drivers, and drive partition(s) or your entire built-in storage device to the original factory settings

- Software Information

contact Sony support.

Before Use > Finding More about Your VAIO Computer

❑ Program help files — May be included with the preinstalled software programs on your computer. You may be able to

access the help files from the help menu on a specific program.

™

❑ SmartWi

Connection Utility Help — Information about setting up Bluetooth®, wireless LAN, GPS, and wireless WAN

functions.

Some features and options may not be available on your computer. See the specifications to find out about the configuration of your computer.

To access this on-screen guide:

1 Click Start, All Programs, and SmartWi Connection Utility.

2 Click SmartWi Connection Utility Help.

Before Use > Finding More about Your VAIO Computer

3. Support Web Sites

❑ Sony online support web site

The Sony online support web site provides instant access to information on commonly encountered problems. Type a description of the problem and the Knowledge Database searches for the corresponding solutions online.

❑ For customers in USA

http://esupport.sony.com/EN/VAIO/

❑ For customers in Canada

http://sony.ca/support/

❑ For customers in Spanish-speaking Latin American countries or areas

http://esupport.sony.com/ES/VAIO/LA

❑ For customers in Brazil

http://esupport.sony.com/BR/

❑ Operating system online support web site

Your computer comes preinstalled with a Microsoft Windows operating system. For operating system support, you can visit Microsoft customer support at http://support.microsoft.com/directory/

Before Use > Finding More about Your VAIO Computer

4. Customer Information Center

If you do not find the information you are looking for at our site, you may call Sony directly. You can find the contact numbers on the Sony online support web site. In order to receive the fastest and most efficient services, have the following information readily available:

1 Your VAIO computer model

You can find it at the lower right corner of the display on the computer.

2 Your computer's serial number

You can find it on the bottom, the back panel, or inside the battery compartment of your Sony VAIO computer. The serial number is the last 7 digits of the number below the barcode.

3 The operating system on your computer

4 The hardware component or the software program that is causing the problem

5 A brief description of the problem

5. In Store Service & Support (available in USA only)

Make an appointment with a Sony certified technician at a U.S. Sony Style store and get personalized service and support for your VAIO PC. Sony Style Backstage Technicians can assist with the setup of your new VAIO PC, system optimization, data rescue, and any repair service you might need. Visit the web site at www.sonystyle.com/backstage

to find the nearest location.

Before Use > Ergonomic Considerations

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations for both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you. Keep your forearms horizontal, with your wrists

in a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

Before Use > Ergonomic Considerations

❑ Viewing angle of the computer display – Use the display tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.

❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at or slightly below eye level when you are sitting in front of the monitor.

Getting Started >

Getting Started

This section describes how to get started using your VAIO computer.

Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Upon completion, connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturer's instructions.

❑ Locating Controls and Ports (page 12)

❑ About the Indicator Lights (page 18)

❑ Connecting a Power Source (page 19)

❑ Using the Battery Pack (page 21)

❑ Shutting Down Your Computer Safely (page 27)

❑ Using the Power Saving Modes (page 28)

❑ Updating Your Computer (page 31)

Getting Started > Locating Controls and Ports

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

Front

A Built-in microphone (monaural) B Built-in MOTION EYE camera indicator (page 18) C Built-in MOTION EYE camera (page 37) D LCD screen (page 108)

E ASSIST button F DISPLAY OFF button G VAI O button

H Power button I Keyboard (page 33) J Touch pad (page 35) K Right button (page 35) L Left button (page 35)

* On selected models only.

(page 36)

Getting Started > Locating Controls and Ports

A Built-in speakers (stereo) B Num lock indicator (page 18) C Caps lock indicator (page 18) D Scroll lock indicator (page 18)

E "Memory Stick Duo" slot

(page 45)

F Media Access indicator (page 18) G SD memory card slot (page 53) H Power indicator (page 18) I Charge indicator (page 18) J Disc drive indicator (page 18) K WIRELESS switch (page 59), (page 63) L WIRELESS indicator (page 18)

* Your computer supports only Duo-size "Memory Stick".

Getting Started > Locating Controls and Ports

Back

A Security slot B Network (LAN) por t (page 58) C Battery connector (page 21) D DC IN port (page 19)

Getting Started > Locating Controls and Ports

Right

A ExpressCard/34 slot (page 51) B Optical disc drive (page 38) C Drive eject button (page 38) D Manual eject hole (page 138) E Headphones jack (page 69) F Microphone jack (page 78)

G USB port

* Compliant with the USB 2.0 standard and supports high-/full-/low- speeds.

(page 79)

Getting Started > Locating Controls and Ports

Left

A Air vent B Monitor port (page 71)

C HDMI output port

(page 73)

D i.LINK 4-pin (S400) port (page 81) E USB ports

There may be no sound from an output device connected to the HDMI output port for the first few seconds after playback starts. This is not a malfunction.

Compliant with the USB 2.0 standard and support high-/full-/low- speeds.

(page 79)

Getting Started > Locating Controls and Ports

Bottom

A Memory module compartment cover (page 95) B Air vents

Getting Started > About the Indicator Lights

About the Indicator Lights

Your computer is equipped with the following indicator lights:

Indicator Functions

Power 1 Illuminates in green while the computer is on, blinks slowly in orange while the computer is in Sleep mode, and

Charge

Disc drive

Media Access Illuminates while data access to a memor y card, such as "Memory Stick" and an SD memory card, is in

Built-in MOTION EYE camera Illuminates while the built-in camera is in use.

Num lock

Caps lock

Scroll lock

WIRELESS Illuminates while one or more wireless options are enabled.

turns off when the computer is turned off or enters Hibernate mode.

Illuminates while the battery pack is charging. See Charging the Battery Pack (page 24) for more information.

Illuminates while data access to the built-in storage device or the optical disc drive is in progress. Do not place the computer into Sleep mode or turn it off while this indicator light is lit.

progress. (Do not place the computer into Sleep mode or turn it off while this indicator light is lit.) When the indicator light is unlit, the memory card is not in use.

Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad. The numeric keypad is not active when the indicator light is unlit.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key while the indicator light is lit. Press the key a second time to turn off the indicator light. Normal typing resumes when the Caps lock indicator light is turned off.

Press the Fn+Scr Lk keys to change how you scroll the display. Normal scrolling resumes when the Scroll lock indicator light is turned off. The Scr Lk key functions differently depending on the program you are using and does not work with all programs.

Getting Started > Connecting a Power Source

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.

Using the AC Adapter

While your computer is directly connected to an AC power source and has a battery pack installed, it uses power from the AC outlet.

✍

Use only the supplied AC adapter for your computer.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3).

2 Plug the other end of the power cord into an AC outlet (2).

3 Plug the cable from the AC adapter (3) into the DC IN port (4) on the computer.

The shape of the DC In plug varies depending on the AC adapter.

Getting Started > Connecting a Power Source

✍

To disconnect your computer completely from an AC power source, unplug the AC adapter from the AC outlet.

Make sure that the AC outlet is easily accessible.

If you do not intend to use your computer for an extended period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page

30).

Getting Started > Using the Battery Pack

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

Installing/Removing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) inward.

Getting Started > Using the Battery Pack

3 Slide the battery pack diagonally into the battery compartment until the projection (2) on either side of the battery

compartment fits into the U-shaped cut (3) on either side of the battery pack.

4 Push the battery pack down into the compartment until it clicks into place.

5 Slide the battery LOCK switch outward to secure the battery pack on the computer.

Getting Started > Using the Battery Pack

To remove the battery pack

You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack while the computer is in Sleep mode.

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) inward.

3 Slide and hold the battery RELEASE latch (2) inward, put your fingertip underneath the tab (3) on the battery pack, and

lift the battery pack in the direction of the arrow, and then slide it away from the computer.

This computer is designed to operate only with genuine Sony battery packs.

Getting Started > Using the Battery Pack

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

To charge the battery pack

1 Install the battery pack.

2 Connect the computer to a power source with the AC adapter.

The charge indicator light is on while the battery pack is charging. When the battery pack charges close to the maximum charge level you selected, the charge indicator turns off.

Charge indicator status Meaning

Lit in orange The battery pack is charging.

Blinks along with the green power indicator

Blinks along with the orange power indicator

Blinks fast in orange A battery error has occurred due to a failed battery

Charge the battery pack as described in this manual from your first battery charge.

The battery pack is running out of power. (Normal mode)

The battery pack is running out of power. (Sleep mode)

pack or an unlocked battery pack.

Getting Started > Using the Battery Pack

✍

Keep the battery pack in your computer while it is directly connected to an AC power source. The battery pack continues to charge while you are using the computer.

When the battery pack is running out of power and both the charge and power indicator lights blink, you should either connect the AC adapter to recharge the battery pack or shut down your computer and install a fully charged battery pack.

Your computer is supplied with a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect the life of battery.

You can extend the life of your battery pack if you enable the battery care function of the Battery Charge Functions with the VAIO Control Center.

While some software applications or peripheral devices are in use, your computer may not enter Hibernate mode even when the remaining battery life becomes short. To avoid loss of data while the computer is running on the battery, you should save your data frequently and manually activate a power

management mode, such as Sleep or Hibernate.

If the battery pack runs out of power while the computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

Getting Started > Using the Battery Pack

Extending the Battery Life

When your computer is running on battery power, you can extend the battery life using the following methods.

❑ Decrease the LCD brightness of your computer screen.

❑ Use the power saving mode. See Using the Power Saving Modes (page 28) for more information.

❑ Change the power saving settings on the Power Options. See Using the VAIO Power Management (page 93) for more

information.

❑ Set the wallpaper in Long Battery Life Wallpaper Setting as your desktop background with the VAIO Control Center.

Getting Started > Shutting Down Your Computer Safely

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.

2 Click Start and the Shut down button.

3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically. The power indicator light turns off.

Getting Started > Using the Power Saving Modes

Using the Power Saving Modes

You can take advantage of the power management settings to conserve battery life. In addition to the normal operating mode, your computer has two distinct power saving modes to suit your preference: Sleep and Hibernate.

If you do not intend to use your computer for an extended period of time while it is disconnected from an AC power source, place the computer into Hibernate mode or turn it off.

If the battery pack runs out of power while your computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

Mode Description

Normal mode This is the normal state of your computer while it is in use. The green power indicator light is lit while the

computer is in this mode.

Sleep mode Sleep mode turns off the LCD screen and places the built-in storage device(s) and the CPU into a low power

Hibernate mode While your computer is in Hibernate mode, the state of the system is saved on the built-in storage device(s) and

consumption mode. The orange power indicator light blinks slowly while your computer is in this mode. Your computer comes out of Sleep mode quicker than out of Hibernate mode. However, Sleep mode uses more power than Hibernate mode.

power is turned off. Even when the battery pack runs out of power, no data will be lost. The power indicator light is unlit while your computer is in this mode.

Getting Started > Using the Power Saving Modes

Using Sleep Mode

To activate Sleep mode

Click Start, the arrow next to the Shut down button, and Sleep.

To return to Normal mode

❑ Press any key.

❑ Press the power button on your computer.

If you press and hold the power button for more than four seconds, your computer will turn off automatically. You will lose all unsaved data.

Getting Started > Using the Power Saving Modes

Using Hibernate Mode

To activate Hibernate mode

Press the Fn+F12 keys.

Alternatively, you can click Start, the arrow next to the Shut down button, and Hibernate.

Do not move your computer before its power indicator light turns off.

To return to Normal mode

Press the power button.

If you press and hold the power button for more than four seconds, your computer will turn off automatically.

Getting Started > Updating Your Computer

Updating Your Computer

Be sure to update your VAIO computer with the following software applications so that the computer can run more efficiently and securely.

The VAIO Update automatically notifies you of new updates for enhancing your computer's performance available on the Internet, and downloads and installs them on the computer.

❑ Windows Update

Click Start, All Programs, and Windows Update and then follow the on-screen instructions.

❑ VAIO Update 5

Click Start, All Programs, and VAIO Update 5 and then follow the on-screen instructions.

Your computer must be connected to the Internet to download the updates.

Using Your VAIO Computer >

Using Your VAIO Computer

This section describes how to get the most out of using your VAIO computer.

❑ Using the Keyboard (page 33)

❑ Using the Touch Pad (page 35)

❑ Using Special-function Buttons (page 36)

❑ Using the Built-in Camera (page 37)

❑ Using the Optical Disc Drive (page 38)

❑ Using "Memory Stick" (page 45)

❑ Using Other Modules / Memory Cards (page 51)

❑ Using the Internet (page 57)

❑ Using the Network (LAN) (page 58)

❑ Using the Wireless LAN (page 59)

❑ Using the Bluetooth Function (page 63)

Using Your VAIO Computer > Using the Keyboard

Using the Keyboard

Your keyboard has additional keys that perform model-specific tasks.

Combinations and Functions with the Fn Key

✍

Some keyboard functions can be used only after the operating system is finished launching.

Combination/Feature Function

Fn + % (F2): muting Turns on and off the built-in speakers or the headphones.

Fn + 2 (F3/F4): volume control Changes the volume level.

Fn + 8 (F5/F6): brightness control Changes the LCD brightness of your computer screen.

Fn + /T (F7): display output

To increase the volume, keep pressing the Fn+F4 keys or press the Fn+F4 keys and then the

M or , key. To decrease the volume, keep pressing the Fn+F3 keys or press the Fn+F3 keys and then the m or < key.

To increase lighting intensity, keep pressing the Fn+F6 keys or press the Fn+F6 keys and then the M or , key. To decrease lighting intensity, keep pressing the Fn+F5 keys or press the Fn+F5 keys and then the m or < key.

Switches the display output between your computer screen, an external display, simultaneous output to both, and multiple displays with both that function as a single desktop. Press the Enter key to select the display output.

If you disconnect a display cable from your computer while an external display is selected as the display output destination, the computer screen goes blank. In such a case, press the F7 key twice while holding down the Fn key, and then press the Enter key to switch the display output to the computer screen.

Multiple displays may not be supported depending on the operating system on your computer.

Using Your VAIO Computer > Using the Keyboard

Combination/Feature Function

Fn + / (F9/F10): zooming

Fn + (F12): hibernation

Changes the size of an image or a document displayed on some software. To make the view look smaller and further away (zoom out), press the Fn+F9 keys. To make the view look bigger and closer (zoom in), press the Fn+F10 keys. See the help file included with the VAIO Control Center for more information.

Provides the lowest level of power consumption. When you execute this command, the states of the system and the connected peripheral devices are saved to the built-in storage device and the system power is turned off. To return the system to its original state, use the power button to turn on the power. For details on power management, see Using the Power Saving Modes (page 28).

Using Your VAIO Computer > Using the Touch Pad

Using the Touch Pad

You can point to, select, drag, and scroll objects on the screen using the touch pad.

Action Description

Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object.

Click Press the left button (3) once.

Double-click Press the left button twice in a row.

Right-click Press the right button (4) once. With many applications, this action displays a context-sensitive shortcut menu (if any).

Drag Slide your finger on the touch pad while pressing the left button.

Scroll Slide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to scroll

horizontally. Once vertical or horizontal scrolling is engaged, you can move your finger in circles on the touch pad to keep scrolling without taking the finger off the touch pad (the scroll function is available only with applications that support a touch pad scroll feature).

Flick Slide two fingers linearly in quick motion on the touch pad. On web browser software or image viewer software, you can

flick left to move backward and flick right to move forward.

Pinch With some software applications, you can pinch on the touch pad with two fingers for zooming. Pinch open to zoom in

or pinch close to zoom out.

✍

You can disable/enable the touch pad while a mouse is connected to your computer. To change the touch pad settings, use the VAIO Control Center.

Be sure to connect a mouse before disabling the touch pad. If you disable the touch pad before connecting a mouse, you will be able to use only the keyboard for pointer operations.

Using Your VAIO Computer > Using Special-function Buttons

Using Special-function Buttons

Your computer may be equipped with special buttons to help you use specific functions of the computer.

Some features and options in this section may not be available on your computer. See the specifications to find out about the configuration of your computer.

Special-function button Functions

ASSIST button

VAI O button

DISPLAY OFF button

Launches the VAIO Care while the computer is in Normal mode or Sleep mode. While the computer is off or in Hibernate mode, the ASSIST button launches the VAIO Recovery Center.

Launches the Media Gallery or turns the volume on and off, depending on your model.

Turns off the LCD backlight. To turn on the LCD backlight, do any of the following:

- Press any key.

- Press any special-function button.

- Slide your finger on the touch pad.

You cannot turn on the LCD backlight with a USB device, such as a mouse.

Using Your VAIO Computer > Using the Built-in Camera

Using the Built-in Camera

Your computer is equipped with a built-in MOTION EYE camera.

With the preinstalled image capture software, you can perform the following:

❑ Capture still images and movies

❑ Sense and capture object movements for monitoring purposes

❑ Edit captured data

✍

Turning on the computer activates the built-in camera.

Video conferences are possible with the appropriate software.

Launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in camera.

Do not place your computer into Sleep or Hibernate mode while you are using the built-in camera.

To use the preinstalled image capture software

1 Click Start, All Programs, ArcSoft WebCam Companion 3, and WebCam Companion 3.

2 Click your desired icon in the main window.

For detailed information on how to use the software, see the help file included with the software.

✍

When capturing an image or a movie in a dark place, click the Capture icon in the main window, and then click the WebCam Settings icon and select the low light or low light compensation option in the properties window.

Using Your VAIO Computer > Using the Optical Disc Drive

Using the Optical Disc Drive

Your computer is equipped with an optical disc drive.

Some features and options in this section may not be available on your computer. See the specifications to find out about the configuration of your computer.

To insert a disc

1 Turn on the computer.

2 Press the drive eject button (1) to open the drive.

The drive tray slides out.

Using Your VAIO Computer > Using the Optical Disc Drive

3 Place a disc in the middle of the drive tray with the label side facing upward and gently push it down until the disc clicks

into place.

Do not exert pressure on the drive tray. Be sure to hold the bottom of the drive tray when placing/removing a disc onto/from the tray.

4 Close the drive tray by pushing it in gently.

Do not remove the optical disc while your computer is in a power saving mode (Sleep or Hibernate). Be sure to bring the computer back into Normal mode before removing the disc.

Using Your VAIO Computer > Using the Optical Disc Drive

Supported Disc Media

Your computer plays and records CDs, DVDs, and Blu-ray Disc™ media, depending on the model you purchased.

See the reference chart below to find out which type of optical disc drive supports which types of media.

PR: playable and recordable P: playable but not recordable –: not playable or recordable

CD-

Video CDMusic CDCD

ROM

DVD± RW/ ±R DL/RAM

Blu-ray DiscPPPP

Blu-ray Disc Combo

The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.

Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported. DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.

The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.

Supports writing data to BD-R Part1 Version 1.1/1.2/1.3 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BDRE Part1 Version 2.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).

Writing data to Ultra Speed CD-RW discs is not supported.

PPPP

Extra

CD-R/RWDVD-

DVD-

ROM

PPPRPRPRPRPR––

PPPRPRPRPRPRP

PPPRPRPRPRPRPP

DVD-R/RWDVD+R/RWDVD+R DL

Video

(Double Layer)

DVD-R DL (Dual Layer)

DVD-

RAM

*1 *2

BDROM

BD-R/RE

Using Your VAIO Computer > Using the Optical Disc Drive

This unit is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard. Therefore, these discs may not be compatible with this unit.

When you buy pre-recorded or blank discs for use with your VAIO computer, be sure to read the notices on the disc package carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO optical disc drives

with discs that are not compliant with the official "CD," "DVD," or "Blu-ray Disc" standard. USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING. For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

✍

8 cm disc writing is not supported.

To play copyright protected Blu-ray Disc media continually, update the AACS key. The AACS key update requires Internet access.

As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support movie playback on packaged media recorded in AVC or VC1 formats at high bit rates.

Region settings are required for some contents of DVD and BD-ROM Disc media. If the region setting on the optical disc drive does not match the region coding on the disc, playback is not possible.

Unless your external display is compliant with the High-bandwidth Digital Content Protection (HDCP) standard, you cannot play or view the contents of copyright protected Blu-ray Disc media.

Some content may restrict video output to standard definition or prohibit analog video output. When you output video signals through digital connections, such as an HDMI connection or a DVI connection, it is strongly recommended that a digital HDCP compliant environment be implemented

for optimum compatibility and viewing quality.

Exit all memory-resident utility software before playing or writing a disc as it may cause the computer to malfunction.

Using Your VAIO Computer > Using the Optical Disc Drive

Notes on Using the Optical Disc Drive

Notes on writing data to a disc

❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc

drive.

❑ Do not strike or shake your computer while the optical disc drive is writing data to a disc.

❑ Do not plug or unplug the power cord or the AC adapter while the optical disc drive is writing data to a disc.

Notes on playing discs

To achieve optimum performance of disc playback, you should follow these recommendations:

❑ Some CD players and computer optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW

media.

❑ Some DVD players and computer optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-R

DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media.

❑ You may not be able to play some Blu-ray Disc content on your computer, or the computer may become unstable during

Blu-ray Disc playback. To play content normally, download and install the latest updates for the WinDVD BD using the VAIO Update. For information on how to use the VAIO Update, see Updating Your Computer (page 31).

❑ Depending on system environment, you may find sound interruptions and/or dropped frames during AVC HD playback.

❑ Do not place your computer into either of the power saving modes while your computer is playing a disc.

Using Your VAIO Computer > Using the Optical Disc Drive

Notes on region codes

Region code indicators are labeled on the discs or packages to indicate in which region and on what type of player you can play the disc. If the region code indicates "all," you can play this disc in most regions of the world. If the region code for your residence area is different from the label, you cannot play the disc on your computer.

Using Your VAIO Computer > Using the Optical Disc Drive

Playing Discs

To play a disc

1 Insert a disc into the optical disc drive.

Connect the AC adapter to the computer and close all running software applications before playing a disc.

2 If nothing appears on the desktop, click Start, All Programs, and your desired software to play the disc.

For instructions on how to use the software, see the help file included with the software.

Copying Files to Discs

To copy files to a disc

1 Insert a recordable disc into the optical disc drive.

Connect the AC adapter to the computer and close all running software applications before copying files to a disc.

2 If nothing appears on the desktop, click Start, All Programs, and your desired disc burning software to copy files to the

disc. For instructions on how to use the software, see the help file included with the software.

Using Your VAIO Computer > Using "Memory Stick"

Using "Memory Stick"

"Memory Stick" is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable, it can be used for external data storage.

Before You Use "Memory Stick"

The "Memory Stick Duo" slot on your computer can accommodate the following sizes and types of media:

❑ "Memory Stick Duo"

❑ "Memory Stick PRO Duo"

❑ "Memory Stick PRO-HG Duo"

Your computer supports only Duo-size "Memory stick", and does not support standard-size "Memory Stick".

For the latest information about "Memory Stick", visit [memorystick.com] at http://www.memorystick.com/en/.

Using Your VAIO Computer > Using "Memory Stick"

Inserting and Removing "Memory Stick"

To insert "Memory Stick"

1 Locate the "Memory Stick Duo" slot.

2 Hold "Memory Stick" with the arrow facing upward and pointing toward the slot.

3 Carefully slide "Memory Stick" into the slot until it clicks into place.

Do not force the media into the slot.

✍

If "Memory Stick" does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

"Memory Stick" is automatically detected by your system and the contents of "Memory Stick" are displayed. If nothing appears on the desktop, click Start, Computer, and double-click the "Memory Stick" icon.

The "Memory Stick" icon will appear in the Computer window after you insert "Memory Stick" into the slot.

Using Your VAIO Computer > Using "Memory Stick"

Before using "Memory Stick Micro" ("M2"), be sure to insert it into an "M2" Duo adaptor. If you insert the media directly into the "Memory Stick Duo" slot without the adaptor, you may not be able to remove it from the slot.

To remove "Memory Stick"

Do not remove "Memory Stick" while the Media Access indicator light is lit. If you do, you may lose data. Large volumes of data may take time to load, so make sure the indicator light is unlit before removing "Memory Stick".

1 Locate the "Memory Stick Duo" slot.

2 Check that the Media Access indicator light is unlit.

3 Push in "Memory Stick" toward the computer and release.

"Memory Stick" ejects.

4 Pull "Memory Stick" out of the slot.

Be sure to remove "Memory Stick" gently, or it may pop out unexpectedly.

Using Your VAIO Computer > Using "Memory Stick"

Formatting "Memory Stick"

To format "Memory Stick"

"Memory Stick" is formatted by default and is ready for use.

If you want to reformat the media with your computer, follow these steps.

Be sure to use the device that is designed to format the media and supports "Memory Stick" when formatting the media.

Formatting "Memory Stick" erases the entire data stored on the media. Before formatting the media, make sure that it does not contain your valuable data.

Do not remove "Memory Stick" from the slot while formatting. This could cause a malfunction.

1 Locate the "Memory Stick Duo" slot.

2 Carefully slide "Memory Stick" into the slot until it clicks into place.

3 Click Start and Computer.

4 Right-click the "Memory Stick" icon and select Format.

5 Click Restore device defaults.

The size of the allocation unit and file system may change.

Do not select NTFS from the File system drop-down list as it may cause a malfunction.

✍

The formatting process will be completed more quickly if you select Quick Format in Format options.

Using Your VAIO Computer > Using "Memory Stick"

6 Click Start.

7 Follow the on-screen instructions.

It may take time to format "Memory Stick" depending on the media type.

Using Your VAIO Computer > Using "Memory Stick"

Notes on Using "Memory Stick"

❑ Your computer has been tested and found compatible with Sony branded "Memory Stick" with capacity of up to 32 GB

that are available as of September 2009. However, not all "Memory Stick" are guaranteed of compatibility.

❑ Be sure to hold "Memory Stick" with the arrow pointing in the correct direction as you insert it into the slot. To avoid

damaging your computer or the media, do not force "Memory Stick" into the slot if you cannot insert it smoothly.

❑ Use care when inserting or removing "Memory Stick" from the slot. Do not force it in or out of the slot.

❑ Inserting "Memory Stick" with multiple conversion adaptors is not guaranteed of compatibility.

❑ "MagicGate" is the general name of the copyright protection technology developed by Sony. Use "Memory Stick" with the

"MagicGate" logo to take advantage of this technology.

❑ Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior

consent from the respective copyright holders. Accordingly, "Memory Stick" with such copyrighted data can be used only within the law.

❑ Do not insert more than one "Memory Stick" into the slot. Improper insertion of the media may damage both your

computer and the media.

Using Your VAIO Computer > Using Other Modules / Memory Cards

Using Other Modules / Memory Cards

Using the ExpressCard Module

Your computer is equipped with an ExpressCard/34 slot* for transferring data among digital cameras, camcorders, music players, and other audio/video devices. This slot can only accommodate an ExpressCard/34

* Referred to as the ExpressCard slot and the ExpressCard module in this manual.

To insert an ExpressCard module

1 Locate the ExpressCard slot.

2 Carefully slide the ExpressCard module into the slot until it clicks into place.

Do not force it into the slot.

(34 mm wide) module*.

✍

If the module does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Make sure you use the most recent driver software provided by the ExpressCard module manufacturer.

Using Your VAIO Computer > Using Other Modules / Memory Cards

To remove an ExpressCard module

✍

You can skip steps 1 to 4 when:

- your computer is off.

- the Safely Remove Hardware icon is not displayed on the taskbar.

- the hardware you want to unplug is not displayed in the Safely Remove Hardware window.

1 Locate the ExpressCard slot.

2 Click the Safely Remove Hardware and Eject Media icon on the taskbar.

3 Select the hardware you want to unplug.

4 Follow the on-screen instructions for removing the ExpressCard module.

5 Push in the ExpressCard module toward the computer so that the module pops out.

6 Gently take hold of the ExpressCard module and pull it out of the slot.

Using Your VAIO Computer > Using Other Modules / Memory Cards

Using the SD Memory Card

Your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras, camcorders, music players, and other audio/video devices.

Before you use the SD memory card

The SD memory card slot on your computer can accommodate the following memory cards:

❑ SD memory card

❑ SDHC memory card

For the latest information on compatible memory cards, see Finding More about Your VAIO Computer (page 5) to visit the appropriate support web site.

Using Your VAIO Computer > Using Other Modules / Memory Cards

To insert an SD memory card

1 Locate the SD memory card slot.

2 Hold the SD memory card with the arrow facing upward and pointing toward the slot.

3 Carefully slide the SD memory card into the slot until it clicks into place.

Do not force the card into the slot.

✍

The SD memory card icon will appear in the Computer window after you insert the card into the slot.

Using Your VAIO Computer > Using Other Modules / Memory Cards

To remove an SD memory card

1 Locate the SD memory card slot.

2 Check that the Media Access indicator light is unlit.

3 Push in the SD memory card toward the computer and release.

The SD memory card ejects.

4 Pull the SD memory card out of the slot.

Using Your VAIO Computer > Using Other Modules / Memory Cards

Notes on Using Memory Cards

General notes on using the memory card

❑ Be sure to use memory cards that are compliant with the standards supported by your computer.

❑ Be sure to hold the memory card with the arrow pointing in the correct direction as you insert it into the slot. To avoid

damaging your computer or the media, do not force the memory card into the slot if you cannot insert it smoothly.

❑ Use care when inserting or removing the memory card from the slot. Do not force it in or out of the slot.

❑ Do not remove the memory card while the media access indicator light is lit. If you do, you may lose data.

❑ Do not attempt to insert a memory card or memory card adaptor of a different type into the memory card slot. An

incompatible memory card or memory card adaptor may cause difficulty in removing from the slot and can cause damage to your computer.

Notes on using the SD memory card

❑ Your computer has been tested and found compatible only with major memory cards available as of September 2009.

However, not all memory cards are guaranteed of compatibility.

❑ SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 32 GB have been tested

and found compatible with your computer.

❑ The SD memory card slot on your computer does not support the high-speed data transfer feature of the SD memory

card and the SDHC memory card.

Using Your VAIO Computer > Using the Internet

Using the Internet

Before using the Internet, you need to sign up with an Internet Service Provider (ISP) and set up devices required for connecting your computer to the Internet.

The following types of Internet connection services may be available from your ISP:

❑ Fiber to the Home (FTTH)

❑ Digital Subscriber Line (DSL)

❑ Cable modem

❑ Satellite

❑ Dial-up

For detailed information on devices required for Internet access and how to connect your computer to the Internet, ask your ISP.

✍

To connect your computer to the Internet using the wireless LAN function, you need to set up the wireless LAN network. See Using the Wireless LAN

(page 59) for more information.

When you connect your computer to the Internet, be sure to take appropriate security measures to protect the computer against online threats.

Depending on the service contract with your ISP, you may need to connect an external modem device, for example a USB telephone modem, a DSL modem, or a cable modem, to your computer to connect to the Internet. For detailed instructions on connection setups and modem configuration, see

the manual that came with your modem.

Using Your VAIO Computer > Using the Network (LAN)

Using the Network (LAN)

You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T type networks with a LAN cable. Connect one end of a LAN cable (not supplied) to the network (LAN) port on the computer and the other end to your network. For detailed settings and devices required for LAN access, ask your network administrator.

✍

You can connect your computer to any network without changing the default settings.

Do not plug a telephone cable into the network (LAN) port on your computer. If the network (LAN) port is connected to one of the telephone lines mentioned below, high electric current to the port may cause damage, overheating, or fire.

- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)

- Public telephone subscriber line

- Private branch exchange (PBX)

Using Your VAIO Computer > Using the Wireless LAN

Using the Wireless LAN

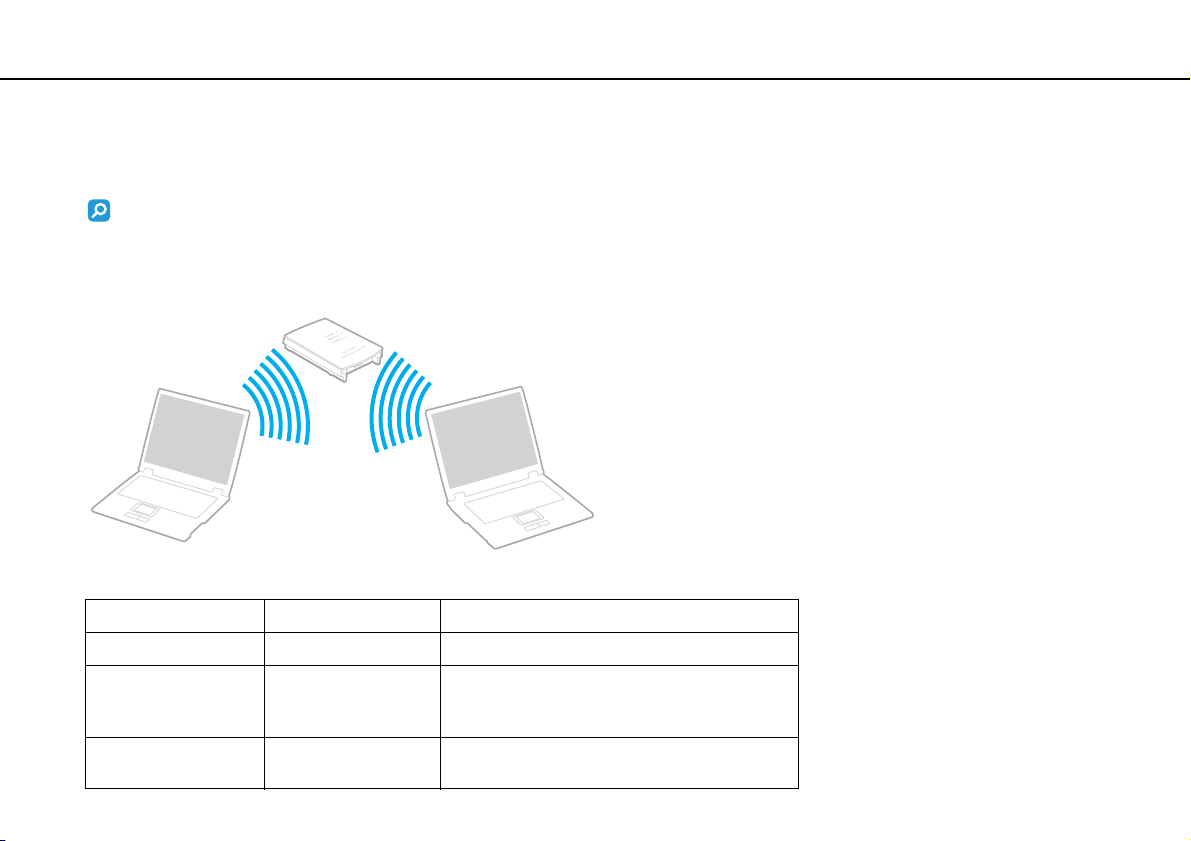

The Wireless LAN (WLAN) allows your computer to connect to a network through a wireless connection.

The WLAN uses the following IEEE 802.11a/b/g/n standard, which specifies the type of technology used. See the specifications to find out about the configuration of your computer.

WLAN standard Frequency band Remarks

IEEE 802.11a 5 GHz -

IEEE 802.11b/g 2.4 GHz The IEEE 802.11g standard provides higher-

speed communications than the IEEE 802.11b standard.

IEEE 802.11n 5 GHz/2.4 GHz On models compliant with the IEEE 802.11b/g/n

standard, only the 2.4 GHz band can be used.

Using Your VAIO Computer > Using the Wireless LAN

Notes on Using the Wireless LAN Function

General notes on using the wireless LAN function

❑ In some countries or areas, using WLAN products may be restricted by the local regulations (e.g. limited number of

channels). Before activating the WLAN function, read the Safety Information carefully.

❑ The IEEE 802.11a standard and the IEEE 802.11n standard are not available on ad-hoc networks.

❑ The 2.4 GHz band used by wireless LAN compatible devices is also used by other various devices. Although technologies

to minimize interference from other devices that use the same band are employed on wireless LAN compatible devices, such interference may cause lower communication speed, narrower communication range, or broken wireless connections.

❑ The communication speed and range may vary depending on the following conditions:

❑ Distance between communication devices

❑ Existence of obstacles between devices

❑ Device configuration

❑ Radio conditions

❑ Ambient environment that includes existence of walls and materials of such walls

❑ Software in use

❑ Communications may be cut off depending on radio conditions.

❑ Actual communication speed may not be as fast as the one displayed on your computer.

❑ Deploying WLAN products compliant with different standards that use the same band on the same wireless network may

reduce the communication speed due to radio interference. Taking this into consideration, WLAN products are designed to reduce the communication speed to ensure communications with another WLAN product if it is compliant with a different standard that uses the same band. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase the communication speed.

Using Your VAIO Computer > Using the Wireless LAN

Note on the data encryption

The WLAN standard includes the encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access (WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based on interoperable security enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA is designed to be forward compatible with the IEEE 802.11i specification. It utilizes the enhanced data encryption Temporal Key Integrity Protocol (TKIP) in addition to user authentication using 802.1X and Extensible Authentication Protocol (EAP). Data encryption protects the vulnerable wireless link between clients and access points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption, virtual private networks, and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and is also designed to secure all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n standards, multi-band and multi-mode. In addition, based on the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible with WPA.

Using Your VAIO Computer > Using the Wireless LAN

Using the Wireless LAN Function

Be sure to turn on the WIRELESS switch before starting the wireless LAN function.

To use the wireless LAN function, you first need to set up the wireless LAN function.

Use the SmartWi Connection Utility to set up the wireless LAN function. See the SmartWi Connection Utility Help for more information.

To access this on-screen guide:

1 Click Start, All Programs, and SmartWi Connection Utility.

2 Click SmartWi Connection Utility Help.

Using Your VAIO Computer > Using the Bluetooth Function

Using the Bluetooth Function

You can establish wireless communications between your computer and other Bluetooth devices such as another computer or a mobile phone. You can transfer data between these devices without cables at a range of up to 33 feet / 10 meters in an open area.

To use the Bluetooth function

Be sure to turn on the WIRELESS switch before starting the Bluetooth function.

To use the Bluetooth function, you first need to set up the Bluetooth function.

Use the SmartWi Connection Utility to set up the Bluetooth function. See the SmartWi Connection Utility Help for more information.

To access this on-screen guide:

1 Click Start, All Programs, and SmartWi Connection Utility.

2 Click SmartWi Connection Utility Help.

Using Your VAIO Computer > Using the Bluetooth Function

Bluetooth Security

The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to communicate. With the authentication function, you can prevent any anonymous Bluetooth devices from accessing your computer.

The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.

✍

The passkey can be different each time, but must be the same at both ends.

For certain devices, such as a mouse, no passkey can be entered.

Using Your VAIO Computer > Using the Bluetooth Function

Communicating with Another Bluetooth Device

You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a mouse, or a digital camera without the use of any cables.

To communicate with another Bluetooth device

To communicate with another Bluetooth device, you first need to set up the Bluetooth function. For setting up and using the Bluetooth function, search Windows Help and Support for Bluetooth information.

Be sure to turn on the WIRELESS switch before starting the Bluetooth function.

Using Your VAIO Computer > Using the Bluetooth Function

Notes on Using the Bluetooth Function

❑ The data transfer rate varies, depending on the following conditions:

❑ Obstacles, such as walls, located between devices

❑ Distance between devices

❑ Material used in walls

❑ Proximity to microwaves and cordless telephones

❑ Radio frequency interference and other environmental conditions

❑ Device configuration

❑ Type of software application

❑ Type of operating system

❑ Use of both wireless LAN and Bluetooth functions at the same time on your computer

❑ Size of file being exchanged

❑ Large files may occasionally be corrupted during continuous transfer due to limitations of the Bluetooth standard and

electromagnetic interference in the environment.

❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if

standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may not be possible in all situations.

❑ Video and audio may not be synchronized if you play videos on your computer with audio output from a connected

Bluetooth device. This is a frequent occurrence with Bluetooth technology and is not a malfunction.

❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth

devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous use of the Bluetooth function and wireless communication devices, however, may cause radio interference and result in reduced communication speeds and distances than the standard values.

Using Your VAIO Computer > Using the Bluetooth Function

❑ The Bluetooth function may not work with other devices, depending on the manufacturer or the software version employed

by the manufacturer.

❑ Connecting multiple Bluetooth devices to your computer may cause channel congestion, resulting in poor performance

of the devices. This is normal with Bluetooth technology and is not a malfunction.

Using Peripheral Devices >

Using Peripheral Devices

You can add functionality to your VAIO computer by using the various ports on the computer.

❑ Connecting External Speakers or Headphones (page 69)

❑ Connecting an External Display (page 70)

❑ Selecting Display Modes (page 75)

❑ Using the Multiple Monitors Function (page 76)

❑ Connecting an External Microphone (page 78)

❑ Connecting a USB Device (page 79)

❑ Connecting an i.LINK Device (page 81)

Using Peripheral Devices > Connecting External Speakers or Headphones

Connecting External Speakers or Headphones

You can connect external sound output devices (not supplied), such as speakers or headphones, to your computer.

To connect external speakers

✍

Make sure your speakers are designed for computer use.

Turn down the volume of the speakers before you turn them on.

Connect external speakers (1) to the headphones jack (2) i with a speaker cable (3) (not supplied).

Using Peripheral Devices > Connecting an External Display

Connecting an External Display

Some features and options in this section may not be available on your computer.

Using Peripheral Devices > Connecting an External Display

Connecting a Computer Display or a Projector

You can connect an external display, such as a computer display or a projector, to your computer.

To connect a computer display or a projector

1 Plug the power cord (1) of your external display or the projector into the AC outlet.

2 Connect the external display or the projector to the monitor port (2) on the computer with a display cable (3).

✍

If necessary, connect the headphones jack on the projector and the headphones jack (4) i on the computer with a speaker cable (5).

Using Peripheral Devices > Connecting an External Display

Your computer is compliant with the HDCP standard and capable of encrypting the transmission channel of digital video signals for the purpose of copyright protection, which enables you to play and view a wide variety of copyright protected and high-quality content. To view the copyright protected content, connect an HDCP-compliant monitor to your computer. If your computer has a non-compliant monitor connected, you will not be able to play or view any copyright protected content.

✍

If the external computer display is equipped with an HDMI input port, plug one end of an HDMI cable into the HDMI output port on the computer and the other end into the HDMI input port on the computer display.

If your computer is equipped with the HDMI output port, use an HDMI to DVI-D adapter to connect a TFT/DVI monitor.

The HDMI cable carries both video and audio signals.

Using Peripheral Devices > Connecting an External Display

Connecting a TV with an HDMI Input Port

You can connect a TV with an HDMI input port to your computer.

To connect a TV to your computer

To hear sound from the device connected to the HDMI output port, you need to change the device for sound output. For detailed instructions, see How do I change the sound output device? (page 154).

1 Plug the power cord of your TV (1) into an AC outlet.

2 Plug one end of an HDMI cable (2) to the HDMI output port (3) on the computer and the other end to the TV.

3 Switch the input channel of the TV to external input.

4 Set up the TV configuration system.

If a device driver other than the one provided by Sony is used, the image will not be displayed and the audio will not be heard. Always use the device driver provided by Sony for updates.

Using Peripheral Devices > Connecting an External Display

✍

See the manual that came with your TV for more information on installation and use.

The HDMI cable carries both video and audio signals.

To connect a high-quality digital sound output device between your computer and a TV

You can connect a high-quality home theater receiver or other surround sound decoder devices between your computer and TV using an HDMI connection.

Before connecting the device to the computer, make sure the HDMI connection has been set up between the TV and the home theater receiver or surround sound decoder device first.

To hear sound from the device connected to the HDMI output port, you need to change the device for sound output. For detailed instructions, see How

do I change the sound output device? (page 154).

1 Turn on the TV and set its input to the HDMI input.

2 Turn on the home theater receiver or surround sound decoder device and set its input to the HDMI input.

3 Plug one end of an HDMI cable to the HDMI input port on the home theater receiver or surround sound decoder device

and the other end to the HDMI output port on the computer.

✍

You can adjust the screen resolution of the connected TV with your computer. See Why doesn't my screen display a video? (page 145) for more information.

With the HDMI connection, the volume can be adjusted by the connected audio device only. Your computer has no control over the output volume of any connected devices.

Using Peripheral Devices > Selecting Display Modes

Selecting Display Modes

When an external display is connected, you can select either your computer screen or the connected display to use as the primary monitor.

✍

You may not be able to display the same content on your computer screen and the external display or projector at the same time, depending on the type of your external display or projector.

Turn on the external display before turning on your computer.

To select a display mode with the Fn+F7 keys

You can select a display mode with the Fn+F7 keys. See Combinations and Functions with the Fn Key (page 33) for more information.

To select a display mode from the display settings

1 Right-click on the desktop and select Screen resolution.

2 Click the drop-down list next to Multiple Displays, select your desired setting, and then click OK.

Using Peripheral Devices > Using the Multiple Monitors Function

Using the Multiple Monitors Function

The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display connected to the monitor port, your computer screen and the external display can function as a single desktop.

You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window or a toolbar, from one display to the other.

Using Peripheral Devices > Using the Multiple Monitors Function

To use the Multiple Monitors function

✍

Your external display may not support the Multiple Monitors function.

Certain software applications may not be compatible with Multiple Monitors settings.

Make sure that your computer does not enter Sleep or Hibernate mode while you are using the Multiple Monitors function, or the computer may not return to Normal mode.

If you set different colors on each display, do not expand a single window across two displays, or your software may not work properly.

1 Right-click on the desktop and select Screen resolution.

2 Click the drop-down list next to Multiple Displays, select Extend these displays, and then click OK.

✍

You can set the display colors and resolution for each display and customize the Multiple Monitors function.

Set fewer colors or a lower resolution for each display.

Using Peripheral Devices > Connecting an External Microphone

Connecting an External Microphone

You can connect an external microphone (not supplied) to your computer.

To connect an external microphone

Plug the microphone cable (1) into the microphone jack (2) m.

✍

Make sure your microphone is designed for computer use.

Using Peripheral Devices > Connecting a USB Device

Connecting a USB Device

You can connect a Universal Serial Bus (USB) device to your computer, such as a mouse, floppy disk drive, speaker, and printer.

To connect a USB device

1 Choose the USB port (1) you prefer to use.

2 Plug the USB device cable (2) into the USB port.

Using Peripheral Devices > Connecting a USB Device

Notes on connecting a USB device

❑ You may need to install the driver software supplied with your USB device before use. See the manual that came with the

USB device for more information.

❑ Be sure to use a USB printer compatible with your version of Windows to print documents.

❑ For information on how to remove a USB device, see the manual that came with the device.

❑ To protect your computer and/or USB devices from damage, observe the following:

❑ When moving the computer with USB devices connected, avoid exposing the USB ports to shock or impact.

❑ Do not put the computer into a bag or carrying case when it has USB devices connected.

Using Peripheral Devices > Connecting an i.LINK Device

Connecting an i.LINK Device

Your computer is equipped with an i.LINK port which you can use to connect an i.LINK device, such as a digital video camcorder.

✍

i.LINK is a trademark of Sony Corporation used only to designate that a product contains an IEEE 1394 connection. The procedure to establish an i.LINK connection may vary, depending on a software application, an operating system, and a compatible i.LINK device. Not all products with an i.LINK connection can communicate with each other. See the manual that came with your compatible i.LINK device for more information on operating conditions and proper connection. Before connecting compatible i.LINK PC peripherals to your system, such as a CD-RW or hard disk drive, confirm their operating system compatibility and required operating conditions.

Notes on connecting i.LINK devices

❑ The i.LINK port on your computer does not supply power to an external device. If the external device requires external

power, be sure to connect it to a power source.

❑ The i.LINK port supports transfer rates up to 400 Mbps. However, the actual transfer rate depends on the transfer rate of

the external device.

❑ The optional i.LINK cables may not be available in some countries or areas.

❑ An i.LINK connection with other compatible devices is not fully guaranteed.

❑ The i.LINK connection may not be available depending on the software applications, operating system, and i.LINK-

compatible devices you use. See the manual that came with your software for more information.

❑ Check the working conditions and operating system compatibility of i.LINK-compatible PC peripherals (for example, an

HDD or a CD-RW drive) before you connect them to your computer.

Using Peripheral Devices > Connecting an i.LINK Device

Connecting a Digital Video Camcorder

To connect a digital video camcorder

Plug one end of an i.LINK cable (1) (not supplied) into the i.LINK port (2) on the computer and the other end into the DV In/ Out port (3) on the digital video camcorder.

✍

The connection procedure varies depending on your compatible i.LINK device. See the manual that came with the device for more information.

You cannot access the contents of "Memory Stick" in the digital video camcorder via an i.LINK connection.

Customizing Your VAIO Computer >

Customizing Your VAIO Computer

This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities.

❑ Setting the Password (page 84)

❑ Using Intel VT (page 91)

❑ Using the VAIO Control Center (page 92)

❑ Using the VAIO Power Management (page 93)

Customizing Your VAIO Computer > Setting the Password

Setting the Password

Setting the password allows you to protect your computer from unauthorized access by making the user enter the password when the computer is turned on or returns to Normal mode from Sleep mode or Hibernate mode.

Do not to forget your password. Write down the password and keep it in a secure place.

Type of Password Description

Power-on password You can use BIOS functions to set two types of passwords:

- Machine password: Allows users with administrative rights to change all the setup options in the BIOS setup screen, as well as to start the computer.

- User password: Allows the standard users to change some of the BIOS setup options, as well as to start the computer. To set the user password, you must first set the machine password.

✍

Entry of the power-on password will be prompted after the VAIO logo appears to start your computer.

If you forget the machine password, the password needs to be reset and a fee will be charged. To reset the password, contact an authorized Sony service/support center. To find the nearest center or agent, see Finding More about Your VAIO Computer (page 5). You can reset the user password at the BIOS setup screen by entering the machine password.

Windows password Allows users to log onto your computer and protect each user account with its own password.

✍

Entry of the Windows password will be prompted after you select your user account.

Customizing Your VAIO Computer > Setting the Password

Setting the Power-on Password

To add the power-on password (machine password)

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the

Enter key.

4 On the password entry screen, enter the password twice and press the Enter key.

The password can be up to 32 alphanumeric characters long (including spaces).

5 Select Password when Power On under Security and press the Enter key.

6 Change the setting from Disabled to Enabled. 7 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer > Setting the Password

To add the power-on password (user password)

Make sure you set the machine password before setting the user password.

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Enter the machine password and press the Enter key. 4 Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the

Enter key.

5 On the password entry screen, enter the password twice and press the Enter key.

The password can be up to 32 alphanumeric characters long (including spaces).

6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer > Setting the Password

To change or remove the power-on password (machine password)

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Enter the machine password and press the Enter key. 4 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the

Enter key.

5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.

To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter key.

6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer > Setting the Password

To change or remove the power-on password (user password)

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Enter the user password and press the Enter key. 4 Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the

Enter key.

5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.

To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter key.

6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer > Setting the Password

Setting the Windows Password

To add the Windows password

1 Click Start and Control Panel.

2 Click User Accounts and Family Safety or User Accounts.

3 Click User Accounts.

4 Click Create a password for your account under Make changes to your user account.

5 In the New password and Confirm new password fields, enter the password for your account.

6 Click Create password.

✍

See Windows Help and Support for more information on the Windows password.

To change the Windows password

1 Click Start and Control Panel.

2 Click User Accounts and Family Safety or User Accounts.

3 Click User Accounts.

4 Click Change your password.

5 In the Current password field, enter your current password.

6 In the New password and Confirm new password fields, enter a new password.

7 Click Change password.

Customizing Your VAIO Computer > Setting the Password

To remove the Windows password

1 Click Start and Control Panel.

2 Click User Accounts and Family Safety or User Accounts.

3 Click User Accounts.

4 Click Remove your password.

5 In the Current password field, enter the current password that you want to remove.

6 Click Remove password.

Customizing Your VAIO Computer > Using Intel(R) VT

Using Intel(R) VT

Intel(R) Virtualization Technology (VT) allows you to use hardware virtualization software for enhancing your computer's performance.

Intel VT may not be available depending on the CPU installed on your computer.

For information on virtualization and how to use hardware virtualization software, contact the software publisher.

To enable Intel VT

1 Turn on your computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Press the < or , key to select Advanced. 4 Press the M or m key to select Intel(R) Virtualization Technology or Intel(R) VT, press the Enter key, select Enabled,

and press the Enter key.

If the Advanced tab is not displayed in the BIOS setup window or you cannot select Intel(R) Virtualization Technology, Intel VT is not available on the computer.

5 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer > Using the VAIO Control Center

Using the VAIO Control Center

The VAIO Control Center utility allows you to access system information and to specify preferences for system behavior.

To use the VAIO Control Center

1 Click Start, All Programs, and VAIO Control Center.

2 Select your desired control item and change the settings.

3 Once finished, click OK.

The setting of the desired item is changed.

✍

For more information about each option, see the help file included with the VAIO Control Center.

Some of the control items will not be visible if you open the VAIO Control Center as a standard user.

Customizing Your VAIO Computer > Using the VAIO Power Management

Using the VAIO Power Management

Power management helps you set up power plans for running on AC or battery power to suit your requirements for power consumption.

The VAIO Power Management function is added to the Windows Power Options. With this software application, you can enhance the Windows power management functions to ensure better operation of your computer and longer battery life.

Selecting a Power Plan

When you start the computer, a power status icon appears on the taskbar. This icon indicates what kind of power source you are currently using. Click this icon to display the window that shows your power status.

To select a power plan

1 Right-click the power status icon on the taskbar and select Power Options.

2 Select your desired power plan.

To change the power plan settings

1 Click Change plan settings on the right of your desired power plan in the Power Options window.

Change the Sleep mode and display settings as needed.

2 If you need to change the advanced settings, click Change advanced power settings and go to step 3.

Otherwise, click Save changes.

3 Click the VAIO Power Management tab.

Change the settings for each item.

4 Click OK.

✍

You can check the current power plan settings with the VAIO Power Management Viewer in the VAIO Control Center.

Upgrading Your VAIO Computer >

Upgrading Your VAIO Computer

Your VAIO computer and memory modules use high precision components and electronic connectors technology. To avoid invalidation of the warranty during your product warranty period, we recommend that:

❑ You should contact your dealer to install a new memory module.

❑ You should not install it yourself, if you are not familiar with upgrading memory on a computer.

❑ You should not touch the connectors or open the memory module compartment cover.

For assistance, contact an authorized Sony Service Center. To find the nearest center or agent, see Finding More about Your VAIO Computer (page 5).

The type of module and the amount of memory installed on your computer may differ depending on the model you purchased. See the specifications to find out about the configuration of your computer.

Upgrading Your VAIO Computer > Adding and Removing Memory

Adding and Removing Memory

If you want to expand the functionality of your computer, you can increase the amount of memory by installing optional memory modules. Before you upgrade your computer's memory, read the notes and procedures in the following pages.

Notes on adding/removing memory modules

❑ Be sure to place your computer on a flat surface before adding or removing memory modules.

❑ Be careful when changing memory. Improper installation of memory modules may cause damage to your system. This

damage may void your manufacturer's warranty.

❑ Only use memory modules that are compatible with your computer. If a memory module is not detected by the computer

or the Windows operating system becomes unstable, contact the sales dealer or the manufacturer of your memory module.

❑ Electrostatic discharge (ESD) can damage electronic components. Before touching a memory module, ensure the

following:

❑ The procedures described in this document assume user familiarity with the general terminology associated with

personal computers and with the safety practice and regulatory compliance requirements for using and modifying electronic equipment.

❑ Turn off your computer and disconnect it from its power sources (battery pack and AC adapter) and from any

telecommunication links, networks, or modems before you remove any cover or panel from the computer. Failure to do so may result in personal injury or equipment damage.

❑ ESD can damage memory modules and other components. Install the memory module only at an ESD workstation.

If such a station is not available, do not work in a carpeted area, and do not handle materials that produce or hold static electricity (cellophane wrappers, for example). Ground yourself by maintaining contact with an unpainted metal portion of the chassis while performing the procedure.

Upgrading Your VAIO Computer > Adding and Removing Memory

❑ Do not open the memory module package before you are ready to change the module. The package protects the

module from ESD.

❑ Use the special bag supplied with the memory module or wrap the module in aluminum foil to protect it from ESD.

❑ Introducing any liquids, foreign substances, or objects into the memory module slots or other internal components of your

computer will result in damage to the computer and any repair costs will not be covered by the warranty.

❑ Do not place the memory module in a location subject to:

❑ Heat sources such as radiators or air ducts

❑ Direct sunlight

❑ Excessive dust

❑ Mechanical vibration or shock

❑ Strong magnets or speakers that are not magnetically shielded

❑ Ambient temperature of more than 95°F / 35°C or less than 41°F / 5°C

❑ High humidity

❑ Handle the memory module with care. To avoid injuries to your hands and fingers, do not touch the edges of the

components and circuit boards inside your computer.

Upgrading Your VAIO Computer > Adding and Removing Memory

Removing and Installing a Memory Module

To change or add a memory module

1 Shut down the computer and disconnect all peripheral devices.

2 Unplug the computer and remove the battery pack.

3 Wait about an hour until the computer cools down.

4 Unscrew the screw (indicated by the arrow below) on the bottom of the computer and remove the memory module

compartment cover.

5 Touch a metal object to discharge static electricity.

Upgrading Your VAIO Computer > Adding and Removing Memory

6 Remove the currently installed memory module as follows:

❑ Pull the latches in the direction of the arrows (1).

The memory module is released.

❑ Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2).

7 Remove the new memory module from its packaging.

Upgrading Your VAIO Computer > Adding and Removing Memory

8 Slide the memory module into the memory module slot and push it in until it clicks into place.

Do not touch any components on the motherboard other than the memory module.

If you want to install only one memory module, be sure to use the lower slot.

Be sure to insert the connector edge of the memory module into the slot while aligning the notch on the module with the small projection in the open slot. Do not force the memory module into the slot in a wrong orientation, as it may cause damage to the slot and the module.

9 Replace the memory module compartment cover.

10 Tighten the screw on the bottom of the computer.

11 Reinstall the battery pack and turn on the computer.

Upgrading Your VAIO Computer > Adding and Removing Memory

Viewing the Amount of Memory

To view the amount of memory

1 Turn on the computer.

2 Click Start, All Programs, and VAIO Control Center.

3 Click System Information and System Information.

You can view the amount of system memory in the right pane. If the additional memory does not appear, repeat the installation procedure and restart the computer.

100

Sony VPCCW21FX, VPCCW21FX/B, VPCCW21FX/L, VPCCW21FX/P, VPCCW21FX/R User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Before Use

Finding More about Your VAIO Computer

Ergonomic Considerations

Getting Started

Locating Controls and Ports

About the Indicator Lights

Connecting a Power Source

Using the Battery Pack

Shutting Down Your Computer Safely

Using the Power Saving Modes

Updating Your Computer

Using Your VAIO Computer

Using the Keyboard

Using the Touch Pad

Using Special-function Buttons

Using the Built-in Camera

Using the Optical Disc Drive

Using "Memory Stick"

Using Other Modules / Memory Cards

Using the Internet

Using the Network (LAN)

Using the Wireless LAN

Using the Bluetooth Function

Using Peripheral Devices

Connecting External Speakers or Headphones

Connecting an External Display

Selecting Display Modes

Using the Multiple Monitors Function

Connecting an External Microphone

Connecting a USB Device

Connecting an i.LINK Device

Customizing Your VAIO Computer

Setting the Password

Using Intel(R) VT

Using the VAIO Control Center

Using the VAIO Power Management

Upgrading Your VAIO Computer

Adding and Removing Memory
