Sony VPCCB2S8E, VPCCB2M0E, VPCCA2S1E, VPCCB2M8E, VPCCA1S1E User Manual

...

User Guide

Personal Computer

VPCC Series

Contents

Before Use.......................................................................... 4

Finding More about Your VAIO Computer .................... 5

Ergonomic Considerations............................................ 8

Getting Started.................................................................. 10

Locating Controls and Ports........................................ 11

About the Indicator Lights ........................................... 16

Connecting a Power Source ....................................... 17

Using the Battery Pack................................................ 19

Shutting Down Your Computer Safely ........................ 26

Using the Power Saving Modes.................................. 27

Keeping Your Computer in Optimum Condition .......... 30

Using Your VAIO Computer.............................................. 33

Using the Keyboard.....................................................34

Using the Touch Pad................................................... 37

Using Special-function Buttons ...................................38

Using the Quick Web Access Function ....................... 39

Using the Built-in Camera ........................................... 41

Using the Optical Disc Drive ....................................... 42

Using "Memory Stick".................................................. 50

Using Other Modules / Memory Cards........................ 57

Using the Internet ........................................................ 61

Using the Network (LAN) ............................................ 62

Using the Wireless LAN...............................................63

Using the BLUETOOTH Function................................68

Using Peripheral Devices..................................................74

Connecting External Speakers or Headphones ..........75

Connecting an External Display ..................................76

Selecting Display Modes .............................................83

Using the Multiple Monitors Function ..........................84

Connecting an External Microphone ...........................86

Connecting a USB Device ...........................................87

Customizing Your VAIO Computer....................................89

Selecting Performance Modes ....................................90

Setting the Password...................................................91

Using Intel(R) VT .........................................................97

Using the VAIO Control Center ...................................98

Using the VAIO Power Management...........................99

Upgrading Your VAIO Computer.....................................100

Adding and Removing Memory .................................101

Precautions..................................................................... 107

Safety Information ..................................................... 108

Care and Maintenance Information........................... 110

Handling Your Computer...........................................111

Handling the LCD Screen ......................................... 113

Using the Power Source ........................................... 114

Handling the Built-in Camera .................................... 115

Handling Discs ..........................................................116

Using the Battery Pack..............................................117

Handling "Memory Stick"........................................... 118

Handling the Built-in Storage Device ........................ 119

Troubleshooting .............................................................. 120

Computer Operations ................................................ 122

System Update / Security..........................................128

Recovery / Recovery Media ...................................... 129

Partition .....................................................................131

Battery Pack.............................................................. 132

Built-in Camera ......................................................... 134

Networking (LAN/Wireless LAN) ...............................136

BLUETOOTH Technology......................................... 139

Optical Discs ............................................................. 142

Display ...................................................................... 147

Printing ...................................................................... 152

Microphone ............................................................... 153

Speakers ...................................................................154

Touch Pad .................................................................156

Keyboard ...................................................................157

Floppy Disks ..............................................................158

Audio/Video ...............................................................159

"Memory Stick" ..........................................................161

Peripherals ................................................................162

Trademarks .....................................................................163

Notice ..............................................................................166

Before Use >

Before Use

Congratulations on your purchase of this Sony VAIO® computer and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide you with a state-of-the-art computing experience.

External views illustrated in this manual may look slightly different from those of your computer.

How to find specifications

Some features, options, and supplied items may not be available on your computer.

To find out about the configuration of your computer, visit the VAIO Support web site at http://support.vaio.sony.eu/

Before Use > Finding More about Your VAIO Computer

Finding More about Your VAIO Computer

This section provides support information about your VAIO computer.

1. Printed Documentation

❑ Quick Start Guide — An overview of components connection, set-up information, etc.

❑ Recovery, Backup and Troubleshooting Guide

❑ Regulations, Guarantee and Service Support

✍

Before activating the wireless functions such as the wireless LAN and BLUETOOTH technology, read the Regulations, Guarantee and Service Support carefully.

Before Use > Finding More about Your VAIO Computer

2. On-screen Documentation

❑ VAIO User Guide — General information of your VAIO computer including support and troubleshooting information.

To access VAIO User Guide, click Start , All Programs, and VAIO Manual.

❑ Windows Help and Support — A comprehensive resource for practical advice, tutorials, and demonstrations to help you

learn to use your computer.

To access Windows Help and Support, click Start and Help and Support, or press and hold the Microsoft Windows key and press the F1 key.

Before Use > Finding More about Your VAIO Computer

3. Support Web Sites

If you experience any problem with your VAIO computer, launch the VAIO Care, which offers you various options to help you solve most problems. For details, see Using the VAIO Care (page 32).

If you need more assistance, visit the VAIO Support web site at http://support.vaio.sony.eu/

When you contact VAIO Support, you will be asked for the serial number of the computer.

The serial number is a 15-digit number that can be found at the bottom of the VAIO Care window; on the bottom or the back panel of the computer; or inside the battery compartment.

Other sources for information about the VAIO computer are:

❑ The VAIO Forum at http://club-vaio.com

❑ The VAIO web site at http://www.vaio.eu/

❑ Sony Store, Online at http://www.sony.eu/store

, which enables you to interact with other VAIO users

, which offers product information

Before Use > Ergonomic Considerations

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations for both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you. Keep your forearms horizontal, with your wrists

in a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

Before Use > Ergonomic Considerations

❑ Viewing angle of the computer display – Use the display tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.

❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at or slightly below eye level when you are sitting in front of the monitor.

Getting Started >

Getting Started

This section describes how to get started using your VAIO computer.

Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Upon completion, connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturer's instructions.

❑ Locating Controls and Ports (page 11)

❑ About the Indicator Lights (page 16)

❑ Connecting a Power Source (page 17)

❑ Using the Battery Pack (page 19)

❑ Shutting Down Your Computer Safely (page 26)

❑ Using the Power Saving Modes (page 27)

❑ Keeping Your Computer in Optimum Condition (page 30)

Getting Started > Locating Controls and Ports

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

The appearance of your computer may be different from those illustrated in this manual due to variations in specifications.

Front

A Built-in camera (page 41) B Built-in camera indicator (page 16) C Built-in microphone (monaural) D LCD screen (page 113) E Built-in speakers (stereo)

F Numeric keypad

Use the numeric keypad to type numbers or to perform basic math calculations.

G Keyboar d (page 34) H Left button (page 37) I Right button (page 37) J Touch pad (page 37)

* On selected models only.

Getting Started > Locating Controls and Ports

A Ambient light sensor (page 36), (page 150)

Measures ambient light intensity for automatically adjusting the LCD brightness to an optimum level.

B Num lock indicator (page 16) C Caps lock indicator (page 16) D Scroll lock indicator (page 16) E ASSIST button (page 38) F WEB button (page 38) G VAI O button (page 38) H Power button I "Memory Stick Duo"/SD memory card combined slot*

(page 50), (page 57)

J Media Access indicator (page 16) K Power indicator (page 16) L Charge indicator (page 16) M Disc drive indicator (page 16) N WIRELESS switch (page 63), (page 68) O WIRELESS indicator (page 16)

* Your computer supports Duo-size "Memory Stick" and SD memory card.

However, they cannot be used simultaneously.

Getting Started > Locating Controls and Ports

Right

A Headphones jack (page 75) B Microphone jack (page 86)

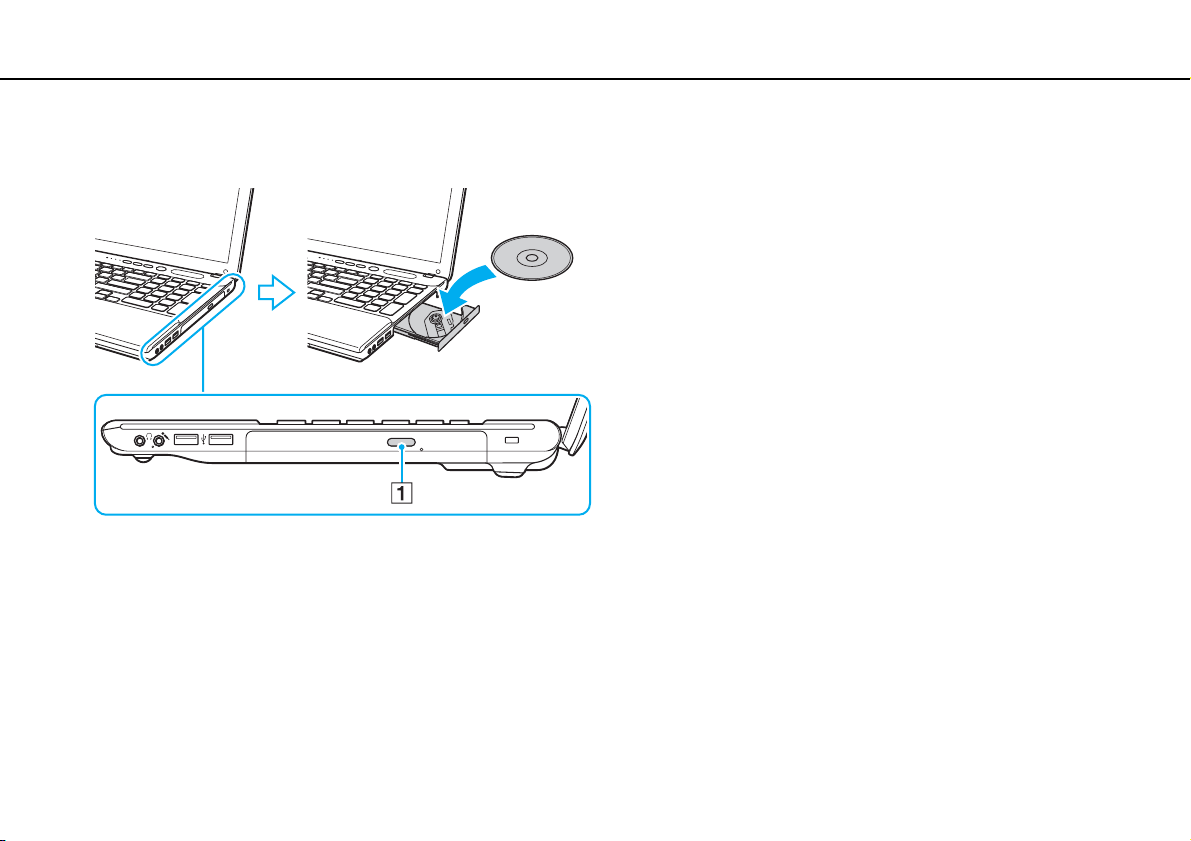

C USB ports D Optical disc drive (page 42) E Drive eject button (page 42) F Manual eject hole (page 142) G Security slot

* Compliant with the USB 2.0 standard.

(page 87)

Getting Started > Locating Controls and Ports

Left

A DC IN port (page 17) B LAN port (page 62) C Air vent D Monitor port (page 76) E HDMI output port (page 79)

F USB port G USB port

Compliant with the USB 2.0/3.0 standards. USB ports that are compliant with the USB 3.0 standard are identifiable by their blue color.

Compliant with the USB 2.0 standard.

(page 87)

Getting Started > Locating Controls and Ports

Back/Bottom

A Air vents B Battery connector C Memory module compartment cover (page 101)

Getting Started > About the Indicator Lights

About the Indicator Lights

Your computer is equipped with the following indicator lights:

Indicator Functions

Power 1 Illuminates in green while the computer is in Normal mode, blinks slowly in orange while the computer is in Sleep

Charge

Built-in camera Illuminates while the built-in camera is in use.

Media Access Illuminates while data access to a memor y card, such as "Memory Stick" and an SD memory card, is in

Disc drive

Num lock

Caps lock

Scroll lock

WIRELESS Illuminates while one or more wireless options are enabled.

mode, and turns off when the computer is turned off or enters Hibernate mode.

Illuminates while the battery pack is charging. See Charging the Battery Pack (page 22) for more information.

progress. (Do not place the computer into Sleep mode or turn it off while this indicator light is lit.) When the indicator light is unlit, the memory card is not in use.

Illuminates while data access to the built-in storage device or the optical disc drive is in progress. Do not place the computer into Sleep mode or turn it off while this indicator light is lit.

Press the Num Lk key or the Fn+Num Lk keys to activate the numeric keypad. Press the keys a second time to deactivate the numeric keypad. The numeric keypad is not active when the indicator light is unlit.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key while the indicator light is lit. Press the key a second time to turn off the indicator light. Normal typing resumes when the Caps lock indicator light is turned off.

Press the Fn+Scr Lk keys to change how you scroll the display. Normal scrolling resumes when the Scroll lock indicator light is turned off. The Scr Lk key functions differently depending on the program you are using and does not work with all programs.

Getting Started > Connecting a Power Source

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.

Using the AC Adapter

While your computer is directly connected to an AC power source and has a battery pack installed, it uses power from the AC outlet.

✍

Use only the supplied AC adapter for your computer.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3).

2 Plug the other end of the power cord into an AC outlet (2).

3 Plug the cable from the AC adapter (3) into the DC IN port (4) on the computer.

The shape of the DC In plug varies depending on the AC adapter.

Getting Started > Connecting a Power Source

✍

To disconnect your computer completely from an AC power source, unplug the AC adapter from the AC outlet.

Make sure that an AC outlet is easily accessible.

If you do not intend to use your computer for an extended period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page

29).

Getting Started > Using the Battery Pack

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

Installing/Removing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) to the unlock position.

Getting Started > Using the Battery Pack

3 Slide the battery pack diagonally into the battery compartment until the projection (2) on either side of the battery

compartment fits into the U-shaped cut (3) on either side of the battery pack.

4 Push the battery pack down into the compartment until it clicks into place.

5 Slide the battery LOCK switch to the LOCK position to secure the battery pack on the computer.

Getting Started > Using the Battery Pack

To remove the battery pack

You will lose all unsaved data if you remove the battery pack while your computer is on and not connected to the AC adapter.

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) to the unlock position.

3 Slide and hold the battery RELEASE latch (2), put your fingertip underneath the tab (3) on the battery pack, and lift the

battery pack in the direction of the arrow, and then slide it away from the computer.

For your safety, it is highly recommended that you use genuine Sony rechargeable battery packs and AC adapters that meet the quality assurance standard, supplied by Sony for your VAIO computer. Some VAIO computers may only function with a genuine Sony battery pack.

Getting Started > Using the Battery Pack

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

To charge the battery pack

1 Install the battery pack.

2 Connect the computer to a power source with the AC adapter.

The charge indicator light is on while the battery pack is charging. When the battery pack charges close to the maximum charge level you selected, the charge indicator turns off.

Charge indicator status Meaning

Lit in orange The battery pack is charging.

Blinks along with the green power indicator

Blinks along with the orange power indicator

Blinks fast in orange A battery error has occurred due to a failed battery

Charge the battery pack as described in this manual from your first battery charge.

The battery pack is running out of power. (Normal mode)

The battery pack is running out of power. (Sleep mode)

pack or an unlocked battery pack.

Getting Started > Using the Battery Pack

✍

Keep the battery pack in your computer while it is directly connected to an AC power source. The battery pack continues to charge while you are using the computer.

When the battery pack is running out of power and both the charge and power indicator lights blink, you should either connect the AC adapter to recharge the battery pack or shut down your computer and install a fully charged battery pack.

Your computer is supplied with a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect the life of battery.

While some software applications or peripheral devices are in use, your computer may not enter Hibernate mode even when the remaining battery life becomes short. To avoid loss of data while the computer is running on the battery, you should save your data frequently and manually activate a power

management mode, such as Sleep or Hibernate.

If the battery pack runs out of power while the computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

Getting Started > Using the Battery Pack

Checking the Battery Charge Capacity

The battery charge capacity gradually decreases as the number of battery charging increases or the duration of use of the battery pack extends. To get the most out of the battery pack, check the battery charge capacity and change the battery settings.

To check the battery charge capacity

1 Click Start, All Programs, and VAIO Control Center.

2 Click Power Management and Battery.

✍

Additionally, you can enable the battery care function to extend the life of the battery pack.

Getting Started > Using the Battery Pack

Extending the Battery Life

When your computer is running on battery power, you can extend the battery life using the following methods.

❑ Decrease the LCD brightness of your computer screen.

❑ Use the power saving mode. See Using the Power Saving Modes (page 27) for more information.

❑ Change the power saving settings on the Power Options. See Using the VAIO Power Management (page 99) for more

information.

✍

For more information on how to extend the battery life, see the help file after following the steps in Checking the Battery Charge Capacity (page 24).

Getting Started > Shutting Down Your Computer Safely

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.

2 Save your data and close all running software applications.

3 Click Start and the Shut down button.

After a short time, the computer automatically turns off. Make sure the power indicator light turns off.

Getting Started > Using the Power Saving Modes

Using the Power Saving Modes

You can take advantage of the power management settings to conserve battery life. In addition to the normal operating mode, your computer has two distinct power saving modes to suit your preference: Sleep and Hibernate.

If you do not intend to use your computer for an extended period of time while it is disconnected from an AC power source, place the computer into Hibernate mode or turn it off.

If the battery pack runs out of power while your computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

Mode Description

Normal mode This is the normal state of your computer while it is in use. The green power indicator light is lit while the

computer is in this mode.

Sleep mode Sleep mode turns off the LCD screen and places the built-in storage device(s) and the CPU into a low power

Hibernate mode While your computer is in Hibernate mode, the state of the system is saved on the built-in storage device(s) and

consumption mode. The orange power indicator light blinks slowly while your computer is in this mode. Your computer comes out of Sleep mode quicker than out of Hibernate mode. However, Sleep mode uses more power than Hibernate mode.

power is turned off. Even when the battery pack runs out of power, no data will be lost. The power indicator light is unlit while your computer is in this mode.

Getting Started > Using the Power Saving Modes

Using Sleep Mode

To activate Sleep mode

Click Start, the arrow next to the Shut down button, and Sleep.

To return to Normal mode

❑ Press any key.

❑ Press the power button on your computer.

If you press and hold the power button for more than four seconds, your computer will turn off automatically. You will lose all unsaved data.

Getting Started > Using the Power Saving Modes

Using Hibernate Mode

To activate Hibernate mode

Press the Fn+F12 keys.

Alternatively, you can click Start, the arrow next to the Shut down button, and Hibernate.

Do not move your computer before its power indicator light turns off.

To return to Normal mode

Press the power button.

If you press and hold the power button for more than four seconds, your computer will turn off automatically.

Getting Started > Keeping Your Computer in Optimum Condition

Keeping Your Computer in Optimum Condition

Updating Your Computer

Be sure to update your VAIO computer with the following software applications for enhancing your computer's efficiency, security, and functionality.

The VAIO Update automatically notifies you of new updates available on the Internet, and downloads and installs them on the computer.

❑ Windows Update

Click Start, All Programs, and Windows Update and then follow the on-screen instructions.

❑ VAIO Update 5

Click Start, All Programs, and VAIO Update and then follow the on-screen instructions.

Your computer must be connected to the Internet to download the updates.

+ 137 hidden pages
