Page 1
User Guide
Personal Computer
VGN-TZ series
N
Page 2
Contents
Before Use .........................................................................................................................................................................6
Notice ...........................................................................................................................................................................7
E
NERGY STAR ...............................................................................................................................................................8
Documentation .............................................................................................................................................................9
Ergonomic Considerations.........................................................................................................................................13
Getting Started .................................................................................................................................................................15
Locating Controls and Ports.......................................................................................................................................16
About the Indicator Lights ..........................................................................................................................................22
Connecting a Power Source ......................................................................................................................................24

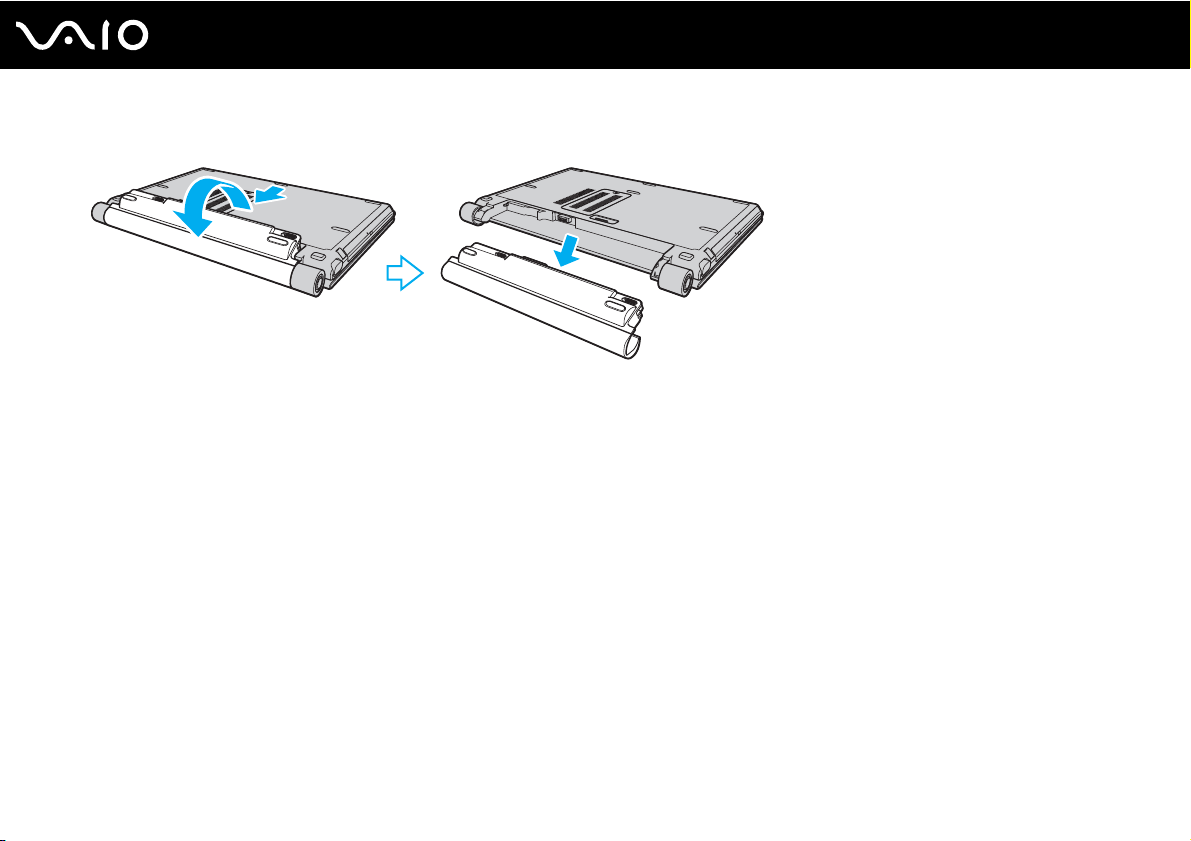

Using the Battery Pack ..............................................................................................................................................25
Shutting Down Your Computer Safely .......................................................................................................................32
Using Your VAIO Computer .............................................................................................................................................33
Using the Keyboard ...................................................................................................................................................34
Using the Touch Pad .................................................................................................................................................36
Using Special-function Buttons ..................................................................................................................................37
Using the Built-in MOTION EYE Camera...................................................................................................................38

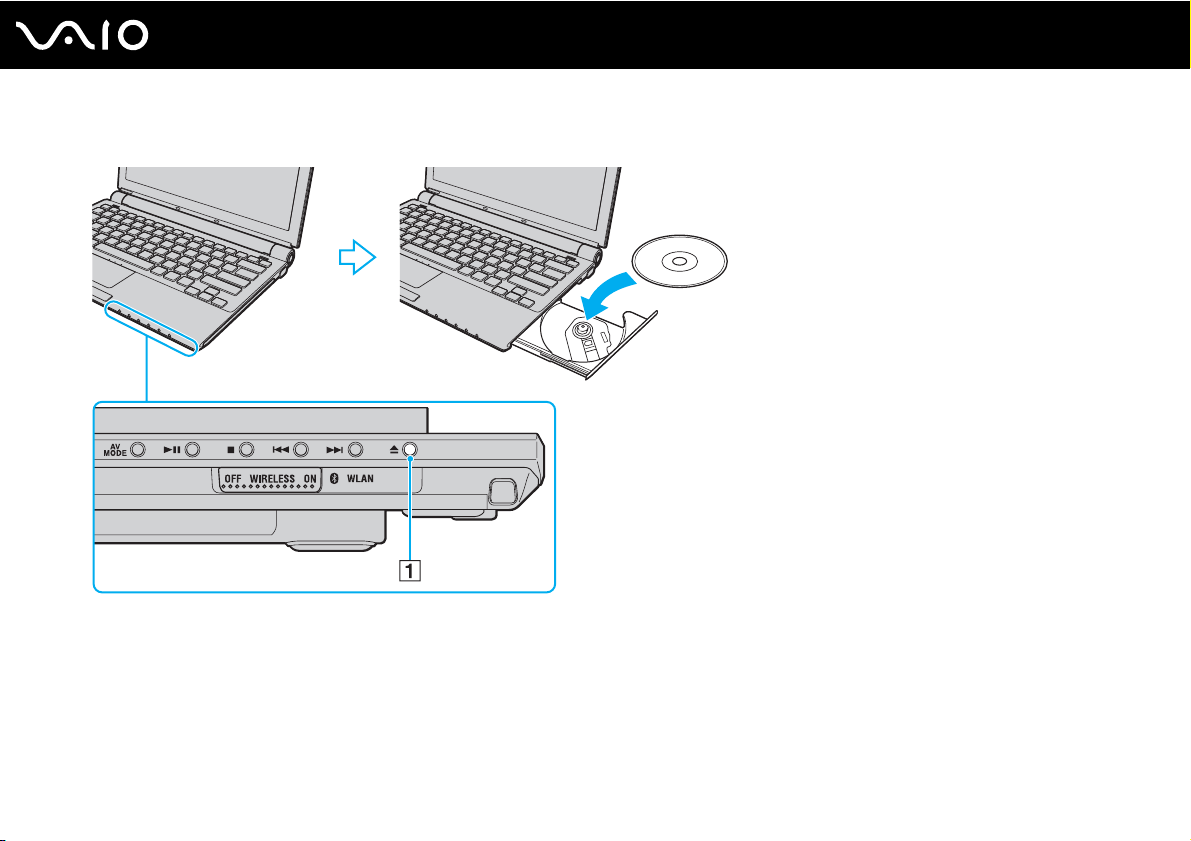

Using the Optical Disc Drive ......................................................................................................................................39

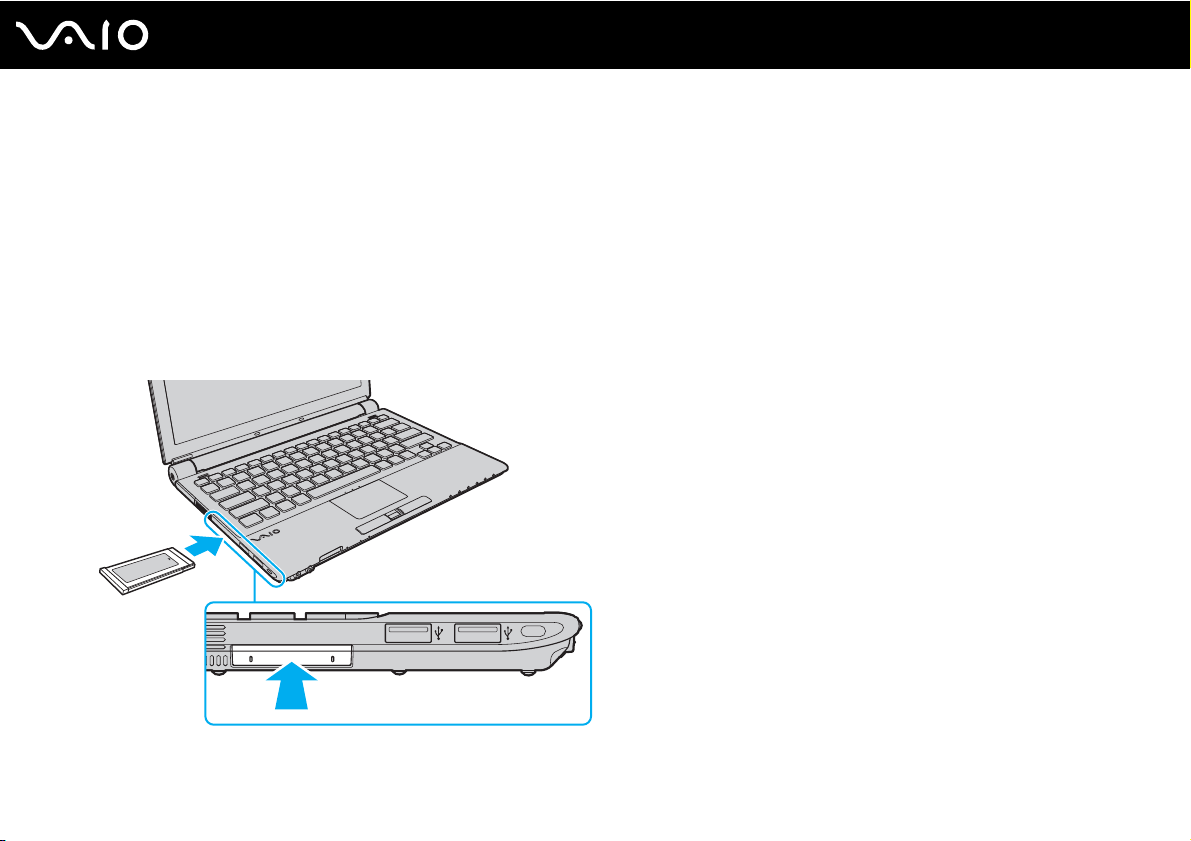

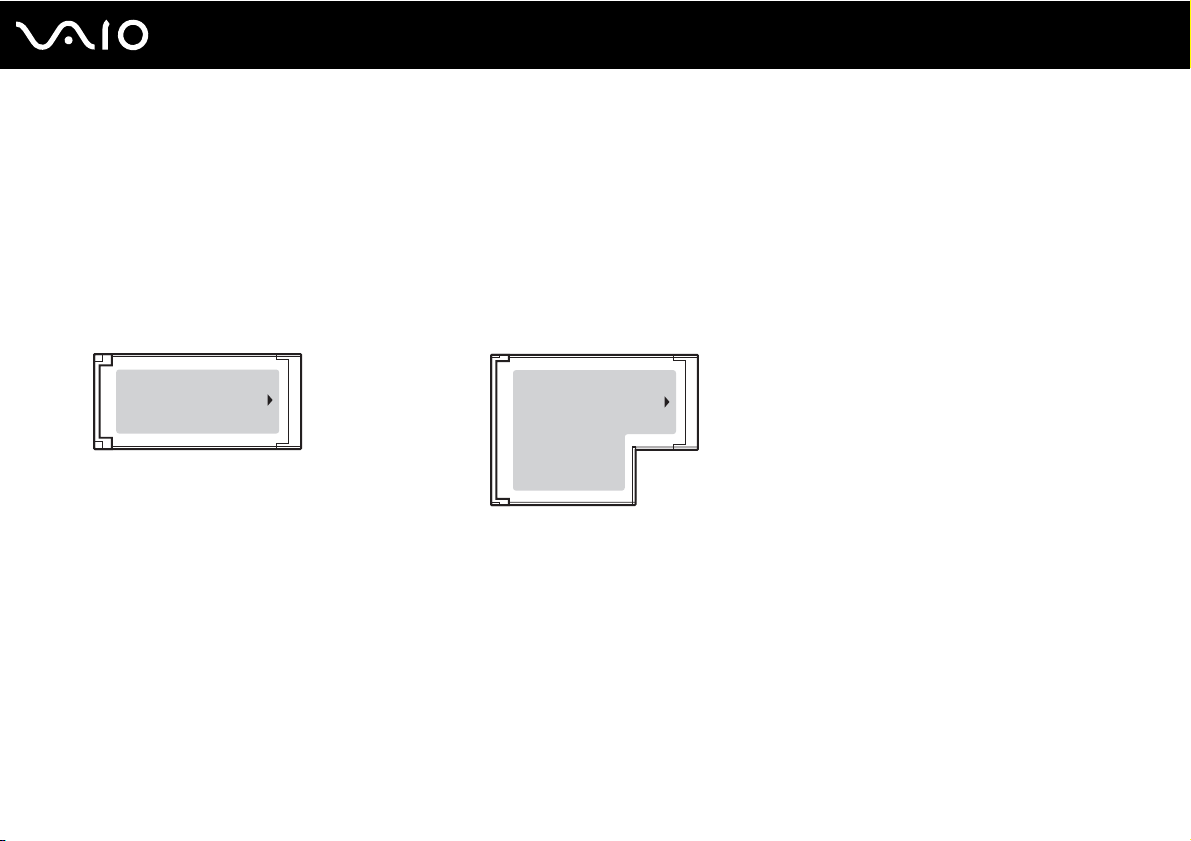

Using the ExpressCard Module .................................................................................................................................48
Using the Memory Stick Media ..................................................................................................................................52
Using Other Memory Cards .......................................................................................................................................59
Using the Internet.......................................................................................................................................................63
2
nN
Page 3
3
nN

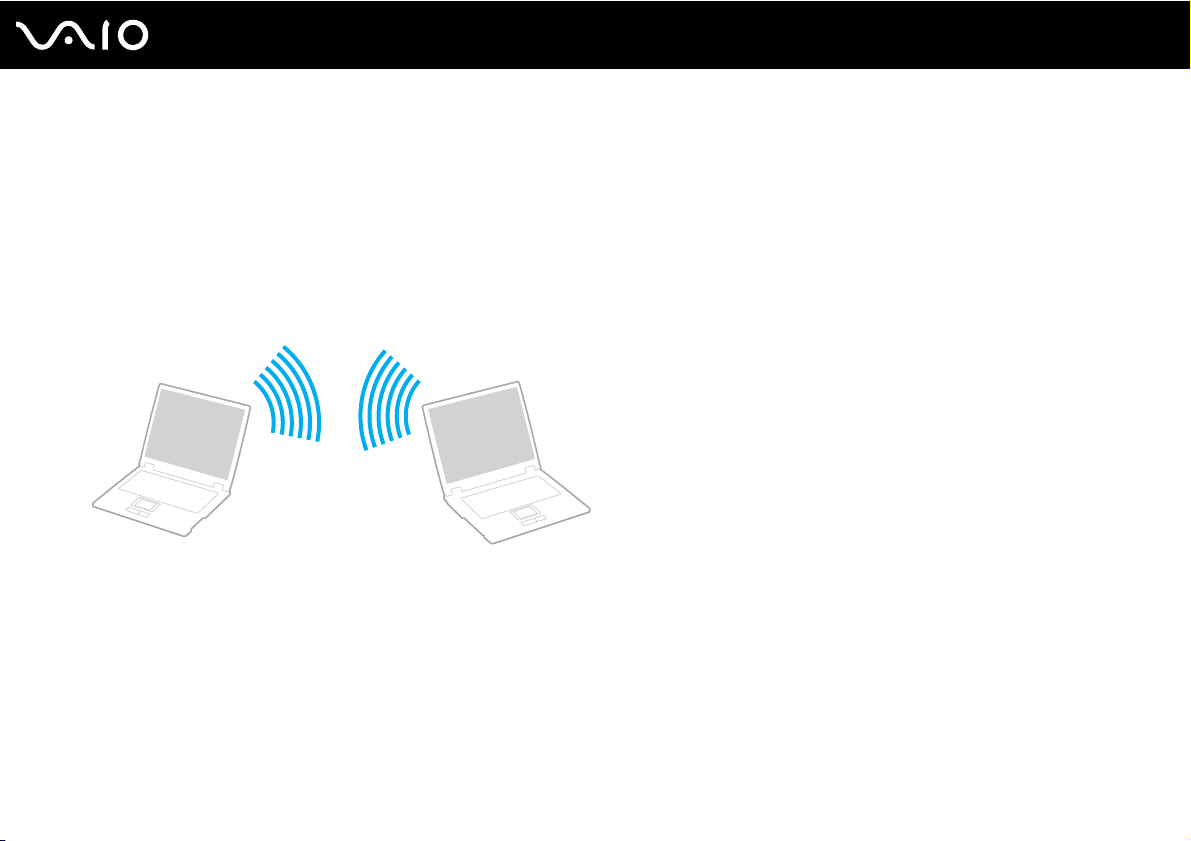

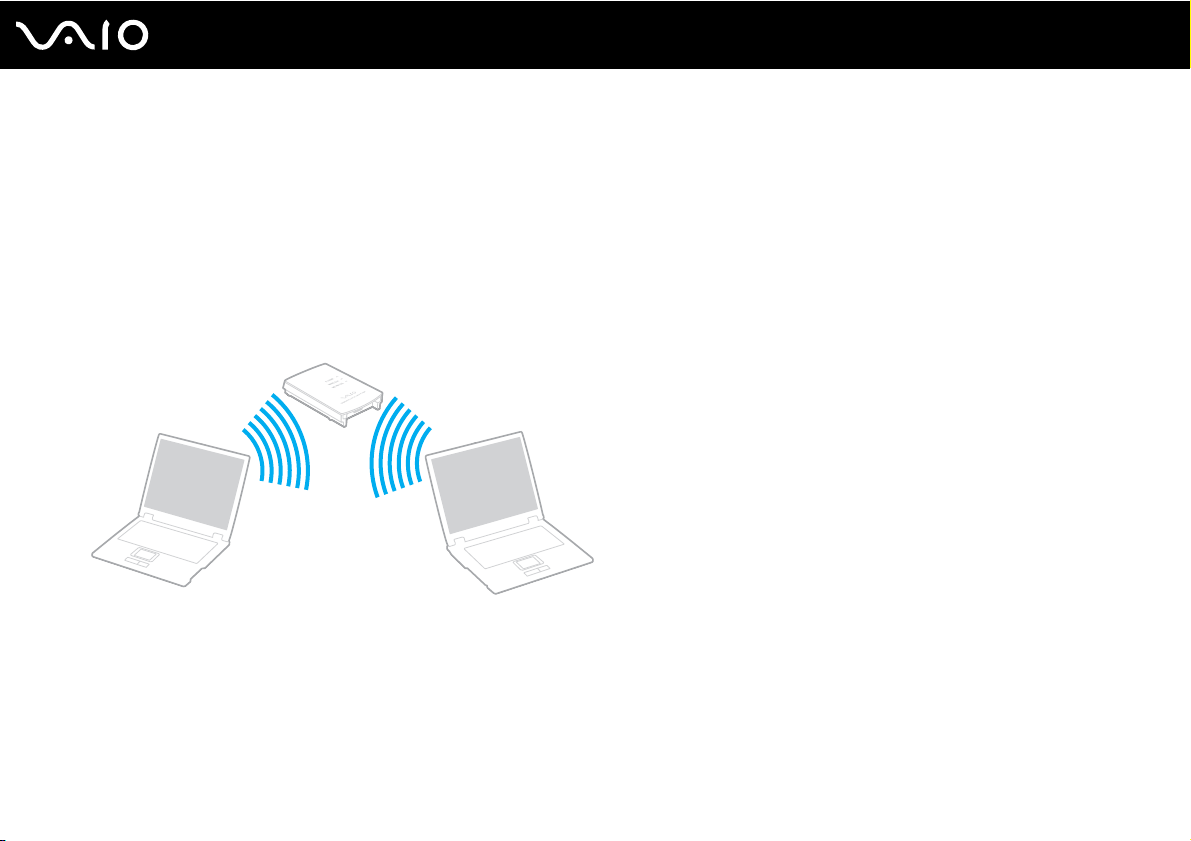

Using Wireless LAN (WLAN) .....................................................................................................................................65
Using the Bluetooth Functionality ..............................................................................................................................72
Using Peripheral Devices .................................................................................................................................................79

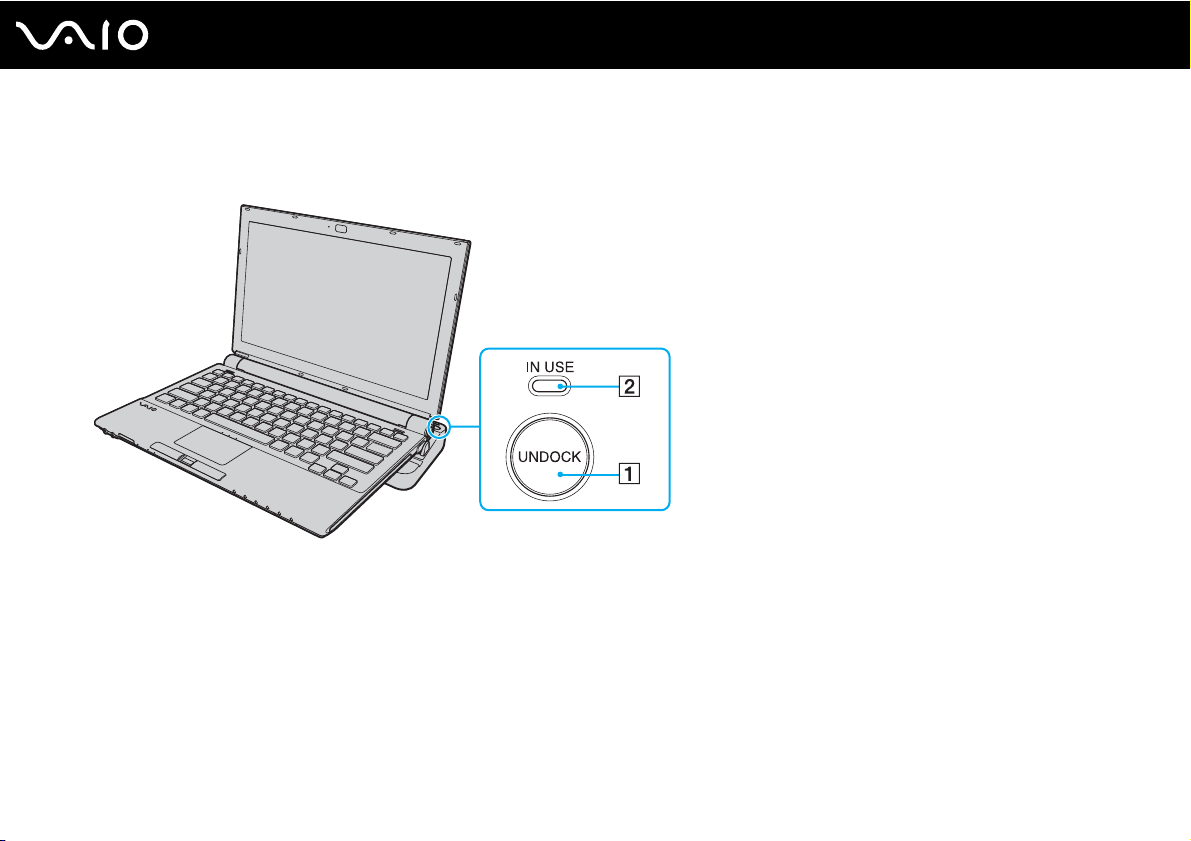

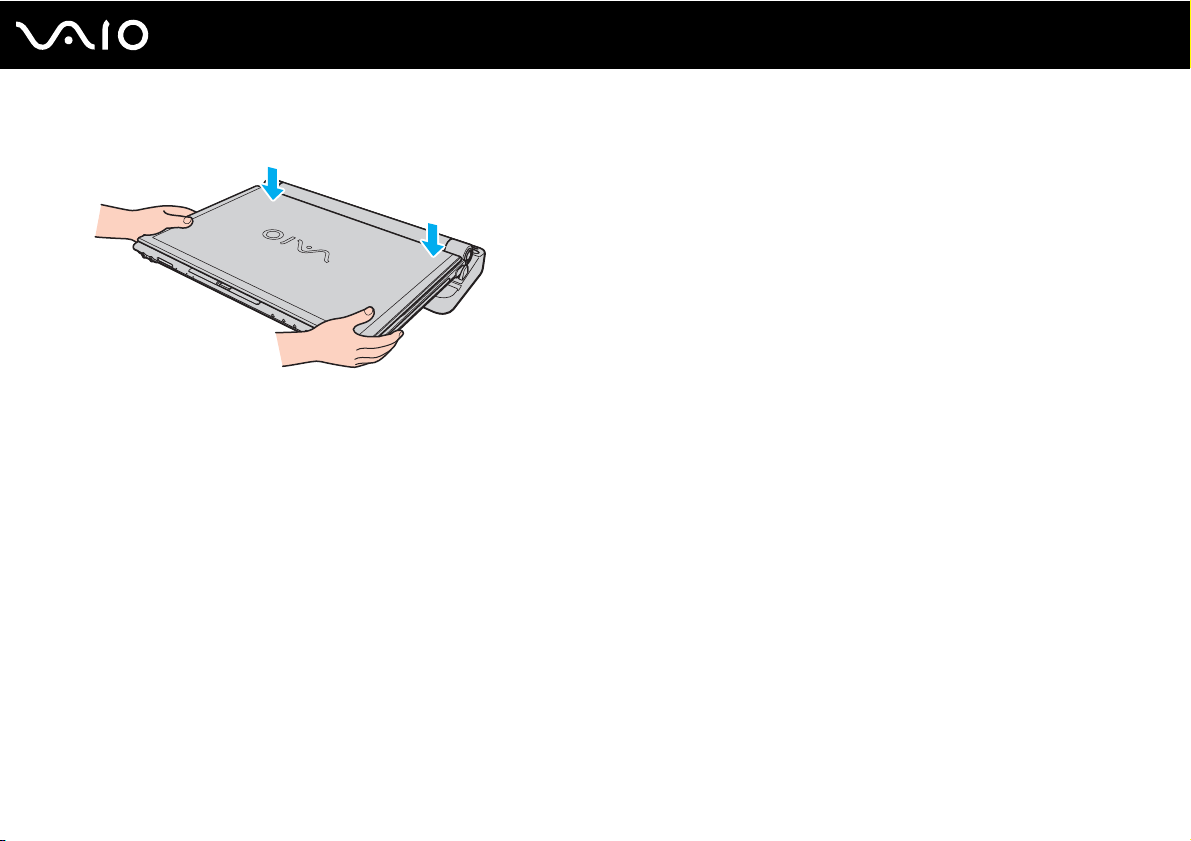

Connecting a Docking Station....................................................................................................................................80
Connecting External Speakers ..................................................................................................................................88

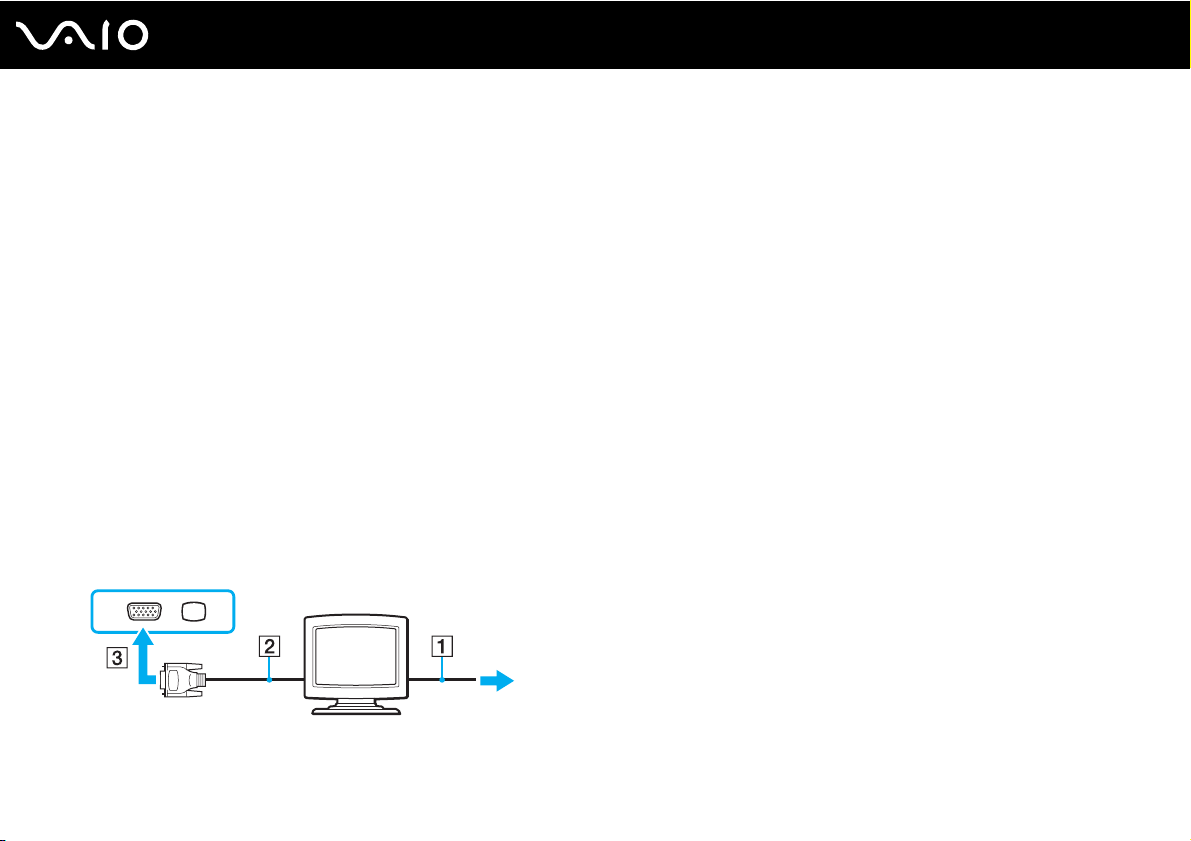

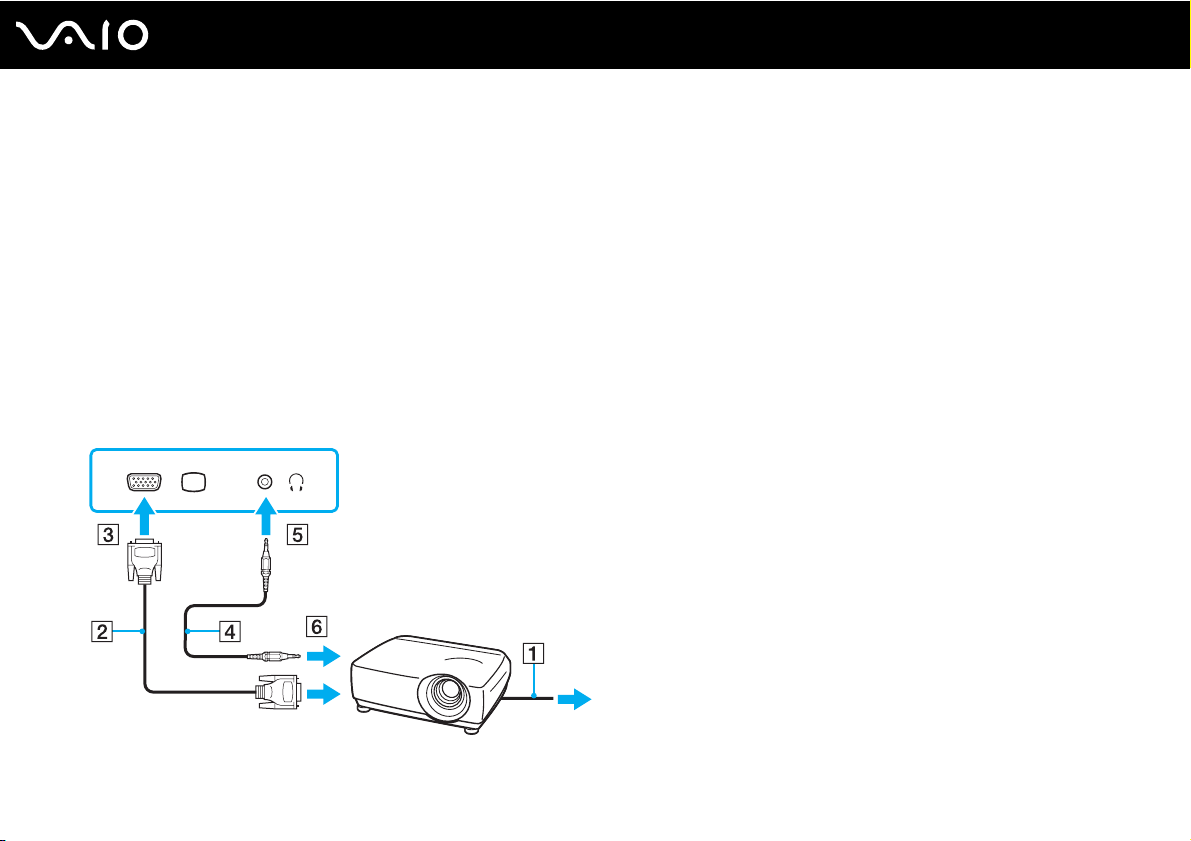

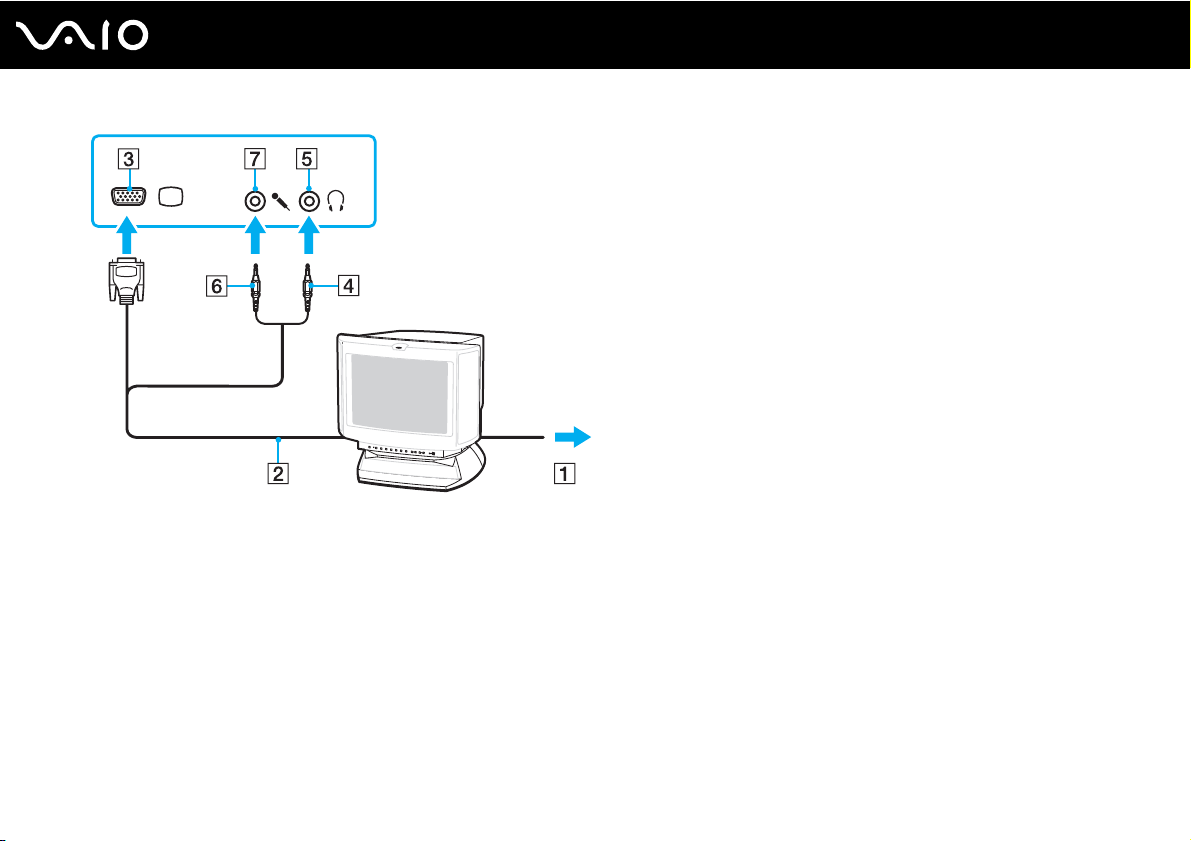

Connecting an External Display .................................................................................................................................89
Selecting Display Modes............................................................................................................................................93

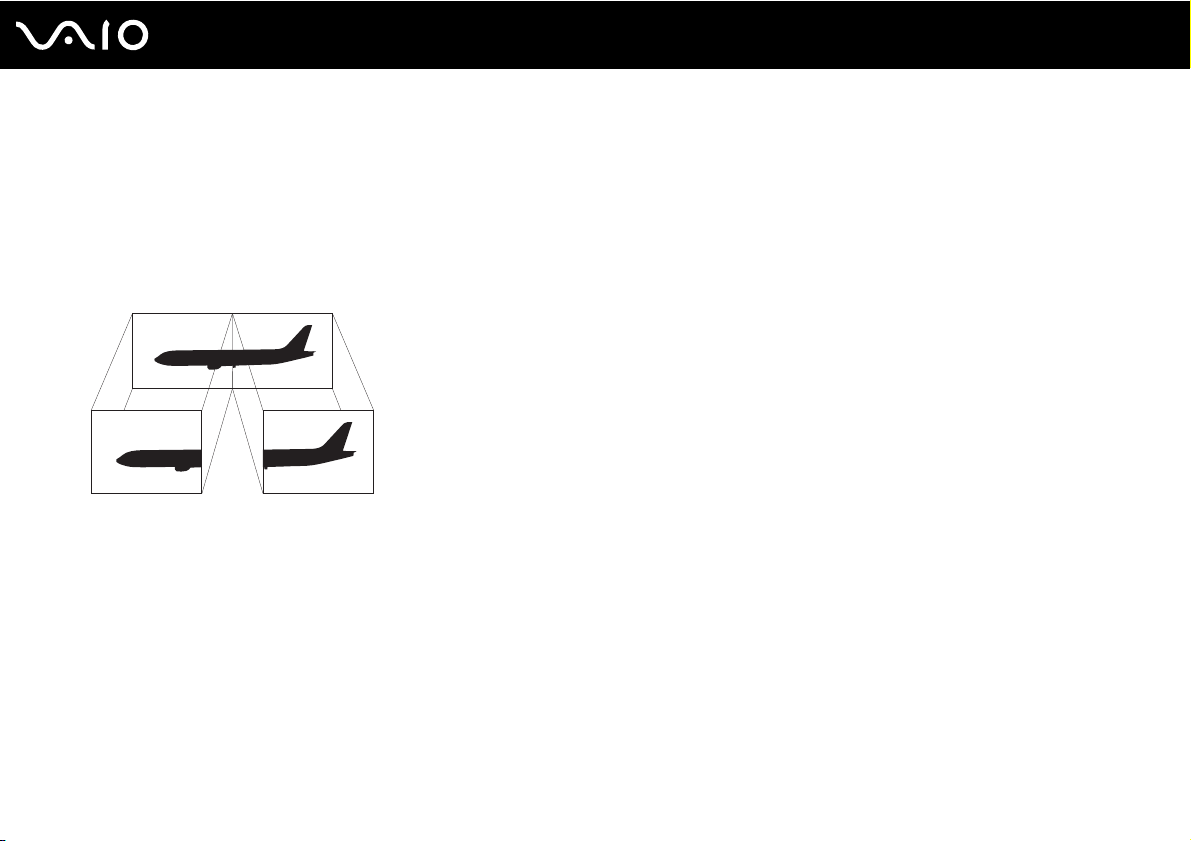

Using the Multiple Monitors Function .........................................................................................................................94

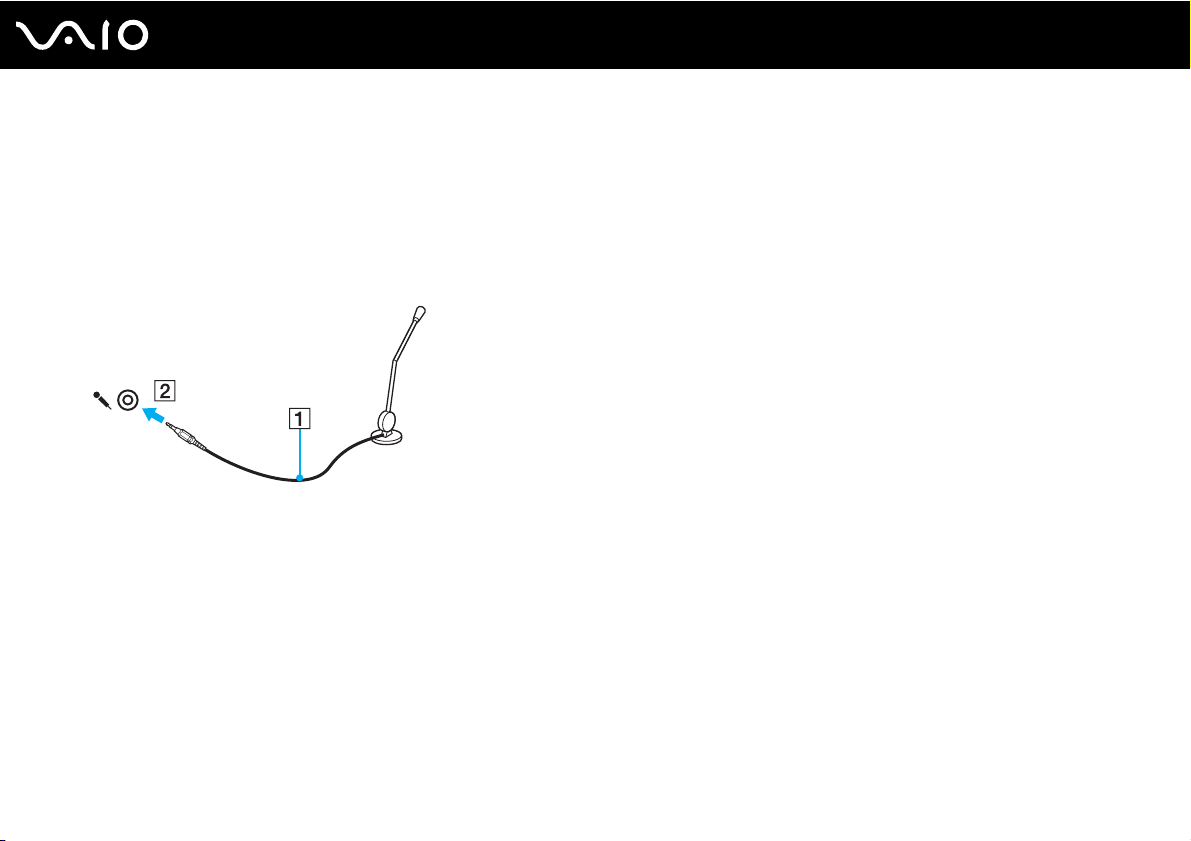

Connecting an External Microphone ..........................................................................................................................96

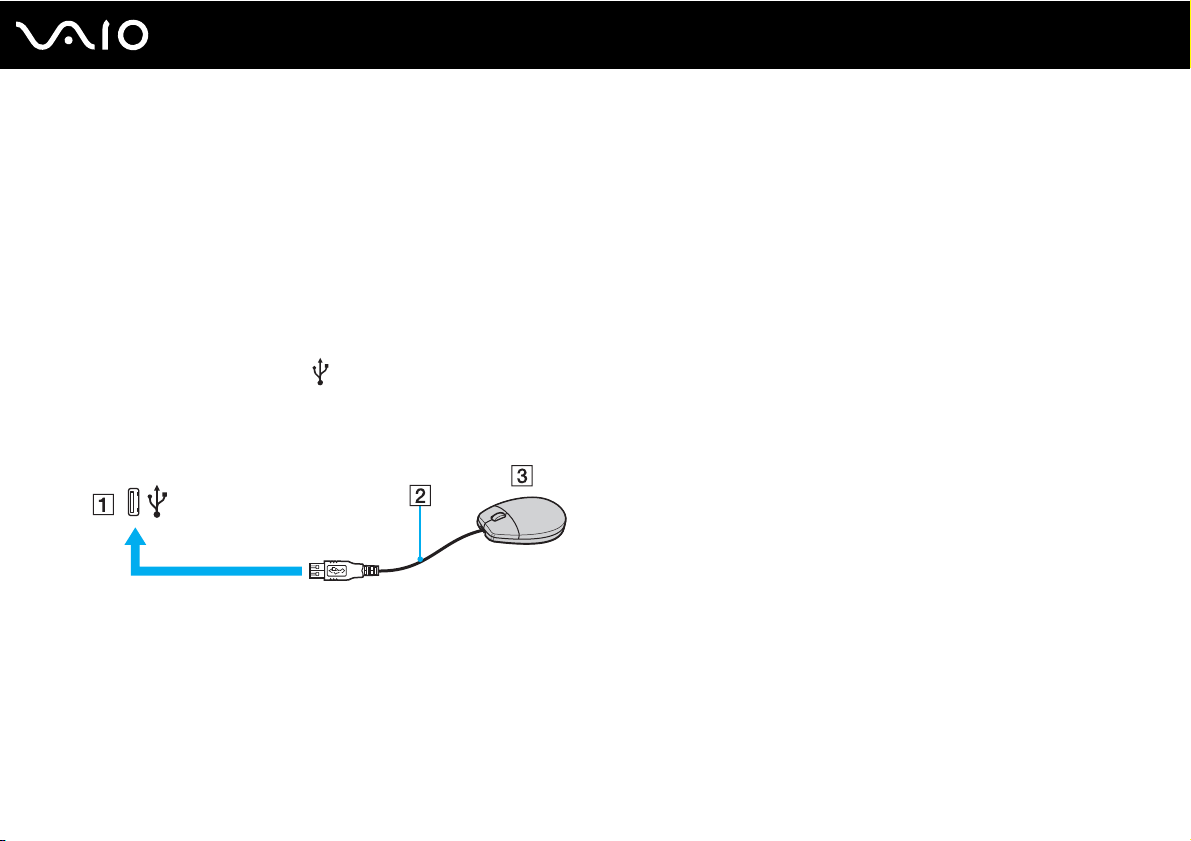

Connecting a Universal Serial Bus (USB) Device......................................................................................................97

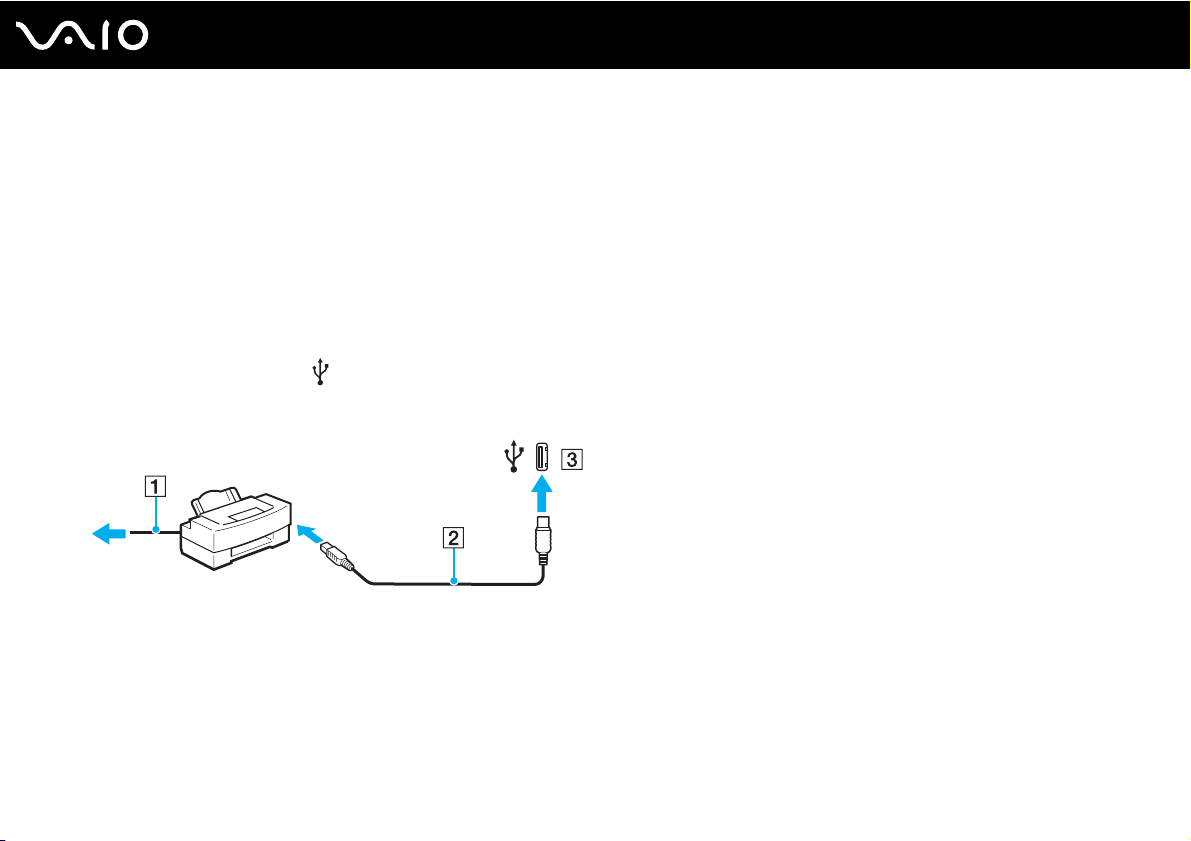

Connecting a Printer ................................................................................................................................................100
Connecting an i.LINK Device ...................................................................................................................................101
Connecting to a Network (LAN) ...............................................................................................................................103
Customizing Your VAIO Computer ................................................................................................................................105
Setting the Password ...............................................................................................................................................106
Using Fingerprint Authentication ..............................................................................................................................114
Using Trusted Platform Module (TPM).....................................................................................................................122
Setting Up Your Computer with VAIO Control Center..............................................................................................129
Using VAIO Status Monitor ......................................................................................................................................130
Using the Power Saving Modes ...............................................................................................................................131
Managing Power with VAIO Power Management ....................................................................................................136
Changing the Performance Setting ..........................................................................................................................138
Protecting Data from Unauthorized Use ..................................................................................................................139
Configuring Your Modem .........................................................................................................................................141
Protecting the Hard Disk ..........................................................................................................................................143
Page 4
4
nN
Upgrading Your VAIO Computer....................................................................................................................................145
Replacing Memory ...................................................................................................................................................146
Precautions ....................................................................................................................................................................152
On Handling the LCD Screen ..................................................................................................................................153
On Using the Power Source ....................................................................................................................................154
On Handling Your Computer....................................................................................................................................155
On Using the Built-in MOTION EYE Camera...........................................................................................................157
On Handling Floppy Disks .......................................................................................................................................158
On Handling Discs ...................................................................................................................................................159
On Using the Battery Pack.......................................................................................................................................160
On Using Headphones.............................................................................................................................................161
On Handling Memory Stick Media............................................................................................................................162
On Handling the Hard Disk ......................................................................................................................................163
On Updating Your Computer ...................................................................................................................................164
Troubleshooting .............................................................................................................................................................165
Computer .................................................................................................................................................................167
System Security .......................................................................................................................................................176
Battery......................................................................................................................................................................177
Built-in MOTION EYE Camera.................................................................................................................................179
Internet .....................................................................................................................................................................182
Networking ...............................................................................................................................................................184
Bluetooth Technology ..............................................................................................................................................187
Optical Discs ............................................................................................................................................................192
Display .....................................................................................................................................................................196
Page 5
5
nN
Printing .....................................................................................................................................................................200
Microphone ..............................................................................................................................................................201
Mouse ......................................................................................................................................................................202
Speakers ..................................................................................................................................................................203
Touch Pad................................................................................................................................................................204
Keyboard..................................................................................................................................................................205
Floppy Disks ............................................................................................................................................................206
Audio/Video..............................................................................................................................................................207
Memory Stick Media ................................................................................................................................................209
Peripherals ...............................................................................................................................................................211
Docking Station ........................................................................................................................................................212
Support Options .............................................................................................................................................................213
Sony Support Information ........................................................................................................................................213
e-Support .................................................................................................................................................................214
Trademarks ..............................................................................................................................................................216
Page 6
nN
Before Use
Before Use
Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal
computing experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
6
Page 7
7
nN
Before Use
Notice
© 2008 Sony Corporation. All rights reserved.
This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any
machine-readable form without prior written approval.
Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and
hereby expressly disclaims any implied warranties or merchantability or fitness for any particular purpose with regard to this
manual, the software, or such other information. In no event shall Sony Corporation be liable for any incidental, consequential,
or special damages, whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the
software, or other information contained herein or the use thereof.
In the manual, the ™ or ® marks are not specified.
Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time
without notice. The software described herein is governed by the terms of a separate user license agreement.
Page 8
8
nN
Before Use
ENERGY STAR
As an ENERGY STAR Partner, Sony has determined that this product meets the ENERGY STAR guidelines for energy
efficiency.
The International ENERGY STAR Office Equipment Program is an international Program that promotes energy saving
through the use of computers and their office equipment. The program backs the development and dissemination of products
with functions that effectively reduce energy consumption.
For detailed information on the ENERGY STAR Program, visit the following Web sites:
❑ http://www.energystar.gov
❑ http://www.eu-energystar.org
(USA)
(Europe)
This computer is designed based on the ENERGY STAR standards and delivered with the following power saving settings:
❑ The LCD backlight is turned off automatically after inactivity of about 15 minutes.
❑ The computer enters Sleep mode automatically after inactivity of about 30 minutes.
Press any key to bring the computer back into Normal mode.
For detailed information on power saving modes, see Using the Power Saving Modes (page 131).
Page 9
nN
Before Use
Documentation
Your documentation includes printed information and user guides to read on your VAIO computer.
Printed Documentation
❑ Quick Start Guide — Describes the process from unpacking to starting up your VAIO.
❑ Troubleshooting and Recovery Guide — Contains solutions to common problems and computer malfunctions, an
explanation of how to make a backup copy of your data and recover your computer system, and sources of support
information.
❑ Instant Mode — Provides a guide to use Instant Mode.
❑ Regulations, Warranty, EULA and Service Support — Contains Sony guarantee conditions,
safety / regulations, modem regulations, wireless LAN regulations, wireless WAN regulations,
Bluetooth regulations, end user software license agreement, and Sony support services information.
9
Page 10
10
nN
Before Use
Non-printed Documentation
❑ User Guide (this manual) — Explains features of your computer. It also includes information about the software programs
included with your computer, as well as information on solving common problems. User Guide is provided in the PDF
format, which you can easily browse through and print out.
To view this on-screen guide:
1 Double-click the VAIO User Guide icon on the desktop.
2 Open the folder for your language.
3 Select the guide you want to read.
✍
You can manually browse to the user guides by going to Computer > VAIO (C:) (your C drive) > Documentation > Documentation and opening the
folder for your language.
To go to Web sites described in this manual by clicking their respective URLs beginning with http://, your computer must be connected to the Internet.
❑ Specifications — The online specifications describe the hardware and software configurations of your VAIO computer.
To view the online specifications:
1 Connect to the Internet.
2 Go to the Sony online support Web site at http://www.vaio-link.com
.
✍
You may have a separate disc for the documentation of bundled accessories.
Page 11
nN
Before Use
My Club VAIO
In My Club VAIO you can find:
❑ Accessories
Want to expand the capabilities of your computer? Click this icon and have a look at your compatible accessories.
❑ Software
Feeling creative? Click this icon for an overview of your software and check out our upgrade options.
❑ Wallpapers
Click this icon and check out our most popular Sony and Club VAIO wallpapers.
❑ Links
Click this icon and check out our most popular Sony and Club VAIO Web sites.
Windows Help and Support
Windows Help and Support is a comprehensive resource for practical advice, tutorials, and demonstrations to help you
learn to use your computer.
Use the Search feature, Index, or table of contents to view all Windows Help resources, including those that are on the
Internet.
11
To access Windows Help and Support, click Start and Help and Support. Or go to Windows Help and Support by
pressing and holding the Microsoft Windows key and pressing the F1 key.
Page 12
Further Sources
❑ Consult the help files on the software you are using for detailed information on features and troubleshooting.
❑ Go to http://www.club-vaio.com
to find online tutorials about your favorite VAIO software.
12
nN
Before Use
Page 13
13
nN
Before Use
Ergonomic Considerations
You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations for both stationary and portable environments:
❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your
wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms
hang naturally at your sides. Have breaks during sessions with your computer. Excessive use of the computer may strain
eyes, muscles, or tendons.
❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.
Page 14
14
nN
Before Use
❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display
as well.
❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.
Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.
Page 15
Getting Started
This section describes how to get started with using your VAIO computer.
❑ Locating Controls and Ports (page 16)
❑ About the Indicator Lights (page 22)
❑ Connecting a Power Source (page 24)
❑ Using the Battery Pack (page 25)
❑ Shutting Down Your Computer Safely (page 32)
15
nN
Getting Started
Page 16
Getting Started
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
!
The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary in some
countries or areas.
Front
A Num lock indicator (page 22)
B Caps lock indicator (page 22)
C Scroll lock indicator (page 22)
D Built-in MOTION EYE camera indicator (page 22)
E Built-in MOTION EYE camera (page 38)
F LCD screen (page 153)
G Built-in speakers (stereo)
H Keyboard (page 34)
I Touch pad (page 36)
J Fingerprint sensor
* On selected models only.
*
(page 114)
16
nN
Page 17
Getting Started
Headphones jack (page 88)
A
B Microphone jack (page 96)
C Memory Stick slot
*1
(page 54)
D Media Access indicator (page 22)
E Battery indicator (page 22)
F Hard disk drive indicator (page 22)
G Built-in microphone (monaural)
H SD memory card slot (page 59)
I AV MODE button (page 37)
J Play/Pause button (page 37)
K Stop button (page 37)
L Previous track button (page 37)
M Next track button (page 37)
N Disc drive eject button (page 37)
O WIRELESS switch (page 65)
P Bluetooth indicator (page 22)
Q WLAN (Wireless LAN) indicator (page 22)
R WWAN (Wireless WAN) indicator
*1
Your computer supports both standard- and Duo-size Memory Stick media.
*2
On selected models only.
*2
(page 22)
17
nN
Page 18
Back
A Battery connector (page 25)
18
nN
Getting Started
Page 19
Right
A Optical disc drive (page 39)
B Manual eject hole (page 192)
C Optical disc drive indicator (page 22)
D Substitute drive eject button (page 39)
E Monitor (VGA) port (page 89)
F Power button / Power indicator (page 22)
19
nN
Getting Started
Page 20
Left
A DC IN port (page 24)
B Modem port (page 63)
C Network (Ethernet) port (page 103)
D i.LINK (IEEE 1394) S400 port (page 101)
E Air vents
F ExpressCard/34 slot (page 48)
G Hi-Speed USB (USB 2.0) ports
H Security slot
* Support high-/full-/low- speeds.
*
(page 97)
20
nN
Getting Started
Page 21
Bottom
A Air vents
B Docking station connector (page 81)
21
nN
Getting Started
Page 22
Getting Started
About the Indicator Lights
Your computer is equipped with the following indicator lights.
Indicator Functions
Power 1 Illuminates when the power of the computer is on, blinks when the computer is in Sleep mode, and turns off
when the computer is in Hibernate mode or off.
Battery e Illuminates when the computer is using battery power, blinks when the battery pack is running out of power, and
Media Access Illuminates when data is read from or written to a memory card. (Do not enter Sleep mode or turn off the
Built-in MOTION EYE camera Illuminates while the built-in MOTION EYE camera is in use.
Optical disc drive Illuminates when data is read from or written to the optical disc media. When the indicator is off, the optical disc
Hard disk drive
Num lock
Caps lock
Scroll lock
Bluetooth technology
double-blinks when the battery pack is charging.
computer when this indicator is on.) When the indicator is off, the memory card is not being used.
media is not being used.
Illuminates when data is read from or written to the built-in flash memory storage or the hard disk drive
not enter Sleep mode or turn off the computer when this indicator is on.
Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator is off.
Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator is on. Press the key a second time to turn off the indicator. Normal typing resumes when the
Caps lock indicator is off.
Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator is off. The Scr Lk key functions differently depending on the program you are using and does not work
with all programs.
Illuminates when the WIRELESS switch is set to ON and Bluetooth technology is enabled.
22
nN
*1
. Do
Page 23
Indicator Functions
Wireless LAN Illuminates when the wireless LAN functionality is enabled.
Wireless WAN
*1
*2
*2
Your computer is equipped with a built-in flash memory storage and/or a hard disk drive, depending on the model you purchased. See the online specifications to
find out about your storage device configuration.
On selected models only.
Illuminates when the wireless WAN functionality is enabled.
23
nN
Getting Started
Page 24
24
nN
Getting Started
Connecting a Power Source
You can use either an AC adapter or a rechargeable battery pack as a power source for your computer.
Using the AC Adapter
✍
Use your computer only with the supplied AC adapter.
To use the AC adapter
1 Plug one end of the power cord (1) into the AC adapter (3).
2 Plug the other end of the power cord into an AC outlet (2).
3 Plug the cable connected to the AC adapter (3) into the DC IN port (4) on the computer or on the optional docking station.
✍
To disconnect your computer completely from AC power, unplug the AC adapter.
Make sure that the AC outlet is easily accessible.
If you do not intend to use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 134).
This power saving mode saves the time of shutting down and resuming.
Page 25
Using the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of delivery.
Installing the Battery Pack
To install the battery pack
1 Turn off the computer and close the LCD screen lid.
2 Slide the battery LOCK switch (1) inward.
3 Slide the battery pack diagonally along the guide (2) on either side of the battery compartment.
25
nN
Getting Started
Page 26
4 Rotate the battery pack in the direction of the arrow and push in the battery pack until it clicks into place.
5 Slide the battery LOCK switch outward to secure the battery pack on the computer.
✍
When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.
!
Certain rechargeable batteries do not meet Sony quality and safety standards. For safety reasons this computer only functions with genuine Sony
batteries designed for this model. When installing another kind of battery, the battery will not be charged and the computer will not function.
26
nN
Getting Started
Page 27
Getting Started
Charging the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of delivery.
To charge the battery pack
1 Install the battery pack.
2 Connect the AC adapter to the computer.
The computer automatically charges the battery pack (the battery indicator light flashes in a double blink pattern as the
battery pack charges). When the battery pack charges close to the maximum charge level you selected with the battery
care function, the battery indicator turns off. To select your desired maximum charge level with the battery care function,
see To use the battery care function (page 29).
Battery indicator light status Meaning
On The computer is using battery power.
Blinks The battery pack is running out of power.
Double blinks The battery pack is charging.
Off The computer is using AC power.
!
Charge the battery pack as described in this manual from your first battery charge.
27
nN
Page 28
28
nN
Getting Started
✍
When the battery pack is running out of power, both the battery and power indicator lights blink.
Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the
computer.
If the battery level falls below 10%, you should either connect the AC adapter to recharge the battery pack or shut down your computer and install a
fully charged battery pack.
The battery pack supplied with your computer is a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack
does not affect the battery life.
The battery indicator light is on while you use the battery pack as a power source. When battery life is nearly depleted, both the battery and power
indicator lights start flashing.
For some software applications and some peripheral devices, your computer may not enter Hibernate mode even when battery life is low. To avoid loss
of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Sleep or Hibernate.
If the battery pack wears out when the computer enters Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible.
To avoid loss of data, you should save your data frequently.
When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.
Page 29
To use the battery care function
You can select your desired maximum charge level with the battery care function to reduce battery degradation.
1 Click Start, All Programs, and VAIO Control Center.
The VAIO Control Center window appears.
2 Double-click Power Management and Battery Care Function.
3 Click to select the Enable Battery Care Function check box.
4 Select the desired maximum charge level.
5 Click OK.
29
nN
Getting Started
Page 30
Getting Started
Removing the Battery Pack
!
You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack
while the computer is in Sleep mode.
To remove the battery pack
1 Turn off the computer and close the LCD screen lid.
2 Slide the battery LOCK switch (1) inward and slide and hold the battery RELEASE latch (2) on the bottom of the
computer.
30
nN
Page 31
Getting Started
3 Pull out the battery pack slightly, rotate it in the direction of the arrow, and then slide it away from the computer.
31
nN
Page 32
32
nN
Getting Started
Shutting Down Your Computer Safely
To avoid losing unsaved data, be sure to shut down your computer properly, as described below.
To shut down your computer
1 Turn off any peripherals connected to the computer.
2 Click Start, the arrow next to the Lock button, and Shut Down.
3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off
automatically.
The power indicator light turns off.
Page 33
Using Your VAIO Computer
This section describes how to get the most out of using your VAIO computer.
❑ Using the Keyboard (page 34)
❑ Using the Touch Pad (page 36)
❑ Using Special-function Buttons (page 37)
❑ Using the Built-in MOTION EYE Camera (page 38)
❑ Using the Optical Disc Drive (page 39)
❑ Using the ExpressCard Module (page 48)
❑ Using the Memory Stick Media (page 52)
❑ Using Other Memory Cards (page 59)
❑ Using the Internet (page 63)
❑ Using Wireless LAN (WLAN) (page 65)
❑ Using the Bluetooth Functionality (page 72)
33
nN
Using Your VAIO Computer
Page 34
nN
Using Your VAIO Computer
Using the Keyboard
Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks.
The VAIO-Link Web site (http://www.vaio-link.com
Combinations and Functions with the Fn Key
✍
Some keyboard functions can be used only after the operating system finished launching.
Combinations/Feature Functions
Fn + % (F2): speaker switch Turns on and off the built-in speakers and the headphones.
Fn + 2 (F3/F4): volume Adjusts the volume level.
Fn + 8 (F5/F6): brightness control Adjusts the LCD brightness of your computer screen.
Fn + /T (F7): display output
) also contains glossary information to help you use the keyboard.
To increase the volume, press Fn+F4 and then M or ,, or keep pressing Fn+F4.
To decrease the volume, press Fn+F3 and then m or <, or keep pressing Fn+F3.
To increase lighting intensity, press Fn+F6 and then M or ,, or keep pressing Fn+F6.
To decrease lighting intensity, press Fn+F5 and then m or <, or keep pressing Fn+F5.
Toggles among your computer screen, an external display, and simultaneous output to both.
34
Page 35
Using Your VAIO Computer
Combinations/Feature Functions
Fn + (F10): zoom
Fn + (F12): Hibernate
* Your computer is equipped with either a built-in flash memory storage or a hard disk drive as the primary storage device, depending on the model you purchased.
See the online specifications to find out about your storage device configuration.
Changes the screen resolution to magnify/restore your computer's screen view.
✍
The default resolutions of the standard view and the magnified view are as follows:
Standard view: 1366 x 768 pixels
Magnified view: 1064 x 600 pixels
The magnified view is not as clear as the standard view, as it is implemented by applying a lower resolution
to the computer screen with a higher resolution.
This key combination may not work with graphic images as it magnifies the screen view by changing the
resolution.
The location and size of software windows may change when the screen view is magnified or the standard
view is restored because pressing this key combination changes the resolution.
When your computer's screen view is magnified, switching the view to the external display disables the
function and restores the standard view.
Provides for the lowest level of power consumption. When you execute this command, the
states of the system and the connected peripheral devices are written to the primary storage
*
and the system power is turned off. To return the system to its original state, use the
device
power button to turn on the power.
For details on power management, see Using the Power Saving Modes (page 131).
35
nN
Page 36
Using Your VAIO Computer
Using the Touch Pad
You can point to, select, drag, and scroll objects on the screen using the touch pad.
Action Description
Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object.
Click Press the left button (3) once.
Double-click Press the left button twice.
Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.
Drag Slide your finger on the touch pad while pressing the left button.
Scroll Slide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to
scroll horizontally (the scroll function is available only with applications that support a touch pad scroll feature).
✍
On the models with the fingerprint sensor, you can also use the sensor for vertical scrolling while the Scroll lock indicator is lit. Press
the Fn+Scr Lk keys to turn on and off the indicator.
36
nN
✍
You can disable/enable the touch pad to suit your preference for using the mouse. See Setting Up Your Computer with VAIO Control Center (page 129)
to launch VAIO Control Center. Once launched, select the topic on the pointing device and see the help file for the detailed instructions.
!
Be sure to connect a mouse before disabling the touch pad. If you disable the touch pad without connecting a mouse, you will be able to use only the
keyboard for pointer operations.
Page 37
37
nN
Using Your VAIO Computer
Using Special-function Buttons
Your computer is equipped with special buttons to help you use specific functions of the computer.
The AV MODE, Play/Pause, Stop, Previous track, and Next track buttons support Instant Mode. To activate Instant Mode,
the computer must be off or in Hibernate mode. See the printed Instant Mode booklet for more information on Instant Mode.
Special-function button Functions
AV M O DE button
Play/Pause button
Stop button
Previous track button
Next track button
Disc drive eject butto n
* Your computer is equipped with a built-in flash memory storage and/or a hard disk drive, depending on the model you purchased. See the online specifications to
find out about your storage device configuration.
When the computer is off or in Hibernate mode:
Activates Instant Mode to enable you immediately to play CDs, DVDs, and music files and view the image
data stored on the built-in flash memory storage or the hard disk drive
printed Instant Mode booklet for more information.
When the computer is on or in Sleep mode:
Launches VAIO L a u n cher for selecting the desired software.
You can change the default software options in VAIO Laun c h e r. To do so, press and hold the AV MODE
button to display the setup window.
Starts or pauses playback of a CD or DVD media or a music/video file stored on the built-in flash memory
storage or the hard disk drive
Stops playback of a CD or DVD media or a music/video file stored on the built-in flash memory storage or the
hard disk drive
Plays the previous chapter/file during video playback or the previous song/file during audio playback.
Plays the next chapter/file during video playback or the next song/file during audio playback.
Ejects the optical disc drive tray.
If this button does not work, try the substitute drive eject button on the optical disc drive.
*
.
*
.
*
without launching Windows. See the
Page 38
38
nN
Using Your VAIO Computer
Using the Built-in MOTION EYE Camera
Your computer is equipped with a built-in MOTION EYE camera.
The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software.
Turning on the computer activates the built-in MOTION EYE camera, so the computer is ready for a video conference using
such software.
Note that launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in
MOTION EYE camera, respectively.
✍
The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the
application before using the built-in MOTION EYE camera.
When capturing an image in a dark place, click Start, All Programs, VAIO Camera Capture Utility, and VAIO Camera Capture Utility to start VAIO
Camera Capture Utility. Click the Camera button to display the Properties window and select the Low Light check box. It decreases the frame rate and
slows down the shutter speed to allow the camera to capture more light.
!
The viewer window may show some noise, for example horizontal streaks, if you view a rapid-moving object. This is normal and does not indicate a
malfunction.
You cannot operate the built-in MOTION EYE camera with the Microsoft Windows MovieMaker software.
Page 39
Using Your VAIO Computer
Using the Optical Disc Drive
Your computer is equipped with an optical disc drive.
To insert a disc
1 Turn on the computer.
2 Press the disc drive eject button (1) to open the drive.
The tray slides out.
✍
If the disc drive eject button does not work, try the substitute drive eject button on the optical disc drive.
If the power supply to the optical disc drive is disabled by VAIO Power Management, it will take a while to eject the drive tray. Note that the substitute
drive eject button is disabled when the optical disc drive is not powered.
When recovering your system, turn on your computer and press the substitute drive eject button on the optical disc drive. Insert your recovery disc
into the optical disc drive, turn off the computer, and then turn on the computer again to start the recovery process.
39
nN
Page 40
40
nN
Using Your VAIO Computer
3 Place a disc in the middle of the tray with the label side facing upward and gently push it until the disc clicks into place.
4 Close the tray by pushing it in gently.
!
Do not remove the optical disc when your computer is in a power saving mode (Sleep or Hibernate). Doing so may cause the computer to malfunction.
✍
If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled disc operation program.
Page 41
41
nN
Using Your VAIO Computer
Reading and Writing Optical Discs
Your computer plays and records CDs, DVDs, and Blu-ray Disc™ media, depending on the model you purchased. Check your
specifications for the type of optical disc drive installed on your model. Use the table below to see which types of media your
optical disc drive supports.
Page 42
Using Your VAIO Computer
PR: playable and recordable
P: playable but not recordable
–: not playable or recordable
CDROM
DVD± RW/
PPPPPRPP–
±R DL/RAM
Blu-ray Disc P P P P
Blu-ray Disc
PPPP
Combo
*1
Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1.
*2
Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2.
*3
The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.
*4
Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.
*5
Writing data to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.
*6
Writing data to DVD-R DL (Dual Layer) discs is available only on discs supporting DVD-R DL (Dual Layer) recording.
*7
Supports writing data to BD-R Version 1.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Version 2.1
discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).
*8
Writing data to Ultra Speed CD-RW discs is not supported on models with the Blu-ray Disc drive.
*9
BD-R stands for Blu-ray Disc-Recordable in Version 1.1 format.
*10
BD-RE stands for Blu-ray Disc-Rewritable in Version 2.1 format.
*11
The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.
Video CDMusic CDCD
Extra
CD-R/RWDVD-
ROM
*8
PR
PR
PPP
*8
PPP
DVDVideo
BDROM
DVD-R/RWDVD+R/RWDVD+R DLDVD-R DLDVD-
RAM
PR
PR
PR
*1 *2
*1 *2
*1 *2
PR
PR
PR
PR
PR
PR
*5
*5
*5
PR
PR
PR
*6
PR
*6
PR
*6
PR
*3 *4
*3 *4
*3 *4P*11
42
nN
*9
/
BD-R
*10
RE
–
*7 *11
PR
Page 43
43
nN
Using Your VAIO Computer
!
This product is designed to play back discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two
sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Be aware that the audio side (non-DVD
side) of a DualDisc may not play on this product because it does not conform to the CD Standard.
Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices
on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee
the compatibility of VAIO CD drives with discs that are not compliant with the official "CD" format standard (or "DVD" standard in relation to DVD drives,
or "Blu-ray Disc" standard in relation to Blu-ray Disc drives). USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO PC OR
CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.
For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.
✍
8cm disc writing is not supported.
!
To play copyright protected Blu-ray Disc media continuously, you need to update the AACS key. Note that the AACS key update requires Internet access.
As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support
movie playback on packaged media recorded in AVC or VC1 format at high bit rates.
Region settings are required for some contents on DVDs and BD-ROM Disc media. If the region setting on the optical disc drive does not match the
region coding on the disc, playback is not possible.
Unless your external display is compliant with the High-bandwidth Digital Content Protection (HDCP) standard, you cannot play or view the contents
on copyright protected Blu-ray Disc media.
Some contents may restrict video output to be standard definition or prohibit analog video output at all. It is strongly recommended that digital HDCPcompliant environment be implemented for optimum compatibility and viewing quality.
Page 44
44
nN
Using Your VAIO Computer
Notes on writing data to a disc
❑ Use only Sony recommended software, which is preinstalled on your computer, to write data to a disc.
Other software programs may not be fully compatible and errors may result.
❑ To make data on a disc readable on the optical disc drive, you need to close the session before you eject it. To complete
this process, follow the instructions included with your software.
❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc
drive.
❑ Do not strike or shake your computer while writing data to a disc.
❑ Deactivate the screen saver and exit anti-virus software before writing data to a disc.
❑ Do not use memory-resident utility software while writing data to a disc. This may cause your computer to malfunction.
❑ Before using your software application to burn discs, make sure you exit and close all other applications.
❑ Do not place your computer into either of the power saving modes while using the preinstalled software or any disc
burning software.
❑ Connect and use the AC adapter to power your computer or make sure your battery pack is at least 50% charged.
❑ Make sure you use the same disc burning software to add data to a used disc. Use of different disc burning software for
additional data burning may cause a failure. For example, if you have a disc with data that you burned with the Roxio
Easy Media Creator software, use the Roxio Easy Media Creator software to add more data to the same disc.
Page 45
45
nN
Using Your VAIO Computer
Notes on playing discs
To achieve optimum performance when playing discs, you should follow these recommendations.
❑ Some CD players and computers' optical disc drives may not be able to play audio CDs created with the CD-R or CD-
RW media.
❑ Some DVD players and computers' optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-
R DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media.
❑ Do not use memory-resident utility software to speed up disc access when playing a disc. This may cause your computer
to malfunction.
❑ Do not place your computer into either of the power saving modes while your computer is playing a disc.
❑ Region code indicators are labeled on the DVDs to indicate in which region and on what type of player you can play the
disc. Unless a "2" (Europe belongs to region "2") or "all" (this means that you can play this DVD in most regions of the
world) is labeled on your DVD disc or on the packaging, you cannot play the disc on your computer.
!
If you change the DVD region code while the WinDVD or WinDVD BD software is running, restart the software or eject the disc and re-insert it to make
the new setting effective.
❑ Do not try to change the region code settings of the DVD drive. Any difficulties caused by changing the region code
settings of the DVD drive are out of warranty.
Page 46
Using Your VAIO Computer
Playing CDs
To play an audio CD
1 Insert a disc into the optical disc drive.
2 If nothing appears on the desktop, then click Start, All Programs, and the desired CD software to play the CD.
If the Audio CD window appears, click to select an option.
Copying Files to CDs
To copy files to a disc
!
Do not strike or shake your computer while writing data to a disc.
1 Insert a disc into the optical disc drive.
If the AutoPlay window appears, click Burn files to disc and follow the on-screen instructions until the empty disc folder
appears.
2 Open the folder that contains the file(s) you want to copy and drag them to the empty disc folder.
3 Close the disc folder.
46
nN
Page 47
47
nN
Using Your VAIO Computer
Playing DVDs
To play a DVD
1 Close all running software applications.
2 Insert a DVD into the optical disc drive.
3 If nothing appears on the desktop, then click Start, All Programs, and the desired DVD software to play the DVD.
For instructions on how to use the software, see the help file on your DVD software.
Copying Files to DVDs
To copy files to a disc
1 Connect the AC adapter to the computer.
2 Insert a disc into the optical disc drive.
3 If nothing appears on the desktop, then click Start, All Programs, and the desired DVD burning software to copy files to
the disc.
For instructions on how to use the software, see the help file on your DVD burning software.
Page 48
48
nN
Using Your VAIO Computer
Using the ExpressCard Module
Your computer is equipped with either a Universal ExpressCard slot* or an ExpressCard/34 slot* for transferring data among
digital cameras, camcorders, music players, and other audio/video devices. The former
ExpressCard/34
*
module
only.
(34mm wide) or ExpressCard/54 (54mm wide) module* as shown below; and the latter, an ExpressCard/34
can accommodate either an
❑ ExpressCard/34 module
Your computer is equipped with an ExpressCard/34
* Referred to as the ExpressCard slot and the ExpressCard module in this manual.
*
❑ ExpressCard/54 module
slot*.
*
Page 49
Inserting an ExpressCard Module
!
Use care when inserting or removing the ExpressCard module from the slot. Do not force it in or out of the slot.
✍
You do not need to shut down your computer before inserting or removing the ExpressCard module.
To insert an ExpressCard module
1 Carefully slide the ExpressCard module into the slot until it clicks into place.
Do not force it into the slot.
49
nN
Using Your VAIO Computer
Page 50
✍
If the module or adapter does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
Make sure you use the most recent software driver provided by the ExpressCard module manufacturer.
50
nN
Using Your VAIO Computer
Page 51
nN
Using Your VAIO Computer
Removing an ExpressCard Module
Follow the steps below to remove the ExpressCard module while your computer is on. If it is not removed properly, your
system may not work properly.
To remove an ExpressCard module
✍
To remove an ExpressCard module when your computer is off, skip steps 1 to 7.
1 Double-click the Safely Remove Hardware icon on the taskbar.
The Safely Remove Hardware window appears.
2 Select the hardware you want to unplug.
3 Click Stop.
The Stop a Hardware device window appears.
4 Confirm that the device can be safely removed from the system.
5 Click OK.
A message appears stating it is now safe to remove the device.
6 Click OK.
7 Click Close to close the Safely Remove Hardware window.
8 Push in the ExpressCard module toward the computer to pop it out.
9 Gently take hold of the ExpressCard module and pull it out of the slot.
51
Page 52
52
nN
Using Your VAIO Computer
Using the Memory Stick Media
Memory Stick media is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing
digital data with compatible products, such as digital cameras, mobile phones and other devices. Because it is removable, it
can be used for external data storage.
Page 53
53
nN
Using Your VAIO Computer
Before You Use the Memory Stick Media
The Memory Stick slot on your computer can accommodate both standard- and Duo-size media and supports Memory Stick
PRO and Memory Stick PRO-HG Duo formats with high speed data transfer and large data capacity capabilities.
✍
You can insert a Duo-size Memory Stick media directly into the Memory Stick slot without using a Memory Stick Duo Adaptor.
!
Before using a Memory Stick Micro (M2) media, be sure to insert it into an M2 Standard-size or M2 Duo-size Adaptor. If you insert the media directly
into the Memory Stick slot without the Adaptor, you may not be able to remove it from the slot.
For the latest information about the Memory Stick media, visit the Memory Stick Web site at http://www.memorystick.com/en/.
!
Your computer has been tested and found compatible with Sony branded Memory Stick media with capacity of up to 8 GB that are available as of
September 2007. However, not all Memory Stick media that meet the same specifications as the compatible media are guaranteed of compatibility.
Inserting a Memory Stick media with multiple conversion adapters is not guaranteed of compatibility.
MagicGate is the general name of the copyright protection technology developed by Sony. Use a Memory Stick media with the MagicGate logo to use
this feature.
Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior consent from the respective
copyright holders. Accordingly, Memory Stick media with such copyrighted data can be used only within the law.
The Memory Stick slot on your computer does not support 8-bit parallel data transfer (high speed data transfer).
The Memory Stick Micro media in an M2 Duo-size Adaptor may not operate properly if it is additionally inserted into a Memory Stick Duo Adaptor.
You cannot use a Memory Stick media if you select the option to disable the Memory Stick slot with the Peripheral Device & Storage Media Restriction
Setting Utility or power supply to the Memory Stick slot on the VAIO Power Management tab in the Power Options window. To change the settings,
see Protecting Data from Unauthorized Use (page 139) or Managing Power with VAIO Power Management (page 136).
Page 54
Using Your VAIO Computer
Inserting a Memory Stick Media
To insert a Memory Stick media
1 Locate the Memory Stick slot.
2 Push in the Memory Stick slot protector toward the computer.
3 Pull the protector out of the slot.
4 Hold the Memory Stick media with the arrow facing upward and pointing toward the Memory Stick slot.
5 Carefully slide the Memory Stick media into the slot until it clicks into place.
The Memory Stick media is automatically detected by your system and the contents on the Memory Stick media are
displayed. If nothing appears on the desktop, click Start, Computer, and double-click the Memory Stick media icon.
54
nN
Page 55
55
nN
Using Your VAIO Computer
!
Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer
or the Memory Stick media, do not force the Memory Stick media into the slot if you cannot insert it smoothly.
Do not insert more than one Memory Stick media into the slot. Improper insertion of the media may damage both your computer and the media.
Insert the Memory Stick slot protector to protect against debris entering the slot when not using a Memory Stick media. Before moving your computer,
make sure to insert the Memory Stick slot protector into the slot.
Page 56
Using Your VAIO Computer
To view the contents on the Memory Stick media
1 Click Start and Computer to open the Computer window.
2 Double-click the Memory Stick media icon to view the list of data files saved in the Memory Stick media.
To format a Memory Stick media
The Memory Stick media has been formatted in the factory default setting and is ready for use.
If you want to reformat the media with your computer, follow these steps.
!
Be sure to use the device that is designed to format the media and supports the Memory Stick media when formatting the media.
Formatting the Memory Stick media erases the entire data on the media. Before formatting the media, make sure that it does not contain your valuable
data.
Do not remove the Memory Stick media from the slot while formatting the media. This could cause a malfunction.
1 Carefully slide the Memory Stick media into the slot until it clicks into place.
2 Click Start and Computer to open the Computer window.
3 Right-click the Memory Stick media icon and select Format.
4 Click Restore device defaults.
56
nN
!
The size of the allocation unit and file system may change.
Do not select NTFS from the File system drop-down list as it may cause a malfunction.
✍
The formatting process will be completed more quickly if you select Quick Format in Format options.
Page 57
5 Click Start.
6 At the confirmation prompt, click OK.
The formatting process starts.
!
It may take time to format the Memory Stick media depending on the media.
7 Once completed, click OK.
8 Click Close.
57
nN
Using Your VAIO Computer
Page 58
Using Your VAIO Computer
Removing a Memory Stick Media
To remove a Memory Stick media
1 Check that the Media Access indicator light is off.
2 Push the Memory Stick media in toward the computer.
The Memory Stick media ejects.
3 Pull the Memory Stick media out of the slot.
!
Always remove the Memory Stick media gently, or it may pop out unexpectedly.
Do not remove the Memory Stick media while the Media Access indicator light is on. If you do, you may lose data. Large volumes of data may take time
to load, so be sure the indicator is off before removing the Memory Stick media.
58
nN
Page 59
59
nN
Using Your VAIO Computer
Using Other Memory Cards
In addition to the Memory Stick slot and ExpressCard slot, your computer is equipped with an SD memory card slot. You can
use this slot to transfer data among digital cameras, camcorders, music players, and other audio/video devices.
Page 60
60
nN
Using Your VAIO Computer
Before You Use Memory Cards
The SD memory card slot on your computer supports the following memory cards:
❑ SD memory card
❑ SDHC memory card
❑ MultiMediaCard (MMC)
For the latest information on compatible memory cards, see Sony Support Information (page 213) to visit the appropriate
support Web site.
!
Your computer has been tested and found compatible only with major memory card media available as of September 2007. However, not all memory
card media that meet the same specifications as the compatible media are guaranteed of compatibility.
Always insert the correct memory card into the SD memory card slot.
SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 8 GB have been tested and found compatible with your
computer.
The SD memory card slot on your computer does not support the copyright protection and high-speed data transfer features of the SD memory card
and SDHC memory card.
Do not attempt to insert a memory card or memory card adapter of a different type into the SD memory card slot. An incompatible memory card or
memory card adapter may cause difficulty in removing from the slot and can cause damage to your computer.
Use care when inserting or removing a memory card from the SD memory card slot. Do not force the memory card in or out of the slot.
You cannot use a memory card if you select the option to disable the SD memory card slot with the Peripheral Device & Storage Media Restriction
Setting Utility or power supply to the SD memory card slot on the VAIO Power Management tab in the Power Options window. To change the settings,
see Protecting Data from Unauthorized Use (page 139) or Managing Power with VAIO Power Management (page 136).
Page 61
Inserting a Memory Card
To insert a memory card
1 Locate the SD memory card slot.
2 Hold the memory card with the arrow facing upward and pointing toward the memory card slot.
61
nN
Using Your VAIO Computer
3 Carefully slide the memory card into the slot until it clicks into place.
Do not force the card into the slot.
✍
If the memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
Page 62
Removing a Memory Card
!
Do not remove a memory card while the Media Access indicator light is on. If you do, the card or its data may become damaged.
To remove a memory card
1 Check that the Media Access indicator light is off.
2 Push the memory card in toward the computer.
The memory card ejects.
3 Pull the memory card out of the slot.
62
nN
Using Your VAIO Computer
Page 63
63
nN
Using Your VAIO Computer
Using the Internet
Setting Up a Dial-up Internet Connection
Before you can connect to the Internet, you need to connect your computer to a telephone line with a telephone cable (not
supplied) and have an account with an Internet Service Provider (ISP).

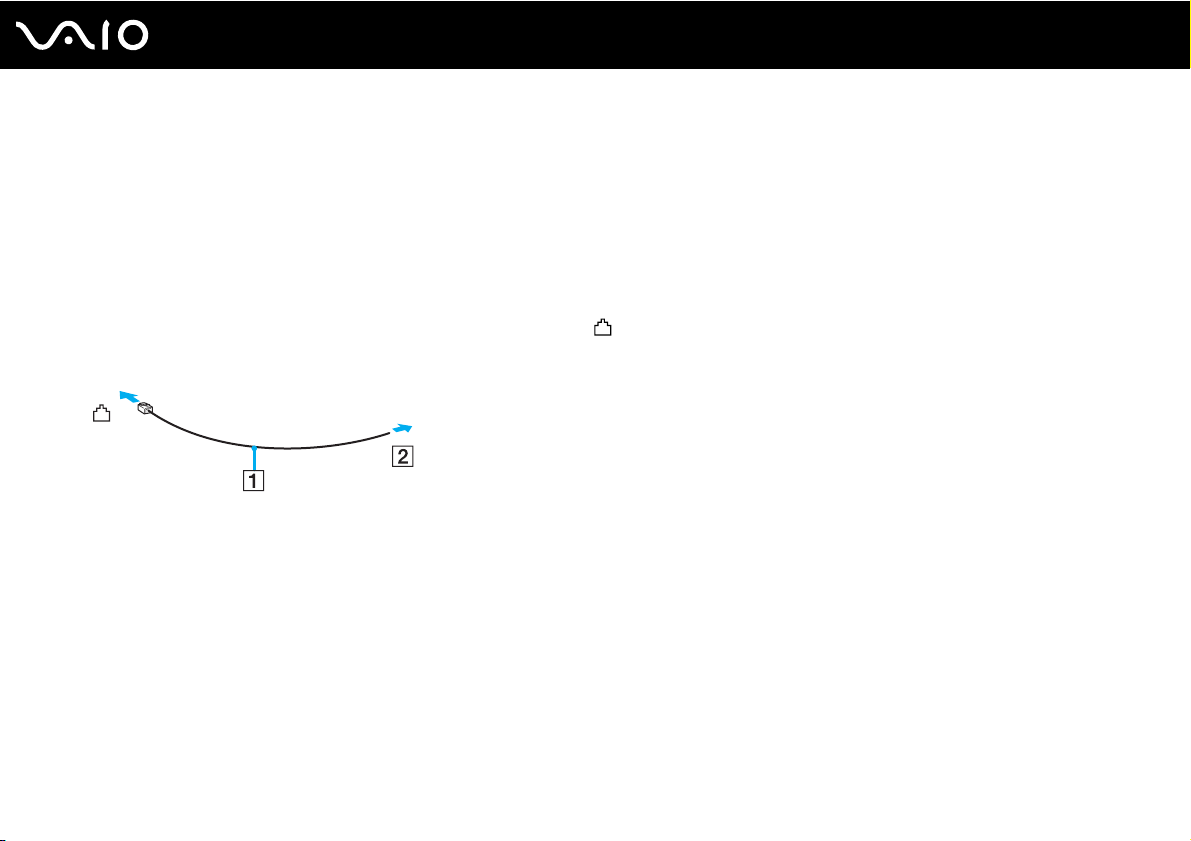

To connect a telephone cable
1 Plug one end of the phone cable (1) into the modem port on the computer.
2 Plug the other end into the wall jack (2).
✍
Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or
a private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal
modem.
If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.
Page 64
To set up a dial-up connection to the Internet
1 Click Start and Control Panel.
2 Click Connect to the Internet under Network and Internet.
The Connect to the Internet window appears.
3 Click Dial-up.
4 Follow the on-screen instructions.
64
nN
Using Your VAIO Computer
Page 65
65
nN
Using Your VAIO Computer
Using Wireless LAN (WLAN)
Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each
other through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless
(radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings.
The Sony WLAN supports all normal Ethernet connectivity, but with the added benefits of mobility and roaming. You can still
access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place
to another.
You can communicate without an access point, which means that you can communicate with a limited number of computers
(ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure network.
✍
In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the
WLAN functionality, read the wireless LAN regulations guide carefully.
WLAN uses the IEEE 802.11a
encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access
(WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based, interoperable security
enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA has been designed to be forward
compatible with the IEEE 802.11i specification. It utilizes the enhanced data encryption TKIP (Temporal Key Integrity Protocol) in addition to user
authentication using 802.1X and EAP (Extensible Authentication Protocol). Data encryption protects the vulnerable wireless link between clients and
access points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption,
virtual private networks, and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and
is also designed to secure all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n draft standard, multi-band and multimode. In addition, based on the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of
Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible
with WPA.
* See the online specifications to see whether your model supports the IEEE 802.11a standard and/or the IEEE 802.11n draft standard.
*
/b/g standard or the IEEE 802.11n* draft standard, which specifies the used technology. The standard includes the
Page 66
66
nN
Using Your VAIO Computer
The IEEE 802.11b/g standard is a wireless LAN standard, using the 2.4 GHz bandwidth. The IEEE 802.11g standard provides high-speed
communications, faster than the IEEE 802.11b standard.
The IEEE 802.11a standard is a wireless LAN standard, using the 5 GHz bandwidth, and provides high-speed communications of up to 54 Mbps.
The IEEE 802.11n draft standard is a wireless LAN standard, using the 2.4 or 5 GHz bandwidth, and provides high-speed communications of up to 144
*
Mbps
on the 2.4 GHz bandwidth or up to 300 Mbps* on the 5 GHz bandwidth.
* Actual communication speed varies depending on your access point settings and so on.
®
Your computer may employ the Intel
Next-Gen Wireless-N technology* compliant with the IEEE 802.11a/b/g standard and the IEEE 802.11n draft
standard.
*Employed only on models that support the IEEE 802.11n draft standard.
Wireless LAN devices using the 2.4 GHz bandwidth and the ones using the 5 GHz bandwidth cannot communicate with each other because the
frequencies are different.
The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference
from other devices that use the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower communication
speed, narrower communication range, or broken wireless connections.
The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device
configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.
The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the
radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.
Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference.
Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with
IEEE 802.11b products. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase
the communication speed.
Page 67
67
nN
Using Your VAIO Computer
Communicating without an Access Point (Ad-hoc)
An ad-hoc network is a network in which a LAN is created only by the wireless devices themselves, with no other central
controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc
network easily at home.
❑ If the wireless connection is initiated by the VAIO computer, channel 11 will be selected by default.
❑ If the wireless connection is initiated by peer wireless LAN equipment, the wireless LAN communication will make use of
the channel selected by the peer wireless LAN equipment.
Page 68
Using Your VAIO Computer
To communicate without an access point (ad-hoc)
!
The IEEE 802.11n draft standard, using the 2.4 or 5 GHz bandwidth, is not available on ad-hoc networks.
1 Turn on the WIRELESS switch.
The Wireless LAN indicator lights up.
If the VAIO Smar t N e t w o r k window is not displayed on the desktop, follow these steps:
1 Click Start, All Programs, and VAIO Control Center.
2 Double-click Network Connections and VAIO Smart Network.
✍
For information on the VAIO Smart Network software, see the help file on the software.
2 Click the button next to or above your desired wireless option(s) in the VAIO Smart Network window.
3 Click Start and Control Panel.
4 Click View network status and tasks under Network and Internet.
5 Click Set up a connection or network on the left pane.
The Set up a connection or network window appears.
6 Select an option to specify the ad-hoc network settings and click Next.
7 Follow the on-screen instructions.
68
nN
✍
See the online specifications to see whether your model supports the Bluetooth functionality, the IEEE 802.11a/b/g standard, and/or the IEEE 802.11n
draft standard.
Page 69
69
nN
Using Your VAIO Computer
Communicating with an Access Point (Infrastructure)
An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access
point (not supplied), for example the Sony Access Point. The access point bridges the wireless and wired LAN and acts as a
central controller for the wireless LAN. The access point coordinates transmission and reception from multiple wireless
devices within a specific range.
The access point will select which channel to use on an infrastructure network.
!
For details on how to select the channel that will be used by the access point, see the manual that came with your access point.
Page 70
Using Your VAIO Computer
To connect to a wireless network
1 Make sure an access point is set up.
See the manual that came with your access point for more information.
2 Turn on the WIRELESS switch.
The Wireless LAN indicator lights up.
If the VAIO Smar t N e t w o r k window is not displayed on the desktop, follow these steps:
1 Click Start, All Programs, and VAIO Control Center.
2 Double-click Network Connections and VAIO Smart Network.
✍
For information on the VAIO Smart Network software, see the help file on the software.
3 Click the button next to or above your desired wireless option(s) in the VAIO Smart Network window.
4 Right-click or on the taskbar and select Connect to a network.
5 Select the desired access point and click Connect.
✍
For WPA-PSK or WPA2-PSK authentication, you must enter a passphrase. The passphrase is case sensitive and must be between 8 and 63
alphanumeric characters long or up to 64 characters long using numbers from 0 to 9 and letters from A to F.
70
nN
See the online specifications to see whether your model supports the Bluetooth functionality, the IEEE 802.11a/b/g standard, and/or the IEEE 802.11n
draft standard.
Page 71
Stopping Wireless LAN Communication
To stop wireless LAN communication
Click the button next to or above the WLAN icon in the VAIO Smart Network window.
!
Turning off the wireless LAN functionality while accessing remote documents, files, or resources may result in data loss.
71
nN
Using Your VAIO Computer
Page 72
72
nN
Using Your VAIO Computer
Using the Bluetooth Functionality
You can establish wireless communication between your computer and other Bluetooth devices such as another computer
or a mobile phone. You can transfer data between these devices without cables and up to 10 meters range in open space.
To start Bluetooth communications
1 Turn on the WIRELESS switch.
The Bluetooth indicator lights up.
If the VAIO Smar t N e t w o r k window is not displayed on the desktop, follow these steps:
1 Click Start, All Programs, and VAIO Control Center.
2 Double-click Network Connections and VAIO Smart Network.
✍
For information on the VAIO Smart Network software, see the help file on the software.
2 Click the button next to or above the Bluetooth icon in the VAIO Smart Network window.
Page 73
73
nN
Using Your VAIO Computer
Notes on using the Bluetooth functionality
❑ The data transfer rate varies, depending on the following conditions:
❑ Obstacles, such as walls, located between devices
❑ Distance between devices
❑ Material used in walls
❑ Proximity to microwaves and cordless telephones
❑ Radio frequency interference and other environmental conditions
❑ Device configuration
❑ Type of software application
❑ Type of operating system
❑ Use of both wireless LAN and Bluetooth functionalities at the same time on your computer
❑ Size of file being exchanged
❑ Note that due to limitations of the Bluetooth standard, large files may occasionally be corrupted during continuous transfer
due to electromagnetic interference in the environment.
❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if
standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange
may not be possible in all situations.
❑ As general characteristics of Bluetooth technology, video and audio may go out of synchronization if you play videos on
your computer with audio output from the connected Bluetooth device.
Page 74
74
nN
Using Your VAIO Computer
❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth
devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous
use of the Bluetooth functionality and wireless communication devices, however, may cause radio interference and result
in poorer communication speeds and distances than the standard values.
✍
Read the Bluetooth regulations guide before using the Bluetooth functionality.
❑ The Bluetooth functionality may not work depending on the third party devices or the software version used by third party
companies.
❑ As general characteristics of Bluetooth technology, connecting multiple Bluetooth devices to your computer may cause
bandwidth congestion, resulting in poor performance of the devices.
Page 75
75
nN
Using Your VAIO Computer
Bluetooth Security
The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to
communicate. With the authentication function, you can avoid any anonymous Bluetooth device to access your computer.
The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be
determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.
✍
The passkey can be different each time, but must be the same at both ends.
For certain devices, such as a mouse, no passkey can be entered.
Page 76
nN
Using Your VAIO Computer
Communicating with Another Bluetooth Device
You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a
mouse, or a digital camera without the use of any cables.
76
To communicate with another Bluetooth device
To communicate with another Bluetooth device, you need first to set up the Bluetooth functionality. For setting up and using
the Bluetooth functionality, search for Bluetooth information using Windows Help and Support. To open Windows Help
and Support, click Start and Help and Support.
Page 77
Stopping Bluetooth Communications
To stop Bluetooth communications
1 Turn off the Bluetooth device that is communicating with your computer.
2 Click the button next to or above the Bluetooth icon in the VAIO Smart Network window.
77
nN
Using Your VAIO Computer
Page 78
78
nN
Using Your VAIO Computer
Using the Bluetooth Headset
The Bluetooth headset (not supplied) will come in handy during a video conference over the Internet using instant messaging
software. For details on using the Bluetooth headset, see the manual that came with your Bluetooth headset.
To connect the headset with your computer
1 Press and hold the headset power button for at least five seconds to turn on the Bluetooth headset.
2 Press and hold the volume buttons for at least five seconds until the indicator light blinks in red and green.
3 Click Start, Control Panel, Hardware and Sound, and Bluetooth Devices.
The Bluetooth Devices window appears.
4 Click Add on the Devices tab.
The Add Bluetooth Device Wizard window appears.
5 Click to select the My device is set up and ready to be found check box and click Next.
The wizard searches for Bluetooth devices in range and lists available devices, if any.
6 Select the device name for your Bluetooth headset and click Next.
7 Enter "0000" for Use the passkey found in the documentation and click Next.
8 Click Finish.
The headset icon appears on the Devices tab in the Bluetooth Devices window.
9 Follow the on-screen instructions when the settings window for the headset appears.
To disconnect the headset from your computer
1 Click Start, Control Panel, Hardware and Sound, and Bluetooth Devices.
The Bluetooth Devices window appears.
2 Select the headset icon and select Disconnect.
3 Click OK.
Page 79
Using Peripheral Devices
You can add functionality to your VAIO computer by using the various ports on the computer.
❑ Connecting a Docking Station (page 80)
❑ Connecting External Speakers (page 88)
❑ Connecting an External Display (page 89)
❑ Selecting Display Modes (page 93)
❑ Using the Multiple Monitors Function (page 94)
❑ Connecting an External Microphone (page 96)
❑ Connecting a Universal Serial Bus (USB) Device (page 97)
❑ Connecting a Printer (page 100)
❑ Connecting an i.LINK Device (page 101)
❑ Connecting to a Network (LAN) (page 103)
79
nN
Using Peripheral Devices
Page 80
80
nN
Using Peripheral Devices
Connecting a Docking Station
Attaching a docking station enables you to connect additional peripherals to your computer, such as a printer and an external
display.
A docking station is not supplied with your computer and is available as an optional accessory.
Locating Ports on the Docking Station
Back
DC IN indicator
A
Illuminates when the docking station is powered.
B IN USE indicator (page 84)
C UNDOCK button (page 84)
D DC IN port (page 81)
E Network (Ethernet) port (1000BASE-T / 100BASE-TX /
10BASE-T) (page 103)
F Hi-Speed USB (USB 2.0) ports
G MONITOR (VGA) port (page 89)
* Support high-/full-/low- speeds.
*
(page 97)
!
The docking station can be powered only through the AC adapter supplied with your computer. Do not unplug the AC adapter from the docking station
and the AC outlet while using the docking station; this may cause data damage or hardware malfunctions.
Page 81
Using Peripheral Devices
Attaching Your Computer to the Docking Station
!
Be sure to install the battery pack before attaching your computer to the docking station.
To attach your computer to the docking station
!
Use the AC adapter supplied with your computer.
Do not move your computer while attached to the docking station; this may detach the docking station and cause damage to both units.
1 Disconnect all peripherals from the computer.
2 Plug one end of the power cord (1) into the AC adapter (2) and the other end into an AC outlet.
3 Plug the cable connected to the AC adapter (2) into the DC IN port (3) on the docking station (4).
81
nN
Page 82
4 Slide open the docking station connector cover on the bottom of the computer.
5 Align the rear bottom corners of the computer with the guides on the docking station.
82
nN
Using Peripheral Devices
Page 83
6 Gently push down the computer until it clicks into place.
7 Lift open the LCD screen lid and turn on the computer.
83
nN
Using Peripheral Devices
Page 84
Using Peripheral Devices
Disconnecting Your Computer from the Docking Station
!
Be sure that no devices connected to the docking station are in use before disconnecting your computer.
Do not disconnect your computer from the docking station when the IN USE indicator is lit. Disconnecting the computer while the IN USE indicator is
lit may result in loss of unsaved data or a failure of the computer.
When the battery pack is running out of power, disconnecting your computer from the docking station may result in loss of unsaved data.
Do not disconnect your computer from the docking station during video playback. Be sure to close video playback software before disconnection.
Once you have completed the steps in To disconnect your computer from the docking station (page 85), make sure to place your computer off the
docking station. Use of the computer still on the docking station may cause unstable operations.
84
nN
Page 85
To disconnect your computer from the docking station
1 Press the UNDOCK button (1) and wait until the IN USE indicator (2) turns off.
✍
If the IN USE indicator is unlit, you do not have to press the UNDOCK button.
85
nN
Using Peripheral Devices
Pressing the UNDOCK button while your computer is in a power saving mode returns the computer to Normal mode first, and then initiates the
disconnection process.
!
Once you have placed your computer back in Normal mode, make sure to place your computer off the docking station. Use of the computer still on the
docking station may cause unstable operations.
Page 86
2 Lift the computer away from the docking station.
3 Close the docking station connector cover on the bottom of the computer.
86
nN
Using Peripheral Devices
Page 87
87
nN
Using Peripheral Devices
Alternatively, you can disconnect the computer from the docking station as follows:
1 Click Start and Undock Computer.
2 Make sure that a message balloon appears and the IN USE indicator turns off; and then lift the computer away from the
docking station.
3 Close the docking station connector cover on the bottom of the computer.
!
It is extremely important to close the docking station connector cover after disconnecting your computer from the docking station. If the cover is left
open, dust may get inside and damage the computer.
✍
To disconnect the docking station completely from AC power, unplug the AC adapter.
Page 88
Connecting External Speakers
You can enhance the sound quality of your computer by connecting external speakers.
To connect external speakers
1 Plug the speaker cable (1) into the headphones jack (2) i.
2 Plug the other end of the speaker cable to the external speaker (3).
3 Turn down the volume of the speakers before you turn them on.
✍
Make sure your speakers are designed for computer use.
88
nN
Using Peripheral Devices
!
Do not place floppy disks on the speakers; their magnetic field may damage the data on the disks.
Page 89
89
nN
Using Peripheral Devices
Connecting an External Display
You can connect an external display (not supplied) to your computer. For example, you can use the computer with a computer
display or a projector.
✍
If disconnecting the external display from the optional docking station does not automatically change the LCD resolution of your computer, change the
current display settings. To change the settings, see Selecting Display Modes (page 93).
Connect the power cord of your external display after connecting all other cables.
Connecting a Computer Display
You can connect a computer display (monitor) either directly to your computer or via the optional docking station.
To connect a computer display
!
The monitor (VGA) port on your computer is not accessible when the computer is attached to the docking station.
1 If necessary, plug one end of the display's power cord (1) into your display, and the other end into an AC outlet.
2 Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the docking station.
Page 90
nN
Using Peripheral Devices
Connecting a Multimedia Computer Display
You can connect a multimedia computer display that includes built-in speakers and a microphone either directly to your
computer or via the optional docking station.
To connect a multimedia computer display
!
The monitor (VGA) port on your computer is not accessible when the computer is attached to the docking station.
1 Plug the power cord of your multimedia computer display (1) into an AC outlet.
2 Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the docking station.
3 Plug the speaker cable (4) into the headphones jack (5) i on the computer.
4 Plug the microphone cable (6) into the microphone jack (7) m on the computer.
90
Page 91
91
nN
Using Peripheral Devices
Page 92
92
nN
Using Peripheral Devices
Connecting a Projector
You can connect a projector (for example, the Sony LCD projector) either directly to your computer or via the optional docking
station.
To connect a projector
!
The monitor (VGA) port on the computer is not accessible when the computer is attached to the docking station.
1 Connect the power cord (1) of your projector into an AC outlet.
2 Plug a display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the docking station.
3 Plug an audio cable (4) (not supplied) into the headphones jack (5) i on the computer.
4 Plug the display cable and the audio cable into the jack and port on the projector (6).
Page 93
93
nN
Using Peripheral Devices
Selecting Display Modes
You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected
to your computer.
If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors
Function (page 94) for more information.
To select a display
!
The monitor (VGA) port on your computer is not accessible when the computer is attached to the docking station.
1 Right-click on the desktop and select Personalize.
2 Click Display Settings.
The Display Settings window appears.
3 Follow the on-screen instructions to change the settings.
✍
You may not be able to display the same contents on your computer screen and the external display or projector at the same time, depending on the
type of your external display or projector.
Before turning on your computer, turn on the external display.
Page 94
94
nN
Using Peripheral Devices
Using the Multiple Monitors Function
The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you
have an external display connected to the monitor (VGA) port, your computer screen and the external display can function
as a single desktop.
You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window
or a toolbar, from one display to the other.
✍
Your external display may not support the Multiple Monitors function.
Certain software applications may not be compatible with Multiple Monitors settings.
Make sure that your computer does not enter Sleep or Hibernate mode while you are using Multiple Monitors mode; otherwise the computer may not
return to Normal mode.
If you set different colors on each display, do not expand a single window across two displays; otherwise your software may not work properly.
Set fewer colors or a lower resolution for each display.
Page 95
To select the Multiple Monitors mode
!
The monitor (VGA) port on your computer is not accessible when the computer is attached to the docking station.
1 Right-click on the desktop and select Personalize.
2 Click Display Settings.
The Display Settings window appears.
3 Follow the on-screen instructions to change the settings.
✍
Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors mode.
95
nN
Using Peripheral Devices
Page 96
96
nN
Using Peripheral Devices
Connecting an External Microphone
If you need to use a sound input device (for example, to chat over the Internet), you need to plug in an external microphone
(not supplied).
To connect an external microphone
Plug the microphone cable (1) into the microphone jack (2) m.
✍
Make sure your microphone is designed for computer use.
Page 97
Using Peripheral Devices
Connecting a Universal Serial Bus (USB) Device
To prevent your computer and/or USB devices from damage, observe the following:
❑ When moving the computer with USB devices connected, avoid any shock or force to the USB ports.
❑ Do not put the computer into a bag or carrying case when it has USB devices connected.
Connecting a USB Mouse
To connect a USB mouse
1 Choose the USB port (1) you prefer to use.
2 Plug the USB mouse cable (2) into the USB port.
You can now use your USB mouse (not supplied) (3).
97
nN
Page 98
Connecting a USB Floppy Disk Drive
You can purchase a USB floppy disk drive and connect it to your computer.
To connect a USB floppy disk drive
1 Choose the USB port (1) you prefer to use.
2 Plug the USB floppy disk drive cable (2) into the USB port.
Your USB floppy disk drive (3) is now ready for use.
!
When using a USB floppy disk drive, do not apply force on the USB port. This may cause a malfunction.
98
nN
Using Peripheral Devices
Page 99
99
nN
Using Peripheral Devices
Disconnecting a USB floppy disk drive
You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is
in a power saving mode (Sleep or Hibernate) may cause the computer to malfunction.
To disconnect a USB floppy disk drive
✍
To disconnect a USB floppy disk drive when your computer is off, skip steps 1 to 8.
1 Close all programs accessing the floppy disk drive.
2 Double-click the Safely Remove Hardware icon on the taskbar.
The Safely Remove Hardware window appears.
3 Select the floppy disk drive you want to unplug.
4 Click Stop.
The Stop a Hardware device window appears.
5 Confirm that the floppy disk drive can be safely removed from the system.
6 Click OK.
A message appears stating it is now safe to remove the hardware device.
7 Click OK.
8 Click Close to close the Safely Remove Hardware window.
9 Disconnect the floppy disk drive from the computer.
Page 100
Using Peripheral Devices
Connecting a Printer
You can connect a Windows-compatible printer to your computer to print documents.
Connecting a Printer Using the USB Port
You can connect a USB printer compatible with your version of Windows to the computer.
To connect a printer using the USB port
1 Plug the power cord (1) of your printer into an AC outlet.
2 Choose the USB port (3) you prefer to use.
3 Plug one end of a USB printer cable (2) (not supplied) into the USB port and the other end to your printer.
100
