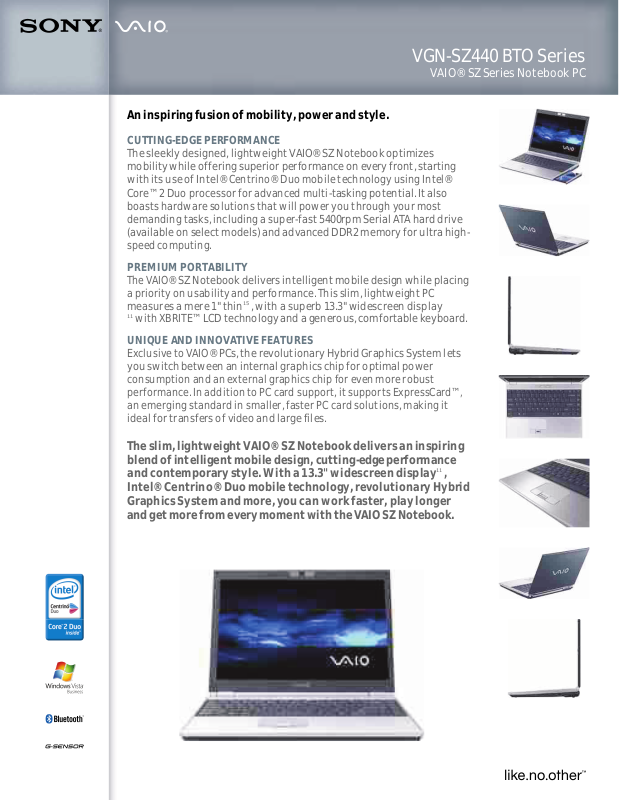

Sony VGN-SZ440, VGN-SZ440N Specifications

VGN-SZ440 BTO Series

VAIO® SZ Series Notebook PC

An inspiring fusion of mobility, power and style.

CUTTING-EDGE PERFORMANCE

The sleekly designed, lightweight VAIO® SZ Notebook optimizes mobility while offering superior performance on every front, starting with its use of Intel®

Centrino® Duo mobile technology using Intel

Core™

2 Duo processor for advanced multi

-tasking potential. It also boasts hardware solutions that will power you through your most demanding tasks, including a super

-fast 5400rpm Serial ATA hard drive (available on select models) and advanced DDR2 memory for ultra highspeed computing.

PREMIUM PORTABILITY

The VAIO

® SZ Notebook delivers intelligent mobile design while placing a priority on usability and performance. This slim, lightweight PC measures a mere 1" thin , with a superb 13.3" widescreen display

with XBRITE™ LCD technology and a generous, comfortable keyboard.

UNIQUE AND INNOVATIVE FEATURES

Exclusive to VAIO

® PCs, the revolutionary Hybrid Graphics System lets you switch between an internal graphics chip for optimal power consumption and an external graphics chip for even more robust performance. In addition to PC card support, it supports ExpressCard™, an emerging standard in smaller, faster PC card solutions, making it ideal for transfers of video and large files.

The slim, lightweight VAIO® SZ Notebook delivers an inspiring blend of intelligent mobile design, cutting-edge performance

and contemporary style. With a 13.3" widescreen display

, Intel® Centrino® Duo mobile technology, revolutionary Hybrid Graphics System and more, you can work faster, play longer and get more from every moment with the VAIO SZ Notebook.

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 01/22/2007

VGN-SZ440 BTO Series

VAIO® SZ Series Notebook PC

Specifications

General

Computer Type:

Notebook

Type of Use:

Ultra Portable

Action Buttons:

S1, S2 (programmable), Wireless LAN On/Off,

Bluetooth® On/Off,

Pointing Device:

Electro-Static touch pad

Security:

Optional Trusted Platform Module (TPM)

Optional Biometric Fingerprint Sensor

Hardware

Keyboard:

QWERTY (86 keys with 3mm stroke and 19.05mm pitch)

Available in black or silver

Camera:

Optional Built-in Camera and microphone

(Camera can only be selected with Blutetooth option)

Processor

Type:

Intel® Core™

2 Duo Processor T7400 (Configuration 1),

Intel® Core™

2 Duo Processor T7200 (Configuration 2), Intel® Core™

2 Duo Processor T5600 (Configuration 3) or Intel® Core™

2 Duo Processor T5500 (Configuration 4)

Speed:

2.16GHz

(Configuration 1), 2GHz

(Configuration 2), 1.83GHz

(Configuration 3) or 1.66GHz

(Configuration 4)

Front Side Bus Speed:

667MHz

L2 Cache:

4MB Advanced Smart Cache (for Configurations 1-2)

2MB (for Configurations 3-4)

Memory

Type:

DDR2

Installed:

2GB (1GB x 2) PC2-4200 or

1GB (1GB x 1) PC2

-4200

Maximum:

2GB

Speed:

533MHz

Hard Drive

Capacity:

200GB

(Configuration 1), 160GB (Configuration 2), 120GB

(Configuration 3), 100GB

(Configuration 4), 80GB

(Configuration 5)

or 60GB

(Configuration 6)

Speed:

4200rpm (Configuration 1) or

5400rpm (Configuration 2-6)

Interface:

Serial ATA

Impact Protection: G-Sensor™

Shock Protection

- Hard Disk Drive

Protection

Optical Drive #1

DVD+R DL Write:

4x max. (DVD±RW drive only)

DVD+R Write:

8x max. (DVD±RW drive only)

DVD+RW Write:

8x max. (DVD±RW drive only)

DVD-R Write:

8x max. (DVD±RW drive only)

DVD-RW Write:

6x max. (DVD±RW drive only)

-R Write: 24x max.

-RW Write: 16x max.

DVD±RW: Yes

(DVD±R DL/DVD±RW)

CD Read:

24x max.

DVD Read: 8x max. DVD-RAM Write: 5x max. DVD-R DL Write:

4x max. (DVD±RW drive only)

DVD-RAM Read: 5x max.

Expansion Slots

Multimedia Card Reader:

Memory Stick DUO™ media with MagicGate® functionality ExpressCard™/

34 Slot: 5-in-1 Memory Card Adaptor (VGP-MCA20)

supporting Memory Stick® media, Memory Stick PRO™

media,

Secure Digital, xD-

Picture Card, and MultiMediaCard (MMC)

PCMCIA (Type II/Type I card slot with CardBus support)

Audio

Sound System:

Sony® Sound Reality™ -

Audio Enhancer

1 1 1 1 2 2 2 2 2 2 4

Display

Screen or Display Technology:

WXGA LCD

Screen Size: 13.3

”

Resolution: 1280x800 XBRITE™ LCD Technology: Yes

Graphics

Processor: NVIDIA® GeForce™

Go 7400 and Intel® Graphics Media

Accelerator 950

Video RAM:

335MB Total Available Graphics Memory

(NVIDIA

GeForce® Go 7400 notebook graphics processing unit)and 224MB Total Available Graphics Memory

(Intel® Graphics Media

Accelerator 950)

Technology:

Hybrid Graphics System

Chipset: Intel® 945GM Interface:

VGA out w/ Smart Display Sensor

Inputs and Outputs

Ethernet Port:

Headphone Jack:

i.LINK® Interface:

1 (4-pin

IEEE 1394)

Memory Stick® Media Slot:

Modem Jack:

Microphone Input: 1 Port Replicator Connector(s):

1 (Bottom)

USB Port(s):

2 (2.0 compliant)

VGA Output(s): 1 DC

-In: 1

Express Card

™

Slot:

Networking/Modem

Ethernet Protocol:

Fast Ethernet (RJ-45)

Ethernet Speed:

10Base

-T/100Base-

Modem Type:

Integrated V.90/V.92 Modem (RJ-11)

Wireless LAN: Intel® PRO/Wireless 3945ABG Network Connection

(802.11a/b/g)

Bluetooth® Technology:

Optional Bluetooth® Technology

or none

Power

Battery Type:

Standard Capacity Lithium-ion Battery (VGP-BPS2C)

Estimated Battery Life:

2.0-4.5 hours

(Standard Battery)

Power Requirements: 105W+10%

Software

Operating System:

Microsoft® Windows Vista™ Business

Internet Services:

AOL® 90-Day Risk Free Trial - New Users Only

Supplied Software:

Microsoft® Works 8.5

60-

Day Trial Version of Microsoft® Office 2007

Sony® Original Software:

Click to DVD® -

DVD Creation (Only available if DVD/CD Burner option is selected) *Please access VAIO® Help and Support from your PC for a complete list of software applications and trials.

Security and Anti-Virus Software:

Norton® Internet Security™

2007 60-

Day trial with spyware protection

Service and Warranty Information

Limited Warranty:

1 Year Limited Warranty

Telephone Support:

1 year (toll-free technical telephone

assistance, available 24/7)

Online and Email Support:

Support available from

http://www.esupport.sony.com

Dimensions

Weight:

4.07 lbs. with standard battery (weight is approximate and

may vary)

Measurements: 12.5”(

W) x 1.0”-

1.5”(

H) x 9.3”(

Supplied Accessories

AC adapter (VGP-AC19V10) Power Cord Standard Capacity Lithium-ion battery (VGP-BPS2C)

13 6 3 5 7

10 8 9

Memory Card Adapter (VGP-MCA20)

Optional Accessories

Port Replicator (VGP-PRSZ1) Additional Standard Capacity Battery (VGP-BPS2C) Large Capacity Battery (VGP-BPL2C) AC Adapter (VGP-AC19V10) Battery Charger (VGP-BC1) Bluetooth® Laser Mouse (VGP-BMS33/B) Neoprene Notebook & AC Adapter (VGP-AMC1)

Color:

Charcoal Black Magnesium Casing

1. GHz denotes microprocessor internal clock speed; other factors may affect application performance. CPU speed will be reduced under certain operating conditions.

2. GB means one billion bytes when referring to hard drive capacity. Accessible capacity may vary. A portion of hard disk space is reserved as a recovery partition.

3. Requires compatible wireless LAN access point, sold separately. Internet connection may require fees.

4. DVD Media/Formats are not universally compatible.

5. Interoperability among Bluetooth® devices varies.

6. i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connector. All products with an i.LINK connector may not communicate with each other.

7. Actual battery life may vary based on product settings, usage patterns, battery and environmental conditions.

8. See actual limited warranty for details. For a copy of Sony’s warranty, please visit www.sony.com/pcsupport, call toll-free 888-476-6972 (888-4SONYPC), or write to Sony Electronics, 12451 Gateway Boulevard, Fort Myers, FL

33913.

9. For certain third party software applications, Sony provides first level Phone Support. Additional telephone support may be available from the applicable 3rd party vendor. Availability and schedule for any such support is determined by the applicable software vendor.

10. The Microsoft Office 2007 60-Day Trial software is intended for evaluation purposes only. This trial software is installed on your system and you must activate the software before you can use it. Product activation procedures will be detailed during initial launch of the software; activation requires Internet access. This software has an expiration date of 60 days from date of first use, at which time the software will operate under reduced-functionality mode, limiting end

use options and operations.

11. Viewable area measured diagonally.

12. Broadband Internet service required along with third-party services which may require a subscription fee or other service fee.

13. Total Availble Graphics Memory refers to the new Windows Vista classification of graphics memory, witch is the total of Dedicated Video Memory and Shared System Memory. Shared System Memory veries depending on the operating condition and system memory size.

14. Does not support Memory Stick media and Memory Stick PRO™ media using the MagicGate® function or high-speed data transfer. Supports memory cards with capacitities up to 1GB. Does not support 5.0V SmartMedia media or the ID function of SmartMedia media with IDs. Does not support the SD Memory Card media copyright protection function. This adapter has been tested with only Sony® branded Memory Stick PRO™ media. Sony® branded Memory Stick PRO™ media is recommended for use with this adapter.

15. Measured at its narrowest point.

Computer Interface: The computer industry lacks standards, and therefore, there are a multitude of varying software packages and add-on hardware options. This personal computer is not manufactured to operate any specific software, and Sony does not and cannot make any warranty or representation with respect to the performance of this product with any particular software packages and/or non-Sony add-on hardware options except those mentioned in this document. Sony hereby disclaims any representations or warranty that this product is compatible with any combination of products you may choose to connect. While Sony representatives or Sony authorized dealers may be able to assist you and may make recommendations, they are NOT authorized to vary or waive this disclaimer. Purchasers must determine for themselves the suitability and compatibility of the hardware and software in each and every particular instance. Software titles pre-installed on the Sony Notebook Computer are subject to change without notice. Simulated graphic shown on display. Pre

installed software may not be identical to retail versions or have all documentation. This product meets the standards of the International Energy Star Program for energy efficiency. Features and specifications are subject to change without notice. Non-metric weights and measurements are approximate. ©2007 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, i.LINK, Memory Stick, VAIO, XBRITE, Memory Stick PRO, Memory Stick PRO Duo, MagicGate, Click to DVD, G-Sensor, Sound Reality and like.no.other are trademarks of Sony. Intel and Centrino are registered trademarks and Core is a trademark of Intel Corporation. Microsoft and Windows are registered trademarks and Windows Vista is a trademark of Microsoft Corporation. All other trademarks are trademarks of their respective owners. Printed in U.S.A. 01/07.
