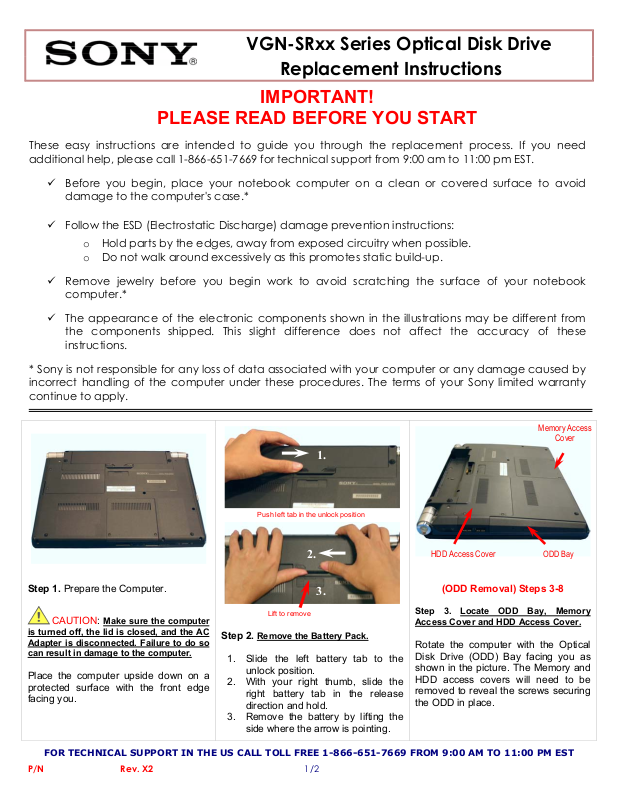

Sony VGN-SR499DEB, VGN-SR499DDB, VGN-SR499DCB, VGN-SR490J, VGN-SR420J Replacement Instructions

...

VGN-SRxx Series Optical Disk Drive

.3.

Replacement Instructions

PLEASE READ BEFORE YOU START

These easy instructions are intended to guide you through the replacement process. If you need additional help, please call 1-866-651-7669 for technical support from 9:00 am to 11:00 pm EST.

9 Before you begin, place your notebook computer on a clean or covered surface to avoid

damage to the computer's case.*

9 Follow the ESD (Electrostatic Discharge) damage prevention instructions:

9 Remove jewelry before you begin work to avoid scratching the surface of your notebook

9 The appearance of the electronic components shown in the illustrations may be different from

* Sony is not responsible for any loss of data associated with your computer or any damage caused by incorrect handling of the computer under these procedures. The terms of your Sony limited warranty continue to apply.

o Hold parts by the edges, away from exposed circuitry when possible. o Do not walk around excessively as this promotes static build-up.

computer.*

the components shipped. This slight difference does not affect the accuracy of these instructions.

IMPORTANT!

Memory Access

Cover

Step 1. Prepare the Computer.

CAUTION: Make sure the computer

is turned off, the lid is closed, and the AC Adapter is disconnected. Failure to do so can result in damage to the computer.

Place the computer upside down on a protected surface with the front edge facing you.

Push left tab in the unlock position

Step 2. Remove the Battery Pack.

1. Slide the left battery tab to the

2. With your right thumb, slide the

3. Remove the battery by lifting the

Lift to remove

unlock position.

right battery tab in the release direction and hold.

side where the arrow is pointing.

HDD Access Cover

Step 3. Locate ODD Bay, Memory Access Cover and HDD Access Cover.

Rotate the computer with the Optical Disk Drive (ODD) Bay facing you as shown in the picture. The Memory and HDD access covers will need to be removed to reveal the screws securing the ODD in place.

(ODD Removal) Steps 3-8

ODD Bay

FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST

P/N Rev. X2 1/2

VGN-SRxx Series Optical Disk Drive Replacement Instructions

Step 4. Using the magnetic screwdriver,

loosen the four screws securing the Memory and HDD access covers.

Step 7. To initiate the removal of the ODD

Bay, pull slightly the ODD door as shown in the picture.

Step 5.

access covers. Start by lifting from the side where the screws held them in place.

Remove the Memory and HDD

Step 8. With even force, slide out the ODD

as shown. Some force may be required to unlock the ODD from the connector.

Step 6.

in the picture. These are the screws that secure the ODD in place.

Step 9. Hold the new ODD Bay by the

edges and align it with the opening.

IMPORTANT! Install the new ODD in the correct position as shown in picture.

Remove the two (2) screws shown

(ODD Reinstallation) Steps 9-12

Step 10. Make sure the new ODD Bay is

seated flush on the edge of the computer.

FOR TECHNICAL SUPPORT IN THE US CALL TOLL FREE 1-866-651-7669 FROM 9:00 AM TO 11:00 PM EST

P/N Rev. X2 2/2

Step 11.

securing the ODD in place.

Reinstall the two (2) screws

Step 12. Reinstall the Memory and HDD

access covers.

Reinstall the battery pack. Return the old ODD to Sony following the included shipping instructions.
