User Guide
Personal Computer
VGN-NS300 Series
N
Page 2
Contents
2
nN
Before Use.......................................................................... 4
Finding More about Your VAIO Computer .................... 5
Ergonomic Considerations............................................ 9
Getting Started.................................................................. 11
Locating Controls and Ports........................................ 12
About the Indicator Lights ........................................... 18
Connecting a Power Source ....................................... 19
Using the Battery Pack................................................ 20
Shutting Down Your Computer Safely ........................ 27
Updating Your Computer ............................................ 28
Using Your VAIO Computer.............................................. 29
Using the Keyboard.....................................................30
Using the Touch Pad................................................... 32
Using Special-function Buttons ...................................33
Using the Built-in MOTION EYE Camera....................34
Using the Optical Disc Drive ....................................... 35
Using the Memory Stick .............................................. 41
Using Other Modules / Memory Cards........................ 46
Using the Internet ........................................................ 51
Using the Network (LAN) ............................................ 53
Using the Wireless LAN ..............................................54
Using Peripheral Devices..................................................58
Connecting External Speakers or Headphones ..........59
Connecting an External Display ..................................60
Selecting Display Modes .............................................63
Using the Multiple Monitors Function ..........................65
Connecting an External Microphone ...........................68
Connecting a USB Device ...........................................69
Connecting an i.LINK Device.......................................71
Customizing Your VAIO Computer....................................73
Setting the Password...................................................74
Using the VAIO Control Center ...................................79
Using the Power Saving Modes ..................................80
Using the VAIO Power Management...........................85
Upgrading Your VAIO Computer.......................................87
Adding and Removing Memory ...................................88
Page 3
3
nN
Precautions....................................................................... 94
Handling the LCD Screen ........................................... 95
Using the Power Source ............................................. 96
Handling Your Computer.............................................97
Handling the Built-in MOTION EYE Camera............. 100
Handling Discs ..........................................................101
Using the Battery Pack..............................................102
Using Headphones....................................................104
Handling the Memory Stick ....................................... 105
Handling the Built-in Storage Device ........................ 106
Troubleshooting .............................................................. 107
Computer .................................................................. 109
System Security ........................................................115
Battery....................................................................... 116
Built-in MOTION EYE Camera.................................. 118
Internet ...................................................................... 120
Networking ................................................................ 122
Optical Discs ............................................................. 125
Display ...................................................................... 129
Printing ...................................................................... 133
Microphone ............................................................... 134
Speakers ................................................................... 135
Touch Pad................................................................. 136
Keyboard................................................................... 137
Floppy Disks ..............................................................138
Audio/Video ...............................................................139
Memory Stick .............................................................141
Peripherals ................................................................142
Trademarks .....................................................................143
Notice ..............................................................................145
Page 4
Before Use >
nN
Before Use
Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal
computing experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
Information in the supplied manuals including this User Guide is intended for users of the VAIO computers with the Microsoft® Windows Vista®
32-bit operating system. You may find differences in the information when your computer comes preinstalled with the 64-bit operating system.
How to find specifications
Some features, options, and supplied items may not be available on your computer.
To find out about the configuration of your computer, visit the Sony online support web sites at the following URLs:
❑ For customers in USA
http://esupport.sony.com/EN/VAIO/
❑ For customers in Canada
http://www.sony.ca/support/
❑ For customers in Spanish-speaking Latin American countries or areas
http://esupport.sony.com/LA/
❑ For customers in Brazil
http://esupport.sony.com/BR/
4
Page 5
Before Use >
Finding More about Your VAIO Computer
Finding More about Your VAIO Computer
This section provides support information about your VAIO computer.
1. Printed Documentation
❑ Quick Start Guide — An overview of components connection, set-up information, etc.
❑ Safety Information — Safety guidelines and owner information.
2. On-screen Documentation
❑ Help and Support — General information and technical assistance for your VAIO computer.
To access Help and Support:
1 Click Start and Help and Support.
2 Choose from the following categories to find the answers you need.
5
nN
Get started with my VAIO Get help with Internet and wireless setup, security setup, personalizing your VAIO computer, and creating
Use my VAIO Access interactive help in the form of VAIO tutorials, how-to articles, the VAIO technology page,
Troubleshoot my VAIO Maintain and troubleshoot your VAIO computer with VAIO Care, system restore, backup and recovery, and
recovery discs and more.
specifications, and system and software information.
You can find useful documentation such as below:
- VAIO User Guide (This manual)
- VAIO Recovery Center User Guide - Information about restoring individual software programs,
hardware drivers, and drive partition(s) or your entire built-in storage device to the original factory settings
- Software Information
contact Sony support.
Page 6
Before Use >
Finding More about Your VAIO Computer
6
nN
❑ Program help files — May be included with the preinstalled programs on your computer. You may be able to access the
help files from the help menu on a specific program.
™
❑ SmartWi
Connection Utility Help (Selected models only) — Information about setting up Bluetooth®, wireless LAN,
GPS, and wireless WAN functions.
Features and options may not be available on your computer.
See the specifications to find out about configuration of your computer.
To access this on-screen guide:
1 Click Start, All Programs, and SmartWi Connection Utility.
2 Click SmartWi Connection Utility Help.
Page 7
Before Use >
Finding More about Your VAIO Computer
3. Support Web Sites
❑ Sony online support web site
The Sony online support web site provides instant access to information on commonly encountered problems. Type a
description of the problem and the Knowledge Database searches for the corresponding solutions online.
❑ For customers in USA
http://esupport.sony.com/EN/VAIO/
❑ For customers in Canada
http://www.sony.ca/support/
❑ For customers in Spanish-speaking Latin American countries or areas
http://esupport.sony.com/LA/
❑ For customers in Brazil
http://esupport.sony.com/BR/
❑ Operating system online support web site
Your computer comes preinstalled with a Microsoft Windows operating system. For operating system support, you can
visit Microsoft customer support at http://support.microsoft.com/directory/
.
7
nN
Page 8
Before Use >
Finding More about Your VAIO Computer
8
nN
4. Customer Information Center
If you do not find the information you are looking for at our site, you may call Sony directly. You can find the contact numbers
on the Sony online support web site. In order to receive the fastest and most efficient services, have the following information
readily available:
1 Your VAIO computer model
You can find it at the lower right corner of the display on the computer.
2 Your computer's serial number
You can find it on the bottom, the back panel, or inside the battery compartment of your Sony VAIO computer. The serial
number is the last 7 digits of the number below the barcode.
3 The operating system on your computer
4 The hardware component or the software program that is causing the problem
5 A brief description of the problem
5. In Store Service & Support (available in USA only)
Make an appointment with a Sony certified technician at a U.S. Sony Style store and get personalized service and support
for your VAIO PC. Sony Style Backstage Technicians can assist with the set up of your new VAIO PC, system optimization,
data rescue, and any repair service you might need.
Visit the web site at www.sonystyle.com/backstage
to find the nearest location.
Page 9
Before Use >
Ergonomic Considerations
9
nN
Ergonomic Considerations
You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations for both stationary and portable environments:
❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your
wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms
hang naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain
eyes, muscles, or tendons.
❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.
Page 10
Before Use >
Ergonomic Considerations
10
nN
❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display
as well.
❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.
Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.
Page 11
Getting Started >
Getting Started
This section describes how to get started using your VAIO computer.
!
Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Be sure to start
up your computer with only the supplied accessories connected and set up your system. Upon completion, connect one device (for example, a printer,
an external hard disk drive, a scanner, and so on) at a time, following the manufacturers' instructions.
❑ Locating Controls and Ports (page 12)
❑ About the Indicator Lights (page 18)
❑ Connecting a Power Source (page 19)
❑ Using the Battery Pack (page 20)
❑ Shutting Down Your Computer Safely (page 27)
❑ Updating Your Computer (page 28)
11
nN
Page 12
Getting Started >
Locating Controls and Ports
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
Front
A Muting (S1) button (page 33)
B AV MO DE button (page 33)
C Num lock indicator (page 18)
D Caps lock indicator (page 18)
E Scroll lock indicator (page 18)
F Power button
G LCD screen (page 95)
H Built-in speakers (stereo)
I Keyboar d (page 30)
J Touch pad (page 32)
12
nN
Page 13
Getting Started >
Locating Controls and Ports
13
nN
A Built-in MOTION EYE camera (page 34)
B Built-in MOTION EYE camera indicator (page 18)
C Built-in microphone (monaural)
D WIRELESS switch (page 54)
E WIRELESS indicator (page 18)
F SD memory card slot (page 48)
G SD memory card indicator (page 18)
H Power indicator (page 18)
I Charge indicator (page 18)
J Disc drive indicator (page 18)
K Memory Stick indicator (page 18)
L Memory Stick slot
* Your computer supports both the standard-size Memory Stick and the Duo-
size Memory Stick.
*
(page 41)
Page 14
Getting Started >
Locating Controls and Ports
Back
A DC IN port (page 19)
B Network (Ethernet) port (page 53)
C Modem port (page 51)
14
nN
Page 15
Getting Started >
Locating Controls and Ports
Right
15
nN
A Hi-Speed USB (USB 2.0) ports
B Optical disc drive (page 35)
C Optical disc drive indicator (page 18)
D Drive eject button (page 35)
E Manual eject hole (page 125)
F Security slot
* Support high-/full-/low- speeds.
*
(page 69)
Page 16
Getting Started >
Locating Controls and Ports
Left
A Air vent
B Monitor port (page 60)
C Microphone jack (page 68)
D Headphones jack (page 59)
E Hi-Speed USB (USB 2.0) ports
F i.LINK 4-pin (S400) port (page 71)
G ExpressCard/34 slot (page 46)
* Support high-/full-/low- speeds.
*
(page 69)
16
nN
Page 17
Getting Started >
Locating Controls and Ports
Bottom
A Battery connector (page 20)
B Air vents
C Memory module compartment cover (page 90)
17
nN
Page 18
Getting Started >
About the Indicator Lights
About the Indicator Lights
Your computer is equipped with the following indicator lights:
Indicator Functions
Power 1 Illuminates in green when the computer is on, blinks slowly in orange while the computer is in Sleep mode, and
Charge
Built-in MOTION EYE camera Illuminates while the built-in MOTION EYE camera is in use.
Memory Stick
SD memory card Illuminates when data is read from or written to the card in the SD memory card slot. (Do not place the computer
Optical disc drive Illuminates while the drive is reading or writing data. When the indicator is unlit, the optical disc media is not in
Disc drive
Num lock
Caps lock
Scroll lock
WIRELESS Illuminates when one or more wireless options are enabled.
turns off when the computer is off or in Hibernate mode.
Illuminates while the battery pack is charging. See Charging the Battery Pack (page 23) for more information.
Illuminates when data is read from or written to the Memory Stick in the Memory Stick slot. (Do not place the
computer into Sleep mode or turn it off when this indicator is lit.) When the indicator is unlit, the Memory Stick
is not in use.
into Sleep mode or turn it off when this indicator is lit.) When the indicator is unlit, the memory card is not in use.
use.
Illuminates while the built-in storage device or the optical disc drive is running to read or write data.
Do not place the computer into Sleep mode or turn it off when this indicator is lit.
Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator is unlit.
Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator is lit. Press the key a second time to turn off the indicator. Normal typing resumes when the
Caps lock indicator is unlit.
Press the Fn+Scr Lk keys to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator is unlit. The Scr Lk key functions differently depending on the program you are using and does not
work with all programs.
18
nN
Page 19
Getting Started >
Connecting a Power Source
Connecting a Power Source
You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.
Using the AC Adapter
✍
Use only the supplied AC adapter for your computer.
To use the AC adapter
1 Plug one end of the power cord (1) into the AC adapter (3).
2 Plug the other end of the power cord into an AC outlet (2).
3 Plug the cable connected to the AC adapter (3) into the DC IN port (4) on the computer.
!
The shape of the DC In plug varies depending on the AC adapter.
19
nN
✍
To disconnect your computer completely from AC power, unplug the AC adapter.
Make sure that the AC outlet is easily accessible.
If you do not intend to use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 83).
Page 20
Getting Started >
Using the Battery Pack
Using the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of delivery.
Installing the Battery Pack
To install the battery pack
1 Turn off the computer and close the LCD screen lid.
2 Slide the battery LOCK switch (1) inward.
20
nN
Page 21
Getting Started >
Using the Battery Pack
nN
3 Slide the battery pack diagonally into the battery compartment until the projections (2) on either side of the battery
compartment fit into the U-shaped cuts (3) on either side of the battery pack.
21
Page 22
Getting Started >
Using the Battery Pack
4 Push the battery pack down into the compartment until it clicks into place.
5 Slide the battery LOCK switch outward to secure the battery pack on the computer.
✍
When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.
!
This computer is designed to operate only with genuine Sony battery packs.
22
nN
Page 23
Getting Started >
Using the Battery Pack
Charging the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of delivery.
To charge the battery pack
1 Install the battery pack.
2 Connect the computer to a power source with the AC adapter.
The charge indicator light turns on while the battery pack is charging. When the battery pack charges close to the
maximum charge level you selected with the battery charge functions, the charge indicator turns off. To select your desired
maximum charge level, see Using the Battery Charge Functions (page 25).
Charge indicator status Meaning
Lit in orange The battery pack is charging.
Blinks along with the green power
indicator
Blinks along with the orange power
indicator
Blinks fast in orange A battery error has occurred due to a failed battery
The battery pack is running out of power. (Normal
mode)
The battery pack is running out of power. (Sleep mode)
pack or an unlocked battery pack.
23
nN
!
Charge the battery pack as described in this manual from your first battery charge.
Page 24
Getting Started >
Using the Battery Pack
✍
Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the
computer.
If the battery charge level falls below 10%, you should either connect the AC adapter to recharge the battery pack or shut down your computer and
install a fully charged battery pack.
Your computer is supplied with a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect
the life of battery.
While some software applications or peripheral devices are in use, your computer may not enter Hibernate mode even when the remaining battery life
is short. To avoid loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such
as Sleep or Hibernate.
If the battery pack wears out when the computer enters Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible.
To avoid loss of data, you should save your data frequently.
When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.
24
nN
Page 25
Getting Started >
Using the Battery Pack
25
nN
Using the Battery Charge Functions
You can customize the current battery charging method using the Battery Charge Functions. To make the life of battery
longer, enable the battery care function.
To enable the battery care function
1 Click Start, All Programs, and VAIO Control Center.
2 Click Power Management and then Battery Charge Functions.
3 Click Advanced.
4 Click to select the Enable Battery Care Function check box.
5 Select the desired maximum charge level.
6 Click OK.
To check the battery charge capacity
Follow steps 1 to 3 in To enable the battery care function above and check detailed information. If the battery charge
capacity is low, replace the battery pack with a new genuine Sony battery pack.
Using the Battery Life Conserving Wallpaper
You can conserve your battery life just by setting the specific wallpaper as your desktop background.
To set the battery life conserving wallpaper
1 Click Start, All Programs, and VAIO Control Center.
2 Click Display and then Long Battery Life Wallpaper Setting.
3 Click Set Long Battery Life Wallpaper.
At the confirmation prompt, click OK.
Page 26
Getting Started >
Using the Battery Pack
26
nN
Removing the Battery Pack
!
You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack
while the computer is in Sleep mode.
To remove the battery pack
1 Turn off the computer and close the LCD screen lid.
2 Slide the battery LOCK switch (1) inward.
3 Slide and hold the battery RELEASE latch (2) inward, put your fingertip underneath the tab (3) on the battery pack, and
lift the battery pack in the direction of the arrow, and then slide it away from the computer.
Page 27
Getting Started >
Shutting Down Your Computer Safely
27
nN
Shutting Down Your Computer Safely
To avoid losing unsaved data, be sure to shut down your computer properly, as described below.
To shut down your computer
1 Turn off any peripherals connected to the computer.
2 Click Start, the arrow next to the Lock button, and then Shut Down.
3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off
automatically.
The power indicator light turns off.
Page 28
Getting Started >
Updating Your Computer
28
nN
Updating Your Computer
Be sure to install the latest updates on your computer with the following software applications so that the computer can run
more efficiently.
❑ Windows Update
Click Start, All Programs, and Windows Update and then follow the on-screen instructions.
❑ VAIO Update 4
Click Start, All Programs, VAIO Update 4, and VAIO Update Options and then follow the on-screen instructions.
!
Your computer must be connected to the Internet to download the updates.
Page 29
Using Your VAIO Computer >
Using Your VAIO Computer
This section describes how to get the most out of using your VAIO computer.
❑ Using the Keyboard (page 30)
❑ Using the Touch Pad (page 32)
❑ Using Special-function Buttons (page 33)
❑ Using the Built-in MOTION EYE Camera (page 34)
❑ Using the Optical Disc Drive (page 35)
❑ Using the Memory Stick (page 41)
❑ Using Other Modules / Memory Cards (page 46)
❑ Using the Internet (page 51)
❑ Using the Network (LAN) (page 53)
❑ Using the Wireless LAN (page 54)
29
nN
Page 30
Using Your VAIO Computer >
Using the Keyboard
Using the Keyboard
Your keyboard has additional keys that perform model-specific tasks.
Combinations and Functions with the Fn Key
✍
Some keyboard functions can be used only after the operating system is finished launching.
Combinations/Feature Functions
Fn + % (F2): speaker switch Turns on and off the built-in speakers and the headphones.
Fn + 2 (F3/F4): speaker volume Changes the volume level.
Fn + 8 (F5/F6): brightness control Changes the LCD brightness of your computer screen.
Fn + /T (F7): display output
Fn + / (F9/F10): zoom
To increase the volume, keep pressing the Fn+F4 keys or press the Fn+F4 keys and then the
M or , key.
To decrease the volume, keep pressing the Fn+F3 keys or press the Fn+F3 keys and then the
m or < key.
To increase lighting intensity, keep pressing the Fn+F6 keys or press the Fn+F6 keys and then
the M or , key.
To decrease lighting intensity, keep pressing the Fn+F5 keys or press the Fn+F5 keys and then
the m or < key.
Toggles among your computer screen, an external display, and simultaneous output to both.
Changes the size of an image or a document displayed on some software.
To make the view look smaller and further away (zoom out), press the Fn+F9 keys.
To make the view look bigger and closer (zoom in), press the Fn+F10 keys.
See the help file included with the VAIO Control Center for more information.
30
nN
Page 31
Using Your VAIO Computer >
Using the Keyboard
Combinations/Feature Functions
Fn + (F12): hibernate
31
nN
Provides the lowest level of power consumption. When you execute this command, the states
of the system and the connected peripheral devices are saved to the built-in storage device and
the system power is turned off. To return the system to its original state, use the power button
to turn on the power.
For details on power management, see Using the Power Saving Modes (page 80).
Page 32
Using Your VAIO Computer >
Using the Touch Pad
Using the Touch Pad

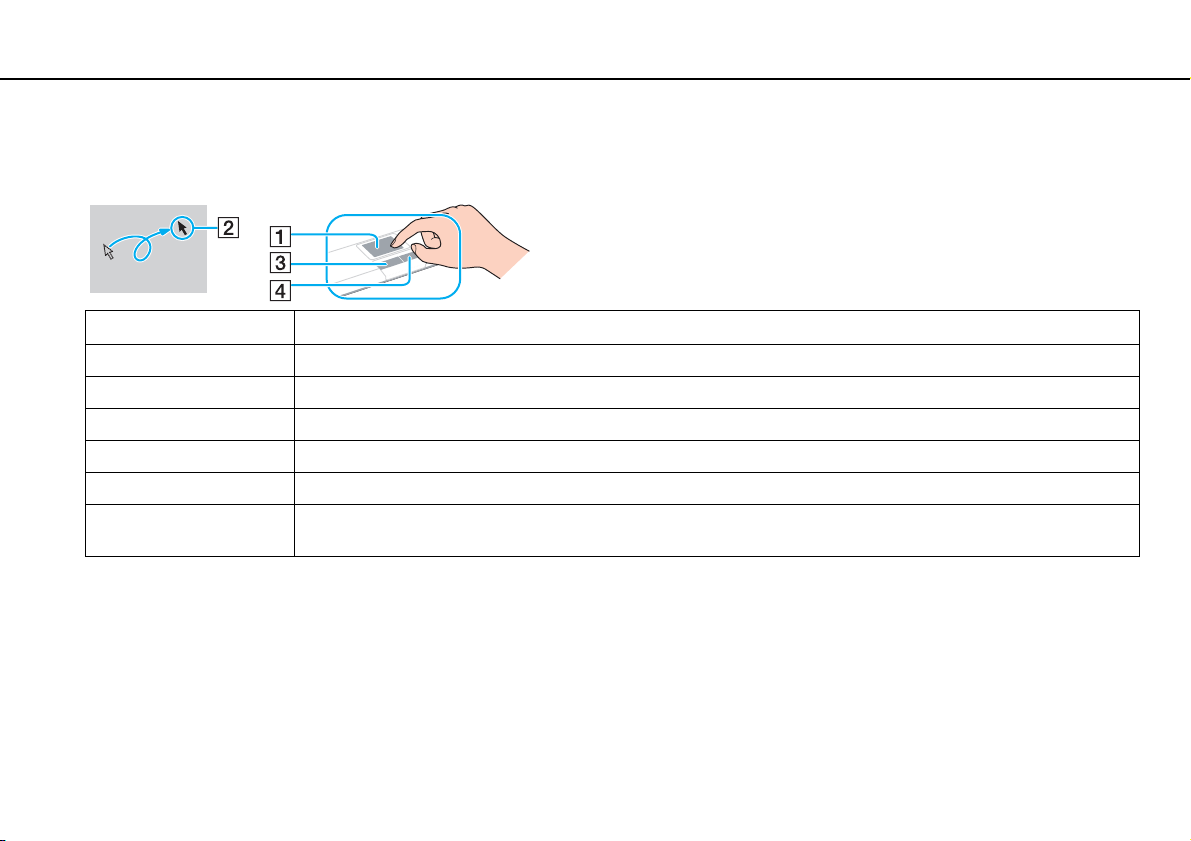

You can point to, select, drag, and scroll objects on the screen using the touch pad.
Action Description
Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object.
Click Press the left button (3) once.
Double-click Press the left button twice.
Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.
Drag Slide your finger on the touch pad while pressing the left button.
Scroll Slide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to scroll
horizontally (the scroll function is available only with applications that support a touch pad scroll feature).
✍
You can disable/enable the touch pad while a mouse is connected to your computer. To change the touch pad settings, use the VAIO Control Center.
32
nN
!
Be sure to connect a mouse before disabling the touch pad. If you disable the touch pad before connecting a mouse, you will be able to use only the
keyboard for pointer operations.
Page 33
Using Your VAIO Computer >
Using Special-function Buttons
Using Special-function Buttons
Your computer is equipped with special buttons to help you use specific functions of the computer.

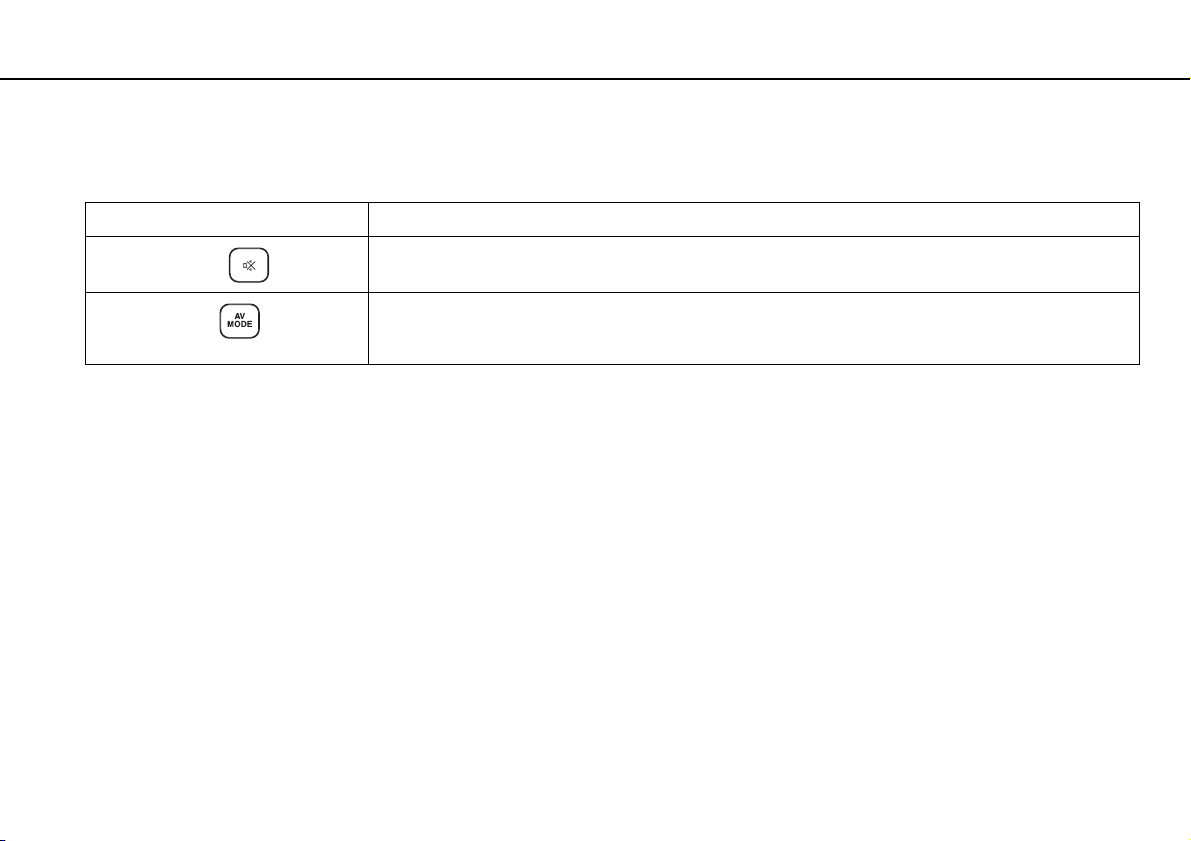

Special-function button Functions
Executes the task that is assigned to the button by default.
Muting (S1) button
AV M OD E button
You can change the default assignment with the VAIO Control Center.
Launches the VAIO Launcher for selecting the desired software.
You can change the default software options in the VAIO Launcher. To do so, press and hold the AV M OD E
button to display the setup window.
33
nN
Page 34
Using Your VAIO Computer >
Using the Built-in MOTION EYE Camera
Using the Built-in MOTION EYE Camera
Your computer is equipped with a built-in MOTION EYE camera.
With the preinstalled image capture software, you can perform the following operations:
❑ Capturing still images and movies
❑ Sensing and capturing object movements for monitoring purposes
❑ Editing captured data
✍
Turning on the computer activates the built-in MOTION EYE camera.
Video conference is possible with the appropriate software.
!
Launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in MOTION EYE camera.
Do not place your computer into Sleep or Hibernate mode while you are using the built-in MOTION EYE camera.
You cannot operate the built-in MOTION EYE camera with the Microsoft Windows Movie Maker software.
To use the preinstalled image capture software
1 Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2.
2 Click the desired icon in the main window.
For detailed information on how to use the software, see the help file included with the software.
34
nN
✍
When capturing an image or a movie in a dark place, click the Capture icon or the Record icon in the main window, and then click the WebCam Settings
icon and select the low light or low light compensation option in the properties window.
Page 35
Using Your VAIO Computer >
Using the Optical Disc Drive
35
nN
Using the Optical Disc Drive
Your computer is equipped with an optical disc drive.
Features and options in this section may not be available on your computer.
See the specifications to find out about the configuration of your computer.

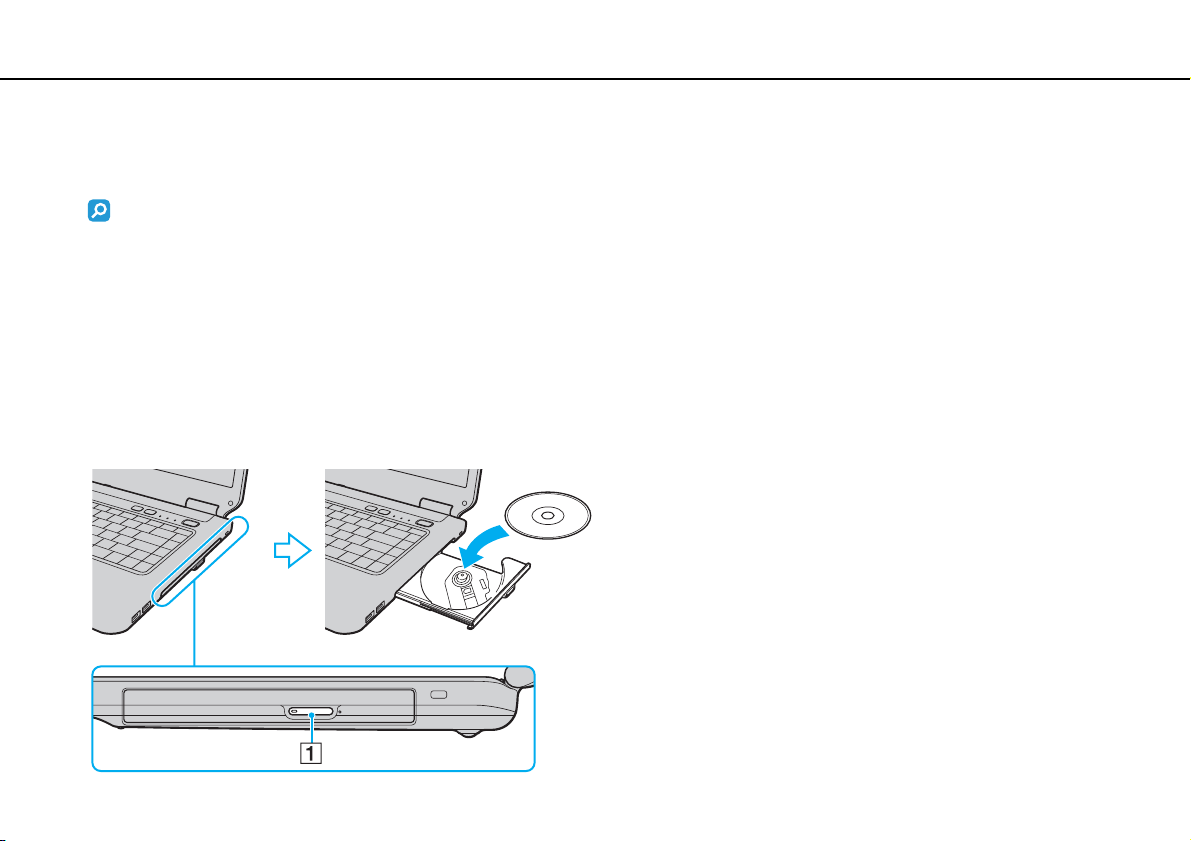

To insert a disc
1 Turn on the computer.
2 Press the drive eject button (1) to open the drive.
The drive tray slides out.
3 Place a disc in the middle of the drive tray with the label side facing upward and gently push it down until the disc clicks
into place.
Page 36
Using Your VAIO Computer >
Using the Optical Disc Drive
4 Close the drive tray by pushing it in gently.
!
Do not remove the optical disc when your computer is in a power saving mode (Sleep or Hibernate). Be sure to bring the computer back into Normal
mode before removing the disc.
36
nN
Page 37
Using Your VAIO Computer >
Using the Optical Disc Drive
Supported Disc Media
Your computer plays and records CDs, DVDs, and Blu-ray Disc™ media, depending on the model you purchased.
See the reference chart below to find out which type of optical disc drive supports which types of media.
PR: playable and recordable
P: playable but not recordable
–: not playable or recordable
CD-
Video CDMusic CDCD
ROM
DVD±RW/
±R DL/RAM
Blu-ray DiscPPPPPRPPPRPRPR PR PR P
Blu-ray Disc
Combo
*1
The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.
*2
Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.
*3
The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.
*4
Supports writing data to BD-R Version 1.1/1.2/1.3 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Version
2.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).
*5
Writing data to Ultra Speed CD-RW discs is not supported.
PPPPPRPPPRPRPR PR PR – –
PPPP
Extra
CD-R/RWDVD-
*5
PR
DVD-
ROM
PPPRPRPRPRPRPP
DVD-R/RWDVD+R/RWDVD+R DL
Video
(Double
Layer)
DVD-R DL
(Dual
Layer)
DVD-
RAM
*1 *2
BDROM
BD-R/RE
PR
37
nN
*3
*4
Page 38
Using Your VAIO Computer >
Using the Optical Disc Drive
!
This product is designed to play back discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two
sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Be aware that the audio side (non-DVD
side) of a DualDisc may not play on this product because it does not conform to the CD Standard.
When you buy pre-recorded or blank discs for use with your VAIO computer, be sure to read the notices on the disc package carefully to check both
playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO optical disc drives
with discs that are not compliant with the official "CD," "DVD," or "Blu-ray Disc" standard. USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE
TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.
For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.
✍
8 cm disc writing is not supported.
!
To play copyright protected Blu-ray Disc media continually, update the AACS key. The AACS key update requires Internet access.
As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support
movie playback on packaged media recorded in AVC or VC1 formats at high bit rates.
Region settings are required for some contents on DVD and BD-ROM Disc media. If the region setting on the optical disc drive does not match the
region coding on the disc, playback is not possible.
Unless your external display is compliant with the High-bandwidth Digital Content Protection (HDCP) standard, you cannot play or view the contents
on copyright protected Blu-ray Disc media.
38
nN
Some contents may restrict video output to standard definition or prohibit analog video output. It is strongly recommended that a digital HDCP
compliant environment be implemented for optimum compatibility and viewing quality.
Do not use memory-resident utility software when playing or writing a disc. This may cause the computer to malfunction.
Page 39
Using Your VAIO Computer >
Using the Optical Disc Drive
39
nN
Notes on Using the Optical Disc Drive
Notes on writing data to a disc
❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc
drive.
❑ Do not strike or shake your computer while the optical disc drive is writing data to a disc.
❑ Do not plug or unplug the AC adapter while the optical disc drive is writing data to a disc.
Notes on playing discs
To achieve optimum performance when playing discs, you should follow these recommendations:
❑ Some CD players and computer optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW
media.
❑ Some DVD players and computer optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-R
DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media.
❑ Depending on system environment, you may find sound interruptions and/or dropped frames during AVC HD playback.
❑ Do not place your computer into either of the power saving modes while your computer is playing a disc.
Notes on region codes
❑ Region code indicators are labeled on the discs or packages to indicate in which region and on what type of player you
can play the disc. If the region code indicates "all," you can play this disc in most regions of the world. If the region code
for your residence area is different from the label, you cannot play the disc on your computer.
Page 40
Using Your VAIO Computer >
Using the Optical Disc Drive
40
nN
Playing Discs
To play a disc
1 Insert a disc into the optical disc drive.
!
Connect the AC adapter to the computer and close all running software applications before playing a disc.
2 If nothing appears on the desktop, click Start, All Programs, and the desired software to play the disc.
For instructions on how to use the software, see the help file included with the software.
Copying Files to Discs
To copy files to a disc
1 Insert a recordable disc into the optical disc drive.
!
Connect the AC adapter to the computer and close all running software applications before copying files to a disc.
2 If nothing appears on the desktop, click Start, All Programs, and the desired disc burning software to copy files to the
disc.
For instructions on how to use the software, see the help file included with the software.
Page 41
Using Your VAIO Computer >
Using the Memory Stick
41
nN
Using the Memory Stick
The Memory Stick is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing
digital data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable,
it can be used for external data storage.
Before You Use the Memory Stick
The Memory Stick slot on your computer can accommodate both standard- and Duo-size media and supports Memory Stick
PRO, Memory Stick PRO Duo, and Memory Stick PRO-HG Duo with high-speed data transfer and large data capacity
capabilities.
For the latest information about the Memory Stick, visit the Memory Stick web site at http://www.memorystick.com/en/
.
Page 42
Using Your VAIO Computer >
Using the Memory Stick
Inserting and Removing a Memory Stick

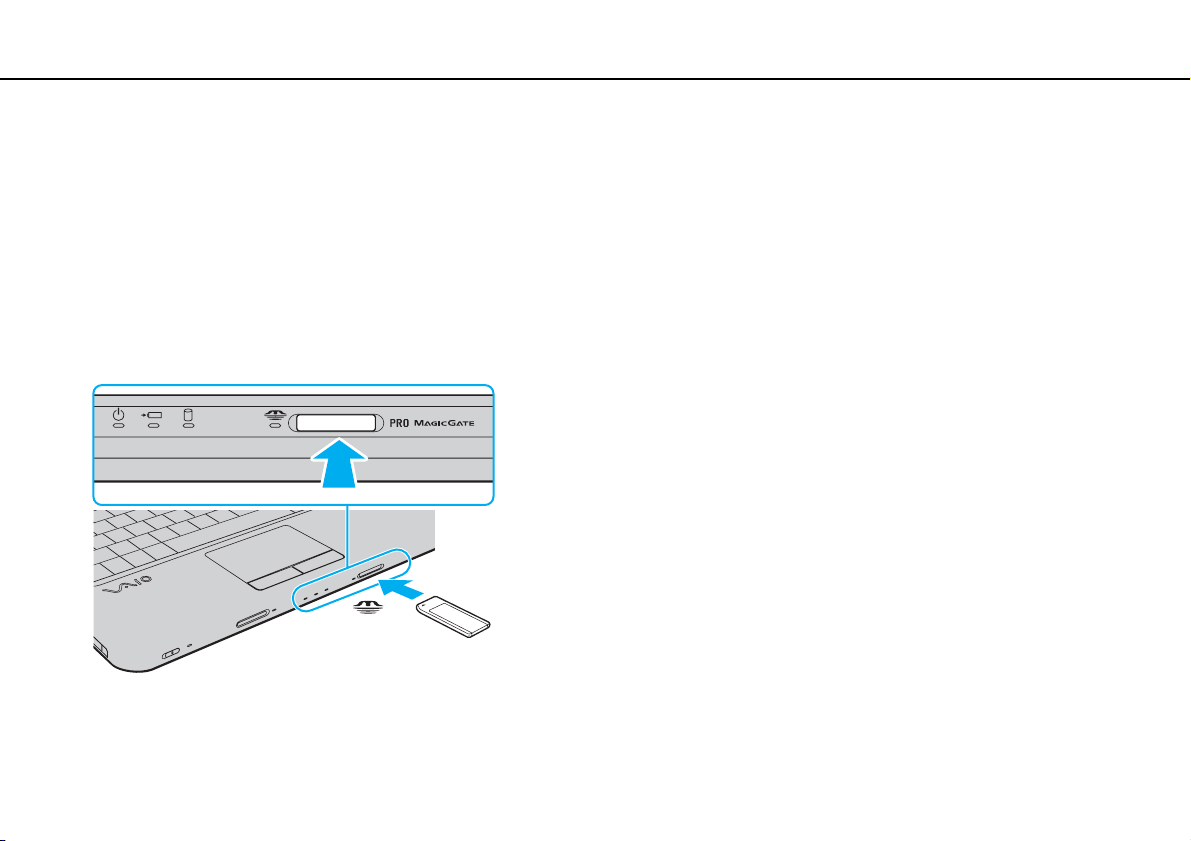

To insert a Memory Stick
1 Locate the Memory Stick slot.
2 Hold the Memory Stick with the arrow facing upward and pointing toward the slot.
3 Carefully slide the Memory Stick into the slot until it clicks into place.
✍
The Memory Stick is automatically detected by your system and the contents on the Memory Stick are displayed. If nothing appears on the desktop,
click Start, Computer, and double-click the Memory Stick icon.
42
nN
✍
You can insert a Duo-size Memory Stick directly into the Memory Stick slot without using a Memory Stick Duo adaptor.
Page 43
Using Your VAIO Computer >
Using the Memory Stick
!
Be sure to hold the Memory Stick with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer or the
media, do not force the Memory Stick into the slot if you cannot insert it smoothly.
Before using a Memory Stick Micro (M2), be sure to insert it into an M2 Standard-size adaptor or M2 Duo adaptor. If you insert the media directly into
the Memory Stick slot without the adaptor, you may not be able to remove it from the slot.
The Memory Stick Micro in an M2 Duo adaptor may not operate properly if it is additionally inserted into a Memory Stick Duo adaptor.
To remove a Memory Stick
!
Do not remove the Memory Stick while the Memory Stick indicator light is lit. If you do, you may lose data. Large volumes of data may take time to
load, so make sure the indicator is unlit before removing the Memory Stick.
1 Check that the Memory Stick indicator light is unlit.
2 Push in the Memory Stick toward the computer and release.
The Memory Stick ejects.
3 Pull the Memory Stick out of the slot.
!
Always remove the Memory Stick gently, or it may pop out unexpectedly.
43
nN
Page 44
Using Your VAIO Computer >
Using the Memory Stick
Formatting a Memory Stick
To format a Memory Stick
The Memory Stick has been formatted in the factory default setting and is ready for use.
If you want to reformat the media with your computer, follow these steps.
!
Be sure to use the device that is designed to format the media and supports the Memory Stick when formatting the media.
Formatting the Memory Stick erases the entire data on the media. Before formatting the media, make sure that it does not contain your valuable data.
Do not remove the Memory Stick from the slot while formatting. This could cause a malfunction.
1 Carefully slide the Memory Stick into the slot until it clicks into place.
2 Click Start and Computer to open the Computer window.
3 Right-click the Memory Stick icon and select Format.
4 Click Restore device defaults.
!
The size of the allocation unit and file system may change.
Do not select NTFS from the File system drop-down list as it may cause a malfunction.
44
nN
✍
The formatting process will be completed more quickly if you select Quick Format in Format options.
5 Click Start.
6 Follow the on-screen instructions.
!
It may take time to format the Memory Stick depending on the media type.
Page 45
Using Your VAIO Computer >
Using the Memory Stick
45
nN
Notes on Using the Memory Stick
❑ Your computer has been tested and found compatible with Sony branded Memory Stick with capacity of up to 16 GB that
are available as of January 2009. However, not all the Memory Stick that meet the same specifications as the compatible
media are guaranteed of compatibility.
❑ Inserting a Memory Stick with multiple conversion adaptors is not guaranteed of compatibility.
❑ MagicGate is the general name of the copyright protection technology developed by Sony. Use a Memory Stick with the
MagicGate logo to use this feature.
❑ Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior
consent from the respective copyright holders. Accordingly, the Memory Stick with such copyrighted data can be used
only within the law.
❑ The Memory Stick slot on your computer does not support 8-bit parallel data transfer (high-speed data transfer).
❑ Do not insert more than one Memory Stick into the slot. Improper insertion of the media may damage both your computer
and the media.
Page 46
Using Your VAIO Computer >
Using Other Modules / Memory Cards
nN
Using Other Modules / Memory Cards

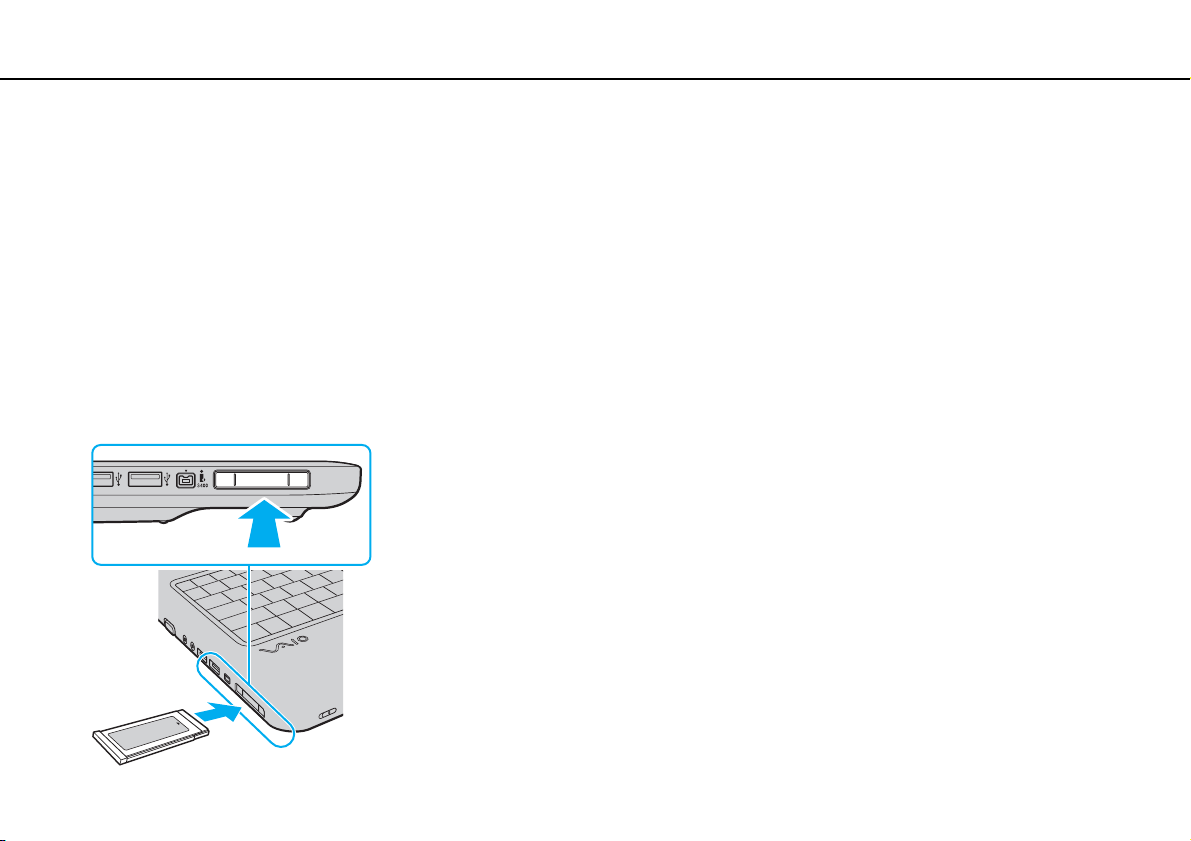

Using the ExpressCard Module
Your computer is equipped with an ExpressCard/34 slot* for transferring data among digital cameras, camcorders, music
players, and other audio/video devices. This slot can only accommodate an ExpressCard/34
* Referred to as the ExpressCard slot and the ExpressCard module in this manual.
To insert an ExpressCard module
1 Locate the ExpressCard slot.
2 Carefully slide the ExpressCard module into the slot until it clicks into place.
Do not force it into the slot.
(34 mm wide) module*.
46
Page 47
Using Your VAIO Computer >
Using Other Modules / Memory Cards
✍
If the module does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
Make sure you use the most recent driver software provided by the ExpressCard module manufacturer.
To remove an ExpressCard module
✍
To remove an ExpressCard module when your computer is off, skip steps 1 to 4.
1 Double-click the Safely Remove Hardware icon on the taskbar.
2 Select the hardware you want to unplug.
3 Click Stop.
4 Follow the on-screen instructions to remove the ExpressCard module.
5 Push in the ExpressCard module toward the computer so that the module pops out.
6 Gently take hold of the ExpressCard module and pull it out of the slot.
47
nN
Page 48
Using Your VAIO Computer >
Using Other Modules / Memory Cards
48
nN
Using the SD Memory Card
Your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras,
camcorders, music players, and other audio/video devices.
Before you use the SD memory card
The SD memory card slot on your computer supports the following memory cards:
❑ SD memory card
❑ SDHC memory card
❑ MultiMediaCard (MMC)
For the latest information on compatible memory cards, see Finding More about Your VAIO Computer (page 5) to visit the
appropriate support web site.
Page 49
Using Your VAIO Computer >
Using Other Modules / Memory Cards

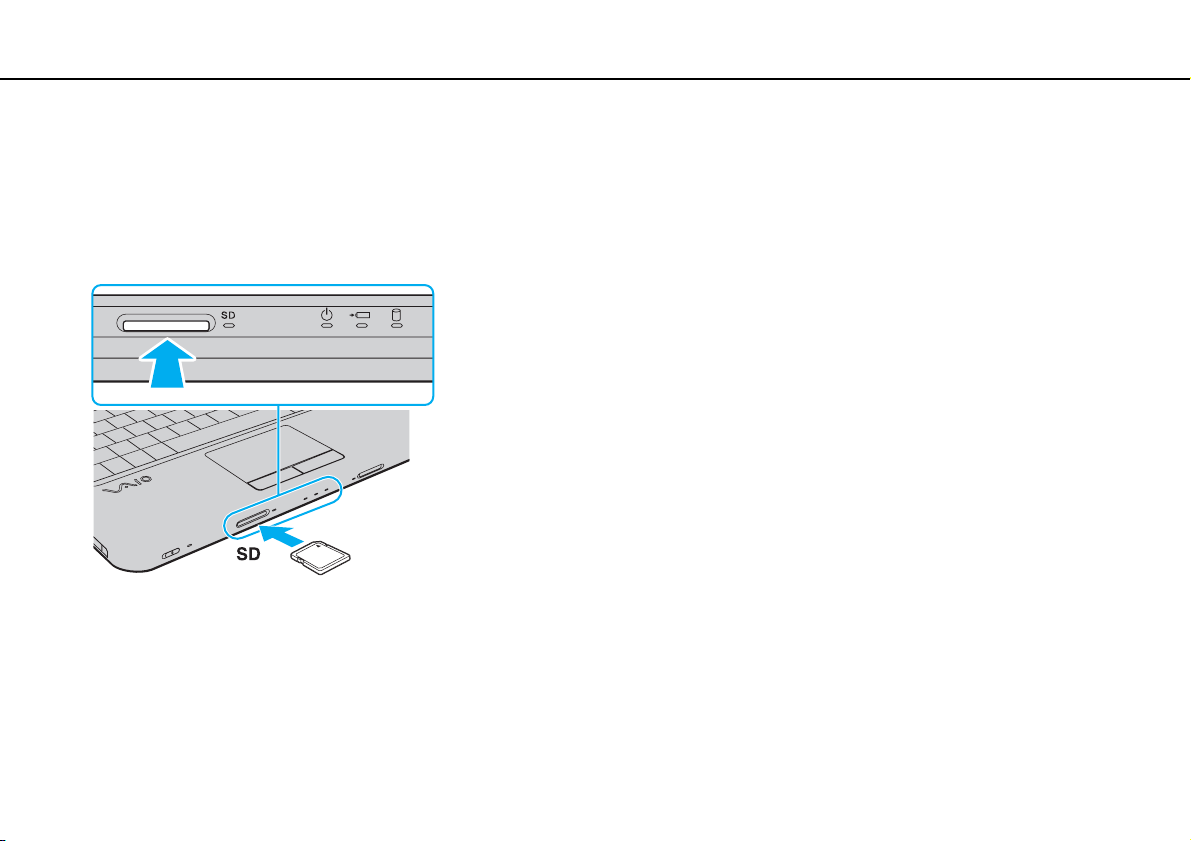

To insert an SD memory card
1 Locate the SD memory card slot.
2 Hold the SD memory card with the arrow facing upward and pointing toward the slot.
3 Carefully slide the SD memory card into the slot until it clicks into place.
Do not force the card into the slot.
✍
If the SD memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
49
nN
To remove an SD memory card
1 Check that the SD memory card indicator light is unlit.
2 Push in the SD memory card toward the computer and release.
The SD memory card ejects.
3 Pull the SD memory card out of the slot.
Page 50
Using Your VAIO Computer >
Using Other Modules / Memory Cards
50
nN
Notes on Using Memory Cards
General notes on using the memory card
❑ Be sure to use memory cards that are compliant with the standards supported by your computer.
❑ Be sure to hold the memory card with the arrow pointing in the correct direction as you insert it into the slot. To avoid
damaging your computer or the media, do not force the memory card into the slot if you cannot insert it smoothly.
❑ Use care when inserting or removing the memory card from the slot. Do not force it in or out of the slot.
❑ Do not remove the memory card while the media access indicator light is lit. If you do, you may lose data.
❑ Do not attempt to insert an memory card or memory card adaptor of a different type into the memory card slot. An
incompatible memory card or memory card adaptor may cause difficulty in removing from the slot and can cause damage
to your computer.
Notes on using the SD memory card
❑ Your computer has been tested and found compatible only with major memory cards available as of January 2009.
However, not all memory cards that meet the same specifications as the compatible media are guaranteed of
compatibility.
❑ SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 32 GB have been tested
and found compatible with your computer.
❑ The SD memory card slot on your computer does not support the high-speed data transfer feature of the SD memory
card and the SDHC memory card.
Page 51
Using Your VAIO Computer >
Using the Internet
51
nN
Using the Internet
Before using the Internet, you need to sign up with an Internet Service Provider (ISP) and set up devices required for
connecting your computer to the Internet.
The following types of Internet connection services may be available from your ISP:
❑ Fiber to the Home (FTTH)
❑ Digital Subscriber Line (DSL)
❑ Cable modem
❑ Satellite
❑ Dial-up
For detailed information on devices required for the Internet and how to connect your computer to the Internet, ask your ISP.
✍
To connect your computer to the Internet using the wireless LAN function, you need to set up the wireless LAN network. See Using the Wireless LAN
(page 54) for more information.
!
When you connect your computer to the Internet, be sure to take appropriate security measures to protect the computer against online threats.
If your computer is not equipped with a built-in modem, you may need to connect an external modem device, for example a USB telephone modem, a
DSL modem, or a cable modem, to your computer. For the detailed instructions on connection setups and modem configuration, see the manual that
came with your modem.
Page 52
Using Your VAIO Computer >
Using the Internet

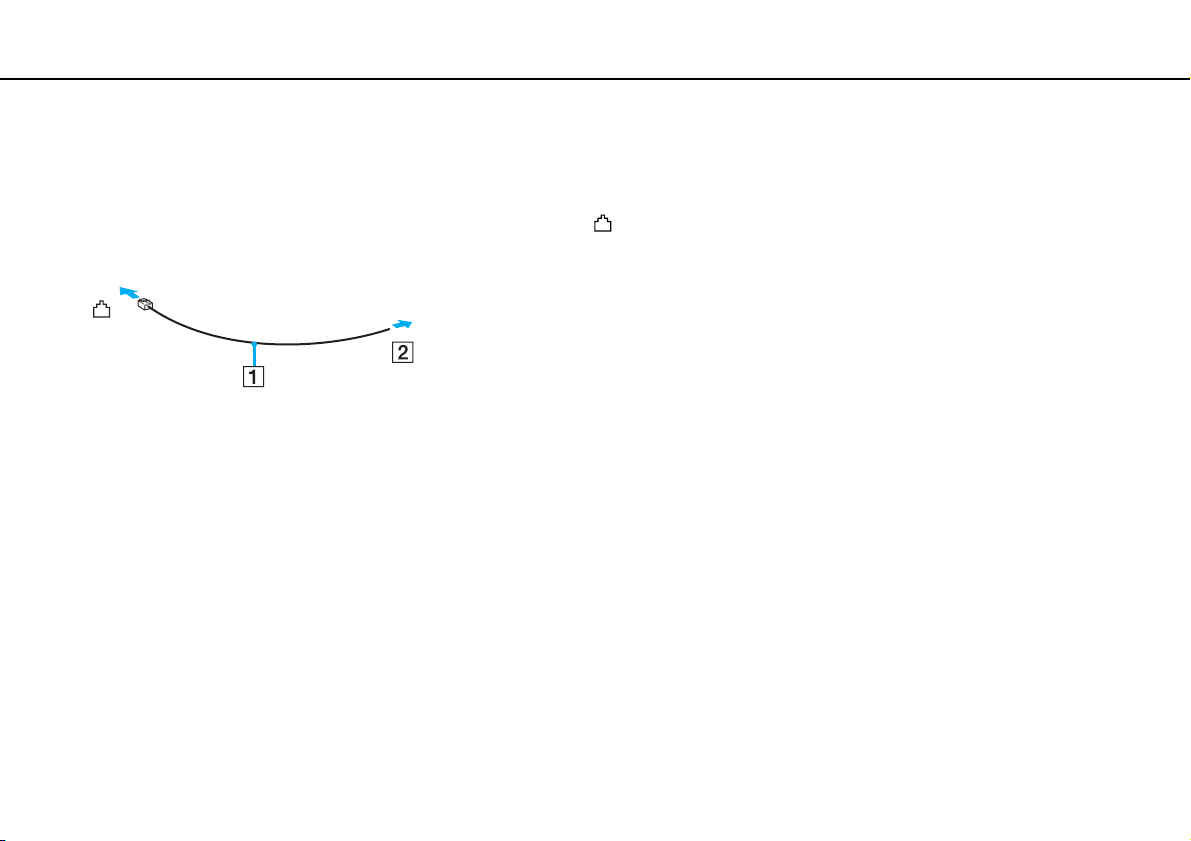

To connect a telephone cable
!
The following procedure applies to models with a built-in modem only.
1 Plug one end of the phone cable (1) into the modem port on the computer.
2 Plug the other end into the wall jack (2).
!
Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a
private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the built-in modem.
If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.
To set up a dial-up connection to the Internet
!
The following procedure applies to models with a built-in modem only.
1 Click Start and Control Panel.
2 Click Connect to the Internet under Network and Internet.
The Connect to the Internet window appears.
3 Click Dial-up.
4 Follow the on-screen instructions.
52
nN
Page 53
Using Your VAIO Computer >
Using the Network (LAN)
53
nN
Using the Network (LAN)
You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T type networks with an Ethernet network cable.

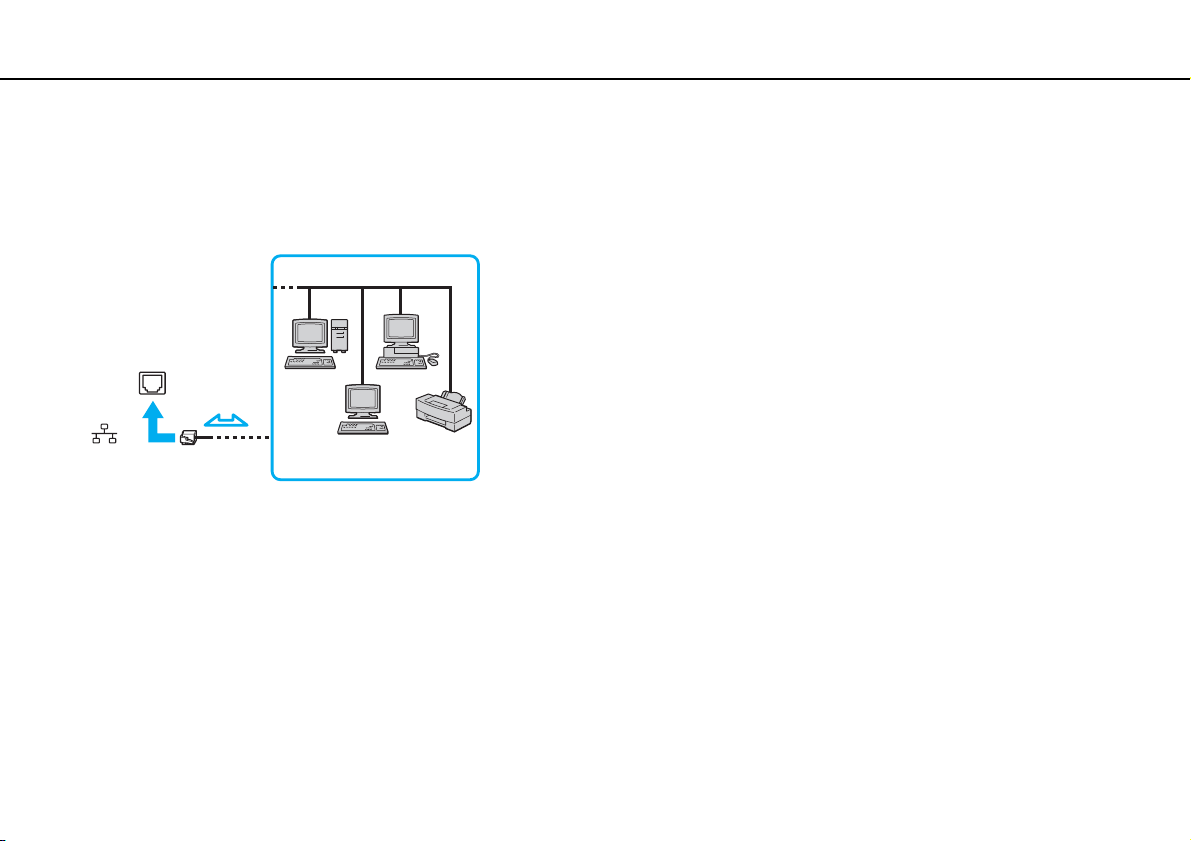

Connect one end of a network cable (not supplied) to the network (Ethernet) port on the computer and the other end to your
network. For detailed settings and devices needed to connect to the network, ask your network administrator.
✍
Your computer can be connected to the network with the default settings.
!
Do not plug a telephone cable into the network (Ethernet) port on your computer.
If the network (Ethernet) port is connected to one of the telephone lines mentioned below, high electric current to the port may cause damage,
overheating, or fire.
- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)
- Public telephone subscriber line
- Private branch exchange (PBX)
Page 54
Using Your VAIO Computer >
Using the Wireless LAN
54
nN
Using the Wireless LAN
Using the Wireless LAN (WLAN), all your digital devices with the built-in WLAN function communicate freely with each other
through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless (radio)
connection.
Features and options in this section may not be available on your computer.
See the specifications to find out about the configuration of your computer.
The WLAN supports all normal Ethernet connectivity, but with the added benefits of mobility and roaming. You can still access
information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to
another.
You can communicate without an access point, which means that you can communicate with a limited number of computers
(ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure network.
Page 55
Using Your VAIO Computer >
Using the Wireless LAN
To use the wireless LAN function
To use the wireless LAN function, you first need to set up the wireless LAN function.
!
Be sure to turn on the WIRELESS switch before starting the wireless LAN function.
The IEEE 802.11a standard, using the 5 GHz band, and the IEEE 802.11n draft standard, using the 2.4 GHz or 5 GHz band, are not available on ad-hoc
networks.
❑ On models with the SmartWi Connection Utility
Use the SmartWi Connection Utility to set up the wireless LAN function. See the SmartWi Connection Utility Help for
more information.
To access this on-screen guide:
1 Click Start, All Programs, and SmartWi Connection Utility.
2 Click SmartWi Connection Utility Help.
❑ On models without the SmartWi Connection Utility
Search for wireless LAN information using Windows Help and Support to set up and use the wireless LAN function.
55
nN
Page 56
Using Your VAIO Computer >
Using the Wireless LAN
✍
In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the
WLAN function, read the Safety Information carefully.
WLAN uses the IEEE 802.11a
the encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access
(WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based on interoperable security
enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA is designed to be forward compatible with
the IEEE 802.11i specification. It utilizes the enhanced data encryption Temporal Key Integrity Protocol (TKIP) in addition to user authentication using
802.1X and Extensible Authentication Protocol (EAP). Data encryption protects the vulnerable wireless link between clients and access points. Besides
that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption, virtual private networks,
and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and is also designed to secure
all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n draft standard, multi-band and multi-mode. In addition, based on
the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of Standards and Technology
(NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible with WPA.
* See the specifications to find out about the configuration of your computer.
The IEEE 802.11b/g standard is a wireless LAN standard, using the 2.4 GHz band. The IEEE 802.11g standard provides higher-speed communications
than the IEEE 802.11b standard.
The IEEE 802.11a standard is a wireless LAN standard, using the 5 GHz band.
The IEEE 802.11n draft standard is a wireless LAN standard, using the 2.4 GHz or 5 GHz band.
*
/b/g standard or the IEEE 802.11n* draft standard, which specifies the type of technology used. The standard includes
56
nN
Wireless LAN devices using the 2.4 GHz band cannot communicate with devices using the 5 GHz band because the frequencies are different.
The 2.4 GHz band used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference from
other devices that use the same band are employed on wireless LAN compatible devices, such interference may cause lower communication speed,
narrower communication range, or broken wireless connections.
Page 57
Using Your VAIO Computer >
Using the Wireless LAN
The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device
configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.
The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the
radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.
Actual communication speed may not be as fast as the one displayed on your computer.
Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference.
Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with
IEEE 802.11b products. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase
the communication speed.
57
nN
Page 58
Using Peripheral Devices >
Using Peripheral Devices
You can add functionality to your VAIO computer by using the various ports on the computer.
❑ Connecting External Speakers or Headphones (page 59)
❑ Connecting an External Display (page 60)
❑ Selecting Display Modes (page 63)
❑ Using the Multiple Monitors Function (page 65)
❑ Connecting an External Microphone (page 68)
❑ Connecting a USB Device (page 69)
❑ Connecting an i.LINK Device (page 71)
58
nN
Page 59
Using Peripheral Devices >
Connecting External Speakers or Headphones
Connecting External Speakers or Headphones
You can connect external sound output devices (not supplied), such as speakers or headphones, to your computer.

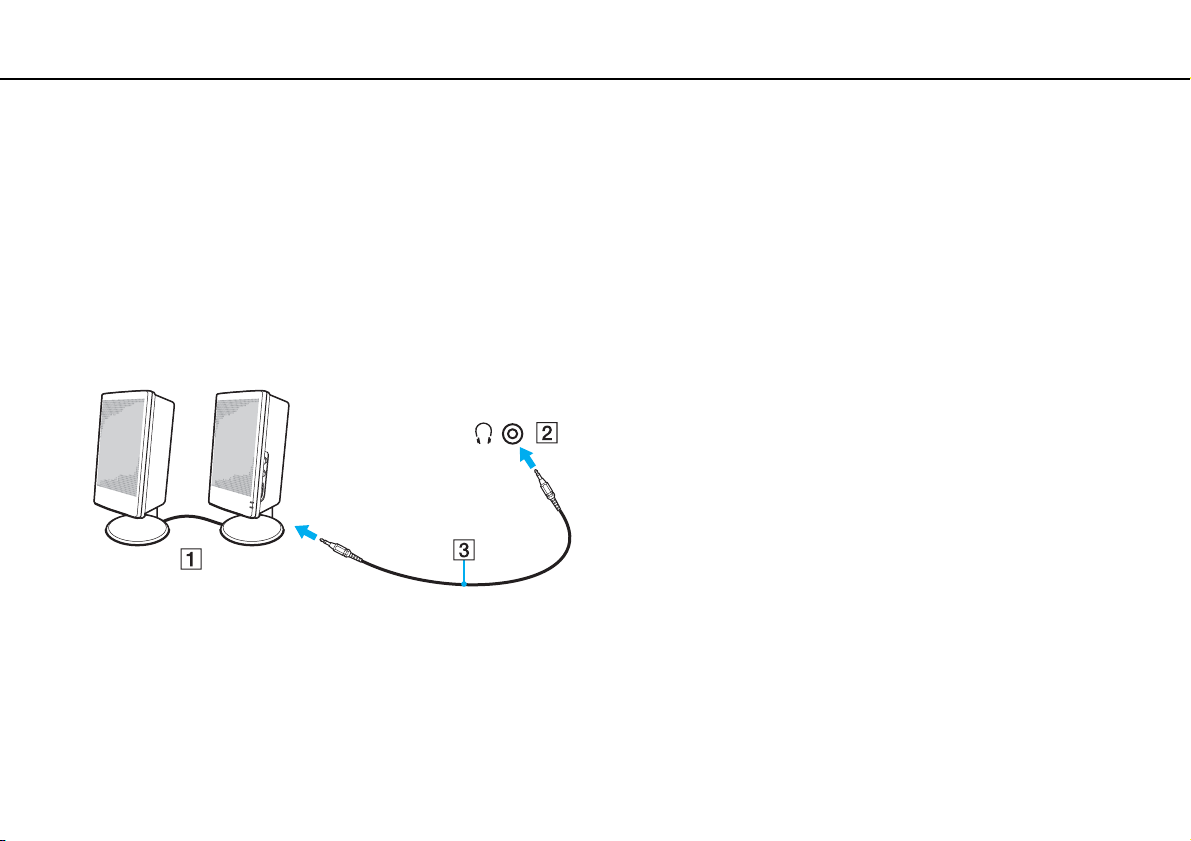

To connect external speakers
✍
Make sure your speakers are designed for computer use.
!
Turn down the volume of the speakers before you turn them on.
Connect external speakers (1) to the headphones jack (2) i with a speaker cable (3) (not supplied).
59
nN
Page 60
Using Peripheral Devices >
Connecting an External Display
60
nN
Connecting an External Display
You can connect an external display (not supplied) to your computer. For example, you can use the computer with a computer
display or a projector.
Features and options in this section may not be available on your computer.
✍
Connect the power cord of your external display after connecting all other cables.
Connecting a Computer Display
You can connect a computer display (monitor) to your computer.

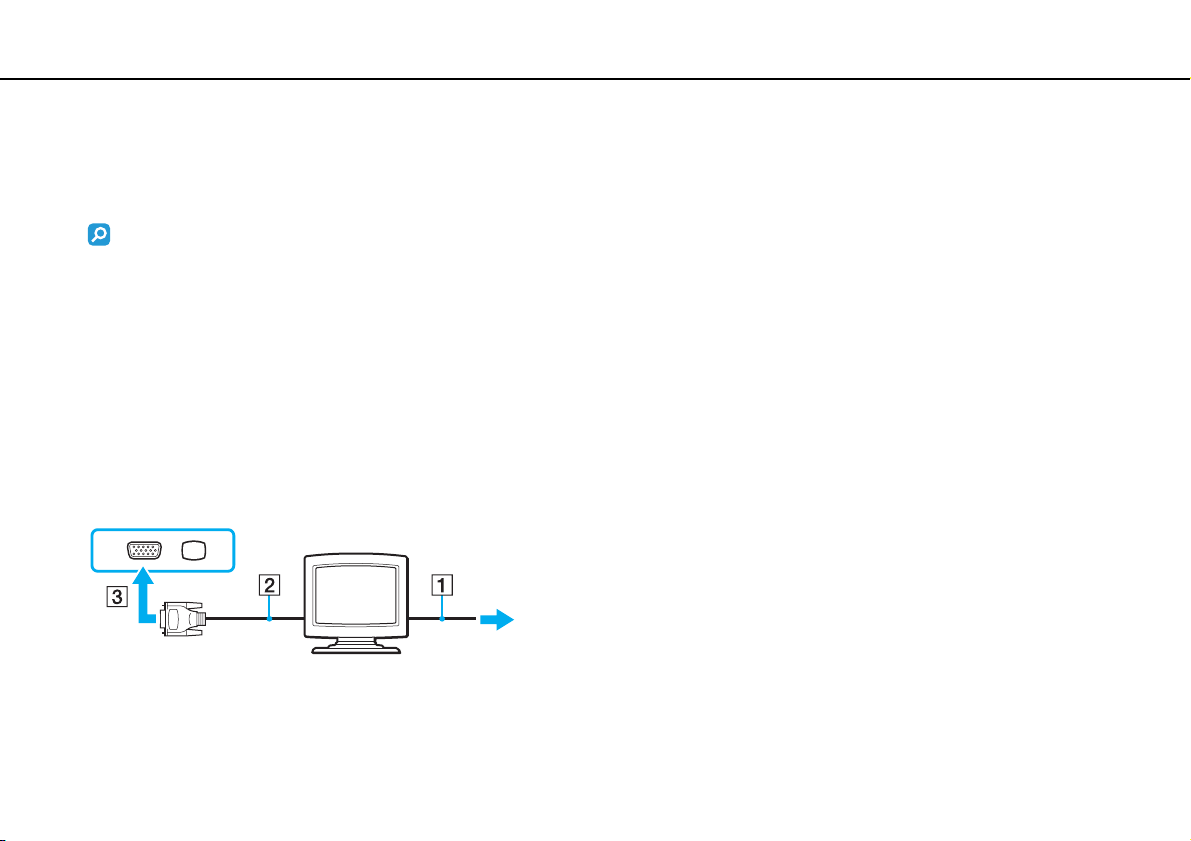

To connect a computer display
1 If necessary, plug one end of the display's power cord (1) into your display, and the other end into an AC outlet.
2 Plug the display cable (2) into the monitor port (3) a on the computer.
Page 61
Using Peripheral Devices >
Connecting an External Display
Connecting a Multimedia Computer Display
You can connect a multimedia computer display that includes built-in speakers and a microphone to your computer.

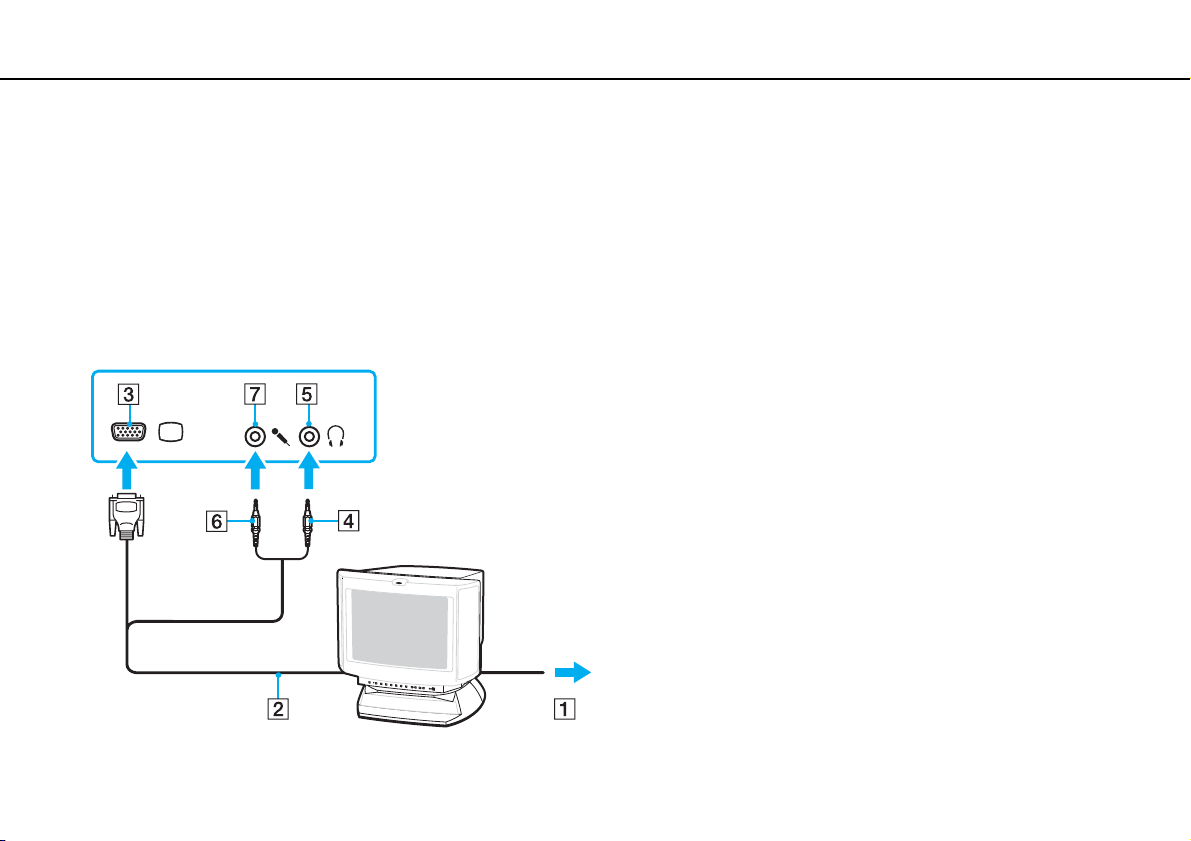

To connect a multimedia computer display
1 Plug the power cord of your multimedia computer display (1) into an AC outlet.
2 Plug the display cable (2) into the monitor port (3) a on the computer.
3 Plug the speaker cable (4) into the headphones jack (5) i on the computer.
4 Plug the microphone cable (6) into the microphone jack (7) m on the computer.
61
nN
Page 62
Using Peripheral Devices >
Connecting an External Display
Connecting a Projector
You can connect a projector (for example, the Sony LCD projector) to your computer.

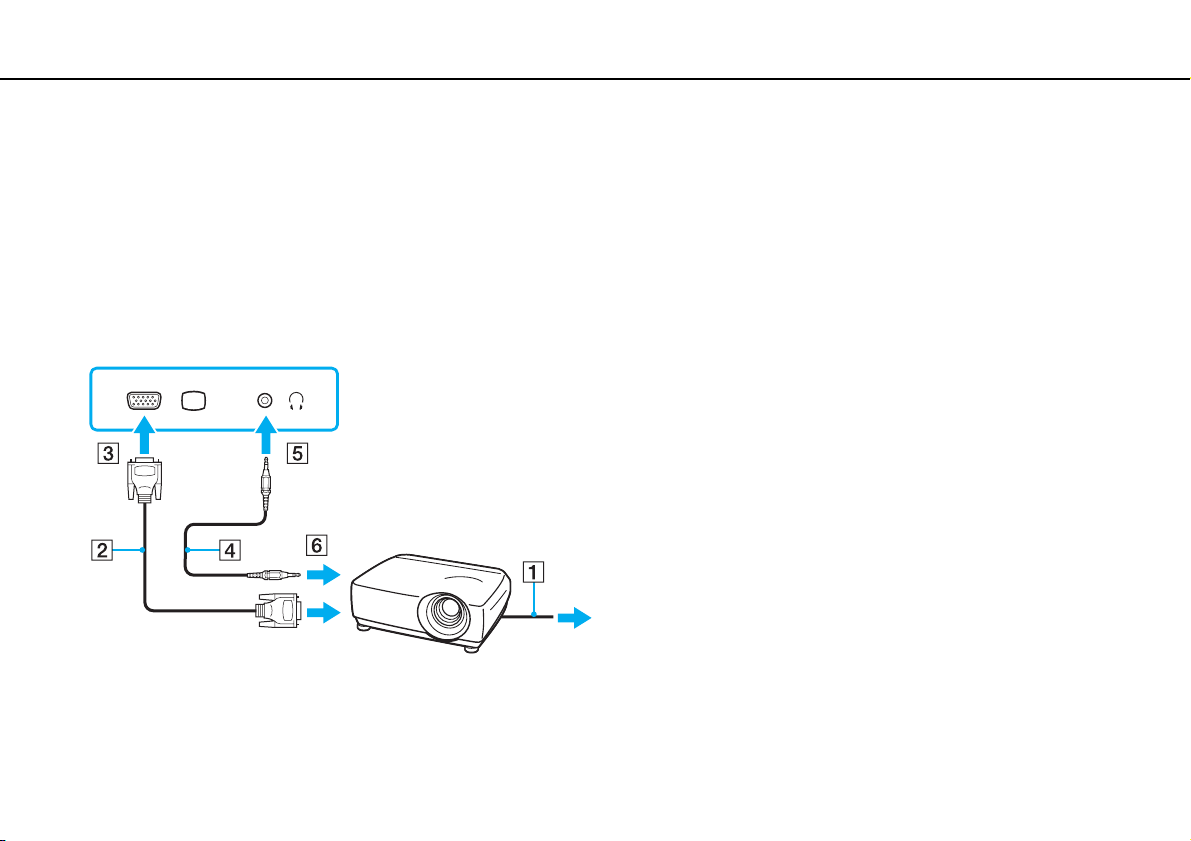

To connect a projector
1 Connect the power cord (1) of your projector into an AC outlet.
2 Plug a display cable (2) into the monitor port (3) a on the computer.
3 Plug an audio cable (4) into the headphones jack (5) i on the computer.
4 Plug the display cable and the audio cable into the port and jack on the projector (6).
62
nN
Page 63
Using Peripheral Devices >
Selecting Display Modes
63
nN
Selecting Display Modes
When an external display is connected, you can select either your computer screen or the connected display to use as the
primary monitor.
If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors
Function (page 65) for more information.
The procedure for selecting a display depends on the video controller used in the computer.
See the specifications to find out about the configuration of your computer.
Page 64
Using Peripheral Devices >
Selecting Display Modes
To select a display
✍
You may not be able to display the same contents on your computer screen and the external display or projector at the same time, depending on the
type of your external display or projector.
Turn on the external display before turning on your computer.
❑ On models with the Intel Graphics Media Accelerator
1 Right-click on the desktop and select Personalize.
2 Click Display Settings.
3 Follow the on-screen instructions to change the settings.
❑ On models with the NVIDIA video controller
1 Click Start and Control Panel.
2 Click Additional Options.
3 Click NVIDIA Control Panel.
4 Select the display setup option under Display.
5 Follow the on-screen instructions to change the settings.
❑ On models with the ATI video controller
When the computer has an external display connected, you can change the Main/Clone setting as follows:
1 Click Start, All Programs, and Catalyst Control Center.
2 Click CCC.
3 Follow the on-screen instructions to change the settings.
See the help file for more information.
64
nN
Page 65
Using Peripheral Devices >
Using the Multiple Monitors Function
65
nN
Using the Multiple Monitors Function

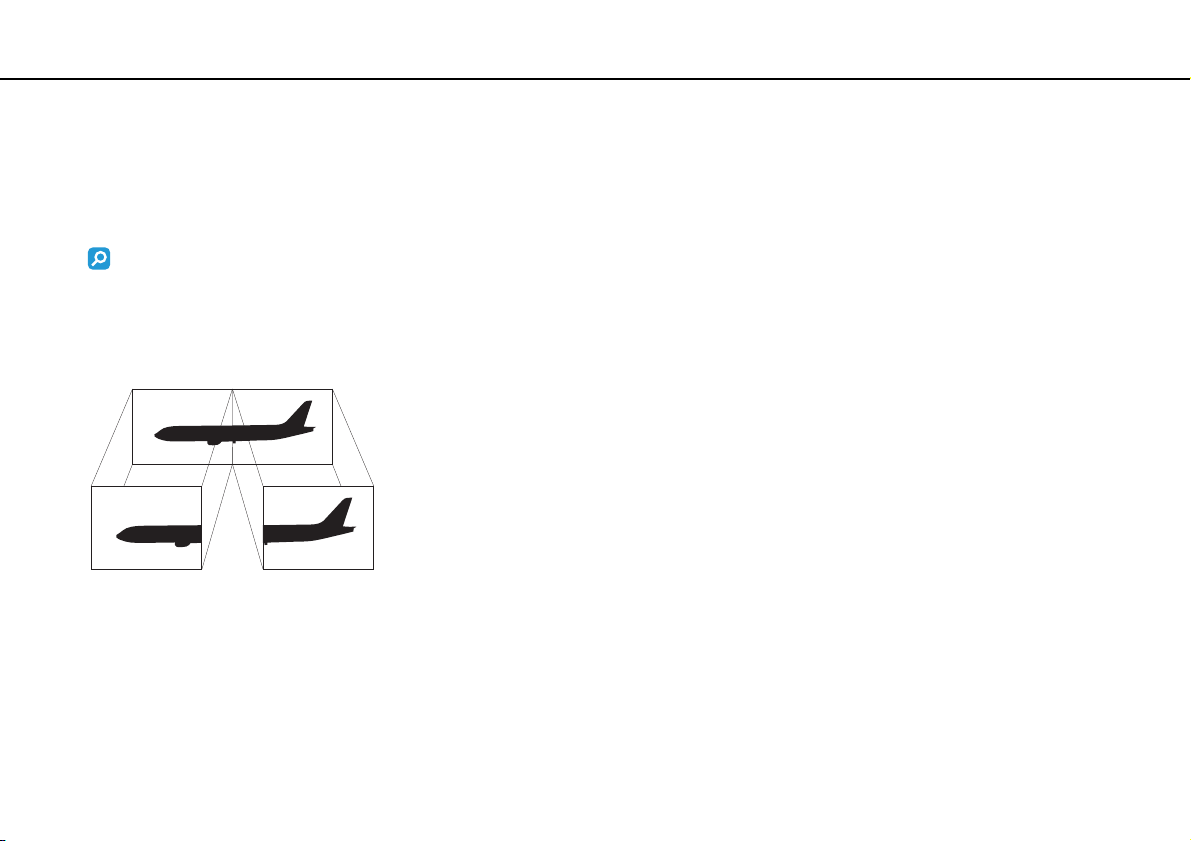

The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you
have an external display connected to the monitor port, your computer screen and the external display can function as a
single desktop.
The procedure for using the Multiple Monitors function depends on the video controller used in the computer.
See the specifications to find out about the configuration of your computer.
You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window
or a toolbar, from one display to the other.
Page 66
Using Peripheral Devices >
Using the Multiple Monitors Function
To use the Multiple Monitors function
✍
Your external display may not support the Multiple Monitors function.
Certain software applications may not be compatible with Multiple Monitors settings.
Make sure that your computer does not enter Sleep or Hibernate mode while you are using the Multiple Monitors function. Otherwise, the computer
may not return to Normal mode.
If you set different colors on each display, do not expand a single window across two displays. Otherwise, your software may not work properly.
Set fewer colors or a lower resolution for each display.
❑ On models with the Intel Graphics Media Accelerator
1 Right-click on the desktop and select Personalize.
2 Click Display Settings.
3 Follow the on-screen instructions to change the settings.
❑ On models with the NVIDIA or ATI video controller
1 Click Start and Control Panel.
2 Click Adjust screen resolution under Appearance and Personalization.
3 Right-click the number 2 monitor and select Attached.
4 Click OK.
At the confirmation prompt, click Yes.
66
nN
Page 67
Using Peripheral Devices >
Using the Multiple Monitors Function
✍
You can also change the muting (S1) button assignment to activate the Multiple Monitors function with the muting (S1) button. To change the muting
(S1) button assignment, press and hold the muting (S1) button to display the window for changing the assignment. For details on the muting (S1)
button, see Using Special-function Buttons (page 33).
Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors function.
67
nN
Page 68
Using Peripheral Devices >
Connecting an External Microphone
nN
Connecting an External Microphone
If you use a sound input device (for example, to chat over the Internet), you need to plug in an external microphone (not
supplied).

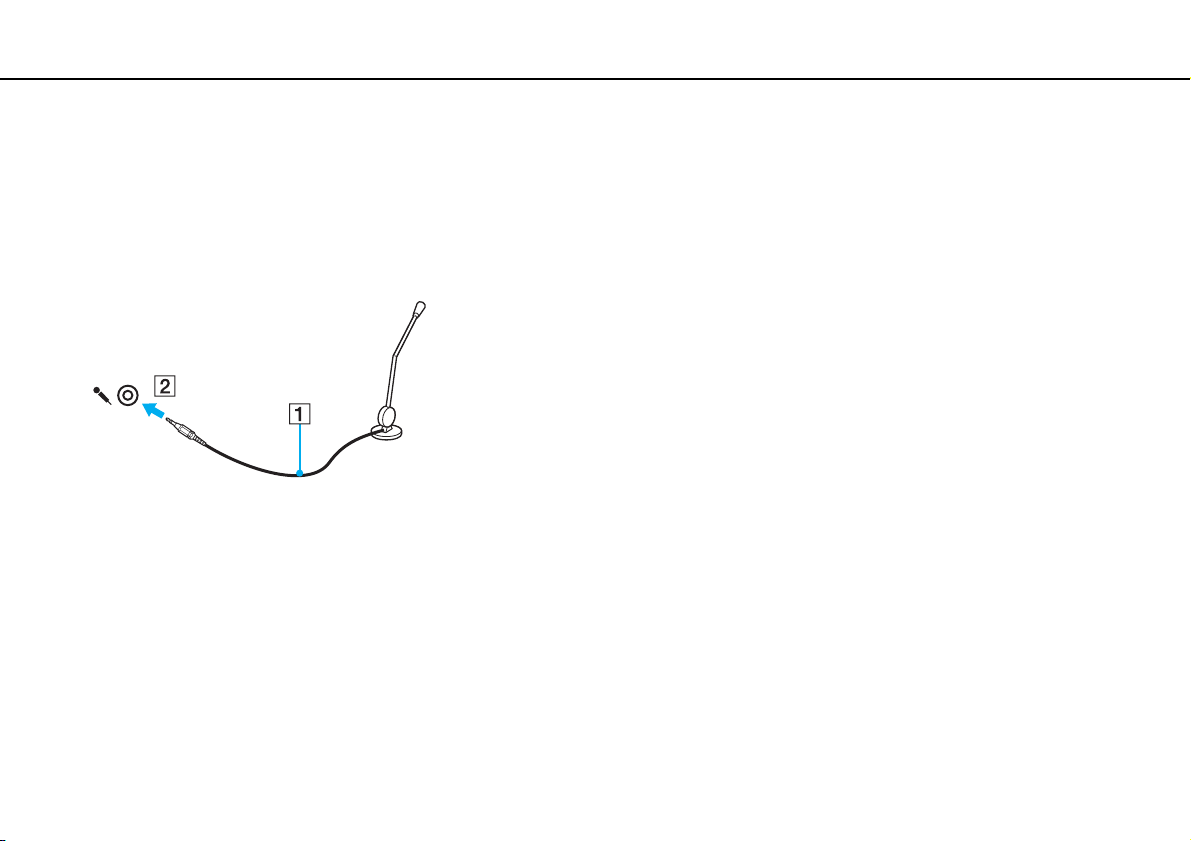

To connect an external microphone
Plug the microphone cable (1) into the microphone jack (2) m.
✍
Make sure your microphone is designed for computer use.
68
Page 69
Using Peripheral Devices >
Connecting a USB Device
69
nN
Connecting a USB Device
You can purchase a Universal Serial Bus (USB) device, such as a mouse, floppy disk drive, speaker, and printer, and connect
it to your computer.

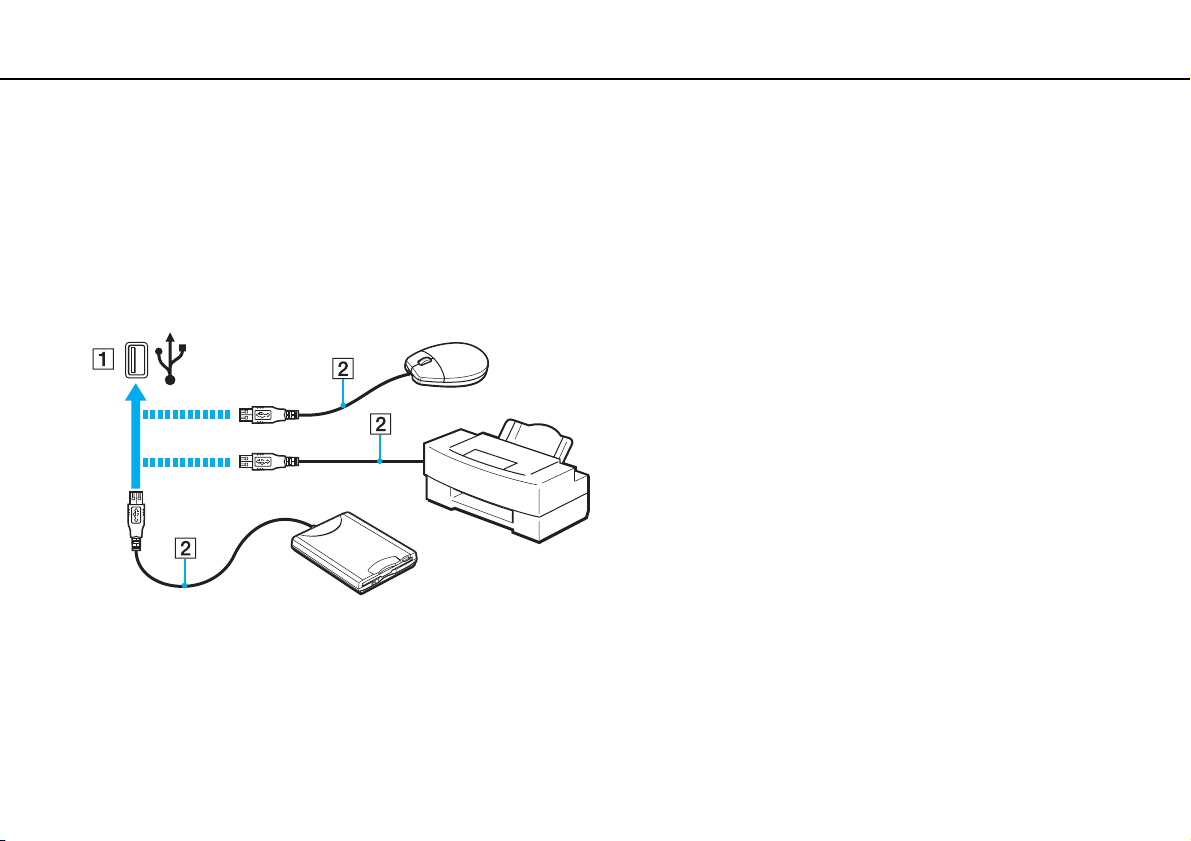

To connect a USB device
1 Choose the USB port (1) you prefer to use.
2 Plug the USB device cable (2) into the USB port.
Page 70
Using Peripheral Devices >
Connecting a USB Device
70
nN
Notes on connecting a USB device
❑ You may need to install the driver software supplied with your USB device before use. See the manual that came with the
USB device for more information.
❑ Be sure to use a USB printer compatible with your version of Windows to print documents.
❑ For information on how to remove a USB device, see the manual that came with the device.
❑ To protect your computer and/or USB devices from damage, observe the following:
❑ When moving the computer with USB devices connected, avoid exposing the USB ports to shock or impact.
❑ Do not put the computer into a bag or carrying case when it has USB devices connected.
Page 71
Using Peripheral Devices >
Connecting an i.LINK Device
71
nN
Connecting an i.LINK Device
Your computer is equipped with an i.LINK port which you can use to connect an i.LINK device, such as a digital video
camcorder.
✍
i.LINK is a trademark of Sony Corporation used only to designate that a product contains an IEEE 1394 connection. The procedure to establish an i.LINK
connection may vary, depending on a software application, an operating system, and a compatible i.LINK device. Not all products with an i.LINK
connection can communicate with each other. See the manual that came with your compatible i.LINK device for more information on operating
conditions and proper connection. Before connecting compatible i.LINK PC peripherals to your system, such as a CD-RW or hard disk drive, confirm
their operating system compatibility and required operating conditions.
Notes on connecting i.LINK devices
❑ The i.LINK port on your computer does not supply power to an external device. If the external device requires external
power, be sure to connect it to a power source.
❑ The i.LINK port supports transfer rates up to 400 Mbps. However, the actual transfer rate depends on the transfer rate of
the external device.
❑ The optional i.LINK cables may not be available in some countries or areas.
❑ An i.LINK connection with other compatible devices is not fully guaranteed.
❑ The i.LINK connection may not be available depending on the software applications, operating system, and i.LINK-
compatible devices you use. See the manual that came with your software for more information.
❑ Check the working conditions and operating system compatibility of i.LINK-compatible PC peripherals (for example, an
HDD or a CD-RW drive) before you connect them to your computer.
Page 72
Using Peripheral Devices >
Connecting an i.LINK Device
72
nN
Connecting a Digital Video Camcorder

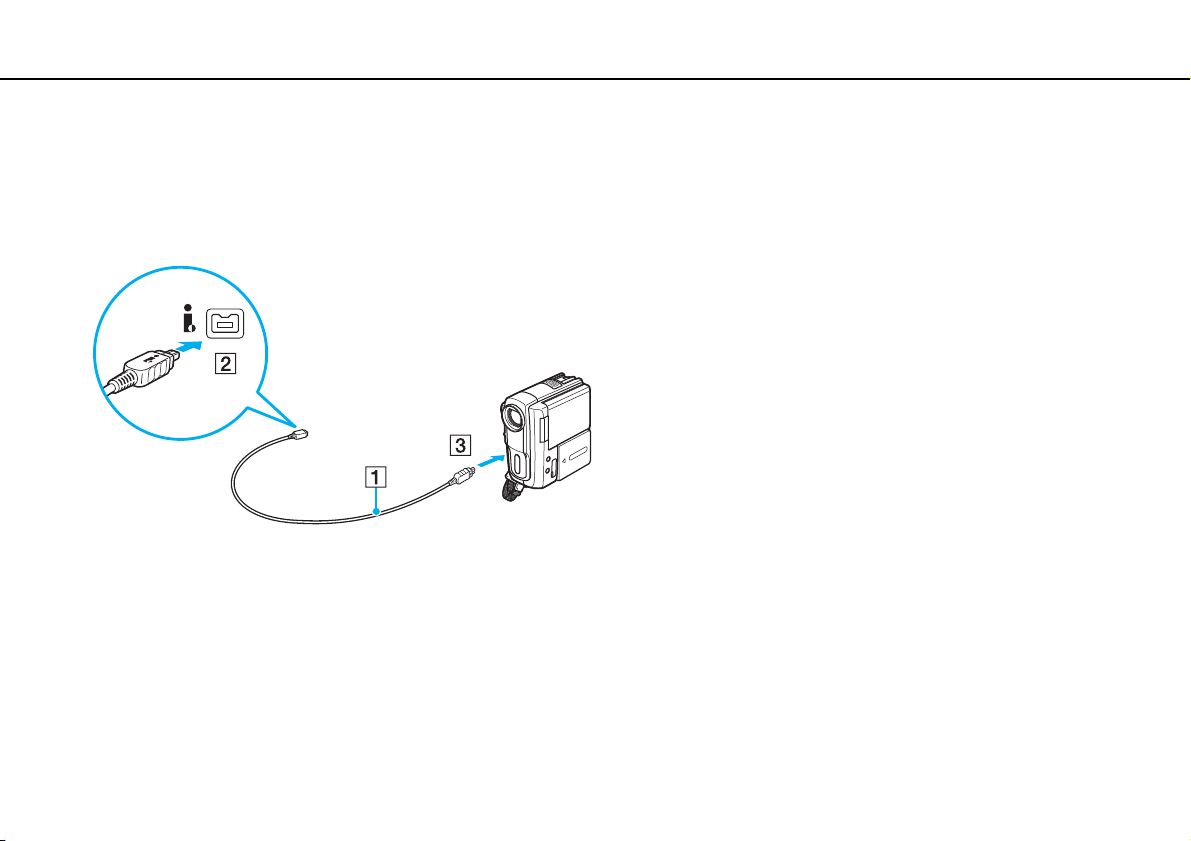

To connect a digital video camcorder
Plug one end of an i.LINK cable (1) (not supplied) into the i.LINK port (2) on the computer and the other end into the DV In/
Out port (3) on the digital video camcorder.
✍
The connection procedure varies depending on your compatible i.LINK device. See the manual that came with the device for more information.
You cannot access the pictures stored on a Memory Stick when using an i.LINK connection.
Page 73
Customizing Your VAIO Computer >
73
nN
Customizing Your VAIO Computer
This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn
how to use and customize the look of your Sony software and utilities.
❑ Setting the Password (page 74)
❑ Using the VAIO Control Center (page 79)
❑ Using the Power Saving Modes (page 80)
❑ Using the VAIO Power Management (page 85)
Page 74
Customizing Your VAIO Computer >
Setting the Password
74
nN
Setting the Password
Use one of the BIOS functions to set the password.
Once you have set the password, you will be prompted to enter the password after the VAIO logo appears to start your
computer. The power-on password allows you to protect your computer from unauthorized access.
Adding the Power-on Password
The power-on password is provided to protect your computer from unauthorized access.
There are two types of the power-on passwords: the machine password and the user password. The machine password is
provided for users with administrative rights on the computer to change all the setup options in the BIOS setup screen, as
well as to start the computer. The user password is provided for the standard users to allow for changing some of the BIOS
setup options, as well as starting the computer. To set the user password, you must first set the machine password.
!
Once you have set the power-on password, you cannot start your computer without entering the password. Be sure not to forget the password. Write
down your password and keep it safe and private from other people.
If you forget the power-on password and need assistance to reset it, a password reset fee will be charged, and your computer may need to be sent in
for service to reset the password.
Page 75
Customizing Your VAIO Computer >
Setting the Password
75
nN
To add the power-on password (machine password)
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
4 On the password entry screen, enter the password twice and press the Enter key.
The password can be up to 32 alphanumeric characters (including spaces) long.
5 Select Password when Power On under Security and press the Enter key.
6 Change the setting from Disabled to Enabled.
7 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
Page 76
Customizing Your VAIO Computer >
Setting the Password
76
nN
To add the power-on password (user password)
!
Make sure you set the machine password before setting the user password.
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3 Enter the machine password and press the Enter key.
4 Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the
Enter key.
5 On the password entry screen, enter the password twice and press the Enter key.
The password can be up to 32 alphanumeric characters (including spaces) long.
6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
Page 77
Customizing Your VAIO Computer >
Setting the Password
77
nN
Changing/Removing the Power-on Password
To change or remove the power-on password (machine password)
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3 Enter the machine password and press the Enter key.
4 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.
To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.
6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
Page 78
Customizing Your VAIO Computer >
Setting the Password
78
nN
To change or remove the power-on password (user password)
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3 Enter the user password and press the Enter key.
4 Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the
Enter key.
5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.
To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.
6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
Page 79
Customizing Your VAIO Computer >
Using the VAIO Control Center
nN
Using the VAIO Control Center
The VAIO Control Center utility allows you to access system information and to specify preferences for system behavior.
To use the VAIO Control Center
1 Click Start, All Programs, and VAIO Control Center.
2 Select the desired control item and change the settings.
3 Once finished, click OK.
The setting of the desired item has been changed.
✍
For more information about each option, see the help file included with the VAIO Control Center.
Some of the control items will not be visible if you open the VAIO Control Center as a standard user.
79
Page 80
Customizing Your VAIO Computer >
Using the Power Saving Modes
80
nN
Using the Power Saving Modes
You can take advantage of the power management settings to conserve battery life. In addition to the normal operating mode,
your computer has two distinct power saving modes: Sleep and Hibernate. When using battery power, you should be aware
that the computer will automatically enter Hibernate mode if the remaining battery life becomes short, regardless of the power
management setting you select.
!
If the battery charge level falls below 10%, you should either connect the AC adapter to recharge the battery pack or shut down your computer and
install a fully charged battery pack.
Using Normal Mode
This is the normal state of the computer when it is in use. The green power indicator light is lit in this mode.
Page 81
Customizing Your VAIO Computer >
Using the Power Saving Modes
81
nN
Using Sleep Mode
Sleep mode turns off the LCD screen and places the built-in storage device(s) and the CPU into a low power consumption
mode. The orange power indicator light blinks slowly in this mode.
!
If you do not intend to use your computer for a long period of time while it is disconnected from AC power, place the computer into Hibernate mode or
turn it off.
To activate Sleep mode
Click Start, the arrow next to the Lock button, and Sleep.
✍
When your computer is in Sleep mode, you cannot insert a disc.
Your computer comes out of Sleep mode quicker than out of Hibernate mode.
Sleep mode uses more power than Hibernate mode.
!
If the battery runs out of power while your computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is
impossible. To avoid loss of data, you should save your data frequently.
To return to Normal mode
❑ Press any key.
❑ Press the power button on your computer.
!
If you press and hold the power button for more than four seconds, your computer will turn off automatically. You will lose all unsaved data.
Page 82
Customizing Your VAIO Computer >
Using the Power Saving Modes
82
nN
If the computer is not used for a certain period of time, it will enter Sleep mode. To modify this, you can change the Sleep
mode settings.
To change the Sleep mode settings
1 Right-click the power status icon on the taskbar and select Power Options.
2 Click Change plan settings under the current power plan.
3 Change the time to place the computer into Sleep mode and click Save Changes.
Page 83
Customizing Your VAIO Computer >
Using the Power Saving Modes
83
nN
Using Hibernate Mode
In Hibernate mode, the state of the system is saved on the built-in storage device(s) and power is turned off. Even when the
battery runs out of power, no data will be lost. The power indicator light is unlit in this mode.
✍
If you do not intend to use your computer for a long period of time, place the computer into Hibernate mode.
To activate Hibernate mode
Press the Fn+F12 keys.
The computer enters Hibernate mode.
Alternatively, you can click Start, the arrow next to the Lock button, and Hibernate to place the computer into Hibernate
mode.
✍
When your computer is in Hibernate mode, you cannot insert a disc.
Hibernate mode requires more time than Sleep mode to be activated.
Hibernate mode uses less power than Sleep mode.
!
Do not move your computer before its power indicator light turns off.
Page 84
Customizing Your VAIO Computer >
Using the Power Saving Modes
To return to Normal mode
Press the power button.
The computer returns to its normal state.
!
If you press and hold the power button for more than four seconds, your computer will turn off automatically.
✍
It takes more time to return to Normal mode from Hibernate mode than from Sleep mode.
84
nN
Page 85
Customizing Your VAIO Computer >
Using the VAIO Power Management
85
nN
Using the VAIO Power Management
Power management helps you set up power plans for running on AC or battery power to suit your requirements for power
consumption.
The VAIO Power Management is a software application developed exclusively for VAIO computers. With this software
application, you can enhance the Windows power management functions to ensure better operation of your computer and
longer battery life. See the help file included with the software for more information.
Selecting a Power Plan
When you start the computer, a power status icon appears on the taskbar. This icon indicates what kind of power source you
are using at that time, for example, AC power. Click this icon to display the window that shows your power status.
The VAIO Power Management function is added to the Windows Power Options.
To select a power plan
1 Right-click the power status icon on the taskbar and select Power Options.
2 Select your desired power plan.
To change the power plan settings
1 Click Change plan settings under your desired power plan in the Power Options window.
Change the Sleep mode and display settings as needed.
2 If you need to change the advanced settings, click Change advanced power settings and go to step 3.
Otherwise, click Save changes.
3 Click the VAIO Power Management tab.
Change the settings for each item.
4 Click OK.
Page 86
Customizing Your VAIO Computer >
Using the VAIO Power Management
VAIO Power Management Viewer
You can view performance with the power plan that was modified with the VAIO Power Management.
To start the VAIO Power Management Viewer
1 Click Start, All Programs, and VAIO Control Center.
2 Click Power Management and VAIO Power Management Viewer.
86
nN
Page 87
Upgrading Your VAIO Computer >
87
nN
Upgrading Your VAIO Computer
Your VAIO computer and memory modules use high precision components and electronic connectors technology. To avoid
invalidation of the warranty during your product warranty period, we recommend that:
❑ You should contact your dealer to install a new memory module.
❑ You should not install it yourself, if you are not familiar with upgrading memory on a computer.
❑ You should not touch the connectors or open the memory module compartment cover.
For assistance, contact an authorized Sony Service Center. To find the nearest center or agent, see Finding More about
Your VAIO Computer (page 5).
The type of module and the amount of memory installed on your computer may differ depending on the model you purchased.
See the specifications to find out about the configuration of your computer.
Page 88
Upgrading Your VAIO Computer >
Adding and Removing Memory
88
nN
Adding and Removing Memory
If you want to expand the functionality of your computer, you can increase the amount of memory by installing optional
memory modules. Before you upgrade your computer's memory, read the notes and procedures in the following pages.
Notes on adding/removing memory modules
❑ Be sure to place your computer on a flat surface before adding or removing memory modules.
❑ Be careful when changing memory. Improper installation of memory modules may cause damage to your system. This
damage may void your manufacturer's warranty.
❑ Only use memory modules that are compatible with your computer. If a memory module is not detected by the computer
or the Windows operating system becomes unstable, contact the sales dealer or the manufacturer of your memory
module.
❑ Electrostatic discharge (ESD) can damage electronic components. Before touching a memory module, ensure the
following:
❑ The procedures described in this document assume user familiarity with the general terminology associated with
personal computers and with the safety practice and regulatory compliance requirements for using and modifying
electronic equipment.
❑ Turn off your computer and disconnect it from its power sources (battery pack and AC adapter) and from any
telecommunication links, networks, or modems before you remove any cover or panel from the computer. Failure to
do so may result in personal injury or equipment damage.
❑ ESD can damage memory modules and other components. Install the memory module only at an ESD workstation.
If such a station is not available, do not work in a carpeted area, and do not handle materials that produce or hold
static electricity (cellophane wrappers, for example). Ground yourself by maintaining contact with an unpainted metal
portion of the chassis while performing the procedure.
Page 89
Upgrading Your VAIO Computer >
Adding and Removing Memory
89
nN
❑ Do not open the memory module package before you are ready to change the module. The package protects the
module from ESD.
❑ Use the special bag supplied with the memory module or wrap the module in aluminum foil to protect it from ESD.
❑ Introducing any liquids, foreign substances, or objects into the memory module slots or other internal components of your
computer will result in damage to the computer and any repair costs will not be covered by the warranty.
❑ Do not place the memory module in a location subject to:
❑ Heat sources such as radiators or air ducts
❑ Direct sunlight
❑ Excessive dust
❑ Mechanical vibration or shock
❑ Strong magnets or speakers that are not magnetically shielded
❑ Ambient temperature of more than 95°F (35°C) or less than 41°F (5°C)
❑ High humidity
❑ Handle the memory module with care. To avoid injuries to your hands and fingers, do not touch the edges of the
components and circuit boards inside your computer.
Page 90
Upgrading Your VAIO Computer >
Adding and Removing Memory
nN
Removing and Installing a Memory Module
To change or add a memory module
1 Shut down the computer and disconnect all peripheral devices.
2 Unplug the computer and remove the battery pack.
3 Wait about an hour until the computer cools down.

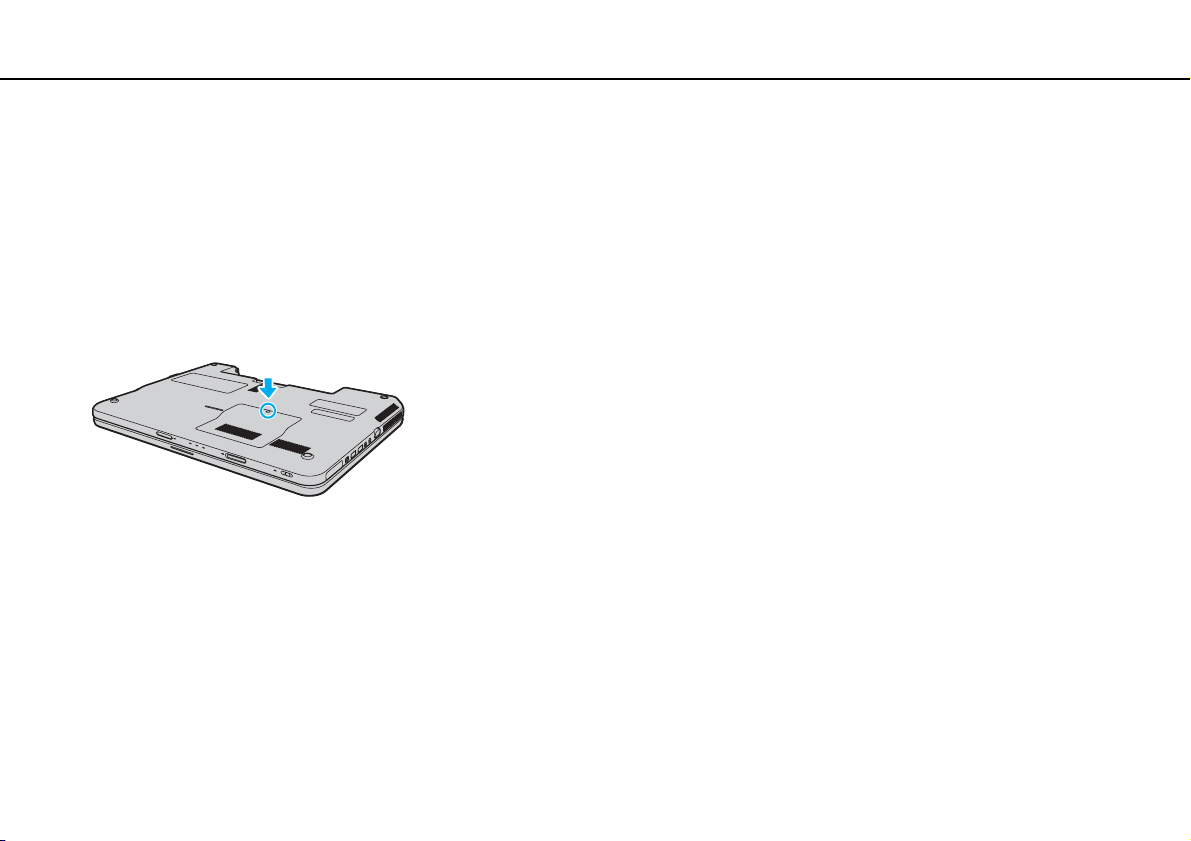

4 Unscrew the screw (indicated by the arrow below) on the bottom of the computer and remove the memory module
compartment cover.
5 Touch a metal object to discharge static electricity.
90
Page 91
Upgrading Your VAIO Computer >
Adding and Removing Memory

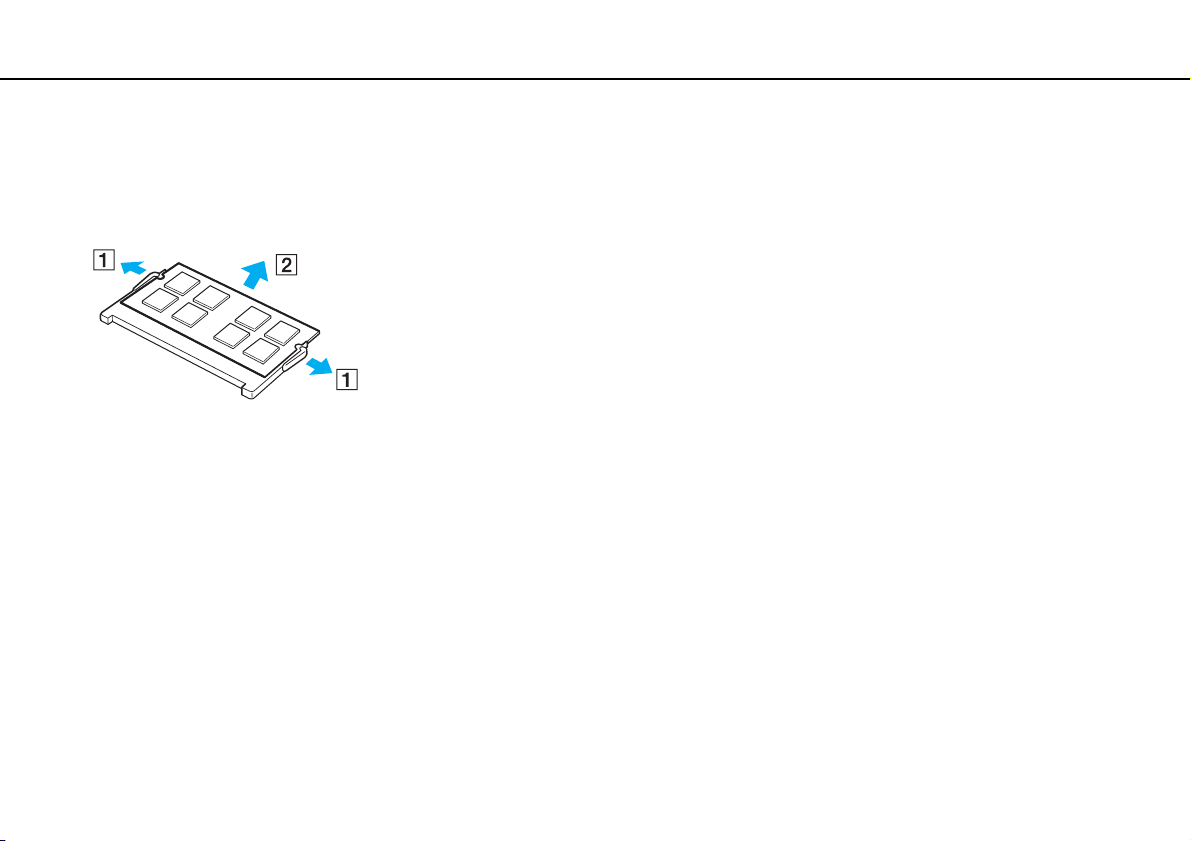

6 Remove the currently installed memory module as follows:
❑ Pull the latches in the direction of the arrows (1).
The memory module is released.
❑ Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2).
7 Remove the new memory module from its packaging.
91
nN
Page 92
Upgrading Your VAIO Computer >
Adding and Removing Memory

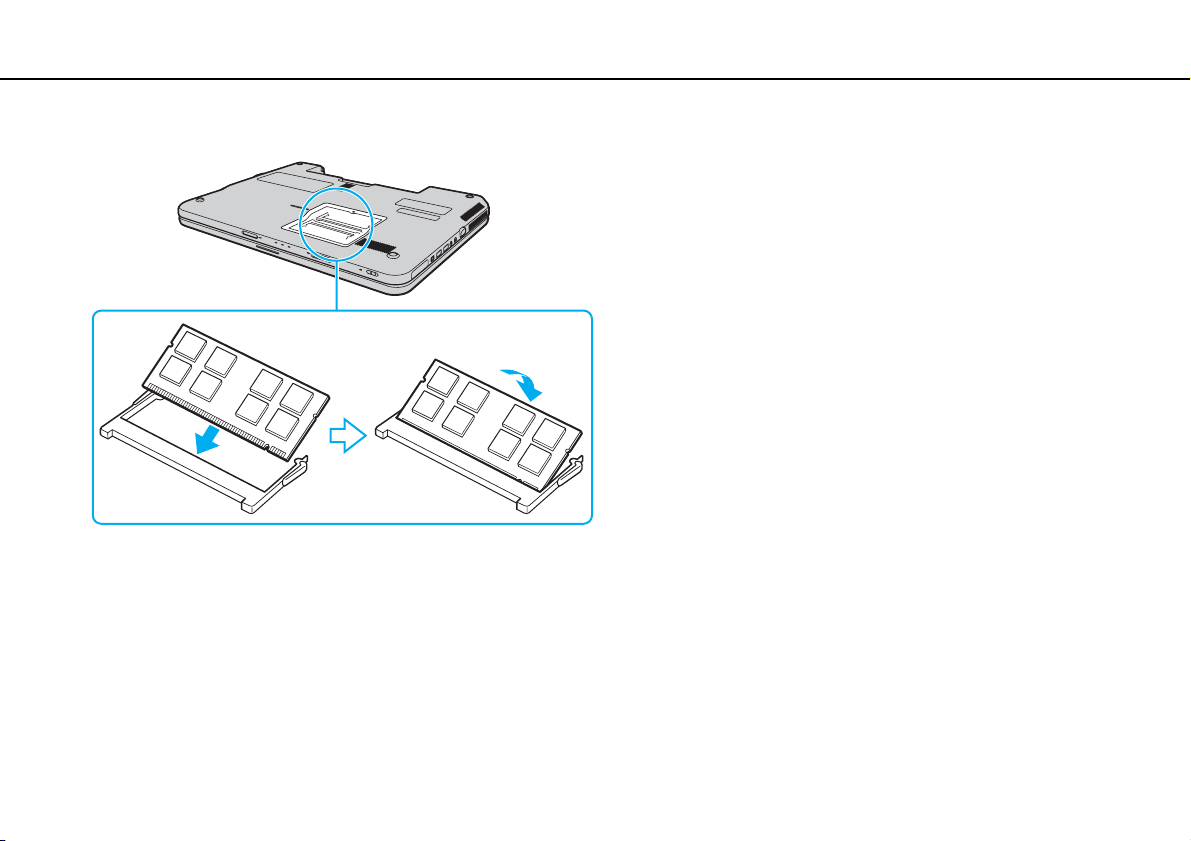

8 Slide the memory module into the memory module slot and push it in until it clicks into place.
!
Do not touch any other components on the motherboard.
If you want to install only one memory module, be sure to use the slot closer to the back of your computer.
92
nN
Be sure to insert the connector edge of the memory module into the slot while aligning the notch on the module with the small projection in the open
slot. Do not force the memory module into the slot in a wrong orientation, as it may cause damage to the slot and the module.
9 Replace the memory module compartment cover.
10 Tighten the screw on the bottom of the computer.
11 Reinstall the battery pack and turn on the computer.
Page 93
Upgrading Your VAIO Computer >
Adding and Removing Memory
Viewing the Amount of Memory
To view the amount of memory
1 Turn on the computer.
2 Click Start, All Programs, and VAIO Control Center.
3 Click System Information and System Information.
You can view the amount of system memory in the right pane. If the additional memory does not appear, repeat the
installation procedure and restart the computer.
93
nN
Page 94
Precautions >
nN
Precautions
This section describes safety guidelines and precautions to help you protect your VAIO computer from potential damage.
❑ Handling the LCD Screen (page 95)
❑ Using the Power Source (page 96)
❑ Handling Your Computer (page 97)
❑ Handling the Built-in MOTION EYE Camera (page 100)
❑ Handling Discs (page 101)
❑ Using the Battery Pack (page 102)
❑ Using Headphones (page 104)
❑ Handling the Memory Stick (page 105)
❑ Handling the Built-in Storage Device (page 106)
94
Page 95
Precautions >
Handling the LCD Screen
95
nN
Handling the LCD Screen
❑ Do not leave the LCD screen facing the sun. This could damage the LCD screen. Be careful when using your computer
near a window.
❑ Do not scratch the surface of the LCD screen or exert pressure on it. This could cause a malfunction.
❑ Using your computer in low temperature conditions may produce a residual image on the LCD screen. This is not a
malfunction. When the computer returns to normal temperature, the screen returns to normal.
❑ A residual image may appear on the LCD screen if the same image is displayed for a long period of time. The residual
image disappears after a while. You can use a screen saver to prevent residual images.
❑ The LCD screen becomes warm during operation. This is normal and does not indicate a malfunction.
❑ The LCD screen is manufactured using high-precision technology. You may, however, see tiny black points and/or bright
points (red, blue, or green) that continuously appear on the LCD screen. This is a normal result of the manufacturing
process and does not indicate a malfunction.
❑ Avoid rubbing the LCD screen. This could damage the screen. Use a soft, dry cloth to wipe the surface of the LCD screen.
❑ Do not change the LCD screen orientation setting in the Tablet PC Settings window even when there are change options
available for selection, as this may make your computer unstable. Sony assumes no liability for any malfunctions arising
from changes to the settings.
❑ Do not exert pressure on the LCD screen lid with the lid closed as it may scratch the LCD screen or soil it.
Page 96
Precautions >
Using the Power Source
96
nN
Using the Power Source
See the specifications to find out about the configuration of your computer.
❑ Do not share the AC outlet with other power-consuming equipment, such as a photocopier or a shredder.
❑ You can purchase a power strip with a surge protector. This device helps prevent damage to your computer caused by
sudden power surges, in an electrical storm, for example.
❑ Do not place heavy objects on the power cord.
❑ To disconnect the cord, pull it out by holding the plug. Never pull the cord itself.
❑ Unplug your computer from the AC outlet if you are not planning to use the computer for a long period of time.
❑ Make sure that the AC outlet is easily accessible.
❑ When the AC adapter is not used, unplug it from the AC outlet.
❑ Use the AC adapter supplied with your computer or genuine Sony products. Do not use any other AC adapter as it may
cause a malfunction.
Page 97
Precautions >
Handling Your Computer
97
nN
Handling Your Computer
❑ Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type
of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your
computer.
❑ If you drop a solid object or any liquid onto your computer, shut down the computer, unplug it, and remove the battery
pack. You may want to have the computer checked by qualified personnel before operating it again.
❑ Do not drop your computer or place any objects on top of the computer.
❑ Do not place your computer in a location subject to:
❑ Heat sources, such as radiators or air ducts
❑ Direct sunlight
❑ Excessive dust
❑ Moisture or rain
❑ Mechanical vibration or shock
❑ Strong magnets or speakers that are not magnetically shielded
❑ Ambient temperature of more than 95°F (35°C) or less than 41°F (5°C)
❑ High humidity
❑ Do not place electronic equipment near your computer. The electromagnetic field of the equipment may cause the
computer to malfunction.
❑ Use your computer on a solid, stable surface.
❑ Provide adequate air circulation to prevent internal overheating. Do not place your computer on porous surfaces such as
rugs, blankets, couches, or beds, or near draperies that may block its air vents.
Page 98
Precautions >
Handling Your Computer
98
nN
❑ Do not use your computer directly on your lap. The temperature of the base of the unit will rise during normal operation
and over time could result in discomfort or burns.
❑ Your computer uses high-frequency radio signals and may cause interference to radio or TV reception. If this occurs,
relocate the computer a suitable distance away from the set.
❑ Use only specified peripheral equipment and interface cables. Otherwise, problems may occur.
❑ Do not use cut or damaged connection cables.
❑ If your computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. In
this case, allow at least one hour before turning on the computer. If any problems occur, unplug the computer and contact
an authorized Sony Service Center. To find the nearest center or agent, see Finding More about Your VAIO Computer
(page 5).
❑ Make sure you disconnect the AC adapter and remove the battery pack before cleaning your computer.
❑ To avoid losing data when your computer is damaged, back up your data regularly.
Page 99
Precautions >
Handling Your Computer
99
nN

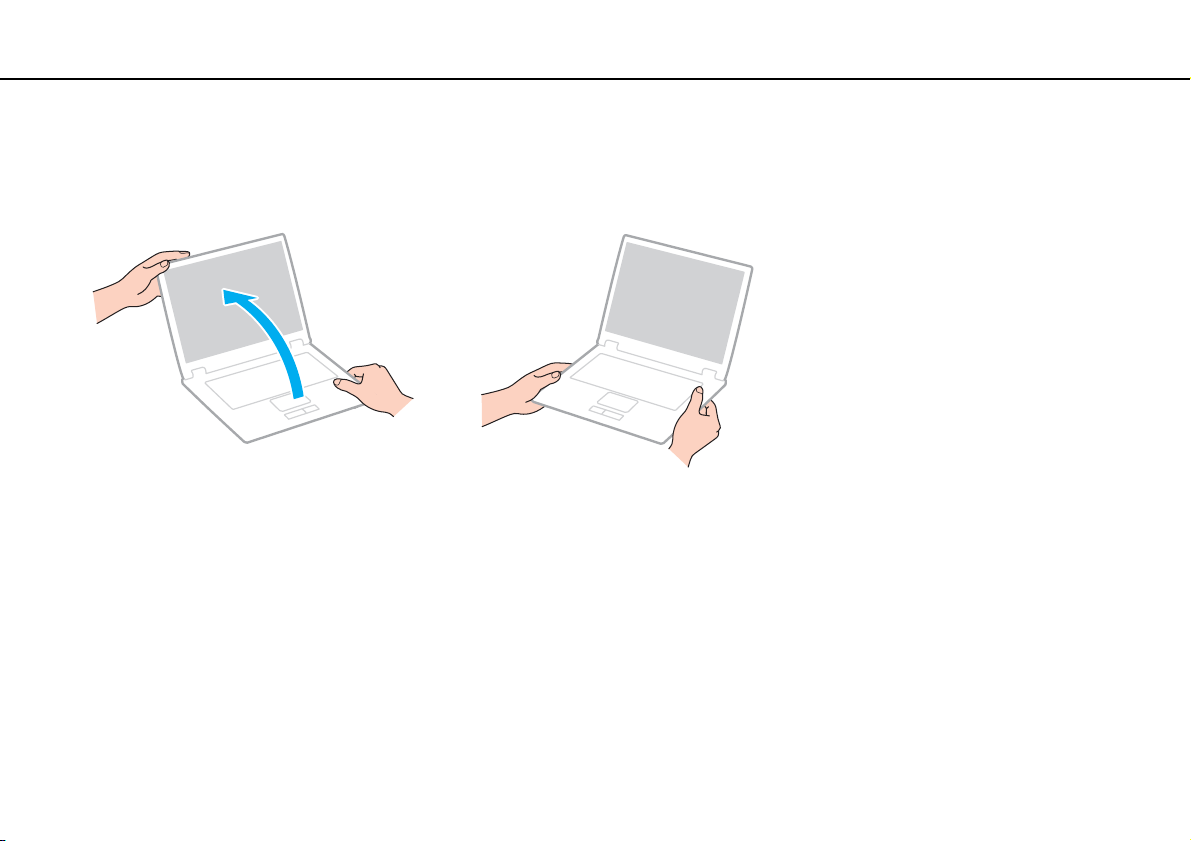

❑ Do not exert pressure on the LCD screen or its edges when opening the LCD screen lid or lifting your computer. The LCD
screen may be sensitive to pressure or added stress, and exerting pressure may damage the screen or cause it to
malfunction. To open the computer, hold the base with one hand and gently lift the LCD screen lid with the other. To carry
the computer with the lid open, be sure to hold the computer with both hands.
❑ Use a carrying case specially designed to carry your computer.
Page 100
Precautions >
Handling the Built-in MOTION EYE Camera
100
nN
Handling the Built-in MOTION EYE Camera
❑ Do not touch the lens protection cover of the built-in MOTION EYE camera, as it may cause scratches on the cover and
such scratches will appear on the captured images.
❑ Do not let the direct sunlight get into the lens of the built-in MOTION EYE camera regardless of your computer's power
state, as it may cause the camera to malfunction.
❑ The built-in MOTION EYE camera is disabled while videos or still images are imported from an i.LINK-compatible device
connected to the i.LINK port.
❑ Clean the lens protection cover of the built-in MOTION EYE camera with a blower brush or a soft brush. If the cover is
extremely dirty, wipe it off with a soft dry cloth. Do not rub the cover, as it is sensitive to pressure.
Loading...
