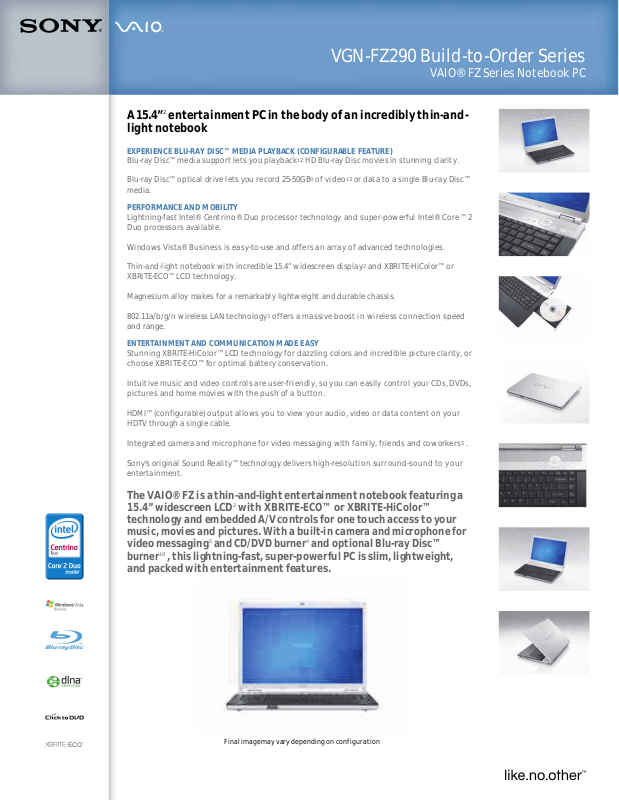

Sony VGN-FZ290 User Manual
VGN-FZ290 Build-to-Order Series
VAIO® FZ Series Notebook PC
Final image may vary depending on configuration
A 15.4” entertainment PC in the body of an incredibly thin-andlight notebook
EXPERIENCE BLU-RAY DISC™ MEDIA PLAYBACK (CONFIGURABLE FEATURE)
Blu-ray Disc™ media support lets you playback
HD Blu
-ray Disc movies in stunning clarity.
Blu-ray Disc™ optical drive lets you record 25-50GB of video or data to a single Blu-ray Disc™
media.
PERFORMANCE AND MOBILITY
Lightning-fast Intel® Centrino® Duo processor technology and super-powerful Intel® Core™ 2
Duo processors available.
Windows Vista® Business is easy-to-use and offers an array of advanced technologies.
Thin-and-light notebook with incredible 15.4” widescreen display and XBRITE-HiColor™ or
XBRITE-
ECO
™ LCD technology.
Magnesium alloy makes for a remarkably lightweight and durable chassis.
802.11a/b/g/n wireless LAN technology offers a massive boost in wireless connection speed
and range.
ENTERTAINMENT AND COMMUNICATION MADE EASY
Stunning XBRITE-HiColor™ LCD technology for dazzling colors and incredible picture clarity, or
choose XBRITE-
ECO
™ for optimal battery conservation.
Intuitive music and video controls are user-friendly, so you can easily control your CDs, DVDs,
pictures and home movies with the push of a button.
HDMI™ (
configurable) output allows you to view your audio, video or data content on your
HDTV through a single cable.
Integrated camera and microphone for video messaging with family, friends and coworkers .
Sony's original Sound Reality™ technology delivers high-resolution surround-sound to your
entertainment.
The VAIO®
FZ is a thin-and
-light entertainment notebook featuring a
15.4” widescreen LCD with XBRITE-
ECO
™ or XBRITE-
HiColor
™
technology and embedded A/V controls for one touch access to your
music, movies and pictures. With a built-in camera and microphone for
video messaging
and CD/DVD burner
and optional Blu-ray Disc
™
burner
, this lightning
-fast, super-
powerful PC is slim, lightweight,
and packed with entertainment features.
2
12 9 13 2 3 5 2 5 4
18
ECO
-
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 08/24/2007
VGN-FZ290 Build-to-Order Series
VAIO® FZ Series Notebook PC
Specifications
General
Computer Type: Notebook
Type of Use: Portable
Action Buttons:
S1, (programmable), Volume, AV Mode
(Availability
dependent on configuration), Play/Pause, and Stop
Pointing Device:
Electro-Static touch pad
Hardware
Keyboard: QWERTY, 82 keys with 2mm stroke and 19.05mm pitch
Silver or Black Keyboard
Black, Silver or Polished Mosaic palm rest
Camera:
Built-in camera and microphone
Processor
Type: Intel® Core™ 2 Duo Processor T7700 (Configuration 1),
Intel® Core™ 2 Duo Processor T7500 (Configuration 2),
Intel® Core™ 2 Duo Processor T7250 (Configuration 3) or
Intel® Core™ 2 Duo Processor T5250 (Configuration 4)
Speed: 2.40GHz (Configuration 1), 2.20GHz (Configuration 2), 2GHz
(Configuration 3) or 1.50GHz (Configuration 4)
Front Side Bus Speed: 800MHz (Configurations 1-3)
667MHz (Configuration 4)
L2 Cache: 4MB Advanced Smart Cache (Configurations 1-2)
2MB (Configuration 3-4)
Technology: Intel® Centrino® Duo Processor Technology (depending on
configuration)
Memory
Type:
DDR2
Installed:
2GB PC2-5300 (1GBx2) or 1GB PC2-5300 (1GBx1)
Maximum:
4GB
Speed: 667MHz
Hard Drive
Capacity: 200GB (Configuration 1), 200GB (Configuration 2),
160GB (Configuration 3) or 120GB (Configuration 4)
Speed: 7200rpm (Configuration 1) or 5400rpm (Configuration 2-4)
Interface: Serial ATA
Optical Drive #1
DVD+R DL Write:
4x max. (DVD±RW/±R DL)
2.4x max. (BD-ROM Read)
2.4x max. (Blu-ray Disc
™
Write)
DVD+R Write:
8x max.
DVD+RW Write:
8x max. (DVD±RW/±R DL)
4x max. (BD-ROM Read)
4x max. (Blu-ray Disc
™
Write)
DVD-R Write: 8x max.
DVD-RW Write:
6x max. (DVD±RW/±R DL)
4x max. (BD-ROM Read)
4x max. (Blu-ray Disc
™
Write)
CD-R Write:
24x max. (DVD±RW/±R DL)
8x max. (BD-ROM Read)
8x max. (Blu-ray Disc
™
Write)
CD-RW Write:
16x max. (DVD±RW/±R DL)
8x max. (BD-ROM Read)
8x max. (Blu-ray Disc
™
Write)
DVD±RW: Yes
(DVD±R DL/DVD±RW/DVD-RAM)
CD Read: 24x max.
DVD Read: 8x max.
DVD-RAM Write:
5x max.
DVD-R DL Write:
4x max. (DVD±RW/±R DL)
2x max. (BD-ROM Read)
2x max. (Blu-ray Disc
™
Write)
BD-R Read:
2x max. (BD-ROM Read)
2x max. (Blu-ray Disc
™ write)
BD-R Write:
2x max. (Blu-ray Disc
™ write)
BD-RE Write:
2x max. (Blu-ray Disc
™ write)
BD-ROM Read:
2x max. (BD-ROM Read)
2x max. (Blu-ray Disc
™ write)
BD-RE Read:
2x max. (BD-ROM Read)
2x max. (Blu-ray Disc
™ write)
BD-R DL Read:
2x max. (BD-ROM Read)
2x max. (Blu-ray Disc
™ write)
BD-R DL Write:
1x max. (Blu-ray Disc
™ write)
DVD-RAM Read: 5x max.
Blu-Ray Disc
™ Support: Optional (Can only be configured with select PC
hardware options)
BD-RE DL Read:
2x max. (BD-ROM Read)
2x max. (Blu-ray Disc
™ write)
BD-RE DL Write:
1x max. (Blu-ray Disc
™ write)
Expansion Slots
Multimedia Card Reader: One Memory Stick Duo™ media with MagicGate®
functionality
One ExpressCard™ /34 Slot
One Secure Digital Media (SD)
15 8 8 8 8
17 9 9 9 9 4 14,18
Audio
Sound System: Sony® Sound Reality™ - Audio Enhancer
Display
Screen or Display Technology:
WXGA LCD
Screen Size: 15.4”
Resolution:
1280 x 800
XBRITE-HiColor
™ Technology: Optional (Dependent on configuration)
XBRITE-ECO™ Technology: Optional (Dependent on configuration)
Graphics
Processor:
NVIDIA
® GeForce® 8400M GT GPU or Mobile Intel®
Graphics
Media Accelerator X3100
Video RAM:
251MB Total Available Graphics Memory if Mobile Intel®
Graphics Media Accelerator X3100 and 1GB RAM is selected.
358MB Total Available Graphics Memory if Mobile Intel® Graphics Media
Accelerator X3100 and 2GB RAM is selected.
511MB Total Available Graphics Memory
if NVIDIA
® GeForce® 8400M GT
GPU and 1GB RAM is selected.
1032MB Total Available Graphics Memory
if NVIDIA
® GeForce® 8400M
GT GPU and 2GB RAM is selected.
Chipset:
Intel® PM965 Express Chipset (NVIDIA® GeForce®
)
Intel® GM965 Express Chipset (Intel® Graphics Media Accelerator X3100)
Interface: VGA and S-Video Out with Smart Display Sensor
Inputs and Outputs
Ethernet Port: 1
HDMI
™ Connection Output(s): 1 (only available with NVIDIA® GeForce®
8400M GT GPU)
Headphone Jack: 1
Memory Stick®
Media Slot:
1
Modem Jack: 1
Secure Digital Slot:
1
Microphone Input: 1
S-Video Output(s): 1
USB Port(s): 3 (2.0 compliant)
VGA Output(s): 1
DC-In: 1
Express Card™
Slot:
1 type /34
i.LINK
® Connection: 1(4-pin) interface
Networking/Modem
Ethernet Protocol: Fast Ethernet (RJ-45)
Ethernet Speed: 10Base-T/100Base-TX
Modem Type: Integrated V.92/V.90 Modem (RJ-11)
Wireless LAN:
Intel® PRO/Wireless 4965AGN Network Connection
(802.11a/b/g/n)
Bluetooth® Technology: Integrated Bluetooth® Technology
Power
Battery Type: Standard Lithium-ion Battery (VGP-BPS8)
Estimated Battery Life: 1.5-5.5 hours Standard Capacity Battery
2.0-8.0 hours Large Capacity Battery
(Battery Range depends on configuration)
Power Requirements: 110W+10%
Software
Operating System: Windows Vista® Business
Internet Services:
AOL
® 90-Day Risk Free Trial - New Users Only
Supplied Software: Microsoft® Works SE 9.0 w/ 60-Day Trial Version of
Microsoft® Office Small Business 2007
Sony® Original Software:
Click to DVD® -
DVD Creation
LocationFree® Player Software
*Please access VAIO® Help and Support from your PC for a complete list
of software applications and trials.
Security and Anti-Virus Software: Norton 360™
All-In-One Security 60-day
Trial
Service and Warranty Information
Telephone Support: 1 year toll-free technical telephone assistance,
available 24/7
Limited Warranty and Onsite Service: 1 Year Limited Warranty with Onsite
Service
Online and Email Support: Support available from
http://www.esupport.sony.com/EN/VAIO
Dimensions
Weight: 5.9 lbs (weight will vary depending on configuration)
Measurements: 14"(W) x 0.98-1.4"(H) x 10.02"(D)
Supplied Accessories
Standard Lithium-ion battery (VGP-BPS8)
AC adapter(VGP-AC19V19)
Power Cord
Optional Accessories
Large Capacity Lithium-ion Battery (VGP-BPL8)
AC Adapter (VGP-AC19V10)
2
11
11
11
11 7 3
16 6 6
10
13
12 1 1
Stick AC Adapter (VGP-AC19V21)
Bluetooth® Laser Mouse (VGP-BMS33/B)
USB Laser Mouse (VGP-UMS55/B)
USB Laser Mouse (VGP-UMS55/S)
Neoprene Notebook and AC Adapter Case (VGP-AMC3)
All-in-one 2.1 Channel Speaker (VGP-SP100)
Sport Backpack (VGP-CCP4/L)
Urban Messenger Bag (VGP-AML2)
Color:
Silver
1. Non-metric weights and measures are approximate and may vary.
2. Viewable area measured diagonally.
3. Requires 802.11n compatible access point. Some functionality may
require Internet services, which may require a fee.
4. DVD media/formats are not universally compatible.
5. Broadband internet service required along with third party services
which may require a subscription or other service fee.
6. Actual battery life will vary based on product settings, usage patterns,
battery and environmental conditions.
7. i.LINK is a trademark of Sony used only to designate that a product
contains an IEEE 1394 connector. All products with an i.LINK connector
may not communicate with each other.
8. GHz denotes microprocessor internal clock speed; other factors may
affect application performance. CPU speed will be reduced under
certain operating conditions.
9. GB means one billion bytes when referring to hard drive capacity.
Accessible capacity may vary. A portion of hard disk space is reserved as
a recovery partition.
10. 60-Day Trial Version of Microsoft® Office 2007 - This trial software will
work only for 60 days after you first use it. You will not be able to use
the software if you do not activate it as described the first time you use
the software. You can activate the software by Internet: Internet
service charges may apply. If you want to keep using the software
after the 60-day trial period, you must convert to the perpetual version.
You can convert online by following the conversion instructions
presented during setup and paying the required fees.
11. Total Available Graphics Memory refers to the new Windows Vista®
classification of graphics memory, which is the total of Dedicated Video
Memory, System Video Memory and Shared System Memory. Shared
System Memory varies depending on the operating condition and
system memory size.
12. When available, Sony will provide Onsite Service in fulfillment of its
limited warranty obligations. Any such services are subject to the terms
and conditions of the limited warranty. See actual Limited Warranty for
details. Onsite Service will be provided via third-party technician to be
dispatched as needed following phone-based troubleshooting. Some
repairs may be accomplished with self repair kits. Onsite Service may not
be available in all locations.
13. For certain third party software applications, Sony provides first level
Phone Support. Additional telephone support may be available from
the applicable 3rd party vendor. Availability and schedule for any such
support is determined by the applicable software vendor.
14. As with other optical media devices, circumstances may limit
compatibility or prevent Blu-ray Disc
™ media playback. VAIO computers
may not support movie playback on packaged media recorded in AVC
or VC1 formats at high bit rates.
15. A/V Instant Mode not available with Blu-ray Disc enabled PC.
16. Use of this Bluetooth enabled product with other devices may vary as
not all Bluetooth devices are compatible.
17. A portion of the system memory over 3GB may not be available to the
operating system.
18. Video recording to Blu-ray Disc
® media is done in MP2 format only.
Computer Interface: The computer industry lacks standards, and therefore,
there are a multitude of varying software packages and add-on hardware
options. This personal computer is not manufactured to operate any
specific software, and Sony does not and cannot make any warranty or
representation with respect to the performance of this product with any
particular software packages and/or non-Sony add-on hardware options
except those mentioned in this document. Sony hereby disclaims any
representations or warranty that this product is compatible with any
combination of products you may choose to connect. While Sony
representatives or Sony authorized dealers may be able to assist you and
may make recommendations, they are NOT authorized to vary or waive this
disclaimer. Purchasers must determine for themselves the suitability and
compatibility of the hardware and software in each and every particular
instance. Software titles pre-installed on the Sony Notebook Computer are
subject to change without notice. Simulated graphic shown on display. Pre
installed software may not be identical to retail versions or have all
documentation. This product meets the standards of the International
Energy Star Program for energy efficiency. Features and specifications
are subject to change without notice.
Lamp in this product contains mercury. Disposal of these materials may be
regulated due to environmental considerations. For disposal or recycling
information, please contact your local authorities or the Electronic
Industries Alliance (www.eiae.org).
©2007 Sony Electronics Inc. All rights reserved. Reproduction in whole or in
part without written permission is prohibited. Sony, the Sony logo, VAIO,
XBRITE-ECO, XBRITE-HiColor, Memory Stick, Memory Stick Duo, MagicGate,
LocationFree, Sound Reality, i.LINK and Click to DVD logo are trademarks of
Sony. Microsoft and Windows Vista are trademarks of Microsoft
Corporation. Intel, Pentium, Centrino and Core are trademarks of Intel
Corporation. Blu-ray Disc is a trademark. HDMI is a trademark of HDMI
Licensing LLC. Bluetooth is a trademark of Bluetooth SIG. All other
trademarks are trademarks of their respective owners.
Printed in U.S.A. 07/07.
Loading...
