Page 1

User Guide

Personal Computer

VGN-FS800 Series

Page 2

Contents

Before Use .........................................................................................................................................................................6

Documentation .............................................................................................................................................................6

Ergonomic Considerations...........................................................................................................................................8

Getting Started .................................................................................................................................................................10

Locating Controls and Ports.......................................................................................................................................11

About the Indicator Lights ..........................................................................................................................................17

Connecting a Power Source ......................................................................................................................................18

Using the Battery Pack ..............................................................................................................................................19

Shutting Down Your Computer Safely .......................................................................................................................24

Using Your VAIO Computer .............................................................................................................................................25

Using the Keyboard ...................................................................................................................................................26

Using the Touch Pad .................................................................................................................................................28

Using Special-function Buttons ..................................................................................................................................29

Using the Optical Disc Drive ......................................................................................................................................30

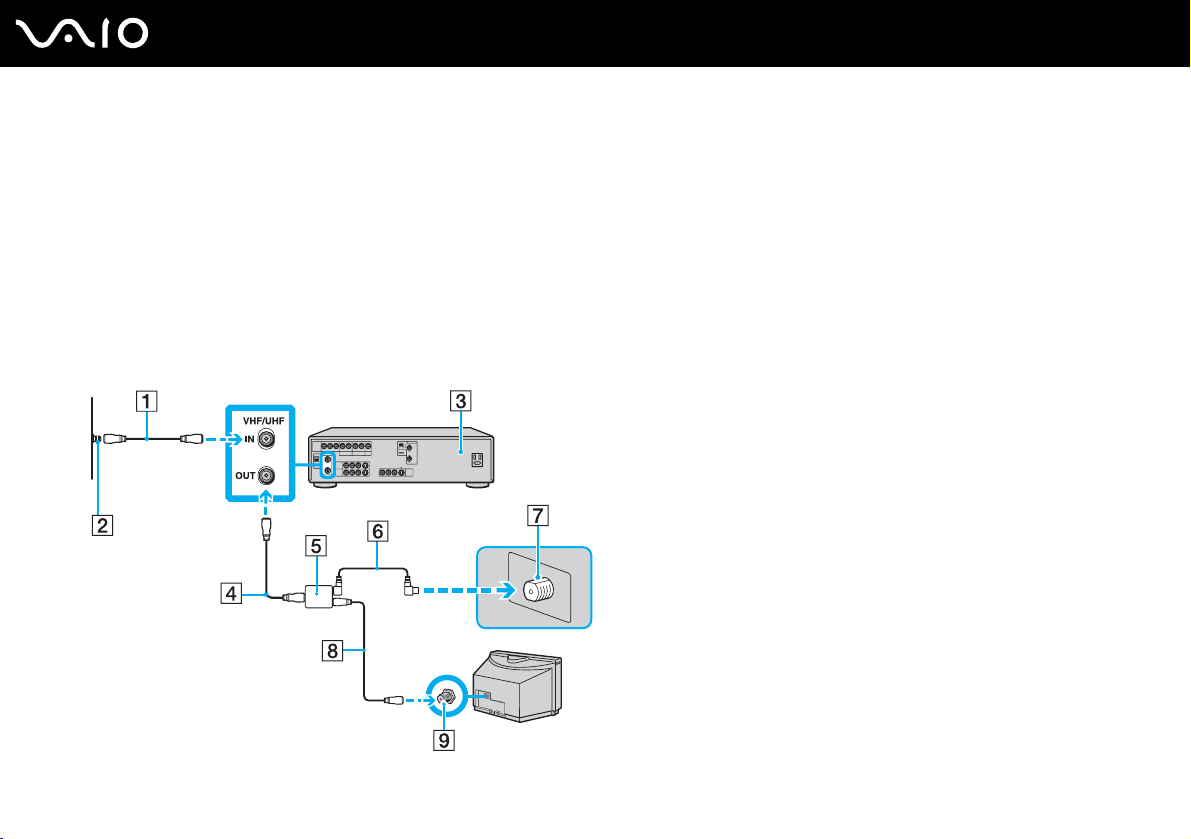

Using the TV Function ...............................................................................................................................................39

Using PC Cards .........................................................................................................................................................40

Using the Memory Stick Media ..................................................................................................................................43

Using the Internet.......................................................................................................................................................46

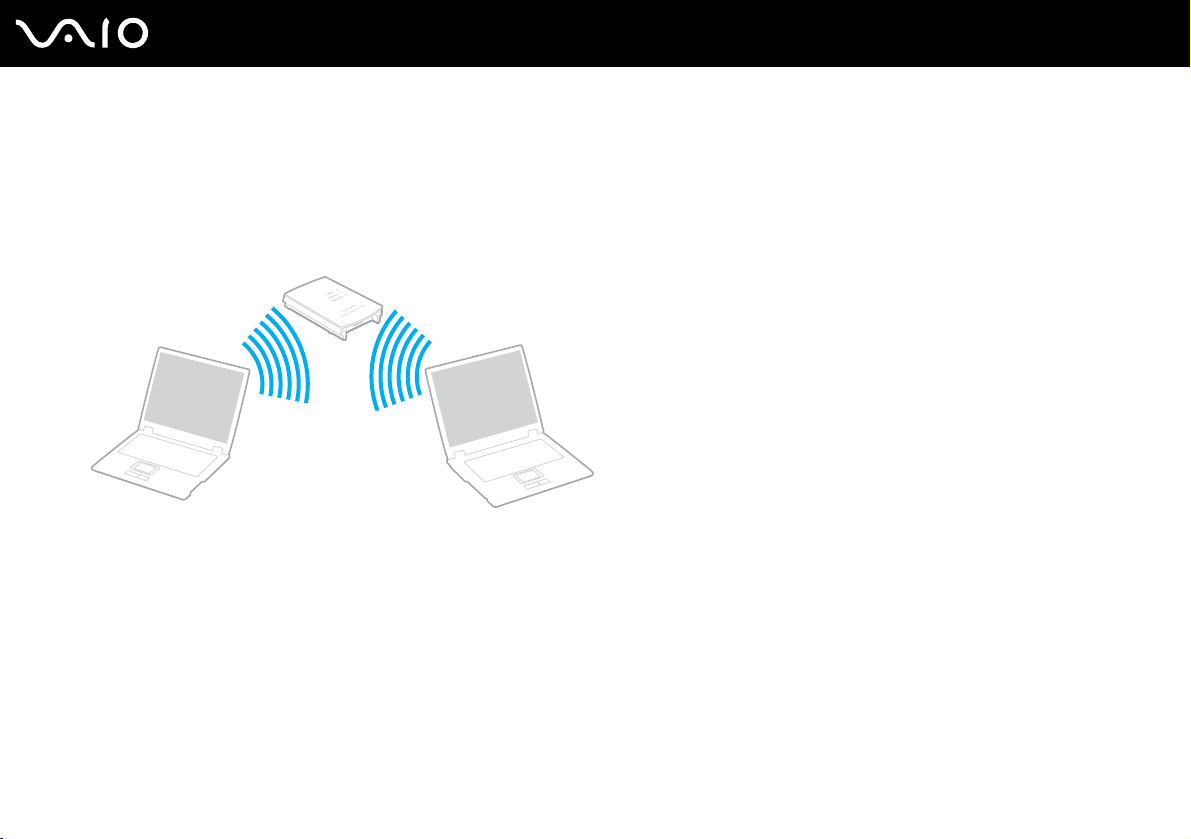

Using Wireless LAN (WLAN) .....................................................................................................................................47

Page 3

Using Peripheral Devices .................................................................................................................................................57

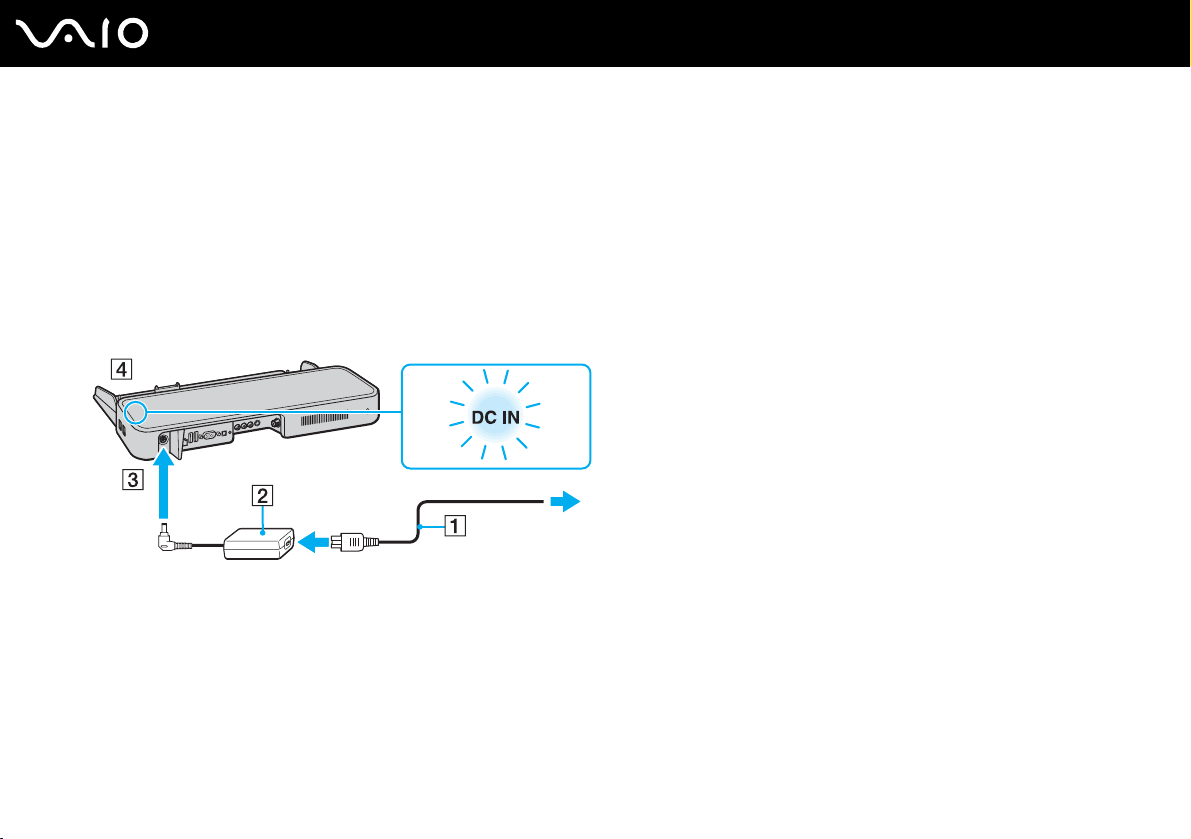

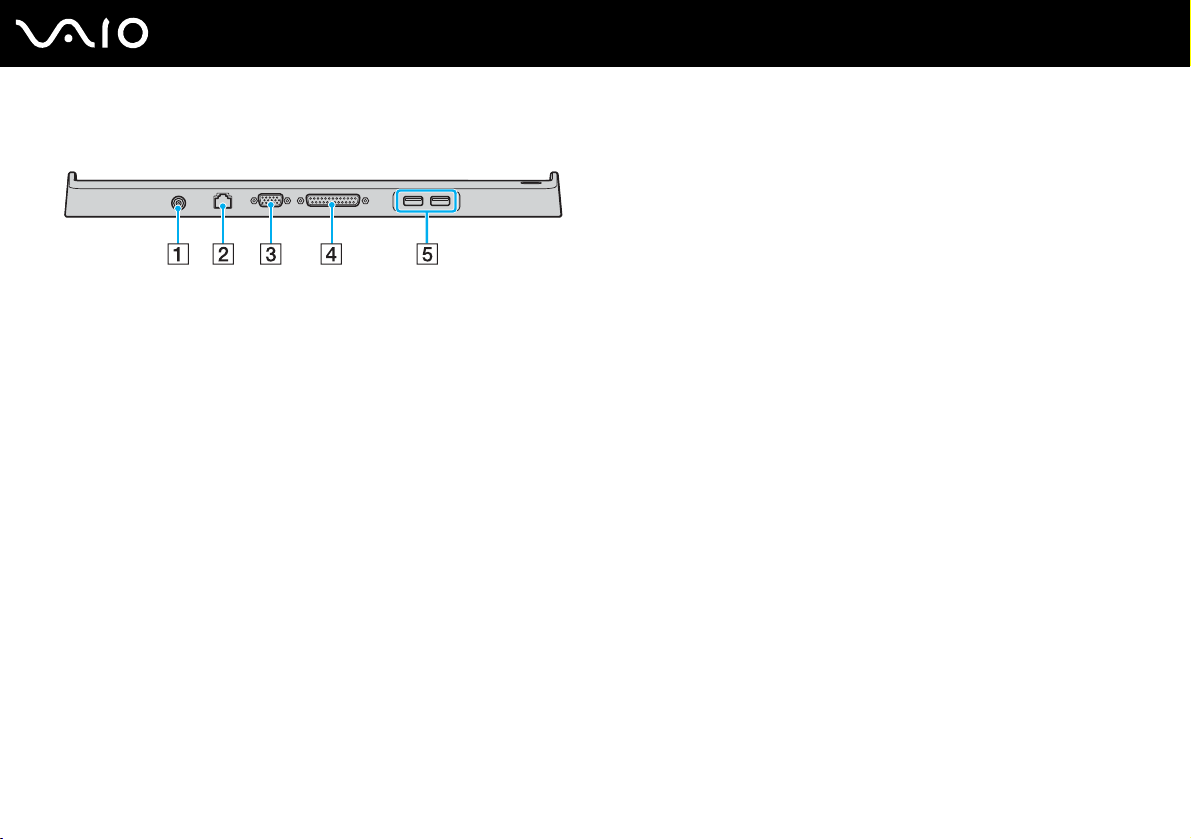

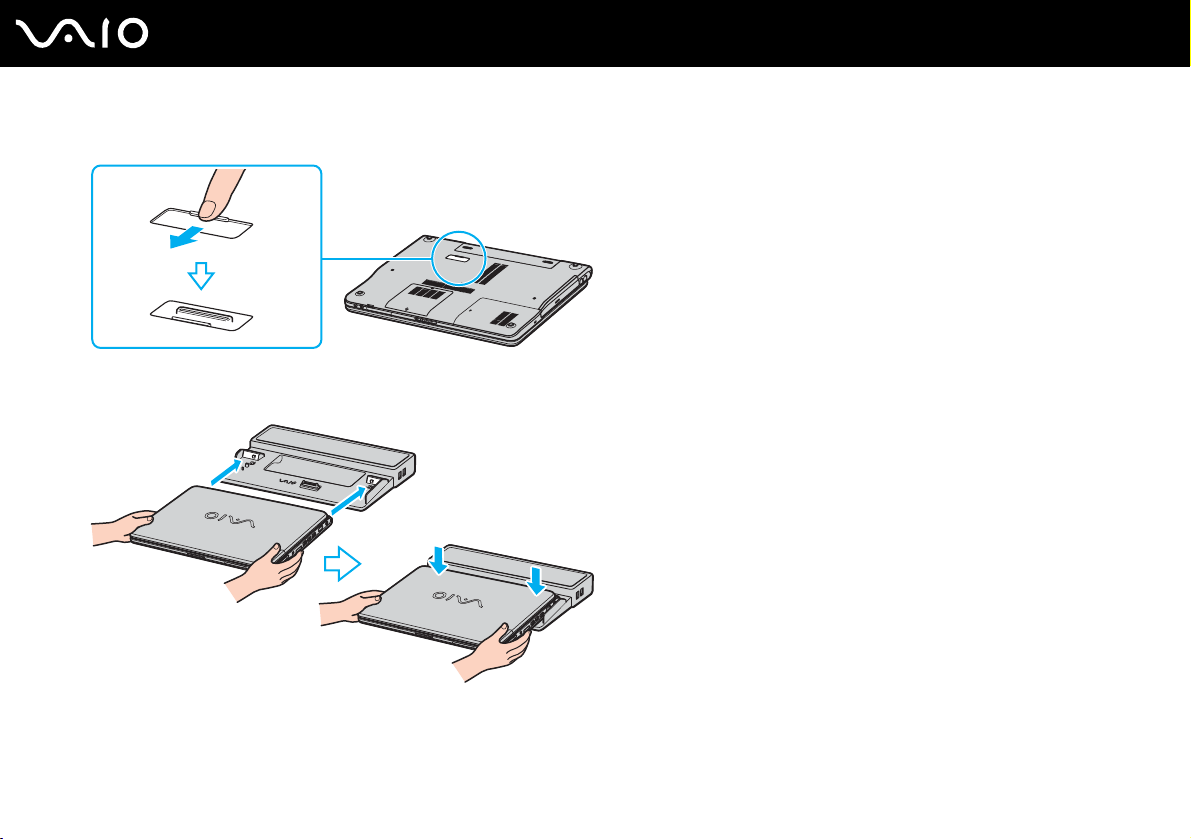

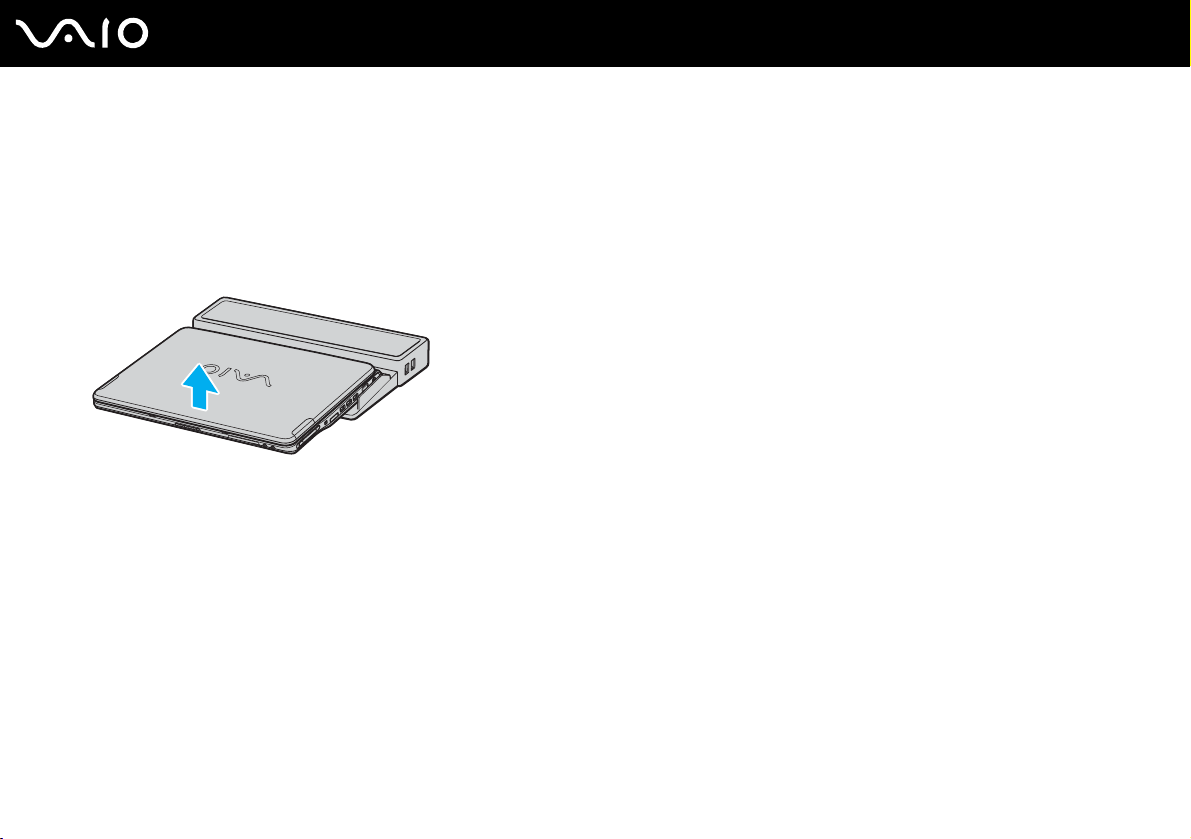

Connecting a Port Replicator .....................................................................................................................................58

Connecting External Speakers ..................................................................................................................................73

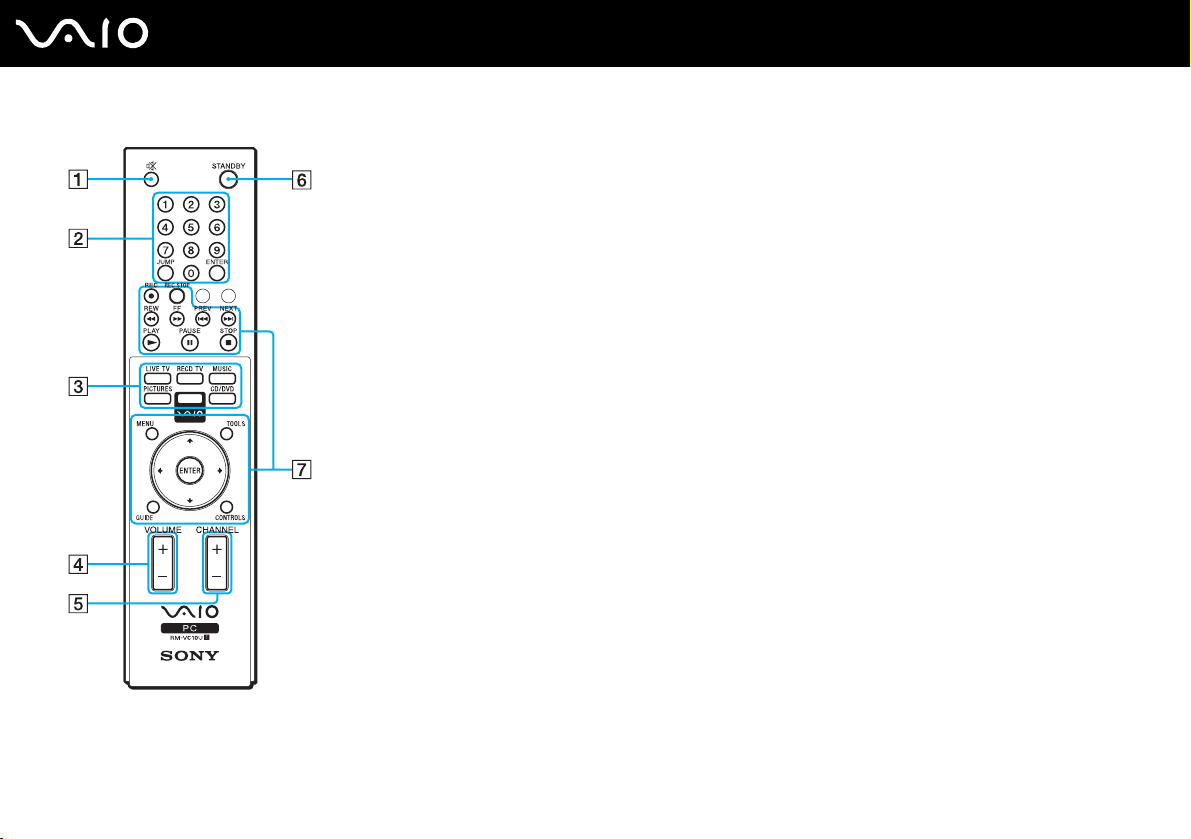

Using the Remote Commander .................................................................................................................................76

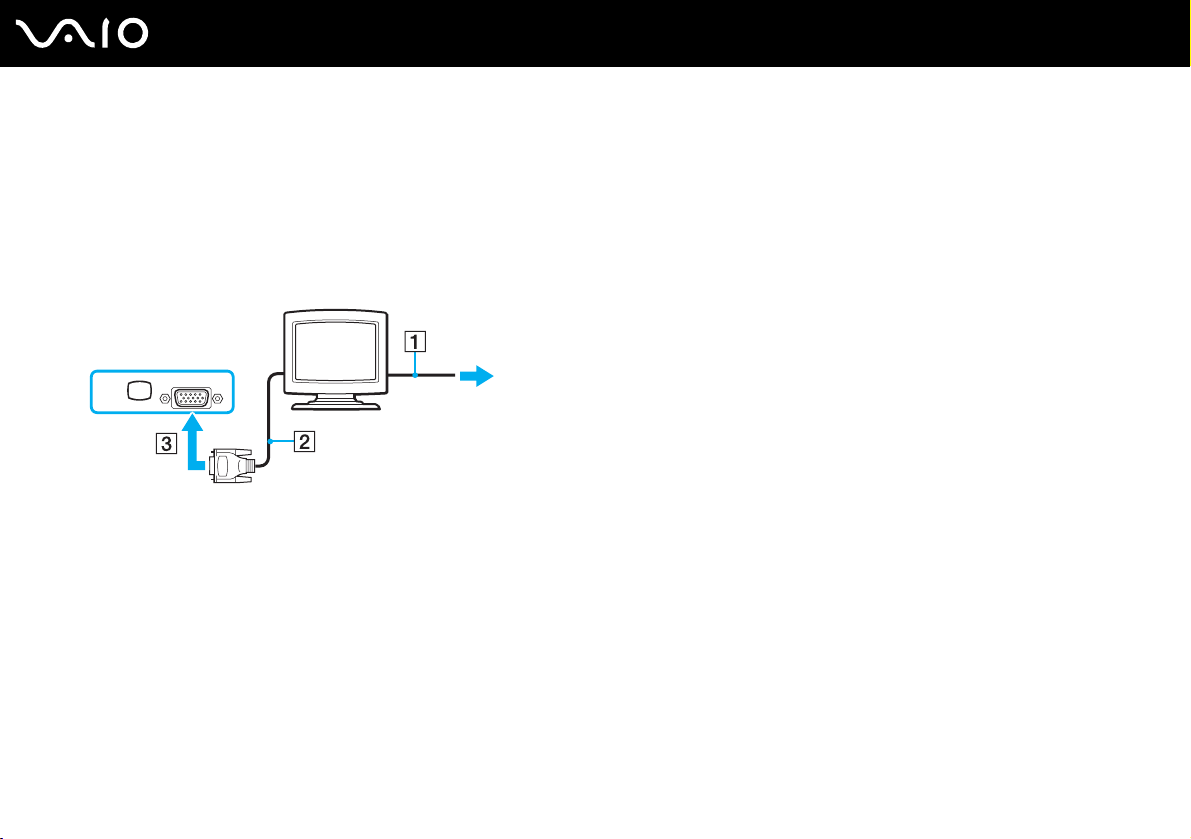

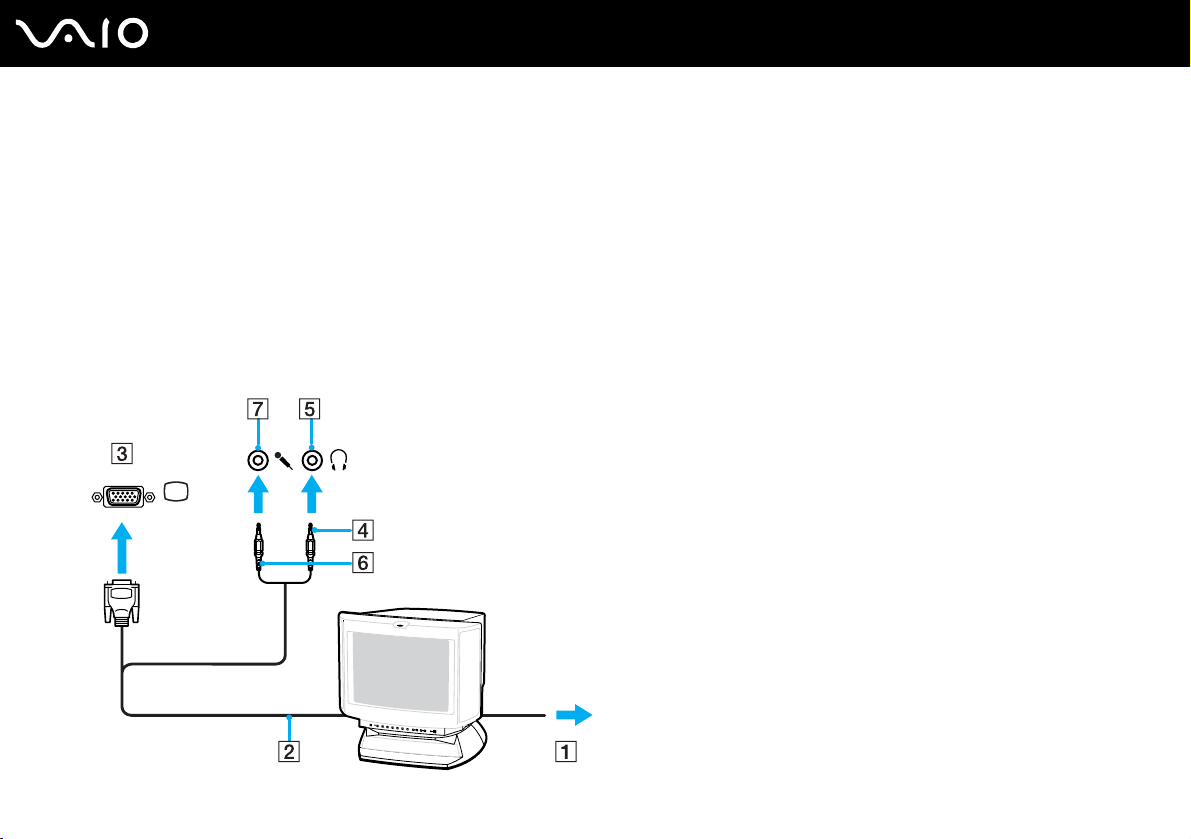

Connecting an External Display.................................................................................................................................79

Selecting Display Modes............................................................................................................................................83

Using the Multiple Monitors Function.........................................................................................................................85

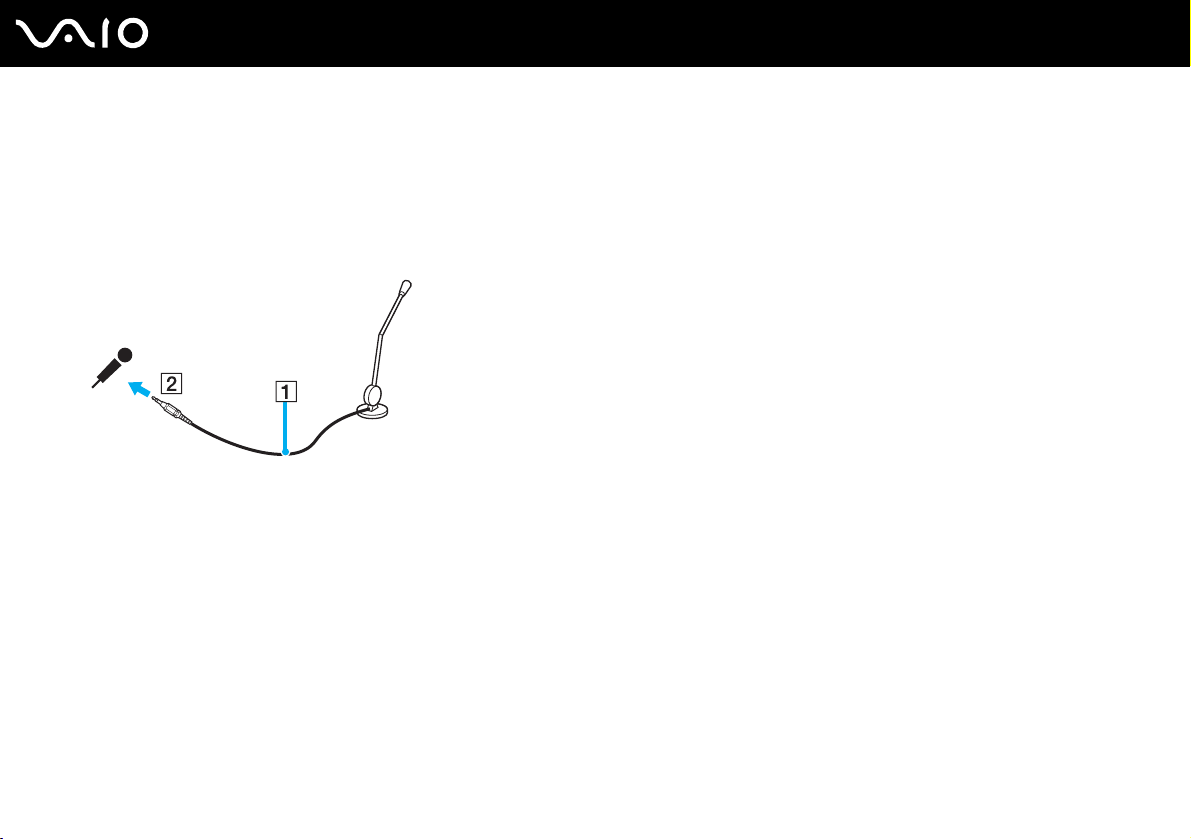

Connecting an External Microphone..........................................................................................................................87

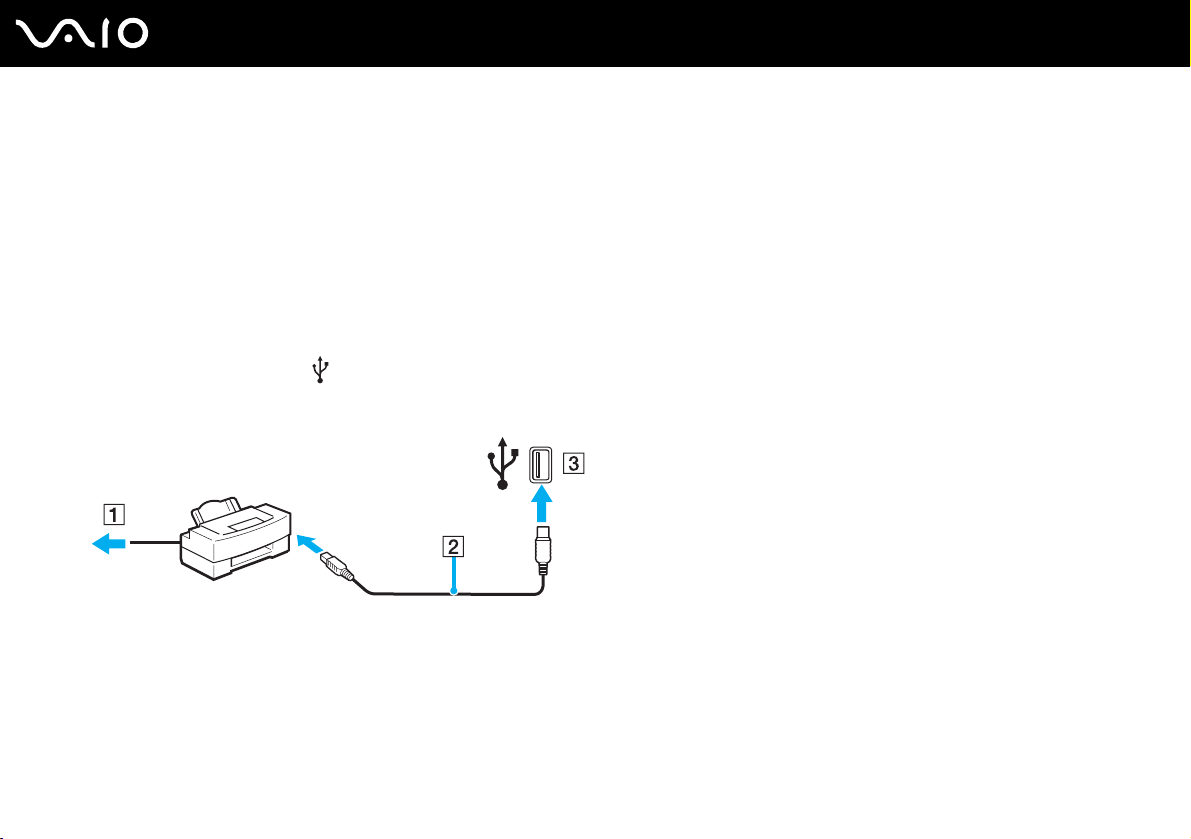

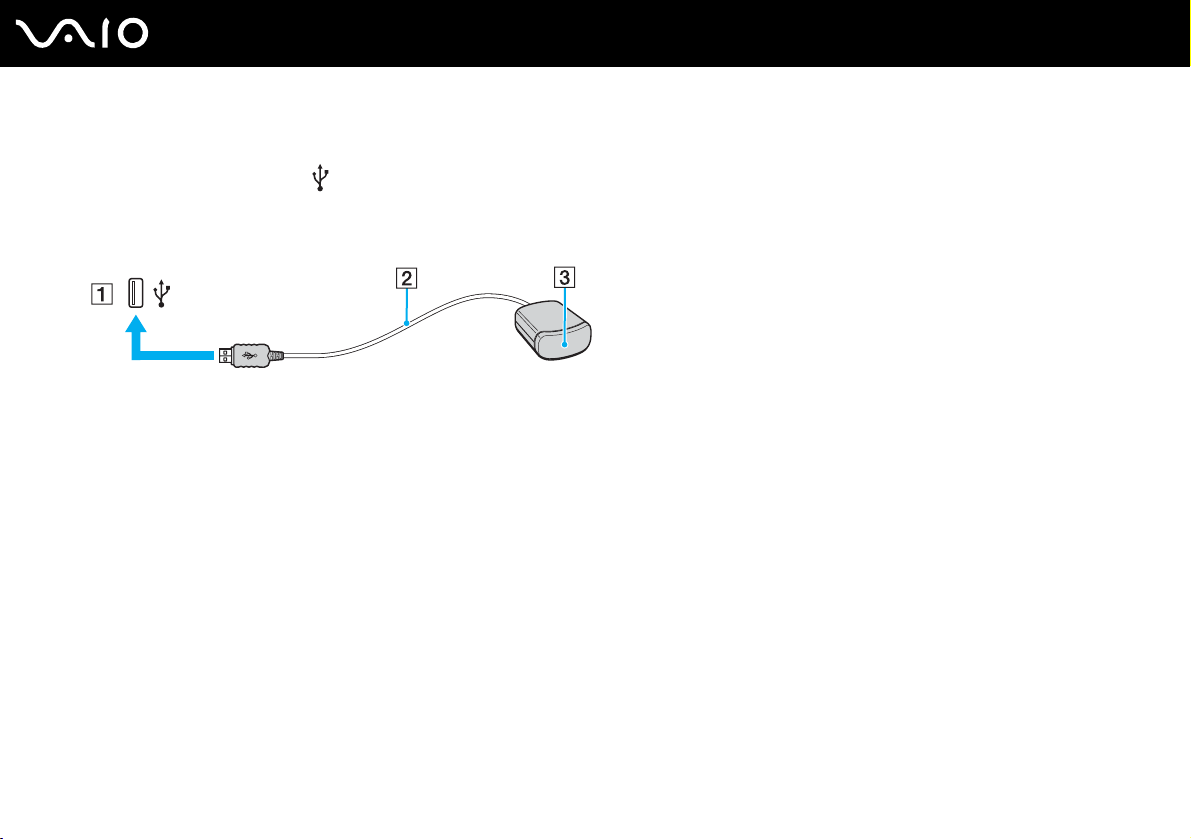

Connecting a Universal Serial Bus (USB) Device......................................................................................................88

Connecting a Printer ..................................................................................................................................................91

Connecting an i.LINK Device .....................................................................................................................................93

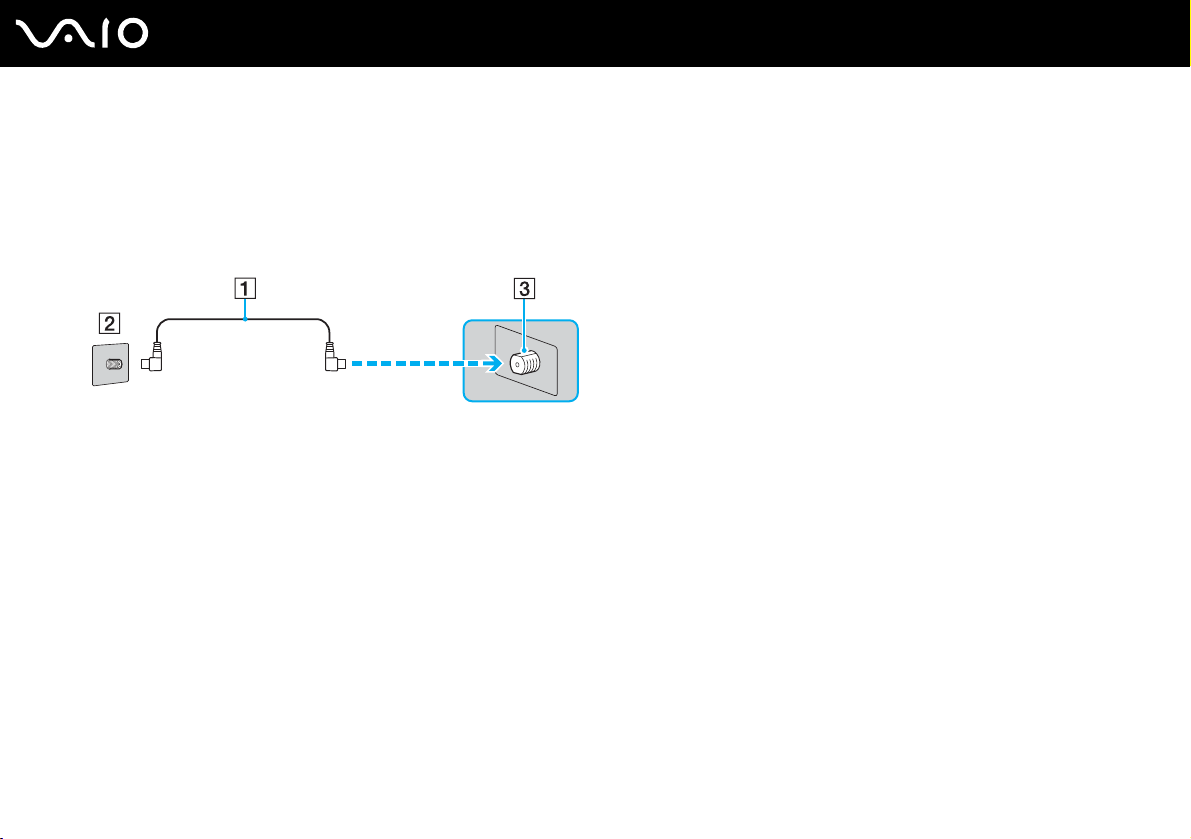

Connecting to a Network (LAN) .................................................................................................................................95

Customizing Your VAIO Computer ..................................................................................................................................97

Setting the Password .................................................................................................................................................98

Setting Up Your Computer with VAIO Central .........................................................................................................100

Using the Power Saving Modes...............................................................................................................................101

Managing Power with VAIO Power Management ....................................................................................................106

Upgrading Your VAIO Computer....................................................................................................................................108

Adding and Removing Memory................................................................................................................................109

Page 4

Precautions ....................................................................................................................................................................115

On Handling the LCD Screen ..................................................................................................................................116

On Using the Power Source ....................................................................................................................................117

On Handling Your Computer....................................................................................................................................118

On Handling Floppy Disks .......................................................................................................................................120

On Handling Discs ...................................................................................................................................................121

On Using the Battery Pack.......................................................................................................................................122

On Using Headphones.............................................................................................................................................123

On Handling Memory Stick Media............................................................................................................................123

On Handling the Hard Disk ......................................................................................................................................124

Troubleshooting .............................................................................................................................................................125

Computer .................................................................................................................................................................127

System Security .......................................................................................................................................................135

Battery......................................................................................................................................................................137

Internet.....................................................................................................................................................................139

Networking ...............................................................................................................................................................141

CDs and DVDs.........................................................................................................................................................144

Display .....................................................................................................................................................................149

Printing.....................................................................................................................................................................151

Microphone ..............................................................................................................................................................152

Mouse ......................................................................................................................................................................153

Speakers..................................................................................................................................................................154

Touch Pad................................................................................................................................................................155

Keyboard..................................................................................................................................................................156

Page 5

Floppy Disks ............................................................................................................................................................157

PC Cards .................................................................................................................................................................158

Audio/Video..............................................................................................................................................................159

Memory Stick Media ................................................................................................................................................160

Peripherals ...............................................................................................................................................................161

Support Options .............................................................................................................................................................162

Sony Support Information ........................................................................................................................................162

Program Support Information...................................................................................................................................165

Page 6

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal computing.

Documentation

Your documentation includes printed information and user guides to read on your VAIO computer.

Printed Documentation

❑ Welcome mat — Contains an overview of connections, setting up information, etc. ❑ Safety information — Contains safety guidelines and owner information.

Page 7

Before Use

Non-printed Documentation

❑ User Guide (this manual) — Contains features of your computer. It also includes information about the software programs

included with your computer, as well as information on solving common problems.

❑ Specifications — The online Specifications describe the hardware and software configuration of your VAIO computer.

To view the online Specifications:

1 Connect to the Internet. 2 Go to the Sony online support Web site at http://www.sony.com/pcsupport

at http://www.sony.ca/support

for customers in Canada, or at http://esupport.sony.com/ES/ for customers in Latin

American countries or areas.

❑ VAIO Recovery Guide — Provides information about restoring individual software programs, software drivers, and drive

partition(s) or your entire hard disk drive to the original factory installed settings. To access this online guide:

1 Click Start, point to All Programs, and click VAIO Support Central. 2 Click VAIO Documentation. 3 Click VAI O Recovery Guide.

for customers in USA,

Page 8

Before Use

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations to both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your

wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms hang naturally at your sides. Have breaks during sessions with your computer. Excessive use of the computer may strain muscles or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

Page 9

Before Use

❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well.

❑ Lighting – Choose a location where windows and lights do not create glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. You can also purchase accessories for your display that help reduce glare. Proper lighting adds to your comfort and work effectiveness.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Page 10

Getting Started

This section describes how to get started with using your VAIO computer.

❑ Locating Controls and Ports (page 11) ❑ About the Indicator Lights (page 17) ❑ Connecting a Power Source (page 18) ❑ Using the Battery Pack (page 19) ❑ Shutting Down Your Computer Safely (page 24)

Getting Started

Page 11

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

Front

A LCD screen (page 116) B Speakers C Keyboard (page 26) D Touch pad (page 28) E Power indicator (page 17) F Battery indicator (page 17) G Hard disk drive/Optical disc drive indicator (page 17) H Memory Stick media indicator (page 17) I WLAN (Wireless LAN) switch (on selected models only) (page

47)

J WIRELESS LAN indicator (on selected models only) (page 17) K Headphones jack (page 73) L Microphone jack (page 87)

Getting Started

Page 12

Display lock latch

A B S1 button (page 29) C S2 button (page 29) D Num lock indicator (page 17) E Caps lock indicator (page 17) F Scroll lock indicator (page 17) G Power button

Getting Started

Page 13

Back

A Air vent B Battery connector (page 19)

Getting Started

Page 14

Right

Getting Started

A PC Card eject button (page 42) B PC Card slot (page 40)

C i.LINK D Memory Stick media slot E Hi-Speed USB (USB 2.0) ports

(IEEE1394) S400 port (page 93)

(page 43)

(page 88)

F Monitor (VGA) port (page 80) G DC In port (page 18)

Your computer supports Memory Stick Duo media and Memory Stick PRO high speed and high capacity capabilities.

Supports high-/full-/low- speeds.

Page 15

Left

A Network (Ethernet) port (page 95) B Modem port (page 46) C Optical disc drive (page 30) D Manual eject hole (page 144) E Drive eject button (page 30)

Getting Started

Page 16

Bottom

A Port replicator connector (page 60) B Air vents

Getting Started

Page 17

Getting Started

About the Indicator Lights

Your computer is equipped with the following indicator lights.

Indicator Functions

Power 1 Illuminates when the power of the computer is on, blinks in Standby mode, and turns off when the computer is

in Hibernate mode or off.

Battery e Illuminates when the computer is using battery power, blinks when the battery is running out of power, and

Memory Stick PRO/Duo

Hard disk/Optical disc drive

Num lock

Caps lock

Scroll lock

WIRELESS LAN Illuminates when the wireless LAN function is running.

double-blinks when the battery is charging.

Illuminates when data is read from or written to the Memory Stick media. (Do not enter Standby mode or turn off the computer when this indicator is on.) When the indicator is off, the Memory Stick media is not being used.

Illuminates when data is read from or written to the hard disk or the optical disc. Do not enter Standby mode or turn off the computer when this indicator is on.

Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad. The numeric keypad is not active when the indicator is off.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key while the indicator is on. Press the key a second time to turn off the indicator. Normal typing resumes when the Caps Lock indicator is off.

Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scr Lk indicator is off. The Scr Lk key functions differently depending on the program you are using and does not work with all programs.

Page 18

Getting Started

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack as a power source for your computer.

Using the AC Adapter

✍

Use the computer only with the supplied AC adapter.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3). 2 Plug the other end of the power cord into an AC outlet (2). 3 Plug the cable attached to the AC adapter (3) into the DC In port (4) on the computer or on the (optional) port replicator.

The shape of the DC In plug varies depending on the AC adapter.

✍

To disconnect the computer completely from AC power, unplug the AC adapter.

Make sure that the AC outlet is easily accessible.

If you do not use the computer for a long period of time, put the computer into Hibernate mode. See Using Hibernate Mode (page 104). This power saving mode saves the time of shutting down or resuming.

Page 19

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of purchase.

Installing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid. 2 Slide the lock switch (1) to the UNLOCK position.

3 Slide the battery into the battery compartment until it clicks into place.

Getting Started

Page 20

4 Slide the lock switch (1) to the LOCK position to secure the battery on the computer.

✍

When the computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

This computer is designed to operate only with genuine Sony batteries.

Getting Started

Page 21

Getting Started

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of purchase.

To charge the battery pack

1 Install the battery pack. 2 Connect the AC adapter to the computer.

The computer automatically charges the battery (the battery indicator light flashes in a double blink pattern as the battery charges). When the battery is about 85% charged, the battery indicator turns off.

Battery indicator light status Meaning

On The computer is using battery power.

Blinks The battery is running out of power.

Double blinks The battery is charging.

Off The computer is using AC power.

Page 22

Getting Started

✍

When the battery is running out of power, both the battery and power indicator lights blink.

Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.

If the battery level falls below 10%, you should either attach the AC adapter to recharge the battery or shut down the computer and install a fully charged battery.

The battery pack supplied with the computer is a lithium ion battery and can be recharged any time. Charging a partially discharged battery does not affect battery life.

The battery indicator light is on while you use the battery pack as a power source. When the battery life is nearly depleted, both the battery and power indicator lights start flashing.

For some software applications and some peripheral devices, the computer may not enter Hibernate mode even when battery life is low. To avoid loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Standby or

Hibernate. If the battery wears out when the computer enters Standby mode, you will lose any unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

When the computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

Page 23

Getting Started

Removing the Battery Pack

You may lose data if you remove the battery pack while the computer is on and not connected to the AC adapter or if you remove the battery while the computer is in Standby mode.

To remove the battery pack

1 Turn off the computer and close the LCD screen lid. 2 Slide the lock switch (1) to the UNLOCK position.

3 Slide and hold the release latch (2) and slide the battery away from the computer.

Page 24

Getting Started

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer. 2 Click Start and then Turn Off Computer.

The Turn off computer window appears. 3 Click Turn Off. 4 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically.

The power indicator light turns off.

Page 25

Using Your VAIO Computer

This section describes how to get the most out of using your computer.

❑ Using the Keyboard (page 26) ❑ Using the Touch Pad (page 28) ❑ Using Special-function Buttons (page 29) ❑ Using the Optical Disc Drive (page 30) ❑ Using the TV Function (page 39) ❑ Using PC Cards (page 40) ❑ Using the Memory Stick Media (page 43) ❑ Using the Internet (page 46) ❑ Using Wireless LAN (WLAN) (page 47)

Using Your VAIO Computer

Page 26

Using Your VAIO Computer

Using the Keyboard

Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks.

Combinations and Functions with the Fn Key

✍

Some functions are not available until Windows is launched.

Combinations/Feature Functions

Fn + % (F2): speaker switch Turns on and off the built-in speakers and the headphones.

Fn + 2 (F3/F4): speaker volume Adjusts the built-in speaker volume.

Fn + 8 (F5/F6): brightness control Adjusts the brightness of the LCD.

Fn + /T (F7): switch to the external display

To increase volume, press Fn+F4 and then M or ,, or keep pressing Fn+F4. To decrease volume, press Fn+F3 and then m or <, or keep pressing Fn+F3.

To increase lightness intensity, press Fn+F6 and then M or ,, or keep pressing Fn+F6. To decrease lightness intensity, press Fn+F5 and then m or <, or keep pressing Fn+F5.

Toggles between the LCD, external device (e.g. monitor) and both LCD and external device.

Page 27

Combinations/Feature Functions

Fn + (F10): zoom

Fn + (F12): Hibernate

Using Your VAIO Computer

Changes the screen resolution to magnify/restore the screen view.

✍

The magnified view is not as clear as the standard view, as it is implemented by applying a lower resolution to the LCD screen with a higher resolution. This key combination is disabled during video playback. Make sure to quit such software before pressing the key combination. This key combination may not work with graphic images as it magnifies the screen view by changing the resolution. The location and size of software windows may change when the screen view is magnified or the standard view is restored because pressing this key combination changes the resolution. When the LCD screen view is magnified, switching the view to the external display disables the function and restores the standard view.

Provides for the lowest level of power consumption. When you execute this command, the states of the system and the peripheral devices are written to the hard disk and the system power is turned off. To return the system to its original state, use the power button to turn on the power. For details on power management, see Using the Power Saving Modes (page 101).

Page 28

Using Your VAIO Computer

Using the Touch Pad

The keyboard contains a cursor-pointing device, the touch pad (1). You can point to, select, drag, and scroll objects on the screen using the touch pad.

Action Description

Point Slide one finger on the touch pad to place the pointer (2) on an item or object.

Click Press the left button (3) once.

Double-click Press the left button twice.

Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.

Drag Slide one finger while pressing the left button.

Scroll Move your finger along the right edge of the touch pad to scroll vertically. Move your finger along the bottom to scroll

horizontally (the scroll function is available only with applications that support a touch pad scroll feature).

Page 29

Using Special-function Buttons

Your computer is equipped with special buttons to help you use specific functions of the computer.

Special-function button Functions

S1/S2 buttons

By default, the S1 button turns the volume on and off and the S2 button toggles the display output between the LCD and external device. You can change these button assignments on the window for changing the S button assignments. To display this window, press and hold either button or launch and navigate through VAIO Central.

Using Your VAIO Computer

Page 30

Using Your VAIO Computer

Using the Optical Disc Drive

Your computer is equipped with an optical disc drive.

To insert a disc

1 Turn on the computer. 2 Press the drive eject button (1) to open the drive.

The tray slides out. 3 Place a disc in the middle of the tray with the label side facing up and gently push until the disc clicks into place.

Page 31

Using Your VAIO Computer

4 Close the tray by pushing it in gently.

Do not remove the optical disc when the computer is in a power saving mode (Standby or Hibernate). Doing so may cause the computer to malfunction.

✍

If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled CD/DVD program.

Page 32

Using Your VAIO Computer

Reading and Writing CDs and DVDs

Your computer plays and records CDs and DVDs, depending on the model you purchased. Check your specifications for the type of optical disc drive installed on your model. Use the table below to see which types of media your optical disc drive supports.

Optical disc drive Plays Records to

DVD-ROM DVD and most DVD-R, DVD-RW, DVD+R, DVD+RW

CD-RW/DVD-ROM CD, CD-R, CD-RW, DVD, most DVD-R, DVD-RW,

DVD±RW CD, CD-R, CD-RW, DVD, most DVD-R, DVD-RW,

DVD±RW/RAM CD, CD-R, CD-RW, DVD, most DVD-R, DVD-RW,

* On selected models only.

and DVD+R DL (Double Layer)

DVD+R, DVD+R DL (Double Layer) and DVD+RW

DVD+R, DVD+R DL (Double Layer), DVD+RW and DVD-R AM

This product is designed to playback discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two

sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Please be aware that the audio side

(non-DVD side) of a DualDisc may not play on this product because it does not conform to the CD Standard.

—

CD-R and CD-RW

CD-R, CD-RW, DVD-R, DVD-RW, DVD+R, DVD+R DL (Double Layer) and DVD+RW

CD-R, CD-RW, DVD-R, DVD-RW, DVD+R, DVD+R DL (Double Layer), DVD+RW and DVD-RAM

Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices

on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee

the compatibility of VAIO CD drives with discs that not compliant with the official "CD" format standard (or "DVD" standard in relation to DVD drives).

USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.

For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

Page 33

✍

Supports writing to DVD-RW discs compliant with DVD-RW version 1.1/1.2.

Supports writing to DVD-R discs compliant with DVD-R for General version 2.0/2.1.

Supports 8cm disc reading, but does not support 8cm disc writing.

Writing to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.

Using Your VAIO Computer

The DVD

Writing to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM version 1.0 is not supported.

±RW/RAM disc drive on your computer dose not support the DVD-RAM cartridge. Use non-cartridge discs or discs with removable cartridge.

Notes on writing data onto a disc

❑ To make the data on a disc readable on an optical disc drive, you need to close the session when you eject it. To complete

this process, follow the instructions included with your software.

❑

Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc drive.

❑ Do not strike or shake the computer while writing data onto a disc. ❑ Deactivate the screen saver and exit anti-virus software before writing data onto a disc. ❑ Do not use memory-resident utility software while writing data to a disc. This may cause the computer to malfunction. ❑ When using your software application to burn discs, make sure you exit and close all other applications. ❑ Never touch the surface of the disc. Fingerprints and dust on the surface of a disc may cause writing errors. ❑ Do not switch power modes while using the pre-installed software and while using the CD burning software. ❑ Never put stickers on discs. This will affect the use of the disc irreparably. ❑ Connect and use the AC adapter to power the computer or make sure your battery is at least 50 percent charged. ❑ Some DVD players and computer's DVD drives may not be able to play DVDs created on applicable models using the

VAIO Zone software.

Page 34

Using Your VAIO Computer

Notes on playing DVDs

To achieve optimum performance when playing DVDs, you should follow these recommendations. ❑ You can play DVDs using the optical disc drive and the DVD playback software, such as VAIO Zone or WinDVD. See the

help file on such software for details.

❑ Close all open applications before playing a DVD movie. ❑ Do not use memory-resident utility software to speed up disc access when playing a DVD. This may cause the computer

to malfunction.

❑ Deactivate the screen saver and exit anti-virus software before playing a disc. ❑ Some discs recorded at 20 or 24 bits may produce noise while playing. If you have audio devices connected, this may

damage your hearing and the speakers. Reduce the volume before playing a DVD.

❑ Do not switch power saving modes while the computer is playing a DVD. ❑ Region code indicators are labeled on the DVDs to indicate in which region and on what type of player you can play the

disc. If the DVD is labeled "all," this means that you can play this DVD in most regions of the world. If the region code of

your residence area is different from the label on the DVD disc or on the packaging, you cannot play the disc on this player.

You can change the DVD region code only a limited number of times. When you have exceeded this number, the drive's DVD region code is permanently

assigned and you will not be able to change it again. Reconfiguring the computer does not reset this count.

If you change the DVD region code while the WinDVD software is running, restart the software or eject the disc and re-insert it to make the new setting

effective.

❑ If the computer has Wireless LAN and Wireless LAN is activated, playing DVDs may cause some interruptions in audio

and video.

Page 35

Using Your VAIO Computer

❑ When you are playing a DVD (video or audio) and you want to remove a USB device, such as USB-compatible speakers,

make sure you stop the DVD first. Removing a USB-compatible device during DVD (video or audio) playback may cause

a malfunction.

Page 36

Using Your VAIO Computer

Playing CDs

To play an audio CD

1 Insert the disc into the optical disc drive. 2 If nothing appears on the desktop once you insert an audio CD disc, then click Start, point to All Programs, and click to

open a CD program, such as the SonicStage software.

If the Audio CD window appears, click to select an option.

Page 37

Using Your VAIO Computer

Copying Files to CDs

See the online Specifications to find the type of your optical disc drive, and then Reading and Writing CDs and DVDs

(page 32) to find about the supported disc media.

To copy files to a disc

Do not strike or shake the computer while writing data onto a disc.

1 Insert a blank disc into the optical disc drive.

If the CD Drive window appears, click Take no action and then click OK.

2 Right-click Start and then click Explorer. 3 In the Folders panel on the left, locate the file(s) or folder(s) you want to copy, right-click the file(s) or folder(s), point to

Send To, and then click the optical disc drive 4 Close the window. 5 Click Start and then My Computer. 6 Click the optical disc drive icon under Devices with Removable Storage. A new window appears with the file(s) or

folder(s) you want to copy listed under Files Ready to Be Written to the CD. 7 In the CD Writing Tasks box, click Write these files to CD. 8 Follow the instructions in the CD Writing Wizard.

* The read/write drive letter designation may vary, depending on your system's hardware configuration.

name.

Page 38

Using Your VAIO Computer

Playing DVDs

To play a DVD

1 Close all open programs. 2 Insert the DVD into the optical disc drive. 3 Click Start and point to All Programs. 4 Select a DVD software program to play the DVD.

For instructions on how to use a program, see the help file included with the DVD software program.

Copying Files to DVDs

The DVD writing function is available on selected models only. See the online Specifications to find the type of your optical disc drive, and then Reading and Writing CDs and DVDs (page 32) to find about the supported disc media.

To copy files to a disc

1 Connect the AC adapter to the computer. 2 Insert the disc into the optical disc drive. 3 Click Start and point to All Programs. 4 Select a DVD software program you want to use from the submenu.

For instructions on how to use a program, see the help file included with the DVD software program.

Page 39

Using Your VAIO Computer

Using the TV Function

If you have purchased an A/V port replicator, you can use a TV tuner to enable the TV function. See the online Specifications to see if your model supports the TV function.

In combination with Sony's VAIO Zone software, the TV tuner board allows you to:

❑ Watch, record and play back analog broadcasted cable and terrestrial TV programs, all by remote control. ❑ Digitize analog video and audio using the S-video or composite and audio inputs. ❑ Manage your video units (capsules), preview them and create multiple folders. ❑ Set up a timer to record channels at a repeated time. ❑ Suspend viewing TV (time-shifting). ❑ Stream your recorded TV contents via Ethernet (or WLAN) to connected PCs.

Sony cannot guarantee the streaming of recorded content if it does not meet a certain level of high quality.

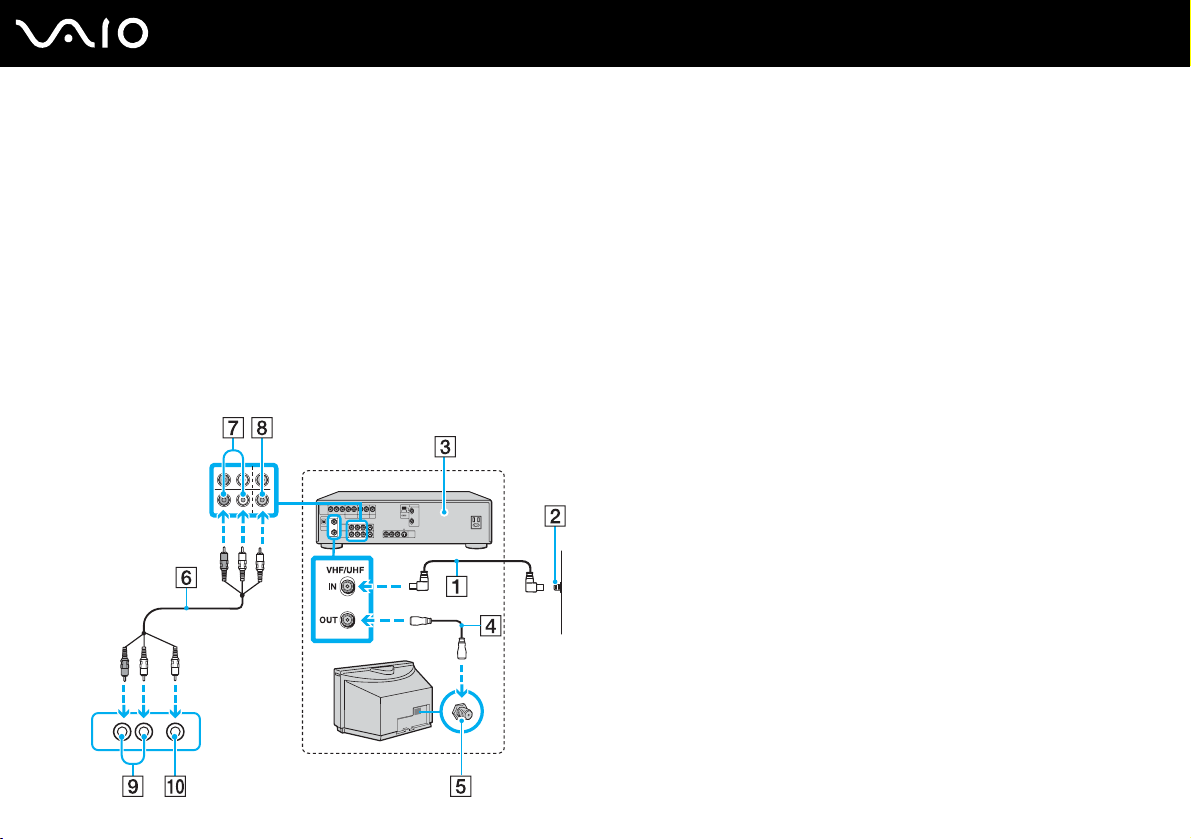

To use the VAIO Zone software, you need to connect the computer and TV to the A/V port replicator and set up the VAIO Zone software for TV viewing. See Attaching Your Computer to the Port Replicator (page 60) and Setting Up TV Connections (page 64) for details.

Once the computer and TV are connected to the A/V port replicator, click Start, point to All Programs, and then click VAIO Zone. When starting the VAIO Zone software for the first time, the VAIO Zone setup wizard opens automatically and prompts

you to set up your TV channel source and establish the listings for your local TV program guide. Follow the on-screen instructions.

For details on using the software and the remote commander, please see the help file on the VAIO Zone software.

Page 40

Using PC Cards

PC Cards allow you to connect portable external devices to your computer.

Inserting a PC Card

Some PC Cards or their functions may not be compatible with the computer.

You do not need to shut down the computer before inserting or removing a PC Card.

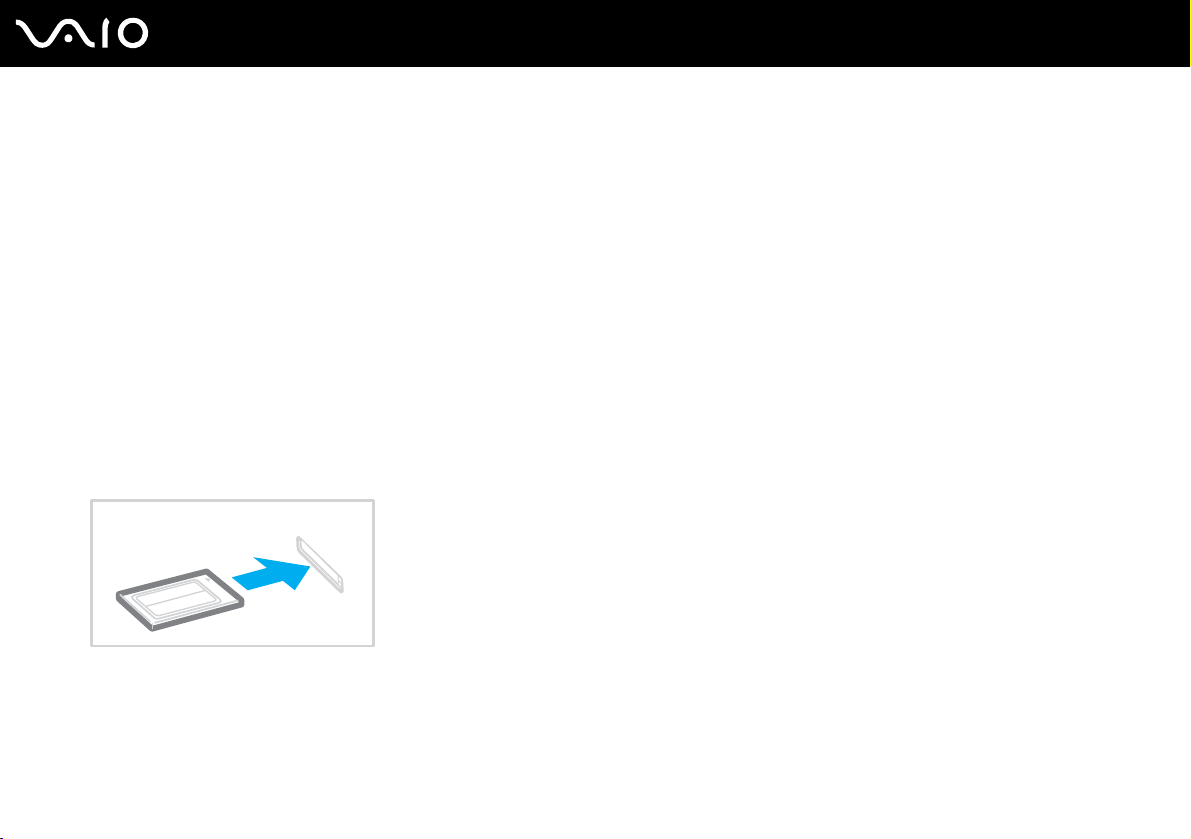

To insert a PC Card

1 Insert the PC Card into the PC Card slot with the front label facing up. 2 Gently push the PC Card into the slot.

The PC Card is automatically detected by your system.

The Safely Remove Hardware icon appears on the taskbar.

Using Your VAIO Computer

Page 41

Using Your VAIO Computer

✍

Some devices may not function properly if you continually switch to Normal mode from Standby mode or Hibernate mode. For some PC Cards, if you

alternate between Normal mode and Standby or Hibernate mode while the card is inserted, you may find that a device connected to your system is not

recognized. Restart your system to correct the problem. Restarting will restore the original state of the computer.

While the card is inserted, the computer may not enter Hibernate power management mode. It may enter Standby mode. We recommend that you

remove the card before the computer enters Hibernate mode.

Make sure you use the most recent software driver provided by the PC Card manufacturer.

If an "!" mark appears on the Device Manager tab in the System Properties window, remove the software driver and then reinstall it.

Do not force a PC Card into the slot. It may damage the connector pins. If you have difficulty inserting a PC Card, check that you are inserting the PC

Card in the correct direction. See the manual supplied with your PC Card for more information on use.

Page 42

Using Your VAIO Computer

Removing a PC Card

Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may not work properly.

To remove a PC Card

✍

To remove a PC Card when the computer is off, skip steps 1 to 6.

1 Double-click the Safely Remove Hardware icon on the taskbar.

The Safely Remove Hardware window appears.

2 Select the hardware you want to unplug. 3 Click Stop.

The Stop a Hardware Device window appears. 4 Confirm that the device can be safely removed from the system. 5 Click OK.

A window appears, explaining that it is safe to remove the device.

6 Click Close. 7 Push the PC Card release button so that the release button pops out. 8 Push the PC Card release button a second time so that the PC Card pops out. 9 Gently take hold of the Card and pull it out of the slot. 10 If the PC Card release button is still out, push it back in.

Page 43

Using Your VAIO Computer

Using the Memory Stick Media

Your computer supports the Memory Stick media. Memory Stick media is a compact, portable, and versatile device especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones and other devices. Because it is removable, it can be used for external data storage.

For the latest information on Memory Stick media, visit the Sony online support Web site at http://www.sony.com/pcsupport for customers in USA, at http://www.sony.ca/support customers in Latin American countries or areas.

Your computer has been tested and found compatible with the Sony branded Memory Stick media with capacity of up to 4 GB. Sony assumes no liability

for compatibility with any other Memory Stick media.

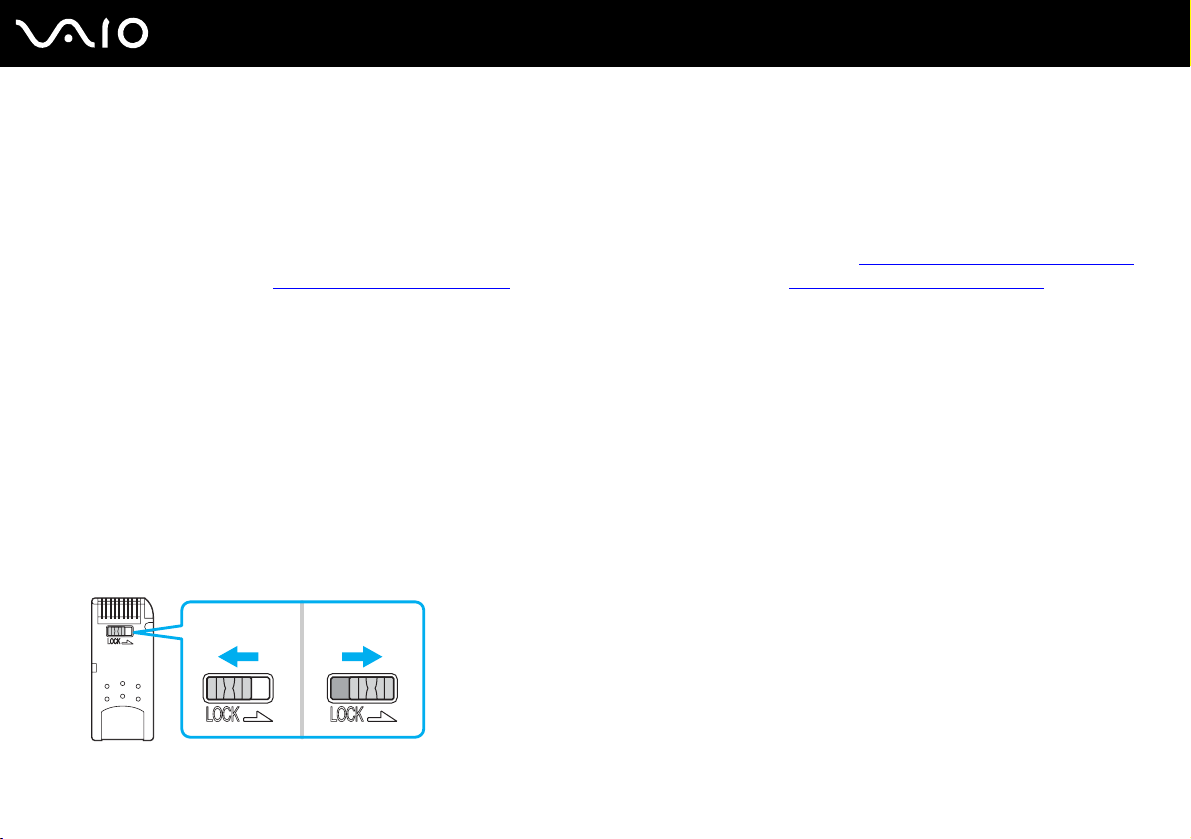

Write-protecting a Memory Stick Media

Some versions of Memory Stick media are designed with an erasure prevention switch to protect valuable data from accidental erasure or overwriting.

Move the tab horizontally or vertically be saved on the Memory Stick media. When the erasure prevention switch is on, data can be read from but not saved on the Memory Stick media.

to set or release write-protection. When the erasure prevention switch is off, data can

for customers in Canada, or at http://esupport.sony.com/ES/ for

* Some versions of Memory Stick media do not have an erasure prevention switch.

Page 44

Using Your VAIO Computer

Inserting a Memory Stick Media

To insert a Memory Stick media

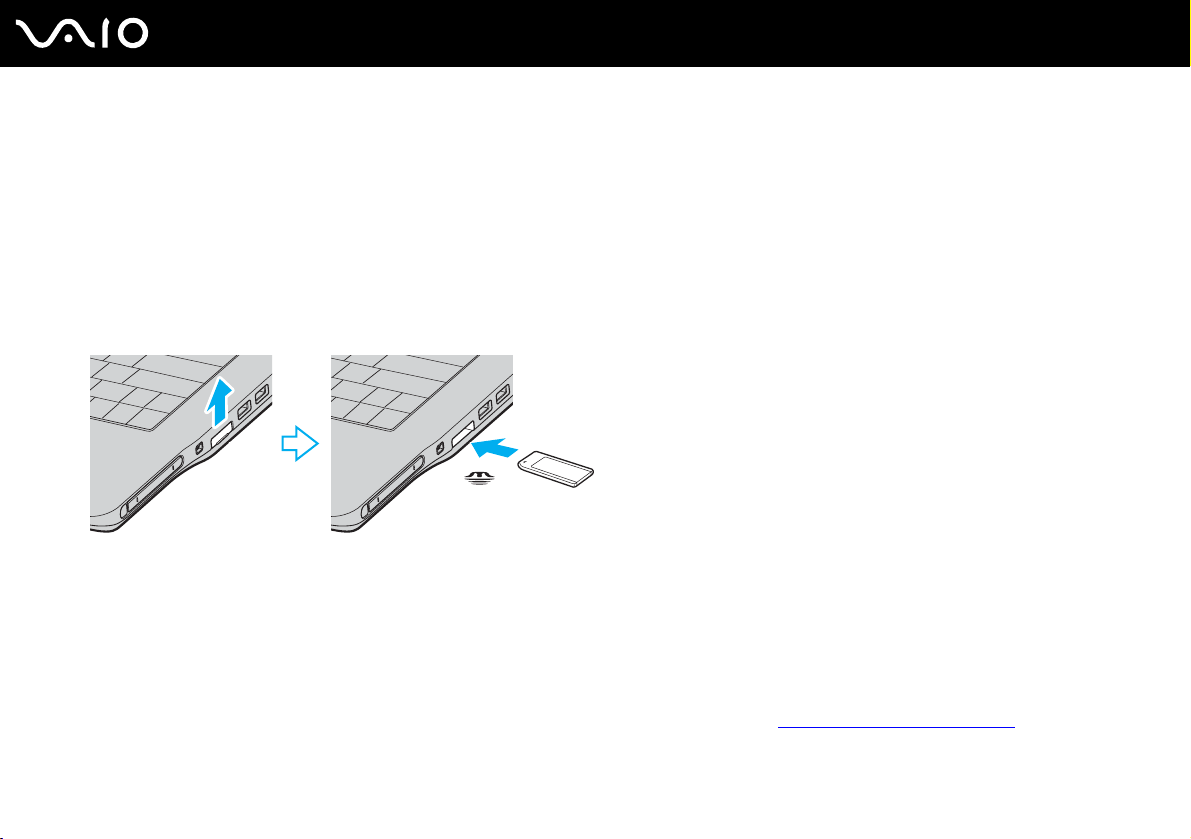

1 Hold the Memory Stick media with the arrow facing up and toward the Memory Stick media slot. 2 Lift the Memory Stick media slot cover. 3 Carefully slide the Memory Stick media into the slot until it clicks in place.

The Memory Stick media is automatically detected by your system and appears in your My Computer window as a local

drive, under the appropriate letter (depending on the configuration of the computer).

Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging the computer

or the Memory Stick media, do not force the Memory Stick media into the slot if it does not insert smoothly.

Do not insert more than one Memory Stick media into the Memory Stick media slot. Inserting the media improperly may damage the computer.

✍

The computer supports Memory Stick Duo media and is equipped with the Memory Stick combo slot that is compatible with both standard- and duo-

size media. For more information on Memory Stick Duo media, visit the Memory Stick web site at http://www.memorystick.com/en/

Page 45

Using Your VAIO Computer

To view the contents of the Memory Stick media

1 Click Start and then My Computer to open the My Computer window.

2 Double-click the Memory Stick media icon to view the list of data files saved in the Memory Stick media.

To format a Memory Stick media

Use the Memory Stick Formatter software. See the help file on the Memory Stick Formatter software for details.

Removing a Memory Stick Media

To remove a Memory Stick media

1 Check that the Memory Stick media indicator is off. 2 Push the Memory Stick media in toward the computer.

The Memory Stick media ejects.

3 Pull the Memory Stick media out of the slot.

Always remove the Memory Stick media gently, or it may pop out unexpectedly.

Do not remove the Memory Stick media while the Memory Stick media indicator is turned on. If you do, you may lose data. Large volumes of data may

take time to load, so be sure the indicator is off before removing the Memory Stick media.

Page 46

Using Your VAIO Computer

Using the Internet

Setting Up a Dial-up Internet Connection

Before you can connect to the Internet, you need to connect your computer to a telephone line via a telephone cable (may not supplied). Once you set up your telephone cable, you're ready to connect to the Internet.

To connect a telephone cable

1 Plug one end of the phone cable (1) into the modem port on the computer. 2 Plug the other end into the wall jack (2).

✍

The computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a

private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.

If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.

To set up a dial-up connection to the Internet

1 Click Start, point to All Programs, Accessories, Communications, and click New Connection Wizard.

The New Connection Wizard appears.

2 Click Next. If the Location Information window appears, follow the on-screen instructions. 3 If it is not already selected, click to select Connect to the Internet, and click Next. 4 Follow the on-screen instructions.

Page 47

Using Your VAIO Computer

Using Wireless LAN (WLAN)

Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each other through a powerful network. A WLAN is a network in which a user can connect to a local area network (LAN) through a wireless (radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings.

The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still access information, internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.

You can communicate without an Access Point, which means that you can communicate between a limited number of computers (ad-hoc). Or you can communicate through an Access Point, which allows you to create a full infrastructure network (infrastructure).

✍

WLAN uses the IEEE802.11a/b/g standard (the IEEE802.11a standard is supported on selected models only), which specifies the used technology. The

standard includes the encryption method: Wired Equivalent Privacy (WEP), which is a security protocol and WiFi Protected Access (WPA - Proposed

jointly by the IEEE and Wi-Fi Alliance, WiFi Protected Access is a specification of standards based, interoperable security enhancements that increase

the level of data protection and access control for existing WiFi networks. WPA has been designed to be forward compatible with the IEEE802.11i

specification. It utilizes the enhanced data encryption TKIP (Temporal Key Integrity Protocol) in addition to user authentication using 802.1X and EAP

(Extensible Authentication Protocol)). Data encryption protects the vulnerable wireless link between clients and Access Points. Besides that, there are

other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption, virtual private networks, and

authentication.

Wireless LAN devices using the IEEE802.11a standard and the ones using the IEEE802.11b or g standard cannot communicate because the frequencies

are different.

IEEE802.11b: The standard speed is 11 Mbps, or about 30 to 100 times faster than a standard dial up.

IEEE802.11a/g: The standard speed is 54 Mbps, or about 5 times faster than a Wireless LAN device using the IEEE802.11b standard.

Page 48

Using Your VAIO Computer

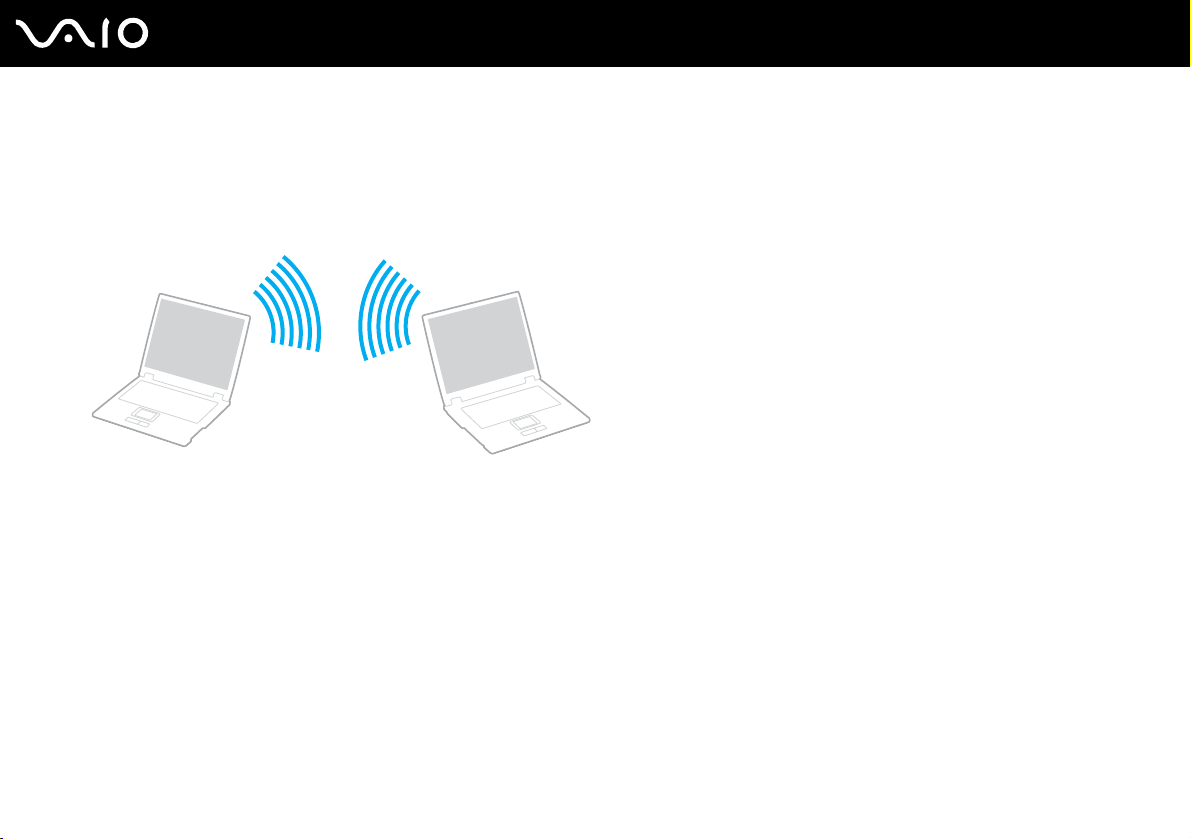

Communicating without an Access Point (Ad-hoc)

An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other central controller or Access Point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network easily at home.

Page 49

To communicate without an Access Point (ad-hoc)

1 Turn on the WIRELESS or WIRELESS LAN switch.

The WIRELESS LAN indicator lights up.

On models with the Bluetooth functionality

Switch window. Select the Enable 2.4 GHz Wireless LAN check box and click OK. 2 Click Start and then Control Panel. 3 Click Network and Internet Connections. 4 Click Network Connections.

The Network Connections window appears. 5 Right-click Wireless Network Connection, then click Properties.

The Wireless Network Connection Properties window appears. 6 Select the Wireless Networks tab. 7 Click the Add… button.

The Wireless network properties window appears. 8 Enter a Network name (SSID)

You can choose a 32-digit alphanumeric name.

9 Select Open from the Network Authentication drop-down box. 10 Select WEP from the Data Encryption drop-down box. 11 Deselect the The key is provided for me automatically option button.

Some information becomes visible.

, double-click ( / ) on the taskbar to display the Wireless Device

Using Your VAIO Computer

Page 50

Using Your VAIO Computer

12 Enter the Network key*2.

The network key should be 5 or 13 alphanumeric characters or 10 or 26 hexadecimal

characters long. You can choose

whatever you want.

13 Enter exactly the same Network key again, for confirmation. 14 Select the check box This is a computer-to-computer (ad hoc) network; wireless access points are not used at the

bottom of the screen. 15 Click OK.

Your Network name appears in the Preferred networks. 16 Click Advanced.

The Advanced window appears.

17 Select the Computer-to-computer (ad hoc) networks only option button. 18 Click Close. 19 Click OK.

The computer is ready to communicate with another computer.

See the online Specifications to see whether your model supports the Bluetooth functionality.

If you want to communicate between two or more computers, you need to configure all these computers the exact same way. This means that you need to enter the same Network name and the same Network key on all computers as on the first computer you configure.

Hexadecimal: A number representation using the digits 0-9, with their usual meaning, plus the letters A-F (or a-f) to represent hexadecimal digits with values of (decimal) 10 to 15.

✍

An ad-hoc network does not support WPA.

Page 51

To disconnect from a computer-to-computer (ad-hoc) network

1 Click Start and then Control Panel. 2 Click Network and Internet Connections. 3 Click Network Connections.

The Network Connections window appears. 4 In the right panel under LAN or High-Speed Internet, right-click Wireless Network Connection. 5 Click Properties.

The Wireless Network Connection Properties window appears. 6 On the Wireless Networks tab, click Advanced.

The Advanced window appears. 7 Click to select Any available network (access point preferred), and click Close. 8 Click OK. 9 Click OK to close the Network Connections window. 10 Turn off the WIRELESS or WIRELESS LAN switch.

Using Your VAIO Computer

Page 52

Using Your VAIO Computer

Communicating with an Access Point (Infrastructure)

An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an Access Point, for example the Sony Access Point. The Access Point bridges the wireless and wired LAN and acts as a central controller for the Wireless LAN. The Access Point coordinates transmission and reception from multiple wireless devices within a specific range.

Page 53

Using Your VAIO Computer

To connect to a wireless network

1 Make sure an access point is set up.

See the instructions that accompanied the access point for more information. 2 Turn on the WIRELESS or WIRELESS LAN switch.

The WIRELESS LAN indicator lights up.

On models with the Bluetooth functionality

Switch window. Select the Enable 2.4 GHz Wireless LAN check box and click OK. 3 Click Start and then Control Panel. 4 Click Network and Internet Connections. 5 Click Network Connections. 6 In the right panel under LAN or High-Speed Internet, double-click Wireless Network Connection.

The Wireless Network Connection window appears. 7 Follow the on-screen instructions.

* See the online Specifications to see whether your model supports the Bluetooth functionality.

, double-click ( / ) on the taskbar to display the Wireless Device

Page 54

Using Your VAIO Computer

To connect to a wireless network (Models with the VAIO Wireless Utility software only)

Use the VAIO Wireless Utility software to guide you through the set up process and provide you with more detailed information about wireless connections.

1 Make sure an access point is set up.

See the instructions that accompanied the access point for more information. 2 Turn on the WIRELESS or WIRELESS LAN switch.

The WIRELESS LAN indicator lights up.

On models with the Bluetooth functionality

, double-click ( / ) on the taskbar to display the Wireless Device

Switch window. Select the Enable 2.4 GHz Wireless LAN check box and click OK. 3 Click Start, point to All Programs, and click VAIO Wireless Utility.

The VAIO Wireless Utility appears. 4 Follow the on-screen instructions.

* See the online Specifications to see whether your model supports the Bluetooth functionality.

To disconnect from a wireless network

Turn off the WIRELESS or WIRELESS LAN switch.

Turning off the wireless LAN functionality while accessing remote documents, files, or resources may result in data loss.

✍

The WPA key needs to contain at least 8 characters.

Page 55

Using Your VAIO Computer

Wireless LAN Channel Selection

In an 802.11a*/b/g configuration, channel 1 to 11 can be used.

* The IEEE802.11a standard is supported on selected models only.

(a) With an Access Point ("Infrastructure")

❑ The channel used will be the channel selected by the Access Point.

For details on how to select the channel that will be used by the Access Point, see the access point manual.

(b) Without an Access Point ("ad-hoc")

❑ If the Wireless connection is initiated by the VAIO computer, channel 11 will be selected. ❑ If the Wireless connection is initiated by a peer Wireless LAN equipment, the Wireless LAN communication will make use

of the channel selected by the peer Wireless LAN equipment.

Page 56

Using Your VAIO Computer

✍

The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference

from other devices that uses the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower

communication speed, narrower communication range, or broken wireless connections.

The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device

configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.

The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the

radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.

Deploying IEEE802.11b and IEEE802.11g products on the same wireless network may reduce the communication speed due to radio interference.

Taking this into consideration, the IEEE802.11g products are designed to reduce the communication speed to ensure communications with

IEEE802.11b products.

When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase the communication speed.

Page 57

Using Peripheral Devices

You can add functionality to your computer by using the various ports on the computer.

❑ Connecting a Port Replicator (page 58) ❑ Connecting External Speakers (page 73) ❑ Using the Remote Commander (page 76) ❑ Connecting an External Display (page 79) ❑ Selecting Display Modes (page 83) ❑ Using the Multiple Monitors Function (page 85) ❑ Connecting an External Microphone (page 87) ❑ Connecting a Universal Serial Bus (USB) Device (page 88) ❑ Connecting a Printer (page 91) ❑ Connecting an i.LINK Device (page 93) ❑ Connecting to a Network (LAN) (page 95)

Using Peripheral Devices

Page 58

Using Peripheral Devices

Connecting a Port Replicator

Attaching an optional port replicator enables you to connect additional peripherals to your computer, such as a printer and an external display.

Locating Ports on the Port Replicator

A/V port replicator

Hi-Speed USB (USB 2.0) ports* (page 88)

B Headphones/Speakers jack (page 73) C Composite Video In jack (page 58)

D Hi-Speed USB (USB 2.0) ports E DC In port (page 18) F Network (Ethernet) port (100BASE-TX / 10BASE-T) (page 95) G Monitor (VGA) port (page 80) H Optical Out port (Output frequency 96 kHz/48 kHz/44 kHz/

Vari able)

I Composite Audio In jacks (page 58) J S Video In port (page 58) K VHF/UHF port (page 64)

* Supports high-/full-/low- speeds.

(page 88)

✍

To the A/V port replicator, you can connect an external video/audio source such as a video camera, VCR or DVD player. Connect your video/audio

device's video cable to the S Video In or Composite Video In jack and the audio cable to the Composite Audio In Jacks.

Page 59

Using Peripheral Devices

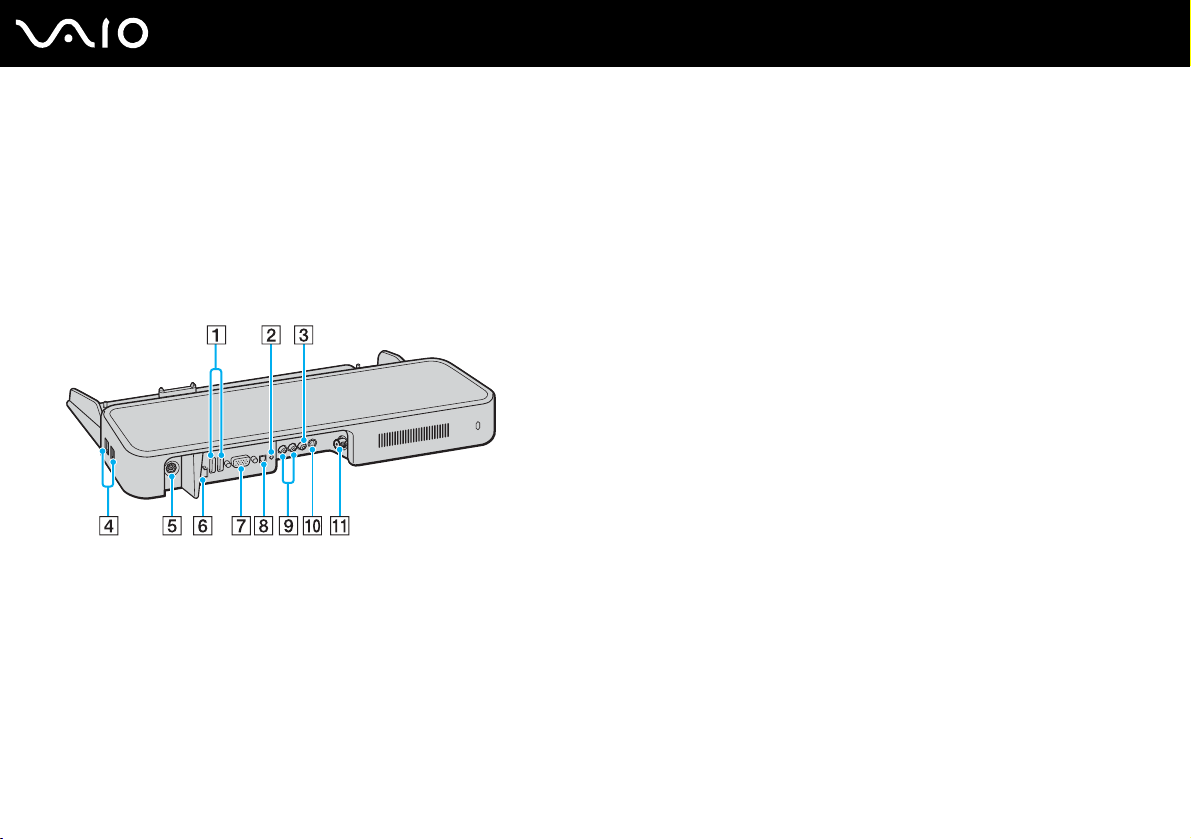

Business port replicator

A DC In port (page 18) B Network (Ethernet) port (100BASE-TX / 10BASE-T) (page 95) C Monitor (VGA) port (page 80) D Printer port (page 92)

E Hi-Speed USB (USB 2.0) ports

* Supports high-/full-/low- speeds.

The port replicator can be powered only through the AC adapter supplied with the computer. Do not unplug the AC adapter from the port replicator and

the AC outlet while using the port replicator; this may cause data damage or hardware malfunctions.

✍

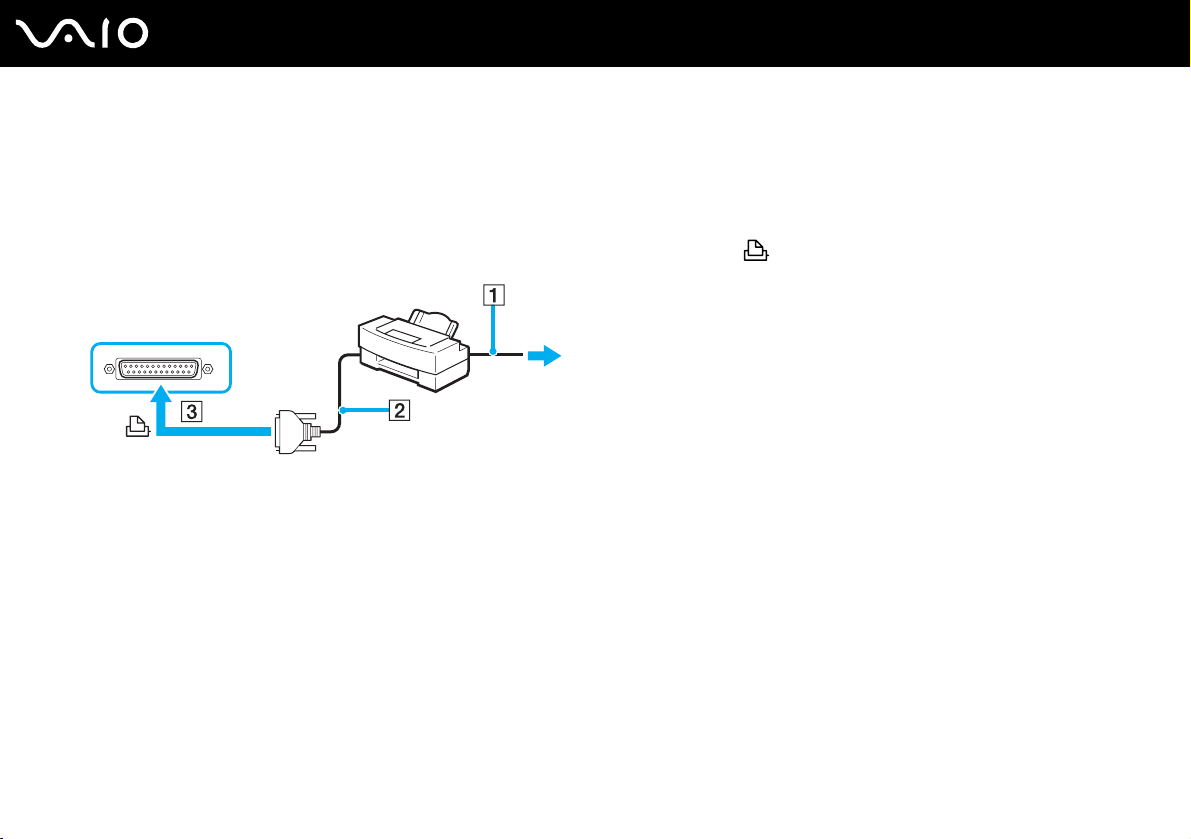

The printer port on the port replicator is intended for printer connections only.

(page 88)

Page 60

Attaching Your Computer to the Port Replicator

To attach your computer to the port replicator

To prevent loss of unsaved data, be sure to turn off the computer before attaching your computer to the port replicator.

1 Disconnect all peripherals from the computer. 2 Plug the power cord (1) into the AC adapter (2) and an AC outlet. 3 Plug the cable attached to the AC adapter (2) into the DC In port (3) on the port replicator (4).

Using Peripheral Devices

Page 61

Using Peripheral Devices

4 Open the port replicator connector cover on the bottom of the computer.

5 Align the bottom connector of the computer with the connector on the port replicator and push down until it clicks into

place.

Page 62

Using Peripheral Devices

6 Turn on the computer.

When the A/V port replicator is attached to the computer, you cannot access the DC In port, the monitor (VGA) port, the third USB port from the front,

and the network (Ethernet) port on the computer.

Use the AC adapter supplied with the computer or the optional Sony adapter.

Do not move the computer while attached to the port replicator; this may detach the port replicator and cause damage to the port replicator and the

computer.

Page 63

Using Peripheral Devices

Disconnecting Your Computer from the Port Replicator

To prevent loss of unsaved data, be sure to turn off the computer before disconnecting it from the port replicator.

To disconnect your computer from the port replicator

1 Lift the computer away from the port replicator.

2 Close the port replicator connector cover on the bottom of the computer.

✍

It is extremely important to close the port replicator connector cover after disconnecting the computer from the port replicator. If the cover is left open,

dust may get inside and damage the computer.

To disconnect the port replicator completely from AC power, unplug the AC adapter.

Page 64

Using Peripheral Devices

Setting Up TV Connections

The following connections may not be available depending on the country or area of your residency.

If you have purchased an A/V port replicator, you can set up TV connections to watch TV programs on your computer. The best method of connecting your computer system, TV monitor or display, and cable service access, depends on the type

of cable connection available in your home. TV signal reception strength will vary widely depending on service availability in your area as well as the type of connection

available.

✍

The A/V port replicator is supplied with certain audio and video cables. Depending on your in-home cable access, you may need extra cables, adapters

or connection equipment.

One primary cable to connect the computer to a TV cable or antenna is the TV coaxial cable (supplied with the A/V port replicator). One end connects to the VHF/UHF port on the A/V port replicator, and the other end connects to the cable service access or antenna.

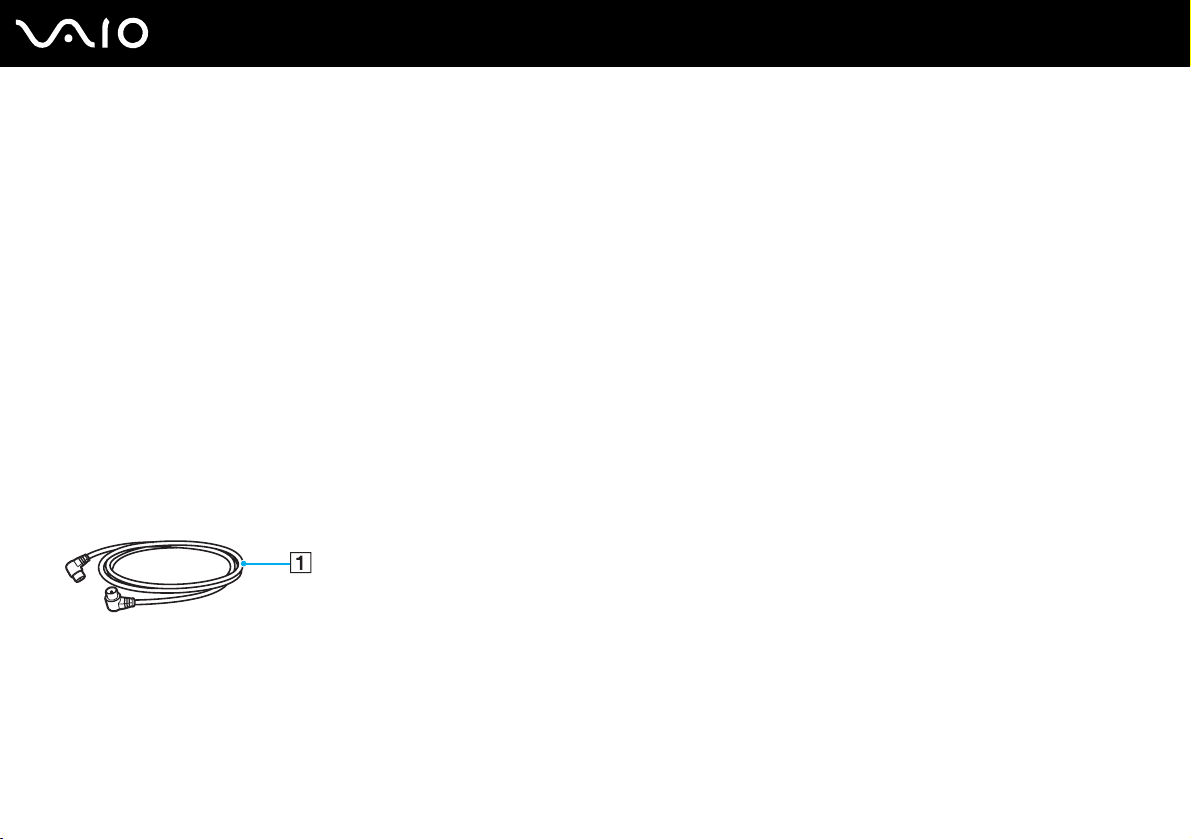

A TV coaxial cable

Page 65

Connecting to standard cable access (CATV)

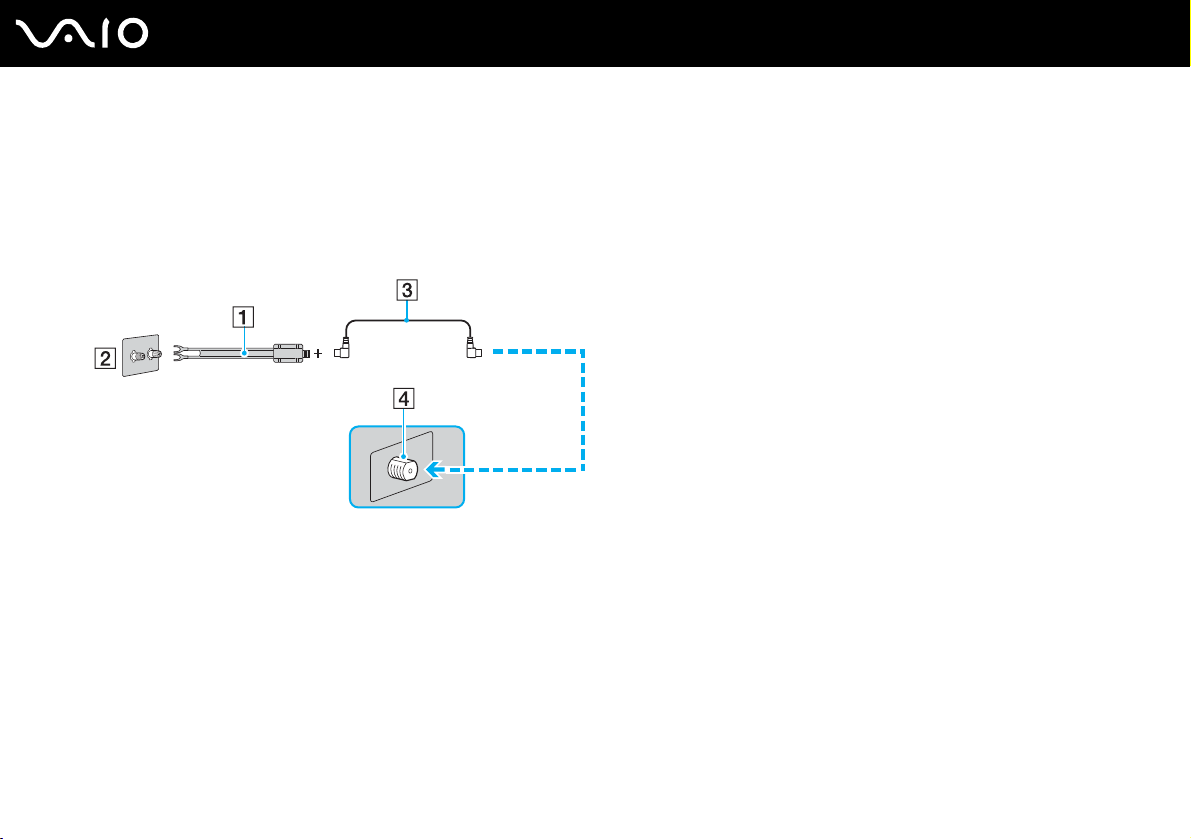

To connect in CATV mode (Option 1)

1 Connect one end of the TV coaxial cable (1) (supplied) to your cable service access (wall outlet) (2). 2 Connect the other end of the coaxial cable to the VHF/UHF port (3) on the A/V port replicator.

Using Peripheral Devices

Page 66

Using Peripheral Devices

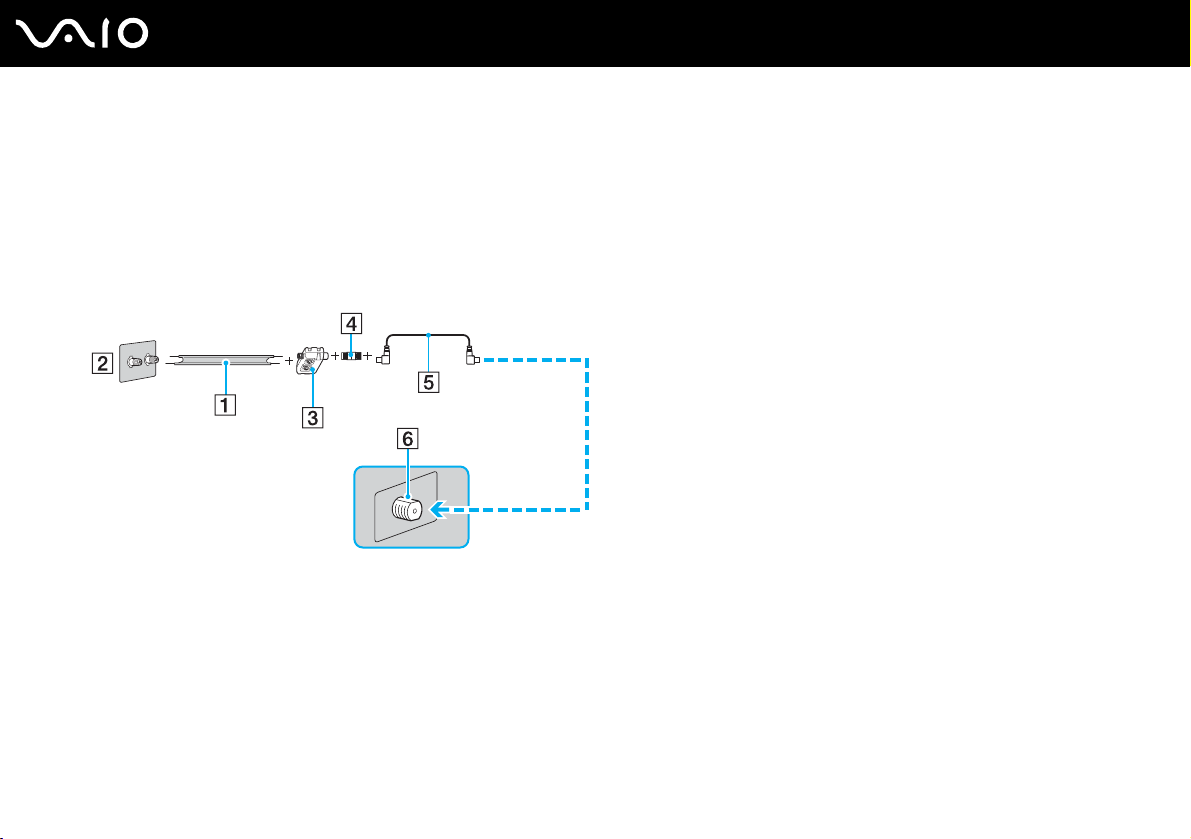

To connect in CATV mode (Option 2)

1 Connect the two metal hooks on a 75-ohm/300-ohm RCA transformer cable (1) (not supplied) to your cable service

access (wall outlet) (2). 2 Connect one end of the TV coaxial cable (3) (supplied) to the transformer end of the RCA transformer cable (1). Connect

the other end to the VHF/UHF port (4) on the port replicator.

Page 67

Using Peripheral Devices

Connecting to a standard antenna

You can connect your computer to an indoor/outdoor antenna system, using Option 1 or Option 2 from the previous section, Connecting to standard cable access (CATV) (page 65). Depending on the type of antenna system in your home, your connection may require a VHF/UHF RF combiner/transformer (not supplied) to connect the computer and the indoor/outdoor antenna system.

✍

If you are connecting to an indoor/outdoor antenna, you may need to reorient the antenna for best reception. Move the antenna cable away from other

power sources or connectors to reduce reception interference.

The A/V port replicator is supplied with certain audio and video cables. Depending on your in-home cable access, you may require extra cables, adapters

or connection equipment.

Page 68

Using Peripheral Devices

To connect in terrestrial mode (Option 1)

1 Connect one end of a TV coaxial cable (1) (not supplied) to your antenna outlet (2). Connect the other end to a VHF/UHF

RF combiner/transformer (3) (not supplied).

2 Connect a coaxial cable feed connector (4) (not supplied) to the VHF/UHF RF combiner/transformer (3). 3 Connect one end of the TV coaxial cable (5) (supplied) to the feed connector (4). Connect the other end to the VHF/UHF

port (6) on the port replicator.

Page 69

Using Peripheral Devices

To connect in terrestrial mode (Option 2)

1 Connect one end of the antenna's 300-ohm twin lead cable (1) to the screw-type grips at your antenna outlet (2). Connect

the other end to the grips on the VHF/UHF RF combiner/transformer (3).

port (6) on the port replicator.

Page 70

Using Peripheral Devices

Connecting with a cable or satellite set-top box (STB)

You can connect your computer to cable service access that uses a set-top box (cable or satellite). When using the set-top box (STB) setup, you can only change channels through the STB, using its controls or supplied remote commander.

When using the STB setup: ❑ A standard TV remote control cannot be used to change TV channels. You can use your TV remote control to set the TV

to the channel-out number (channel 3, 4, etc.) or direct video input specified by your cable or satellite service provider. ❑ You may be able to use a universal remote control or commander to change TV channels, if the device is able to control

the STB.

Page 71

Using Peripheral Devices

To connect in STB mode (Option 1)

1 Connect one end of a TV coaxial cable (1) (not supplied) to your cable service access (wall outlet) (2). Connect the other

end to the VHF/UHF IN jack on the back panel of your set-top box (STB) (3). 2 Connect a second TV coaxial cable (4) (not supplied) to the VHF/UHF OUT jack on your set-top box (STB) unit (3).

Connect the other end to the single-connection end of a splitter device (5) (not supplied). 3 Connect a third TV coaxial cable (6) (supplied) to the double-connection end of the splitter device (5). Connect the other

end to the VHF/UHF port (7) on the port replicator. 4 Connect a fourth TV coaxial cable (8) (not supplied) to the double-connection end of the splitter device (5). Connect the

other end to the VHF/UHF port (9) on the rear of your TV monitor or display.

Page 72

Using Peripheral Devices

To connect in STB mode (Option 2)

1 Connect one end of the TV coaxial cable (1) (supplied) to your cable service access (wall outlet) (2). Connect the other

end to the VHF/UHF IN jack on the back panel of your set-top box (STB) (3). 2 Connect a second TV coaxial cable (4) (not supplied) to the VHF/UHF OUT jack on your set-top box (STB) unit (3).

Connect the other end to the VHF/UHF port (5) on the rear of your TV monitor or display. 3 Connect one end of a stereo A/V dubbing cable with triple RCA jacks (6) (not supplied), to the Composite Audio Out (L/

R) jacks (7) and the Video Out jack (8) on the back panel of your set-top box (STB) unit (3), matching the plug and jack

colors. 4 Connect the other RCA jacks of the stereo A/V dubbing cable (6) into the Composite Audio In (L/R) jacks (9) and the

Composite Video In jack (10) on the A/V port replicator, matching the plug and jack colors.

Page 73

Using Peripheral Devices

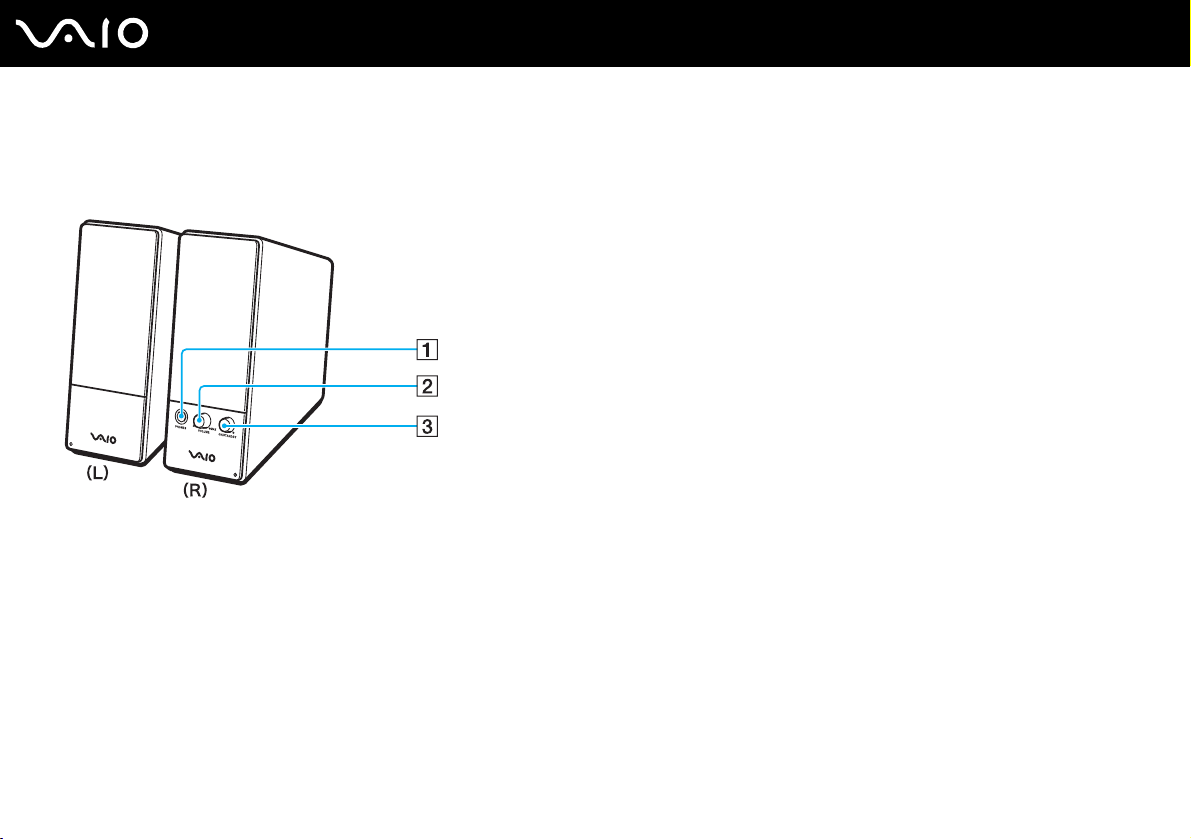

Connecting External Speakers

A pair of external speakers is supplied with the optional A/V port replicator for the enhancement of sound quality.

A Headphones jack B Volume control

Turn clockwise or counterclockwise to adjust the speaker volume.

C Power button

Turns on and off the speakers.

Page 74

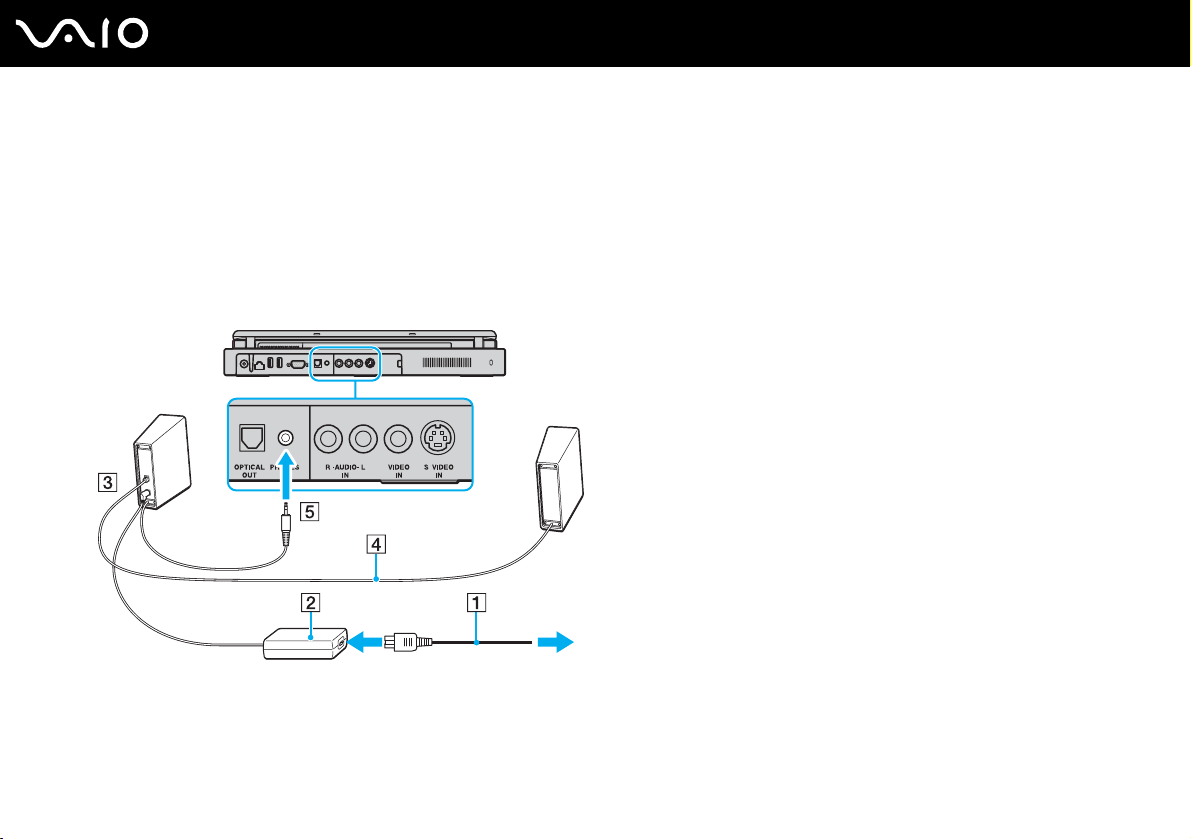

To connect the supplied external speakers

1 Attach the computer to an A/V port replicator. 2 Plug the power cord (1) to the AC adapter and an AC outlet. 3 Plug the cable attached to the AC adapter (2) to the right speaker (3). 4 Plug the cable from the left speaker (4) to the speaker L jack on the right speaker. 5 Plug the speaker cable (5) to the headphones jack on the port replicator.

Using Peripheral Devices

Page 75

Using Peripheral Devices

You can also enhance the sound quality of the computer by directly connecting other external speakers.

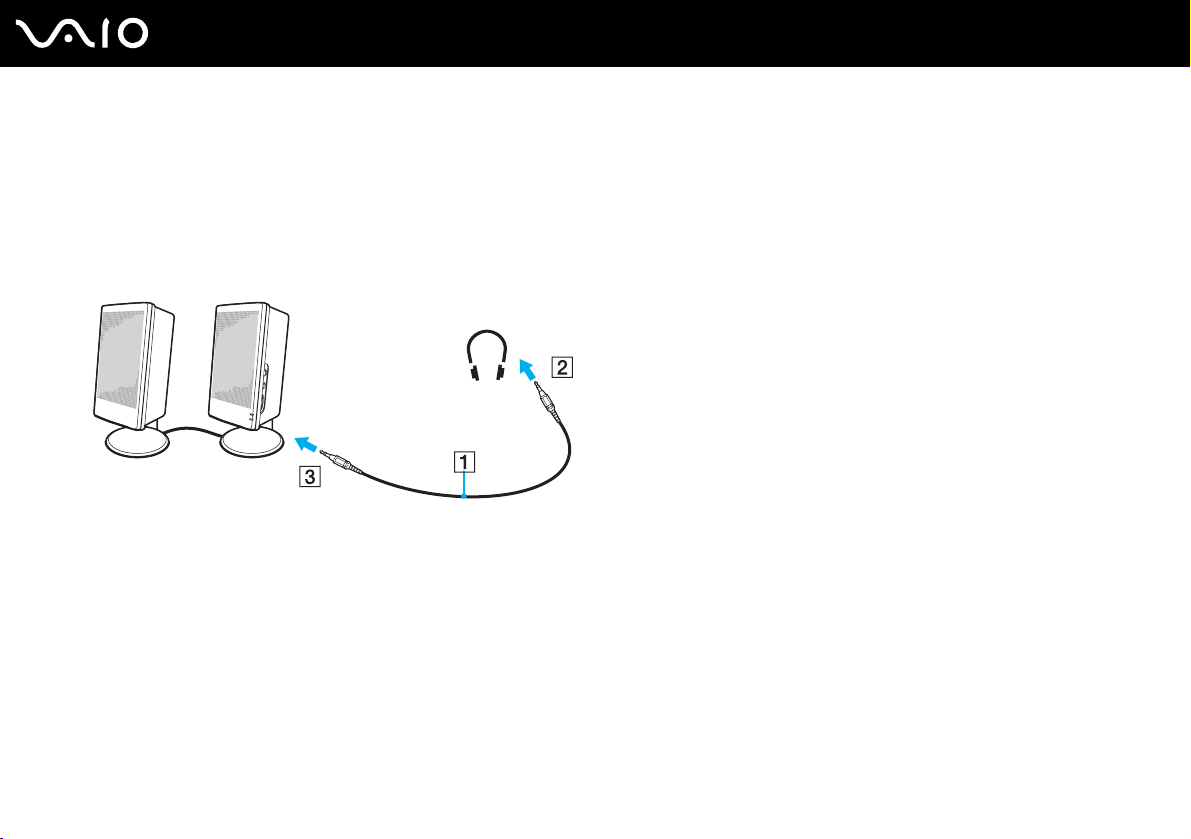

To connect other external speakers

1 Plug the speaker cable (1) into the headphones jack (2) i. 2 Plug the other end of the speaker cable to the external speaker (3). 3 Turn down the volume of the speakers before you turn them on.

✍

Make sure your speakers are designed for computer use.

Do not place floppy disks on the speakers; their magnetic field may damage the data on the disks.

Page 76

Using Peripheral Devices

Using the Remote Commander

A remote commander is supplied with the optional A/V port replicator to enable various remote operations. To use the remote commander, you need to connect the supplied external infrared receiver to the computer.

Page 77

Using Peripheral Devices

A Muting button

Turns off the external speakers. Press the muting button to turn on the speakers.

B Channel buttons

Select the respective channels.

C Direct buttons

Activate individual features of VAIO Zone.

D Volume button

Increases

or decreases the speaker volume.

E Channel control button

Switches the channel in the ascending or descending order.

F STANDBY button

Puts the system into Standby mode.

G Operation buttons

Use these buttons for VAIO Zone operations.

* With the remote commander, you can increase the volume only up to the level set by the volume control on the external speaker.

Page 78

To connect the external infrared receiver

1 Choose the USB port (1) you prefer to use. 2 Plug the external infrared receiver cable (2) into the USB port.

You can now use your infrared receiver (3).

Using Peripheral Devices

Page 79

Using Peripheral Devices

Connecting an External Display

You can connect an external display to your computer. For example, you can use the computer with a computer display or a projector.

❑ Connecting a Computer Display (page 80) ❑ Connecting a Multimedia Computer Display (page 81) ❑ Connecting a Projector (page 82)

✍

Connect the power cord after connecting all other cables.

Connected external displays are used as second screens.

On Windows systems only, you can also use an external display to set up multiple monitors.

Page 80

Using Peripheral Devices

Connecting a Computer Display

You can connect a computer display (monitor) either directly to your computer or via the (optional) port replicator.

To connect a computer display

1 If necessary, plug one end of the display's power cord (1) into the display, and the other end into an AC outlet. 2 Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer.

A video adapter device is required to connect a VGA monitor using the DVI-D port.

Page 81

Using Peripheral Devices

Connecting a Multimedia Computer Display

You can connect a multimedia computer display that includes built-in speakers and a microphone to your computer or via the (optional) port replicator.

To connect a multimedia computer display

1 Plug the power cord of the multimedia computer display (1) into an AC outlet. 2 Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the port replicator. 3 Plug the speaker cable (4) into the headphones jack (5) i on the computer. 4 Plug the microphone cable (6) into the microphone jack (7) m on the computer.

Page 82

Using Peripheral Devices

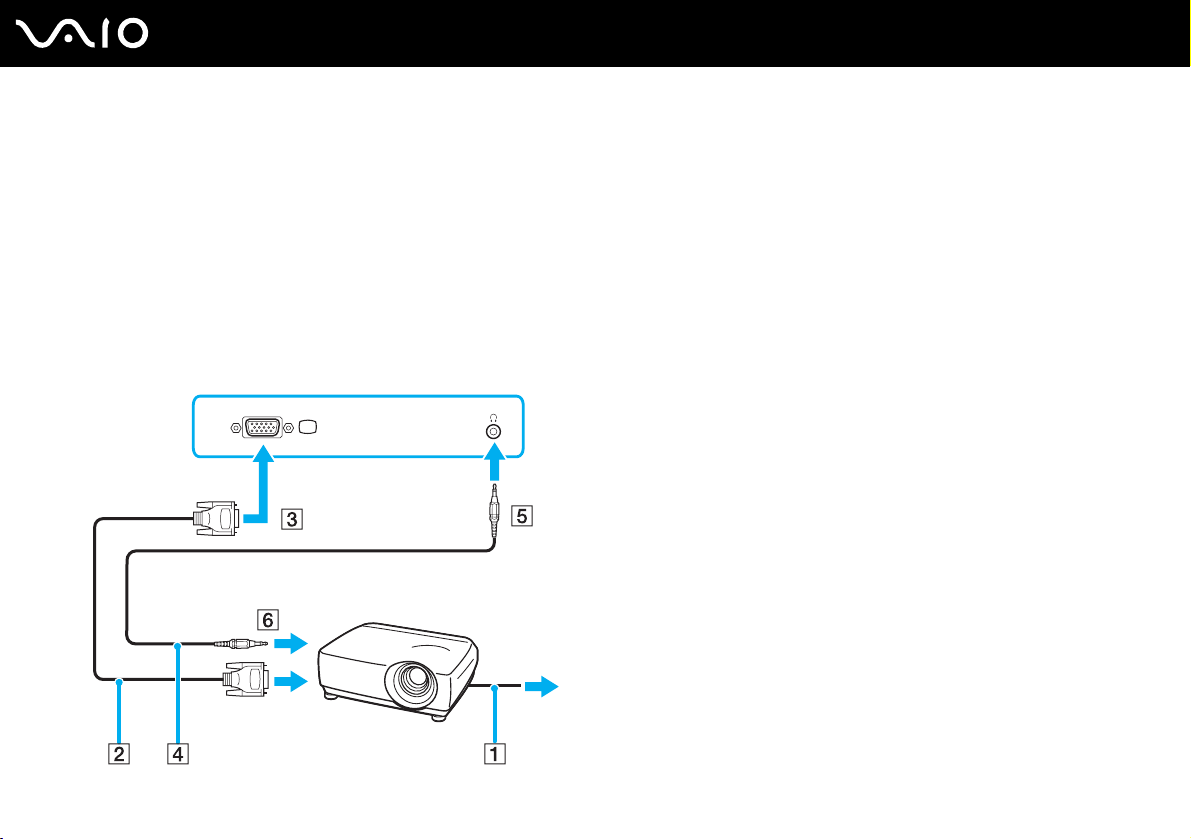

Connecting a Projector

You can connect a projector (for example, the Sony LCD projector) directly to your computer or via the (optional) port replicator.

To connect a projector

1 Connect the power cord (1) of the projector into an AC outlet. 2 Plug the RGB signal cable (2) into the monitor (VGA) port (3) a on the computer or on the port replicator. 3 Plug the audio cable (4) (not supplied) into the headphones jack (5) i. 4 Plug the RGB signal cable and the audio cable into the jack and port on the projector (6).

Page 83

Using Peripheral Devices

Selecting Display Modes

You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected to your computer.

The procedure for selecting a display depends on the video controller used in the computer. See the online Specifications for detailed information on the video controller.

If you want to work on the computer's LCD and the external display at the same time, see Using the Multiple Monitors Function (page 85) for more information.

To select a display

Models with the Intel Graphics Media Accelerator

1 Right-click on the desktop to display the context menu. 2 Click the menu item for graphic properties. 3 Follow the on-screen instructions to change the settings.

✍

You may not be able to display on the computer's LCD and the external display or projector at the same time, depending on the type of your external

display or projector.

Before turning on the computer, turn on the peripheral devices.

Page 84

Models with the NVIDIA video controller

1 Click Start and then Control Panel. 2 Click Appearance and Themes. 3 Click Display. 4 Click the Settings tab. 5 Click Advanced. 6 Click the tab with its name beginning with GeForce. 7 Follow the on-screen instructions to change the settings.

Using Peripheral Devices

Page 85

Using Peripheral Devices

Using the Multiple Monitors Function

The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display attached to the monitor (VGA) port, your computer's LCD and the external display can function as a single desktop.

You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window or a toolbar, from one display to the other.

✍

Your external display may not support the Multiple Monitors function.

Certain software applications may not be compatible with Multiple Monitors settings.

Make sure that the computer does not enter Standby or Hibernate mode while you are using Multiple Monitors mode; otherwise the computer may not

return to Normal mode.

If you set different colors on each display, do not divide one single window on two displays; otherwise your software may not work properly.

Set fewer colors or a lower resolution for each display.

Page 86

To select the Multiple Monitors mode

To find which video controller your model includes, see the online Specifications.

Models with the Intel Graphics Media Accelerator

1 Right-click on the desktop to display the context menu. 2 Click the menu item for graphic properties. 3 Follow the on-screen instructions to change the settings.

Models with the NVIDIA video controller

1 Click Start and then Control Panel. 2 Click Appearance and Themes. 3 Click Display. 4 Select the Settings tab. 5 Click Advanced. 6 Click the tab with its name beginning with GeForce. 7 Follow the on-screen instructions to change the settings.

Using Peripheral Devices

✍

Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors mode.

Page 87

Using Peripheral Devices

Connecting an External Microphone

If you need to use a sound input device (for example, to chat on the Internet) you need to plug in an external microphone.

To connect an external microphone

Plug the microphone cable (1) into the microphone jack (2) m.

✍

Make sure your microphone is designed for computer use.

Page 88

Using Peripheral Devices

Connecting a Universal Serial Bus (USB) Device

To prevent your computer and/or USB devices from damage, observe the following:

❑ When moving the computer with USB devices connected, avoid any shock or force to the USB ports. ❑ Do not put the computer into a bag or carrying case when it has USB devices connected.

Connecting a USB Mouse

To connect a USB mouse

1 Choose the USB port (1) you prefer to use. 2 Plug the USB mouse cable (2) into the USB port.

You can now use your USB mouse (3).

✍

The VAIO USB mouse software driver is preinstalled on the computer. As a result, you only need to plug the USB mouse into the USB port and you can

start working.

Page 89

Connecting a USB Floppy Disk Drive

You can purchase a USB floppy disk drive and connect it to your computer.

To connect a USB floppy disk drive

1 Choose the USB port you prefer to use. 2 Plug the USB floppy disk drive cable into the USB port.

Your USB floppy disk drive is now ready for use.

When using a USB floppy disk drive, do not apply force on the USB port. This may cause a malfunction.

Using Peripheral Devices

Page 90

Using Peripheral Devices

Disconnecting a USB floppy disk drive

You can disconnect a USB floppy disk drive when the computer is on or off. Disconnecting the drive when the computer is in a power saving mode (Standby or Hibernate) may cause the computer to malfunction.

If the computer is off, you can unplug the USB cable directly from the computer.

To disconnect a USB floppy disk drive

1 Close all programs accessing the floppy disk drive. 2 Double-click the Safely Remove Hardware icon on the taskbar.

The Safely Remove Hardware window appears. 3 Select the floppy disk drive you want to unplug. 4 Click Stop.

The Stop a Hardware device window appears. 5 Make sure the floppy disk drive is selected, and click OK.

A message appears stating it is now safe to remove the hardware device.

6 Click Close to close the Safely Remove Hardware window. 7 Remove the floppy disk drive from the computer.

Page 91

Connecting a Printer

You can connect a Windows-compatible printer to your computer to print documents.

Connecting a Printer Using the USB Port

You can connect a USB printer compatible with your version of Windows to the computer.

To connect a printer using the USB port

1 Plug the printer power cord into an AC outlet (1).

2 Choose the USB port (3) you prefer to use. 3 Plug one end of a USB printer cable (2) into the USB port and the other end to your printer.

Using Peripheral Devices

Page 92

Using Peripheral Devices

Connecting a Printer Using the Printer Port

To connect a printer using the printer port

1 Plug the printer power cord (1) into an AC outlet.

2 Plug the printer cable (2) supplied with your printer into the printer port (3) on the (optional) port replicator.

✍

Before connecting the printer, turn off the computer and the printer, and unplug the AC adapter and the power cord.

Page 93

Using Peripheral Devices

Connecting an i.LINK Device

Notes on connecting i.LINK devices

❑ The computer includes an i.LINK (IEEE1394) port, which you can use to connect to an i.LINK device such as a digital

video camera recorder or to connect two VAIO computers in order to copy, delete or edit files.

❑ The i.LINK port of the computer does not supply power to external devices generally powered by i.LINK ports. ❑ The i.LINK port supports transfer rates up to 400 Mbps; however, the actual transfer rate depends on the transfer rate of

the external device. ❑ i.LINK cables compatible with the computer include cables with the following part numbers:

VMC-IL4415 (a 1.5 meter cable with a 4-pin connector at each end), VMC-IL4408 Series (a 0.8 meter cable with a 4-pin

connector at each end).

❑ The optional i.LINK cables may not be available, depending on the country or area of your residency. ❑ An i.LINK connection with other compatible devices is not fully guaranteed. ❑ The i.LINK connection varies depending on the software applications, operating system and i.LINK compatible devices

you use. Refer to the manual that came with your software for more information. ❑ Check the working conditions and OS compatibility of i.LINK-compatible PC peripherals (for example, an HDD or CD-RW

drive) before you connect them to the computer.

Page 94

Using Peripheral Devices

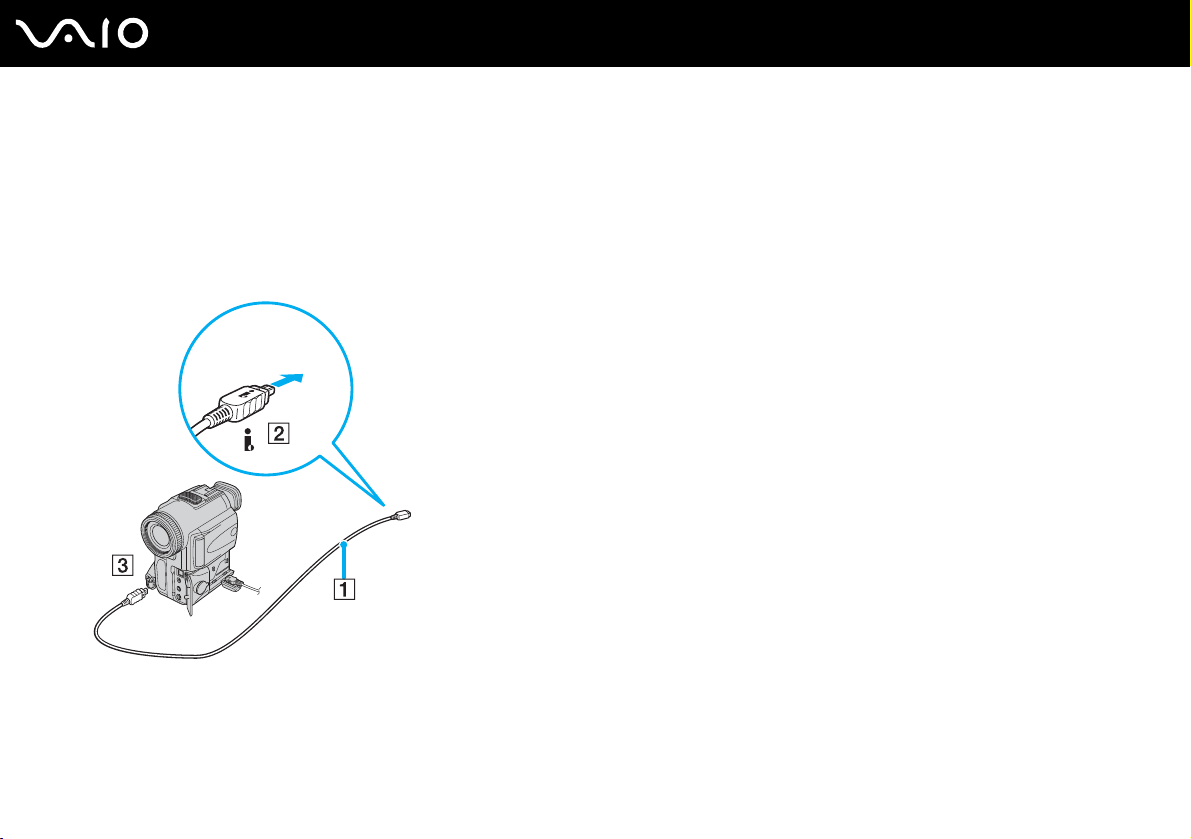

Connecting a Digital Video Camera Recorder

To connect a digital video camera recorder

1 Plug one end of the i.LINK cable (1) into the i.LINK port (2) on the computer and the other end into the DV In/Out ports

(3) on the digital video camera recorder. 2 Launch the DVgate Plus software.

✍

On Sony digital video cameras, ports labeled DV Out, DV In/Out or i.LINK are i.LINK-compatible.

The Sony digital video camera recorder shown here is an example; your digital video camera recorder may need to be connected differently.

You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.

Page 95

Using Peripheral Devices

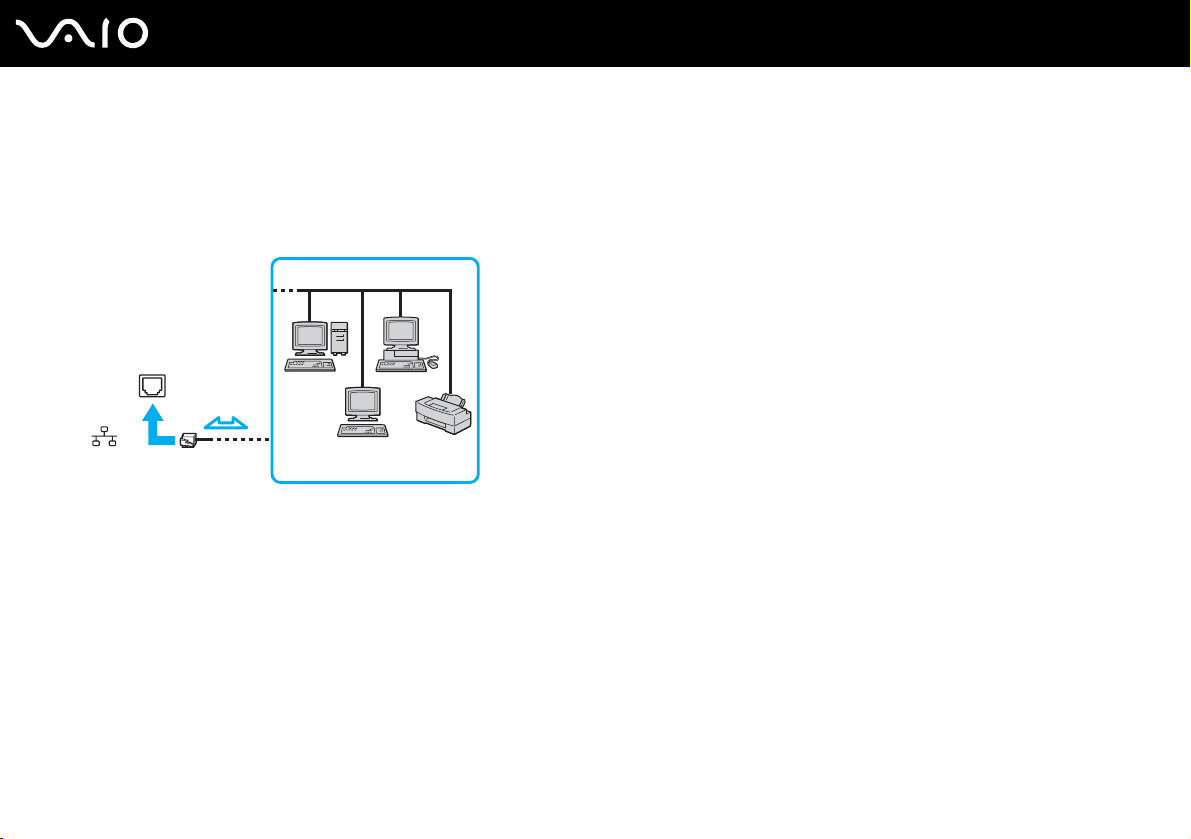

Connecting to a Network (LAN)

You can connect your computer to 100BASE-TX/10BASE-T-type networks via an Ethernet network cable. Connect one end of an optional network cable to the Network (Ethernet) port on the computer or the (optional) port replicator and the other end to your network. For detailed settings and devices needed to connect to the network, see your network administrator.

✍

The computer can be connected to the network with the default settings.

When the computer is attached to the port replicator, you can only use the Network (Ethernet) port on the port replicator.

Page 96

Using Peripheral Devices

Telephone lines cannot be connected to the Network (LAN) connector on your computer.

If the Network (LAN) connector is connected to the telephone lines mentioned below, high electric current to the connector may cause damage,

overheating or fire.

- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)

- Public telephone subscriber line

- PBX (private branch exchange)

Do not plug a telephone cable into the network port.

Page 97

Customizing Your VAIO Computer

This section briefly describes how to change the main settings of your computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities, etc.

❑ Setting the Password (page 98) ❑ Setting Up Your Computer with VAIO Central (page 100) ❑ Using the Power Saving Modes (page 101) ❑ Managing Power with VAIO Power Management (page 106)

Page 98

Customizing Your VAIO Computer

Setting the Password

Use one of the BIOS functions to set the password. Once you have set the password, you will have to enter the password after the VAIO logo appears to start your computer.

The power-on password will allow you to protect your computer from unauthorized access.

Adding the Power-on Password

Once you have set the power-on password, you cannot start the computer without entering the password. Make sure not to forget the password. Write

down your password and keep it safe and private from other people.

If you forget the power-on password and need assistance to reset, a password reset fee will be charged, and your computer may need to be sent in for

depot service for password reset.

To add the power-on password

1 Turn on the computer. 2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo

appears.

3 Use the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the

Enter key. 4 On the password entry screen, enter the password twice and press the Enter key.

The password can be up to 7 alphanumeric characters long.

✍

The following is to configure the computer to prompt password entry when you turn it on or display the BIOS setup screen.

Page 99

Customizing Your VAIO Computer

5 Select Password when Power ON under Security.

Press the space bar to change the setting from Disabled to Enabled. 6 Use the < or , key to select Exit and select Exit (Save Changes); and then press the Enter key.

On the Setup Confirmation screen, make sure that Yes is selected and then press the Enter key.

Changing/Removing the Power-on Password

To change or remove the power-on password

1 Turn on the computer. 2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo

appears.

3 Enter the current password for Enter Password: 4 Use the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the

Enter key. 5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.

To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter

key. 6 Use the < or , key to select Exit and select Exit (Save Changes); and then press the Enter key.

On the Setup Confirmation screen, confirm that Yes is selected and then press the Enter key.

Page 100

Customizing Your VAIO Computer

Setting Up Your Computer with VAIO Central

The VAIO Central utility allows you to consult system information and specify preferences for system behavior.

To use VAIO Central

1 Click Start, point to All Programs, and click VAIO Central.

The VAIO Central window appears.

2 Select the desired control item and change the settings. 3 Once finished, click OK.

The setting of the desired item has been changed.

✍

Some of the control items will not be visible if you open VAIO Central as a limited user.

100
