Before Use

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal
computing.

Documentation

Your documentation includes printed information and user guides to read on your VAIO computer.

Printed Documentation

❑ Welcome mat — Contains an overview of connections, setting up information, etc.
❑ Safety information — Contains safety guidelines and owner information.
❑ Instant Mode (VGN-TX700 Series models only) — Provides a guide to use Instant Mode.

6

7

nN

Before Use

Non-printed Documentation

❑ User Guide (this manual) — Contains features of your computer. It also includes information about the software programs

included with your computer, as well as information on solving common problems.

❑ Specifications — The online Specifications describe the hardware and software configuration of your VAIO computer.

To view the online Specifications:

1 Connect to the Internet.
2 Go to the Sony online support Web site at http://www.sony.com/pcsupport

at http://www.sony.ca/support

for customers in Canada, or at http://esupport.sony.com/ES/ for customers in Latin

American countries or areas.

❑ VAIO Recovery Guide — Provides information about restoring individual software programs, software drivers, and drive

partition(s) or your entire hard disk drive to the original factory installed settings.
To access this online guide:

1 Click Start, point to All Programs, and click VAIO Support Central.
2 Click VAIO Documentation.
3 Click VAI O Recovery Guide.

❑ VAIO SmartWi Connection Utility Guide (VGN-TX700 Series models only) — Provides information about setting up

Bluetooth, Wireless LAN, and Wireless WAN functionalities.
To access this online guide:

1 Click Start, point to All Programs, and click VAIO Support Central.
2 Click VAIO Documentation.
3 Click VAIO SmartWi Connection Utility Guide.

for customers in USA,

8

nN

Before Use

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations to both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your

wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms
hang naturally at your sides. Have breaks during sessions with your computer. Excessive use of the computer may strain
muscles or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.

9

nN

Before Use

❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the
display as well.

❑ Lighting – Choose a location where windows and lights do not create glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. You can also purchase accessories for your display that help reduce glare.
Proper lighting adds to your comfort and work effectiveness.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Getting Started

Getting Started

This section describes how to get started with using your VAIO computer.

!

Before the first computer startup, do not connect any new hardware that did not normally come with your computer. Make sure to start up your
computer with only the supplied accessories connected and set up your system. Upon completion, connect one device (for example, a printer, external
hard disk drive, scanner, and so on) at a time, following the manufacturer's instructions.

❑ Locating Controls and Ports (page 11)
❑ About the Indicator Lights (page 24)
❑ Connecting a Power Source (page 26)
❑ Using the Battery Pack (page 27)
❑ Shutting Down Your Computer Safely (page 33)

10

nN

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

11

nN

Getting Started

VGN-TX700 Series models

Front

12

nN

Getting Started

A Media Access indicator (page 24)
B Memory Stick media slot

C SD card slot (page 57)
D LCD screen (page 127)
E Keyboard (page 35)
F Touch pad (page 37)
G WIRELESS switch (page 60)
H Muting button (page 38)
I Volume buttons (page 38)
J Headphones jack (page 84)
K Microphone jack (page 94)

* Your computer supports Memory Stick Duo media and Memory Stick PRO

high speed and high capacity capabilities.

*

(page 54)

AV MODE button (page 38)

A
B Play/Pause button (page 38)
C Stop button (page 38)
D Previous track button (page 38)
E Next track button (page 38)
F Eject button (page 38)
G Battery indicator (page 24)
H Hard disk drive indicator (page 24)
I Num lock indicator (page 24)
J Caps lock indicator (page 24)
K Scroll lock indicator (page 24)
L Power button
M Speakers
N Bluetooth indicator (page 24)
O WIRELESS LAN indicator (page 24)

P WWAN indicator

*

(page 24)

Q Muting indicator (page 24)

* On selected models only.

13

nN

Getting Started

Back

A Network (Ethernet) port (page 102)
B Battery connector (page 27)
C DC In port (page 26)

D i.LINK

®

(IEEE1394) S400 port (page 100)

14

nN

Getting Started

Right

A Optical disc drive (page 41)
B Optical disc drive indicator (page 24)
C Manual eject hole (page 163)
D Drive eject button (page 41)
E Monitor (VGA) port (page 86)

F WWAN antenna

* On selected models only.

*

(page 60)

15

nN

Getting Started

Left

16

nN

Getting Started

A Hi-Speed USB (USB 2.0) ports
B PC Card slot (page 51)
C PC Card eject button (page 53)
D Air vent
E Modem port (page 59)

* Supports high-/full-/low- speeds.

*

(page 95)

Bottom

A Air vent
B Port replicator connector (page 78)
C Release latch (page 31)

17

nN

Getting Started

VGN-FJ200 Series models

Front

18

nN

Getting Started

A Built-in MOTION EYE camera (page 40)
B Built-in MOTION EYE camera indicator (page 24)
C Internal microphone (monaural)
D LCD screen (page 127)
E Keyboard (page 35)
F Touch pad (page 37)
G WLAN (Wireless LAN) switch (page 60)
H WLAN (Wireless LAN) indicator (page 24)
I Power indicator (page 24)
J Battery indicator (page 24)
K Hard disk drive indicator (page 24)
L Memory Stick media indicator (page 24)

M Memory Stick media slot

* Your computer supports Memory Stick Duo media and Memory Stick PRO

high speed and high capacity capabilities.

*

(page 54)

Speakers

A
B Num lock indicator (page 24)
C Caps lock indicator (page 24)
D Scroll lock indicator (page 24)
E S1/S2 buttons (page 38)
F Power button

19

nN

Getting Started

Back

A Battery connector (page 27)

20

nN

Getting Started

Right

A Headphones jack (page 84)
B Microphone jack (page 94)
C AV Out jack (page 88)

D Hi-Speed USB (USB 2.0) ports
E Optical disc drive indicator (page 24)
F Drive eject button (page 41)
G Manual eject hole (page 163)
H Security slot
I DC In port (page 26)

* Supports high-/full-/low- speeds.

*

(page 95)

21

nN

Getting Started

Left

22

nN

Getting Started

A Network (Ethernet) port

*1

(page 102)

B Modem port (page 59)
C i.LINK

®

(IEEE1394) S400 port (page 100)

D Air vent
E Monitor (VGA) port
F Hi-Speed USB (USB 2.0) port

*1

(page 86)

*1 *2

(page 95)

G PC Card slot (page 51)
H PC Card eject button (page 53)

*1

Disabled when the computer is attached to the optional port replicator.

*2

Supports high-/full-/low- speeds.
Obstructed and unavailable when the computer is attached to the optional
port replicator.

Bottom

A Port replicator connector (page 78)
B Air vents

23

nN

Getting Started

Getting Started

About the Indicator Lights

Your computer is equipped with the following indicator lights.

Indicator Functions

Power 1 Illuminates when the power to the computer is on, blinks in Standby mode, and turns off when the computer is

in Hibernate mode or off.

Battery e Illuminates when the computer is using battery power, blinks when the battery is running out of power, and

Media Access (VGN-TX700 Series
only)

Memory Stick PRO/Duo
(VGN-FJ200 Series only)

Optical disc drive Illuminates when data is read from or written to the optical disc. When the indicator is off, the optical disc is not

Muting % (VGN-TX700 Series only) Illuminates when the volume is turned off.

Built-in MOTION EYE camera
(VGN-FJ200 Series only)

Hard disk

Num lock

Caps lock

double-blinks when the battery is charging.

Illuminates when data is read from or written to a memory card. (Do not enter Standby mode or turn
off the computer when this indicator is on.) When the indicator is off, the memory card is not being used.

Illuminates when data is read from or written to the Memory Stick media. (Do not enter Standby mode or turn
off the computer when this indicator is on.) When the indicator is off, the Memory Stick media is not being used.

being used.

Illuminates while the built-in MOTION EYE camera is in use.

Illuminates when data is read from or written to the hard disk. Do not enter Standby mode or turn off the
computer when this indicator is on.

Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator is off.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator is on. Press the key a second time to turn off the indicator. Normal typing resumes when the
Caps lock indicator is off.

24

nN

Indicator Functions

Scroll lock

Bluetooth (VGN-TX700 Series
only)

WIRELESS LAN Illuminates when the wireless LAN function is running.

WIRELESS WAN (Selected VGN­TX700 Series only)

Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator is off. The Scr Lk key functions differently depending on the program you are using and does not work
with all programs.

Illuminates when the WIRELESS switch is set to ON and Bluetooth technology is enabled.

Illuminates when the wireless WAN function is running.

25

nN

Getting Started

26

nN

Getting Started

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack as a power source for your computer.

Using the AC Adapter

✍

Use the computer only with the supplied AC adapter.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3).
2 Plug the other end of the power cord into an AC outlet (2).
3 Plug the cable attached to the AC adapter (3) into the DC In port (4) on the computer or on the (optional) port replicator.

!

The shape of the DC In plug varies depending on the AC adapter.

✍

To disconnect the computer completely from AC power, unplug the AC adapter.

Make sure that the AC outlet is easily accessible.

If you do not use the computer for a long period of time, put the computer into Hibernate mode. See Using Hibernate Mode (page 111). This power
saving mode saves the time of shutting down or resuming.

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of purchase.

Installing the Battery Pack

To install the battery pack

VGN-TX700 Series models

1 Turn off the computer and close the LCD screen lid.

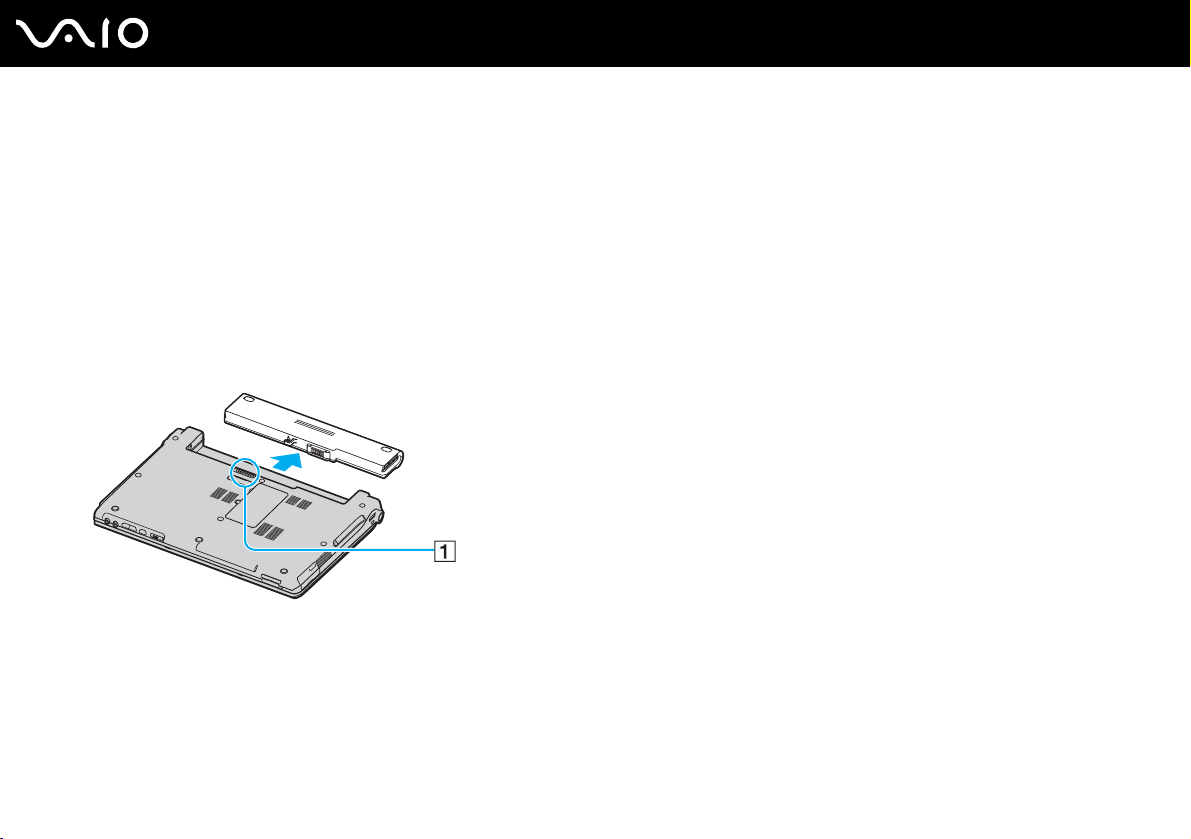

2 Slide the battery into the battery compartment until it clicks into place.

27

nN

Getting Started

VGN-FJ200 Series models

1 Turn off the computer and close the LCD screen lid.

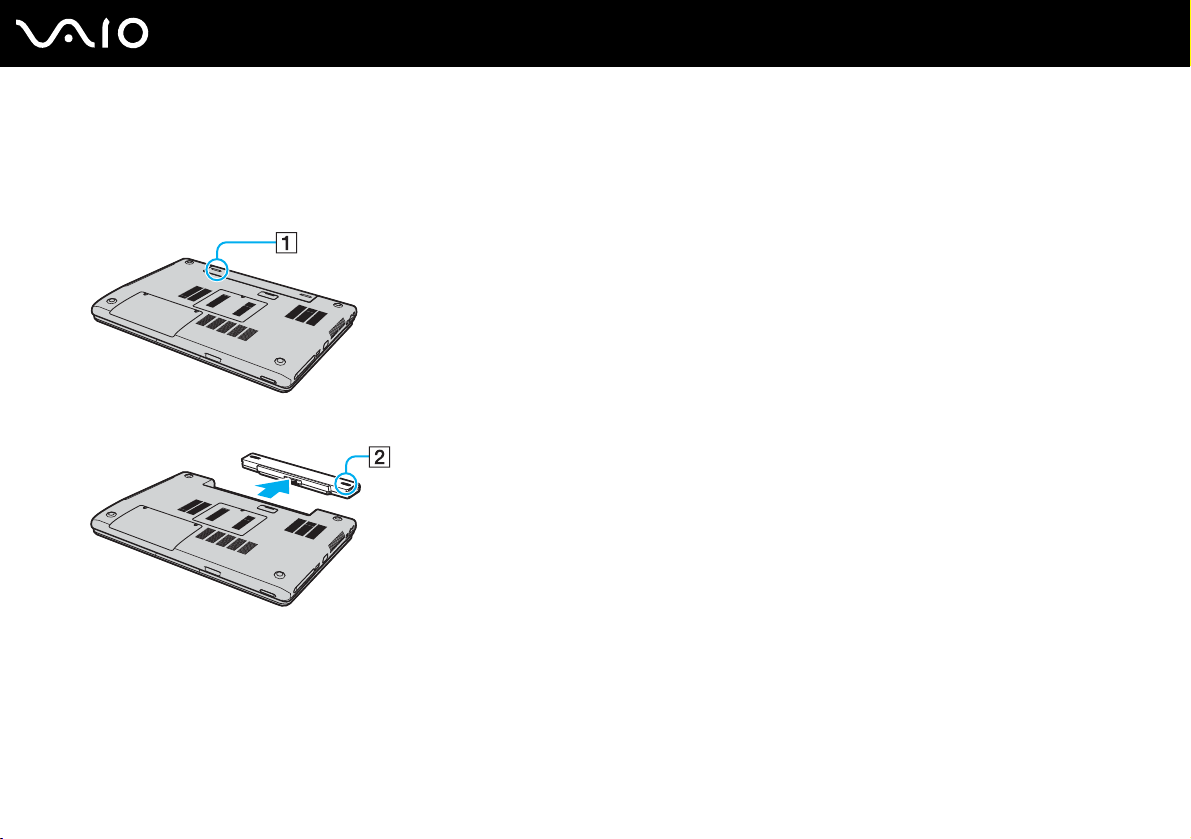

2 Slide the lock switch (1) to the UNLOCK position.

3 Slide the battery into the battery compartment until it clicks into place.

4 Slide the lock switch (1) to the LOCK position to secure the battery on the computer.

28

nN

Getting Started

✍

When the computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

!

This computer is designed to operate only with genuine Sony batteries.

Getting Started

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of purchase.

To charge the battery pack

1 Install the battery pack.
2 Connect the AC adapter to the computer.

The computer automatically charges the battery (the battery indicator light flashes in a double blink pattern as the battery
charges). When the battery is about 85% charged, the battery indicator turns off.

Battery indicator light status Meaning

On The computer is using battery power.

Blinks The battery is running out of power.

Double blinks The battery is charging.

Off The computer is using AC power.

29

nN

Getting Started

✍

When the battery is running out of power, both the battery and power indicator lights blink.

Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.

If the battery level falls below 10%, you should either attach the AC adapter to recharge the battery or shut down the computer and install a fully charged
battery.

The battery pack supplied with the computer is a lithium ion battery and can be recharged any time. Charging a partially discharged battery does not
affect battery life.

The battery indicator light is on while you use the battery pack as a power source. When the battery life is nearly depleted, both the battery and power
indicator lights start flashing.

For some software applications and some peripheral devices, the computer may not enter Hibernate mode even when battery life is low. To avoid loss
of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Standby or

Hibernate. If the battery wears out when the computer enters Standby mode, you will lose any unsaved data. Going back to the previous work state is
impossible. To avoid loss of data, you should save your data frequently.

When the computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

30

nN

Getting Started

Removing the Battery Pack

!

You may lose data if you remove the battery pack while the computer is on and not connected to the AC adapter or if you remove the battery while the
computer is in Standby mode.

To remove the battery pack

VGN-TX700 Series models

1 Turn off the computer and close the LCD screen lid.
2 Slide and hold the release latch (1) and slide the battery away from the computer.

31

nN

✍

If the battery is stuck by the side spring locks, release one lock and then the other to remove the battery.

VGN-FJ200 Series models

1 Turn off the computer and close the LCD screen lid.
2 Slide the lock switch (1) to the UNLOCK position.

3 Slide and hold the release latch (2) and slide the battery away from the computer.

32

nN

Getting Started

33

nN

Getting Started

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.
2 Click Start and then Turn Off Computer.

The Turn off computer window appears.
3 Click Turn O ff.
4 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically.

The power indicator light turns off.

Using Your VAIO Computer

This section describes how to get the most out of using your computer.

❑ Using the Keyboard (page 35)
❑ Using the Touch Pad (page 37)
❑ Using Special-function Buttons (page 38)
❑ Using the Built-in MOTION EYE Camera (page 40)
❑ Using the Optical Disc Drive (page 41)
❑ Using PC Cards (page 51)
❑ Using the Memory Stick Media (page 54)
❑ Using Other Memory Cards (page 57)
❑ Using the Internet (page 59)
❑ Using Wireless LAN (WLAN) (page 60)
❑ Using the Bluetooth Functionality (page 70)

34

nN

Using Your VAIO Computer

nN

Using Your VAIO Computer

Using the Keyboard

Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks.

Combinations and Functions with the Fn Key

✍

Some functions are not available until Windows is launched.

Combinations/Feature Functions

Fn + (F1): wireless switching (Selected VGN-

TX700 Series only)

Fn + % (F2): speaker switch (VGN-FJ200 Series
only)

Fn + 2 (F3/F4): volume (VGN-FJ200 Series only) Adjusts the built-in speaker and headphone volume.

Fn + 8 (F5/F6): brightness control Adjusts the brightness of the LCD.

Fn + /T (F7): switch to the external display

Toggles between Bluetooth, Wireless LAN, and Wireless WAN functionalities.

Turns on and off the built-in speakers and the headphones.

To increase volume, press Fn+F4 and then M or ,, or keep pressing Fn+F4.
To decrease volume, press Fn+F3 and then m or <, or keep pressing Fn+F3.

To increase lightness intensity, press Fn+F6 and then M or ,, or keep pressing Fn+F6.
To decrease lightness intensity, press Fn+F5 and then m or <, or keep pressing Fn+F5.

Toggles between the LCD, external device (e.g. monitor) and both LCD and external device.

35

Combinations/Feature Functions

Fn + (F10): zoom

Fn + (F12): Hibernate

36

nN

Using Your VAIO Computer

Changes the screen resolution to magnify/restore the screen view.

✍

The magnified view is not as clear as the standard view, as it is implemented by applying a lower resolution
to the LCD screen with a higher resolution.
This key combination is disabled during video playback. Make sure to quit such software before pressing
the key combination.
This key combination may not work with graphic images as it magnifies the screen view by changing the
resolution.
The location and size of software windows may change when the screen view is magnified or the standard
view is restored because pressing this key combination changes the resolution.
When the LCD screen view is magnified, switching the view to the external display disables the function
and restores the standard view.

Provides for the lowest level of power consumption. When you execute this command, the
states of the system and the peripheral devices are written to the hard disk and the system
power is turned off. To return the system to its original state, use the power button to turn on the
power.
For details on power management, see Using the Power Saving Modes (page 108).

37

nN

Using Your VAIO Computer

Using the Touch Pad

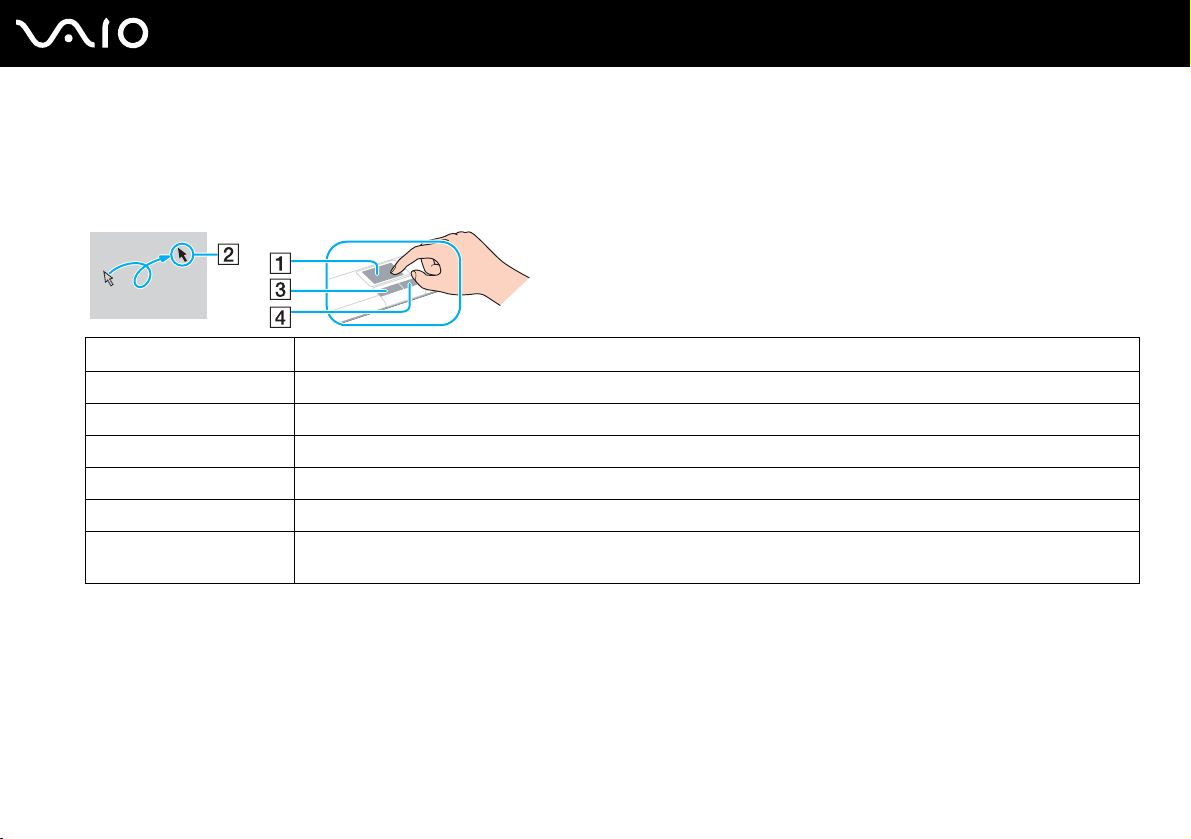

The keyboard contains a cursor-pointing device, the touch pad (1). You can point to, select, drag, and scroll objects on the
screen using the touch pad.

Action Description

Point Slide one finger on the touch pad to place the pointer (2) on an item or object.

Click Press the left button (3) once.

Double-click Press the left button twice.

Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.

Drag Slide one finger on the touch pad while pressing the left button.

Scroll Move your finger along the right edge of the touch pad to scroll vertically. Move your finger along the bottom to scroll

horizontally (the scroll function is available only with applications that support a touch pad scroll feature).

38

nN

Using Your VAIO Computer

Using Special-function Buttons

Your computer is equipped with special buttons to help you use specific functions of the computer.
On VGN-TX700 Series models, the AV MODE, Play/Pause, Stop, Previous track, Next track, and Disc drive eject buttons

support Instant Mode. When the computer is off or in Hibernate, only the AV MODE button is enabled. See the printed Instant

Mode booklet for more information on the Instant Mode.

VGN-TX700 Series models

Special-function button Functions

When Windows is NOT launched:

AV MODE button

Play/Pause button

Stop button

Previous track button

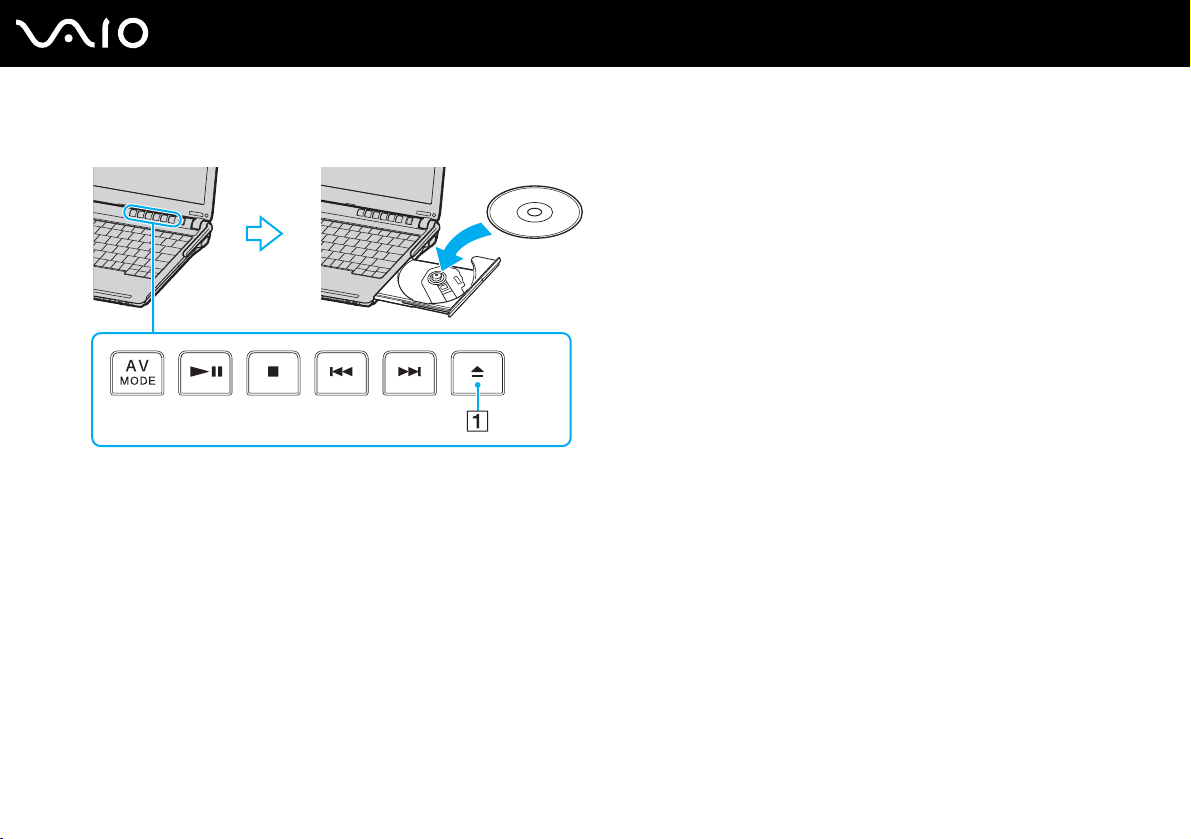

Activates Instant Mode to enable you immediately to play CDs and DVDs and view the image data stored in
the memory card, such as a Memory Stick media or SD card, without launching Windows. See the printed
Instant Mode booklet for more information.
When Windows is launched and running:
Launches the WinDVD software by default. You can change this button assignment with the AV Mode Button

Settings utility. To start this utility, press and hold the AV MO DE button. See the help file on the AV Mode
Button Settings utility for more information.

You need administrator rights on the computer to change the AV MOD E button assignment.

This button is enabled in Instant Mode as well as when Windows is launched and running.
Starts or pauses DVD playback with the WinDVD software or CD playback with the Sonic Stage software.

This button is enabled in Instant Mode as well as when Windows is launched and running.
Stops DVD playback with the WinDVD software or CD playback with the Sonic Stage software.

This button is enabled in Instant Mode as well as when Windows is launched and running.
Plays the previous chapter/movie in the DVD during playback with the WinDVD software or the previous song
in the CD during playback with the Sonic Stage software.

Special-function button Functions

This button is enabled in Instant Mode as well as when Windows is launched and running.

Next track button

Disc drive eject button

Muting button Turns the speaker and microphone volume on and off.

Volume buttons
(Volume up and Volume down)

Plays the next chapter/movie in the DVD during playback with the WinDVD software or the next song in the
CD during playback with the Sonic Stage software.

Ejects the drive tray.
If this button does not work, try the substitute drive eject button on the optical disc drive.

Increase and decrease the volume.

VGN-FJ200 Series models

Special-function button Functions

S1/S2 buttons

By default, the S1 button turns the volume on and off and the S2 button toggles the display output between
the LCD and external device. You can change these button assignments on the window for changing the S
button assignments. To display this window, press and hold either button or launch and navigate through
VAIO Central.

39

nN

Using Your VAIO Computer

40

nN

Using Your VAIO Computer

Using the Built-in MOTION EYE Camera

The built-in MOTION EYE camera is available on selected VGN-FJ200 Series models only. See the online Specifications
to find whether your model is equipped with the built-in MOTION EYE camera.

The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software, for
example Windows Messenger and Windows MovieMaker.

Turning on the computer activates the built-in MOTION EYE camera, so the computer is ready for a video conference using
such software.

Note that launching or exiting your instant messaging or video editing software does not activate or deactivate the MOTION
EYE camera, respectively. Make sure that the camera is activated before using the software.

✍

The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the

application before using the built-in MOTION EYE camera.

!

The viewer window may show some noises, for example horizontal lines, if you view a rapid-moving object. This is normal and does not indicate a

malfunction.

Using Your VAIO Computer

Using the Optical Disc Drive

Your computer is equipped with an optical disc drive.

To insert a disc

!

The location of the drive eject button depends on the model you purchased. See Locating Controls and Ports (page 11).

1 Turn on the computer.
2 Press the drive eject button (1) to open the drive.

The tray slides out.

✍

On VGN-TX700 Series models, if power supply to the optical disc drive is disabled by VAIO Power Management, it will take a while to eject the drive

tray. Note that the substitute drive eject button is disabled when the optical disc drive is not powered.

When recovering your system, turn on the computer and press the substitute drive eject button on the optical disc drive. Insert your Recovery Disc

into the optical disc drive, turn off the computer, and then turn on the computer again to launch the VAIO Recovery Wizard.

41

nN

Using Your VAIO Computer

3 Place a disc in the middle of the tray with the label side facing up and gently push until the disc clicks into place.

4 Close the tray by pushing it in gently.

!

Do not remove the optical disc when the computer is in a power saving mode (Standby or Hibernate). Doing so may cause the computer to malfunction.

✍

If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled CD/DVD program.

42

nN

43

nN

Using Your VAIO Computer

Reading and Writing CDs and DVDs

Your computer plays and records CDs and DVDs, depending on the model you purchased. Check your specifications for the
type of optical disc drive installed on your model. Use the table below to see which types of media your optical disc drive
supports.

Optical disc drive Plays Records to

DVD-ROM DVD and most DVD-R, DVD-RW, DVD+R, DVD+RW

CD-RW/DVD-ROM CD, CD-R, CD-RW, DVD, most DVD-R, DVD-RW,

DVD±RW CD, CD-R, CD-RW, DVD, most DVD-R, DVD-RW,

DVD±RW/RAM CD, CD-R, CD-RW, DVD, most DVD-R, DVD-RW,

* On selected models only.

and DVD+R DL (Double Layer)

DVD+R, DVD+R DL (Double Layer) and DVD+RW

DVD+R, DVD+R DL (Double Layer) and DVD+RW

DVD+R, DVD+R DL (Double Layer), DVD+RW and
DVD-R AM

*

!

This product is designed to playback discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two

sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Please be aware that the audio side

(non-DVD side) of a DualDisc may not play on this product because it does not conform to the CD Standard.

—

CD-R and CD-RW

CD-R, CD-RW, DVD-R, DVD-RW, DVD+R,
DVD+R DL (Double Layer) and DVD+RW

CD-R, CD-RW, DVD-R, DVD-RW, DVD+R,
DVD+R DL (Double Layer), DVD+RW and DVD-RAM

*

!

Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices

on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee

the compatibility of VAIO CD drives with discs that not compliant with the official "CD" format standard (or "DVD" standard in relation to DVD drives).

USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.

For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

44

nN

Using Your VAIO Computer

✍

Supports writing to DVD-RW discs compliant with DVD-RW version 1.1/1.2.

Supports writing to DVD-R discs compliant with DVD-R for General version 2.0/2.1.

Supports 8cm disc reading, but does not support 8cm disc writing.

Writing to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.

The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with removable cartridge.

Writing to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM version 1.0 is not supported.

45

nN

Using Your VAIO Computer

Notes on writing data onto a disc

❑ To make the data on a disc readable on an optical disc drive, you need to close the session when you eject it. To complete

this process, follow the instructions included with your software.
❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc

drive.

❑ Do not strike or shake the computer while writing data onto a disc.
❑ Deactivate the screen saver and exit anti-virus software before writing data onto a disc.
❑ Do not use memory-resident utility software while writing data to a disc. This may cause the computer to malfunction.
❑ When using your software application to burn discs, make sure you exit and close all other applications.
❑ Never touch the surface of the disc. Fingerprints and dust on the surface of a disc may cause writing errors.
❑ Do not switch power modes while using the pre-installed software and while using the CD burning software.
❑ Never put stickers on discs. This will affect the use of the disc irreparably.
❑ Connect and use the AC adapter to power the computer or make sure your battery is at least 50 percent charged.
❑ Some DVD players and the VGN-FJ200 Series model's DVD drives may not be able to play DVDs created on applicable

models using the VAIO Zone software.

46

nN

Using Your VAIO Computer

Notes on playing DVDs

To achieve optimum performance when playing DVDs, you should follow these recommendations.
❑ You can play DVDs using the optical disc drive and the DVD playback software, such as VAIO Zone or WinDVD. See the

help file on such software for details.

❑ Close all open applications before playing a DVD movie.
❑ Do not use memory-resident utility software to speed up disc access when playing a DVD. This may cause the computer

to malfunction.

❑ Deactivate the screen saver and exit anti-virus software before playing a disc.
❑ Some discs recorded at 20 or 24 bits may produce noise while playing. If you have audio devices connected, this may

damage your hearing and the speakers. Reduce the volume before playing a DVD.

❑ Do not switch power saving modes while the computer is playing a DVD.
❑ Region code indicators are labeled on the DVDs to indicate in which region and on what type of player you can play the

disc. If the DVD is labeled "all," this means that you can play this DVD in most regions of the world. If the region code of

your residence area is different from the label on the DVD disc or on the packaging, you cannot play the disc on this player.

!

You can change the DVD region code only a limited number of times. When you have exceeded this number, the drive's DVD region code is permanently

assigned and you will not be able to change it again. Reconfiguring the computer does not reset this count.

If you change the DVD region code while the WinDVD software is running, restart the software or eject the disc and re-insert it to make the new setting

effective.

❑ If the computer has Wireless LAN and Wireless LAN is activated, playing DVDs may cause some interruptions in audio

and video.

47

nN

Using Your VAIO Computer

❑ When you are playing a DVD (video or audio) and you want to remove a USB device, such as USB-compatible speakers,

make sure you stop the DVD first. Removing a USB-compatible device during DVD (video or audio) playback may cause

a malfunction.

48

nN

Using Your VAIO Computer

Playing CDs

To play an audio CD

1 Insert the disc into the optical disc drive.
2 If nothing appears on the desktop once you insert an audio CD disc, then click Start, point to All Programs, and click to

open a CD program, such as the SonicStage software.

If the Audio CD window appears, click to select an option.

49

nN

Using Your VAIO Computer

Copying Files to CDs

See the online Specifications to find the type of your optical disc drive, and then Reading and Writing CDs and DVDs

(page 43) to find about the supported disc media.

To copy files to a disc

!

Do not strike or shake the computer while writing data onto a disc.

1 Insert a blank disc into the optical disc drive.

If the CD Drive window appears, click Take no action and then click OK.

2 Right-click Start and then click Explorer.
3 In the Folders panel on the left, locate the file(s) or folder(s) you want to copy, right-click the file(s) or folder(s), point to

*

Send To, and then click the optical disc drive
4 Close the window.
5 Click Start and then My Computer.
6 Click the optical disc drive icon under Devices with Removable Storage. A new window appears with the file(s) or

folder(s) you want to copy listed under Files Ready to Be Written to the CD.
7 In the CD Writing Tasks box, click Write these files to CD.
8 Follow the instructions in the CD Writing Wizard.

* The read/write drive letter designation may vary, depending on your system's hardware configuration.

name.

50

nN

Using Your VAIO Computer

Playing DVDs

To play a DVD

1 Close all open programs.
2 Insert the DVD into the optical disc drive.
3 Click Start and point to All Programs.
4 Select a DVD software program to play the DVD.

For instructions on how to use a program, see the help file included with the DVD software program.

Copying Files to DVDs

The DVD writing function is available on selected models only. See the online Specifications to find the type of your optical
disc drive, and then Reading and Writing CDs and DVDs (page 43) to find about the supported disc media.

To copy files to a disc

1 Connect the AC adapter to the computer.
2 Insert the disc into the optical disc drive.
3 Click Start and point to All Programs.
4 Select a DVD software program you want to use from the submenu.

For instructions on how to use a program, see the help file included with the DVD software program.

Using PC Cards

PC Cards allow you to connect portable external devices to your computer.

Inserting a PC Card

!

Some PC Cards or their functions may not be compatible with the computer.

You do not need to shut down the computer before inserting or removing a PC Card.

To insert a PC Card

VGN-TX700 Series models

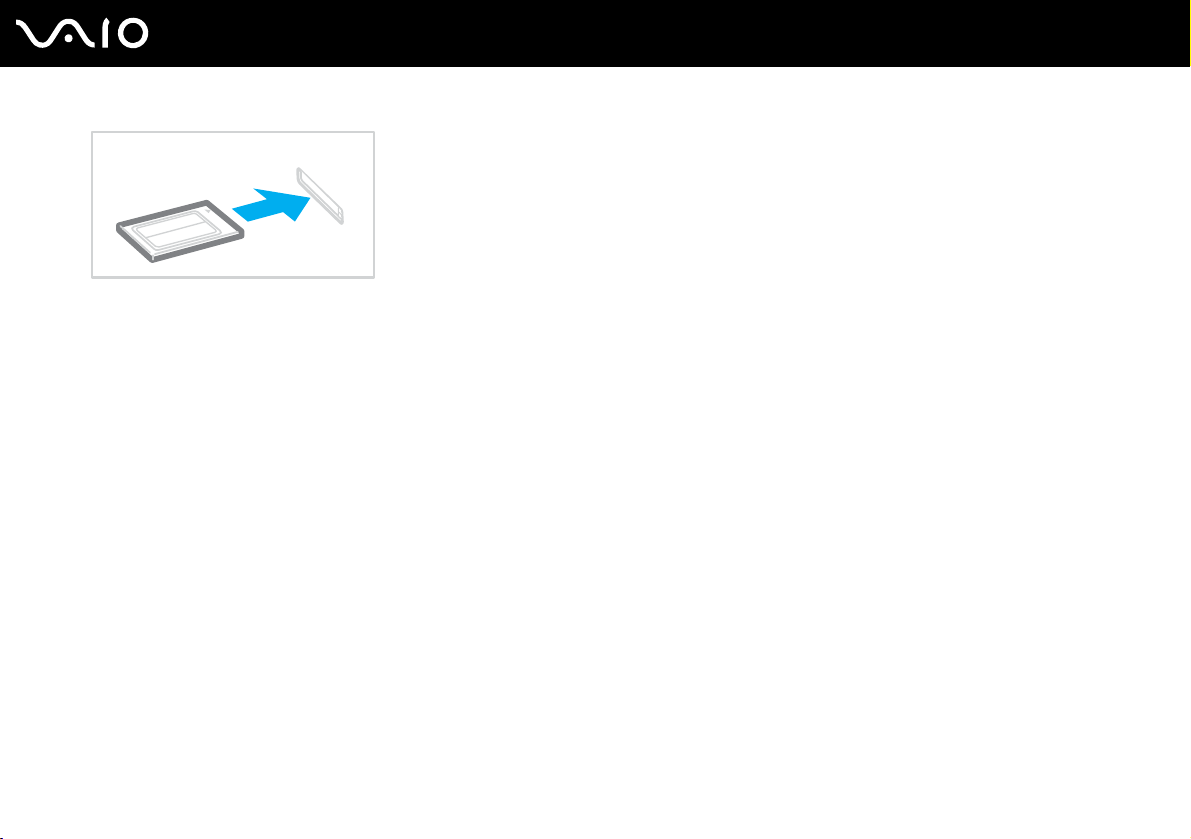

1 Push the PC Card release button so that the release button pops out.
2 Push the PC Card release button a second time so that the PC Card slot protector pops out.
3 Gently take hold of the protector and pull it out of the slot.
4 Insert the PC Card into the PC Card slot with the front label facing up.
5 Gently push the PC Card into the slot.

The PC Card is automatically detected by your system.

The Safely Remove Hardware icon appears on the taskbar.

51

nN

Using Your VAIO Computer

VGN-FJ200 Series models

1 Insert the PC Card into the PC Card slot with the front label facing up.
2 Gently push the PC Card into the slot.

The PC Card is automatically detected by your system.

The Safely Remove Hardware icon appears on the taskbar.

52

nN

Using Your VAIO Computer

!

On VGN-TX700 Series models, insert the PC Card slot protector to protect against debris entering the slot when not using a PC Card. Before carrying

the computer, make sure to insert the PC Card slot protector into the slot.

✍

Some devices may not function properly if you continually switch to Normal mode from Standby mode or Hibernate mode. For some PC Cards, if you

alternate between Normal mode and Standby or Hibernate mode while the card is inserted, you may find that a device connected to your system is not

recognized. Restart your system to correct the problem. Restarting will restore the original state of the computer.

While the card is inserted, the computer may not enter Hibernate power management mode. It may enter Standby mode. We recommend that you

remove the card before the computer enters Hibernate mode.

Make sure you use the most recent software driver provided by the PC Card manufacturer.

If an "!" mark appears on the Device Manager tab in the System Properties window, remove the software driver and then reinstall it.

Do not force a PC Card into the slot. It may damage the connector pins. If you have difficulty inserting a PC Card, check that you are inserting the PC

Card in the correct direction. See the manual supplied with your PC Card for more information on use.

53

nN

Using Your VAIO Computer

Removing a PC Card

Follow the steps below to remove the PC Card while your computer is on. If it is not removed properly, your system may not
work properly.

To remove a PC Card

✍

To remove a PC Card when the computer is off, skip steps 1 to 6.

1 Double-click the Safely Remove Hardware icon on the taskbar.

The Safely Remove Hardware window appears.

2 Select the hardware you want to unplug.
3 Click Stop.

The Stop a Hardware Device window appears.
4 Confirm that the device can be safely removed from the system.
5 Click OK.

A window appears, explaining that it is safe to remove the device.

6 Click Close.
7 Push the PC Card release button so that the release button pops out.
8 Push the PC Card release button a second time so that the PC Card pops out.
9 Gently take hold of the Card and pull it out of the slot.
10 If the PC Card release button is still out, push it back in.

54

nN

Using Your VAIO Computer

Using the Memory Stick Media

Your computer supports the Memory Stick media. Memory Stick media is a compact, portable, and versatile device especially
designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones and other
devices. Because it is removable, it can be used for external data storage.

For the latest information on Memory Stick media, visit the Sony online support Web site at http://www.sony.com/pcsupport
for customers in USA, at http://www.sony.ca/support
customers in Latin American countries or areas.

!

Your computer has been tested and found compatible with the Sony branded Memory Stick media with capacity of up to 4 GB. Sony assumes no liability

for compatibility with any other Memory Stick media.

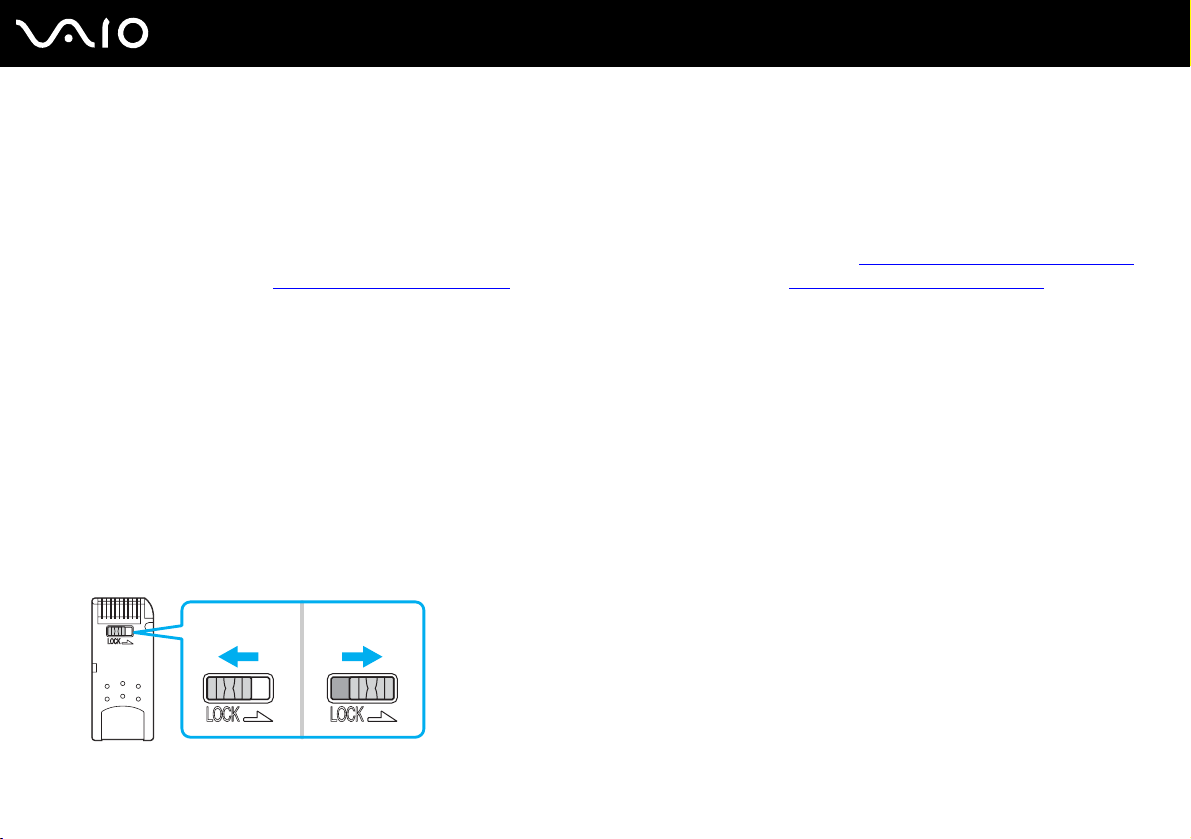

Write-protecting a Memory Stick Media

Some versions of Memory Stick media are designed with an erasure prevention switch to protect valuable data from
accidental erasure or overwriting.

Move the tab horizontally or vertically
be saved on the Memory Stick media. When the erasure prevention switch is on, data can be read from but not saved on the
Memory Stick media.

*

to set or release write-protection. When the erasure prevention switch is off, data can

for customers in Canada, or at http://esupport.sony.com/ES/ for

* Some versions of Memory Stick media do not have an erasure prevention switch.

Using Your VAIO Computer

Inserting a Memory Stick Media

To insert a Memory Stick media

!

The location of the Memory Stick media slot depends on the model you purchased. See Locating Controls and Ports (page 11).

1 Hold the Memory Stick media with the arrow facing up and toward the Memory Stick media slot.
2 Carefully slide the Memory Stick media into the slot until it clicks in place.

The Memory Stick media is automatically detected by your system and appears in your My Computer window as a local

drive, under the appropriate letter (depending on the configuration of the computer).

!

Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging the computer

or the Memory Stick media, do not force the Memory Stick media into the slot if it does not insert smoothly.

55

nN

Do not insert more than one Memory Stick media into the Memory Stick media slot. Inserting the media improperly may damage the computer.

✍

The computer supports Memory Stick Duo media and is equipped with the Memory Stick combo slot that is compatible with both standard- and duo-

size media. For more information on Memory Stick Duo media, visit the Memory Stick web site at http://www.memorystick.com/en/

.

Using Your VAIO Computer

To view the contents of the Memory Stick media

1 Click Start and then My Computer to open the My Computer window.

2 Double-click the Memory Stick media icon to view the list of data files saved in the Memory Stick media.

To format a Memory Stick media

Use the Memory Stick Formatter software. See the help file on the Memory Stick Formatter software for details.

Removing a Memory Stick Media

To remove a Memory Stick media

1 Check that the Media Access (VGN-TX700 Series) or Memory Stick (VGN-FJ200 Series) indicator is off.
2 Push the Memory Stick media in toward the computer.

The Memory Stick media ejects.

3 Pull the Memory Stick media out of the slot.

!

Always remove the Memory Stick media gently, or it may pop out unexpectedly.

Do not remove the Memory Stick media while the Media Access (VGN-TX700 Series) or Memory Stick media (VGN-FJ200 Series) indicator is turned

on. If you do, you may lose data. Large volumes of data may take time to load, so be sure the indicator is off before removing the Memory Stick media.

56

nN

57

nN

Using Your VAIO Computer

Using Other Memory Cards

In addition to the Memory Stick media slot, VGN-TX700 Series are equipped with an SD memory card slot to accommodate
other memory cards. You can use this slot to transfer data between digital cameras, camcorders, music players, and other
audio/video devices.

Before You Use Memory Cards

The SD memory card is compatible with the following memory cards:

❑ Multi Media Card (MMC)
❑ Secure Digital (SD)

For the latest information on compatible memory cards, visit the Sony online support Web site regularly.

!

Always insert the correct memory card into the appropriate memory card slot.

Do not attempt to insert a different memory card or memory card adapter into a different memory card slot. An incompatible memory card or adapter

may be difficult to remove from the wrong slot and can cause damage to your computer.

Use care when inserting or removing a memory card from the slot. Do not force the memory card in or out of the slot.

The SD memory card slot on your computer does not support the high-speed data transfer feature of the SD memory card.

Inserting a Memory Card

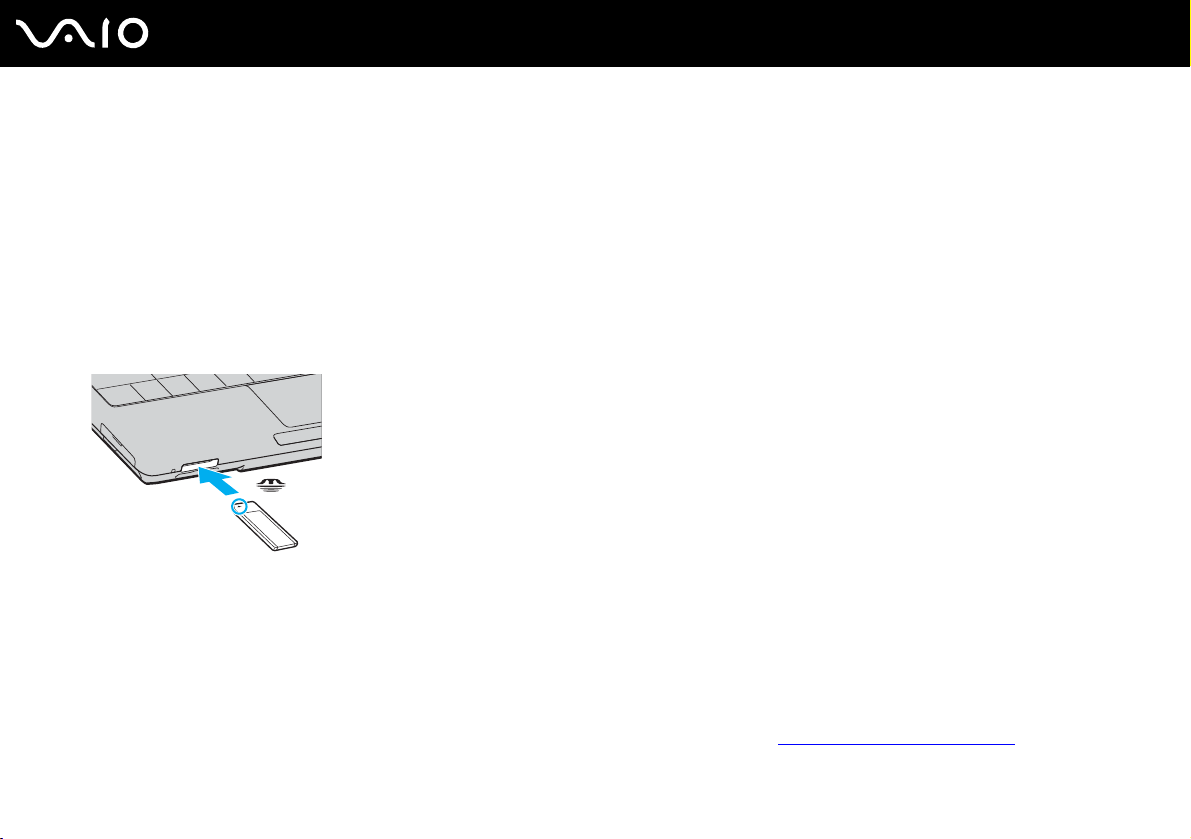

To insert a memory card

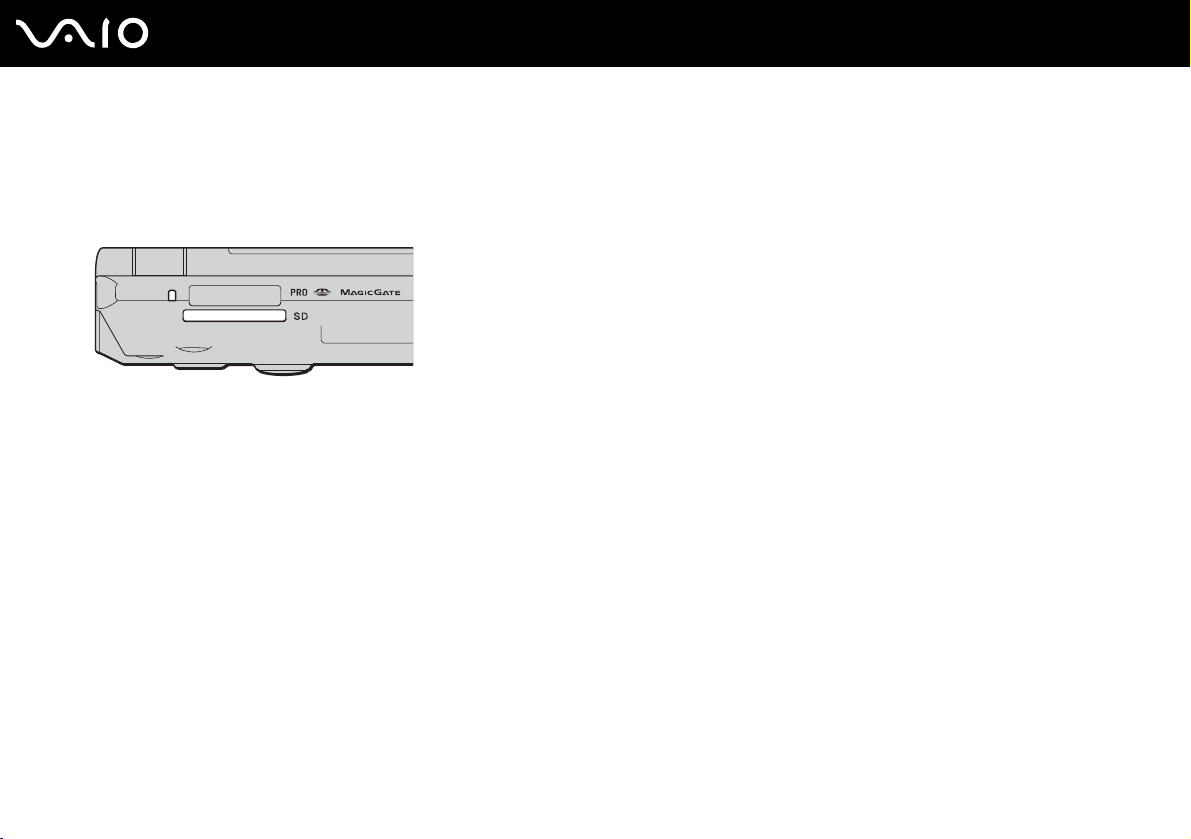

1 Locate the SD memory card slot on the front of the computer.

2 Hold the memory card with the arrow facing up and toward the memory card slot.
3 Carefully slide the memory card into the slot until it clicks in place.

Do not force the card into the slot.

✍

If the memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Removing a Memory Card

!

Do not remove a memory card while the Media Access indicator light is on. The card or its data may become damaged.

58

nN

Using Your VAIO Computer

To remove a memory card

1 Check that the Media Access indicator is off.
2 Press the extended part of the memory card, causing it to extend out from the slot.
3 When the card extends, carefully pull it out of the slot.

59

nN

Using Your VAIO Computer

Using the Internet

Setting Up a Dial-up Internet Connection

Before you can connect to the Internet, you need to connect your computer to a telephone line via a telephone cable (may
not supplied). Once you set up your telephone cable, you're ready to connect to the Internet.

To connect a telephone cable

1 Plug one end of the phone cable (1) into the modem port on the computer.
2 Plug the other end into the wall jack (2).

✍

The computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a

private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.

If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.

To set up a dial-up connection to the Internet

1 Click Start, point to All Programs, Accessories, Communications, and click New Connection Wizard.

The New Connection Wizard appears.

2 Click Next. If the Location Information window appears, follow the on-screen instructions.
3 If it is not already selected, click to select Connect to the Internet, and click Next.
4 Follow the on-screen instructions.

60

nN

Using Your VAIO Computer

Using Wireless LAN (WLAN)

Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each
other through a powerful network. A WLAN is a network in which a user can connect to a local area network (LAN) through
a wireless (radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings.

The Sony WLAN supports all normal Ethernet activities, but with the added benefits of mobility and roaming. You can still
access information, internet/intranet and network resources, even in the middle of a meeting, or as you move from one place
to another.

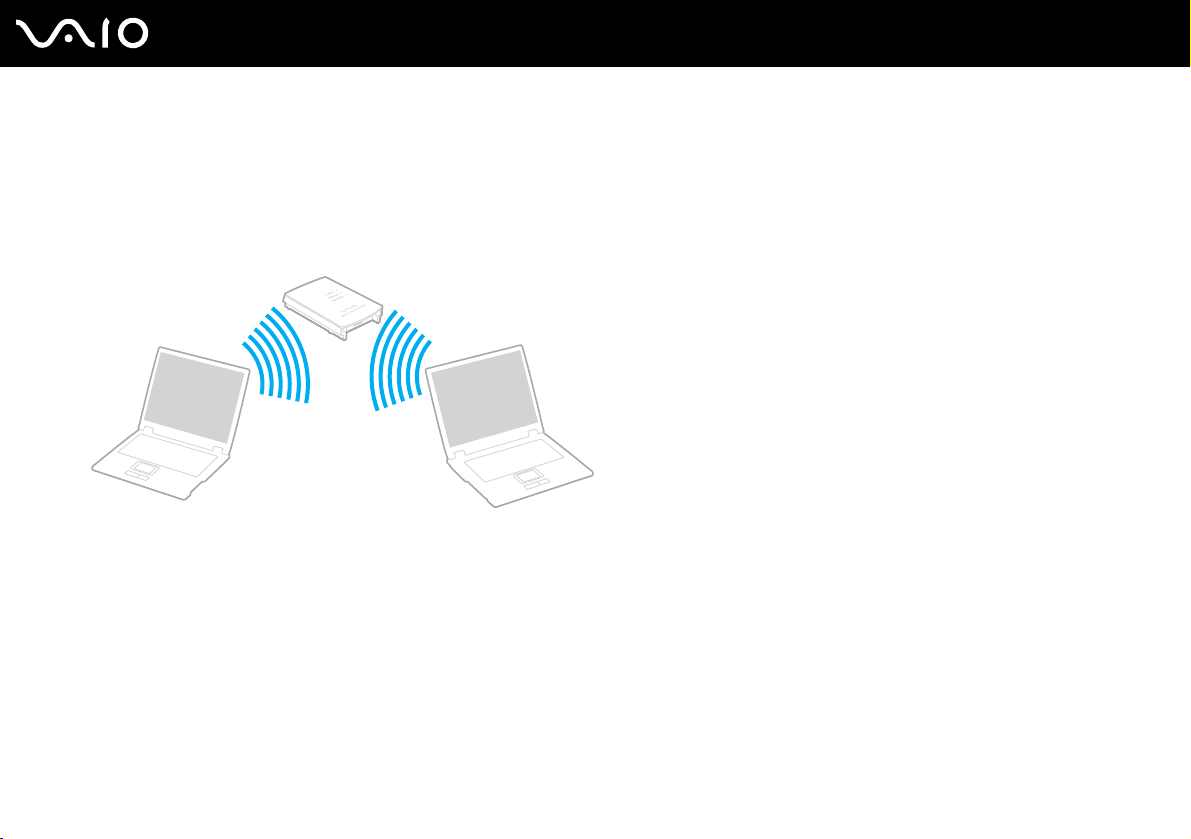

You can communicate without an Access Point, which means that you can communicate between a limited number of
computers (ad-hoc). Or you can communicate through an Access Point, which allows you to create a full infrastructure
network (infrastructure).

❑ VGN-TX700 Series model users with the Wireless WAN functionality in USA

Please see the VAI O SmartWi Connection Utility Guide for setting up Wireless LAN and Wireless WAN functionalities.
❑ Other VGN-TX700 Series model users in USA

Please see the following for setting up Wireless LAN functionality.
❑ VGN-TX700 Series model users in Canada and Latin American countries or areas

Please see the following for setting up Wireless LAN functionality.
❑ All VGN-FJ200 Series model users

Please see the following for setting up Wireless LAN functionality.

61

nN

Using Your VAIO Computer

✍

WLAN uses the IEEE802.11b/g standard, which specifies the used technology. The standard includes the encryption method: Wired Equivalent Privacy

(WEP), which is a security protocol and WiFi Protected Access (WPA - Proposed jointly by the IEEE and Wi-Fi Alliance, WiFi Protected Access is a

specification of standards based, interoperable security enhancements that increase the level of data protection and access control for existing WiFi

networks. WPA has been designed to be forward compatible with the IEEE802.11i specification. It utilizes the enhanced data encryption TKIP (Temporal

Key Integrity Protocol) in addition to user authentication using 802.1X and EAP (Extensible Authentication Protocol)). Data encryption protects the

vulnerable wireless link between clients and Access Points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as:

password protection, end-to-end encryption, virtual private networks, and authentication.

Wireless LAN devices using the IEEE802.11a standard and the ones using the IEEE802.11b or g standard cannot communicate because the frequencies

are different.

IEEE802.11b: The standard speed is 11 Mbps, or about 30 to 100 times faster than a standard dial up.

IEEE802.11a/g: The standard speed is 54 Mbps, or about 5 times faster than a Wireless LAN device using the IEEE802.11b standard.

62

nN

Using Your VAIO Computer

Communicating without an Access Point (Ad-hoc)

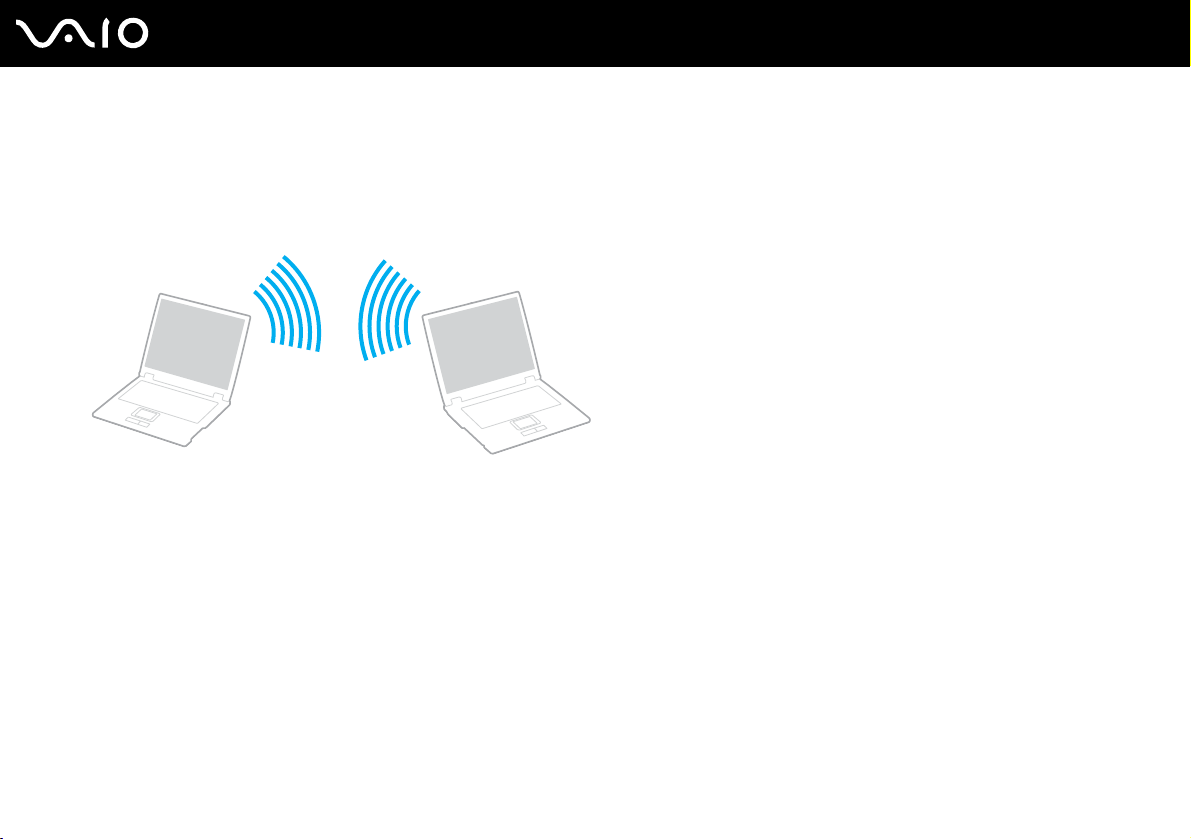

An ad-hoc network is a network in which a local network is created only by the wireless devices themselves, with no other
central controller or Access Point. Each device communicates directly with other devices in the network. You can set up an
ad-hoc network easily at home.

To communicate without an Access Point (ad-hoc)

1 Turn on the WIRELESS or WIRELESS LAN switch.

The WIRELESS LAN indicator lights up.

On models with the Bluetooth functionality

Switch window. Select the Enable 2.4 GHz Wireless LAN check box and click OK.
2 Click Start and then Control Panel.
3 Click Network and Internet Connections.
4 Click Network Connections.

The Network Connections window appears.
5 Right-click Wireless Network Connection, then click Properties.

The Wireless Network Connection Properties window appears.
6 Select the Wireless Networks tab.
7 Click the Add… button.

The Wireless network properties window appears.
8 Enter a Network name (SSID)

*2

.

You can choose a 32-digit alphanumeric name.

9 Select Open from the Network Authentication drop-down box.
10 Select WEP from the Data Encryption drop-down box.
11 Deselect the The key is provided for me automatically option button.

Some information becomes visible.

*1

, double-click ( / ) on the taskbar to display the Wireless Device

63

nN

Using Your VAIO Computer

64

nN

Using Your VAIO Computer

12 Enter the Network key*2.

The network key should be 5 or 13 alphanumeric characters or 10 or 26 hexadecimal

*3

characters long. You can choose

whatever you want.

13 Enter exactly the same Network key again, for confirmation.
14 Select the check box This is a computer-to-computer (ad hoc) network; wireless access points are not used at the

bottom of the screen.
15 Click OK.

Your Network name appears in the Preferred networks.
16 Click Advanced.

The Advanced window appears.

17 Select the Computer-to-computer (ad hoc) networks only option button.
18 Click Close.
19 Click OK.

The computer is ready to communicate with another computer.

*1

See the online Specifications to see whether your model supports the Bluetooth functionality.

*2

If you want to communicate between two or more computers, you need to configure all these computers the exact same way. This means that you need to enter the same
Network name and the same Network key on all computers as on the first computer you configure.

*3

Hexadecimal: A number representation using the digits 0-9, with their usual meaning, plus the letters A-F (or a-f) to represent hexadecimal digits with values of (decimal)
10 to 15.

✍

An ad-hoc network does not support WPA.

To disconnect from a computer-to-computer (ad-hoc) network

1 Click Start and then Control Panel.
2 Click Network and Internet Connections.
3 Click Network Connections.

The Network Connections window appears.
4 In the right panel under LAN or High-Speed Internet, right-click Wireless Network Connection.
5 Click Properties.

The Wireless Network Connection Properties window appears.
6 On the Wireless Networks tab, click Advanced.

The Advanced window appears.
7 Click to select Any available network (access point preferred), and click Close.
8 Click OK.
9 Close the Network Connections window.
10 Turn off the WIRELESS or WIRELESS LAN switch.

65

nN

Using Your VAIO Computer

66

nN

Using Your VAIO Computer

Communicating with an Access Point (Infrastructure)

An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an Access
Point, for example the Sony Access Point. The Access Point bridges the wireless and wired LAN and acts as a central
controller for the Wireless LAN. The Access Point coordinates transmission and reception from multiple wireless devices
within a specific range.

Using Your VAIO Computer

To connect to a wireless network

1 Make sure an access point is set up.

See the instructions that accompanied the access point for more information.
2 Turn on the WIRELESS or WIRELESS LAN switch.

The WIRELESS LAN indicator lights up.

*

On models with the Bluetooth functionality

Switch window. Select the Enable 2.4 GHz Wireless LAN check box and click OK.
3 Click Start and then Control Panel.
4 Click Network and Internet Connections.
5 Click Network Connections.
6 In the right panel under LAN or High-Speed Internet, double-click Wireless Network Connection.

The Wireless Network Connection window appears.
7 Follow the on-screen instructions.

* See the online Specifications to see whether your model supports the Bluetooth functionality.

, double-click ( / ) on the taskbar to display the Wireless Device

67

nN

Using Your VAIO Computer

To connect to a wireless network (Models with the VAIO Wireless Utility software only)

Use the VAIO Wireless Utility software to guide you through the set up process and provide you with more detailed
information about wireless connections.

1 Make sure an access point is set up.

See the instructions that accompanied the access point for more information.
2 Turn on the WIRELESS or WIRELESS LAN switch.

The WIRELESS LAN indicator lights up.

On models with the Bluetooth functionality

*

, double-click ( / ) on the taskbar to display the Wireless Device

Switch window. Select the Enable 2.4 GHz Wireless LAN check box and click OK.
3 Click Start, point to All Programs, and click VAIO Wireless Utility.

The VAIO Wireless Utility appears.
4 Follow the on-screen instructions.

* See the online Specifications to see whether your model supports the Bluetooth functionality.

To disconnect from a wireless network

Turn off the WIRELESS or WIRELESS LAN switch.

!

Turning off the wireless LAN functionality while accessing remote documents, files, or resources may result in data loss.

68

nN

✍

The WPA key needs to contain at least 8 characters.

69

nN

Using Your VAIO Computer

Wireless LAN Channel Selection

In an 802.11b/g configuration, channel 1 to 11 can be used.

(a) With an Access Point ("Infrastructure")

❑ The channel used will be the channel selected by the Access Point.

!

For details on how to select the channel that will be used by the Access Point, see the access point manual.

(b) Without an Access Point ("ad-hoc")

❑ If the Wireless connection is initiated by the VAIO computer, channel 11 will be selected.
❑ If the Wireless connection is initiated by a peer Wireless LAN equipment, the Wireless LAN communication will make use

of the channel selected by the peer Wireless LAN equipment.

✍

The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference

from other devices that uses the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower

communication speed, narrower communication range, or broken wireless connections.

The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device

configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.

The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the

radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.

Deploying IEEE802.11b and IEEE802.11g products on the same wireless network may reduce the communication speed due to radio interference.

Taking this into consideration, the IEEE802.11g products are designed to reduce the communication speed to ensure communications with

IEEE802.11b products.

When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase the communication speed.

70

nN

Using Your VAIO Computer

Using the Bluetooth Functionality

The Bluetooth functionality is available on VGN-TX700 Series models only.
You can establish wireless communication between your computer and other Bluetooth devices such as another computer

or a mobile phone. You can transfer data between these devices without cables and up to 33 feet (10 meters) range in open
space.

❑ Users in USA

Please see the VAIO SmartWi Connection Utility Guide for setting up Bluetooth functionality.
❑ Users in Canada and Latin American countries or areas

Please see the following for setting up Bluetooth functionality.

To connect to a Bluetooth device

1 Turn on the WIRELESS switch.

2 Double-click ( / ) on the taskbar to display the Wireless Device Switch window.
3 Select the Enable Bluetooth Device option.
4 Click OK.

71

nN

Using Your VAIO Computer

Notes on using the Bluetooth functionality

❑ The data transfer rate varies, depending on the following conditions:

❑ Obstacles, such as walls, located between devices

❑ Distance between devices

❑ Material used in walls

❑ Proximity to microwaves and cordless telephones

❑ Radio frequency interference and other environmental conditions

❑ Device configuration

❑ Type of software application

❑ Type of operating system

❑ Use of both Wireless LAN and Bluetooth functionalities at the same time on the computer

❑ Size of file being exchanged
❑ Note that due to limitations of the Bluetooth standard, large files may occasionally be corrupted during continuous transfer

due to electromagnetic interference from the environment.
❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if

standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may

not be possible in all situations.

72

nN

Using Your VAIO Computer

❑ The 2.4 GHz band with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth

devices use the technology to minimize the interference from other devices that use the same wave length.

Communication speed and distances can be inferior to the standard values. Interference from other devices may also stop

communications. Do not simultaneously use the Bluetooth functionality and wireless communication devices which use

the 2.4 GHz band, such as a wireless LAN PC Card.
❑ The Bluetooth functionality may not work depending on the third party devices or the software version used by third party

companies.

Bluetooth Security

The Bluetooth wireless technology has an authentication function, which allows you to determine whom you choose to
communicate. With the authentication function, you can avoid any anonymous Bluetooth device to access your computer.

The first time two Bluetooth devices communicate, a common Passkey (a password required for authentication) should be
determined for both devices to be registered. Once a device is registered, there is no need to re-enter the Passkey.

✍

The passkey can be different each time, but must be the same at both ends.

For certain devices, such as a mouse, no passkey can be entered.

nN

Using Your VAIO Computer

Communicating with Another Bluetooth Device

You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a
mouse, or a digital camera without the use of any cables.

73

74

nN

Using Your VAIO Computer

To communicate with another Bluetooth device

To communicate with another Bluetooth device, you need first to set up the Bluetooth functionality. For setting up and using
the Bluetooth functionality, see the help file on the Bluetooth utility software.

To see the help file

1 Right-click the Bluetooth icon on the taskbar, and select Help from the menu.

Stopping the Bluetooth Connection

To stop the Bluetooth connection, turn off the WIRELESS switch. The Bluetooth indicator turns off.

Using Peripheral Devices

You can add functionality to your computer by using the various ports on the computer.

❑ Connecting a Port Replicator (page 76)
❑ Connecting External Speakers (page 84)
❑ Connecting an External Display (page 85)
❑ Selecting Display Modes (page 91)
❑ Using the Multiple Monitors Function (page 92)
❑ Connecting an External Microphone (page 94)
❑ Connecting a Universal Serial Bus (USB) Device (page 95)
❑ Connecting a Printer (page 98)
❑ Connecting an i.LINK Device (page 100)
❑ Connecting to a Network (LAN) (page 102)

75

nN

Using Peripheral Devices

76

nN

Using Peripheral Devices

Connecting a Port Replicator

Attaching a port replicator enables you to connect additional peripherals to your computer, such as a printer and an external
display.

A port replicator may be supplied with your computer, depending on the model you purchased. If not, you can additionally
purchase an optional port replicator.

See the online Specifications to see whether your model is supplied with a port replicator.

Locating Ports on the Port Replicator

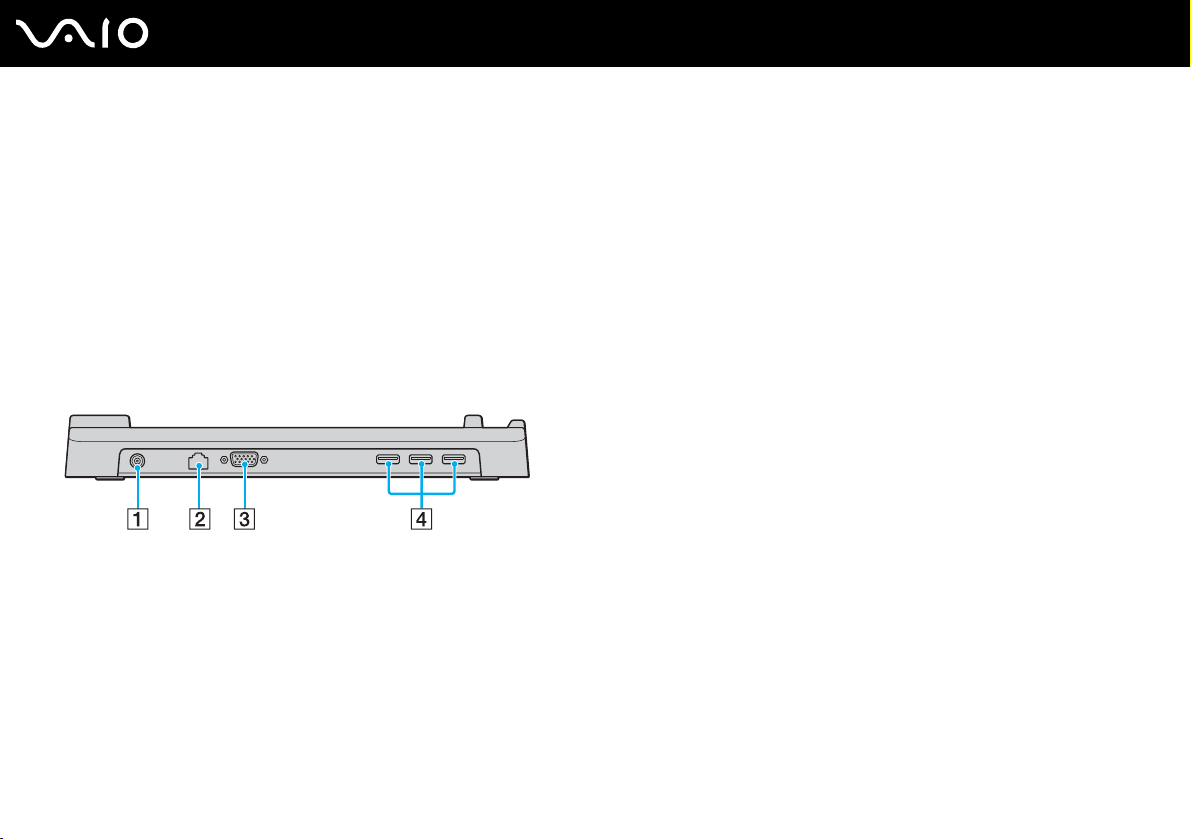

Port replicator for VGN-TX700 Series models

A DC In port (page 26)
B Network (Ethernet) port (100BASE-TX / 10BASE-T) (page 102)
C Monitor (VGA) port (page 86)

D Hi-Speed USB (USB 2.0) ports

* Supports high-/full-/low- speeds.

*

(page 95)

Using Peripheral Devices

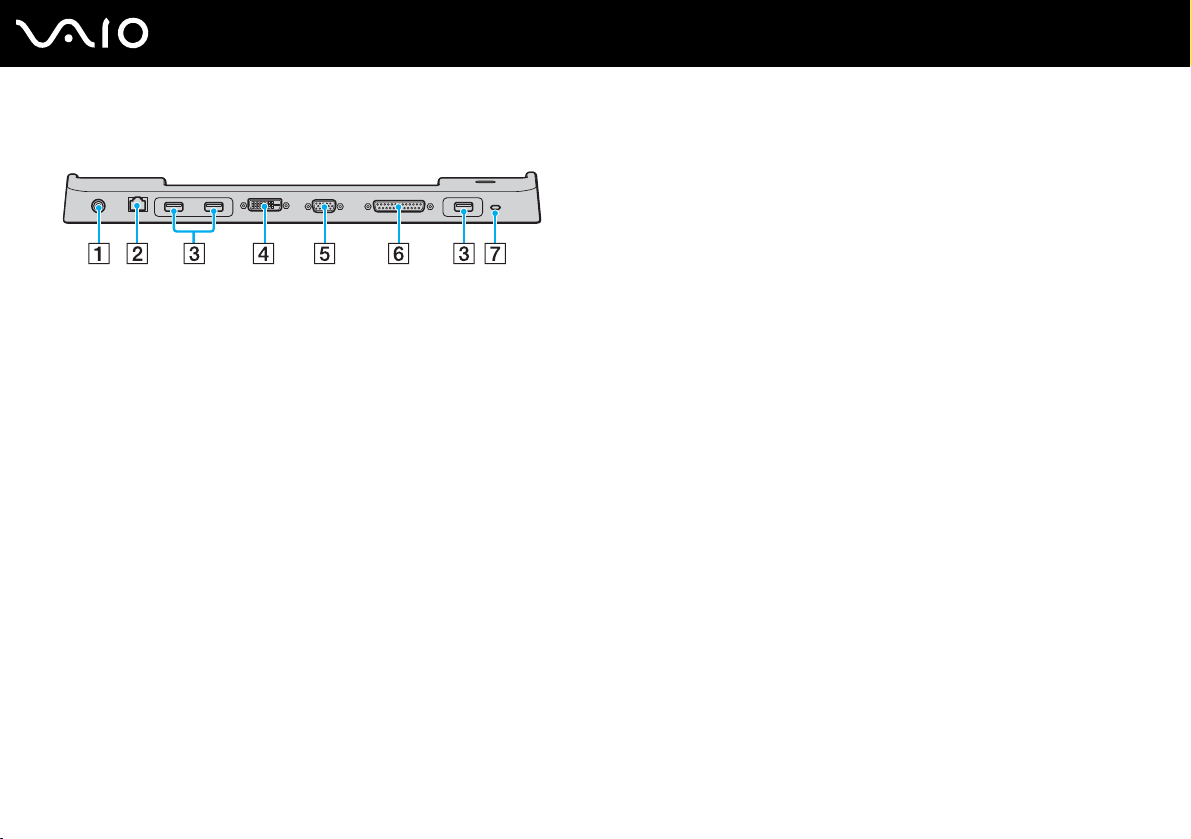

Port replicator for VGN-FJ200 Series models

A DC In port (page 26)
B Network (Ethernet) port (100BASE-TX / 10BASE-T) (page 102)

C Hi-Speed USB (USB 2.0) ports
D DVI-D port (page 86)
E Monitor (VGA) port (page 86)
F Printer port (page 99)
G Security slot

* Supports high-/full-/low- speeds.

!

The port replicator can be powered only through the AC adapter supplied with the computer. Do not unplug the AC adapter from the port replicator and

the AC outlet while using the port replicator; this may cause data damage or hardware malfunctions.

*

(page 95)

✍

The printer port on the port replicator for VGN-FJ200 Series models is intended for printer connections only.

77

nN

Attaching Your Computer to the Port Replicator

To attach your computer to the port replicator

!

To prevent loss of unsaved data, be sure to turn off the computer before attaching your computer to the port replicator.

VGN-TX700 Series models

1 Disconnect all peripherals from the computer.

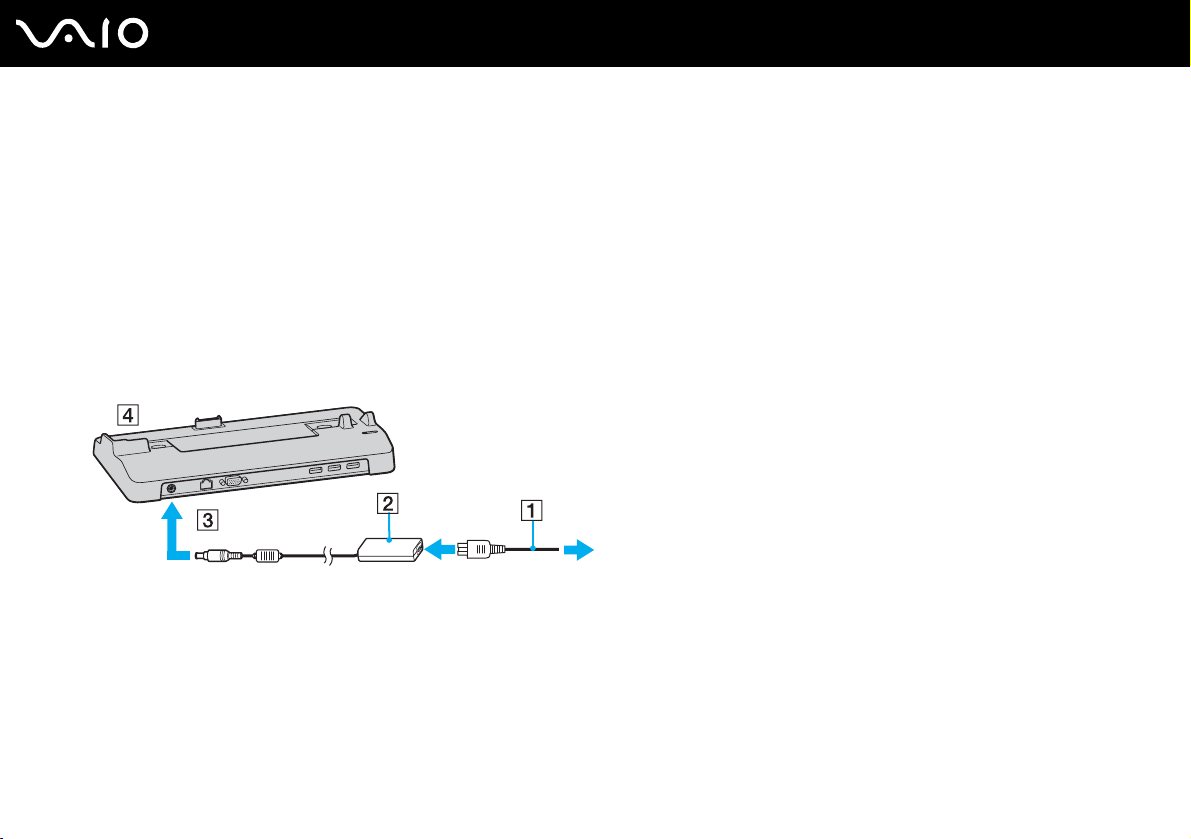

2 Plug the power cord (1) into the AC adapter (2) and an AC outlet.
3 Plug the cable attached to the AC adapter (2) into the DC In port (3) on the port replicator (4).

78

nN

Using Peripheral Devices

nN

Using Peripheral Devices

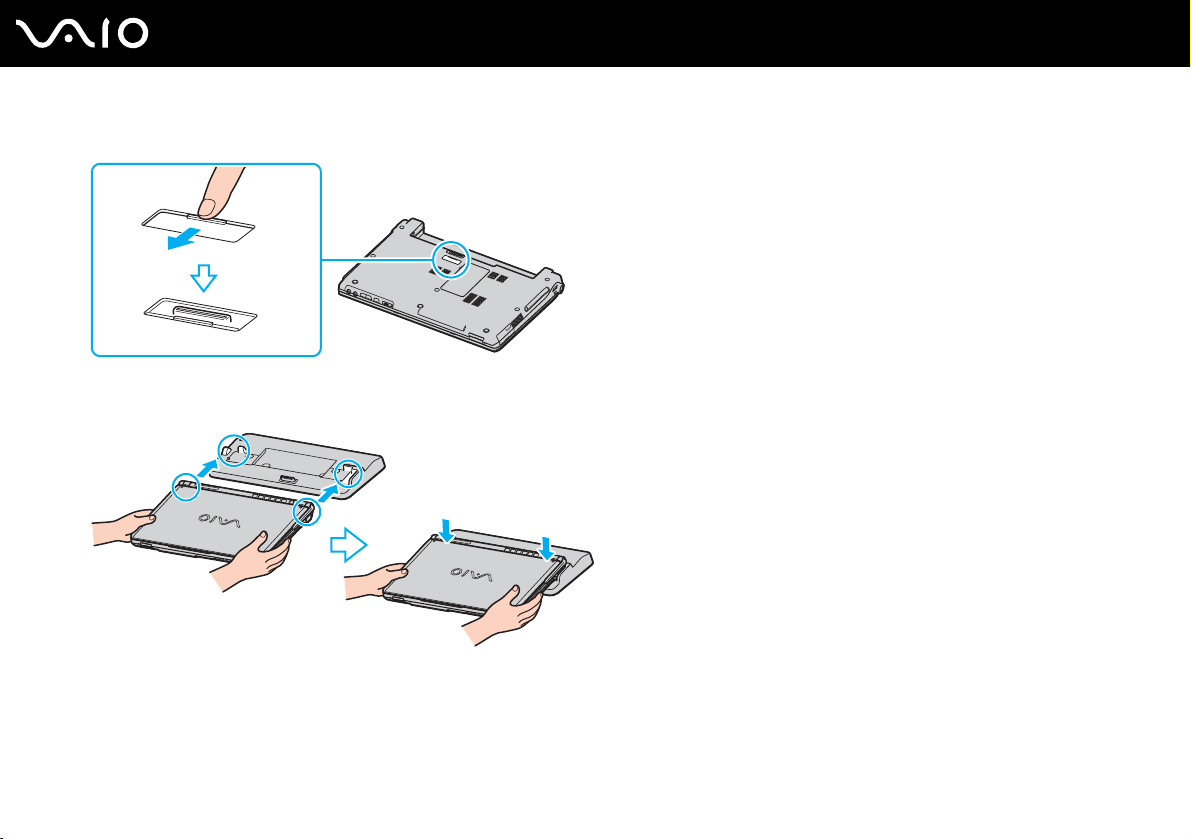

4 Open the port replicator connector cover on the bottom of the computer.

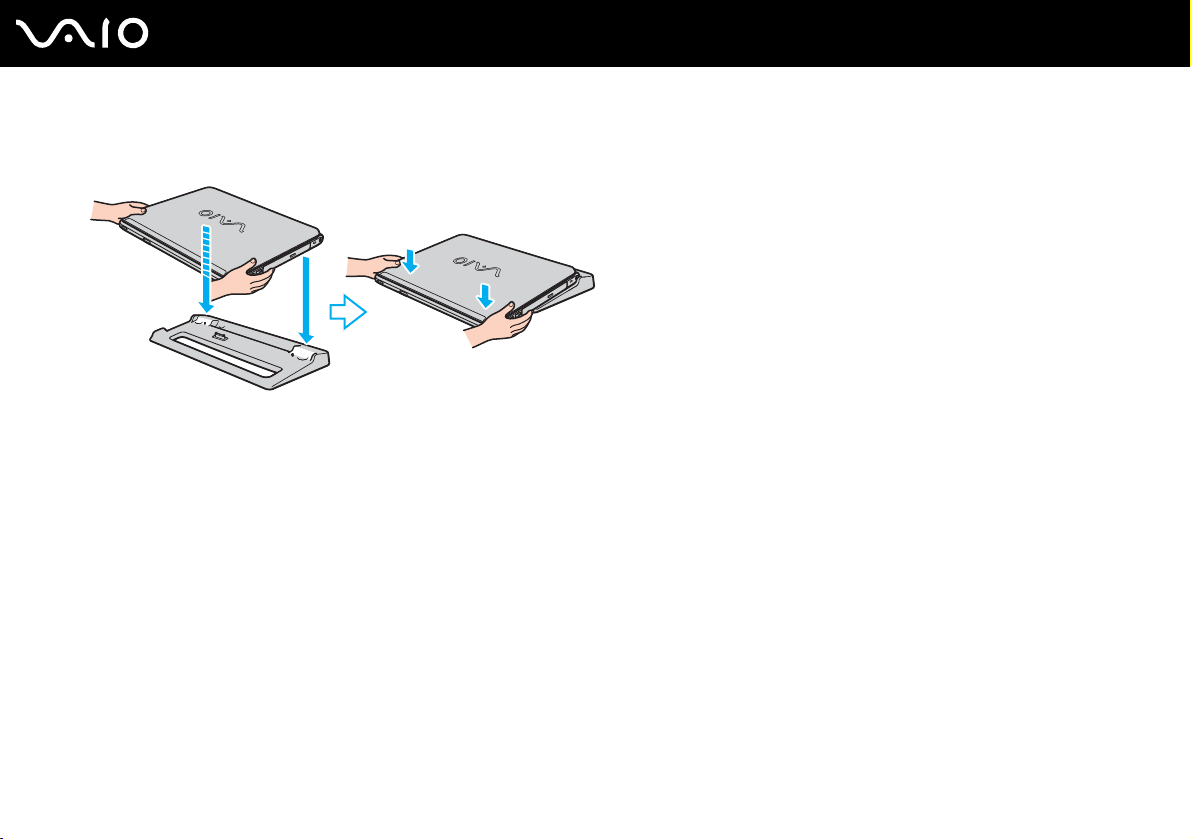

5 Align the bottom connector of the computer with the connector on the port replicator and push down until it clicks into

place.

79

6 Turn on the computer.

VGN-FJ200 Series models

1 Disconnect all peripherals from the computer.

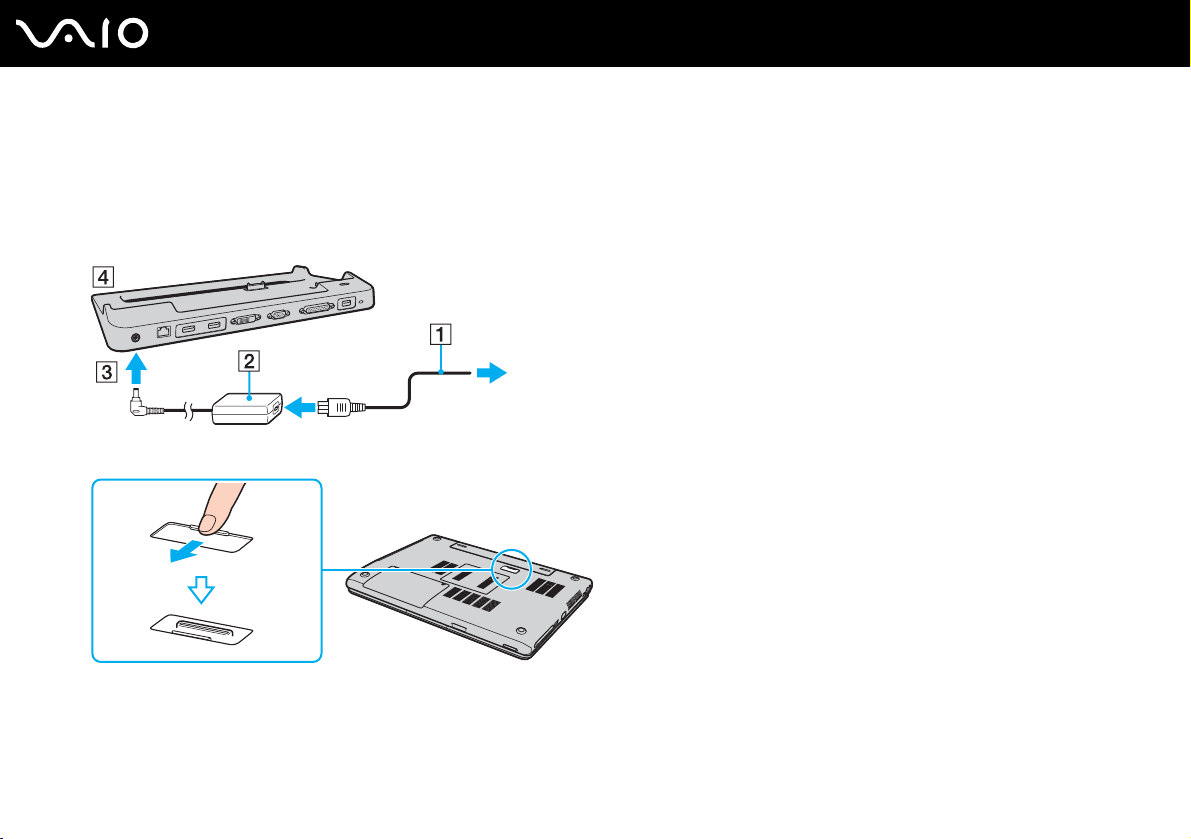

2 Plug the power cord (1) into the AC adapter (2) and an AC outlet.
3 Plug the cable attached to the AC adapter (2) into the DC In port (3) on the port replicator (4).

4 Open the port replicator connector cover on the bottom of the computer.

80

nN

Using Peripheral Devices

nN

Using Peripheral Devices

5 Align the bottom connector of the computer with the connector on the port replicator and push down until it clicks into

place.

6 Turn on the computer.

!

Use the AC adapter supplied with the computer.

Do not move the computer while attached to the port replicator; this may detach the port replicator and cause damage to the port replicator and the

computer.

81

Disconnecting Your Computer from the Port Replicator

!

To prevent loss of unsaved data, be sure to turn off the computer before disconnecting it from the port replicator.

To disconnect your computer from the port replicator

VGN-TX700 Series models

1 Turn off the computer and the connected peripherals.

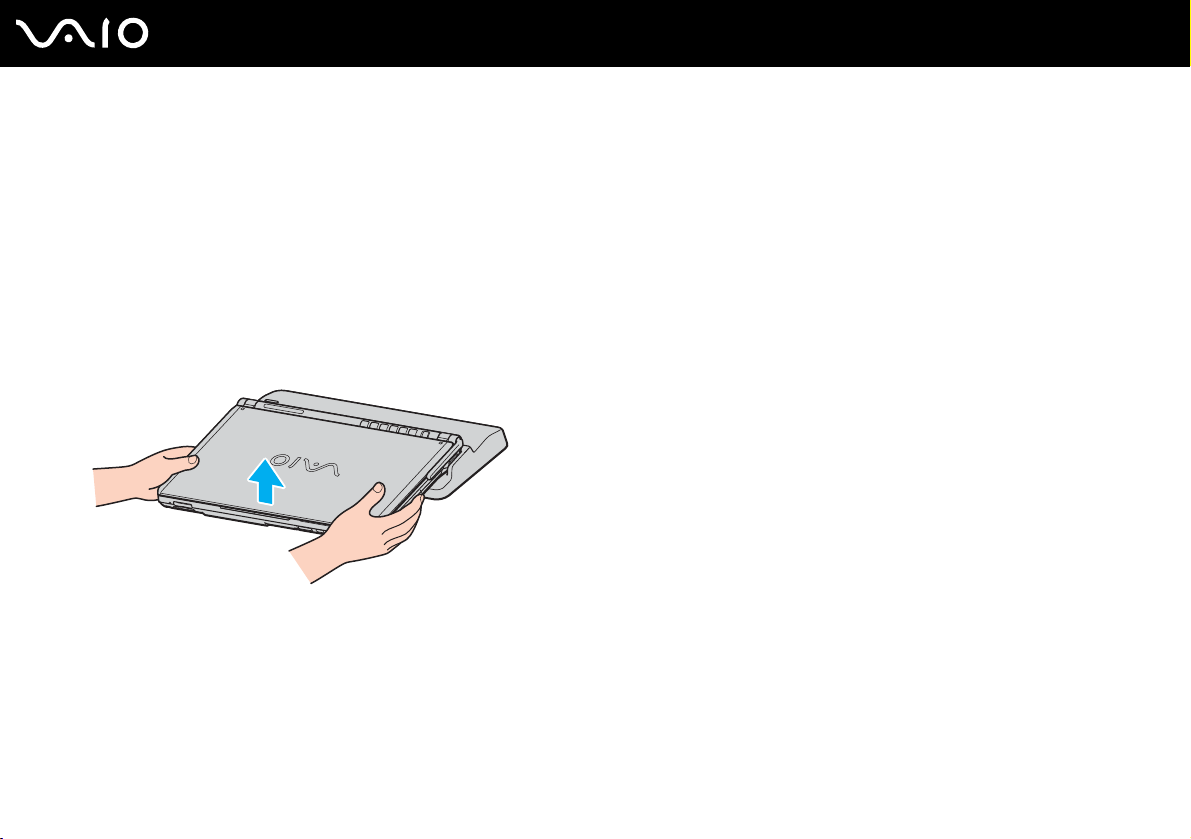

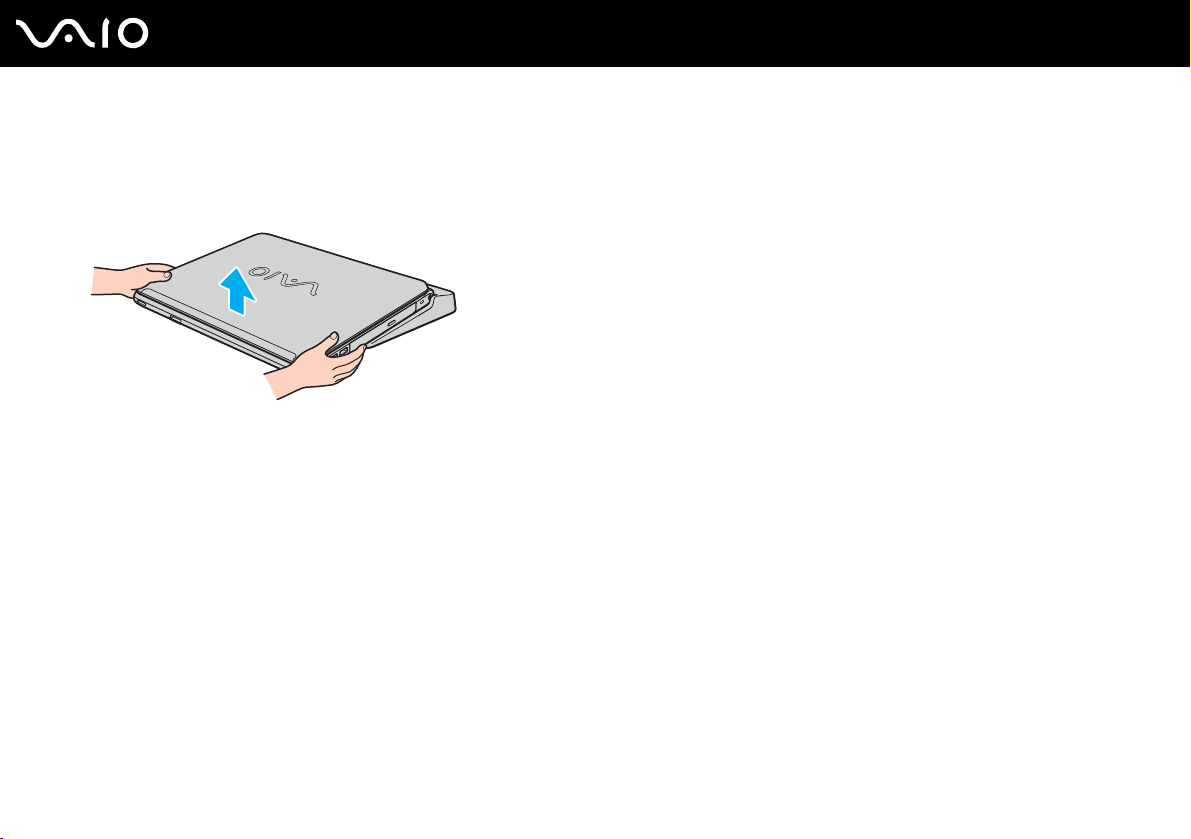

2 Lift the computer away from the port replicator.

82

nN

Using Peripheral Devices

3 Close the port replicator cover on the bottom of the computer.

Using Peripheral Devices

VGN-FJ200 Series models

1 Turn off the computer and the connected peripherals.
2 Lift the computer away from the port replicator.

3 Close the port replicator connector cover on the bottom of the computer.

✍

It is extremely important to close the port replicator connector cover after disconnecting the computer from the port replicator. If the cover is left open,

dust may get inside and damage the computer.

To disconnect the port replicator completely from AC power, unplug the AC adapter.

83

nN

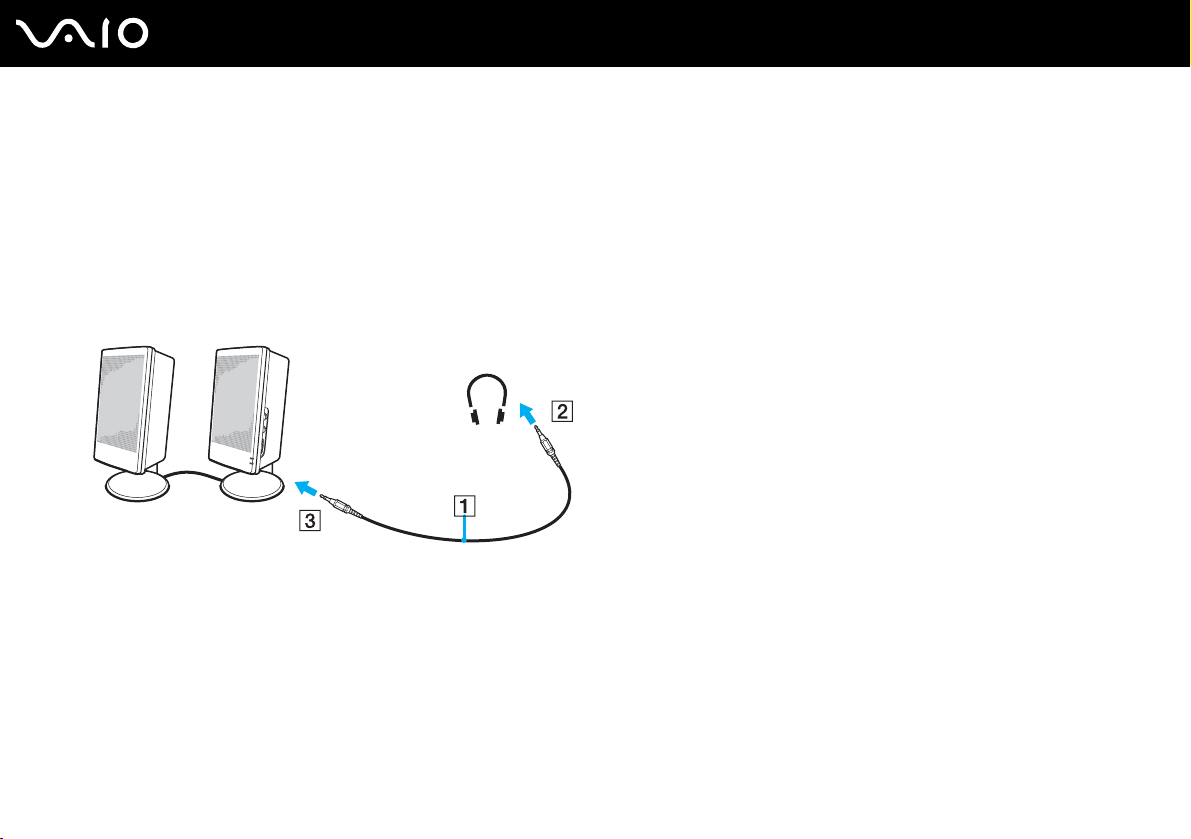

Connecting External Speakers

You can enhance the sound quality of your computer by connecting external speakers.

To connect external speakers

1 Plug the speaker cable (1) into the headphones jack (2) i.
2 Plug the other end of the speaker cable to the external speaker (3).
3 Turn down the volume of the speakers before you turn them on.

✍

Make sure your speakers are designed for computer use.

84

nN

Using Peripheral Devices

!

Do not place floppy disks on the speakers; their magnetic field may damage the data on the disks.

85

nN

Using Peripheral Devices

Connecting an External Display

You can connect an external display to your computer. For example, you can use the computer with a computer display or a
projector.

❑ Connecting a Computer Display (page 86)
❑ Connecting a Multimedia Computer Display (page 87)
❑ Connecting a TV (page 88)
❑ Connecting a Projector (page 90)

✍

Connect the power cord after connecting all other cables.

Connected external displays are used as second screens.

On Windows systems only, you can also use an external display to set up multiple monitors.

!

When the VGN-FJ200 Series model is attached to the optional port replicator, you can only use the VGA port on the port replicator.

86

nN

Using Peripheral Devices

Connecting a Computer Display

You can connect a computer display (monitor) either directly to your computer or via the (optional) port replicator.

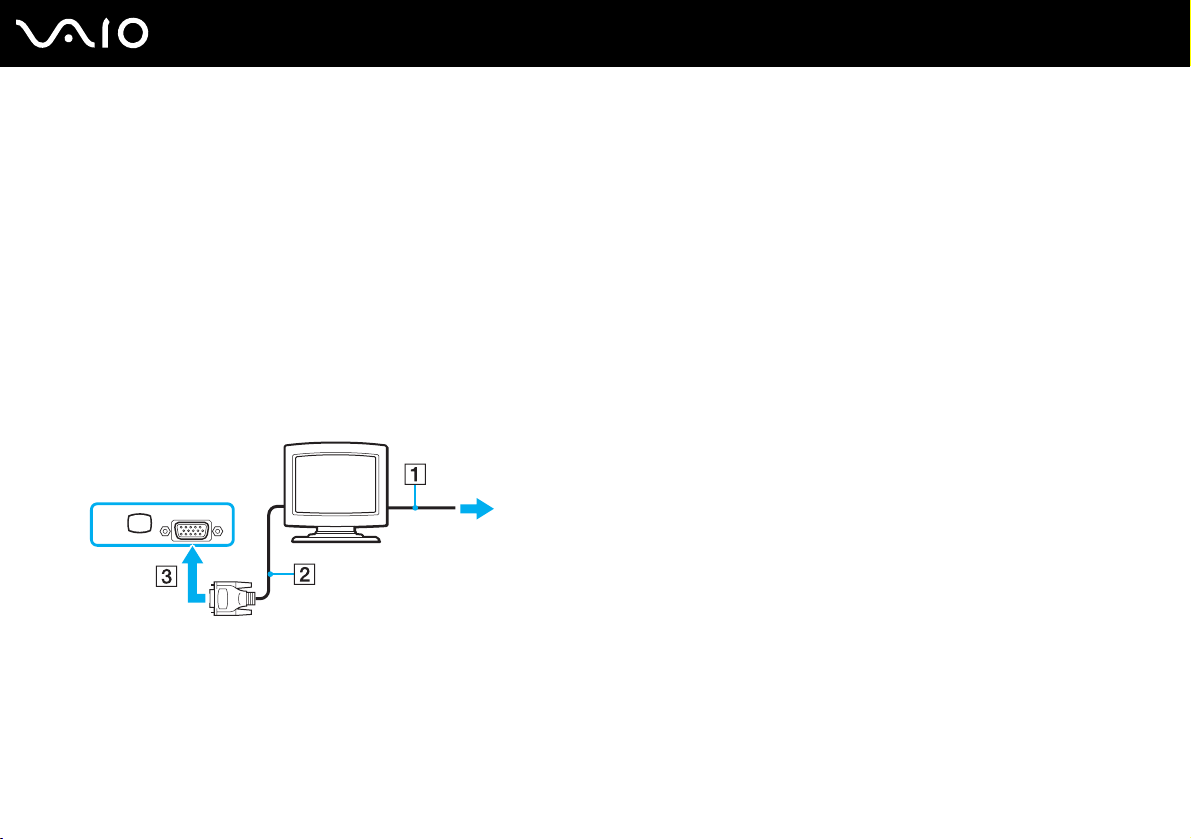

To connect a computer display

!

The DVI-D port is equipped on VGN-FJ200 Series models only.

1 If necessary, plug one end of the display's power cord (1) into the display, and the other end into an AC outlet.
2 If you want to connect a VGA monitor, plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the

computer or on the port replicator.
3 If you want to connect a TFT/DVI monitor on a VGN-FJ200 model, plug the display cable (not supplied) into the DVI-D

port on the port replicator.

✍

DVI-D stands for Digital Visual Interface - Digital. It is a type of DVI connector that supports only digital video signals (no analog video signals). It has

24 pins.

A DVI-I connector (Digital Visual Interface - Integrated) supports digital video and analog video signals. It has 29 pins.

!

A video adapter device is required to connect a VGA monitor using the DVI-D port.

87

nN

Using Peripheral Devices

Connecting a Multimedia Computer Display

You can connect a multimedia computer display that includes built-in speakers and a microphone to your computer or via the
(optional) port replicator.

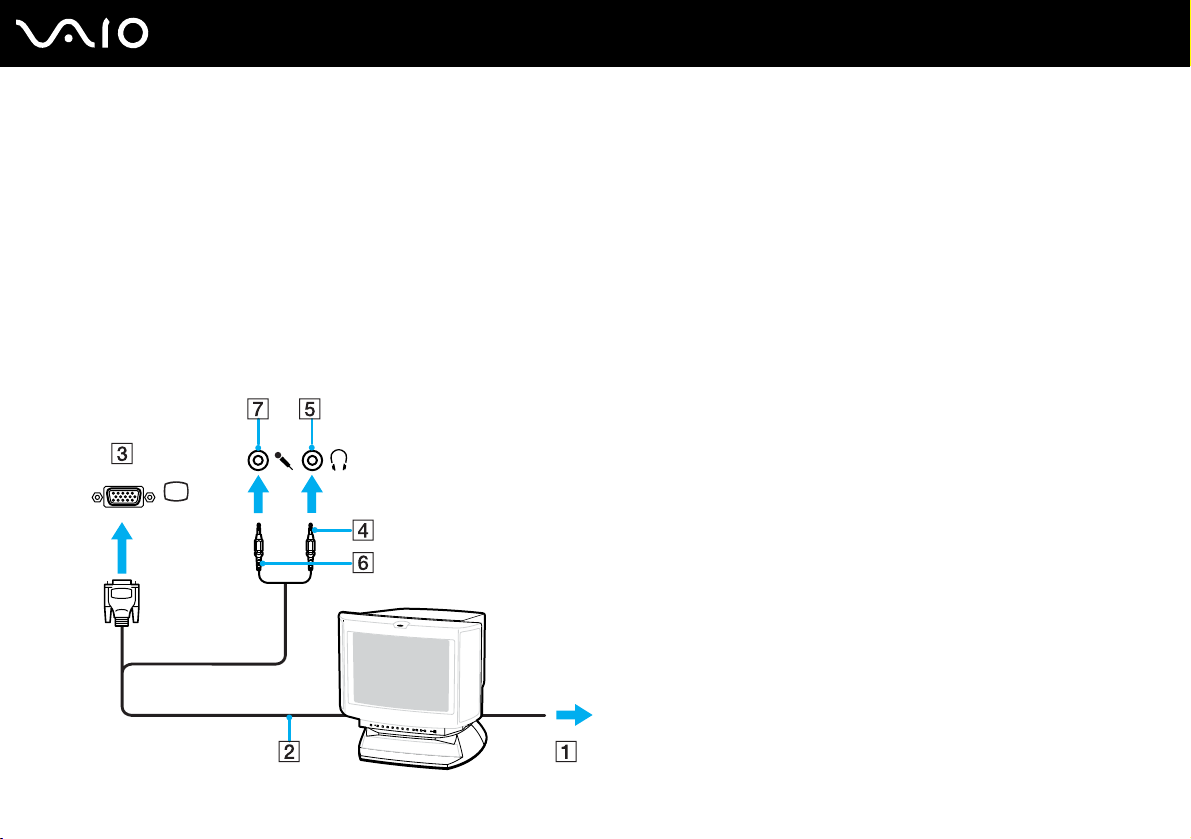

To connect a multimedia computer display

1 Plug the power cord of the multimedia computer display (1) into an AC outlet.
2 Plug the display cable (2) (not supplied) into the monitor (VGA) port (3) a on the computer or on the port replicator.
3 Plug the speaker cable (4) into the headphones jack (5) i on the computer.
4 Plug the microphone cable (6) into the microphone jack (7) m on the computer.

Using Peripheral Devices

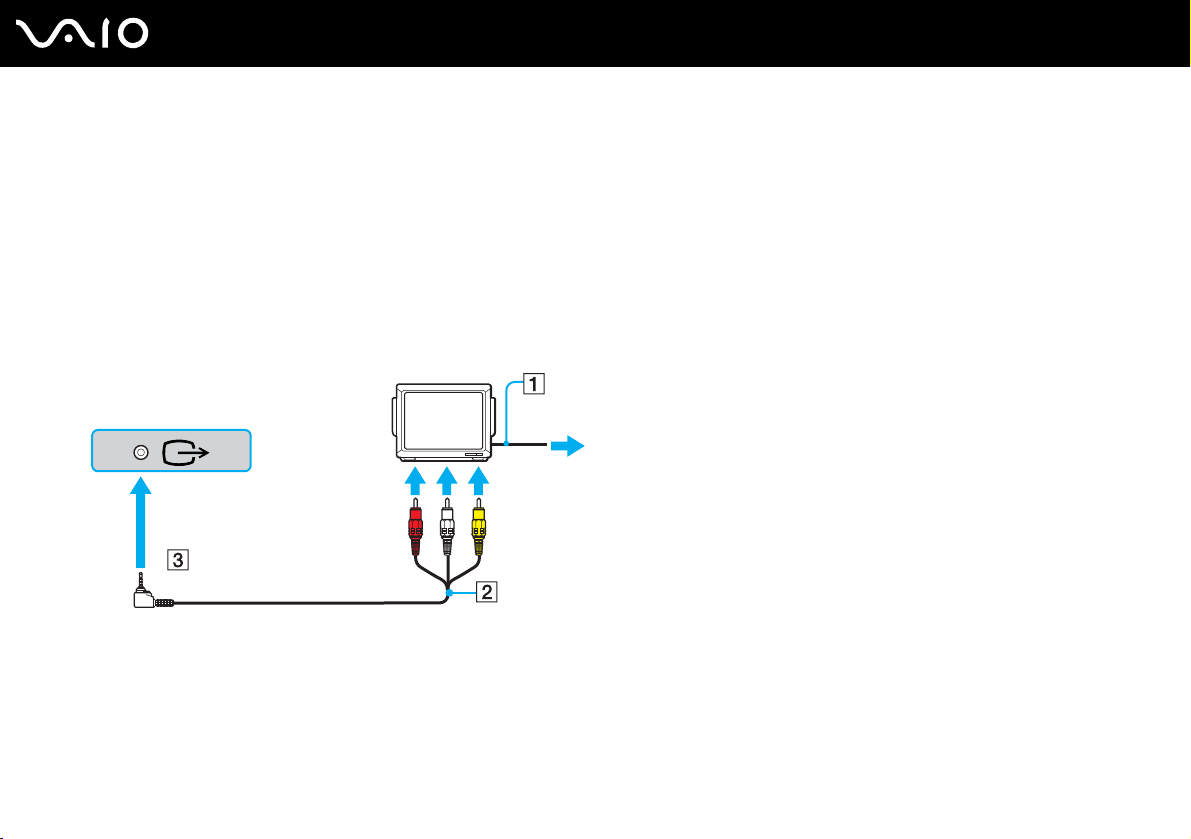

Connecting a TV

You can connect a TV to VGN-FJ200 Series models.

To connect a TV to the computer

1 Plug the power cord of the TV (1) into an AC outlet.
2 Plug one end of an audio/video cable (2) into the AV Out jack (3) T on the computer and the other to the TV.
3 Switch the input channel of the TV to external input.
4 Set up the TV configuration system.

88

nN

✍

You need to use an AV cable that has a minijack connector on one end and 3 RCA (also called cinch) connectors on the other end. If your TV does not

have RCA connectors, but it has a Scart connector, you need an RCA to Scart converter. If your computer has an S VIDEO port, you can use this port

as an alternative means of connection.

Using Peripheral Devices

✍

See the manual supplied with your peripheral for more information on installation and use.

If the display resolution of the computer is more than 1024 x 768 pixels, a part of the image cannot be displayed on your TV. The hidden area on your

TV can be seen by moving the cursor on the computer. If you want to display the full image, change the display resolution of the computer to 1024 x

768 pixels or lower.

89

nN

Using Peripheral Devices

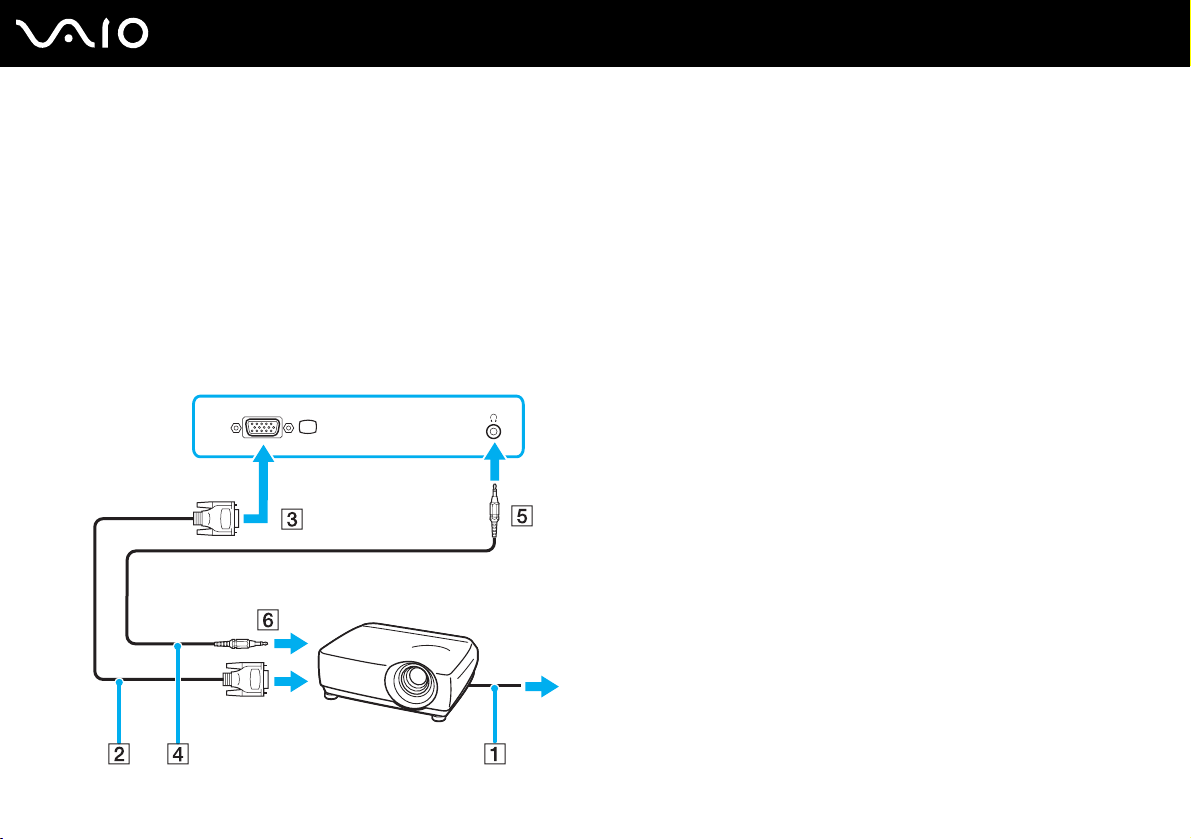

Connecting a Projector

You can connect a projector (for example, the Sony LCD projector) directly to your computer or via the (optional) port
replicator.

To connect a projector

1 Connect the power cord (1) of the projector into an AC outlet.
2 Plug the RGB signal cable (2) into the monitor (VGA) port (3) a on the computer or on the port replicator.
3 Plug the audio cable (4) (not supplied) into the headphones jack (5) i.
4 Plug the RGB signal cable and the audio cable into the jack and port on the projector (6).

90

nN

91

nN

Using Peripheral Devices

Selecting Display Modes

You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected
to your computer.

If you want to work on the computer's LCD and the external display at the same time, see Using the Multiple Monitors
Function (page 92) for more information.

To select a display

1 Right-click on the desktop to display the context menu.
2 Click the menu item for graphic properties.
3 Follow the on-screen instructions to change the settings.

✍

You may not be able to display on the computer's LCD and the external display or projector at the same time, depending on the type of your external

display or projector.

Before turning on the computer, turn on the peripheral devices.

92

nN

Using Peripheral Devices

Using the Multiple Monitors Function

The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you
have an external display attached to the monitor (VGA) port, your computer's LCD and the external display can function as
a single desktop.

You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window
or a toolbar, from one display to the other.

✍

Your external display may not support the Multiple Monitors function.

Certain software applications may not be compatible with Multiple Monitors settings.

Make sure that the computer does not enter Standby or Hibernate mode while you are using Multiple Monitors mode; otherwise the computer may not

return to Normal mode.

If you set different colors on each display, do not divide one single window on two displays; otherwise your software may not work properly.

Set fewer colors or a lower resolution for each display.

Using Peripheral Devices

To select the Multiple Monitors mode

1 Right-click on the desktop to display the context menu.
2 Click the menu item for graphic properties.
3 Follow the on-screen instructions to change the settings.

✍

On VGN-FJ200 Series models, you can also change one of the S button assignments to activate the Multiple Monitors mode with the respective S

button. To change the S button assignments, press and hold any S button to display the window for changing the assignment. For details on the S

buttons, see Using Special-function Buttons (page 38).

✍

Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors mode.

93

nN

nN

Using Peripheral Devices

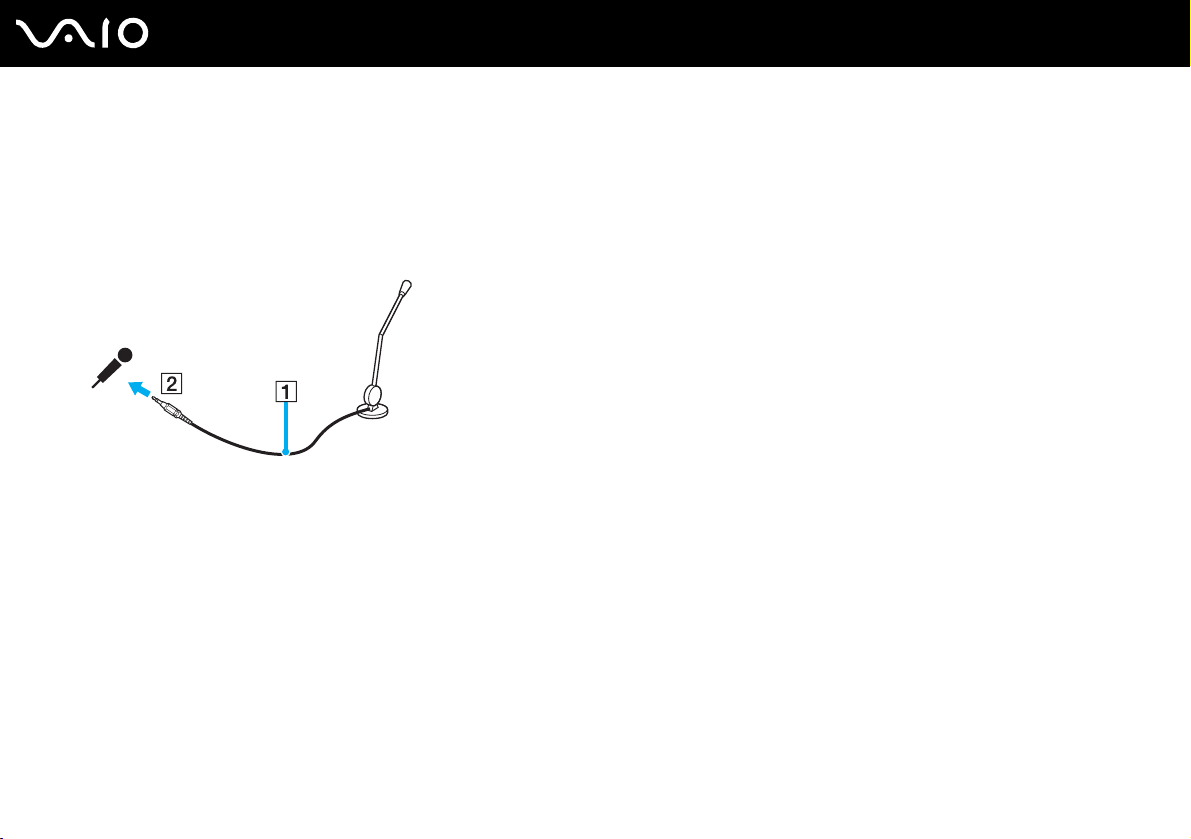

Connecting an External Microphone

If you need to use a sound input device (for example, to chat on the Internet) you need to plug in an external microphone.

To connect an external microphone

Plug the microphone cable (1) into the microphone jack (2) m.

✍

Make sure your microphone is designed for computer use.

94

Using Peripheral Devices

Connecting a Universal Serial Bus (USB) Device

To prevent your computer and/or USB devices from damage, observe the following:

❑ When moving the computer with USB devices connected, avoid any shock or force to the USB ports.
❑ Do not put the computer into a bag or carrying case when it has USB devices connected.

Connecting a USB Mouse

To connect a USB mouse

1 Choose the USB port (1) you prefer to use.
2 Plug the USB mouse cable (2) into the USB port.

You can now use your USB mouse (3).

95

nN

✍

The VAIO USB mouse software driver is preinstalled on the computer. As a result, you only need to plug the USB mouse into the USB port and you can

start working.

Connecting a USB Floppy Disk Drive

You can purchase a USB floppy disk drive and connect it to your computer.

To connect a USB floppy disk drive

1 Choose the USB port you prefer to use.
2 Plug the USB floppy disk drive cable into the USB port.

Your USB floppy disk drive is now ready for use.

!

When using a USB floppy disk drive, do not apply force on the USB port. This may cause a malfunction.

96

nN

Using Peripheral Devices

97

nN

Using Peripheral Devices

Disconnecting a USB floppy disk drive

You can disconnect a USB floppy disk drive when the computer is on or off. Disconnecting the drive when the computer is in
a power saving mode (Standby or Hibernate) may cause the computer to malfunction.

If the computer is off, you can unplug the USB cable directly from the computer.

To disconnect a USB floppy disk drive

1 Close all programs accessing the floppy disk drive.
2 Double-click the Safely Remove Hardware icon on the taskbar.

The Safely Remove Hardware window appears.
3 Select the floppy disk drive you want to unplug.
4 Click Stop.

The Stop a Hardware device window appears.
5 Make sure the floppy disk drive is selected, and click OK.

A message appears stating it is now safe to remove the hardware device.

6 Click Close to close the Safely Remove Hardware window.
7 Remove the floppy disk drive from the computer.

Connecting a Printer

You can connect a Windows-compatible printer to your computer to print documents.

Connecting a Printer Using the USB Port

You can connect a USB printer compatible with your version of Windows to the computer.

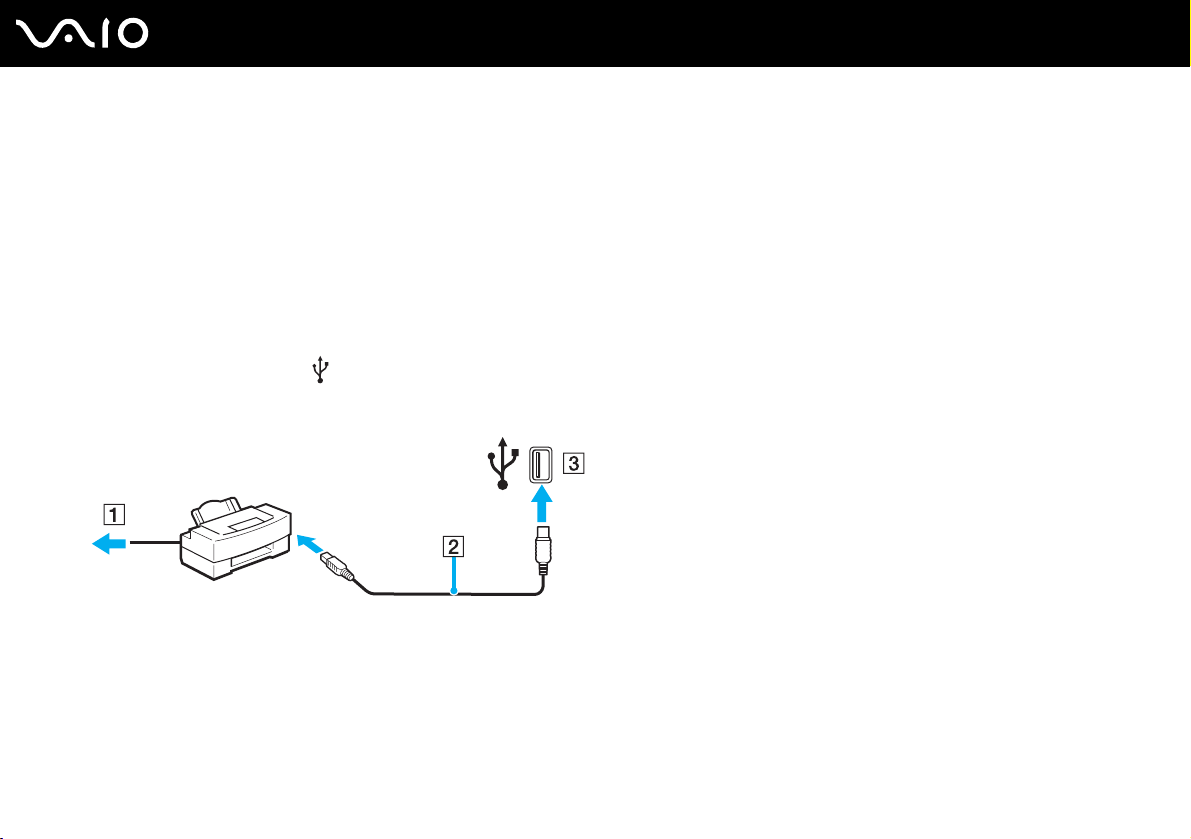

To connect a printer using the USB port

1 Plug the printer power cord into an AC outlet (1).

2 Choose the USB port (3) you prefer to use.
3 Plug one end of a USB printer cable (2) into the USB port and the other end to your printer.

98

nN

Using Peripheral Devices

Using Peripheral Devices

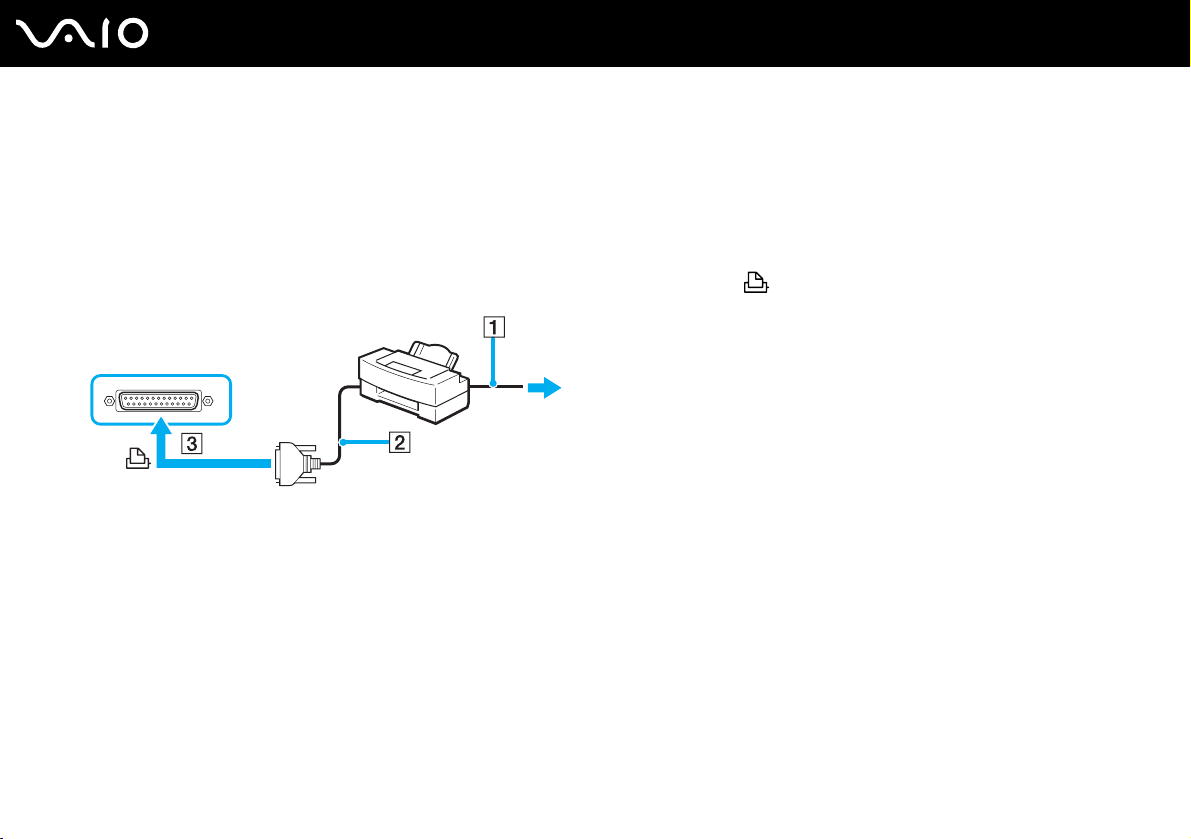

Connecting a Printer Using the Printer Port

The optional port replicator for VGN-FJ200 Series models is equipped with a printer port.

To connect a printer using the printer port

1 Plug the printer power cord (1) into an AC outlet.

2 Plug the printer cable (2) supplied with your printer into the printer port (3) on the (optional) port replicator.

✍

Before connecting the printer, turn off the computer and the printer, and unplug the AC adapter and the power cord.

99

nN

100

nN

Using Peripheral Devices

Connecting an i.LINK Device

Notes on connecting i.LINK devices

❑ The computer includes an i.LINK (IEEE1394) port, which you can use to connect to an i.LINK device such as a digital

video camera recorder or to connect two VAIO computers in order to copy, delete or edit files.

❑ The i.LINK port of the computer does not supply power to external devices generally powered by i.LINK ports.
❑ The i.LINK port supports transfer rates up to 400 Mbps; however, the actual transfer rate depends on the transfer rate of

the external device.
❑ i.LINK cables compatible with the computer include cables with the following part numbers:

VMC-IL4415 (a 1.5 meter cable with a 4-pin connector at each end), VMC-IL4408 Series (a 0.8 meter cable with a 4-pin

connector at each end).

❑ The optional i.LINK cables may not be available, depending on the country or area of your residency.
❑ An i.LINK connection with other compatible devices is not fully guaranteed.
❑ The i.LINK connection varies depending on the software applications, operating system and i.LINK compatible devices

you use. Refer to the manual that came with your software for more information.
❑ Check the working conditions and OS compatibility of i.LINK-compatible PC peripherals (for example, an HDD or CD-RW

drive) before you connect them to the computer.
