Sony VGN-CS32GH Users guide

Operating Instructions - Hardware Guide

Personal Computer

VGN-CS Series

N

Contents

2

nN

Before Use.......................................................................... 4

Finding More about Your VAIO Computer .................... 5

Ergonomic Considerations ............................................ 7

Getting Started.................................................................... 9

Locating Controls and Ports........................................ 10

About the Indicator Lights ........................................... 16

Connecting a Power Source ....................................... 17

Using the Battery Pack................................................ 18

Shutting Down Your Computer Safely ........................ 25

Updating Your Computer ............................................ 26

Using Your VAIO Computer.............................................. 27

Using the Keyboard..................................................... 28

Using the Touch Pad................................................... 30

Using the Special-function Button ............................... 31

Using the Touch Sensor Buttons ................................ 32

Using the Built-in Camera ........................................... 36

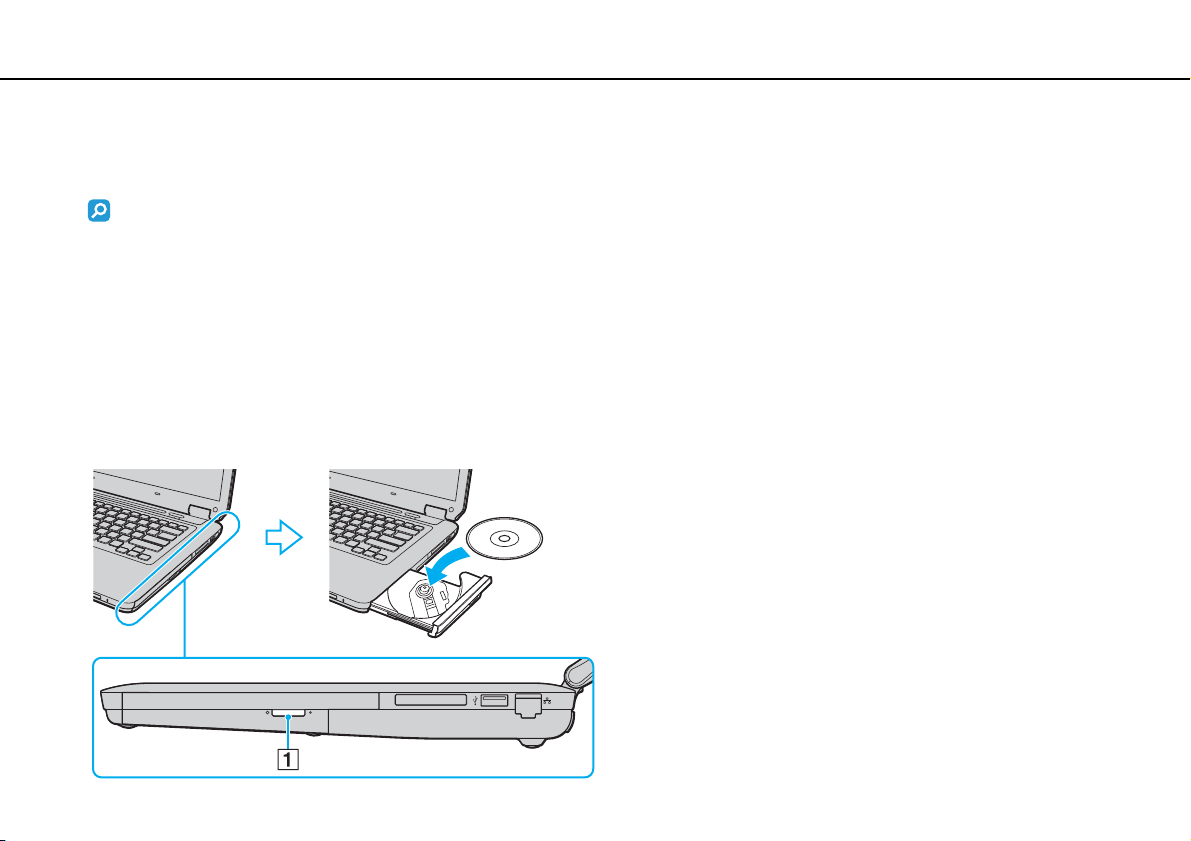

Using the Optical Disc Drive ....................................... 37

Using the Memory Stick .............................................. 45

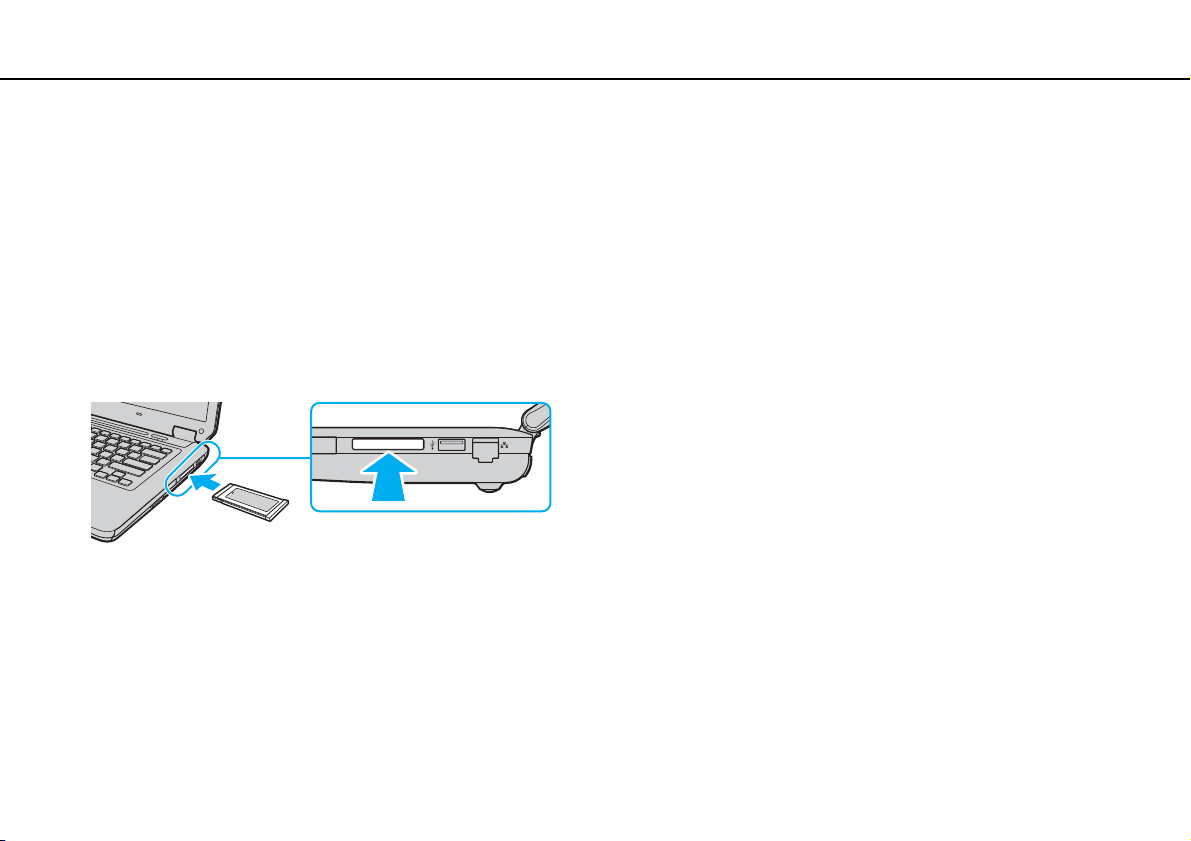

Using Other Modules / Memory Cards ........................ 50

Using the Internet ........................................................ 57

Using the Network (LAN) ............................................ 59

Using the Wireless LAN .............................................. 60

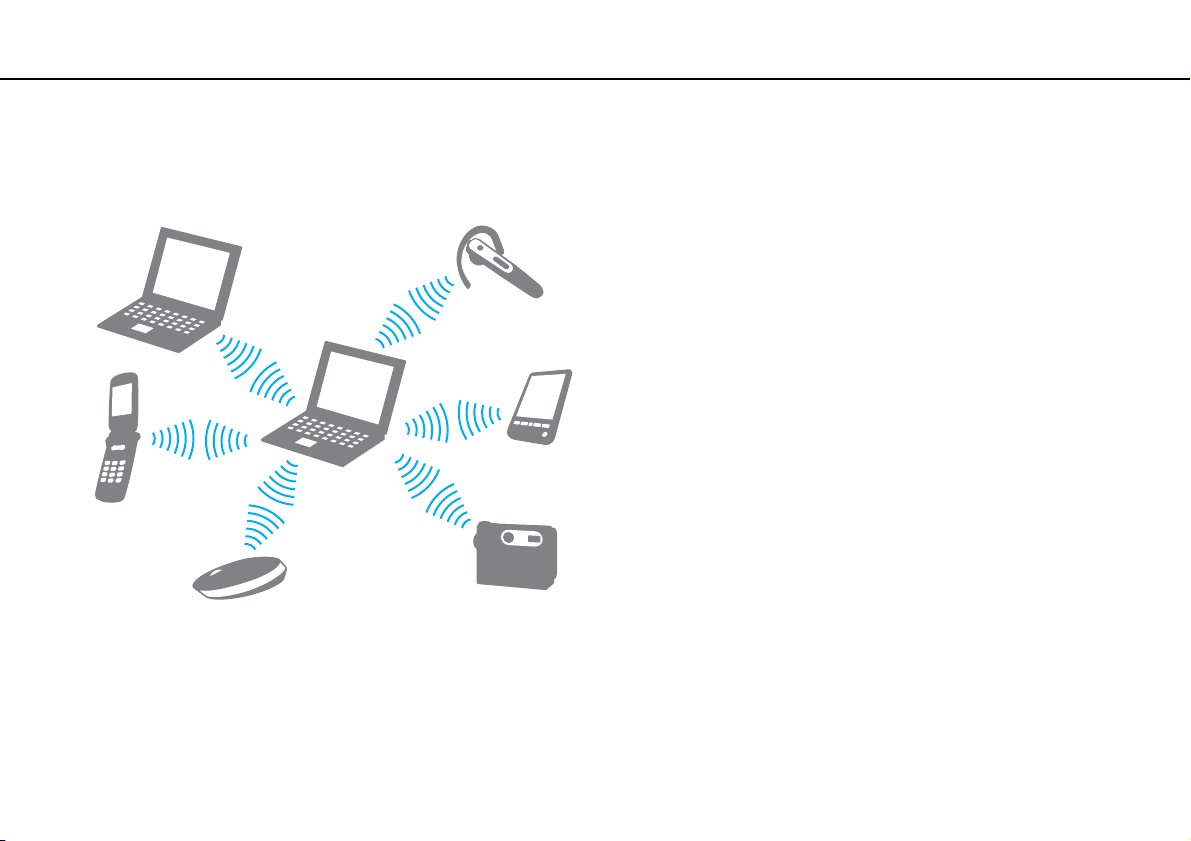

Using the Bluetooth Function ......................................67

Using Fingerprint Authentication .................................72

Using Peripheral Devices..................................................79

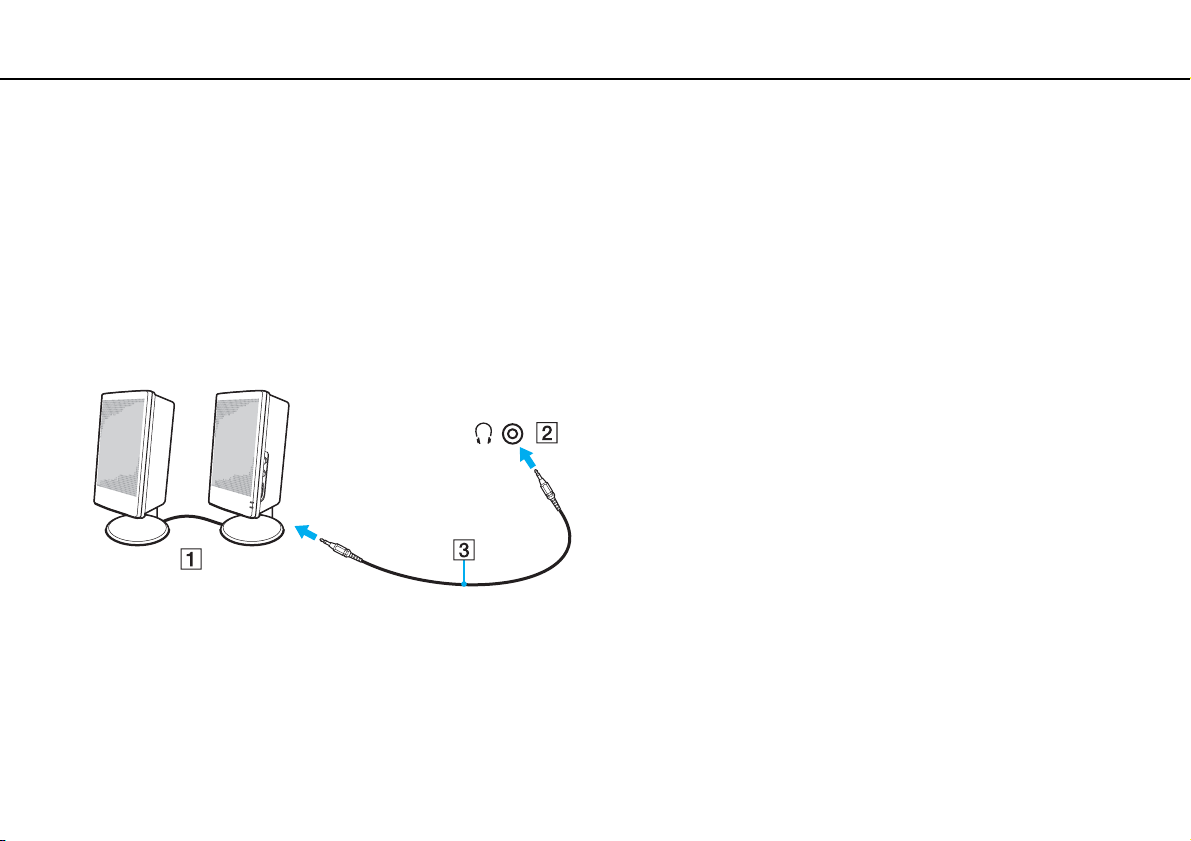

Connecting External Speakers or Headphones ..........80

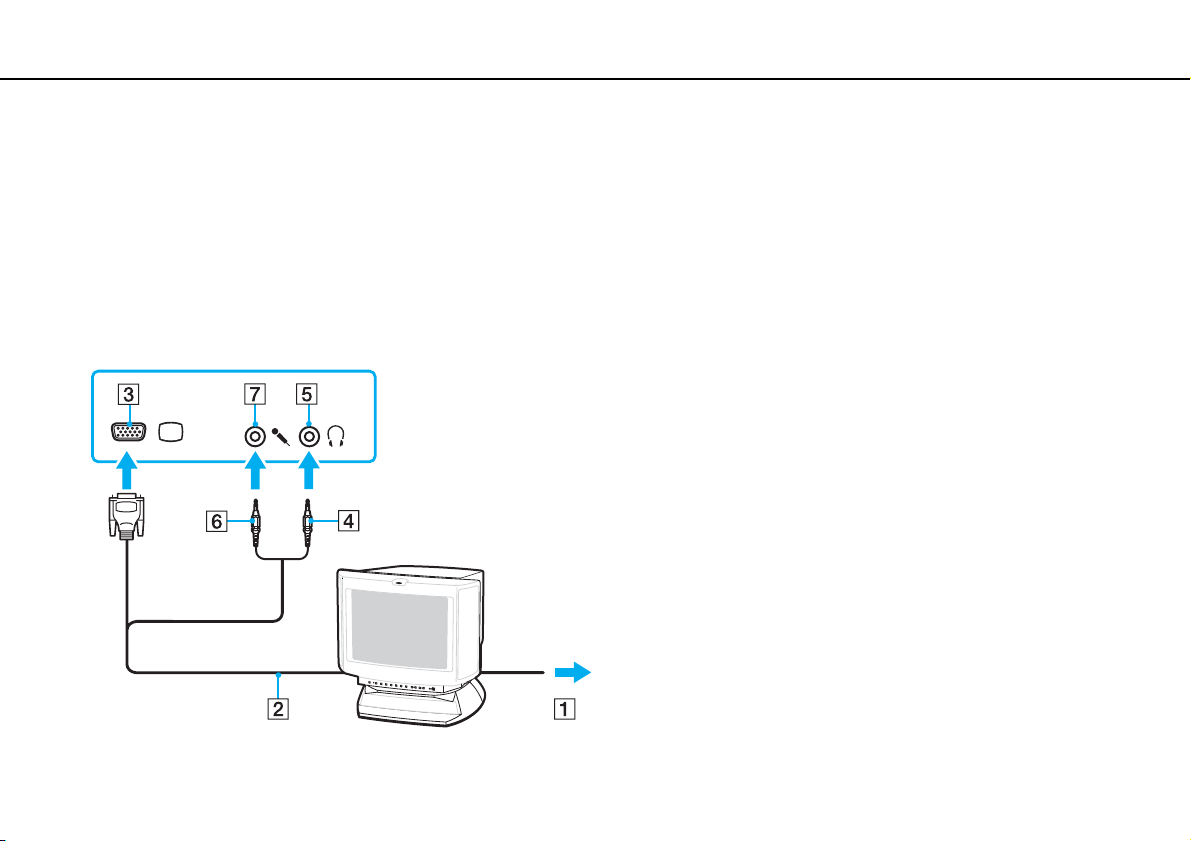

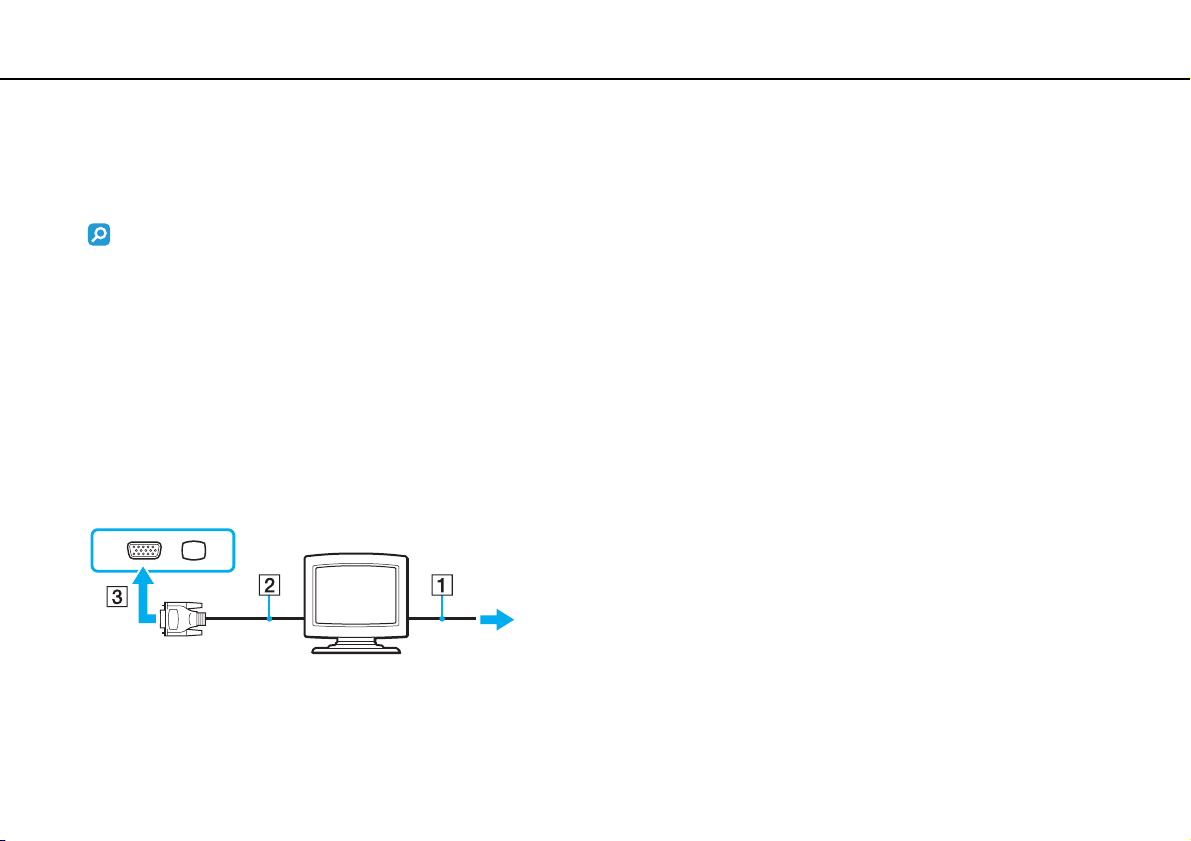

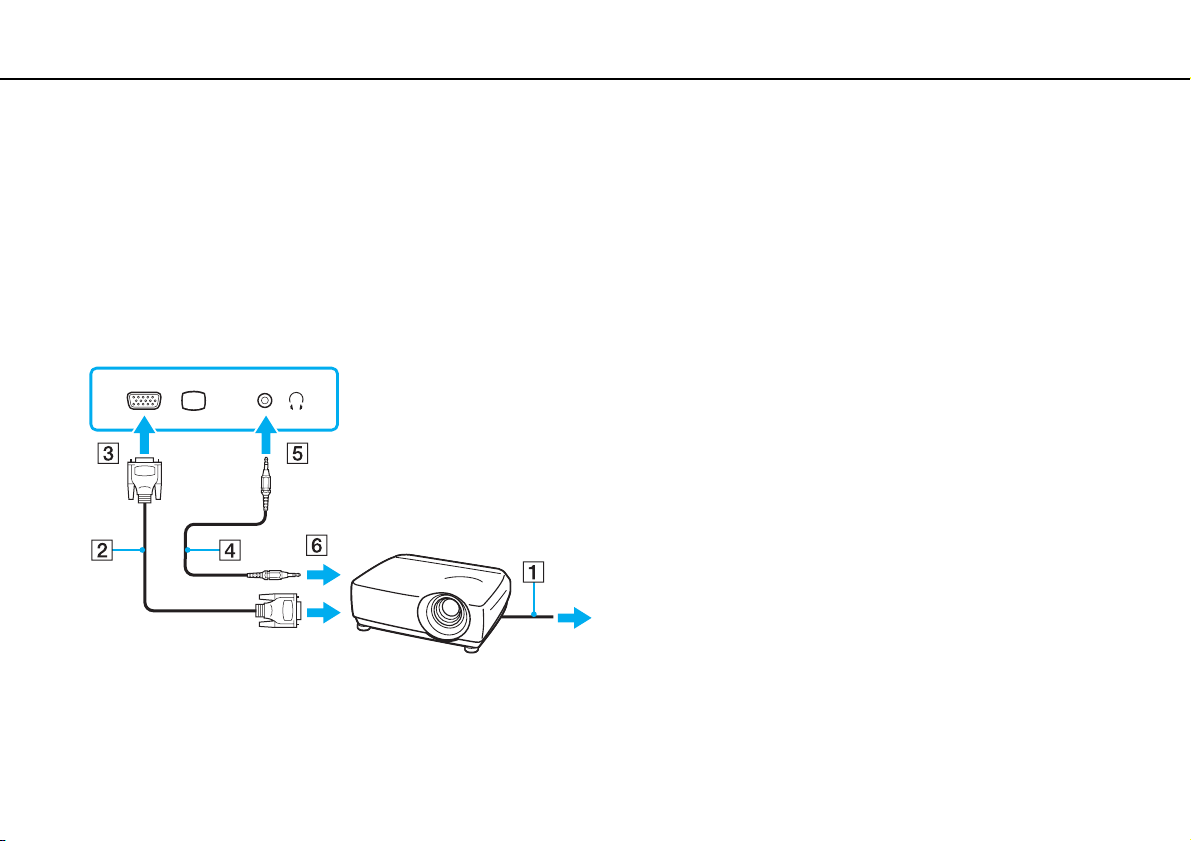

Connecting an External Display ..................................81

Selecting Display Modes .............................................84

Using the Multiple Monitors Function ..........................86

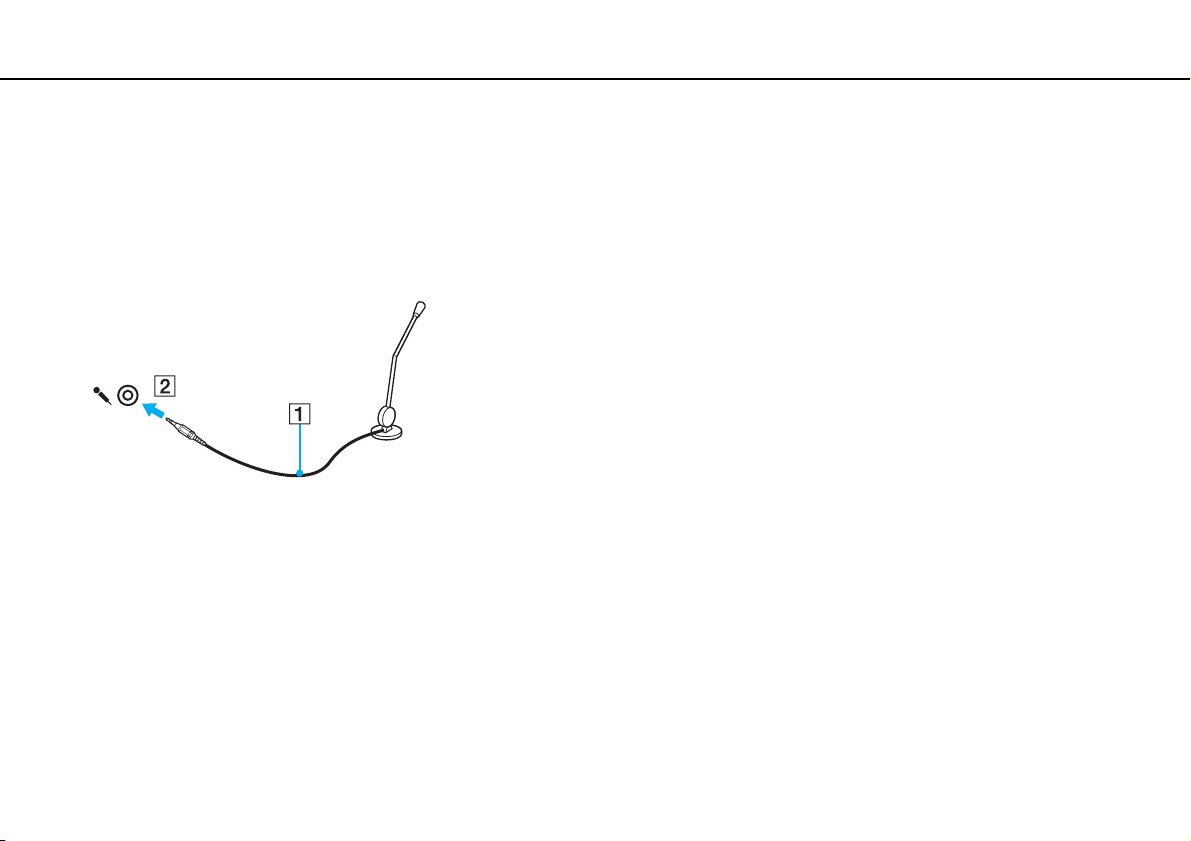

Connecting an External Microphone ...........................88

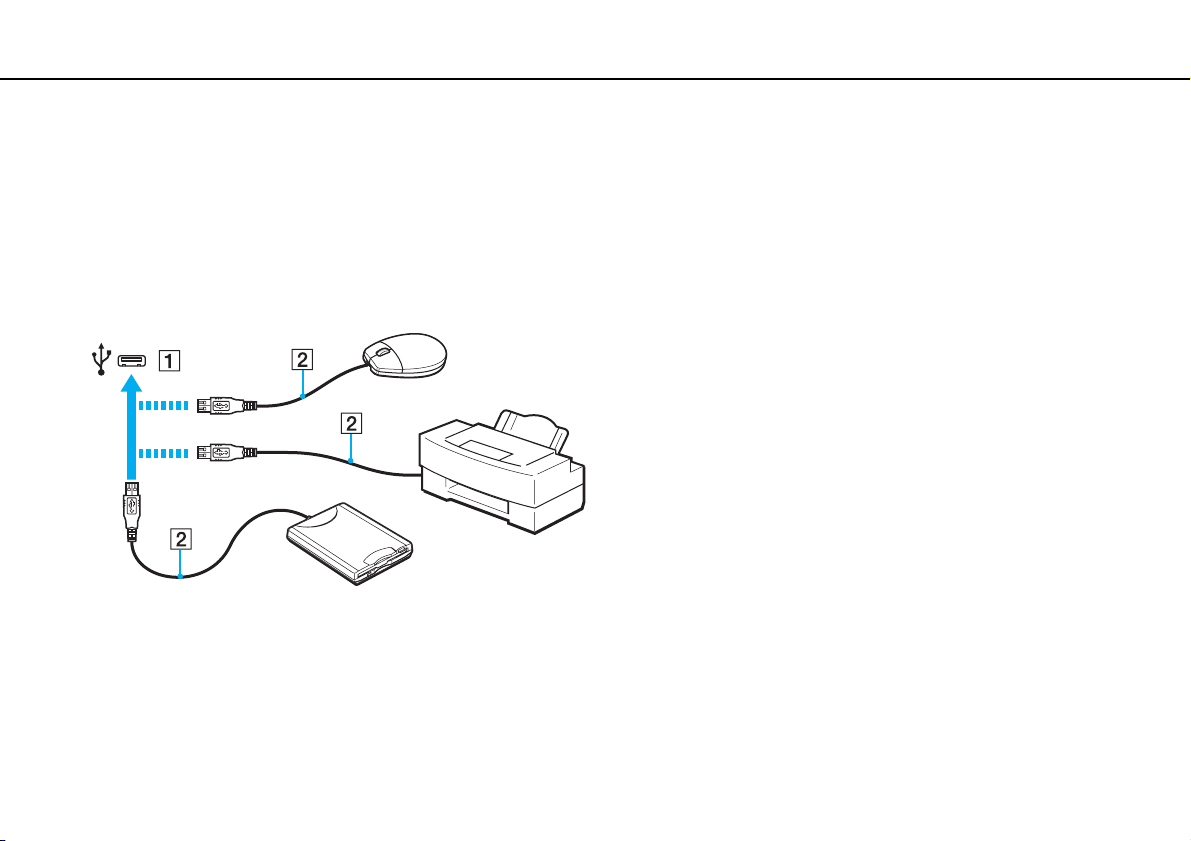

Connecting a USB Device ...........................................89

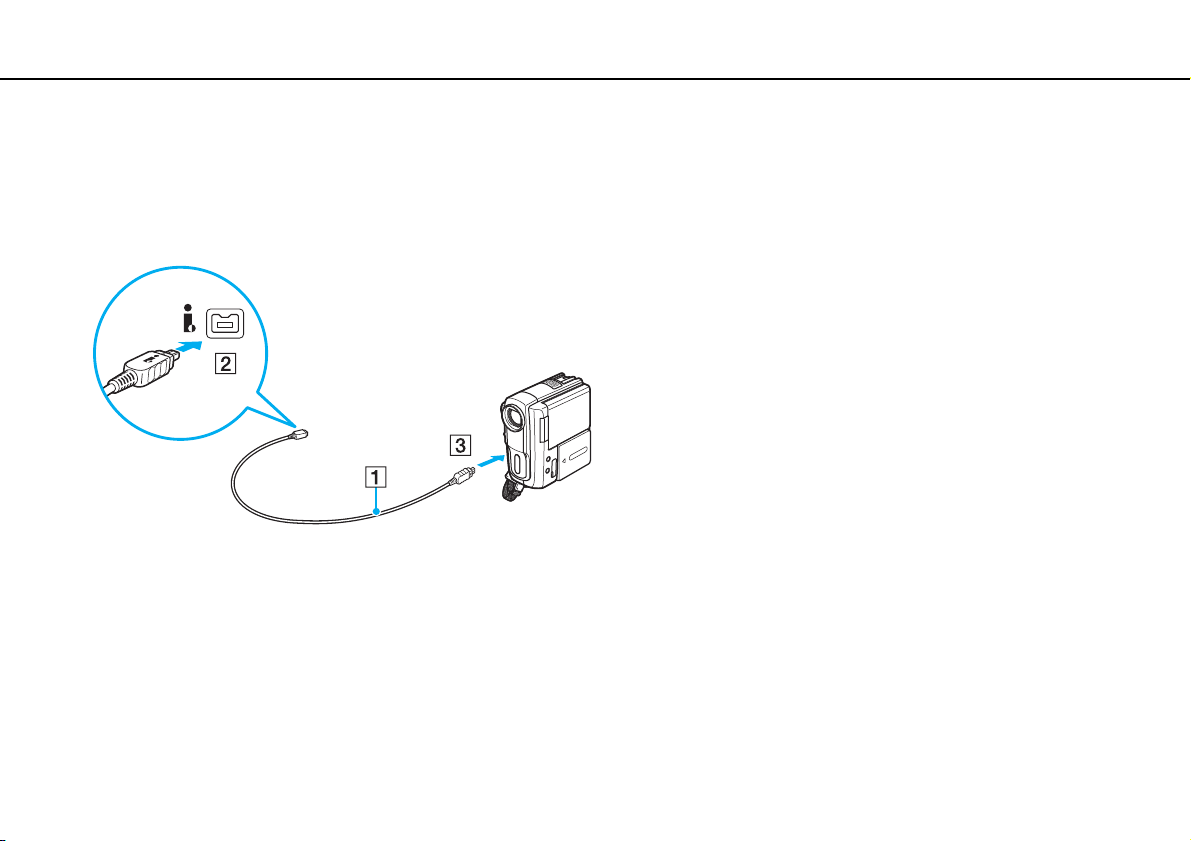

Connecting an i.LINK Device.......................................91

Customizing Your VAIO Computer....................................93

Setting the Password...................................................94

Using the VAIO Control Center .................................101

Using the Power Saving Modes ................................102

Using the VAIO Power Management.........................107

Configuring Your Modem...........................................109

Upgrading Your VAIO Computer.....................................111

Adding and Removing Memory .................................112

3

nN

Precautions..................................................................... 118

Handling the LCD Screen ......................................... 119

Using the Power Source ........................................... 120

Handling Your Computer........................................... 121

Handling the Built-in Camera .................................... 124

Handling Discs .......................................................... 125

Using the Battery Pack.............................................. 126

Using Headphones.................................................... 127

Handling the Memory Stick ....................................... 128

Handling the Built-in Storage Device ........................ 129

Using Fingerprint Authentication ............................... 130

Troubleshooting .............................................................. 131

Computer .................................................................. 133

System Security ........................................................ 139

Battery....................................................................... 140

Built-in Camera ......................................................... 142

Internet ...................................................................... 144

Networking ................................................................ 146

Bluetooth Technology ............................................... 151

Optical Discs ............................................................. 155

Display ...................................................................... 159

Printing ...................................................................... 163

Microphone ............................................................... 164

Speakers ................................................................... 165

Touch Pad .................................................................166

Keyboard ...................................................................167

Floppy Disks ..............................................................168

Audio/Video ...............................................................169

Memory Stick .............................................................171

Peripherals ................................................................172

Trademarks .....................................................................173

Notice ..............................................................................175

Before Use >

nN

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal
computing experience.

!

External views illustrated in this manual may look slightly different from those of your computer.

Information in the supplied manuals including this User Guide is intended for users of the VAIO computers with the Microsoft® Windows Vista®
32-bit operating system. You may find differences in the information when your computer comes preinstalled with the 64-bit operating system.

How to find specifications

Some features, options, and supplied items may not be available on your computer.

To find out about the configuration of your computer, see the Specifications (supplied with your computer).

4

Before Use >
Finding More about Your VAIO Computer

5

nN

Finding More about Your VAIO Computer

This section provides support information about your VAIO computer.

1. Printed Documentation

❑ Quick Start Guide — An overview of components connection, set-up information, etc.

❑ Specifications — The hardware configurations of your VAIO computer.

❑ Troubleshooting and Recovery Guide

❑ Safety Regulations

2. On-screen Documentation

❑ VAIO Manual — General information and technical assistance for your VAIO computer.

To access VAIO Manual, double-click VAIO Manual on the desktop.

❑ Windows Help and Support — A comprehensive resource for practical advice, tutorials, and demonstrations to help you

learn to use your computer.

To access Windows Help and Support, click Start and Help and Support, or press and hold the Microsoft Windows
key and press the F1 key.

Before Use >
Finding More about Your VAIO Computer

6

nN

3. Support Web Sites

If you have any problem with the computer, you can visit the following VAIO online web sites for troubleshooting:

❑ http://www.sony-asia.com/support/vaio/

❑ http://scs.sony.co.kr/

❑ http://service.sony.com.tw/

Before contacting VAIO Helpdesk by telephone, try to solve the problem by reading the supplied documentation and visiting
other Sony web sites.

❑ For other Sony products, visit the web site at http://www.sony.net

❑ For available optional accessories, visit the following web sites:

❑ http://vaio-online.sony.com/

❑ http://vaio-online.sony.co.kr/

❑ http://www.sonystyle.com.tw/vaio/

(Korean)

(Traditional Chinese)

(English)

(Korean)

(English)

.

(Traditional Chinese)

Before Use >
Ergonomic Considerations

7

nN

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations for both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your

wrists in a neutral, comfortable position (3) while using the keyboard or the pointing device. Let your upper arms hang
naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes,
muscles, or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.

Before Use >
Ergonomic Considerations

8

nN

❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display
as well.

❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Getting Started >

Getting Started

This section describes how to get started using your VAIO computer.

❑ Locating Controls and Ports (page 10)

❑ About the Indicator Lights (page 16)

❑ Connecting a Power Source (page 17)

❑ Using the Battery Pack (page 18)

❑ Shutting Down Your Computer Safely (page 25)

❑ Updating Your Computer (page 26)

9

nN

Getting Started >
Locating Controls and Ports

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

Front

A Built-in MOTION EYE camera (page 36)
B Built-in MOTION EYE camera indicator (page 16)
C Built-in microphone (monaural)
D LCD screen (page 119)
E Built-in speakers (stereo)
F Keyboard (page 28)
G Touch pad (page 30)

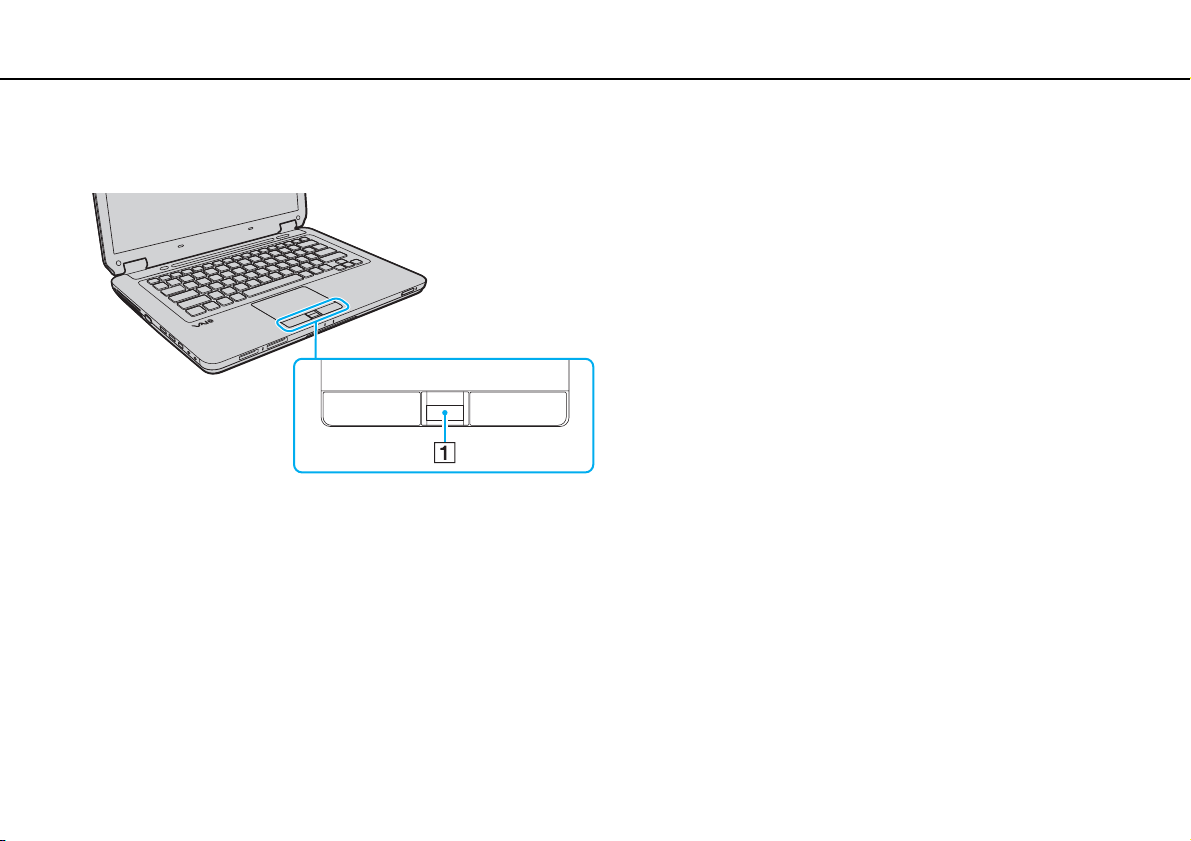

H Fingerprint sensor
I Memory Stick slot

J Media Access indicator (page 16)

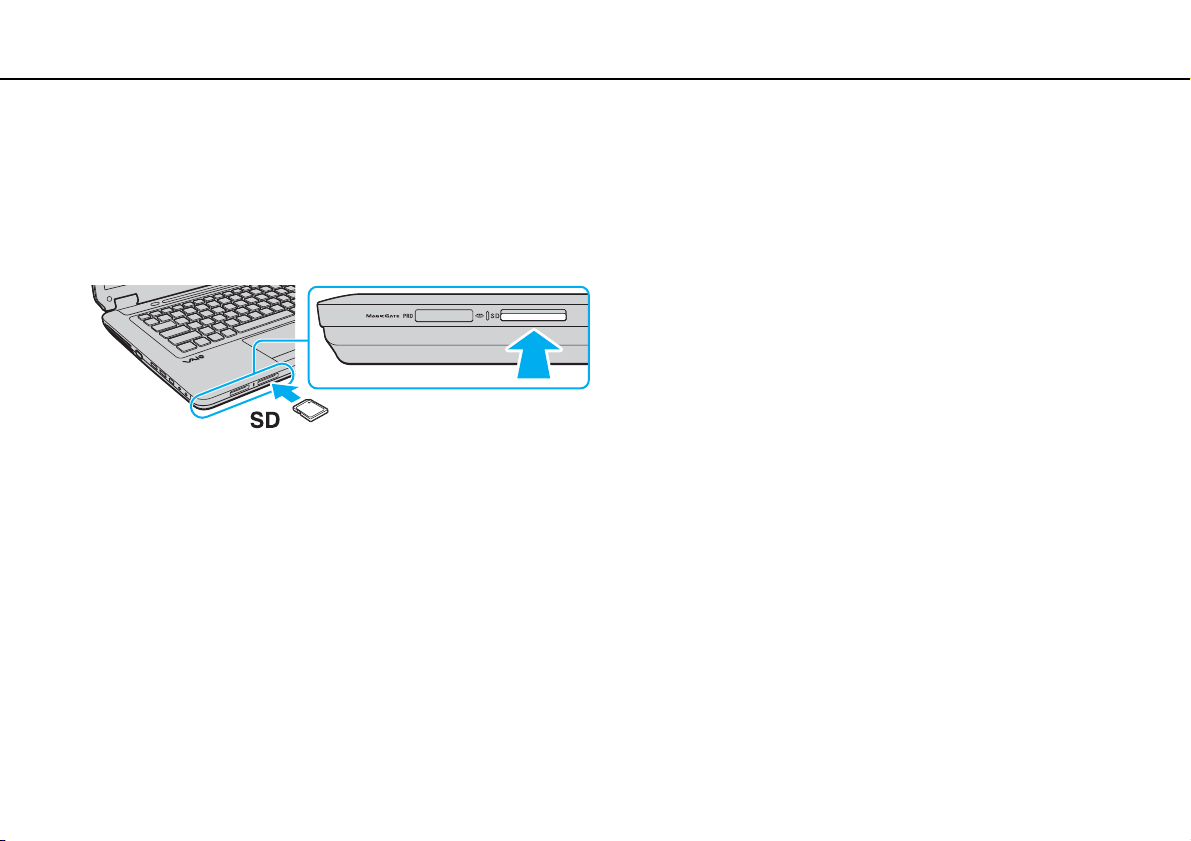

K SD memory card slot (page 53)
L Power indicator (page 16)
M Charge indicator (page 16)
N Disc drive indicator (page 16)

*1

On selected models only.

*2

Your computer supports both the standard-size Memory Stick and the Duo­size Memory Stick.

*1

(page 72)

*2

(page 45)

10

nN

Getting Started >
Locating Controls and Ports

11

nN

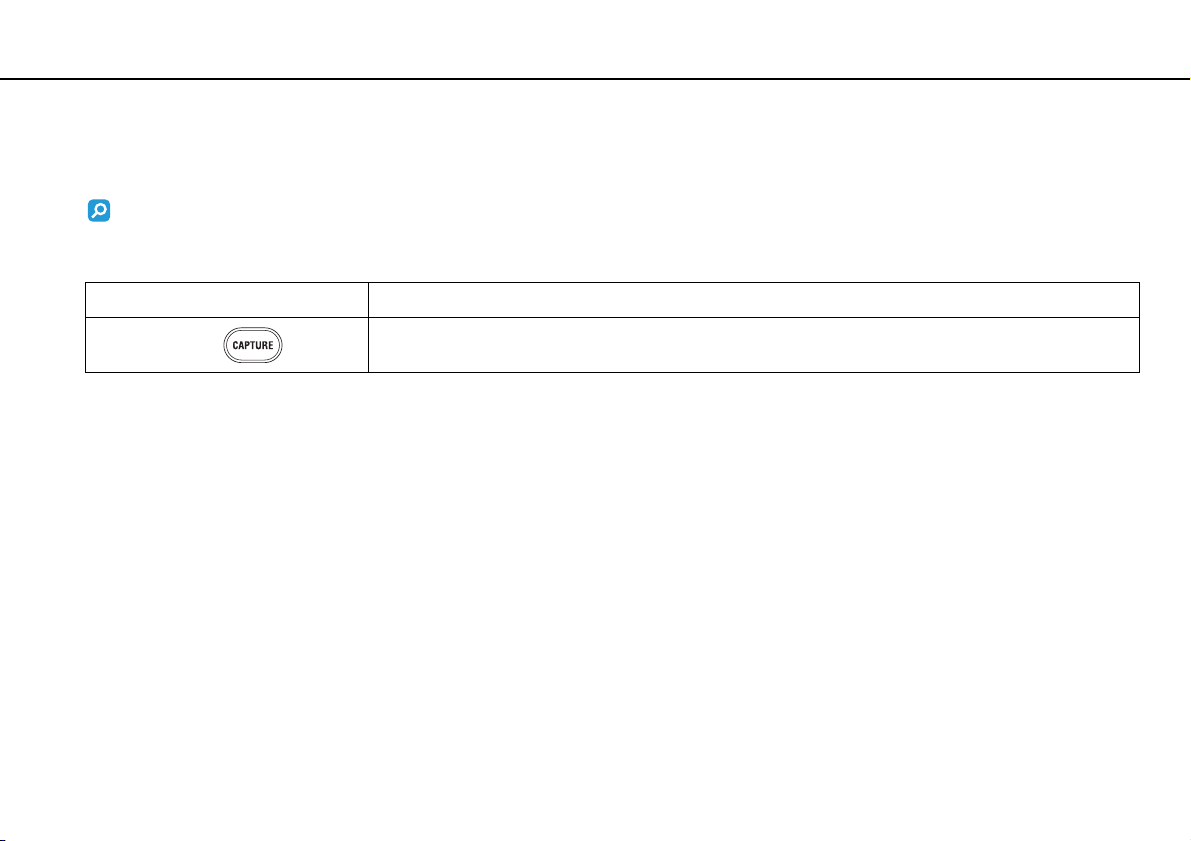

A CAPTURE button
B Playback control area

: Fast-rewind

: Play/Pause

: Fast-forward
For information on how to use the touch sensor buttons above,

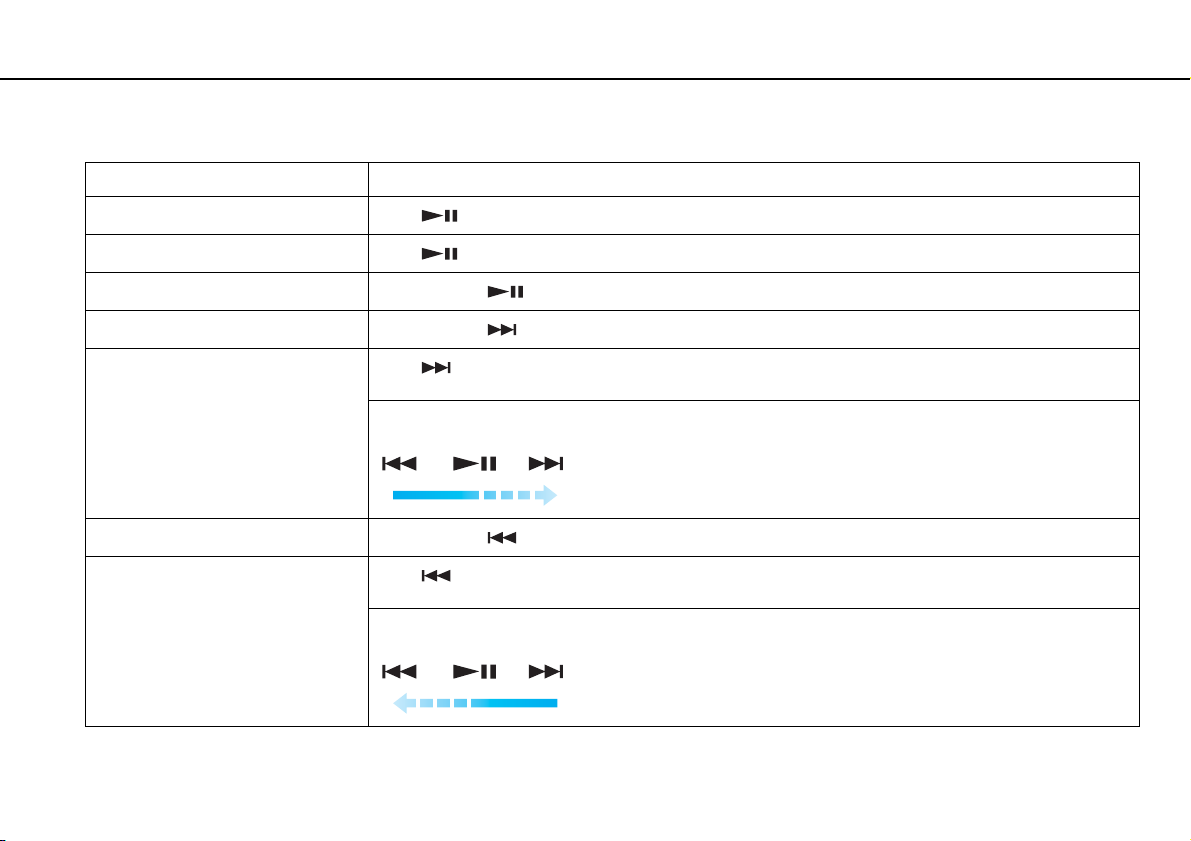

see Controlling Music and Video Playback (page 33).

C AV MODE button
D Volume control area

/: Volume

: Muting
For information on how to use the touch sensor buttons above,
see Controlling Music and Video Playback (page 33).

*

(page 31)

*

*

(page 32)

*

E Power button
F Num lock indicator (page 16)
G Caps lock indicator (page 16)
H Scroll lock indicator (page 16)
I WIRELESS switch (page 60), (page 67)
J WIRELESS indicator (page 16)

* On selected models only.

Getting Started >
Locating Controls and Ports

Back

12

nN

A Modem port
B Battery connector (page 18)
C Air vent
D Security slot

* On selected models only.

*

(page 57)

Getting Started >
Locating Controls and Ports

Right

A Optical disc drive (page 37)
B Optical disc drive indicator (page 16)
C Drive eject button (page 37)
D Manual eject hole (page 155)
E ExpressCard/34 slot (page 50)

F Hi-Speed USB (USB 2.0) port
G Network (Ethernet) port (page 59)

* Supports high-/full-/low- speeds.

*

(page 89)

13

nN

Getting Started >
Locating Controls and Ports

Left

A DC IN port (page 17)
B Air vent
C Monitor port (page 81)

D Hi-Speed USB (USB 2.0) ports
E i.LINK 4-pin (S400) port (page 91)
F Microphone jack (page 88)
G Headphones jack (page 80)

* Support high-/full-/low- speeds.

*

(page 89)

14

nN

Getting Started >
Locating Controls and Ports

Bottom

A Air vents
B Illumination lamp (page 101)
C Memory module compartment cover (page 112)

15

nN

Getting Started >
About the Indicator Lights

About the Indicator Lights

Your computer is equipped with the following indicator lights:

Indicator Functions

Power 1 Illuminates in green when the computer is on, blinks slowly in orange while the computer is in Sleep mode, and

Charge

Disc drive

Media Access Illuminates while data is being read from or written to a memory card. (Do not place the computer into Sleep

Built-in MOTION EYE camera Illuminates while the built-in camera is in use.

Optical disc drive Illuminates while the drive is reading or writing data. When the indicator is unlit, the optical disc media is not in

Num lock

Caps lock

Scroll lock

WIRELESS Illuminates when one or more wireless options are enabled.

turns off when the computer is off or in Hibernate mode.

Illuminates while the battery pack is charging. See Charging the Battery Pack (page 21) for more information.

Illuminates while the built-in storage device or the optical disc drive is running to read or write data.
Do not place the computer into Sleep mode or turn it off when this indicator is lit.

mode or turn it off when this indicator is lit.) When the indicator is unlit, the memory card is not in use.

use.

Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator is unlit.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator is lit. Press the key a second time to turn off the indicator. Normal typing resumes when the
Caps lock indicator is unlit.

Press the Fn+Scr Lk keys to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator is unlit. The Scr Lk key functions differently depending on the program you are using and does not
work with all programs.

16

nN

Getting Started >
Connecting a Power Source

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.

Using the AC Adapter

✍

Use only the supplied AC adapter for your computer.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3).

2 Plug the other end of the power cord into an AC outlet (2).

3 Plug the cable connected to the AC adapter (3) into the DC IN port (4) on the computer.

!

The shape of the DC In plug varies depending on the AC adapter.

17

nN

✍

To disconnect your computer completely from AC power, unplug the AC adapter.

Make sure that the AC outlet is easily accessible.

If you do not intend to use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 105).

Getting Started >
Using the Battery Pack

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

Installing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) inward.

18

nN

Getting Started >
Using the Battery Pack

nN

3 Slide the battery pack diagonally into the battery compartment until the projections (2) on either side of the battery

compartment fit into the U-shaped cuts (3) on either side of the battery pack.

19

Getting Started >
Using the Battery Pack

4 Push the battery pack down into the compartment until it clicks into place.

5 Slide the battery LOCK switch outward to secure the battery pack on the computer.

✍

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

!

For your safety, it is highly recommended that you use genuine Sony rechargeable battery packs and AC adapters that meet the quality assurance
standards and supplied by Sony for your VAIO computer. Some VAIO computers may operate only with genuine Sony battery packs.

20

nN

Getting Started >
Using the Battery Pack

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

To charge the battery pack

1 Install the battery pack.

2 Connect the computer to a power source with the AC adapter.

The charge indicator light turns on while the battery pack is charging. When the battery pack charges close to the
maximum charge level you selected with the battery charge functions, the charge indicator turns off. To select your desired
maximum charge level, see Using the Battery Charge Functions (page 23).

Charge indicator status Meaning

Lit in orange The battery pack is charging.

Blinks along with the green power
indicator

Blinks along with the orange power
indicator

Blinks fast in orange A battery error has occurred due to a failed battery

The battery pack is running out of power. (Normal
mode)

The battery pack is running out of power. (Sleep mode)

pack or an unlocked battery pack.

21

nN

!

Charge the battery pack as described in this manual from your first battery charge.

Getting Started >
Using the Battery Pack

✍

Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the
computer.

If the battery charge level falls below 10%, you should either connect the AC adapter to recharge the battery pack or shut down your computer and
install a fully charged battery pack.

Your computer is supplied with a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect
the life of battery.

While some software applications or peripheral devices are in use, your computer may not enter Hibernate mode even when the remaining battery life
is short. To avoid loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such

as Sleep or Hibernate.

If the battery pack wears out when the computer enters Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible.
To avoid loss of data, you should save your data frequently.

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

22

nN

Getting Started >
Using the Battery Pack

23

nN

Using the Battery Charge Functions

You can customize the current battery charging method using the Battery Charge Functions. To make the life of battery
longer, enable the battery care function.

To enable the battery care function

1 Click Start, All Programs, and VAIO Control Center.

2 Click Power Management and then Battery Charge Functions.

3 Click Advanced.

4 Click to select the Enable Battery Care Function check box.

5 Select the desired maximum charge level.

6 Click OK.

To check the battery charge capacity

Follow steps 1 to 3 in To enable the battery care function above and check detailed information. If the battery charge
capacity is low, replace the battery pack with a new genuine Sony battery pack.

Using the Battery Life Conserving Wallpaper

You can conserve your battery life just by setting the specific wallpaper as your desktop background.

To set the battery life conserving wallpaper

1 Click Start, All Programs, and VAIO Control Center.

2 Click Display and then Long Battery Life Wallpaper Setting.

3 Click Set Long Battery Life Wallpaper.

At the confirmation prompt, click OK.

Getting Started >
Using the Battery Pack

24

nN

Removing the Battery Pack

!

You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack
while the computer is in Sleep mode.

To remove the battery pack

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) inward.

3 Slide and hold the battery RELEASE latch (2) inward, put your fingertip underneath the tab (3) on the battery pack, and

lift the battery pack in the direction of the arrow, and then slide it away from the computer.

Getting Started >
Shutting Down Your Computer Safely

25

nN

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.

2 Click Start, the arrow next to the Lock button, and then Shut Down.

3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically.
The power indicator light turns off.

Getting Started >
Updating Your Computer

26

nN

Updating Your Computer

Be sure to install the latest updates on your computer with the following software applications so that the computer can run
more efficiently.

❑ Windows Update

Click Start, All Programs, and Windows Update and then follow the on-screen instructions.

❑ VAIO Update 4

Click Start, All Programs, VAIO Update 4, and VAIO Update Options and then follow the on-screen instructions.

!

Your computer must be connected to the Internet to download the updates.

Using Your VAIO Computer >

Using Your VAIO Computer

This section describes how to get the most out of using your VAIO computer.

❑ Using the Keyboard (page 28)

❑ Using the Touch Pad (page 30)

❑ Using the Special-function Button (page 31)

❑ Using the Touch Sensor Buttons (page 32)

❑ Using the Built-in Camera (page 36)

❑ Using the Optical Disc Drive (page 37)

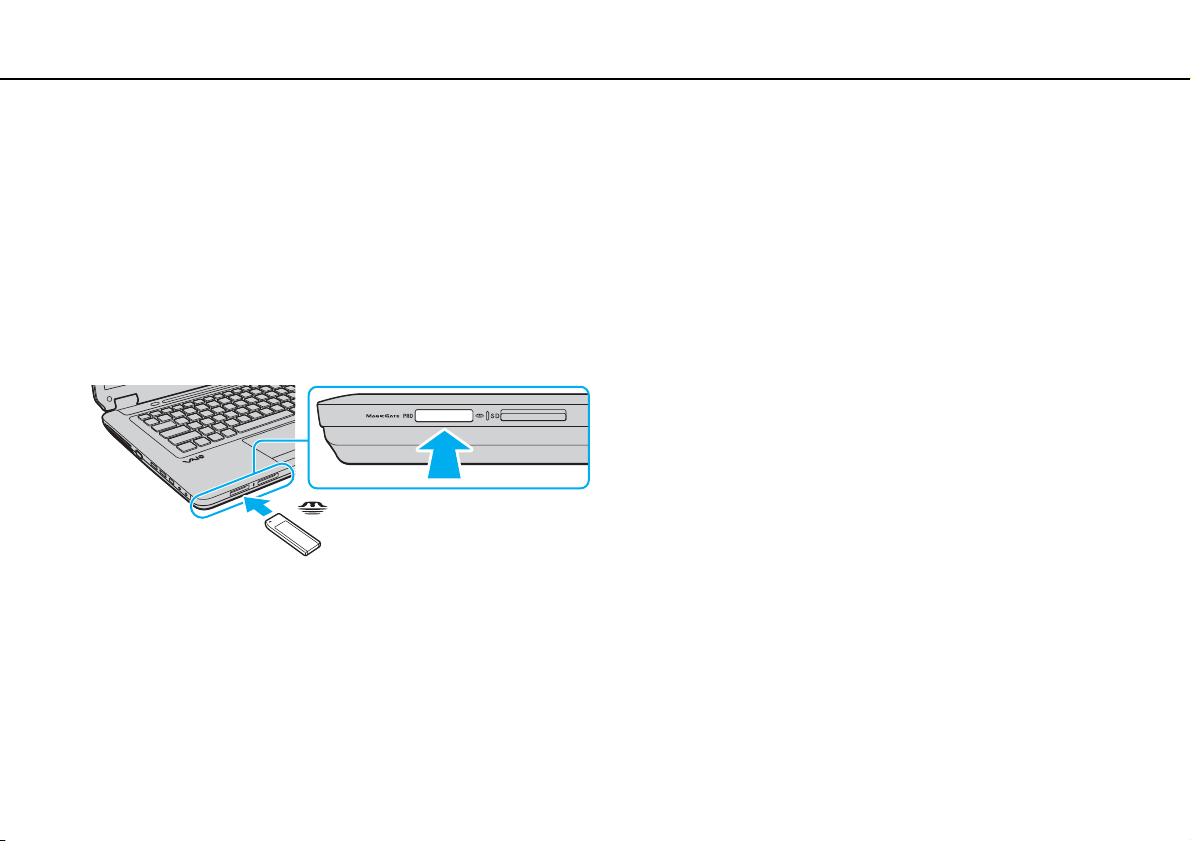

❑ Using the Memory Stick (page 45)

❑ Using Other Modules / Memory Cards (page 50)

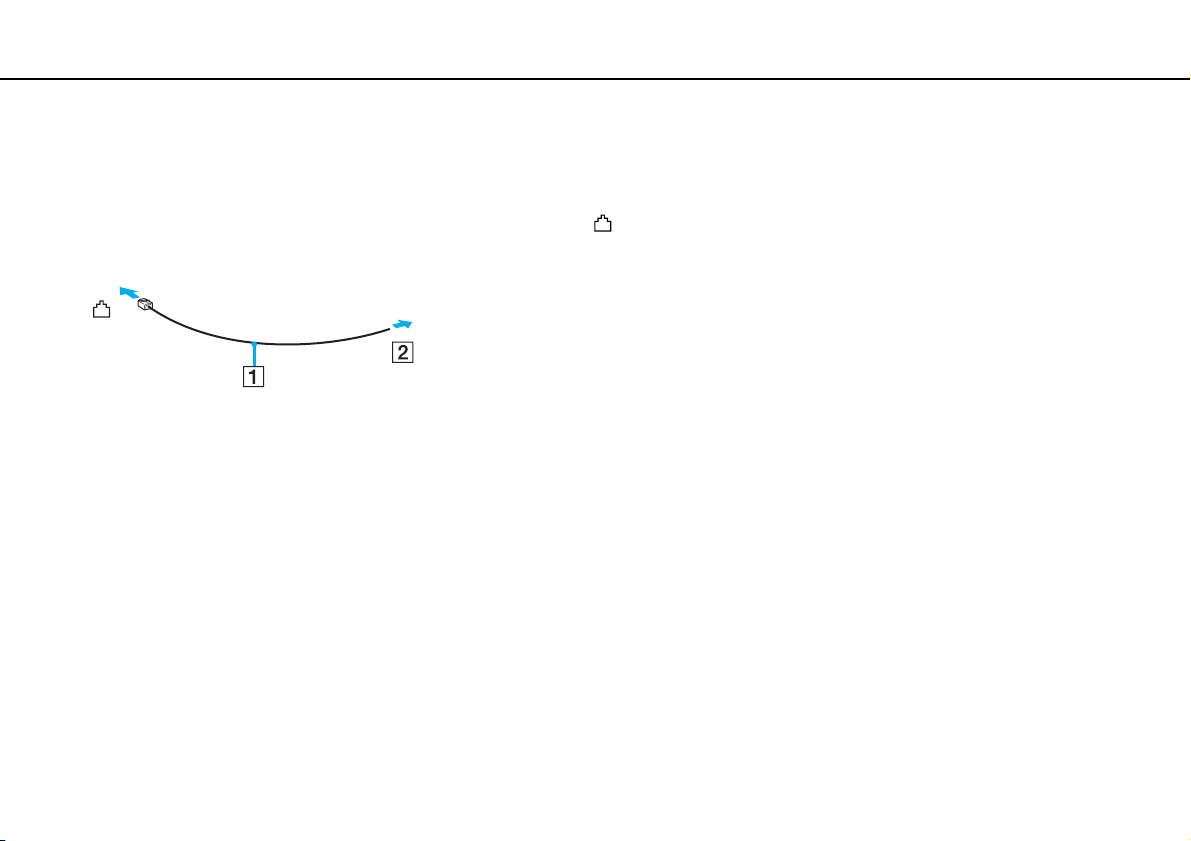

❑ Using the Internet (page 57)

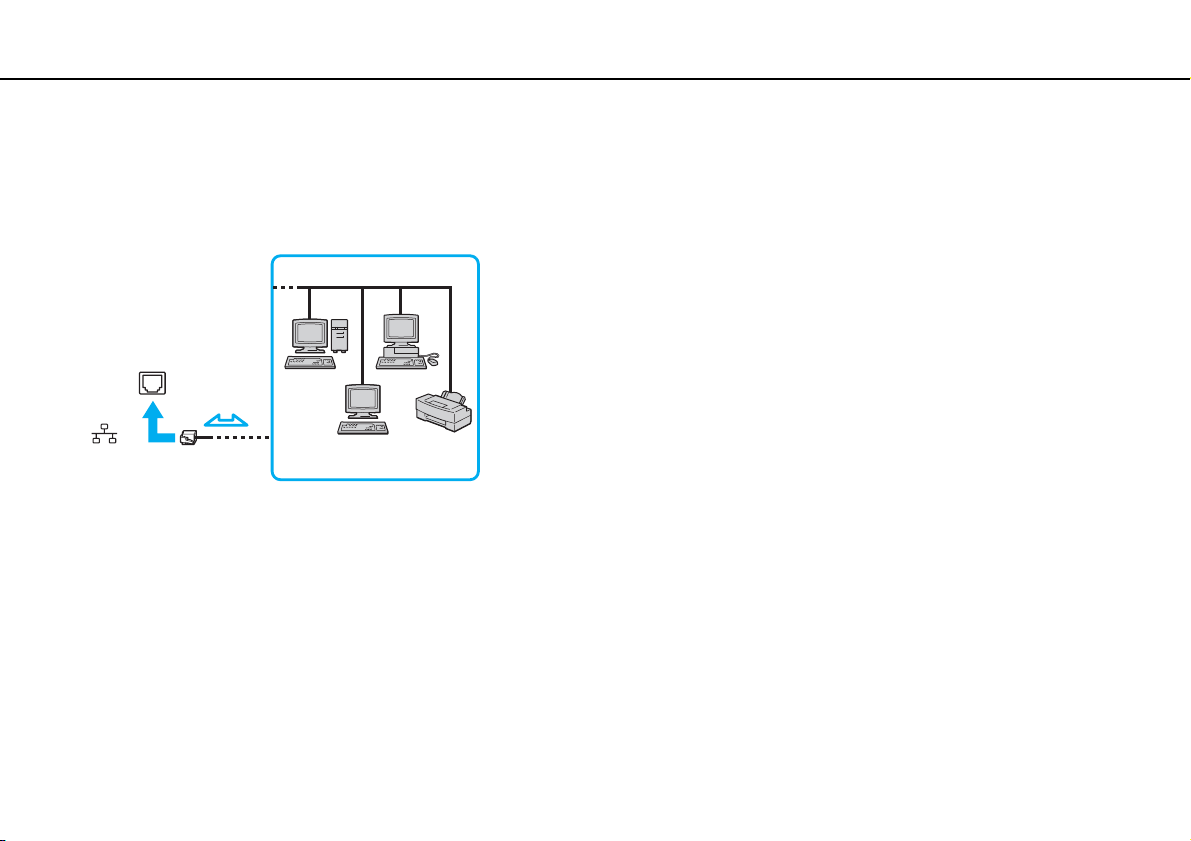

❑ Using the Network (LAN) (page 59)

❑ Using the Wireless LAN (page 60)

❑ Using the Bluetooth Function (page 67)

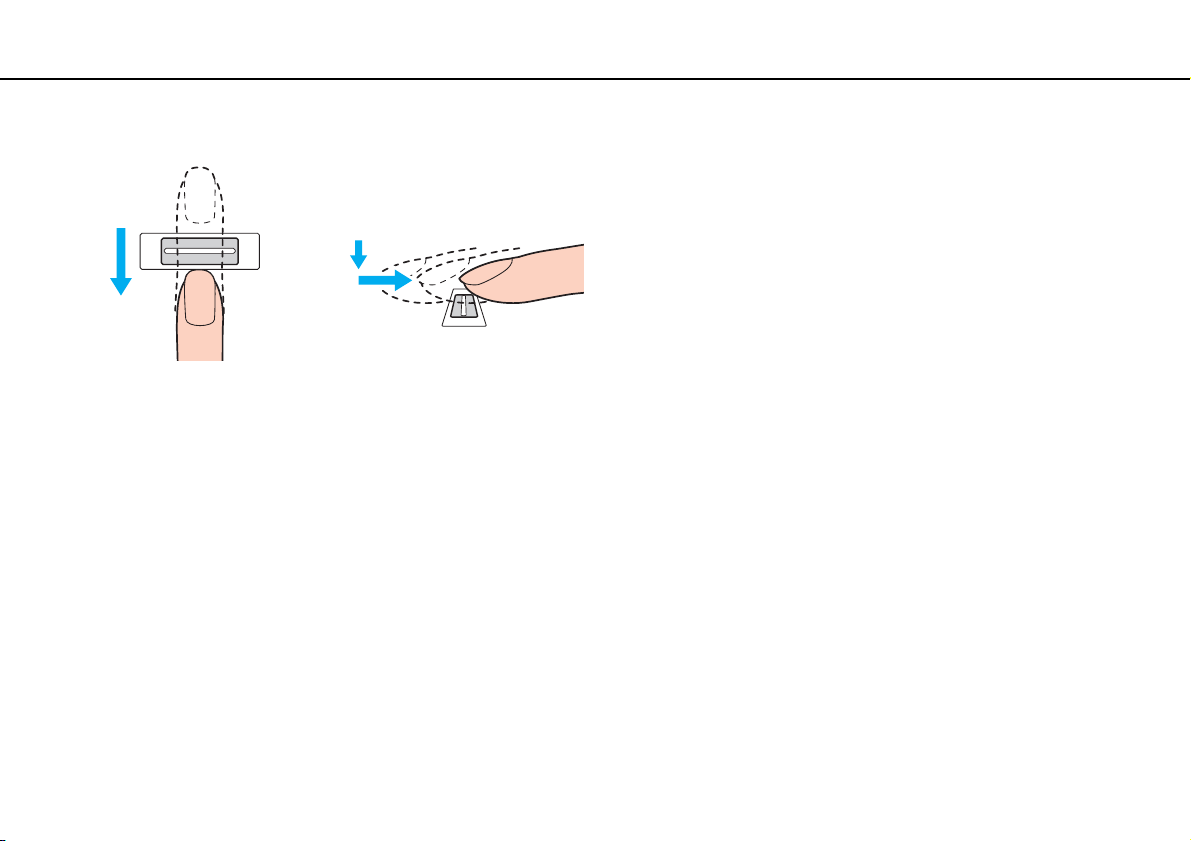

❑ Using Fingerprint Authentication (page 72)

27

nN

Using Your VAIO Computer >
Using the Keyboard

Using the Keyboard

Your keyboard has additional keys that perform model-specific tasks.

Combinations and Functions with the Fn Key

✍

Some keyboard functions can be used only after the operating system is finished launching.

Combinations/Feature Functions

Fn + % (F2): speaker switch Turns on and off the built-in speakers and the headphones.

Fn + 2 (F3/F4): speaker volume Changes the volume level.

Fn + 8 (F5/F6): brightness control Changes the LCD brightness of your computer screen.

Fn + /T (F7): display output

Fn + / (F9/F10): zoom

To increase the volume, keep pressing the Fn+F4 keys or press the Fn+F4 keys and then the

M or , key.
To decrease the volume, keep pressing the Fn+F3 keys or press the Fn+F3 keys and then the
m or < key.

To increase lighting intensity, keep pressing the Fn+F6 keys or press the Fn+F6 keys and then
the M or , key.
To decrease lighting intensity, keep pressing the Fn+F5 keys or press the Fn+F5 keys and then
the m or < key.

Toggles among your computer screen, an external display, and simultaneous output to both.

Changes the size of an image or a document displayed on some software.
To make the view look smaller and further away (zoom out), press the Fn+F9 keys.
To make the view look bigger and closer (zoom in), press the Fn+F10 keys.
See the help file included with the VAIO Control Center for more information.

28

nN

Using Your VAIO Computer >
Using the Keyboard

Combinations/Feature Functions

Fn + (F12): hibernate

29

nN

Provides the lowest level of power consumption. When you execute this command, the states
of the system and the connected peripheral devices are saved to the built-in storage device and
the system power is turned off. To return the system to its original state, use the power button
to turn on the power.
For details on power management, see Using the Power Saving Modes (page 102).

Using Your VAIO Computer >
Using the Touch Pad

Using the Touch Pad

You can point to, select, drag, and scroll objects on the screen using the touch pad.

Action Description

Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object.

Click Press the left button (3) once.

Double-click Press the left button twice in a row.

Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.

Drag Slide your finger on the touch pad while pressing the left button.

Scroll Slide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to scroll

horizontally (the scroll function is available only with applications that support a touch pad scroll feature).

✍

You can disable/enable the touch pad while a mouse is connected to your computer. To change the touch pad settings, use the VAIO Control Center.

30

nN

!

Be sure to connect a mouse before disabling the touch pad. If you disable the touch pad before connecting a mouse, you will be able to use only the
keyboard for pointer operations.

Using Your VAIO Computer >
Using the Special-function Button

Using the Special-function Button

Your computer may be equipped with a special button to help you use specific functions of the computer.

Features and options may not be available on your computer.
See the specifications to find out about the configuration of your computer.

Special-function button Functions

Launches the WebCam Companion 2 and captures still images and movies with the built-in camera. For

CAPTURE button

more information on the WebCam Companion 2, see the help file included with the software.

31

nN

Using Your VAIO Computer >
Using the Touch Sensor Buttons

32

nN

Using the Touch Sensor Buttons

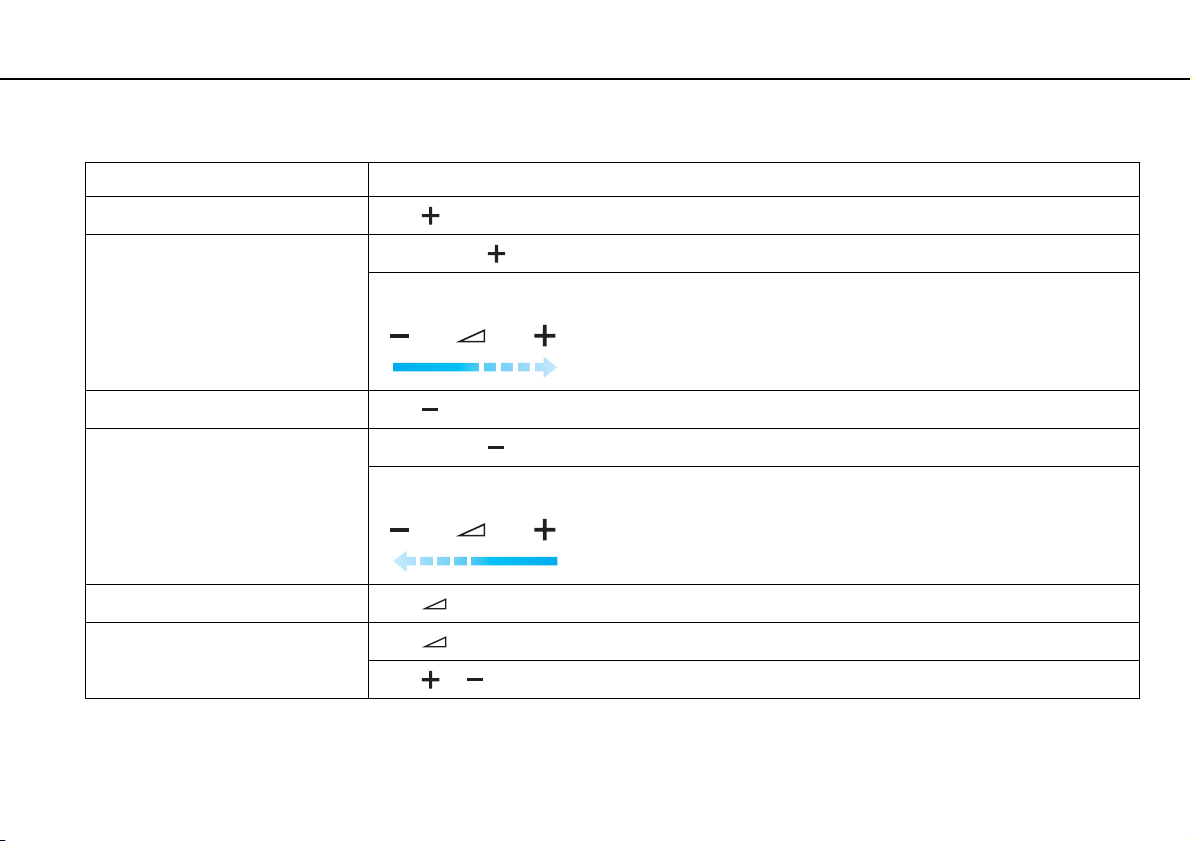

Your computer may be equipped with the touch sensor buttons. You can control music and video playback or adjust the
playback volume by pressing the button or swiping your fingertip over the playback control area or the volume control area.

The built-in lamps underneath the touch sensor buttons illuminate according to operations you perform with the buttons.

Features and options may not be available on your computer.
See the specifications to find out about the configuration of your computer.

!

Some operations with the touch sensor buttons may not be available depending on the software you use.

Using the AV MODE Button

You can launch the VAIO Launcher with the AV MODE button. In the VAIO Launcher, you can select and launch your
desired software for music or video playback with other touch sensor buttons.

To launch the VAIO Launcher

Press the AV MODE button on the touch sensor.

To select and launch the software for music or video playback

Press or press and hold or to select your desired software, and then press .

✍

You can also select your desired software by swiping your fingertip over the playback control area.

You can change the default software options in the VAIO Launcher. To do so, press and hold the AV MODE button to display the setup window.

Using Your VAIO Computer >
Using the Touch Sensor Buttons

nN

Controlling Music and Video Playback

You can use the software you launched with the VAIO Launcher, for example the Windows Media Center, for music or
video playback, and control playback or adjust the playback volume with the touch sensor buttons.

33

Using Your VAIO Computer >
Using the Touch Sensor Buttons

To control music and video playback

To Acti ons

Play

Pause

Stop

Fast-forward

Skip to the beginning of the next track
or chapter

Press .

Press during playback. Press again to resume playback.

Press and hold during playback.

Press and hold during playback.

Press during playback.

Swipe your fingertip to the right over the playback control area during playback.

34

nN

Fast-rewind

Skip to the beginning of the current
track or chapter

Press and hold during playback.

Press during playback.

Swipe your fingertip to the left over the playback control area during playback.

✍

You can start swiping from anywhere on the playback control area to control music and video playback.

Using Your VAIO Computer >
Using the Touch Sensor Buttons

To adjust the playback volume

To Acti ons

Increase the volume

Keep increasing the volume

Press .

Press and hold .

Swipe your fingertip to the right over the volume control area.

35

nN

Decrease the volume

Keep decreasing the volume

Turn off the volume

Restore the volume

✍

You can start swiping from anywhere on the volume control area to adjust the playback volume.

Press .

Press and hold .

Swipe your fingertip to the left over the volume control area.

Press twice.

Press twice when the volume is turned off.

Press or , or swipe your fingertip over the volume control area.

Using Your VAIO Computer >
Using the Built-in Camera

36

nN

Using the Built-in Camera

Your computer is equipped with a built-in MOTION EYE camera.

With the preinstalled image capture software, you can perform the following operations:

❑ Capturing still images and movies

❑ Sensing and capturing object movements for monitoring purposes

❑ Editing captured data

✍

Turning on the computer activates the built-in camera.

Video conference is possible with the appropriate software.

!

Launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in camera.

Do not place your computer into Sleep or Hibernate mode while you are using the built-in camera.

You cannot operate the built-in camera with the Microsoft Windows Movie Maker software.

To use the preinstalled image capture software

1 Press the CAPTURE button on your computer, if equipped, or click Start, All Programs, ArcSoft WebCam Companion

2, and WebCam Companion 2.

2 Click the desired icon in the main window.

For detailed information on how to use the software, see the help file included with the software.

✍

When capturing an image or a movie in a dark place, click the Capture icon or the Record icon in the main window, and then click the WebCam Settings
icon and select the low light or low light compensation option in the properties window.

Using Your VAIO Computer >
Using the Optical Disc Drive

37

nN

Using the Optical Disc Drive

Your computer is equipped with an optical disc drive.

Features and options in this section may not be available on your computer.
See the specifications to find out about the configuration of your computer.

To insert a disc

1 Turn on the computer.

2 Press the drive eject button (1) to open the drive.

The drive tray slides out.

3 Place a disc in the middle of the drive tray with the label side facing upward and gently push it down until the disc clicks

into place.

Using Your VAIO Computer >
Using the Optical Disc Drive

4 Close the drive tray by pushing it in gently.

!

Do not remove the optical disc when your computer is in a power saving mode (Sleep or Hibernate). Be sure to bring the computer back into Normal
mode before removing the disc.

38

nN

Using Your VAIO Computer >
Using the Optical Disc Drive

Supported Disc Media

Your computer plays and records CDs, DVDs, and Blu-ray Disc™ media, depending on the model you purchased.

See the reference chart below to find out which type of optical disc drive supports which types of media.

PR: playable and recordable
P: playable but not recordable
–: not playable or recordable

CD-

Video CDMusic CDCD

ROM

DVD± RW/
±R DL/RAM

Blu-ray DiscPPPPPRPPPRPRPR PR PR P

Blu-ray Disc
Combo

*1

The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.

*2

Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.

*3

The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.

*4

Supports writing data to BD-R Version 1.1/1.2/1.3 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Version

2.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).

*5

Writing data to Ultra Speed CD-RW discs is not supported.

PPPPPRPPPRPRPR PR PR – –

PPPP

Extra

CD-R/RWDVD-

*5

PR

DVD-

ROM

PPPRPRPRPRPRPP

DVD-R/RWDVD+R/RWDVD+R DL

Video

(Double
Layer)

DVD-R DL
(Dual
Layer)

DVD-

RAM

*1 *2

BD­ROM

BD-R/RE

PR

39

nN

*3

*4

Using Your VAIO Computer >
Using the Optical Disc Drive

!

This product is designed to play back discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two
sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Be aware that the audio side (non-DVD
side) of a DualDisc may not play on this product because it does not conform to the CD Standard.

When you buy pre-recorded or blank discs for use with your VAIO computer, be sure to read the notices on the disc package carefully to check both
playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO optical disc drives

with discs that are not compliant with the official "CD," "DVD," or "Blu-ray Disc" standard. USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE
TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.
For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

✍

8 cm disc writing is not supported.

!

To play copyright protected Blu-ray Disc media continually, update the AACS key. The AACS key update requires Internet access.

As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support
movie playback on packaged media recorded in AVC or VC1 formats at high bit rates.

Region settings are required for some contents on DVD and BD-ROM Disc media. If the region setting on the optical disc drive does not match the
region coding on the disc, playback is not possible.

Unless your external display is compliant with the High-bandwidth Digital Content Protection (HDCP) standard, you cannot play or view the contents
on copyright protected Blu-ray Disc media.

40

nN

Some contents may restrict video output to standard definition or prohibit analog video output. It is strongly recommended that a digital HDCP
compliant environment be implemented for optimum compatibility and viewing quality.

Do not use memory-resident utility software when playing or writing a disc. This may cause the computer to malfunction.

Using Your VAIO Computer >
Using the Optical Disc Drive

41

nN

Notes on Using the Optical Disc Drive

Notes on writing data to a disc

❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc

drive.

❑ Do not strike or shake your computer while the optical disc drive is writing data to a disc.

❑ Do not plug or unplug the AC adapter while the optical disc drive is writing data to a disc.

Notes on playing discs

To achieve optimum performance when playing discs, you should follow these recommendations:

❑ Some CD players and computer optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW

media.

❑ Some DVD players and computer optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-R

DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media.

❑ Depending on system environment, you may find sound interruptions and/or dropped frames during AVC HD playback.

❑ Do not place your computer into either of the power saving modes while your computer is playing a disc.

Using Your VAIO Computer >
Using the Optical Disc Drive

42

nN

Notes on region codes

❑ Region code indicators are labeled on the discs or packages to indicate in which region and on what type of player you

can play the disc. If the region code indicates "all," you can play this disc in most regions of the world. If the region code
for your residence area is different from the label, you cannot play the disc on your computer.

To find out the region code for your residence area, see the following table.

Residence area Region code Residence area Region code Residence area Region code

Australia* 4 China 6 Hong Kong* 3

India* 5 Indonesia* 3 Japan* 2

Korea 3 Kuwait* 2 Malaysia* 3

New Zealand* 4 Philippines* 3 Saudi Arabia* 2

Singapore* 3 South Africa* 2 Taiwan 3

Thailand* 3 United Arab Emirates* 2 Vietnam 3

* A region code is not assigned to your computer's optical disc drive by default.

If it is your first time to play a DVD video on your computer, follow these steps before inserting the disc:

1 Click Start and Computer.

2 Right-click the optical disc drive icon and select Properties.

3 Click the Hardware tab.

4 Select your optical disc drive from the All disk drives list and click Properties.

5 Click the DVD Region tab.

6 Select an appropriate region from the list and click OK.

Using Your VAIO Computer >
Using the Optical Disc Drive

!

You can change the region code only a limited number of times. When you have exceeded this number, the drive's region code is permanently assigned
and you will not be able to change it again. Reconfiguring your computer does not reset this count.

If you change the region code while the WinDVD or WinDVD BD software is running, restart the software or eject the disc and re-insert it to make the
new setting effective.

43

nN

Using Your VAIO Computer >
Using the Optical Disc Drive

44

nN

Playing Discs

To play a disc

1 Insert a disc into the optical disc drive.

!

Connect the AC adapter to the computer and close all running software applications before playing a disc.

2 If nothing appears on the desktop, click Start, All Programs, and the desired software to play the disc.

For instructions on how to use the software, see the help file included with the software.

Copying Files to Discs

To copy files to a disc

1 Insert a recordable disc into the optical disc drive.

!

Connect the AC adapter to the computer and close all running software applications before copying files to a disc.

2 If nothing appears on the desktop, click Start, All Programs, and the desired disc burning software to copy files to the

disc.
For instructions on how to use the software, see the help file included with the software.

Using Your VAIO Computer >
Using the Memory Stick

45

nN

Using the Memory Stick

The Memory Stick is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing
digital data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable,
it can be used for external data storage.

Before You Use the Memory Stick

The Memory Stick slot on your computer can accommodate both standard- and Duo-size media and supports Memory Stick
PRO, Memory Stick PRO Duo, and Memory Stick PRO-HG Duo with high-speed data transfer and large data capacity
capabilities.

For the latest information about the Memory Stick, visit the Memory Stick web site at http://www.memorystick.com/en/

.

Using Your VAIO Computer >
Using the Memory Stick

Inserting and Removing a Memory Stick

To insert a Memory Stick

1 Locate the Memory Stick slot.

2 Hold the Memory Stick with the arrow facing upward and pointing toward the slot.

3 Carefully slide the Memory Stick into the slot until it clicks into place.

✍

The Memory Stick is automatically detected by your system and the contents on the Memory Stick are displayed. If nothing appears on the desktop,
click Start, Computer, and double-click the Memory Stick icon.

✍

You can insert a Duo-size Memory Stick directly into the Memory Stick slot without using a Memory Stick Duo adaptor.

46

nN

!

Be sure to hold the Memory Stick with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer or the
media, do not force the Memory Stick into the slot if you cannot insert it smoothly.

Before using a Memory Stick Micro (M2), be sure to insert it into an M2 Standard-size adaptor or M2 Duo adaptor. If you insert the media directly into
the Memory Stick slot without the adaptor, you may not be able to remove it from the slot.

The Memory Stick Micro in an M2 Duo adaptor may not operate properly if it is additionally inserted into a Memory Stick Duo adaptor.

Using Your VAIO Computer >
Using the Memory Stick

To remove a Memory Stick

!

Do not remove the Memory Stick while the Media Access indicator light is lit. If you do, you may lose data. Large volumes of data may take time to
load, so make sure the indicator is unlit before removing the Memory Stick.

1 Check that the Media Access indicator light is unlit.

2 Push in the Memory Stick toward the computer and release.

The Memory Stick ejects.

3 Pull the Memory Stick out of the slot.

!

Always remove the Memory Stick gently, or it may pop out unexpectedly.

47

nN

Using Your VAIO Computer >
Using the Memory Stick

Formatting a Memory Stick

To format a Memory Stick

The Memory Stick has been formatted in the factory default setting and is ready for use.
If you want to reformat the media with your computer, follow these steps.

!

Be sure to use the device that is designed to format the media and supports the Memory Stick when formatting the media.

Formatting the Memory Stick erases the entire data on the media. Before formatting the media, make sure that it does not contain your valuable data.

Do not remove the Memory Stick from the slot while formatting. This could cause a malfunction.

1 Carefully slide the Memory Stick into the slot until it clicks into place.

2 Click Start and Computer to open the Computer window.

3 Right-click the Memory Stick icon and select Format.

4 Click Restore device defaults.

!

The size of the allocation unit and file system may change.

Do not select NTFS from the File system drop-down list as it may cause a malfunction.

48

nN

✍

The formatting process will be completed more quickly if you select Quick Format in Format options.

5 Click Start.

6 Follow the on-screen instructions.

!

It may take time to format the Memory Stick depending on the media type.

Using Your VAIO Computer >
Using the Memory Stick

49

nN

Notes on Using the Memory Stick

❑ Your computer has been tested and found compatible with Sony branded Memory Stick with capacity of up to 16 GB that

are available as of January 2009. However, not all the Memory Stick that meet the same specifications as the compatible
media are guaranteed of compatibility.

❑ Inserting a Memory Stick with multiple conversion adaptors is not guaranteed of compatibility.

❑ MagicGate is the general name of the copyright protection technology developed by Sony. Use a Memory Stick with the

MagicGate logo to use this feature.

❑ Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior

consent from the respective copyright holders. Accordingly, the Memory Stick with such copyrighted data can be used
only within the law.

❑ The Memory Stick slot on your computer does not support 8-bit parallel data transfer (high-speed data transfer).

❑ Do not insert more than one Memory Stick into the slot. Improper insertion of the media may damage both your computer

and the media.

Using Your VAIO Computer >
Using Other Modules / Memory Cards

nN

Using Other Modules / Memory Cards

Using the ExpressCard Module

Your computer is equipped with an ExpressCard/34 slot* for transferring data among digital cameras, camcorders, music
players, and other audio/video devices. This slot can only accommodate an ExpressCard/34

* Referred to as the ExpressCard slot and the ExpressCard module in this manual.

(34 mm wide) module*.

50

Using Your VAIO Computer >
Using Other Modules / Memory Cards

To insert an ExpressCard module

!

Your computer is supplied with a slot protector in the ExpressCard slot. Remove the slot protector before you use the slot.

1 Locate the ExpressCard slot.

2 Push the ExpressCard slot protector so that the protector pops out.

3 Gently take hold of the ExpressCard slot protector and pull it out of the slot.

4 Hold the ExpressCard module with the arrow facing upward and pointing toward the slot.

5 Carefully slide the ExpressCard module into the slot until it clicks into place.

Do not force it into the slot.

✍

If the module does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

51

nN

Make sure you use the most recent driver software provided by the ExpressCard module manufacturer.

Using Your VAIO Computer >
Using Other Modules / Memory Cards

To remove an ExpressCard module

!

Insert the ExpressCard slot protector to block any particles from entering the slot when not using an ExpressCard module. Before moving your
computer, be sure to insert the ExpressCard slot protector into the slot.

✍

To remove the ExpressCard module when your computer is off, skip steps 1 to 4.

1 Double-click the Safely Remove Hardware icon on the taskbar.

2 Select the hardware you want to unplug.

3 Click Stop.

4 Follow the on-screen instructions to remove the ExpressCard module.

5 Push in the ExpressCard module toward the computer so that the module pops out.

6 Gently take hold of the ExpressCard module and pull it out of the slot.

52

nN

Using Your VAIO Computer >
Using Other Modules / Memory Cards

53

nN

Using the SD Memory Card

Your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras,
camcorders, music players, and other audio/video devices.

Before you use the SD memory card

The SD memory card slot on your computer supports the following memory cards:

❑ SD memory card

❑ SDHC memory card

❑ MultiMediaCard (MMC)

For the latest information on compatible memory cards, see Finding More about Your VAIO Computer (page 5) to visit the
appropriate support web site.

Using Your VAIO Computer >
Using Other Modules / Memory Cards

To insert an SD memory card

1 Locate the SD memory card slot.

2 Hold the SD memory card with the arrow facing upward and pointing toward the slot.

3 Carefully slide the SD memory card into the slot until it clicks into place.

Do not force the card into the slot.

✍

If the SD memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

54

nN

Using Your VAIO Computer >
Using Other Modules / Memory Cards

To remove an SD memory card

1 Check that the Media Access indicator light is unlit.

2 Push in the SD memory card toward the computer and release.

The SD memory card ejects.

3 Pull the SD memory card out of the slot.

55

nN

Using Your VAIO Computer >
Using Other Modules / Memory Cards

56

nN

Notes on Using Memory Cards

General notes on using the memory card

❑ Be sure to use memory cards that are compliant with the standards supported by your computer.

❑ Be sure to hold the memory card with the arrow pointing in the correct direction as you insert it into the slot. To avoid

damaging your computer or the media, do not force the memory card into the slot if you cannot insert it smoothly.

❑ Use care when inserting or removing the memory card from the slot. Do not force it in or out of the slot.

❑ Do not remove the memory card while the media access indicator light is lit. If you do, you may lose data.

❑ Do not attempt to insert an memory card or memory card adaptor of a different type into the memory card slot. An

incompatible memory card or memory card adaptor may cause difficulty in removing from the slot and can cause damage
to your computer.

Notes on using the SD memory card

❑ Your computer has been tested and found compatible only with major memory cards available as of January 2009.

However, not all memory cards that meet the same specifications as the compatible media are guaranteed of
compatibility.

❑ SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 32 GB have been tested

and found compatible with your computer.

❑ The SD memory card slot on your computer does not support the high-speed data transfer feature of the SD memory

card and the SDHC memory card.

Using Your VAIO Computer >
Using the Internet

57

nN

Using the Internet

Before using the Internet, you need to sign up with an Internet Service Provider (ISP) and set up devices required for
connecting your computer to the Internet.

The following types of Internet connection services may be available from your ISP:

❑ Fiber to the Home (FTTH)

❑ Digital Subscriber Line (DSL)

❑ Cable modem

❑ Satellite

❑ Dial-up

For detailed information on devices required for the Internet and how to connect your computer to the Internet, ask your ISP.

✍

To connect your computer to the Internet using the wireless LAN function, you need to set up the wireless LAN network. See Using the Wireless LAN

(page 60) for more information.

!

When you connect your computer to the Internet, be sure to take appropriate security measures to protect the computer against online threats.

If your computer is not equipped with a built-in modem, you may need to connect an external modem device, for example a USB telephone modem, a
DSL modem, or a cable modem, to your computer. For the detailed instructions on connection setups and modem configuration, see the manual that

came with your modem.

Using Your VAIO Computer >
Using the Internet

To connect a telephone cable

!

The following procedure applies to models with a built-in modem only.

1 Plug one end of the phone cable (1) into the modem port on the computer.

2 Plug the other end into the wall jack (2).

!

Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a
private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the built-in modem.

If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.

To set up a dial-up connection to the Internet

!

The following procedure applies to models with a built-in modem only.

1 Click Start and Control Panel.

2 Click Connect to the Internet under Network and Internet.

The Connect to the Internet window appears.

3 Click Dial-up.

4 Follow the on-screen instructions.

58

nN

Using Your VAIO Computer >
Using the Network (LAN)

59

nN

Using the Network (LAN)

You can connect your computer to 100BASE-TX/10BASE-T type networks with an Ethernet network cable. Connect one end
of a network cable (not supplied) to the network (Ethernet) port on the computer and the other end to your network. For
detailed settings and devices needed to connect to the network, ask your network administrator.

✍

Your computer can be connected to the network with the default settings.

!

Do not plug a telephone cable into the network (Ethernet) port on your computer.
If the network (Ethernet) port is connected to one of the telephone lines mentioned below, high electric current to the port may cause damage,
overheating, or fire.

- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)

- Public telephone subscriber line

- Private branch exchange (PBX)

Using Your VAIO Computer >
Using the Wireless LAN

60

nN

Using the Wireless LAN

Using the Wireless LAN (WLAN), all your digital devices with the built-in WLAN function communicate freely with each other
through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless (radio)
connection.

The WLAN supports all normal Ethernet connectivity, but with the added benefits of mobility and roaming. You can still access
information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to
another.

You can communicate without an access point, which means that you can communicate with a limited number of computers
(ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure network.

✍

In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the
WLAN function, read the Safety Regulations carefully.

*

WLAN uses the IEEE 802.11a
the encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access

(WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based on interoperable security
enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA is designed to be forward compatible with
the IEEE 802.11i specification. It utilizes the enhanced data encryption Temporal Key Integrity Protocol (TKIP) in addition to user authentication using

802.1X and Extensible Authentication Protocol (EAP). Data encryption protects the vulnerable wireless link between clients and access points. Besides
that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption, virtual private networks,
and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and is also designed to secure
all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n draft standard, multi-band and multi-mode. In addition, based on
the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of Standards and Technology
(NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible with WPA.

* See the specifications to find out about the configuration of your computer.

/b/g standard or the IEEE 802.11n* draft standard, which specifies the type of technology used. The standard includes

Using Your VAIO Computer >
Using the Wireless LAN

The IEEE 802.11b/g standard is a wireless LAN standard, using the 2.4 GHz band. The IEEE 802.11g standard provides higher-speed communications
than the IEEE 802.11b standard.

The IEEE 802.11a standard is a wireless LAN standard, using the 5 GHz band.

The IEEE 802.11n draft standard is a wireless LAN standard, using the 2.4 GHz or 5 GHz band.

Wireless LAN devices using the 2.4 GHz band cannot communicate with devices using the 5 GHz band because the frequencies are different.

The 2.4 GHz band used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference from
other devices that use the same band are employed on wireless LAN compatible devices, such interference may cause lower communication speed,

narrower communication range, or broken wireless connections.

The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device
configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.

The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the
radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.

Actual communication speed may not be as fast as the one displayed on your computer.

Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference.
Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with

IEEE 802.11b products. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase
the communication speed.

61

nN

Using Your VAIO Computer >
Using the Wireless LAN

62

nN

Communicating without an Access Point (Ad-hoc)

An ad-hoc network is a network in which a LAN is created only by wireless devices themselves, with no other central controller
or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc network
easily at home.

Using Your VAIO Computer >
Using the Wireless LAN

To communicate without an access point (ad-hoc)

!

The IEEE 802.11a standard, using the 5 GHz band, and the IEEE 802.11n draft standard, using the 2.4 GHz or 5 GHz band, are not available on ad-hoc
networks.

1 Turn on the WIRELESS switch.

2 Click the button next to or above your desired wireless option(s) in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

3 Click Start and Control Panel.

4 Click View network status and tasks under Network and Internet.

5 Click Set up a connection or network in the left pane.

The Set up a connection or network window appears.

6 Select an option to specify the ad-hoc network settings and click Next.

7 Follow the on-screen instructions.

63

nN

Using Your VAIO Computer >
Using the Wireless LAN

64

nN

Communicating with an Access Point (Infrastructure)

An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access
point (not supplied). The access point bridges the wireless and wired LAN and acts as a central controller for the wireless
LAN network. The access point coordinates transmission and reception from multiple wireless devices within a specific range.

The access point will select which channel to use on an infrastructure network.

!

For details on how to select the channel that will be used by the access point, see the manual that came with your access point.

Using Your VAIO Computer >
Using the Wireless LAN

To connect to a wireless network

1 Make sure an access point is set up.

See the manual that came with your access point for more information.

2 Turn on the WIRELESS switch.

3 Click the button next to or above your desired wireless option(s) in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

!

Wireless LAN communication (IEEE 802.11a standard) using only the 5 GHz band, available on selected models only, is disabled by default. To enable
5 GHz band communication, you need to select the option to use the 5 GHz band or both the 2.4 GHz and 5 GHz bands on the WLAN tab in the VAIO
Smart Network settings window.

4 Right-click or on the taskbar and select Connect to a network.

5 Select the desired access point and click Connect.

✍

For WPA-PSK or WPA2-PSK authentication, you must enter a passphrase. The passphrase is case sensitive and must be a text string between 8 and
63 characters in length or a hexadecimal string of 64 characters.

65

nN

Using Your VAIO Computer >
Using the Wireless LAN

Stopping Wireless LAN Communications

To stop wireless LAN communications

Click the button next to or above the WLAN icon in the VAIO Smart Network window.

!

Turning off the wireless LAN function while accessing remote documents, files, or resources may result in data loss.

66

nN

Using Your VAIO Computer >
Using the Bluetooth Function

67

nN

Using the Bluetooth Function

You can establish wireless communications between your computer and other Bluetooth® devices such as another computer
or a mobile phone. You can transfer data between these devices without cables at a range of up to 10 meters in an open area.

Notes on using the Bluetooth function

❑ The data transfer rate varies, depending on the following conditions:

❑ Obstacles, such as walls, located between devices

❑ Distance between devices

❑ Material used in walls

❑ Proximity to microwaves and cordless telephones

❑ Radio frequency interference and other environmental conditions

❑ Device configuration

❑ Type of software application

❑ Type of operating system

❑ Use of both wireless LAN and Bluetooth functions at the same time on your computer

❑ Size of file being exchanged

❑ Large files may occasionally be corrupted during continuous transfer due to limitations of the Bluetooth standard and

electromagnetic interference in the environment.

❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if

standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may
not be possible in all situations.

Using Your VAIO Computer >
Using the Bluetooth Function

68

nN

❑ Video and audio may not be synchronized if you play videos on your computer with audio output from a connected

Bluetooth device. This is a frequent occurrence with Bluetooth technology and is not a malfunction.

❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth

devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous
use of the Bluetooth function and wireless communication devices, however, may cause radio interference and result in
reduced communication speeds and distances than the standard values.

❑ The Bluetooth function may not work with other devices, depending on the manufacturer or the software version employed

by the manufacturer.

❑ Connecting multiple Bluetooth devices to your computer may cause channel congestion, resulting in poor performance

of the devices. This is normal with Bluetooth technology and is not a malfunction.

Using Your VAIO Computer >
Using the Bluetooth Function

69

nN

Bluetooth Security

The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to
communicate. With the authentication function, you can prevent any anonymous Bluetooth devices from accessing your
computer.

The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be
determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.

✍

The passkey can be different each time, but must be the same at both ends.

For certain devices, such as a mouse, no passkey can be entered.

Using Your VAIO Computer >
Using the Bluetooth Function

nN

Communicating with Another Bluetooth Device

You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a
mouse, or a digital camera without the use of any cables.

70

To communicate with another Bluetooth device

To communicate with another Bluetooth device, you first need to set up the Bluetooth function. For setting up and using the
Bluetooth function, search for Bluetooth information using Windows Help and Support.

1 Turn on the WIRELESS switch.

2 Click the button next to or above the Bluetooth icon in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

Using Your VAIO Computer >
Using the Bluetooth Function

Stopping Bluetooth Communications

To stop Bluetooth communications

1 Turn off the Bluetooth device that is communicating with your computer.

2 Click the button next to or above the Bluetooth icon in the VAIO Smart Network window.

71

nN

Using Your VAIO Computer >
Using Fingerprint Authentication

Using Fingerprint Authentication

Your computer may be equipped with a fingerprint sensor to provide you with additional convenience.

Features and options in this section may not be available on your computer.
See the specifications to find out about the configuration of your computer.

Once you have registered your fingerprint(s), the fingerprint authentication function offers:

❑ A substitute for password entry

❑ Logging onto Windows (page 76)

If you have registered your fingerprints for your user account, you can substitute fingerprint authentication for
password entry when logging onto Windows.

❑ Power-on Security feature (page 76)

If you have set the power-on password (page 94), you can substitute fingerprint authentication for password entry
when starting your computer.

❑ Password Bank for quick web site access (page 77)

You can substitute fingerprint authentication for entering information (user accounts, passwords, etc.) required to access
the password-protected web sites.

❑ File Safe feature to encrypt/decrypt data (page 77)

With the File Safe feature, you can encrypt files and folder to create an encrypted archive. To decrypt or access such
encrypted archives, you can use the fingerprint authentication or enter the password you specified for encryption.

❑ Application launcher function for quick application access (page 77)

Once you have assigned an application to your finger, you can then swipe the finger across the fingerprint sensor to
launch the assigned application.

72

nN

Using Your VAIO Computer >
Using Fingerprint Authentication

Registering a Fingerprint

To use the fingerprint authentication function, you must register your fingerprint(s) in your computer.

✍

Set the Windows password on your computer before registration. See Adding the Windows Password (page 99) for the detailed instructions.

To register a fingerprint

✍

Up to 10 fingerprints can be registered for each user and up to 21 fingerprints can be registered for logging onto your system using the Power-on
Security feature. You can also select the fingerprint you want to use for the Power-on Security feature later.

1 Click Start, All Programs, Protector Suite QL, and Control Center.

2 Click Fingerprints and Initialize.

3 Follow the on-screen instructions.

✍

For detailed information, see the help file.

73

nN

Using Your VAIO Computer >
Using Fingerprint Authentication

If you have failed to register a fingerprint, follow these steps to try again.

1 Place the top joint of your finger on the fingerprint sensor (1).

74

nN

Using Your VAIO Computer >
Using Fingerprint Authentication

2 Swipe your finger perpendicularly across the fingerprint sensor.

!

Place your fingertip flat in the center of the fingerprint sensor.

Scan your fingerprint from the top joint of the finger to the fingertip.

Keep your finger in contact with the fingerprint sensor while swiping.

Fingerprint registration may fail if you move your finger too fast or too slow. Let the fingerprint sensor take about one second to scan your fingerprint.

You may not be able to register and/or have your fingerprint(s) recognized if your finger is excessively dry or wet, wrinkled, injured, dirty, etc.

Register more than one fingerprint in case that the fingerprint sensor fails to recognize the fingerprint.

75

nN

Be sure to clean your fingertip(s) and the fingerprint sensor before swiping in order to keep good recognition performance.

Using Your VAIO Computer >
Using Fingerprint Authentication

76

nN

Logging Onto Your System

To use the fingerprint authentication function in place of password entry to log onto your system, you need to set the power­on and Windows passwords and configure your computer for fingerprint authentication.

For setting the power-on and Windows passwords, see Setting the Password (page 94).

For detailed information, see the help file included with the Protector Suite QL.

Logging onto Windows

If you have registered your fingerprints for your user account, you can substitute fingerprint authentication for Windows
password entry. To log onto Windows, swipe the registered finger across the fingerprint sensor when the Windows log-on
screen appears.

Power-on Security feature

If you have set the power-on password (page 94), you can substitute fingerprint authentication for password entry when
starting your computer.

Using Your VAIO Computer >
Using Fingerprint Authentication

77

nN

Using the Password Bank

Once you have registered your user information (user accounts, passwords, etc.) for web sites in the Password Bank, you
can substitute fingerprint authentication for entering information required to access the password-protected web sites.

For detailed information, see the help file included with the Protector Suite QL.

!

You may not be able to use the Password Bank feature depending on the web site you access.

Using the File Safe Feature

With the File Safe feature, you can create an encrypted archive to include a file and/or folder for protection against
unauthorized access. The encrypted archive can be decrypted or unlocked for included file/folder access by swiping your
finger across the fingerprint sensor or entering the backup password you specified for encryption.

For detailed information, see the help file included with the Protector Suite QL.

Using the Application Launcher

The application launcher feature is available on your computer for launching your preferred application (executable file) that
is assigned to one of your fingers with a registered fingerprint. Once you have assigned an application to your finger, you can
launch the assigned application simply by swiping the finger across the fingerprint sensor.

For detailed information, see the help file included with the Protector Suite QL.

Using Your VAIO Computer >
Using Fingerprint Authentication

78

nN

Erasing the Registered Fingerprints

Before disposing of your computer or transferring it to a third person, it is strongly recommended you erase the fingerprint
data registered on the fingerprint sensor after erasing the data stored on your built-in storage device.

To erase the registered fingerprints

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.

3 Press the < or , key to select Security to display the Security tab.

4 Press the

5 At the confirmation prompt, select Continue and press the Enter key.

The fingerprint data registered on the fingerprint sensor is erased automatically after your system restarts.

m key to select Clear Fingerprint Data and press the Enter key.

Using Peripheral Devices >

Using Peripheral Devices

You can add functionality to your VAIO computer by using the various ports on the computer.

❑ Connecting External Speakers or Headphones (page 80)

❑ Connecting an External Display (page 81)

❑ Selecting Display Modes (page 84)

❑ Using the Multiple Monitors Function (page 86)

❑ Connecting an External Microphone (page 88)

❑ Connecting a USB Device (page 89)

❑ Connecting an i.LINK Device (page 91)

79

nN

Using Peripheral Devices >
Connecting External Speakers or Headphones

Connecting External Speakers or Headphones

You can connect external sound output devices (not supplied), such as speakers or headphones, to your computer.

To connect external speakers

✍

Make sure your speakers are designed for computer use.

!

Turn down the volume of the speakers before you turn them on.

Connect external speakers (1) to the headphones jack (2) i with a speaker cable (3) (not supplied).

80

nN

Using Peripheral Devices >
Connecting an External Display

81

nN

Connecting an External Display

You can connect an external display (not supplied) to your computer. For example, you can use the computer with a computer
display or a projector.

Features and options in this section may not be available on your computer.

✍

Connect the power cord of your external display after connecting all other cables.

Connecting a Computer Display

You can connect a computer display (monitor) to your computer.

To connect a computer display

1 If necessary, plug one end of the display's power cord (1) into your display, and the other end into an AC outlet.
2 Plug the display cable (2) into the monitor port (3) a on the computer.

Using Peripheral Devices >
Connecting an External Display

Connecting a Multimedia Computer Display

You can connect a multimedia computer display that includes built-in speakers and a microphone to your computer.

To connect a multimedia computer display

1 Plug the power cord of your multimedia computer display (1) into an AC outlet.
2 Plug the display cable (2) into the monitor port (3) a on the computer.
3 Plug the speaker cable (4) into the headphones jack (5) i on the computer.
4 Plug the microphone cable (6) into the microphone jack (7) m on the computer.

82

nN

Using Peripheral Devices >
Connecting an External Display

Connecting a Projector

You can connect a projector (for example, the Sony LCD projector) to your computer.

To connect a projector

1 Connect the power cord (1) of your projector into an AC outlet.
2 Plug a display cable (2) into the monitor port (3) a on the computer.
3 Plug an audio cable (4) into the headphones jack (5) i on the computer.

4 Plug the display cable and the audio cable into the port and jack on the projector (6).

83

nN

Using Peripheral Devices >
Selecting Display Modes

84

nN

Selecting Display Modes

When an external display is connected, you can select either your computer screen or the connected display to use as the
primary monitor.

If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors
Function (page 86) for more information.

The procedure for selecting a display depends on the video controller used in the computer.
See the specifications to find out about the configuration of your computer.

Using Peripheral Devices >
Selecting Display Modes

To select a display

✍

You may not be able to display the same contents on your computer screen and the external display or projector at the same time, depending on the
type of your external display or projector.

Turn on the external display before turning on your computer.

❑ On models with the Intel Graphics Media Accelerator

1 Right-click on the desktop and select Personalize.

2 Click Display Settings.

3 Follow the on-screen instructions to change the settings.

❑ On models with the NVIDIA video controller

1 Click Start and Control Panel.

2 Click Additional Options.

3 Click NVIDIA Control Panel.

4 Select the display setup option under Display.

5 Follow the on-screen instructions to change the settings.

❑ On models with the ATI video controller

When the computer has an external display connected, you can change the Main/Clone setting as follows:

1 Click Start, All Programs, and Catalyst Control Center.

2 Click CCC.

3 Follow the on-screen instructions to change the settings.

See the help file for more information.

85

nN

Using Peripheral Devices >
Using the Multiple Monitors Function

86

nN

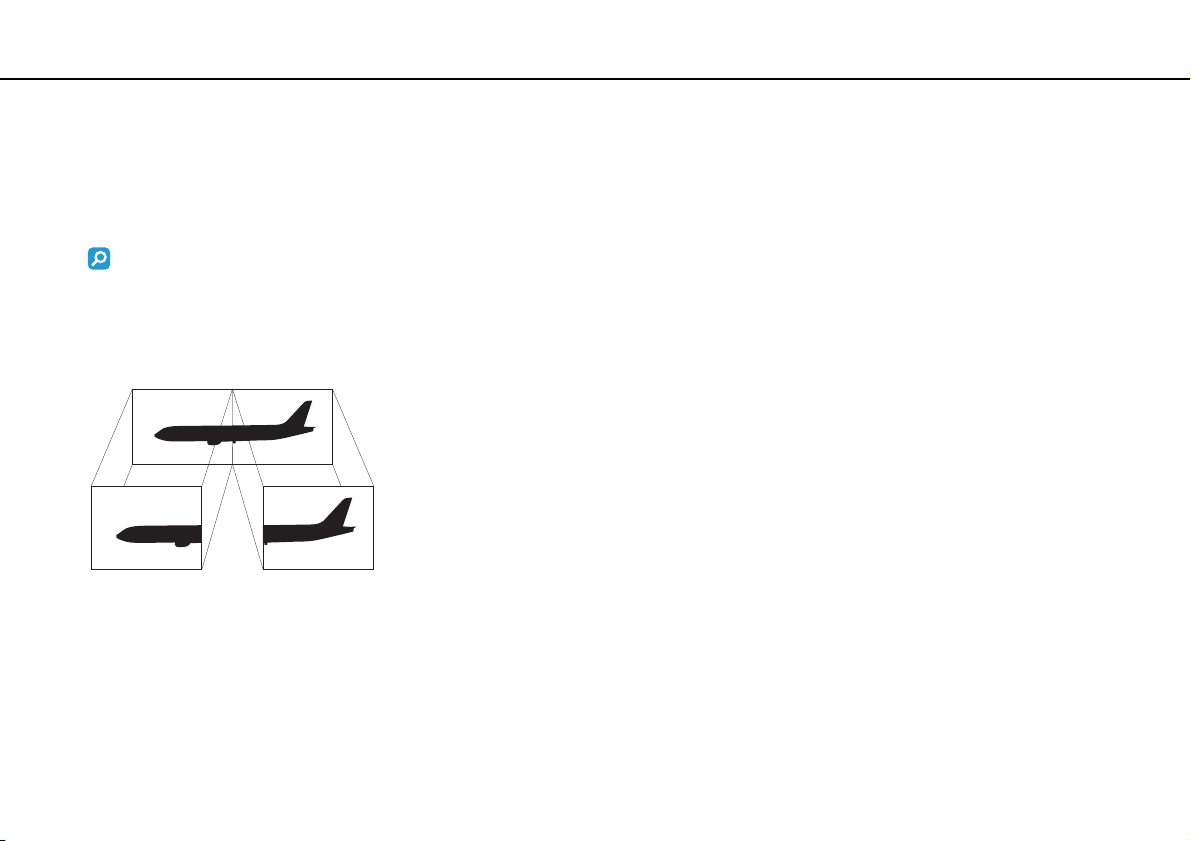

Using the Multiple Monitors Function

The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you
have an external display connected to the monitor port, your computer screen and the external display can function as a
single desktop.

The procedure for using the Multiple Monitors function depends on the video controller used in the computer.
See the specifications to find out about the configuration of your computer.

You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window
or a toolbar, from one display to the other.

Using Peripheral Devices >
Using the Multiple Monitors Function

To use the Multiple Monitors function

✍

Your external display may not support the Multiple Monitors function.

Certain software applications may not be compatible with Multiple Monitors settings.

Make sure that your computer does not enter Sleep or Hibernate mode while you are using the Multiple Monitors function. Otherwise, the computer
may not return to Normal mode.

If you set different colors on each display, do not expand a single window across two displays. Otherwise, your software may not work properly.

Set fewer colors or a lower resolution for each display.

❑ On models with the Intel Graphics Media Accelerator

1 Right-click on the desktop and select Personalize.

2 Click Display Settings.

3 Follow the on-screen instructions to change the settings.

❑ On models with the NVIDIA or ATI video controller

1 Click Start and Control Panel.

2 Click Adjust screen resolution under Appearance and Personalization.

3 Right-click the number 2 monitor and select Attached.

4 Click OK.

At the confirmation prompt, click Ye s.

87

nN

✍

Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors function.

Using Peripheral Devices >
Connecting an External Microphone

nN

Connecting an External Microphone

If you use a sound input device (for example, to chat over the Internet), you need to connect an external microphone (not
supplied).

To connect an external microphone

Plug the microphone cable (1) into the microphone jack (2) m.

✍

Make sure your microphone is designed for computer use.

88

Using Peripheral Devices >
Connecting a USB Device

89

nN

Connecting a USB Device

You can connect a Universal Serial Bus (USB) device to your computer, such as a mouse, floppy disk drive, speaker, and
printer.

To connect a USB device

1 Choose the USB port (1) you prefer to use.

2 Plug the USB device cable (2) into the USB port.

Using Peripheral Devices >
Connecting a USB Device

90

nN

Notes on connecting a USB device

❑ You may need to install the driver software supplied with your USB device before use. See the manual that came with the

USB device for more information.

❑ Be sure to use a USB printer compatible with your version of Windows to print documents.

❑ For information on how to remove a USB device, see the manual that came with the device.

❑ To protect your computer and/or USB devices from damage, observe the following:

❑ When moving the computer with USB devices connected, avoid exposing the USB ports to shock or impact.

❑ Do not put the computer into a bag or carrying case when it has USB devices connected.

❑ The optional USB floppy disk drive may not be available in some countries or regions.

Using Peripheral Devices >
Connecting an i.LINK Device

91

nN

Connecting an i.LINK Device

Your computer is equipped with an i.LINK port which you can use to connect an i.LINK device, such as a digital video
camcorder.

✍

i.LINK is a trademark of Sony Corporation used only to designate that a product contains an IEEE 1394 connection. The procedure to establish an i.LINK
connection may vary, depending on a software application, an operating system, and a compatible i.LINK device. Not all products with an i.LINK
connection can communicate with each other. See the manual that came with your compatible i.LINK device for more information on operating
conditions and proper connection. Before connecting compatible i.LINK PC peripherals to your system, such as a CD-RW or hard disk drive, confirm
their operating system compatibility and required operating conditions.

Notes on connecting i.LINK devices

❑ The i.LINK port on your computer does not supply power to an external device. If the external device requires external

power, be sure to connect it to a power source.

❑ The i.LINK port supports transfer rates up to 400 Mbps. However, the actual transfer rate depends on the transfer rate of

the external device.

❑ The optional i.LINK cables may not be available in some countries or regions.

❑ An i.LINK connection with other compatible devices is not fully guaranteed.

❑ The i.LINK connection may not be available depending on the software applications, operating system, and i.LINK-

compatible devices you use. See the manual that came with your software for more information.

❑ Check the working conditions and operating system compatibility of i.LINK-compatible PC peripherals (for example, an

HDD or a CD-RW drive) before you connect them to your computer.

Using Peripheral Devices >
Connecting an i.LINK Device

92

nN

Connecting a Digital Video Camcorder

To connect a digital video camcorder

Plug one end of an i.LINK cable (1) (not supplied) into the i.LINK port (2) on the computer and the other end into the DV In/
Out port (3) on the digital video camcorder.

✍

The connection procedure varies depending on your compatible i.LINK device. See the manual that came with the device for more information.

You cannot access the pictures stored on a Memory Stick when using an i.LINK connection.

Switch the video format between NTSC and PAL with the software that you use.

Customizing Your VAIO Computer >

93

nN

Customizing Your VAIO Computer

This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn
how to use and customize the look of your Sony software and utilities.

❑ Setting the Password (page 94)

❑ Using the VAIO Control Center (page 101)

❑ Using the Power Saving Modes (page 102)

❑ Using the VAIO Power Management (page 107)

❑ Configuring Your Modem (page 109)

Customizing Your VAIO Computer >
Setting the Password

94

nN

Setting the Password

Use one of the BIOS functions to set the password.

Once you have set the password, you will be prompted to enter the password after the VAIO logo appears to start your
computer. The power-on password allows you to protect your computer from unauthorized access.

Adding the Power-on Password

The power-on password is provided to protect your computer from unauthorized access.

There are two types of the power-on passwords: the machine password and the user password. The machine password is
provided for users with administrative rights on the computer to change all the setup options in the BIOS setup screen, as
well as to start the computer. The user password is provided for the standard users to allow for changing some of the BIOS
setup options, as well as starting the computer. To set the user password, you must first set the machine password.

!

Once you have set the power-on password, you cannot start your computer without entering the password. Be sure not to forget the password. Write
down your password and keep it safe and private from other people.

If you forget the power-on password and need assistance to reset it, a password reset fee will be charged, and your computer may need to be sent in
for service to reset the password.

✍

If your computer is equipped with a fingerprint sensor and you have set the power-on password in conjunction with the fingerprint authentication
function, you can substitute fingerprint authentication for password entry when turning on your computer. For more information, see Using Fingerprint

Authentication (page 72).

Customizing Your VAIO Computer >
Setting the Password

95

nN

To add the power-on password (machine password)

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.

3 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the

Enter key.

4 On the password entry screen, enter the password twice and press the Enter key.

The password can be up to 32 alphanumeric characters (including spaces) long.

5 Select Password when Power On under Security and press the Enter key.

6 Change the setting from Disabled to Enabled.
7 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer >
Setting the Password

96

nN

To add the power-on password (user password)

!

Make sure you set the machine password before setting the user password.

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.

3 Enter the machine password and press the Enter key.
4 Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the

Enter key.

5 On the password entry screen, enter the password twice and press the Enter key.

The password can be up to 32 alphanumeric characters (including spaces) long.

6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer >
Setting the Password

97

nN

Changing/Removing the Power-on Password

To change or remove the power-on password (machine password)

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.

3 Enter the machine password and press the Enter key.
4 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the

Enter key.

5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.

To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.

6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer >
Setting the Password

98

nN

To change or remove the power-on password (user password)

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.

3 Enter the user password and press the Enter key.
4 Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the

Enter key.

5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.

To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.

6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer >
Setting the Password

99

nN

Adding the Windows Password

The Windows password comes in handy when you have to share a single computer with other people. By setting the Windows
password, you can protect your user account from unauthorized access.

Entry of the Windows password will be prompted after you select your user account.

!

Be sure not to forget the password. Write down your password and keep it safe and private from other people.

✍

If your computer is equipped with a fingerprint sensor and you have set the Windows password in conjunction with the fingerprint authentication
function, you can substitute fingerprint authentication for password entry when turning on your computer. For more information, see Using Fingerprint

Authentication (page 72).

To add the Windows password

1 Click Start and Control Panel.

2 Click User Accounts and Family Safety or User Accounts.

3 Click User Accounts.

4 Click Create a password for your account under Make changes to your account.

5 In the New password and Confirm new password fields, enter the password for your account.

6 Click Create password.

✍

See Windows Help and Support for more information on the Windows password.

Customizing Your VAIO Computer >
Setting the Password

Changing/Removing the Windows Password

To change the Windows password

1 Click Start and Control Panel.

2 Click User Accounts and Family Safety or User Accounts.

3 Click User Accounts.

4 Click Change your password.

5 In the Current password field, enter your current password.

6 In the New password and Confirm new password fields, enter a new password.

7 Click Change password.

To remove the Windows password

1 Click Start and Control Panel.

2 Click User Accounts and Family Safety or User Accounts.

3 Click User Accounts.

4 Click Remove your password.

5 In the Current password field, enter the current password that you want to remove.

6 Click Remove password.

100

nN
