Sony VGN-CS User Manual

User Guide

Personal Computer

VGN-CS series

Contents

Before Use .........................................................................................................................................................................6

Notice ...........................................................................................................................................................................7

NERGY STAR ...............................................................................................................................................................8

Documentation .............................................................................................................................................................9

Ergonomic Considerations.........................................................................................................................................12

Getting Started .................................................................................................................................................................14

Locating Controls and Ports.......................................................................................................................................15

About the Indicator Lights ..........................................................................................................................................21

Connecting a Power Source ......................................................................................................................................22

Using the Battery Pack ..............................................................................................................................................23

Shutting Down Your Computer Safely .......................................................................................................................30

Using Your VAIO Computer .............................................................................................................................................31

Using the Keyboard ...................................................................................................................................................32

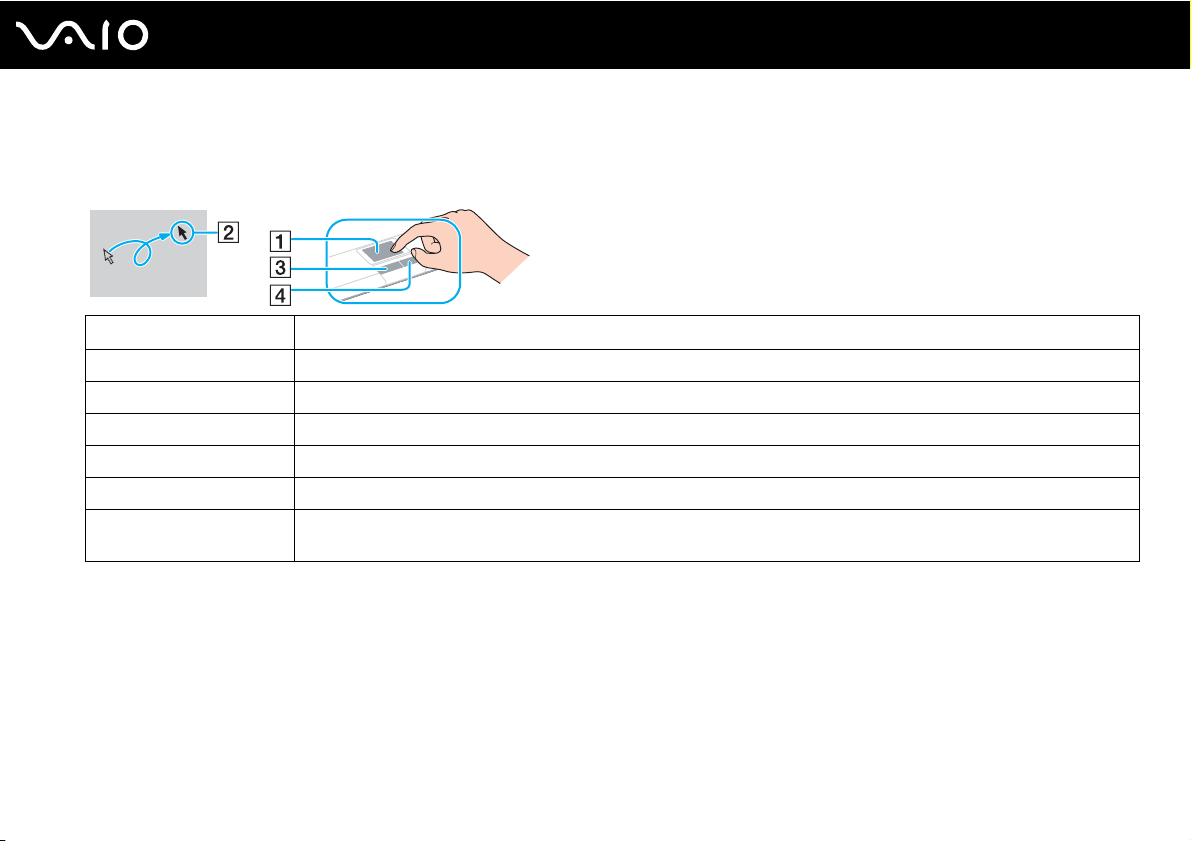

Using the Touch Pad .................................................................................................................................................33

Using the Special-function Button ..............................................................................................................................34

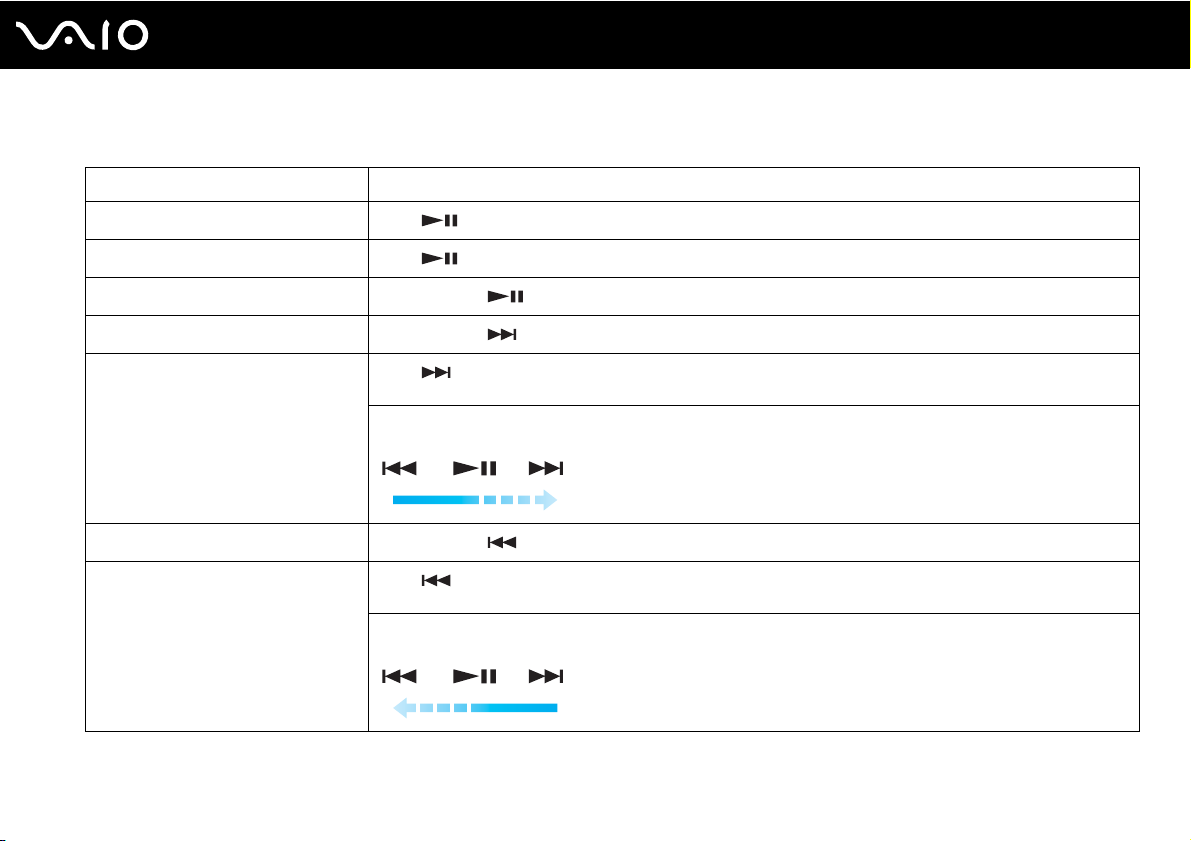

Using the Touch Sensor Buttons ...............................................................................................................................35

Using the Built-in MOTION EYE Camera...................................................................................................................39

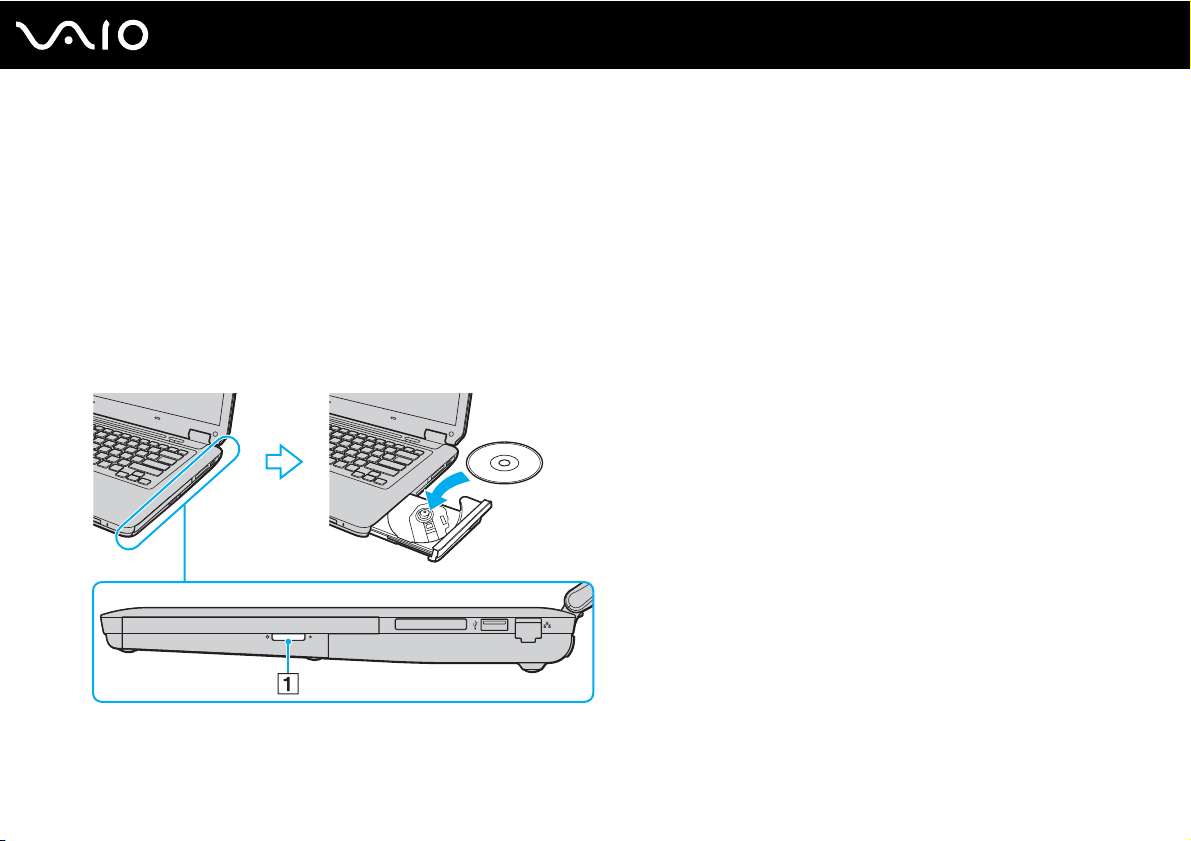

Using the Optical Disc Drive ......................................................................................................................................42

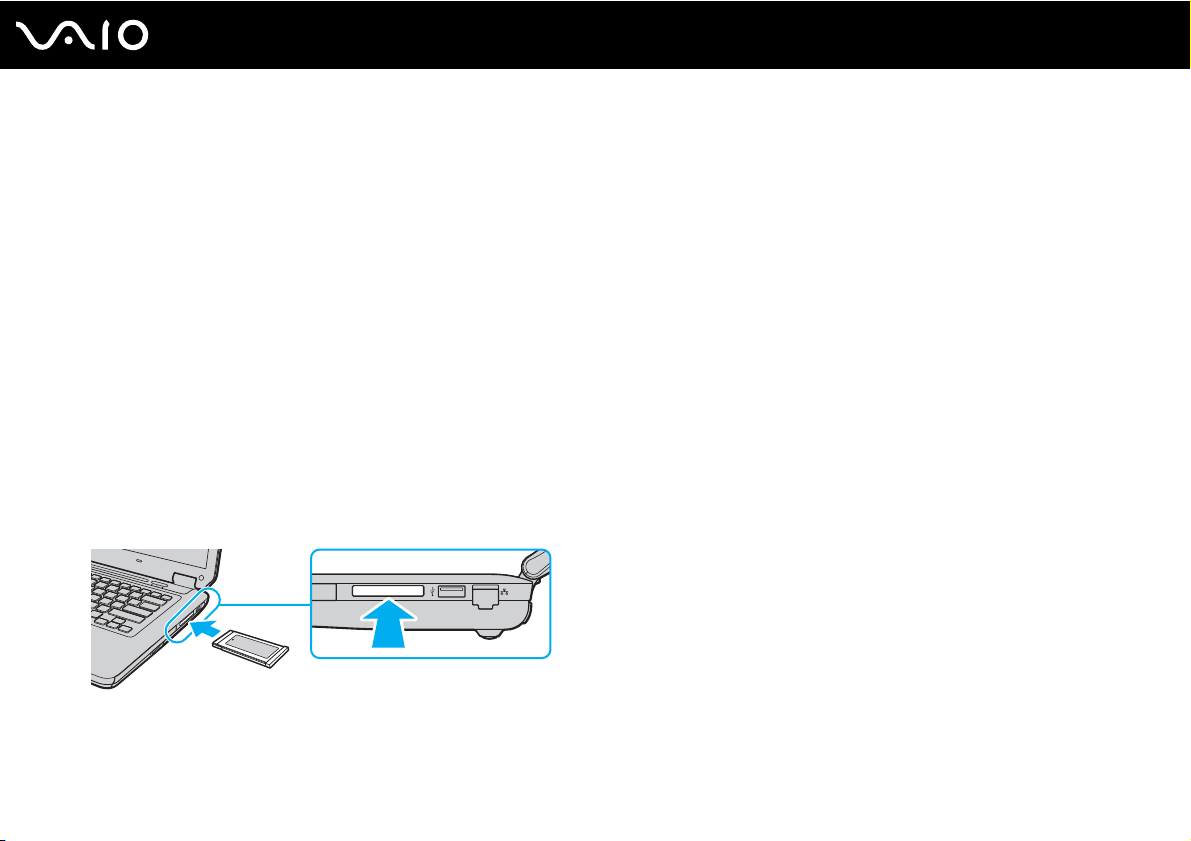

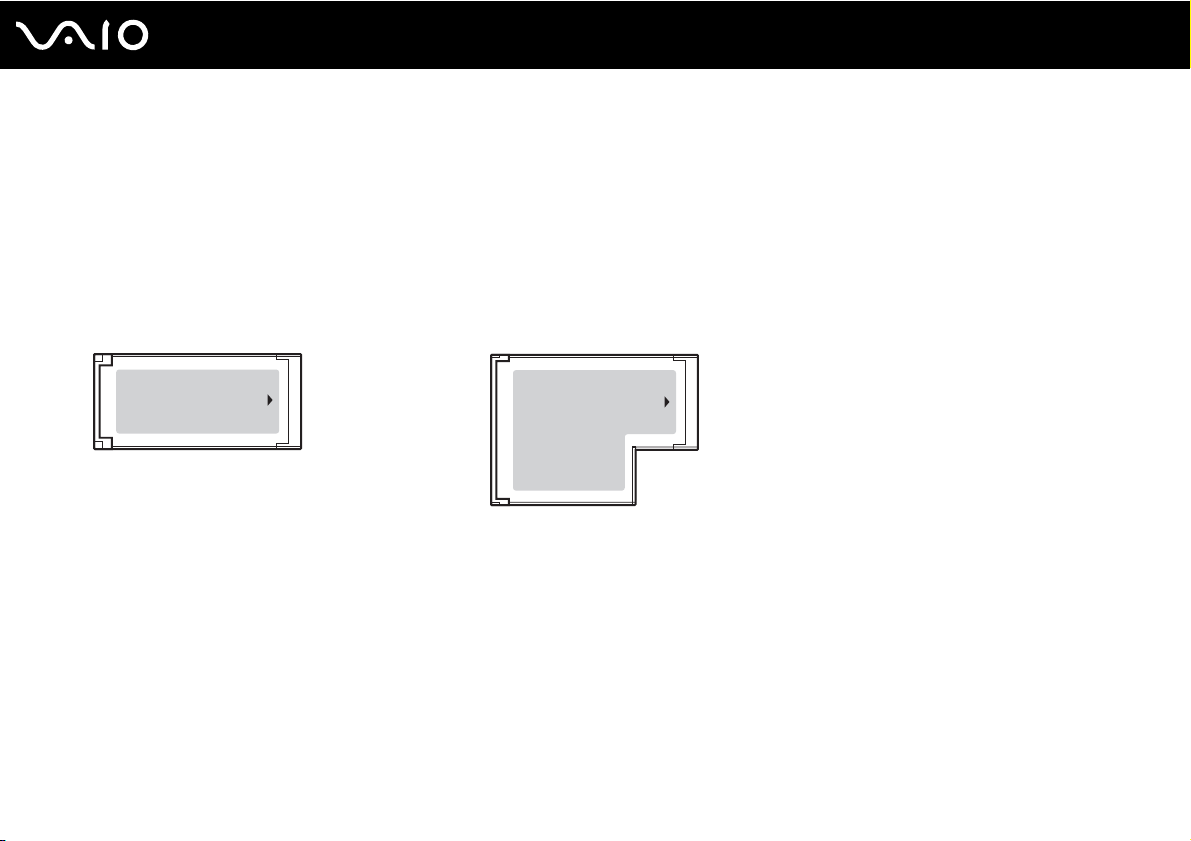

Using the ExpressCard Module .................................................................................................................................51

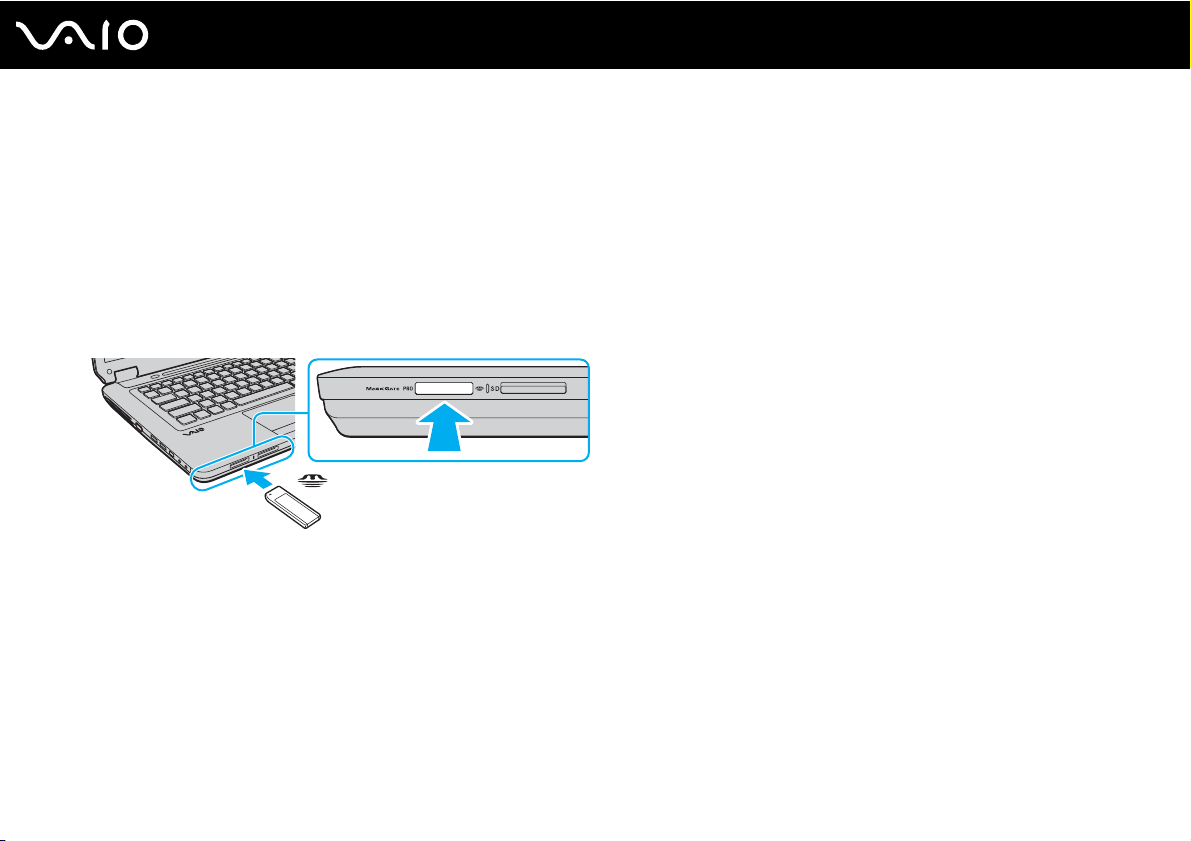

Using the Memory Stick .............................................................................................................................................55

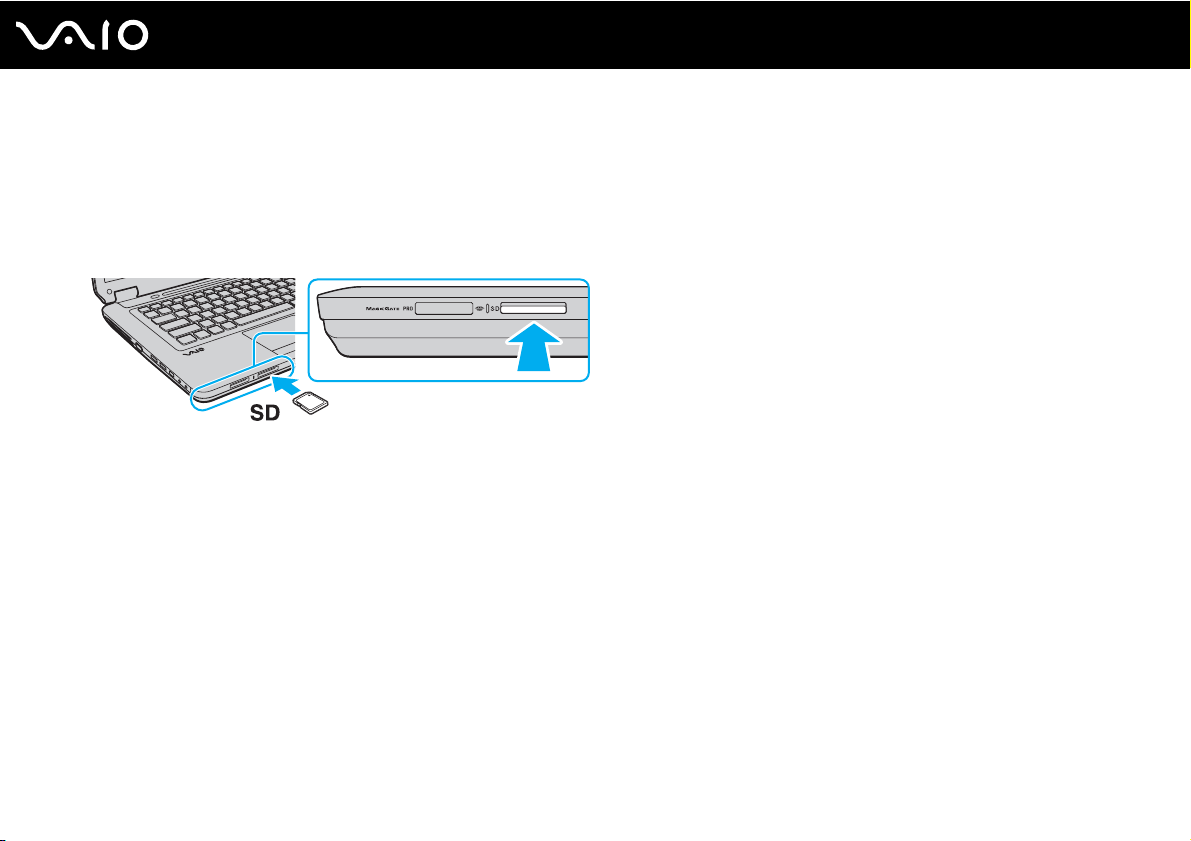

Using the SD Memory Card .......................................................................................................................................60

Using the Internet.......................................................................................................................................................63

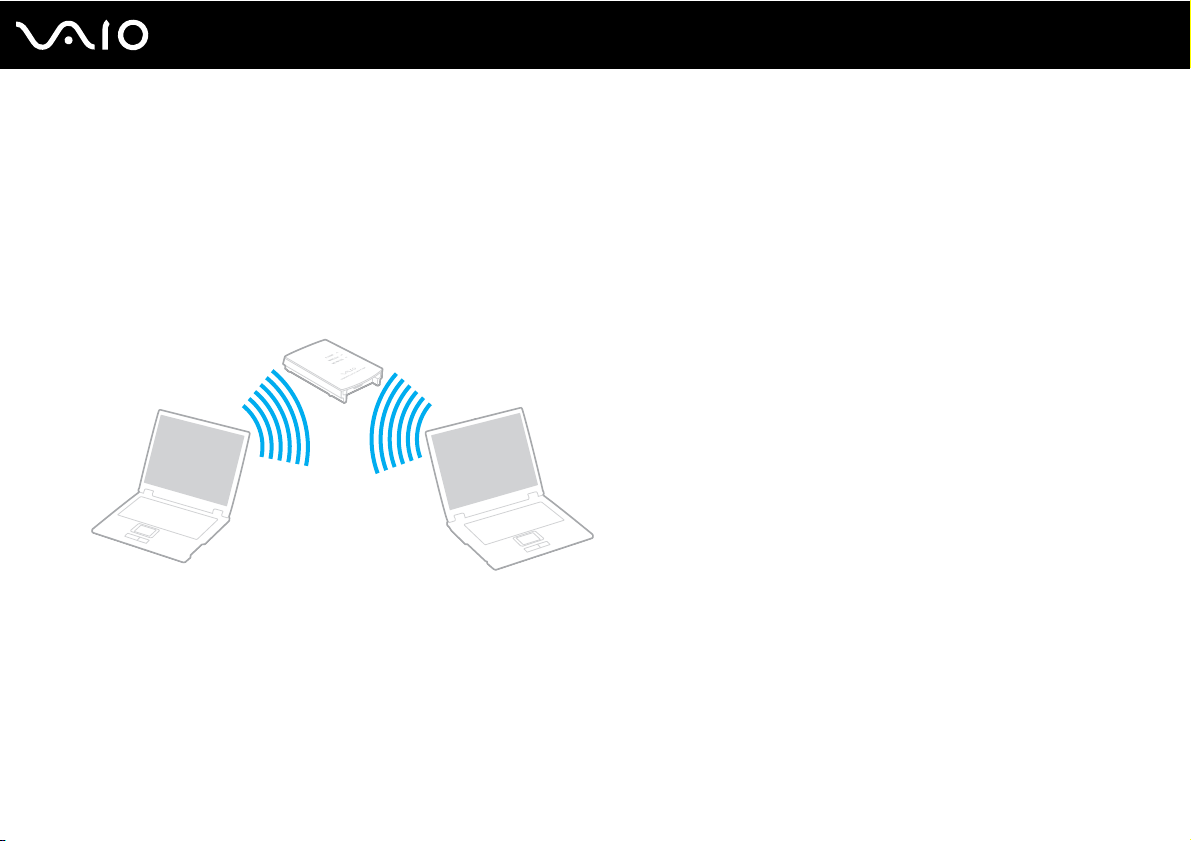

Using Wireless LAN (WLAN) .....................................................................................................................................64

Using the Bluetooth Function.....................................................................................................................................71

Using Peripheral Devices .................................................................................................................................................77

Connecting External Speakers ..................................................................................................................................78

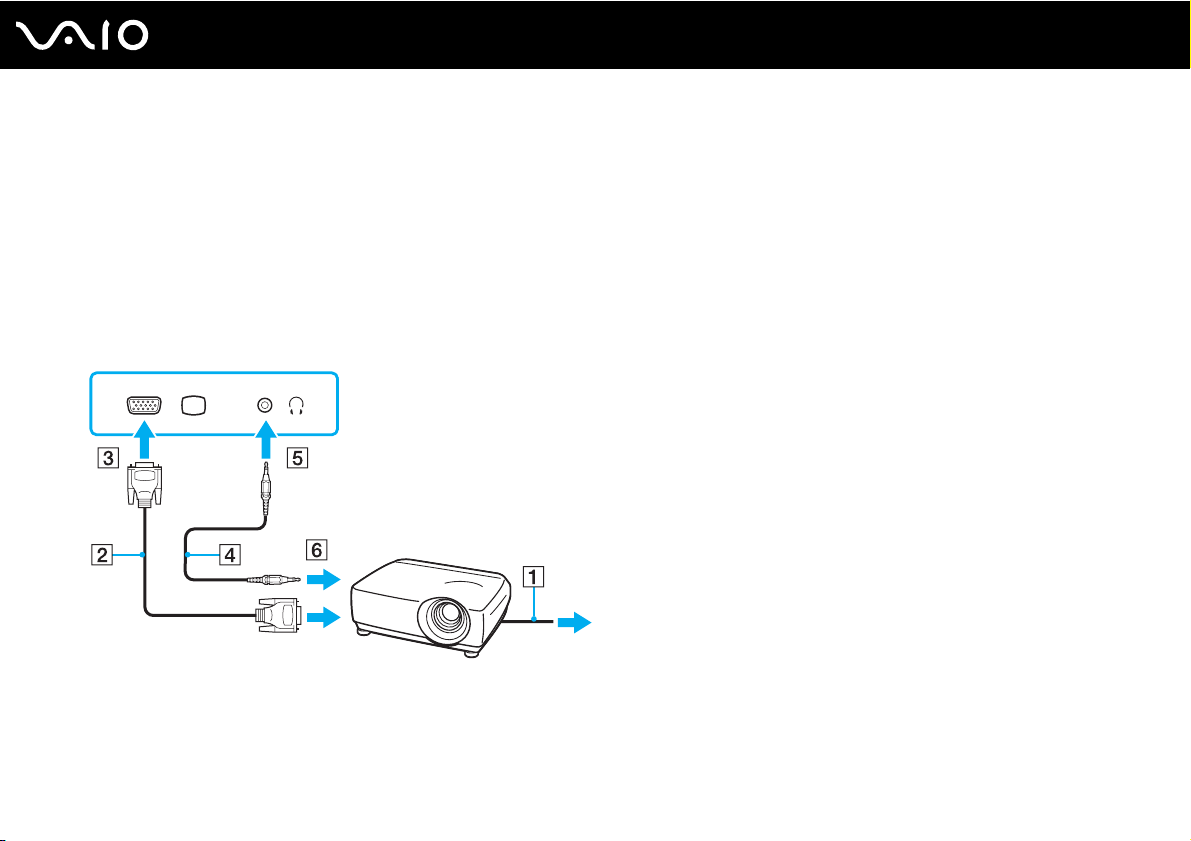

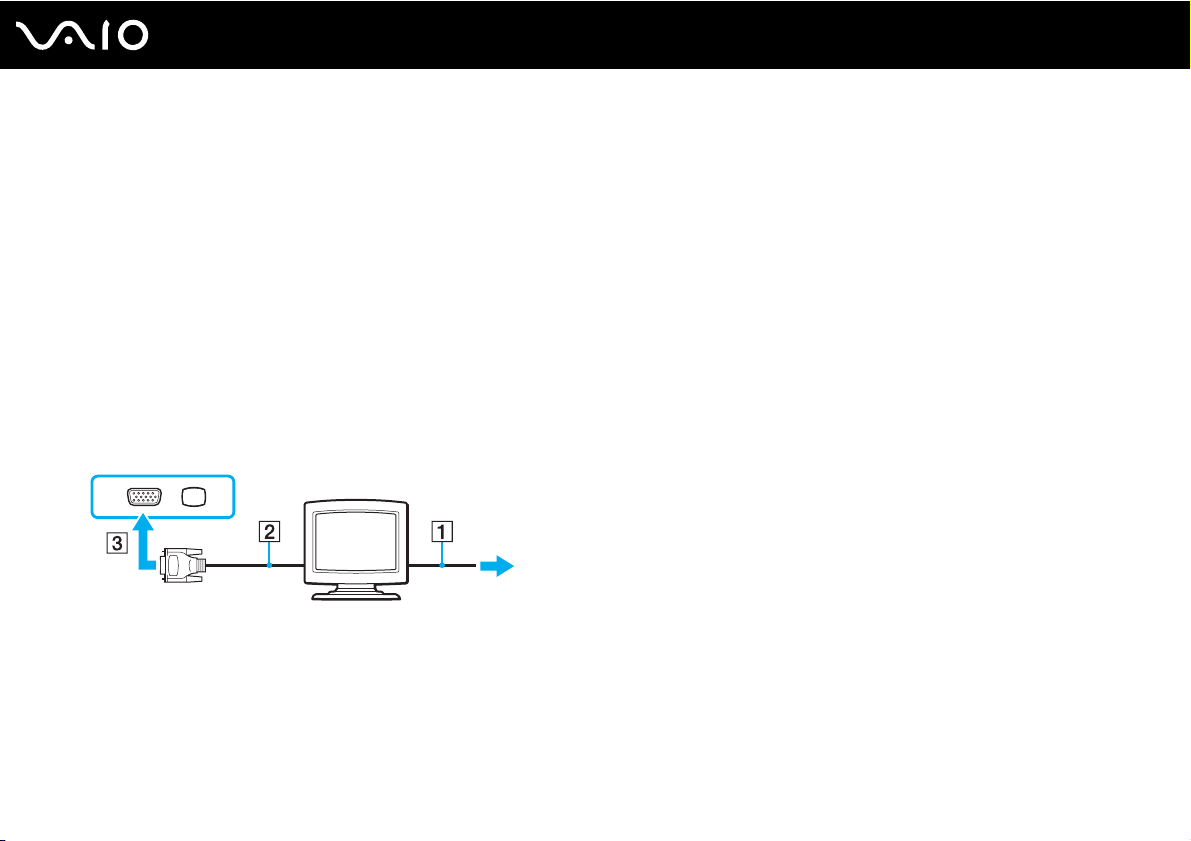

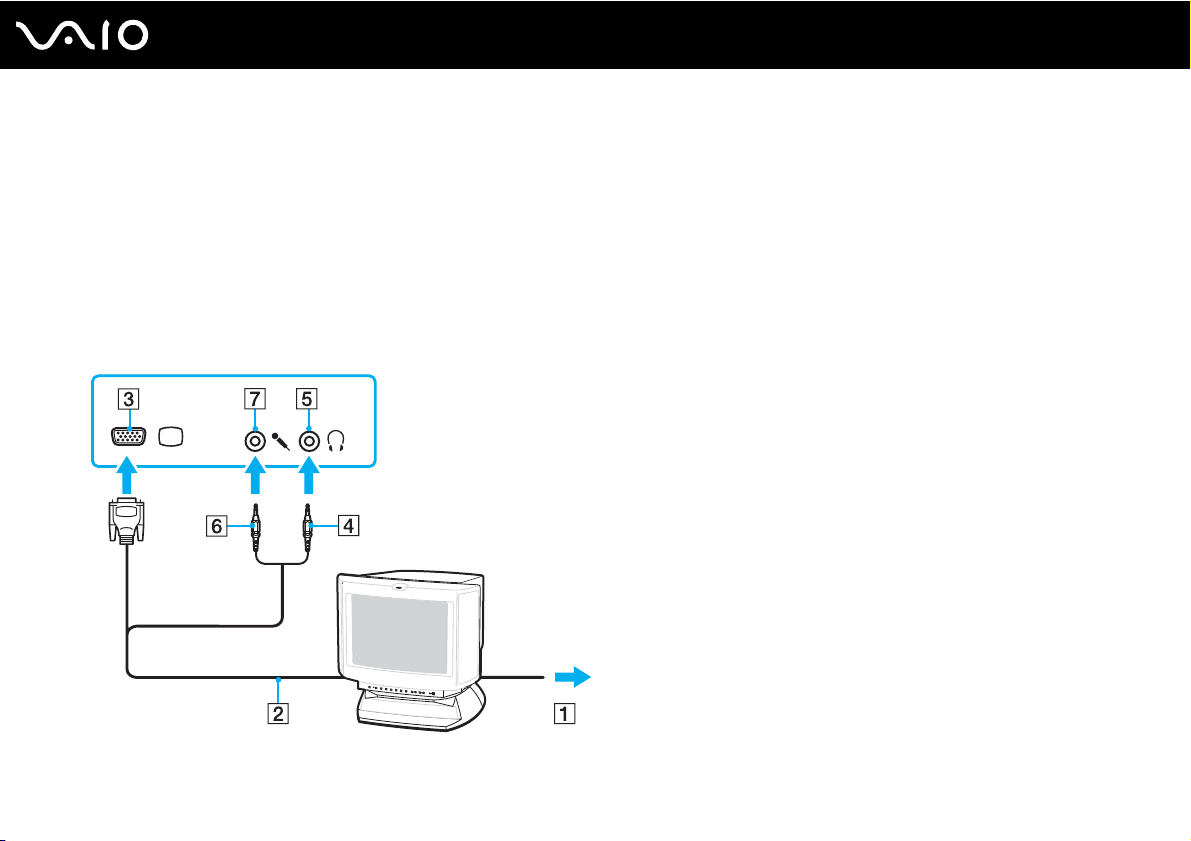

Connecting an External Display .................................................................................................................................79

Selecting Display Modes............................................................................................................................................82

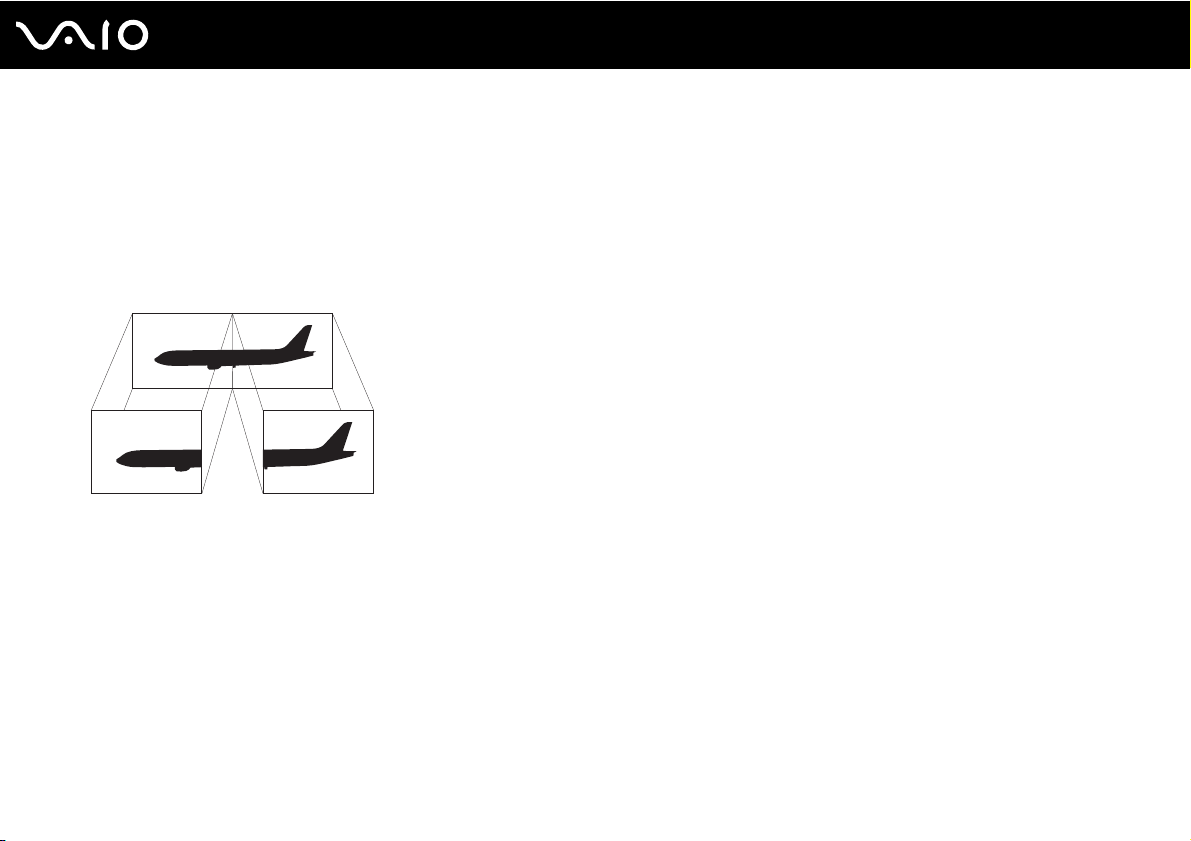

Using the Multiple Monitors Function .........................................................................................................................83

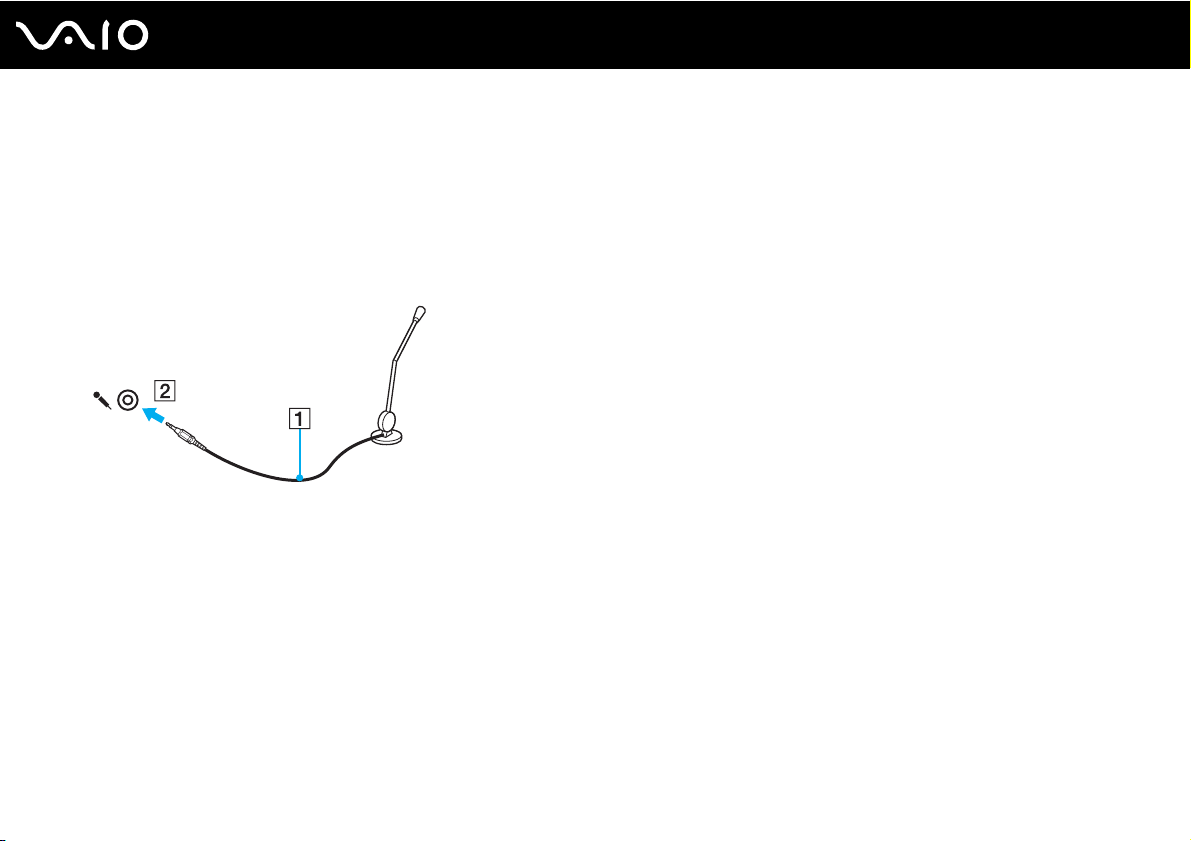

Connecting an External Microphone ..........................................................................................................................85

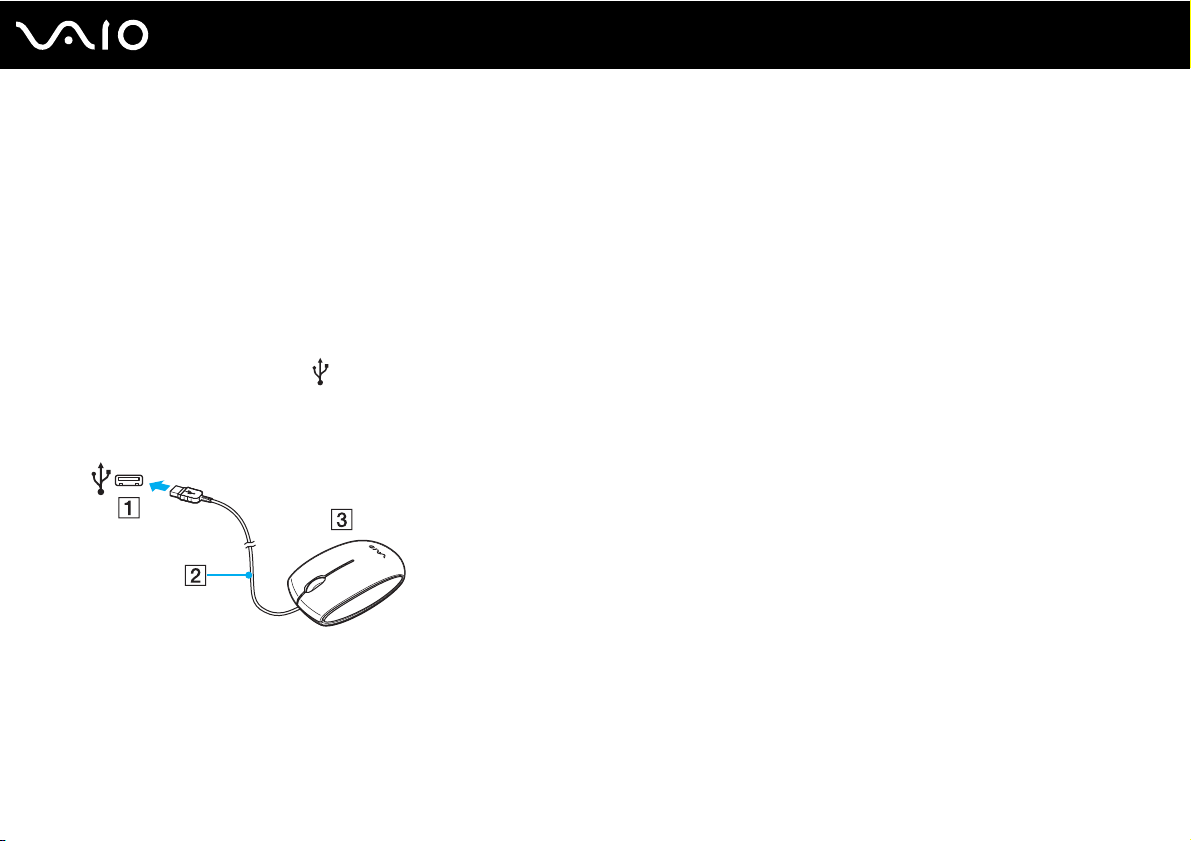

Connecting a Universal Serial Bus (USB) Device......................................................................................................86

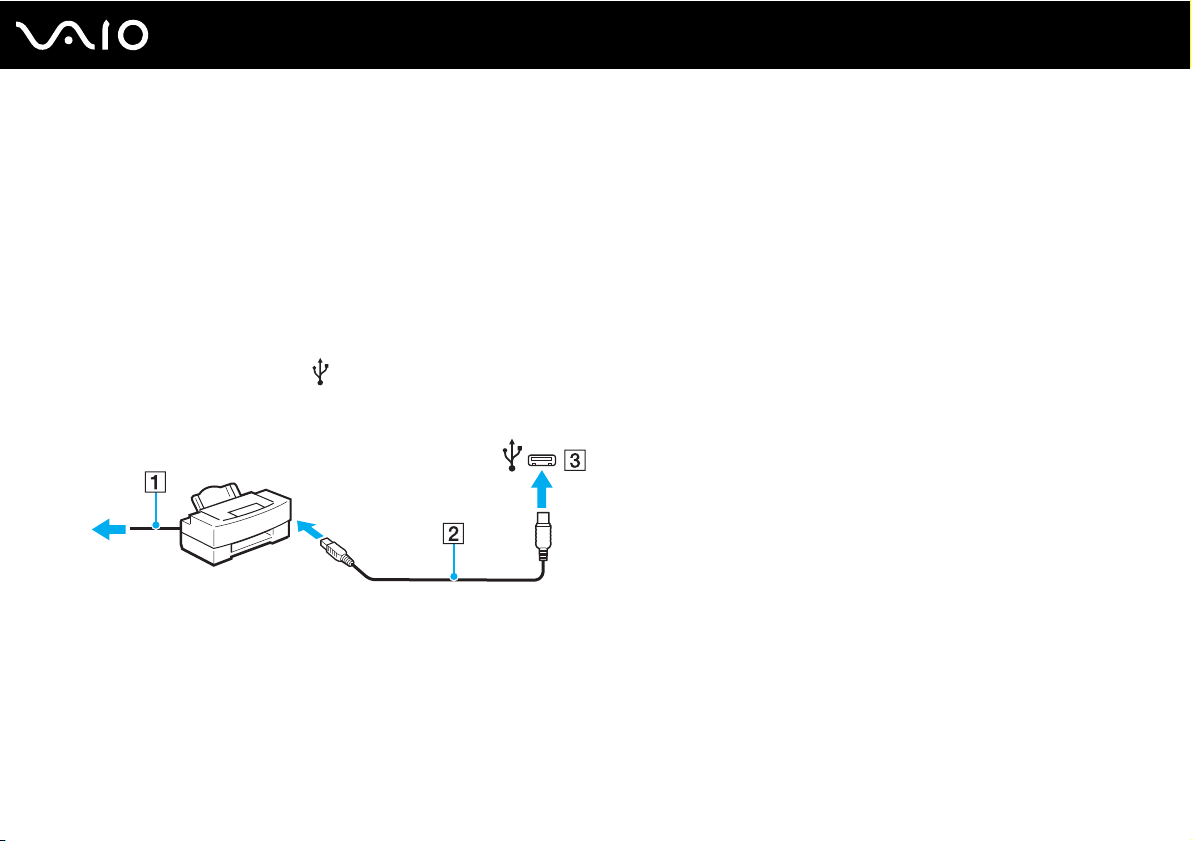

Connecting a Printer ..................................................................................................................................................89

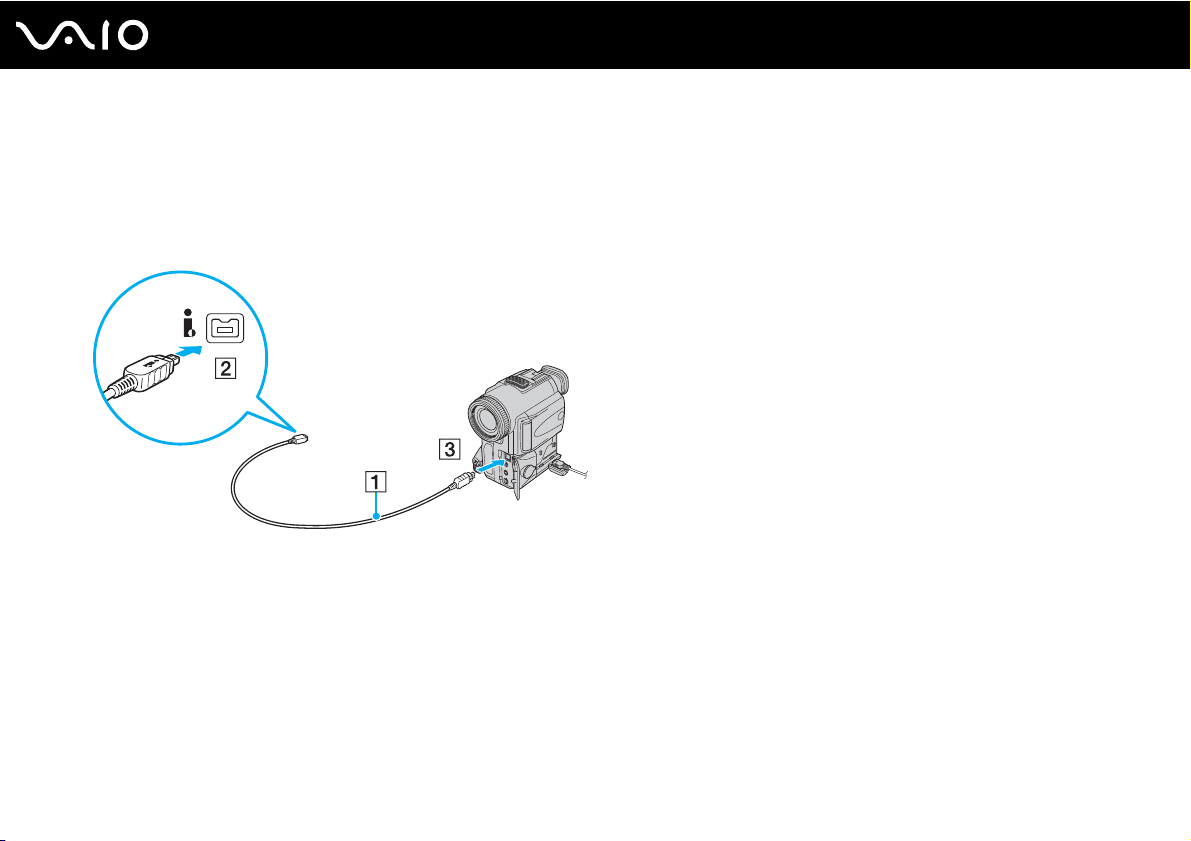

Connecting an i.LINK Device .....................................................................................................................................90

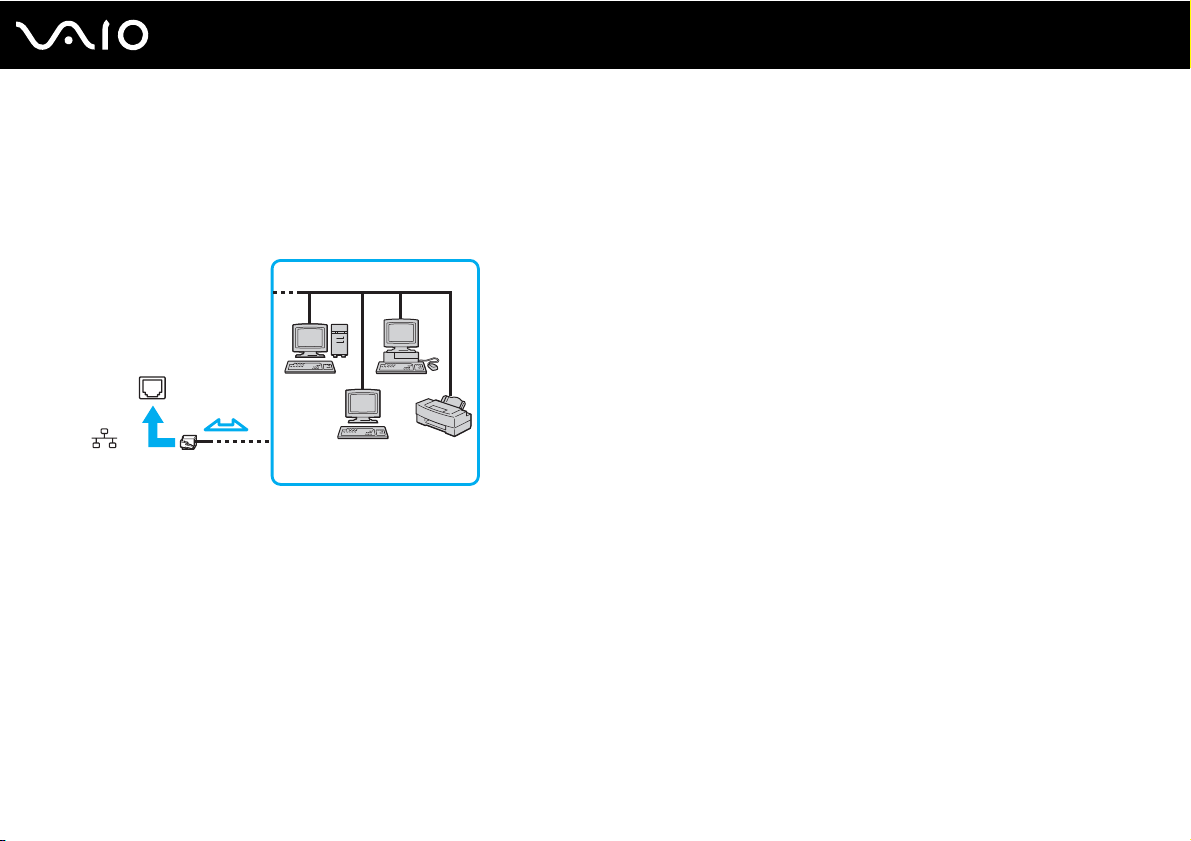

Connecting to a Network (LAN) .................................................................................................................................92

Customizing Your VAIO Computer ..................................................................................................................................93

Setting the Password .................................................................................................................................................94

Using Fingerprint Authentication ..............................................................................................................................101

Setting Up Your Computer with VAIO Control Center..............................................................................................109

Using the Power Saving Modes ...............................................................................................................................110

Managing Power with VAIO Power Management ....................................................................................................115

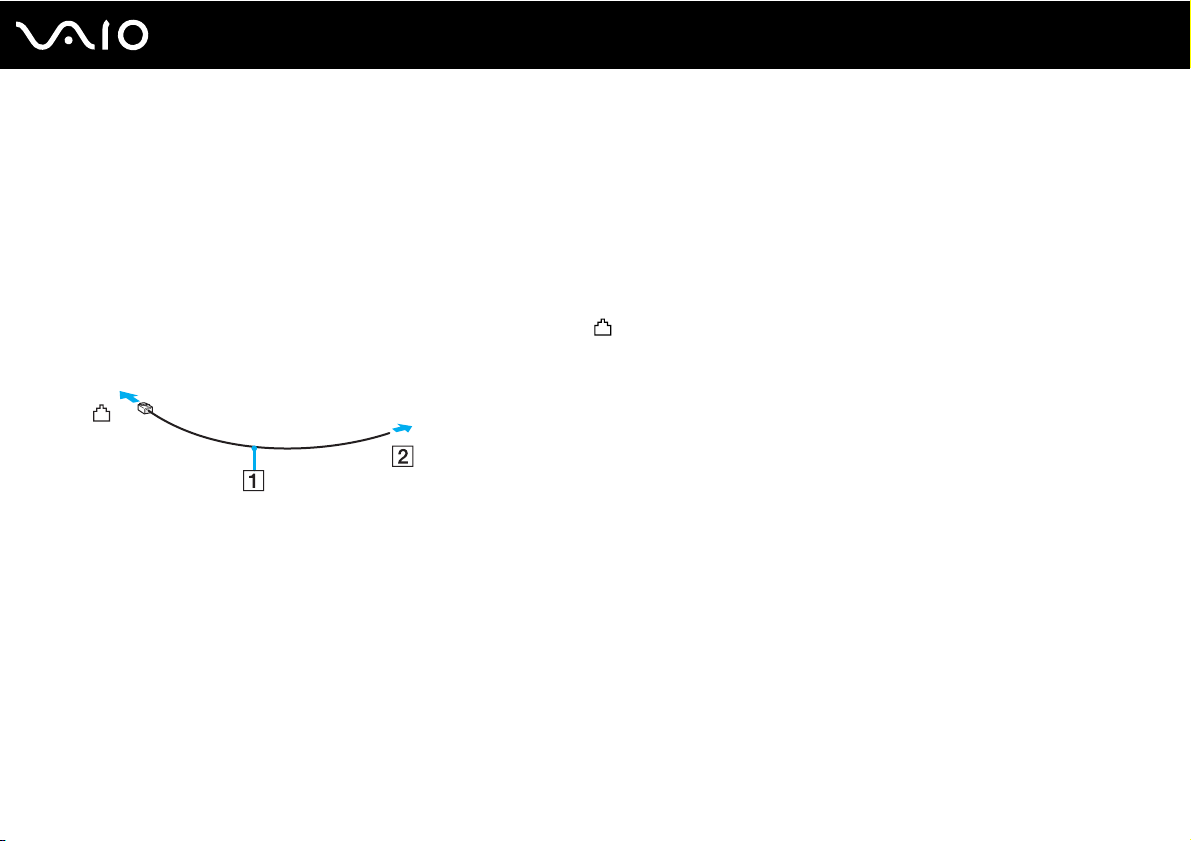

Configuring Your Modem .........................................................................................................................................117

Upgrading Your VAIO Computer....................................................................................................................................119

Adding and Removing Memory................................................................................................................................120

Precautions ....................................................................................................................................................................126

Handling the LCD Screen ........................................................................................................................................127

Using the Power Source ..........................................................................................................................................128

Handling Your Computer .........................................................................................................................................129

Handling the Built-in MOTION EYE Camera............................................................................................................131

Handling Floppy Disks .............................................................................................................................................132

Handling Discs .........................................................................................................................................................133

Using the Battery Pack ............................................................................................................................................134

Using Headphones ..................................................................................................................................................135

Handling the Memory Stick ......................................................................................................................................136

Handling the Hard Disk ............................................................................................................................................137

Updating Your Computer .........................................................................................................................................138

Troubleshooting .............................................................................................................................................................139

Computer .................................................................................................................................................................141

System Security .......................................................................................................................................................147

Battery......................................................................................................................................................................148

Built-in MOTION EYE Camera.................................................................................................................................150

Internet .....................................................................................................................................................................153

Networking ...............................................................................................................................................................155

Bluetooth Technology ..............................................................................................................................................159

Optical Discs ............................................................................................................................................................164

Display .....................................................................................................................................................................168

Printing .....................................................................................................................................................................172

Microphone ..............................................................................................................................................................173

Mouse ......................................................................................................................................................................174

Speakers ..................................................................................................................................................................175

Touch Pad................................................................................................................................................................177

Keyboard..................................................................................................................................................................178

Floppy Disks ............................................................................................................................................................179

Audio/Video..............................................................................................................................................................180

Memory Stick ...........................................................................................................................................................182

Peripherals ...............................................................................................................................................................183

Support Options .............................................................................................................................................................184

Sony Support Information ........................................................................................................................................185

e-Support .................................................................................................................................................................186

Trademarks ....................................................................................................................................................................188

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal computing experience.

External views illustrated in this manual may look slightly different from those of your computer.

Before Use

Notice

This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written approval.

Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties or merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information. In no event shall Sony Corporation be liable for any incidental, consequential, or special damages, whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the software, or other information contained herein or the use thereof.

In the manual, the ™ or ® marks are not specified.

Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.

Before Use

ENERGY STAR

As an ENERGY STAR Partner, Sony has determined that this product meets the ENERGY STAR guidelines for energy efficiency. The International ENERGY STAR Office Equipment Program is an international program that promotes energy saving through the use of computers and office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption.

For detailed information on the ENERGY STAR Program, visit the following web sites:

❑ http://www.energystar.gov

❑ http://www.eu-energystar.org

(USA)

(Europe)

This computer is designed in compliance with the ENERGY STAR standards and delivered with the following power saving settings:

❑ The LCD backlight is turned off automatically after about 15 minutes of inactivity.

❑ The computer enters Sleep mode automatically after about 30 minutes of inactivity.

Press any key to bring the computer back into Normal mode.

For detailed information on power saving modes, see Using the Power Saving Modes (page 110).

Before Use

Documentation

Your documentation includes printed information and user guides to read on your VAIO computer.

Printed Documentation

❑ Quick Start Guide — Describes the process from unpacking to starting up your VAIO.

❑ Troubleshooting and Recovery Guide — Contains solutions to problems other than those you encounter during normal

operation.

❑ Regulations, Guarantee, EULA and Service Support — Contains Sony guarantee conditions,

safety / regulations, modem regulations, wireless LAN regulations, wireless WAN regulations, Bluetooth regulations, end user software license agreement, and Sony support services information.

Non-printed Documentation

❑ User Guide (this manual) — Explains features of your computer. It also includes information about the software programs

included with your computer, as well as information on solving common problems. The User Guide is provided in PDF format for easy browsing and printing.

To view this on-screen guide:

1 Double-click the VAIO User Guide icon on the desktop.

2 Open the folder for your language.

3 Select the guide you want to read.

✍

You can manually browse to the user guides by going to Computer > VAIO (C:) (your C drive) > Documentation > Documentation and opening the folder for your language.

To go to web sites described in this manual by clicking their respective URLs beginning with http://, your computer must be connected to the Internet.

Before Use

❑ Specifications — The online specifications describe the hardware and software configurations of your VAIO computer.

To view the online specifications:

1 Connect to the Internet.

2 Go to the Sony online support web site at http://www.vaio-link.com

✍

You may have a separate disc that includes documentation for the bundled accessories.

Before Use

Windows Help and Support

Windows Help and Support is a comprehensive resource for practical advice, tutorials, and demonstrations to help you learn to use your computer.

Use the search feature, index, or table of contents to view all Windows Help resources, including those on the Internet.

To access Windows Help and Support, click Start and Help and Support. Or go to Windows Help and Support by pressing and holding the Microsoft Windows key and pressing the F1 key.

Further Sources

❑ Consult the help files included with the software you are using for detailed information on features and troubleshooting.

❑ Go to http://www.club-vaio.com

to find online tutorials about your favorite VAIO software.

Before Use

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations for both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your

wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms hang naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

Before Use

❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.

❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Getting Started

This section describes how to get started using your VAIO computer.

❑ Locating Controls and Ports (page 15)

❑ About the Indicator Lights (page 21)

❑ Connecting a Power Source (page 22)

❑ Using the Battery Pack (page 23)

❑ Shutting Down Your Computer Safely (page 30)

Getting Started

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

Front

A Built-in MOTION EYE camera (page 39) B Built-in MOTION EYE camera indicator (page 21) C Built-in microphone (monaural) D LCD screen (page 127) E Built-in speakers (stereo) F Keyboard (page 32) G Touch pad (page 33)

H Fingerprint sensor I Memory Stick slot

J Media Access indicator (page 21) K SD memory card slot (page 60) L Power indicator (page 21) M Charge indicator (page 21) N Hard disk drive/Optical disc drive indicator (page 21)

On selected models only.

Your computer supports both standard- and Duo-size Memory Stick.

(page 101)

(page 55)

Getting Started

A CAPTURE button B Playback control area

: Fast-rewind

: Play/Pause

: Fast-forward For information on how to use the touch sensor buttons above, see Controlling Music and Video Playback (page 36).

C AV MODE button D Volume control area

/: Volume

: Muting For information on how to use the touch sensor buttons above, see Controlling Music and Video Playback (page 36).

(page 34)

(page 35)

E Power button F Num lock indicator (page 21) G Caps lock indicator (page 21) H Scroll lock indicator (page 21) I WIRELESS switch (page 64) J WIRELESS indicator (page 21)

* On selected models only.

Back

A Modem port (page 63) B Battery connector (page 23) C Air vent D Security slot

Getting Started

Right

A Optical disc drive (page 42) B Optical disc drive indicator (page 21) C Drive eject button (page 42) D Manual eject hole (page 164) E ExpressCard/34 slot (page 51)

F Hi-Speed USB (USB 2.0) port G Network (Ethernet) port (page 92)

* Supports high-/full-/low- speeds.

(page 86)

Getting Started

Left

A DC IN port (page 22) B Air vent C Monitor port (page 79)

D Hi-Speed USB (USB 2.0) ports E i.LINK 4-pin (S400) port (page 90) F Microphone jack (page 85) G Headphones jack (page 78)

* Support high-/full-/low- speeds.

(page 86)

Getting Started

Bottom

A Air vents B Illumination lamp (page 109) C Memory module compartment cover (page 120)

Getting Started

About the Indicator Lights

Your computer is equipped with the following indicator lights:

Indicator Functions

Power 1 Illuminates in green when the computer is on, blinks slowly in orange while the computer is in Sleep mode, and

turns off when the computer is off or in Hibernate mode.

Charge

Hard disk drive/Optical disc drive

Media Access Illuminates while data is being read from or written to a memory card. (Do not place the computer into Sleep

Built-in MOTION EYE camera Illuminates while the built-in MOTION EYE camera is in use.

Optical disc drive Illuminates while the drive is reading or writing data. When the indicator is unlit, the optical disc media is not in

Num lock

Caps lock

Scroll lock

WIRELESS Illuminates when the WIRELESS switch is turned on, provided that one or more wireless options are enabled

Illuminates while the battery pack is charging. See Charging the Battery Pack (page 26) for more information.

Illuminates while the drive is reading or writing data. Do not place the computer into Sleep mode or turn it off when this indicator is lit.

mode or turn it off when this indicator is lit.) When the indicator is unlit, the memory card is not in use.

use.

Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad. The numeric keypad is not active when the indicator is unlit.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key while the indicator is lit. Press the key a second time to turn off the indicator. Normal typing resumes when the Caps lock indicator is unlit.

Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scroll lock indicator is unlit. The Scr Lk key functions differently depending on the program you are using and does not work with all programs.

in the VAIO Smart Network window.

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.

Using the AC Adapter

✍

Use only the supplied AC adapter for your computer.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3).

2 Plug the other end of the power cord into an AC outlet (2).

3 Plug the cable connected to the AC adapter (3) into the DC IN port (4) on the computer.

Getting Started

The shape of the DC In plug varies depending on the AC adapter.

✍

To disconnect your computer completely from AC power, unplug the AC adapter.

Make sure that the AC outlet is easily accessible.

If you do not intend to use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 113). This power saving mode saves the time of shutting down and resuming.

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

Installing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) inward.

Getting Started

3 Slide the battery pack diagonally into the battery compartment until the projections (2) on either side of the battery

compartment fit into the U-shaped cuts (3) on either side of the battery pack.

Getting Started

4 Rotate the battery pack in the direction of the arrow, and push the battery pack down into the compartment until it clicks

into place.

5 Slide the battery LOCK switch outward to secure the battery pack on the computer.

✍

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

Certain rechargeable batteries do not meet Sony quality and safety standards. For safety reasons this computer only functions with genuine Sony battery packs designed for this model. If an unauthorized battery pack is installed, the battery will not be charged and the computer will not function.

Getting Started

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

To charge the battery pack

1 Install the battery pack.

2 Connect the AC adapter to the computer.

The charge indicator light turns on while the battery pack is charging. When the battery pack charges close to the maximum charge level you selected with the battery charge functions, the charge indicator turns off. To select your desired maximum charge level, see Using the Battery Charge Functions (page 28).

Charge indicator status Meaning

Lit in orange The battery pack is charging.

Blinks along with the green power indicator

Blinks along with the orange power indicator

Blinks fast in orange A battery error has occurred due to a failed battery

The battery pack is running out of power. (Normal mode)

The battery pack is running out of power. (Sleep mode)

pack or an unlocked battery pack.

Charge the battery pack as described in this manual from your first battery charge.

Getting Started

✍

Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.

If the battery charge level falls below 10%, you should either connect the AC adapter to recharge the battery pack or shut down your computer and install a fully charged battery pack.

Your computer is supplied with a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect the battery life.

While some software applications or peripheral devices are in use, your computer may not enter Hibernate mode even when battery life is low. To avoid loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Sleep or

Hibernate.

If the battery pack wears out when the computer enters Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible. To avoid loss of data, you should save your data frequently.

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

Getting Started

Using the Battery Charge Functions

You can select the battery charging method for your battery pack with the Battery Charge Functions. To make the battery life longer, enable the battery care function.

To enable the battery care function

1 Click Start, All Programs, and VAIO Control Center.

2 Click Power Management and then Battery Charge Functions.

3 Click to select the Enable Battery Care Function check box in the right pane.

4 Click Advanced.

5 Select the desired maximum charge level.

6 Click OK.

To check the battery wear level

Follow steps 1 to 4 in To enable the battery care function above and check detailed information. If the battery wear level is high, replace the battery pack with a new genuine Sony battery pack.

Getting Started

Removing the Battery Pack

You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack while the computer is in Sleep mode.

To remove the battery pack

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) inward.

3 Slide and hold the battery RELEASE latch (2) inward, put your fingertip underneath the tab (3) on the battery pack, and

turn the battery pack in the direction of the arrow, and then slide it away from the computer.

Getting Started

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.

2 Click Start, the arrow next to the Lock button, and then Shut Down.

3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically. The power indicator light turns off.

+ 160 hidden pages
