Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal
computing experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
6
Documentation
Your documentation includes printed information and user guides to read on your VAIO computer.
Printed Documentation
❑ Welcome mat — Contains an overview of components connection, set-up information, etc.
❑ Safety Information — Contains safety guidelines and owner information.
❑ Instant Mode — Provides a guide to use Instant Mode.
7
nN
Before Use
8
nN
Before Use
Non-printed Documentation
❑ User Guide (this manual) — Explains features of your computer. It also includes information about the software programs
included with your computer, as well as information on solving common problems.
✍
To go to Web sites described in this manual by clicking their respective URLs beginning with http://, your computer must be connected to the Internet.
❑ Specifications — The online specifications describe the hardware and software configurations of your VAIO computer.
To view the online specifications:
1Connect to the Internet.
2Go to the Sony online support Web site at the following URLs:
❑ VAIO Recovery Center User Guide — Provides information about restoring individual software programs, software
drivers, and drive partition(s) or your entire hard disk drive to the original factory installed settings.
To access this on-screen guide:
for customers in Canada
for customers in USA
for customers in Spanish speaking Latin American countries or areas
for customers in Brazil
1Click Start and Help and Support.
2Click Manuals & Specifications.
3Click VAI O Recovery Center User Guide.
9
nN
Before Use
Help and Support
Help and Support is easy to access and provides a single location for information and technical assistance for your VAIO
computer. Choose from the following categories to find the answers you need.
To access Help and Support, click Start and Help and Support.
❑ Manuals & Specifications
Here you will find the on-screen User Guide, warranty information, other VAIO documents, and system and software
information for your computer.
❑ VAIO Support
Access interactive help in the form of VAIO tutorials, an escalation page containing support and contact information, and
various links to VAIO online support Web sites.
❑ Backup & Recovery
Find information on how to back up and restore your operating system, system software, and your personal data.
❑ Wireless & Networking
Learn about wireless connections including Bluetooth Wireless technology and Wireless LAN. Run utilities that include
VAIO Media Setup and Windows Network and Sharing Center, and access to wireless tutorials.
❑ Security
Keep your data safe and your computer running efficiently with updates and maintenance programs from Microsoft and
Sony.
❑ VAIO Sites
Contains links to other Internet sites you might find interesting and useful.
❑ VAIO Tutorials
Sony provides guided help tutorials that help you accomplish a task. It can either perform the task for you or show you
how to do it step by step.
❑ VAIO Registration
Please take a moment to register your VAIO computer to enjoy the following benefits:
❑ Your computer will be registered with Sony Product Support.
❑ You will receive an e-coupon good for purchase of eligible accessories at SonyStyle.com.
❑ Extended Service Plan
Sony VAIO products come with a 1 year Limited Warranty. Protect your investment further by purchasing an optional
Extended Service Plan.
10
nN
Before Use
11
nN
Before Use
Ergonomic Considerations
You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations for both stationary and portable environments:
❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your
wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms
hang naturally at your sides. Have breaks during sessions with your computer. Excessive use of the computer may strain
eyes, muscles, or tendons.
❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.
12
nN
Before Use
❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display
as well.
❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.
Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.
Getting Started
Getting Started
This section describes how to get started using your VAIO computer.
!
Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Be sure to start
up your computer with only the supplied accessories connected and set up your system. Upon completion, connect one device (for example, a printer,
an external hard disk drive, a scanner, and so on) at a time, following the manufacturers' instructions.
❑ Locating Controls and Ports (page 14)
❑ About the Indicator Lights (page 20)
❑ Connecting a Power Source (page 22)
❑ Using the Battery Pack (page 23)
❑ Shutting Down Your Computer Safely (page 28)
13
nN
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
Front
A Built-in microphone (monaural)
B Built-in MOTION EYE camera indicator (page 20)
C Built-in MOTION EYE camera (page 34)
D LCD screen (page 123)
E Num lock indicator (page 20)
F Caps lock indicator (page 20)
G Scroll lock indicator (page 20)
H Power button
I Keyboard (page 30)
J Touch pad (page 31)
K Fingerprint sensor
L Power indicator (page 20)
M Battery indicator (page 20)
N Hard disk drive indicator (page 20)
O Memory Stick indicator (page 20)
P SD memory card indicator (page 20)
Q WIRELESS (Wireless LAN/Bluetooth functionality
(page 20)
*On selected models only.
*
(page 97)
14
nN
Getting Started
*
) indicator

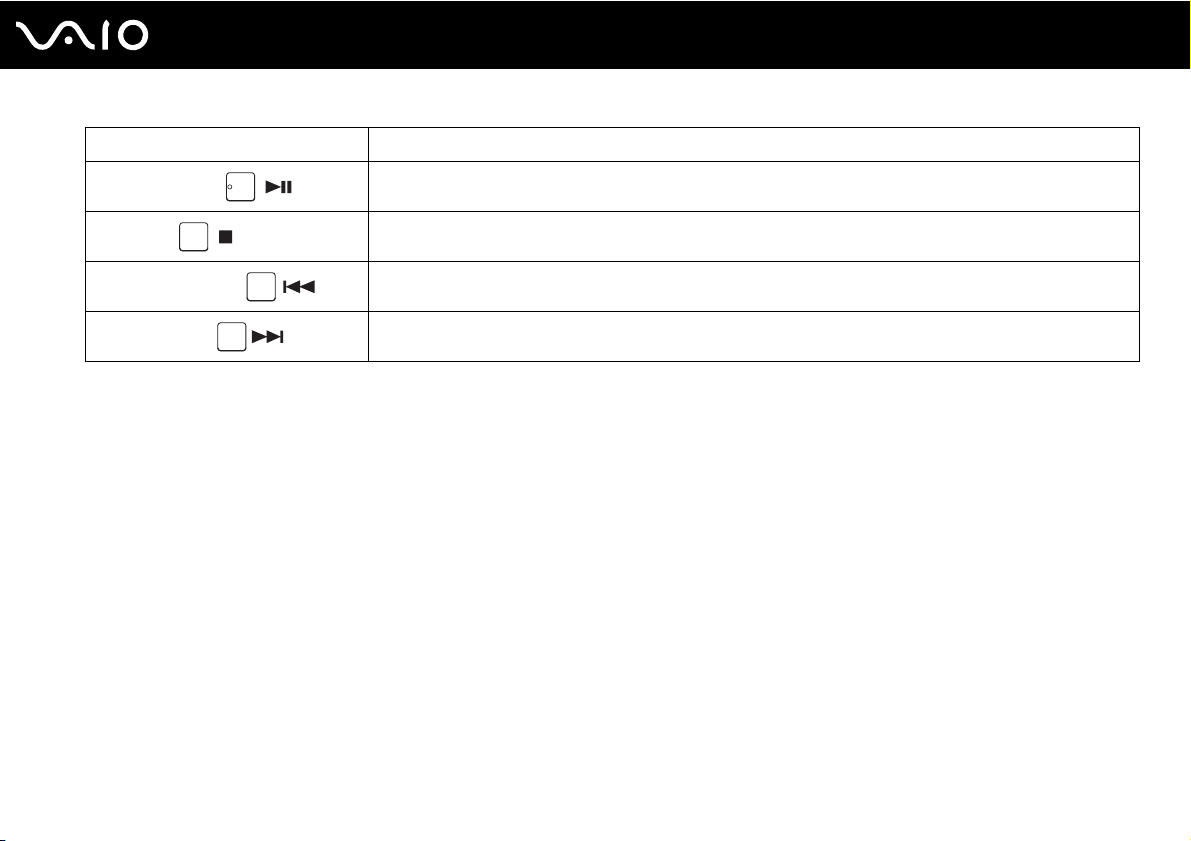

A Play/Pause button (page 32)
B Stop button (page 32)
C Previous track button (page 32)
D Next track button (page 32)
E Built-in speakers (stereo)

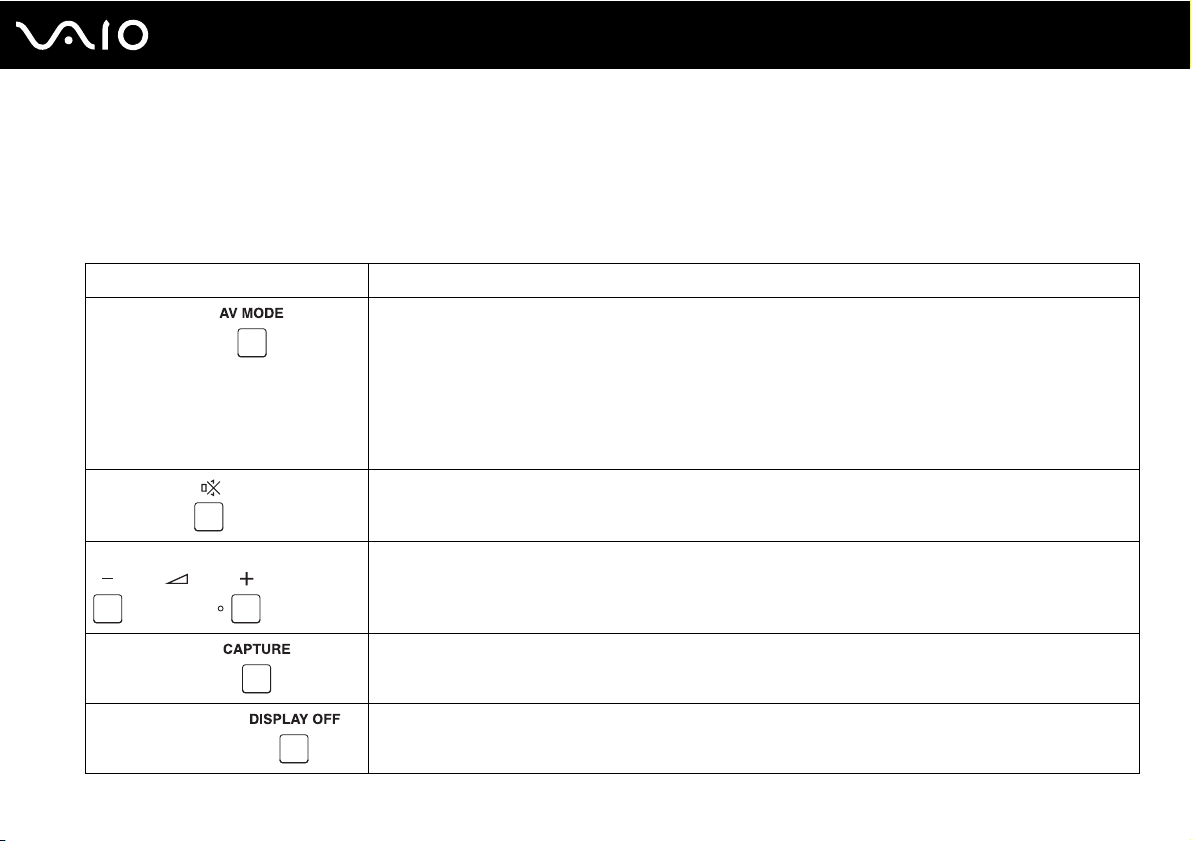

F AV MODE button (page 32)
G Muting button (page 32)
H Volume buttons (page 32)
I CAPTURE button (page 32)
J DISPLAY OFF button (page 32)
15
nN
Getting Started
Right
16
nN
Getting Started
A Memory Stick slot
*1
(page 50)

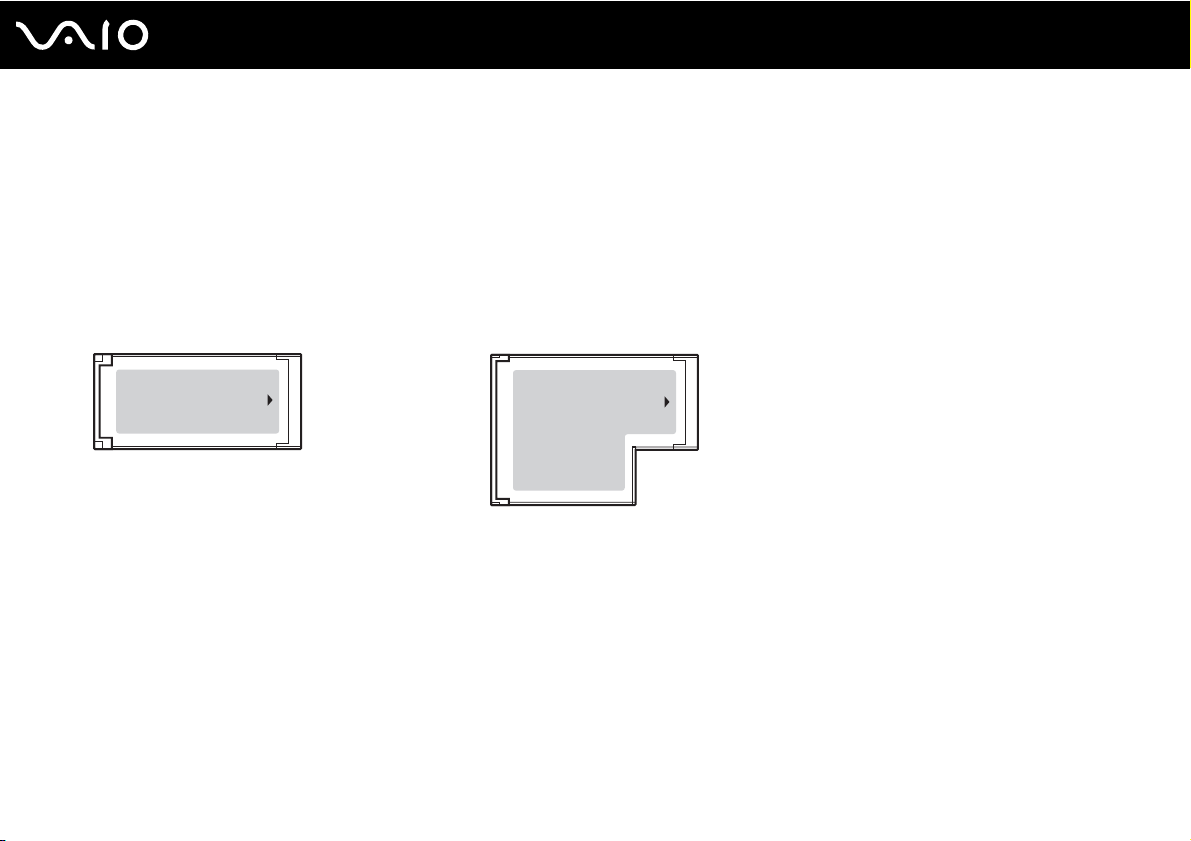

B ExpressCard/34 slot (page 46)
C SD memory card slot (page 55)
D Optical disc drive (page 37)
E Optical disc drive indicator (page 20)
F Drive eject button (page 37)
G Manual eject hole (page 161)
H Hi-Speed USB (USB 2.0) port
*2
(page 82)
I Network (Ethernet) port (page 88)
*1
Your computer supports both standard- and Duo-size Memory Stick media.
*2
Supports high-/full-/low- speeds.
Left
A Security slot
B Air vent
C Monitor port (page 74)
D S VIDEO OUT port (page 76)
E Hi-Speed USB (USB 2.0) ports
*1
(page 82)
F i.LINK 4-pin (S400) port (page 86)
G Microphone jack (page 81)
H Headphones jack (page 73)
I WIRELESS (Wireless LAN/Bluetooth functionality
(page 59)
*1
Support high-/full-/low- speeds.
*2
On selected models only.
17
nN
Getting Started
*2
) switch
Back
A DC IN port (page 22)
B Battery connector
C Air vent
D Modem port (page 58)
18
nN
Getting Started
Bottom
A Air vents
B Illumination lamp (page 105)
19
nN
Getting Started
Getting Started
About the Indicator Lights
Your computer is equipped with the following indicator lights.
IndicatorFunctions
Power 1Illuminates when the power of the computer is on, blinks when the computer is in Sleep mode, and turns off
when the computer is in Hibernate mode or off.
Battery eIlluminates when the computer is using battery power, blinks when the battery pack is running out of power, and
Hard disk drive
Memory Stick
SD memory cardIlluminates when data is read from or written to the media in the SD memory card slot. (Do not enter Sleep mode
Built-in MOTION EYE cameraIlluminates while the built-in MOTION EYE camera is in use.
Optical disc driveIlluminates when data is read from or written to the optical disc media. When the indicator is off, the optical disc
Num lock
Caps lock
Scroll lock
double-blinks when the battery pack is charging.
Illuminates when data is read from or written to the hard disk drive. Do not enter Sleep mode or turn off the
computer when this indicator is on.
Illuminates when data is read from or written to the Memory Stick media in the Memory Stick slot. (Do not enter
Sleep mode or turn off the computer when this indicator is on.) When the indicator is off, the Memory Stick media
is not being used.
or turn off the computer when this indicator is on.) When the indicator is off, the memory card is not being used.
media is not being used.
Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator is off.
Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator is on. Press the key a second time to turn off the indicator. Normal typing resumes when the
Caps lock indicator is off.
Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator is off. The Scr Lk key functions differently depending on the program you are using and does not work
with all programs.
20
nN
IndicatorFunctions
WIRELESS
*On selected models only.
nN
Getting Started
Illuminates when the WIRELESS switch is set to ON and the wireless LAN and/or Bluetooth functionalities
enabled.
*
are
21
Connecting a Power Source
You can use either an AC adapter or a rechargeable battery pack as a power source for your computer.
Using the AC Adapter
✍
Use your computer only with the supplied AC adapter.
To use the AC adapter
1Plug one end of the power cord (1) into the AC adapter (3).
2Plug the other end of the power cord into an AC outlet (2).
3Plug the cable connected to the AC adapter (3) into the DC IN port (4) on the computer.
22
nN
Getting Started
!
The shape of the DC In plug varies depending on the AC adapter.
✍
To disconnect your computer completely from AC power, unplug the AC adapter.
Make sure that the AC outlet is easily accessible.
If you do not intend to use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 109).
This power saving mode saves the time of shutting down and resuming.
Using the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of delivery.
Installing the Battery Pack
To install the battery pack
1Turn off the computer and close the LCD screen lid.
2Slide the battery lock switch (1) inward.
3Slide the battery pack into the battery compartment until it clicks into place.
23
nN
Getting Started
4Slide the battery lock switch (1) to the LOCK position to secure the battery pack on the computer.
✍
When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.
!
This computer is designed to operate only with genuine Sony batteries.
Getting Started
Charging the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of delivery.
To charge the battery pack
1Install the battery pack.
2Connect the AC adapter to the computer.
The computer automatically charges the battery pack (the battery indicator light double-blinks as the battery pack
charges). When the battery pack charges close to the maximum charge level you selected with the battery care function,
the battery indicator turns off. To select your desired maximum charge level, see Using the Battery Care Function (page
26).
Battery indicator light statusMeaning
OnThe computer is using battery power.
BlinksThe battery pack is running out of power.
Double-blinksThe battery pack is charging.
OffThe computer is using AC power.
!
Charge the battery pack as described in this manual from your first battery charge.
24
nN
Getting Started
✍
When the battery pack is running out of power, both the battery and power indicator lights blink.
Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the
computer.
If the battery level falls below 10%, you should either connect the AC adapter to recharge the battery pack or shut down your computer and install a
fully charged battery pack.
The battery pack supplied with your computer is a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack
does not affect the battery life.
The battery indicator light is on while you use the battery pack as a power source. When battery life is nearly depleted, both the battery and power
indicator lights start blinking.
For some software applications and some peripheral devices, your computer may not enter Hibernate mode even when battery life is low. To avoid loss
of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Sleep or Hibernate.
If the battery pack wears out when the computer enters Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible.
To avoid loss of data, you should save your data frequently.
When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.
25
nN
Using the Battery Care Function
You can select your desired maximum charge level with the battery care function to reduce battery degradation.
To use the battery care function
1Click Start, All Programs, and VAIO Control Center.
2Double-click Power Management and Battery Care Function.
3Click to select the Enable Battery Care Function check box.
4Select the desired maximum charge level.
5Click OK.
26
nN
Getting Started
Getting Started
Removing the Battery Pack
!
You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack
while the computer is in Sleep mode.
To remove the battery pack
1Turn off the computer and close the LCD screen lid.
2Slide the battery lock switch (1) inward.
3Slide and hold the battery RELEASE latch (2) and slide the battery pack away from the computer.
27
nN
28
nN
Getting Started
Shutting Down Your Computer Safely
To avoid losing unsaved data, be sure to shut down your computer properly, as described below.
To shut down your computer
1Turn off any peripherals connected to the computer.
2Click Start, the arrow next to the Lock button, and Shut Down.
3Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off
automatically.
The power indicator light turns off.
Using Your VAIO Computer
This section describes how to get the most out of using your VAIO computer.
❑ Using the Keyboard (page 30)
❑ Using the Touch Pad (page 31)
❑ Using Special-function Buttons (page 32)
❑ Using the Built-in MOTION EYE Camera (page 34)
❑ Using the Optical Disc Drive (page 37)
❑ Using the ExpressCard Module (page 46)
❑ Using the Memory Stick Media (page 50)
❑ Using Other Memory Cards (page 55)
❑ Using the Internet (page 58)
❑ Using Wireless LAN (WLAN) (page 59)
❑ Using the Bluetooth Functionality (page 66)
29
nN
Using Your VAIO Computer
nN
Using Your VAIO Computer
Using the Keyboard
Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks.
Combinations and Functions with the Fn Key
✍
Some keyboard functions can be used only after the operating system finished launching.
Combinations/FeatureFunctions
Fn + 8 (F5/F6): brightness controlAdjusts the LCD brightness of your computer screen.
To increase lighting intensity, press Fn+F6 and then M or ,, or keep pressing Fn+F6.
To decrease lighting intensity, press Fn+F5 and then m or <, or keep pressing Fn+F5.
Fn + /T (F7): display output
Fn + (F10): zoom
Fn + (F12): Hibernate
Toggles among your computer screen, an external display, and simultaneous output to both.
Changes the screen resolution to magnify/restore your computer's screen view.
✍
The magnified view is not as clear as the standard view, as it is implemented by applying a lower resolution
to the computer screen with a higher resolution.
This key combination may not work with graphic images as it magnifies the screen view by changing the
resolution.
The location and size of software windows may change when the screen view is magnified or the standard
view is restored because pressing this key combination changes the resolution.
When your computer's screen view is magnified, switching the view to the external display disables the
function and restores the standard view.
Provides for the lowest level of power consumption. When you execute this command, the
states of the system and the connected peripheral devices are written to the hard disk drive and
the system power is turned off. To return the system to its original state, use the power button
to turn on the power.
For details on power management, see Using the Power Saving Modes (page 106).
30
Using Your VAIO Computer
Using the Touch Pad
You can point to, select, drag, and scroll objects on the screen using the touch pad.

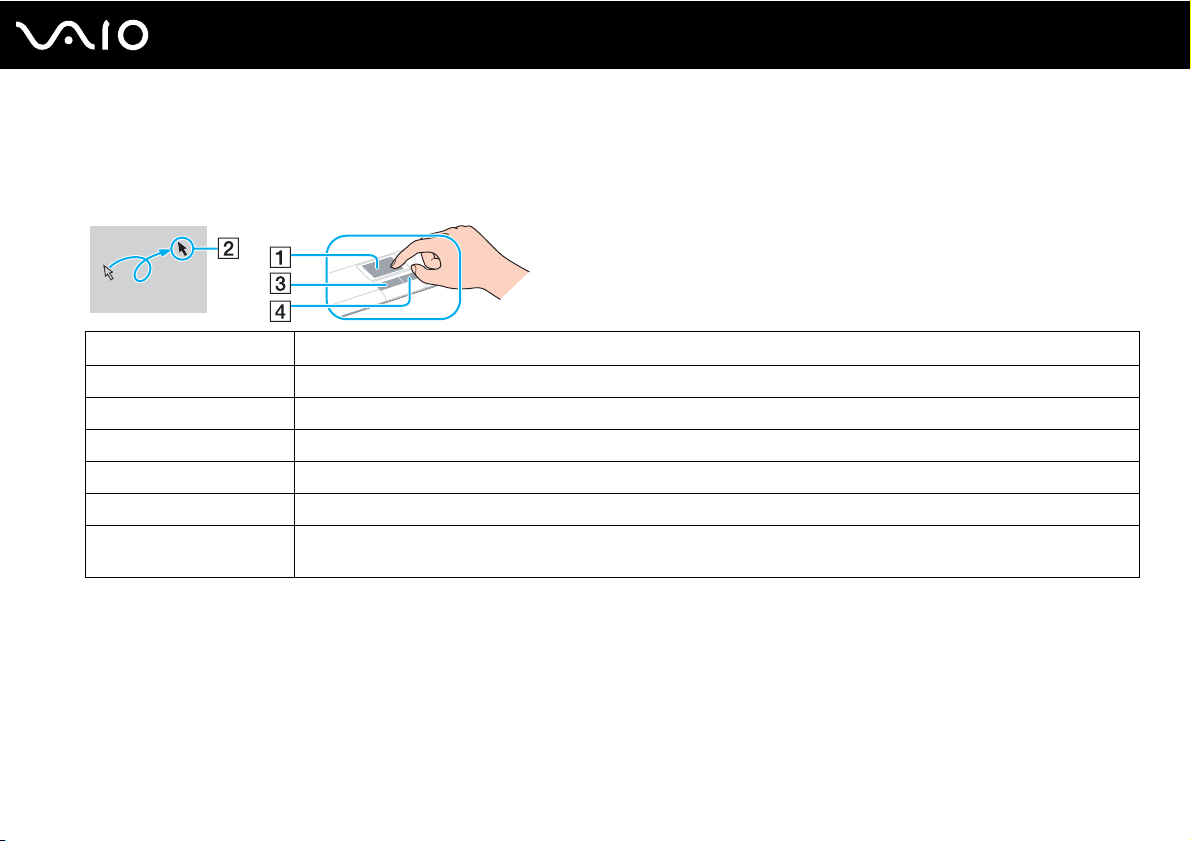

ActionDescription
PointSlide your finger on the touch pad (1) to place the pointer (2) on an item or object.
ClickPress the left button (3) once.
Double-clickPress the left button twice.
Right-clickPress the right button (4) once. In many applications, this action displays a shortcut menu.
DragSlide your finger on the touch pad while pressing the left button.
ScrollSlide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to scroll
horizontally (the scroll function is available only with applications that support a touch pad scroll feature).
31
nN
✍
You can disable/enable the touch pad to suit your preference for using the mouse. See Setting Up Your Computer with VAIO Control Center (page 105)
to launch VAIO Control Center. Once launched, select the topic on the pointing device and see the help file for the detailed instructions.
!
Be sure to connect a mouse before disabling the touch pad. If you disable the touch pad without connecting a mouse, you will be able to use only the
keyboard for pointer operations.
32
nN
Using Your VAIO Computer
Using Special-function Buttons
Your computer is equipped with special buttons to help you use specific functions of the computer.
The AV MODE, Play/Pause, Stop, Previous track, and Next track buttons support Instant Mode. To activate Instant Mode,
the computer must be off or in Hibernate mode. See the printed Instant Mode booklet for more information on Instant Mode.
Special-function buttonFunctions
When the computer is off or in Hibernate mode:
AV M O DE button
Muting button
Volume buttons Decrease (-) and increase (+) the volume.
Activates Instant Mode to enable you immediately to play CDs, DVDs, and music files and view the image
data stored on the hard disk drive without launching Windows. See the printed Instant Mode booklet for more
information.
When the computer is on or in Sleep mode:
Launches VAIO L a u n cher for selecting the desired software.
You can change the default software options in VAI O L aunch e r. To do so, press and hold the AV M ODE
button to display the setup window.
Turns the volume on and off.
CAPTURE button
DISPLAY OFF button
Launches WebCam Companion 2 to capture still images and movies in the finder view with the built-in
MOTION EYE camera. For more information on WebCam Companion 2, see the help file on the software.
Turns off the LCD backlight.
Special-function buttonFunctions
Play/Pause button
Stop button
Previous track button
Next track button
Using Your VAIO Computer
Starts or pauses playback of a CD or DVD media or a music/video file stored on the hard disk drive.
Stops playback of a CD or DVD media or a music/video file stored on the hard disk drive.
Plays the previous chapter/file during video playback or the previous song/file during audio playback.
Plays the next chapter/file during video playback or the next song/file during audio playback.
33
nN
34
nN
Using Your VAIO Computer
Using the Built-in MOTION EYE Camera
Your computer is equipped with a built-in MOTION EYE camera.
The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software and
enables you to capture still images and movies with the preinstalled image capture software. This software will automatically
launch when you press the CAPTURE button.
Turning on the computer activates the built-in MOTION EYE camera, so the computer is ready for a video conference using
instant messaging software.
Note that launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in
MOTION EYE camera, respectively.
✍
The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the
application before using the built-in MOTION EYE camera.
!
The viewer window may show some noise, for example horizontal streaks, if you view a rapid-moving object. This is normal and does not indicate a
malfunction.
You cannot operate the built-in MOTION EYE camera with the Microsoft Windows Movie Maker software.
Using Your VAIO Computer
Capturing Still Images
To capture a still image
1Press the CAPTURE button on your computer to launch WebCam Companion 2.
2Click the Capture icon in the main window.
3Turn the camera to your subject.
4Press the CAPTURE button on your computer.
The current image in the finder view is captured and its thumbnail image is added to the thumbnail view in the left pane
of the main window.
✍
When capturing an image in a dark place, click the WebCam Settings icon after step 2 and select the low light or low light compensation option in the
properties window.
WebCam Companion 2 provides many more features. See the help file on the software for more information.
35
nN
Using Your VAIO Computer
Capturing Movies
To capture a movie
1Press the CAPTURE button on your computer to launch WebCam Companion 2.
2Click the Record icon in the main window.
3Turn the camera to your subject.
4Press the CAPTURE button on your computer to start movie recording.
5When finished, press the CAPTURE button once again to stop movie recording.
The first scene of the captured movie is added to the thumbnail view in the left pane of the main window.
✍
When capturing a movie in a dark place, click the WebCam Settings icon after step 2 and select the low light or low light compensation option in the
properties window.
WebCam Companion 2 provides many more features. See the help file on the software for more information.
36
nN
37
nN
Using Your VAIO Computer
Using the Optical Disc Drive
Your computer is equipped with an optical disc drive.

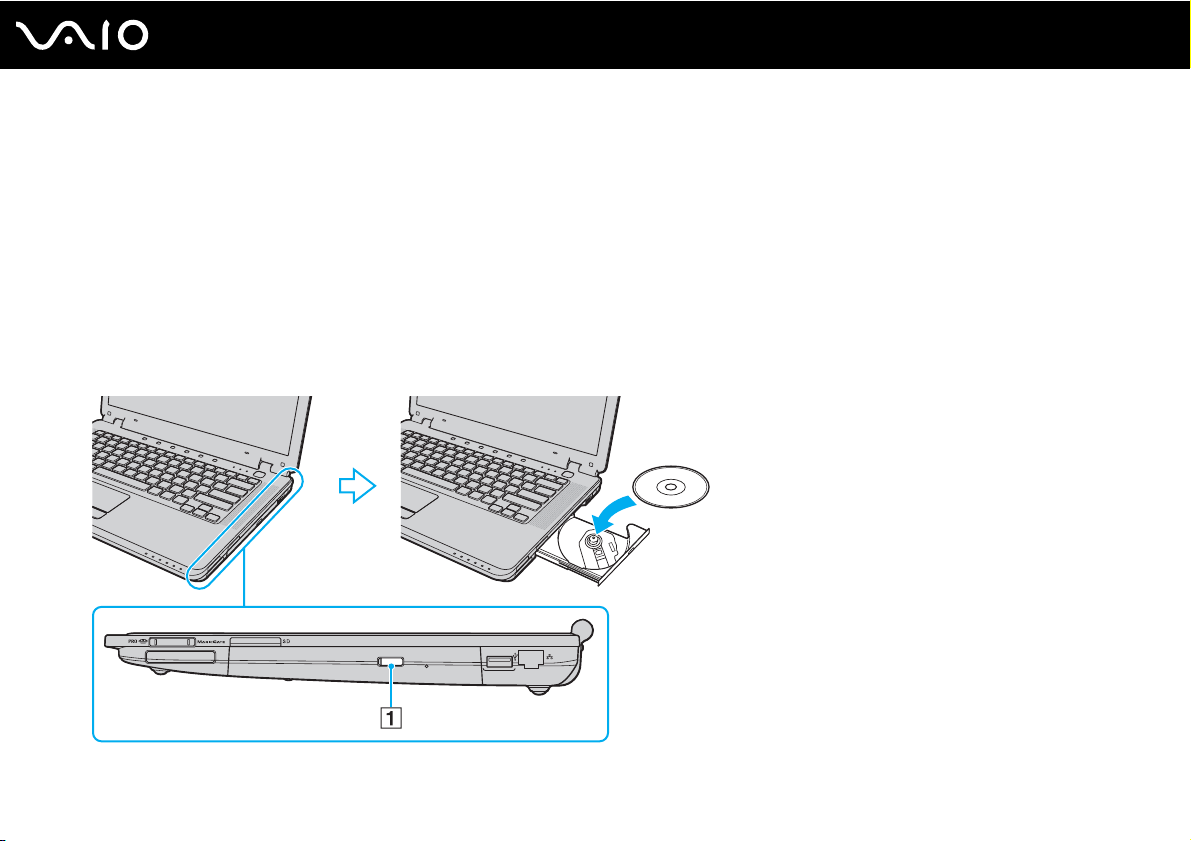

To insert a disc
1Turn on the computer.
2Press the drive eject button (1) to open the drive.
The tray slides out.
3Place a disc in the middle of the tray with the label side facing upward and gently push it down until the disc clicks into
place.
Using Your VAIO Computer
4Close the tray by pushing it in gently.
!
Do not remove the optical disc when your computer is in a power saving mode (Sleep or Hibernate). Doing so may cause the computer to malfunction.
✍
If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled disc operation program.
38
nN
39
nN
Using Your VAIO Computer
Reading and Writing Optical Discs
Your computer plays and records CDs, DVDs, and Blu-ray Disc™ media, depending on the model you purchased. Check your
specifications for the type of optical disc drive installed on your model. Use the table below to see which types of media your
optical disc drive supports.
Using Your VAIO Computer
PR: playable and recordable
P: playable but not recordable
–: not playable or recordable
CDROM
DVD± RW/
PPPPPRPP–
±R DL/RAM
Blu-ray Disc PPPP
Blu-ray Disc
PPPP
Combo
*1
Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1.
*2
Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2.
*3
The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.
*4
Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.
*5
Writing data to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.
*6
Writing data to DVD-R DL (Dual Layer) discs is available only on discs supporting DVD-R DL (Dual Layer) recording.
*7
Supports writing data to BD-R Version 1.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Version 2.1
discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).
*8
Writing data to Ultra Speed CD-RW discs is not supported on models with the Blu-ray Disc drive.
*9
BD-R stands for Blu-ray Disc-Recordable in Version 1.1 format.
*10
BD-RE stands for Blu-ray Disc-Rewritable in Version 2.1 format.
*11
The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.
Video CDMusic CDCD
Extra
CD-R/RWDVD-
ROM
*8
PR
PR
PPP
*8
PPP
DVDVideo
BDROM
DVD-R/RWDVD+R/RWDVD+R DLDVD-R DLDVD-
RAM
PR
PR
PR
*1 *2
*1 *2
*1 *2
PR
PR
PR
PR
PR
PR
*5
*5
*5
PR
PR
PR
*6
PR
*6
PR
*6
PR
*3 *4
*3 *4
*3 *4P*11
40
nN
*9
/
BD-R
*10
RE
–
*7 *11
PR
41
nN
Using Your VAIO Computer
!
This product is designed to play back discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two
sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Be aware that the audio side (non-DVD
side) of a DualDisc may not play on this product because it does not conform to the CD Standard.
Due to the multiple formats of discs now available, when buying pre-recorded or blank discs for use with a VAIO computer, be sure to read the notices
on the disc packaging carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee
the compatibility of VAIO CD drives with discs that are not compliant with the official "CD" format standard (or "DVD" standard in relation to DVD drives,
or "Blu-ray Disc" standard in relation to Blu-ray Disc drives). USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO PC OR
CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.
For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.
✍
8cm disc writing is not supported.
!
To play copyright protected Blu-ray Disc media continuously, you need to update the AACS key. Note that the AACS key update requires Internet access.
As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support
movie playback on packaged media recorded in AVC or VC1 format at high bit rates.
Region settings are required for some contents on DVDs and BD-ROM Disc media. If the region setting on the optical disc drive does not match the
region coding on the disc, playback is not possible.
Unless your external display is compliant with the High-bandwidth Digital Content Protection (HDCP) standard, you cannot play or view the contents
on copyright protected Blu-ray Disc media.
Some contents may restrict video output to be standard definition or prohibit analog video output at all. It is strongly recommended that digital HDCPcompliant environment be implemented for optimum compatibility and viewing quality.
42
nN
Using Your VAIO Computer
Notes on writing data to a disc
❑ Use only Sony recommended software, which is preinstalled on your computer, to write data to a disc.
Other software programs may not be fully compatible and errors may result.
❑ To make data on a disc readable on the optical disc drive, you need to close the session before you eject it. To complete
this process, follow the instructions included with your software.
❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc
drive.
❑ Do not strike or shake your computer while writing data to a disc.
❑ Deactivate the screen saver and exit anti-virus software before writing data to a disc.
❑ Do not use memory-resident utility software while writing data to a disc. This may cause your computer to malfunction.
❑ Before using your software application to burn discs, make sure you exit and close all other applications.
❑ Do not place your computer into either of the power saving modes while using the preinstalled software or any disc
burning software.
❑ Connect and use the AC adapter to power your computer or make sure your battery pack is at least 50% charged.
❑ Make sure you use the same disc burning software to add data to a used disc. Use of different disc burning software for
additional data burning may cause a failure. For example, if you have a disc with data that you burned with the Roxio
Easy Media Creator software, use the Roxio Easy Media Creator software to add more data to the same disc.
43
nN
Using Your VAIO Computer
Notes on playing discs
To achieve optimum performance when playing discs, you should follow these recommendations.
❑ Some CD players and computers' optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW
media.
❑ Some DVD players and computers' optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-
R DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media.
❑ Do not use memory-resident utility software to speed up disc access when playing a disc. This may cause your computer
to malfunction.
❑ Do not place your computer into either of the power saving modes while your computer is playing a disc.
❑ Region code indicators are labeled on the DVDs to indicate in which region and on what type of player you can play the
disc. If the DVD is labeled "all," this means that you can play this DVD in most regions of the world. If the region code for
your residence area is different from the label on the DVD disc or on the packaging, you cannot play the disc on your
computer.
Using Your VAIO Computer
Playing CDs
To play an audio CD
1Insert a disc into the optical disc drive.
2If nothing appears on the desktop, then click Start, All Programs, and the desired CD software to play the CD.
If the Audio CD window appears, click to select an option.
Copying Files to CDs
To copy files to a disc
!
Do not strike or shake your computer while writing data to a disc.
1Insert a disc into the optical disc drive.
If the AutoPlay window appears, click Burn files to disc and follow the on-screen instructions until the empty disc folder
appears.
2Open the folder that contains the file(s) you want to copy and drag them to the empty disc folder.
3Close the disc folder.
44
nN
45
nN
Using Your VAIO Computer
Playing DVDs
To play a DVD
1Close all running software applications.
2Insert a DVD into the optical disc drive.
3If nothing appears on the desktop, then click Start, All Programs, and the desired DVD software to play the DVD.
For instructions on how to use the software, see the help file on your DVD software.
Copying Files to DVDs
To copy files to a disc
1Connect the AC adapter to the computer.
2Close all running software applications.
3Insert a disc into the optical disc drive.
4If nothing appears on the desktop, then click Start, All Programs, and the desired DVD burning software to copy files to
the disc.
For instructions on how to use the software, see the help file on your DVD burning software.
46
nN
Using Your VAIO Computer
Using the ExpressCard Module
Your computer is equipped with either a Universal ExpressCard slot* or an ExpressCard/34 slot* for transferring data among
digital cameras, camcorders, music players, and other audio/video devices. The former
ExpressCard/34
*
module
only.
(34mm wide) or ExpressCard/54 (54mm wide) module* as shown below; and the latter, an ExpressCard/34
can accommodate either an
❑ ExpressCard/34 module
Your computer is equipped with an ExpressCard/34
*Referred to as the ExpressCard slot and the ExpressCard module in this manual.
*
❑ ExpressCard/54 module
slot*.
*
Using Your VAIO Computer
Inserting an ExpressCard Module
!
Your computer is delivered with a slot protector in the ExpressCard slot. Remove the slot protector before you use the slot.
Use care when inserting or removing the ExpressCard module from the slot. Do not force it in or out of the slot.
✍
You do not need to shut down your computer before inserting or removing the ExpressCard module.

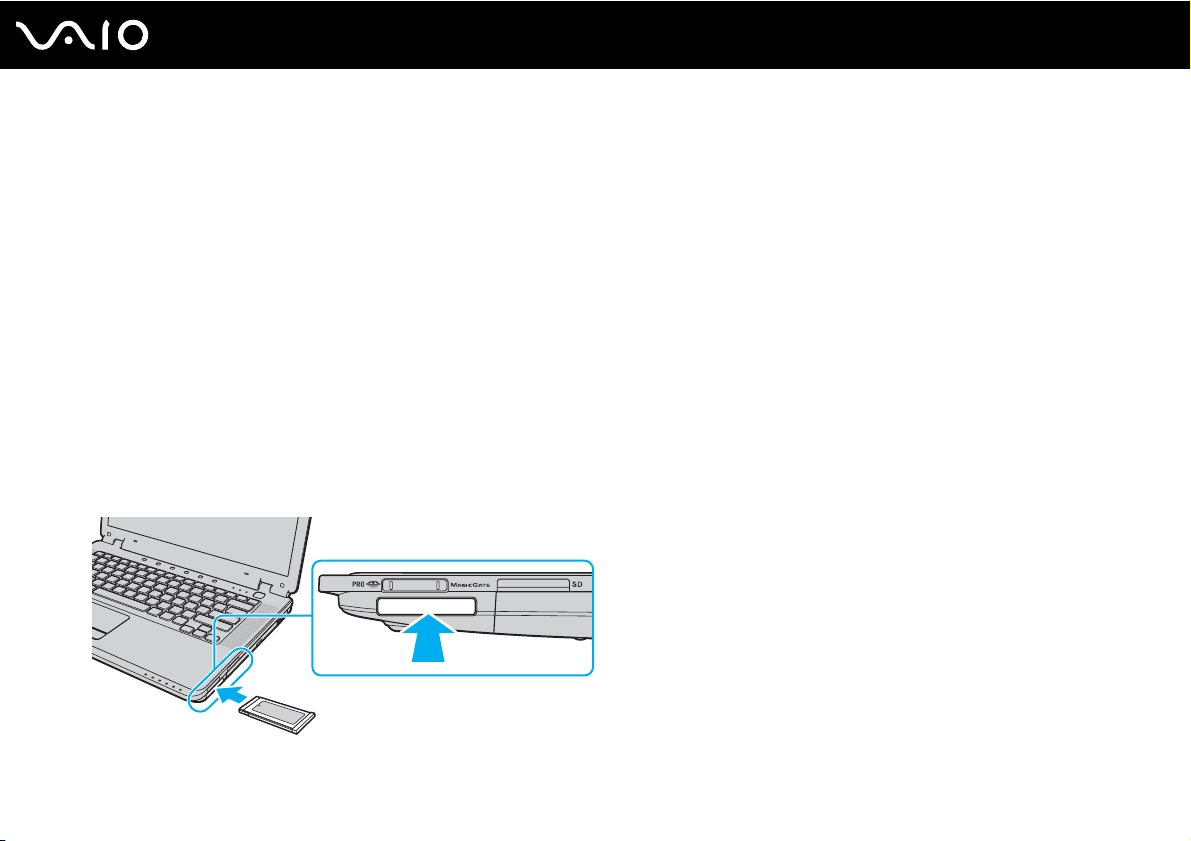

To insert an ExpressCard module
1Push the ExpressCard slot protector to pop it out.
2Gently take hold of the ExpressCard slot protector and pull it out of the slot.
3Hold the ExpressCard module with the arrow facing upward and pointing toward the ExpressCard slot.
4Carefully slide the ExpressCard module into the slot until it clicks into place.
Do not force it into the slot.
47
nN
Using Your VAIO Computer
!
Insert the ExpressCard slot protector to protect against debris entering the slot when not using an ExpressCard module. Before moving your computer,
be sure to insert the ExpressCard slot protector into the slot.
✍
If the module or adapter does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
Make sure you use the most recent software driver provided by the ExpressCard module manufacturer.
48
nN
nN
Using Your VAIO Computer
Removing an ExpressCard Module
Follow the steps below to remove the ExpressCard module while your computer is on. If it is not removed properly, your
system may not work properly.
To remove an ExpressCard module
✍
To remove an ExpressCard module when your computer is off, skip steps 1 to 4.
1Double-click the Safely Remove Hardware icon on the taskbar.
2Select the hardware you want to unplug.
3Click Stop.
4Follow the on-screen instructions to remove the ExpressCard module.
5Push in the ExpressCard module toward the computer so that the module pops out.
6Gently take hold of the ExpressCard module and pull it out of the slot.
49
50
nN
Using Your VAIO Computer
Using the Memory Stick Media
Memory Stick media is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing
digital data with compatible products, such as digital cameras, mobile phones and other devices. Because it is removable, it
can be used for external data storage.
51
nN
Using Your VAIO Computer
Before You Use the Memory Stick Media
The Memory Stick slot on your computer can accommodate both standard- and Duo-size media and supports Memory Stick
PRO and Memory Stick PRO-HG Duo formats with high speed data transfer and large data capacity capabilities.
✍
You can insert a Duo-size Memory Stick media directly into the Memory Stick slot without using a Memory Stick Duo Adaptor.
!
Before using a Memory Stick Micro (M2) media, be sure to insert it into an M2 Standard-size or M2 Duo-size Adaptor. If you insert the media directly
into the Memory Stick slot without the Adaptor, you may not be able to remove it from the slot.
For the latest information about the Memory Stick media, visit the Memory Stick Web site at http://www.memorystick.com/en/.
!
Your computer has been tested and found compatible with Sony branded Memory Stick media with capacity of up to 16 GB that are available as of
January 2008. However, not all Memory Stick media that meet the same specifications as the compatible media are guaranteed of compatibility.
Inserting a Memory Stick media with multiple conversion adapters is not guaranteed of compatibility.
MagicGate is the general name of the copyright protection technology developed by Sony. Use a Memory Stick media with the MagicGate logo to use
this feature.
Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior consent from the respective
copyright holders. Accordingly, Memory Stick media with such copyrighted data can be used only within the law.
The Memory Stick slot on your computer does not support 8-bit parallel data transfer (high speed data transfer).
The Memory Stick Micro media in an M2 Duo-size Adaptor may not operate properly if it is additionally inserted into a Memory Stick Duo Adaptor.
Using Your VAIO Computer
Inserting a Memory Stick Media
To insert a Memory Stick media
1Locate the Memory Stick slot.
2Hold the Memory Stick media with the arrow facing upward and pointing toward the Memory Stick slot.
3Carefully slide the Memory Stick media into the slot until it clicks into place.
The Memory Stick media is automatically detected by your system and the contents on the Memory Stick media are
displayed. If nothing appears on the desktop, click Start, Computer, and double-click the Memory Stick media icon.
52
nN
!
Be sure to hold the Memory Stick media with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer
or the Memory Stick media, do not force the Memory Stick media into the slot if you cannot insert it smoothly.
Do not insert more than one Memory Stick media into the slot. Improper insertion of the media may damage both your computer and the media.
To view the contents on the Memory Stick media
1Click Start and Computer to open the Computer window.
2Double-click the Memory Stick media icon to view the list of data files saved in the Memory Stick media.
Using Your VAIO Computer
To format a Memory Stick media
The Memory Stick media has been formatted in the factory default setting and is ready for use.
If you want to reformat the media with your computer, follow these steps.
!
Be sure to use the device that is designed to format the media and supports the Memory Stick media when formatting the media.
Formatting the Memory Stick media erases the entire data on the media. Before formatting the media, make sure that it does not contain your valuable
data.
Do not remove the Memory Stick media from the slot while formatting the media. This could cause a malfunction.
1Carefully slide the Memory Stick media into the slot until it clicks into place.
2Click Start and Computer to open the Computer window.
3Right-click the Memory Stick media icon and select Format.
4Click Restore device defaults.
!
The size of the allocation unit and file system may change.
Do not select NTFS from the File system drop-down list as it may cause a malfunction.
53
nN
✍
The formatting process will be completed more quickly if you select Quick Format in Format options.
5Click Start.
6Follow the on-screen instructions.
!
It may take time to format the Memory Stick media depending on the media.
Using Your VAIO Computer
Removing a Memory Stick Media
To remove a Memory Stick media
1Check that the Memory Stick indicator is off.
2Push in the Memory Stick media toward the computer.
The Memory Stick media ejects.
3Pull the Memory Stick media out of the slot.
!
Always remove the Memory Stick media gently, or it may pop out unexpectedly.
Do not remove the Memory Stick media while the Memory Stick indicator is on. If you do, you may lose data. Large volumes of data may take time to
load, so be sure the indicator is off before removing the Memory Stick media.
54
nN
55
nN
Using Your VAIO Computer
Using Other Memory Cards
In addition to the Memory Stick slot and the ExpressCard slot, your computer is equipped with an SD memory card slot. You
can use this slot to transfer data among digital cameras, camcorders, music players, and other audio/video devices.
Before You Use Memory Cards
The SD memory card slot on your computer supports the following memory cards:
For the latest information on compatible memory cards, see Sony Support Information (page 181) to visit the appropriate
support Web site.
!
Your computer has been tested and found compatible only with major memory card media available as of January 2008. However, not all memory card
media that meet the same specifications as the compatible media are guaranteed of compatibility.
Always insert the correct memory card into the SD memory card slot.
SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 16 GB have been tested and found compatible with your
computer.
The SD memory card slot on your computer does not support the copyright protection and high-speed data transfer features of the SD memory card
and SDHC memory card.
Do not attempt to insert a memory card or memory card adapter of a different type into the SD memory card slot. An incompatible memory card or
memory card adapter may cause difficulty in removing from the slot and can cause damage to your computer.
Use care when inserting or removing a memory card from the SD memory card slot. Do not force the memory card in or out of the slot.
Inserting a Memory Card
To insert a memory card

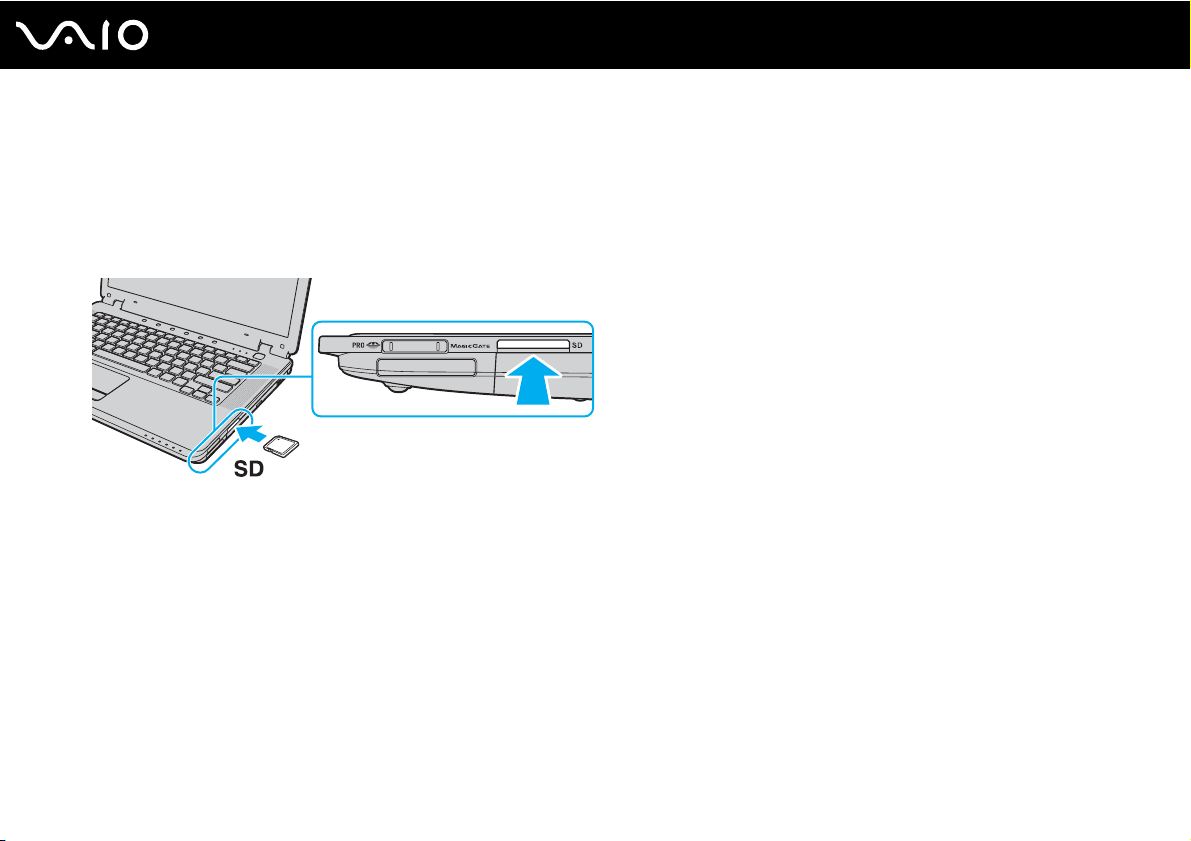

1Locate the SD memory card slot.
2Hold the memory card with the arrow facing upward and pointing toward the memory card slot.
3Carefully slide the memory card into the slot until it clicks into place.
Do not force the card into the slot.
✍
If the memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
56
nN
Using Your VAIO Computer
Removing a Memory Card
!
Do not remove a memory card while the SD memory card indicator light is on. If you do, the card or its data may become damaged.
To remove a memory card
1Check that the SD memory card indicator light is off.
2Push in the memory card toward the computer.
The memory card ejects.
3Pull the memory card out of the slot.
57
nN
Using Your VAIO Computer
58
nN
Using Your VAIO Computer
Using the Internet
Setting Up a Dial-up Internet Connection
Before you can connect to the Internet, you need to connect your computer to a telephone line with a telephone cable (not
supplied) and have an account with an Internet Service Provider (ISP).

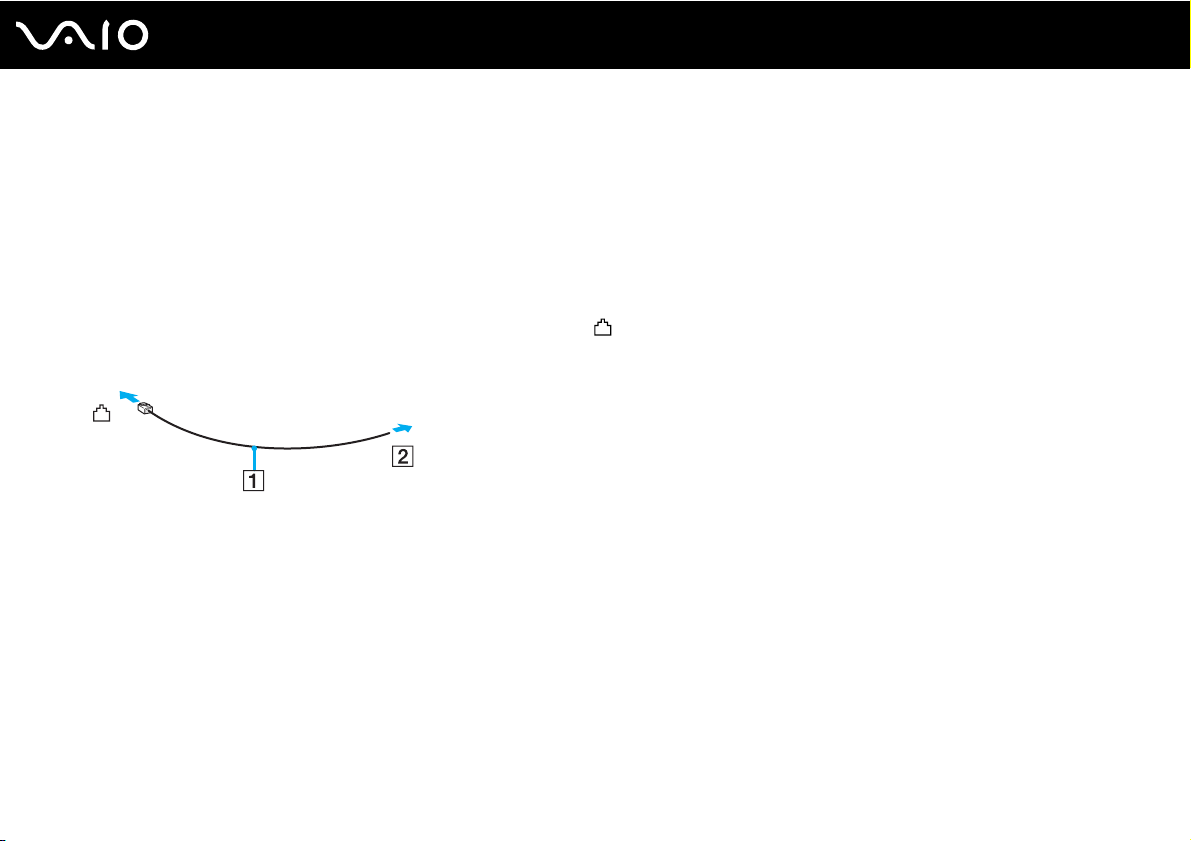

To connect a telephone cable
1Plug one end of the phone cable (1) into the modem port on the computer.
2Plug the other end into the wall jack (2).
✍
Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a
private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.
If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.
To set up a dial-up connection to the Internet
1Click Start and Control Panel.
2Click Connect to the Internet under Network and Internet.
The Connect to the Internet window appears.
3Click Dial-up.
4Follow the on-screen instructions.
59
nN
Using Your VAIO Computer
Using Wireless LAN (WLAN)
Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN functionality communicate freely with each
other through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless
(radio) connection. So there is no need anymore to pull cables or wires through walls and ceilings.
The Sony WLAN supports all normal Ethernet connectivity, but with the added benefits of mobility and roaming. You can still
access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place
to another.
You can communicate without an access point, which means that you can communicate with a limited number of computers
(ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure network.
✍
In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the
WLAN functionality, read the Safety Information carefully.
WLAN uses the IEEE 802.11a
encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access
(WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based, interoperable security
enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA has been designed to be forward
compatible with the IEEE 802.11i specification. It utilizes the enhanced data encryption TKIP (Temporal Key Integrity Protocol) in addition to user
authentication using 802.1X and EAP (Extensible Authentication Protocol). Data encryption protects the vulnerable wireless link between clients and
access points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption,
virtual private networks, and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and
is also designed to secure all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n draft standard, multi-band and multi-
mode. In addition, based on the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of
Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible
with WPA.
* See the online specifications to see whether your model supports the IEEE 802.11a standard and/or the IEEE 802.11n draft standard.
*
/b/g standard or the IEEE 802.11n* draft standard, which specifies the used technology. The standard includes the
60
nN
Using Your VAIO Computer
The IEEE 802.11b/g standard is a wireless LAN standard, using the 2.4 GHz bandwidth. The IEEE 802.11g standard provides high-speed
communications, faster than the IEEE 802.11b standard.
The IEEE 802.11a standard is a wireless LAN standard, using the 5 GHz bandwidth, and provides high-speed communications of up to 54 Mbps.
The IEEE 802.11n draft standard is a wireless LAN standard, using the 2.4 or 5 GHz bandwidth, and provides high-speed communications of up to 144
*
Mbps
on the 2.4 GHz bandwidth or up to 300 Mbps* on the 5 GHz bandwidth.
* Actual communication speed varies depending on your access point settings and so on.
®
Your computer may employ the Intel
Next-Gen Wireless-N technology* compliant with the IEEE 802.11a/b/g standard and the IEEE 802.11n draft
standard.
*Employed only on models that support the IEEE 802.11n draft standard.
Wireless LAN devices using the 2.4 GHz bandwidth and the ones using the 5 GHz bandwidth cannot communicate with each other because the
frequencies are different.
The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference
from other devices that use the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower communication
speed, narrower communication range, or broken wireless connections.
The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device
configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.
The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the
radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.
Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference.
Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with
IEEE 802.11b products. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase
the communication speed.
61
nN
Using Your VAIO Computer

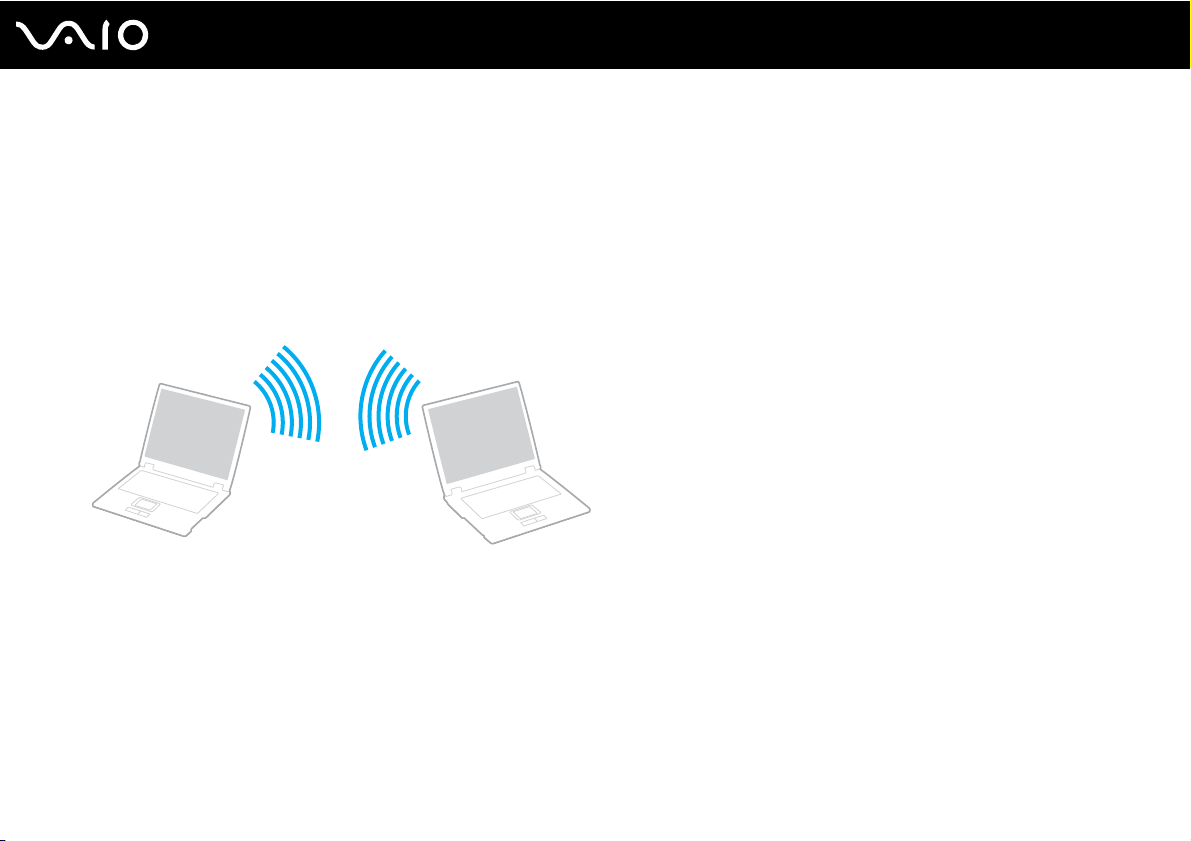

Communicating without an Access Point (Ad-hoc)
An ad-hoc network is a network in which a LAN is created only by the wireless devices themselves, with no other central
controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc
network easily at home.
❑ If the wireless connection is initiated by the VAIO computer, channel 11 will be selected by default.
❑ If the wireless connection is initiated by peer wireless LAN equipment, the wireless LAN communication will make use of
the channel selected by the peer wireless LAN equipment.
Using Your VAIO Computer
To communicate without an access point (ad-hoc)
!
You cannot select the 5 GHz bandwidth, which is used for the IEEE 802.11a standard, on ad-hoc networks.
The IEEE 802.11n draft standard, using the 2.4 or 5 GHz bandwidth, is not available on ad-hoc networks.
1Turn on the WIRELESS switch.
2Double-click ( / ) on the taskbar to display the Wireless Device Switch window.
3Select your desired wireless option(s) and click OK.
Make sure the WIRELESS indicator is lit.
4Click Start and Control Panel.
5Click View network status and tasks under Network and Internet.
6Click Set up a connection or network on the left pane.
The Set up a connection or network window appears.
7Select an option to specify the ad-hoc network settings and click Next.
8Follow the on-screen instructions.
✍
See the online specifications to see whether your model supports the Bluetooth functionality, the IEEE 802.11a/b/g standard, and/or the IEEE 802.11n
draft standard.
62
nN
63
nN
Using Your VAIO Computer

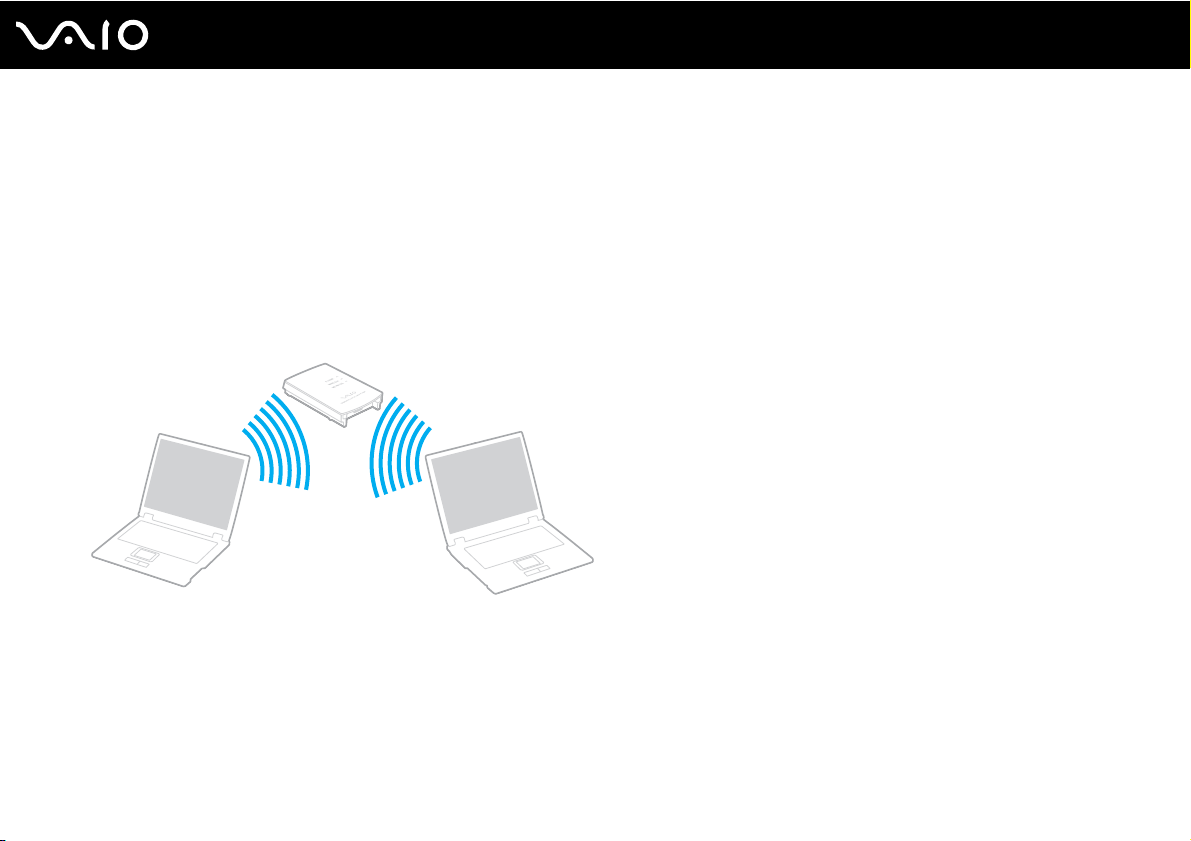

Communicating with an Access Point (Infrastructure)
An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access
point (not supplied), for example the Sony Access Point. The access point bridges the wireless and wired LAN and acts as a
central controller for the wireless LAN. The access point coordinates transmission and reception from multiple wireless
devices within a specific range.
The access point will select which channel to use on an infrastructure network.
!
For details on how to select the channel that will be used by the access point, see the manual that came with your access point.
Using Your VAIO Computer
To connect to a wireless network
1Make sure an access point is set up.
See the manual that came with your access point for more information.
2Turn on the WIRELESS switch.
3Double-click ( / ) on the taskbar to display the Wireless Device Switch window.
4Select your desired wireless option(s) and click OK.
Make sure the WIRELESS indicator is lit.
5Right-click or on the taskbar and select Connect to a network.
6Select the desired access point and click Connect.
✍
For WPA-PSK or WPA2-PSK authentication, you must enter a passphrase. The passphrase is case sensitive and must be between 8 and 63
alphanumeric characters long or up to 64 characters long using numbers from 0 to 9 and letters from A to F.
See the online specifications to see whether your model supports the Bluetooth functionality, the IEEE 802.11a/b/g standard, and/or the IEEE 802.11n
draft standard.
64
nN
Stopping Wireless LAN Communication
To stop wireless LAN communication
Turn off the WIRELESS switch.
!
Turning off the wireless LAN functionality while accessing remote documents, files, or resources may result in data loss.
65
nN
Using Your VAIO Computer
66
nN
Using Your VAIO Computer
Using the Bluetooth Functionality
The Bluetooth functionality is available on selected models only. See the online specifications to see whether your model
supports the Bluetooth functionality.
You can establish wireless communication between your computer and other Bluetooth devices such as another computer
or a mobile phone. You can transfer data between these devices without cables and up to 33 feet (10 meters) range in open
space.
To start Bluetooth communications
1Turn on the WIRELESS switch.
2Double-click ( / ) on the taskbar to display the Wireless Device Switch window.
3Select the Enable Bluetooth Device option.
Make sure the WIRELESS indicator is lit.
4Click OK.
67
nN
Using Your VAIO Computer
Notes on using the Bluetooth functionality
❑ The data transfer rate varies, depending on the following conditions:
❑ Obstacles, such as walls, located between devices
❑ Distance between devices
❑ Material used in walls
❑ Proximity to microwaves and cordless telephones
❑ Radio frequency interference and other environmental conditions
❑ Device configuration
❑ Type of software application
❑ Type of operating system
❑ Use of both wireless LAN and Bluetooth functionalities at the same time on your computer
❑ Size of file being exchanged
❑ Note that due to limitations of the Bluetooth standard, large files may occasionally be corrupted during continuous transfer
due to electromagnetic interference in the environment.
❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if
standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may
not be possible in all situations.
❑ As general characteristics of Bluetooth technology, video and audio may go out of synchronization if you play videos on
your computer with audio output from the connected Bluetooth device.
68
nN
Using Your VAIO Computer
❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth
devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous
use of the Bluetooth functionality and wireless communication devices, however, may cause radio interference and result
in poorer communication speeds and distances than the standard values.
❑ The Bluetooth functionality may not work depending on the third party devices or the software version used by third party
companies.
❑ As general characteristics of Bluetooth technology, connecting multiple Bluetooth devices to your computer may cause
bandwidth congestion, resulting in poor performance of the devices.
Bluetooth Security
The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to
communicate. With the authentication function, you can avoid any anonymous Bluetooth device to access your computer.
The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be
determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.
✍
The passkey can be different each time, but must be the same at both ends.
For certain devices, such as a mouse, no passkey can be entered.
nN
Using Your VAIO Computer
Communicating with Another Bluetooth Device
You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a
mouse, or a digital camera without the use of any cables.
69
70
nN
Using Your VAIO Computer
To communicate with another Bluetooth device
To communicate with another Bluetooth device, you need first to set up the Bluetooth functionality. For setting up and using
the Bluetooth functionality, search for Bluetooth information using Windows Help and Support. To open Windows Help and Support, click Start and Help and Support.
Stopping Bluetooth Communications
To stop Bluetooth communications
Turn off the WIRELESS switch. The WIRELESS indicator turns off.
71
nN
Using Your VAIO Computer
Using the Bluetooth Headset
The Bluetooth headset (not supplied) will come in handy during a video conference over the Internet using instant messaging
software. For details on using the Bluetooth headset, see the manual that came with your Bluetooth headset.
To connect the headset with your computer
1Press and hold the headset power button for at least five seconds to turn on the Bluetooth headset.
2Press and hold the volume buttons for at least five seconds until the indicator light blinks in red and green.
3Click Start, Control Panel, Hardware and Sound, and Bluetooth Devices.
4Click Add on the Devices tab.
The Add Bluetooth Device Wizard window appears.
5Click to select the My device is set up and ready to be found check box and click Next.
The wizard searches for Bluetooth devices in range and lists available devices, if any.
6Select the device name for your Bluetooth headset and click Next.
7Enter "0000" for Use the passkey found in the documentation and click Next.
8Click Finish.
The headset icon appears on the Devices tab in the Bluetooth Devices window.
9Follow the on-screen instructions when the settings window for the headset appears.
To disconnect the headset from your computer
1Click Start, Control Panel, Hardware and Sound, and Bluetooth Devices.
2Select the headset icon and select Disconnect.
3Click OK.
Using Peripheral Devices
You can add functionality to your VAIO computer by using the various ports on the computer.
❑ Connecting External Speakers (page 73)
❑ Connecting an External Display (page 74)
❑ Selecting Display Modes (page 78)
❑ Using the Multiple Monitors Function (page 79)
❑ Connecting an External Microphone (page 81)
❑ Connecting a Universal Serial Bus (USB) Device (page 82)
❑ Connecting a Printer (page 85)
❑ Connecting an i.LINK Device (page 86)
❑ Connecting to a Network (LAN) (page 88)
72
nN
Using Peripheral Devices
Connecting External Speakers
You can enhance the sound quality of your computer by connecting external speakers.
To connect external speakers
1Plug the speaker cable (1) into the headphones jack (2) i.
2Plug the other end of the speaker cable to the external speaker (3).
3Turn down the volume of the speakers before you turn them on.
✍
Make sure your speakers are designed for computer use.
73
nN
Using Peripheral Devices
!
Do not place floppy disks on the speakers; their magnetic field may damage the data on the disks.
74
nN
Using Peripheral Devices
Connecting an External Display
You can connect an external display (not supplied) to your computer. For example, you can use the computer with a computer
display or a projector.
✍
Connect the power cord of your external display after connecting all other cables.
Connecting a Computer Display
You can connect a computer display (monitor) to your computer.
To connect a computer display

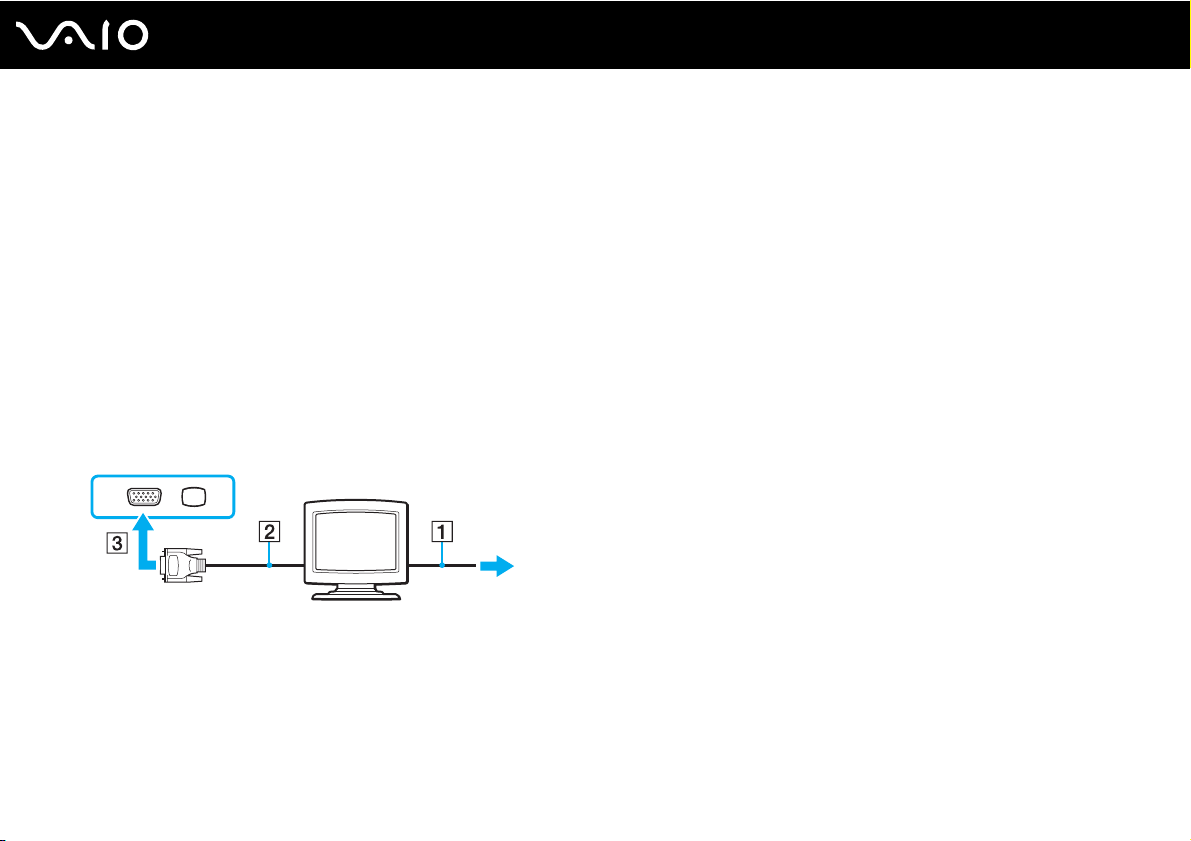

1If necessary, plug one end of the display's power cord (1) into your display, and the other end into an AC outlet.
2Plug the display cable (2) (not supplied) into the monitor port (3) a on the computer.
Using Peripheral Devices

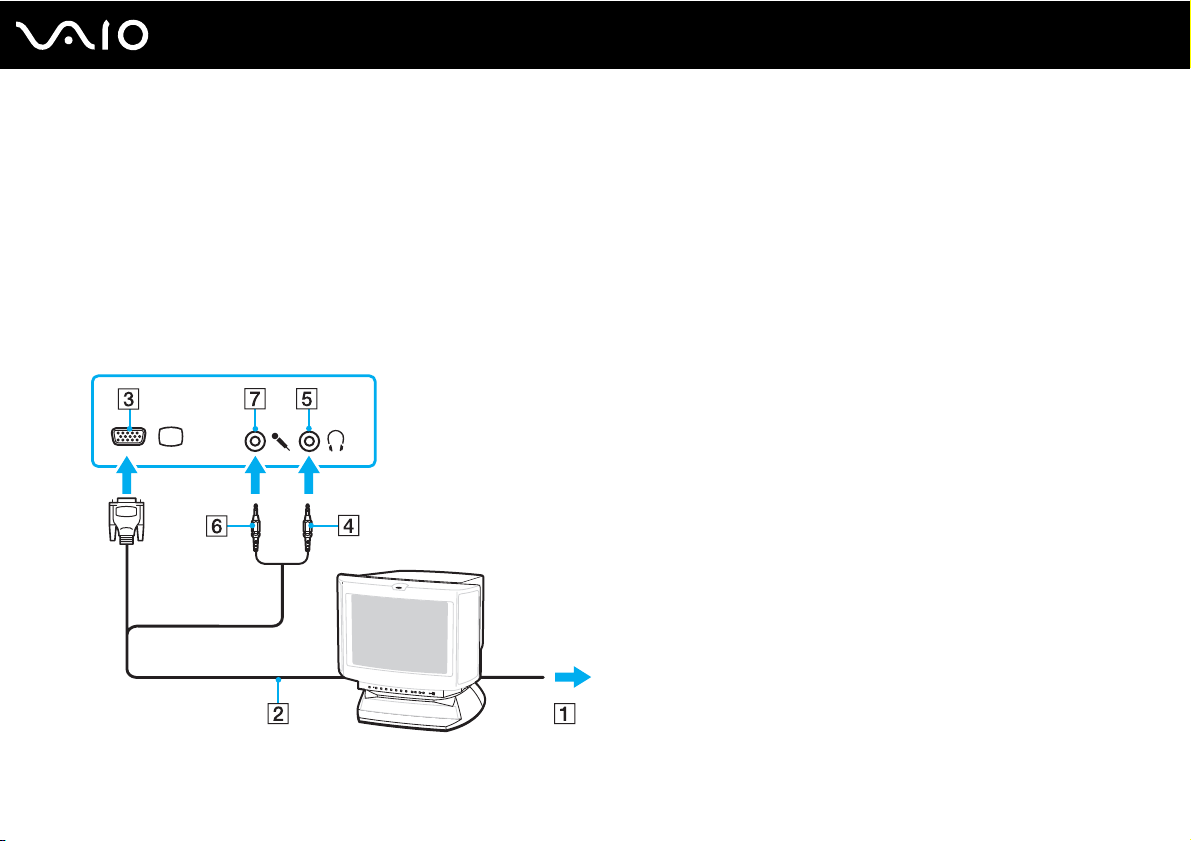

Connecting a Multimedia Computer Display
You can connect a multimedia computer display that includes built-in speakers and a microphone to your computer.
To connect a multimedia computer display
1Plug the power cord of your multimedia computer display (1) into an AC outlet.
2Plug the display cable (2) (not supplied) into the monitor port (3) a on the computer.
3Plug the speaker cable (4) into the headphones jack (5) i on the computer.
4Plug the microphone cable (6) into the microphone jack (7) m on the computer.
75
nN
76
nN
Using Peripheral Devices
Connecting a TV
You can connect a TV to your computer.
To connect a TV to your computer
1Plug the power cord of your TV into an AC outlet.
2Plug one end of an S Video cable (not supplied) into the S VIDEO OUT port on the computer and the other end to the TV.
3Plug one end of an audio cable (not supplied) into the headphones jack on the computer and the other end to the TV.
4Switch the input channel of the TV to external input.
5Set up the TV configuration system.
✍
See the manual that came with your TV for more information on installation and use.
If the display resolution of your computer is more than 1024 x 768 pixels, a part of the image cannot be displayed on your TV. If you want to display
the full image, change the display resolution of the computer to 1024 x 768 pixels or lower.
Connecting a Projector
You can connect a projector (for example, the Sony LCD projector) to your computer.
To connect a projector

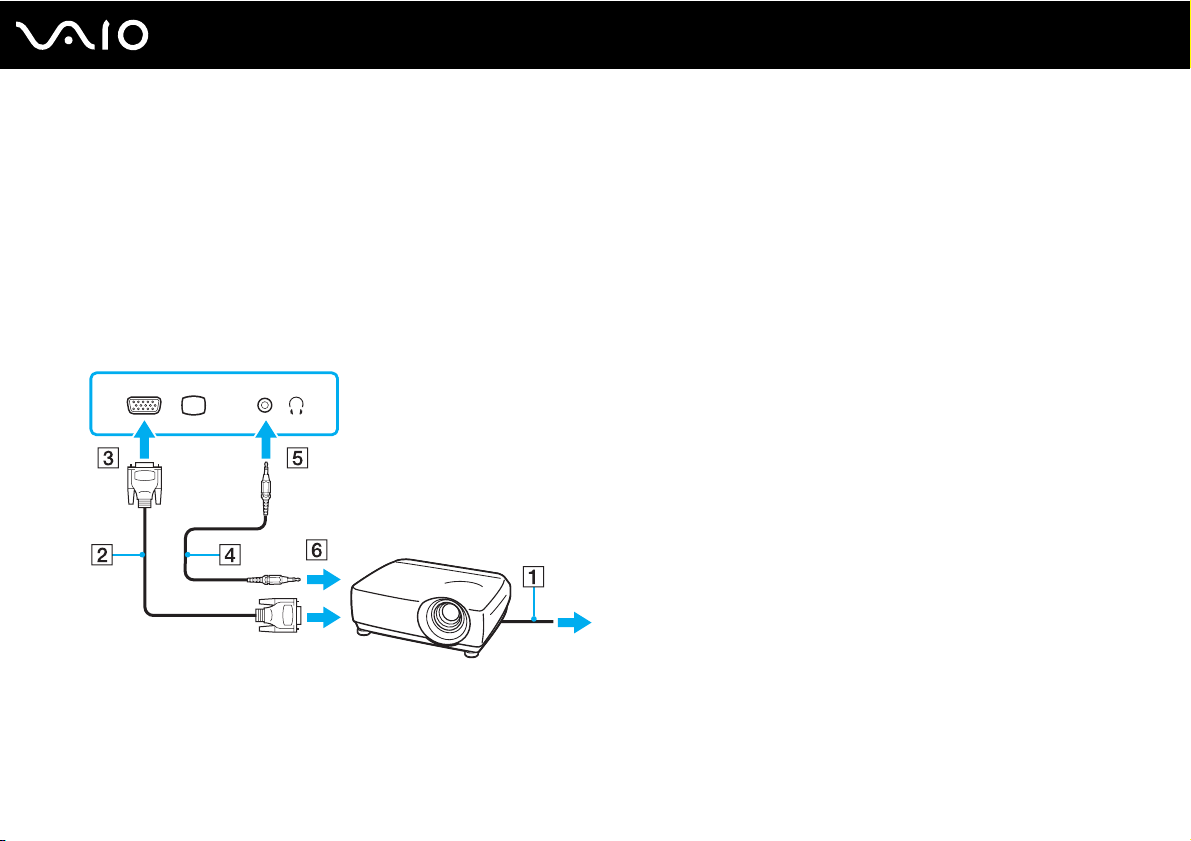

1Connect the power cord (1) of your projector into an AC outlet.
2Plug a display cable (2) (not supplied) into the monitor port (3) a on the computer.
3Plug an audio cable (4) (not supplied) into the headphones jack (5) i on the computer.
4Plug the display cable and the audio cable into the jack and port on the projector (6).
77
nN
Using Peripheral Devices
78
nN
Using Peripheral Devices
Selecting Display Modes
You can select which display to be used as the primary monitor when an external display (desktop monitor, etc.) is connected
to your computer.
If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors Function (page 79) for more information.
To select a display
1Right-click on the desktop and select Personalize.
2Click Display Settings.
3Follow the on-screen instructions to change the settings.
✍
You may not be able to display the same contents on your computer screen and the external display or projector at the same time, depending on the
type of your external display or projector.
Before turning on your computer, turn on the external display.
79
nN
Using Peripheral Devices
Using the Multiple Monitors Function

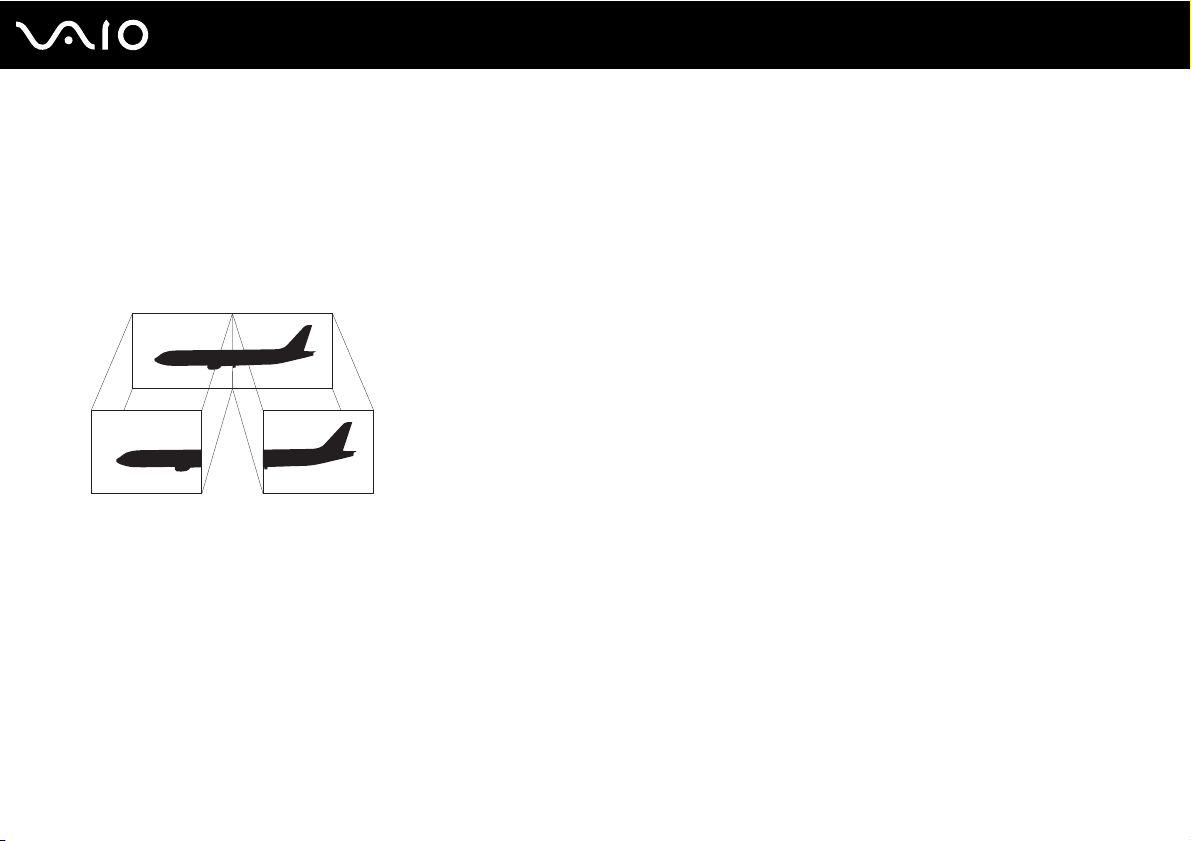

The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you
have an external display connected to the monitor port, your computer screen and the external display can function as a
single desktop.
You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window
or a toolbar, from one display to the other.
✍
Your external display may not support the Multiple Monitors function.
Certain software applications may not be compatible with Multiple Monitors settings.
Make sure that your computer does not enter Sleep or Hibernate mode while you are using Multiple Monitors mode; otherwise the computer may not
return to Normal mode.
If you set different colors on each display, do not expand a single window across two displays; otherwise your software may not work properly.
Set fewer colors or a lower resolution for each display.
To select the Multiple Monitors mode
1Right-click on the desktop and select Personalize.
2Click Display Settings.
3Follow the on-screen instructions to change the settings.
✍
Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors mode.
80
nN
Using Peripheral Devices
81
nN
Using Peripheral Devices
Connecting an External Microphone
If you need to use a sound input device (for example, to chat over the Internet), you need to plug in an external microphone
(not supplied).
To connect an external microphone

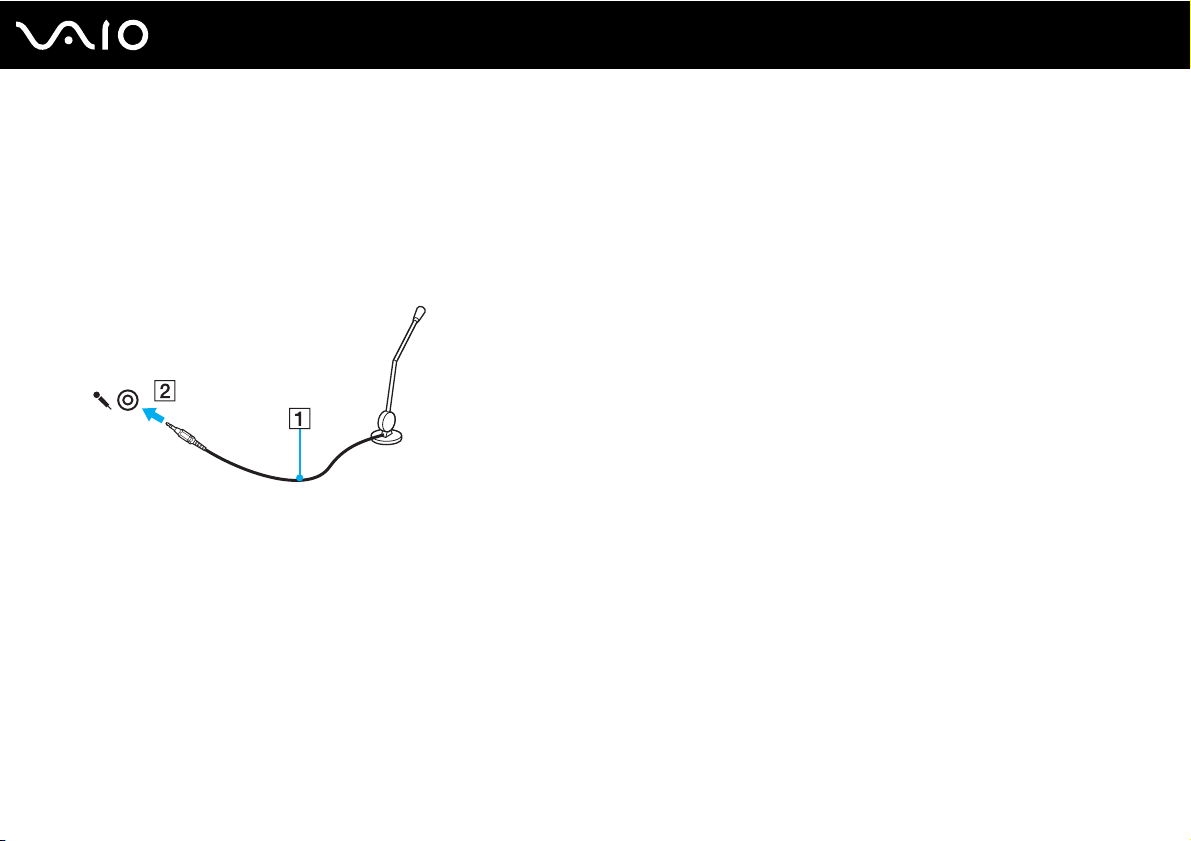

Plug the microphone cable (1) into the microphone jack (2) m.
✍
Make sure your microphone is designed for computer use.
Using Peripheral Devices
Connecting a Universal Serial Bus (USB) Device
To prevent your computer and/or USB devices from damage, observe the following:
❑ When moving the computer with USB devices connected, avoid any shock or force to the USB ports.
❑ Do not put the computer into a bag or carrying case when it has USB devices connected.

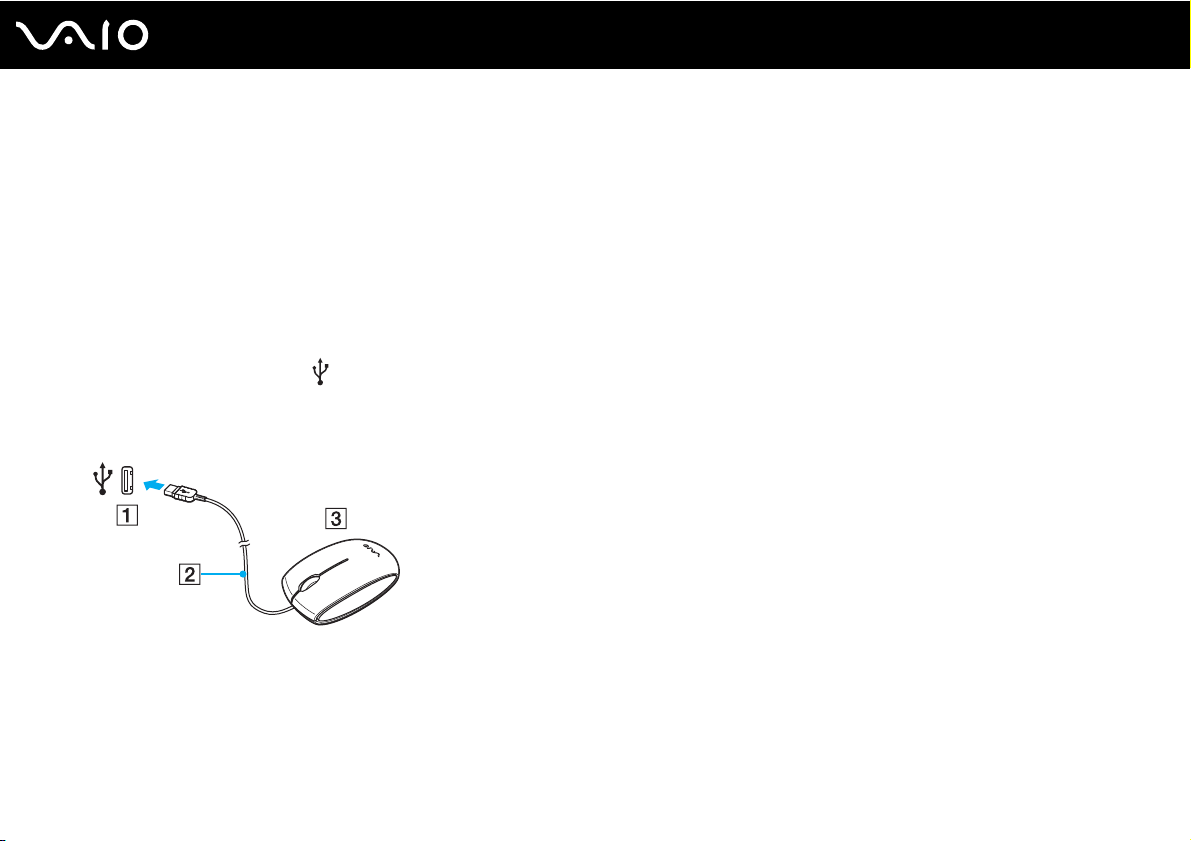

Connecting a USB Mouse
To connect a USB mouse
1Choose the USB port (1) you prefer to use.
2Plug the USB mouse cable (2) into the USB port.
You can now use your USB mouse (not supplied) (3).
82
nN
Connecting a USB Floppy Disk Drive
You can purchase a USB floppy disk drive and connect it to your computer.
To connect a USB floppy disk drive
1Choose the USB port (1) you prefer to use.
2Plug the USB floppy disk drive cable (2) into the USB port.
Your USB floppy disk drive (3) is now ready for use.
!
When using a USB floppy disk drive, do not apply force on the USB port. This may cause a malfunction.
83
nN
Using Peripheral Devices
84
nN
Using Peripheral Devices
Disconnecting a USB floppy disk drive
You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is
in a power saving mode (Sleep or Hibernate) may cause the computer to malfunction.
To disconnect a USB floppy disk drive
✍
To disconnect a USB floppy disk drive when your computer is off, skip steps 1 to 5.
1Close all programs accessing the floppy disk drive.
2Double-click the Safely Remove Hardware icon on the taskbar.
3Select the floppy disk drive you want to unplug.
4Click Stop.
5Follow the on-screen instructions to remove the floppy disk drive.
6Disconnect the floppy disk drive from the computer.
Using Peripheral Devices
Connecting a Printer
You can connect a Windows-compatible printer to your computer to print documents.
Connecting a Printer Using the USB Port
You can connect a USB printer compatible with your version of Windows to the computer.
To connect a printer using the USB port

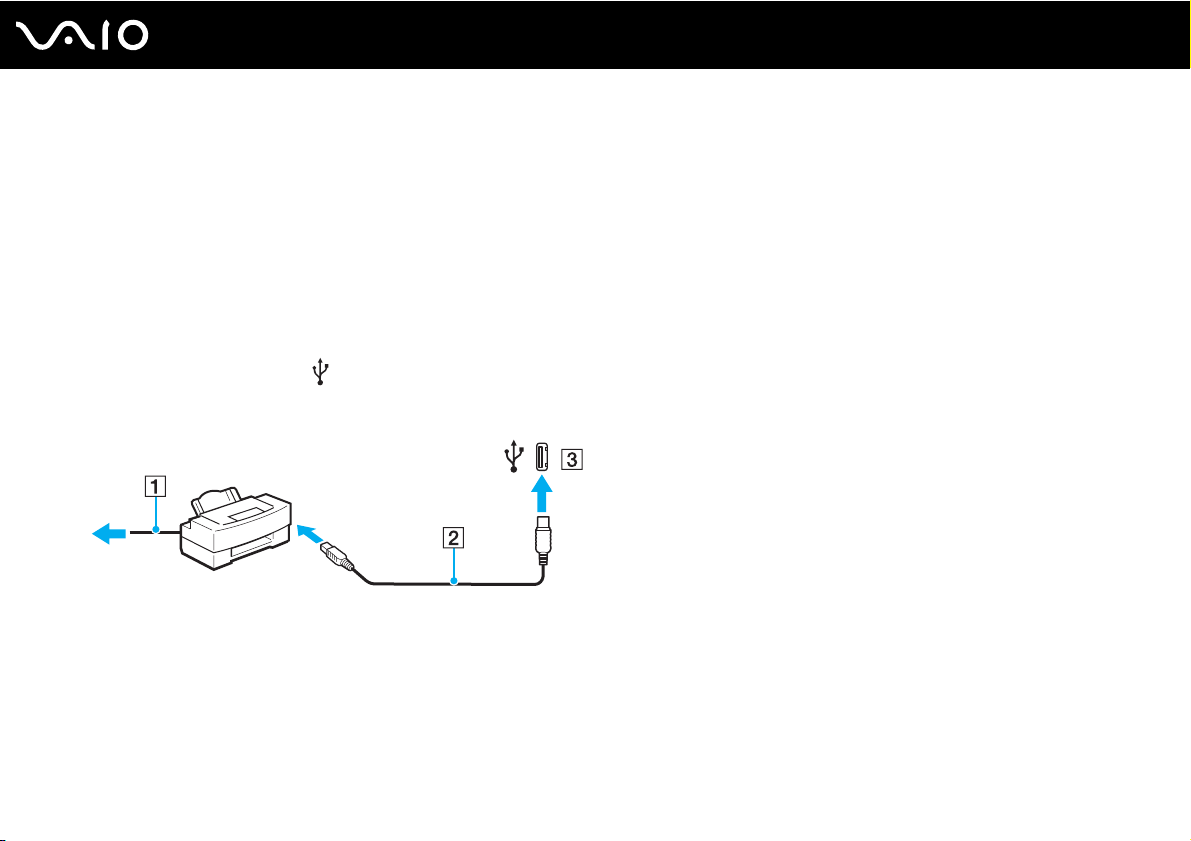

1Plug the power cord (1) of your printer into an AC outlet.
2Choose the USB port (3) you prefer to use.
3Plug one end of a USB printer cable (2) (not supplied) into the USB port and the other end to your printer.
85
nN
86
nN
Using Peripheral Devices
Connecting an i.LINK Device
Notes on connecting i.LINK devices
❑ Your computer is equipped with an i.LINK port, which you can use to connect to an i.LINK device, such as a digital video
camcorder.
❑ The i.LINK port on your computer does not supply power to external devices generally powered by i.LINK ports.
❑ The i.LINK port supports transfer rates up to 400 Mbps; however, the actual transfer rate depends on the transfer rate of
the external device.
❑ The optional i.LINK cables may not be available in some countries or areas.
❑ An i.LINK connection with other compatible devices is not fully guaranteed.
❑ The i.LINK connection varies depending on the software applications, operating system, and i.LINK-compatible devices
you use. See the manual that came with your software for more information.
❑ Check the working conditions and operating system compatibility of i.LINK-compatible PC peripherals (for example, an
HDD or a CD-RW drive) before you connect them to your computer.
87
nN
Using Peripheral Devices
Connecting a Digital Video Camcorder
To connect a digital video camcorder

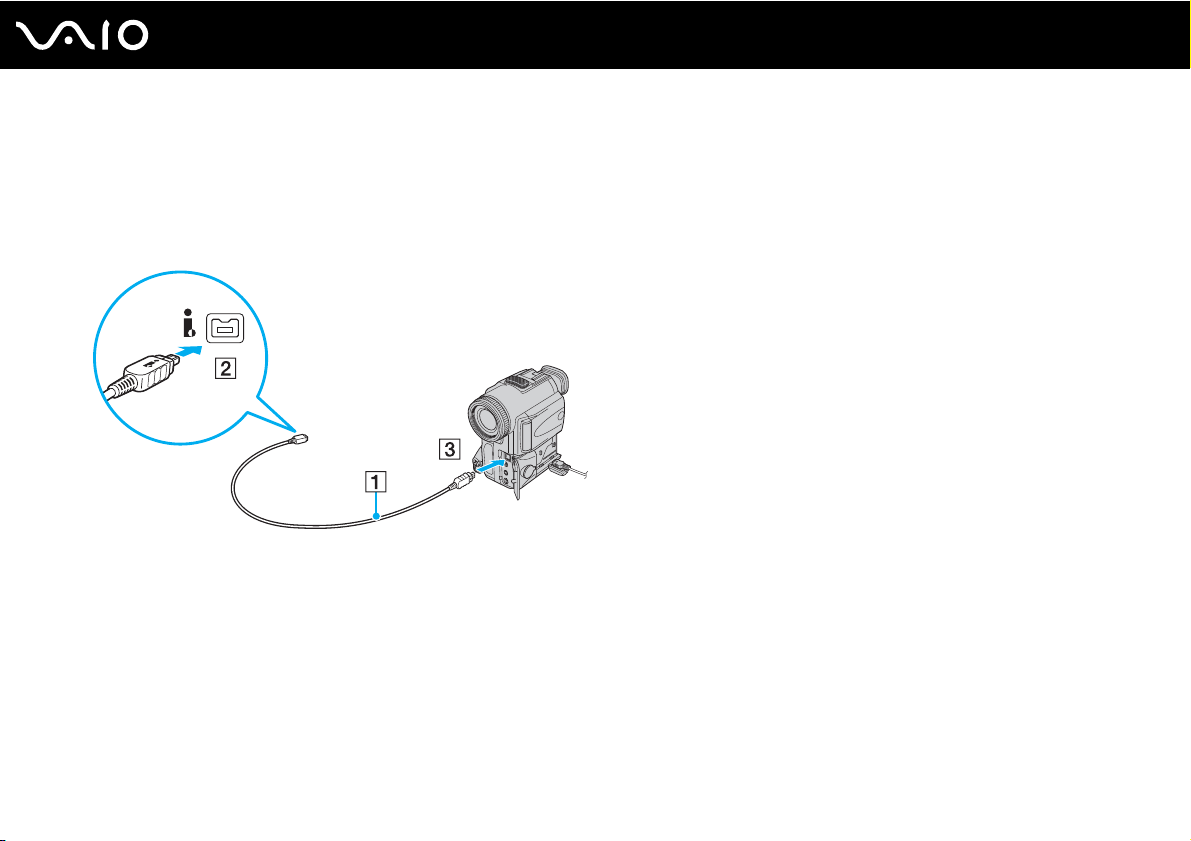

Plug one end of an i.LINK cable (1) (not supplied) into the i.LINK port (2) on the computer and the other end into the DV In/
Out port (3) on the digital video camcorder.
✍
On Sony digital video cameras, ports labeled DV Out, DV In/Out, or i.LINK are i.LINK-compatible.
The Sony digital video camcorder shown here is an example; your digital video camcorder may need to be connected differently.
You cannot access the pictures stored on a Memory Stick media when using an i.LINK connection.
88
nN
Using Peripheral Devices
Connecting to a Network (LAN)

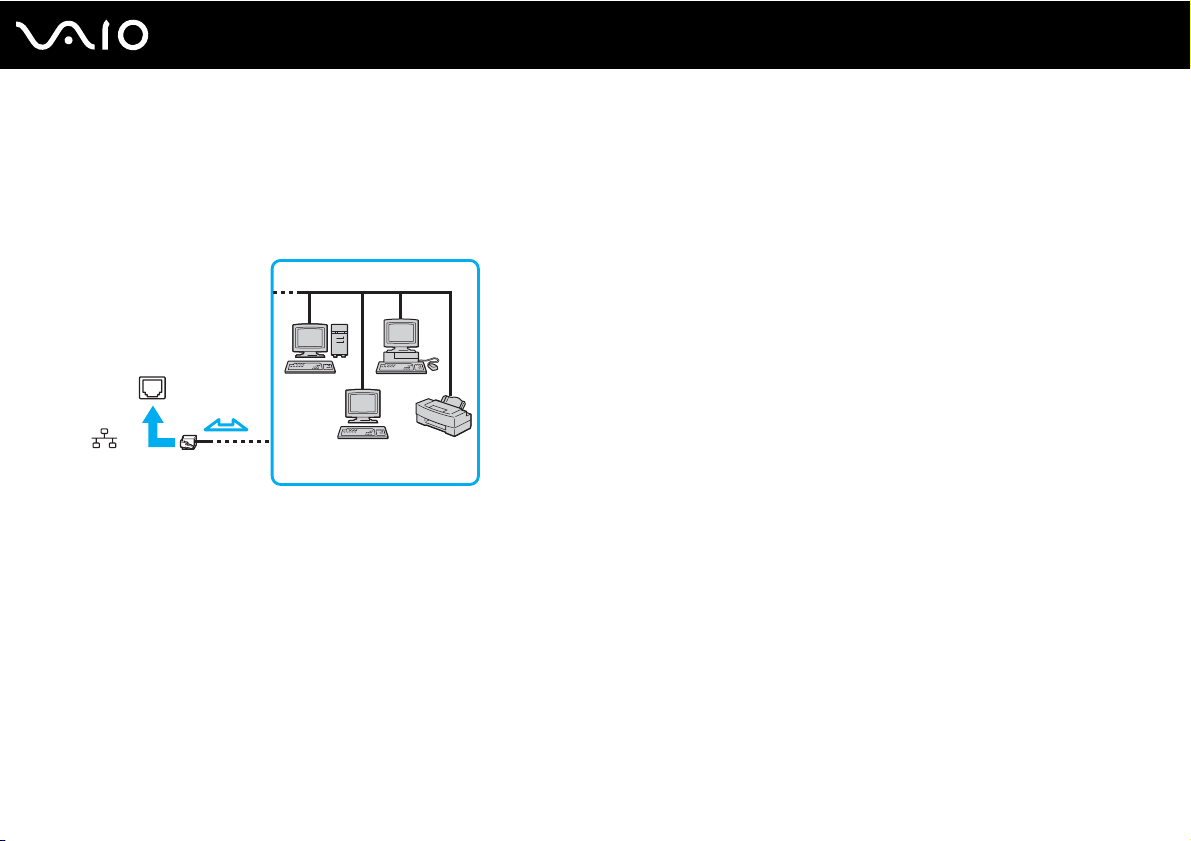

You can connect your computer to 100BASE-TX/10BASE-T-type networks with an Ethernet network cable. Connect one end
of a network cable (not supplied) to the network (Ethernet) port on the computer and the other end to your network. For
detailed settings and devices needed to connect to the network, ask your network administrator.
✍
Your computer can be connected to the network with the default settings.
!
Telephone lines cannot be connected to the network (LAN) connector on your computer.
If the network (LAN) connector is connected to the telephone lines mentioned below, high electric current to the connector may cause damage,
overheating, or fire.
- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)
- Public telephone subscriber line
- PBX (private branch exchange)
Do not plug a telephone cable into the network (Ethernet) port.
89
nN
Customizing Your VAIO Computer
Customizing Your VAIO Computer
This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn
how to use and customize the look of your Sony software and utilities, etc.
❑ Setting the Password (page 90)
❑ Using Fingerprint Authentication (page 97)
❑ Setting Up Your Computer with VAIO Control Center (page 105)
❑ Using the Power Saving Modes (page 106)
❑ Managing Power with VAIO Power Management (page 111)
90
nN
Customizing Your VAIO Computer
Setting the Password
Use one of the BIOS functions to set the password.
Once you have set the password, you will be prompted to enter the password after the VAIO logo appears to start your
computer. The power-on password allows you to protect your computer from unauthorized access.
Adding the Power-on Password
The power-on password is provided to protect your computer from unauthorized access.
There are two types of the power-on password: machine password and user password. The machine password is provided
for users with administrator rights on the computer to change all the setup options in the BIOS setup screen, as well as to
start the computer. The user password is provided for the standard users to allow for changing some of the BIOS setup
options, as well as starting the computer. To set the user password, you must first set the machine password.
!
Once you have set the power-on password, you cannot start your computer without entering the password. Make sure not to forget the password. Write
down your password and keep it safe and private from other people.
If you forget the power-on password and need assistance to reset it, a password reset fee will be charged, and your computer may need to be sent in
for depot service for password reset.
✍
If your computer is equipped with the fingerprint sensor and you have set the power-on password in conjunction with the fingerprint authentication
functionality, you can substitute fingerprint authentication for password entry when turning on your computer. For more information, see Using
Fingerprint Authentication (page 97).
91
nN
Customizing Your VAIO Computer
To add the power-on password (machine password)
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
4On the password entry screen, enter the password twice and press the Enter key.
The password can be up to 32 alphanumeric characters (including spaces) long.
5Select Password when Power On under Security.
Press the space bar to change the setting from Disabled to Enabled.6Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
92
nN
Customizing Your VAIO Computer
To add the power-on password (user password)
!
Make sure you set the machine password before setting the user password.
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3Enter the machine password and press the Enter key.
4Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the
Enter key.
5On the password entry screen, enter the password twice and press the Enter key.
The password can be up to 32 alphanumeric characters (including spaces) long.
6Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
93
nN
Customizing Your VAIO Computer
Changing/Removing the Power-on Password
To change or remove the power-on password (machine password)
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3Enter the machine password and press the Enter key.
4Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
5On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.
To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.
6Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
94
nN
Customizing Your VAIO Computer
To change or remove the power-on password (user password)
1Turn on the computer.
2Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3Enter the user password and press the Enter key.
4Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the
Enter key.
5On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.
To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.
6Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
95
nN
Customizing Your VAIO Computer
Adding the Windows Password
The Windows password comes in handy when you have to share a single computer with other people. By setting the Windows
password, you can protect your user account from unauthorized access.
Entry of the Windows password will be prompted after you select your user account.
!
Make sure not to forget the password. Write down your password and keep it safe and private from other people.
✍
If your computer is equipped with the fingerprint sensor and you have set the Windows password in conjunction with the fingerprint authentication
functionality, you can substitute fingerprint authentication for password entry when turning on your computer. For more information, see Using
Fingerprint Authentication (page 97).
To add the Windows password
1Click Start and Control Panel.
2Click User Accounts and Family Safety or User Accounts.
3Click User Accounts.
4Click Create a password for your account under Make changes to your account.
5In the New password and Confirm new password fields, enter the password for your account.
6Click Create password.
✍
See WindowsHelp and Support for more information on the Windows password.
Changing/Removing the Windows Password
To change the Windows password
1Click Start and Control Panel.
2Click User Accounts and Family Safety or User Accounts.
3Click User Accounts.
4Click Change your password.
5In the Current password field, enter your current password.
6In the New password and Confirm new password fields, enter a new password.
7Click Change password.
To remove the Windows password
1Click Start and Control Panel.
2Click User Accounts and Family Safety or User Accounts.
3Click User Accounts.
4Click Remove your password.
5In the Current password field, enter the current password that you want to remove.
6Click Remove password.
96
nN
Customizing Your VAIO Computer
97
nN
Customizing Your VAIO Computer
Using Fingerprint Authentication

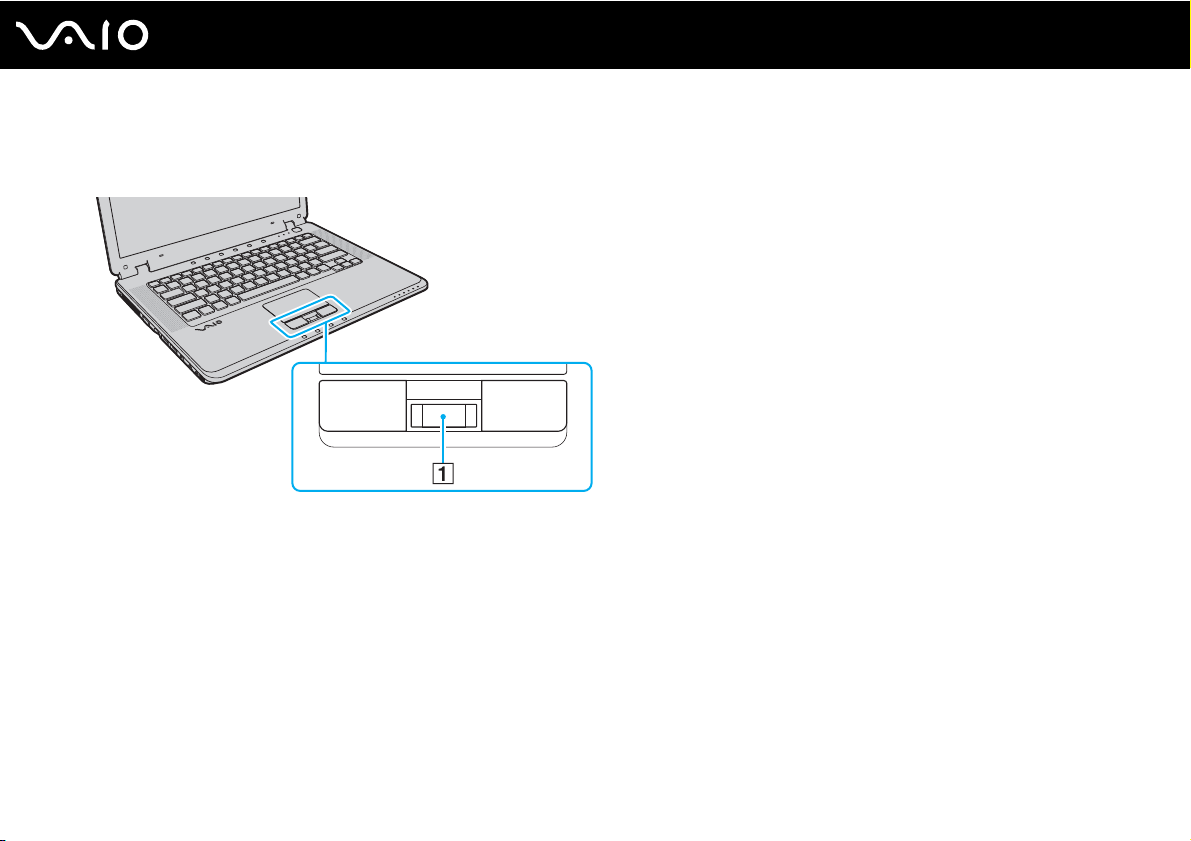

Your computer may be equipped with a fingerprint sensor to provide you with additional convenience. A small horizontal bar
located between the left and right touch pad buttons is the sensor of the fingerprint reader and will be referred to as the
fingerprint sensor hereinafter.
See the online specifications to see whether your model is equipped with the fingerprint sensor.
Once you have registered your fingerprint(s), the fingerprint authentication functionality offers:
✍
For detailed information on each of the following features, see the help file on Protector Suite QL.
❑ A substitute for password entry
❑ Logging onto Windows (page 102)
If you have enrolled your fingerprints for your user account, you can substitute fingerprint authentication for password
entry when logging onto Windows.
❑ Power-on Security feature (page 102)
If you have set the power-on password (page 90), you can substitute fingerprint authentication for password entry
when starting your computer.
❑ Password Bank for quick Web site access (page 103)
You can substitute fingerprint authentication for entering information (user accounts, passwords, etc.) required to access
the password-protected Web sites.
❑ File Safe feature to encrypt/decrypt data (page 103)
With the File Safe feature, you can encrypt files and folder to create an encrypted archive. To decrypt or access such
encrypted archives, you can use the fingerprint authentication or enter the password you specified for encryption.
❑ Application launcher function for quick application access (page 103)
Once you have assigned an application to your finger, you can then swipe the finger across the fingerprint sensor to
launch the assigned application.
98
nN
Customizing Your VAIO Computer
Precautions on Using Fingerprint Authentication
❑ The fingerprint authentication technology does not ensure complete user authentication or complete protection of your
data and hardware.
Sony assumes no liabilities for any problems and damages arising out of your use of or inability to use the fingerprint
sensor.
❑ The fingerprint recognition rate depends on your operating conditions and varies among individuals as well.
❑ Be sure to make a backup copy of the data stored on the hard disk drive, especially in the encrypted archives created
with the File Safe feature, before sending your computer for repair.
Sony assumes no liabilities for any loss or modification of your data that might have occurred during the course of repair.
❑ In case the hard disk drive has to be initialized, for example after the repair work, the fingerprint templates will be lost.
You will have to enroll them all over again.
❑ The maintenance and management of data concerning fingerprint authentication must be carried out at your own risk.
Sony assumes no liabilities for any defects arising out of your data maintenance and management.
❑ Before disposing of your computer or transferring it to a third person, it is strongly recommended you erase the fingerprint
data enrolled on the fingerprint sensor after erasing the data stored on your hard disk drive. See Erasing the Enrolled
Fingerprints (page 104) for the detailed procedure.
❑ A fingerprint sensor may malfunction or be damaged if you scratch its surface with:
❑ a solid or sharp-pointed object
❑ fine objects, for example swiping a finger covered with dirt across the fingerprint sensor
❑ Discharge static electricity from your finger by touching a metallic object especially during dry seasons (e.g. winter) before
scanning your fingerprint. Static electricity may cause a fingerprint sensor to malfunction.
Customizing Your VAIO Computer
Enrolling a Fingerprint
To use the fingerprint authentication functionality, you must enroll your fingerprint(s) in your computer.
✍
Set the Windows password on your computer before enrollment. See Adding the Windows Password (page 95) for the detailed instructions.
To enroll a fingerprint
!
Up to 10 fingerprints can be enrolled for each user and up to 21 fingerprints can be enrolled for logging onto your system using the Power-on Security
feature. You can also select the finger of which fingerprint you want to use for the Power-on Security feature later.
1Click Start, All Programs, Protector Suite QL, and Control Center.
2Click Fingerprints and Initialize.
3Follow the on-screen instructions.
✍
For detailed information, see the help file.
99
nN
If you have failed to enroll a fingerprint, follow these steps to try again.
1Place the top joint of your finger on the fingerprint sensor (1).
100
nN
Customizing Your VAIO Computer
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
