Sony VAIO VGN-AW11ZR/B, VAIO VGN-AW11SR/B, VAIO VGN-AW11XU, VAIO VGN-AW11SR, VAIO VGN-AW11S User Manual

User Guide

Personal Computer

VGN-AW series

N

Contents

Before Use .........................................................................................................................................................................6

Notice ...........................................................................................................................................................................7

Documentation .............................................................................................................................................................8

Ergonomic Considerations.........................................................................................................................................12

Getting Started .................................................................................................................................................................14

Locating Controls and Ports.......................................................................................................................................15

About the Indicator Lights ..........................................................................................................................................22

Connecting a Power Source ......................................................................................................................................24

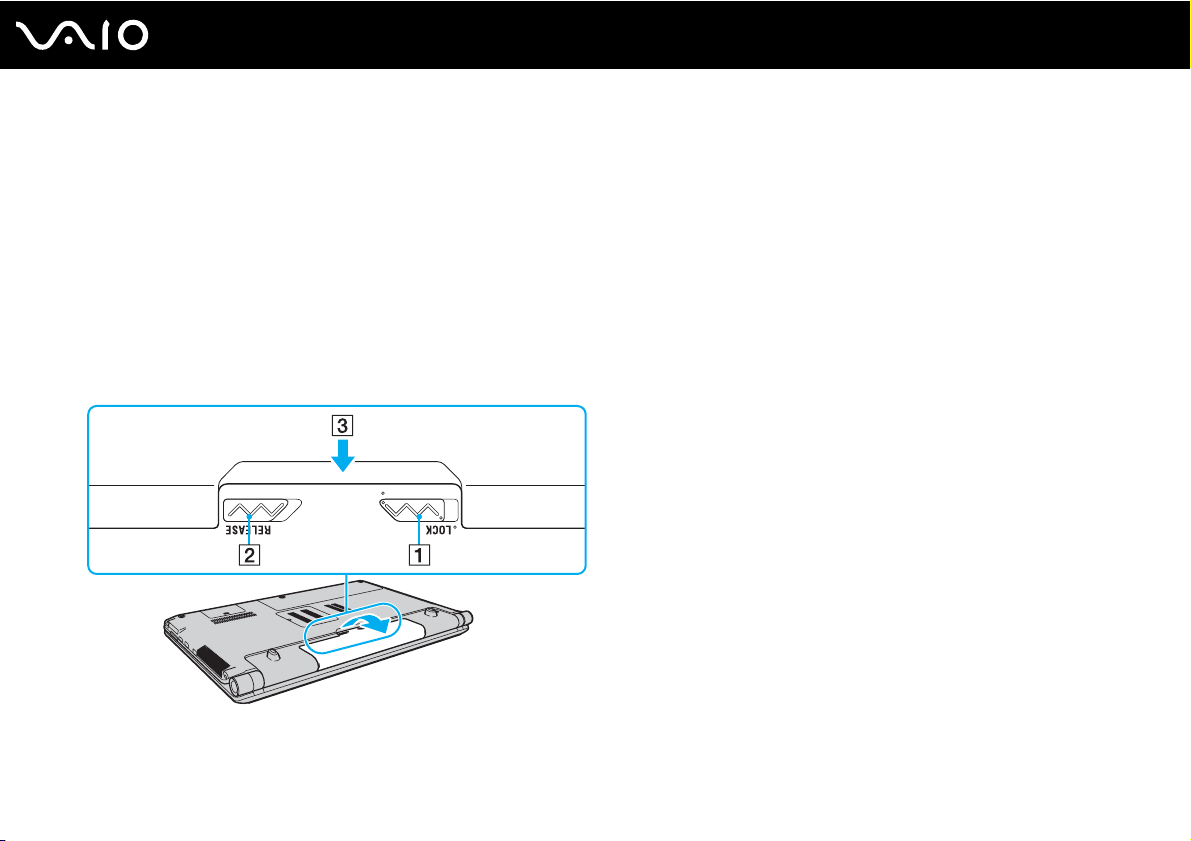

Using the Battery Pack ..............................................................................................................................................25

Shutting Down Your Computer Safely .......................................................................................................................32

Using Your VAIO Computer .............................................................................................................................................33

Using the Keyboard ...................................................................................................................................................34

Using the Touch Pad .................................................................................................................................................35

Using Special-function Buttons ..................................................................................................................................36

Using the Built-in MOTION EYE Camera...................................................................................................................38

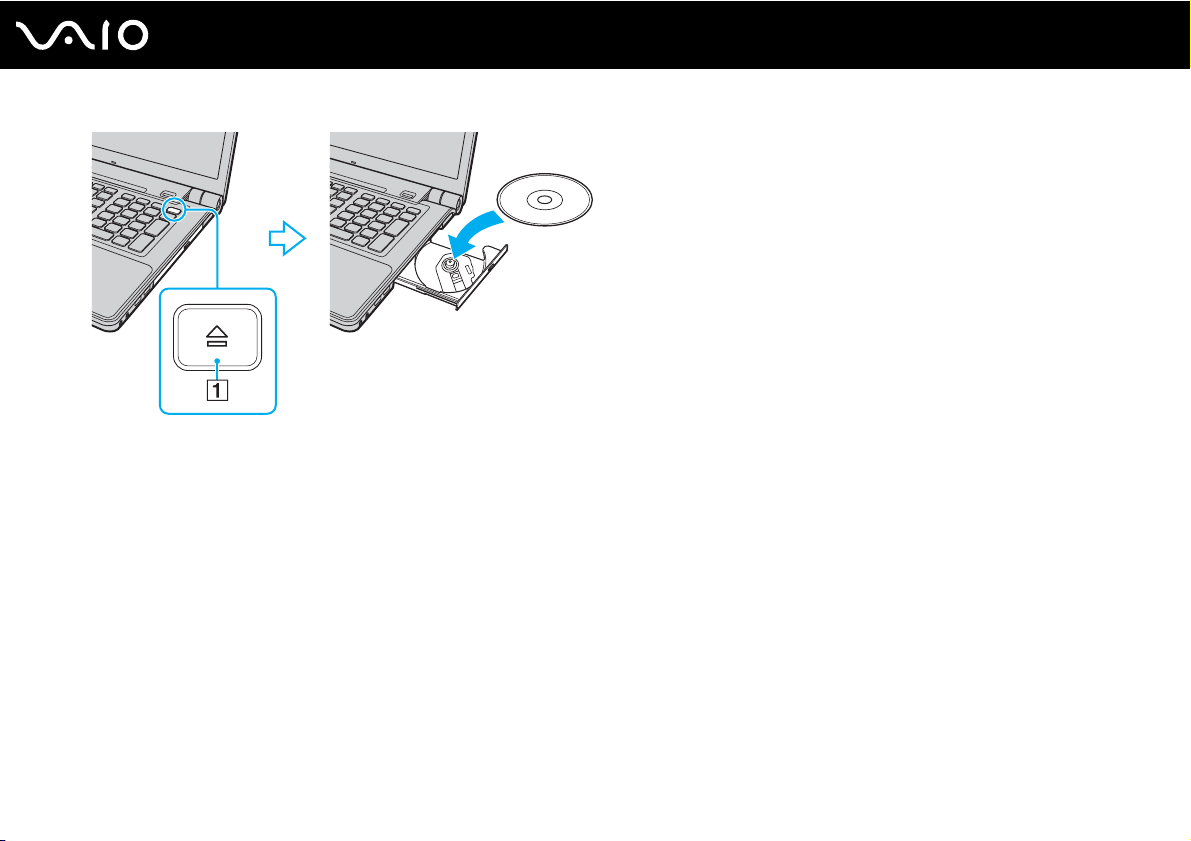

Using the Optical Disc Drive ......................................................................................................................................41

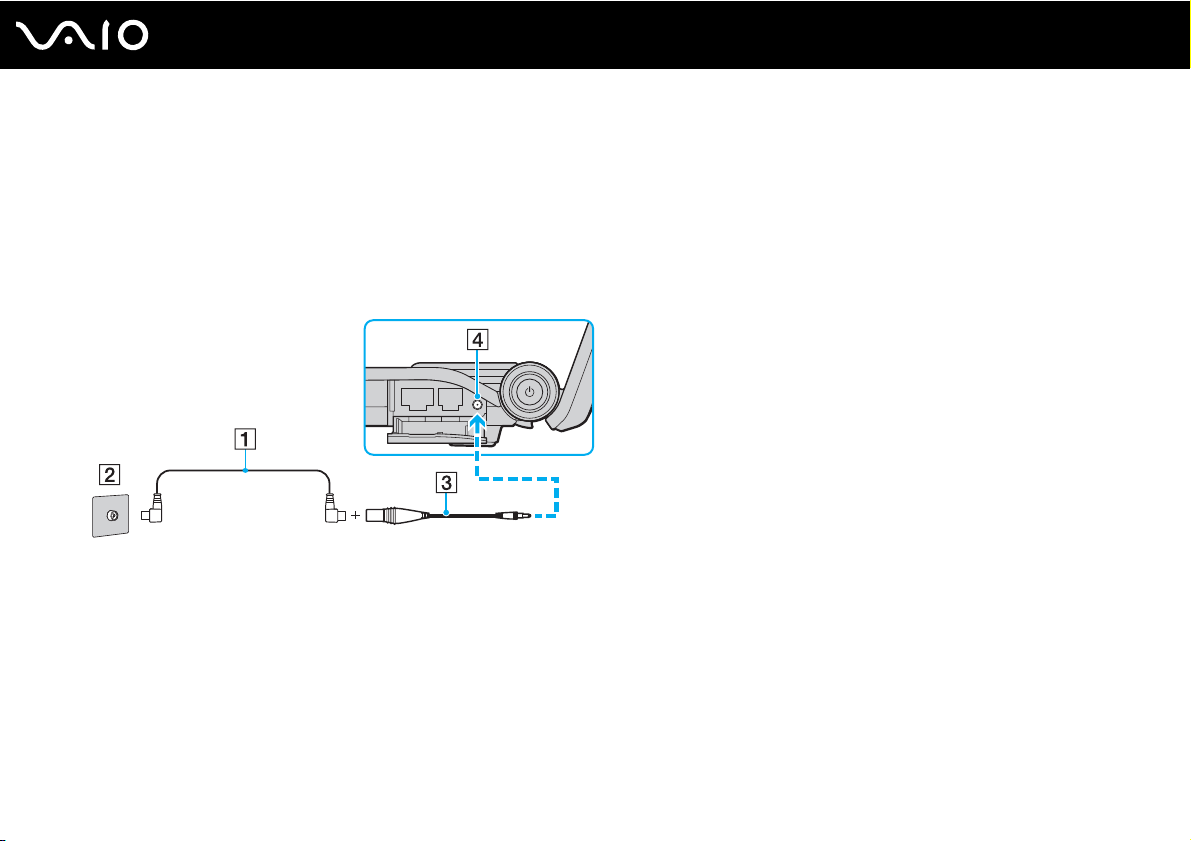

Using the TV Function ...............................................................................................................................................50

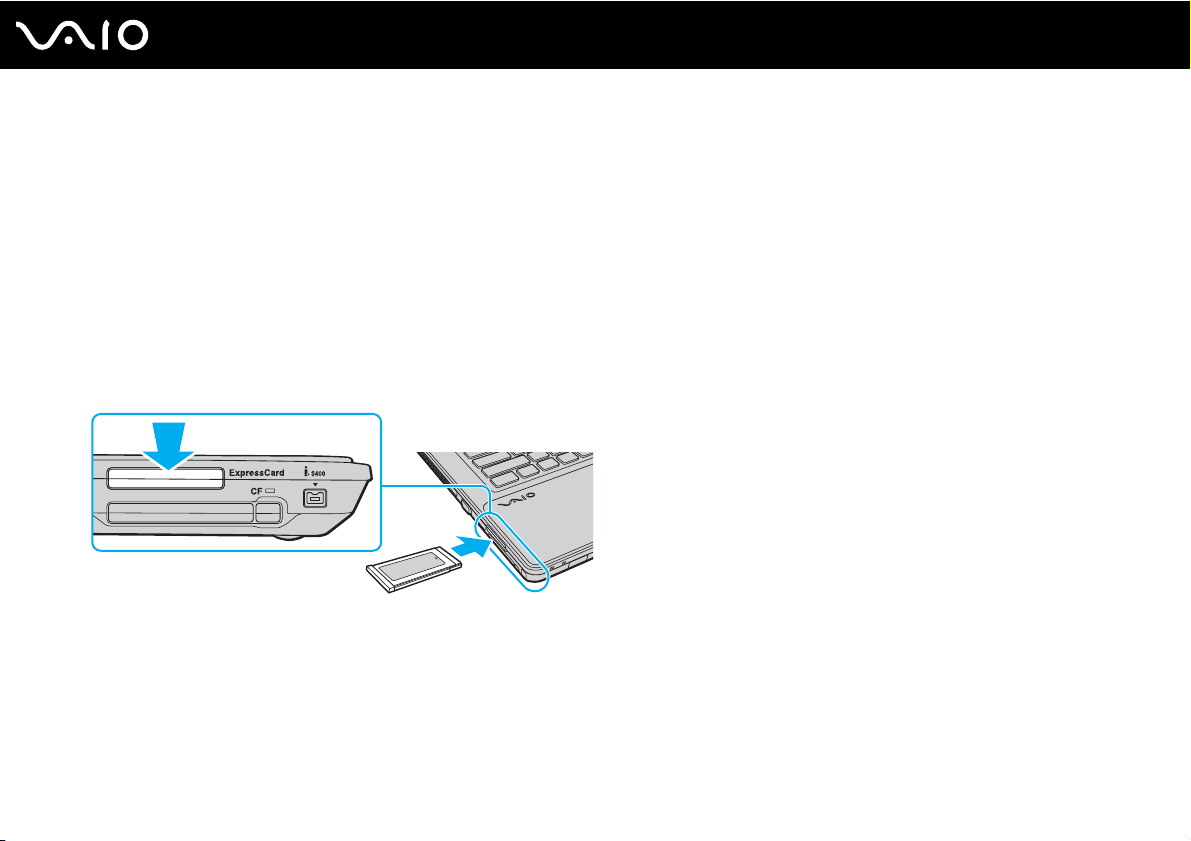

Using the ExpressCard Module .................................................................................................................................59

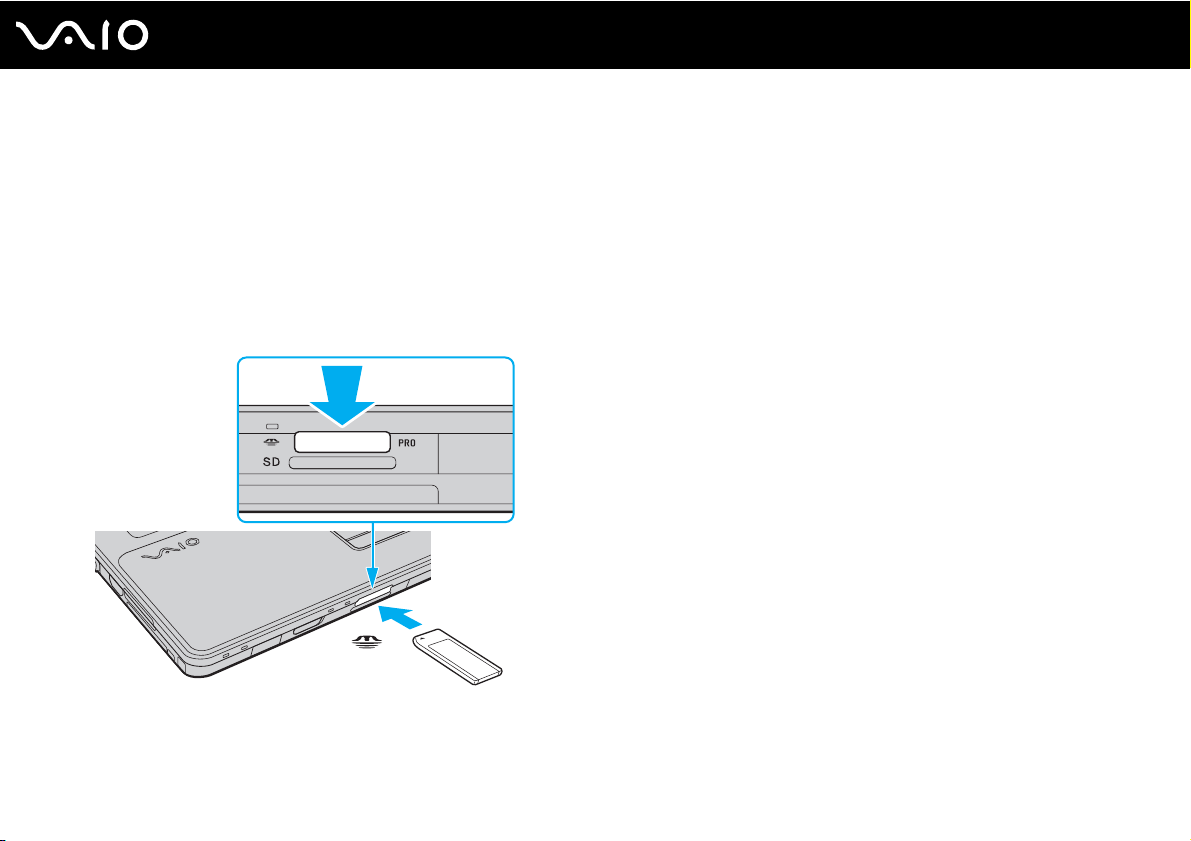

Using the Memory Stick .............................................................................................................................................62

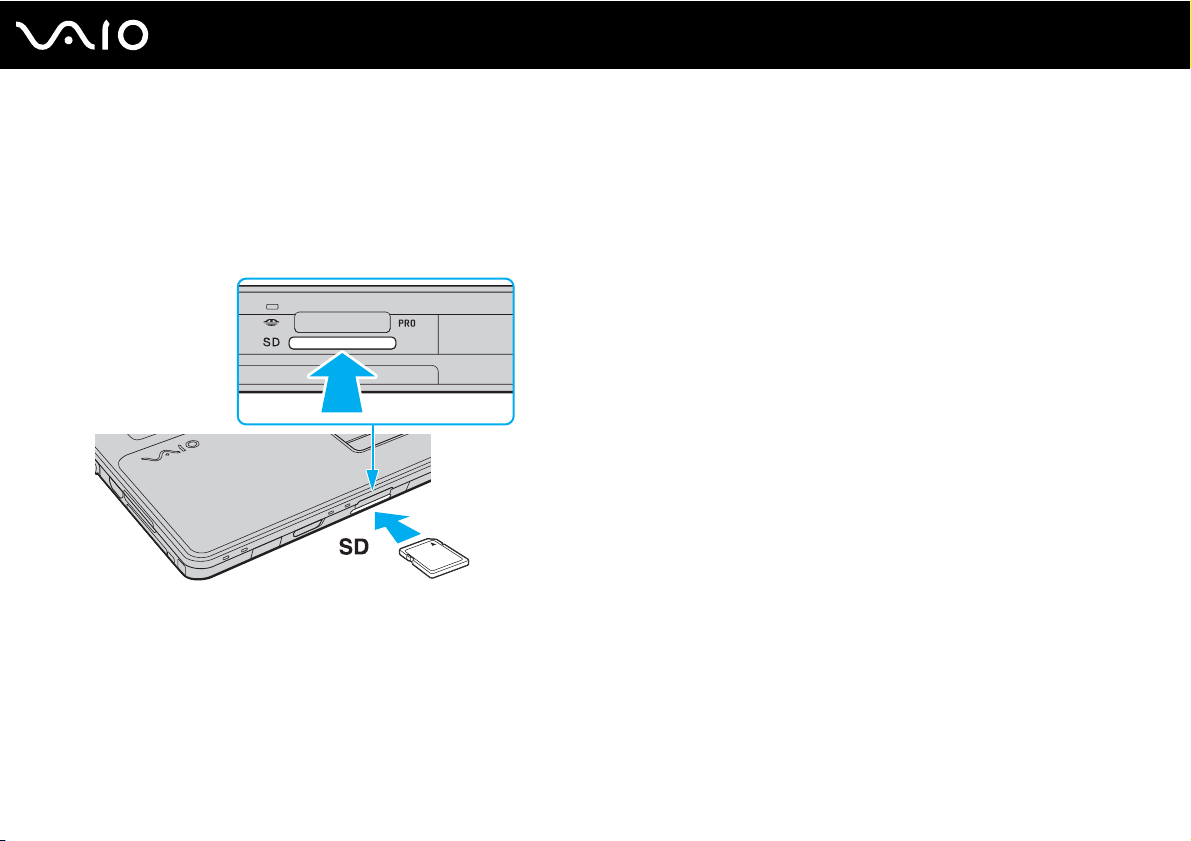

Using the SD Memory Card .......................................................................................................................................68

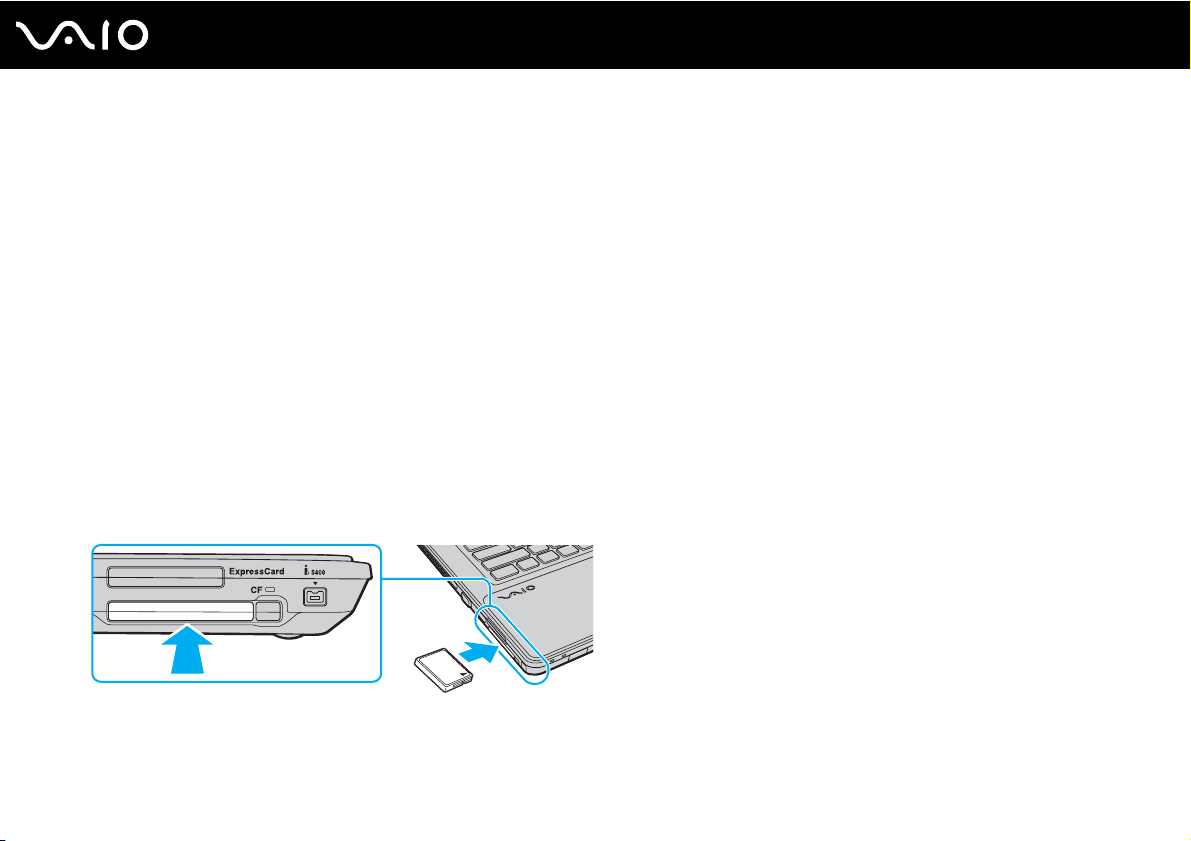

Using the CF Memory Card .......................................................................................................................................71

2

nN

3

nN

Using the Internet.......................................................................................................................................................75

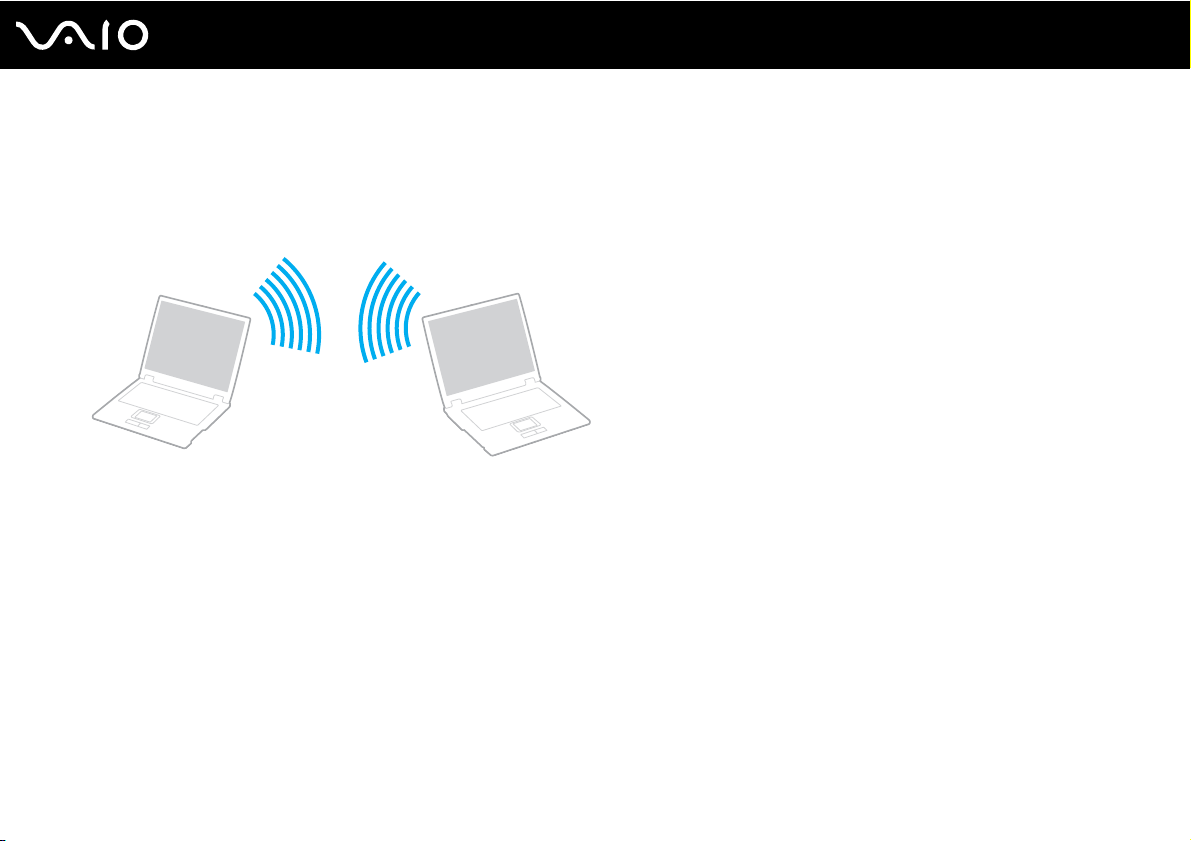

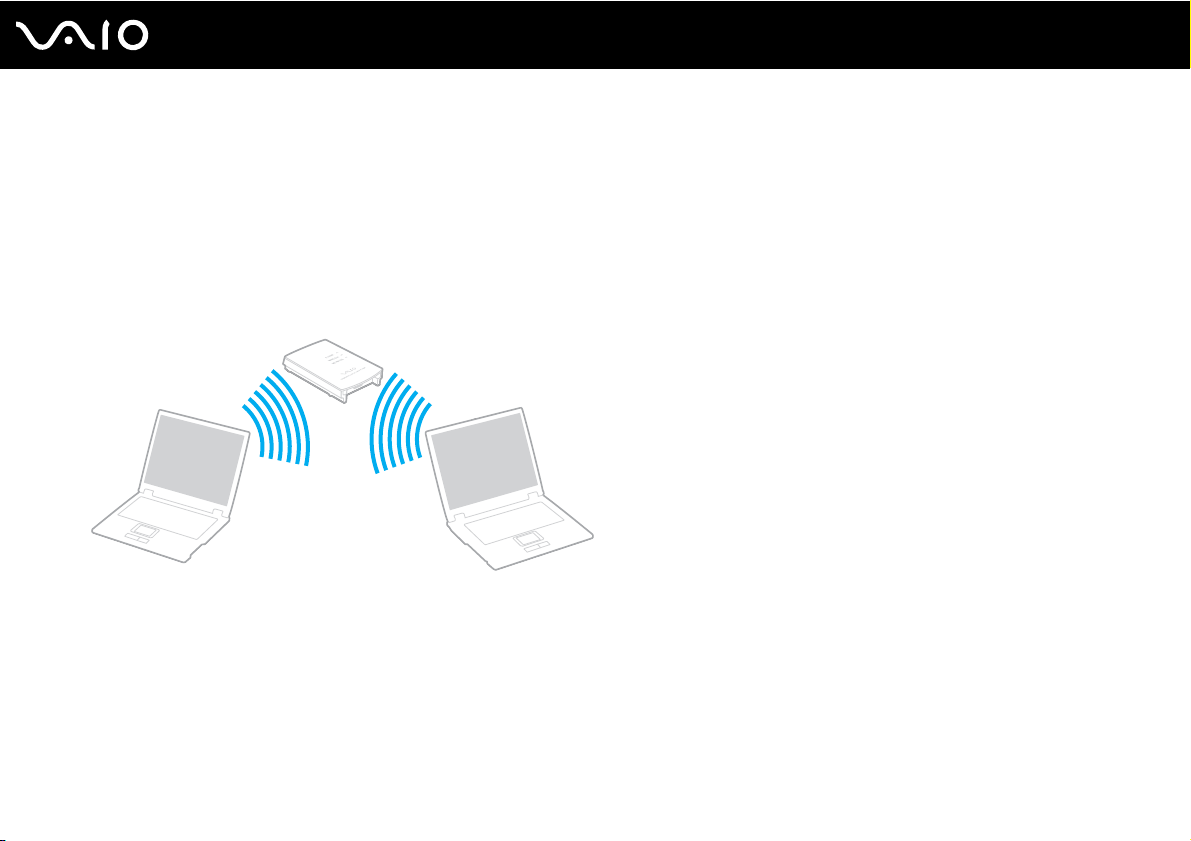

Using Wireless LAN (WLAN) .....................................................................................................................................76

Using the Bluetooth Function.....................................................................................................................................83

Using Peripheral Devices .................................................................................................................................................89

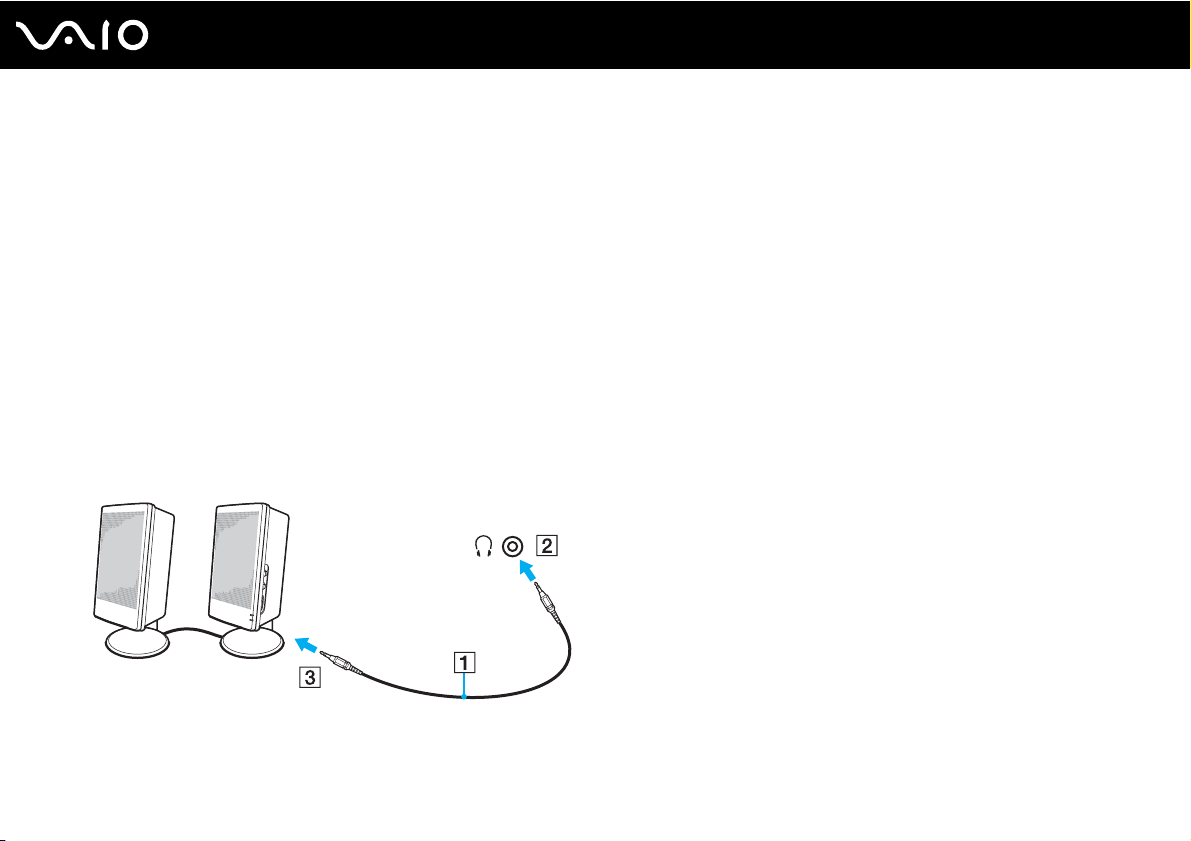

Connecting External Speakers ..................................................................................................................................90

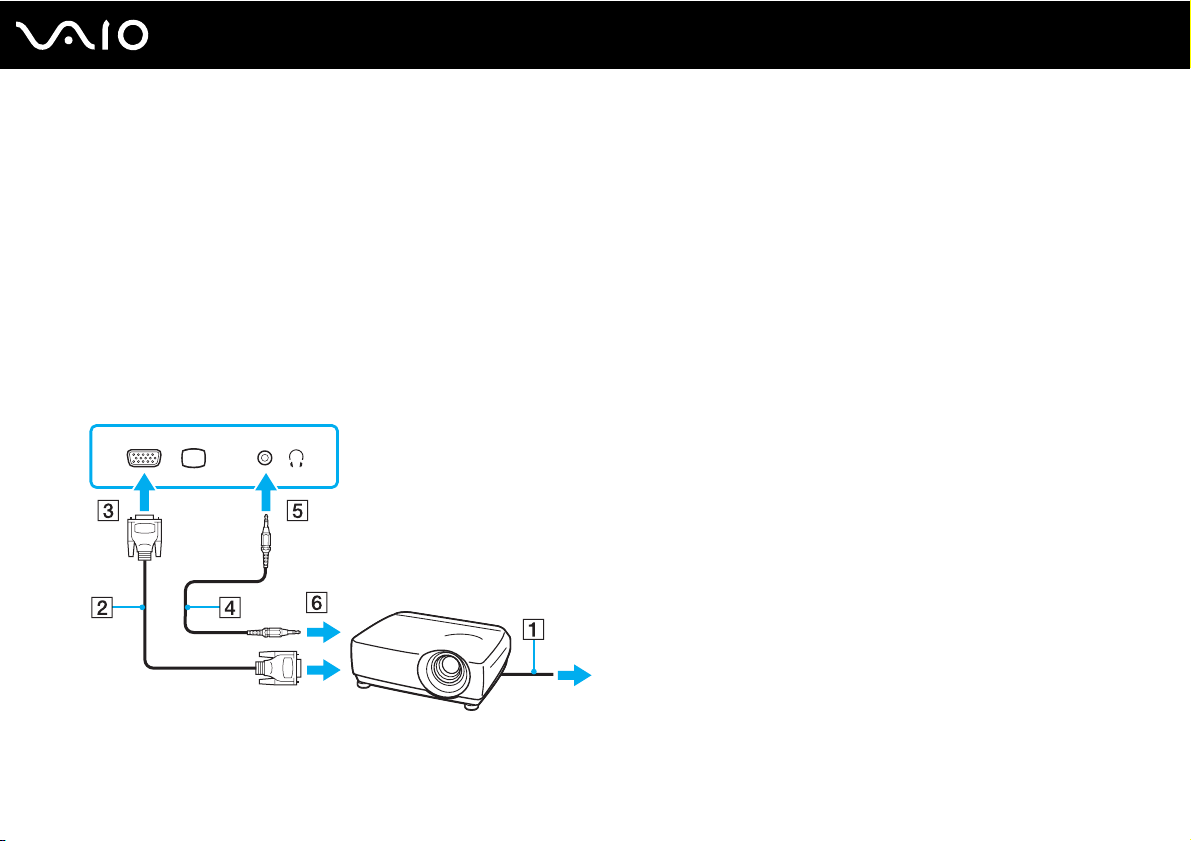

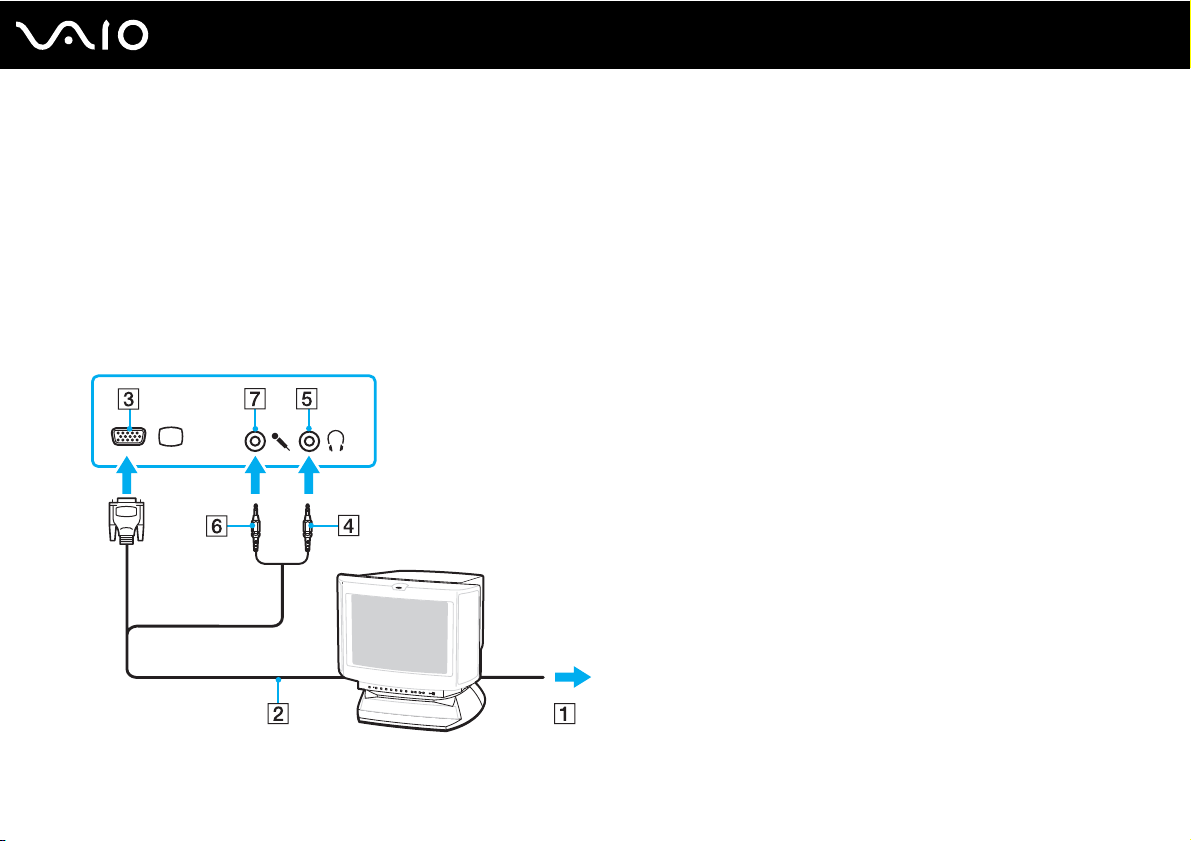

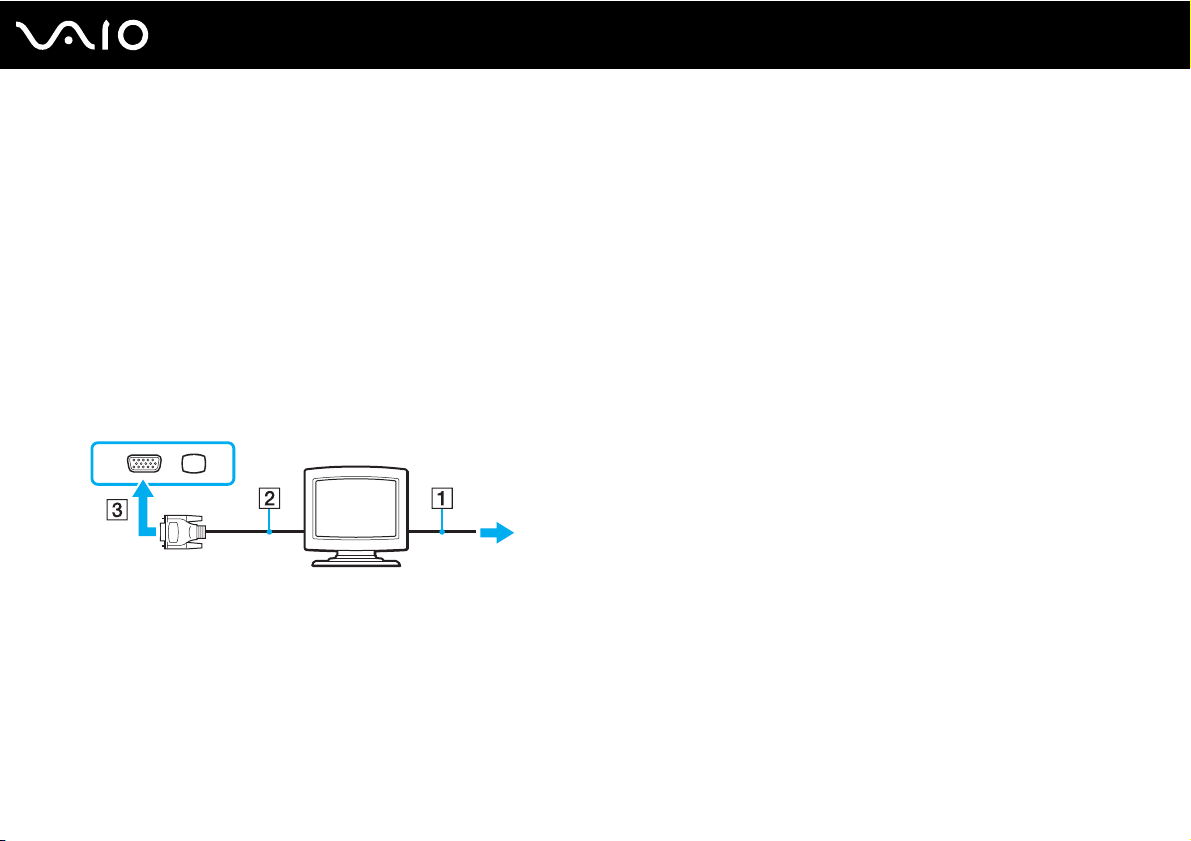

Connecting an External Display .................................................................................................................................92

Selecting Display Modes............................................................................................................................................97

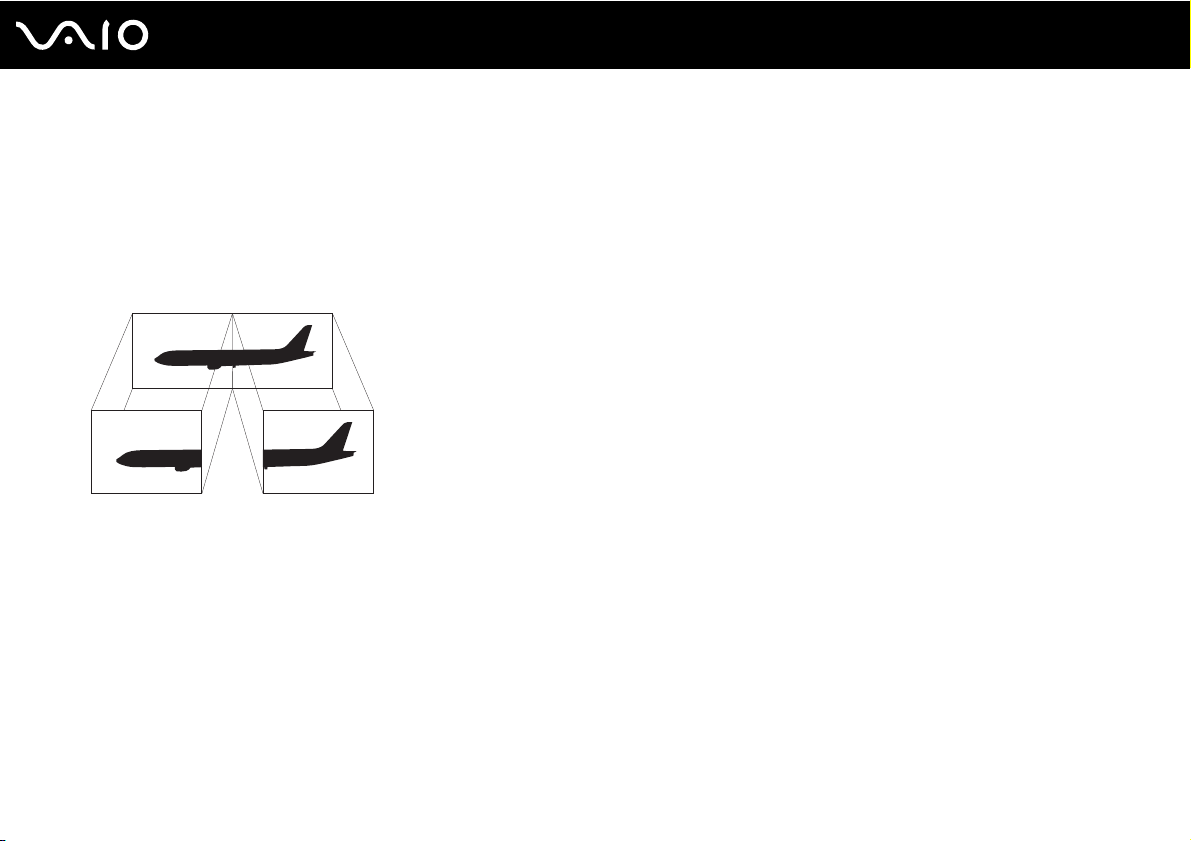

Using the Multiple Monitors Function .........................................................................................................................98

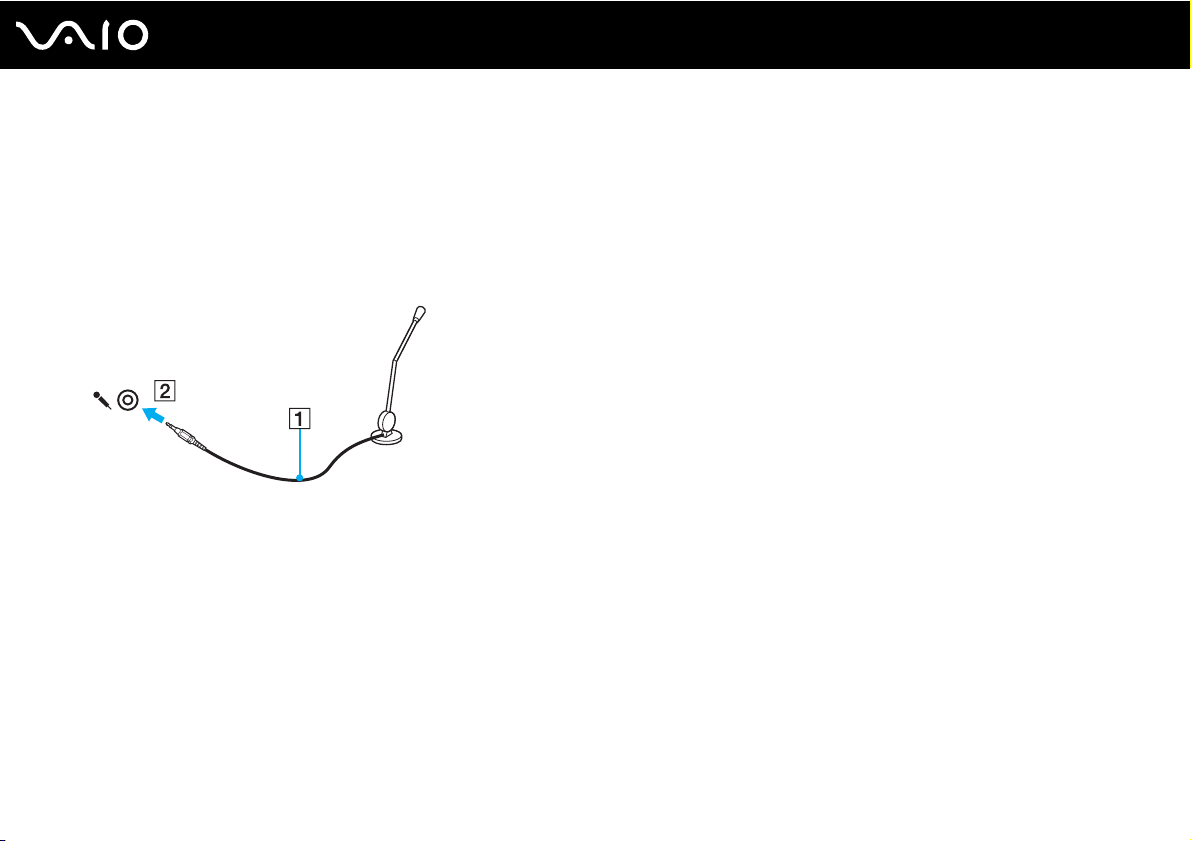

Connecting an External Microphone ........................................................................................................................100

Connecting a Universal Serial Bus (USB) Device....................................................................................................101

Connecting a Printer ................................................................................................................................................104

Connecting an i.LINK Device ...................................................................................................................................105

Connecting to a Network (LAN) ...............................................................................................................................107

Customizing Your VAIO Computer ................................................................................................................................108

Setting the Password ...............................................................................................................................................109

Using Fingerprint Authentication ..............................................................................................................................116

Setting Up Your Computer with VAIO Control Center..............................................................................................124

Using the Power Saving Modes ...............................................................................................................................125

Managing Power with VAIO Power Management ....................................................................................................130

Setting Up Your Language with Windows Vista Ultimate.........................................................................................132

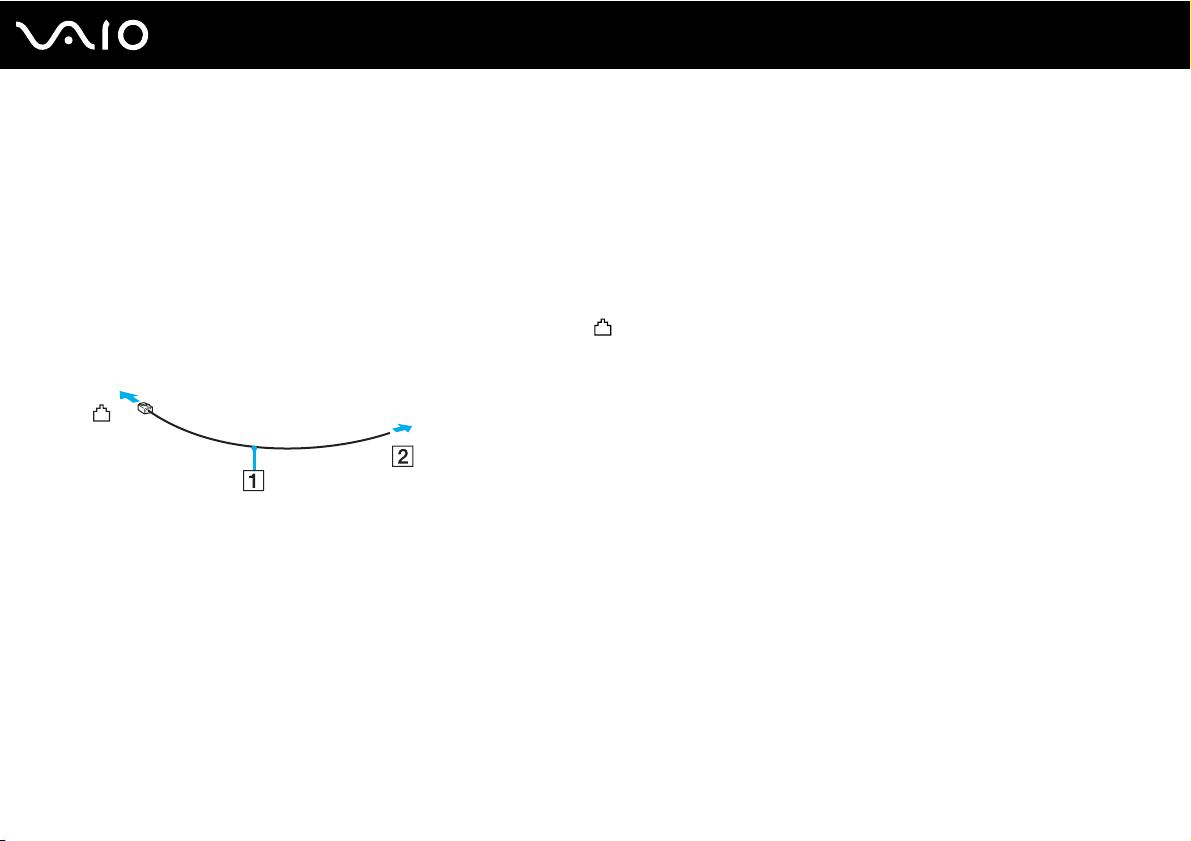

Configuring Your Modem .........................................................................................................................................133

Upgrading Your VAIO Computer....................................................................................................................................135

Adding and Removing Memory................................................................................................................................136

4

nN

Precautions ....................................................................................................................................................................142

Handling the LCD Screen ........................................................................................................................................143

Using the Power Source ..........................................................................................................................................144

Handling Your Computer .........................................................................................................................................145

Handling the Built-in MOTION EYE Camera............................................................................................................147

Handling Floppy Disks .............................................................................................................................................148

Handling Discs .........................................................................................................................................................149

Using the Battery Pack ............................................................................................................................................150

Using Headphones ..................................................................................................................................................151

Handling the Memory Stick ......................................................................................................................................152

Handling the Hard Disk ............................................................................................................................................153

Updating Your Computer .........................................................................................................................................154

Troubleshooting .............................................................................................................................................................155

Computer .................................................................................................................................................................157

System Security .......................................................................................................................................................166

Battery......................................................................................................................................................................167

Built-in MOTION EYE Camera.................................................................................................................................169

Internet .....................................................................................................................................................................172

Networking ...............................................................................................................................................................174

Bluetooth Technology ..............................................................................................................................................178

Optical Discs ............................................................................................................................................................183

Display .....................................................................................................................................................................187

Printing .....................................................................................................................................................................191

Microphone ..............................................................................................................................................................192

5

nN

Mouse ......................................................................................................................................................................193

Speakers ..................................................................................................................................................................194

Touch Pad................................................................................................................................................................196

Keyboard..................................................................................................................................................................197

Floppy Disks ............................................................................................................................................................198

Audio/Video..............................................................................................................................................................199

Memory Stick ...........................................................................................................................................................202

Peripherals ...............................................................................................................................................................204

Support Options .............................................................................................................................................................205

Sony Support Information ........................................................................................................................................206

e-Support .................................................................................................................................................................207

Trademarks ....................................................................................................................................................................209

nN

Before Use

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal
computing experience.

!

External views illustrated in this manual may look slightly different from those of your computer.

6

7

nN

Before Use

Notice

© 2008 Sony Corporation. All rights reserved.

This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any
machine-readable form without prior written approval.

Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and
hereby expressly disclaims any implied warranties or merchantability or fitness for any particular purpose with regard to this
manual, the software, or such other information. In no event shall Sony Corporation be liable for any incidental, consequential,
or special damages, whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the
software, or other information contained herein or the use thereof.

In the manual, the ™ or ® marks are not specified.

Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time
without notice. The software described herein is governed by the terms of a separate user license agreement.

8

nN

Before Use

Documentation

Your documentation includes printed information and user guides to read on your VAIO computer.

Printed Documentation

❑ Quick Start Guide — Describes the process from unpacking to starting up your VAIO.

❑ Troubleshooting and Recovery Guide — Contains solutions to problems other than those you encounter during normal

operation.

❑ Regulations, Guarantee, EULA and Service Support — Contains Sony guarantee conditions,

safety / regulations, modem regulations, wireless LAN regulations, wireless WAN regulations,
Bluetooth regulations, end user software license agreement, and Sony support services information.

9

nN

Before Use

Non-printed Documentation

❑ User Guide (this manual) — Explains features of your computer. It also includes information about the software programs

included with your computer, as well as information on solving common problems. The User Guide is provided in PDF
format for easy browsing and printing.

To view this on-screen guide:

1 Double-click the VAIO User Guide icon on the desktop.

2 Open the folder for your language.

3 Select the guide you want to read.

✍

You can manually browse to the user guides by going to Computer > VAIO (C:) (your C drive) > Documentation > Documentation and opening the
folder for your language.

To go to web sites described in this manual by clicking their respective URLs beginning with http://, your computer must be connected to the Internet.

❑ Specifications — The online specifications describe the hardware and software configurations of your VAIO computer.

To view the online specifications:

1 Connect to the Internet.

2 Go to the Sony online support web site at http://www.vaio-link.com

.

✍

You may have a separate disc that includes documentation for the bundled accessories.

10

nN

Before Use

Windows Help and Support

Windows Help and Support is a comprehensive resource for practical advice, tutorials, and demonstrations to help you
learn to use your computer.

Use the search feature, index, or table of contents to view all Windows Help resources, including those on the Internet.

To access Windows Help and Support, click Start and Help and Support. Or go to Windows Help and Support by
pressing and holding the Microsoft Windows key and pressing the F1 key.

11

nN

Before Use

Further Sources

❑ Consult the help files included with the software you are using for detailed information on features and troubleshooting.

❑ Go to http://www.club-vaio.com

to find online tutorials about your favorite VAIO software.

12

nN

Before Use

Ergonomic Considerations

You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations for both stationary and portable environments:

❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your

wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse. Let your upper arms
hang naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain
eyes, muscles, or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.

13

nN

Before Use

❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye

strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display
as well.

❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.

❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.

Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Getting Started

This section describes how to get started using your VAIO computer.

❑ Locating Controls and Ports (page 15)

❑ About the Indicator Lights (page 22)

❑ Connecting a Power Source (page 24)

❑ Using the Battery Pack (page 25)

❑ Shutting Down Your Computer Safely (page 32)

14

nN

Getting Started

Getting Started

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

!

The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary in some
countries or areas.

15

nN

Front

Getting Started

A Built-in MOTION EYE camera (page 38)
B Built-in MOTION EYE camera indicator (page 22)
C Built-in microphone (monaural)
D LCD screen (page 143)
E Built-in speakers (stereo)

F Fingerprint sensor

*1

(page 116)

G Numeric keypad

Use the numeric keypad to type numbers or to perform basic
math calculations.

H Keyboard (page 34)
I Touch pad (page 35)
J Charge indicator (page 22)
K Hard disk drive/Optical disc drive indicator (page 22)
L WIRELESS indicator (page 22)
M Media Access indicator (page 22)

N Memory Stick slot
O Remote sensor

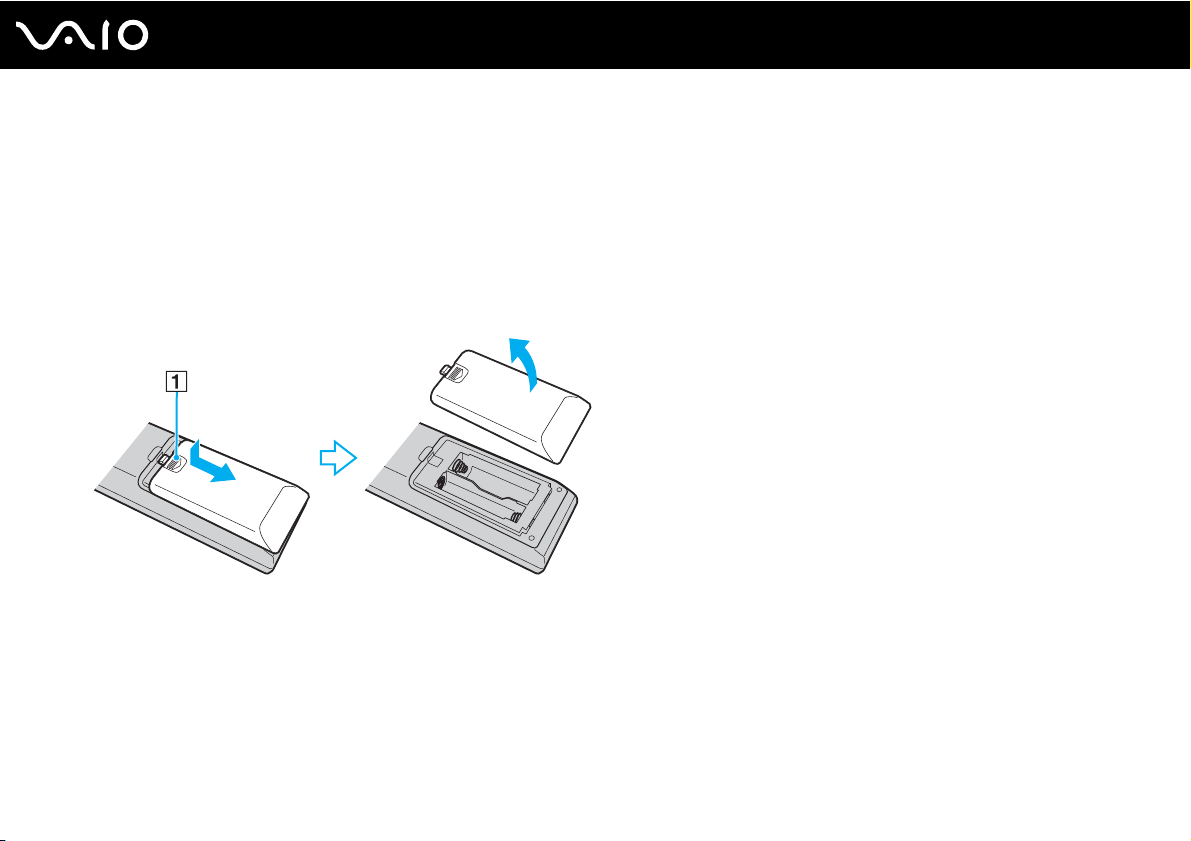

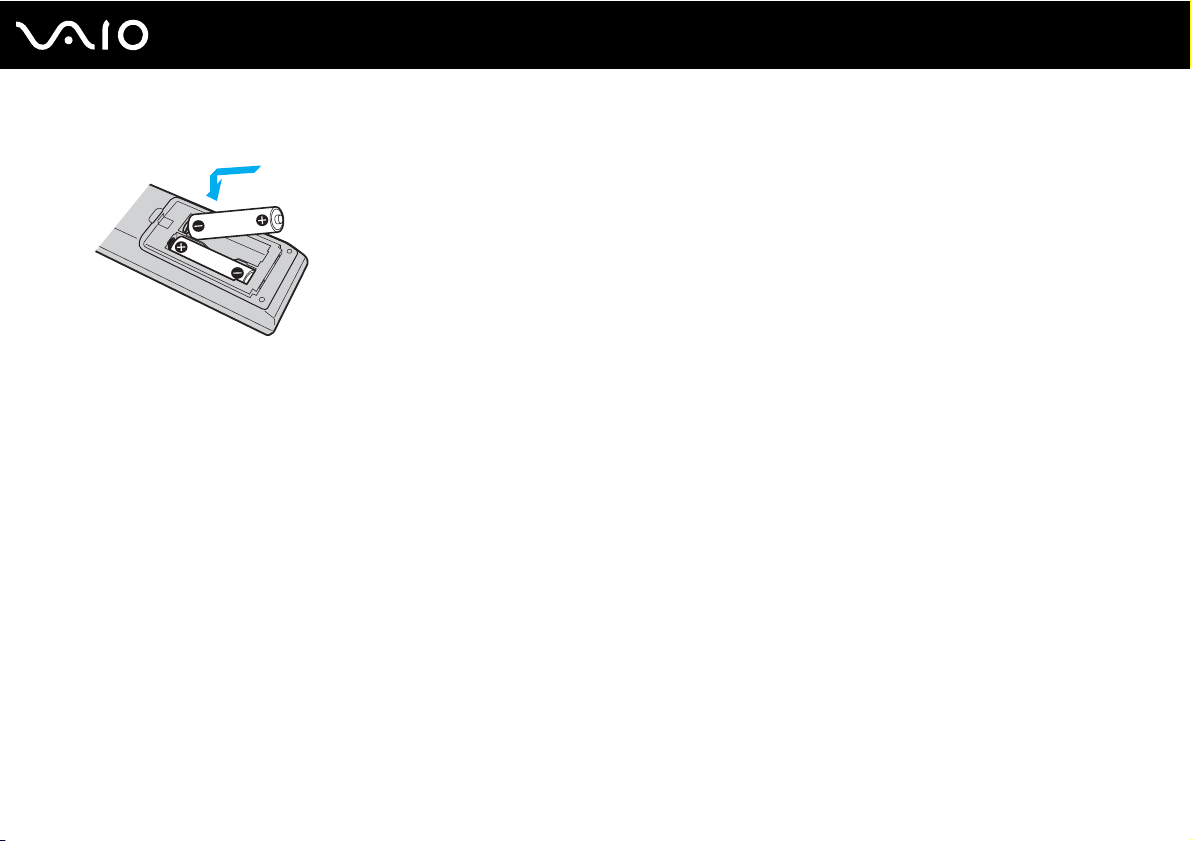

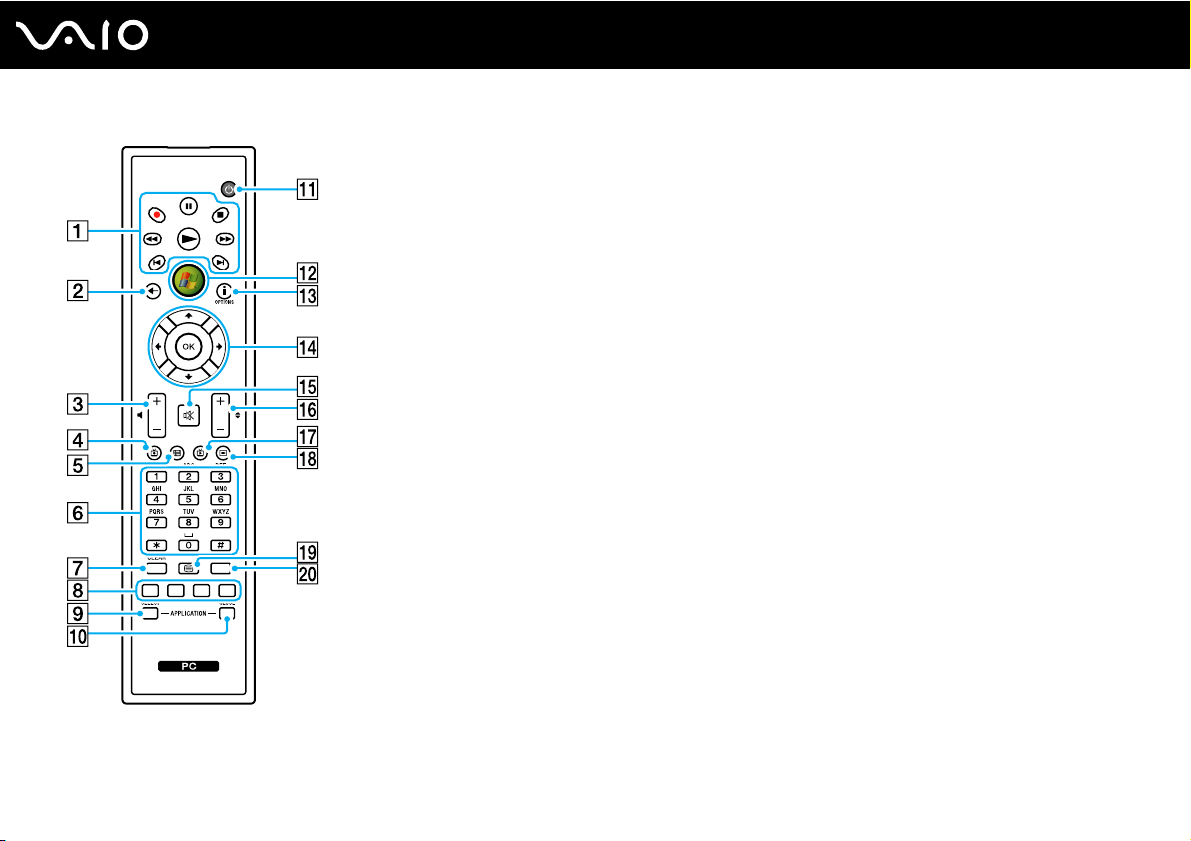

Point the supplied remote commander to this sensor for
operations.

*2

*1

(page 62)

P WIRELESS switch (page 76)
Q SD memory card slot (page 68)

*1

On selected models only.

*2

Your computer supports both standard- and Duo-size Memory Stick.

16

nN

S1/S2 buttons (page 36)

A
B Play/Pause button (page 36)
C Stop button (page 36)
D Previous track button (page 36)
E Next track button (page 36)
F AV MODE button (page 36)
G Num lock indicator (page 22)
H Caps lock indicator (page 22)
I Scroll lock indicator (page 22)
J Muting button (page 37)
K Volume control buttons (page 37)
L Drive eject button (page 37), (page 41)

17

nN

Getting Started

Back

A Battery connector (page 25)

18

nN

Getting Started

Right

Getting Started

A Headphones/OPTICAL OUT jack (page 90)

(Optical Output Sampling Rate: 44.1 KHz/48.0 KHz/96.0 KHz)

B Microphone jack (page 100)
C Hi-Speed USB (USB 2.0) ports

*1

(page 101)

D Optical disc drive (page 41)
E Optical disc drive indicator (page 22)
F Substitute drive eject button (page 41)
G Manual eject hole (page 183)
H Network (Ethernet) port (page 107)
I Modem port (page 75)

J VHF/UHF input port

*2

(page 50)

K Power button/Power indicator (page 22)

*1

Support high-/full-/low- speeds.

*2

On selected models only.

19

nN

Left

Getting Started

A DC IN port (page 24)
B Security slot
C Air vent

D Hi-Speed USB (USB 2.0) port
E Monitor port
F HDMI port

*2

(page 93)

*2

(page 93)

*1

(page 101)

G ExpressCard/34 slot (page 59)
H CF (CompactFlash) memory card slot
I CF memory card release button
J CF memory card indicator

*3

(page 22)

*3

*3

(page 71)

(page 71)

K i.LINK 4-pin (S400) port (page 105)

*1

Supports high-/full-/low- speeds.

*2

These two ports are mutually exclusive. When one port has an external
display connected, the other is disabled.

*3

On selected models only.

20

nN

Bottom

A Subwoofer speakers for bass frequencies
B Air vents
C Memory module compartment cover (page 136)

21

nN

Getting Started

Getting Started

About the Indicator Lights

Your computer is equipped with the following indicator lights:

Indicator Functions

Power 1 Illuminates in green when the computer is on, blinks slowly in orange while the computer is in Sleep mode, and

turns off when the computer is off or in Hibernate mode.

Charge

Built-in MOTION EYE camera Illuminates while the built-in MOTION EYE camera is in use.

Media Access Illuminates while data is being read from or written to a memory card. (Do not place the computer into Sleep

CF memory card

Optical disc drive Illuminates while the drive is reading or writing data. When the indicator is unlit, the optical disc media is not in

Hard disk drive

/Optical disc drive

Num lock

Caps lock

Scroll lock

*1

*2

Illuminates while the battery pack is charging. See Charging the Battery Pack (page 28) for more information.

mode or turn it off when this indicator is lit.) When the indicator is unlit, the memory card is not in use.

Illuminates while data is being read from or written to a CF memory card. (Do not place the computer into Sleep
mode or turn it off when this indicator is lit.) When the indicator is unlit, the CF memory card is not in use.

use.

Illuminates while the drive is reading or writing data. Do not place the computer into Sleep mode or turn it off
when this indicator is lit.

Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator is unlit.

Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator is lit. Press the key a second time to turn off the indicator. Normal typing resumes when the
Caps lock indicator is unlit.

Press the Scr Lk key to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator is unlit. The Scr Lk key functions differently depending on the program you are using and does not
work with all programs.

22

nN

Indicator Functions

WIRELESS Illuminates when the WIRELESS switch is turned on, provided that one or more wireless options are enabled

*1

On selected models only.

*2

Your computer may be equipped with two built-in flash memory storage drives along with a hard disk drive depending on the model you purchased. See the online
specifications to find out about your storage device configuration.

in the VAIO Smart Network window.

23

nN

Getting Started

Connecting a Power Source

You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.

Using the AC Adapter

✍

Use only the supplied AC adapter for your computer.

To use the AC adapter

1 Plug one end of the power cord (1) into the AC adapter (3).

2 Plug the other end of the power cord into an AC outlet (2).

3 Plug the cable connected to the AC adapter (3) into the DC IN port (4) on the computer.

24

nN

Getting Started

!

The shape of the DC In plug varies depending on the AC adapter.

✍

To disconnect your computer completely from AC power, unplug the AC adapter.

Make sure that the AC outlet is easily accessible.

If you do not intend to use your computer for a long period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 128).
This power saving mode saves the time of shutting down and resuming.

Using the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

Installing the Battery Pack

To install the battery pack

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) inward.

25

nN

Getting Started

26

nN

Getting Started

3 Slide the battery pack diagonally into the battery compartment until the projections (2) on either side of the battery

compartment fit into the U-shaped cuts (3) on either side of the battery pack.

4 Rotate the battery pack in the direction of the arrow, and push the battery pack down into the compartment until it clicks

into place.

5 Slide the battery LOCK switch outward to secure the battery pack on the computer.

Getting Started

✍

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

!

Certain rechargeable batteries do not meet Sony quality and safety standards. For safety reasons this computer only functions with genuine Sony
battery packs designed for this model. If an unauthorized battery pack is installed, the battery will not be charged and the computer will not function.

27

nN

Getting Started

Charging the Battery Pack

The battery pack supplied with your computer is not fully charged at the time of delivery.

To charge the battery pack

1 Install the battery pack.

2 Connect the AC adapter to the computer.

The charge indicator light turns on while the battery pack is charging. When the battery pack charges close to the
maximum charge level you selected with the battery charge functions, the charge indicator turns off. To select your desired
maximum charge level, see Using the Battery Charge Functions (page 30).

Charge indicator status Meaning

Lit in orange The battery pack is charging.

Blinks along with the green power
indicator

Blinks along with the orange power
indicator

Blinks fast in orange A battery error has occurred due to a failed battery

The battery pack is running out of power. (Normal
mode)

The battery pack is running out of power. (Sleep mode)

pack or an unlocked battery pack.

28

nN

!

Charge the battery pack as described in this manual from your first battery charge.

Getting Started

✍

Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the
computer.

If the battery charge level falls below 10%, you should either connect the AC adapter to recharge the battery pack or shut down your computer and
install a fully charged battery pack.

Your computer is supplied with a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect
the battery life.

While some software applications or peripheral devices are in use, your computer may not enter Hibernate mode even when battery life is low. To avoid
loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Sleep or

Hibernate.

If the battery pack wears out when the computer enters Sleep mode, you will lose all unsaved data. Going back to the previous work state is impossible.
To avoid loss of data, you should save your data frequently.

When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.

29

nN

30

nN

Getting Started

Using the Battery Charge Functions

You can select the battery charging method for your battery pack with the Battery Charge Functions. To make the battery
life longer, enable the battery care function.

To enable the battery care function

1 Click Start, All Programs, and VAIO Control Center.

2 Click Power Management and then Battery Charge Functions.

3 Click to select the Enable Battery Care Function check box in the right pane.

4 Click Advanced.

5 Select the desired maximum charge level.

6 Click OK.

To check the battery wear level

Follow steps 1 and 4 in To enable the battery care function above and check detailed information. If the battery wear level
is high, replace the battery pack with a new genuine Sony battery pack.

31

nN

Getting Started

Removing the Battery Pack

!

You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack
while the computer is in Sleep mode.

To remove the battery pack

1 Turn off the computer and close the LCD screen lid.

2 Slide the battery LOCK switch (1) inward.

3 Slide and hold the battery RELEASE latch (2) inward, put your fingertip underneath the tab (3) on the battery pack, and

turn the battery pack in the direction of the arrow, and then slide it away from the computer.

32

nN

Getting Started

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.

2 Click Start, the arrow next to the Lock button, and then Shut Down.

3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically.
The power indicator light turns off.

Using Your VAIO Computer

This section describes how to get the most out of using your VAIO computer.

❑ Using the Keyboard (page 34)

❑ Using the Touch Pad (page 35)

❑ Using Special-function Buttons (page 36)

❑ Using the Built-in MOTION EYE Camera (page 38)

❑ Using the Optical Disc Drive (page 41)

❑ Using the TV Function (page 50)

❑ Using the ExpressCard Module (page 59)

❑ Using the Memory Stick (page 62)

❑ Using the SD Memory Card (page 68)

❑ Using the CF Memory Card (page 71)

❑ Using the Internet (page 75)

❑ Using Wireless LAN (WLAN) (page 76)

❑ Using the Bluetooth Function (page 83)

33

nN

Using Your VAIO Computer

nN

Using Your VAIO Computer

Using the Keyboard

Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks.

The VAIO-Link web site (http://www.vaio-link.com

Combinations and Functions with the Fn Key

✍

Some keyboard functions can be used only after the operating system is finished launching.

Combinations/Feature Functions

Fn + 8 (F5/F6): brightness control Changes the LCD brightness of your computer screen.

Fn + /T (F7): display output

Fn + / (F9/F10): zoom

Fn + (F12): hibernate

* Your computer may be equipped with two built-in flash memory storage drives along with a hard disk drive depending on the model you purchased. See the online

specifications to find out about your storage device configuration.

) also contains glossary information to help you use the keyboard.

To increase lighting intensity, keep pressing Fn+F6 or press Fn+F6 and then M or ,.
To decrease lighting intensity, keep pressing Fn+F5 or press Fn+F5 and then m or <.

Toggles among your computer screen, an external display, and simultaneous output to both.

Changes the view size of your screen.
To make the screen view look smaller and further away (zoom out), press Fn+F9.
To make the screen view look bigger and closer (zoom in), press Fn+F10.
See the help file included with the VAIO Control Center for more information.

Provides the lowest level of power consumption. When you execute this command, the states
of the system and the connected peripheral devices are saved to the hard disk drive* and the
system power is turned off. To return the system to its original state, use the power button to
turn on the power.
For details on power management, see Using the Power Saving Modes (page 125).

34

Using Your VAIO Computer

Using the Touch Pad

You can point to, select, drag, and scroll objects on the screen using the touch pad.

Action Description

Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object.

Click Press the left button (3) once.

Double-click Press the left button twice.

Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.

Drag Slide your finger on the touch pad while pressing the left button.

Scroll Slide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to scroll

horizontally (the scroll function is available only with applications that support a touch pad scroll feature).

✍

You can disable/enable the touch pad while a mouse is connected to your computer. To change the touch pad settings, click Start, All Programs, VAIO
Control Center, Keyboard and Mouse and Pointing Device.

35

nN

!

Be sure to connect a mouse before disabling the touch pad. If you disable the touch pad without connecting a mouse, you will be able to use only the
keyboard for pointer operations.

Using Your VAIO Computer

Using Special-function Buttons

Your computer is equipped with special buttons to help you use specific functions of the computer.

Buttons on the touch panel

Special-function button Functions

S1/S2 buttons By default, the S1 button launches the VAIO Control Center and opens the Color Mode Setting page. The

u Play/Pause button

x Stop button

. Previous track button Plays the previous chapter/file during video playback or the previous song/file during audio playback.

> Next track button Plays the next chapter/file during video playback or the next song/file during audio playback.

AV M O DE button Launches the VAIO Launcher for selecting the desired software.

*1

Use the WinDVD BD software for playback.

*2

Your computer may be equipped with two built-in flash memory storage drives along with a hard disk drive depending on the model you purchased. See the online
specifications to find out about your storage device configuration.

S2 button launches the Dolby Control Center.

✍

The default button assignments may be different from the above. To change the S button assignments, press and hold
either button or launch and navigate through the VAIO Control Center to display the setup window. See the help file
included with the VAIO Control Center for the S button assignments.

™ *1

Starts or pauses playback of a CD, DVD, or Blu-ray Disc

disk drive

Stops playback of a CD, DVD, or Blu-ray Disc

You can change the default software options in the VAIO Launcher. To do so, press and hold the AV MO D E
button to display the setup window.

*2

.

*1

media or a music/video file stored on the hard disk drive*2.

media or a music/video file stored on the hard

36

nN

Buttons above the numeric keypad

Special-function button Functions

Muting button

Volume control buttons

Drive eject button

Turns the volume on and off.

Decrease (-) and increase (+) the volume.

Ejects the optical disc drive tray.
If this button does not work, try the substitute drive eject button on the optical disc drive.

37

nN

Using Your VAIO Computer

nN

Using Your VAIO Computer

Using the Built-in MOTION EYE Camera

Your computer is equipped with a built-in MOTION EYE camera.

The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software and
enables you to capture still images and movies with the preinstalled image capture software.

Turning on the computer activates the built-in MOTION EYE camera. Video conference is possible with the appropriate
software.

Note that launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in
MOTION EYE camera, respectively.

✍

The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the
application before using the built-in MOTION EYE camera with your desired application.

!

The viewer window may show some noise, for example horizontal streaks, if you view a rapid-moving object. This is normal and does not indicate a
malfunction.

You cannot operate the built-in MOTION EYE camera with the Microsoft Windows Movie Maker software.

38

nN

Using Your VAIO Computer

Capturing Still Images

To capture a still image

1 Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2 to launch the WebCam

Companion 2.

2 Click the Capture icon in the main window.

3 Frame your subject in the viewfinder.

4 Click the Capture button below the displayed image.

The current image in the viewfinder is captured and its thumbnail image is added as a the thumbnail in the left pane of
the main window.

✍

When capturing an image in a dark place, click the WebCam Settings icon after step 2 and select the low light or low light compensation option in the
properties window.

The WebCam Companion 2 provides many more features. See the help file included with the software for more information.

39

nN

Using Your VAIO Computer

Capturing Movies

To capture a movie

1 Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2 to launch the WebCam

Companion 2.

2 Click the Record icon in the main window.

3 Frame your subject in the viewfinder.

4 Click the Record Video button below the displayed image to start movie recording.

5 When finished, click the Record Video button once again to stop movie recording.

The first scene of the captured movie is added as a thumbnail in the left pane of the main window.

✍

When capturing a movie in a dark place, click the WebCam Settings icon after step 2 and select the low light or low light compensation option in the
properties window.

The WebCam Companion 2 provides many more features. See the help file included with the software for more information.

40

41

nN

Using Your VAIO Computer

Using the Optical Disc Drive

Your computer is equipped with an optical disc drive.

To insert a disc

1 Turn on the computer.

2 Press the drive eject button (1) to open the drive.

The tray slides out.

✍

If the drive eject button does not work, try the substitute drive eject button on the optical disc drive.

If the power supply to the optical disc drive is disabled by the VAIO Power Management, it will take a while to eject the drive tray. Note that the substitute
drive eject button is disabled when the optical disc drive is not powered.

When recovering your system, turn on your computer and press the substitute drive eject button on the optical disc drive. Insert your recovery disc
into the optical disc drive, turn off the computer, and then turn on the computer again to start the recovery process.

3 Place a disc in the middle of the tray with the label side facing upward and gently push it down until the disc clicks into

place.

Using Your VAIO Computer

4 Close the tray by pushing it in gently.

!

Do not remove the optical disc when your computer is in a power saving mode (Sleep or Hibernate). Doing so may cause the computer to malfunction.

✍

If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled disc operation program.

42

nN

43

nN

Using Your VAIO Computer

Reading and Writing Optical Discs

Your computer plays and records CDs, DVDs, and Blu-ray Disc media, depending on the model you purchased. Check your
specifications for the type of optical disc drive installed on your model.

Use the table below to see which types of media your optical disc drive supports.

Using Your VAIO Computer

PR: playable and recordable
P: playable but not recordable
–: not playable or recordable

CD-

Video CDMusic CDCD

DVD± RW/

ROM

PPPP PRP P –

Extra

±R DL/RAM

Blu-ray Disc

PPPP

Combo

Blu-ray Disc P P P P

*1

Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1.

*2

Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2.

*3

The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.

*4

Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.

*5

Writing data to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.

*6

Writing data to DVD-R DL (Dual Layer) discs is available only on discs supporting DVD-R DL (Dual Layer) recording.

*7

Supports writing data to BD-R Version 1.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Version 2.1
discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).

*8

Writing data to Ultra Speed CD-RW discs is not supported on the models with certain types of the Blu-ray Disc drive.

*9

BD-R stands for Blu-ray Disc-Recordable in Version 1.1 format.

*10

BD-RE stands for Blu-ray Disc-Rewritable in Version 2.1 format.

*11

The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.

*12

Playback of BD-R LTH TYPE media is supported only on the models with the Blu-ray Disc drive.

CD-R/RWDVD-

ROM

*8

PR

PR

PPP

*8

PPP

DVD­Video

BD­ROM

DVD-R/RWDVD+R/RWDVD+R DLDVD-R DLDVD-

RAM

PR

PR

PR

*1 *2

*1 *2

*1 *2

PR

PR

PR

PR

PR

PR

*5

*5

*5

PR

PR

PR

*6

PR

*6

PR

*6

PR

BD-R

RE

*3 *4

–

*3 *4P*11 *12

*3 *4

PR

44

nN

*9

/

*10

*7 *11 *12

45

nN

Using Your VAIO Computer

!

This product is designed to play back discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two
sided disc product with a DVD recorded layer on one side and a digital audio layer on the other side. Be aware that the audio side (non-DVD side) of a
DualDisc may not play on this product because it does not conform to the CD Standard.

When you buy pre-recorded or blank discs for use with your VAIO computer, be sure to read the notices on the disc package carefully to check both
playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO optical disc drives

with discs that are not compliant with the official "CD," "DVD," or "Blu-ray Disc" standard. USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE
TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.
For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

✍

8 cm disc writing is not supported.

!

To play copyright protected Blu-ray Disc media continuously, you need to update the AACS key. Note that the AACS key update requires Internet access.

As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support
movie playback on packaged media recorded in AVC or VC1 format at high bit rates.

Region settings are required for some contents on DVDs and BD-ROM Disc media. If the region setting on the optical disc drive does not match the
region coding on the disc, playback is not possible.

Unless your external display is compliant with the High-bandwidth Digital Content Protection (HDCP) standard, you cannot play or view the contents
on copyright protected Blu-ray Disc media.

Some contents may restrict video output to standard definition or prohibit analog video output. It is strongly recommended that a digital HDCP­compliant environment be implemented for optimum compatibility and viewing quality.

46

nN

Using Your VAIO Computer

Notes on writing data to a disc

❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc

drive.

❑ Do not strike or shake your computer while the optical disc drive is writing data to a disc.

❑ Do not use memory-resident utility software while the optical disc drive is writing data to a disc. This may cause your

computer to malfunction.

❑ Do not plug or unplug the AC adapter while the optical disc drive is writing data to a disc.

Notes on playing discs

To achieve optimum performance when playing discs, you should follow these recommendations.

❑ Some CD players and computer optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW

media.

❑ Some DVD players and computer optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-R

DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media.

❑ Do not place your computer into either of the power saving modes while your computer is playing a disc.

❑ Region code indicators are labeled on the discs or packages to indicate in which region and on what type of player you

can play the disc. Unless the region code indicates "2" (Europe belongs to region "2") or "all" (this means that you can
play this disc in most regions of the world), you cannot play the disc on your computer.

!

If you change the region code while the WinDVD or WinDVD BD software is running, restart the software or eject the disc and re-insert it to make the
new setting effective.

❑ Do not try to change the region code settings of the drive. Any difficulties caused by changing the region code settings of

the drive are not covered by the warranty.

Using Your VAIO Computer

Playing CDs

To play an audio CD

1 Insert a disc into the optical disc drive.

2 If nothing appears on the desktop, click Start, All Programs, and the desired CD software to play the CD.

If the Audio CD window appears, click to select an option.

Copying Files to CDs

To copy files to a disc

1 Insert a disc into the optical disc drive.

If the AutoPlay window appears, click Burn files to disc and follow the on-screen instructions until the empty disc folder
appears.

2 Open the folder that contains the file(s) you want to copy and drag them to the empty disc folder.

3 Close the disc folder.

47

nN

48

nN

Using Your VAIO Computer

Playing DVDs

To play a DVD

1 Close all running software applications.

2 Insert a DVD into the optical disc drive.

3 If nothing appears on the desktop, click Start, All Programs, and the desired DVD software to play the DVD.

For instructions on how to use the software, see the help file included with your DVD software.

Copying Files to DVDs

To copy files to a disc

1 Connect the AC adapter to the computer.

2 Close all running software applications.

3 Insert a disc into the optical disc drive.

4 If nothing appears on the desktop, click Start, All Programs, and the desired DVD burning software to copy files to the

disc.

For instructions on how to use the software, see the help file included with your DVD burning software.

49

nN

Using Your VAIO Computer

Playing Blu-ray Disc Media

To play a Blu-ray Disc media

1 Close all running software applications.

2 Insert a Blu-ray Disc media into the optical disc drive.

3 If nothing appears on the desktop, click Start, All Programs, and the desired Blu-ray Disc software to play the disc.

For instructions on how to use the software, see the help file included with your software.

Copying Files to Blu-ray Disc Media

!

The Blu-ray Disc writing function is available on selected models only. See the online specifications to find out the type of your optical disc drive, and
then Reading and Writing Optical Discs (page 43) to find out about the supported disc media.

To copy files to a Blu-ray Disc media

1 Connect the AC adapter to the computer.

2 Close all running software applications.

3 Insert a Blu-ray Disc media into the optical disc drive.

4 If nothing appears on the desktop, click Start, All Programs, and the desired Blu-ray Disc burning software to copy files

to the disc.

For instructions on how to use the software, see the help file included with your Blu-ray Disc burning software.

nN

Using Your VAIO Computer

Using the TV Function

Your computer may have a hybrid TV tuner board installed along with the Microsoft Windows Vista Ultimate operating
system which includes the Windows Media Center that enables TV program viewing, recording, and playback. See the
online specifications to find out about your TV tuner board configuration.

The hybrid TV-tuner supports the following broadcasts:

❑ Analog cable and terrestrial TV:

Systems: B/G/I/D/K/L/L'
Color systems: PAL and SECAM
Frequency band: 48.25 MHz - 855.25 MHz

❑ Digital terrestrial TV (DVB-T):

System: DVB-T
Video system: MPEG2

Frequency band: 48.25 MHz - 855.25 MHz

!

Any functions related to digital terrestrial television (DVB-T) will only work in countries or areas where DVB-T MPEG2* digital terrestrial TV signals are
broadcasted. Make sure you can receive a DVB-T MPEG2

* MPEG4/H.264 AVC also applies to French models sold in France when using the TV Enhance pour VAIO. See Setting up TV Enhance pour VAIO (page 58) for more

information.

*

*

signal where you live.

50

Using Your VAIO Computer

To connect your computer to land-based (terrestrial) or cable TV services

!

The appearance of the TV coaxial cable and the VHF/UHF input port may vary in some countries or areas.

1 Connect one end of an TV coaxial cable (1) (not supplied) to your cable service access (wall outlet) (2).

2 Connect the other end to the MMCX antenna converter cable (3) (supplied).

3 Connect the MMCX antenna converter cable (3) to the VHF/UHF input port (4) on the computer.

51

nN

52

nN

Using Your VAIO Computer

Using the Remote Commander

If your computer supports the TV function, then a remote commander is supplied with the computer for using a wide variety
of AV related software applications, including Media Center.

Using Your VAIO Computer

A Pause X button

Press to pause media playback. Press again to resume
playback.
Stop x button
Press to stop media playback or TV recording session.
Forward M button
Press to fast-forward media at three speeds.
Skip B? button
Press to move media forward, for example, one audio track, one
DVD chapter, and 30 seconds of recorded TV or video.
Replay ?b button
Press to move media backward, for example, one audio track,
one DVD chapter, and 7 seconds of TV or video.
Rewind m button
Press to move media backward at three speeds.
Record z button
Press to begin recording.
Play N button
Press to begin media playback.

B Back button

Press to return to the previous window.

C Volume control buttons

Press to increase (+) or decrease (-) the volume.

D Recorded TV button

Press to view previously recorded TV programs.

53

nN

✍

Illustrated above is the English remote commander as an example.

54

nN

Using Your VAIO Computer

Guide button

E

Press to view the TV program guide for your area.

F Alphanumeric buttons

Press to select specific channels or enter text. (Press ENTER or
OK to activate the channel selection.)

G CLEAR button

Press to backspace and delete entered text.

H Teletext TV program mode buttons

Red button
Press to jump to the red shortcut link in teletext TV program mode.
Green button
Press to jump to the green shortcut link in teletext TV program
mode.
Yellow button
Press to jump to the yellow shortcut link in teletext TV program
mode.
Blue button
Press to jump to the blue shortcut link in teletext TV program
mode.

I APPLICATION SELECT button

Press to switch among open applications. This button works the
same as the Alt+Tab keys.

J APPLICATION CLOSE button

Press to close the active application window.

K Sleep button

Press to place the computer into Sleep mode to reduce power
consumption.

L Start button

Press to open the Media Center Start menu.

M More button / OPTIONS button

Press to view additional options that are available for features on
software applications, such as Media Center.

N Directional arrow buttons

Press the M, m, <, and , buttons to move the pointer on the
screen.
OK button
Press to select the desired action or window option. When
watching full-screen TV, press to return to the previous channel.
Press again to switch between channels.

O Muting button

Press to turn off the sound. Press again to restore the sound.

P Channel/Page buttons

Press to change or page up/down channels (no number input
required).

Q Live TV button

Press to view TV programs.

R DVD menu button / MENU button

Press to open the main menu on the playback media, such as a
DVD media.

S Teletext TV program mode selection button

Press to activate/deactivate teletext TV program mode.

T ENTER button

Press to activate a feature or an action, such as channel selection
or a return to the previous channel. (This button's actions are
similar to using the OK button.)

nN

Using Your VAIO Computer

Before you use the remote commander

Before using the remote commander, you need to insert the supplied AA manganese batteries to enable communication
between the computer and the remote commander.

To insert batteries

1 Turn the remote commander over.

2 Slightly push down the dented area (1), slide the battery cover in the direction of the arrow, and remove the cover.

55

56

nN

Using Your VAIO Computer

3 Insert the supplied two AA batteries into the remote commander.

4 Put the battery cover back on the remote commander and slide it in the reverse direction of the arrow illustrated above

until the cover clicks into place.

✍

If the remote commander does not operate properly, you may need to replace the batteries. When the remote commander is not going to be used for
an extended period of time, remove the batteries to avoid possible damage from battery leakage.

57

nN

Using Your VAIO Computer

Setting up Windows Media Center

The first time you launch the Windows Media Center, the setup wizard will pop up. To configure the TV tuner, click Custom
setup and follow the on-screen instructions. In the Optional Setup window, click Configure tuners, TV signal, and Guide
and follow the on-screen instructions.

In case the TV tuner was not configured during the first run of the Windows Media Center, you can do this by selecting set
up TV in the TV + Movies section.

When you want to change TV input signal (TV Signal or TV Signal Type) or change location, click settings in the Tasks
section and then click TV.

Note that in this case a new channel scan needs to be done and that the previous channel list and Guide information is lost
and that scheduled timer recordings are cancelled.

nN

Using Your VAIO Computer

Setting up TV Enhance pour VAIO

The TV Enhance pour VAIO is available on French models sold in France only.

The TV Enhance pour VAIO allows you to watch and record free-to-air standard definition and high definition digital
terrestrial TV, improving your multimedia experience.

To launch the application, start the Windows Media Center and go to TNT and select:

❑ TV en direct: to start watching live TV.

❑ TV enregistrée: to access your TV recordings.

❑ Guide: to consult the electronic program guide.

❑ TV + menu: to watch live TV and have easy access to settings.

The first time you launch the TV Enhance pour VAIO, the setup wizard will pop up. Follow the on-screen instructions to
configure the application.

When you want to re-scan channels or to change location, go to the Menu and Paramètres, and then click Paramètres
signal or Rechercher les chaînes. See the help file included with the software for more information.

✍

In single tuner systems, the tuner can be used either by MCE TV or by the TV Enhance pour VAIO.

58

The supplied remote commander can also be used in the TV Enhance pour VAIO but the following buttons are reserved for the Windows Media Center:
Live TV, Recorded TV, Guide, DVD and More.

59

nN

Using Your VAIO Computer

Using the ExpressCard Module

Your computer is equipped with either a Universal ExpressCard slot* or an ExpressCard/34 slot* for transferring data among
digital cameras, camcorders, music players, and other audio/video devices. The former
ExpressCard/34
only an ExpressCard/34 module

(34 mm wide) or ExpressCard/54 (54 mm wide) module* as shown below and the latter can accommodate

*

only.

can accommodate either an

❑ ExpressCard/34 module

Your computer is equipped with an ExpressCard/34

* Referred to as the ExpressCard slot and the ExpressCard module in this manual.

*

❑ ExpressCard/54 module

slot*.

*

Inserting an ExpressCard Module

!

Use care when inserting or removing the ExpressCard module from the slot. Do not force it in or out of the slot.

✍

You do not need to shut down your computer before inserting or removing the ExpressCard module.

To insert an ExpressCard module

1 Locate the ExpressCard slot.

2 Carefully slide the ExpressCard module into the slot until it clicks into place.

Do not force it into the slot.

60

nN

Using Your VAIO Computer

✍

If the module or adapter does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Make sure you use the most recent software driver provided by the ExpressCard module manufacturer.

nN

Using Your VAIO Computer

Removing an ExpressCard Module

Follow the steps below to remove the ExpressCard module while your computer is on. If it is not removed properly, your
system may not work properly.

To remove an ExpressCard module

✍

To remove an ExpressCard module when your computer is off, skip steps 1 to 4.

1 Double-click the Safely Remove Hardware icon on the taskbar.

2 Select the hardware you want to unplug.

3 Click Stop.

4 Follow the on-screen instructions to remove the ExpressCard module.

5 Push in the ExpressCard module toward the computer so that the module pops out.

6 Gently take hold of the ExpressCard module and pull it out of the slot.

61

62

nN

Using Your VAIO Computer

Using the Memory Stick

Memory Stick is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing digital
data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable, it can
be used for external data storage.

63

nN

Using Your VAIO Computer

Before You Use the Memory Stick

The Memory Stick slot on your computer can accommodate both standard- and Duo-size media and supports Memory Stick
PRO and Memory Stick PRO-HG Duo formats with high speed data transfer and large data capacity capabilities.

✍

You can insert a Duo-size Memory Stick directly into the Memory Stick slot without using a Memory Stick Duo adaptor.

!

Before using a Memory Stick Micro (M2), be sure to insert it into an M2 Standard-size adaptor or M2 Duo adaptor. If you insert the media directly into
the Memory Stick slot without the adaptor, you may not be able to remove it from the slot.

For the latest information about the Memory Stick, visit the Memory Stick web site at http://www.memorystick.com/en/.

!

Your computer has been tested and found compatible with Sony branded Memory Stick with capacity of up to 16 GB that are available as of May 2008.
However, not all Memory Stick that meet the same specifications as the compatible media are guaranteed of compatibility.

Inserting a Memory Stick with multiple conversion adapters is not guaranteed of compatibility.

MagicGate is the general name of the copyright protection technology developed by Sony. Use a Memory Stick with the MagicGate logo to use this
feature.

Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior consent from the respective
copyright holders. Accordingly, the Memory Stick with such copyrighted data can be used only within the law.

The Memory Stick slot on your computer does not support 8-bit parallel data transfer (high speed data transfer).

The Memory Stick Micro in an M2 Duo adaptor may not operate properly if it is additionally inserted into a Memory Stick Duo adaptor.

Using Your VAIO Computer

Inserting a Memory Stick

To insert a Memory Stick

1 Locate the Memory Stick slot.

2 Hold the Memory Stick with the arrow facing upward and pointing toward the slot.

3 Carefully slide the Memory Stick into the slot until it clicks into place.

The Memory Stick is automatically detected by your system and the contents on the Memory Stick are displayed. If
nothing appears on the desktop, click Start, Computer, and double-click the Memory Stick icon.

64

nN

!

Be sure to hold the Memory Stick with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer or the
Memory Stick, do not force the Memory Stick into the slot if you cannot insert it smoothly.

Do not insert more than one Memory Stick into the slot. Improper insertion of the media may damage both your computer and the media.

Using Your VAIO Computer

To view the contents on the Memory Stick

1 Click Start and Computer to open the Computer window.

2 Double-click the Memory Stick icon to view the list of data files saved in the Memory Stick.

To format a Memory Stick

The Memory Stick has been formatted in the factory default setting and is ready for use.
If you want to reformat the media with your computer, follow these steps.

!

Be sure to use the device that is designed to format the media and supports the Memory Stick when formatting the media.

Formatting the Memory Stick erases the entire data on the media. Before formatting the media, make sure that it does not contain your valuable data.

Do not remove the Memory Stick from the slot while formatting. This could cause a malfunction.

1 Carefully slide the Memory Stick into the slot until it clicks into place.

2 Click Start and Computer to open the Computer window.

3 Right-click the Memory Stick icon and select Format.

4 Click Restore device defaults.

!

The size of the allocation unit and file system may change.

65

nN

Do not select NTFS from the File system drop-down list as it may cause a malfunction.

✍

The formatting process will be completed more quickly if you select Quick Format in Format options.

5 Click Start.

6 Follow the on-screen instructions.

!

It may take time to format the Memory Stick depending on the media type.

66

nN

Using Your VAIO Computer

Using Your VAIO Computer

Removing a Memory Stick

!

Do not remove the Memory Stick while the Media Access indicator light is lit. If you do, you may lose data. Large volumes of data may take time to
load, so make sure the indicator is unlit before removing the Memory Stick.

To remove a Memory Stick

1 Check that the Media Access indicator light is unlit.

2 Push in the Memory Stick toward the computer and release.

The Memory Stick ejects.

3 Pull the Memory Stick out of the slot.

!

Always remove the Memory Stick gently, or it may pop out unexpectedly.

67

nN

68

nN

Using Your VAIO Computer

Using the SD Memory Card

Your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras,
camcorders, music players, and other audio/video devices.

Before You Use the SD Memory Card

The SD memory card slot on your computer supports the following memory cards:

❑ SD memory card

❑ SDHC memory card

❑ MultiMediaCard (MMC)

For the latest information on compatible memory cards, see Sony Support Information (page 206) to visit the appropriate
support web site.

!

Your computer has been tested and found compatible only with major memory cards available as of May 2008. However, not all memory cards that
meet the same specifications as the compatible media are guaranteed of compatibility.

Always insert the correct memory card into the SD memory card slot.

SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 32 GB have been tested and found compatible with your
computer.

The SD memory card slot on your computer does not support the high-speed data transfer feature of the SD memory card and the SDHC memory card.

Do not attempt to insert an SD memory card or SD memory card adapter of a different type into the SD memory card slot. An incompatible memory
card or memory card adapter may cause difficulty in removing from the slot and can cause damage to your computer.

Use care when inserting or removing an SD memory card from the SD memory card slot. Do not force the SD memory card in or out of the slot.

Inserting an SD Memory Card

To insert an SD memory card

1 Locate the SD memory card slot.

2 Hold the SD memory card with the arrow facing upward and pointing toward the slot.

69

nN

Using Your VAIO Computer

3 Carefully slide the SD memory card into the slot until it clicks into place.

Do not force the card into the slot.

✍

If the SD memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Removing an SD Memory Card

!

Do not remove an SD memory card while the Media Access indicator light is lit. If you do, the card or its data may become damaged.

To remove an SD memory card

1 Check that the Media Access indicator light is unlit.

2 Push in the SD memory card toward the computer and release.

The SD memory card ejects.

3 Pull the SD memory card out of the slot.

70

nN

Using Your VAIO Computer

71

nN

Using Your VAIO Computer

Using the CF Memory Card

Your computer may be equipped with a CF (CompactFlash) memory card slot. You can use this slot to transfer data among
digital cameras, camcorders, music players, and other audio/video devices.

See the online specifications to find out whether your model is equipped with the CF (CompactFlash) memory card slot.

!

Your computer has been tested and found compatible only with major CF memory cards available as of May 2008. However, not all CF memory cards
that meet the same specifications as the compatible media are guaranteed of compatibility.

Use care when inserting or removing a memory card from the slot. Do not force the memory card in or out of the slot.

CF memory cards with capacity of up to 16 GB have been tested and found compatible with your computer.

The CF (CompactFlash) memory card slot on your computer does not support any wireless communication cards.

Using Your VAIO Computer

Inserting a CF Memory Card

!

Your computer is supplied with a slot protector in the CF (CompactFlash) memory card slot. Remove the slot protector before you use the CF
(CompactFlash) memory card slot.

Use care when inserting or removing the CF memory card from the slot. Do not force it in or out of the slot.

To insert a CF memory card

1 Locate the CF (CompactFlash) memory card slot.

2 Push the CF memory card release button so that the release button pops out.

3 Push the CF memory card release button a second time so that the slot protector pops out.

4 Gently take hold of the slot protector and pull it out of the slot.

5 Hold the CF memory card with the arrow facing upward and pointing toward the slot.

6 Carefully slide the CF memory card into the slot until it clicks into place.

Do not force the card into the slot.

72

nN

Using Your VAIO Computer

!

Insert the CF (CompactFlash) memory card slot protector to block any particles from entering the slot when not using an CF memory card. Before
moving your computer, be sure to insert the CF (CompactFlash) memory card slot protector into the slot.

✍

If the memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

73

nN

74

nN

Using Your VAIO Computer

Removing a CF Memory Card

Follow the steps below to remove the CF memory card while your computer is on. If it is not removed properly, your system
may not work properly.

!

Do not remove the CF memory card while the CF memory card indicator light is lit. If you do, you may lose data. Large volumes of data may take time
to load, so make sure the indicator is unlit before removing the CF memory card.

To remove a CF memory card

1 Check that the CF memory card indicator light is unlit.

2 Push the CF memory card release button so that the release button pops out.

3 Push the CF memory card release button a second time so that the CF memory card pops out.

4 Gently take hold of the CF memory card and pull it out of the slot.

5 If the CF memory card release button is still out, push it back in all the way to the end.

75

nN

Using Your VAIO Computer

Using the Internet

Setting Up a Dial-up Internet Connection

Before you can connect to the Internet, you need to connect your computer to a telephone line with a telephone cable (not
supplied) and have an account with an Internet Service Provider (ISP).

To connect a telephone cable

1 Plug one end of the phone cable (1) into the modem port on the computer.

2 Plug the other end into the wall jack (2).

✍

Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a
private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.

If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.

To set up a dial-up connection to the Internet

1 Click Start and Control Panel.

2 Click Connect to the Internet under Network and Internet.

The Connect to the Internet window appears.

3 Click Dial-up.

4 Follow the on-screen instructions.

76

nN

Using Your VAIO Computer

Using Wireless LAN (WLAN)

Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN function communicate freely with each other
through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless (radio)
connection. This eliminates the need to pull cables or wires through walls and ceilings.

The Sony WLAN supports all normal Ethernet connectivity, but with the added benefits of mobility and roaming. You can still
access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place
to another.

You can communicate without an access point, which means that you can communicate with a limited number of computers
(ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure network.

✍

In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the
WLAN function, read the wireless LAN regulations guide carefully.

WLAN uses the IEEE 802.11a
encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access

(WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based on interoperable security
enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA has been designed to be forward
compatible with the IEEE 802.11i specification. It utilizes the enhanced data encryption TKIP (Temporal Key Integrity Protocol) in addition to user
authentication using 802.1X and EAP (Extensible Authentication Protocol). Data encryption protects the vulnerable wireless link between clients and
access points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption,
virtual private networks, and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and
is also designed to secure all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n draft standard, multi-band and multi­mode. In addition, based on the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of
Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible
with WPA.

* See the online specifications to find out whether your model supports the IEEE 802.11a standard and/or the IEEE 802.11n draft standard.

*

/b/g standard or the IEEE 802.11n* draft standard, which specifies the used technology. The standard includes the

77

nN

Using Your VAIO Computer

The IEEE 802.11b/g standard is a wireless LAN standard, using the 2.4 GHz bandwidth. The IEEE 802.11g standard provides high-speed
communications, faster than the IEEE 802.11b standard.

The IEEE 802.11a standard is a wireless LAN standard, using the 5 GHz bandwidth.

The IEEE 802.11n draft standard is a wireless LAN standard, using the 2.4 or 5 GHz bandwidth.

Wireless LAN devices using the 2.4 GHz bandwidth cannot communicate with devices using the 5 GHz bandwidth because the frequencies are different.

The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference
from other devices that use the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower communication

speed, narrower communication range, or broken wireless connections.

The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device
configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.

The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the
radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.

Actual communication speed may not be as fast as the one displayed on your computer.

Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference.
Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with

IEEE 802.11b products. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase
the communication speed.

78

nN

Using Your VAIO Computer

Communicating without an Access Point (Ad-hoc)

An ad-hoc network is a network in which a LAN is created only by the wireless devices themselves, with no other central
controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc
network easily at home.

Using Your VAIO Computer

To communicate without an access point (ad-hoc)

!

You cannot select the 5 GHz bandwidth, which is used for the IEEE 802.11a standard, on ad-hoc networks.

The IEEE 802.11n draft standard, using the 2.4 or 5 GHz bandwidth, is not available on ad-hoc networks.

1 Turn on the WIRELESS switch.

2 Click the button next to or above your desired wireless option(s) in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

3 Click Start and Control Panel.

4 Click View network status and tasks under Network and Internet.

5 Click Set up a connection or network on the left pane.

The Set up a connection or network window appears.

6 Select an option to specify the ad-hoc network settings and click Next.

7 Follow the on-screen instructions.

79

nN

80

nN

Using Your VAIO Computer

Communicating with an Access Point (Infrastructure)

An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access
point (not supplied). The access point bridges the wireless and wired LAN and acts as a central controller for the wireless
LAN network. The access point coordinates transmission and reception from multiple wireless devices within a specific range.

The access point will select which channel to use on an infrastructure network.

!

For details on how to select the channel that will be used by the access point, see the manual that came with your access point.

Using Your VAIO Computer

To connect to a wireless network

1 Make sure an access point is set up.

See the manual that came with your access point for more information.

2 Turn on the WIRELESS switch.

3 Click the button next to or above your desired wireless option(s) in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

4 Right-click or on the taskbar and select Connect to a network.

5 Select the desired access point and click Connect.

✍

For WPA-PSK or WPA2-PSK authentication, you must enter a passphrase. The passphrase is case sensitive and must be a text string between 8 and
63 characters in length or a hexadecimal string of 64 characters.

81

nN

Stopping Wireless LAN Communication

To stop wireless LAN communication

Click the button next to or above the WLAN icon in the VAIO Smart Network window.

!

Turning off the wireless LAN function while accessing remote documents, files, or resources may result in data loss.

82

nN

Using Your VAIO Computer

83

nN

Using Your VAIO Computer

Using the Bluetooth Function

You can establish wireless communication between your computer and other Bluetooth devices such as another computer
or a mobile phone. You can transfer data between these devices without cables at a range of up to 10 meters in an open area.

To start Bluetooth communications

1 Turn on the WIRELESS switch.

2 Click the button next to or above the Bluetooth icon in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

84

nN

Using Your VAIO Computer

Notes on using the Bluetooth function

❑ The data transfer rate varies, depending on the following conditions:

❑ Obstacles, such as walls, located between devices

❑ Distance between devices

❑ Material used in walls

❑ Proximity to microwaves and cordless telephones

❑ Radio frequency interference and other environmental conditions

❑ Device configuration

❑ Type of software application

❑ Type of operating system

❑ Use of both wireless LAN and Bluetooth functions at the same time on your computer

❑ Size of file being exchanged

❑ Note that large files may occasionally be corrupted during continuous transfer due to limitations of the Bluetooth standard

and electromagnetic interference in the environment.

❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if

standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may
not be possible in all situations.

❑ Video and audio may not be synchronized if you play videos on your computer with audio output from a connected

Bluetooth device. This is a frequent occurrence with Bluetooth technology and is not a malfunction.

85

nN

Using Your VAIO Computer

❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth

devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous
use of the Bluetooth function and wireless communication devices, however, may cause radio interference and result in
reduced communication speeds and distances than the standard values.

✍

Read the Bluetooth regulations guide before using the Bluetooth function.

❑ The Bluetooth function may not work with other devices, depending on the manufacturer or the software version employed

by the manufacturer.

❑ Connecting multiple Bluetooth devices to your computer may cause bandwidth congestion, resulting in poor performance

of the devices. This is normal with Bluetooth technology and is not a malfunction.

86

nN

Using Your VAIO Computer

Bluetooth Security

The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to
communicate. With the authentication function, you can prevent any anonymous Bluetooth devices from accessing your
computer.

The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be
determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.

✍

The passkey can be different each time, but must be the same at both ends.

For certain devices, such as a mouse, no passkey can be entered.

nN

Using Your VAIO Computer

Communicating with Another Bluetooth Device

You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a
mouse, or a digital camera without the use of any cables.

87

To communicate with another Bluetooth device

To communicate with another Bluetooth device, you first need to set up the Bluetooth function. For setting up and using the
Bluetooth function, search for Bluetooth information using Windows Help and Support. To open Windows Help and
Support, click Start and Help and Support.

Stopping Bluetooth Communications

To stop Bluetooth communications

1 Turn off the Bluetooth device that is communicating with your computer.

2 Click the button next to or above the Bluetooth icon in the VAIO Smart Network window.

88

nN

Using Your VAIO Computer

Using Peripheral Devices

You can add functionality to your VAIO computer by using the various ports on the computer.

❑ Connecting External Speakers (page 90)

❑ Connecting an External Display (page 92)

❑ Selecting Display Modes (page 97)

❑ Using the Multiple Monitors Function (page 98)

❑ Connecting an External Microphone (page 100)

❑ Connecting a Universal Serial Bus (USB) Device (page 101)

❑ Connecting a Printer (page 104)

❑ Connecting an i.LINK Device (page 105)

❑ Connecting to a Network (LAN) (page 107)

89

nN

Using Peripheral Devices

90

nN

Using Peripheral Devices

Connecting External Speakers

You can connect external sound output devices (not supplied), such as speakers or headphones, to your computer.

Since your computer is capable of outputting both analog and digital signals through the headphones/OPTICAL OUT jack,
you can alternately connect an S/PDIF device such as digital headphones or an AV amplifier to the jack and enhance the
sound quality of your computer. For more information, see the manual that came with your S/PDIF device.

!

To hear sound from the S/PDIF device connected to the headphones/OPTICAL OUT jack, you need to change the sound output device. For the detailed
instructions, see How do I change the sound output device? (page 200).

To connect external speakers

1 Plug the speaker cable (1) (not supplied) into the headphones/OPTICAL OUT jack (2) i.

2 Plug the other end of the speaker cable to the external speaker (3).

3 Turn down the volume of the speakers before you turn them on.

✍

Make sure your speakers are designed for computer use.

!

Do not place floppy disks on the speakers. Their magnetic field may damage the data on the disks.

91

nN

Using Peripheral Devices

92

nN

Using Peripheral Devices

Connecting an External Display

You can connect an external display (not supplied) to your computer. For example, you can use the computer with a computer
display or a projector.

✍

Connect the power cord of your external display after connecting all other cables.

93

nN

Using Peripheral Devices

Connecting a Computer Display

You can connect a computer display (monitor) to your computer.

To connect a computer display

!

The monitor port on your computer is disabled when an external display is connected to the HDMI port.

1 If necessary, plug one end of the display's power cord (1) into your display, and the other end into an AC outlet.
2 If you want to connect an analog monitor, plug the display cable (2) (not supplied) into the monitor port (3) a on the

computer.

3 If you want to connect a TFT/DVI monitor, use an HDMI cable (not supplied) and an HDMI to DVI-D adapter (not supplied)

to connect the TFT/DVI monitor to the HDMI port on your computer.

!

Your computer is compliant with the HDCP standard and capable of encrypting the transmission channel of digital video signals for the purpose of
copyright protection, which enables you to play and view a wide variety of copyright protected, high-quality contents. Note that you need to connect an
HDCP-compliant monitor to your computer to view the copyright protected contents. If your computer has a non-compliant monitor connected, you
will not be able to play or view any copyright protected contents.

✍

DVI-D stands for Digital Visual Interface - Digital. It is a type of DVI port that supports only digital video signals (no analog video signals). It has 24 pins.

A DVI-I (Digital Visual Interface - Integrated) port supports digital video and analog video signals. It has 29 pins.

Using Peripheral Devices

Connecting a Multimedia Computer Display

You can connect a multimedia computer display that includes built-in speakers and a microphone to your computer.

To connect a multimedia computer display

1 Plug the power cord of your multimedia computer display (1) into an AC outlet.
2 Plug the display cable (2) (not supplied) into the monitor port (3) a on the computer.
3 Plug the speaker cable (4) (not supplied) into the headphones/OPTICAL OUT jack (5) i on the computer.
4 Plug the microphone cable (6) (not supplied) into the microphone jack (7) m on the computer.

94

nN

Using Peripheral Devices

Connecting a TV

You can connect a TV to your computer.

To connect a TV to your computer

!

To hear sound from the device connected to the HDMI port, you need to change the device for sound output. For the detailed instructions, see How do
I change the sound output device? (page 200).

The HDMI port on your computer is disabled when an external display is connected to the monitor port.

1 Plug the power cord of your TV into an AC outlet.

2 Plug one end of an HDMI cable (not supplied) to the HDMI port on the computer and the other end to the TV.

3 Switch the input channel of the TV to external input.

4 Set up the TV configuration system.

!

If a device driver other than the one provided by Sony is used, the image will not be displayed and the audio will not be heard. Always use the device
driver provided by Sony for updates.

✍

See the manual that came with your TV for more information on installation and use.

95

nN

You can connect the HDMI out to an AV amplifier and audio will be heard through the AV amplifier and then another HDMI cable can be connected from
the AV amplifier to the TV for the display.

The HDMI cable carries both video and audio signals.

Using Peripheral Devices

Connecting a Projector

You can connect a projector (for example, the Sony LCD projector) to your computer.

To connect a projector

!

The monitor port on your computer is disabled when an external display is connected to the HDMI port.

1 Connect the power cord (1) of your projector into an AC outlet.
2 Plug a display cable (2) (not supplied) into the monitor port (3) a on the computer.
3 Plug an audio cable (4) (not supplied) into the headphones/OPTICAL OUT jack (5) i on the computer.

4 Plug the display cable and the audio cable into the jack and port on the projector (6).

96

nN

97

nN

Using Peripheral Devices

Selecting Display Modes

You can select which display to use as the primary monitor when an external display (desktop monitor, etc.) is connected to
your computer.

If you want to work on your computer screen and the external display at the same time, see Using the Multiple Monitors
Function (page 98) for more information.

To select a display

1 Click Start and Control Panel.

2 Click Additional Options.

3 Click NVIDIA Control Panel.

4 Select the display setup option under Display.

5 Follow the on-screen instructions to change the settings.

✍

You may not be able to display the same contents on your computer screen and the external display or projector at the same time, depending on the
type of your external display or projector.

Before turning on your computer, turn on the external display.

98

nN

Using Peripheral Devices

Using the Multiple Monitors Function

The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you
have an external display connected to the monitor port, your computer screen and the external display can function as a
single desktop.

You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window
or a toolbar, from one display to the other.

✍

Your external display may not support the Multiple Monitors function.

Certain software applications may not be compatible with Multiple Monitors settings.

Make sure that your computer does not enter Sleep or Hibernate mode while you are using the Multiple Monitors function. Otherwise, the computer
may not return to Normal mode.

If you set different colors on each display, do not expand a single window across two displays. Otherwise, your software may not work properly.

Set fewer colors or a lower resolution for each display.

Using Peripheral Devices

To use the Multiple Monitors function

1 Click Start and Control Panel.

2 Click Adjust screen resolution under Appearance and Personalization.

3 Right-click the number 2 monitor and select Attached.

4 Click OK.

At the confirmation prompt, click Yes.

✍

You can also change one of the S button assignments to activate the Multiple Monitors function with the corresponding S button. To change the S
button assignments, press and hold either S button to display the window for changing the assignment. For details on the S buttons, see Using Special-

function Buttons (page 36).

Additionally, you can set the display colors and resolution for each display and customize the Multiple Monitors function.

99

nN

100

nN

Using Peripheral Devices

Connecting an External Microphone

If you need to use a sound input device (for example, to chat over the Internet), you need to plug in an external microphone
(not supplied).

To connect an external microphone

Plug the microphone cable (1) into the microphone jack (2) m.

✍

Make sure your microphone is designed for computer use.
