Sony VAIO PCG-GRT100 Series, VAIO PCG-GRT100K, VAIO PCG-GRT100P Specifications

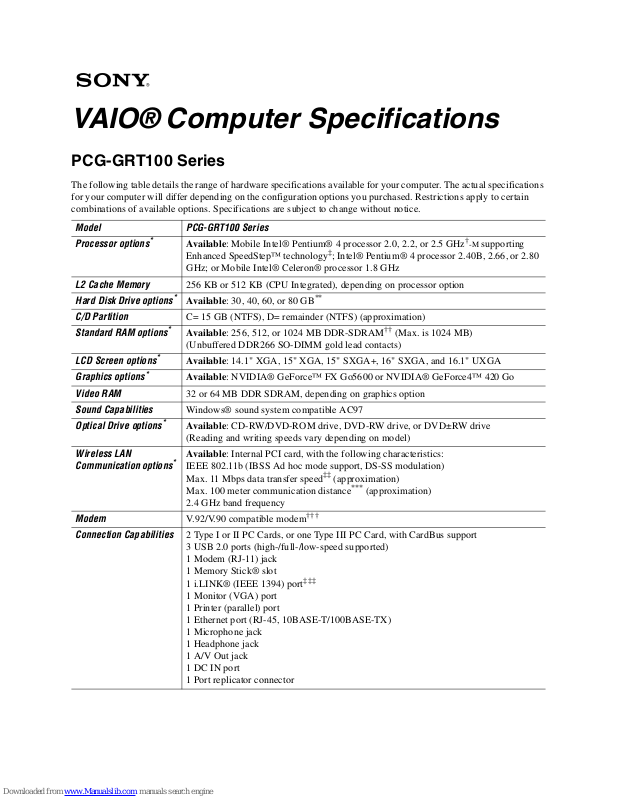

VAIO® Computer Specifications
PCG-GRT100 Series
The following table details the range of hardware specifications available for your computer. The actual specifications
for your computer will differ depending on the configuration options you purchased. Restrictions apply to certain
combinations of available options. Specifications are subject to change without notice.
Model PCG-GRT100 Series
Processor options
*
Available: Mobile Intel® Pentium® 4 processor 2.0, 2.2, or 2.5 GHz
†
-M
supporting
Enhanced SpeedStep™ technology
‡
; Intel® Pentium® 4 processor 2.40B, 2.66, or 2.80
GHz; or Mobile Intel® Celeron® processor 1.8 GHz
L2 Cache Memory 256 KB or 512 KB (CPU Integrated), depending on processor option
Hard Disk Drive options
*
Available: 30, 40, 60, or 80 GB
**
C/D Partition C= 15 GB (NTFS), D= remainder (NTFS) (approximation)
Standard RAM options
*
Available: 256, 512, or 1024 MB DDR-SDRAM†† (Max. is 1024 MB)
(Unbuffered DDR266 SO-DIMM gold lead contacts)
LCD Screen options
*
Available: 14.1" XGA, 15" XGA, 15" SXGA+, 16" SXGA, and 16.1" UXGA
Graphics options
*
Available: NVIDIA® GeForce™ FX Go5600 or NVIDIA® GeForce4™ 420 Go
Video RAM 32 or 64 MB DDR SDRAM, depending on graphics option
Sound Capabilities Windows® sound system compatible AC97
Optical Drive options
*
Available: CD-RW/DVD-ROM drive, DVD-RW drive, or DVD±RW drive
(Reading and writing speeds vary depending on model)
Wireless LAN
Communication
options
*
Available: Internal PCI card, with the following characteristics:
IEEE 802.11b (IBSS Ad hoc mode support, DS-SS modulation)
Max. 11 Mbps data transfer speed
‡‡
(approximation)
Max. 100 meter communication distance
***
(approximation)
2.4 GHz band frequency
Modem V.92/V.90 compatible modem
†††
Connection Capabilities 2 Type I or II PC Cards, or one Type III PC Card, with CardBus support
3 USB 2.0 ports (high-/full-/low-speed supported)
1 Modem (RJ-11) jack
1 Memory Stick® slot
1 i.LINK® (IEEE 1394) port
‡‡‡
1 Monitor (VGA) port
1 Printer (parallel) port
1 Ethernet port (RJ-45, 10BASE-T/100BASE-TX)
1 Microphone jack
1 Headphone jack
1 A/V Out jack
1 DC IN port
1 Port replicator connector
VAIO® Notebook Specifications
Printed in USA © 2003 Sony Electronics Inc. 4-676-090-01
Supplied Accessories
*
AC adapter and power cord
Rechargeable battery
Wei ght saver
Power Source 19.5V DC/AC 100-240V
Power Management Energy Star® Compliant
Advanced Configuration and Power Interface (ACPI)
Battery Lithium-ion
Dimensions Unit dimensions will vary depending on the options selected.
Weight Unit weight will vary depending on the options selected.
Operating Temperature 40° F to 95° F (5° C to 35° C)
Operating Humidity 20% to 80% (not condensed), provided that humidity is less than 65% at 95° F (35° C),
hygrometer reading of less than 84° F (29° C)
Storage Temperature -4° F to 140° F (-20° C to 60° C) (temperature gradient less than 18° F (10° C/hour)
Storage Humidity 10% to 90% (not condensed) provided that humidity is less than 20% at 140° F (60° C),
hygrometer reading of less than 95° F (35° C)
* Certain specifications differ depending on the specific configuration you purchased.
† GHz denotes microprocessor internal clock speed; other factors may affect application performance.
‡ The processor speed will be reduced under certain operating conditions.
**GB means one billion bytes when referring to hard drive capacity. Accessible capacity may vary.
††Your system may contain additional memory installed at the time of purchase.
‡‡ Max. dat a communication /transfer speed per IEEE 802.11b standard. Speed will be reduced under certain operating and environmental
conditions.
***Communication distance will be reduced under certain operating and environmental conditions.
†††Maximum speed for faxing is 14.4 Kbps. Your modem is capable of downloading at 53 Kbps using V.90/56Kflex. Your online service or
Internet Service Provider may not support this technology or operate at this speed.
‡‡‡i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may vary,
depending on the software applications, operating system, and compatible i.LINK devices. All products with an i.LINK connection may
not communicate with each other. Refer to the documentation that came with your compatible i.LINK device for information on operating
conditions and proper connection. Before connecting compatible i.LINK PC peripherals to your system, such as CD-RW or hard disk
drive, confirm their operating system compatibility and required operating conditions.
Model PCG-GRT100 Series
