Sony SU-W100 User Manual

4-089-491-21 (1)

Wall-Mount Bracket

Operating Instructions

This Wall-Mount Bracket is designed for use only with a Sony 15-inch LCD Color TV that specifies the use of the Bracket in its Operating Instructions.

To Customers

Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or contractors and pay adequate attention to safety during the installation.

Mode d’emploi

Ce support de fixation mural est conçu pour être utilisé uniquement avec un téléviseur couleur ACL 15 pouces de Sony dont le mode d’emploi spécifie l’utilisation du support.

A l’attention des clients

Une certaine expérience est requise pour installer ce produit. Confiez l’installation à des revendeurs Sony ou à des professionnels et portez une attention particulière à la sécurité au cours de l’installation.

Manual de instrucciones

Este soporte de montaje mural ha sido diseñado para utilizarse únicamente con un televisor en color de pantalla de cristal líquido de 15 pulgadas de Sony cuyo manual de instrucciones especifique el uso de dicho soporte.

Para los clientes

Para la instalación de este producto se precisan conocimientos y experiencia suficientes. Asegúrese de contratar la instalación a un distribuidor o contratista de Sony y de prestar especial atención a la seguridad durante la instalación.

SU-W100

M90

Thank you for purchasing this product.

To Customers

Sufficient expertise is required for installing this product. Be sure to subcontract the installation to Sony dealers or contractors and pay adequate attention to safety during the installation. We are not liable for any damage or injury caused by mishandling or improper installation. Your Statutory Rights (if any) are not affected.

WARNING

To avoid risk of serious injury or damage to the TV caused by dropping it, observe the following precautions.

• Do not hang from the TV or the Wall-Mount Bracket installed on the wall.

• Be careful not to trap the AC power adaptor cord of the TV when you secure the TV to the Wall-Mount Bracket.

• Follow the installation procedures and installation direction described in this manual. For a safety installation, consult your Sony dealer or qualified service personnel.

• Before installing, confirm that the wall has sufficient strength to support the TV and the Wall-Mount Bracket. The installation location should be a flat, perpendicular wall with a reinforcing material inside.

• Do not apply a weight other than the TV to the Wall-Mount Bracket installed on the wall.

• Do not disassemble, modify or change the parts of the Wall-Mount Bracket.

For Sony Dealers

Sufficient expertise is required for installing this product. Be sure to read this instruction manual thoroughly to do the installation work safely. We are not liable for any damage or injury caused by mishandling or improper installation. After installation, please hand this installation manual to the customers.

Caution

• This Wall-Mount Bracket is only for Sony 15-inch LCD Color TVs. Do not use the bracket with a TV whose operating instructions do not specify the use of this bracket.

• Be especially careful not to drop the TV when you install it high on a wall.

Installation

For Sony Dealers

For the installation, have ready six commercially available mounting screws, anchor bolts, etc. that are appropriate for the wall. The type and length of the screws required depend on the material and strength of the wall. If you do not know which material your wall is made of, consult your Sony dealer or qualified service personnel.

Step 1: Check the parts

Check all the parts are included in the package.

Bracket A (1) Bracket B (1) Screw (2)

Step 2: Decide the installation location

Decide the location on the wall to install the TV. Then, place bracket A on the installation location and mark the four screw holes on the wall using a pencil. Before marking, make sure that the distance between the upper edge of bracket A and the ceiling and that between the side edge of bracket A and the side wall are 20 cm (7 7/8 inches) or more.

Ceiling

Bracket A

20 cm (7 7/8 inches) or more

Mark this portion using a pencil.

Note

Attach bracket A level with the floor.

Wall

Step 3: Secure bracket A to the wall

Insert four of the screws you prepared at the positions marked in Step 2 (page 4).

Do not tighten the screws completely for the moment. Keep a space of 2 to 3 mm (3/32 to 1/8 inches) from the wall.

Wall

Screws you prepared

Press bracket A to the wall and slide it down. Then fully tighten the four screws on the wall.

Bracket A

2 - 3 mm (3/32 - 1/8 inches)

Wall

Fully tighten two of the screws you prepared in screw holes 1 and 2 firmly.

Bracket A

Screws you prepared

Bracket A

Wall

continued

Step 4: Attach bracket B to the TV

Before attaching bracket B, disconnect the AC power adaptor and all the cables from the TV. For how to remove the rear cover of the TV, refer to the Operating Instructions supplied with the TV.

Remove the four screws as illustrated below, and detach the TV stand from the TV.

To prevent damaging the surface of the LCD display, place the TV on a soft mat.

Rear of the TV

Soft mat

Table

Notes

• Place the TV body only on the table as illustrated above. If the TV stand is also on the table level to the TV body, the TV body may become unstable and cause damage.

• When removing the TV stand, hold it firmly.

Remove these screws.

TV stand

Secure bracket B to the TV firmly using the four screws removed in step 1.

Rear of the TV

Bracket B

Step 5: Connect the cables to the TV

Before securing the TV to the wall, connect the cables to the TV. You can arrange the cables by passing them along the sides of bracket B.

Note

Do not replace the rear cover of the TV for the moment.

Step 6: Secure the TV to the wall

Hook bracket B on bracket A.

Bracket B

Notes

• Secure the TV to the wall without the rear cover.

• Hold the TV firmly. Be especially careful when you secure the TV in a high place.

Bracket A

Wall

Bracket B Bracket A

Align the screw holes on bracket B with those on

bracket A, and fully tighten the supplied two screws using a coin or similar.

Note

To prevent the TV being dropped, hold the TV firmly as illustrated and tighten the screws.

Bottom view

Bracket A

Two screws (supplied)

continued

Wall

Step 7: Adjust the TV angle for easy viewing

You can tilt the TV up to about 15° forward.

Note

When adjusting the angle, be sure to hold both sides of the TV.

Step 8: Replace the rear cover on the TV

For details on how to replace the rear cover, refer to the Operating Instructions of the TV.

Detaching the TV from the Wall-Mount Bracket

To detach the TV, remove the rear cover from the TV, then remove the two screws.

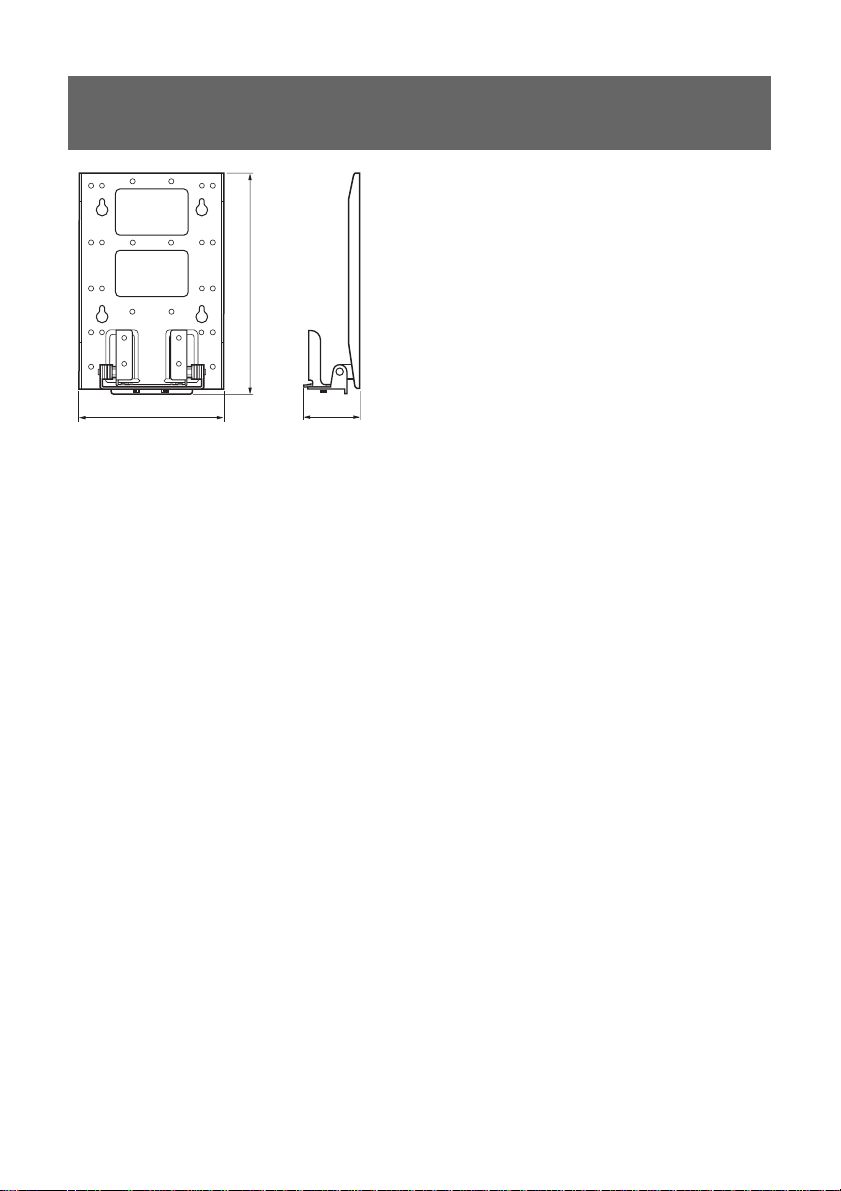

Specifications

)

Unit: mm (inches) Bracket mass:

Approx. 0.9 kg (1 lb 16 oz)

Supportable weight:

Approx. 10 kg (22 lb 1 oz)

235 (9

160 (6 3/8) 62 (2 1/2)

Design and specifications are subject to change without notice.
