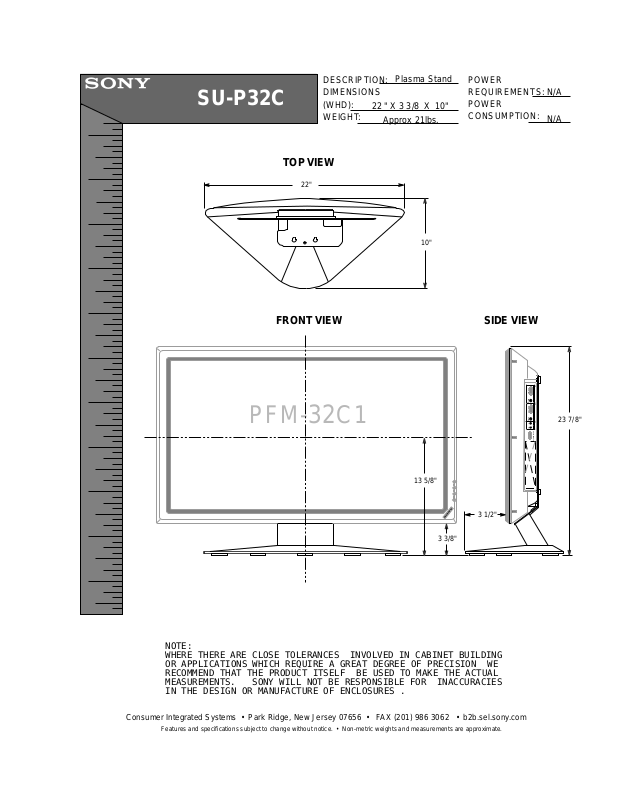

SU-P32C
MODEL:
DESCRIPTION:
DESCRIPTION:
DIMENSIONS
DIMENSIONS
(WHD):
(WHD):
WEIGHT:
WEIGHT:
TOP VIEW
22"
Plasma Stand
22 " X 3 3/8 X 10"
Approx 21lbs.
10"
POWER
REQUIREMENTS:
POWER
CONSUMPTION:
N/A
N/A
FRONT VIEW
PFM-32C1
13 5/8"
3 3/8"
SIDE VIEW
3 1/2"
RGB / YUV AUDIO
INPUT 1
RGB / YUV AUDIO
INPUT 2
CONTROL S
IN
OUT
RGB 2
23 7/8"
RS-232 REMOTE
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 986 3062 • b2b.sel.sony.com
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
