Page 1

Compact AV System

Operating Instructions

4-248-450-11(2)

DAV -FC7

Page 2

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or mo ist u r e.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

To prevent fire, do not cover the ventil at ion of the apparatus with news papers, table-cloths, curtains, etc. And don’t place lighted candle s on the apparatus.

To prevent fire or shock hazard, do not place obje c ts filled with liquids, such as vases , on the ap pa ratus. Caution – The use of optical instruments with this product will increase ey e haz ard .

This appliance is classified as a CLASS 1 LASER product. The label is located on the bottom of the unit.

Don’t throw away the battery with general house waste, dispose of it correctly as chemical waste.

For the customers in the U.S.A

This symbol is i ntend ed to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffici ent magnitude to constitute a risk of electric shoc k to persons.

This symbol is i ntend ed to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompany ing the appliance.

WARNING

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectio n against harmful interference in a residential installation. This equipment generates, uses, and ca n r adia te radio frequency energy and, if not in sta ll ed and used in accordance with the instructi ons , may cau s e harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installa tion. If this equipment does cause harmful interference to r a dio or te le vision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correc t the interference by one or more of the following measures:

– Reorient or relocate the rece iv i ng an tenna. – Increase the separation betwe e n the equi pment and

system.

– Connect the equipment into an outlet on a circuit

different from that to which the system is connected.

– Consult the dealer or an experie nc e d radio/TV

technician for help.

CAUTION

You are cautioned that any changes or modif icat ions not expressly approved in this manual could void your authority to operate this equipm ent .

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC th a t provides guidelines for proper ground ing a nd, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

For the customers in Canada CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Owner’s Record

The model and seria l numbers are lo cated at the botto m of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. DAV-FC7 Serial No.______________

Page 3

Precautions

Safety

• If anything falls into the cabinet, unplug the unit and have it checked by qualified personnel be f or e operating it any further.

• The uni t is not disc onne c ted f ro m the AC power source (mains) as l ong a s it is con nect ed t o the ma ins outlet, even if the unit itse lf ha s be en turned off.

• Unp lug the unit from the wall outlet if you do not intend to use it for an extended per iod of time. To disconnect the cord, pull it out by the plug, nev er by the cord.

Installing

• Allow adequate air ci r culation to prevent i nternal heat buildup.

• Do not place the unit on surfaces (r ugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.

• Do not install the unit near heat sources such as radiators, or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration, or shock.

• Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only.

• Keep the unit and discs away from equipment with strong magnets, such as microwave ove ns, or large loudspeakers.

• Do not pla ce he av y obje c ts on the unit.

• If the unit is brought directly from a cold to a warm location, moisture may condense inside the Compact AV System and cause damage to the lenses . When you first install the unit, or when you move it from a cold to a warm location, wait for about 30 minutes before operating the unit.

Welcome!

Thank you for purchasing Sony Compact AV System. Before op er at i n g this system, please read this manual th or oughly and retain it for future reference.

Precautions

On power sources

AC power cord must be changed only at the qual if ie d service shop.

On placement

• Place the system in a location with ade q uate ventilation to prevent heat build-up in the system.

• At high volume, over long periods of time, the cabinet becomes hot to the touch. This is not a malfunction. However, touching the cabinet should be avoided. Do not place the unit in a confined space where ventilation is poor as this may cause overheating.

• Do not block the ventilation slots by putting anything on the system. The system is equipped with a high power amplifier. If the ventilation slots on the top surface are blocked, the unit can overheat and malfunction.

• Do not place the system on a soft surface such as a rug that might block the ventilation h ole s on the bottom.

• D o not place the system in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shoc k.

On operation

• If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the l enses inside th e system. Shoul d this occur, the system may not operate properly. In this case, remove the disc an d leave the system turned on for about half an hour until the moisture evaporates.

• When you move the system, take out any discs. If you don’t, the disc may be damaged.

• For power saving purposes, the system can be completely turned of f b y th e "/1 button on the system. Though the LED remains lit for a while, the system is completely off.

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio signa ls. If you do, the speakers may be damaged when a peak level section is suddenly played.

Page 4

On cleaning

Clean the cabinet, p anel, and co ntrol s with a s oft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine . If you have any questions or problems concerning your system, please consult your nearest Sony dealer.

On cleaning discs

Do not use a commercially available CD/DVD cleaning disc. It may cause a malfunction.

On your TV’s colour

If the speakers should cause the TV screen to have colour irregularity, turn off the TV at once then turn it on after 15 to 30 minutes. If colour irregularity should persist, place the speakers farther away from the set.

The nameplate is located on the bottom exterior of the unit.

IMPORTANT NOTICE

Caution: This system is capable of holding a still video image or on-screen displa y image on your television screen indefinitely. If you leave the still video image or on-screen displa y image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisions are especially susceptible to this.

On moving the system

When you carry the system, use the following procedure to protect the inner mechanism. Remove the disc, and then press and hold the x button on the system. After “MECHA LOCK” is displayed on the front panel display, remove the AC power cord from a wall outlet.

Page 5

Table of Contents

Welcome!................................................3

Precautions..............................................4

About this Manual...................................7

This System Can Play the Following

Discs .................................................7

Terms for discs........................................7

Notes about Discs.................................10

Note on DVD 5-DISC changer.............10

Guide to the Control Menu Display......11

Getting Started

Unpacking.............................................13

Inserting Batteries into the Remote.......13

Step 1: Speaker System Hookup...........14

Step 2: Antenna Hookups .....................18

Step 3: TV and Video Component

Hookups..........................................20

Step 4: Connecting the AC Power

Cords...............................................22

Speaker Setup........................................23

Playing Discs

Playing Discs ........................................24

Resuming Playback from the Point Where

You Stopped the Disc.....................27

(Resume Play)

Using the DVD’s Menu........................27

Playing VIDEO CDs with PBC Functions

(Ver. 2.0).........................................28

(PBC Playback)

Playing an MP3 Audio Track ...............29

Playing JPEG Image Files ....................30

Selecting the Play Mode .......................33

(All Discs, One Disc, or Album)

Creating Your Own Program................34

(Program Play)

Playing in Random Order .....................35

(Shuffle Play)

Playing Repeatedly...............................36

(Repeat Play) Searching for a Particular Point on a

Disc.................................................37

(Scan, Slow-motion Play) Searching for a Title/Chapter/Track/

Index/Album/File............................38

Viewing Disc Information.................... 40

Sound Adjustments

Changing the Sound..............................45

Enjoying Surround Sound ....................47

Using the Sound Effect.........................50

Using Various Additional Functions

Changing the Angles............................51

Displaying Subtitles..............................52

Locking Discs .......................................53

(CUSTOM PARENTAL CONTROL, PARENTAL CONTROL)

Other Operat io n s

Controlling TV with the Supplied

Remote ...........................................58

Using the Video or Other Unit ............. 59

Enjoying the Radio...............................60

Using the Sleep Timer..........................63

To change the brightness of the front panel

display ............................................ 63

Returning to the default settings........... 64

Settings and Adjustments

Using the Setup Display.......................65

Setting the Display or Sound Track

Language........................................66

(LANGUAGE SETUP)

Settings for the Display........................67

(SCREEN SETUP)

Custom Settings.................................... 68

(CUSTOM SETUP)

Settings for the Speakers ...................... 70

(SPEAKER SETUP)

Page 6

Additional Information

Troubleshooting....................................74

Specifications........................................77

Glossary................................................ 78

Index to Parts and Controls...................81

Language code list ................................86

DVD Setup Menu List..........................87

Index .....................................................88

Quick reference for Remote

Commander ......................Back cover

Page 7

About this Manual

• The instructions in this manual describe the controls on the remote. You can also use the controls on the system if they have the same or similar names as those on the remote.

• In this manual, the European model is used for illustration and on-screen display (OSD) purpose.

• The following symbols are used in this manual.

Symbol Meaning

Functions available for DVD VIDEOs and DVD-Rs/DVD-RWs in video mode or DVD+Rs/ DVD+RWs.

Functions avai la ble in VIDEO CD mode

Functions avai la ble in CD mode

Functions available in Super Audio CD and Audio CD mode

Functions available for MP3* audio tracks

Functions avai la ble for JPEG files

* MP3 (MPEG1 Audio Layer 3) is a standard format

defined by ISO/MPEG which compresses audio data.

This System Can Play the Following Discs

Format of discs

DVD VIDEO

Super Audio CD

VIDEO CD

Disc logo

Format of discs

Audio CD

CD-R/CD-RW (audio data) (MP3 files) (JPEG files)

The “DVD VIDEO” logo is a trademark.

Disc logo

Terms for discs

• Title

The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software.

• Chapter

Section of a picture or a music piece that is smaller than titles. A title is composed of several chapters . Depending on the disc, no chapters may be record ed.

• Album

Section of a music piece or an image on a data CD containing MP3 au di o t ra cks or JPEG files.

• Track

Section of a picture or a m usic piece on a VIDEO CD, Super Audio CD, CD, or MP3.

• Index (Super Audio CD, CD) / Video

Index (VIDEO CD)

A number that divides a track into sections to easily locate the point you want on a VIDEO CD, Super Audio CD, or CD. Depe nding on the disc, no indexe s m ay be recorded.

• Scene

On a VIDEO CD with PBC functions (page 28), the menu screens, mov ing pictures and still pictures ar e di vided into sections called “sce nes.”

• File

Section of a picture on a da ta C D containing JPEG image files.

continued

Page 8

Disc

DVD structure

VIDEO CD, Super Audio CD, or CD structure

MP3 structure

JPEG structure

Title

Chapter

Track

Index

Album

Track

Album

File

Disc

Note on PBC (Playback Control) (VIDEO CDs)

This system conforms to Ver. 1.1 and Ver. 2.0 of VIDEO CD standards. You can en joy two ki nds of playback depending on the disc type.

About Multi Session CD

• This system can pl ay Multi Se ssion CDs whe n an MP3 audio track is contained in the first session. Any subsequent MP3 audio tracks recorded in later sessions can also be played back.

• This system can pl ay Multi Se ssion CDs whe n a JPEG image file is contained in the first session. Any subs equent JPEG image files recorded in later sessions can also be played back.

• If audio tr acks a nd imag es in mu sic CD f ormat or video CD form at are recorded in the first session, only the first session will be played back.

Region code

Your system has a region code printed on the back of the unit and will only play DVDs labelled with the same region code.

Disc type You can

VIDEO CDs without PBC functions (Ver. 1.1 discs)

VIDEO CDs with PBC functions (Ver. 2.0 discs)

Enjoy video playback (moving pictures) as well as music.

Play interactive software using menu screens displayed on the TV screen (PBC Playback), in addition to the video playback functions of Ver. 1.1 discs. Moreover, you can play highresolution still pictures, if they are included on the disc.

DVDs labelled will also play on this syste m.

ALL

If you try to play any other DVD, the message “Playback prohibited by area limitations.” will appear on the TV scree n. D epending on the DVD, no region code indication may be given even though playing the DVD is prohibited by area restrictions.

Examples of discs that the system cannot play

The system cannot play the following discs:

• CD-ROMs (except for extension “.M P3,” “.JPG,” or “.JPEG” )

• CD-Rs/CD-RWs other than those recorded in the following formats:

– music CD format – video CD format – MP3/JPEG format that conforms to

ISO9660* Level 1/Level 2, or its extended format, Joliet

• Data part of CD-Extras

• DVD-ROMs

• DVD Audio discs

• DVD-RAMs

• DVD-RWs in VR (Video Recording) mode

Page 9

• Progressive JPEG file

* A logical format of files and folders on CD-ROMs,

defined by ISO (International Standard Organization)

Do not load the following discs:

• A DVD with a different region code (page 8,

80).

• A disc that is neither standard or circular (e.g., card, heart, or st ar shape).

• A disc with paper or stickers on it.

• A disc that has adhesi ve or cellop hane tape s till left on it.

Notes about CD-R/CD-RW/DVD-R/DVD-RW (Video mode)

In some cases, CD-R/CD-RW/DVD-R/DVD-RW (Video mode) cannot be played on this player due to the recording quality or physical condition of the disc, or the characteristics of the reco rd ing device and authoring software. The disc will not play if it has not been correctly finalized. For more informat ion, se e the ope r ating instructions for the recor d ing device. Note that discs created in the Packet Write format cannot be played.

Music discs encoded with copyright protection technologies

This product is designed to play back discs that conform to the Compact Disc (CD) standard.

Recently, various music discs encoded with copyright protection technol o gies ar e mark eted by some record companies. Please be aware that am ong those discs, there are some that do not conform to the CD standard and may not be playable by this product.

Copyrights

This product inc or porates copyright protection technology that is protected by method claims of certain U.S. patents, other intellectual property rights owned by Ma cr ovision Corporation, and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses onl y unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly i s prohibited.

This system incorporates with Dolby* Digital and Dolby Pro Logic ( II) adaptive matrix surround decoder and the DTS** Digital Surround System.

* Manufactured under license f ro m Dolby

Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

**Manufactured under license from Digital Theater

Systems, Inc. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc.

Note on playback operations of DVDs and VIDEO CDs

Some playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since this system plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs.

Page 10

Notes about Discs Note on DVD 5-DISC

On handling discs

• To keep the disc cle an, handle the disc by its edge. Do not touch the surface.

• Do not stick paper or tape on the disc.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside th e car.

• After playing, st ore the disc in its case.

On cleaning

• Before playin g, cl ean the disc with a cleaning cloth. Wipe the disc fr om t h e centre out.

• Do not use solvents such as benzine, thinner, commercially available clean ers, o r an ti-sta tic spray intended for viny l LPs.

This system can onl y pl ay back a standard circular disc. Using neither standard nor circular discs (e.g., card, heart, or star sha pe) may cause a malfunction.

changer

Disc changer system

Stocker

DISC 1

DISC 2

Disc

DISC 3 DISC 4

DISC 5

Playing unit

The disc changer consists of a playing unit and a stocker which transpor ts the discs to t he disc slot and the playing uni t. For example, if you press DISC 3, the stocker moves until the DISC 3 comes to th e position o f the playin g unit and t hen move s the DISC 3 over the playing unit.

Notes

• Do not insert or eject discs while playing.

• Noise may come from the disc ch an ger when changing discs or turning the system on a nd of f. However, this is just noise produced by the operation of the internal mechanisms and does not indicate a malfunction.

• 8 cm (3-inch) CDs or DVDs cannot be stored in the stocker.

• Do not insert an 8 cm (3-inch ) CD with an 8 cm (3 inch) adapter. It may damage the system and disc.

Do not use a disc that has a commercially available accessory attached, such as a label or ring.

Page 11

Guide to the Control Menu Display

Use the Control Menu to select a function that you would like to use. The Control Menu display appears when the DVD DISPLAY button is pressed. For details, refer to the page in parentheses.

Total number of Currently playing title number (Video CD/ Super Audio CD/CD: track number)

Disc number and

Currently playing ch apter number (Video CD/Super Audio CD/CD: index number)

Playing time

Icon of selected Control Menu item

Control Menu items

name or disc type

titles or tracks

recorded

Currently playing title name

1:DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4

1 : 3 2 : 5 5

1: ENGLISH

2: FRENCH

3: SPANISH

Total number of chapters or indexes recorded

Playback status (NPlayback, XPause, xStop, etc.)

DVD

Type of disc being played back

Current setting Options

Function name of selected Control Menu item

Operation message

SUBTITLE Select:

List of Control Menu Items

DISC Displays the di sc name or the disc type inser ted into the system.

TITLE (DVD only) (page 38)/ SCENE (only VIDEO CD in PBC playback) / TRACK (VIDEO CD only) (page 38)

CHAPTER (DVD only) (page 39)/ INDEX (VIDEO CD only) (page 39)

ALBUM (MP3 only) (page 29, 38) Selects the album (MP3) to be pla ye d.

TRACK (Super Audio CD/CD/ MP3 only) (page 29, 38)

INDEX (Super Audio CD/CD only) (page 39)

TIME (page 40) Checks the elapsed time and the remaining playback time.

AUDIO (DVD/VIDEO CD/Super Audio CD/CD/MP3 only) (page45)

SUBTITLE (DVD only) (page 52) Displays the subtitles.

ENTER

Selects the title (DVD), or the track (VIDEO CD) to be played. Displays the scene (VIDEO CD in PBC play b ack).

Selects the chapter (DVD) or the index (VIDEO CD) to be played.

Selects the track (Super Audio CD/CD/MP3) to be played.

Displays the index and selects the index (Super Audio CD) to be played.

Inputs the time code for picture and music searching.

Changes the audio setting .

Changes the subtitle langua ge .

ALBUM (JPEG only) (page 31) Selects the album (JP EG ) to be played.

continued

Page 12

FILE (JPEG only) (page 31) Selects the file (JPEG) to be played. DATE (JPEG only) (page 44) Displays the date information. ANGLE (DVD onl y) (p a ge 51) Changes the angle. PLAYMODE (VIDEO CD/Super

Audio CD/CD/MP3/JPEG only) ( page 33, 36)

REPEAT (page 36) Plays the entire disc (all titles/all tracks), one title/chapter/

CUSTOM PARENTAL

CONTROL (page 53)

Tips

• Each ti me you pre ss DVD DISPL AY, the Control Menu display changes as follows: Control Menu display

Selects the play mode.

track/album, or contents of program repeatedly.

Sets the disc to prohibit playing.

Control Menu display off

The Control Menu items vary, depending on the disc.

• The Control Menu icon indicator lights up in green t unless you set the REP EA T se tting to

“OFF.”

• The “ANGLE” indicator lights up in green only when multiple angles are recorded on the disc.

Page 13

Getting Started

Unpacking

Check that you have the following items:

•Speakers (5)

• Subwoofer (1)

• AM loop antenna (1)

• FM wire antenna (1 )

• Speaker co rds (3.5m × 3, 10m × 2, 5m × 1) (12ft. × 3, 34ft. × 2, 17ft. × 1)

•Video cord (1)

• Remote Com m ander (remote) RM-SP900 (1)

• R6 (size AA) batteries (2)

• Operating Instructions (1)

• Speakers-connection and Installation (card) (1)

Inserting Batteries into

Getting Started

the Remote

You can control the system using the supplied remote. Insert two R6 (size AA) batteries by matching the 3 and # ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote s ensor on the system.

Notes

• Do not leave the remote in an extremely hot or humid place.

• D o not use a new battery with an old one.

• Do not drop any foreign object into the remote casing, particularly when replac ing th e ba tteries.

• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doi ng so ma y c au se a malfunction.

• If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corros ion.

Page 14

Step 1: Speaker System Hookup

Connect the supplied speaker system using th e supp lie d spea k er cor ds by matchi ng the colou rs of the jacks to those of the cords. Do not connect any sp eakers other than those supplied with this system. To obtain the best possible surround sound, specify the speaker parameters (distance, level, etc.) on page 23.

Required cords

Speaker cords

The connector and the colour t ub e of the speaker cords are the s ame co lo ur as th e la b el of the ja ck s to be connected.

(–) (+)

(–)

(+)

colour tube

Page 15

Terminals for connecting the speakers

Connect To the

Front speakers SPEAKER FRONT L (white) and R (red) jacks Surround speakers SPEAKER SURR L (blue) and R (grey) jacks Centre speaker SPEAKER CENTER (green) jack Subwoofer SPEAKER WOOFER (purple) jack

Getting Started

Front speaker (R)

CENTER FRONT LFRONT R

WOOFER SURR LSURR R

SPEAKER

Centre speaker

SCAN SELECT

VIDEO 1

SELECTABLE

INTERLACE

COMPONENT VIDEO OUT

VIDEO OUTAUDIO OUT

VIDEO INAUDIO IN

Front speaker (L)

VIDEO 2

VIDEO IN

AUDIO IN

PB/CBPR/C

COMPONENT VIDEO OUT

MONITOR OUT

OPTICAL DIGITAL

VIDEO

VIDEO 2

S VIDEO

COAXIAL

Surround speaker (R)

Subwoofer

Surround speaker (L)

Note on placing speakers

Use caution when placing the subwoofer or a speaker stand (not supplied) th at is at tached with the front/surround speakers on a specially treated (waxed, oiled, polished, etc.) floor, as staining or discoloration may result.

continued

Page 16

Note

Do not catch the speaker cab le insulation in the SPEAKER jack.

Tip

Connect the speaker cable aft er bendi ng the speak er wire at the en d of the in sulation . This pre vents the speaker ca ble from being caught in the SPEAKER jack.

To avoid short -circuiting the spea kers

Short-circuiting of the speakers may damage the system. To prevent this, be sure to follow these precautions when connecting the speakers. Make sure the bare wire of each speaker cord does not touch another speaker jack or the bare wire of another speaker cord.

Examples of poor conditions of the speaker cord

Stripped speaker cord is touching another speaker terminal.

After connecting all the components , spea kers, a nd AC power cord, o utput a t est to ne to check th at all the speakers are connected correctly. For details on outputting a test tone, see page 71. If no sound is heard from a speaker while outputtin g a test tone, or a test tone i s output from a speaker other than the one curren tly disp laye d in the f ront pa nel disp lay, the spe aker may be shor t-cir cuited. If this happens, check t he speaker connection again.

Note

Be sure to match the speaker cord to the appropriate terminal on the components: 3 to 3, and # to #. If the cords are reversed, the sound and will lack bass a nd ma y be distorted.

Stripped cords are touching each other due to excessive removal of insulation.

Page 17

To change the speaker cables

If you want to use a di fferent speaker cable, you ca n detach the plug for attachmen t t o another cable.

Detaching

Catcher

With the catcher facing down, press and hold the plug down against a flat surface and remove the cords from plug.

Attaching

While pressing th e plug down against a flat surface, insert the new speaker cords . Note that the cord marked with a line should be attached to the minus (-) side of the plug.

Note

Be careful not to damage the surface you use (d es k , etc.) when attaching/detachi n g the speak er co rd s .

Tips

• Y ou can use an y commercially sold speaker cable of gauge cord AWG #18 - AWG #24.

• Before attaching a new cable, strip off 10 mm (13 /32 in. ) of its insulation and twist the bare wires of both cords.

Getting Started

10 mm

Page 18

Step 2: Antenna Hookups

Connect the supplied AM/FM antennas for listening to the radio.

Terminals for conne ct ing the antennas

Connect the To the

AM loop antenna AM terminals FM wire antenna FM 75Ω COAXIAL jack

AM loop antenna

CENTER FRONT LFRONT R

WOOFER SURR LSURR R

SPEAKER

SCAN SELECT

SELECTABLE

INTERLACE

COMPONENT

VIDEO OUT

VIDEO 1

VIDEO OUTAUDIO OUT

VIDEO INAUDIO IN

VIDEO 2

VIDEO IN

AUDIO IN

PB/CBPR/C

COMPONENT VIDEO OUT

MONITOR OUT

OPTICAL

DIGITAL

VIDEO

VIDEO 2

S VIDEO

COAXIAL

FM wire antenna

Notes

• To pre ve nt noise pickup, keep the AM loop antenna away from the syste m and other components.

• Be sure to fully extend the FM wire antenna.

• After connecting the FM wire antenna, keep it as horizontal as possible.

Tip

When you connect the supplied AM loop antenna, the cord (A) and the cord (B) can be connected in either terminal.

Page 19

Tip

If you have poor FM reception, use a 75-ohms coaxial cable (not supplied) to connect the system to an outdoor FM antenna as shown below.

Getting Started

Outdoor FM antenna

System

COAXIAL

Page 20

Step 3: TV and Video Component Hookups

Required cords

Video cord for connecting a TV

Yellow

Audio/video cords (not supplied)

When connecting a cord, be sure to match the colour-coded sleeves to the appropriate jacks on the components.

Yellow (Video) White (L/audio)

Red (R/audio)

Terminals for connecting video compon ent s

Connect the To the

TV MONITOR OUT jack VCR VIDEO 1 jacks Digital satellite receiver VIDEO 2 jacks

Notes

• When you select VIDEO 1 using the FUNCTION button, the signal is not output via VIDEO OUT and AUDIO OUT L/R jacks (VIDEO 1).

• When you use the VIDEO 1 line outputs, please set the system to 2CH STEREO mode. If the system is not in 2CH STEREO mode, the line outputs may not function properly.

• When the mode of the system is set to “DVD,” the signal is output from the S VIDEO OUT or COMPONENT OUT jacks.

• When the mode of the system is set to “DVD” and “PROGRESSIVE” is sele cted in “SCREEN SETUP,” the signal is output only from th e COMPONENT OUT jacks.

Tips

• Whe n usi ng the S video jack instead of the video jacks, your TV monitor must also be connected via an S video jack. S video signals are on a separate bus from the video signals and will not be output through the video jac ks.

• When using the COMPONENT VIDEO OUT jacks (Y, P must also be connected via COMPONENT VIDEO OUT jacks (Y,P format signals, you must use this connection and set “COMPONENT OUT” to “PROGRESSIVE” in “SCREEN SETUP” (page 68).

B/CB, PR/CR) instead of the video jacks, your TV monitor

B/CB, PR/CR). If your TV accepts progressive

Page 21

VCR

VIDEO

OUT

AUDIOINAUDIO

OUT

Digital satellite receiver or

PlayStation 2 etc.

VIDEO

OUT

AUDIO

OUT

OPTICAL

DIGITAL

OUT

Getting Started

CENTER FRONT LFRONT R

WOOFER SURR LSURR R

SPEAKER

COMPONENT

VIDEO IN

B/CB

PR/CR

TV with COMPONENT

INOUT

SCAN SELECT

SELECTABLE

INTERLACE

COMPONENT VIDEO OUT

OUT

VIDEO OUTAUDIO OUT

VIDEO INAUDIO IN

VIDEO 2

AUDIO IN

COMPONENT VIDEO OUT

VIDEO 1

IN IN

INPUT

VIDEO

OUT

MONITOR OUT

VIDEO IN

PB/CBPR/C

S VIDEO

VIDEO

OPTICAL

DIGITAL

VIDEO 2

INPUT

S VIDEO

TV with S VIDEO IN jack

COAXIAL

VIDEO IN jacks

Setup for the system (for Asian and Australian models)

Setup is necessar y f or the system, depending on the TV to be connected. The initial setting for Asian models is NTSC; Australian models is PAL.

If the colour system of the TV is PAL*

To set the system to PAL, turn on the system by pressing "/1 while pressing the X button on the system. You need to hold the X button until “DAV-FC7” appears on the display. To reset to NTSC, turn off the system and then turn on again using the remote while press and hold the X button on the system, and turn the system off and then on again.

* If the colour system of the TV is NTSC, do the sa me ope rat ion a bove to se t the system to NTSC.

To listen to the TV or game machine (ex: PlayStation 2) sound by using the system

Connect the audio output jacks of the TV or game machine to the VIDEO 2 AUDIO IN jacks of the system with the audio cords (optional).

Page 22

Step 4: Connecting the AC Power Cords

Before connecting the AC power cords of this system to a wall outlet, connect the speakers to the system (see page 15).

Page 23

Speaker Setup

For the best possib le surround sound, all the speakers other than the subwoofer should be the same distance from the listening position (A). However, this system allows you to place th e centre speaker up to 1.6 metres a) cl oser (B) and the surround speakers up to 4.6 metres b) closer (C) to the listening position. The front speakers can be placed from 1.0 to

7.0 metres c) (A) from the listening position.

Canadian numerical equivalents: a) 5 feet (1.5 metres) b) 15 feet (4.5 metres) c) 3 to 23 feet (0.9 to 6.9 metres )

Place speakers as i ll us trated below

About magnetically shielded speakers (to prevent colour irregularity occurring on the TV screen)

The subwoofer in this system is magnetically shielded to prevent magnetic leak age. However, some leakage m ay occur, as a high-strength magnet is employed. If the subwoofer is used with a CRT-based TV or projector, install the subwoofer at least 0.3 metre (1.0 foot) from the TV set. If it is installed too close, colour irregularity may occur on the screen. If colour irregularity occurs, tu rn off the TV set once, then turn it on after 15 to 30 minutes. If colour irregularit y occurs again, pl ace the subwoofer farther away from the TV set. If colour irregularity still occurs after performing the above, make sur e th at no m agnetic object is placed near the subwoofer. Colour irregulari t y may occur as a result of interacti on between the subwoofer an d t he magnetic object. Examples of possible sources of magneti c interference include: magnetic latches on a TV stand, etc., healt hcare devices, toys, etc.

Specifying the speaker parameters

Getting Started

Note

Do not place the centre and surround speakers farther away from the listening posi tion than the front speakers.

To obtain the be st possib le surrou nd sound, first specify the dist ance of the speakers from your listening position, then set the leve l and balance. Use the test tone to adjust the speaker level a nd balance to the same level. Select “ S P EAKER SETUP” in the setup display. For details, see “Setting for the Speakers” (page 70).

Page 24

Playing Discs

Depending on the DV D or VID E O CD, some operations may be different or restricted. Refer to the operation details supplied with your disc.

DISC SKIP

DISC 1-5 A /indicators

Disc slot

"/1/ STANDBY indicator

FUNCTION

Adjust the volume

Connect headphone

"/1

4 Press DISC 1–5 A.

Press the button of th e di sc number you want. “READY!” appears in the front panel display and the system is ready for loading the disc. Example: Whe n you want to load the disc to the disc stocker 1, pr ess DISC 1 A. If there is a disc in th e stocker that you select, the disc is ejected, “R E ADY !” appears in the fron t p anel display, then the system is ready for loading the disc.

5 Load a disc.

Push the disc into th e disc slot unt il the disc is pulled in automatically.

The disc is drawn into the selected disc stocker automatically and “READING” appears in the fron t p anel display.

With the playback side facing down

1 Turn on your TV. 2 Switch the input selector on the TV to

this system.

3 Press "/1 on the system.

The system tur n s on. Unless th e mode of the system is set to “DVD,” press FUNCTION to select “DVD.”

To load other discs, press DISC 1-5 A (that is not loaded a disc ) and load the disc after “READY!” appears in the front panel display.

6 Press H.

The system starts playback (continuous play) of the disc whose DISC indicator is green. To playback other di scs, press DISC SKIP on the remote or DISC 1-DISC 5 of the system. Adjust the volume on the system.

Page 25

After following Step 6

Depending on the disc, a menu may appear on the TV screen. You can pl ay the disc interactively by followin g the instructions on the menu. (DVD: page 27), (VIDEO CD: page 28).

To remove the disc

Press DISC 1-5 A on the system, or Z on the remote. When you press Z on the remote, the disc in the stocker whose DISC indicator is green is ejected. Remove the disc after it is ejected from the system. “ READY!” app ears in the front panel display.

To turn on the system

Press "/1 on the system. The syste m turns on. In standby mode, the system also turns on by pressing A on the system or by pressing H.

To turn off the system

Press "/1 on the remote. The system enters standby mode and the STANDBY indicator lights up in red. To turn off the system completely, remove the AC power cord from a wall outlet. While playing a disc, do not turn off the system by pressing "/1 on the system. Doing so may cancel the menu setti ngs. When y ou t urn off the system, first press x to stop playback and t hen press "/1 on the remote.

Tips

• If a disc is already loaded to any disc stocker, you can play it back simply by pressing the H or its corresponding DISC 1-DISC 5, even if the previous music source was not a DVD. The function changes to DVD and playback starts (Auto-Function). However, if Program Play is on, you can only start playback by pressing the H.

• The DISC 1- 5 indi cators change their colours as follows:

– green: the disc is chosen, or the disc is being play

backed. – off: there is no disc. – orange: a disc is loaded to the disc stocker,

however, the disc is not chosen.

Saving the power in standby mode

Press "/1 on the system or "/1 on the remote once.

Tips

While the system is in standby mode, the STANDBY indicator on the system lights up.

To cancel standby mode

Press "/1 on the remote once.

Playing Discs

Page 26

Additional operations

DISC SKIP

Notes

• If there is no disc in the system, “READY!” appears on the front panel display.

• If DVD playback is paused for approximately one hour, the system automatically turns off.

./>

To Press

Stop x Pause* X Resume play from pause X or H Go to the next chapter,

track, scene, or file in continuous play mode

Go back to the preceding chapter, track, scene, or file in continuous play mode

Stop play and remove the disc

Mute the sound MUTING. To cancel

Change a disc while playing another disc

Play the desired disc directly DISC 1-5 on the

Stop play and remove the desired disc

muting, press it again or VOLUME + to adjust the sound volume.

DISC SKIP

system. DISC 1-5 A on the

system.

MUTING

VOLUME +/–VOLUME +/–

* You cannot pause during JPEG playback.

Page 27

Resuming Playback from the Point Where You

Using the DVD’s Menu

Stopped the Disc

(Resume Play)

When you stop the disc, the system remembers the point where you pressed x and “RESUME” appears in the front panel display. As long as you do not remove the di sc, Resume Play will work even if the system ente rs standby mode by pressing "/1.

1 While playing a disc, press x to stop

playback.

“RESUME” appears in the front panel display, so you can restart the disc from the point where you stop ped the disc. If “RESUME” does not appear, Resume Play is not available.

2 Press H.

The system starts playback from the point where you stopped the disc in St ep 1.

Notes

• Depe nding on where you stop the disc, the system may not resume playback fro m ex act ly the same point.

• The poi nt whe r e you stoppe d playing is cleared if:

– you change the play mode. – you change the setting on the Setup Menu.

Tip

To play from the beginning of the disc, press x twice, then press H.

A DVD is divided into a lot of sections, which make up a picture or music feature. These sections are called “titles.” When you play a DVD which contains several titles, you can select the title you want using DVD TOP MENU/ALBUM–. When you play DVDs that allow you to select items such as the language for the subtitles and the language for the sound, select these items using DVD MENU/ALBUM+.

Number buttons

DVD TOP MENU/ ALBUM–

DVD MENU/ ALBUM+

C/X/x/c/

ENTER

1 Press DVD TOP MENU/ALBUM– or DVD

MENU/ALBUM+.

The disc’s menu appe ars on the TV screen. The contents of the menu vary from disc to

disc.

2 Press C/X/x/c or the number buttons to

select the item you want to play or change.

3 Press ENTER.

Note

If the DVD top menu or a DVD menu is displayed during DVD playback for approximately one hour, the system automatica ll y turns off.

Playing Discs

Page 28

Playing VIDEO CDs with PBC Functions (Ver. 2.0)

(PBC Playback)

With PBC (Playback Control) functions, you can enjoy simple interactive operations, search functions, and oth er such operations. PBC playback allows you to play VIDEO CDs interactively by following the menu on the TV screen.

Number buttons

./>

X/x/

ENTER

O RETURN

Notes

• Depending on the VIDEO CD, the menu does not appear in Step 1

• Depending on the VIDEO CD, “Press ENTER” in Step 3 may appear as “Press SELECT” in the instructions supplied with the disc. In this case, press H.

Tip

To play without using PBC, press ./> or the number buttons while the system is stopped to select a track, then press H or ENTER. “Play without PBC” appears on the TV screen and the system starts continuous play. You cannot play still pictures such as a menu. To return to PBC playback, press x twice, then press H.

1 Start playing a VIDEO CD with PBC

functions.

The menu for your selection appears.

2 Select the item number you want by

pressing X/x or the number buttons.

3 Press ENTER. 4 Follow the instructions in the menu for

interactive operations.

Refer to the operation details s upplie d with the disc, as the oper at in g procedure may differ, depending on t he VIDEO CD.

To go back to the menu

Press O RETURN.

Page 29

Playing an MP3 Audio Track

You can play MP3 audio tracks on CD-RO Ms, CD-Rs, or CD-RWs. However, the discs must be recorded according to ISO9660 level 1, level 2, or Joliet format for the system to recognize the tracks. You can also play discs recorded in Multi Session. See the instructions of the CD-R/RW device or recording software (not su pplied) for details on the recording format.

1 Load a data disc recorded in MP3 into

the system.

2 Press H.

The system starts to pl ay the first MP3 audio track in the first album on the disc.

Notes

• The sys tem c an play MP3 (MPEG1 Audio Layer3) audio. The system cannot play audio trac ks in MP3PRO format.

• Thi s syst em can play Multi Session CDs when an MP3 audio track is located in the first ses sion. Any subsequent MP3 audio tracks , recor ded in the later sessions, can also be played back.

• Maxi mum number of albums on a disc: 99 (The maximum number of MP3 audio tracks that can be contained on an album is 250.)

• An album that does not include an MP3 audio track is skipped.

• If yo u put the e xtension “.MP3” to data not in MP3 format, the system cannot recognize the data properly and will generate a loud noise which could dama ge your speaker system.

• If the system cannot play MP3, remove the disc and select “CUSTOM SETUP” from the setu p items. Then select “DATA CD PRIORITY” and set to “MP3” (page 69) and insert the disc again.

• The system can play to a depth of 8 directories.

Selecting an album and track

DVD TOP MENU/ ALBUM–

DVD DISPLAY

DVD MENU/ ALBUM+

C/X/x/c/

ENTER O RETURN

1 Press DVD DISPLAY.

The Control Menu a nd name of the MP3 data disc appears.

2 Press X/x to select (ALBUM)

then press ENTER or c.

The list of albums contained in the disc appears.

3:HOME TOWN

ROCK BEST HIT KARAOKE JAZZ R&B MY FAVORITE SONGS CLASSICAL SALSA OF CUBA BOSSANOVA

MP3

3 Select an album you want to play using

X/x and press ENTER.

Playing Discs

continued

Page 30

4 Select (TRACK) using X/x

and press ENTER.

The list of tracks cont ained in the current album appears.

3:HOME TOWN

ROCK BEST HIT

HIGHWAY1.

VIEW POINT

MY CHILDREN

DANCING

GOOD TASTE

DESTINATION

MARATHON

PLACE-KICK

TAKE IT EASY

10.

PORT TOWER

11.

STANDARD

MP3

When the list of al l tr acks or al bums c annot be displayed on the w indow, the jump bar appears. Press c to select th e jump bar icon, and then scroll the jump bar to display the rest of the list using X/x. Press C or O RETURN to return to the track or the album list.

5 Select a track using X/x and press

ENTER.

The selected track starts playing.

To return to the previous display

Press O RETURN or C.

To turn off the display

Press DVD DISPLAY.

Notes

• Only alphabetical letters and numbers can be used for album or track names. Anything else is displayed as “”.

• If the MP3 file you play back has an ID3 tag, the ID3 tag information is displayed as a tra c k nam e .

• ID3 tag applies only to version 1.

• If an MP3 file of VBR (variable bit rate) is played, indicated lapsed time may be different from the actual time.

Tip

When an MP3 data disc is inserted , you can sel ect an album using the DVD MENU/ALBUM+ or DVD TOP MENU/ALBUM– on the remote.

Playing JPEG Image Files

You can play JPEG image files on CD-ROMs, CD-Rs, or CD-RWs. However, the discs must be recorded according to ISO9660 level 1, level 2 or Joliet format for the system to recognize the files. You can als o pl ay discs recorded in Multi Session. See the instructions of the CD-R/RW device or record i ng software (not supplied ) for details on the record ing format.

1 Load a data disc recorded in JPEG into

the system.

2 Press H.

The system starts to play the first JPEG image file in the fi rst album on the disc.

Notes

• The system can play the extension “.JPG” or “.JPEG.”

• The system can play Multi Session CDs.

• An album that does not include a JPEG fil e is skipped.

• When the system cannot play JPEG, remove the disc and select “CUSTOM SET U P” from the setup it ems.

• Then select “DATA CD PRIORITY” and set to “JPEG” (page 69) and insert the disc a gai n.

• A JPEG image file of a length or width of more than 4,720 dots cannot be played.

• Som e C D- Rs or CD-RWs cannot be played on this system depending on file format.

• Maximum number of albums on a disc: 99 (The maximum number of JPEG image files that can be contained on an album is 250.)

• Th e sys te m can play to a depth of 8 directories.

Page 31

Selecting an album and file

DVD TOP MENU/ ALBUM–

DVD DISPLAY

DVD MENU/ ALBUM+

C/X/x/c/

ENTER O RETURN

1 Press DVD DISPLAY.

The Control Men u and disc name of JPEG data disc appears.

2 Press X/x to select (ALBUM)

then press ENTER or c.

The list of albums contai ned in the disc appears.

2:MOUNTAIN

FAMILY FLOWER GARDEN TRAIN CAR

JPEG

and then scroll the jump bar to display the rest of the list using X/x. Press C or O RETURN to return to th e file or the album list.

5 Select a file using X/x and press

ENTER.

The selected file starts playing.

To return to the previous display

Press O RETURN or C.

To turn off the display

Press DVD DISPLAY.

Notes

• Only the letters in the alphabet and numbers can b e used for album or file names. Anything el se is displayed as “ ”.

• Ma ximum number of albums on a disc: 99 (The maximum number of JPEG image files that can be contained on an album is 250.)

Tip

When a JPEG data disc is inserted, you can select an album using the DVD MENU/ALBUM+ or DVD TOP MENU/ALBUM– on the remote.

Playing Discs

3 Select an album you want to play using

X/x and press ENTER.

4 Select (FILE) using X/x and

press ENTER.

The list of files contained in the current album appears.

2:MOUNTAIN

FAMILY

HAPPY1.

BIRTHDAY

CELEBRATION

CHRISTMAS

MOM

BASEBALL

PARTY

DAD

TRAVEL

10.

FRIEND

11.

DRIVE

When the list of all files or albums cannot be displayed on the window, the jump bar appears. Press c to select the jump bar icon,

JPEG

Page 32

Enjoying Slide show on a JPEG data disc

To rotate the current image

1 Press M while displaying a JPEG

image.

Slide show starts from the current image.

2 Press H when you want to exit Slide

show.

Return to norm al play from the current image.

To change the interval time of Slide show

Each time yo u pre ss M during Slide show, the interval time changes. With each press, the indication changes as follows:

FF1M t FF2M t FF3M

The FF3M interval time is faster than FF2M.

Note

Slide show can play in only one direction.

C/c

Rotate the current image using C/c.

Each time you press c, the image turns clockwise by 90°. Each time you press C, the image turns counterclockwis e by 90°.

Note

You cannot rotate an image during Sli de sh ow. Pres s H to return to normal play before this operation.

Page 33

Selecting the Play Mode

(All Discs, One Disc, or Album)

You can select the play mode that plays all discs continuously, one disc, or album.

PLAY MODE

DVD DISPLAY

C/X/x/c/

ENTER O RETURN

1 In stop mode, press DVD DISPLAY. 2 Press X/x to select (PLAY

MODE), then press ENTER or c.

3:HOME TOWN

ROCK BEST HIT

(

)

1 5

MP3

ALL/ONE/ALBUM

• ALL: The system plays all discs in the system

consecutively in the order of the disc slot number, and you can set Shuffle Play or Repeat Play for all the discs.

• ONE: The system plays only the one disc you

have selected, and you can set Shuffle Play or Repeat Play for 1 dis c only.

• ALBUM (MP3/J PEG onl y): T he system pla ys

tracks/files in the Al bum that i s contained on a MP3/JPEG disc, and you can set Shuffle Play or Repeat Play for the A l bum. When the disc except an MP3/JPEG disc is played, the system plays the disc in ONE play mode .

To return to the previous display

Press O RETURN or C.

To turn off the display

Press DVD DISPLAY.

Tip

You can select the play mode directl y by pres si n g PLAY MODE. Each time you press the button, the play mode changes.

Playing Discs

CONTINUE(ALL) CONTINUE(ONE) CONTINUE(ALBUM) SHUFFLE(ALL) SHUFFLE(ONE) SHUFFLE(ALBUM) PROGRAM

Page 34

Creating Your Own Program

(Program Play)

You can play the co nt ents of a disc in the order you want by arranging the order of the tracks on the disc to create yo ur own program. You can program up to 25 tracks.

CLEAR

PLAY MODE

REPEAT

Number buttons

2 Press c, then press X/x to select the

disc.

Program

Disc

DISC1(CD)

DISC2(CD)

DISC3(CD)

DISC4(CD)

DISC5(CD) 7 8 9

3 Press c.

The cursor moves to the track (in this case, “1”). Before programming the MP3 tracks, it is required to select the album.

Program

Disc

DISC1(CD)

Track

DISC2(CD)

ALL

DISC3(CD)

DISC4(CD)

DISC5(CD)

3 4 5 6 7 8 9

ALL TRACKS TRACK1 TRACK2 TRACK3 TRACK4 TRACK5 TRACK6 TRACK7 TRACK8 TRACK9

4 5 6 7 8 9

C/X/x/c/

ENTER O RETURN

1 In stop mode, press PLAY MODE

repeatedly until “PROG” appears in the front panel display .

The Program Menu appears on the TV screen.

Program

1 2 3 4 5 6 7 8 9

When the list of all tracks or albums cannot be displaye d on the window, the ju m p bar appears. Press c to select the jump bar icon, and then scroll the jump bar to display the rest of the list using X/x. Press C or O RETURN to return to the track or album list.

4 Select the track you want to program.

For example, select track “7.”

Program

Disc

DISC1(CD)

Track

DISC2(CD)

ALL

DISC3(CD)

DISC4(CD)

DISC5(CD)

3 4 5 6 7 8 9

ALL TRACKS TRACK1 TRACK2 TRACK3 TRACK4 TRACK5 TRACK6 TRACK7 TRACK8 TRACK9

4 5 6 7 8 9

Page 35

5 Press X/x or the number buttons to

select “7” then press ENTER.

Program

1 DISC1(CD) –TRACK7 2 3 4 5 6 7 8 9

6 To program other tracks, repeat Steps

2 to 5.

The programmed tracks are di splayed in th e selected order.

7 Press H to start Program Play.

Program Play begins. When the progra m ends, you ca n restar t the

same program again by pressing H.

Playing in Random Order

(Shuffle Play)

Playing Discs

You can have the system “shuffle” tracks and play them in random order. Subsequent “shuffling” will produce a different playing order.

CLEAR

PLAY MODE

Other Operations

To Do this

Return to normal play

Turn off the program menu

Cancel the programmed order

Note

Program Play function is not available for DVDs and JPEG.

Tip

You can perform Repeat Play of programmed tracks . Press REPEAT, or set “REPEAT” to “ALL” in the Control Menu display during Program Pl ay (page 36).

Press CLEAR during playback.

In stop mode, press PLAY MODE to turn off the program menu.

Press CLEAR in Step 6, and the last program is cancelled one by one.

1 In stop mode, press PLAY MODE

repeatedly until “SHUF” appears in the front panel display.

You can play all tracks on all discs in a random order, or all tracks on the specific disc in a random orde r .

When you play an MP 3 disc, you can play all tracks in albums in random order.

For details on album shuffle, see page 36.

2 Press H.

To return to normal play

In stop mode, pr es s PLAY MODE repeatedly until “SHUF display, or during pl ayback, press CLEAR to return to normal play.

” disappears from the front panel

Page 36

Setting the shuffle mode in the Control Menu

You can select either normal shuffle or album shuffle (MP3 only).

C/X/x/c/

DVD DISPLAY

ENTER

1 Press DVD DISPLAY.

The Control Men u appears.

2 Press X/x to select (PLAY

MODE), then press ENTER or c.

3:HOME TOWN

ROCK BEST HIT

(

)

1 5

CONTINUE(ALL) CONTINUE(ONE) CONTINUE(ALBUM) SHUFFLE(ALL) SHUFFLE(ONE) SHUFFLE(ALBUM) PROGRAM

3 Select SHUFFLE (ALL), SHUFFLE

(ONE), or SHUFFLE (ALBUM) using X/x and press ENTER.

SHUFFLE (ALL): Play all tracks on all discs in random order.

SHUFFLE (ONE): Play tracks on the disc in random order. SHUFFLE (ALBUM ) : Play tracks from a selected album in random order.

4 Press H.

The selected Shuf fl e Play begins.

Playing Repeatedly

(Repeat Play)

You can play all the titl es/tra cks/fi les or a sin gle title/chapter/track on a disc. In Shuffle or Program Play mode, the system repeats tracks i n shuffled or programmed or der. You cannot perform Repeat Play during PBC playback of VIDEO CD s (page 28).

REPEAT

CLEAR

MP3

DVD DISPLAY

C/X/x/c/

ENTER

1 Press DVD DISPLAY.

The Control Menu appears.

2 Press X/x to select

(REPEAT), then press ENTER or c.

If you do not select “OFF,” the “REPEAT” indicator lights in green.

3 Select the Repeat Play setting, then

press ENTER.

1:DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

OFF ALL TITLE CHAPTER

DVD

Page 37

x When playing a DVD

•OFF: does not play repeatedly.

• ALL: repeats all the titles (except SHUFFLE (ALL)).

• TITLE: repeats the current title on a disc.

• CHAPTER: repeats the current chapter.

x When playing a VIDEO CD/Super Audio CD/CD/MP3, and when Program Play is set to OFF

•OFF: does not play repeatedly.

• ALL: repeats all the tr acks on the disc, or repeats the cur rent album (only when CONTINUE (ALBUM) or SHUFFLE (ALBUM) in the play mode is selected) (except SHUFFLE (ALL)).

• TRACK: repeats the current track.

x When playing a JPEG

•OFF: does not play repeatedly.

• ALL: repeats all the files on the disc (when CONTINUE is selected in the play mode), or repeats the current album (when CONTINUE (ALBUM) is selected in the play mode).

x When Program Play is set to ON

•OFF: does not play repeatedly.

• ALL: repeats Program Play.

To cancel Repeat Play

Press CLEAR.

Notes

• Depending on the DVD disc, Repeat Play does not work.

• If “ALL” is selected, repeat play is limited to 5 times.

Tips

• You can set Repeat Play during stop mode. After selecting th e “REPEAT” item, press H. The system starts Repeat Play.

• You can quickly display the “REPEAT” status Press REPEAT on the remote.

• You can perform Repeat Play for DVD titles that contain chapters.

Searching for a Particular Point on a Disc

(Scan, Slow-motion Play)

You can locate a particular point on a disc quickly by m on i t oring the picture or by playing back slowly.

SLOW /

Notes

• Depending on the DVD/VIDEO CD, you may not be able to perform some of the operations described.

• During Scan or Slow-motion play, no sound is output.

m/M

Locating a point quick ly by playing a disc in fast forward or fast reverse (Scan)

1 Press m or M while playing a disc. 2 When you find the point you want,

press H to return to normal speed.

Playing Discs

continued

Page 38

To change the scan speed (DVD/ VIDEO CD only)

Each time you pr ess m or M during scan, the playback speed changes. Two speeds are available. With each press, the indication changes as foll ows:

Playback direction FF1M t FF2M

Opposite dire ction FR1m t FR2m

The FF2M/FR2m playback speed is faster than FF1M/FR1m.

Watching fram e by frame (Slow-motion play) (DVD/VIDEO CD only)

Press or when the system is in the pause mode.

To return to normal speed, press H.

To change the speed of Slowmotion play

Each time you press or during Slowmotion play, the playback speed changes. Two speeds are avail abl e. With each press, the indication changes as follows:

Playback direction SLOW 2 t SLOW 1

Searching for a Title/ Chapter/Track/Index/ Album/File

You can search a title (DVD), chapter (DVD), track (CD, VIDEO CD, Super Audio CD, MP3), index (VIDEO C D , S uper Audio CD), album (MP3, JPEG), and file (JPEG). As t itles, t racks, albums, and files are as signed unique names on the disc, you can select the desired one from the Control Menu. A ls o chapters and indexes are assigned unique numbers on the disc, so you select the desired one by entering its number. Or you can search a particular point using the time code (TIME SEARCH).

CLEAR

Number buttons

C/X/x/c/

DVD DISPLAY

ENTER

O RETURN

Opposite direction (DVD only) SLOW 2 t SLOW 1

The SLOW 2 /SLOW 2 playback speed is slower than SLOW 1 /SLOW 1 .

Searching for a title/track/ album/file

1 Press DVD DISPLAY.

The Control Menu appears.

2 Press X/x to select the search method,

then press ENTER or c.

Page 39

x When playing a DVD

(TITLE)

x When playing a VIDEO CD

(TRACK)

x When playing a Super Audio CD

(TRACK)

x When playing a CD

(TRACK)

x When playing an MP3

(ALBUM) or

(TRACK)

x When displaying a JPEG file

(ALBUM) or (FILE)

Example: when you select (TRACK) The list of tracks contained in the disc appears.

4:CD

HIGHWAY1. VIEW POINT

2. MY CHILDREN

3. DANCING

4. GOOD TASTE

5. DESTINATION

MARATHON PLACE-KICK

8. TAKE IT EASY

9. PORT TOWER

10.

11.

STANDARD

Searching for a chapter/index

1 Press DVD DISPLAY.

The Control Menu a ppears.

2 Press X/x to select the search method.

x When playing a DVD

(CHAPTER)

x When playing a VIDEO CD

(INDEX)

x When playing a Super Audio CD

(INDEX)

Example: when you select (CHAPTER)

“** (**)” is selected (** refers to a number). The number in parentheses indicates the total number of chapters or indexes.

1:DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

DVD

Playing Discs

When the list of all tracks or albums cannot be displayed on the window, the jump bar appears. Press c to select the jump bar icon, and then scroll the jump bar to display the rest of the list using X/x. Press C or O RETURN to return to the track or the album list.

4:CD

13.

STAY

14.

BAD

15.

BEAUTIFUL

16.

HOLD.ME

17.

FIRST TIME

18.

BLUE SKY

19.

OUR EARTH

20.

NO NAME

21.

SWEETEST

22.KISS ME

23.

FIRE

24.

ANGEL

3 Press X/x to select the desired track,

then press ENTER.

The system starts playback from the selected track.

3 Press ENTER or c.

“** (**)” changes to “-- (**).”

1:DVD

1 2 ( 2 7 ) MAKING SCENE

)

– – ( 3 4 T

1 : 3 2 : 5 5

DVD

4 Press X/x or the number buttons to

select the chapter or index number you want to search.

If you make a mistake

Cancel the number by pr es si ng CLEAR, then select anot her number.

continued

Page 40

5 Press ENTER.

The system starts pl ayback from the selected number.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is tur ned off.

To search for a particular point using the time code (TIME SEARCH)

Example: If you search for the playing time of the current title on a DVD

1 In Step 2, select (TIME).

“T **:**:**” (playing time of the current title) is selected.

2 Press ENTER or c.

“T--:--:--” appears above “T**:**:**.”

3 Input the time code using the number

buttons, then press ENTER or c. For example, to find a desired point at 2 hours, 10 minutes, and 20 seconds after the beginning, just enter “2:10:20.”

Notes

• The title, chapter or track number displayed is the same number recorde d on the disc.

• You cannot search a scene of a VIDEO CD.

• If you play a DVD, input the playing time of the current title using the time code . If you pla y a CD , Super Audio CD, VIDEO CD, or MP3, input the playing time of the current track using the time code.

Tip

You can change the display to show playing time or remaining time. For det ails, see “C hecking the Playing Time and Remain ing Time” (page 43).

Viewing Disc Information

Viewing the Playing Time and Remaining Time in the Front Panel Display

You can check disc information, such as the remaining time, total numb er of titl es in a DVD, or tracks in a Super Audio CD, CD, VIDEO CD or MP3, using the front panel display (page 82).

DISPLAY

Press DISPLAY.

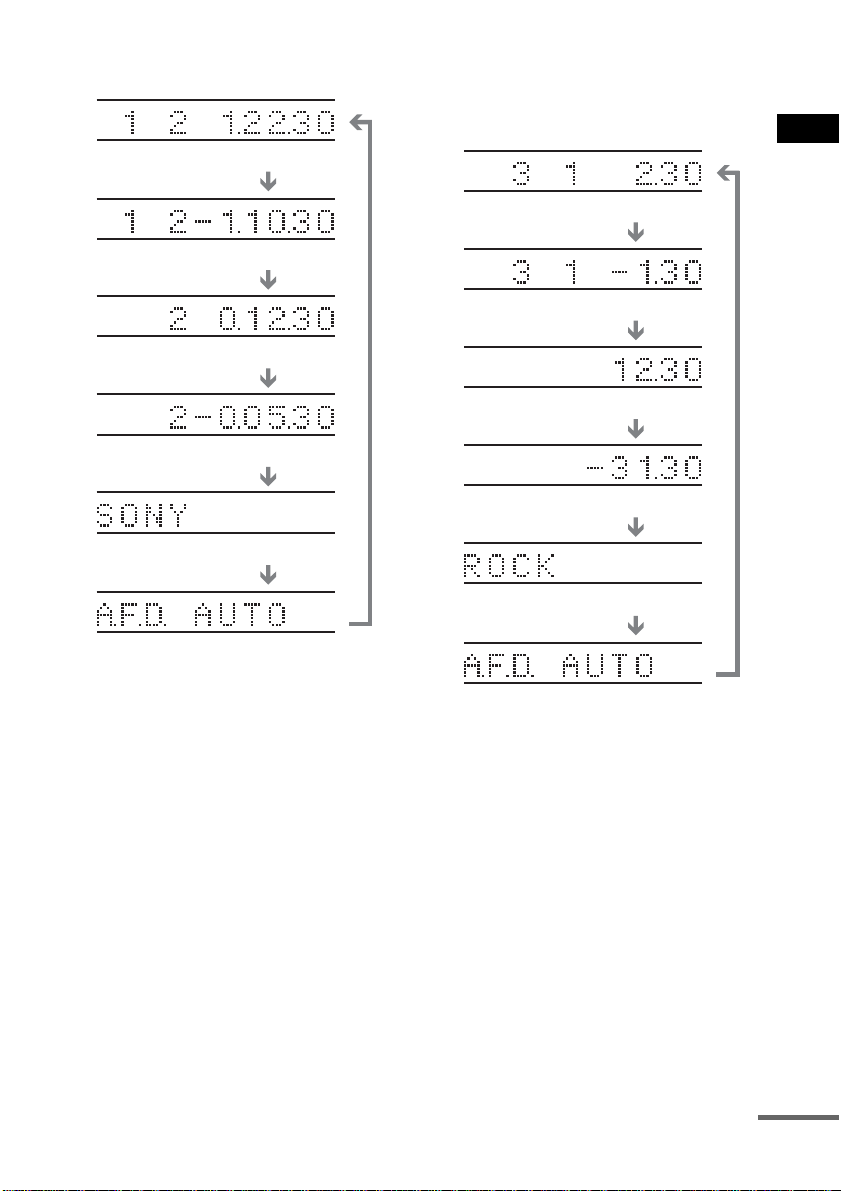

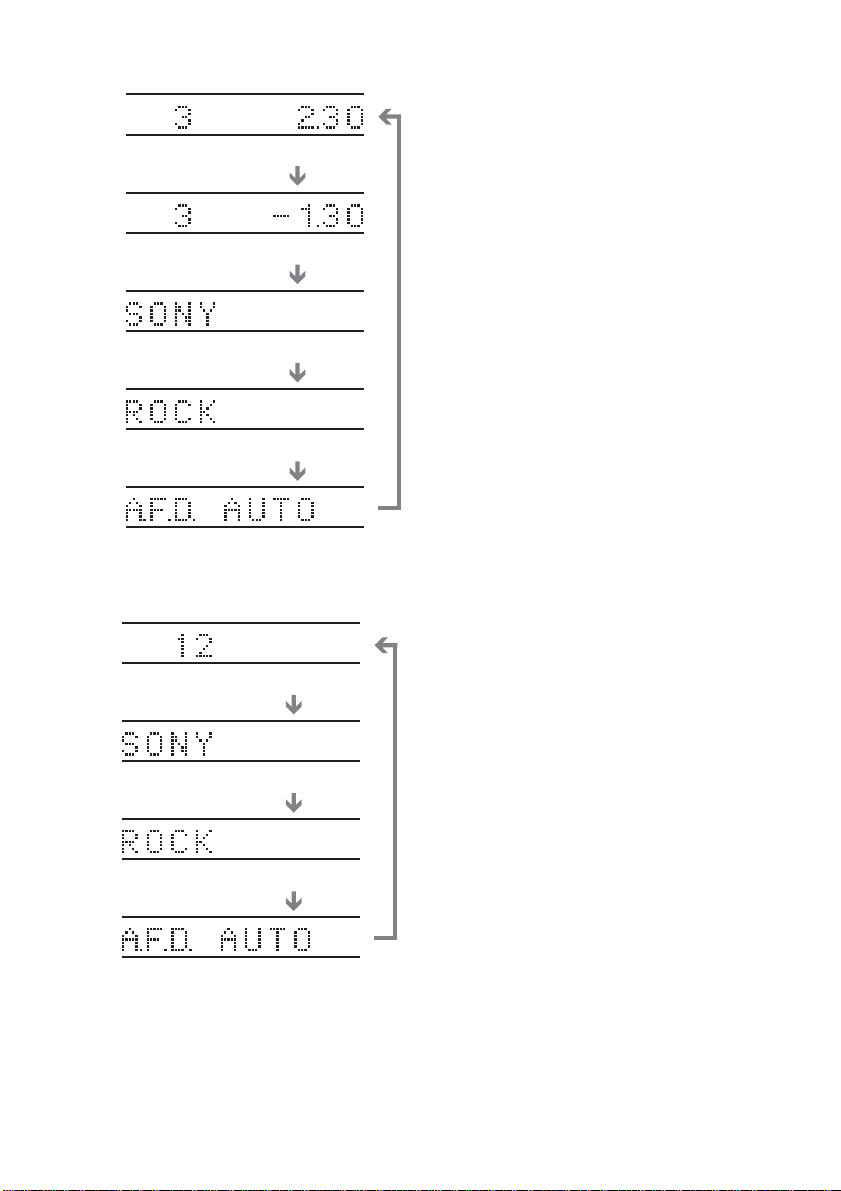

Each time you press DISPLAY while playing the disc, the displ ay changes as shown in the charts.

Page 41

When playing back a DVD When playing back a VIDEO CD

Playing time and number of the current title

TITLE H M SCHAP

Remaining time and number of the current title

TITLE H M SCHAP

Playing time and number of the current chapter

HMSCHAP

(without PBC functions), Super Audio CD or CD

Playing time and current track number

INDEX M STRK

Remaining time and current track number

INDEX M STRK

Playing time of the disc

Playing Discs

Remaining time and number of the current chapter

Title name

Current sound field

HMSCHAP

Remaining time of the disc

Track name

Current sound field

continued

Page 42

When playing back an MP3

Playing time and current track number

MSTRK

Remaining time of the current track

MSTRK

Track (file) name

Album (folder) name

Current sound field

When playing back a JPEG

Current file number

Notes

• Depe nding on the type of disc being played and the playing mode, the disc informati on ma y not be displayed.

• ID3 ta g a ppli es on ly to version 1.

• If the MP3 file you play back has an ID3 tag, the ID3 tag information is displa ye d as a tra ck (f ile ) nam e .

• On ly the le tte r s in the alphabet and numbers can be used for album, track, or file names. Anything else is displayed as “ ”.

• In the following cases, elapsed playing time and current track remaining time may not be displayed accurately.

– when an MP3 file of VBR (variable bit rate ) is

played.

Tips

• When playing VIDEO CDs with PBC functions, only the playing time of the scene is displayed.

• The playing time and remaining time of the current chapter, title, t rack, scene , or dis c will als o app ear o n your TV screen. See the following section “Checking the Playing Time an d Remainin g Time” for det ails on how to read this information.

File name

Album (folder) name

Current sound field

Page 43

Checking the Playing Time and Remaining Time

You can check the playing time and remaining time of the current title, chapter, or track, an d the total playing time or remai ning time of the disc . You can also check the DVD/CD/Super Audio CD text and MP3 folder name/file name/ID3 tag (only song title) recorded on the disc.

DISPLAY

DVD DISPLAY

1 Press DVD DISPLAY during playback.

The Control Menu ap pears.

1:DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

Time information

DVD

Disc type

2 Press DISPLAY repeatedly to change

the time information.

The display and the ki nds of time that you can check depend on t he disc you are playing.

x When playing a DVD

• T **:**:** Playing time of the current title

• T–**:**:** Remaining time of the current title

• C **:**:** Playing time of the cur r ent chapter

• C–**:**:** Remaining time of the current cha pte r

• **:**:** Playing time of the menu or current title without a chapter

x When playing a VIDEO CD (with PBC functions)

• **:** Playing time of the cur rent scene

x When playing a VIDEO CD (without PBC functions), Super Audio CD or CD

• T **:** Playing time of the current track

• T–**:** Remaining time of the current track

• D **:** Playing time of the cur rent disc

• D–**:** Remaining time of the current disc

x When playing an MP3

• T **:** Playing time of the current track

• T–**:** Remaining time of the current track

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

Notes

• Only alphabetical letters and numbers can be displayed.

• Depending on the type of disc being played, the system can only display a limited number of characters. Also, depending on the dis c, not a ll te xt characters will be displayed.

Playing Discs

Page 44

Checking the date information (JPEG only)

You can check the date information during playback when the Exif* tag is recorded in the JPEG image data.

DVD DISPLAY

Press DVD DISPLAY during playback.

The Control Menu a ppears.

2:MOUNTAIN

FAMILY

) BIRTHDAY

1 ( 2 0 01/ 01/ 2003

Date information

JPEG

* “Exchangeable Image File Format” is a digital

camera image format defined by th e Japa n Electronics & Information technology Industries Association.

Note

If there is no date information or data is da ma ge d on the disc, the system cannot dis pla y the date information.

Tip

You can change the date information order in JP EG DATE of CUST OM SETUP (page 69).

Page 45

Sound Adjustments

Changing the Sound

If a DVD is recorded with multilingual tracks, you can select the language you want while playing the DVD. If the DVD is recorded in multiple audio forma ts (PCM, Dolby Digital, MPEG audio, or DTS), you can select t he audio format you wa nt while playing the DVD. With stereo CDs, VIDEO CDs or MP3, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers (in this case, the sound loses its stereo effect). For example, when playing a disc containing a song with the vocals on the right channel and the instruments on the left channel, you can select the left channel and hear only the instruments from both speakers.

AUDIO

DVD DISPLAY

C/X/x/c/

ENTER

1 Press DVD DISPLAY during playback.

The Control Menu is displayed.

2 Press X/x to select (AUDIO),

then press ENTER or c.

The options for AUDIO appear.

1:DVD

11 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

1: ENGLISH 2: FRENCH 3: SPANISH

DVD

3 Press X/x to select the desired audio

signal. x When playing a DVD

Depending on the DVD, the choice of language varies . When 4 digits are disp layed, the y repr esent the language code. Refer to the language code list on page 86 to see which lan guage the code repre sents. When the same language is disp la yed two or more times, the DVD is recorded in multiple audio formats.

x When playing a VIDEO CD, CD, or MP3

The default setting is underlined.

•STEREO

: The standard st ereo sound

• 1/L: The sound of the left channel (monaural)

• 2/R: The sound of the right channe l (monaural)

x When playing a Super Audio CD

In stop mode, depending on the Super Audio CD, the choice of settings varies.

• MULTI: The disc has a mult i-channel playback area.

• 2CH: The disc has a 2 channel playback area.

• CD: When you want to play the disc as a conventional CD .

Note

Not all discs give you the three choices above when in Super Audio CD playback. It all depends on the layer configuration of the Super Audio CD to be played.

4 Press ENTER.

Sound Adjustments

continued

Page 46

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is tur ned off.

Notes

• For discs not in multiple audio format, you cannot change the sound.

• During DVD playback, the sound may change automatically.

Tip

You can select AUDIO directly by pressing AUDIO. Each time you press the button, the item changes.

Displaying the audio information of the disc (DVD only)

When you select “AUDIO,” the channels being played are displayed on the screen. For example, in Dolby Digital format, multiple signals ranging from monaural to 5.1 channel signals can be recorded on a DVD. Depending on the DVD, the number of recorded channels may differ.

Current audio format*

1:DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

1: ENGLISH

DVD

The display examples are as follows:

•PCM (stereo)

PROGRAM FORMAT

PCM 48kHz 24bit

• Dolby Surround

PROGRAM FORMAT

DOLBY DIGITAL 2/0 DOLBY SURROUND

• Dolby Digital 5.1ch

PROGRAM FORMAT

DOLBY DIGITAL 3/2.1

•DTS

PROGRAM FORMAT

DTS 3/2.1

Tips

• Whe n the signal contains surround signal components such as LS, RS, or S, the surround effect is enhance d.

• If you play MPEG AUDIO sound tracks, the system outputs PCM (stereo) signals.

PROGRAM FORMAT

DOLBY DIGITAL 3/2.1

*“PCM,” “MPEG,” “DTS,” or “DOL B Y

DIGITAL” is displayed. For “DOLBY DIGITAL,” the channels in the playing track are displayed numerically as follows: For Dolby Digital 5.1 ch:

Surround component 2

Front component 2 + Centre component 1

DOLBY DIGITAL

3 / 2 . 1

LFE (Low Frequency Effect) component 1

Page 47

Enjoying Surround Sound

You can take advant age of surround sound simply by selecting one of system’s preprogrammed sound fields. They bring the exciting and powerful sound of movie theatres into your home.

Sound field Display

AUTO FORMAT DIRECT AUTO

AUTO FORMAT DIRECT PRO LOGIC

AUTO FORMAT DIRECT PRO LOGIC II MOVIE

AUTO FORMAT DIRECT PRO LOGIC II MUSIC

CINEMA STUDIO EX A C. ST. EX A* CINEMA STUDIO EX B C. ST. EX B* CINEMA STUDIO EX C C. ST. EX C* HALL HALL JAZZ CLUB JAZZ CLUB LIVE CONCERT L. CONCERT GAME GAME 2 CHANNEL STEREO 2CH STEREO

A.F.D. AUTO

PRO LOGIC

PLII MOVIE

PLII MUSIC

When using headphones

Sound field Display

HEADPHONE [2 CH] HP. [2CH] HEADPHONE THEATER HP. THEATER

Automatic decoding of the audio input signal (AUTO FORMAT DIRECT AUTO)

The auto decoding function automatically detects the type of audio signal being input (Dolby Digital, DTS, or standard 2 channel stereo) and perf or m s t he proper decoding if necessary. This m ode presents the sound as it was recorded/ encoded, without adding any effects (e.g. reverberation). However, if ther e ar e no low frequency si gnals (Dolby Digital LFE, etc.), it will generate a low frequency signal for output to the subwoofer.

SOUND FIELD +/–

Sound Adjustments

*Use DCS Technology

About DCS (Digital Cinema Sound)

In collaboration with Sony Pictures Entertainment, Son y m easured the sound environment of their studios and integrated the data of the measurement and Sony’s own DSP (Digital Signal Processor) technology to develop “Digital Cinema Sound.” “Digital Cinema Sound” simulates in a home theatre an ideal movie theatre sound environment based on the preference of the movie director.

Tip

When you want to output the TV sound or stereo sound of a 2 channel sou rce from the 6 sp eakers of the system, select a sound field other than “AUTO FORMAT DIRECT AUTO” or “2 CHANNEL STEREO”.

Press SOUND FIELD +/– on the remote repeatedly until “A.F.D. AUTO” appears in the front panel display.

Page 48

Using only the front speake r and subwoofer (2 CHANNEL STEREO)

This mode outputs the sound from the fr ont left and right speakers and subwoofer. Standard two channel (stereo) s our ces completely bypass the sound field process i ng. Multi channel surround formats are downmi xed to two channels. This allows you to play any source using only the front left and right speakers and subwo ofer.

SOUND FIELD +/–

Press SOUND FIELD +/– on the remote repeatedly until “2CH STEREO” appears in the front panel display.

Enjoying movies with Cinema Studio EX

Cinema Studio EX is ideal for enjoying the movie software encoded with multi channel format, such as the Dol by Digital DVD. This mode reproduces the sound characteristics of Sony Pictures Entertainment’s studios.

SOUND FIELD +/–

Press SOUND FIELD +/– on the remote repeatedly until “C.ST.EX A (or B, C)” appears on the front panel display.

x C. ST. EX A (Cinema Studio EX A)

Reproduces the s ound characteristics of the Sony Pictures Entertainment “Cary Grant Theater” cinema production studio. This is a standard mode, great for watching most any type of movie.

x C. ST. EX B (Cinema Studio EX B)

Reproduces the s ound characteristics of the Sony Pictures Entertainment “Kim Novak Theater” cinema production studio. This mode is ideal for watching science-fiction or action movies with lots of sound effects.

x C. ST. EX C (Cinema Studio EX C)

Reproduces the s ound characteristics of the Sony Pictures Entertainment scoring stage. This mode is ideal for watching musicals or classic films where music is featured in the soundtrack.

x About Cinema Studio EX

Cinema Studio EX consists of the following three elements.

• Virtual Multi Dimension

Creates 5 sets of virtual speakers surrounding the listener from a single pair of actual surround speakers.

• Screen Depth Matching

In a movie theatre, sound seems to come from inside the image refl ected on the movie s creen. This element crea te s t he same sensation in your listening roo m by shifting the sound of the front speakers “into” the scre en.

• Cinema Studio Reverberation

Reproduces the reverberations peculiar to a movie theatre. Cinema Studio EX is the integrated mode w hich operates these elements simultaneously.

Notes

• The virtual speaker effect may cause increased noise in the playback signal.

• When listening with sound fields that employ virtual speakers, you will not be able to hear any sound coming directly from the surround speakers.

Page 49

Selecting oth er sound fields

SOUND FIELD +/–

Press SOUND FIELD +/– on the remote repeatedly until the sound field you want appears in the front panel display.

x AUTO FORMAT DIRECT PRO LOGIC

Dolby Pro Logic produces five output channels from two-channel sources. This mode performs Pro Logic decoding to the input signal and output to front, cen tr e, and surround speakers. Meanwhile, the surround channel becomes monaural.

x AUTO FORMAT DIRECT PRO LOGIC II MOVIE/MUSIC

Dolby Pro Log ic II produ ces five full -bandwidth output channels from two-channe l sources. This is done using an advan ced, high-purity matrix surround decoder that extracts the spatial properties of the or ig inal recording without adding any new sounds or tonal colorations.

x HALL (Hall)

Reproduces the ac oustics of a rectangular concert hall.

x JAZZ CLU B (Jazz club)

Reproduces the ac oustics of a jazz club.

x L. CONCERT (Live concert)

Reproduces the ac oustics of a 300-seat live concert.

x GAME (G ame)

Obtains maximum audio impact from video game softwa re.

x HEADPHONE [2CH]

This mode outputs the sound from the headphone L/R. Standard 2 channel (stereo) sources comp le t ely bypass the sound field processing . Mul ti channel surround formats ar e downmixed to tw o channels.

x HEADPHONE THEATER

This mode output s the sound as surround from headphone L/R.

To turn the sound field

Press SOUND FIELD +/– on the remote repeatedly until “A.F.D. AUTO” appears in the front panel displ ay.

When connecting the headphone to the PHONES jack

Press SOUND FIELD +/– on the remote until “HP. [2CH]” appears in the front panel display.

Notes

• This function is unavailable when pla ying Super Audio CDs and when the input stream is dts 2048 frame.

• When the input signal is multi channel source, AUTO FORMAT DIRECT PRO LOGIC, AUTO FORMAT DIRECT PRO LOGICII MOVIE/MUSIC are cancelled and the multi channel source is output directly.

Tip

The system memo rizes the l as t so undfi el d se le cte d for each function mode. Whenever you select a function such as DVD or TUNER, the sound field that was last applied to function is automatically applied again. For example, if you listen to DVD with HALL as the sound field, then change to another function, and then return to DVD, HALL will be applied again. With the tuner, sound fields are memorized separat e ly f or all preset stations.

Sound Adjustments

Page 50

Using the Sound Effect

This system provides you with 2 types of sound effect, simply by pressing a button. Choose the sound to suit your needs.

NIGHT MODE

BASS LEVEL

Press NIGHT MODE or BASS LEVEL on the remote.

The sound effect is activated.

x NIGHT MODE

In this mode, you can enjoy sound effects or dialogue in a movie, as you would a movie theatre, even at low volume. It is useful for watching movies at ni ght.

x BAS S LEVEL

With BASS LEVEL on, bass frequencies are effectively reinforced. Each time you press BASS LEVEL, the bass level changes in the following sequence: BASS OFF t BASS 1 t BASS 2 t BASS OFF…

To turn off the sound effect

Press NIGHT MODE on the remote again or BASS LEVEL on the remote repeatedly until “BASS OFF” appear s in th e fro nt panel di spla y.

Notes

• The NIGHT MODE function is activated only when the input stream is Dolby Digital format.

• When you connect the headphones to the system, the BASS LEVEL function does not work.

• When pla ying back a Super Audio CD, only the BASS LEVEL function works and the NIGHT MODE function does not work.

Tip

You can activate these two sound effe c ts a t the sa me time.

Page 51

Using Various Additional Functions

Changing the Angles

If various angles (multi-angles) for a scene are recorded on a DVD, you can change the viewin g angle. For example, while playing a scene of a train in motion, you can display the view from either the front of the train, the left window of the train, or from the right window without having the train’s movement interrupted.

Number

ANGLE

Buttons

3 Press ENTER or c.

The angle number changes to “-.”

1:DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

)

– ( 9

DVD

4 Select the angle number using the

number buttons or X/x, then press ENTER.

The angle is change d t o the selected angle.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

Note

Depending on the DVD, you may not be able to change the angles, even if multi-angles are recorded on the DVD.

Tip

You can select the angle directly by pressing ANGLE. Each time you press the button, the angle changes.

Using Various Additional Functions

DVD DISPLAY

C/X/x/c/

ENTER

1 Press DVD DISPLAY during playback.

The Control Menu ap pears.

2 Press X/x to select (ANGLE).

The angle number appears. The number in parentheses indic ates the total number of angles. The “ANGLE” indicator lights up in green when angles are recorded on the di sc.

1:DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

)

( 9

DVD

Page 52

Displaying Subtitles

If subtitles are r ecorded on a disc, you can turn the subtitles on or off while playing. If multilingual subtitles are recorded on the disc, you can change the subtitle language while playing, or tur n t he subt it l es on or of f whe nev er you want. You can select the language you want to practice, for example, turn on the subtitles for better understanding.

SUBTITLE

C/X/x/c/

DVD DISPLAY

ENTER

4 Press ENTER.

To cancel the SUBTITLE setting

Select “OFF” in Step 3.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

Note

Depending on the DVD, you may not be able to change the subtitles, even if multilingual subtitles are recorded on it.

Tip

You can select Subtitles directly by pressing SUBTITLE. Ea ch time you press the button, the item changes.

1 Press DVD DISPLAY during playback.

The Control Men u appears.

2 Press X/x to select

(SUBTITLE), then press ENTER or c.

The options for SUBTITLE appear.

1:DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

OFF 1: ENGLISH 2: FRENCH 3: SPANISH

3 Press X/x to select the language.

Depending on the DVD, the choice of language varies.

When 4 digits are displayed, they indicate the language code. Refer to the language code list on page 86 to see which language the code repre sents.

DVD

Page 53

Locking Discs

(CUSTOM PARENTAL CONTROL, PARENTAL CONTROL)

You can set two kind s of pl ayback restrictions for a disc.

• Custom Parental Control You can set the p layback restrictions s o th at the system will not play inappropriate discs.

• Parental Control Playback of some DVDs can be limited according to a predetermined level, such as the age of the viewer.

The same password is used for both Parental Control and Custom Parental Control.

Custom Parental Control

You can set the same C ustom Parental Con trol password for up to 25 discs. If you set a 26th disc, the playback restriction of the disc for which you first set the password is cancelled.

3 Press X/x to select (CUSTOM

PARENTAL CONTROL), then press ENTER or c.

“CUSTOM PARENTAL CONTROL” is selected.

1:DVD

1 2 ( 2 7 ) MAKING SCENE

)

1 8 ( 3 4 T

1 : 3 2 : 5 5

ON PASSWORD

DVD

4 Press X/x to select “ON t,” then press

ENTER. x If you have not entered a password

yet

The display f or regi ste ri ng a ne w pa ss wor d appears.

CUSTOM PARENTAL CONTROL

Enter a new 4-digit password,

ENTER

then press .

Using Various Additional Functions

Number buttons

C/X/x/c/

ENTER

DVD DISPLAY

O RETURN

1 Insert the disc you want to lock.

If the disc is playing, press x to stop playback.

2 In stop mode, press DVD DISPLAY.

The Control Menu ap pears.

Enter a 4-digit password by using th e number buttons, then press ENTER. The display for conf irm i ng t he password appears.

x If you have already registered a password

The display for en te ri ng the password appears.

CUSTOM PARENTAL CONTROL

Enter password, then press .

ENTER

continued

Page 54

5 Enter your 4-digit password by using

the number buttons, then press ENTER.

“Custom parental control is set.” appears and the screen re turns to the Control Menu display.

If you make a mistake entering your password

Press C before you press ENTER and input the correct numbe r.

If you make a mistake

Press O RETURN, then start from Step 3 again.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is tur ned off.

To turn off the Custom Parental Control function

1 In Step 4, select “OFF t,” then press

ENTER.

2 Enter your 4-digit password using the

number buttons, then press ENTER.

To change the password

1 In Step 4, press X/x to select “PASSWORD

t,” then pres s EN T E R . The display for entering the password appears.

2 Enter your 4-digit password using the

number buttons, then press ENTER.

3 Enter a new 4-digit password using the

number buttons, then press ENTER.

4 To confirm your password, re-enter it using

the number buttons, then press ENTER.

Playing the disc for which Custom Parental Control is set

1 Insert the disc for which Custom

Parental Con t r o l is s e t.

The CUSTOM PARENTAL CONTROL display appears.

CUSTOM PARENTAL CONTROL

Custom parental control is already set. To play, enter your password

ENTER

and press .

2 Enter your 4-digit password using the

number buttons, then press ENTER.

The system is ready for playback.

Notes

• When you change the layer or area in a Super Audio CD which has Custom Parental Co ntr ol set, the display for entering the password may appea r .

• When you set the Custom Parental Control password for a Hybrid Super Audio CD, the Custom Parental Control setting only works for th e cur rent layer.

Tip

If you forget your password, enter the 6-digi t nu m ber “199703” using the number buttons when the CUSTOM PARENTAL CONTROL display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password.

Page 55

Limiting playb ack for children (Parental Control) (DVD only)

Playback of some DVDs can be limited according to a prede t er m ined level, such as the age of the viewer. The “Parental Control” function allows you to se t a p lay b ack l imitation level. A scene that is limited is not played, or it is replaced by a different scene.

Number buttons

3 Press X/x to select “PARENTAL

CONTROL t,” then press ENTER or c. x If you have not entered a password

The display f or regi ste ri ng a ne w pa ss wor d appears.

CUSTOM SETUP

PARENTAL CONTROL

Enter a new 4-digit password,

ENTER

then press

Enter a 4-digit password using t he number buttons, then press ENTER.

The display for conf irm i ng t he password appears.

x When you have already registered a password

The display for en te ri ng the password appears.

Using Various Additional Functions

C/X/x/c/

ENTER O RETURN

DVD SETUP

1 In stop mode, press DVD SETUP.

The Setup Disp l ay appears.

2 Press X/x to select “CUSTOM SETUP,”

then press ENTER.

“CUSTOM SETUP” is displayed.

CUSTOM SETUP

VCD COLOR SYSTEM PARENTAL CONTROL TRACK SELECTION

OFF OFFAUDIO DRC:

MP3DATA CD PRIORITY:

MM/DD/YYYYJPEG DATE:

CUSTOM SETUP

PARENTAL CONTROL

Enter password, then press

ENTER

4 Enter your password using the number

buttons, then press ENTER.

The display for setting the playback limitation level and changing the password appears.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: OFF STANDARD: CHANGE PASSWORD

USA

continued

Page 56

5 Press X/x to select “STANDARD,” then

press ENTER.

The selection items for “STANDARD” are displayed.

CUSTOM SETUP

PARENTAL CONTROL

LEVEL: STANDARD: CHANGE PASSWORD

OTHERS

OFF USA

6 Press X/x to select a geographic area

as the playback limitation level, then press ENTER.

The area is selected . If you select “OTH ER S t,” select and enter the standard code in the table on

page 57 usi ng t he number buttons.

7 Press X/x to select “LEVEL,” then

press ENTER.

The selection item s for “LEVEL” are displayed.

CUSTOM SETUP

PARENTAL CONTROL

STANDARD: CHANGE PASSWORD

OFFLEVEL:

NC17

6: 5:

PG13

3: 2:

If you make a mistake

Press O RETURN to go back to the previous screen.

To turn off the Setup Display

Press DVD SETUP repeatedly until the Setup Display i s turned off.

To turn off the Parental Control function and play the DVD after entering your password

Set “LEVEL” to “OFF” i n St e p 8.

To change the password

1 In Step 5, select “CHANGE PASSWORD

t” using x, then press ENTER. The display for entering the password appears.

2 Follow Step 3 to enter a new password.

8 Select the level you want using X/x,

then press ENTER.

The Parental Control setting is complete.

CUSTOM SETUP

PARENTAL CONTROL

STANDARD: CHANGE PASSWORD

The lower the value, the more strict the limitation.

PG134:LEVEL:

USA

Page 57

Playing the disc for which Parental Control is set

1 Insert the disc and press H.

The PARENTAL CONTROL display appears.

2 Enter your 4-digit pa ssword using the

number buttons, then press ENTER.

The system starts pla yback.

Notes

• If you play a DVD which does not have the Parental Control function, playback cannot be limited on this system.

• Depending on the DVD, you may be asked to change the parental c ontrol level whil e playing the disc. In this case, enter your password, then change the level. If the Resume Play mode is cancell ed , t he level returns to the original level.

Tip

If you forget your password, remove the disc and repeat Step 1 to 3 of “Limiting playback for children.” When you are asked to enter your password, enter “199703” using the number buttons, the n press ENTER. The display will ask you to enter a new 4-digit password. After you enter a new 4-digit password in Step 3, replace the disc in the system and press H. When the PARENTAL CONTROL display appears, enter your new password.

Area Code

Standard Code number

Argentina 2044 Australia 2047 Austria 2046 Belgium 2057 Brazil 2070 Canada 2079 Chile 2090 China 2092 Denmark 2115 Finland 2165 France 2174 Germany 2109 Hong Kong 2219 India 2248 Indonesia 2238 Italy 2254 Japan 2276 Korea 2304 Malaysia 2363 Mexico 2362 Netherlands 2376 New Zealand 2390 Norway 2379 Pakistan 2427 Philippines 2424 Portugal 2436 Russia 2489 Singapore 2501 Spain 2149 Sweden 2499 Switzerland 2086 Taiwan 2543 Thailand 2528 United Kingdom 2184

Using Various Additional Functions

Page 58

Other Operations

Controlling TV with the Supplied Remote

By adjusting t he r emote signal, yo u can control your TV with the supplied remote.

Notes

• If you e nte r a new cod e numbe r , the co de numbe r previously entered will be erased.

• When you replace the batteries of the remote, the code number may reset itself to the default (SONY) setting. Reset the appropriate code number.

Controlling TVs with the remote

TV ?/1

TV button

Number buttons

Manufacturer Code number

SONY 001 AIWA 001, 047 DAEWOO 002, 004, 005, 006, 007, 015 FISHER 008 GOLDSTAR 002, 003, 011, 012, 015, 034 GRUNDIG 017, 034, 055 HITACHI 002, 013, 014, 015 ITT/NOKIA 021, 022 JVC 016 LOEWE 048, 049, 050 MAGNAVOX 002, 003, 018 MITSUBISHI/MGA 002, 003, 019 NEC 002, 003, 020 PANASONIC 009, 024 PHILIPS 015, 018 PIONEER 009, 025, 026, 040 RCA/PROSCAN 002, 010, 027, 028, 029 SAMSUNG 002, 003, 015, 031, 032, 033,

034, 051, 052, 053, 054 SANYO 008, 044, 045, 046 SHARP 035 TELEFUNKEN 023, 036, 037, 038 THOMSON 030, 037, 039 TOSHIBA 035, 040, 041 ZENITH 042, 043

TV CH +/–

TV VOL +/–

TV/VIDEO

Press and hold TV [/1 while entering your TV’s manufacturer’s code (see the table) using the number buttons. Then release TV [/1.

If you set successfully the ma nufact urer’s c ode, the TV button flashes twice sl owly. If the setting is unsuccessful, the TV button flashes five time s quickly.

Code numbers of controllable TVs

If more than one code number is listed, try entering them one at a time until you find the one that works with your TV.

CATV

Manufacturer Code number

SONY 101 HAMLIN/REGAL 123, 124, 125, 126, 127 JERROLD/GI 102, 103, 104, 105, 106, 107,

OAK 128, 129, 130 PANASONIC 120, 121, 122 PIONEER 115, 116 SCIENTIFIC

ATLANTA TOCOM 117, 118, 131 ZENITH 113, 114

108, 109, 119, 131

110, 111, 112

Page 59

Controlling the TV

You can control your TV using the buttons below.

By pressin g You can

TV [/1 Turn the TV on or off. TV/VIDEO Switch the TV’s input source

between the TV and other input

sources. TV VOL +/– Adjust the TV volume. TV CH +/– Select the TV channel.

Using the number buttons for controlling the TV

When you set the remote to the TV mode, you can use the number buttons for controlling the TV.

Press the TV button.

The TV button turns red and the r emote is set to the TV mode. You can select the TV channels by using the number but to ns. >10 is for selecting the channel number greater than 10. To cancel the TV mode, pr ess the TV button again.

Notes

• Depending on the TV, you may not be able to control

your TV or to use some of the buttons above.

• The TV button turns off when you do not operate the

remote for 10 seconds.

Tip

Depending on the TV manuf act ure, the following method also works. Press >10, then the number. (For example, for channel 25, press >10, then 2 and 5. )

Using the Video or Other Unit

You can use VCR s or ot her units connected to the VIDEO 1 or VIDEO 2 jacks. Refer to the operation manual supplied with the unit for further information on the operation.

FUNCTION

Other Operations

Press FUNCTION repeatedly until VIDEO 1 or VIDEO 2 that you connected the unit to appears in the front panel display.

Each time you press FUNCTION, the mode of the system changes in the following sequ ence. DVD t VIDEO 1 t VIDEO 2 t TUNE R (FM or AM) t DVD...

Page 60

Enjoying the Radio

Presetting Radio Stations

You can preset 20 F M sta t io ns, and 10 AM stations. Before tuning, make sure to turn down the volume to minimum.

"/1

FUNCTION

BAND

MEMORY

PRESET –/+

ENTER

TUNING –/+

1 Press BAND repeatedly until the band

you want appears in the front panel display.

Each time you press BAND, the band toggles between AM and FM.

2 Press and hold TUNING + or – until the

auto scanning starts.

Scanning stops when the system tunes in a station. “TUNED” and “ST” (for stereo program) appear in the front panel display.

ST MHz

3 Press MEMORY.

A preset number appears in the front panel display.

ST MHz

4 Press PRESET + or – to select the

preset number you want.

ST MHz

5 Press ENTER.

The station is stored.

ST MHz

6 Repeat 1 to 5 to store other stations.

To change the preset number

Restart from st ep 1.

To change the AM tuning interval

The AM tuning interval can be set to either 9 kHz (d ef ault) or 10 kHz (for s o m e areas). To change the AM tu ni ng interval, first tune in any AM station, t hen turn off the system by pressing "/1 on the remote, or "/1 on the system. While holding down x (stop) (on the system), pres s "/1 on the system to turn on the power. If you chan ge the interval, AM preset stations will be erased. To reset the interval, repeat th e s ame pr ocedu re .

Page 61

Listening to t he Radio

Preset radio stations in the system’s memory first (see “Presetting Radio Stations” on page 60).

DISPLAY

FUNCTION

BAND

STEREO/ MONO

PRESET –/+

"/1

TUNING –/+

VOLUME +/–

1 Press FUNCTION repeatedly until FM

or AM appears in the front panel display.

The last received station is tuned in.

To listen to non-preset radio stations

Use manual or automatic tuning in Step 2. For manual tuni ng, pres s TUNIN G + or – on the remote repeatedly. For automatic tu ni ng, pr ess and hold TUNING + or – on the remote. Pr ess TUNING + or – when you stop the automatic tuning.

Tips

• If an FM program is noisy, press STEREO/MONO on the remote so that “MONO” appears in the front panel display. There will be no stereo effect, but the reception will improve. Press the button again to restore the stereo effect.

• To improve reception, reorient the supplied antennas.

To check the frequency or sound field

Press DISPLAY repeatedly. Each time you press DISPLAY, the front panel display changes as follows: index name of the st ation* t frequency t sound field t index name of the stati on... *This is displayed if you have entered a name

for a preset stati on (page 62).

Other Operations

ST MHz

2 Press PRESET + or – repeatedly to

select the preset station you want.

Each time you press the button, the system tunes in one preset stat ion. Every time you press BAND, the band toggles between AM and FM.

3 Adjust the volume by pressing

VOLUME +/–.

To turn off the radio

Press "/1.

Page 62

Naming Preset Stations

You can enter a nam e of up to 6 characters for preset stations. These names (for example, “XYZ”) appear in the system’s front panel display when a station is selected. Note that no more than one n ame can be entered for each preset st at i on.

FUNCTION

BAND

PRESET –/+

NAME

C/X/x/c/

ENTER

1 Press FUNCTION repeatedly until FM

or AM appears in the front panel display.

Every time you press BAND, the band toggles between AM and FM.

The last station you received is tuned in. Each time you press FUNCTION, the mode of the system changes in the following

sequence: DVD t VIDEO 1 t VIDEO 2 t

TUNER (FM or AM) t DVD…

2 Press PRESET+ or – repeatedly to

select the preset station you want to create an index name for.

3 Press NAME. 4 Create an index name by using the

cursor but t on s :

Press X/x to select a character, then press c to move the cursor to the next position.

If you make a mistake

Press C or c repeatedly until the character to be changed fla she s, then press X/x to select the desired character. Cap ita l le tte rs, numbers, and other sym bols can be input for a radio statio n name.

5 Press ENTER.

The station name is stored.

Page 63

Using the Sleep Timer

To change the brightness

You can set the sys tem t o turn off at a preset time, so you can fall asleep listening to music. You can preset the time up to 180 minutes.

C/X/x/c/

ENTER

AMP MENU

1 Press AMP MENU repeatedly until

“CUSTOMIZE” appears in the front

panel display.

2 Press x/X until “SLEEP OFF” appears

in the front panel display.

3 Press C/c to select the remaining time.

Each time you press this button, the minutes display (the remaining time) changes as follows:

OFF y 0.10.00 (1 0M IN) y 0.20.00 (20MIN) y 0.30.00 (30MIN) y 1.00.00 (60MIN) y 1.30.00 (90MIN) y 2.00.00 (120MIN) y 2.30.00 (150MIN) y

3.00.00 (180MIN)

To cancel the Sleep Timer function

Press C repeatedly until “SLEEP OFF” appears in the front panel display in step 3 abov e .

of the front panel display

You can change the brightness of the front panel display by two steps.

Other Operations

C/X/x/c/

ENTER

AMP MENU

1 Press AMP MENU repeatedly until

“CUSTOMIZE” appears in the front

panel display.

2 Press x/X until “DIMMER” appears in

the front panel display.

3 Press C/c.

Each time you press this button, the brightness of the front panel display changes.

Page 64

Returning to the default settings

You can return the system parameters such as speaker settings and p reset s tatio n to the def ault settings.

C/X/x/c/

ENTER

AMP MENU

1 Press AMP MENU repeatedly until

“CUSTOMIZE” appears in the front

panel display.

2 Press x/X until “MEMO. CLR. N”

appears in the front panel display.

3 Press C/c until “MEMO. CLR. Y”

appears in the front panel display, and press ENTER.

When you select “MEMO. CLR. N” and press ENTER, this operation will be cancelled.

4 Press C/c until “Really? Y” appears

in the front panel display, and press ENTER.

“ALL CLEAR!” appears in the front panel display and the setting s return to the default settings. When you select “R eally? N” and press ENTER, this operatio n will be cance lled.

Page 65

Settings and Adjustments

Using the Setup Display

2 Press X/x to select the setup item from

the displayed list: “LANGUAGE SETUP,” “SCREEN SETUP,” “CUSTOM SETUP,” “SPEAK ER SETUP,” and “RESET

The selected Setup item appears. Example: “SCREEN SETUP”

.” Then press ENTER or c.

By using the Setup Display, you can make various adjustments to items, such as picture and sound. You can also set the subtitle language and the Setup Displa y, among other things. For details on each Setup Display item, see page 66-

72. For an overall lis t of Setup Display items, see page 8 7.

How to use the Setup Display

C/X/x/c/

ENTER O RETURN

DVD SETUP

1 In stop mode, press DVD SETUP.

The Setup Disp l ay appears.

LANGUAGE SETUP

Main item

OSD : DVD MENU : AUDIO : SUBTITLE :

ENGLISH ENGLISH ENGLISH ENGLISH

SCREEN SETUP

SCREEN SAVER: BACKGROUND: COMPONENT OUT:

JACKET PICTURE

16:9TV TYPE:

INTERLACE

3 Select an item using X/x, then press

ENTER or c.

The options for the selected item appear. Example: “TV TYPE”

SCREEN SETUP

TV TYPE: SCREEN SAVER: BACKGROUND: COMPONENTOUT:

4:3 LETTER BOX

16:9

4:3 PAN SCAN

Options

Press C or O RETURN to return to setup items.

4 Select a setting using X/x, then press

ENTER.

The setting is select ed and setup is complete.

Example: “4:3 PAN SCAN”

Selected setting

SCREEN SETUP

TV TYPE: 4:3 PAN SCAN SCREEN SAVER: BACKGROUND: COMPONENT OUT:

JACKET PICTURE

INTERLACE

Settings and Adjustments

continued

Page 66

To turn off the Setup Display

Press DVD SETUP repeatedly until the Setup Display is turned off.

* When you select “RESET” in step 2, the

following items are retur n e d to the default settings.

• Setup Menu (except for the PARENTAL CONTROL) (page 87)

After you select “RESET” and press ENTER, select “YES” to reset the se tti ngs (it takes a few seconds to complete). Select “NO” and press ENTER to cancel. Do not press "/1 on the system, when resetting the system.

Setting the Display or Sound Track Language

(LANGUAGE SETUP)

“LANGUAGE SETUP” allows you to set various languages for the on-screen displa y or sound track.

Select “LANGUAGE SETUP” in the Setup Display. For detail s on using the display, see “Using the Setup Display” (page 65).

LANGUAGE SETUP

OSD : DVD MENU : AUDIO : SUBTITLE :

x OSD (On-Screen Display)

Selects the display language on the screen. Selects the langu age from the displayed list.

x DVD MENU (DVD only)

Selects the desired language for the DVD menu.

x AUDIO (DVD only)

Selects the language of the sound track. Selects the langu age from the displayed list.

x SUBTITLE (DVD only)

Selects the language of the subtitle. Selects the langu age from the displayed list.

Note

If you select a language that is not recorded on the DVD, one of the recorded languages will be automatically sele cted (except for “OSD”).

Tip

If you select “OTHERS t” in “DVD MENU,” “SUBTITLE,” or “AUDIO,” select and enter the language code from the list using the number buttons (page 86). After you have made a selection, the language code (4 digits) is displayed the next time you select “OTHERS t.”

ENGLISH ENGLISH ENGLISH ENGLISH

Page 67

Settings for the Display

(SCREEN SETUP)

Choose settings according to the TV to be connected.

16:9

4:3 LETTER BOX

Select “SCREEN SETUP” in the Setup Display. For details on using the dis pl ay, see “Using the Setup Display” (page 65). The default settings are underlined.

SCREEN SETUP

TV TYPE: 16:9 SCREEN SAVER: BACKGROUND: COMPONENT OUT:

JACKET PICTURE

INTERLACE

x TV TYPE (DVD only)

Selects the aspect rati o of the connected TV (4:3 standard or wide). The default settings vary, depending on the country model.

16:9

4:3 LETTER BOX

4:3 PAN SCAN

Select this if you connect a widescreen TV or a TV with a wide mode function.

Select this if you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen.

Select this if you connect a 4:3 screen TV. Auto maticall y displays the wide picture on the entire screen and cuts off the portions that do not fit.

4:3 PAN SCAN

Note

Depending on the DVD, “4:3 LETTER BOX” may be selected automatically instead of “4:3 PAN SCAN” or vice versa.

x SCREEN SAVER

Turns the screen saver on and off so that the screen saver image appears when you lea ve the system in pa us e or s top mo de f or 1 5 mi nut es, o r when you playback a CD, a Super Audio CD, an MP3, or JPEG file (except during the slide show) for more than 15 minutes. The screen saver will hel p prevent y our displa y device fro m becoming damaged (afterimage). Press H to turn off the screen saver.

ON OFF

Turns on the screen saver. Turns off the screen saver.

x BACKGROUN D

Selects the background colour or picture on the TV screen in stop mode or while playing a CD.

JACKET PICTURE

GRAPHICS

BLUE BLACK

The jacket picture (still picture) appears in the background, but only if a jacket picture is already recorded on the disc (CDEXTRA, etc.). If the disc does not contain a jacket picture, the “GRAPHICS” picture appears.

A preset picture stored in the system appears in the background.

The background colour is blue. The background colour is black.

Settings and Adjustments

continued

Page 68

x COMPONENT OUT

This will change the type of signal output from the COMPONENT VIDEO OUT jacks on the system. See page 79 for more information about the different types.

Custom Settings

(CUSTOM SETUP)

INTERLACE

PROGRESSIVE

Notes

• When “PROGRESSIVE” is selected in “SCREEN SETUP,” no signal is output from the MONITOR OUT jacks.

• “PROGRESSIVE” does not work for PAL signals. Even if you set “COMPONENT OUT” to “PROGRESSIVE”, the output signal is automatically switched to interlace format for PAL signals. (exce pt the North American model)

• When “PROGRESSIVE” is selected in “SCREEN SETUP” and the co lour sy stem of t he TV is PAL, th e signal is converted to the interlace format signal automatically.

• If you set “ COMP ONENT OUT” in “SCREE N SETUP” to “PROGRESSIVE” even though your TV cannot accept the signal in progres sive format, picture noise may appears. In this case, set the SCAN SELECT switch to “INTERLACE.”

Select this when you connect to a standard (interlace format) TV.

Select this when you have a TV that can accept progressive signals.

Allows setting up Parental Control and other settings.

Select “CUSTOM SETUP” in the Setup Display. For detail s on using the display, see “Using the Setup Display” (page 65). The default settings are underlined.

CUSTOM SETUP

VCD COLOR SYSTEM PARENTAL CONTROL TRACK SELECTION

OFF

STANDARDAUDIO DRC:

MP3DATA CD PRIORITY:

MM/DD/YYYYJPEG DATE:

x VCD COLOR SYSTEM (Asian models and Australian models only)

Select the colour sys t em when you play a VIDEO CD.

AUTO

PAL

NTSC

Outputs the video signal in the system of the disc, either PAL or NTSC. If your TV uses a DUAL system, select AUTO.

Changes the video signal of an NTSC disc and outputs it in the PAL system.

Changes the video signal of a PAL disc and outputs it in the NTSC system.

Notes

• Yo u cannot change the colour system of the disc itself.

• On Asian models or Australian models, you can change the colour system of this unit according to the connected TV (page 21).

x PARENTAL CONTROL t (DVD only)

Sets a password and playback limitation level for DVDs with playback limitation for chil dren. For details, see “Limiting playback for child re n (Parental Control )” (page 55).

Page 69

x TRACK SELECTION (DVD only)

Gives the sound track having the highest number of channels priority when you play a DVD on which multiple audio formats (PCM, MPEG audio, DTS, or Dol by D i gi t al format) are recorded.

OFF AUTO

Notes

• When you set the item to “AUTO,” the language may change. The “TRACK SELECTION” sett ing ha s higher priority than the “AUDIO” settings in “LANGUAGE SETUP” (page 66).

• If PCM, DTS, MPEG audio, and Dolby Digital sound tracks have the same number of channels, the system selects PCM, DTS, Dolby Digital, and MPEG audio sound tracks in this order.

• Depending on the DVD, the audio channel with priority may be predetermined. In th is c as e, you cannot give priority to the DTS, Dolby Digital, or MPEG audio format by selecting “AUTO.”

No priority given. Priority given.

x AUDIO DRC

Narrows the DYNAMIC range of the sound track. Useful for watching movies at low volume late at night.

OFF

Note

DYNAMIC range compression only applies to Dolby Digital sources.

No compression of DYNAMIC range.

Reproduces the sound track with the kind of DYNAMIC range that the recording engineer intended.

x DATA CD PRIORITY (MP3, JPEG only)

Set priority data you want to play, when you play a DATA CD (CD-ROM/CD-R/CD-RW) containing MP3 audio tracks and JPEG image files.

MP3

JPEG

Notes

• When you play multi-session CDs, the system decides a target to play for last sessi on or ses sion linked with last session.

• If you change this setting, reinsert the disc.

If an MP3 file exists on a disc, the system recognises the disc a s an “MP3 Disc.” If only JPEG files exist on the disc, the system recognises the disc as a “JPEG Disc.”

If a JPEG file exists on the disc, the system recognises the disc a s a “JPEG Disc.” If only MP3 files exist on the disc, the system recognises the disc as an “MP3 Disc.”

x JPEG DATE

Change the date inf ormation order of a JPEG image in the Control Menu.

MM/DD/YYYY YYYY/MM/DD DD/MM/YYYY YYYY/DD/MM

YYYY: Year MM: Month DD: Day

Settings and Adjustments

Page 70

Settings for the Speakers

(SPEAKER SETUP)

To obtain the best possible surround sound, set for the size of the speakers you have connected and their distance fr om your listening position. Then use the test tone to adju st th e leve l and the balance of the speakers to the same level.

Select “SPEAKER SETU P” in the setup display. For details, see “Using the Setup Display” (page 65). The default settin gs are underlined.

SPEAKER SETUP

SIZE: DISTANCE: LEVEL: BALANCE: TEST TONE:

To return to the default setting when changing a setting

Select the item, then press CLEAR.

x SIZE

If you do not connect centre or surround speakers, or move th e surround sp eakers, se t the parameters for CENTER and SURROUND and specify the surround speaker position and height. Since the front speaker and subwoofer settings are fixed, you cannot change them.

Position diagram

Height diagram

FRONT CENTER

YES YES: Normally selec t this.

NONE: Select this if no centre speaker is used.

SURROUND

BEHIND (LOW): Select this if surround speakers are located in section B and D. BEHIND (HIGH): Select this if surround speakers are located in section B and C. SIDE (LOW): Select this if surround speakers are located in section A and D. SIDE (HIGH): Select this if surround speakers are located in section A and C. NONE: Select this if no surround speaker is used.

SUBWOOFER

Notes

YES

• Whe n you select an item, the sound cuts off for a moment.

• Depe nding on the settings of other speakers, subwoofer may be excessive.

Page 71

x DISTANCE

The default distance setting for the speakers in relation to the listen ing position is shown below.

x LEVEL

You can vary the l evel of each speaker as follows. Be sure to set “TEST TONE” to “ON” for easy adjustme nt .

(10ft)

Be sure to change the value in the Setup Display when you move the speakers.

FRONT 3 m/10 ft

CENTER 3 m/10 ft

SURROUND 3 m/10 ft

Notes

• In SPEAKER SETUP, the North American model’s OSD displays both metric and imperia l measurements. The other m ode l displays metric measurements only. The manual shows bot h.

• Whe n you se t the distance, the sound cuts off for a moment.

• If all front and surround speake rs ar e no t pl aced at a n equal distance from your liste ning position, set the distance according to the clo sest speaker.

• Do not place the surround speakers farther away from your listening position than the front speakers.

• The DISTANCE setting is available except for Super Audio CDs.

Front speaker distance from the listening position can be se t in 0.2 metre (1 ft) increments fr om 1.0 to 7.0 metres (3 to 23 ft).

Centre speaker distance can be moved up to 1.6 metres (5 ft) forward closer to the listening positio n, in 0.2 metre (1 ft) increments.

Surround speaker distance can be moved up to 4.6 metres (15 ft) closer to your listening position from the front speaker position, in 0.2 metr e (1 ft) increments.

CENTER 0 dB

SURROUND LEFT 0 dB SURROUND RIGHT 0 dB

SUBWOOFER 0 dB

Adjusts the le vel of the centre speaker (–6 dB to +6 dB, 1 dB increments).

Adjusts the level of the surround speakers (–6 dB to +6 dB, 1 dB increments).

Adjusts the level of the subwoofer (–6 dB to +6 dB, 1 dB increments).

x BALANCE

You can vary the balance of the left and right speakers as follows. Be sure to set “TEST TONE” to “ON” for easy adjustment.

FRONT

Adjusts the balance bet ween th e front left and right speakers.

To adjust the volume of all the speakers at one time

Use the VOLUME control on the system, or press VOLUME +/–.

x TEST TONE

The speakers will emit a test tone to adjust “LEVEL” and “BALANCE.”

OFF

The test tone is not emitted from the speakers.

The test tone is emitted from each speaker in sequence while adjus ting balance or level. When you select one of the “SPEAKER SETUP” items, the test tone i s emitted from both left and right speak ers simultaneously.

Settings and Adjustments

Page 72

Adjusting the speaker balance and leve l by using the test tone

1 Press DVD SETUP in stop mode.

The Setup Display appears.

2 Press X or x repeatedly to select

“SPEAKER SETUP,” then press ENTER.

3 Press X or x repeatedly to select “TEST

TONE,” then press ENTER.

4 Press X or x repeatedly to select “ON,”

then press ENTER.

You will hear the te st tone from each speaker in sequ ence.

5 From your listening position, adjust the

value of “BALANCE” and “LEVEL” using C/X/x/c.

When selecti ng “BALANCE ,” the t est tone is emitted from both left and right sp eakers simultaneously.

When selecting “LEVEL,” the test tone is emitted from only the speaker which you are adjusting .

6 Press ENTER when you have finished

making adjustments.

7 Press X or x repeatedly to select “TEST

TONE,” then press ENTER.

8 Press X or x repeatedly to select

“OFF,” then press ENTER.

Note

When you adjust the speake r sett ings, the sound cuts off for a m o ment.

Tip

To adjust the balanc e or th e le vel without listening to the test tone, select “BALANCE” or “LEVEL” in step 3 an d press ENTER. Then adjust the balance or level using X/x and press ENTER.

Setting the spea kers by usi ng the front panel display on the system

You can set the speakers by using the amp menu that is displayed in the front panel display.

C/X/x/c/

ENTER

AMP MENU

1 Press AMP MENU repeatedly until the

item you want to set appears in the front panel display.

•SP. SETUP Sets the speaker si ze, distance, and placement.

• LEVEL Sets the balance and le vel of the each

speaker, and turns the test tone on or off.

2 Press X or x to select the desired item,

then press C or c to select the desired setting.

You can set the following items:

•SP. SETUP

CENTER (centre speaker)

SURR. (surround speak er s)

F.D. (front speakers distance)

C.D. (centre speaker distance)

YES (yes) NO (no)

1.0 to 7.0 metres

0 to 1.6 metres

Page 73

S.D. (surround speakers distance)

S.P. (surround speakers position)

S.H. (surround speakers height)

• LEVEL

T.TONE (test tone)

F.______I_______ (front speaker balance)

C.LEV (centre speaker level)

S.L.LEV (surround left speaker level)

S.R.LEV (surround righ t speaker level)

S.W.LEV (subwoofer level)

D.COMP (dynamic compression)

0 to 4.6 metres

BEHIND (behind) SIDE (side)

LOW (low) HIGH (high)

ON (on) OFF (off)

–6 dB to +6 dB

ON (on) OFF (off)

Settings and Adjustments

The amp menu is cancelled when yo u do not operate the remote for several seconds.

Page 74

Additional Information

Troubleshooting

If you experience any of the following difficu lties while using the system , use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.

Power

The power is not turned on.

• Check that the AC power cord is connected securely.

If the STANDBY indicator flashes

Immediately unplug the power cord an d check the following items.

• Are the + and – speaker cords short-circuited?

• Are you using only the specified speakers?

• Is anything bl ocking the ventilation holes on the top of the system?

After checking the above items and fixi ng an y problems, connect the power cord again and turn on the system. If the indic at o r stil l fl ashes, or if the cause of the problem cannot be found even after checking all the above items, consult your nearest Sony dealer.


There is no picture.

• The video conn ec ti ng c or ds are not c onnected securely.

• The video conn ecting cords are damaged.

• The system is not connected to the correct TV input jack (page 20).

• The video input on the TV is not set so that you can view pictures from the system.

• You have set “COMPONENT OUT” in “SCREEN SETUP” to “PROGRESSIVE” even though your TV cannot accept the signal in progressive format. In t his case, set th e SCAN SELECT switch to “INTERLACE.”

• Even if your TV is compa tible with progressive format (480p) signals, the image may be affected when you set “COMPONENT OUT” to “PROGRESSIVE.” In this case, set “COMPONENT OUT” to “INTERLACE.”

• When “PROGRESSIVE” is selected in “SCREEN SE TUP,” no signal is output from the MONITOR OUT or S VIDEO OUT jacks.

Picture noise appears.

• The disc is dirt y or flawe d.

• If the picture output from your system goes through your VCR to get to your TV, the copyprotection signal applied to some DVD programs could affect picture quality. If you still experience problems even when you connect your system directly to your TV, try connecting your system to your TV’s S video input (page 20).

• Except for the Pan American and European model, the colour system is different. Set the colour system to match your TV (page 21).

Even though you set the aspect ratio in “TV TYPE” of “SCREEN SETUP,” the picture does not fill the screen.

• The aspect ratio on the disc is fixed.

The picture is black and white.

• Depending on the TV, the picture on the screen becomes black and white when you play a disc recorded in the NTSC colour system.

Sound

There is no sound.

• The speaker cord is not connected securely.

• Press MUTING on the remote if “MUTING ON” is displayed in the front panel display.

• The system is in pa use mode or in Slow-motion Play mode. Press H to return to normal play mode.

• Fast forward or fast reverse is performed. Press H to return to normal play mode.

• Check the spe a ke r set tings (pages 23, 70).

The left and right sounds are unbalanced or reversed.

• Check that the speaker s and components are connected correctly and securely.

• Adjust the balance parameter in the BALAN CE menu (page 71).

Page 75

There is no sound from the subwoofer.

• Check the speaker connections and set tings (pages 23, 70).

• Set the sound field to “AUTO FORMAT DIRECT AUTO” (page 47).

Severe hum or noise is heard.

• Check that the speaker s and components are connected securely.

• Check that the connecting cords are away from a transformer or motor, and at lea st 3 metres (10 feet) away from your TV set or a fluorescent light.

• Move your TV away from the audio components.

• The plugs and jacks a r e dirt y. Wipe them with a cloth slightly moistened with alcohol.

• Clean th e disc.

The sound loses stereo effect when yo u play a VIDEO CD, a CD, or an MP3.

• Set “AUDIO” to “STEREO” in the Control Menu display (page 45).

• Make sure the system is connected appropriately.

The surround effect is difficult to hear when you are playing a Dolby Digital, DTS, or MPEG audio sound track.

• Make sure th e so und f ield f unc tion is on (page 47).

• Check the speaker connections and set tings (pages 23, 70).

• Depending on the DVD, the output signal may not be the entire 5.1 channel. It may be monaural or stereo even if the sound track is recorded in Dolby Digital or MPEG audio format.

The sound comes from the centre speaker only.

• Depending on the disc, the sound may come from the centre speaker only.

No sound is heard from the centre speaker.

• Check the speaker connections and settings.

• Make sure th e so und f ield f unc tion is on (page 47).

No sound or only a very low-level sound is heard from the surround speakers.

• Check the speaker connections and set tings (pages 23, 70).

• Make sure th e so und f ield f unc tion is on (page 47).

• Select a sound field containing the word “C. ST. EX” (page 48).

• Depending on the source, the effect of the surround speakers may be less notic ea bl e.

Operation

Radio stations cannot be tuned in.

• Check that the antennas are connected securely. Adjust the antennas or connect an external antenna if necessary.

• T he signa l strength of the stations is too weak (when tuning in with automatic tuning). Use direct tuning.

• No stations have been preset or the preset stations have been cleared (when tuning by scanni ng preset stations). Preset the stations (page 60).

• Pre ss DISPLAY so that the frequency appears in the display.

The remote does not function.

• There are obstacles between the remote and the system.

• The distance between the remote and the system is too far.

• The remote is not pointed at the remote sensor on the system.

• The batteries in the remote are weak.

The disc does not play.

• T here is no disc inserted.

• The di sc is upsi de down. Insert the disc with the playback side facing down on the disc tr ay.

• The disc is skewed in the system.

• The system cannot play CD-ROMs, etc. (page 8).

• The region code on the DVD does not match the system.

• Moisture has condensed inside the system. Remove the disc and leave the syst em tu rn ed on for about half an hour (page 3).

The MP3 audio track cannot be played.

• The DATA CD is not recorded in an MP3 format that conforms to ISO9660 Level 1/ Level 2 or Joliet.

• The MP3 audio track does not have the extension “.MP3.”

• T he data is not formatted in MP3 even though it has the extension “.MP3.”

• The system can only play MP3 (MPEG1 Audio Layer3) audio.

• Remove the disc and select “CUSTOM SETUP” from the setup items. Then select “DATA CD PRIORITY ” and set to “MP3” a gain.

• Directory level is more th an 8.

Additional Information

continued

Page 76

The title of the MP3 audio album or track is not correctly displayed.

• The syste m can only display alphabetical letters and numbers. Other characters are disp la ye d as “”.

A JPEG image file cannot be played

• The DATA CD is not recorded in a JPEG format that conforms to ISO9660 Level1/Leve l 2 or Joliet.

• The JPEG image file does not have the extension “.JPG” or “.JPEG.”

• The data is not formatted in JPEG even though it has the extension “.JPG” or “JPEG.”

• Image length or width is more than 4720 dots.

• Remove the disc and select “CUSTOM SETUP” from the setup items. Then select “DATA CD PRIORITY” and set to “JPEG” again .

• There are more than 8 directory level.

• You cannot play the Progressive JPEG files.

The title of a JPEG album or file is not correctly displayed.

• The syste m can only display alphabetical letters and numbers. Other characters are disp la ye d as “”.

The display for entering the passw o rd does not appear for Super Audio CD, even though Custom Parental Control is set.

• Custom Parental Control is set for differ ent layers of a Super Audio CD.

A disc does not start playing from the beginning.

• Program Pla y, Shuf f le Pl ay , or Repe at Play ha s been selected (pages 34, 35, 36). Press CLEAR to cancel these func ti ons before playing a disc.

• Resume Play has been selected. During stop, press x on the system or the rem ot e and then start playback (page 27) .

• The title, DVD or PBC menu automatically appears on the TV screen.

The system starts playing th e disc automatically.

• The DVD features an auto playback function.

Playback stops automatically.

• Some disc s ma y co nta in a n auto pause signal. While playing such a disc, the system stops playback at the auto pause signal.

The system turns off during DVD playback.

• If approximately one hour passes with DVD playback paused or with the DVD top menu or a DVD menu displayed during DVD playback, the system automatically turns off.

You cannot perform some functions such as Stop, Search, Slow-motion Play, Repeat Play, Shuffle Play , or Program Play.

• Depending on the disc, you may not be able to perform some of the operations above. See the operating manual that cam e with the disc.

Messages do not appear on the screen in the language you want.

• In the Setup Display, select the desired language for the on-screen display in “OSD” under “LANGUAGE SETUP” (page 66).

The language for the sound track cannot be changed.

• Multilingual tracks are not recorded on the DVD being played.

• The DVD prohibits changing the language for the sound track.

The subtitle language cannot be changed.

• Multi lingual subtitles are not recorded on the DVD being played.

• The DVD prohibits changing the subtitles.

The subtitle cannot be turned off.

• The DVD prohibits turning off subtitles.

The angles cannot be changed.

• Multi-angles are not recorded on the DVD being played (page 51).

• The DVD prohibits changing the angles.

A disc cannot be ejected and “LOCKED” appears in the front panel display.

• Contact your Sony dealer or local authorized Sony service facility.

The system does not work normally.

• If the system’s operation becomes effected, press "/1 on the system to turn off the power, then turn on the power again.

Page 77

Specifications

AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION:

With 4 ohm loads, both channels dri ve n, fr om 20 – 20,000 Hz; rated 75 watts per channel minimum RMS power, with no more than 0.7 % total harmonic distortion. (from 250 milli watts to rated output)

Amplifier section

Stereo mode 100 W + 100 W (4 ohms

Surround mode Front: 100 W + 100 W

* Depending on the sound field settings and the source,

there may be no sound output.

Inputs VIDEO 1:

Outputs VIDEO 1 (AUDIO

Super Audio CD/DVD system

Laser Semiconductor laser

Signal format system NTSC or NTSC/PAL Frequency response (at 2 CH STEREO mode)

Harmonic distortion Less than 0.03 %

at 1 kHz, THD 10 %)

centre*:

100 W

Surround*:

100 W +

100W (4 ohms at 1 kHz,

THD 10 %) Subwoofer*: (4 ohms at 100 Hz, THD 10 %)

Sensitivity: 150 mV

100 W

Impedance: 50 kilohms VIDEO 2:

Sensitivity: 300 mV

Impedance: 50 kilohms

OUT):

Voltage: 1 V

Impedance: 1 kilohm PHONES: Accepts stereo headphones only.

(Super Audio CD/DVD: λ = 650 nm) (CD: λ = 780 nm) Emission duration: continuous

DVD (PCM): 2 Hz to 22 kHz (±1.0 dB)

CD: 2 Hz to 20 kHz (±1.0 dB)

Tuner section

System PLL quartz-locked digital

FM tuner section Tuning range North American models: 87.5 – 108.0 MHz

Other models: 87.5 – 108.0 MHz

Antenna FM wire antenna Antenna terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range North American models: 5 31 – 1,71 0 kHz (wit h the

Other models: 531 – 1,602 kHz (wit h the

Antenna AM loop antenna Intermediate frequency 450 kHz

synthesizer system

(100 kHz step)

(50 kHz step)

interval set at 9 kHz ) 530 – 1,710 kHz (with the interval set at 10 kHz)

interval set at 9 kHz ) 530 – 1,710 kHz (with the interval set at 10 k H z)

Video section

Inputs Video: 1 Vp-p 75 ohms Outputs Video: 1 Vp- p 75 ohm s

S video: Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms COMPONENT: Y: 1 Vp-p 75 ohms

PB/CB, PR/CR: 0.7 Vp-p 75 ohms

Speakers Front/Surround

Speaker system Bass reflex Speaker unit 70 mm (2

cone type Rated impedance 4 ohms Dimensions (approx.) 128 × 216 × 114 mm

(w/h/d, with the stand) Mass (approx.) 0.53 kg (1 lb 3 oz)

/8 inches) dia.

/8 × 8 5/8 × 4 1/2 inches)

Additional Information

continued

Page 78

Centre

Speaker system Bass reflex Speaker unit 70 mm (2

cone type Rated impedance 4 ohms Dimensions (approx.) 190 × 122 × 89 mm

(w/h/d, with the st and) Mass (approx.) 0.56 kg (1 lb 4 oz)

/8 inches) dia.

/2 × 4 7/8 × 3 5/8 inches)

Subwoofer

Speaker system Bass reflex Speaker un it 160 mm (6

cone type Rated impedance 4 ohms Dimensions (approx.) 190 × 384 × 357 mm

inches) (w /h/d) Mass (approx.) 7.67 kg (16 lb 15 oz)

/8 inches) dia.

/2 × 15 1/8 × 14 1/8

General

Power requirements North American models: 120 V AC, 60 Hz Australian and Asian models:

Power consumption North American models: 135 W Australian and Asian models:

Dimensions (approx.) 380 × 70 × 345 mm

Mass (approx.) 4.8 kg (10 lb 10 oz) Operating temperature 5°C to 35°C (41°F to 95°F) Operating humidity 5 % to 90 % Supplied accessories See page 1 3.

Design and specifications are subject to change without notice.

220 – 240 V AC, 50/60 Hz

135 W

(15 × 2 7/8 × 13 5/8 inches)

(w/h/d) incl. projecting

parts

Glossary

Album

Section of a music piece or an image on a data CD containing MP3 a udi o t ra cks or JPEG files.

Chapter

Subdivision of a title on a DVD. A title is composed of sev er al chapters.

Dolby Digital

This movie theatre sound format is more advanced than Dolby Surround Pro Logic. In this format, the surround speakers output stereo sound with an expanded frequency range, and a subwoofer channel for deep bass is independently provided. This format is also called “5.1,” wit h t h e subwoofer channel designated as the 0.1 channel (since it functions only when a d ee p bass effect i s needed). All six channels in this f ormat are recorded separ at ely for superior ch annel separation. Furth ermore, since all the signals are processed digitally, less signal degradat io n occurs.

Dolby Pro Logic II

Dolby Pro Logic II cr eates five full-bandwidth output channels from two-channel sources. This is done using an adva nced, high-purity matrix surround decoder that extracts the spatial properties of the or iginal recording without adding any new sounds or tonal colorations.

x Movie mode

The Movie mode is for use with stereo television shows and all prog rams encoded in Dolby Surround. The result is enhanced soundfield directionality tha t a pproaches the quality of discrete 5.1-ch annel sound.

x Music mode

The Music mode is f or use with an y stereo musi c recordings, and provides a wide and deep sound space.

Page 79

Dolby Surround Pro Logic

As one method of decoding Dolby Surround, Dolby Surround Pro Logic produces four channels from two-channel sound. Compared with the former Dolby Surround system, Dolby Surround Pro Logic reproduces left-to-right panning more naturally and localizes sounds more precis ely. T o tak e ful l adva ntage of Dol by Surround Pro Logic, you should have one pair of surround speakers and a centre speaker. Th e surround speake rs output monaural sound.

DTS

Digital audio compression technology develope d by Dig ital Theat er Sys tems, Inc. This technology conform s to 5.1-channel surround. This format comprises of stereo rear channels and a discrete subwoofer channel. DTS provides the same 5.1 discre te channels of high quality digital audio. The good channel separation is realized due to all channel data being recorde d discretely and pr ocessed digitally.

DVD

A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD. The data capacity of a si ngle-layer and singlesided DVD, at 4.7 GB (Giga Byte), is 7 times that of a CD. Fu rthermor e, the data cap acity o f a dual-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD 9.4 GB, and a dual-layer and double-sided DVD 17 GB. The pictur e data uses the MPE G 2 format, on e of a worldwide standard of digital compression technology. The pict ur e data is compressed to about 1/40 of its orig inal size. DVD also uses variable rat e co ding technolog y that processes allocated data according to the status of the picture. The audio data is recorded in Dolby Digital as well as in PCM, allowing you to enjoy more realistic audio pr esence. Furthermor e, various advan ce d functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD.

File

Section of a picture on a data CD containing JPEG image files.

Film based software, Video based software

DVDs can be classified as Film based or Video based software. Film based DVDs contain the same images (24 frames per second) that are shown at movie theatres. Video based DVDs, such as television dramas or sit-coms, displays images at 30 frames (or 60 fields) per second .

Interlace format (Interlaced scanning)

The Interlace format is the NTSC standard method for displ ayi ng TV images at 30 frames per second. Each frame is scanned twice alternately between the even numbered scanning lines and then odd numbered scanning lines, at 60 times per second.

Multi-angle function

Various angle s of a scene, or viewpoints of th e video camera are recorded on some DVDs.

Multilingual function

Several languages for the sound or subt itles in a picture are recorded on some DVDs.

Parental Control

A function of the DVD to limit playback of the disc by the age of th e users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback is completely prohibited, violent scenes are sk ipped or repla ced with other s cenes and so on.

Playback Control (PBC)

Signals encoded on VIDEO CDs (Version 2.0) to control playback. By using menu sc reens recorded on VIDEO CDs with PBC functions, you can enjoy playing simple interactive programs, programs with search functions, and so on.

Progressive format (sequential scanning)

In contrast to the Interlace format, the progressive format can reproduce 60 frames per second by repro ducing all scanning lines (525 lines for the NTSC system). The overall picture quality increases and still images, text and horizontal lines appear sharper. This format is compatible wi th the 525 progressive form at.

Additional Information

continued

Page 80

Region Code

This system is used to protect copyrights. A region number is allocated on each DVD syst em or DVD disc according to the sales regio n. Each region code is shown on the sy stem as well as on the disc packaging. The system can play the discs that match its region code. The system can also play disc s wi th th e “ ” mark. Even when

ALL

the region code is not shown on the DVD, the region limit may still be activated.

Scene

On a VIDEO CD with PBC (playback control) functions, the menu screens, moving pictures and still pictures are d ivided in to sections called “scenes.”

Super Audio CD

This audio format is based upon the curren t audio CD standards but includes a greater amount of informat i on w hich provides higher quality sound. There are three types of discs: single layer , double layer an d hybrid discs. T he hybrid disc contains both standard audio CD and Super Audio CD information.

Title

The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software.

Track

Section of a pic tu re or a musi c pi ece on a Su per Audio CD, CD, VIDEO CD or MP3. An album is composed of several tracks (MP3 on ly ).

VIDEO CD

A compact disc that contains moving pictures. The picture data uses the MPEG 1 format, one of a worldwide standard of digital compression technology. The pict ur e data is compressed to about 1/140 of its original size. Consequently, a 12 cm VIDEO CD can contain up to 74 minutes of moving pictures. VIDEO CDs also con t ain compact audi o data. Sounds outside th e range of human hearing are compressed while sounds we can hear are not compressed. VIDEO CDs can hold 6 times the audio informatio n of conventional audio CDs. There are 2 versions of V ID EO CDs.

• Version 1.1: You can play only moving pictures and sounds.

• Version 2.0: You can play hi gh-resolution s till pictures and enjoy PBC functions.

This system conform s t o both versions.

Page 81

Index to Parts and Controls

For more information, refer to the pages indicated in parentheses.

Front Panel

Additional Information

A Disc slot (24) B DISC 1-5 A (eject)/indicators (24) C H (play) (24) D X (pause) (26) E x (stop) (26) F ./>, PREV/NEXT (26, 28, 60, 61) G VOLUME +/– (24, 71) H BASS LEVEL (50)

I PHONES jack (on the side of the

system) (24)

J SOUND FIELD –/+ (47, 48, 49) K DISPLAY (40, 43, 61) L BAND (60, 61) M FUNCTION (24, 59, 61) N Front panel display (82) O (remote sensor) (13) P "/1 (power) switch/STANDBY indicator

(24)

Page 82

Front Panel Display

When playing back a DVD

Current sound Pla ying statu s

DIGITAL

DOLBY PL

Play mode

ALL DISC1S

TITLE H M SCHAP

Current title number

Current chapter number

Playing time

Current sound effect

NIGHT

BASS SHUF

PROG REP 1

Current mode

When playing back a Super Audio CD, CD, VIDEO CD (without PBC functions), or MP3

Light up during MULTI channel playback area (Super Audio CD only)

Current sound

MULTI

PCM MP3 ALL DISC1S

Playing status

Play mode

Current track number

Playing time

Current sound effect

MSTRKSACD

NIGHT

Lights up during PBC playback (VIDEO CD only)

BASS SHUF

PBC PROG

REP 1

Current mode

When listening to the radio

Preset number

FMAM

Current band

Monaural/Stereo effect

TUNED MONO

Current station

Sound effect

STNIGHT kHz BASS MHz

Page 83

When playing back a JPEG file

Playing status

ALL DISC1S

Play mode

Current file number

Additional Information

Page 84

Rear Panel

CENTER FRONT LFRONT R

WOOFER SURR LSURR R

SPEAKER

SCAN SELECT

SELECTABLE

INTERLACE

COMPONENT

VIDEO OUT

A SPEAKER jacks (15) B SCAN SELECT switch (68) C VIDEO 1 ANALOG OUT jacks (20) D VIDEO 2 ANALOG IN jacks (20) E MONITOR OUT (VIDEO/S VIDEO) jacks

(20)

VIDEO 1

VIDEO OUTAUDIO OUT

VIDEO INAUDIO IN

VIDEO 2

VIDEO IN

AUDIO IN

PB/CBPR/C

COMPONENT VIDEO OUT

MONITOR OUT

S VIDEO

VIDEO

OPTICAL DIGITAL

VIDEO 2

F AM terminals (18) G FM 75Ω COAXIAL jack (18) H VIDEO 2 OPTICAL DIGITAL IN jack (20) I COMPONENT VIDEO OUT jacks (20) J VIDEO 1 ANALOG IN jack (20)

COAXIAL

Page 85

Remote

Note

This remote control glows in the dark. However, before glowing, the remote must be exposed to light for awhile.

A DISC SKIP (26)

Z (eject) (26)

B C DISPLAY (40, 43, 61) D FUNCTION (24, 59, 61) E STEREO/M ONO (61) F BAND (60, 61)

G PLAY MODE (33, 34, 35) H CLEAR (34, 35, 36, 38) I TV (59) J AUDIO (45) K ANGLE (51) L SUBTITLE (52) M ./>, PREV/NEXT, PRESET –/+ (26,

28, 60, 61)

N H (play) (24, 28, 34, 35) O X (pause) (26) P DVD TOP MENU/ALBUM– (27, 29, 31) Q C/X/x/c/ENTER (27, 29, 31, 33, 34, 36,

38, 45, 51, 52, 53, 60, 62, 63, 64, 65)

R DVD DISPLAY (29, 31, 33, 36, 38, 43, 44,

45, 51, 52, 53)

S TV CH +/– (58) T TV VOL +/– (58) U TV [/1 (on/standby) (58) V "/1 (standby) (24, 60) W REPEAT (34, 36) X NAME (62) Y SOUND FIELD +/– (47, 48, 49) Z MEMORY (60)

wj NIGHT MODE (50) wk Number buttons (27, 28, 34, 38, 51, 53,

55, 58)

wl ENTER (60) e; m/M/ / SLOW, TUNING –/+ (32,

37, 60)

ez x (stop) (26, 27, 28, 53) es MUTING (26) ed DVD MENU/ALBUM+ (27, 29, 31) ef VOLUME +/– (61) eg O RETURN (28, 29, 31, 33, 34, 38, 53,

55, 65)

eh TV/VIDEO (58) ej BASS LEVEL (50) ek AMP MENU (63, 64) el DVD SETUP (55, 65)

Additional Information

Page 86

Language code list

The language spe lli ngs conform to the ISO 639: 1 988 (E/F) standard.

Code Language Code Language Code Language

1027 Afar 1028 Abkhazian 1032 Afrikaans 1039 Amharic 1044 Arabic 1045 Assamese 1051 Aymara 1052 Azerbaijani 1053 Bashkir 1057 Byelorussian 1059 Bulgarian 1060 Bihari 1061 Bislama 1066 Bengali; Bangla 1067 Tibetan 1070 Breton 1079 Catalan 1093 Corsican 1097 Czech 1103 Welsh 1105 Danish 1109 German 1130 Bhutani 1142 Greek 1144 English 1145 Esperanto 1149 Spanish 1150 Estonian 1151 Basque 1157 Persian 1165 Finnish 1166 Fiji 1171 Faroese 1174 French 1181 Frisian 1183 Irish 1186 Scots Gaelic 1194 Galician 1196 Guarani 1203 Gujarati 1209 Hausa 1217 Hindi 1226 Croatian 1229 Hungarian 1233 Armenian 1235 Interlingua 1239 Interlin

1245 Inupiak 1248 Indonesian 1253 Icelandic 1254 Italian 1257 Hebrew 1261 Japanese 1269 Yiddish 1283 Javanese 1287 Georgian 1297 Kazakh 1298 Greenlandic 1299 Cambodian 1300 Kannada 1301 Korean 1305 Kashmiri 1307 Kurdish 1311 Kirghiz 1313 Latin 1326 Lingala 1327 Laothian 1332 Lithuanian 1334 Latvian; Lettish 1345 Malagasy 1347 Maori 1349 Macedonian 1350 Malayalam 1352 Mongolian 1353 Moldavian 1356 Marathi 1357 Malay 1358 Maltese 1363 Burmese 1365 Nauru 1369 Nepali 1376 Dutch 1379 Norwegian 1393 Occitan 1403 (Afan) Oromo 1408 Oriya 1417 Punjabi 1428 Polish 1435 Pashto; Pushto 1436 Portuguese 1463 Quechua 1481 Rhaeto-Romance 1482 Kirundi 1483 Romanian

1489 Russian 1491 Kinyarwanda 1495 Sanskrit 1498 Sindhi 1501 Sangho 1502 Serbo-Croatian 1503 Singhalese 1505 Slovak 1506 Slovenian 1507 Samoan 1508 Shona 1509 Somali 1511 Albanian 1512 Serbian 1513 Siswati 1514 Sesotho 1515 Sundanese 1516 Swedish 1517 Swahili 1521 Tamil 1525 Telugu 1527 Tajik 1528 Thai 1529 Tigrinya 1531 Turkmen 1532 Tagalog 1534 Setswana 1535 Tonga 1538 Turkish 1539 Tsonga 1540 Tatar 1543 Twi 1557 Ukrainian 1564 Urdu 1572 Uzbek 1581 Vietnamese 1587 Volap k 1613 Wolof 1632 Xhosa 1665 Yoruba 1684 Chinese 1697 Zulu

1703

Not specified

Page 87

DVD Setup Menu List

You can set the following items with the DVD Setup menu. The order of the displayed items may be different from the actual display.

LANGUAGE SETUP

OSD

DVD MENU

AUDIO

SUBTITLE

(Select the language you want to use from the displayed language list.)

CUSTOM SETUP

VCD COLOR SYSTEM

PARENTAL CONTROL

TRACK SELECTION

AUDIO DRC

DATA CD PRIORITY

JPEG DATE

a) Only for Asian models and Australian models. b) In SPE A K ER SETUP, the North American mode l’ s O SD di splays both metric and imperial measurements.

Other model displays are metr i c me a sure me nts only. The manual shows both.

c) The default settings vary, depending on the country model.

LEVEL

STANDARD CHANGE PASSWORD

OFFOFF AUTO

OFF ON

MP3 JPEG

MM/DD/YYYY YYYY/MM/DD DD/MM/YYYY YYYY/DD/MM

AUTO PAL NTSC OFF

7. NC17

6. R

4. PG13

3. PG

1. G USA OTHERSt

SCREEN SETUP

TV TYPE

SCREEN SAVER BACKGROUND

COMPONENT OUT

SPEAKER SETUP

SIZE

DISTANCE

LEVEL CENTER

BALANCE TEST TONE

SURROUND LEFT

SURROUND RIGHT SUBWOOFER –6 dB – +6 dB

RESET

YES NO

16:9 4:3 LETTER

4:3 PAN SCAN ON OFF JACKET PICTURE GRAPHICS BLUE

BLACK INTERLACE PROGRESSIVE

FRONT CENTER

SURROUND

SUBWOOFER

FRONT 1.0m – 7.0m/

CENTER SURROUND

FRONT OFF ON

BOX

YES YES NONE BEHIND (LOW) BEHIND (H IGH) SIDE (LOW) SIDE (HIGH) NONE

YES

3ft – 23ft

1.0m – 7.0m/ 3ft – 23ft

1.0m – 7.0m/

3ft – 23ft –6 dB – +6 dB –6 dB – +6 dB

–6 dB – +6 dB

6 steps left or right

Additional Information

Page 88

Index

Numerics

16:9 67 4:3 LETTER BOX 67 4:3 PAN SCAN 67

ALBUM 29, 38 Album 7, 78 ANGLE 51 Antenna Hookups 18 AUDIO 45, 66 AUDIO DRC 69

BACKGROUND 67 BALANCE 71 BASS LEVEL 50 Batteries 13

CHAPTER 39 Chapter 7, 78 COMPONENT OUT 68 Continuous play

CD/VIDEO CD/Super Audio

CD/DVD/MP3 24 Control Menu 11 CUSTOM PARENTAL

CONTROL 53 CUSTOM SETUP 68

DATA CD PRIORITY 69 DISC SKIP 24 DISPLAY 40 DISTANCE 71 Dolby Digital 78 Dolby Surro und Pro Logic 79 DTS 79 DVD 79 DVD MENU 27, 66

Fast forward 37 Fast reverse 37 File 7 Front Panel 81 Front panel display 82

Handling discs 10

INDEX 39 Index 7

JPEG 30 JPEG DATE 69

LANGUAGE SETUP 66 LEVEL 71

MP3 29 Multi-angle function 51, 79 Multiling u al function 45, 79 MUTING 26

NIGHT MODE 50

On-screen display

Control Menu display 11

OSD 66

P ARENT AL C ONTROL 5 5, 68,

79 PBC Playback 28, 79 PLAY MODE 33, 34, 35 Preset Station 60 Program Play 34

Radio 61 Rear Panel 84 Region Code 8, 80 Remote 58, 85 REPEAT 36 RESET 66 Resume Play 27

S VIDEO 20

Scan 37 SCENE 11 Scene 7, 80 SCREEN SAVER 67 SCREEN SETUP 67 Setup Disp l ay 65 SHUFFLE 35 Shuffle Play 35 SIZE 70 SLEEP 63 Slide show 32 Slow-motion 37 Sound Field 47 SPEAKER SETUP 23, 70 Speaker System Hookup 14 SUBTITLE 52, 66 Super Audio CD 80

TEST TONE 71 TIME SEARCH 40 TITLE 38 Title 7, 80 TRACK 38 Track 7, 29 , 80 TRACK SELECTION 69 Troubleshooting 74 TV and Video Component

Hookups 20

TV TYPE 67

Usable discs 7

VCD COLOR SYSTEM 68 VIDEO CD 80

Page 89

Page 90

Page 91

Page 92

Quick reference for Remote Commander

P Displays the title menu on the TV scree n.

MP3/JPEG: Select albums

Q Selects and executes the items or settings. R Displays the Control Menu display on the TV

screen to set or adjust the items .

S Select the TV Channel. T Adjust the TV volume. U Turns the TV on and off. V Turns on and off the power of the system. W Displays the “REPEAT” display on the TV

screen.

X Activates the name function. Y Selects the sound field. Z Press to store a preset stat i on.

wj Makes sound clear at low volume. wk Selects the items of settings. TV: Selects channel

numbers.*

wl E xecutes the items or settings. e; m/M (SCAN) : Locate a point while

monitoring the picture while pl ay ing disc.

/ SLOW : Play a disc in slow motion in the

pause mode. TUNING –/+ : Scan all available radio stations.

ea Stops playing a disc. es Mutes the sound.

Note

The remote control of the unit employs command signals in common with other Sony DVD products. Thus, depending on the button, other Sony DVD products may respond.

A Selects a disc for playback. B Eject the disc. C Switches the item disp la ye d on the front panel

display.

D Selects the component you want to use. E Switches monaural or stereo of FM stereo

reception.

F Selects AM or FM band. G Selects program or shuffle play mode. H Press to return to the Continuous play, etc . I Set the remote to TV mode.

Normal mode: tuns off. TV mode: tuns in red.

J Changes the sound. K Changes the angles when playing a DVD. L Change the subtitle. M ./>, PREV/NEXT : Press to go to the next

chapter or track or to go back to the previous chapter or track. PRESET –/+ : Scan all preset stations.

N Plays a disc. O Pauses playing a disc.

ed Displays the DVD menu on the TV screen.

MP3/JPEG: Select albums

ef A d just the SYSTEM volume. eg Press to return to the previously selected screen,

etc.

eh Changes the input mode of the TV. ej Bass sound is effectively reinforced. ek Sets the system to turn off at a preset time and

changes the brightness of the front panel display by two steps.

el Displays the setup display on the TV screen to set

or adjust the items.

* Depending on the TV manufacture, the following method

also works. Press >10, then the number. (For example, for channel 25, press >10, then 2 and 5.)

Sony Corporation Printed in Korea

Sony SS-TS6, SS-TS7, SS-TS5 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
