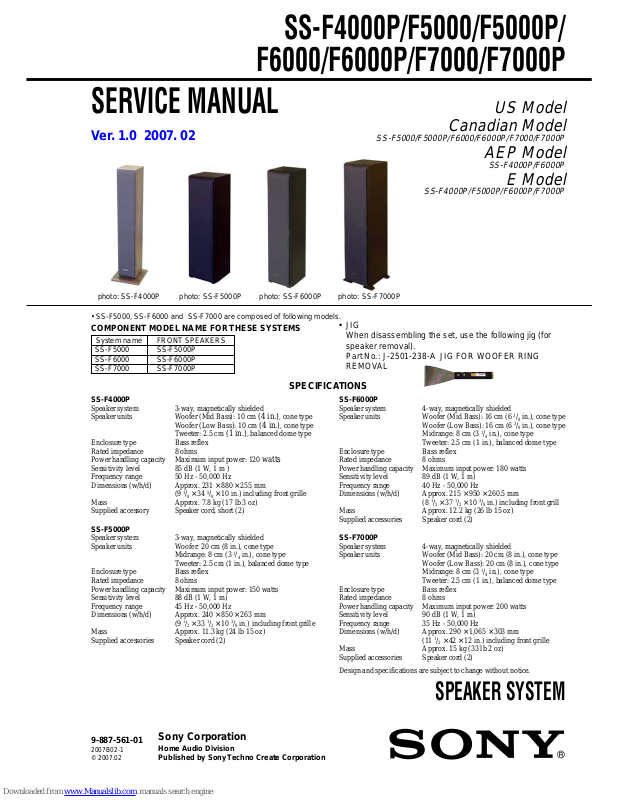

Page 1
1
Ver. 1.0 2007. 02
SERVICE MANUAL
US Model
Canadian Model
SS-F5000/F5000P/F6000/F6000P/F7000/F7000P
AEP Model
SS-F4000P/F6000P
E Model
SS-F4000P/F5000P/F6000P/F7000P
SPECIFICATIONS
• SS-F5000, SS-F6000 and SS-F7000 are composed of following models.
Sony Corporation
Home Audio Division
Published by Sony Techno Create Corporation
9-887-561-01
2007B02-1
© 2007.02
SPEAKER SYSTEM
SS-F4000P/F5000/F5000P/
F6000/F6000P/F7000/F7000P
photo: SS-F4000P photo: SS-F6000Pphoto: SS-F5000P
SS-F4000P
Speaker system 3-way, magnetically shielded
Speaker units Woofer (Mid Bass): 10 cm (4 in.), cone type
Woofer (Low Bass): 10 cm (4 in.), cone type
Tweeter: 2.5 cm (1 in.), balanced dome type
Enclosure type Bass reflex
Rated impedance 8 ohms
Power handling capacity Maximum input power: 120 watts
Sensitivity level 85 dB (1 W, 1 m )
Frequency range 50 Hz - 50,000 Hz
Dimensions (w/h/d) Approx. 231 × 880 × 255 mm
(9 1/8 × 34 5/8 × 10 in.) including front grille
Mass Approx. 7.8 kg (17 lb 3 oz)
Supplied accessory Speaker cord, short (2)
SS-F5000P
Speaker system 3-way, magnetically shielded
Speaker units Woofer: 20 cm (8 in.), cone type
Midrange: 8 cm (3 1/4 in.), cone type
Tweeter: 2.5 cm (1 in.), balanced dome type
Enclosure type Bass reflex
Rated impedance 8 ohms
Power handling capacity Maximum input power: 150 watts
Sensitivity level 88 dB (1 W, 1 m)
Frequency range 45 Hz - 50,000 Hz
Dimensions (w/h/d) Approx. 240 × 850 × 263 mm
(9 1/2 × 33 1/2 × 10 3/8 in.) including front grille
Mass Approx. 11.3 kg (24 lb 15 oz)
Supplied accessories Speaker cord (2)
SS-F6000P
Speaker system 4-way, magnetically shielded
Speaker units Woofer (Mid Bass): 16 cm (6 3/8 in.), cone type
Woofer (Low Bass): 16 cm (6 3/8 in.), cone type
Midrange: 8 cm (3 1/4 in.), cone type
Tweeter: 2.5 cm (1 in.), balanced dome type
Enclosure type Bass reflex
Rated impedance 8 ohms
Power handling capacity Maximum input power: 180 watts
Sensitivity level 89 dB (1 W, 1 m)
Frequency range 40 Hz - 50,000 Hz
Dimensions (w/h/d) Approx. 215 × 950 × 260.5 mm
(8 1/2 × 37 1/2 × 10 3/8 in.) including front grill
Mass Approx. 12.2 kg (26 lb 15 oz)
Supplied accessories Speaker cord (2)
SS-F7000P
Speaker system 4-way, magnetically shielded
Speaker units Woofer (Mid Bass): 20 cm (8 in.), cone type
Woofer (Low Bass): 20 cm (8 in.), cone type
Midrange: 8 cm (3 1/4 in.), cone type
Tweeter: 2.5 cm (1 in.), balanced dome type
Enclosure type Bass reflex
Rated impedance 8 ohms
Power handling capacity Maximum input power: 200 watts
Sensitivity level 90 dB (1 W, 1 m)
Frequency range 35 Hz - 50,000 Hz
Dimensions (w/h/d) Approx. 290 × 1,065 × 303 mm
(11 1/2 × 42 × 12 in.) including front grille
Mass Approx. 15 kg (33 lb 2 oz)
Supplied accessories Speaker cord (2)
Design and specifications are subject to change without notice.
System name FRONT SPEAKERS
SS-F5000 SS-F5000P
SS-F6000 SS-F6000P
SS-F7000 SS-F7000P
photo: SS-F7000P
COMPONENT MODEL NAME FOR THESE SYSTEMS
• JIG
When disassembling the set, use the following jig (for
speaker removal).
Part No.: J-2501-238-A JIG FOR WOOFER RING
REMOVAL
Page 2
2
SS-F4000P/F5000/F5000P/
F6000/F6000P/F7000/F7000P
SECTION 1
EXPLODED VIEWS
Ref. No. Part No. Description Remark
1-1. SS-F4000P
(AEP, E)
Ref. No. Part No. Description Remark
1 A-1226-023-A GRILLE FRAME ASSY
2 3-097-050-01 WOOFER RING
3 4-874-614-12 SCREW (1) (3.5X14), TAPPING
4 1-826-575-11 LOUDSPEAKER (10cm)
5 1-826-576-11 LOUDSPEAKER (10cm)
6 4-254-182-01 CATCHER
7 4-235-903-02 SCREW (3.5X20)
8 X-2176-239-1 TWEETER ASSY
9 A-1226-022-A SPEAKER CABINET ASSY (BLACK) (E)
9 A-1226-034-A SPEAKER CABINET ASSY (WOOD) (AEP, E)
NOTE:
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Abbreviation
CND: Canadian model
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) … (RED)
↑↑
Parts color Cabinet's color
1
2
2
4
6
3
3
5
7
8
9
6
Page 3
3
SS-F4000P/F5000/F5000P/
F6000/F6000P/F7000/F7000P
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
1-2. SS-F5000P
(US, CND, E)
51 A-1226-037-A GRILLE FRAME ASSY
52 2-898-827-01 WOOFER RING
53 1-826-597-11 LOUDSPEAKER (20cm)
54 2-898-826-01 MIDRANGE RING
55 4-874-614-12 SCREW (1) (3.5X14), TAPPING
56 4-254-182-01 CATCHER
57 1-826-594-11 LOUDSPEAKER (8cm)
58 4-235-903-02 SCREW (3.5X20)
59 X-2176-239-1 TWEETER ASSY
60 A-1226-029-A SPEAKER CABINET ASSY (BLACK) (US, CND, E)
60 A-1228-618-A SPEAKER CABINET ASSY (WOOD) (E)
51
52
53
54
56
56
55
57
58
59
60
not supplied
not supplied
Page 4
4
SS-F4000P/F5000/F5000P/
F6000/F6000P/F7000/F7000P

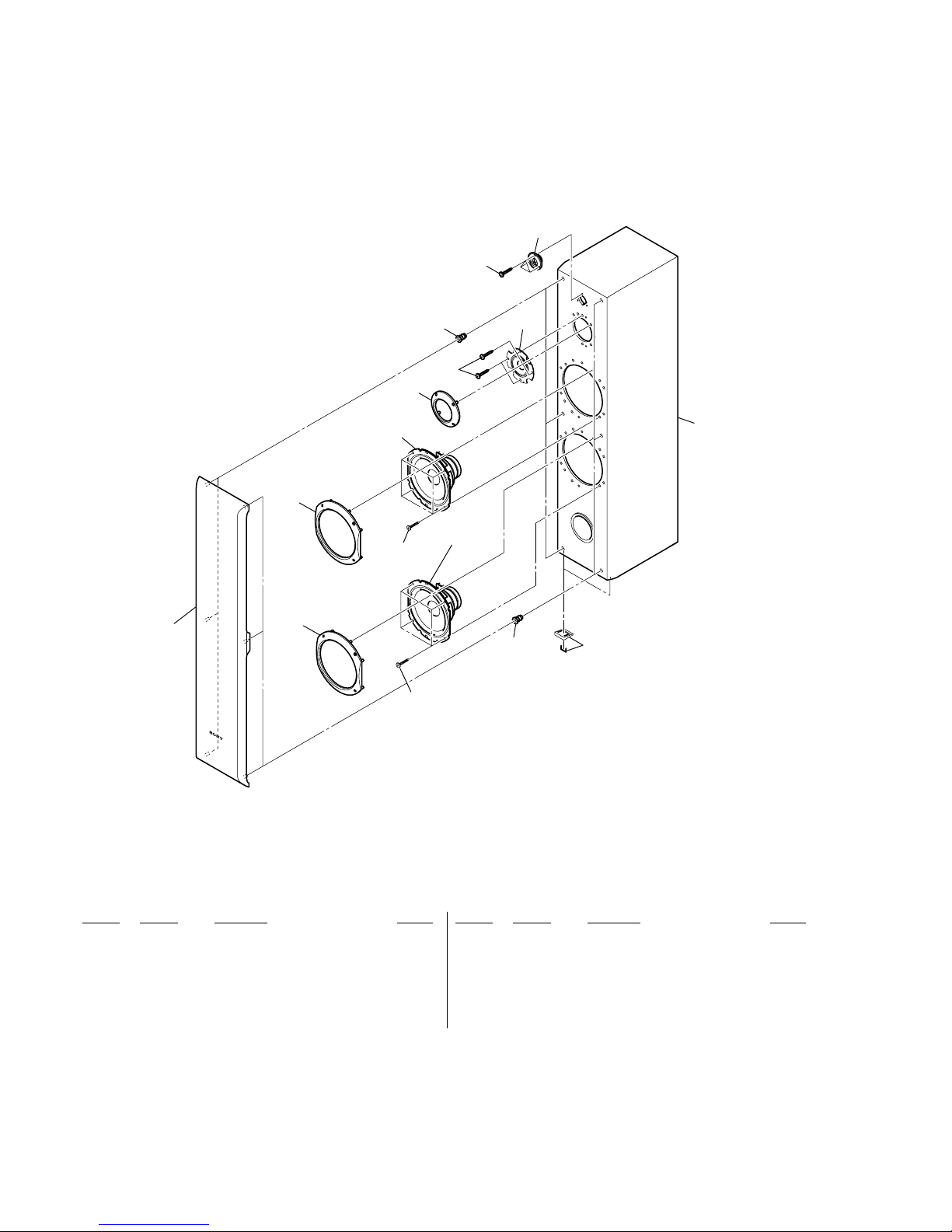

1-3. SS-F6000P
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
101 A-1226-249-A GRILLE FRAME ASSY
102 2-899-184-01 WOOFER RING
103 1-826-595-11 LOUDSPEAKER (16cm)
104 1-826-596-11 LOUDSPEAKER (16cm)
105 2-898-826-01 MIDRANGE RING
106 4-254-182-01 CATCHER
107 4-874-614-12 SCREW (1) (3.5X14), TAPPING
108 1-826-594-11 LOUDSPEAKER (8cm)
109 4-235-903-02 SCREW (3.5X20)
110 X-2176-239-1 TWEETER ASSY
111 A-1226-248-A SPEAKER CABINET ASSY (BLACK) (US, CND, E)
111 A-1226-317-A SPEAKER CABINET ASSY (WOOD) (AEP, E)
101
102
102
103
105
106
106
107
108
109
110
111
104
not supplied
not supplied
not supplied
Page 5
5
SS-F4000P/F5000/F5000P/
F6000/F6000P/F7000/F7000P

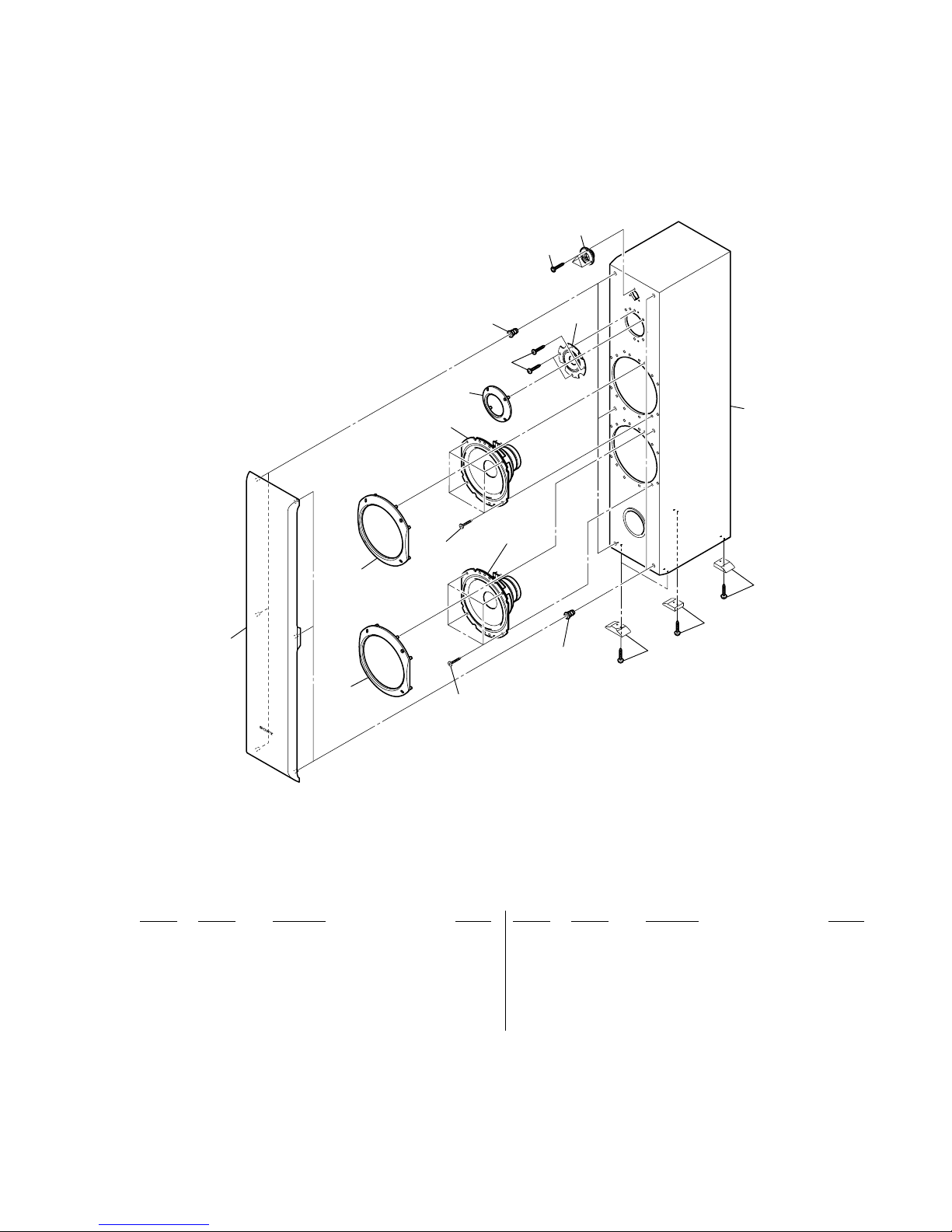

1-4. SS-F7000P
(US, CND, E)
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
151 A-1226-007-A GRILLE FRAME ASSY
152 2-898-827-01 WOOFER RING
153 1-826-577-11 LOUDSPEAKER (20cm)
154 1-826-592-11 LOUDSPEAKER (20cm)
155 2-898-826-01 MIDRANGE RING
156 4-254-182-01 CATCHER
157 4-874-614-12 SCREW (1) (3.5X14), TAPPING
158 1-826-594-11 LOUDSPEAKER (8cm)
159 4-235-903-02 SCREW (3.5X20)
160 X-2176-239-1 TWEETER ASSY
161 A-1224-862-A SPEAKER CABINET ASSY (BLACK) (US, CND, E)
161 A-1224-947-A SPEAKER CABINET ASSY (WOOD) (E)
151
152
152
153
155
156
157
158
159
160
161
154
156
not supplied
not supplied
not supplied
not supplied
not supplie
d
Page 6
6
SS-F4000P/F5000/F5000P/
F6000/F6000P/F7000/F7000P
Ref. No. Part No. Description Remark
ACCESSORIES
************
2-899-179-11 INSTRUCTION MANUAL (ENGLISH, FRENCH)
(US, CND)
1-769-433-41 CORD, SPEAKER (2.5m) (US, CND)
NOTE:
Please refer to the SS-FCR4000/FCR5000/FCR6000/FCR6500/
FCR7000 service manual separately issued for the accessory of
AEP and E model.
Page 7
7
SS-F4000P/F5000/F5000P/
F6000/F6000P/F7000/F7000P
MEMO
Page 8
SS-F4000P/F5000/F5000P/
F6000/F6000P/F7000/F7000P
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2007.02 New
