EIA/NTSC
Built-in Vari-focal Lens Camera
SSC-MX13V
SSC-CX13V
Page 2
Sony introduces the SSC-MX13V and SSC-CX13V built-in
vari focal lens cameras to its extensive line-up of
surveillance video cameras.
The built-in auto iris vari-focal lens of 2.8 to 5.8 mm is
equivalent to a 2x zoom lens. The focal length and focus
can easily be accessed and adjusted from the top panel.
In addition, the Sony original style and compact design
of the cameras is perfectly suited for any commercial
and fashionable facilities such as department stores,
shopping malls, banks, etc.
As found in other Sony SSC Series cameras, necessary
functions such as Turbo AGC, Backlight Compensation
(BLC), ATW (for SSC-CX13V) are incorporated.
These cameras utilize Sony’s high resolution 1/4 type
Super HAD CCD™to realize over 570 TV lines
(SSC-MX13V) or 480 TV lines (SSC-CX13V) of horizontal
resolution, and superb sensitivity of 0.3 lx (SSC-MX13V)
or 1.8 lx (SSC-CX13V) at F1.4.
As for power source, these models are applicable to both
DC 12 V and AC 24 V and can automatically switch to
either of the two modes upon supplying power, providing
flexible operation.
Offering excellent performance, easy set-up and
sophisticated design and providing excellent cost-
performance ratio, the SSC-MX13V and SSC-CX13V are
the right choice for a wide range of surveillance
applications.
Built in auto iris vari-focal lens
The focal length of the vari-focal lens is 2.8 to 5.8 mm,
equivalent to 2x zoom. The large angle of view range: 75.9° to
37.8° (H), 56.4° to 28.4° (V) covers a wide range of viewing
application requirements.
Users can easily adjust the focal length and focus at the top
panel of the camera. The incorporated auto iris lens allows the
camera to have a wider dynamic range, making it suitable for
use in a wide variety of application.
Compact and Stylish design
The compact design allows the camera to be installed in
space-limited locations.
Stylish design of blue and silver is perfectly suited to various
commercial and fashionable facilities, and indeed will be a good
addition to them.
Tripod screw holes
Tripod screw holes are already provided at the top and bottom of
the camera body. Therefore, tripod adaptor is not required for
set-up, realizing easy installation.
Page 3
High picture quality
Adoption of a 1/4 type Super HAD CCD allows the cameras to
realize min. illumination of 0.3 lx (SSC-MX13V) or 1.8 lx
(SSC-CX13V), achieve a horizontal resolution of over 570 TV lines
(SSC-MX13V) or 480 TV lines (SSC-CX13V), and ensures
excellent signal-to-noise ratio of 50 dB or more.
AC 24V/DC 12V operation
The camera automatically senses and adapts to the power being
supplied to it, either AC24V or DC12V, for proper operation.
AC Line Lock Capability
These cameras feature AC line lock for external synchronization.
Using the AC power frequency (60 Hz) as the vertical sync
reference provides roll-free switching in multi-camera
installations. These cameras also have an externally adjustable
Vertical Phase (±90°) control, so that completely accurate
synchronization can be attained. Additionally, when DC12V
power is supplied, the camera automatically switches to internal
sync mode.
AGC/Turbo AGC
AGC function boosts camera’s video gain so that the subject
under low illumination can be distinguished more clearly. Turbo
AGC (up to 24 dB)/Normal AGC (up to 18 dB) switchable.
BLC (Back Light Compensation)
Strong backlight can often cause the subject of the picture to be
cast into shadow. BLC function compensate for such backlight
conditions to make the subject more easily visible, providing an
improved level of object recognition.
Wide range ATW (SSC-CX13V)
The white balance can be automatically adjusted in response to
light conditions, such that pictures with an appropriate color
balance can always be obtained.
ATW color range: 2200 K to 10000 K
DSP (SSC-CX13V)
These cameras include DSP (Digital Signal Processing) LSI (Large
Scale Integration) technology to deliver excellent picture
performance. This technology also provides outstanding stability
over long periods of time and a level of reliability that cannot be
achieved with analog signal processing.

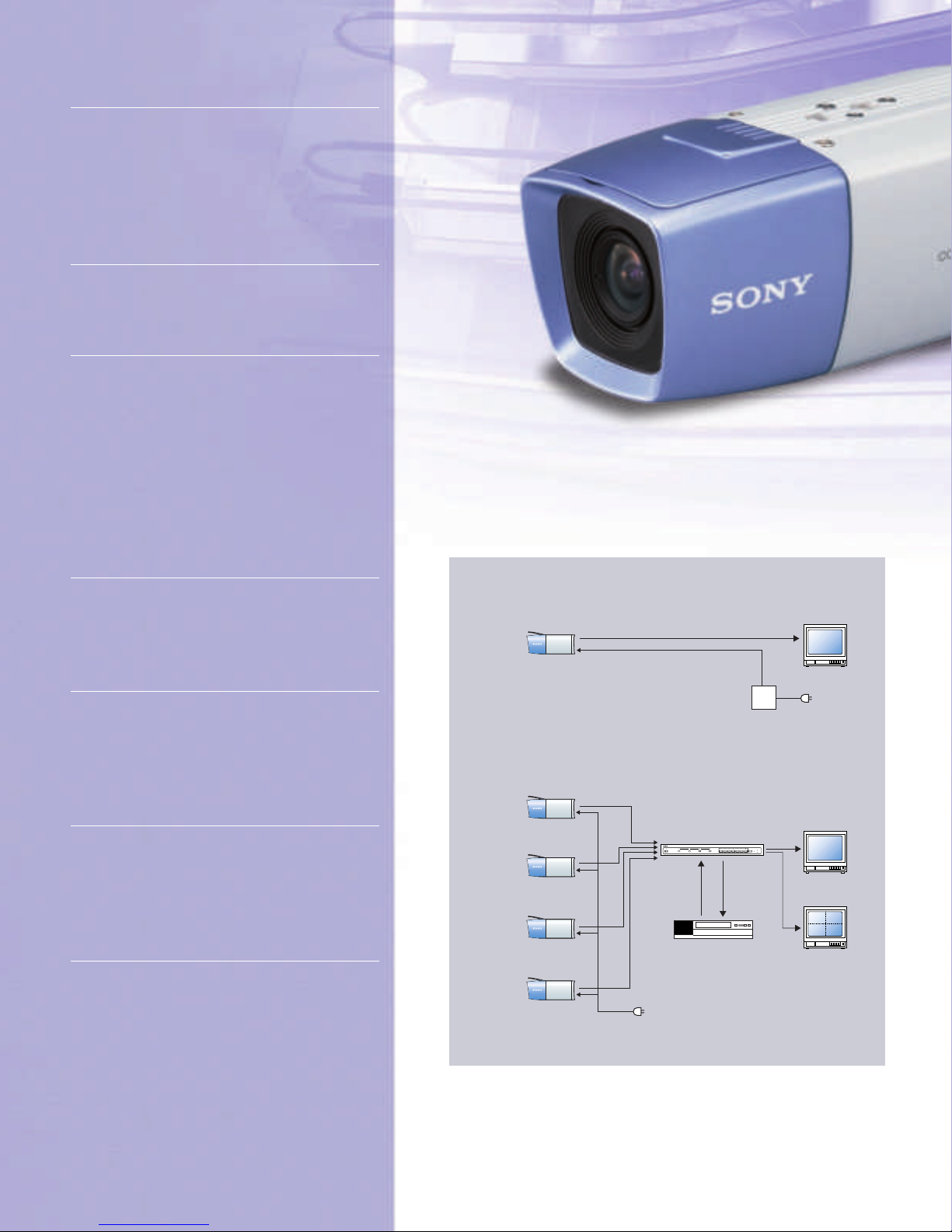

Typical System
Single camera operation
Video Monitor
VIDEO OUT
AC 24 V or DC 12 V
Multiple camera operation
Multiplexer
Video Monitor
Time Lapse VCR
AC outlet
*In case of AC 24 V/DC 12 V powered model, power supply box is needed.
Page 4
SSC-MX13V SSC-CX13V
Image device 1/4 type Interline Transfer CCD
Sensing area 1/4 type format (3.6 x 2.7 mm)
Scanning system 525 lines 60 fields/30 frames, 2 : 1 interlaced
Effective picture elements 768 (H) x 494 (V)
Signal system EIA NTSC
Synchronization system Internal/Line lock (AC operation) switchable
Video signal 1.0 Vp-p, 75 Ω, negative sync
Horizontal resolution 570 lines 480 lines
S/N ratio More than 50 dB (AGC Off, Weight On)
Minimum illumination 0.2 lx at F1.4 (30 IRE,AGC ON, TURBO ON) 1.1 lx at F1.4 (30 IRE, AGC ON, TURBO ON)
0.3 lx at F1.4 (50 IRE, AGC ON, TURBO ON) 1.8 lx at F1.4 (50 IRE, AGC ON, TURBO ON)
AGC On/Off switchable, Turbo AGC/Normal AGC switchable
White balance — ATW (2200 to 10000 K)
BLC ON (Center measured)/OFF switchable
Built-in lens Vari-focal lens (f = 2.8 to 5.8 mm, F1.4)
View angle Wide: 95.7° (D), 75.9° (H), 56.4° (V)
Tele: 47.3° (D), 37.8° (H), 28.4° (V)
Minimum object distance 0.2 m
Iris Auto iris
Power requirement AC 24 V ±10 % (50 Hz) or DC 10.8 to 15.6 V for power source
Power consumption 1.8 W 3.0 W
Dimension 58 (W) x 54 (H) x 133 (D) mm
Mass Approx. 250 g
Operating temperature -10°C to +50°C (14°F to 122°F)
Storage temperature -40°C to +60°C (-40°F to 140°F)
Operating Humidity 20 % to 80 %, Non-condensing
Storage Humidity 20 % to 95 %, Non-condensing
Supplied accessories Operation instruction
Specifications

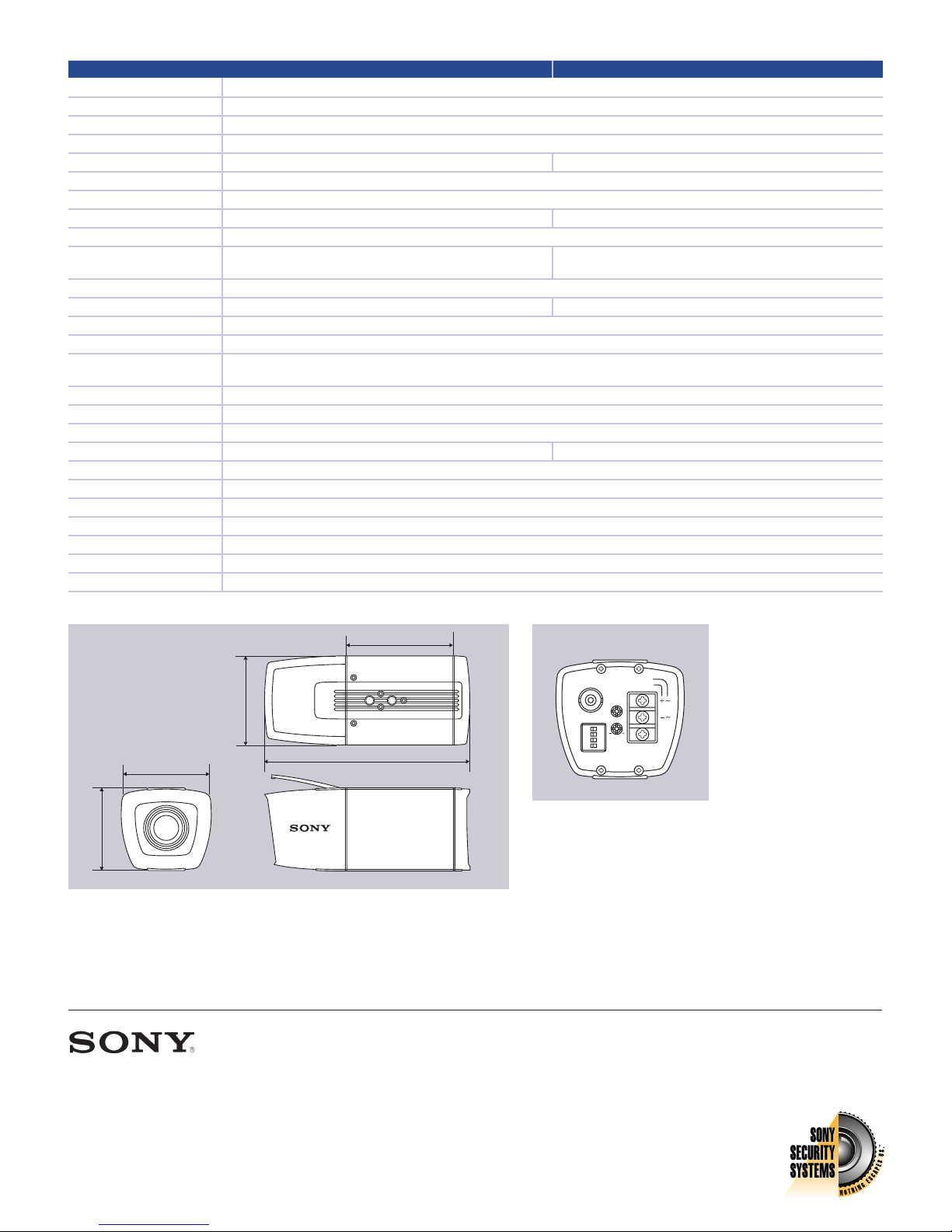

■Dimensions ■Rear View
(Unit: mm)
S-SSCMX13V/CX13V
Printed in USA 12/01
© 2002 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measures are approximate.
Super HAD CCD is a trademark of Sony Corporation.
Sony is a registered trademark of Sony Corporation.
All other trademarks are the property of their respective owners.
