Sony SNC-CS3P, SNC-DF70P, SNC-CS50P, SNC-DF40P, SNC-P1 Brochure

Network Video Monitoring
& CCTV Product Guide 2006

www.sonybiz.net/nvm

Today more than ever, Closed Circuit Television
(CCTV) is playing a vital role in the safeguarding
of people, property and other assets.

With increasing public awareness of the threats of
terrorism, assault, vandalism and theft, the security of
every citizen is a higher priority than ever for public
authorities as well as commercial organisations. From
banks, offices, hospitals and schools to shopping malls,
airports, stations and other public areas, a discreet
monitoring presence offers the valuable round-the-clock
reassurance of a safer, more secure environment.

As a leader in CCTV and network video monitoring, Sony
offers a complete range of products that make it easier
than ever to create exactly the right solution to meet your
current and future needs.

Create a safer,

From latest-generation network cameras, file servers,
network video recorders and RealShot management software
to monitors, printers and accessories, you’ll find that every
Sony CCTV product has been designed with performance,
reliability and ease of integration in mind.

Whether you’re looking to expand your existing CCTV
installation or create an all-new network-based monitoring
solution with powerful image distribution and control
capabilities, Sony products can enhance the value of your
current investments while delivering flexible new
monitoring possibilities. Best of all, every CCTV product
comes with the back-up and peace of mind that you’d
expect from Sony.

Visit us at www.sonybiz.net/nvm for more information on
our complete range of CCTV and video surveillance
monitoring products as well as case studies, white papers,
special offers and more. Alternatively, talk to your local
Sony office or security systems specialist. They’ll be
delighted to tell you more about the capabilities of Sony
CCTV products and help you create a video monitoring
solution that’s flexible, reliable and remarkably cost­effective.

more secure

environme

environment

NETWORK VIDEO MONITORING

■ Network Video Cameras 04

■ Network Video Recorders and Servers 10

■ Network Video Software and Peripherals 12

CCTV SOLUTIONS

■ Video Cameras 13

■ Video Recorders and Control Devices 19

■ Video Monitors 21

■ Printers 22

■ Specifications 24

NETWORK VIDEO CAMERAS

SNC-CS3P

NETWORK VIDEO CAMERA

■ IP network colour video camera with
auto iris vari-focal lens (focal length:

3.5 to 8.0 mm)

■ 1/3 type CCD sensor with ExwaveHAD™
technology offers extremely high
sensitivity of 0.5 lux at F1.0

■ Full motion video – up to 25 fps at VGA
resolution (640 x 480) thanks to M-JPEG
picture compression

■ Embedded IP server and web page
for simple set-up and control

■ Embedded activity detection and alarm
trigger functions

■ PAL composite video output for local
analogue viewing or recording

Connector Panel

SNC-CS50P

NETWORK VIDEO CAMERA

Connector Panel

■

IP network colour video camera with auto
iris vari-focal lens (focal length: 2.9 to 8.0 mm)

■ 1/3 type CCD sensor with SuperExwave™
technology offers extremely high sensitivity
(0.4 lux at F 0.95)

■ Selectable JPEG, MPEG-4 and H.264
compression formats

■ Dual Encoding Capability allows JPEG and
MPEG-4 images to be streamed
simultaneously

■ Day/Night function

■ Added functionality provided through alarm

trigger functions

■ PAL composite video output for local
analogue viewing or recording

■ Intelligent Object Detection and Intelligent
Motion Detection

■ Dynamic Frame Integration for higher
image quality with retained sensitivity

■ Public Key Infrastructure allows users
to verify the origin of images and ensure
the integrity of images against tampering

■ AC 24 V, DC 12 V, or PoE Operation

4

NETWORK VIDEO CAMERAS

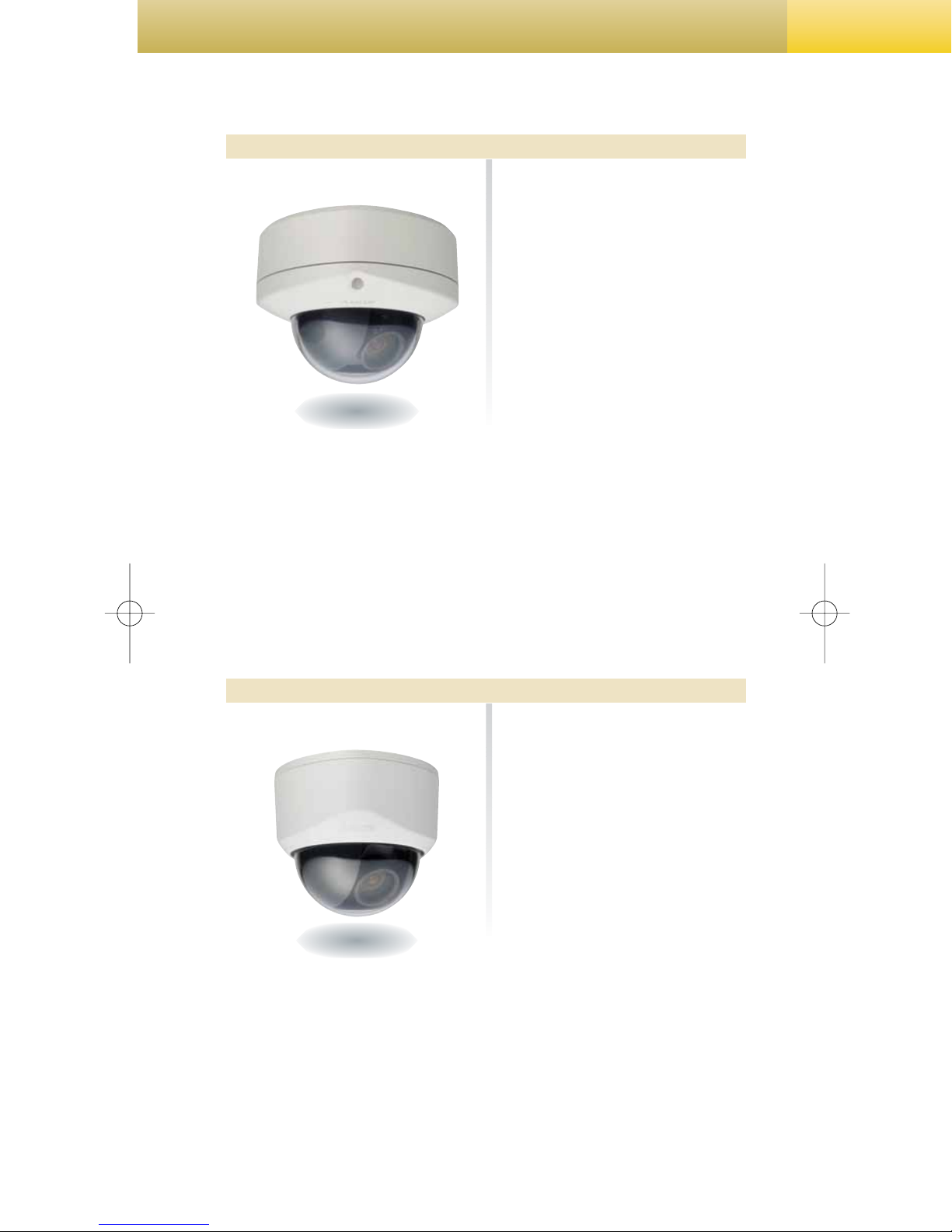

SNC-DF40P

NETWORK MINI-FIXED DOME CAMERA

Connector Panel

■ JPEG/MPEG-4 network colour video
camera with integral dome enclosure

■ Power-over-Ethernet allows power
to be supplied via an Ethernet CAT5 cable

■ Built-in CS Mount auto iris vari-focal lens
(f=3 to 8 mm from F1.0) for optimised
coverage of any viewing area

■ Multicasting capability supported and
Adaptive Rate Control for stable image
transmission

■ Half duplex audio through built-in or
external microphone input and audio
line out

■ Built-in motion vector activity detection
permits unattended operation

■ PAL composite video output for local
analogue viewing or recording

■ AC 24 V, DC 12 V, or PoE Operation

SNC-DF70P

RUGGED DAY/NIGHT NETWORK MINI-FIXED DOME CAMERA

■ JPEG/MPEG-4 network colour video
camera with integral rugged dome
enclosure

■ IP66 compliant rugged aluminium cast
housing and polycarbonate cover for
protection against rain and vandalism

■ Power-over-Ethernet allows power
to be supplied via an Ethernet CAT5 cable

■ Removable infrared filter delivers clear
Black & White pictures at night or under
IR illumination

■ Multicasting capability supported and
Adaptive Rate Control for stable image
transmission

■ Half duplex audio through built-in
or external microphone input and audio
line out

■ Built-in motion vector activity detection

Connector Panel

permits unattended operation

■ Analogue composite video output

■ AC 24 V, DC 12 V, or PoE Operation

5

NETWORK VIDEO CAMERAS

SNC-P1

MPEG-4 NETWORK VIDEO CAMERA

■ All-in-one JPEG/MPEG-4 network colour
video camera with embedded IP server
and web page for simple set-up and
control

■ High quality image transmission
even over limited bandwidth network
connection (e.g. only 500 kbps needed
for 25 images per second)

■ 1/4 type, 330K pixels progressive scan
CCD for superb picture detail

■ Two-way audio communication enhances
appeal for remote monitoring applications

■ Motion detection enables unattended
operation

■ External sensor input, alarm output and
E-mail alarm notification function

Connector Panel

SNC-P5

NETWORK MPEG-4 VIDEO PAN-TILT CAMERA

■ All-in-one JPEG/MPEG-4 network colour
video camera with integrated Pan-Tilt
control capability (Pan: -70 to +70
degrees / Tilt: -70 to 0 degrees and 3x
optical zoom)

■ Wireless transmission through optional
Sony wireless LAN card (SNCA-CFW1)

■ High quality image transmission even
over limited bandwidth network
connection (e.g. only 500 kbps needed
for 25 images per second)

■ 1/4 type, 330K pixels progressive scan
CCD for superb picture detail

■ Two-way audio communication enhances
appeal for remote monitoring applications

■ Motion detection permits unattended
operation

■ External sensor input, alarm output and
E-mail alarm notification function

Connector Panel

6

NETWORK VIDEO CAMERAS

SNC-Z20P

NETWORK VIDEO CAMERA

Connector Panel

■ IP network colour video camera with
integrated 18x optical zoom lens for
excellent resolution of fine detail

■ 1/4 type CCD sensor with ExwaveHAD™
technology offers extremely high
sensitivity: 0.7 lux in colour mode, 0.01 lx
(F1.4, 50 IRE, Slow Shutter OFF) in B/W
mode

■ Power-over-Ethernet allows power
to be supplied via the Ethernet CAT5
cable

■ Added functionality via on-board PC
card slot for onboard event storage
or optional Wireless LAN for greater
installation flexibility

■ Day/Night function switches to black
& white mode in low light conditions
for greater sensitivity

■ PAL composite video output for local
analogue viewing or recording

SNC-RZ25P

JPEG/MPEG-4 NETWORK VIDEO PAN-TILT-ZOOM CAMERA

■ Precise, high-speed pan/tilt/zoom
mechanism with integral 18x auto-focus
zoom lens

■ High quality and high sensitivity
(0.7 lux, F1.4) with ExwaveHAD™
technology

■ Day/Night function

■ Added functionality provided through

Compact Flash slot and Memory Stick
slot for image storage or Wireless LAN
(IEEE802.11b) through optional Sony
wireless LAN card (SNCA-CFW1) for
greater installation flexibility

■ Half duplex audio through built-in
or external microphone input and audio
line out

■ Motion detection permits unattended
operation

Connector Panel

7

NETWORK VIDEO CAMERAS

SNC-RZ30P

NETWORK VIDEO PAN-TILT-ZOOM CAMERA

■ IP network colour video camera with
integrated Direct Drive pan/tilt/zoom
mechanism and autofocus lens with
25x optical zoom

■ High quality full motion colour video –
up to 25 fps at VGA resolution
(640 x 480) thanks to M-JPEG picture
compression

■ PC card slot for onboard event storage

■ Embedded web server and web page

for simple set-up and control

■ Day/Night function switches to black
& white mode in low light conditions
for greater sensitivity

■ Activity detection and automatic picture
store/send for unattended operation

Connector Panel

SNC-RZ50P

NETWORK VIDEO PAN-TILT-ZOOM CAMERA

Connector Panel

■ Precise, high-speed pan/tilt/zoom

mechanism with integral 26x autofocus
zoom lens

™

■ 1/4-type Super HAD CCD

offers extremely high sensitivity
(2.2 lx at F 1.6)

■ Selectable JPEG, MPEG-4 and H.264

compression formats

■ Dual Encoding Capability allows JPEG and

MPEG-4 images to be streamed
simultaneously

■ Day/Night function

■ Added functionality provided through Voice

Alert, Image Transfer Using FTP/SMTP,
Built-in Compact Flash

■ Bi-Directional Audio capability

■ Intelligent Object Detection and Intelligent

Motion Detection

■ Dynamic Frame Integration for higher

image quality with retained sensitivity

■ Public Key Infrastructure allows users

to verify the origin of images and ensure
the integrity of images against tampering

technology

™

and PC Card Slot

8

NETWORK VIDEO CAMERAS

SNC-RX550P

NETWORK SPEED DOME

Connector Panel

■ High-performance network camera with
360 degree endless rotation and a 26x
Optical Zoom (312x with digital zoom)

■ 1/4-type Exwave HAD™ CCD technology
offers extremely high sensitivity (1.0 lx
at F 1.6)

■ Advanced image processing technology
provides three compression formats;
JPEG, MPEG-4, and H.264 with built-in
multicasting capability for MPEG-4 and
H.264 video

■ Dual Encoding Capability allows JPEG
and MPEG-4 images to be streamed
simultaneously

■ Day/Night function

■ Added functionality provided through

advanced features, such as Intelligent
Motion Detection, Intelligent Object
Detection and Image Transfer Using
FTP/SMTP

■ Maximum frame rate of 30 fps when
the image size is VGA (640 x 480)
in both MPEG-4 and JPEG modes

■ Bi-Directional Audio capability

■ Intelligent Object Detection and

Intelligent Motion Detection

■ Dynamic Frame Integration for higher
image quality with retained sensitivity

■ Public Key Infrastructure allows users
to verify the origin of images and ensure
the integrity of images against
tampering

9

NETWORK VIDEO

RECORDERS & SERVERS

SNT-V501

SINGLE-CHANNEL VIDEO NETWORK STATION

Connector Panel

■ Converts analogue video signal
to M-JPEG digital format for IP
transmission

■ Simple integration of analogue video
cameras into IP networks

■ Onboard picture storage reduces
network bandwidth overheads

■ Supports wireless transmission
(optional) for areas where cabled
network coverage is difficult or
non-existent

SNT-V704

FOUR CHANNEL VIDEO NETWORK STATION

■ Built-in activity detection enables
unattended operation

■ Can be used as a standalone event
recorder

■ High refresh rates provide full motion
video (25 fps) at VGA resolution

■ Embedded web server and web page
for simple set-up and control

■ Accepts up to four analogue video
inputs providing outstanding flexibility

■ Supports both MPEG-4 video and JPEG
compressed images

■ Added functionality provided through
advanced features, such as Dynamic
Masking Function, Image Transfer and
Network Security Functions

Connector Panel

■ Bi-Directional Audio capability

■ High refresh rates provide full motion

video (25 fps) at VGA resolution

■ 3rd Party Pan/Tilt/Zoom (PTZ) Camera
Control

10

NETWORK VIDEO

RECORDERS & SERVERS

NSR-50

NETWORK SURVEILLANCE RECORDER

Connector Panel

■ Large-capacity HDD (500 GB)

■ Can support up to 32 IP cameras

■ High frame rate recording, 240 fps

(eg 8 cameras x 30 fps)

■ Supports both MPEG-4 video and
JPEG compressed images

■ Flexible recording and playback
capability

■ Optional intuitive remote control unit

NSR-100

NETWORK SURVEILLANCE RECORDER

■ User-friendly GUI (Graphical User
Interface)

■ Intelligent Motion Detection

■ Privacy Masking Function

■ Pan/Tilt/Zoom (PTZ) camera control

Connector Panel

■ Large-capacity HDD (1000 GB)

■ Can support up to 64 IP cameras

■ High frame rate recording, 480 fps

(eg 16 cameras x 30 fps)

■ Supports both MPEG-4 video and JPEG
compressed images

■ Flexible recording and playback
capability

■ Optional intuitive remote control unit

■ User-friendly GUI (Graphical User
Interface)

■ Intelligent Motion Detection

■ Privacy Masking Function

■ Pan/Tilt/Zoom (PTZ) camera control

■ HDD Hot-Swap Capability

11

NETWORK VIDEO

SOFTWARE & PERIPHERALS

RSM-AIC

STAND-ALONE AUDIO NETWORK SYSTEM

■ Networked intercom system

■ Ideal for monitoring building entrances

or doorways by providing combined
intercom and alarm functionality

■ Integrates seamlessly with Realshot™
Manager for audio recording and
monitoring

■ 2 Inputs for control of other building
functions (e.g. ‘Talk’ and ’Door’ buttons)

■ Audio input via on-board microphone or
Line input

■ Audio out through Headphone/Line Out

IMZ-RS Series

REALSHOT MANAGER MONITORING AND CONTROL SOFTWARE

■ Management software to control,
monitor and manage networked video
installations on single or multiple sites

■ Tailor-made on-screen layouts offer
intuitive, interactive representation
of entire monitoring system

■ Full Server/Client support – optional
Client software allows monitoring of
virtually unlimited number of sites and
cameras while RSM web client allows
monitoring from any PC on the network

■ Extremely flexible video recording
functionality, recording up to 350 fps

■ Advanced search GUI makes it quick
and easy to retrieve recordings

■ I/O functionality to manage alarms,
doors and other switch operated
devices

■ One year PrimeSupport telephone
helpline

12

VIDEO CAMERAS

SSC-DC80P*/DC83P/DC88P

COLOUR VIDEO CAMERA

■ 1/2 type CCD with Exwave HAD
technology offers extremely high
sensitivity (0.8 lux at F1.2, 50 IRE)
and low smear level (-120 dB)

■ 480 lines of horizontal resolution

■ Turbo Auto Gain Control (AGC)

■ Wide Auto Tracing White (ATW) Range

■ Variable Gamma Curve

■ Activity Detection Function

■ Privacy Zone Masking

■ User-friendly Operation

* The SSC-DC80P features an internal sync and a

VS(Video and Sync) /VD for external synchronisations
with the optional YS-W170P/W270P camera adaptor

Connector Panel

YS-W170P/YS-W270P

CAMERA ADAPTOR

YS-W170P

Connector Panel

YS-W270P

■ Used with SSC-DC80P

■ Transmits DC power and video/sync

signal between the adaptor and camera
over a single coaxial cable

■ Up to four cameras can be connected
(one camera for YS-W170P)

Connector Panel

■ Internal or external synchronisation
with MPX-VS or MPX-VD

■ Maximum cable length: 600 m with
RG-11A/U (7C-2V) coaxial cable

13

VIDEO CAMERAS

SSC-DC593P/SSC-DC598P

DAY/NIGHT VIDEO CAMERA

■ 1/3 type IT CCD offering 480 lines of
horizontal resolution

■ Wide dynamic range with DynaView
technology - ideal for obtaining clear
colour images under severe lighting
conditions

■ Day/Night mode - increases camera
sensitivity allowing images to be viewed
even in low light conditions

■ White balance: ATW PRO/ATW/
3200K/5600K/MANUAL/DUAL WB
switchable - Dual white balance mode
gives high quality colour reproduction
of indoor and outdoor scenes under
different colour temperatures

■ Built-in activity detection and alarm

SSC-DC593P

Connector Panel

SSC-DC598P

Connector Panel

trigger functions

■ On-screen set up menu supports Privacy
Zone Masking function and two preset
memories for camera setting

SSC-E473P/SSC-E478P

HIGH RESOLUTION DAY/NIGHT CAMERA

■ Day/Night camera providing optimised
sensitivity in both day and night shooting
scenarios with near-infrared sensitivity
in night-mode

■ State-of-the-Art SuperExwave
technology achieving extremely high
sensitivity levels - minimum illumination
of 0.55 lux at F1.2 in colour mode
and 0.05 lux at F1.2 in B/W mode

■ Newly-developed innovative DSP
technology generating a horizontal
resolution of 540 TV lines

■ New slim and stylish design

■ External Day/Night control input and

Day/Night control output terminal

SSC-E473P

Connector Panel

SSC-E478P

Connector Panel

■ Wide Auto Tracing White Range –
ATW Pro & ATW

™

CCD

14

VIDEO CAMERAS

SSC-E453P/SSC-E458P

HIGH RESOLUTION COLOUR CAMERA

■ State-of-the-Art SuperExwave™ CCD
technology achieving extremely high
sensitivity levels providing a minimum
illumination of 0.55 lux at F1.2

■ Newly-developed innovative DSP
technology generating a horizontal
resolution of 540 TV lines

■ New slim and stylish design

■ Wide Auto Tracing White Range –

ATW Pro & ATW

■ Backlight compensation and Turbo
AGC: ON/OFF switchable

■ Wide range CCD IRIS (ON/OFF
switchable, 1/50 to 1/100,000s)

SSC-E453P

Connector Panel

SSC-E458P

Connector Panel

SSC-DC372P/SSC-DC378P

HIGH RESOLUTION COLOUR CAMERA

■ 1/3 type IT CCD with SuperHAD
technology offering 480 lines of
horizontal resolution

■ High sensitivity - 0.8 lux at F1.2 (50 IRE)

■ Backlight compensation (ON/OFF

switchable)

■ Wide range CCD IRIS (ON/OFF
switchable, 1/50 to 1/100,000)

■ CCD IRIS function allows for the use
of low cost manual iris lenses

■ Auto Tracing White Balance (ATW)
and Turbo AGC (ON/OFF switchable)

SSC-DC372P

Connector Panel

SSC-DC378P

Connector Panel

15

VIDEO CAMERAS

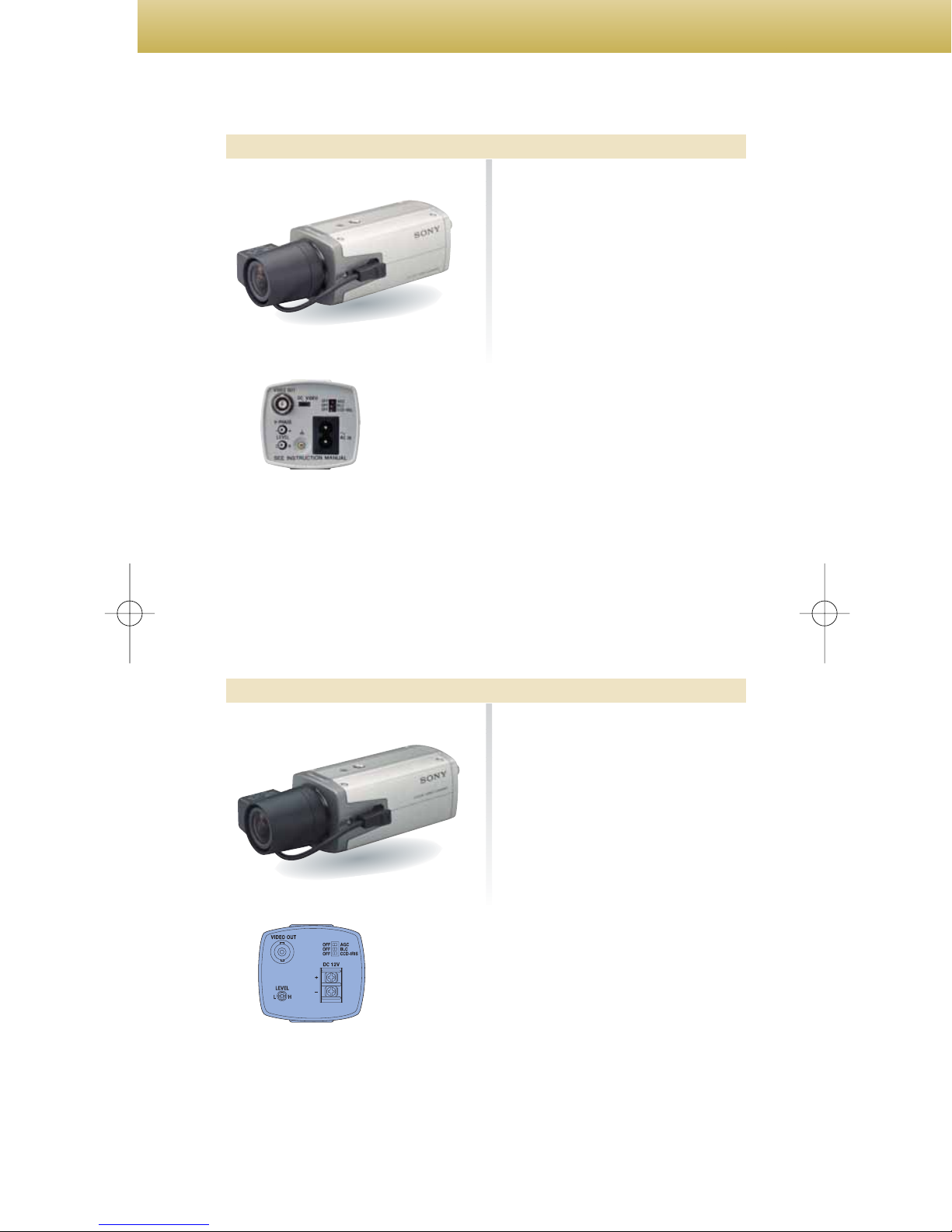

SSC-DC198P

STANDARD RESOLUTION COLOUR CAMERA

Connector Panel

■ 1/3 type IT SuperHAD CCD offering
330 lines of horizontal resolution

■ High sensitivity – 0.6 lux at F1.2
(50 IRE)

■ Backlight compensation and ATW
supported

■ BLC and Turbo AGC (ON/OFF switchable)

■ Wide range CCD IRIS (ON/OFF

switchable, 1/50 to 1/100,000s)

■ AC 220-240 V power operation

SSC-DC172P

STANDARD RESOLUTION COLOUR CAMERA

Connector Panel

■ Low cost standard resolution colour
camera – 330 lines of horizontal
resolution

■ High sensitivity – 0.6 lux at F1.2 (50 IRE)

■ Backlight compensation and ATW

supported

■ BLC and Turbo AGC: ON/OFF switchable

■ Wide range CCD IRIS (ON/OFF

switchable, 1/50 to 1/100,000s)

■ DC 12V power operation

16

VIDEO CAMERAS

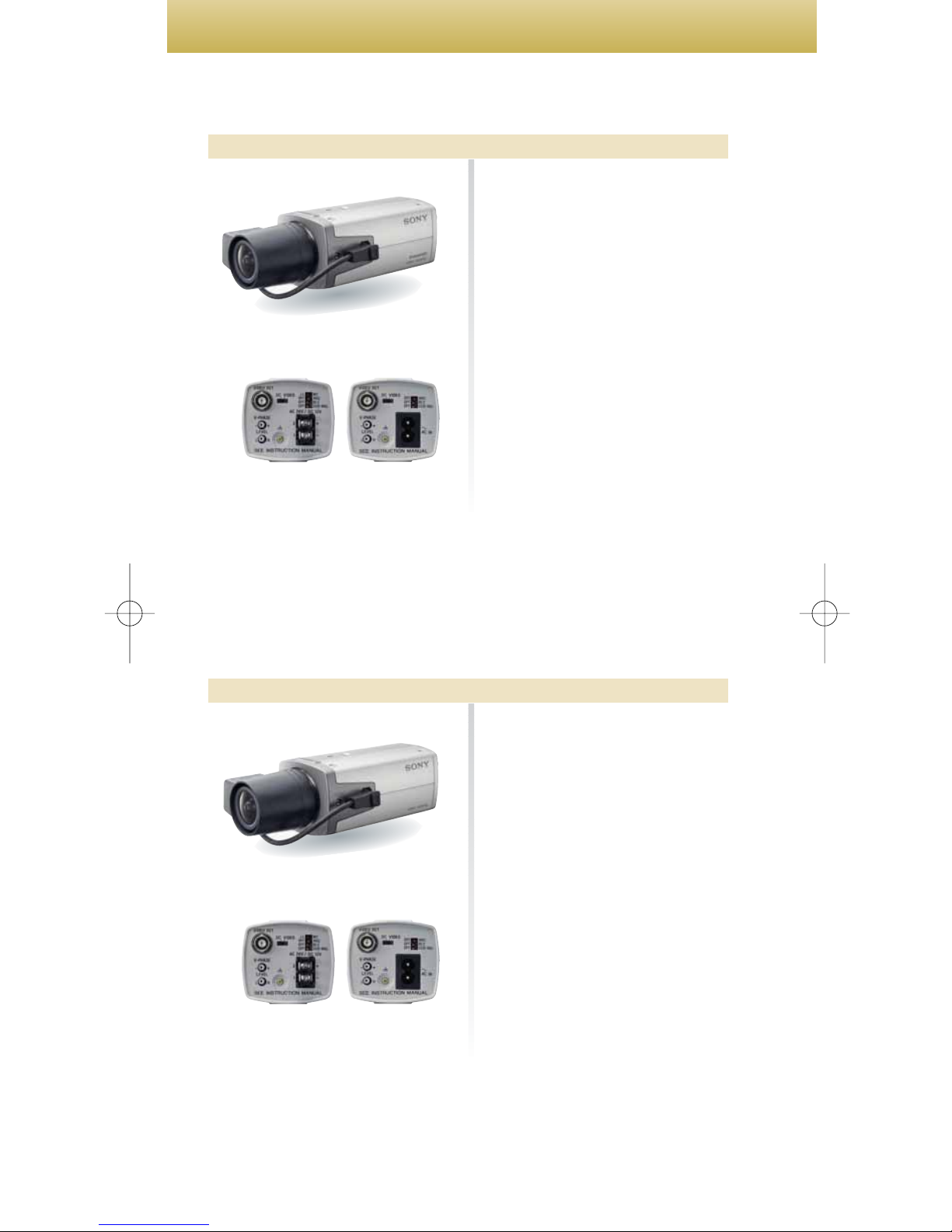

SSC-M383CE/SSC-M388CE

BLACK AND WHITE CAMERA

■ 1/3 type IT CCD with ExwaveHAD
technology providing extremely high
sensitivity - 0.07 lux at F1.2 (50 IRE)

■ 570 lines of horizontal resolution

■ Backlight compensation (ON/OFF

switchable)

■ Turbo AGC (up to 24 dB): ON/OFF
switchable

■ Wide range CCD IRIS (ON/OFF
switchable, 1/50 to 1/100,000)

■ CCD IRIS function allows for the use of
low cost manual iris lenses

SSC-M383CE

Connector Panel

SSC-M388CE

Connector Panel

SSC-M183CE/SSC-M188CE

BLACK AND WHITE CAMERA

■ 1/3 type IT SuperHAD CCD technology
providing 380 lines of horizontal
resolution

■ High sensitivity - 0.06 lux at F1.2
(50 IRE)

■ Backlight compensation (ON/OFF
switchable)

■ Turbo AGC (up to 24 dB): ON/OFF
switchable

■ Wide range CCD IRIS (ON/OFF
switchable, 1/50 to 1/100,000)

■ CCD IRIS function allows for the use of
low cost manual iris lenses

SSC-M183CE

Connector Panel

SSC-M188CE

Connector Panel

17

VIDEO CAMERAS

SSC-CD73VP

RUGGED DAY/NIGHT MINI FIXED DOME CAMERA

■ 1/4 type IT SuperHAD CCD offering

■ Rugged aluminum cast housing and

■ Built-in CS Mount auto iris vari-focal

■ Day/Night function through removable

■ High sensitivity of 0.9 lux (F1.0, 50 IRE,

■ Rain-proof (IP66 compliant)

480 lines of horizontal resolution

polycarbonate cover

lens (f=3 to 8 mm from F1.0)

IR filter to switch from colour to black
and white mode with IR corrective lens
for clear pictures under IR illumination

AGC ON) in colour and 0.2 lux (F1.0,
50 IRE, AGC ON) in B&W

SSC-CD43VP

COLOUR MINI FIXED DOME CAMERA

■ 1/4 type IT SuperHAD CCD offering 480
lines of horizontal resolution

■ Built-in CS Mount auto iris vari-focal
lens (f=3 to 8 mm from F1.0)

■ High sensitivity of 0.9 lux (F1.0,
50 IRE, AGC ON)

■ Turbo AGC (6 dB more gain than
conventional gain): TURBO/
NORMAL/OFF switchable

■ Backlight compensation (ON/OFF
switchable)

■ ATW (2,200 to 10,000K)

18

VIDEO RECORDERS

& CONTROL DEVICES

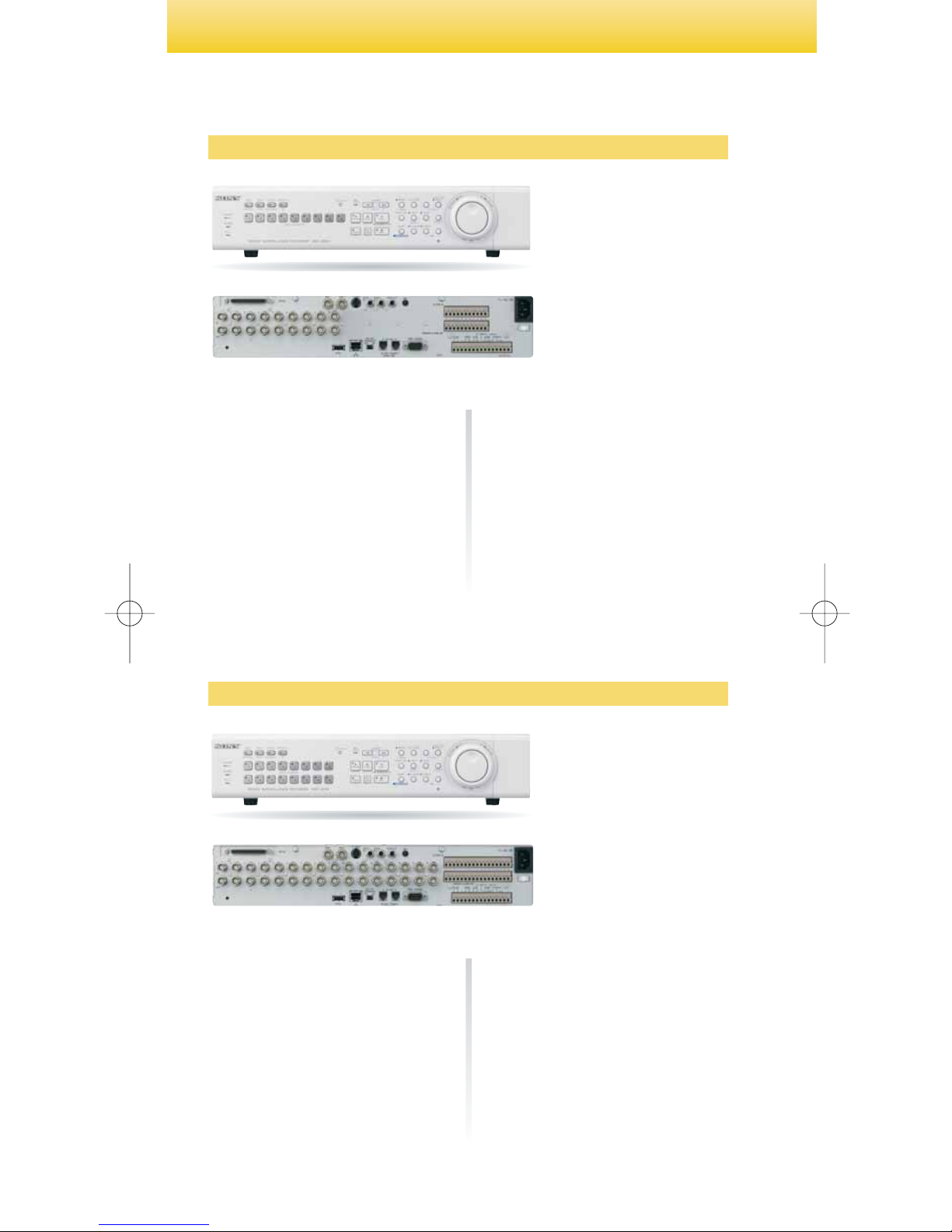

HSR-J2009P

DIGITAL VIDEO RECORDER

Connector Panel

■ Up to 9 cameras can be connected
to the unit

■ 500 GB HDD capacity (2x 250GB)

■ High-Quality Images with JPEG 2000

Compression

■ 100Base-TX Ethernet interface

■ Programmed Recording

■ Alarm Recording

HSR-J2016P

DIGITAL VIDEO RECORDER

■ Activity Detection

■ Intelligent Search

™

■ Built-in Compact Flash

■ Region-of-Interest (ROI) Function

■ Two-Channel Audio Recording and

Playback

(CF) card slot

■ Up to 16 cameras can be connected
to the unit

■ 500 GB HDD capacity (2x 250GB)

■ High-Quality Images with JPEG 2000

Compression

■ 100Base-TX Ethernet interface

■ Programmed Recording

■ Alarm Recording

■ Activity Detection

Connector Panel

■ Intelligent Search

™

■ Built-in Compact Flash

■ Region-of-Interest (ROI) Function

■ Two-Channel Audio Recording and

Playback

19

(CF) card slot

VIDEO RECORDERS

& CONTROL DEVICES

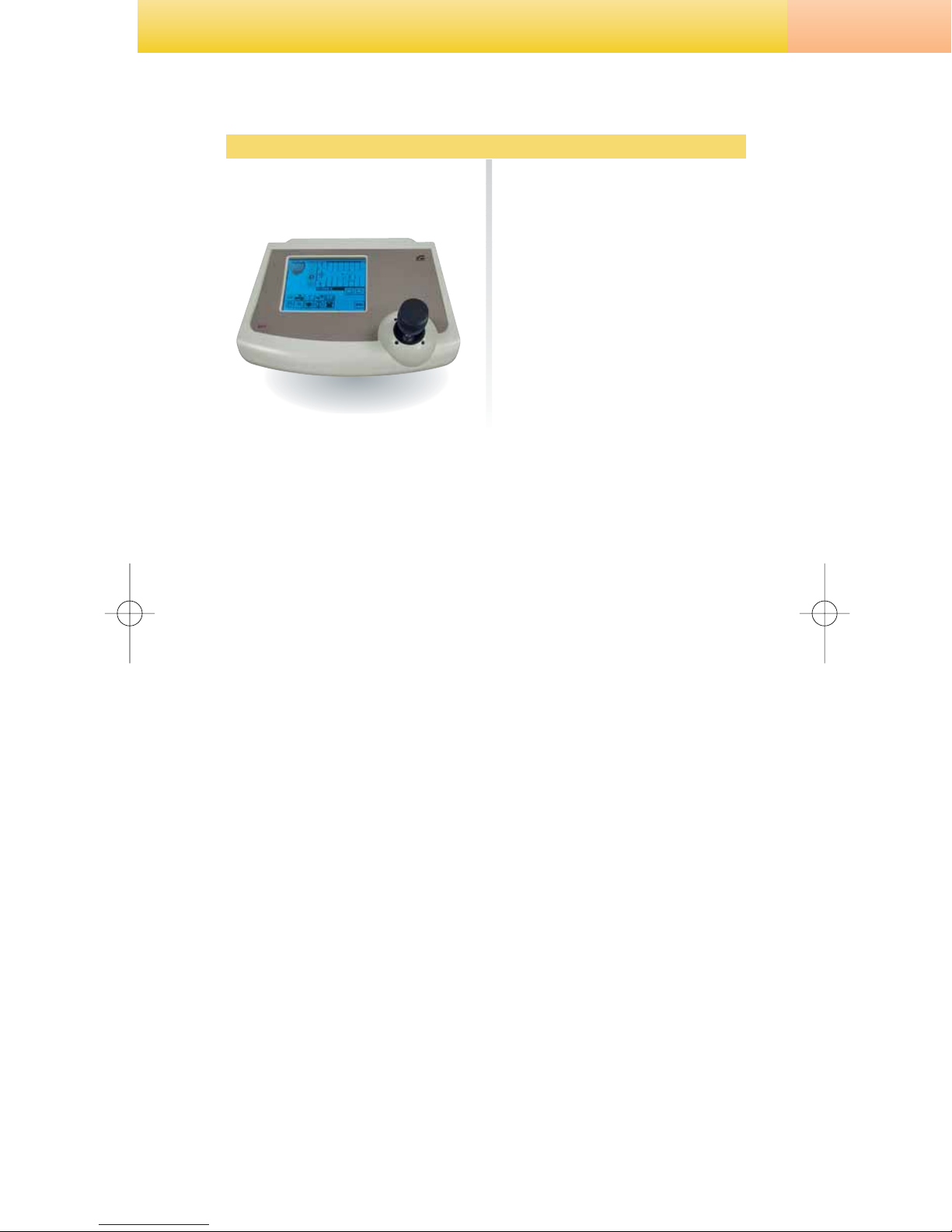

HSR-DCT

VIDEO AND TELEMETRY VIRTUAL CONTROL PANEL

■ Graphic, back-lit, 320 x 240 pixel touch
panel display

■ Allows customisation of up to 30 site
maps

■ Three-axel joystick allows simple
manual Pan-Tilt-Zoom control

■ Two independent RS-485 telemetry
control ports to interface with the most
common high speed domes

20

VIDEO MONITORS

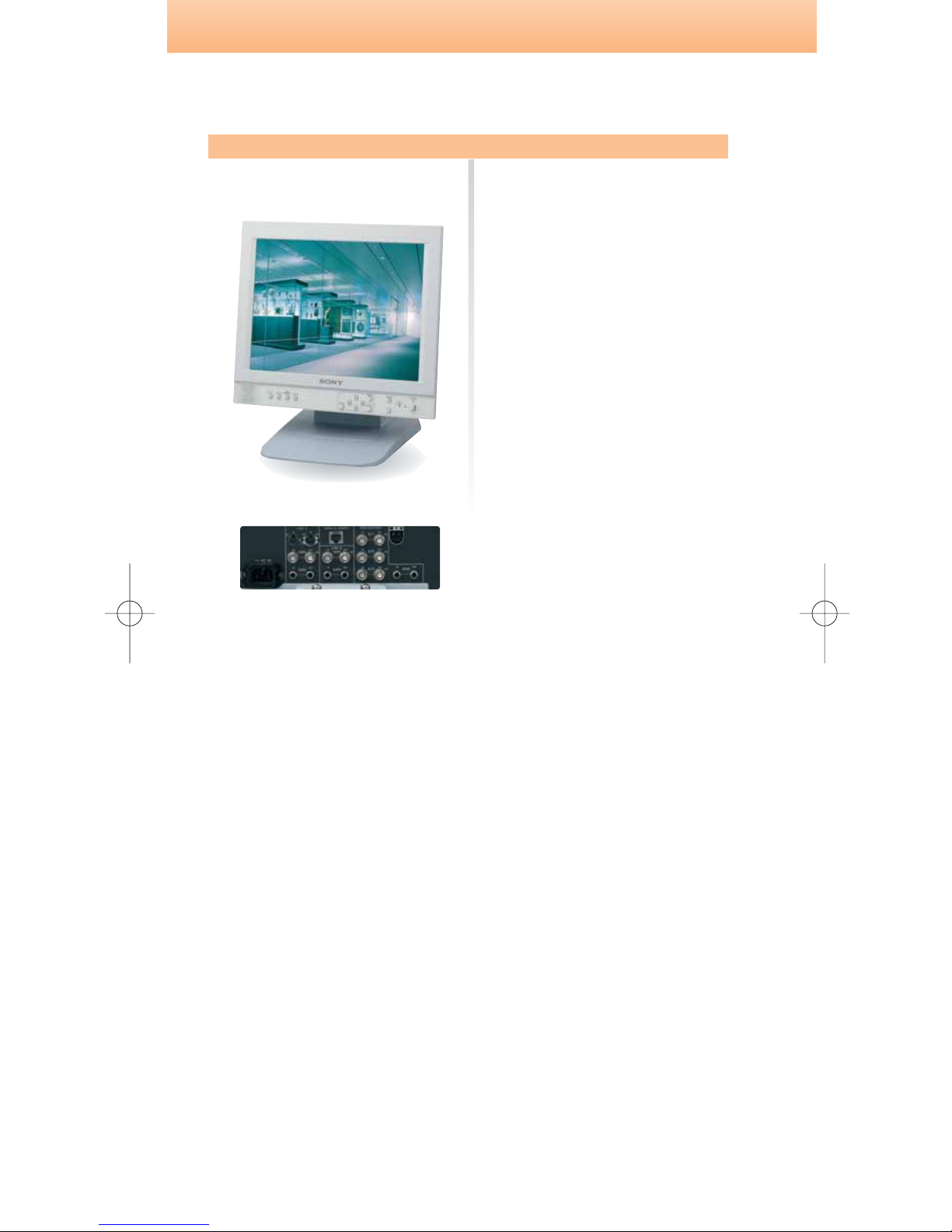

LMD-1410SC

LCD MONITOR

■ 14-inch colour video monitor
(viewable area, measured diagonally)

■ VGA-type LCD panel with 640 x 480
pixel resolution

■ Wide viewing angle of 170 degrees, both
vertically and horizontally, with minimal
reduction in picture contrast

■ Three selectable video inputs, including
analogue composite, Y/C (S-Video) and
RGB/component

■ Colour temperatures can be selected
from high, low or users’ preset data
(adjustable between 5,000K and
10,000K)

■ Parallel remote control capability via
Parallel/F

■ 4:3/16:9 Switchable Aspect Ratio

Connector Panel

21

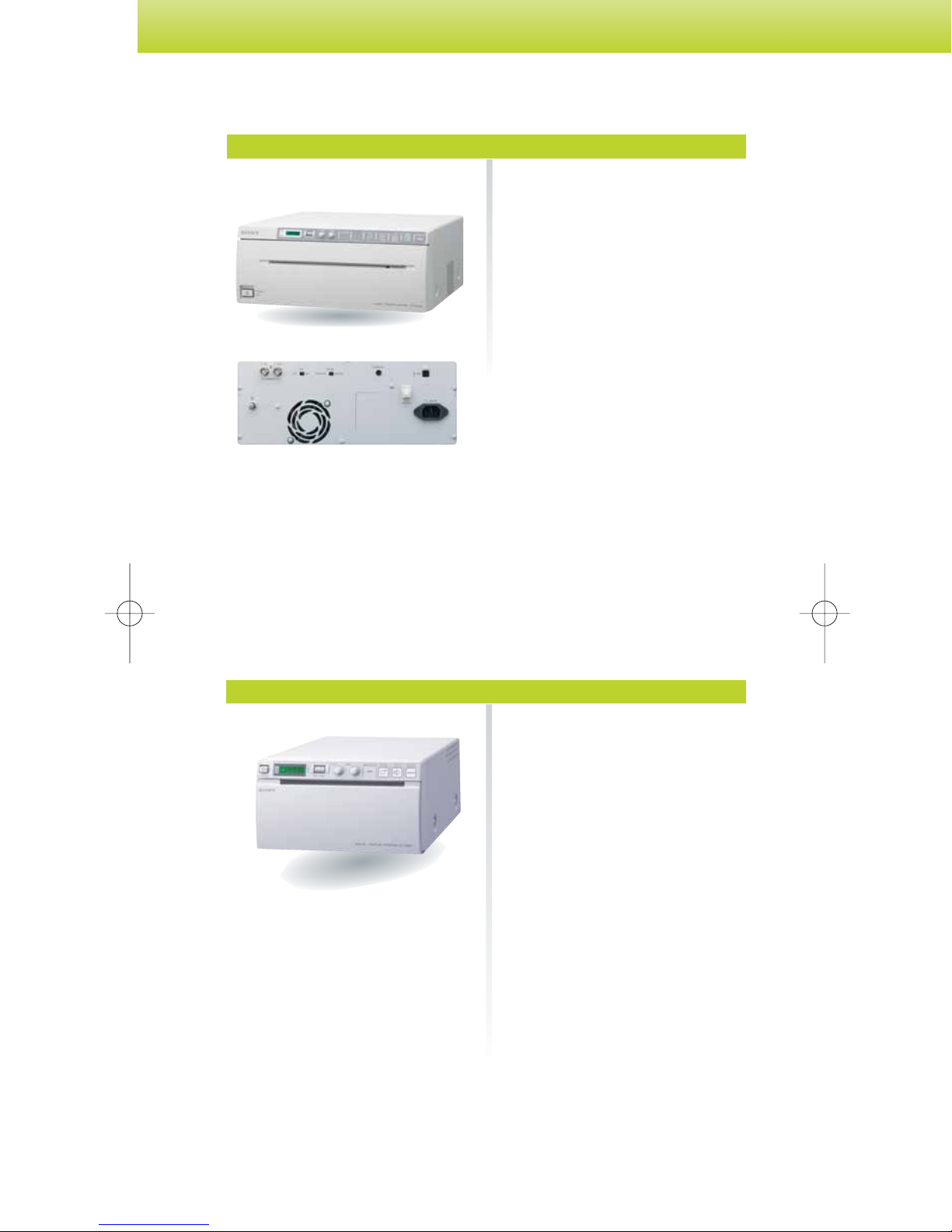

PRINTERS

UP-970AD

BLACK & WHITE DIGITAL GRAPHIC PRINTER

Connector Panel

■ Photo-quality A-4 monochrome prints
in just 8 seconds (in standard mode)

■ Accepts both Analogue and Digital signal
input

■ Direct thermal-printing technology
provides high resolution of appro­ximately 325 dpi and 256 steps of
grey level

■ 2 , 4 or 6 split prints mode

■ Automatic detection of paper or film

■ Compact, space-saving design

UP-897MD/UP-D897

BLACK & WHITE DIGITAL GRAPHIC PRINTER

■ A6 monochrome prints in approximately

2 seconds

■ USB (version. 2.0) interface

■ Resize-to-fit feature to enlarge images

for printing

■ Resolution of 325 dpi and 256 steps

of grey level for high picture quality

■ Multiple print modes available for a

variety of applications

■ 8 MB picture memory for panoramic-

size prints

■ Worldwide AC power supply

■ Compact, space-saving design

22

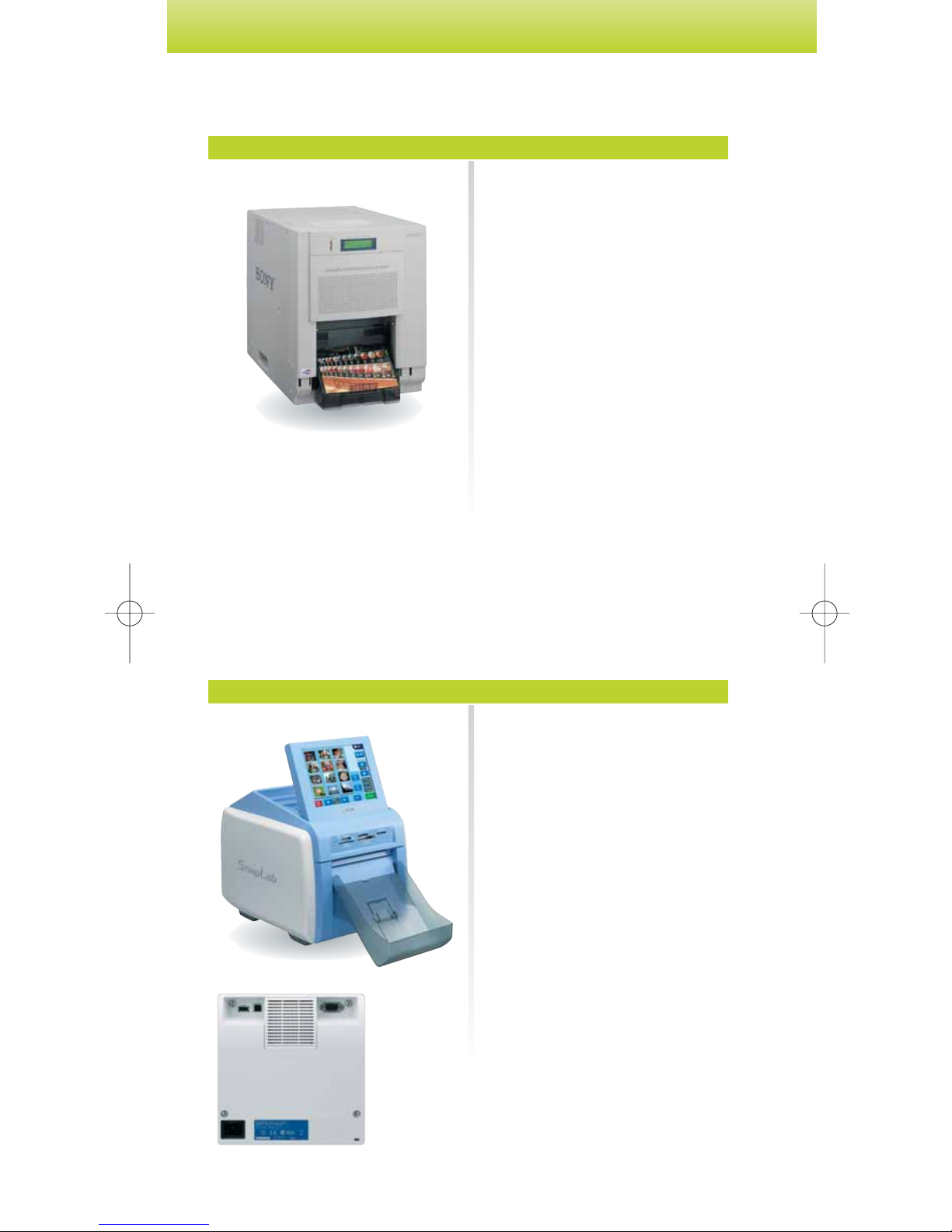

UP-DR150

DIGITAL PHOTO PRINTER

PRINTERS

■ Superb print quality in a choice of four
print sizes

■ High volume capacity can hold a roll
of 550 10 x 15 cm (4 x 6 inch) prints

■ Front-loading operation with auto
loading for easy replacement of paper
and ribbon

■ Supplied with Microsoft
2000 and XP Pro for flexible PC
compatibility

■ Offers real-time monitoring of the
remaining number of prints for ease
of use

■ Equipped with USB 2.0 interface as
standard for faster image data transfer

■ Grey balance adjustment capability

■ Compact, space-saving design

®

Windows

™

UP-CR10LI

DIGITAL PHOTO PRINTER

■ Resolution of 403 dpi for high picture
quality

■ Photo-quality prints with Sony dye
sublimation printing technology

■ High-speed printing :

9 x 13 cm (3.5 x 5 inches) in approx.13 seconds*
10 x 15 cm (4 x 6 inches) in approx.17 seconds*
13 x 18 cm (5 x 7 inches) in approx.18 seconds*

■ 8-inch touch-sensitive LCD screeen with
intuitive graphical user interface

■ Accepts MemoryStick (STD, DUO & PRO),
CompactFlash, xD-Picture Card,
SD/MMC and SmartMedia

®

■ Supplied Windows
enhance flexibility

■ Compact, space-saving design

* Excluding image-processing time

printer drivers

Connector Panel

23

SPECIFICATIONS

NETWORK VIDEO CAMERAS

SNC-CS3P SNC-CS50P

GENERAL

Mass Approx. 650 g (1 lb. 7 oz) 750g (1 lb 10 oz) excl. cover equipment

Dimensions (W x H x D) 57 x 70 x 159 mm (2

Power requirements AC 24 V / DC 12 V AC 24 V, DC 12 V, PoE
Power consumption 7 W max. 9 W max. (AC 24V)
Operating temperature -10 °C to 50 °C (14 °F to 122 °F) 0 °C to 50 °C (32 °F to 122 ºF)
Storage temperature -40 °C to 60 °C (-40 °F to 140 ºF)
Operating humidity 20% to 80%, Non-condensing
Storage humidity 20% to 95%, Non-condensing

IMAGE DATA

Compression M-JPEG JPEG, MPEG-4, H.264
Image Resolution 736 x 544 (Auto), 736 x 544 (Frame), 640 x 480 (VGA),

Frame rate Max. 25 fps (640 x 480) JPEG/MPEG-4: Max. 25 fps

CAMERA

Imager 1/3 type ExwaveHAD CCD 1/3-type SuperExwave CCD
Pixels 440,000 (752 x 582) 440,000 pixels
Electronic shutter 1/50 to 1/10,000 s
Iris ATW ATW, ATW PRO, ONE PUSH

LENS

Zoom Ratio —
Horizontal viewing angle
Focal length Vari-focal (focal length: 3.5 to 8.0 mm) f=2.9 to 8.0 mm
F-number F1.0 F0.95 to F1.6
Minimum object distance

INTERFACES

Ethernet 10Base-T/100Base-TX (RJ45)
PC card slot — PC card x1 (Type II)
Sensor and I/O Sensor input: make contact (photo coupler Sensor input x 2

Video Output VIDEO OUT: BNC, 1.0 Vp-p, 75 Ω, Analogue video output BNC x1,

Serial I/F RS-232C transparent port RS-232C (Transparency function)

ANALOGUE VIDEO OUTPUT

Signal system PAL PAL (Composite)
Sync system Internal
Horizontal resolution 480 TV lines 540 TV lines
S/N ratio More than 50 dB 50 dB or more
Minimum illumination 0.5 lux at F1.0 Colour: 0.4 lx (F 0.95, 50 IRE, AGC ON)

SYSTEM/NETWORK

Browser MS Internet Explorer®v 5.5 and 6.0 MS Internet Explorer®Ver.6.0 or later

Security IP-filtering, Password protection
Protocols supported TCP/IP, HTTP, ARP, ICMP, DHCP, FTP, DNC, NTP and SNMP (MIB-2)
Supplied accessories CD-ROM (setup program and User guide), CD-ROM (setup program and user's

Optional accessories — SNCA-CFW1 Wireless LAN card,

640 x 480 (Field), 320 x 240, 160 x 120

input electrically isolated from the camera) Alarm output x 2

Alarm output 1 and 2: 24 V DC or less,

(Windows98/98SE/ME/NT4.0/2000/XP)

Pocket PC Internet Explorer (Pocket PC 2002)

736 x 544 (Field), 320 x 240 (QVGA),

640 x 480 (Auto), 640 x 480 (Frame), 160 x 120 (QQVGA)

W 73.9 ° x 56.3 ° T 33.8 ° x 25.8° 94 ° to 35 °

1 A (mechanical relay outputs

electrically isolated from the camera)

unbalanced, sync negative 1.0 Vp-p, 75 Ω

Installation Manual guide), Wire rope, Shoulder screw M4,

1

⁄4" x 2 3⁄4" x 6 1⁄4") 84 x 69 x 196 mm (3 3⁄8" x 2 3⁄4" x 7 3⁄4")

500 mm 300 mm

880g (1 lb 15 oz) incl. cover equipment

excl. cover equipment

84 x 69 x 265 mm (3 3⁄8" x 2 3⁄4" x 10 1⁄2")

incl. cover equipment

H.264: Max. 8 fps

B/W: 0.04 lx (F 0.95, 50 IRE, AGC ON)

IP-Filtering, Password Protection + PKI Chip

Cable cover, Front cover, Lens cable

cover, Screw for front cover

SNC1-AN1 Wireless LAN Antenna

(optional accessory for the SNCA-CFW1

Wireless LAN card)

24

SPECIFICATIONS

NETWORK VIDEO CAMERAS

SNC-DF40P SNC-DF70P

GENERAL

Mass Approx. 750 g (1 lb 10 oz) Approx. 1,500 g (3 lb 5 oz)
Dimensions (W x H x D) 124 x 132 x 126 mm (5" x 5

without projection ports without projection ports
Power requirements AC24 V 50/60 Hz, DC12 V,POE
Power consumption 7.5 W 8 W
Operating temperature -10 to +50 ºC (14 to 122 ºF)
Storage temperature -20 to +60 °C (-4 to +140 °F)
Operating humidity 20% to 80%, non-condensing
Storage humidity 20% to 95%, Non-condensing

CAMERA

Image device 1/4-type SuperHAD CCD
Number of effective 752 x 582 (H x V)

pixels
Electronic shutter 1/50 to 1/10000 s
Gain control Auto: ON/OFF switchable (up to 18 dB)
Exposure control Auto, Back-Light-Compensation(BLC)
White balance mode ATW
Lens mount CS mount
Lens type x2.7 Vari-focal auto iris lens
Horizontal viewing angle
Focal length f=3.0 to 8.0 mm
F number F=1.0
Iris CCD iris
Minimum object distance
Other functions Motion detection Motion detection


Image size (H x V) 640 x 480, 480 x 360, 384 x 288, 320 x 240, 256 x 192, 160 x 120
Compression format MPEG-4/JPEG selectable
Maximum frame rate

(MPEG-4 mode) Max. 25 fps (320 x 240)
(JPEG mode) Max. 25 fps (320 x 240)

AUDIO

Compression format G.711 (64 Kbps) / G.726 (40, 32, 24, 16 Kbps)

NETWORK

Protocols TCP/IP, UDP, RTP, RTCP, ARP, ICMP, DHCP, DNS, HTTP, FTP, SMTP
Number of clients JPEG: 20 users, MPEG-4: 10 users

INTERFACES

Ethernet 100Base-TX/10Base-T (RJ-45)
Analogue video output Composite video (1.0 Vp-p)
Monitor output 2-Pin connector
I/O port Sensor in (1), Alarm out (2)
External microphone input
Audio line output Mini-jack (Monoaural), max output level: 1 Vrms

ANALOGUE VIDEO OUTPUT

Signal system PAL (Composite)
Horizontal resolution 480 TV lines
S/N ratio 50 dB
Minimum illumination

Colour 0.8 lx (AGC On, F1.0, 50IRE) 0.9 lx (AGC On, F1.0, 50IRE)
Black and White — 0.2 lx (AGC On, F1.0)

SUPPLIED ACCESSORIES

SYSTEM REQUIREMENTS

CD-ROM (setup program, users guide), CD-ROM (setup program, users guide),

Monitor cables (2), AC power code, Monitor cables (2), AC power code,

Wire rope, Screws (2), Dome cover screw, Wire rope, Screws (2), Installation manual

Installation manual

Operating system Microsoft®Windows®2000/XP
Processor Intel

(Recommendation: Pentium IV, 2GHz or higher)
Memory 256 MB RAM minimum
Web browser Microsoft Internet Explorer®version 5.5 or 6.0

1

⁄4" x 5") 165 x 135 x 166 mm (6 1⁄2" x 5 3⁄8" x 6 5⁄8")

66.6 to 26.9 degrees

200 mm

Day/Night function

Mini-jack, 2.4 VDC plug-in power, 4.7 kΩ

®

Pentium®III, 1 GHz or higher

25

SPECIFICATIONS

NETWORK VIDEO CAMERAS

SNC-P1 SNC-P5

GENERAL

Mass Approx. 225 g (8 oz) Camera: approx. 380 g (13 oz)

Dimensions (W x H x D) 99.5 x 35 x 138.5 mm Camera: 130 x 130 x 110 mm

Power requirements DC 12 V DC 12 V
Power consumption 3.5 W 6.2 W
Operating temperature 0 to +35 °C (32 to 95 °F) 0 to +35 °C (32 to 95 °F)
Storage temperature -20 to 60 °C (-4 to +140 °F)
Operating humidity 20 to 80 %, Non-condensing
Storage humidity 20 to 95 %, Non-condensing

CAMERA

Image device 1/4-type progressive scan CCD 1/4-type progressive scan CCD
Number of effective 659 x 494 (330K) 659 x 494 (H x V)

pixels
Electronic shutter 1 to 1/10000 s 1 to 1/10000 s
Exposure mode Auto, Shutter priority, Manual Auto, Shutter priority, Manual
White balance Auto, Indoor, Outdoor, One-push, Manual Auto, Indoor, Outdoor, One-push, Manual
Minimum illumination 3.0 lx 3.5 lx (AGC ON, F2.8, 30IRE)

LENS

Focal length f=3.8 mm f=3.4 mm, to 10.2 mm
Viewing angle
F-number F2.0 F2.8 (wide) to 3.9 (Tele)
Minimum object distance

SYSTEM/NETWORK

Compression format MPEG-4/JPEG selectable MPEG-4/JPEG selectable
Image size (H x V)

MPEG-4 mode 640 x 480, 480 x 360, 384 x 288, 640 x 480, 480x 360, 384 x 288,

JPEG mode 640 x 480, 480 x 360, 384 x 288, 640 x 480, 480x 360, 384 x 288,

Maximum frame rate
MPEG-4 mode Max. 30 f/s (320x240) Max. 30 fps, 320 x 240,

JPEG mode Max. 30 f/s (320x240) Max. 30 fps, 320 x 240,

Audio compression G.711 (64 Kbps)/G.726 (40, 32, 24, 16 Kbps) G.711 (64 Kbps)/G.726 (40, 32, 24, 16 Kbps)
Number of clients

MPEG-4 mode 10 clients 10 clients
JPEG mode 20 clients 20 clients

Protocols TCP/IP, UDP, RTP, RTCP, ARP, ICMP, HTTP, TCP/IP, ARP, ICMP, DHCP, DSN, HTTP, FTP,

INTERFACES

Ethernet 100Base-TX/10Base-T (RJ-45) 100Base-TX/10Base-T (RJ-45)
PC card slot — Compact Flash for storage or wireless
Video output Mini-jack Mini-jack (1.0 V p-p, 75 Ω, Sync negative)
Built-in microphone Electret condenser microphone Electret condenser microphone

External microphone input Mini-jack, Plug-in power, 2.2 kΩ, Mini-jack, 2.2 kΩ,

Line output Mini-jack Mini-jack, (mono), max output level: 1 Vms
Sensor in 1 2
Alarm out 1 1
Supplied accessories AC adaptor (x1) AC power adaptor MPA-AC1 (Sony) (x1)

320 x 240, 256 x 192, 160 x 120 320 x 240, 256 x 192, 160 x 120

320 x 240, 256 x 192, 160 x 120 320 x 240, 256 x 192, 160 x 120

FTP, SMTP, DHCP, DNS, NTP and PPPoE, SMTP, NTP, SNMP (MIB-2), RTP/RTCP, PPPoE

7

(4 x 1

⁄16 x 5 1⁄2 inches) (5 1⁄8 x 5 1⁄8 x 4 3⁄8 inches)

without projection Stand: 130 x 178 x 142 mm

Horizontal: 53.4°, Vertical: 40.0° Horizontal: 20 to 55.8°, Vertical: 15.1 to 43.3°

50 cm 0.4m (wide end), 1.4m (Tele end)

Max. 15 fps, 640 x 480

Max. 18 fps, 640 x 480

SNMP

Unbalanced Unbalanced (RCA), 2.5 V

CD-ROM (x1, setup program Power cord (x1)

and user guide) Stand (x1)

Stand (x1) Wall-mount (x1)

Stand: approx. 360 g (13 oz)

(5 1⁄8 x 7 1⁄8 x 5 5⁄8 inches)

(omni-directional)

plug-in power

26

SPECIFICATIONS

NETWORK VIDEO CAMERAS

SNC-RZ20P SNC-RZ25P

GENERAL

Mass Approx. 800 g (2 lb. 10 oz) Approx. 1.3 kg (2 lb. 14 oz)
Dimensions (W x H x D) 57 x 70 x 159 mm (2 1⁄4" x 2 3⁄4" x 6 1⁄4") 84 x 69 x 196 mm (3 3⁄8" x 2 3⁄4" x 7 3⁄4")

Power requirements DC 24 V AC 50/60 Hz, 12 V DC, PoE AC 24 V, DC 12 V
Power consumption 9 W max. 17 W max.
Operating temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operating humidity 20% to 80%, Non-condensing
Storage humidity 20% to 95%, Non-condensing

IMAGE DATA

Compression M-JPEG MPEG-4/JPEG (selectable)
Image Resolution 736 x 544 (Auto), 736 x 544 (Frame), 640 x 480, 480 x 360, 384 x 288

640 x 480 (Field), 320 x 240, 160 x 120

Frame rate Max. 25 fps (640 x 480) JPEG: 25 fps (320 x 240)

CAMERA

Imager 1/4 type ExwaveHAD CCD 1/4 type CCD ExwaveHAD CCD
Pixels 444,000 444,000 (752 x 582)
Electronic shutter Auto/Manual (1 to 1/10,000 sec) 1/1 to 1/10,000 sec
Iris Auto/Manual (F1.4 to Close) Auto (Manual (F1.4 close))
Gain Auto/Manual (-3 dB to 28 dB)
Focus Mode Auto/Manual (Near, Far, One Push Auto Focus)

LENS

Zoom Ratio x 18 (infinite) 18x optical zoom (216x with digital zoom)
Focal length f = 4.1 mm to 73.8 mm f=4.1 mm to 73.8 mm
F-number F1.4 (Wide), F3.0 (Tele) F1.4 (wide), F3.0 (tele)
Minimum object Tele: 800 mm, Wide: 10 mm 300 mm (wide), 800 mm (tele)

distance (factory preset is 290 mm)

PAN/TILT

Pan angle — -170 to +170 degrees
Pan speed — 100° rotation/second
Tilt angle — -90 to +30 degrees
Tilt speed — 90° rotation/second

INTERFACES

Ethernet 10 Base-T/100 Base-TX (RJ-45) 10Base-T/100Base-TX (RJ-45)
PCMCIA Type II x1 Compact Flash for storage or wireless
Sensor and I/O Sensor input: make contact (photo coupler Sensor in x 2, Alarm out x 2

Video Output VIDEO OUT: BNC, 1.0 Vp-p, 75 Ω, BNC x1, composite video 1.0 Vp-p, 75 Ω

Serial I/F RS-232C transparent port RS-232C (R x D, T x D)

ANALOGUE VIDEO OUTPUT

Signal system PAL PAL (Composite)
Sync system Internal
Horizontal resolution 460 TV lines More than 470 TV lines
S/N ratio 50 dB More than 50 dB
Minimum illumination Colour: 0.7 lux or less Colour: 0.7 lx (50IRE, F1.4: AGC on)

SYSTEM/NETWORK

Browser MS Internet Explorer v 5.5 and 6.0 MS Internet Explorer v 5.5 and 6.0

Security IP-filtering, Password protection IP-filtering, Password protection
Protocols supported TCP/IP, HTTP, ARP, ICMP, DHCP, IP(IPv4), ICMP, ARP, TCP/UDP, RTP/RTCP,

Supplied accessories CD-ROM (setup program and Ceiling mount kit, CD-ROM (user guide, set

Optional accessories Memory Stick MSA-128 A (128 MB) SNCA-CFW1 Wireless Card,SNCA-AN1

input electrically isolated from the camera)

(Windows98/98SE/ME/NT4.0/2000/XP)

Memory Stick PC card adaptor MSAC-PC3 Wireless LAN Antenna (for use with

736 x 544 (Field), 320 x 240, 256 x 192, 160 x 120

640 x 480 (Auto), 640 x 480 (Frame), (both JPEG and MPEG-4)

1 A (mechanical relay outputs

electrically isolated from the camera)

unbalanced, sync negative

(AE mode, slow shutter off)

B&W: 0.01 lux

(F1.4, 50IRE, Slow shutter OFF)

Pocket PC Internet Explorer.

(Pocket PC 2002)

FTP, DNC, NTPand SNMP (MIB-2) SNMP (MIB-2) DHCP client, NTP client,

User guide), Wire rope, Shoulder up and SNC panorama creator software),

screw M4, Installation Manual Installation manual

Wide conversation lens VCL-0637H SNCA-CFW1 Wireless Card)

excl. cover equipment

84 x 69 x 265 mm (3

incl. cover equipment

18 fps (640 x 480)

DNS client, HTTP, FTP, SMTP client

3

⁄8" x 23⁄4" x 101⁄2")

27

SPECIFICATIONS

NETWORK VIDEO CAMERAS

SNC-RZ30P SNC-RZ50P

GENERAL

Mass 1.2 kg (2 lb 10 oz)
Dimensions (W x H x D) 140 x 175 x 144 mm (5 5⁄8" x 7" x 5 3⁄4") 140 x 166 x 142 mm (5 5⁄8" x 6 5⁄8" x 5 5⁄8")
Power requirements DC 12 V via AC adaptor (100 to 240 V) DC 12 V
Power consumption 21.6 W 20 W max.
Operating temperature 0 °C to 40 °C (32 °F to 104 °F) 0 ºC to 40 ºC (32 ºF to 104 ºF)
Storage temperature -20 °C to 60 °C (-4 °F to 140 °F) -20 ºC to 60 ºC (-4 ºF to 140 ºF)
Operating humidity 20% to 80% Non-condensing
Storage humidity 20% to 95% Non-condensing

IMAGE DATA

Compression M-JPEG JPEG, MPEG-4, H.264
Compression ratio 1/5 ~ 1/60 (10 steps) ???
Image Resolution 736 x 544 (Auto), 736 x 544 (Frame), 640 x 480,

640 x 480 (Field), 320 x 240, 160 x 120

Frame rate Max. 25 fps (640 x 480) JPEG/MPEG-4 25 fps (640 x 480)

CAMERA

Imager 1/6 type Interline Transfer SuperHAD CCD 1/4-type Super HAD CCD
Pixels 800,000 740,000 pixels (total),

Electronic shutter 1 /3 to 1/10,000 sec 1 to 1/10,000 s
Exposure Auto [Full Auto (including backlight Auto (Full auto, Shutter-priority,

White balance Auto, ATW, Indoor, Outdoor, Auto, Indoor, Outdoor, One-push WB,

Iris Auto/Manual (F1.6 to close)
Gain Auto/Manual (-3 dB to 28 dB)
Focus mode Auto/Manual (Near, Far, Auto-focus zoom

LENS

Zoom Ratio 25x optical zoom, 26x optical zoom

Horizontal viewing angle
Focal length f = 2.4 mm to 60 mm f=3.5 to 91.0 mm
F-number F1.6 (wide), F2.7 (tele) F1.6 (wide), F3.8 (tele)
Minimum object distance

PAN/TILT

Pan angle -170° to +170° -170° to +170°
Pan speed 2 sec./340° 300 degrees/s (max.)
Tilt angle -25° to +90° -90 to +25 degrees
Tilt speed 1.5 sec./115° 300 degrees/s (max.)

INTERFACES

Ethernet 10Base-T / 100Base-Tx (RJ-45) 10Base-T/100Base-TX (RJ-45)
PCMCIA Type II x 2 PC card x1, CF card x1
Sensor and I/O Sensor input x 3, Sensor output x 2 Sensor in x 2, Alarm out x 2
Video Output Analogue composite (BNC x 1) BNC x1, 1.0 Vp-p, 75 Ω
Serial I/F RS-232C/RS-485 transparent port RS-232C (Transparency function

ANALOGUE VIDEO OUTPUT

Signal system PAL PAL (Composite)
Sync system Internal
Horizontal resolution 480 TV lines 450 TV lines
S/N ratio More than 48 dB more than 50 dB
Minimum illumination Colour: 3 lux at F1.6 (50 IRE), Colour: 2.2 lx (50 IRE, F1.6, AGC ON),

SYSTEM/NETWORK

CPU 32 bit RISC Embedded processor Intel®Pentium®IV 1.5 GHz or higher
RAM 32 MB (includes 8 MB alarm buffer) 256 MB or more
Browser MS Internet Explorer v 5.5 and 6.0 Microsoft Internet Explorer

Security IP-filtering, Password protection
Protocols supported TCP/IP, HTTP, ARP, ICMP, DHCP, FTP, SMTP and SNMP (Standard MIB)
Supplied accessories Ceiling mount kit, AC power adaptor, Ceiling-mount bracket(A),

Optional accessories Installation manual, Ferrite core SNCA-CFW1Wireless LAN Card,

MSAC-PC2 Memory Stick/PC Card Adaptor (Optional accessory for the SNCA-CFW1

736 x 544 (Field), 320 x 240,

640 x 480 (Auto), 640 x 480 (Frame), 160 x 120 (JPEG, MPEG-4, H.264)

H.264 8 fps (640 x 480)

400,000 (702X575) (effective)

compensation), Shutter-priority, Iris-priority),

Iris-priority] and manual Manual, EV compensation,

One-push (trigger command), Manual ATW, Manual

One-push Auto Focus)

300x with digital zoom (312x with digital zoom)

2.0° to 45° 1.7° to 42.0°

Tele: 800 mm, Wide: 30 mm 320 mm (wide),1,500 mm (tele)

B&W: 0.18 lux at F1.6 (50 IRE) B/W: 0.3 lx (50 IRE, F1.6, AGC ON)

(Windows98/ME/NT4.0/2000)

AC power cable, CD-Rom (Set up Ceiling-mount bracket(B),

MSA-64A Memory Stick (64 MB) SNCA-AN1 Wireless LAN Antenna

Backlight compensation

or VISCA protocol)

®

Ver.6.0

IP-filtering, Password protection + PKI Chip

Screws x6, Wire rope, AC Adaptor,

AC Cable, CD-ROM (setup software,

operation manual), Installation manual

Mount bracket cover, programme and

User’s guide), I/O receptacle, Shoulder

screw, Plug retainer, Rubber feet x4

Wireless LAN Card) YT-ICB550/T

In-ceiling Mount Kit (tinted dome),

YT-ICB550/C In-ceiling Mount Kit

(clear dome), YT-MA550 Adaptor for

the YT-ICB550

28

SPECIFICATIONS

NETWORK VIDEO CAMERAS

SNC-RX550P

CAMERA

Image device 1/4-type Exwave HAD CCD
Number of effective pixels
Electronic shutter 1 to 1/10,000 s
Gain control Auto/Manual (-3 dB to +28 dB)
Exposure control Auto (Full auto, Shutter-priority, Iris-priority),

White balance mode Auto, Indoor, Outdoor, One-push auto, ATW/Manual
Lens type Auto-focus zoom lens
Zoom ratio 26x optical zoom (312x with digital zoom)

Horizontal viewing angle
Focal length f=3.5 to 91.0 mm
F-number F1.6 (wide), F3.8 (tele)
Minimum object distance
Pan angle 360 degrees endless rotation
Pan speed 300 degrees/s (max.)
Tilt angle -90 to 0 degrees
Tilt speed 300 degrees/s (max.)
Other functions Day/Night, Advanced Video Motion Detection,


Image size (H x V) 640 x 480, 320 x 240, 160 x 120

Compression format JPEG, MPEG-4, H.264
Maximum frame rate

JPEG/MPEG-4 25 fps (640 x 480)
H.264 8 fps (640 x 480)

AUDIO

Audio compression G.726/G.711 (40, 32, 24, 16 Kb/s)

NETWORK

Protocols TCP/IP, HTTP, ARP, ICMP, FTP, SMTP, DHCP, SNMP, DNS, NTP
Number of clients 20

INTERFACES

Ethernet 10Base-T/100Base-TX (RJ-45)
Serial interface RS-232C (Transparency function or VISCA protocol)
Card slots PC card x1, Memory Stick x1
Analogue video output BNC x1, 1.0 Vp-p, 75 Ω
External microphone input
Audio line output Mini-jack (monaural), max output level: 1 Vrms

ANALOGUE VIDEO OUTPUT

Signal system PAL (Composite)
Horizontal resolution 460 TV lines
S/N ratio 50 dB
Min. illumination Colour: 1 lx (50IRE, F1.6, AGC ON), B/W: 0.15 lx (50IRE, F1.6, AGC ON)

SUPPLIED ACCESSORIES

SYSTEM REQUIREMENTS

Operating system Microsoft®Windows®2000/XP
Processor CPU: Intel®Pentium®IV 1.5 GHz or higher
Memory RAM: 256 MB or more
Web browser Microsoft Internet Explorer®Ver.5.5 or 6.0

Ceiling-mount bracket (A), Ceiling-mount bracket (B), Screws x6, Wire rope,

Manual, EV compensation, Backlight compensation

vignetting may occur at wide viewing angles under low light conditions

Unattended Object Detection, Anti-tampering,

Mini-jack (monaural, 2.2 KΩ 2.5 V plug-in power)

CD-ROM (setup software), Operation manual, Installation manual

440,000 (752 x 582)

2.2 to 54.2 degrees

320 mm (wide),1,500 mm (tele)

Image stabiliser, Position preset

(JPEG, MPEG-4, H.264)

29

SPECIFICATIONSSPECIFICATIONS

NETWORK VIDEO RECORDERS AND SERVERS

SNT-V501 SNT-V704

GENERAL

Mass Approx. 650 g (1 lb 7 oz) Approx. 1.2 kg (2 lb 10 oz)
Dimensions (W/H/D) 128 x 40 x 150 mm (5

Power requirement DC 12 V or AC 24 V DC 12 V (AC adapter included)
Power consumption 10.0 W max. 18 W
Operating temperature -10 to 50 °C (14 °F to 122 °F) -10 to 40 °C (14 to 104°F)

Storage temperature -20 to 60 °C (-4 to 140 °F) -20°C to 60°C (-4°F to 140°F)
Operating humidity 20 to 80 %, Non-condensing 20 to 80 %, Non-condensing
Storage humidity 20 to 95 %, Non-condensing 20 to 95 %, Non-condensing

ANALOGUE VIDEO INTERFACE

Image device 1/4-type progressive scan CCD 1/4-type progressive scan CCD
Video input

Video ouput Through video output: Analogue composite Analogue composite

SYSTEM/NETWORK

CPU CPU 32-bit RISC processor RAM 32 MB CPU 64-bit RISC processor

Flash memory 8 MB 128 MB (including 32 MB alarm buffer)
Image size 704 x 480, 640 x 480, 320 x 240, 720 x 576, 640 x 480, 320 x 240 pixels

Compression method JPEG JPEG/MPEG-4
Compression ratio Approx. 1/5 to 1/60 (10 steps) Variable in*
Frame rate Max. 30 fps (640 x 480) Max. 25 fps x 4ch (640 x 480)

Protocols TCP/IP, ARP, ICMP, HTTP, FTP (server/client), TCP/IP, ARP, ICMP, HTTP, FTP (server/client),

Number of clients Max. 50 Max. 50

INTERFACES

Ethernet 100BASE-TX / 10BASE-T (RJ-45) 100Base-TX/10Base-T (RJ-45)
Sensor input (1) 3.3 to 24 V DC device supported, 4 (3.3 to 24 V device supported,

Alarm output (2) 24 V DC or less, 1 A, mechanical 4 (24 V DC or less, 1, 1 A,

Serial interface RS-485/RS-232C (for camera control RS-232C/485/422 (for camera control)

PC card slot PCMCIA Type II (1) —
USB Port — USB 2.0 (for use with USB mass

excluding protruding parts

When PC card is attached:

-10°C to 40°C (14°F to 122°F)

(1) Analogue composite (BNC x 1),1.0 Vp-p

75 Ω, unbalanced, sync negative 75 Ω, unbalanced, sync negative,

(BNC x 1),1.0 Vp-p, 75 Ω, unbalanced, (BNC x 4),1.0 Vp-p, 75 Ω,

SMTP, DHCP, DNS, NTP, SNMP (MIB-2) SMTP, DHCP, DNS, NTP, SNMP (MIB-2)

relay outputs electrically isolated from mechanical relay outputs electrically

Auto sensing Auto sensor for NTSC or PAL

sync negative unbalanced, sync negative (loop-through)

(including 8 MB alarm buffer)

160 x 120 pixels

photo coupler inputs electrically photocoupler inputs are electrically

isolated from this unit isolated from this unit

or transparency function)

1

⁄8" x 1 5⁄8" x 6") 210 x 42 x 202 mm (8 3⁄8 x 1 11⁄16 x 8")

Analogue composite (BNC x 4),1.0 Vp-p,

(JPEG/MPEG-4)

the camera isolated from the camera

storage class devices only)

*The compression ratio is based on an image of 24 bits/picture element (8 bits for each R, G and B)

30

SPECIFICATIONSSPECIFICATIONS

NETWORK VIDEO RECORDERS AND SERVERS

NSR-50 NSR-100

GENERAL

Mass Approx. 12 kg (26 lb 7 oz) Approx. 13 kg (28 lb 11 oz)
Dimensions (W x H x D) 430 x 87 x 417 mm (17 x 3 1⁄2 x 16 1⁄2) excluding protrusions
Power requirement 100 to 127/200 to 240 V AC
Power consumption 1.93 A / 0.99 A 2.77 A / 1.39 A

Operating temperature 5 to 40 ºC (41 to 104 ºF)
Operating humidity 10 to 80% (non-condensing)

VIDEO/RECORDING

Number of IP Cameras 32 Max.
Supported

Video Compression MPEG-4 or JPEG
Maximum Recording 240 fps

1

Rate*

HARD DISK DRIVES

Physical Capacity 500 GB (250 G x 2)
Interface Serial ATA
RAID Level/Recording Software RAID Hardware RAID (Hot Swappable

Capacity (approx.) SPAN (Default): 460 GB RAID 5 (Default): 700 GB

RAID 1: 210 GB RAID 1: 460 GB

Network File System Supports NFS Version 3 protocol Supports NFS Version 3 protocol
(for NAS)

VIDEO INTERFACE

Monitor OUT #1 RGB connector x2 (Front and Rear Panel,

cannot be used simultaneously)

#2 RGB connector x1
Video Output S-Video x1
Analogue Composite OUT

AUDIO INTERFACE

RCA-pin x2 (Front and Rear Panel, cannot be used simultaneously)

Mic IN Mini jack x1(front), x 1(rear)
Line OUT RCA-pin, L/R x1 stereo pair, (front and rear panel)

SENSOR/ALARM

Sensor IN 8-channel photo-coupler (DC3.3-24V)
Alarm OUT 8-channel relay (Max. 24V 1A)

OTHER INTERFACES

Ethernet 1000Base-T/100Base-TX/10Base-T x3 (automatic switching)
USB Front x2, Rear x2
Serial interface RS-232C x1 (for UPS)*

SUPPLIED ACCESSORIES

Front panel key, Installation guide, Remote control unit operation card,

Recovery CD, Manual/Tool/ Source codes CD, Rubber feet (4)

when set to RAID 5 or RAID 1)

RAID 0: 940 GB

2

*1 Recording frame rates shown in the table represents the total frame rate per recorder unit when recording images at JPEG, Level

5 using the SNC-RZ30, and without live image monitoring.

*2 Please contact your local Sony sales office for a list of recommended UPS systems.

31

SPECIFICATIONSSPECIFICATIONSSPECIFICATIONS

VIDEO CAMERAS

SSC-DC80P SSC-DC83P SSC-DC88P

GENERAL

Mass Approx. 560 g (1.4 oz) Approx. 550 g (1.3 oz) Approx. 600 g (1.5 oz)
Dimensions (W x H x D) 70 x 57 x 260 mm (2 7/8" x 2 1/4" x 20 1/4")

(including front and

rear covers)

Power requirements Multiplexing with the AC 24 V ±10%, AC 24 V ±10%,

Power consumption 4.6 W 4.4 W 4.2 W
Operating temperature -10 to 50 °C (14 to 122 °F)
Storage temperature -40 to 60 °C (-40 to 140 °F)

CAMERA

Image device 1/2-type CCD with Exwave HAD technology
Number of effective 440,000 (768 x 494)

pixels (H x V)
Auto Gain Control Turbo/Normal/Manual/Off
White balance mode ATW-pro/ATW/3200K/5600K/Manual
Lens type CS/C-mount (C-mount adaptor is supplied), DC/Video servo auto iris
CCD iris ON/OFF, 1/50 to 1/100,000 s switchable
Back-Light SPOT/WEIGHT/OFF switchable

Compensation (BLC)
Analogue video output BNC x 1, 1.0 Vp-p, 75Ω, Sync negative, S-Video x 1
Signal system PAL
Sync system Internal/VS/VD Internal/AC Line lock/VS Internal/AC Line lock/VS
Horizontal Resolution 4480 TV lines
S/N ratio More than 57 dB (AGC OFF, WEIGHT ON)
Minimum illumination 0.4 lx (50 IRE, F1.2, Turbo AGC ON)

SUPPLIED ACCESSORIES

YS-W170P/W270P, 50 Hz or 50 Hz

or DC 12 V ±10% DC 12 V ±10%

Lens mount cap, Operating Lens mount cap, Operating

instructions, Front cover instructions, Front cover

Rear cover, Screws (2), Rear cover, Screws (2),

C-mount adaptor Power cable

CAMERA ADAPTORS

YS-W170P YS-W270P

Video output BNC(2), composite video
Signal system PAL
Video input Camera in, BNC(1) Camera in, BNC(4)
External sync VS or VD-W
Internal sync MPX-VS or MPX-VD-W
Max. cable length 300 m (984 ft) using RG-59B/U

Cable compensation 3 positions
Power requirements AC 220 to 240 V, 50 Hz
Power consumption 15 W 49.5 W
Operating temperature -10 to 50°C (14 to 122°F) -10 to 50°C (14 to 122°F)
Mass 1.9 kg (4 lb 3 oz) 3.8 kg (8 lb 6 oz)
Dimensions (W x H x D) 212 x 52 x 345 mm 424 x 52 x 345 mm

(8 8⁄3" x 2 1⁄8" x 13 5⁄8") (16 3⁄4" x 2 1⁄8" x 13 5⁄8")

500 m (1640 ft) using RG-6A/U

600 m (1968 ft) using RG-11A/U

32

SPECIFICATIONSSPECIFICATIONSSPECIFICATIONS

VIDEO CAMERAS

SSC-DC593P SSC-DC598P

GENERAL

Mass 500 g (1 lb. 2 oz)
Dimensions (W x H x D) 70 x 57 x 129 mm (2 7⁄8" x 2 1⁄4" x 5 1⁄8")
Power requirements AC 24 V ±10%, 50 Hz AC 220 V to 240 V

Power consumption 5.8 W 5.6 W
Operating temperature -10 to 50 °C (-40 to 122 °F)
Storage temperature -40 to 60 °C (-40 to 140 °F)

CAMERA

Image device 1/3 type Interline Transfer CCD with DynaView technology
Number of effective 752 x 582

pixels (H x V)
Auto Gain Control OFF/MANUAL/NORMAL/TURBO selectable
White balance mode ATW PRO/ATW/3200K/5600K/MANUAL/DUAL WB
Lens type CS
CCD iris 1/60 (1/50) to 1/10000 (8steps) OFF/MANUAL/

Back-Light DYNAVIEW/SPOT/WEIGHT/OFF switchable
Compensation (BLC)

Video out 1.0 Vp-p, BNC (1)
Day/Night mode COLOUR/AUTO/EXTERNAL/B&W
Activity detection ON / OFF switchable
Zone masking ON / OFF switchable (with Area setting function)
Variable Gamma OFF /SCENE1 /SCENE2/SCENE3/SCENE4 selectable
Camera Title Up to 24 characters ON / OFF switchable
Remote Control RS-485
Signal system PAL
Sync system Internal/External
Horizontal Resolution 480 TV lines
S/N ratio More than 50 dB (AGC OFF, Weight ON)
Minimum illumination Colour: 0.8 lux at F1.4( 50 IRE)

Auto iris lens DC/video servo switchable

SUPPLIED ACCESSORIES

or DC 12 V ±10% ±10%, 50 Hz

CCD IRIS selectabl

B/W: 0.07 lux at F1.4 (50 IRE)

Lens mount cap (x1) Lens mount cap (x1)

Menu operations (x1) Menu operations (x1)

Operation manual (x1) Operation manual (x1)

AC power cable (x1)

33

SPECIFICATIONS

VIDEO CAMERAS

SSC-E473P SSC-E478P

GENERAL

Mass 380 g (13 oz) 400g (14 oz)
Mass including front 460 g (1 lb 1 oz) 480g (1 lb 8 oz)

& rear covers
Dimensions (W x H x D) 60 x 53 x 124 mm (2 3⁄8" x 2 1⁄8" x 5")
Dimensions including 60 x 53 x 246 mm (2

front and rear covers
Power requirements AC 24 V ±10%, 50 Hz AC 220 V to 240 V

Power consumption 4.0 W
Operating temperature -10 °C to 50 °C (14 °F to 122 °F)
Storage temperature -40 °C to 60 °C (-40 °F to 140 °F)

CAMERA

Image device 1/3 type Interline Transfer CCD with SuperExwave
Picture elements (H x V) 752 x 582
Auto Gain Control TURBO/OFF switchable
White Balance (WB) Auto White Balance Pro(ATW Pro) /Auto Wite Balance(ATW)
Lens mount CS
CCD IRIS ON/OFF switchable, 1/50 to 1/100,000 s
Backlight Compensation

(BLC)
Video out BNC, 1.0 Vp-p, 75 Ω, sync negative
Sensing area 1/3 type format (4.8 x 3.6 mm)
Signal system PAL standard
Sync system INT/Line Lock
Horizontal resolution 540 TV lines
S/N ratio More than 50 dB (AGC OFF, WEIGHT ON)
Minimum illumination Colour: 0.55 lx at F1.2 (50 IRE, AGC ON, Turbo mode)

Auto iris lens DC servo

SUPPLIED ACCESSORIES

or DC 12 V ±10% ±10%, 50 Hz

ON/OFF switchable

B&W: 0.05 lx at F1.2 (50 IRE, AGC ON, Turbo mode)

Lens mount cap (1), Operating instructions (1), Front cover(1), Rear cover(1),

Screws (2), Power cable (1)

3

⁄8" x 2 1⁄8" x 9 3⁄4")

34

SPECIFICATIONS

VIDEO CAMERAS

SSC-E453P SSC-E458P

GENERAL

Mass 360g (12 oz) 390 g (13 oz)
Mass including front 440g (15oz) 470 g (1 lb)

& rear covers

Dimensions (W x H x D) 60 x 53 x 118 mm 60 x 53 x 124 mm

Dimensions including 60 x 53 x 240 mm 60 x 53 x 246 mm
front and rear covers (2 3⁄8 x 2 1⁄8 x 9 1⁄2 inches) (2 3⁄8 x 2 1⁄8 x 9 3⁄4 inches)

Power requirements AC 24 V ±10%, 50 Hz AC 220 V to 240 V

Power consumption 3.5 W
Operating temperature -10 °C to 50 °C (14 °F to 122 °F)
Storage temperature -40 °C to 60 °C (-40 °F to 140 °F)

CAMERA

Image device 1/3 type Interline Transfer CCD with SuperExwave
Picture elements (H x V) 752 x 582
Auto Gain Control TURBO/OFF switchable
White Balance (WB) Auto White Balance Pro(ATW Pro) /Auto Wite Balance(ATW)
Lens mount CS
CCD IRIS ON/OFF switchable, 1/50 to 1/100,000 s
Backlight Compensation

(BLC)
Video out BNC, 1.0 Vp-p, 75 Ω, sync negative
Sensing area 1/3 type format (4.8 x 3.6 mm)
Signal system PAL standard
Sync system INT/Line Lock
Horizontal resolution 540 TV lines
S/N ratio More than 50 dB (AGC OFF, WEIGHT ON)
Minimum illumination 0.55 lux at F1.2

Auto iris lens DC servo

SUPPLIED ACCESSORIES

(2 3⁄8 x 2 1⁄8 x 4 3⁄4 inches) (2 3⁄8 x 2 1⁄8 x 5 inches)

or DC 12 V ±10% ±10%, 50 Hz

ON/OFF switchable

(50 IRE, AGC ON, Turbo mode)

Lens mount cap (1), Operating instructions (1), Front cover(1), Rear cover(1),

Screws(2), Power cable (1)

35

SPECIFICATIONS

VIDEO CAMERAS

SSC-DC372P SSC-DC378P

GENERAL

Mass 355 g (13 oz) 385 g (14 oz)
Dimensions (W x H x D) 60 x 54 x 120 mm 60 x 54 x 120 mm

Power requirements AC 24 V ±10%, 50 Hz AC 220 V to 240 V

Power consumption 3.2 W 4.0 W
Operating temperature -10 °C to 50 °C (14 °F to 122 °F)
Storage temperature -40 °C to 60 °C (-40 °F to 140 °F)

CAMERA

Image device 1/3 type SuperHAD CCD
Picture elements (H x V) 752 x 582
Auto Gain Control ON (Turbo mode, up to 24 dB) or OFF switchable
White Balance (WB) Auto-Tracing White Balance
Lens mount CS mount
CCD IRIS 1/50 to 1/100,000 s
Back-Light Compensation

(BLC)
Video out BNC, 1.0 Vp-p, 75 Ω, sync negative
Sensing area 1/3 type format (4.8 x 3.6 mm)
Signal system PAL
Sync system Internal
Horizontal resolution 480 TV lines
S/N ratio 50 dB or more (AGC OFF,Weight ON)
Minimum illumination 0.8 lx at F1.2 (50 IRE, Turbo mode)

Auto iris lens DC servo

SUPPLIED ACCESSORIES

(2 3⁄8" x 2 1⁄4" x 4 3⁄4") (2 3⁄8" x 2 1⁄4" x 4 3⁄4")

or DC 12 V ±10% ±10%, 50 Hz

ON or OFF switchable

0.3 lux at F1.2 (30 IRE, AGC ON, AGC ON, Turbo mode)

0.6 lux at F1.2 (50 IRE, AGC ON, Turbo mode)

3.0 lux at F1.2 (100 IRE, AGC ON, Turbo mode)

Lens mount cap (x 1), Lens mount cap (x 1),

Operating instructions (x 1) Operating instructions (x 1)

Power cable (x 1)

36

SPECIFICATIONS

VIDEO CAMERAS

SSC-DC198P SSC-DC172P

GENERAL

Mass 390 g (14 oz) 355 g (12 oz)
Dimensions (W x H x D) 60 x 54 x 120 mm 60 x 54 x 120 mm

Power requirements AC 220 to 240 V ±10%, 50 Hz DC 12 V ±10%
Power consumption 3.7 W 3.0 W
Operating temperature -10°C to 50°C (14°F to 122°F)
Storage temperature -40°C to 60°C (-40°F to 140°F)

CAMERA

Image device 1/3 type CCD 1/3 type Interline Transfer CCD
Picture elements (H x V) 500 x 582
Auto Gain Control ON/OFF switchable TURBO/OFF switchable
White Balance (WB) Auto White Balance (ATW)
Lens mount CS
CCD IRIS 1/50 to 1/100,000 s ON/OFF switchable (1/50 to 1/100,000 s)
Back-Light Compensation

(BLC)
Video out BNC, 1.0 Vp-p, 75 Ω, sync negative
Sensing area 1/3 type format (4.8 x 3.6 mm)
Signal system PAL standard
Sync. System Line Lock Internal
Horizontal resolution 330 TV lines
S/N ratio 50 dB or more (AGC OFF, Weight ON) 50 dB or more (AGC OFF, Weight ON)
Minimum illumination 0.8 lx at F1.2 (50 IRE, Turbo mode) 0.6 lx at F1.2 (50 IRE, AGC ON,

Auto iris lens DC/video servo switchable DC servo

SUPPLIED ACCESSORIES

0.3 lux at F1.2 (30 IRE, AGC ON, AGC ON, Turbo mode)

(2 3⁄8" x 2 1⁄4" x 4 3⁄4") (2 3⁄8" x 2 1⁄4" x 4 3⁄4")

ON/OFF switchable

0.6 lux at F1.2 (50 IRE, AGC ON,

3.0 lux at F1.2 (100 IRE, AGC ON,

Turbo mode)

Turbo mode)

Turbo mode)

Lens mount cap (x 1), Operating instructions (x 1)

37

SPECIFICATIONS

VIDEO CAMERAS

SSC-M383CE SSC-M388CE

GENERAL

Mass 360 g (13 oz) 390 g (14 oz)
Dimensions (W x H x D) 60 x 54 x 120 mm (2 3⁄8" x 2 1⁄4" x 4 3⁄4")
Power requirements AC 24 V ±10%, 50 Hz or DC 12 V ±10% AC 220 V to 240 V ±10%, 50 Hz
Power consumption 2.6 W
Operating temperature -10 to 50 °C (14 to 122 °F)
Storage temperature -40 to 60 °C (-40 to 140 °F)

CAMERA

Image device 1/3 type Interline Transfer CCD
Picture elements (H x V) 752 x 582
Auto Gain Control ON/OFF (switchable)
Lens mount CS
CCD IRIS ON/OFF (switchable), 1/50 to 1/100,000 s
Back-Light Compensation

(BLC)
Video out 1.0 Vp-p; 75 Ω, sync. negative
Sensing area 1/3 type format (4.8 x 3.6 mm)
Signal system CCIR standard
Sync. System INT/LL LL
Horizontal resolution 570 TV lines
S/N ratio More than 50 dB (AGC OFF, weight ON)
Minimum illumination 0.04 lux at F1.2 (30 IRE, AGC ON, Turbo mode)

Auto iris lens DC/video servo switchable

SUPPLIED ACCESSORIES

Operating instructions (x 1) Operating instructions (x 1)

0.07 lux at F1.2 (50 IRE, AGC ON, Turbo mode)

0.3 lux at F1.2 (100 IRE, AGC ON, Turbo mode)

Lens mount cap (x 1), Lens mount cap (x 1),

ON/OFF switchable

Power cable (x 1)

38

SPECIFICATIONS

VIDEO CAMERAS

SSC-M183CE SSC-M188CE

GENERAL

Mass 360 g (13 oz) 390 g (14 oz)
Dimensions (W x H x D) 60 x 54 x 120 mm (2 3⁄8" x 2 1⁄4" x 4 3⁄4")
Power requirements AC 24 V ±10%, 50 Hz or DC 12 V ±10% AC 220 V to 240 V ±10%, 50 Hz
Power consumption 2.5 W
Operating temperature -10 to 50 °C (14 to 122 °F)
Storage temperature -40 to 60 °C (-40 to 140 °F)

CAMERA

Image device 1/3 type Interline Transfer CCD
Picture elements (H x V) 500 x 582
Auto Gain Control ON/OFF (switchable)
Lens mount CS
CCD IRIS ON/OFF (switchable), 1/50 to 1/100,000 s
Back-Light Compensation

(BLC)
Video out 1.0 Vp-p; 75Ohm, sync. negative
Sensing area 1/3 type format (4.8 x 3.6 mm)
Signal system CCIR standard
Sync. System INT/LL LL
Horizontal resolution 380 TV lines
S/N ratio More than 50 dB (AGC OFF, weight ON)
Minimum illumination 0.03 lux at F1.2 (30 IRE, AGC ON, Turbo mode)

Auto iris lens DC/video servo switchable

SUPPLIED ACCESSORIES

0.06 lux at F1.2 (50 IRE, AGC ON, Turbo mode)

0.25 lux at F1.2 (100 IRE, AGC ON,Turbo mode)

Lens mount cap (x1) Operation manual (x1)

ON/OFF switchable

39

SPECIFICATIONS

VIDEO CAMERAS

SSC-CD73VP SSC-CD43VP

GENERAL

Mass Approx 870 g (1lb. 14 oz) Approx 440 g (16 oz)
Dimensions (W x H x D) Base: 147 x 111 x 148 mm Base: 121 x 123 x 106 mm

Input voltage AC 24 V/DC 12 V AC 24 V/DC 12 V
Power consumption 3.5 W 3.3 W
Operating temperature -20° C to +50 °C (-4° F to +122° F)
Operating humidity 20 % to 80 % (non condensing)
Weather proof IP66 —

CAMERA

Image device 1⁄4 type Interline Transfer SuperHAD CCD
Picture Elements (H x V) 752 x 582
Built-in lens f = 3.0 to 8.0 mm, F1.0 Auto iris
Auto Gain Control ON (Turbo mode)/OFF switchable
Lens mount CS Mount
View angle (D, H, V) (H): 66.6 ° (wide), 26.9 ° (tele) (V): 49.3° (wide), 20.1° (tele)
Focus length Minimum object distance: 0.2 m
White Balance ATW
Signal system/ PAL color system

scanning system
Sync. system Internal (DC 12 V/AC 24 V) /Line lock (AC 24 V only) switchable
External sync. AC line lock (for AC 24 V)
V-phase control ±90 °
Horizontal resolution 480 TV lines
S/N ratio More than 50 dB (AGC OFF, weight ON)
Min. illumination Colour: 0.9 lux 0.9 lux (AGC ON)
(Turbo AGC ON) (F1.0, 50 IRE, AGC ON)

OPTIONAL ACCESSORIES

3

(5

⁄4" x 4 3⁄8" x 5 7⁄8") (4 3⁄4" x 4 7⁄8" x 4 1⁄8")

Bubble: 94 mm (3 3⁄4") (ø) Bubble: 91 mm (3 5⁄8") (ø)

B&W: 0.2 lux

(F1.0, 50 IRE, AGC ON)

YT-ICB73V YT-ICB43V

In-ceiling bracket In-ceiling bracket

40

SPECIFICATIONS

VIDEO RECORDERS

HSR-J2009P HSR-J2016P

GENERAL

Mass 7.1 kg (15 lb 10 oz) 7.2 kg (15 lb 14 oz)
Dimensions 420 (W) x 96 (H) x 376 (D) mm (16 5⁄8" x 3 7⁄8" x 14 7⁄8")
Power requirements AC 220 V, 50/60 Hz
Power consumption 40 W 48 W
Operating temperature 5 to 40 °C (41 to 104°F)
Operating humidity Less than 80%
Built-in HDD capacity 500 GB (250 GB x 2)
Card slot Compact Flash type II

VIDEO

Input 9 channels,VBS, VS (BNC type) 16 channels, VBS, VS (BNC type)

Output 9 channels, VBS, VS (BNC type) 16 channels, VBS, VS (BNC type)

Monitor output VBS, VS 1.0 Vp-p, 75 Ω, unbalanced (BNC type x 2 ),

Video output RCA x 1
Video compression JPEG 2000
Picture quality mode Hyper : 42 KB/picture*

Picture resolution 720 x 288 pixels (field mode)
Horizontal resolution More than 500 TV lines (Hyper mode)
Signal-to-noise ratio 48 dB (typical, Hyper mode)

AUDIO

Mic input 1 channel Monaural (Mini jack), -60 dBs, 10 kΩ, unbalanced
Line input 2 channels Monaural (Phono jack), -8 dBs, 27 kΩ, unbalanced
Line output 1 channel Monaural (Phono jack), -8 dBs, 600 Ω, unbalanced
Signal-to-noise ratio 38 dB (typical)
Distortion Less than 4% at 1 kHz

NETWORK INTERFACE

Ethernet 100Base-TX/10Base-T
Network protocol TCP/IP, HTTP, DHCP, SMTP, PPP, NTP

ALARM AND CONTROL INPUT/OUTPUT

SCSI 68-pin half pitch D-sub
USB Version 2.0, x 2
RS-485 (A, B) RJ-11
Alarm in Normal open (Low active), x 16
Sensor alarm out 5 V, 5.7 kΩ (Low active), x 16
Remote1/Remote2 Push-lock terminal
Clock set in Normal open (Low active)
Clock set out DC 5 V, 5.7 kΩ (Low active)
External timer in Normal open (Low active)
Alarm out DC 5 V, 5.7 kΩ (Low active)
Alarm reset out Normal open (Low active)
Non rec out DC 5 V, 5.7 kΩ (Low active)
Warning out DC 5 V, 5.7 kΩ (Low active)
Disk full out DC 5 V, 5.7 kΩ (Low active)

SUPPLIED ACCESSORIES

1.0 Vp-p, 75 Ω, unbalanced 1.0 Vp-p, 75 Ω, unbalanced

1.0 Vp-p, 75 Ω, unbalanced 1.0 Vp-p, 75 Ω, unbalanced

S-VIDEO (Mini DIN 4-pin x 1)

Super : 34 KB/picture*

High : 26 KB/picture*

Mid : 16 KB/picture*
Low : 10 KB/picture*

AC power cord, AC power cord tie, Rack mount kit, Installation manual,

Operation manual (CD-R)

*Each image includes header informaion of 2 KB.

41

SPECIFICATIONS

VIDEO RECORDERS

HSR-DCT

GENERAL

Power requirements 12 V DC 1A
Power consumption 15 W
Operating temperature 0° to 45 °C (32° to 113°F)
PTZ control Joystick, 3 axis proportional
Display 320 x 240 pixels back-lit by white LED
Languages Italian, English, French and German Expandable to 12
Security Three passwords (Connection, Set-up, Alarm reset)
Customisation Up to 30 user maps
Macro function keys Max. 20

INTERFACES

Serial I/F 3x RS-485 (RJ11 connectors):

SUPPORTED PROTOCOLS

Speed Dome control Dome Elmo D7720B

SUPPLIED ACCESSORIES

up to 999 telemetry receivers

1x RS-232C for PC connection (layout creation,

keyboard set-up and firmware update)

Dome Ernitec Saturn

Dome JVC TK-C675, TK-C676

Dome Panasonic 600 and 850

Dome Pelco Spectra and Lite (Protocol D)

Dome Samsung SCC64-1P

Dome Sensormatic Delta Dome II

Instruction Manual, wide range power supply,

3 power cables, 6 telephone cables,

Dome Star

Dome VCL VC5S-ORBM

6 shunt boxes RJ jack

42

SPECIFICATIONS

VIDEO MONITORS

LMD-1410SC

GENERAL

Mass (Panel & Stand) Approx. 6.5 Kg (14 lb 5 oz)
Panel only Approx. 4.8 kg (10 lb 9 oz)
Dimensions (W x H x D) Approx. 343 x 354 x 264 mm (13 5⁄8" x 14" x 10 1⁄2")
Dimensions without stand
Power Requirements AC 100 to 240 V, 50/60 Hz
Power Consumption Approx. 48 W
Storage & Transport -10 to 40 °C

Temperature
Operating Temperature 0 to 35 °C
Storage & Transport 0 to 90 %

Humidity
Operating Humidity 30 to 85% (Non-condensing)
Operating/Storage/ 700 to 1060 hPa

Trans. Pressure

PICTURE PERFORMANCE

Type A-Si TFT Active Matrix LCD
Resolution 640 x 480 dots
Pixel efficiency 99.99%
Dot pitch 0.443 x 0.443 mm
Picture Size (H x W) Approx. 283 x 212 mm

(Viewable area) (Approx. 11
(Diagonal) 354 mm (14-inch)

Aspect 4:3/16:9 switchable
Colours Approx. 16,200,000 colours
Viewing Angle 85°/85°/85°/85° (typical) (up/down/left/right contrast>10:1)

INPUT

Line A

Composite BNC x 1,1.0 Vp-p ±3 dB 75 Ω termination, sync 0.3 Vp-p negative
Y/C DIN 4 pin x 1

Audio in RCA pin x 1, -5 dBu 47 Ω or higher

Line B

Composite BNC x 1, 1.0 Vp-p ±3 dB 75 Ohm termination, sync 0.3 Vp-p negative
Audio in RCA pin x 1, -5 dBu 47 Ω or higher

RGB/Component

RGB/Component BNC x 3,0.7 Vp-p ±3 dB 75 Ohm termination, sync on Green 0.3 Vp-p, negative
Audio in RCA pin x 1, -5 dBu 47 Ω or higher

Remote

Parallel remote Modular 8-pin (Assignable)

OUTPUT

Line A

Composite BNC x 1, Loop-through, with 75 Ω automatic termination
Y/C DIN 4 pin x 1, Loop-through, with 75 Ω automatic termination
Audio out RCA pin x 1

Line B

Composite BNC x 1, Loop-through, with 75 Ω automatic termination
Audio out RCA pin x 1, Loop-through

RGB/Component

RGB/Component BNC x 3, Loop-through, with 75 Ω automatic termination
Audio out RCA pin x 1, Loop-through

Approx. 343 x 304 x 87mm (13 5⁄8" x 12" x 3 1⁄2")

1

⁄4"x 8 3⁄8")

Y: 1.0 Vp-p ±3 dB, 75 Ohm termination

C: 0.286 Vp-p ±3 dB (NTSC), 0.3 Vp-p ±3 dB (PAL),

75 Ohm termination, sync 0.3 Vp-p negative

43

SPECIFICATIONSSPECIFICATIONSSPECIFICATIONS

PRINTERS

UP-970AD UP-D897 UP-897MD

Thermal head Direct thermal printing Thin-film thermal head, Thin-film thermal head,

Gradation 256 levels processing 8-bit (256 levels) processing 8-bit (256 levels) processing
Resolution 325 dpi 325 dpi 325 dpi
Picture elements Digital 3414 x 2560 dots 4096 x 1280 dots (max.) (when “SC:WD1”

NTSC 1280 x 508 dots EIA: 1210 x 490 dots

Picture size Digital 200 x 150 mm 320 x 100 mm (max.)

Printing speed Approx. 8 seconds /image Approx. 2 seconds/image Approx. 2 seconds/image

3.3 seconds/image

Interface Digital: Hi-Speed USB Hi-Speed USB (USB 2.0) Input connector:

Power requirement 100 to 120 V AC: 2.4 A 100 to 240 V AC, 50/60 Hz 100 to 240 V AC, 50/60 Hz

Input current 2.4 A to 1.3 A max 1.5 A to 0.8 A 1.5 A to 0.8 A
Operating temperature

Operating humidity 20% to 80%
Storage and transport -20 °C to 60 °C

temperature (-4 °F to 140 °F)
Storage and transport 20% to 80% 20% to 90% 20% to 90%

humidity
Dimensions (W x H x D) 316 x 132.5 x 305 mm 154 x 88 x 240 mm 154 x 88 x 240 mm

Mass Approx.8 kg (17 lb 10 oz) 2.6 kg (5 lb 11 oz) 2.6 kg (5 lb 11 oz)

Safety standards UL60950-1, UL60950-1+CSA C22.2No.60950.1 + UL60601-1+

Supplied accessories Head cleaning sheets (1), VCCI Class A +mains VCCI Class A +mains

PAL 1280 x 616 dots CCIR: 1210 x 582 dots

NTSC 188 x 143 mm When “S:STD” is selected

PAL 188 x 140 mm EIA: 94 x 73 mm

(7 7⁄8 x 6 inches) is selected from “SCAN”)

1

⁄2 x 5 3⁄4 inches) from “SIDE”

(7

(7 1⁄2 x 5 5⁄8 inches) CCIR: 94 x 71 mm

(at standard mode printing) (960 x 1280 dots) (at standard setting)

Analogue: Video VIDEO IN (BNC type)

220 to 240 V AC: 1.3 A

5°C to 35°C

(41°F to 95°F)

(12 1⁄2"

x 5 1⁄4"

x 12 1⁄8"

) (6 1⁄6"

CSA C22.2 No.60950-1, CSA No.60601-1, FCC/IC Class A Digital Device,

UL60601-1, EN60950-1+EN60601-1, EN55024+EN55022:

CSA C22.2 No.601.1, Class B + EN60601-1-2, IEC60950-1+60601-1,

EN60950, EN60601-1, C-Tick AS4252.1 +AS3548 : Class B, GB4943(IEC 950)+

IEC60950-1, IEC60601-1 GB9254(CISPR 22), VCCI Class A +mains

UPP-210HD High density harmonic current regulation harmonic current regulation

printing paper (1),

BNC cable (1), USB cable (1), CD-ROM (including Operating instructions

Operation guide (Getting multi-lingual operating

Started) (1), CD-ROM instructions, Readme and

(Instruction for use, printer driver) (1),

driver software) (1), USB cable (1)

Media label (1)

Software License

Agreement (1)

1280 dots 1280 dots

is selected from “SCAN”)

(when “SC:WD1” or “SC:NOR”

When “S:SIDE” is selected

from “SIDE”

EIA: 124 x 96 mm

CCIR: 127 x 96 mm

(printing at high speed) (when “SP:HI” is selected

Approx. 3.3 seconds/image from “SPEED”)

(960 x 1280 dots)

(printing at normal speed) (at standard setting)

5 °C to 35 °C 5 °C to 35 °C

(41 °F to 176 °F) (41 °F to 176 °F)

x 3 1⁄2"

x 9 1⁄2"

(printer only) (printer only)

harmonic current regulation

Thermal head cleaning sheet (1) Thermal head cleaning sheet (1)

(when “SP:NOR” is selected

from “SPEED”)

EIA or CCIR composite

video signals

1.0 Vp-p, 75 Ω/high
impedance

(EIA/CCIR automatically

discriminated)

Output connector: VIDEO OUT

(BNC type)

EIA or CCIR composite

video signals

1.0 Vp-p, 75 Ω

loop-through/EE switchable

REMOTE connector: stereo

mini jack

) (6 1⁄6"

x 3 1⁄2"

x 9 1⁄2"

)

44

SPECIFICATIONSSPECIFICATIONSSPECIFICATIONS

PRINTERS

UP-DR150 UP-CR10LI

Mass 20 kg (44lb 2 oz) —
Dimensions 280 (W) x 356 (H) x 462 (D) mm 275 (W) x 300 (H) x 380 (D) mm
Operating Temperature 5 to 35 °C —
Operating Humidity 20 to 80% —
Printing Method Dye Sublimation Printing Dye sublimation Printing (Y/M/C/O)
Resolution 334 dpi 300 dpi
Gradation 8 bits per colour —
Print Size 2UPC-R153: 89 x 127mm (3.5 x 5") 13 x 18cm (5 x 7")

Print Speed 2UPC-R153: approx. 8 seconds 13 x 18cm (5 x 7"): 18 seconds
(excluding image 2UPC-R154: approx. 8 seconds 10 x 15cm (4 x 6"): 17 seconds
processing) 2UPC-R155: approx. 15 seconds 9 x 13cm (3.5 x 5"): 13 seconds

Media Capacity per print
cartridge/roll 10 x 15cm (4 x 6"): 550 10 x 15cm (4 x 6"): 200

Paper Feed Method — Roll paper, Automatic loading
Interface High speed USB 2.0 Memory Card Direct Slots:

Expansion Slot — Compact Flash type x1
Compatible Image — JPEG: JFIF, Exif 2.2 Compatible,

File Format DCF 1.0 Compatible

LCD Display — 8-inch touch sensitive colour LCD
Spool Memory For additional one picture —
Print Order when print from memory cards — Selected image, All image,

Image Adjustment — Crop, Colour adjust, Monochrome/Sepia,

Printer Driver Support — Win: 2000/XP Professional/XP
OS Home Edition

Export module to create
border data Photoshop Elements

Power Requirement AC 100-240 V, 50/60 Hz 100-240 V AC, 50/60 Hz
Power Consumption 5-2.5 A —
Safety Standards UL60950-1, CSA C22.2 No. —

Supplied Accessories AC Power Cord, Ferrite core,Paper tray (1) Paper holder x1

Optional Accessories

2UPC-R154: 102 x 152mm (4 x 6") 10 x 15cm (4 x 6")

2UPC-R155:127 x 178mm (5 x 7") 9 x 13cm (3.5 x 5")

2UPC-R156: 152 x 204mm (6 x 8")

2UPC-R156: approx. 18 seconds

13 x 18cm (5 x 7"): 335 13 x 18cm (5 x 7"): 172

9 x 13cm (3.5 x 5"): 610 9 x 13cm (3.5 x 5"): 300

MS (Duo, Pro, PRO Duo)

USB Host: USB (A) x 1 for USB

Mass Storage Class Device

PC Connection: USB (B) x1 for PC

Expansion Terminal: RS-232C (D-sub 9pin)

x 1 for future peripheral support

BMP: 24bit Windows format

TIFF: Exif 2.2 Compatible

Index, Border Composition*, Split Image

— Windows Adobe Photoshop 5.0 or higher,

60950 (cUL) (UC), EN60950-1 (CE)

and paper holders (2) Operating instructions x1

CD-ROM (inc. printer drivers, CD-ROM (incl. Printer driver software) x1,

on-line manual), Operation Manual AC power cord x1

Software License Agreement,

Warranty Card, Service and Customer

3.5x5 inch (9x13cm) Self-laminating Colour 2UPC-C15 Self-Laminating Colour
Printing Pack (610 sheets of print x2 rolls) Printing Pack 127 x 178 mm (5 x 7")

4x6 inch (10x15cm) Self-laminating Colour 2UPC-C14 Self-Laminating Colour

Printing Pack (550 sheets of print x2 rolls) Printing Pack 102 x 152 mm (4 x 6")

5x7 inch (13x18cm) Self-laminating Colour 2UPC-C13 Self-Laminating Colour

Printing Pack (335 sheets of print x2 rolls) Printing Pack 89 x 127 mm (3.5 x 5")

6x8 inch (15x20cm) Self-laminating Colour

Printing Pack (295 sheets of print x2 rolls)

Support Info

Print stacker for UP-DR150

SD

MMC

CF

MD

xD

SM

Red eye Reduction

* Need MicroDrive or CompactFlash on the market. Image or format data needs to be saved when using these functions

45

NOTES

46

SYSTEM EXAMPLES

47

© Sony Europe. Sony is a registered trademark of the
Sony Corporation, Japan. Features, design and speci­fications are subject to change without notice. All non­metric weights and dimensions are approximate. Real­Shot, ExwaveHAD, HyperHAD, SuperHAD, DynaView,
SuperExwave and MemoryStick and are trademarks of
Sony Corporation. All other trademarks and registered
trademarks are the property of their respective owners.
CA Video Monitoring Pocket Guide/GB-20/04/2006
