Precautions
This unit is a compact disc deck receiver which consists of an
amplifier, tuner, stereo cassette deck and 5-compact disc
player.
Before operating this unit, please check the following.
On safety
• Operate the unit only on 120 V AC, 60 Hz.
• Should any solid object or liquid fall into the unit, unplug
it and have it checked by qualified personnel before
operating it any further.
• Unplug the unit from the wall outlet if it is not to be used
for an extended period of time. To disconnect the cord,
pull it out by grasping the plug. Never pull the cord itself.
Caution
The use of optical instruments with this product will
increase eye hazard.
On installation
• Place the unit on a level surface.
• Do not install the unit in a location near heat sources such
as radiators or air ducts, or in a place subject to direct
sunlight, excessive dust, mechanical vibration or shock.
• Good air circulation is essential to prevent internal heat
buildup in the unit. Place the unit in a location with
adequate air circulation. Do not place the unit on a soft
surface, such as a rug that would block the ventilation
holes on the bottom.
• Do not place anything on top of the cabinet. The top
ventilation holes must be unobstructed for the proper
operation of the unit and to prolong the life of its
components.
Note on the Transit Key
The transit key on the bottom exterior of the HCD-461
protects the optical system against shock during
transportation. Before operating the unit, be sure to remove
the key by following the instruction on the label, and store it
in a safe place.
When transporting the unit, re-install the key by following
the instruction below.
1 Remove all discs from the CD section.
2 Press § to close the disc tray and wait for " (or , ...)"
to disappear in the display.
3 Turn the power off.
4 Insert the key into its original hole and lock it in place.
Transit key
2
1
3
On cleaning the cabinet
Clean the cabinet, panel and controls with a soft cloth lightly
moistened with mild detergent solution. Do not use any type
of abrasive pad, scouring powder or solvent such as alcohol
or benzine.
On repacking
Do not throw away the carton and the packing material. It
makes an ideal container to transport the unit in.
On moisture condensation
If the unit is brought directly from a cold to a warm location,
or is placed in a very damp room, moisture may condense on
the lens inside the CD section. Should this occur, the CD
section will not operate. In this case, remove the disc and
leave the unit turned on for about an hour until the moisture
evaporates.
If you have any question or problem concerning your unit,
please consult your nearest Sony dealer.
For detailed precautions, see the leaflet "IMPORTANT
SAFEGUARDS".

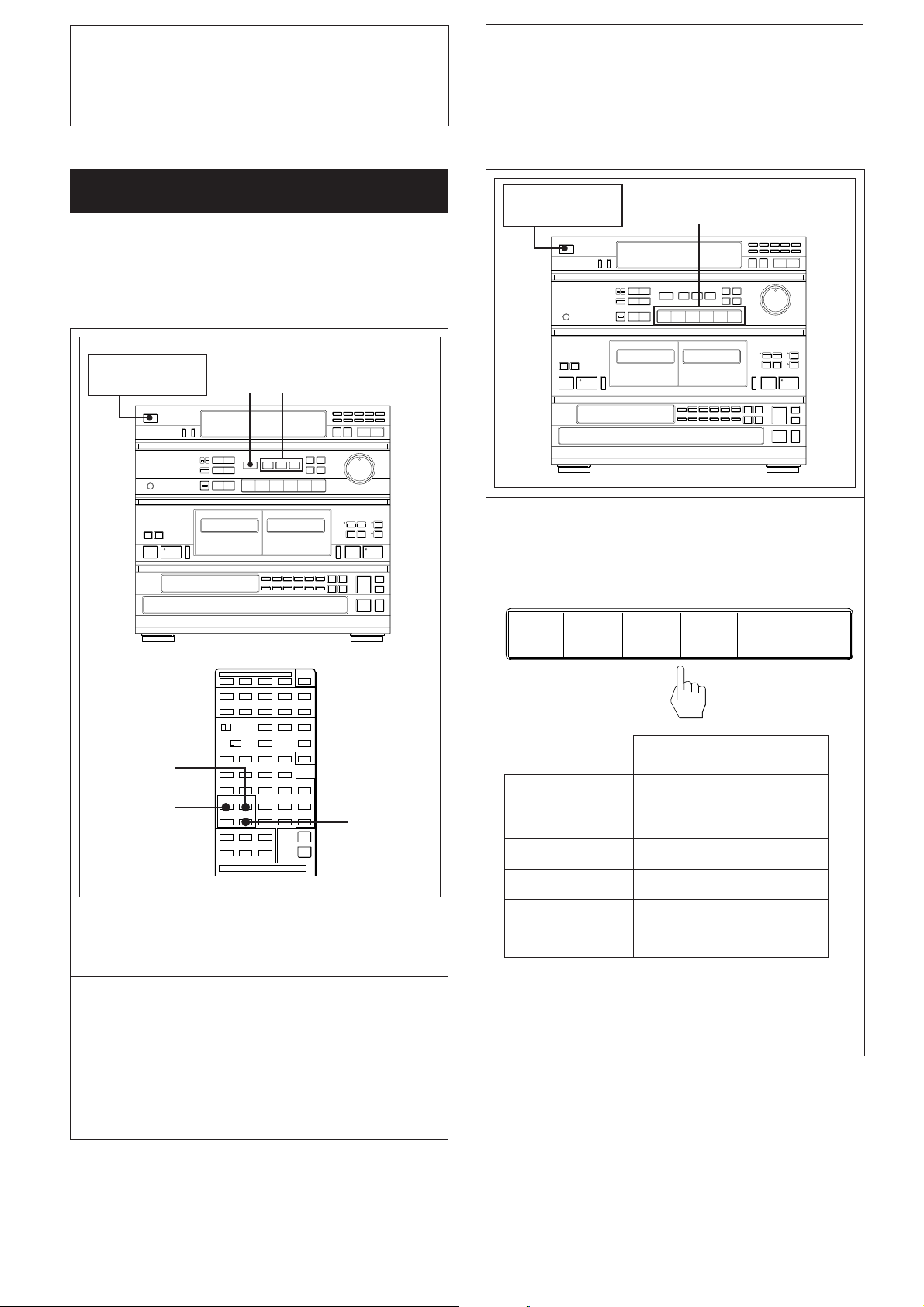

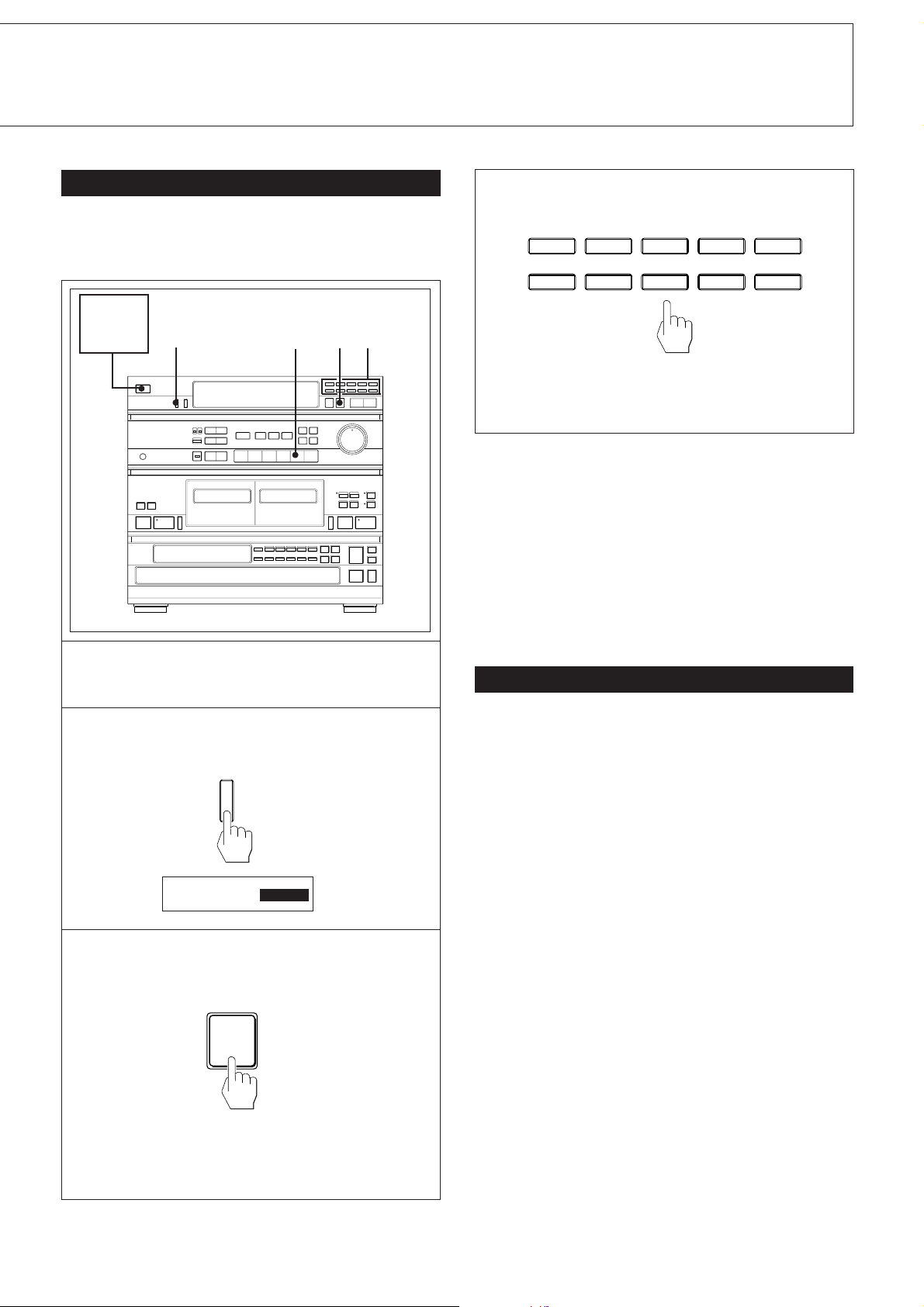

Storing station frequencies into memory ........................... 13

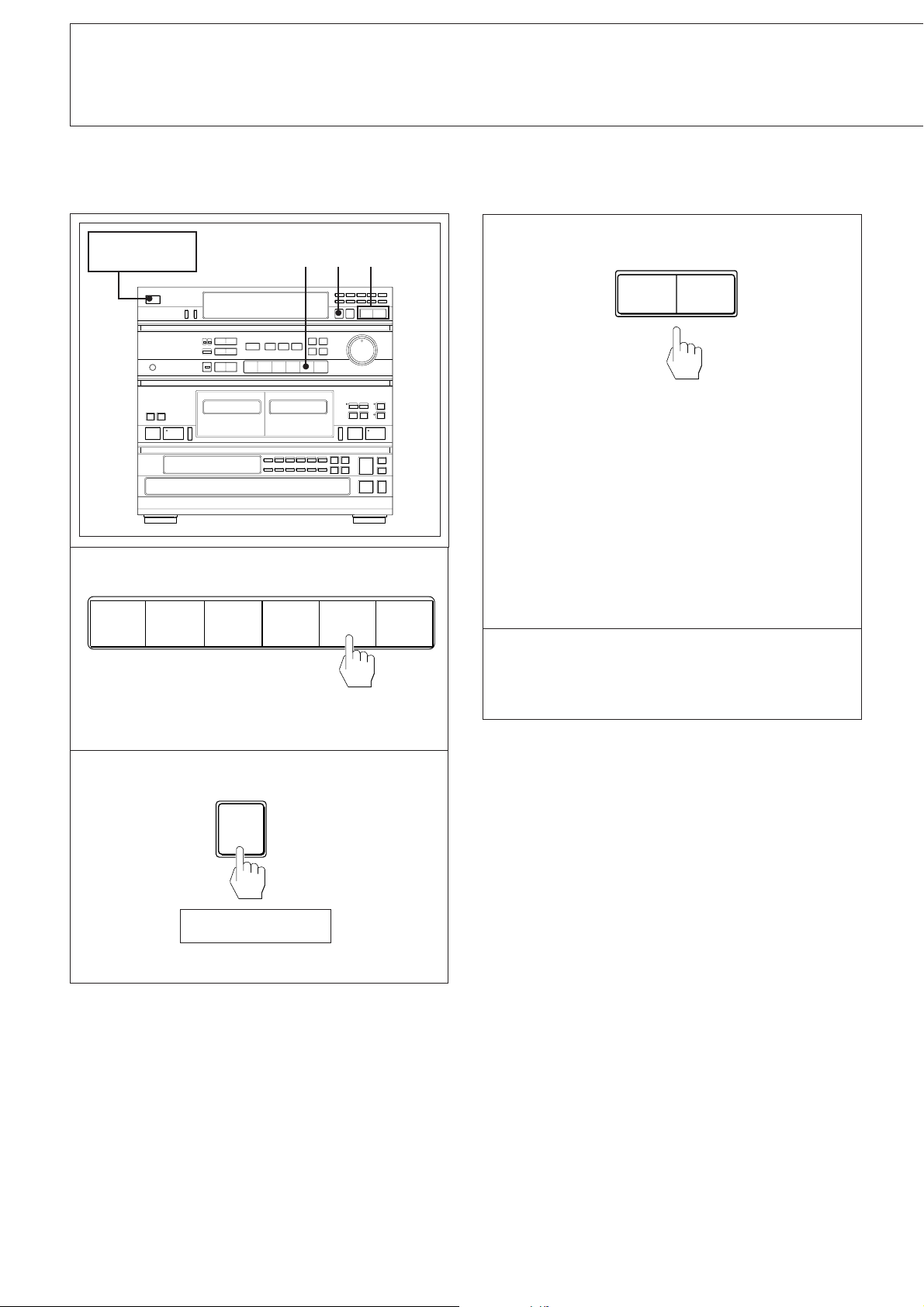

Tuning in a stored station .....................................................13

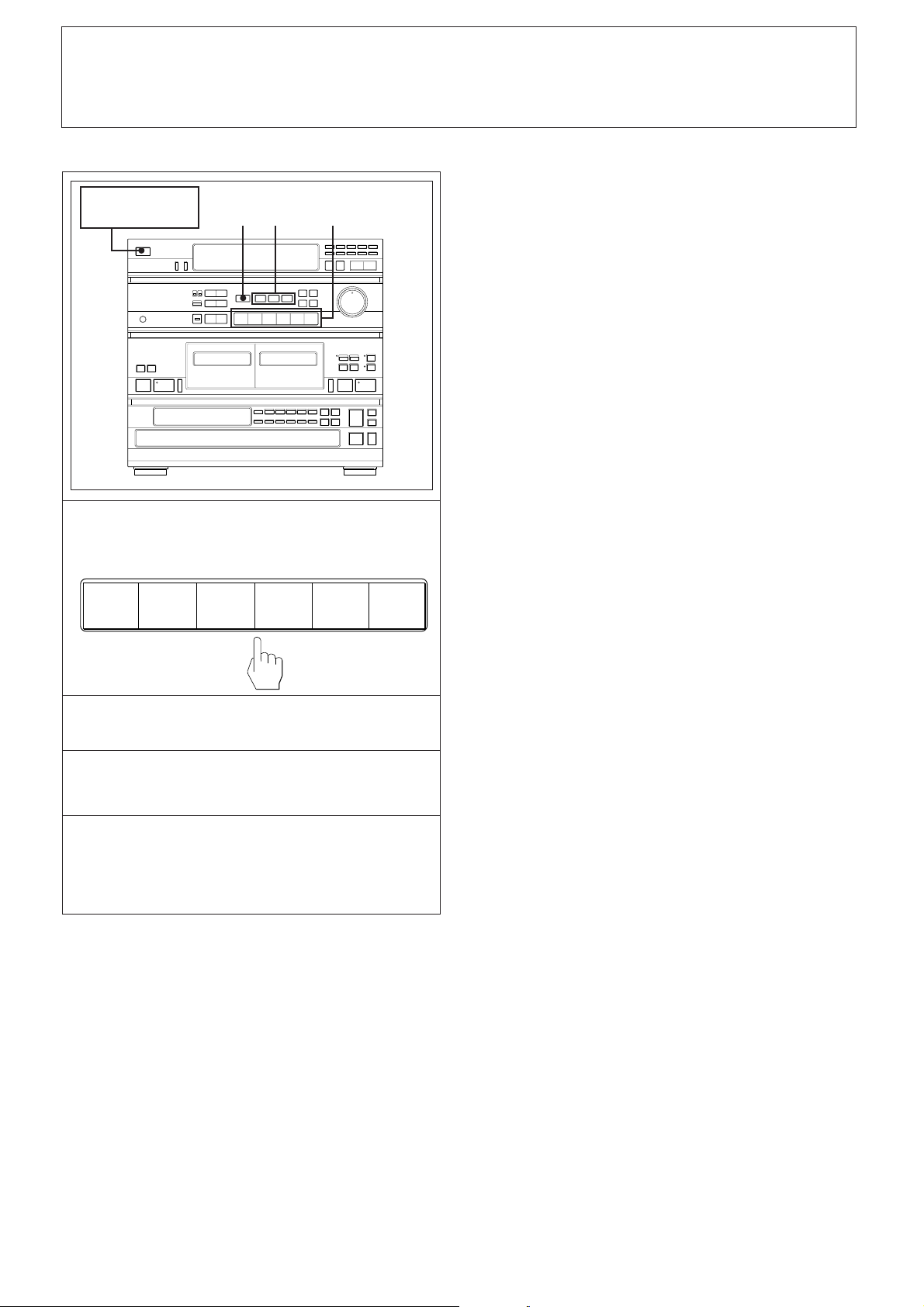

Scanning the stored station .................................................. 14

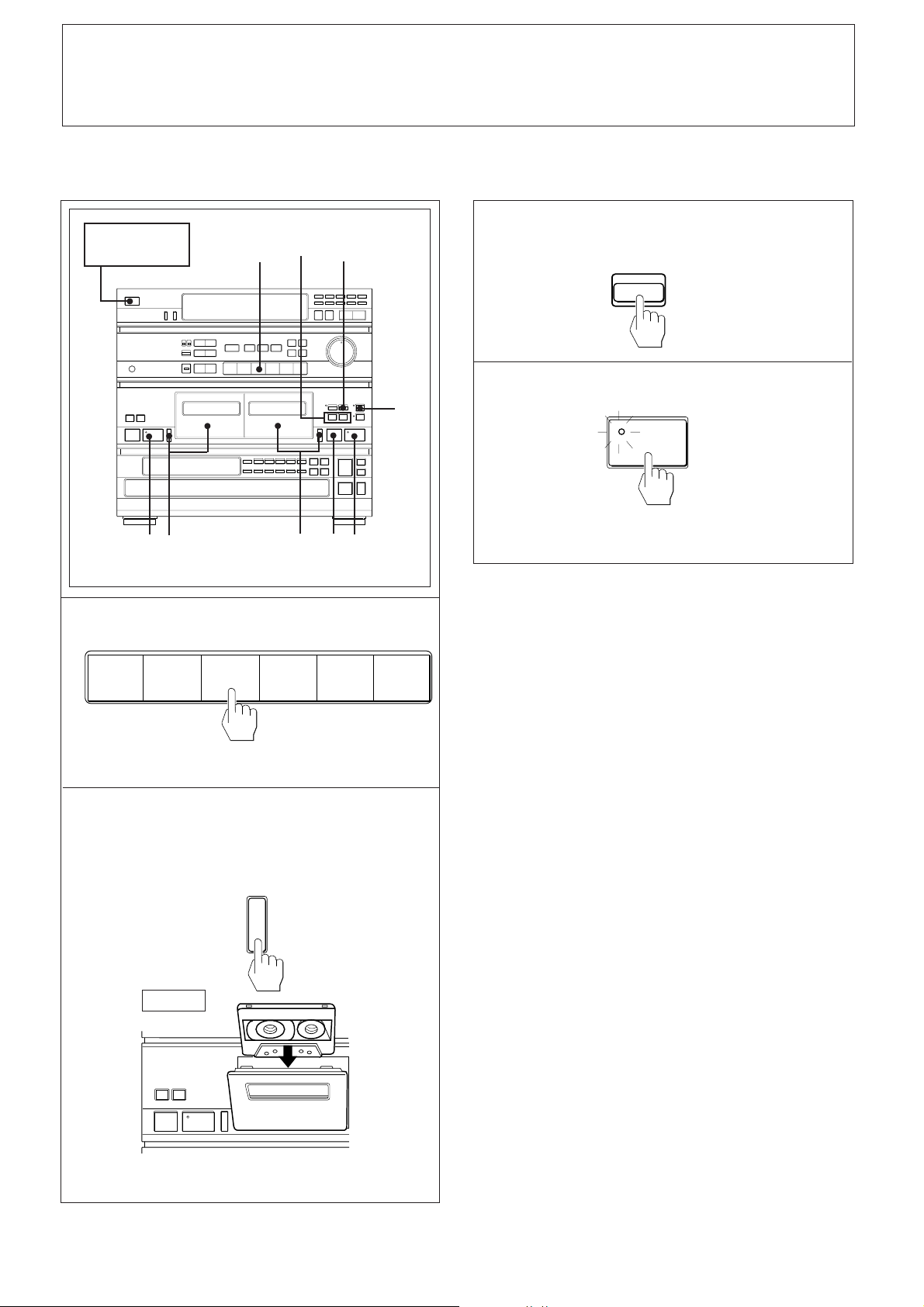

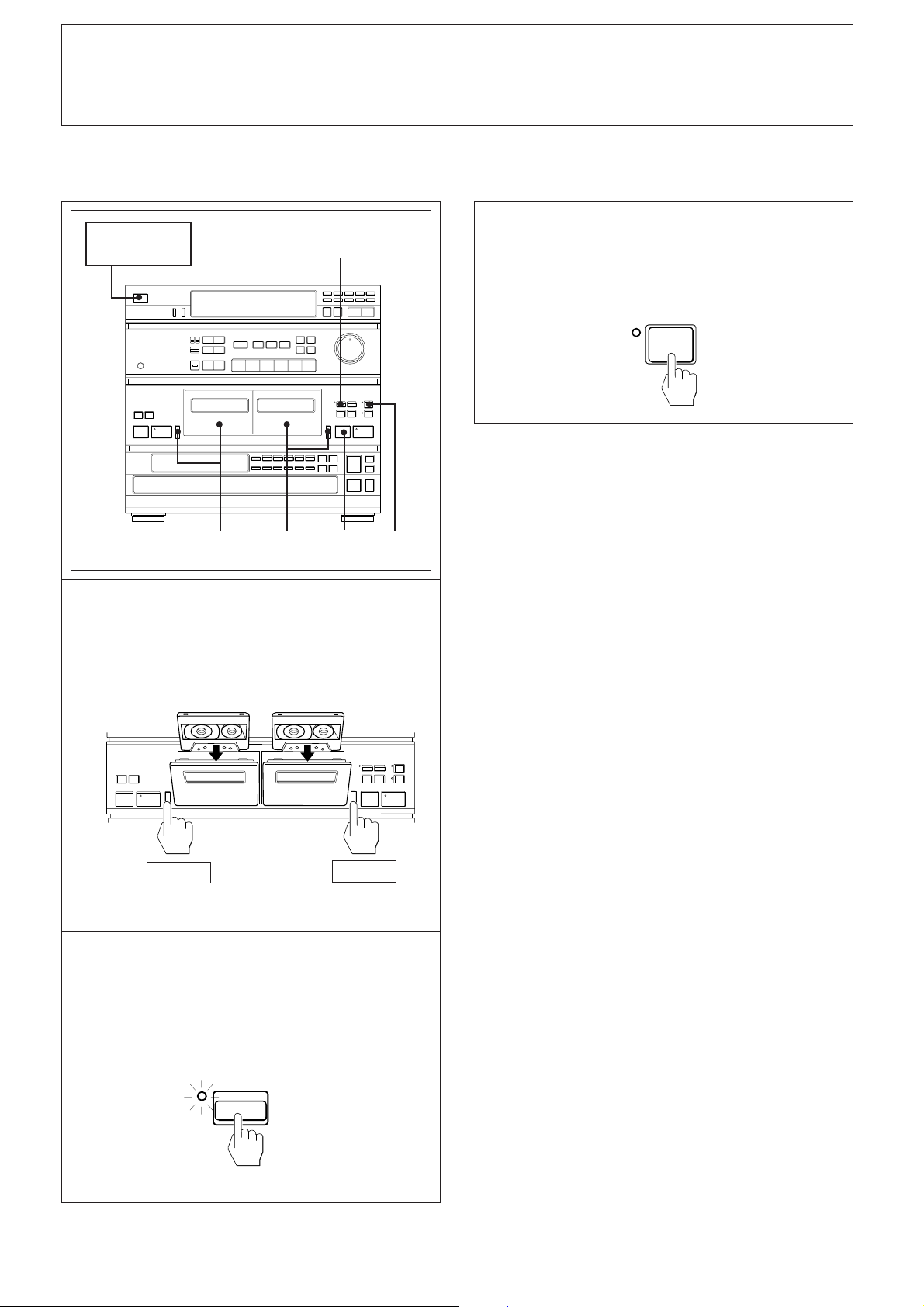

Playing back tapes (on either deck A or B) ............................15

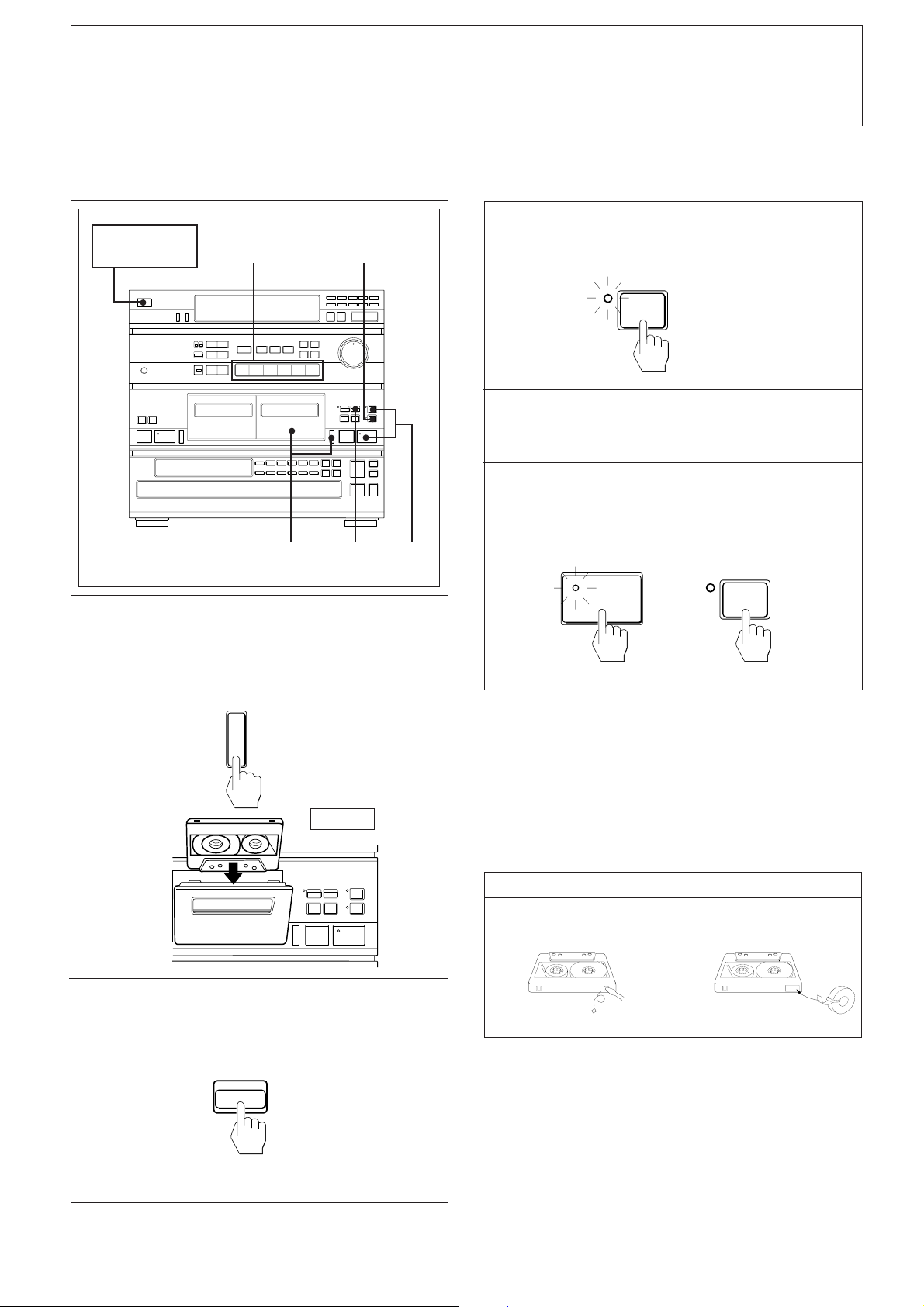

Recording on tapes (Deck B) .................................................... 16
Dubbing tapes (from deck A to B) .......................................... 17

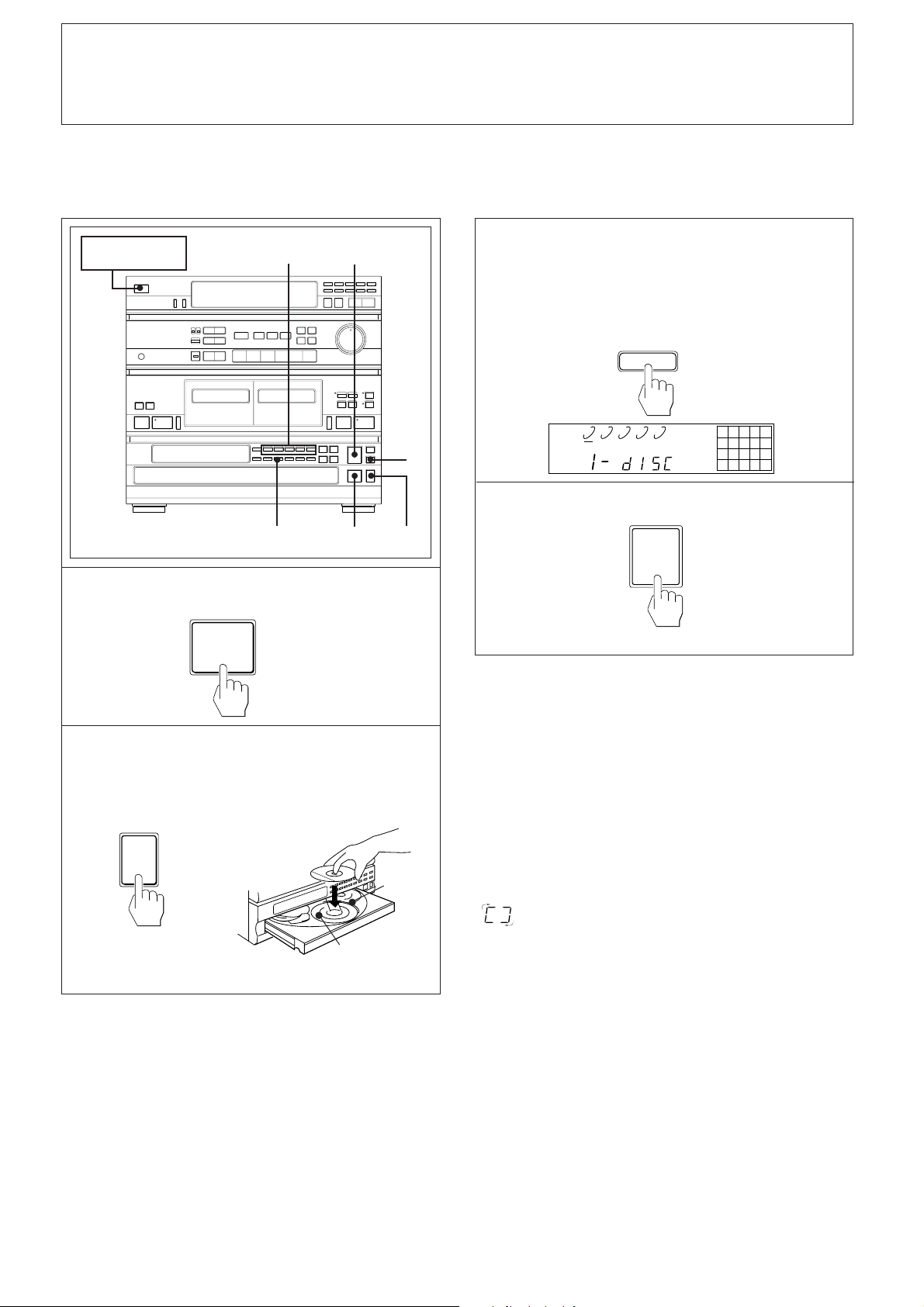

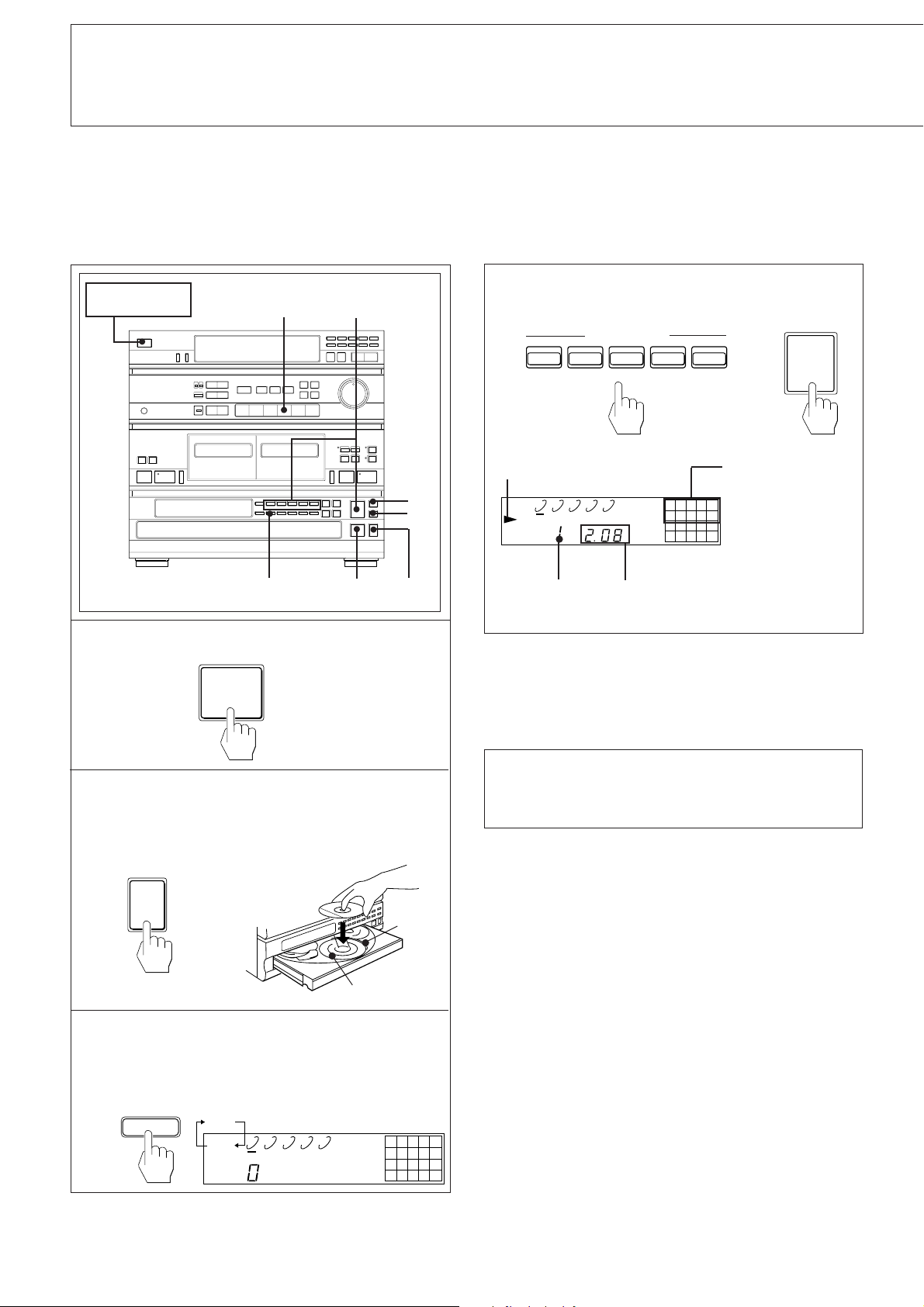

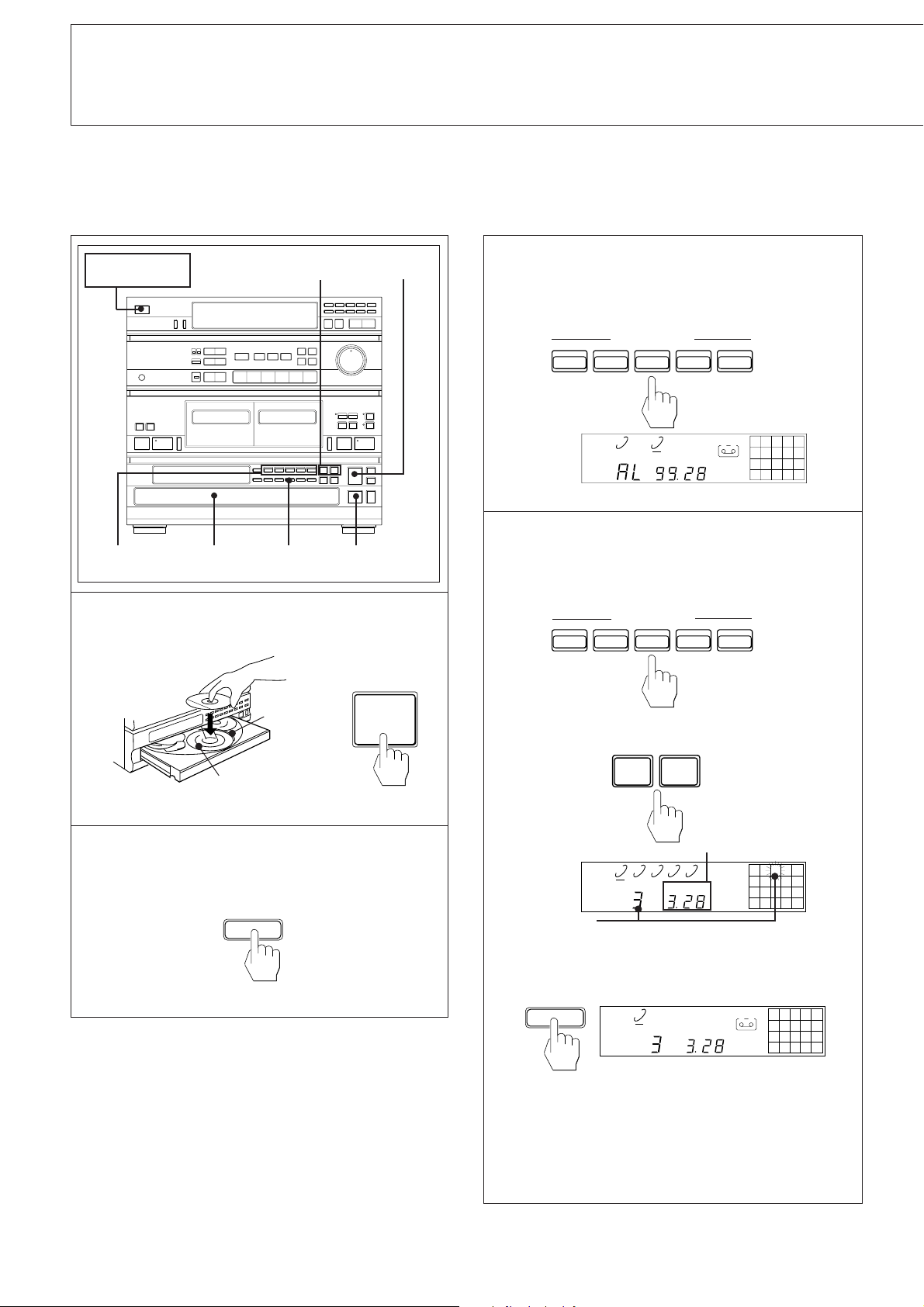

Playing the discs - Continuous play ....................................... 18

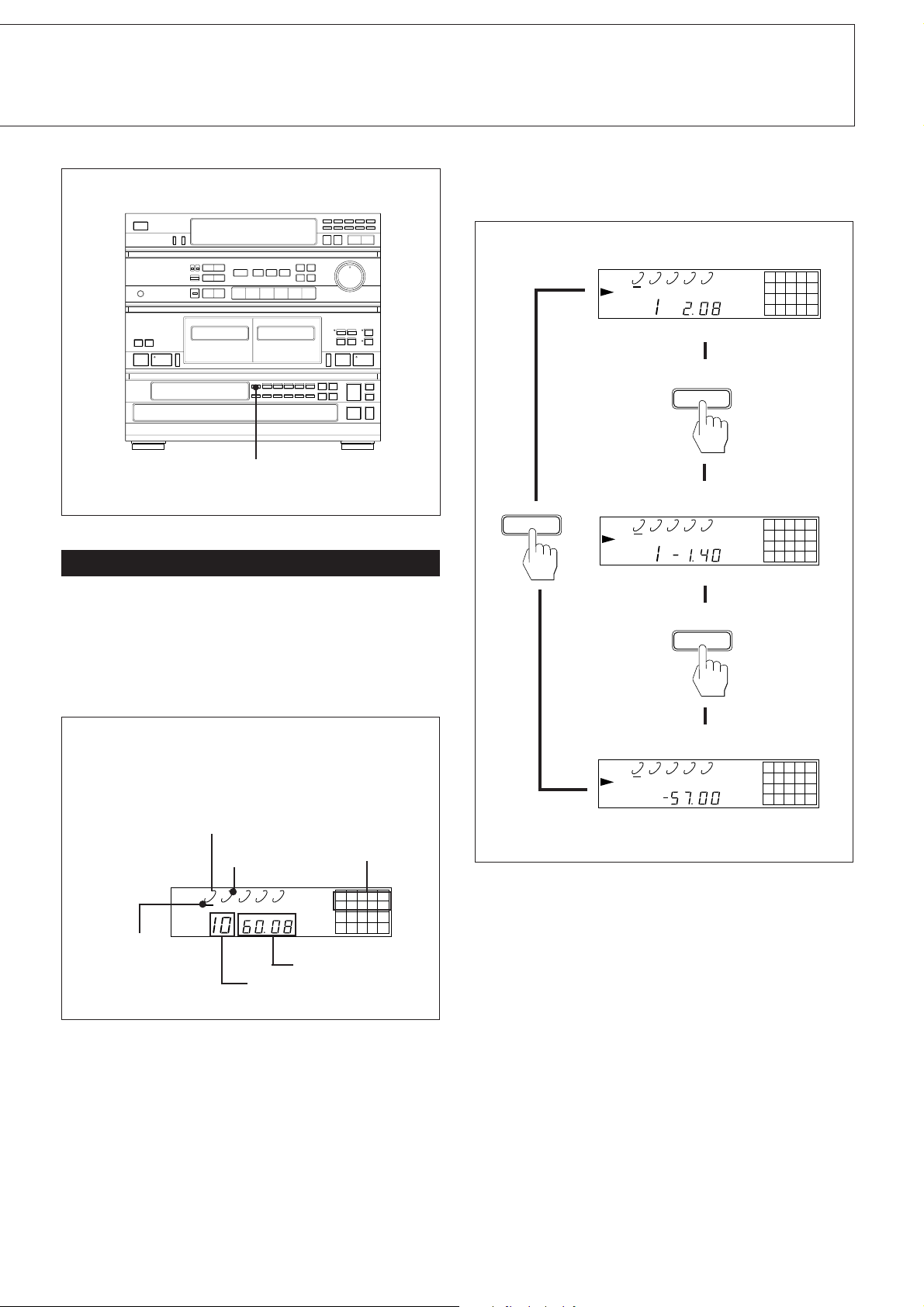

Information display ...............................................................19
Selecting a desired disc ......................................................... 20

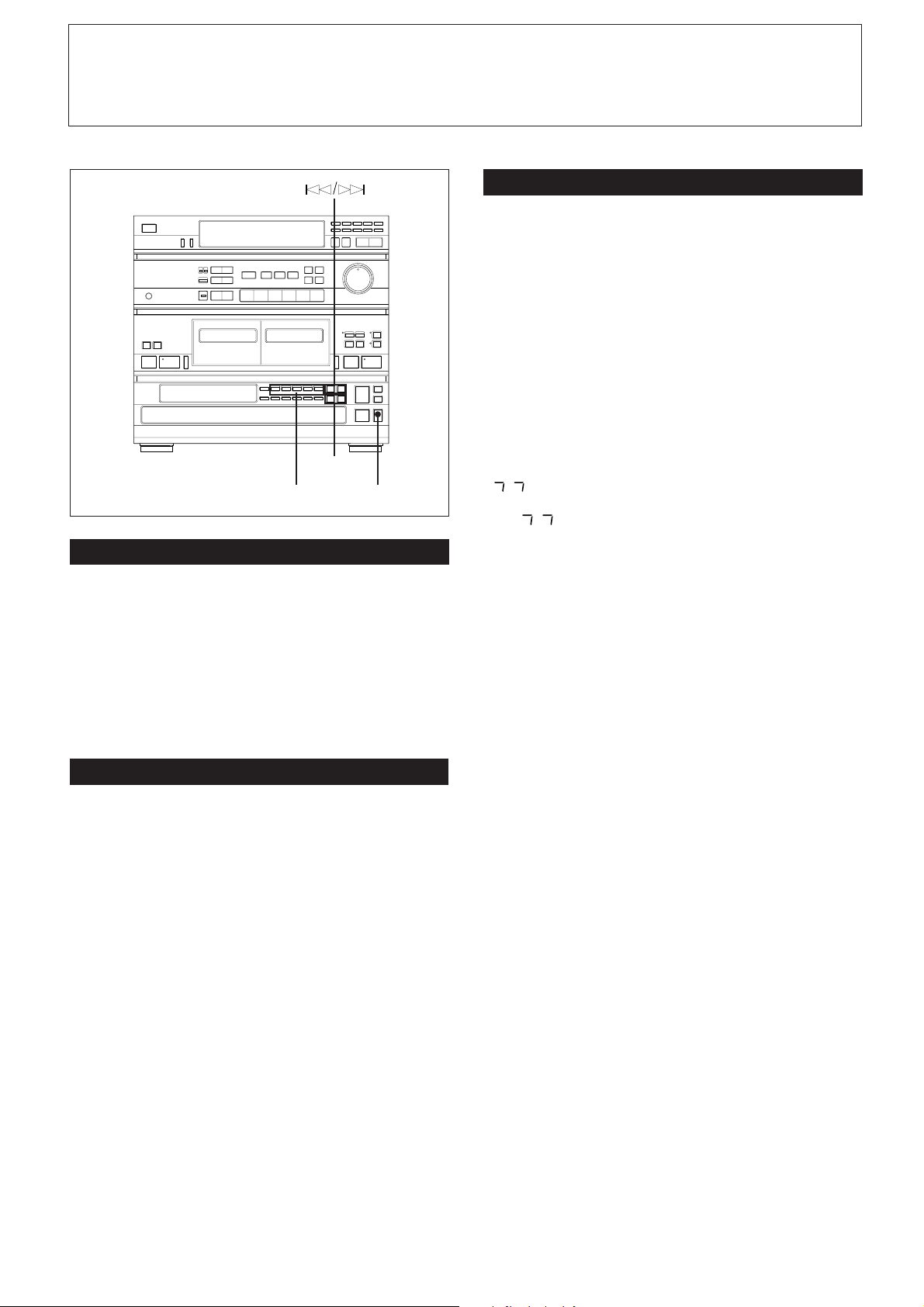

Locating a particular track....................................................20
Locating a particular point in a track .................................. 20
Playing in a random order-Shuffle play .................................21
Playing in a desired order - Program play.............................22

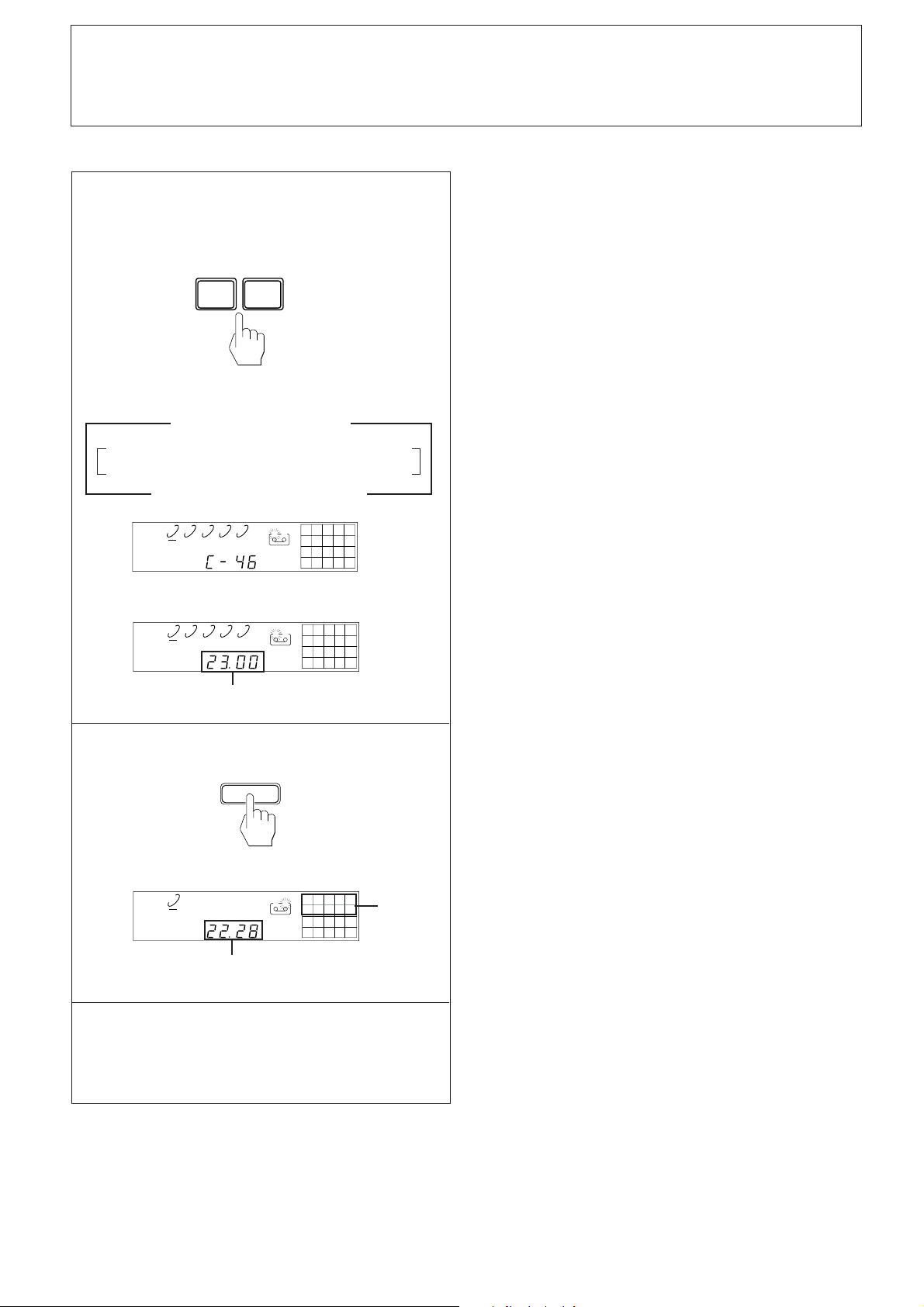

Designating the total playing time - Time edit ..................... 23
Playing repeatedly - Repeat play ............................................ 25
The remote supplied with this unit can control the HCD-461
from a distance.
Battery life
About half a year of normal operation can be expected when
using the Sony SUM-3 (NS) batteries. When the batteries are
exhausted, the remote can no longer operate the unit. If this
happens, replace both batteries with new ones.
To avoid battery leakage
If the remote is not going to be used for a long time, remove
the batteries to avoid damage caused by battery leakage and
corrosion.
This section describes the antenna and speaker connections. It also shows how to make
connections with other audio equipment.
• Connect the AC power cord last. Make sure the power is off.
• Cord plugs and jacks are color coded. Red plugs and jacks are for the right channel (R)
and white ones are for the left channel (L).
• There are also red and white jacks for the FRONT, REAR, CENTER, and SUPER
WOOFER.
• The cable connectors should be fully inserted into the jacks. A loose connection may
cause hum and noise.
• Keep speaker cords, connecting cords and power cords away from the␣ AM loop antenna
and the tuner's antenna lead-in to avoid possible noise pickup.
The numbers correspond to the
detailed illustrations following below.
ANTENNA
Center speaker
} ]
Super Woofer
CENTER SPEAKER
} ]
SUPER WOOFER
1 FM wire antenna (supplied)
300
FM
75
AM
12
REAR SPEAKERS
3
FRONT SPEAKERS
For better FM reception
HCD-461
Rear Right
to a
wall
outlet
300
FM
75
AM
speaker
} ]
Front Right
Rear Left
speaker
} ]
Front Left
speaker
} ]
speaker
} ]
Outdoor FM antenna
(75-ohm coaxial cable)
5
Hooking Up the System
2 AM loop antenna (supplied)
300
FM
75
AM
3 Speaker cords
To attach to a wall
REAR SPEAKER
IMPEDANCE USE 8–16
R
+
+
L
–
–
For better AM reception
Extend a 6 to 15-meter
insulated wire out of door(s).
300
FM
75
AM
It is also necessary to connect
the supplied AM loop antenna.
–
R
+
FRONT SPEAKER
IMPEDANCE USE 8–16
]}
For right speaker
Adding other audio equipment to your system
Turntable system
to AUDIO INto AUDIO OUT
VIDEO 1/MD
OUT
VIDEO 1/MD
IN
PHONO
IN
+
L
–
]}
For left speaker
VCR (for playback only)MD or VCR
to AUDIO OUT
6
VIDEO 2
IN
HCD-461
Adjusting the Audio
The following operations apply only to reproduced sound.
TONE/LEVEL
TONE/LEVEL
indicators
AHEADPHONESC
C
B
Volume Adjustment B
To increase the sound level, turn the VOLUME control
clockwise.
To decrease it, turn the control counterclockwise.
Adjusting the Bass and the Treble Sound C
Before adjusting the tone level, press TONE/LEVEL so that
the TONE indicator lights.
BASS/REAR
–
+
A
B
Adjusting the Super Woofer Level A
–
LEVEL
+
SUPER WOOFER
Press SUPER WOOFER so that the indicator lights.
Press LEVEL – or + to adjust the super woofer level.
The super woofer level is indicated on the display.
Notes
• The super woofer is automatically turned off in the
PHONO mode and can not be controlled.
• Place the super woofer directly on the floor.
If your floor is made of wood, to obtain high-quality bass
sound, we recommend that you attach the supplied feet to
the bottom corners of the super woofer for greater
stability.
Press BASS/REAR + to enhance the BASS sound.
Press BASS/REAR – to attenuate the BASS sound.
The adjusted level is indicated on the display.
TREBLE/CENTER
–
Press TREBLE/CENTER + to enhance the TREBLE
sound.
Press TREBLE/CENTER – to attenuate the TREBLE
sound.
The adjusted level is indicated on the display.
For personal listening
Connect headphones to the HEADPHONES jack. No sound
is heard from the speakers.
+
7
Getting Ready for Dolby Surround Sound
This section describes selecting a speaker configuration,
adjusting the speaker volume, and setting the delay time of
the rear speakers so you can enjoy Dolby surround sound.
Placement of Speakers and Selecting the PRO
LOGIC MODE
The Dolby Pro Logic Surround Decoder naturally
reproduces the audio sound field and creates a theater-like
experience in your listening room.
The HCD-461 incorporates a decoder which reproduces
specially encoded surround sound from Dolby surround
video programs.
To use Dolby surround effectively, select the speaker
operation mode according to your speaker configuration by
pressing DOLBY PRO LOGIC MODE: NORMAL, WIDE,
PHANTOM or 3CH.
With this unit, we recommended using the NORMAL mode.
DOLBY PRO LOGIC MODE
WIDE mode
Select this mode if you use a medium to big center speaker.
Center speaker
Front speaker (L)
PHANTOM mode
Select this mode when you playback a Dolby surround
program source without using a center speaker. The sound
of the center channel is output from the front (L and R)
speakers.
Front speaker (L)
Front speaker (R)
Rear speaker (R)Rear speaker (L)
Front speaker (R)
NORMAL mode
Select this mode if you use a small center speaker. The bass
sound of the center channel is output from the front
speakers, since a small speaker cannot produce enough bass.
Center speaker
Front speaker (L)
Rear speaker (L)
Front speaker (R)
Rear speaker (R)
Rear speaker (L)
3CH. (Channel) LOGIC mode
Select this mode when you playback a Dolby surround
program source only with the front and center speakers. The
sound of the rear channel is output from the front (L and R)
speakers.
Center speaker
Front speaker (L)
Even for video software which does not carry the
qmark
Some commercially available software may have Dolby
surround processed sound tracks even though it is not
indicated on the package.
Rear speaker (R)
Front speaker (R)
8
Adjusting the Speaker Volume
For maximum enjoyment of surround sound when playing
any program source, adjust the front, rear, and center (if
connected) speakers to the same volume level. The
adjustment must be done with a test tone in the DOLBY
SURROUND mode, but once the level is adjusted it can be
used for all surround modes.
You can adjust the volume level from your listening
position by using the remote.
4 Press T.TONE to set to on.
"TEST TONE" appears on the display and the test
tone will be heard from each speaker in the
following order.
In NORMAL or WIDE mode:
LEFT(front)
(
REAR(L+R) 9
In PHANTOM mode:
( CENTER ( RIGHT(front)
(
FRONT(L+R)
REAR(L+R) 9
5-B
1
4, 6
2
1
2
3
TREBLE/CENTER –/+
BASS/REAR –/+
1 Press SURROUND ON/OFF to ON.
"SURROUND ON" appears in the display.
5-A
MASTER
VOLUME +/–
MASTER
VOLUME
In 3CH mode:
LEFT(front)
(
( CENTER ( RIGHT(front)
5 Adjust the volume level so that the sound
from each speaker is the same level at the
listening position.
ATo adjust the level of center speaker(s)
(except for PHANTOM mode).
Press CENTER VOL/TV VOL +/–.
The adjusted center level is indicated on the display.
BTo adjust the level of rear speakers
(except for 3CH. mode).
Press REAR VOL/TV CH +/–.
The adjusted rear level is indicated on the display.
(Turning the MASTER VOLUME control on the
unit, adjusts all speakers simultaneously.)
• To adjust the center level or rear level,
TREBLE/CENTER –/+ or BASS/REAR –/+ on
the main unit can also be used.
6 After adjusting, press T.TONE to turn off the
test tone.
"TEST TONE" disappears.
2 Press SURROUND MODE so that "DOLBY
SUR" appears on the display.
3 Select the Dolby pro logic mode with the
DOLBY PRO LOGIC MODE buttons on the
main unit according to your speaker system.
The selected mode is displayed.
9
Loading...
+ 19 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
