Page 1
Network Minidome Cameras
SNC-DF85N
SNC-DF80N
SNC-DF50N
www.sony.com/security
Page 2
SNC-DF85/SNC-DF80/SNC-DF50
• High Frame Rate
• Dynamic Frame
Integration
• Intelligent Motion Detection
• Intelligent Object Detection
• JPEG, MPEG-4, H.264
Compression Formats
• Dual Encoding Capability
• User-Friendly GUI
Stunning video and audio brought to you by the IPELA series of
visual communication products that encompass the three-pronged
concept of “Reality,” “Intelligence,” and “Usability.” IPELA is
the identity symbolizing the Sony vision for the workplace of the
future, connecting people, places, and information with reality
that has never before been achieved. IPELA products let you
share, understand, and experience as if you are actually there,
when in fact, you are miles away. It allows you to quickly grasp a
situation to make better business decisions.
Real audiovisual communication over networks – this is business communication of the future, this is business communication brought to you today, this is “IPELA.”
Reality Intelligence Usability
Reproducing Extremely Clear and Detailed Images –
Sony’s Intelligent Mini-dome Cameras Provide a High Level
of Security, Anytime and Anywhere
Sony’s SNC-DF85/DF80/DF50 is an intelligent mini-dome camera lineup, designed for a variety of surveillance
and monitoring applications. The SNC-DF85 combines the benefi ts of both the SNC-DF80 and the SNC-DF50
– the tough camera body and Day/Night function of the SNC-DF80 and the wide dynamic range of the
SNC-DF50.
Housed in a heavy-duty aluminum die-cast enclosure with an impact-resistant polycarbonate dome, the
SNC-DF85/DF80 offers good protection against vandalism. Furthermore, its weather-resistant design guards
against damage from dust and water ingress when used in outdoor applications. In addition, the optional
YT-HU75 Heater Unit
low as -40° F (-40° C). The camera’s Day/Night function provides clear monitoring images in low light conditions.
The SNC-DF85/DF50 incorporates DynaView™ Technology, which contributes to the camera’s wide dynamic
range. It reduces ‘white-out’ in high-contrast shooting environments, such as lobbies, loading docks, outdoors
looking at entrances or canopies.
The SNC-DF85/DF80/DF50 incorporates advanced compression technologies to transmit image data in three
different formats, JPEG, MPEG-4, and H.264, so that users can choose the best compression format depending
on their applications. With a 3.6x zoom, vari-focal lens that covers up to 100.8°, the SNC-DF85/DF80/DF50 can
be used to monitor tight areas requiring a large viewing angle. In addition, the PoE (power over ethernet)
capability makes installation quick, as well as possible savings in infrastructure cost.
*1
is available for cold weather, enabling the camera to operate in extreme temperatures as
Sony’s intelligent mini-dome cameras are ideal for a wide variety of surveillance and monitoring applications.
*1
The YT-HU75 Heater Unit is an option.
FEATURES AT A GLANCE
Features Benefi ts SNC-DF85 SNC-DF80 SNC-DF50 Page
Weather-resistant and
Rugged Design
Wide Dynamic Range
(DynaView)
Day/Night Function Enables Night
*2
The SNC-DF80 has a conventional backlight compensation function.
2
Enables Outdoor Use
Provides Backlight
Compensation
Monitoring,
Without Visible Light
Yes
(Outdoor/Indoor)
Ye s N o
Yes Yes No P.4
Ye s
(Outdoor/Indoor)
*2
No
(Indoor)
Ye s P. 3
P. 5
Page 3
FEATURES
The DEPA Platform –
Intelligent Video Analytics
Distributed Enhanced Processing Architecture (DEPA)
The SNC-DF85, SNC-DF80, and SNC-DF50 cameras
offer intelligent video analytics, based on the Sony
DEPA™ platform. This comprises two elements:
intelligent built-in camera functions, such as
Intelligent Motion Detection (IMD) and Intelligent
Object Detection (IOD), and rules/fi lters that
determine what type of event should be
recorded.
When the network cameras perform IMD or IOD,
‘tagged’ objects and their associated metadata,
including object position data, are sent either to
the NSR Series recorder or the IMZ-RS400 Series
software. These products then use the metadata,
together with fi lters, to analyze object movement
and to perform a predefi ned action, such as
image recording or alarm triggering. This method
of distributed processing minimizes server
workload, network bandwidth, and storage
requirements.
High-quality Images
Wide Dynamic Range With
DynaView Technology
SNC-DF85
The SNC-DF85 and SNC-DF50 incorporate
DynaView technology, which dramatically improves
camera dynamic range by 128 times when
compared to conventional cameras. This results
in clear image reproduction, even in extreme
high-contrast environments. The cameras capture
the same image twice – fi rst with a normal shutter
speed, and then with a high shutter speed. The
dark areas captured at normal shutter speed and
the bright areas captured at high shutter speed
are then combined into one image using an
advanced DSP LSI. Additionally, as these
high-contrast scenes may have different lighting
conditions, two white balance circuits are
employed – one for normal shutter speed and the
other for high shutter speed. This advanced
technique reproduces high-contrast images with
proper color.
SNC-DF50
Intelligent Motion Detection Filter (Passing-Directional)
Person1
Mini-dome
Camera
Person2
Sends Object ID
and Position
Requests Relevant
Images
Sends Relevant
Images
NSR Series/IMZ-RS400 Series
Analyzes Object Movement
Person1
DynaView Technology
Normal Shutter Speed
SNC-DF85/DF50 Camera Image
(simulated images)
Person2
Alarm!
High Shutter Speed
SuperExwave Technology
SNC-DF80
The SNC-DF80 incorporates an advanced
1/3-type CCD with SuperExwave technology that
achieves extremely high sensitivity levels. The
camera provides a minimum illumination of 0.6 lx
in color and 0.06 lx in B/W at F1.3, allowing it to
capture clear and detailed images even under
low light conditions.
The high-quality CCD imager, in combination with
the camera’s state-of-the-art DSP technology,
produces a high horizontal resolution of 540 TV
lines via the analog composite video output,
which provides amazingly clear and detailed
images.
SuperExwave Technology
SuperExwave image Conventional Camera image
3
Page 4
Day/Night Function
SNC-DF85
SNC-DF80
The SNC-DF85 and SNC-DF80 cameras can switch
from day mode (color) to night mode (B/W) by
replacing its infrared-cut fi lter with a clear fi lter.
Users can toggle between the two modes in
different ways, either manually, on a predefi ned
schedule, using an external sensor, or automatically
in response to the scene illumination. When the
camera is in night mode, it is sensitive to near-IR
illuminators, allowing it to operate even in zero lx
*3
conditions.
*3
Zero lx means the absence of visible light to the naked eye.
IR illuminators are required to operate at zero lx.
Dynamic Frame Integration
These cameras incorporate Dynamic Frame
Integration (DFI) technology to reproduce clear
images that contain both still and moving objects.
DFI technology detects movement within the
image and reproduces those areas with minimal
blurring, while areas with little or no movement are
displayed naturally with minimal jagged edges.
This unique algorithm also takes advantage of the
interlaced-scan CCD, which is inherently more
sensitive than progressive-scan CCDs and can
provide clear images even in low light conditions.
SNC-DF85/DF80/
DF50 Camera
Flexible and Easy Installation
Wall- or Ceiling-mountable/Easy
Viewing-angle Adjustment
The SNC-DF85, SNC-DF80, and SNC-DF50 can be
easily wall- or ceiling-mounted.*4 Furthermore,
because they are equipped with an analog
composite output (RCA jack), the camera image
can be monitored locally while the viewing angle
is adjusted during installation. This makes focus
and viewing-angle adjustment both accurate
and easy.
*4
Supplied bracket is required when the SNC-DF85 and SNC-DF80 are
wall- or ceiling-mounted.
Ceiling Surface Mount
(SNC-DF50)
Powerful 3.6x Zoom, Vari-focal Lens
These cameras come equipped with a 3.6x zoom,
vari-focal lens that covers an extremely wide
range of viewing angles from 100.8° (wide-angle)
to 27.7° (telephoto). This feature provides great
installation fl exibility for a number of different
applications and locations.
Ceiling Flush Mount
(SNC-DF50/YT-ICB45 Ceiling
Mount Bracket)
Conventional
Camera Image
Image Comparison Between SNC-DF85/DF80/
DF50 Camera and a Conventional Camera
JPEG Picture Quality Settings With
Constant Bitrate Algorithm
Users can preset the JPEG picture quality for these
cameras from a choice of ten levels. In addition,
because these cameras incorporate a constant
bitrate algorithm, they can limit the data bitrate
while still maintaining high-quality images. This is
useful for calculating the required storage
capacity and bandwidth during installation.
4
Page 5
Ball-Joint Lens Mount Technology
With the Sony patented Ball-Joint Lens Mount
mechanism incorporated into the vari-focal lens
of these cameras, the lens can be rotated freely in
any direction. Unlike conventional cameras, it
takes only one action to adjust the pan and tilt
angles, allowing for quick and easy adjustment of
the camera’s viewing angle during installation.
Sony Patented Ball-Joint Lens Mount
Operational Flexibility
Selectable JPEG, MPEG-4, H.264
Compression Formats
These multi-codec cameras support three
compression formats: JPEG, MPEG-4, and H.264.
The industry-standard JPEG compression format is
the best choice for high-quality still images.
MPEG-4 provides clear moving images effi ciently
over networks when bandwidth is limited. And
H.264 provides twice the effi ciency of MPEG-4, for
when bandwidth is even more limited.
Dual-encoding Capability
With a dual-encoding capability, these cameras
can stream both JPEG and MPEG-4 simultaneously.
For example, the system can be set up to transfer
MPEG-4 images over a WAN or an Internet VPN
where network bandwidth is limited, while storing
high-resolution JPEG images on a server that’s
confi gured on your LAN.
Ruggedized Design
SNC-DF85
SNC-DF80
The vandal-resistant SNC-DF85 and SNC-DF80
cameras are housed in a heavy-duty, aluminum
die-cast enclosure with an impact-resistant
polycarbonate dome. It complies with the IP66*5
standard, and offers additional water resistance
by using a special inner conduit for the camera
cables. For cold-weather outdoor applications,
the optional YT-HU75 Heater Unit is available.
This allows the camera to be used in severe
temperatures as low as -40 °F (-40 °C).
*5
Ingress Protection (IP) standard is a system for numerically classifying
the degree of protection provided by enclosures of electrical
equipment against solid objects and liquids. IP66 means there is no
ingress of dust and the equipment is protected against powerful water
jets.
Special Inner Conduit
Cables
Water-resistant Design (SNC-DF85/DF80 inside)
Local Area Network (LAN)
JPEG & MPEG-4 Images
ROUTER
JPEG
SNC-DF50
IMZ-RS Series Server
Dual Image Encoding
MPEG-4
WAN/VPN
Monitoring PC
MPEG-4
Bi-directional Audio
Users can connect an external microphone to
these cameras in order to pick up audio from a
preferred location. They are also equipped with
an active speaker output, enabling users to sound
an alert or make an announcement from the
camera unit via a remote location. This signifi cantly
expands the possibilities of monitoring applications.
Voice Alert
The Voice Alert function allows users to upload up
to three pre-recorded audio fi les to these cameras.
These can then be played out via a locally
connected speaker upon an alarm trigger.
5
Page 6
High Level of Security
Versatile Interfaces
Intelligent Motion Detection (IMD)
The built-in IMD functions of these cameras can
trigger a variety of actions, such as the storage
and transfer of images or the activation of an
external device through its output relays. False
alarms caused by noise and repeated motion
patterns are minimized thanks to an advanced
Sony algorithm. Plus, when used in conjunction
with DEPA-enabled recorders or software, a
multitude of fi lter functions are available. These
allow you to initiate alarms based on more
specifi c movements, such as passing a virtual
borderline or appearing into a virtual area.
Intelligent Object Detection (IOD)
The SNC-DF85, SNC-DF80, and SNC-DF50 cameras
can detect objects that have been abandoned
or become stationary for a specifi ed duration
within up to four designated detection areas. This
feature is useful for detecting suspicious objects
left in public places, or for detecting stalled cars
or accidents on the road. As with IMD, fi lters can
be used to refi ne this intelligence if the camera is
confi gured with DEPA-enabled products.
*6
The intelligent object detection function and the intelligent motion
detection function cannot be used simultaneously.
*6
Analog Composite Video Output
These cameras can output an analog composite
video signal via the BNC connector. This feature is
ideal for outputting images to a local recording
device or monitor.
Other Convenient Features
Date/Time Superimposition
The date and time of images recorded by these
cameras can be superimposed on the video while it is
being monitored and recorded. This feature is ideal for
easily identifying the exact date and time of an event
during playback. Also because the information
becomes part of the video image, it is a useful feature
when providing video evidence to authorities.
File Export to Removable Media
SNC-DF85 SNC-DF80
The SNC-DF85 and SNC-DF80 cameras are equipped
with a Compact Flash™ (CF) card slot, allowing users
to export images on CF media as required.
Sensor IN/Alarm OUT Ports
Equipped with a sensor input, these cameras can
receive triggers from an external sensor. Also, two
alarm relay outputs can be used to trigger
external devices to perform a variety of actions.
Pre-/Post-alarm Image Storage
These cameras are capable of storing both preand post-alarm images on 16 MB of built-in
memory or on removable storage media.
*7
Storage on removable media is available with the
SNC-DF85 and SNC-DF80.
*7
Network Security Features
IEEE802.1X Compliant
The SNC-DF85, SNC-DF80, and SNC-DF50 support
IEEE802.1X port-based network access control.
This means they can be integrated to a network
environment that uses the IEEE802.1X clientauthorization protocol for security purposes.
CF Card Slot
Privacy Zone Masking
These cameras can mask up to seven unwanted or
prohibited areas within an image for privacy
protection.
*8
Supplied “SNC Privacy Masking Tool” software is required to set masking
areas.
*8
24 V AC, 12 V DC, or PoE Operation
These cameras offer a choice of three types of power:
24 V AC, 12 V DC, or PoE (Power-over-Ethernet, IEEE
802.3af). They automatically adapt to whichever
power source is used, making installation fast and
effective.
Network Features
• Simultaneous Access for up to 20 Users
• Multicasting Capability
6
Page 7

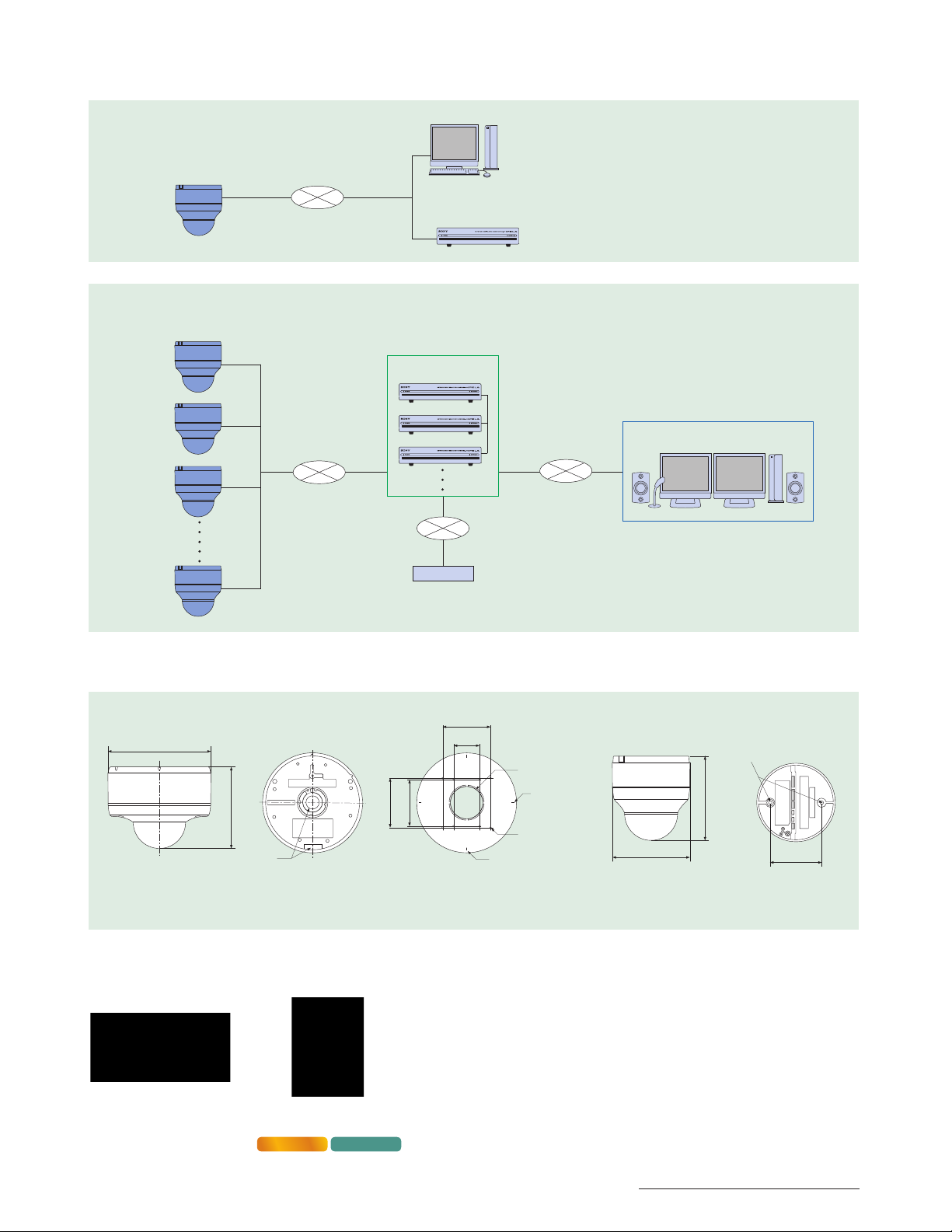

SYSTEM CONFIGURATIONS
Stand Alone Confi guration
Network Camera
Network
Client-server Confi guration
Network Cameras
Network
PC
Network Recording Server
NSR Series
Server Room
Network Recording Servers
NSR Series
Network
Network Attached Storage
Network
Monitoring Location
Intelligent Monitoring Software
RSM Controller Installed PC
DIMENSIONS
ø7 (177.5)
/8 (141.5)
5
5
Conduit hole (3/4 in.)
SNC-DF85N
SNC-DF80N
OPTIONAL ACCESSORIES
YT-ICB45
In-Ceiling Mount Bracket
YT-HU75
Heater Unit
SNC-DF85 SNC-DF80
/8 (85.7)
3
3
/32 (83.5)
9
3
Template
3 3/8 (85.7)
13
/16 (46)
1
Hole for cables
ø2 3/6 to 2 7/8
(58 to 72)
Horizontal
marker
Hole for bracket
Vertical marker
ø5 (126)
SNC-DF50N
ø7/32 (5) hole x 2
/8 (140.5)
5
5
5 9/32 (83.5)
Unit: inches (mm)
7
Page 8
SPECIFICATIONS
Camera
Image device 1/3-type CCD with DynaView Technology 1/3-type CCD with SuperExwave Technology 1/3-type CCD with DynaView Technology
Number of effective pixels (H x V)
Electronic shutter 1/60 to 1/10,000 s 1/60 to 1/10,000 s 1/60 to 1/10,000 s
Auto gain control Auto, EV compensation, DynaView On/Off (0 dB to +24 dB) Auto, EV compensation, DynaView
Exposure control Auto, Backlight compensation
White balance mode ATW, ATW Pro
Lens type Vari-focal lens
Zoom ratio 3.6× optical zoom (1.5× digital zoom)
Horizontal viewing angle 100.8° to 27.7°
Focal length f=2.8 to 10.0 mm
F-number F1.3 (wide), F3.0 (tele)
Minimum object distance 300 mm
Image size (H x V) 640 × 480, 320 × 240, 160 × 120 (JPEG, MPEG-4, H.264)
Compression format JPEG, MPEG-4, H.264
Maximum frame rate
JPEG/MPEG-4
H.264
Audio
Audio compression G.711/G.726 (40, 32, 24, 16 Kb/s)
Network
Protocols TCP/IP, HTTP, ARP, ICMP, FTP, SMTP, DHCP, SNMP, DNS, NTP, RTP/RTCP
Number of clients 20
Authentication IEEE802.1X
Interface
Ethernet 10Base-T/100Base-TX (RJ-45)
Card slot CF card ×1 –
Analog video output BNC ×1, 1.0 Vp-p, 75 Ω, RCA × 1
I/O port Sensor in × 1, Alarm out × 2
External microphone input Mini-jack (monaural, 2.2 K 2.5 V plug-in power)
Audio line output Mini-jack (monaural), max output level: 1 Vrms
Analog video output
Signal system NTSC (Composite) NTSC (Composite) NTSC (Composite)
Horizontal resolution 480 TV lines 540 TV lines 480 TV lines
S/N ratio more than 50 dB
Min. illumination Color: 0.7 lx (50IRE, F1.3, AGC ON)
General
Weight Approx. 3 lb 15 oz (1.8 kg) Approx. 2 lb (920 g)
Dimensions (Ø x H) 7 x 5
Power requirements PoE (IEEE-802.3af)/AC24V/DC12 V
Power consumption 10 W max. 9 W max.
Operating temperature 14 to 122 °F (-10 to 50 °C)
Storage temperature -4 to 140 °F (-20 to 60 °C)
Supplied accessories
System requirements
Operating system Microsoft
Processor CPU: Intel
Memory RAM: 256 MB or more
Web browser Microsoft Internet Explorer
SNC-DF85N SNC-DF80N SNC-DF50N
380,000 (768 × 494) 380,000 (768 x 494) 380,000 (768 x 494)
30 fps (640 × 480)
10 fps (640 × 480)
B/W: 0.15 lx (50IRE, F1.3, AGC ON)
5
/8 inches (177.5 x 141.5 mm) 5 x 5 5/8 inches (126 x 140.5 mm)
-40 to 122 °F (-40 to 50 °C) w/heater unit
Bracket, Template, Torx wrench, M4 screws (4), Wire rope, M4 shoulder screw, Audio cable, I/O cable, CD-ROM (User's
guide, IP setup program, Audio Upload Tool, Privacy Masking Tool, Video Player, Custom Homepage Installer), Installation
manual
®
Windows® 2000/XP
®
Pentium® IV 1.5 GHz or higher (2.4 GHz or higher is recommended)
®
Ver. 6.0
30 fps (640 x 480)
10 fps (640 x 480)
Color: 0.6 lx (50IRE, F1.3, AGC ON)
B/W: 0.06 lx (50IRE, F1.3, AGC ON)
30 fps (640 x 480)
10 fps (640 x 480)
0.7 lx (50IRE, F1.3, AGC ON)
14 to 122 °F (-10 to 50 °C)
Template, Wire rope, M4 shoulder screw, AC power cord,
Monitor cable, CD-ROM (User‘s guide, IP setup program, Audio
Upload Tool, Privacy Masking Tool, Video Player, Custom
Homepage Installer), Installation manual
NOTES
* The SNC-DF85N, SNC-DF80N, and SNC-DF50N include software developed by the OpenSSL project for use in the OpenSSL Toolkit. (http://www.openssl.org/)
* The SNC-DF85N, SNC-DF80N, and SNC-DF50N include cryptographic software written by Eric Young ([email protected])
REAR PANEL
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
www.sony.com/security
S-IP2033 (MK10514V1)
SNC-DF50N
© 2008 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifi cations are subject to change without notice.
All non-metric weights and measurements are approximate.
Projected images in this brochure are simulated.
Sony, DynaView, DEPA and IPELA are trademarks of Sony.
Windows and Internet Explorer are trademarks of Microsoft Corporation.
Pentium is a trademark of Intel Corporation.
Printed in USA (9/08)
Loading...
