Sony SLV-K877MN/PS, SLV-K867MN/PS Operating Instruction

3-860-484-14(1)

Video Cassette
Recorder

Operating Instructions

PAL NTSC

G

SLV-K877MN/PS
SLV-K867CH/PS

©1997 by Sony Corporation

WARNING

To prevent fire or shock hazard, do not expose
the unit to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified personnel
only.
The mains lead must only be changed at a
qualified service shop.

Caution

Television programmes, films, video tapes and
other materials may be copyrighted.
Unauthorized recording of such material may
be contrary to the provisions of the copyright
laws. Also, use of this recorder with cable
television transmission may require
authorization from the cable television
transmitter and/or programme owner.

Precautions

Safety

• This unit operates on 110 – 240 V AC, 50/60
Hz. Check that the unit’s operating voltage
is identical with your local power supply.

• If anything falls into the cabinet, unplug the
unit and have it checked by qualified
personnel before operating it any further.

• The unit is not disconnected from the mains
as long as it is connected to the mains, even
if the unit itself has been turned off.

• Unplug the unit from the mains if you do
not intend to use it for an extended period of
time. To disconnect the lead, pull it out by
the plug, never by the lead.

Installing

• Allow adequate air circulation to prevent
internal heat buildup.

• Do not place the unit on surfaces (rugs,
blankets, etc.) or near materials (curtains,
draperies) that may block the ventilation
slots.

• Do not install the unit near heat sources
such as radiators or air ducts, or in a place
subject to direct sunlight, excessive dust,
mechanical vibration or shock.

• Do not install the unit in an inclined
position. It is designed to be operated in a
horizontal position only.

• Keep the unit and cassettes away from
equipment with strong magnets, such as
microwave ovens or large loudspeakers.

• Do not place heavy objects on the unit.

• If the unit is brought directly from a cold to
a warm location, moisture may condense
inside the VCR and cause damage to the
video head and tape. When you first install
the unit, or when you move it from a cold to
a warm location, wait for about one hour
before operating the unit.

Compatible colour systems

• The SLV-K877MN/K877PS are designed to
record and play back using the PAL (B/G
and D/K), MESECAM (B/G and D/K), and
NTSC colour systems.

• The SLV-K867CH/K867PS are designed to
record and play back using the PAL (B/G,
D/K and I), MESECAM (B/G and D/K),
and NTSC colour systems.

• Recording of video sources based on other
colour systems cannot be guaranteed.

Introduction

4

Table of contents

Getting Started

4 Step 1: Unpacking
5 Step 2: Setting up the remote commander
6 Step 3: Connecting the VCR

8 Step 4: Tuning your TV to the VCR
10 Step 5: Setting up the VCR with EASY SET UP
13 Manual setup —

Selecting a language, Presetting channels, Setting up G-CODE* (SLV­K877MN/PS only), Changing/disabling programme positions (SLV­K877MN/PS only), Setting the clock

Getting Started

Basic Operations

27 Playing a tape
31 Recording TV programmes
34 Recording TV programmes using

G-CODE (SLV-K877MN/PS only)

37 Setting the timer manually

Additional Operations

40 Playing/searching at various

speeds

42 Recording TV programmes using

the quick timer

43 Checking/changing/cancelling

timer settings

44 Recording stereo and bilingual

programmes

47 Karaoke sing-along
57 Searching with the AMS or index

function

59 Enjoying the surround sound

(Virtual Sound) (SLV-K877MN/
PS only)

60 Adjusting the picture
61 Changing menu options

Editing

62 Connecting to a VCR or stereo

system

63 Basic editing
64 Audio dubbing

Additional Information

67 Troubleshooting
70 Specifications
71 Index to parts and controls
Back cover

Index

* G-CODE is a trademark applied for by Gemstar Development Corp. G-CODE system is

manufactured under license from Gemstar Development Corporation.

Introduction

5

Getting Started

Step 1

Unpacking

Check that you have received the following items with the VCR:

• Remote commander

• R6 (size AA) batteries

• Aerial cable

• Audio/video cable (3-phono to
3-phono) (SLV-K877MN/PS only)

• Microphone

SLV-K877MN/PS

SLV-K867CH/PS

Checking your model name

6 Getting Started

The instructions in this manual are for the 4 models: SLV-K877MN/
K877PS/K867CH and K867PS. Check your model number by looking
at the rear panel of your VCR. The SLV-K877MN is the model used
for illustration purposes. Any difference in operation is clearly
indicated in the text, for example, “SLV-K867PS only.”

Step 2

Setting up the remote commander

Inserting the batteries

Insert two R6 (size AA) batteries by
matching the + and – on the batteries
to the diagram inside the battery
compartment.

Using the remote commander

You can use this remote
commander to operate this
VCR and a Sony TV. Buttons on
the remote commander marked
with a dot (•) can be used to
operate your Sony TV.

Remote sensor

TV / VIDEO

Getting Started

To operate

the VCR
a Sony TV

Notes

• The TV/VIDEO button selects an input source of the TV from aerial in or line in.
The button does not control this VCR.

• With normal use, the batteries should last about three to six months.

• If you do not use the remote commander for an extended period of time, remove
the batteries to avoid possible damage from battery leakage.

• Do not use a new battery with an old one.

• Do not mix different types of batteries.

Set TV / VIDEO to

VIDEO and point at the remote sensor on the VCR
TV and point at the remote sensor on the TV

Getting Started

7

Step 3

Connecting the VCR

e.g. SLV-K877MN/PS

AERIAL OUT

Mains lead

to mains

: Signal flow

AERIAL IN

Aerial cable
(supplied)

AERIAL IN

1 Disconnect the aerial cable from your TV and connect it to AERIAL

IN on the rear panel of the VCR.

SLV-K877MN/PS SLV-K867CH/PS

AERIAL

OUT

IN

AERIAL

IN

OUT

2 Connect AERIAL OUT of the VCR and the aerial input of your TV

using the supplied aerial cable.

SLV-K877MN/PS

AERIAL

OUT

IN

SLV-K867CH/PS

AERIAL

IN

OUT

3 Connect the mains lead to the mains.

8 Getting Started

Additional connections

To a TV that has phono type audio/
video input jacks

This additional connection improves
picture and sound quality. Connect the
TV as shown on the right.

If you want to use the Trinitron TV
Synchro Play function (see page 30), this
connection is necessary. (If your TV has
two or more inputs, connect the audio/
video cable to the VIDEO IN 1 jacks.)

To a stereo system

You can improve sound quality by
connecting a stereo system as shown on
the right.

LINE-1 OUT

Audio/video cable

LINE-1 OUT
AUDIO

Audio cable (not supplied)

LINE IN

LINE IN

Getting Started

Getting Started

9

Step 4

Tuning your TV to the VCR

If you have connected your VCR to the TV using the audio/video cable, skip
this step.

ON/STANDBY

RF CH SET

ON/STANDBY

1 Press ON/STANDBY to turn on the VCR.
2 Press RF CH SET on the VCR with a ball-point pen, etc.

RF CH

SET

The factory-preset RF channel appears in the display window.
The VCR signal is output through this channel to the TV.

PROGRAM +/–

RF

3 Turn on your TV and select a programme position for the VCR

picture.
This channel will now be referred to as the video channel.

10 Getting Started

4 Press RF CH SET.

RF CH

SET

The TV system indicator appears in the display window.

RF G

Getting Started

PROGRAM

If your TV system is

B/G
D/K
I

Select

G
K
I (SL V-K867CH/PS only)

5 Tune the TV to the same channel as that

shown in the display window so that
the picture on the right appears on the
TV screen.

Refer to your TV manual for tuning
instructions.

If the picture does not appear clearly,
see “To obtain a clear picture from the
VCR” below.

RF CH

Press PROGRAM +/– to select the desired TV system.

6 Press RF CH SET.

SET

You have now tuned your TV to the VCR. From now on, whenever
you want to play a tape, set the TV to the video channel.

To check to see if the TV tuning is correct

Set the TV to the video channel and press PROGRAM +/– on the VCR. If
the TV screen changes to a different programme each time you press
PROGRAM +/–, the TV tuning is correct.

SONY VIDEO CASSETTE
RECORDER

To obtain a clear picture from the VCR

If the picture does not appear clearly in step 5 above, press PROGRAM +/–
in step 5, so that another RF channel appears. Then tune the TV to the new
RF channel until a clear picture appears.

Note

• If you set the wrong TV system, you may have no sound or sound may be distorted
(noisy sound).

Getting Started

11

Step 5

Setting up the
VCR with EASY
SET UP

Before using the VCR for the first time,
set up the VCR using the EASY SET UP
function. With this function, you can set
the language for the on-screen display,
TV channels, guide channels for
G-CODE (SLV-K877MN/PS only), and

EASY SET UP

the VCR clock, guided by the sequence
indicated on the TV screen.

•

1 Press u to turn on the VCR.
2 Turn on your TV and set it to the video channel.

u

MENU
EXECUTE

CURSOR
>/./?//

3 Press EASY SET UP on the VCR with a

EASY

SET UP

ball-point pen, etc.
To cancel the EASY SET UP function, press

EASY SET UP again.

4 Press CURSOR >/. to select the desired

•

CURSOR

• EXECUTE

12 Getting Started

language, then press EXECUTE.
The TV SYSTEM menu appears.

EASY SET UP
LANGUAGE /

•

ENGLISH

SELECT :
NEXT :
CANCEL : [ EASY SET UP ]

1

[ V v ]
[ EXECUTE ]

–2–3–4–5

SLV-K877MN/PS

EASY SET UP
TV SYSTEM

B/G

•
D/K

SELECT :
NEXT :

1–2–3–4–5

[ V v ]
[ EXECUTE ]

SLV-K867CH/PS

EASY SET UP
TV SYSTEM

•

B/G
D/K

I

SELECT :
NEXT :

[ V v ]
[ EXECUTE ]

1– –3–4

2

5 Press CURSOR >/. to select either B/G

•

CURSOR

• EXECUTE

or D/K (B/G, D/K or I for SLV-K867CH/
PS), whichever is applicable in your area,
then press EXECUTE.

The VCR starts searching for all the
receivable channels.

During presetting, the channel being
located is displayed on the screen.

EASY SET UP
AUTO TUNER PRESET

PLEASE WAIT

1–2– –4–5

3

B/GCH 42

Getting Started

SLV-K877MN/PS

When all the channels are preset, the
following screen appears.

EASY SET UP
SET UP CH AND G-CODE

PROG CH GUIDE CH

1
2
3
4

5
SELECT
MOVE PROG : [ b ]

3
9

1

2

2

7

5

6

:[ V v ]
: [ TIMER CLEAR ]ERASE PROG

1–2–3– –5

––––
–

–––

–

–––

–

–––

–

–––

SLV-K867CH/PS

When all the channels are preset, the
CLOCK SET menu appears. Skip steps 6
and 7, then go to step 8.

6 Using CURSOR >/./?//, set the G-CODE guide channels,

•

CURSOR

• EXECUTE

7 Press EXECUTE.
8 Set the date and time using CURSOR

•

CURSOR

change the programme positions of the stations, and disable the
unused programme positions. (If not necessary, skip this step.)

The setting procedures are the same as those described in “Manual
setup — Setting up G-CODE” on page 19 and ”Manual setup —
Changing/disabling programme positions” on page 22.

The CLOCK SET menu appears.

>/./?//. The setting procedures are
the same as those described in “Manual

EASY SET UP 1–2–3–4–
CLOCK SET

. . 997 :3020 1

55SAT11

setup—Setting the clock” on page 25.

SELECT :
SET :
END : [ EXECUTE ]

[ B b ]
[ V v ]

4

5

continued

Getting Started

13

Step 5 : Setting up the VCR with EASY SET UP (continued)

• EXECUTE

9 Press EXECUTE.

A programme position appears on the TV
screen.

Note

• Do not exit EASY SET UP while the VCR is presetting channels. If you do, repeat
EASY SET UP from the beginning.

1

14 Getting Started

Manual setup —

ENGLISH

: [ EXECUTE ]

:[ V v ]

LANGUAGE /

•

Selecting a
language

You can change the on-screen display
language from the one you selected with
the EASY SET UP function.

123
456
789

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

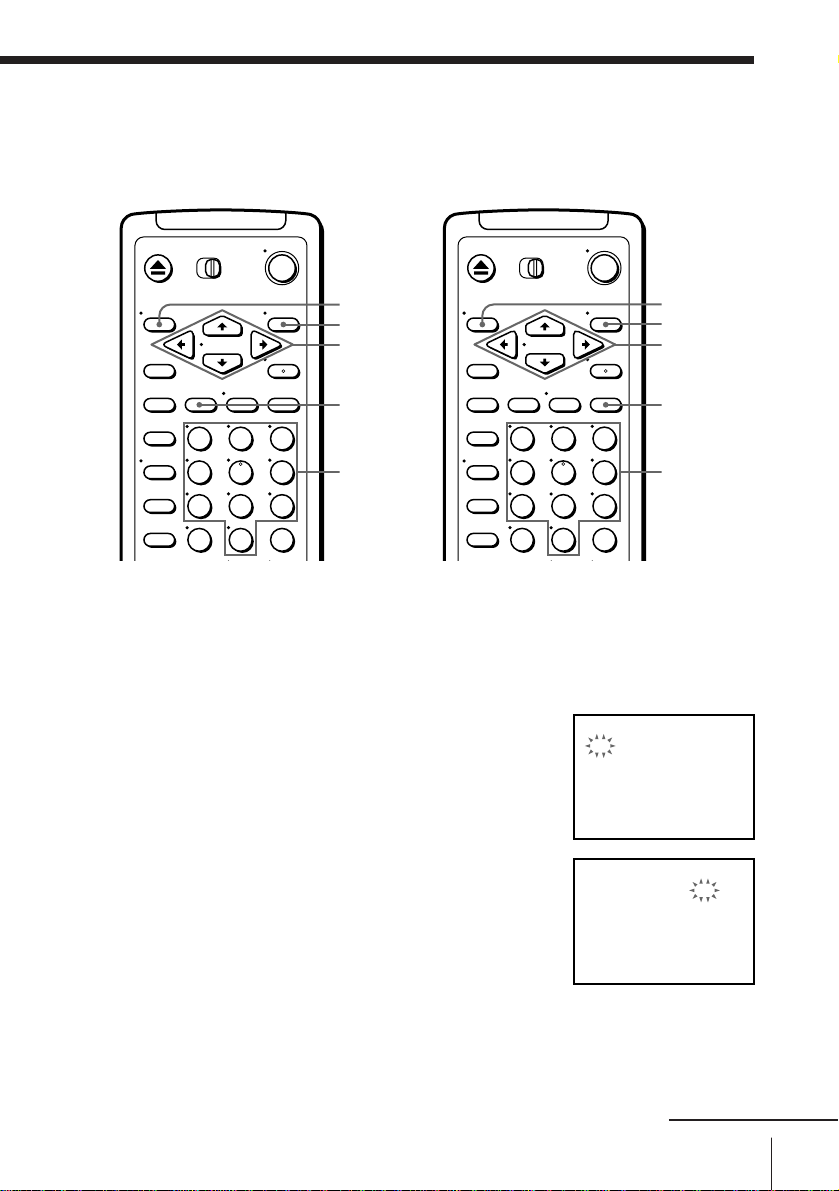

• MENU

1 Press MENU, then press CURSOR >/. to

move the cursor (z) to LANGUAGE and
press EXECUTE.

•

CURSOR

• EXECUTE

0

LANGUAGE /

•

ENGLISH

SELECT : [ V v ]
END : [ EXECUTE ]

MENU
EXECUTE
CURSOR

>/./?//

Getting Started

2 Press CURSOR >/. to select the desired

language, then press EXECUTE.

•

CURSOR

• EXECUTE

Getting Started

15

Manual setup —
Presetting
channels

First, we recommend that you preset the
receivable channels in your area using
EASY SET UP or using automatic
presetting below. Then, if some channels
could not be preset automatically, you
can preset them manually; if there are
any unwanted channels among the
preset ones, you can disable the
channels.

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

Presetting all receivable channels automatically

If you have preset the channels using the EASY SET UP procedure, skip this
procedure.

• MENU

1 Press MENU, then press CURSOR >/. to

move the cursor (z) to TUNER PRESET
and press EXECUTE.

•

CURSOR

• EXECUTE

123
456
789

0

TUNER PRESET

NORMAL / CATV
AUTO PRESET
CHANNEL SET
AFT
FINE TUNING

SELECT :
SET :

[ V v ]
[ B b ]

MENU
EXECUTE
CURSOR

>/./?//

PROG1

•

/G D /K

BSYSTEM
NORM

• CATV
2

ON• OFF

16 Getting Started

2 Press CURSOR >/./?// to move the

•

CURSOR

cursor ( z ) to SYSTEM, then select either
B/G or D/K (B/G, D/K or I for SLV­K867CH/PS), whichever is applicable in
your area. If SYSTEM is set to the wrong
position, the sound will be distorted or
noisy.

SLV-K877MN/PS

TUNER PRESET

NORMAL / CATV
AUTO PRESET
CHANNEL SET
AFT
FINE TUNING

SELECT :
SET :

[ V v ]
[ B b ]

SLV-K867CH/PS

TUNER PRESET

•

/G D /K

[ V v ]
[ B b ]

BSYSTEM
NORMAL / CATV
AUTO PRESET
CHANNEL SET
AFT
FINE TUNING

SELECT :
SET :

PROG1

•

/G D /K

BSYSTEM
NORM

• CATV
2

ON• OFF

PROG1

NORM

• CATV
2

ON• OFF

Getting Started

I

3 Press CURSOR >/./?// to move the

•

CURSOR

cursor (z) to NORMAL/CATV, then select
NORM.

To preset CATV channels, select CATV.

4 Press CURSOR >/. to move the cursor

•

CURSOR

• EXECUTE

(z) to AUTO PRESET, then press
EXECUTE.

All receivable channels are preset in
numerical sequence. When no more
receivable channels can be found,
presetting stops and the picture from the
lowest numbered channel is displayed on
the TV screen.

TUNER PRESET

NORMAL / CATV
AUTO PRESET
CHANNEL SET
AFT
FINE TUNING

SELECT :
SET :

TUNER PRESET

NORMAL / CATV
AUTO PRESET
CHANNEL SET
AFT
FINE TUNING

PLEASE WAIT

[ V v ]
[ B b ]

continued

PROG1

BSYSTEM

•

/G D /K

NORM

• CATV
2

ON• OFF

PROG1

•

/G D /K

BSYSTEM
NORM

• CATV
2

ON• OFF

Getting Started

17

Manual setup –– Presetting channels (continued)

123
456
789

0

Presetting channels
manually

• MENU

1 Press MENU, then press CURSOR >/. to

move the cursor (z) to TUNER PRESET
and press EXECUTE.

•

CURSOR

• EXECUTE

TUNER PRESET

NORMAL / CATV
AUTO PRESET
CHANNEL SET
AFT
FINE TUNING

SELECT :
SET :

MENU
EXECUTE
CURSOR

>/./?//

PROG+/–

•

/G D /K

BSYSTEM
NORM

• CATV
3

ON• OFF

[ V v ]
[ B b ]

PROG10

2 Press CURSOR >/./?// to move the

•

CURSOR

3 Press CURSOR >/. to move the cursor

•

CURSOR

18 Getting Started

cursor (z) to NORMAL/CATV, then select
NORM.

To preset CATV channels, select CATV.

(z) to CHANNEL SET.

TUNER PRESET

NORMAL / CATV
AUTO PRESET
CHANNEL SET
AFT
FINE TUNING

SELECT :
SET :

TUNER PRESET

NORMAL / CATV
AUTO PRESET
CHANNEL SET
AFT
FINE TUNING

SELECT :
SET :

[ V v ]
[ B b ]

[ V v ]
[ B b ]

PROG10

•

/G D /K

BSYSTEM
NORM

• CATV
3

ON• OFF

PROG10

•

/G D /K

BSYSTEM
NORM

• CATV
3

ON• OFF

4 Press PROG +/– to select the programme

• PROG

position.

Selected programme
position

TUNER PRESET

BSYSTEM

•

[ V v ]
[ B b ]

/G D /K

NORM

• CATV
3

ON• OFF

NORMAL / CATV
AUTO PRESET
CHANNEL SET
AFT
FINE TUNING

SELECT :
SET :

PROG14

Getting Started

5 Press CURSOR / repeatedly until the

•

CURSOR

Channel coverage

VHF
UHF
CATV

(TV distribution)

channel you want is displayed.
Pressing CURSOR ? goes back to the
previous channels.

The channels are scanned in the following
order:

System B/G

NZ1-NZ11, E2-E12
E21-E69

S1-S41, S01-S05

System D/K

R1-R12, C1-C12
R21-R60, C13-C56
__

If you know the number of the channel you want, press the
programme number buttons. For example, for channel 5, first press
“0” and then press “5.”

6 If the TV sound is distorted or noisy, press

•

CURSOR

CURSOR >/./?// to move the
cursor (z) to SYSTEM, then select either
B/G or D/K (B/G, D/K or I for SLV­K867CH/PS), whichever is applicable in
your area.

TUNER PRESET

NORMAL / CATV
AUTO PRESET
CHANNEL SET
AFT
FINE TUNING

SELECT :
SET :

[ V v ]
[ B b ]

PROG14

BSYSTEM

•

/G D /K

NORM

• CATV
4

ON• OFF

System I
(SLV-K867CH/PS only)

SA4-SA13
SA21-SA68, B21-B69
__

SLV-K877MN/PS

TUNER PRESET

NORMAL / CATV
AUTO PRESET
CHANNEL SET
AFT
FINE TUNING

SELECT :
SET :

[ V v ]
[ B b ]

PROG14

•

/G D /K

BSYSTEM
NORM

• CATV
4

ON• OFF

SLV-K867CH/PS

•

/G D /K

BSYSTEM

NORM

• CATV
4

ON• OFF

PROG14

TUNER PRESET

NORMAL / CATV
AUTO PRESET
CHANNEL SET
AFT
FINE TUNING

SELECT :
SET :

[ V v ]
[ B b ]

I

continued

Getting Started

19

Manual setup — Presetting channels (continued)

7 To allocate another channel to another programme position, repeat

steps 4 and 5.

• EXECUTE

8 Press EXECUTE.

Disabling unwanted programme positions

After tuning the TV channels, you can disable unused programme positions.
The disabled positions will be skipped later when you press the PROG +/–
buttons.

You can also disable unwanted programme positions using the SET UP CH
AND G-CODE menu (see page 24) (SLV-K877MN/PS only).

1 In step 5 above, press programme number button “0” twice to display

the number “0” beside CHANNEL SET.

2 Press EXECUTE.

If the picture is not clear

Normally, the Auto Fine Tuning (AFT) function automatically tunes in
channels clearly. If, however, the picture is not clear, you may also use the
manual tuning function.

1 Press PROG +/– to select the programme number for which you cannot

obtain a clear picture.

2 Press MENU, then select TUNER PRESET and press EXECUTE.
3 Select FINE TUNING. The fine tuning meter appears.

TUNER PRESET

NORMAL / CATV
AUTO PRESET
CHANNEL SET
AFT
FINE TUNING

SET : [ B b ]

PROG14

•

/G D /K

BSYSTEM
NORM

• CATV
4

ON• OFF

4 Press CURSOR ?// to get a clearer picture, then press EXECUTE.

Note

• The menu disappears automatically if you don’t proceed for more than a few
minutes.

20 Getting Started

Note that the AFT (Auto Fine Tuning) setting switches to OFF.

Manual setup —
Setting up
G-CODE (SLV­K877MN/PS only)

G-CODE is a feature in Sony VCRs that
simplifies programming the VCR to
make timer recordings. To use G-CODE,
each programme position needs to be
matched with its G-CODE guide
channel. To get the guide channel
numbers, look in the programme guide
for your area that features G-CODE
numbers.

• If you want to record satellite
broadcasts using G-CODE, see page

21.

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

• MENU

1 Press MENU, then press CURSOR >/. to

move the cursor (z) to SET UP CH AND
G-CODE and press EXECUTE.

•

CURSOR

• EXECUTE

When using the EASY SET UP procedure,
skip this step.

The preset channels are displayed on the
screen.

123
456
789

0

SET UP CH AND G-CODE

PROG CH GUIDE CH

1

3

2

9

3

1

2

4

2

7

5

5

6
SELECT :
MOVE PROG :

MENU
EXECUTE

CURSOR
>/./?//

––––
–

–––

–

–––

–

–––

–

–––
[ V v ]
[ b ]

: [ TIMER CLEAR ]ERASE PROG

Getting Started

2 Press CURSOR >/. to move the cursor

•

CURSOR

(z) to the row on which you want to set
the guide channel.

To display other pages for programme
positions 6 to 50, press CURSOR >/.
repeatedly.

SET UP CH AND G-CODE

PROG CH GUIDE CH

1
2
3
4

5
SELECT :
MOVE PROG :

3
9

1

2

2

7

5

6

: [ TIMER CLEAR ]ERASE PROG

––––
–

–––

–

–––

–

–––

–

–––
[ V v ]
[ b ]

continued

Getting Started

21

Manual setup –– Setting up G-CODE (SLV-K877MN/PS only)
(continued)

3 Press CURSOR / twice to select the

•

CURSOR

guide channel column.

4 Press CURSOR >/. to select the guide

•

CURSOR

channel number assigned in the
programme guide.

5 Press CURSOR ?// to confirm the

•

CURSOR

setting.

SET UP CH AND G-CODE

PROG CH GUIDE CH

1
2
3
4
5

SELECT GUIDE CH : [ V v ]
CONFIRM : [ B b ]

SET UP CH AND G-CODE

PROG CH GUIDE CH

1
2
3
4
5

SELECT GUIDE CH : [ V v ]
CONFIRM : [ B b ]

SET UP CH AND G-CODE

PROG CH GUIDE CH

1
2
3
4

5
SELECT :
MOVE PROG :

3
9

1

2

2

7

5

6

3
9

1

2

2

7

5

6

3
9

1

2

2

7

5

6

: [ TIMER CLEAR ]ERASE PROG

––––
–
–
–
–

––––
–
–
–
–

––––
–
–
–
–
[ V v ]
[ b ]

6 To set the guide channel of another station, repeat steps 2 to 5.

If you want to change the programme positions of the stations,
proceed to step 2 of “Manual setup –– Changing/disabling
programme positions” on page 22.

–––
–––[]
–––
–––

–––

6[]
–––
–––

–––

6
–––
–––

7 Press EXECUTE.

• EXECUTE

22 Getting Started

Setting up G-CODE for satellite broadcasts

When your satellite tuner is connected via the AERIAL IN connector, first
you have to set the programme position for each satellite channel using the
TUNER PRESET menu. Then set the guide channel number for each satellite
channel using the SET UP CH AND G-CODE menu.

If your satellite tuner is connected via the LINE-1 IN jacks, you don’t have to
set programme positions nor guide channel numbers for satellite channels.
Skip the following operations.

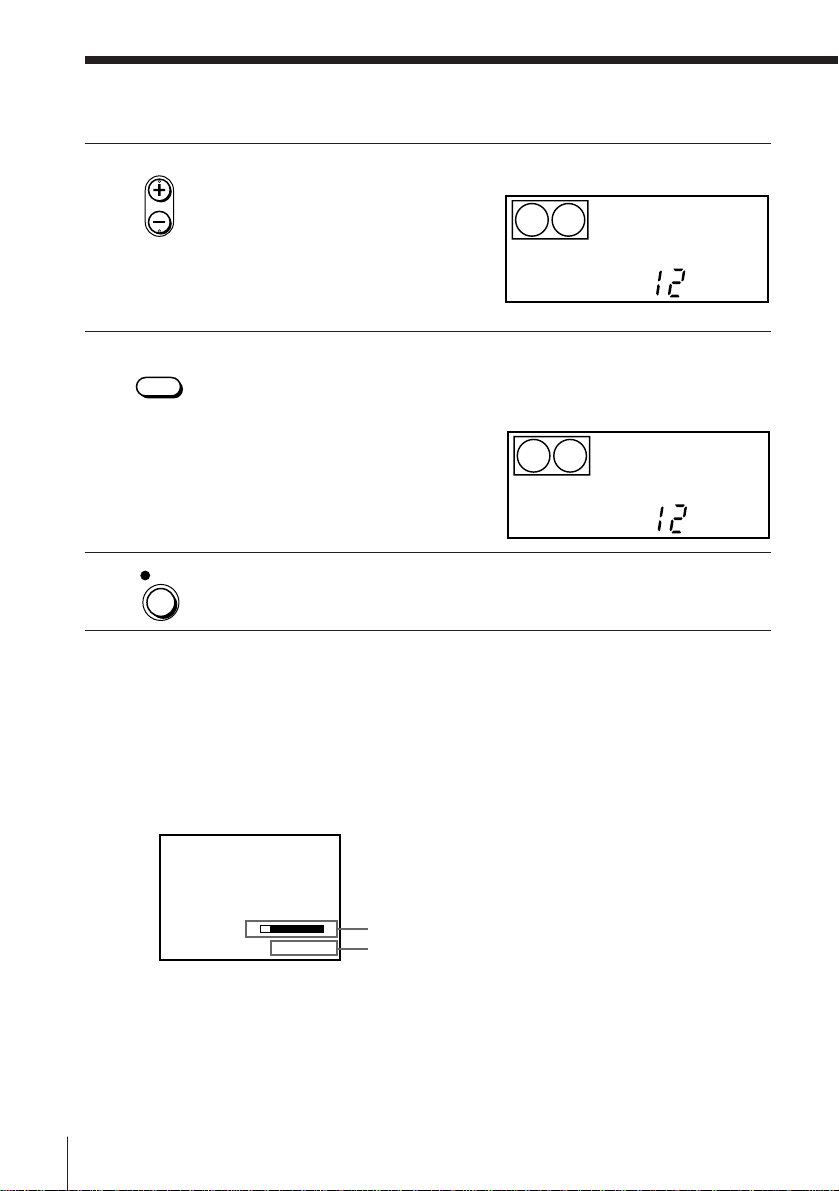

1 Turn on the satellite tuner.
2 Press MENU, then select TUNER PRESET and press EXECUTE.
3 Press PROG +/– to select a programme position you want to use for

watching a satellite channel.

4 Select CHANNEL SET, then press CURSOR /

to tune the VCR to the satellite tuner.
The channel number displayed beside

CHANNEL SET is used for receiving all
satellite broadcasts from the satellite tuner.

TUNER PRESET

NORMAL / CATV
AUTO PRESET
CHANNEL SET
AFT
FINE TUNING

SELECT :
SET :

[ V v ]
[ B b ]

PROG6

BSYSTEM

•

/G D /K

NORM

• CATV
6

ON• OFF

5 Press PROG +/– to select another programme position for another

satellite channel, and press the programme number buttons to enter the
same channel number as the one displayed in step 4.

Repeat this step for all satellite channels.

6 Set the guide channel number for each programme position assigned to

the satellite channel, following the procedures in “Manual setup ––
Setting up G-CODE” on page 19.

Notes

• The menu disappears automatically if you don’t proceed for more than a few
minutes.

• If you inadvertently entered a guide channel number, press CURSOR >/.
repeatedly to reset the ”GUIDE CH” column to ”---.” ”---” appears between 1 and

255.

• The VCR does not allow entering the guide channel number, if the same number
has been set.

• If you use a satellite tuner connected via the LINE-1 IN jacks, you don’t have to
setup G-CODE. Just record a satellite programme using G-CODE, and the VCR
automatically records the programme from the LINE-1 IN jacks.

• When you record a satellite broadcast using G-CODE, you need to select the desired
channel on the satellite tuner manually.

Getting Started

Getting Started

23

Manual setup ––
Changing/
disabling
programme
positions (SLV­K877MN/PS only)

123

After setting the channels and G-CODE
guide channels, you can change the
programme positions as you like. If any
programme positions are unused or
contain unwanted channels, you can
disable them.

Before you start…

• Turn on the VCR and the TV.

• Set the TV to the video channel.

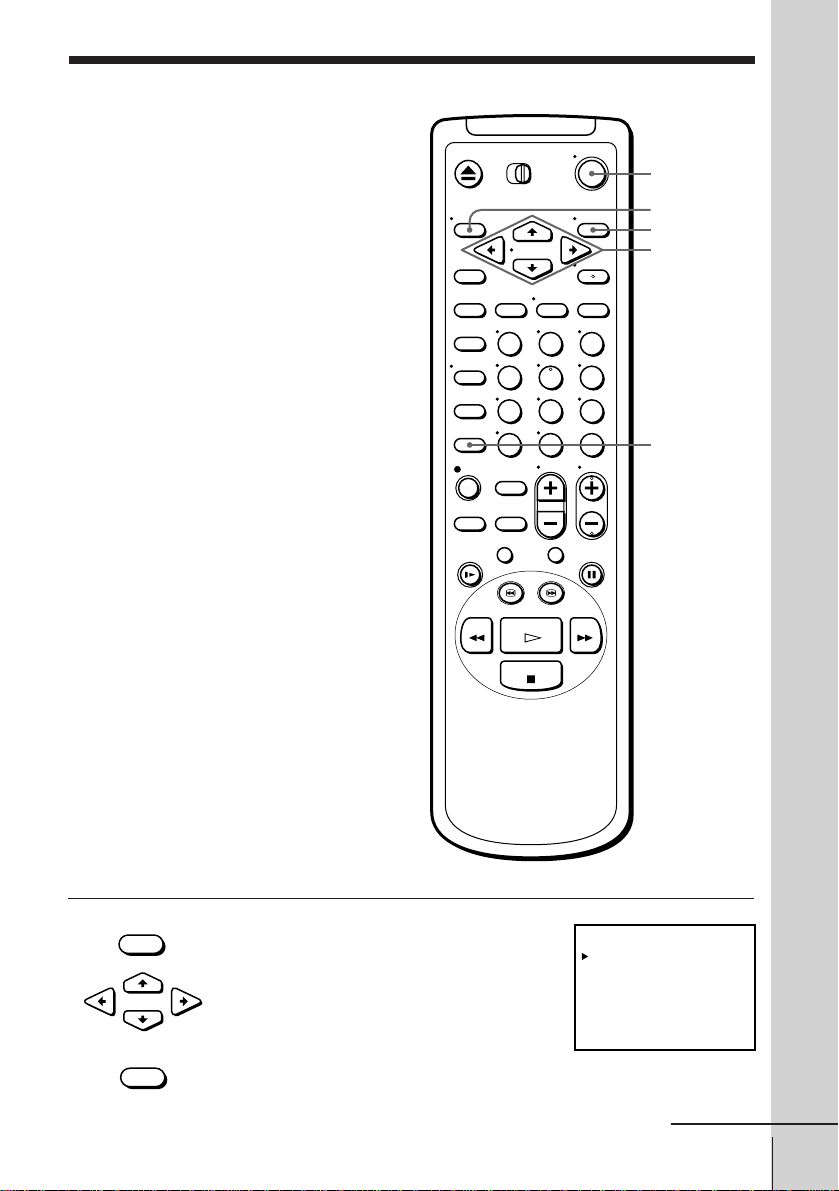

Changing programme positions

e.g. Moving the programme position from 4 to 1

• MENU

1 Press MENU, then press CURSOR >/. to

move the cursor (z) to SET UP CH AND
G-CODE and press EXECUTE.

•

CURSOR

• EXECUTE

When using the EASY SET UP procedure,
skip this step.

456
789

0

SET UP CH AND G-CODE

PROG CH GUIDE CH

1

3

2

9

3

1

2

4

2

7

5

5

6
SELECT :
MOVE PROG :

MENU
EXECUTE
CURSOR

>/./?//

–16
–

2

–

6

–

12

–

–––
[ V v ]
[ b ]

: [ TIMER CLEAR ]ERASE PROG

2 Press CURSOR >/. to move the cursor

•

CURSOR

24 Getting Started

(z) to the row on which you want to
change the programme position, then
press CURSOR /.

To display other pages for programme
positions 6 to 50, press CURSOR >/.
repeatedly.

SET UP CH AND G-CODE

PROG CH GUIDE CH

1
2

9

3

1

2

[]

4

2

7

5

6
SELECT :
SET GUIDE CH :
CONFIRM : [ B ]

16

–53

2

–

6

–

12

–

–––

–

[ V v ]
[ b ]

3 Press CURSOR >/. until the selected

•

CURSOR

channel and guide channel row moves to
the desired programme position.

The selected channel and guide channel
are inserted at the new programme
position and the intermediate channels are

SET UP CH AND G-CODE

PROG CH GUIDE CH

1

21

–57

2

3

3

9

4

1

2

5

6
SELECT :
SET GUIDE CH :
CONFIRM : [ B ]

126

–

2

–

6

–

–––

–

[ V v ]
[ b ]

displaced to fill the gap.

4 Press CURSOR ? to confirm the setting.

•

CURSOR

5 To change the programme position of another station, repeat steps 2

to 4.

• EXECUTE

6 Press EXECUTE.

continued

Getting Started

Getting Started

25

Manual setup –– Changing/disabling programme positions (SLV­K877MN/PS only) (continued)

Disabling unwanted
programme positions

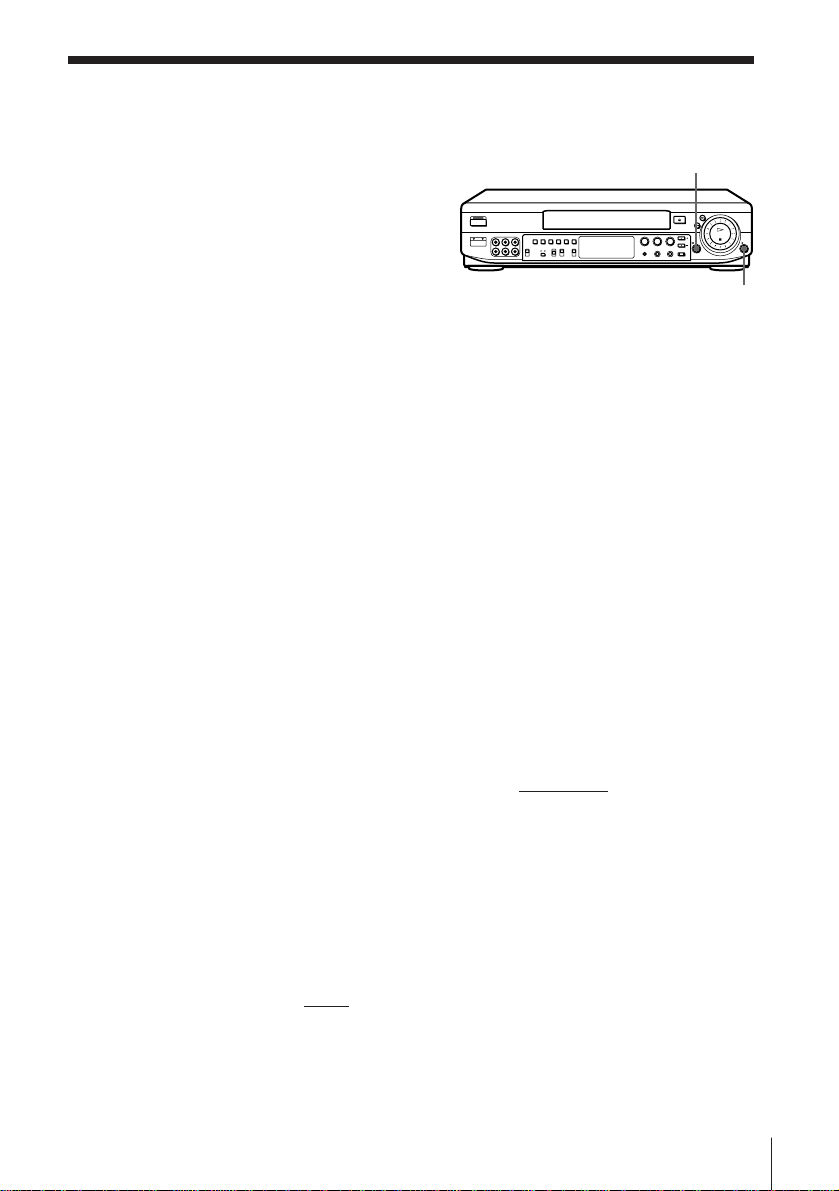

MENU

1
2
3
4
5

EXECUTE
CURSOR
>/./?//

TIMER
CLEAR

–16

3
9

–

1

2

–

2

7

–

5

6

–
[ V v ]
[ b ]

: [ TIMER CLEAR ]ERASE PROG

–––

12

Note

• Be sure to select the programme position
you want to disable correctly. If you
disable a programme position by mistake,
you need to reset that channel manually.

• MENU

1 Press MENU, then press CURSOR >/. to

move the cursor (z) to SET UP CH AND
G-CODE and press EXECUTE.

•

CURSOR

When using the EASY SET UP procedure,
skip this step.

• EXECUTE

SET UP CH AND G-CODE

PROG CH GUIDE CH

SELECT :
MOVE PROG :

2
6

2 Press CURSOR >/. to move the cursor

•

CURSOR

3 Press TIMER CLEAR.

TIMER

• CLEAR

(z) to the row on which you want to
disable.

The selected row will be cleared as shown
on the right.

SET UP CH AND G-CODE

PROG CH GUIDE CH

1
2
3

1

4

2

5

5
SELECT :
MOVE PROG :

SET UP CH AND G-CODE

PROG CH GUIDE CH

1
2
3
4

2

5

5
SELECT :
MOVE PROG :

4 Repeat steps 2 and 3 for any other programme positions you want

to disable.

• EXECUTE

5 Press EXECUTE.

26 Getting Started

–16

3
9

–

2

–

7

–

6

–

[ V v ]
[ b ]

: [ TIMER CLEAR ]ERASE PROG

–16

3
9

–

0

–

7

–

6

–
[ V v ]
[ b ]

: [ TIMER CLEAR ]ERASE PROG

–––

–––
–––

2
6

12

2

12

Manual setup —
Setting the clock

You must set the time and date on the
VCR to be able to use the timer
recording features properly. If you have
not set the VCR clock in the EASY SET
UP procedure, you need to set it
manually.

123

Before you start…

• Turn on the VCR and the TV.

456
789

• Set the TV to the video channel.

• MENU

1 Press MENU, then press CURSOR >/. to

move the cursor (z) to CLOCK SET and
press EXECUTE.

•

CURSOR

• EXECUTE

When using the EASY SET UP procedure,
skip this step.

2 Press CURSOR >/. to set the date.

•

CURSOR

The day of the week is set automatically.

0

CLOCK SET

. . 997 :001

SELECT :
SET :
END : [ EXECUTE ]

CLOCK SET

70MON11. . 997 :002

MENU
EXECUTE
CURSOR

>/./?//

0WED11

[ B b ]
[ V v ]

Getting Started

3 Press CURSOR / to select the month and

•

CURSOR

set the month using CURSOR >/..

SELECT :
SET :
END : [ EXECUTE ]

CLOCK SET

SELECT :
SET :
END : [ EXECUTE ]

50SAT11. . 997 :0020

[ B b ]
[ V v ]

[ B b ]
[ V v ]

continued

Getting Started

27

Manual setup — Setting the clock (continued)

4 Set the year, hour and minutes in

•

CURSOR

• EXECUTE

5 Press EXECUTE to start the clock.

Tip

• To change the digits during setting, press CURSOR ? to return to the item to be

Note

• The menu disappears automatically if you don’t proceed for more than a few

sequence, using CURSOR / to select the
item to be set, and CURSOR >/. to select
the digits.

changed, and select the digits using CURSOR >/..

minutes.

CLOCK SET

55SAT11. . 997 :0020 1

SELECT :
SET :
END : [ EXECUTE ]

[ B b ]
[ V v ]

28 Getting Started

Basic Operations

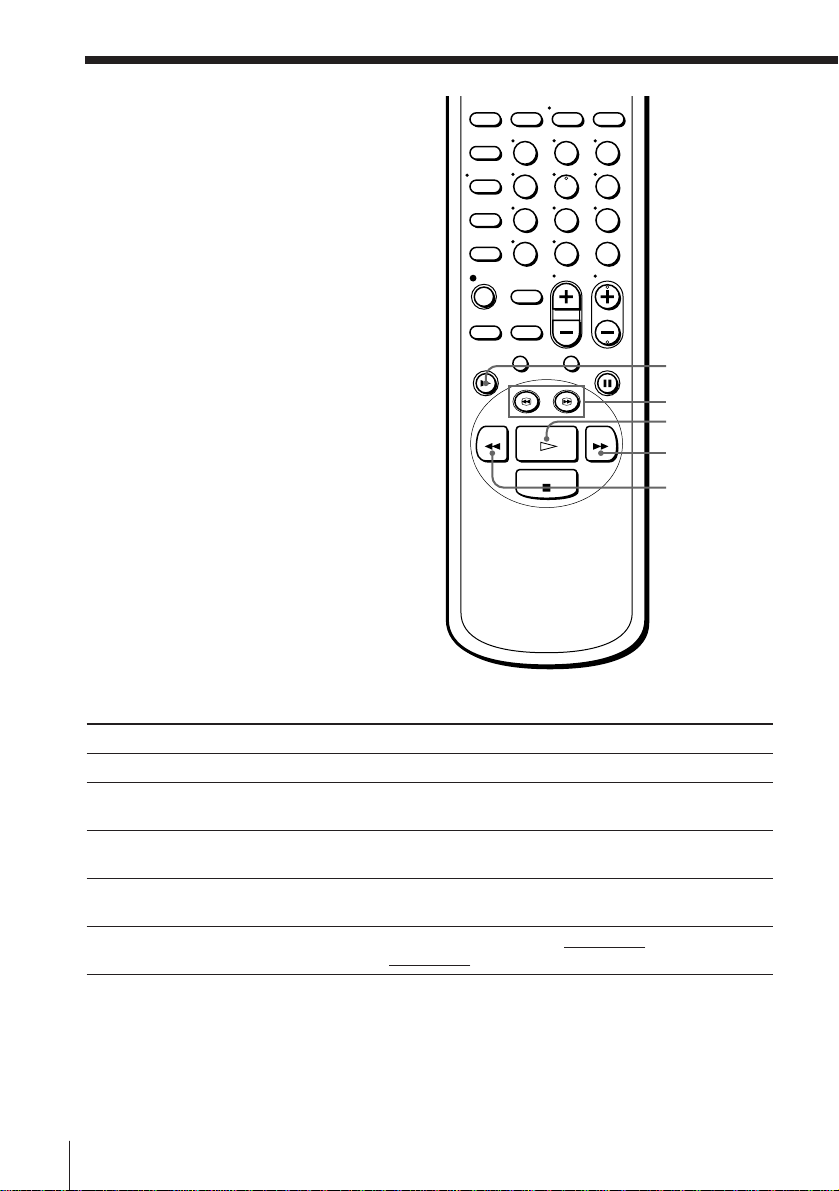

Playing a tape

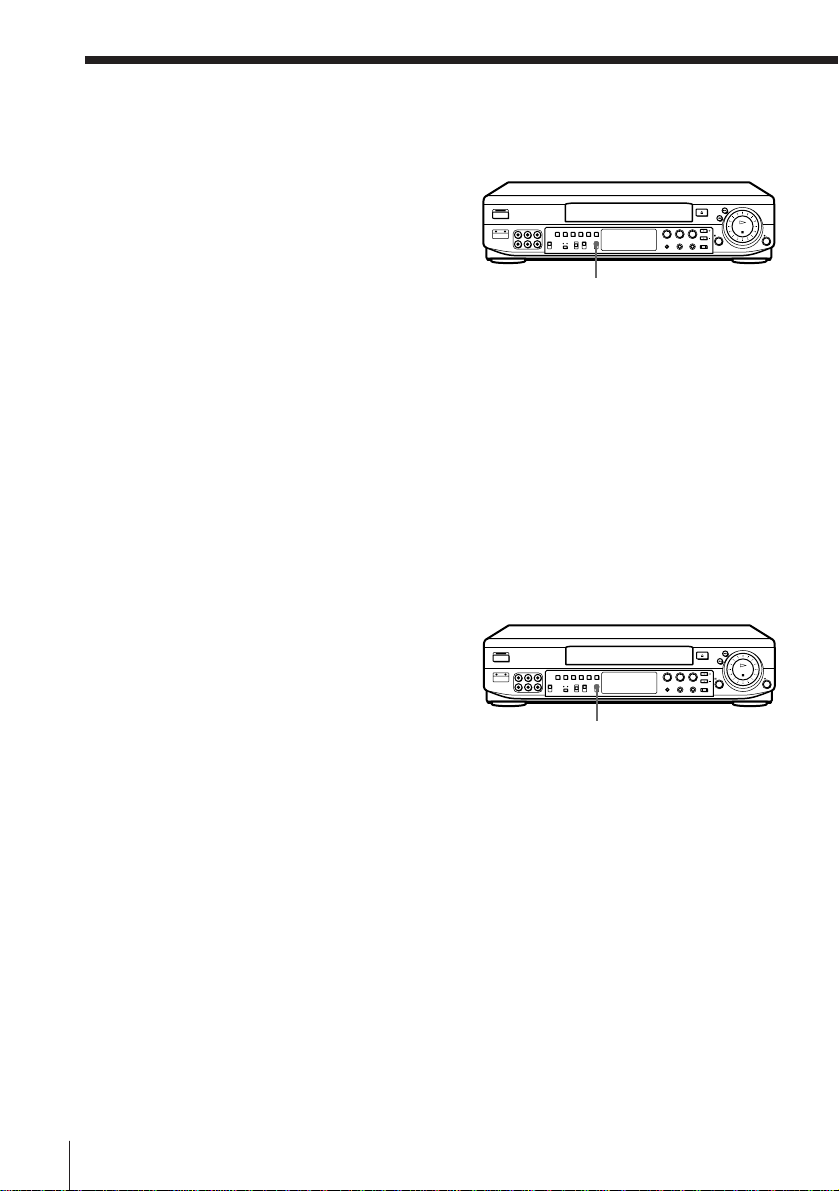

COLOR SYSTEM switch

123
456
789

0

6 EJECT

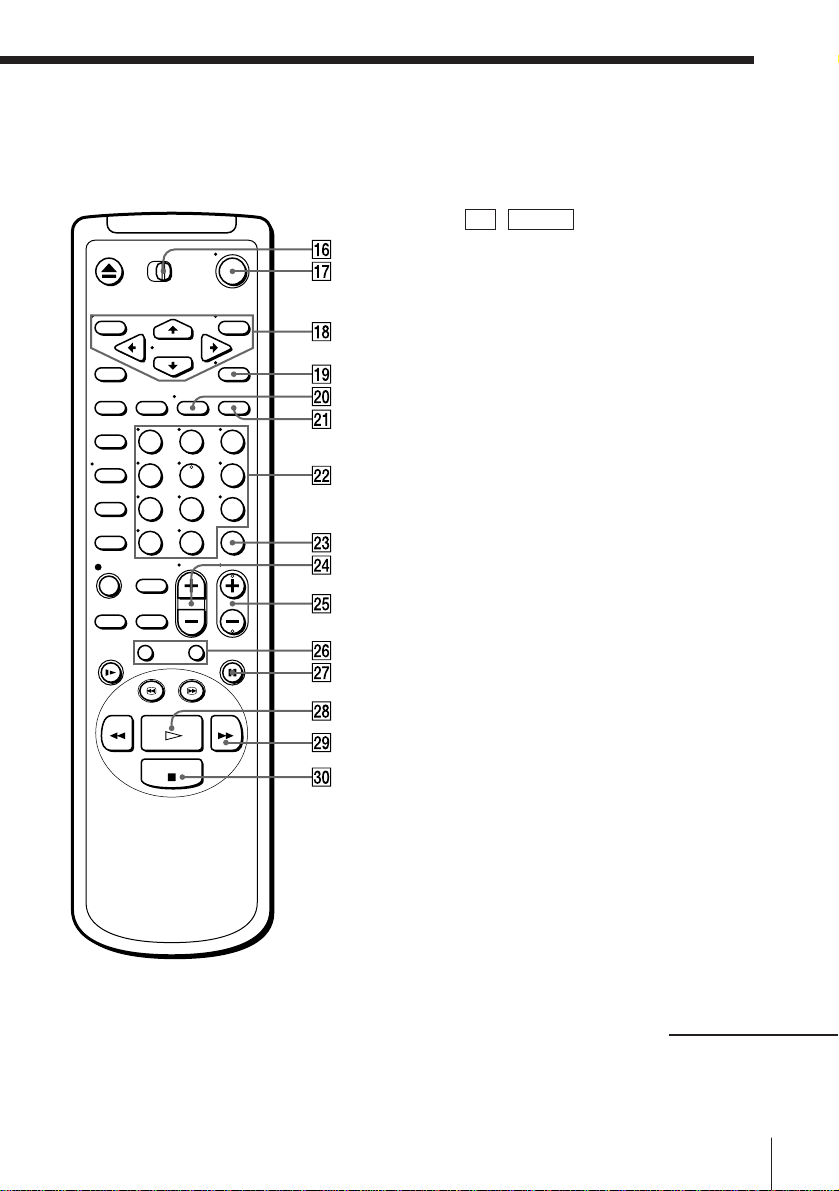

EFFECT (SLV­K877MN/PS
only)

DISPLAY
COUNTER

RESET

TRINITRON TV
SYNCHRO
PLAY

P PAUSE

3/# SEARCH

· PLAY
) FF

p STOP

Basic Operations

NTSC PB switch

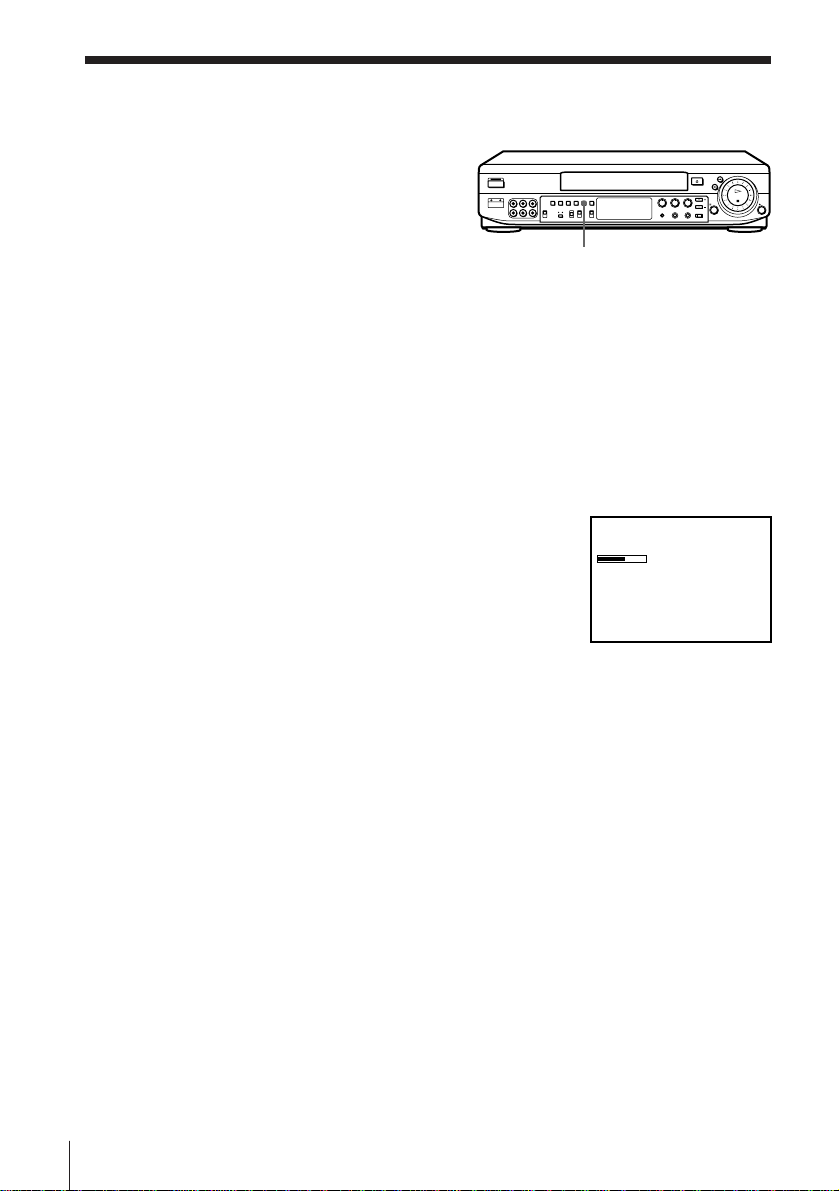

1 Turn on your TV and set it to the video channel.
2 Insert a tape.

The VCR turns on and starts playing
automatically if you insert a tape with its

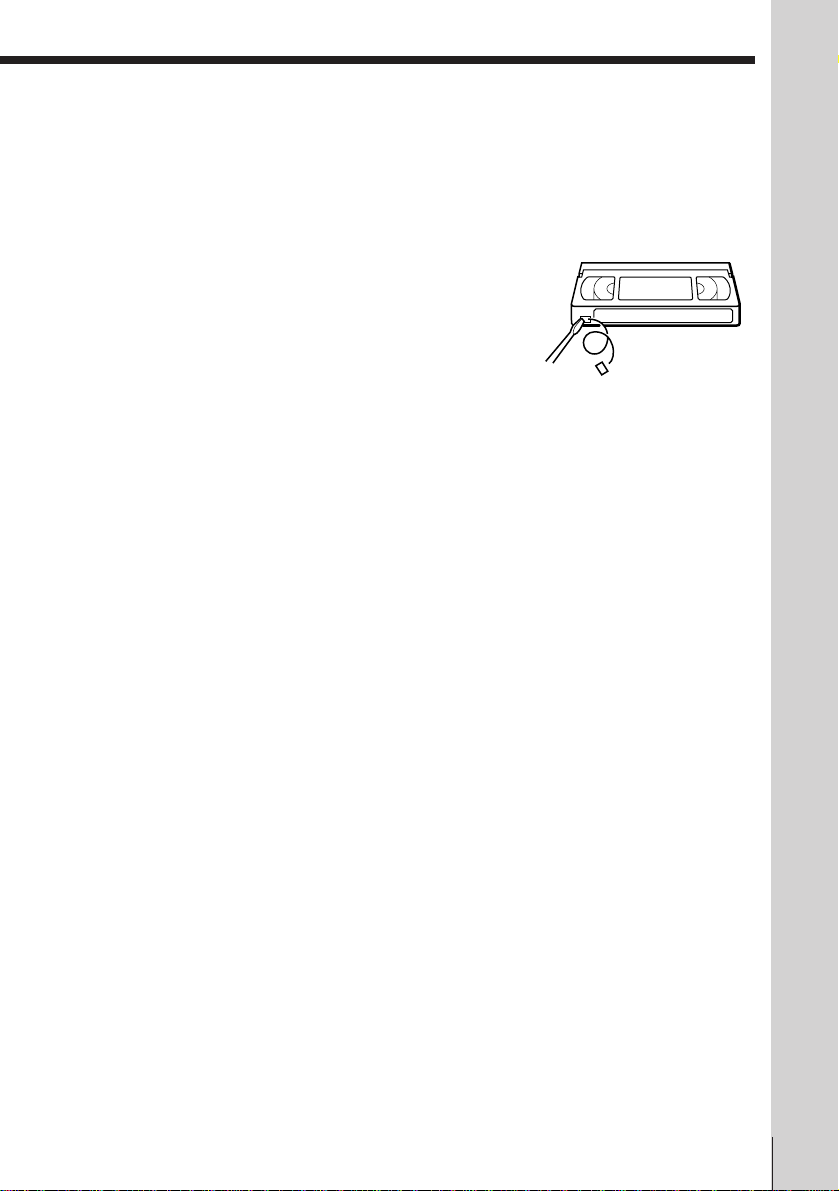

safety tab removed.

3 Press · PLAY.

PLAY

When the tape reaches the end, it will rewind automatically.

0 REW

continued

Basic Operations

29

Playing a tape (continued)

Additional tasks

To

Stop play
Pause play
Resume play after pause
Search forward
Search backward
Fast-forward the tape
Rewind the tape
Eject the tape

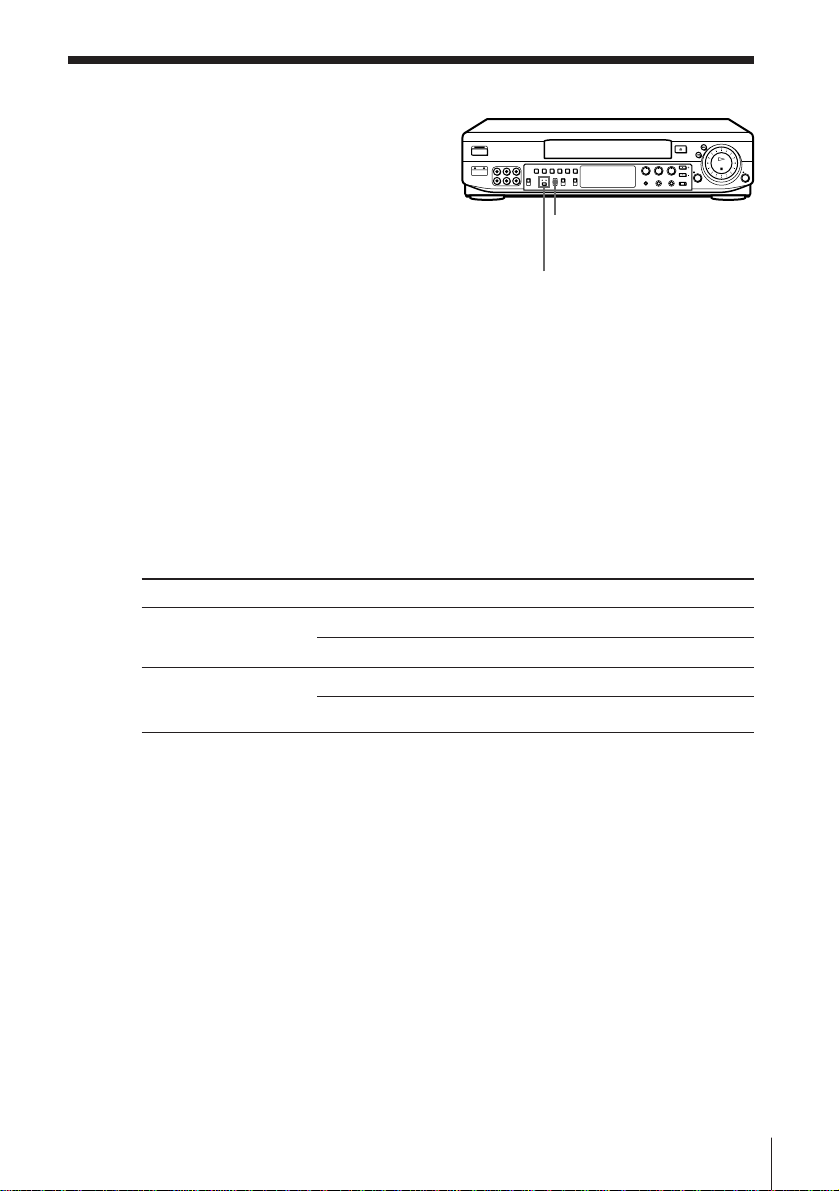

To set the colour system

If streaks appear during playback, set COLOR SYSTEM on the VCR to
conform to the system that the tape was recorded in. (When you select
AUTO, normally, the colour system is correctly set whenever the tape is
inserted.)

If your tape was recorded in

PAL
NTSC
MESECAM

Press

p STOP
P P AUSE
P PAUSE or · PLAY
) FF or # SEARCH during playback
0 REW or 3 SEARCH during playback
) FF during stop
0 REW during stop
6 EJECT

Set COLOR SYSTEM to

PAL/MESECAM
NTSC

PAL/MESECAM

Basic Operations

30

To play an NTSC-recorded tape

Set NTSC PB at the rear of the VCR according to the colour system of your
TV.

If your TV is

PAL
NTSC 4.43
NTSC 3.58

Set NTSC PB to

ON PAL TV
NTSC 4.43
NTSC 3.58

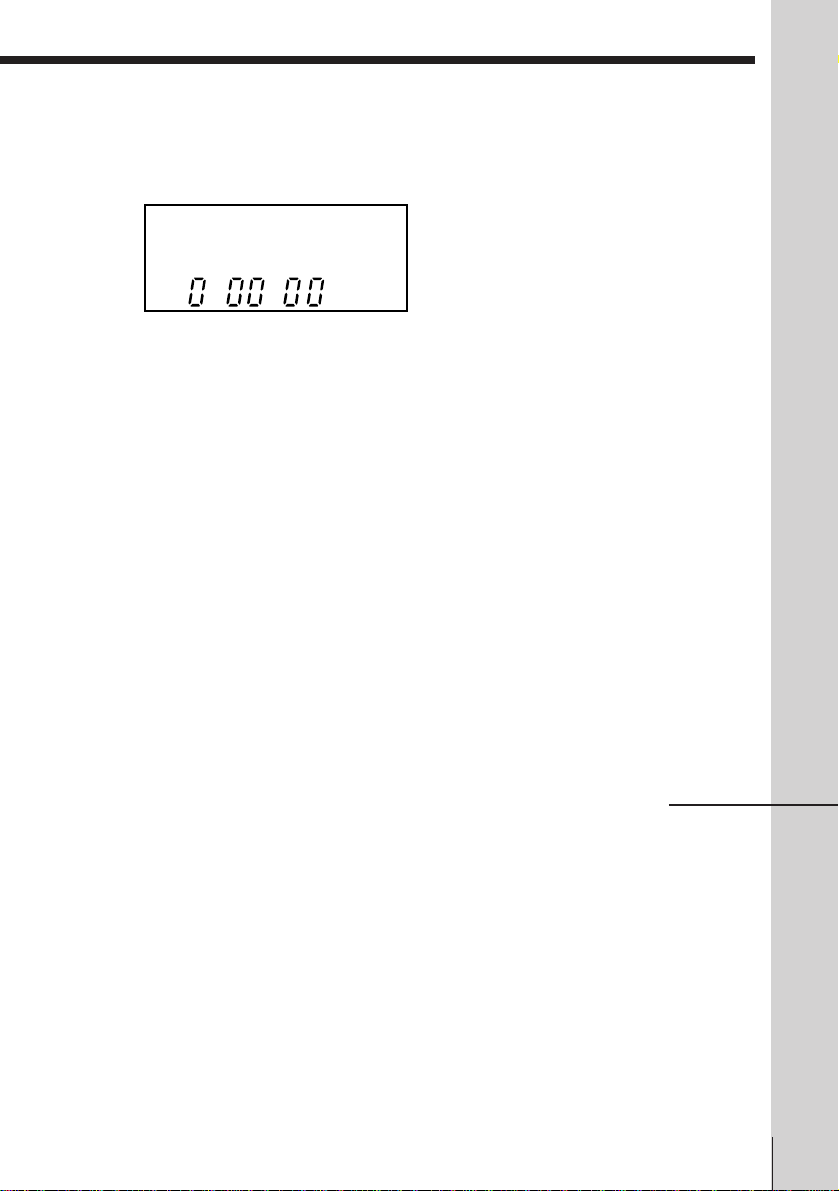

To use the time counter

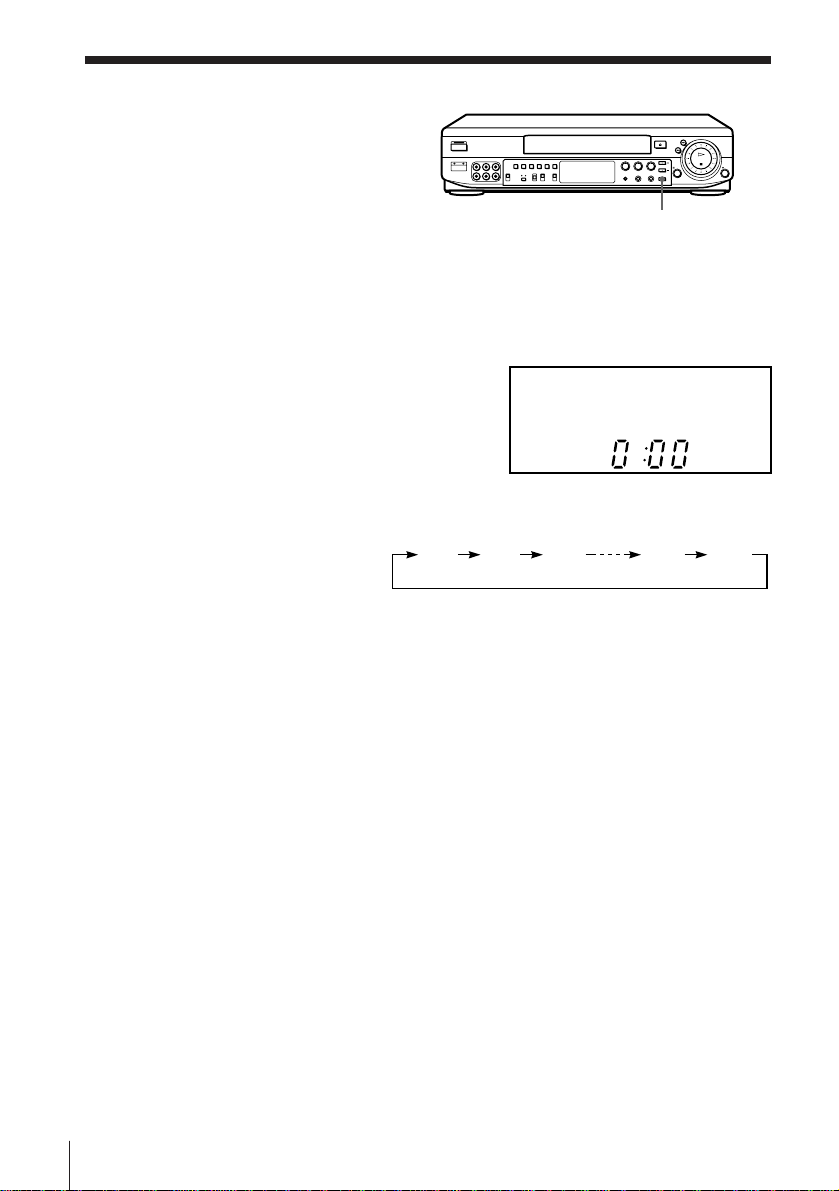

At the point on the tape that you want to find later, press COUNTER RESET.
The counter in the display window resets to “0H00M00S.” Search for the
point afterwards by referring to the counter.

HM S

To display the counter on the TV screen, press DISPLAY.

Notes

• When you play back a tape recorded in the PAL or MESECAM colour system,
streaks may appear even if the COLOR SYSTEM switch is set to PAL/MESECAM.
If so, select the colour system, PAL or MESECAM in the PAL/MESECAM option of
the SET UP MENU. (For details, see page 61.)

• The counter resets to “0H00M00S” whenever a tape is reinserted.

• The counter stops counting when it comes to a portion with no recording.

• If a tape has portions recorded in both PAL and NTSC systems, the time counter
reading will not be correct. This is due to the difference between the counting cycles
of the two video systems.

• Depending on your TV, the following may occur while playing an NTSC-recorded
tape:

– the picture is black and white,
– the picture shakes,
– no picture appears on the TV screen,
– black streaks appear horizontally on the TV screen,
– the colour density increases or decreases.

Basic Operations

continued

Basic Operations

31

Playing a tape (continued)

Turning on the VCR and TV, and starting playback
automatically (Trinitron TV Synchro Play)

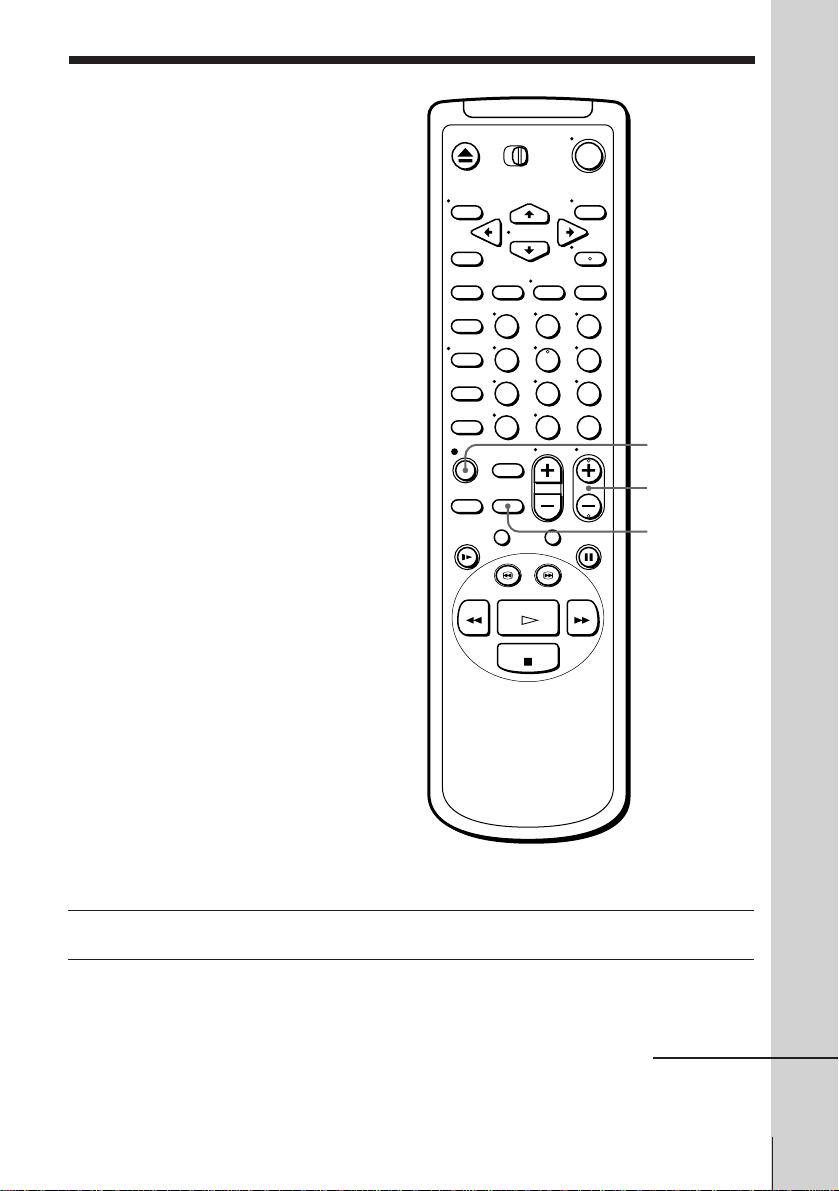

You can only use this function if your TV is made by Sony (Trinitron TV).

How to connect to use this function

Connect the VCR and TV with the audio/video cable (see “To a TV that has
phono type audio/video input jacks” on page 7.) Be sure to connect the
audio/video cable to the VIDEO IN 1 jacks on the TV if the TV has two
inputs or more. The TV must be placed where it will respond to the remote
commander while you are pointing it at the VCR.

Operation

Make sure that the TV’s power is in standby mode.

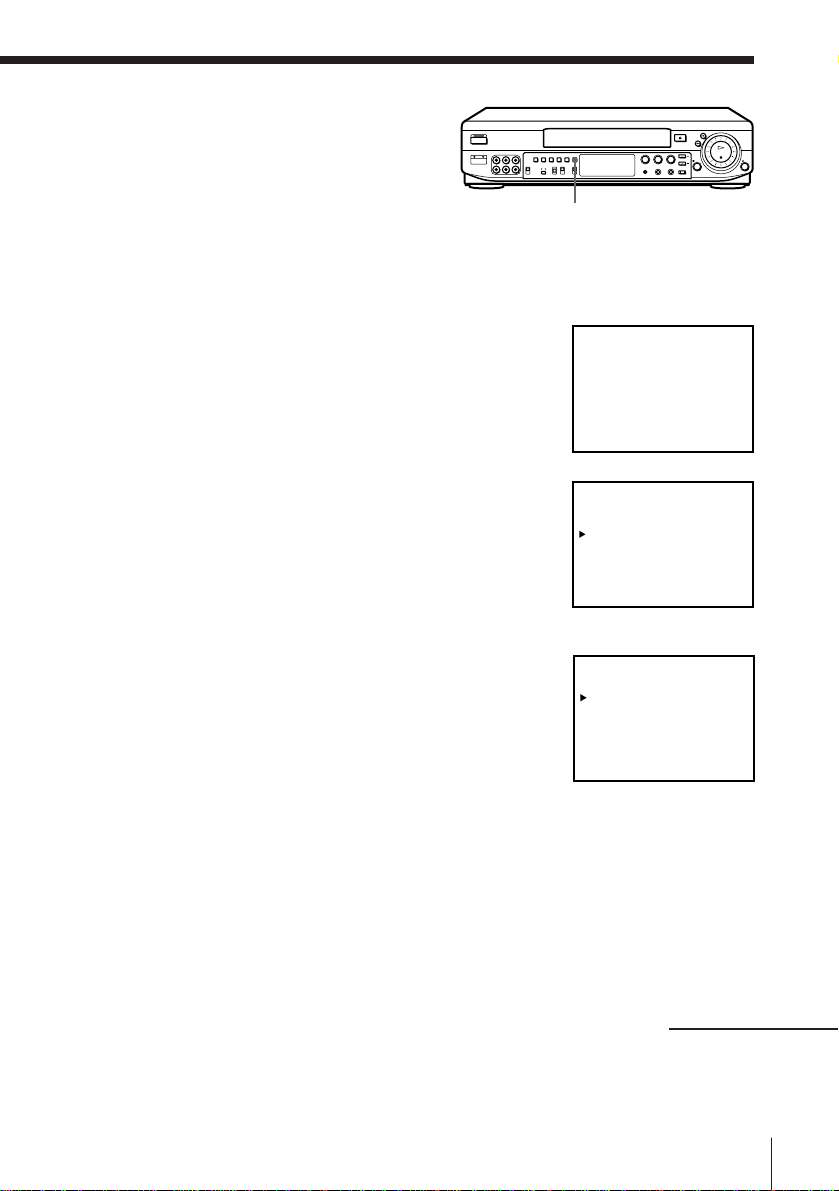

Press TRINITRON TV SYNCHRO PLAY and hold the remote commander in

place for about two seconds.
The VCR and TV turn on, and the TV is set to the video channel. If there is a

tape in the VCR, playback starts automatically.

Notes

• If the Trinitron TV Synchro Play function does not work properly:
– Wait a few moments, and press the button again.
– Replace both of the batteries with new ones, and press the button again.

Note that this function may not operate some Sony TVs because of the remote
commander’s signal limitations.

• Do not press TRINITRON TV SYNCHRO PLAY while playing back a video tape. If

you do so, the TV’s input source will momentarily switch to the TV’s tuner.

Basic Operations

32

Recording TV
programmes

123
456
789

0

r REC

PROG +/–

TAPE SPEED

Basic Operations

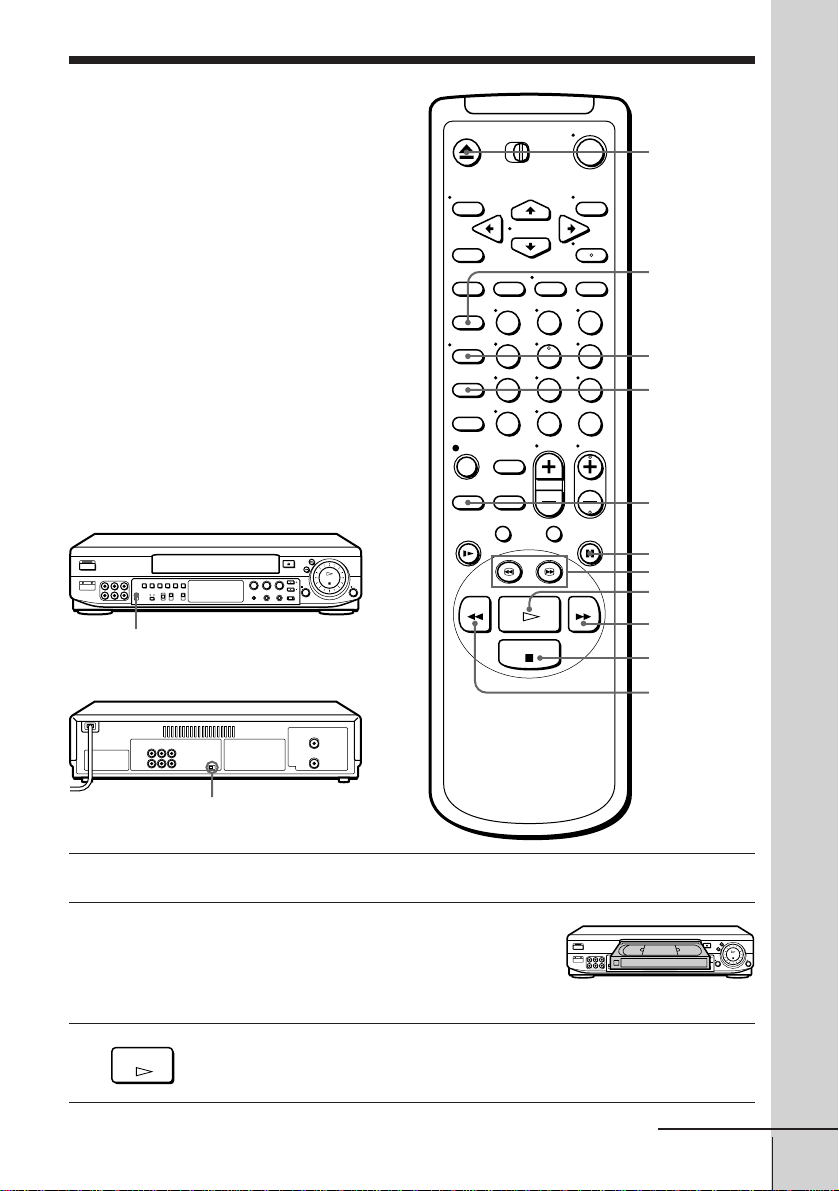

1 Turn on your TV and set it to the video channel.
2 Insert a tape with its safety tab in place.

continued

Basic Operations

33

Recording TV programmes (continued)

• PROG

3 Press PROG +/– to select the programme position you want to

record.

SP

TAPE

4 Press TAPE SPEED to select the tape speed, SP or LP.

SPEED

LP provides recording time twice as long as SP, however, SP
produces better picture and audio quality.

LP

5 Press r REC to start recording.

Basic Operations

34

REC

To stop recording

Press p STOP.

To check the remaining tape length (except for NTSC recorded tapes)

Press DISPLAY. The white bar indicates the approximate length of tape
remaining.

S

E

0 : 00 : 22

Remaining tape length
Time counter

To watch another TV programme while recording

1 If the TV is connected to the VCR using an audio/video cable, set the

TV to TV input. If the TV is connected to the VCR using only the aerial
cable, skip this step.

2 Select another programme position on the TV.

To save a recording

To prevent accidental erasure, break off the
safety tab as illustrated. To record on a tape
again, cover the tab hole with adhesive tape.

Safety tab

To record NTSC colour system programmes

NTSC colour signals can be recorded on this VCR.
For tape speed, select SP or EP in step 4.

EP provides recording time three times as long as SP, however, SP produces
better picture quality.

When playing back, the VCR automatically detects the tape speed.

Tips

• To select a programme position, you can use the programme number buttons on the
remote commander. For two-digit numbers, press the ? (ten’s digit) button
followed by the programme number buttons.

• You can select a video source from the LINE-1 IN or the LINE 2 IN jacks using the
INPUT SELECT button.

• The display appears on the TV screen indicating information about the tape, but the
information won’t be recorded on the tape.

• If you don’t want to watch TV while recording, you can turn off the TV.

Notes

• When you play back a tape recorded in the PAL or MESECAM colour system,
streaks may appear even if the COLOR SYSTEM switch is set to PAL/MESECAM.
If so, select the colour system PAL or MESECAM in the PAL/MESECAM option of
the SET UP MENU. (For details, see page 61.)

• When the KARAOKE ON/OFF switch is set to ON, the VCR displays the karaoke
information (page 50).

Basic Operations

Basic Operations

35

Recording TV

123
456
789

0

programmes
using G-CODE
(SLV-K877MN/PS
only)

Just enter the programme’s G-CODE
number listed in the TV programme
guide. The date, times and programme
position of that programme are set
automatically. You can preset up to
eight programmes at a time.

Before you start…

• Check that the VCR clock is set to the
correct time.

• Insert a tape with its safety tab in
place. Make sure the tape is longer
than the total recording time.

• Turn on your TV and set it to the
video channel.

u

(on/standby)

TIMER CLEAR
G-CODE

Programme
number
buttons

SET

TAPE SPEED

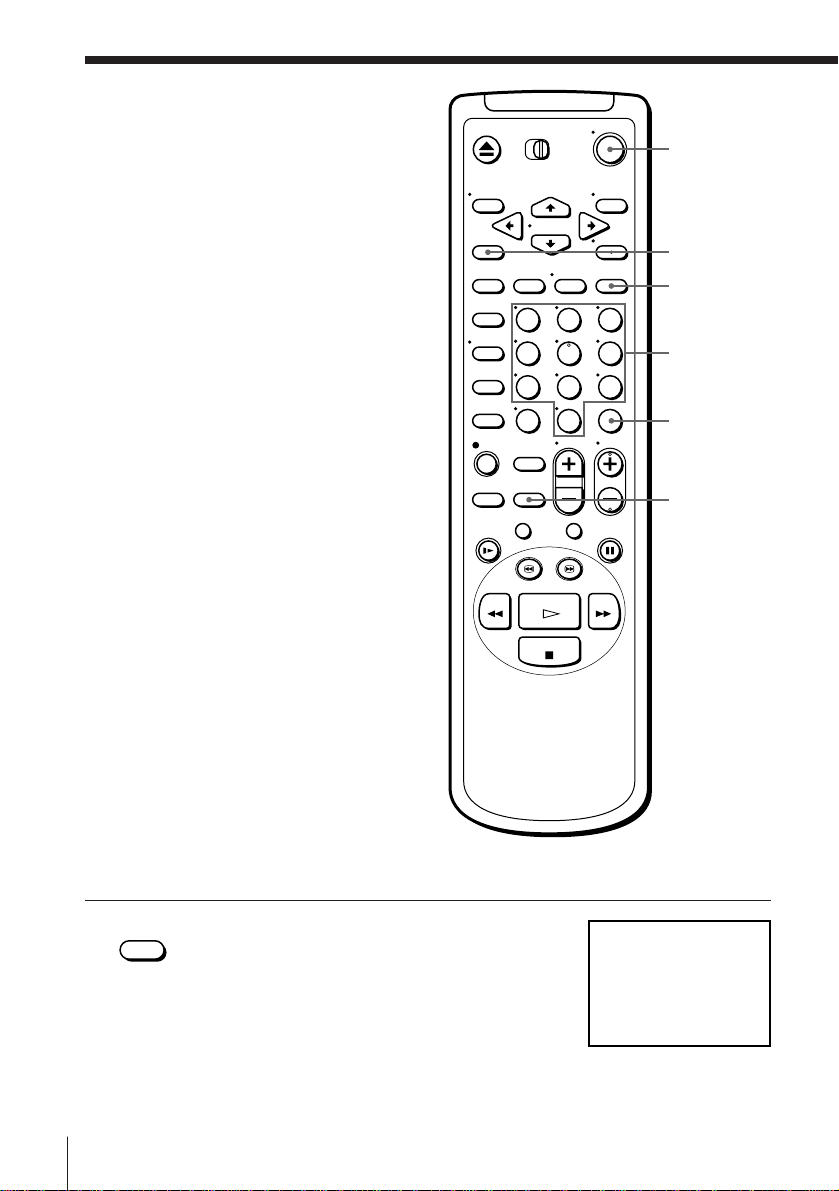

1 Press G-CODE.

G-CODE

Basic Operations

36

G-CODE

No.

G-CODE

––––––––

[

SET : [ 0 – 9 ]
SP / LP

: [ TAPE SPEED ]

SP

[ SP ]

LP/

]–

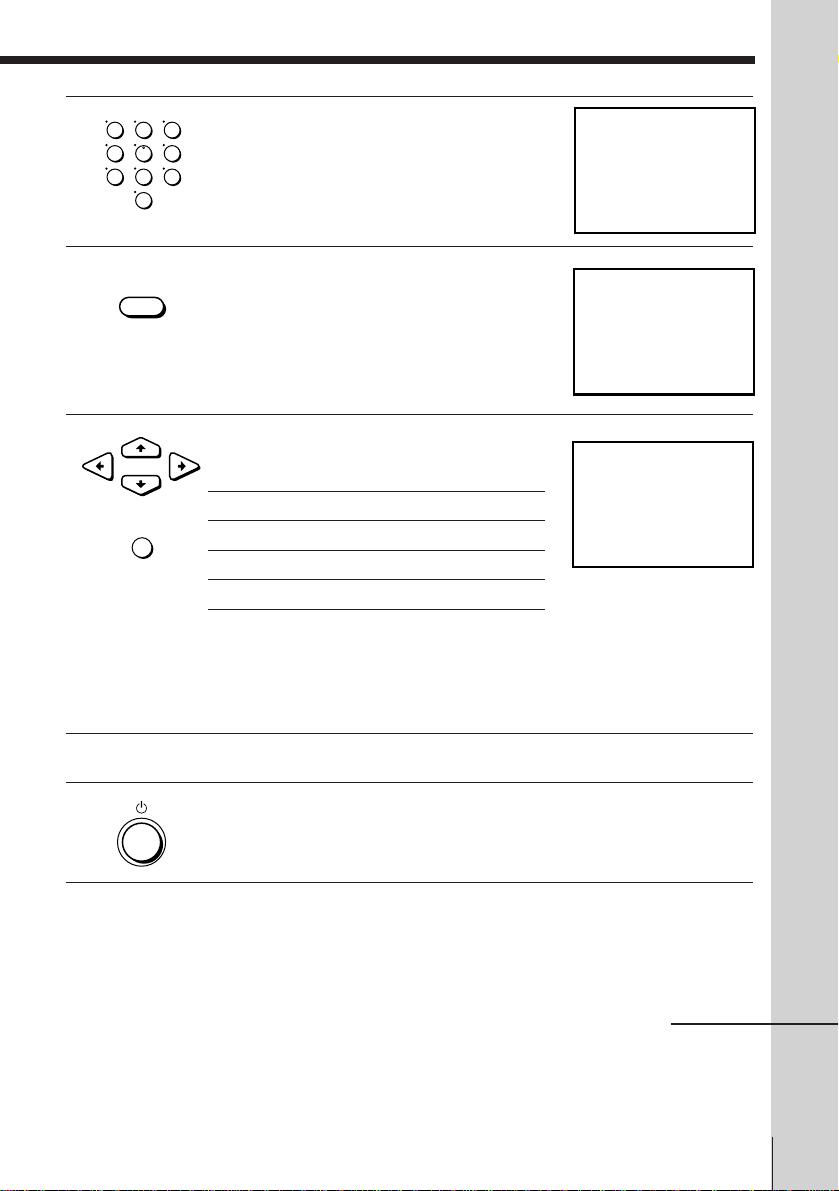

2 Press the programme number buttons to

123
456
789

0

TAPE

3 Press TAPE SPEED to select SP or LP.

SPEED

enter the programme’s G-CODE number.
If you make a mistake, press TIMER

CLEAR and re-enter the correct number.

G-CODE

No.

G-CODE

9–776824[

[ B b ]

No.

9–776824[

[ B b ]

]1

]1

•ONCE DAILY WEEKLY

SELECT :
CONFIRM : [ SET ]
CANCEL : [ TIMER CLEAR ]

G-CODE

G-CODE

•ONCE DAILY WEEKLY

SELECT :
CONFIRM : [ SET ]
CANCEL : [ TIMER CLEAR ]

SP

[ SP ]

SP
[ LP ]

LP/

LP/

4 Select ONCE, DAILY or WEEKLY by using

•

CURSOR

SET

CURSOR ?//, then press SET:

To record

Only once
Everyday Monday to Friday
Once a week

Select

ONCE
DAILY
WEEKLY

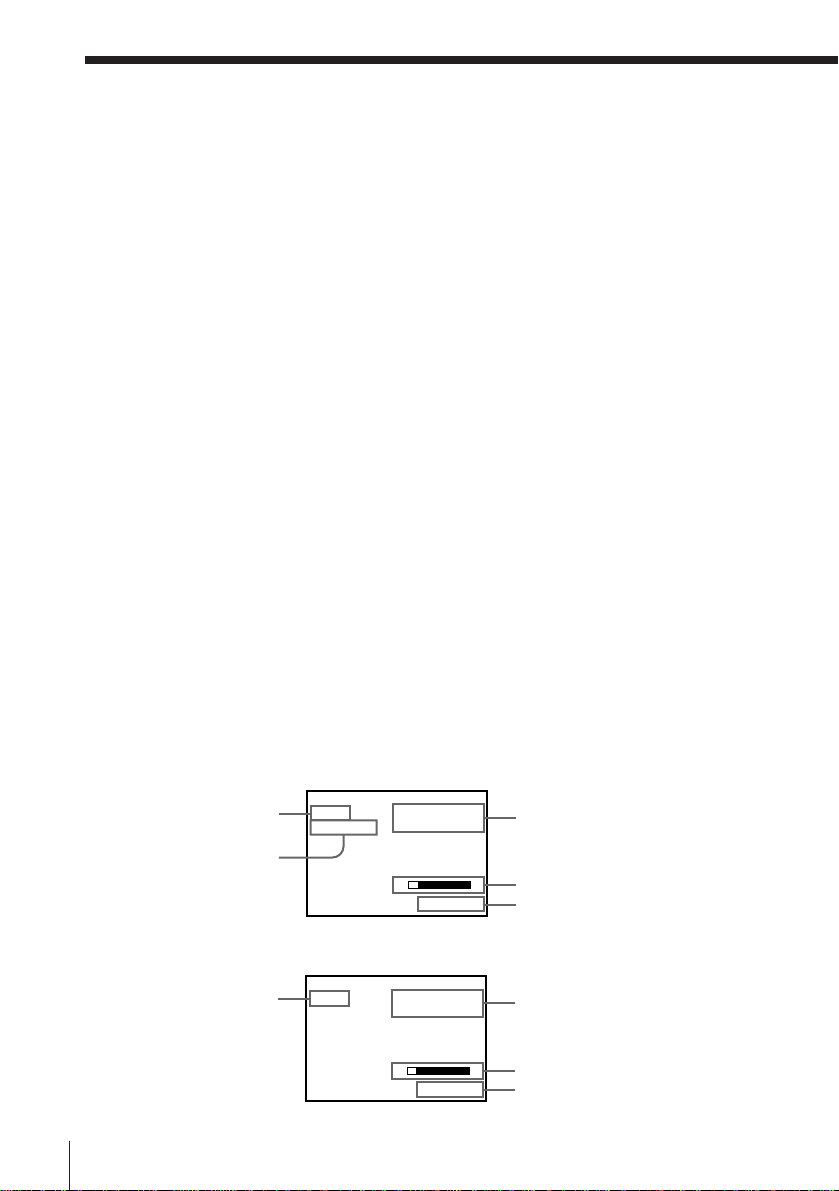

The date, start and stop times, programme position, and tape speed
appear on the TV screen.

If the information is not correct, press TIMER CLEAR to cancel the
setting.

5 To enter another setting, repeat steps 1 to 4.
6 Press u to turn off the VCR.

•

The TIMER indicator appears in the display window and the VCR
stands by for recording.

To stop recording

To stop the VCR while recording, press p STOP.

G-CODE

No.

G-CODE

9–776824[

RECORDING TIME

DATE START STOP PROG

MON

23

.1 0 0 :022 0

CANCEL : [ TIMER CLEAR ]

SP

]1

[ LP ]

continued

LP/

58:01

LP

Basic Operations

Basic Operations

37

Recording TV programmes using G-CODE (continued)

To record satellite broadcasts

If you connect the satellite tuner and the VCR, you can record satellite
programmes.

1 Turn on the satellite tuner.
2 On the satellite tuner, select the satellite programme for which you wish

to make a timer setting.

3 Follow the steps on pages 34 and 35.
4 Keep the satellite tuner turned on until the VCR finishes recording the

satellite programme for which you have made a timer setting.

To use the VCR after setting the timer

To use the VCR before a timer recording begins, just press u. The TIMER
indicator turns off and the VCR switches on. Remember to press u to reset
the VCR after using the VCR.

You can also do the following tasks while the VCR is recording:

• Reset the counter.

• Display tape information on the TV screen.

• Check the timer settings.

• Watch another TV programme.

Tips

• To cancel the procedure, press G-CODE before pressing SET.

• To record NTSC signals, set the tape speed to SP or EP. To set the EP mode, press
TAPE SPEED to display “LP” in the tape speed position.

Note

• If the VCR beeps repeatedly, this means that:

– The G-CODE number is incorrect.
– ONCE, DAILY, or WEEKLY was selected incorrectly. You cannot select DAILY or

WEEKLY for a programme that airs more than seven days ahead.

Basic Operations

38

Setting the timer
manually

The VCR automatically starts and stops
recording TV programmes. You can
preset up to eight programmes at a time.

Before you start…

• Check that the VCR clock is set to the
correct time.

• Insert a tape with its safety tab in
place. Make sure the tape is longer
than the total recording time.

• Turn on your TV and set it to the
video channel.

123
456
789

0

u

(on/standby)
MENU

EXECUTE

CURSOR
>/./?//

INPUT
SELECT

Basic Operations

• MENU

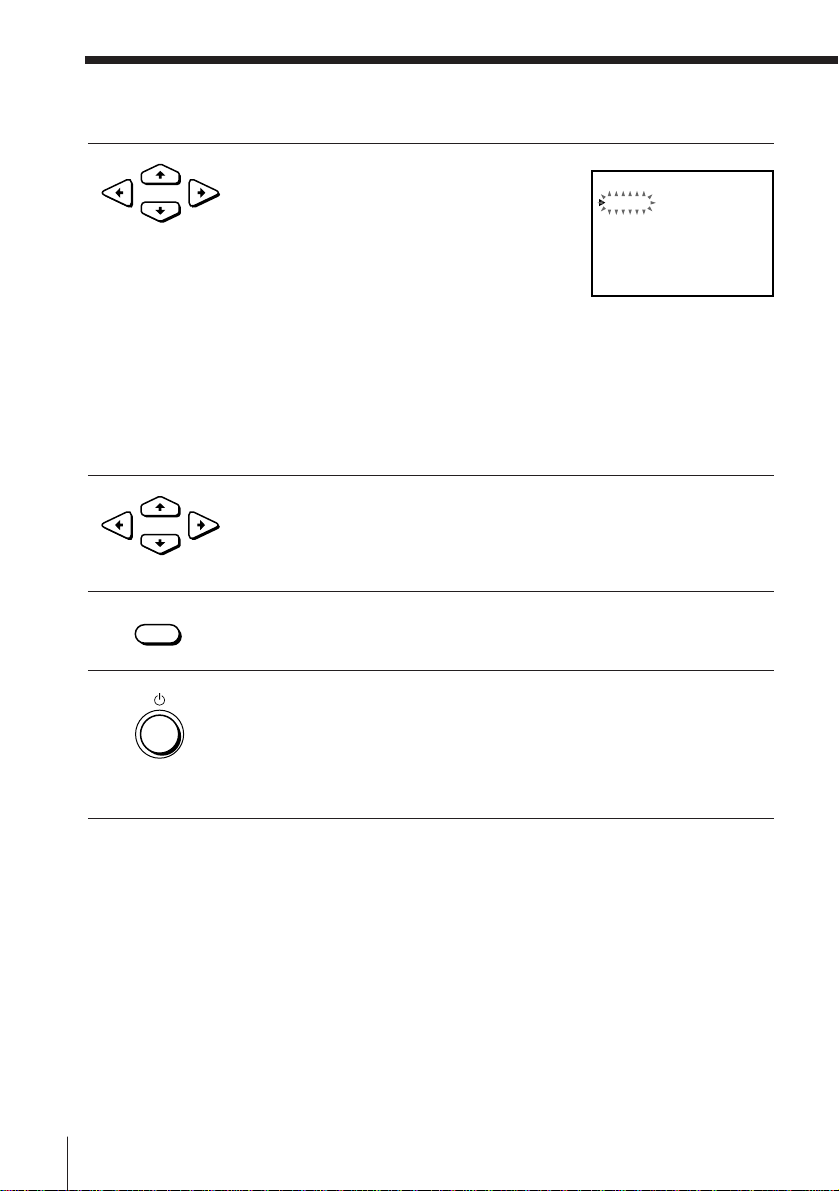

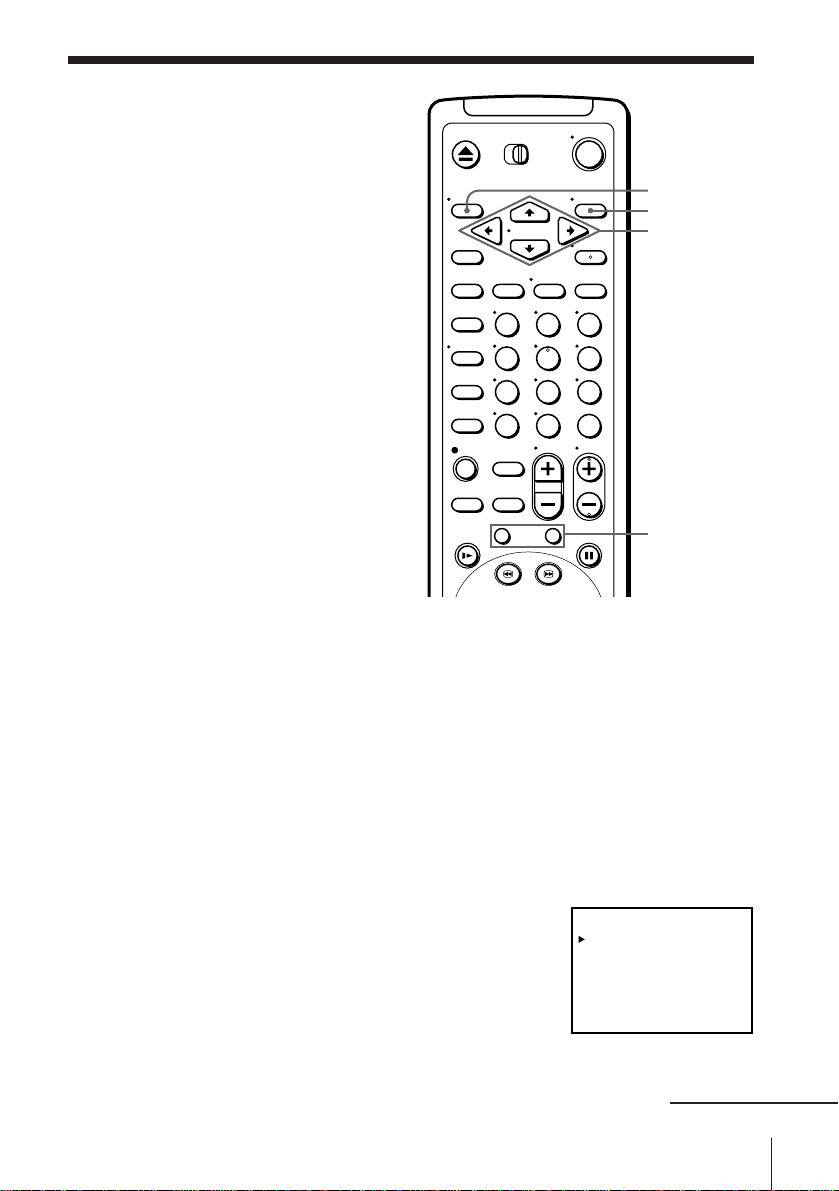

1 Press MENU and select TIMER SET/

CHECK, then press EXECUTE.

•

CURSOR

• EXECUTE

TIMER SET / CHECK

DATE
–.– – – :–– –: –– –– –
–.– – – :–– –: –– –– –
–.– – – :–– –: –– –– –
–.– – – :–– –: –– –– –
–.– – – :–– –: –– –– –
–.– – – :–– –: –– –– –
–.– – – :–– –: –– –– –
–.– – – :–– –: –– –– –

25 .1

START STOP PROG

continued

Basic Operations

0

SAT

39

Setting the timer manually (continued)

2 Set the date, start and stop times,

•

CURSOR

programme position, and tape speed:
1 Press CURSOR / to select each item in

turn.

2 Press CURSOR >/. to set each item.
To correct a setting, press CURSOR ? to

return to that setting and reset.
To record the same programme every day or the same day every

week, press CURSOR . while the date is flashing. For details, see
“Daily/weekly recording” below.

To record from a source connected to the LINE-1 IN or the LINE 2
IN jacks, press INPUT SELECT to display “L1” or “L2” in the
“PROG” position.

3 Press CURSOR / to confirm the setting.

•

CURSOR

• EXECUTE

4 Press EXECUTE.
5 Press u to turn off the VCR.

•

To enter another setting, move the cursor to the next line and repeat
step 2.

The TIMER indicator appears in the display window and the VCR
stands by for recording.

To record from other equipment, leave the connected equipment
switched on.

TIMER SET / CHECK

DATE

1.9

11

WED
–.– – – :–– –: –– –– –
–.– – – :–– –: –– –– –
–.– – – :–– –: –– –– –
–.– – – :–– –: –– –– –
–.– – – :–– –: –– –– –
–.– – – :–– –: –– –– –
–.– – – :–– –: –– –– –

25 .1

START STOP PROG

– : –– – : –– ––

SAT

0

SP

Basic Operations

40

To stop recording

To stop the VCR while recording, press p STOP.

Daily/weekly recording

In step 2 above, press CURSOR . to select the recording pattern. Each time
you press CURSOR ., the indication changes as shown below. Press
CURSOR > to change the indication in reverse order.

the current date n SUN-SAT n MON-SAT n MON-FRI n EVERY SAT .....

n EVERY MON n EVERY SUN n 1 month later n (dates count down)
n the current date

To use the VCR after setting the timer

To use the VCR before a timer recording begins, just press u. The TIMER
indicator turns off and the VCR switches on. Remember to press u to reset
the VCR after using the VCR.

You can also do the following tasks while the VCR is recording:

• Reset the counter.

• Display tape information on the TV screen.

• Check the timer settings.

• Watch another TV programme.

Tips

• To set the programme position, you can also use the PROG +/– or programme
number buttons.

• To set the tape speed, you can also use the TAPE SPEED button.

• To record NTSC signals, set the tape speed to SP or EP. To set the EP mode, display
“LP” in the tape speed position.

Note

• “TIMER” flashes in the display window when you press u with no tape inserted.

Basic Operations

Basic Operations

41

Additional Operations

123
456
789

0

Playing/searching
at various speeds

& SLOW

3/#

SEARCH

· PLAY
) FF
0 REW

Playback options

Fast-forward/rewind
View the picture during fast-

forward or rewind
Play at high speed

Play in slow motion for
two minutes

Rewind to the beginning
of a tape and start play

To resume normal playback

Press · PLAY.

Additional Operations42

Operation

During stop, press ) FF or 0 REW.
During fast-forward, hold ) FF down. During rewind,

hold 0 REW down.
During playback or pause, press # SEARCH or 3

SEARCH. To change direction, press the other one.
During playback or pause, press & SLOW.

During stop, hold 0 REW down on the VCR, and press

· PLAY on the VCR.

Using the CLICK SHUTTLE
ring (SLV-K877MN/PS
only)

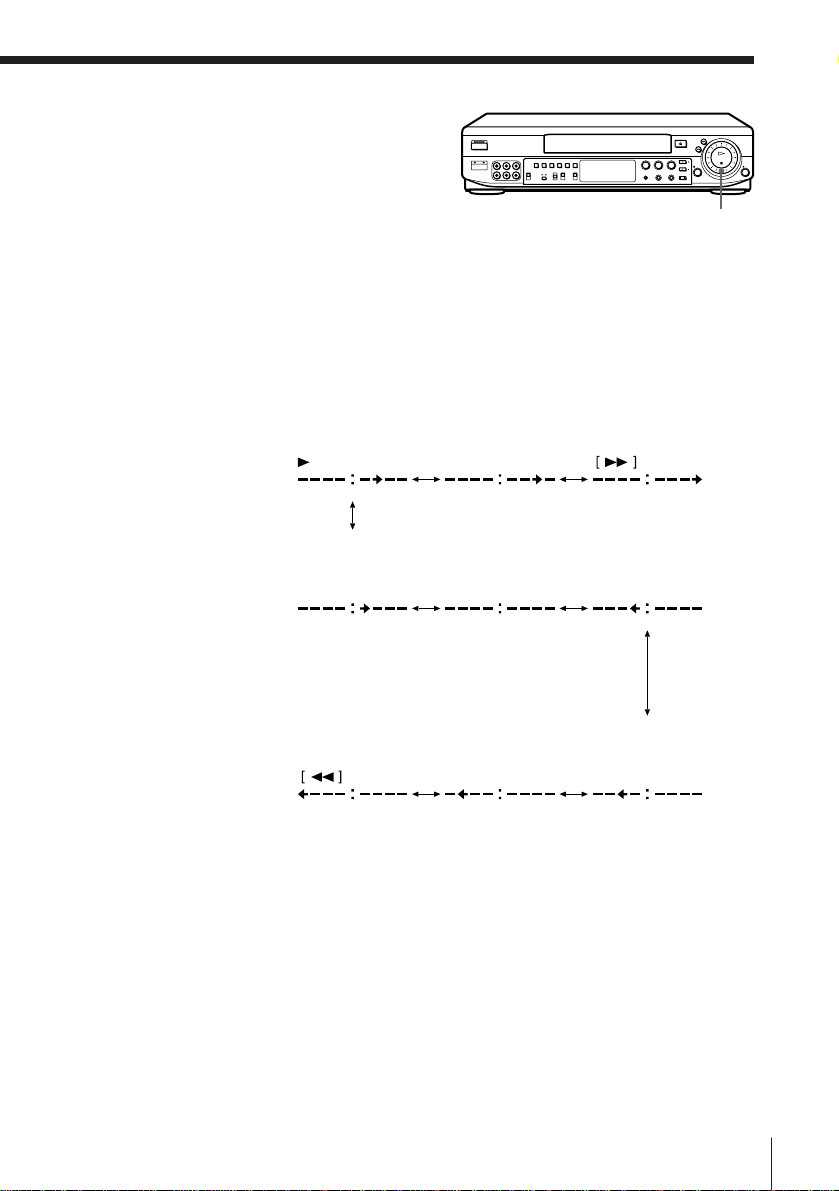

With the CLICK SHUTTLE ring on
the VCR you can operate a variety
of playback options.

During playback or pause, turn the CLICK SHUTTLE ring clockwise or
counterclockwise. Each change in the CLICK SHUTTLE ring position
changes the playback mode, and the corresponding mark appears on the TV
screen for a few seconds in the following way if the on-screen display
function is on.

CLICK SHUTTLE ring

Playback mode

Mark on the TV
screen

Tip

• Adjust the picture using TRACKING +/– on the VCR if:

– streaks appear while playing in slow motion.
– bands appear at the top or bottom while pausing.
– the picture shakes while pausing.

Notes

• The playback sound is muted during these operations.

• In the LP mode, noise may appear or there may be no colour.

• If the playback mode mark doesn’t appear on the TV screen, press DISPLAY.

• The playback mode mark may shake while playing or searching at various speeds.

Normal speed

Slow motion

High speed in
reverse

Double speed

X2

pause

Double speed in
reverse

X2–X1–

High speed

Slow motion in
reverse

Normal speed in
reverse

Additional Operations 43

Recording TV
programmes
using the quick
timer

After starting recording in the normal way, you can have the VCR stop
recording automatically after a specified duration.

1 While recording, press QUICK TIMER on the VCR once.

2 Press QUICK TIMER repeatedly to set the duration.

To extend the duration

Press QUICK TIMER repeatedly to set to the new duration.

To stop recording

To stop the VCR while recording, press p STOP.

Tip

• You can also set the quick timer and start recording during the stop mode.

QUICK TIMER

Each press advances the time in increments of 30 minutes.

0:00 0:30 1:00 10:30 11:00

The duration decreases minute by minute to 0:00, then the VCR stops
recording and turns off automatically.

Additional Operations44

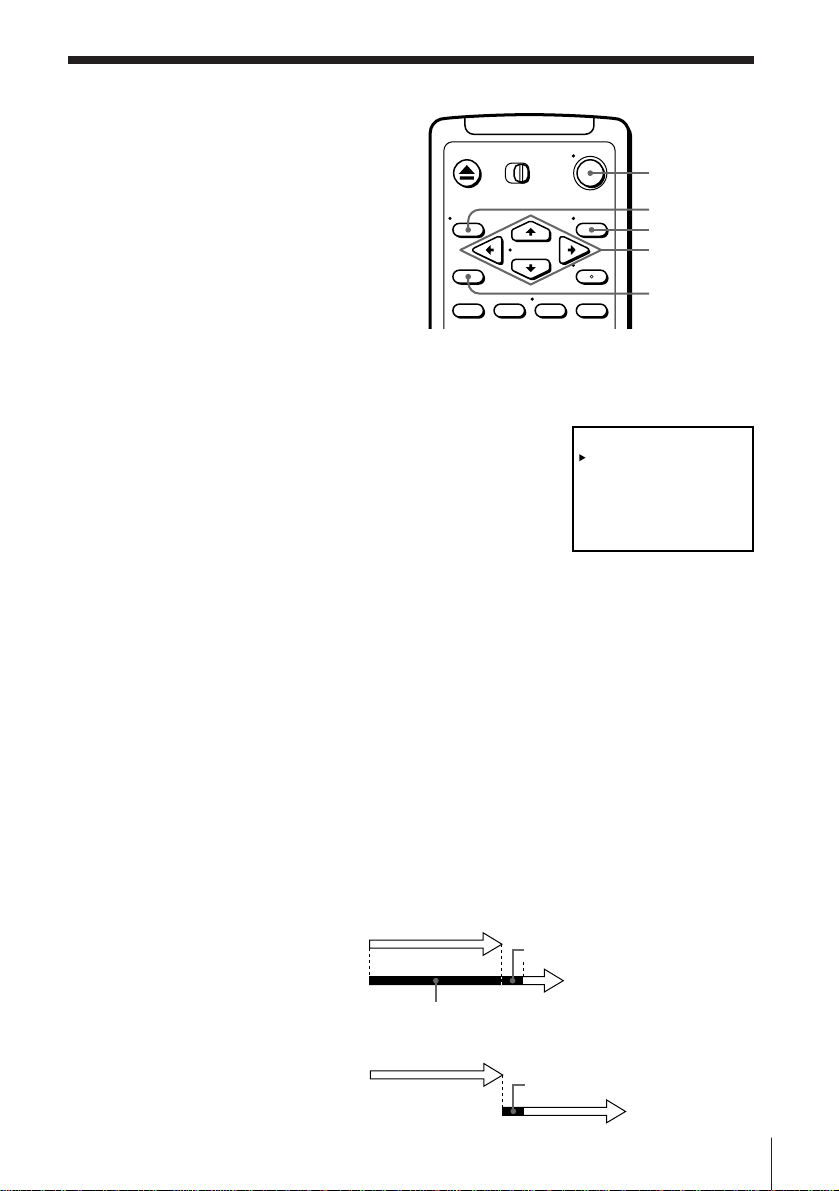

Checking/
changing/
cancelling timer
settings

Before you start…

• Turn on your TV and set it to the
video channel.

1 Press u to turn on the VCR.
2 Press MENU, then select TIMER SET/CHECK:

• If you want to change a setting, go on to the
next step.

• If you do not need to change the settings,
press EXECUTE, then turn off the VCR to
return to recording standby.

3 Press CURSOR >/. to select the setting you want to change or cancel:

• To change the setting, press CURSOR ?// to select the item you
want to change, and press CURSOR >/. to reset it. Then, press
CURSOR / repeatedly until the cursor (z) appears at the beginning
of the line.

• To cancel the setting, press TIMER CLEAR.

4 Press EXECUTE.

If any settings remain, turn off the VCR to return to recording standby.

u

MENU

EXECUTE

CURSOR
>/./?//
TIMER CLEAR

TIMER SET / CHECK

DATE

.2

11

SUN

.4

11

TUE

MON

– 2:12 3:00 27

SAT

SUN

EVERY
–.– – –:–– –:–– –– –
–.– – –:–– –:–– –– –
–.– – –:–– –:–– –– –
–.– – –:–– –:–– –– –

25 .1

START STOP PROG

7:00 8:00 6
1:00 0:00 50

2

11

3:00 0:00 L1

2

SAT

0

SP
LP
LP
SP

When the timer settings overlap

The programme that starts first has priority and the second programme
starts recording only after the first programme has finished. If the
programmes start at the same time, the programme listed first in the menu
has priority.

Programme 1
Programme 2

Will be cut off

Programme 1
Programme 2

20 seconds

20 seconds will be cut off

Additional Operations 45

Recording stereo and bilingual
programmes

In ZWEITON (German stereo) system
(SLV-K877MN/PS only)

This VCR automatically receives and records stereo and bilingual
programmes based on the ZWEITON system. When a stereo or bilingual
programme is received, the STEREO indicator appears in the display
window.

To select bilingual sound while recording

Press AUDIO MONITOR to select the sound you want.

To listen to

Main
Sub

Main and sub

On-screen display

MAIN
SUB

MAIN/SUB

Display window

L
R
L, R

STEREO

In NICAM system (SLV-K877MN only)

This VCR receives and records stereo and bilingual programmes based on
the NICAM system (the NICAM indicator appears). When a stereo or
bilingual programme is received, the STEREO indicator appears in the
display window.

To record a NICAM programme, HIFI AUDIO in the SET UP MENU should
be set to NICAM (initial setting). To check the menu setting, see page 61 for
details.

To select the sound while recording

Press AUDIO MONITOR to select the sound you want.

Stereo programme
To listen to

Stereo
Standard sound*
* Usually the mixed sound of left and right channels (monaural)

On-screen display

STEREO
No indicator

Display window

STEREO
No indicator

Additional Operations46

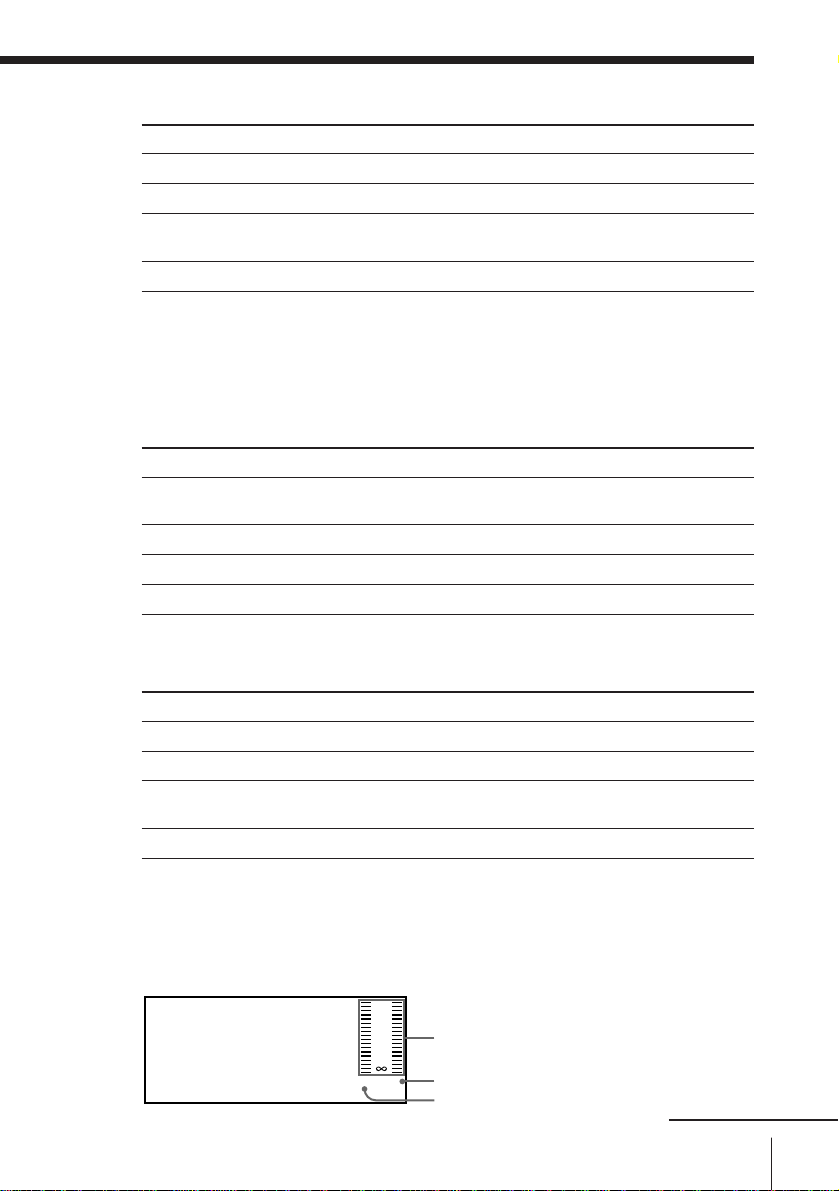

Bilingual programme
To listen to

Main
Sub

Main and sub

Standard sound*

On-screen display

MAIN
SUB

MAIN/SUB

No indicator

* Usually the main sound (monaural)

Selecting the sound during playback

Press AUDIO MONITOR to select the sound you want.

Stereo programme
To listen to

Stereo

Left channel
Right channel
Standard sound*
* Usually the mixed sound of the left and right channels

Bilingual programme
To listen to

Main
Sub

Main and sub

Standard sound*
* Usually the main sound (monaural)

On-screen display

STEREO

LCH
RCH
No indicator

On-screen display

MAIN
SUB

MAIN/SUB

No indicator

Display window

L
R
L, R

STEREO
No indicator

Display window

L, R
STEREO

L
R
No indicator

Display window

L
R
L, R

STEREO
No indicator

To check audio channel and sound level

You can check the audio channel and sound level visually with the
indicators in the display window.

6
3
0

-

3

-

10

dB

LR

Sound level indicator

Right channel indicator

Left channel indicator

Additional Operations 47

continued

Recording stereo and bilingual programmes (continued)

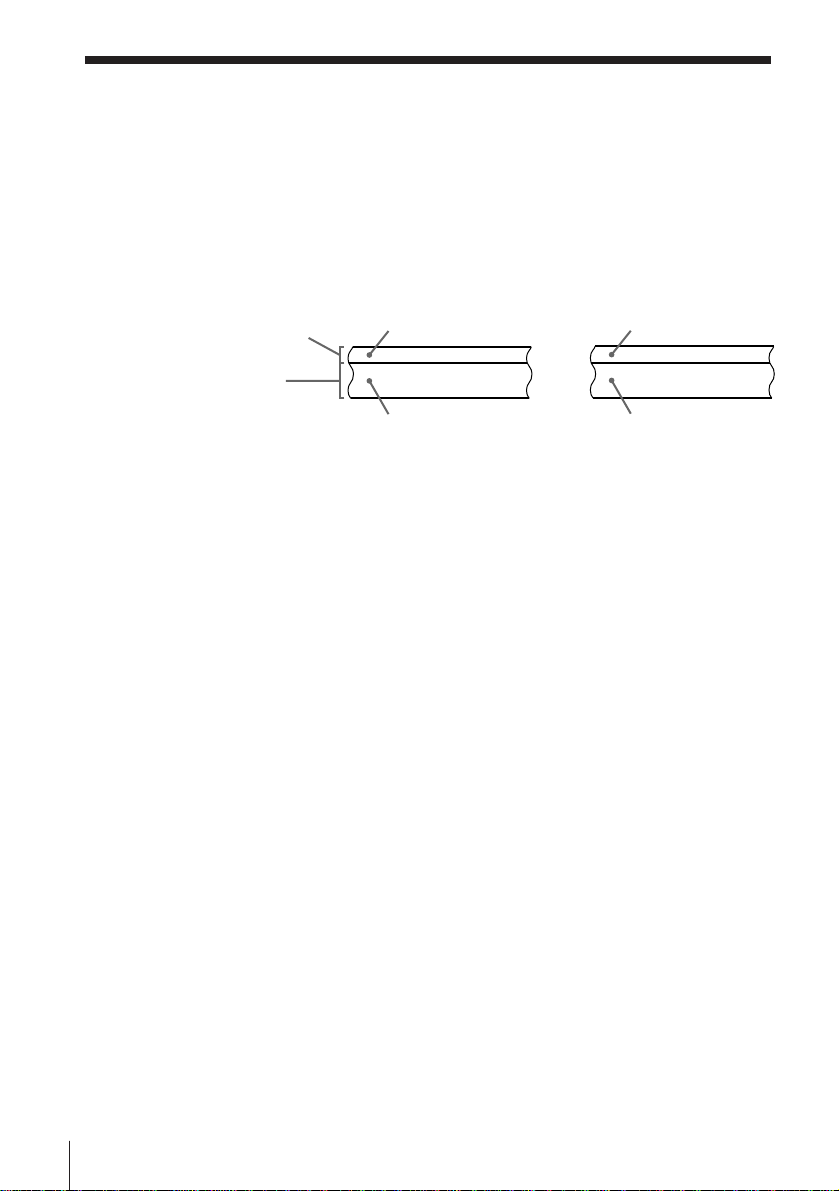

How sound is recorded on a video tape

The VCR records sound onto two separate tracks. Hi-fi audio is recorded
onto the main track along with the picture. Monaural sound is recorded
onto the normal audio track along the edge of the tape.

Stereo Bilingual

Usually mixed left/

Normal audio track
(monaural)

Hi-fi audio track
(main track)

Notes

• (SLV-K867CH/PS only)
The VCR can record stereo and bilingual programmes only through the line input.

When stereo or bilingual sound is input through the LINE IN jacks, the STEREO
indicator lights up. You cannot select the sound to listen while recording.

• To play a tape in stereo, you must use the AUDIO OUT connections.

• When you play a tape recorded in monaural, the sound is heard in monaural
regardless of the AUDIO MONITOR setting.

• If the AUDIO MONITOR button does not function, check that AUDIO MIX in the
SET UP MENU is set to OFF.

• (SLV-K877MN only)
If HIFI AUDIO is set to STD, the standard sound will be recorded on both the hi-fi

and normal audio tracks. Pressing AUDIO MONITOR will not change the sound.

right channels

Stereo sound (left/
right channels)

Usually main sound

Main (left channel)
Sub (right channel)

Additional Operations48

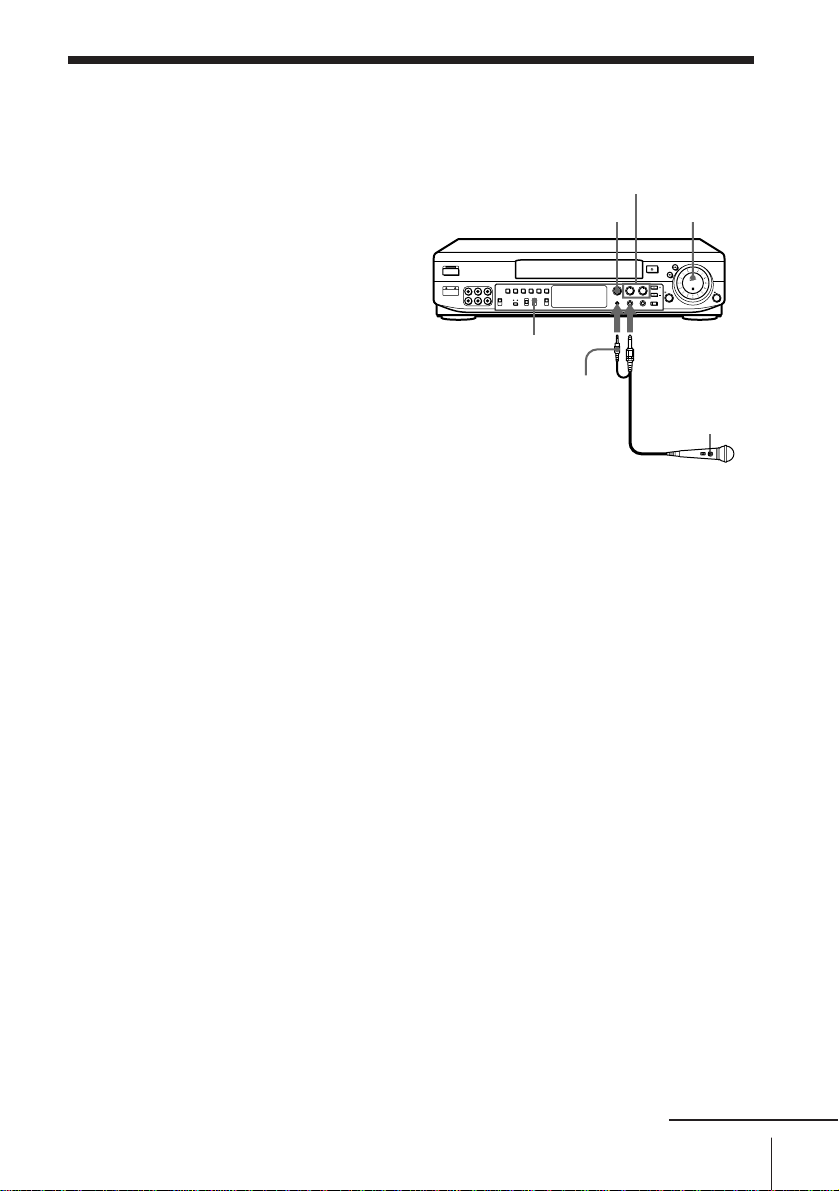

Karaoke sing-along

You can sing along with a karaoke
videotape, a TV broadcast, or music
played back on equipment connected to
the LINE IN jacks on the VCR. You can
sing duets if you use an extra
microphone (not supplied).

Singing along with karaoke
video tapes

Before you start...

• Turn on the VCR and the TV.

• Set the TV to the video channel.

• Connect the supplied microphone to
the MIC IN 1 jack and its control plug
to the CONTROL jack. To sing duets,
connect an optional microphone to the
MIC IN 2 jack.

1 Set KARAOKE ON/OFF to ON.

“KARAOKE MODE WELCOME TO THE Sony KARAOKE WORLD”
appears on the TV screen.

2 Insert a karaoke video tape.

The VCR starts playing automatically if you insert a tape with its safety
tab removed.

3 Press · PLAY.

If you want to playback a specific song, see “Searching with the AMS or
index function” on page 57.

4 Switch the microphone on.

Now you can enjoy singing karaoke.

KARAOKE
ON/OFF

MIC VOL 1/2

ECHO

CONTROL

CONTROL
plug

· PLAY

MIC IN 1/2

Microphone
(supplied)

To adjust the microphone volume

Turn the MIC VOL 1 control for the microphone connected to MIC IN 1.
Turn the MIC VOL 2 control for the microphone connected to MIC IN 2.

Setting the MIC VOL 1 and/or 2 control(s) to the centre position provides
the best microphone volume.

To control the echo effect

Turn the ECHO control. This adjusts both microphones’ echo effect to the
same level. To get the best effect, adjust the microphone volume to a slightly
higher level than the music volume.

continued

Additional Operations 49

Karaoke sing-along (continued)

Tip

• When you sing along with TV broadcasts or music played back on equipment
connected to the LINE IN jacks on the VCR, play the music source and follow steps
1 and 4.

Notes

• If the sound is reproduced through a stereo amplifier, turn down the volume of
amplifier before operation.

• If streaks appear during playback, select the colour system that the tape was
recorded in (see “To set the colour system” on page 28).

• If feedback occurs, turn down the microphone or TV volume, or move the
microphone away from the speakers.

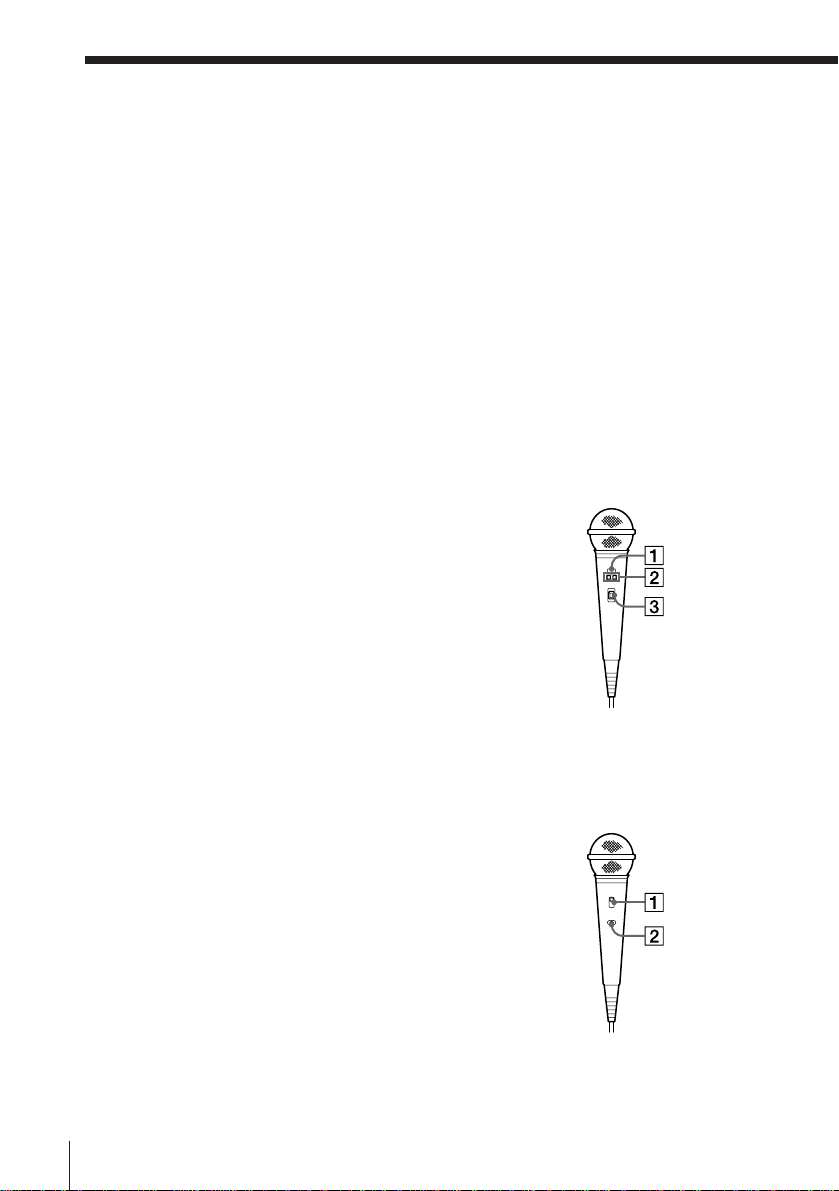

Using the supplied microphone

You can control some of the VCR’s karaoke functions with the microphone.

SLV-K877MN/PS

1 CHOI button

Press and hold to rewind the tape while
viewing the picture.

2 ˜/n buttons

Change the pitch in Key Control mode
(page 51).

Set the harmony interval in Self Duet
mode (page 52).

3 KEY/S.D./OFF selector

Select KEY or S.D. to switch the
microphone on in the Key Control mode
or the Self Duet mode. Select OFF to
switch the microphone off.

SLV-K867CH/PS

1 ON/OFF switch

Switch the microphone on/off.

2 KEY/S.D. button

Select KEY (Key Control) or S.D. (Self
Duet) (pages 51 and 52).

Note

• The ˜/n buttons and KEY/S.D. button on the microphone may not operate with
other VCRs.

Additional Operations50

Playing a tape in a programmed order (Karaoke
Program)

You can sing songs in the order you want.

SLV-K877MN/PS

SLV-K867CH/PS

MENU
EXECUTE

CURSOR

>/./?//

K. PROG

Number
buttons

123
456
789

0

MENU
EXECUTE

CURSOR

>/./?//

K. PROG

Number
buttons

123
456
789

0

Before you start...

• Turn on your TV and set it to the video channel.

• Select the search mode, AMS or INDEX in the SET UP KARAOKE menu.
For details, see “Selecting the AMS or index function” on page 57.

1 Insert a tape and set KARAOKE ON/OFF on

the VCR to ON.

2 Press K. PROG.

3 Press the number buttons to select up to ten

songs in the order you want.
For single-digit numbers, first press “0”

then the song number. To correct a song

KARAOKE PROGRAM AMS

•

–– b –– b –– b –– b ––
–– b –– b –– b –– b ––

b

SELECT :
SET :

KARAOKE PROGRAM AMS

b

SELECT :
SET :

[ 0 – 9 ]
[ EXECUTE ]

14 b 8 b 2 b –– b ––
–– b –– b –– b –– b ––

[ 0 – 9 ]
[ EXECUTE ]

NoPLAY

NoPLAY

number, press CURSOR ? to return to
that number and reset it.

4 Press EXECUTE.

The tape automatically rewinds to the beginning, and playback starts in
the order you selected. While the VCR searches for a song, the song
number flashes in the display window.

––

––

continued

Additional Operations 51

Karaoke sing-along (continued)

To stop playing

Press p STOP.

To change the programme order

Press p STOP and repeat steps 2 through 4 above.

Tip

• You can also select the KARAOKE PROGRAM menu by pressing MENU and

CURSOR >/..

Notes

• If you set KARAOKE ON/OFF to OFF, the list settings are cleared.

• When you turn off the VCR, the VCR exits the KARAOKE PROGRAM mode.

• When you press =/+ SEARCH AMS/INDEX while in Karaoke Program

mode, the VCR does not search beyond the current song, but rewinds the tape to
the beginning of the song being played back, or fast-forwards to the next song.
When the VCR exits KARAOKE PROGRAM mode, =/+ SEARCH AMS/
INDEX returns to its normal function. (See “Searching with the AMS or index
function” on page 57.)

• (SLV-K877MN/PS only)

If you press CHOI on the microphone and rewind past the beginning of the current
song, the selected song order may not be played correctly.

Displaying the karaoke information

Press DISPLAY when the KARAOKE ON/OFF switch is set to ON. The
karaoke information appears on the TV screen. If you press DISPLAY once
more, the remaining tape length and time counter will also appear.

To turn off the display, press DISPLAY again.

SLV-K877MN/PS

Key control
indication

KEY 0 HI SCORE
DUET OFF

SCORE––

–
–

Score indication

Self Duet
indication

S

0 : 00 : 22

Remaining tape length

E

Time counter

SLV-K867CH/PS

Key control
or Self Duet

KEY 0 HI SCORE

SCORE––

–
–

Score indication

indication

S

0 : 00 : 22

Remaining tape length

E

Time counter

Additional Operations52

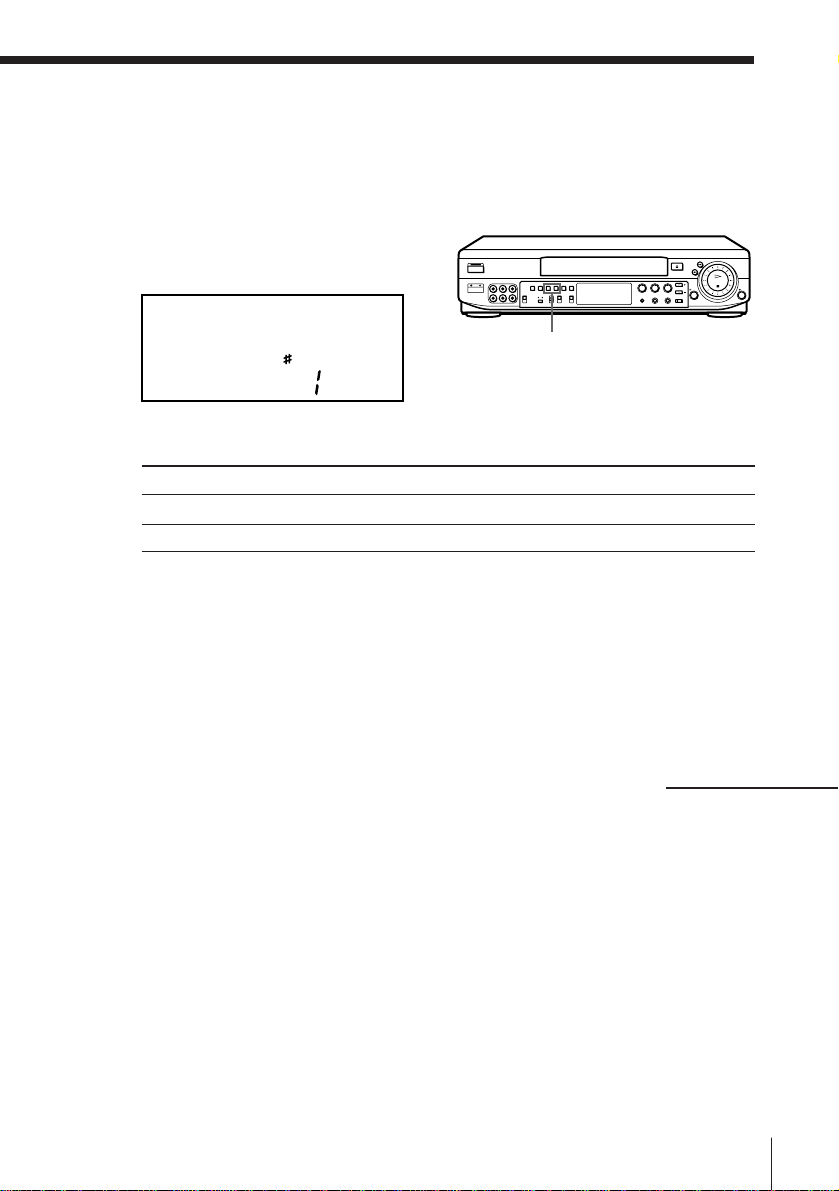

Changing the pitch (Key Control)

While you are singing, you can change the pitch of the song to match your
vocal range.

SLV-K877MN/PS

Press KEY CONTROL ˜ or n
repeatedly to set the pitch you want.

KEY

KEY CONTROL ˜/n

You can change the pitch of the song in half tone intervals.

To

Raise the pitch
Lower the pitch

Press

n (sharp)
˜ (flat)

Range

8 half tones
8 half tones

Display window

“n1” to “n8”
“˜1” to “˜8”

To return to the original pitch

Press KEY CONTROL ˜ or n repeatedly until “0” appears in the display
window.

Tip

• You can also change the pitch with the supplied microphone.

continued

Additional Operations 53

Karaoke sing-along (continued)

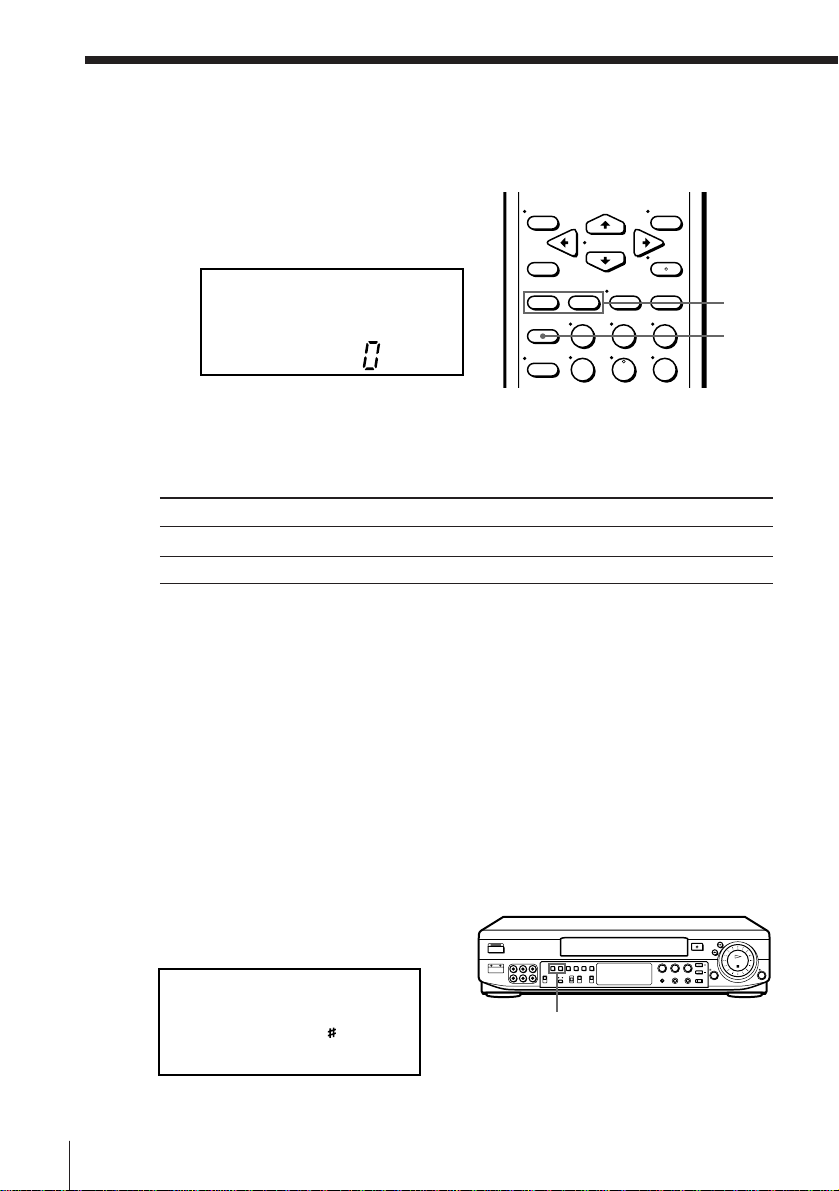

SLV-K867CH/PS

1 If the “KEY” is not displayed in

the display window, press
KEY/S.D.

KEY

123
456

2 Press ˜ or n (or KEY CONTROL ˜ or n on the VCR) repeatedly to set

the pitch you want.
You can change the pitch of the song in half tone intervals.

To

Raise the pitch
Lower the pitch

Press

n (sharp)
˜ (flat)

Range

4 half tones
4 half tones

To return to the original pitch

Press ˜ or n repeatedly until “0” appears in the display window.

Tip

• You can also select KEY or S.D. with the supplied microphone.

Adding harmony (Self Duet)

You can sing duets by yourself. The VCR creates a harmony voice at the
interval you want.

Display window

“n1” to “n4”
“˜1” to “˜4”

˜/n

KEY/
S.D.

SLV-K877MN/PS

Press SELF DUET ˜/n to select a
high or low harmony voice.

SD..

Additional Operations54

SELF DUET ˜/n

To

Add a high harmony
Add a low harmony

Press

n (sharp)
˜ (flat)

Display window

“S.D.n”
“S.D.˜”

To cancel the Self Duet

Press SELF DUET ˜/n again.

Tip

• You can also change the pitch with the supplied microphone.

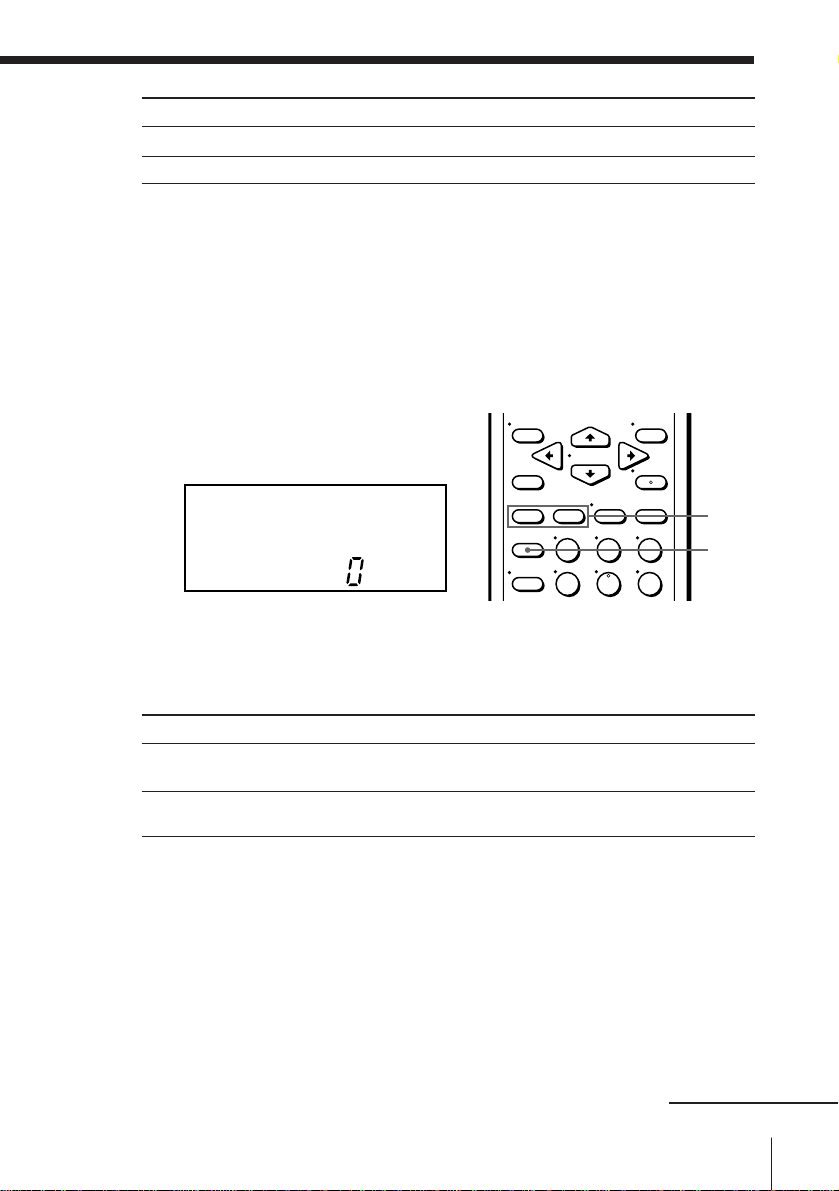

SLV-K867CH/PS

1 Press KEY/S.D. to light the S.D.

indicator in the display window.
“DUET“ appears on the TV screen.

SD..

123
456

2 Press ˜ or n to set the harmony interval you want.

You can change the pitch of the harmony voice in whole tone
intervals.

To

Raise the pitch of
the harmony

Lower the pitch of
the harmony

Press

n (sharp)

˜ (flat)

Range

4 tones

4 tones

To cancel the Self Duet

Press KEY/S.D. to display the KEY indicator. The VCR saves the last
pitch you selected. To return to the original pitch, press ˜ or n
repeatedly until “0” appears in the display window.

.

Tips

• You cannot use the Key Control and Self Duet function at the same time.

• You can also select KEY or S.D. with the supplied microphone.

Display window

“n1” to “n4”

“˜1” to “˜4”

continued

˜/n

KEY/
S.D.

Additional Operations 55

Karaoke sing-along (continued)

Reducing the playback vocals (Karaoke Pon)

This function reduces the vocals on
played back music sources. You can
use hi-fi stereo music sources for
karaoke.

Set KARAOKE MODE to
KARAOKE PON.

The singer’s voice is reduced.

To cancel Karaoke Pon

Set KARAOKE MODE to OFF.

Note

• Karaoke Pon does not work with the following tapes:

– Tapes on which different vocal sounds are recorded on the left and right

channels, such as a duet
– Monaural recorded tapes
– Tapes on which sound sources are recorded with strong echo effects and/or

chorus-effects

Backing up your singing (Vocal Assist)

This VCR can assist your singing in
case you forget the lyrics while you
are singing. The VCR fills in the
vocal for you automatically if you
stop singing into the microphone.
Use karaoke stereo hi-fi tapes which
have the accompaniment music on
the left channel and the
accompaniment plus vocal on the
right channel.

Set KARAOKE MODE to VOCAL ASSIST.

KARAOKE MODE

KARAOKE MODE

To cancel Vocal Assist

Set KARAOKE MODE to OFF.

Note

• Vocal Assist does not work with the following tapes:
– Hi-fi tapes on which the same sound is recorded on the left and right channels
– Monaural recorded tapes

Additional Operations56

Grading your singing

As an extra challenge, the VCR can
grade your singing.

1 Start singing and press SCORE.

SCORE

“SCORE” appears on the TV
screen, and the VCR starts analysing your singing.

2 Press SCORE again after singing for more than one minute.

Your score appears on the TV screen for five
seconds. The highest score (HI SCORE) is
saved, and is indicated above your present
score.

To score automatically (Auto Score)

The VCR automatically scores each song in order
during Karaoke Program. Press MENU and select
SET UP KARAOKE, then set AUTO SCORE to
ON.

Each time a song ends, the score appears for five
seconds.

To set the score level

This VCR has two different score levels. To set the
score level, press MENU and select SET UP
KARAOKE. Then set SCORE LEVEL to HIGH for
easy grading or LOW for strict grading.

SET UP KARAOKE

SELECT :
SET :

SET UP KARAOKE

SELECT :
SET :

[ V v ]
[ B b ]

[ V v ]
[ B b ]

HI SCORE

SCORE95

AMS•SEARCH MODE INDEX
HIGH•SCORE LEVEL LOW
ON•AUTO SCORE OFF

AMS•SEARCH MODE INDEX
HIGH•SCORE LEVEL LOW
ON•AUTO SCORE OFF

9
8

Tips

• The highest possible score is 99 points.

• To display your score on the TV screen again, press DISPLAY.

• The highest score is cleared each time you set the KARAOKE ON/OFF switch to
OFF.

Note

• The grading is not absolute. Please use this function for your own amusement.

continued

Additional Operations 57

Karaoke sing-along (continued)

Competing for the
loudest voice

The VCR measures and displays
the loudness of the voice
numerically when you shout into
the microphone.

1 Press SHOUT.

“SHOUT” appears in the display window (English on-screen display
only) and the VCR starts a countdown on the TV screen.

2 Shout into the microphone when the VCR counts down to 0.

While you are shouting, the highest score (MAX LEVEL) and your
current shout level are displayed on the TV screen with a level meter.
Below the level meter, a bar appears every second to show the changes
in your shout level.

After five seconds, the measurement is
complete and the highest score (MAX
LEVEL) and your score (YOUR LEVEL)
appear.

SHOUT

MAX LEVEL 23

YOUR LEVEL IS 33

Tips

• To exit SHOUT mode, press SHOUT again.

• The highest score (MAX LEVEL) is cleared each time you set the KARAOKE ON/

OFF switch to OFF.

Note

• Adjust the MIC VOL control to the centre position and turn down the TV volume.

Additional Operations58

Searching with
the AMS or index
function

You can search for the start of a specific
passage or scene. There are two ways
for automatic searching depending on
the way the tape was recorded.

Selecting the AMS or index function

The AMS (Automatic Music Sensor) function is mainly for karaoke tapes. It
searches for blank spaces (of at least four seconds) between recorded signals
on the sound track of a tape. Use this function to search an index­incompatible tape. If you are not sure of the way the tape was recorded, try
AMS first.

The index function is for indexed tapes like the tapes recorded with this
VCR. The VCR marks the tape with an index signal at the point where each
recording begins. When you use commercially prerecorded tape, check the
packaging to see if the tape is index-compatible.

MENU
EXECUTE
CURSOR

>/./?//

123
456
789

0

=/+
SEARCH
AMS/INDEX

1 Press MENU and select SET UP KARAOKE,

then press EXECUTE.

2 Press CURSOR >/./?// to select

SEARCH MODE, then select either AMS or
INDEX.

3 Press EXECUTE.

SET UP KARAOKE

AMS•SEARCH MODE INDEX
HIGH•SCORE LEVEL LOW
ON •AUTO SCORE OFF

SELECT :
SET :

[ V v ]
[ B b ]

continued

Additional Operations 59

Searching with the AMS or index function (continued)

Searching with the AMS function

The VCR can search up to 99 blank spaces ahead of or behind the current
position.

1 Set KARAOKE ON/OFF on the VCR to ON.
2 Insert a tape into the VCR.
3 Press =/+ SEARCH AMS/INDEX

repeatedly to specify how many blank spaces
ahead or behind you want to search:

• To search ahead, press + SEARCH
AMS/INDEX.

• To search backwards, press =SEARCH
AMS/INDEX.

The VCR starts searching and the number of blank spaces on the TV
screen counts down to zero. Playback starts automatically from that
point.

To stop searching

Press p STOP.

Searching with the index function

The VCR can search up to 99 index signals ahead of or behind the current
position.

AMS
SEARCH

1 Insert an indexed tape into the VCR.
2 Press =/+ SEARCH AMS/INDEX

repeatedly to specify how many index
signals ahead or behind you want to search:

• To search ahead, press + SEARCH
AMS/INDEX.

• To search backwards, press =SEARCH
AMS/INDEX.

The VCR starts searching and the index number on the TV screen
counts down to zero. Playback starts automatically from that point.

INDEX
SEARCH

8

8

To stop searching

Press p STOP.

Notes

• No index signal will be added when recording starts from recording pause.
However, an index signal will be marked if you change the channel during
recording pause.

• The AMS function only works when the KARAOKE ON/OFF switch is set to ON.

• You cannot use the AMS function on tapes that have many blank spaces in a short
time span such as dramas and dialogues.

Additional Operations60

Enjoying the
surround sound
(Virtual Sound)
(SLV-K877MN/PS
only)

You can use the Virtual Sound
function to give stereo sources the
surround sound effect and monaural
sources a simulated stereo effect.

1 Select the type of sound source with the VIRTUAL SOUND switch.

Select SURROUND when listening to a stereo source; select
SIMULATED STEREO for a monaural source.

2 Press EFFECT so the WIDE or WARP indicator lights up.

Virtual sound

Type

SURROUND (stereo)

SIMULATED STEREO
(monaural)

Effect For

WIDE A sound effect that spreads out over a large area
WARP A sound effect that totally envelopes you in sound
WIDE A simulated stereo effect
WARP A wide ranging simulated stereo effect

VIRTUAL SOUND switch

EFFECT button
WIDE/WARP indicators

To cancel the Virtual Sound

Press EFFECT repeatedly until both WIDE/WARP indicators turn off.

Notes

• This function is available only when the tape sound is reproduced on a stereo TV
(or other stereo audio equipment). If the connected TV or other audio equipment is
monaural or simulated stereo, you cannot get a clear effect.

• We recommend that you do not use the surround effect function of this VCR and
that of the connected TV (or other audio equipment) at the same time. If you do so,
the function may not work properly because the effects overlap each other.

Additional Operations 61

Adjusting the picture

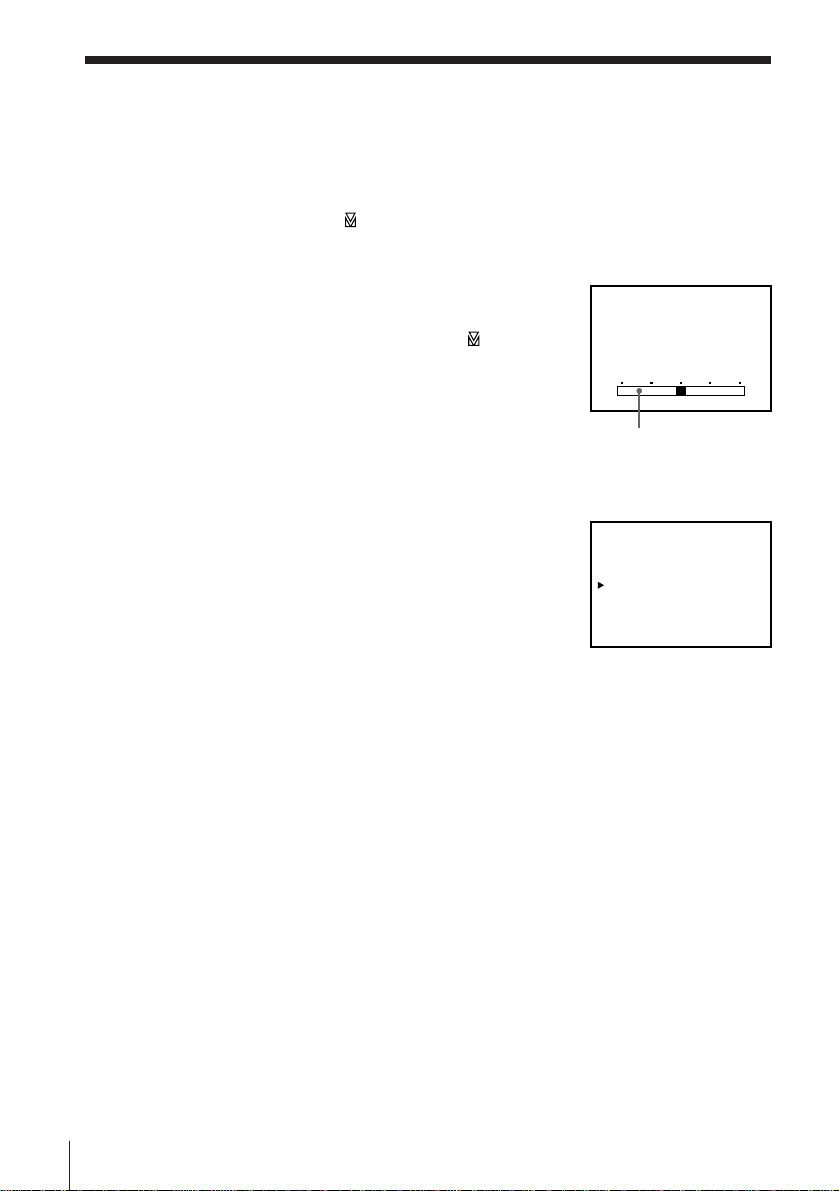

Adjusting the tracking

Although the VCR automatically adjusts the tracking when playing a tape
(the tracking indicator flashes in the display window, then goes off),
distortion may occur if the tape was recorded in poor condition. If so,

manually adjust the tracking.
Press TRACKING +/– on the VCR to display the

tracking meter. The distortion should disappear as
you press one of the two buttons (The
lights up). To resume automatic tracking

adjustment, eject the tape and reinsert it.

About Adaptive Picture Control (APC)

Adaptive Picture Control (APC) automatically
improves recording and playback quality by
adjusting the VCR to the condition of the video
heads and tape. To maintain better picture quality,
we recommend that you set APC to ON in the SET
UP MENU (with the APC indicator in the display
window lit).

APC playback

The APC function automatically works on all types of tapes, including rental
tapes and tapes that were not recorded with APC.

indicator

NORMAL TRACKING

Tracking meter

e.g. SLV-K877MN

SET UP MENU

ON OFF

BUZZER
AUDIO MIX
HIFI AUDIO
APC ON• OFF
PAL/MESECAM

SELECT :
SET :

•
ON • OFF
STD NICAM

AUTO• PAL MESECAM

[ V v ]
[ B b ]

•

APC recording

Whenever you insert a tape and start recording for the first time, the VCR
adjusts to the tape using the APC function (the APC indicator flashes
rapidly). This adjustment is retained until the tape is ejected.

To deactivate the APC

Press MENU and select SET UP MENU, then set APC to OFF. The APC
indicator in the display window goes off.

Note

• There is a delay of a few seconds before the VCR actually starts recording while the
VCR analyses the tape. To avoid the delay, first set the VCR to recording pause (the
APC indicator flashes slowly) and press r REC to have the VCR analyse the tape
(the APC indicator flashes rapidly). After the APC indicator stops flashing, press
P PAUSE to start recording immediately. If you want to start recording quickly
without using the APC function, first set the VCR to recording pause (the APC
indicator flashes slowly) and press P PAUSE to start recording.

Additional Operations62

Changing menu options

1 Press MENU, then select SET UP MENU.

SLV-K877MN

SET UP MENU

BUZZER ON OFF
AUDIO MIX
HIFI AUDIO
APC ON• OFF
PAL/MESECAM

PAL/MESECAM

SELECT :
SET :

2 Press CURSOR >/. to select the option to change, then press CURSOR

?// to change the setting.

3 Press EXECUTE to return to the original screen.

Menu choices

Initial settings are indicated in bold print.

•
ON•OFF

•

STD NICAM

AUTO• PAL MESECAM

AUTO• PAL MESECAM

[ V v ]
[ B b ]

SLV-K877PS
SLV-K867CH/PS

SET UP MENU

[ V v ]
[ B b ]

ON OFF

•
ON • OFF

BUZZER
AUDIO MIX
APC ON• OFF
PAL/MESECAM

AUTO• PAL MESECAM

SELECT :
SET :

Menu option

BUZZER

AUDIO MIX

HIFI AUDIO
(SL V-K877MN
only)

APC

PAL/MESECAM

Set this option to

• ON to output a beep sound when all illogical operation is made.

• OFF to deactivate it.

• ON to listen to the hi-fi and normal audio tracks at the same
time. The AUDIO MONITOR button will not function.

• OFF to listen to hi-fi and normal audio tracks separately. Select
the sound using the AUDIO MONITOR button.

For details, see page 64.

• STD to record standard sound on the hi-fi audio track.

• NICAM to record NICAM broadcasts on the hi-fi audio track.

For details, see page 44.

• ON to switch on the APC (Adaptive Picture Control) function
and improve picture quality.

• OFF to switch off APC.

For details, see page 59.

• AUTO to record/play back in the colour system selected
automatically. Normally, select AUTO.

• PAL to record/play back in the PAL colour system.

• MESECAM to record/play back in the MESECAM colour
system.

For details, see page 29.

Additional Operations 63

Editing

Connecting to a VCR or stereo system

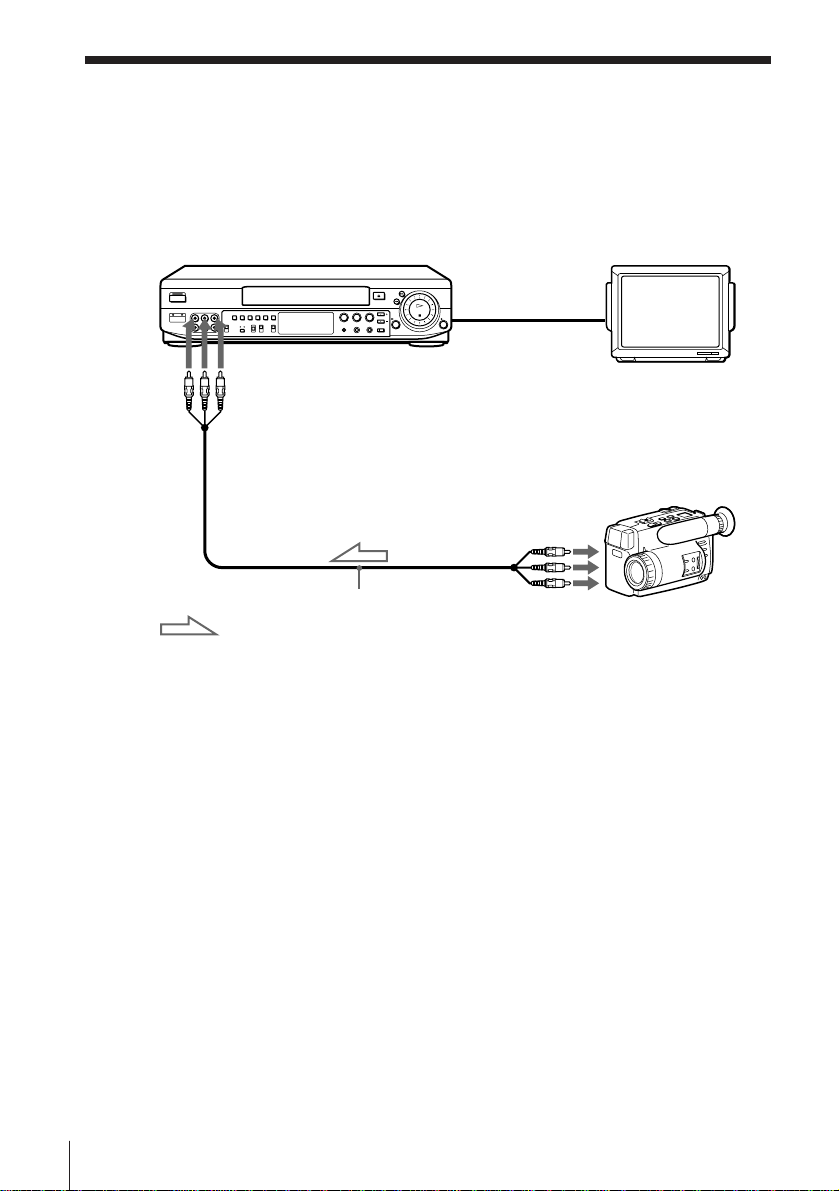

How to connect to record on this VCR

This VCR (Recorder)

LINE 2 IN

LINE OUT

VMC-810MS audio/video cable

: Signal flow

Tip

• You can also use the LINE-1 IN jacks instead.

Notes

• Make sure you connect the plugs to jacks of the same colour.

• If the other VCR is a monaural type, connect the audio plug to the AUDIO L (white)
jack. The sound is recorded on both right and left channels. When connecting to
the AUDIO R (red) jack, the sound is recorded only on the right channel.

• If you connected this VCR to both the LINE IN and LINE OUT jacks of the other
VCR, select the input correctly to prevent a humming noise.

(not supplied)

TV

Other VCR (Player)

64 Editing

How to connect to a stereo system

Connect LINE 2 IN AUDIO on this VCR to the audio output jacks on the
stereo system, using the RK-C510KS audio cable (not supplied).

Basic editing

(when recording on this VCR)

Before you start editing

• Turn on your TV and set it to the
video channel.

• Press INPUT SELECT on the remote
commander to display “L2” (or “L1”)
in the display window.

• Press TAPE SPEED on the remote
commander to select the tape speed
(SP or LP for the PAL system, and SP
or EP for the NTSC system).

1 Insert a source tape with its safety tab removed into the other

(playback) VCR. Search for the point to start playback and set it to
playback pause.

2 Insert a tape with its safety tab in place into this (recording) VCR.

Search for the point to start recording and press P PAUSE.

3 Press r REC on this VCR and set it to recording pause.
4 To start editing, press the P PAUSE buttons on both VCRs at the same

time.

P PAUSE

r REC

To stop editing

Press the p STOP buttons on both VCRs.

Tips

• To edit more precisely, press the P PAUSE buttons on the VCRs to release pause.

• To cut out unwanted scenes while editing, press P PAUSE on this VCR when an
unwanted scene begins. When it ends, press P PAUSE again to resume recording
(Assemble Editing).

• You can dub sound onto the normal audio track through a microphone while
editing. Set KARAOKE ON/OFF to ON before you start dubbing.

Note

• If you start recording following the procedure above, the VCR won’t start recording
with the APC function. To record a tape with the APC function, press r REC again
during recording pause in step 3 so that the VCR analyses the tape. Then when you
start recording in step 4, press P PAUSE after the APC indicator stops flashing. If
you press P PAUSE before the APC indicator stops flashing, the APC function is
cancelled.

65Editing

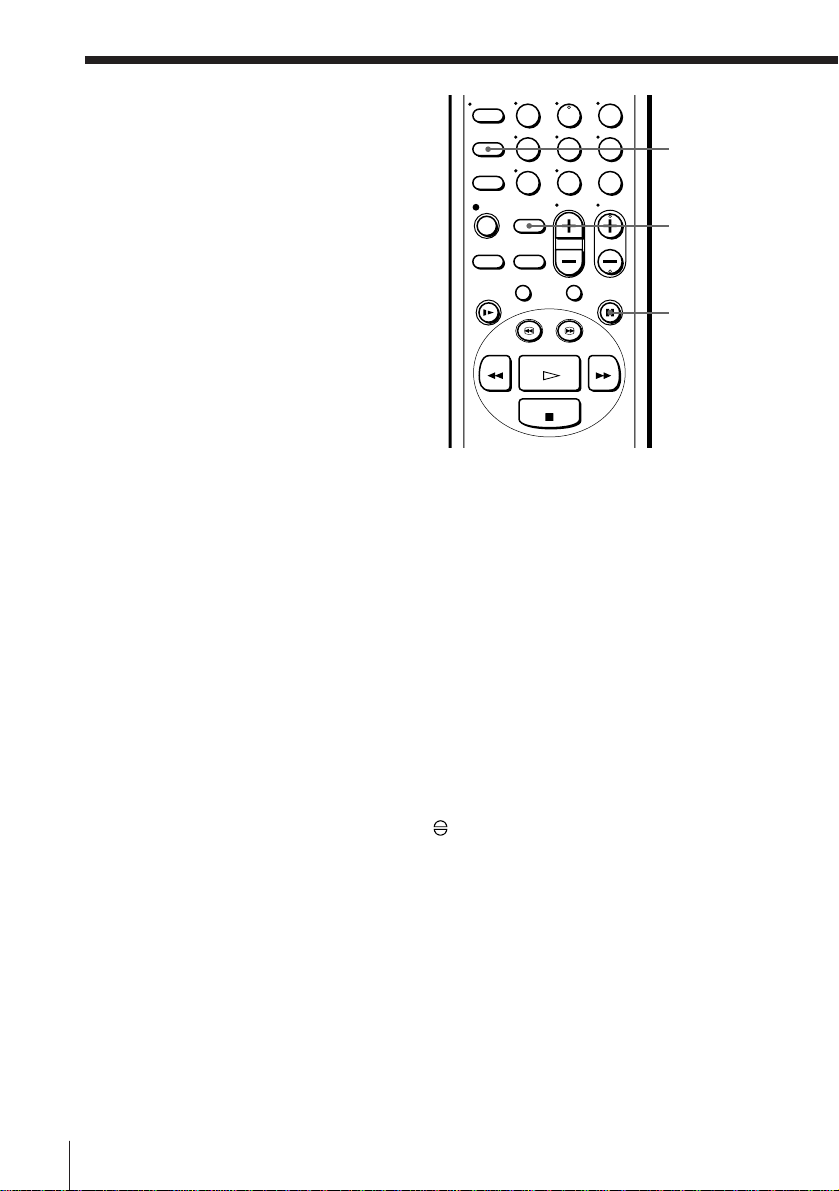

Audio dubbing

456

This feature lets you record over the
normal audio track. The monaural
sound previously recorded is replaced
while the original hi-fi sound remains
unchanged. Use this feature to add
commentary to a tape that you have
recorded with a camcorder. You can also
record your karaoke performances.

Audio dubbing from a
stereo system or other
external source

Before you start dubbing

• Turn on your TV and set it to the video channel.

• Press INPUT SELECT to display “L2” in the display window.

1 Insert a source tape into the stereo system (or the playback VCR).

Search for the point to start playback and set it to playback pause.

2 Insert a prerecorded tape into this (recording) VCR. Search for the end

of the section to be replaced and press P PAUSE.
Make sure that the tape has its safety tab in place.

3 Press COUNTER RESET on this VCR to reset the counter to

“0H00M00S.”

4 Rewind the prerecorded tape to the beginning of the section to be

replaced.
The VCR pauses.

5 Press AUDIO DUB.

The audio dubbing indicator appears in the display window.

6 To start editing, press the P PAUSE buttons on this VCR and the stereo

system (or other VCR) at the same time.
When the counter reaches “0H00M00S,” audio dubbing stops

automatically.

789

0

COUNTER
RESET

AUDIO DUB

P PAUSE

66 Editing

To stop while recording

Press the p STOP buttons on this VCR and the stereo system (or other VCR).

To listen to both the hi-fi and normal audio

Set AUDIO MIX to ON in the SET UP MENU (page 61). Use this feature to
listen to dubbed audio over the original hi-fi audio. When AUDIO MIX is
set to ON, the AUDIO MONITOR button does not function. Remember to
reset AUDIO MIX to OFF after playing the tape.

To listen to the dubbed sound (normal audio)

Press AUDIO MONITOR until the “L,” “R,” and “STEREO” indicators go off
in the display window.

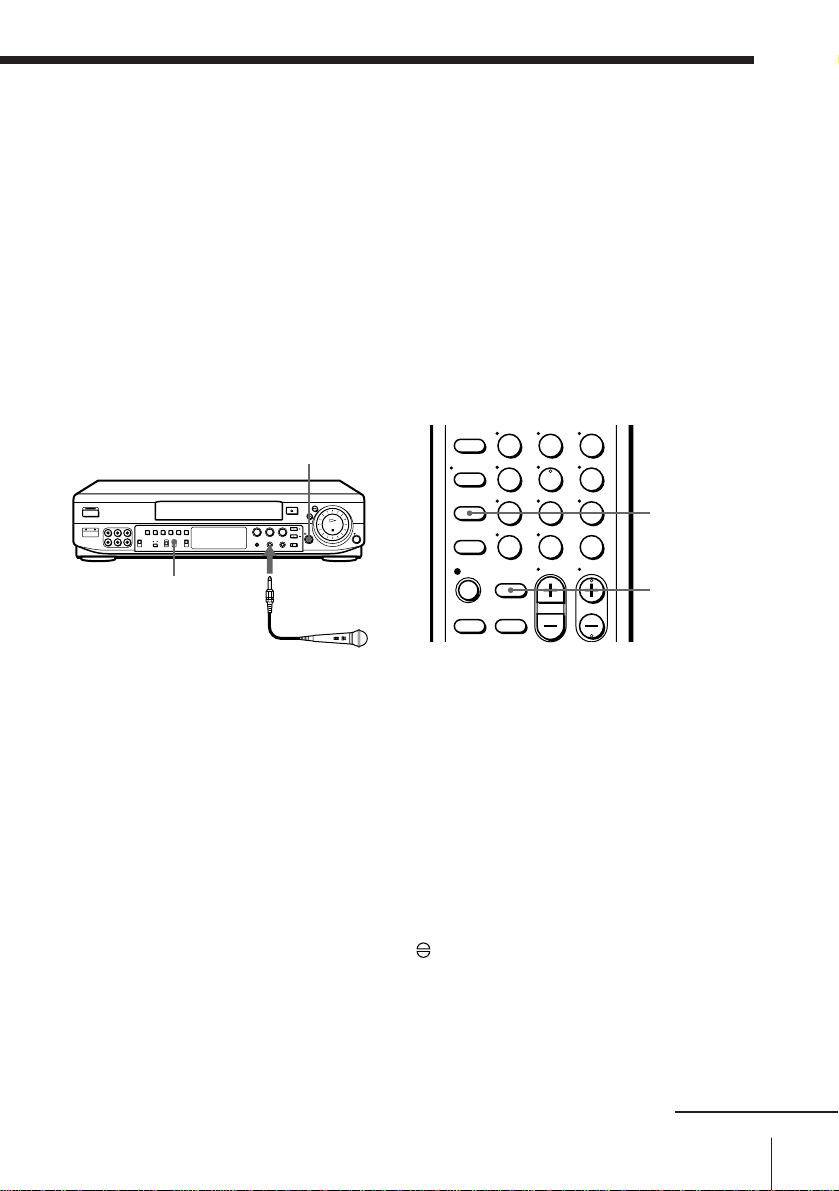

Audio dubbing from the microphone

Using the microphone, you can add songs or narration on a recorded
tape. Sound from the microphone is mixed with the original hi-fi sound
and recorded on the normal audio track.

Before you start dubbing

• Connect the microphone(s) to the MIC IN 1 and/or 2 jack(s), and turn
on the microphone(s).

123
456
789

0

COUNTER
RESET

KARAOKE ON/OFF

P PAUSE

MIC IN 1/2

Microphone

1 Set KARAOKE ON/OFF to ON.
2 Insert the prerecorded tape into the VCR. Search for the end of the

section to be replaced and press P PAUSE.
Make sure that the tape has its safety tab in place.

3 Press COUNTER RESET to reset the counter to “0H00M00S.”
4 Rewind the prerecorded tape to the beginning of the section to be

replaced.
The VCR pauses.

5 Press AUDIO DUB.

The audio dubbing indicator appears in the display window.

6 To start editing, press P PAUSE to start dubbing and sing or speak into

the microphone.
When the counter reaches “0H00M00S,” audio dubbing stops

automatically.

AUDIO DUB

continued

67Editing

Audio dubbing (continued)

To stop while recording

Press p STOP.

To listen to the dubbed sound

Press AUDIO MONITOR until the “L,” “R,” and “STEREO” indicators go off
in the display window.

To record sound from the microphone mixed with an external source

If you connect equipment such as a laser disc player to this VCR’s LINE 2 IN
jacks, you can record while singing along to a karaoke LD. Be sure to press
INPUT SELECT to display “L2” before starting recording. The mixed sound
is recorded on the normal audio track, and the sound input from the LINE 2
IN jacks is recorded on the hi-fi audio track.

Tip

• When dubbing from the microphone, you can use the functions of echo effect, Key
Control, and Self Duet.

Notes

• Do not dub on a tape recorded in LP mode. Audio noise may occur.

• Recording stops if you press COUNTER RESET while audio dubbing.

68 Editing

Additional Information

Troubleshooting

If you have any questions or problems not covered below, please consult your
nearest Sony service facility.

Symptom

The ON/STANDBY switch
does not function.

The power is turned on but the

PowerClockPlayback

VCR does not operate.

The clock has stopped and
“–:– –” lights in the display

window.

The playback picture does not
appear on the TV screen.

The picture is not clear.

Remedy

• Connect the mains lead to mains securely.

• Moisture condensation occurs. Turn the power off,
unplug the mains lead and leave the VCR to dry for
over one hour.

• The clock stops if the VCR is disconnected from the
mains for more than an hour. Reset the clock (and
timer).

• Make sure the TV is set to the video channel. If you are
using a monitor, set it to video input.

• Adjust the tracking with the TRACKING +/– buttons.

• Make sure the colour system is correctly set to the
system that the tape was recorded in.

• The video heads are dirty (see below). Clean the video
heads using the Sony V-25CL video head cleaning
cassette. If this cleaning cassette is not available in your
area, have the heads cleaned at your nearest Sony
service facility (a standard service charge will be
required). Do not use a commercially available wet­type cleaning cassette, as it may damage the video
heads.

• The video heads may have to be replaced. Consult
your local Sony service facility for more information.

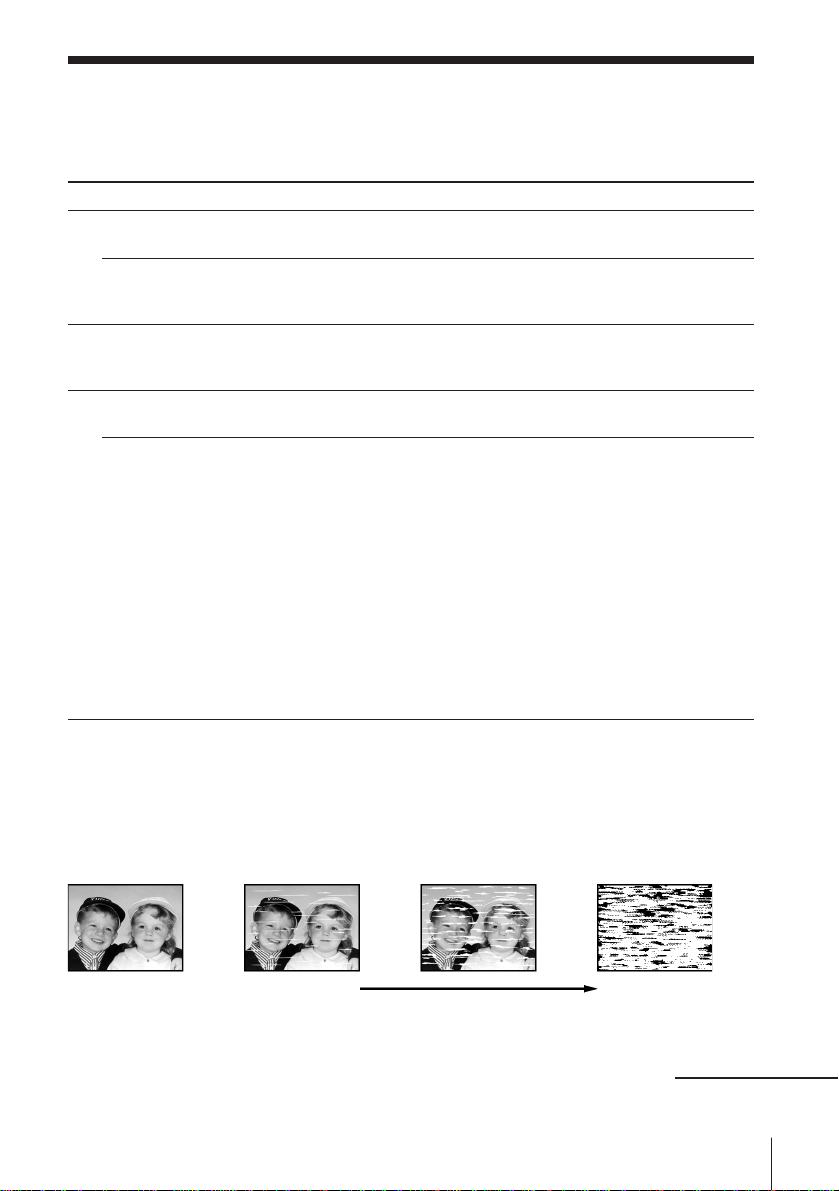

Symptoms caused by contaminated video heads

• Normal picture • Rough picture

initial terminal

• Unclear picture

• No picture (or
black & white
screen appears)

continued

Additional Information

69

Troubleshooting (continued)

Symptom

The picture rolls vertically
during picture search.

The picture has no sound.
The sound is unstable or has an

echo.

No TV programmes appear
on the TV screen.

TV reception is poor.

The tape starts playing as soon
as it is inserted.

RecordingTimer recording Playback

The tape is ejected when you
press r REC.

Nothing happens when you
press r REC.

The timer does not operate.

Remedy

• Adjust the vertical hold control on the TV or monitor.

• The tape is defective. Use a new tape.

• When you play a tape with the same sound recorded
on both the hi-fi and normal sound tracks, make sure
the AUDIO MIX option in the SET UP MENU is set to
OFF.

• Make sure the TV is set to the video channel. If you are
using a monitor, set it to video input.

• Adjust the TV aerial.

• Make sure SYSTEM, B/G or D/K (B/G, D/K or I for
SLV-K867CH/PS) in the TUNER PRESET menu is set
to the system in your area.

• The safety tab has been removed. To record on this
tape, cover the tab hole.

• Check that the safety tab has not been removed.

• Make sure the tape is not at its end.

• Select the correct source. Select a programme position
with the PROG +/– buttons when recording TV
programmes; select “L1” or “L2” with the INPUT
SELECT button when recording from other equipment.

• Check that the clock is set.

• Make sure a tape has been inserted.

• Check that the safety tab has not been removed.

• Make sure the tape is not at its end.

• Make sure a programme has been set for timer
recording.

• Make sure your timer settings have not already passed
the current time.

• Check that the satellite tuner is turned on.

• The clock stops if the VCR is disconnected from the
mains for more than an hour. Reset the clock and timer.

70

Additional Information

Symptom

A tape cannot be inserted.

The remote commander does
not function.

The tracking indicator does not
appear on the screen.

Others

The VCR needs to be cleaned.

The AMS function does not
work properly.

Remedy

• Check that a tape isn’t already in the tape
compartment.

• Make sure you are pointing the remote commander
at the remote sensor on the VCR.

• Replace all the batteries in the remote commander
with new ones if they are weak.

• Make sure the TV / VIDEO remote control switch
is set correctly.

• The recording condition of the tape is very poor
and tracking cannot be adjusted, or the NTSC
system is being used.

• Clean the cabinet, panel and controls with a dry,
soft cloth, or a soft cloth slightly moistened with a
mild detergent solution. Do not use any type of
solvent, such as alcohol or benzine.

• The tape has too many blank spaces in a short time
span. Change PROGRAM MODE in the SET UP
KARAOKE menu from AMS to INDEX.

Additional Information

71

Specifications

System

Channel coverage

SL V-K877MN/PS

VHF R1 to R12, E2 to E12, NZ1 to NZ11
UHF E21 to E69, R21 to R60
CATV S01 to S05, S1 to S41

SLV-K867CH/PS

VHF R1 to R12, C1 to C12, E2 to E12, NZ1 to
NZ11, SA4 to SA13

UHF E21 to E69, R21 to R60, B21 to B69, C13
to C56, SA21 to SA68

CATV S01 to S05, S1 to S41

RF output signal

UHF channels 21 to 69

Aerial out

75-ohm asymmetrical aerial socket

Inputs and outputs

SLV-K877MN/PS

LINE-1 IN and LINE 2 IN

VIDEO IN, phono jack (1 each)
Input signal: 1 Vp-p, 75 ohms, unbalanced,
sync negative
AUDIO IN, phono jack (2 each)
Input level: 327 mVrms
Input impedance: more than 47 kilohms

LINE-1 OUT and LINE 2 OUT

VIDEO OUT, phono jack (1 each)
Output signal: 1 Vp-p, 75 ohms, unbalanced,

sync negative
AUDIO OUT, phono jack (2 each)
Standard output: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohms

General

Power requirements

110 – 240 V AC, 50/60 Hz

Power consumption

SLV-K877MN 30W
SLV-K877PS 28W
SLV-K867CH/PS 26W

Operating temperature

5°C to 40°C

Storage temperature

–20°C to 60°C

Dimensions

Approx. 430 × 100 × 282 mm (w/h/d)
including projecting parts and controls

Mass

Approx. 4.7 kg

Supplied accessories

Remote commander (1)
R6 (size AA) batteries (2)
Aerial cable (1)
Audio/video cable (3-phono to 3-phono) (1) (SLV-

K877MN/PS only)
Microphone (1)

Design and specifications are subject to change
without notice.

SLV-K867CH/PS

LINE-1 IN and LINE 2 IN

VIDEO IN, phono jack (1 each)
Input signal: 1 Vp-p, 75 ohms, unbalanced, sync

negative
AUDIO IN, phono jack (2 each)
Input level: 327 mVrms
Input impedance: more than 47 kilohms

LINE-1 OUT

VIDEO OUT, phono jack (1)
Output signal: 1 Vp-p, 75 ohms, unbalanced,

sync negative
AUDIO OUT, phono jack (2)
Standard output: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohms

72

Additional Information

Index to parts and controls

Refer to the pages indicated in parentheses ( ) for details.

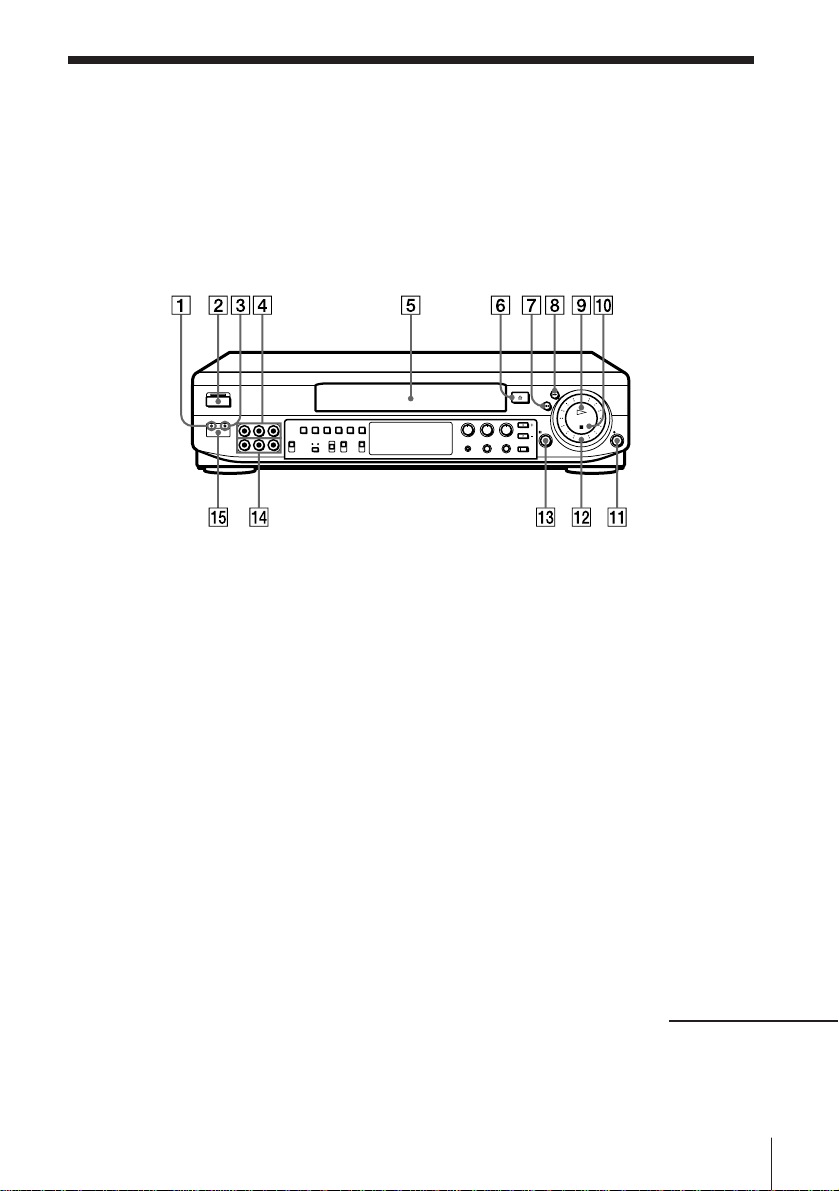

Front panel (SLV-K877MN/PS)

1 EASY SET UP button (10)
2 ON/STANDBY switch/indicator (8)
3 RF CH SET button (8)
4 LINE 2 IN AUDIO L/R/VIDEO

jacks (62)

5 Tape compartment
6 6 EJECT button (28)
7 0 REW button (28, 40)
8 ) FF button (28, 40)

9 · PLAY button (27)
0 p STOP button (28, 32)
!¡ r REC button (32, 63)
!™ CLICK SHUTTLE ring (41)
!£ P PAUSE button (28, 63)
!¢ LINE 2 OUT AUDIO L/R/VIDEO

jacks

!∞ Remote sensor (5)

continued

Additional Information

73

Index to parts and controls (continued)

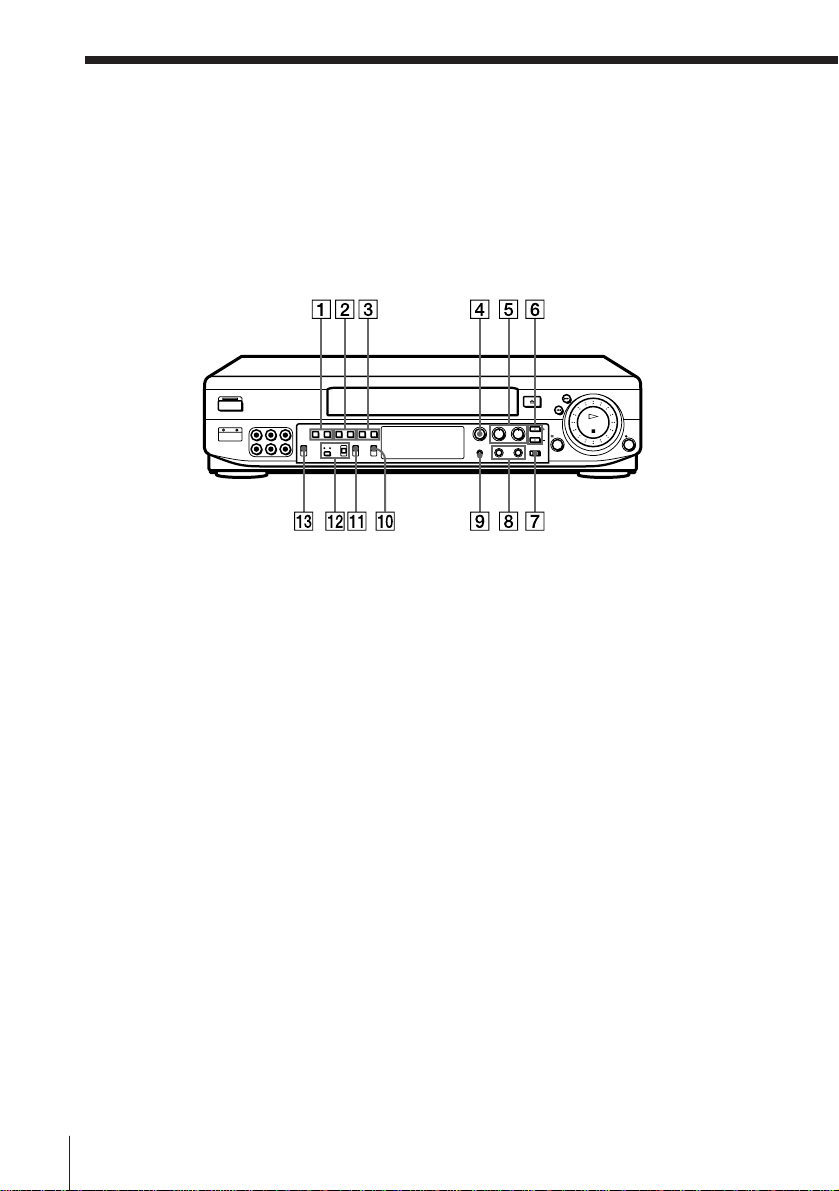

Front panel (SLV-K877MN/PS) (continued)

1 SELF DUET ˜/n buttons (52)
2 KEY CONTROL ˜/n buttons (51)
3 SHOUT button (56)

SCORE button (55)

4 ECHO control (47)
5 MIC VOL 1/2 controls (47)
6 PROGRAM/TRACKING +/–

buttons (9, 60)

7 QUICK TIMER button (42)

74

Additional Information

8 MIC IN 1/2 jacks (47)
9 CONTROL jack (47)
0 KARAOKE MODE switch (54)
!¡ KARAOKE ON/OFF switch (47, 49)
!™ VIRTUAL SOUND switch (59)

EFFECT button (59)
WIDE/WARP indicators (59)

!£ COLOR SYSTEM switch (27)

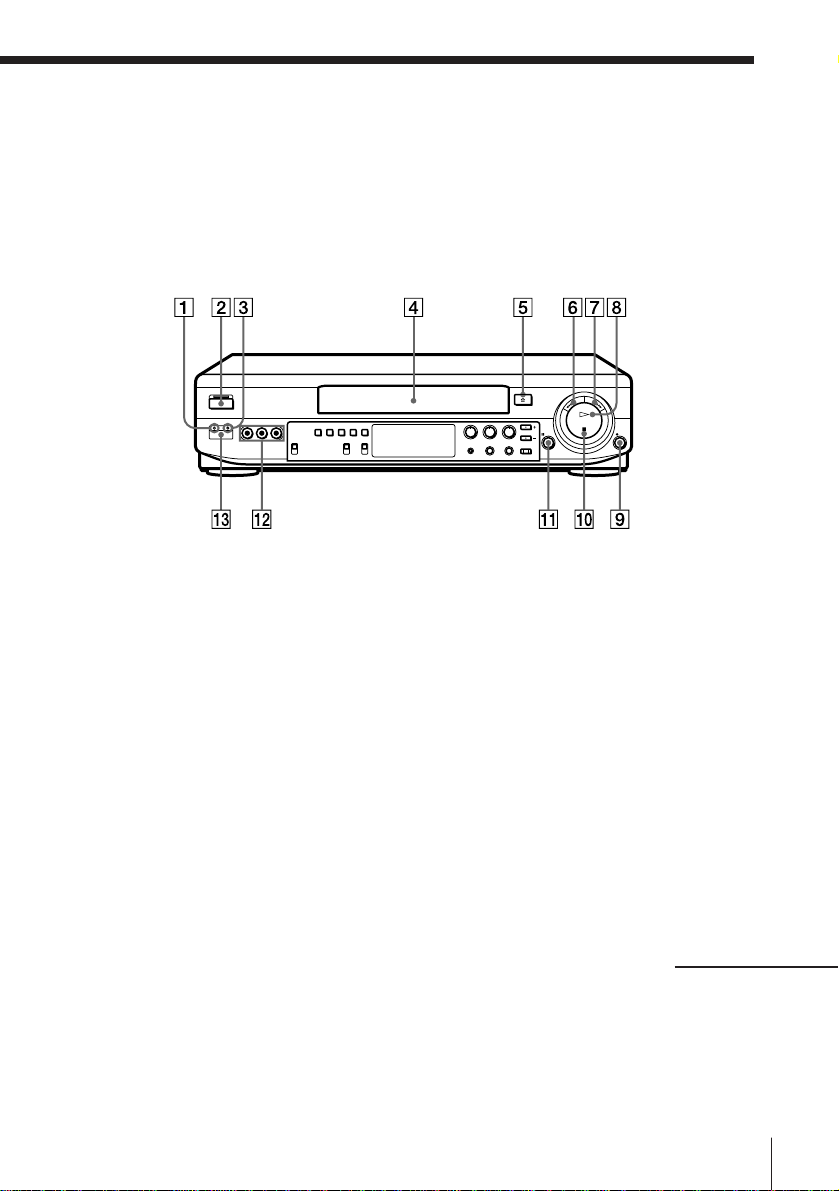

Front panel (SLV-K867CH/PS)

1 EASY SET UP button (10)
2 ON/STANDBY switch/indicator (8)
3 RF CH SET button (8)
4 Tape compartment
5 6 EJECT button (28)
6 0 3 REW button (28, 40)
7 ) # FF button (28, 40)
8 · PLAY button (27)

9 r REC button (32, 63)
!º p STOP button (28, 32)
!¡ P PAUSE button (28, 63)
!™ LINE 2 IN AUDIO L/R/VIDEO

jacks (62)

!£ Remote sensor (5)

continued

Additional Information

75

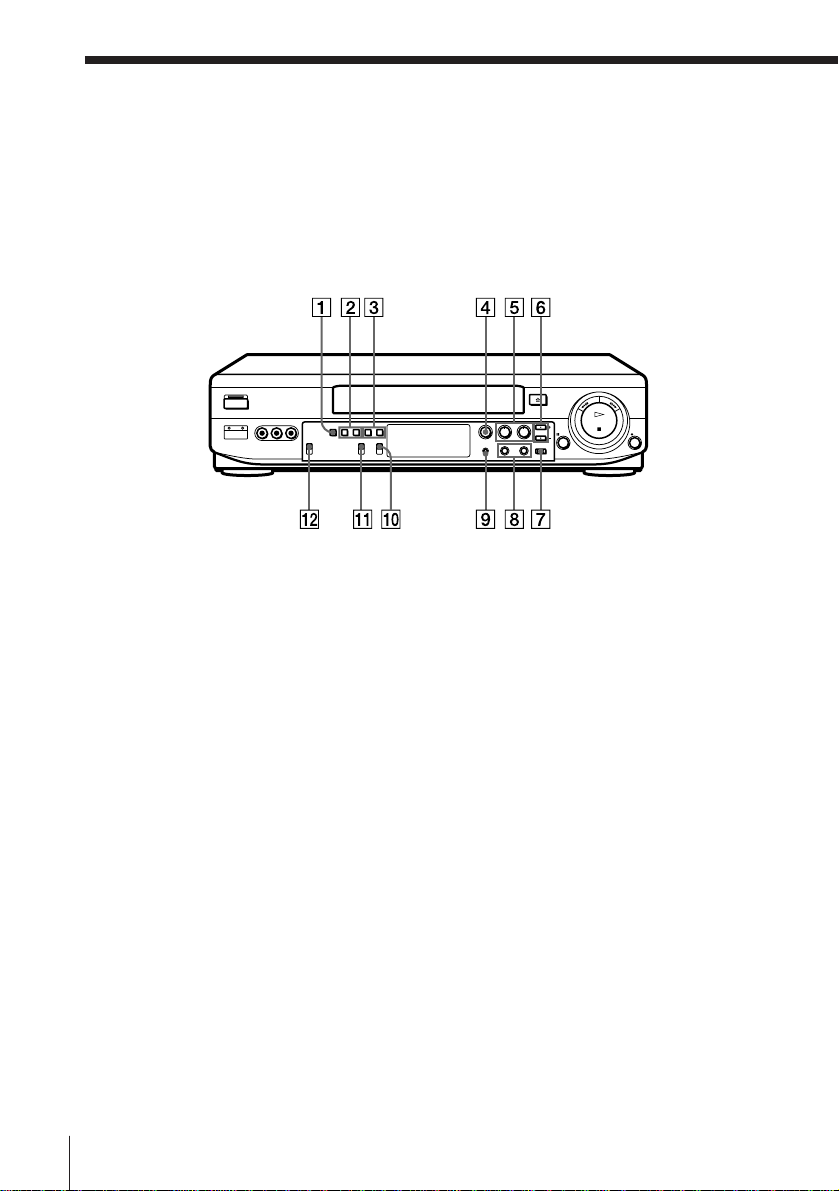

Index to parts and controls (continued)

Front panel (SLV-K867CH/PS) (continued)

1 KEY/S.D. button (53)
2 KEY CONTROL ˜/n buttons (52)
3 SHOUT button (56)

SCORE button (55)

4 ECHO control (47)
5 MIC VOL 1/2 controls (47)
6 PROGRAM/TRACKING +/–

buttons (9, 60)

76

Additional Information

7 QUICK TIMER button (42)
8 MIC IN 1/2 jacks (47)
9 CONTROL jack (47)
0 KARAOKE MODE switch (54)
!¡ KARAOKE ON/OFF button (47, 49)
!™ COLOR SYSTEM switch (27)

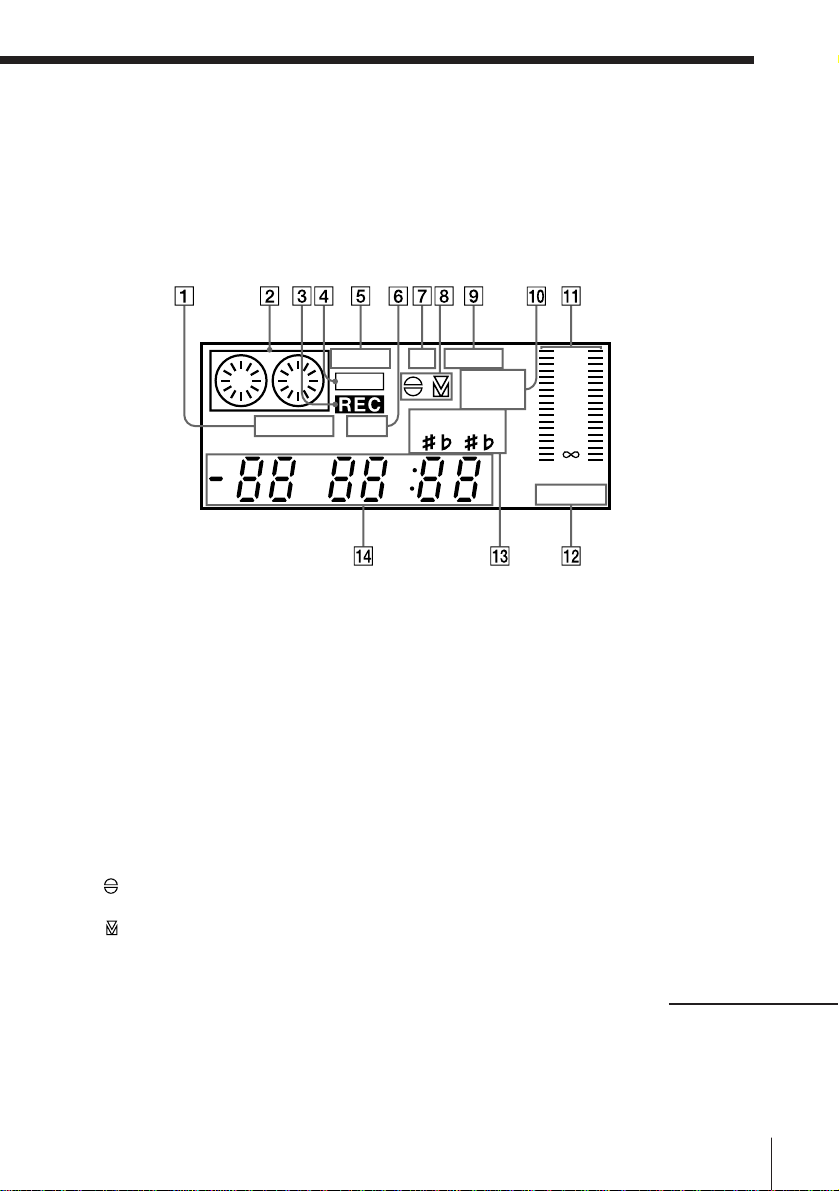

Display window

NICAM

TIMER

HM

1 Tape speed indicator (32)
2 Tape indicator
3 REC indicator
4 TIMER indicator (35, 38)
5 NICAM indicator (SLV-K877MN

only) (44)

6 APC indicator (60)
7 RF indicator (8)

(Audio dub) indicator (64, 65)

8

(Tracking) indicator (60)

RFIGK

SCORE

SHOUT

APCSPLP EP

SD..KEY

S

9 TV system indicator (9)

SLV-K877MN/PS : G/K
SLV-K867CH/PS : I/G/K

0 SCORE/SHOUT indicator (55, 56)
!¡ Audio channel/sound level

indicator (45)

!™ STEREO indicator (44)
!£ KEY/S.D./n/˜ indicators (51)
!¢ Time counter/clock/line/

programme position/pitch
adjustment indicator (29, 32, 51)

6
3
0

-

3

-

10

dB

LR

STEREO

continued

Additional Information

77

Index to parts and controls (continued)

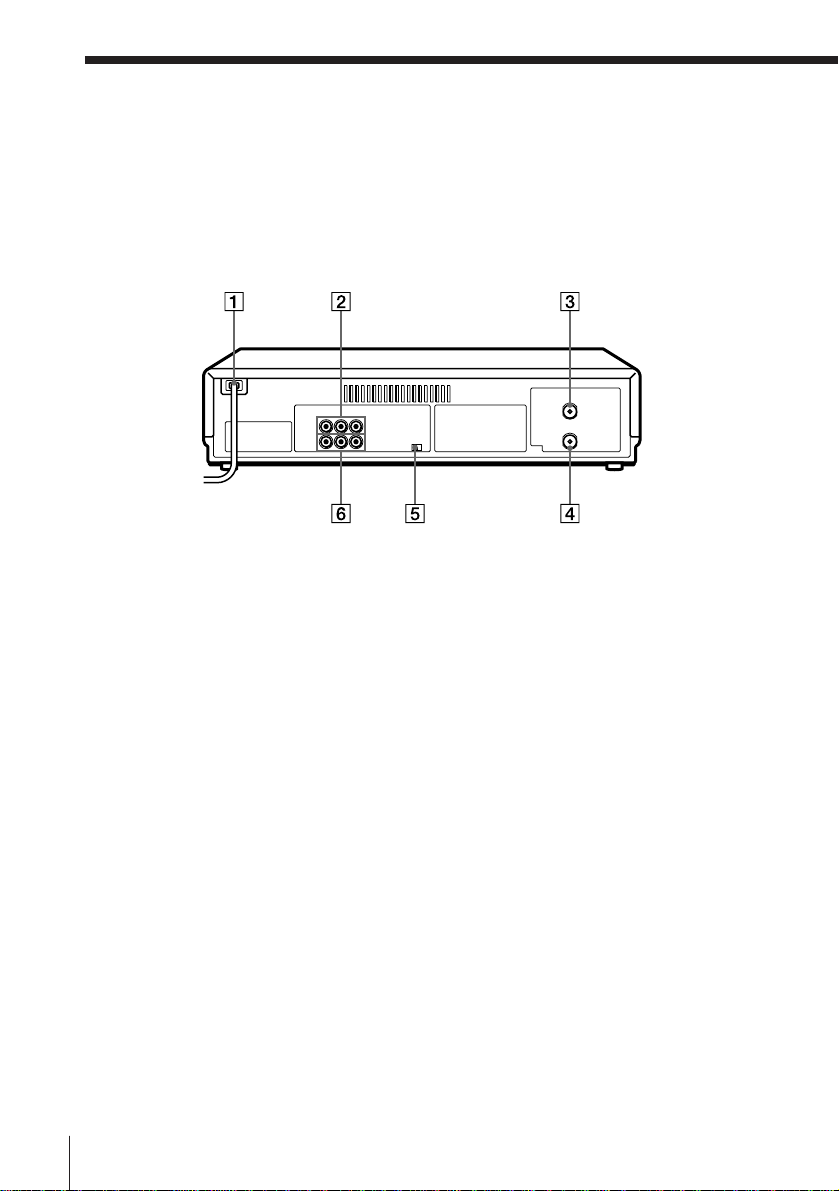

Rear panel

SLV-K877MN/PS

1 Mains lead (6)
2 LINE-1 IN AUDIO L/R/VIDEO

jacks (62)

3 AERIAL OUT connector (6)

78

Additional Information

4 AERIAL IN connector (6)
5 NTSC PB switch (28)
6 LINE-1 OUT AUDIO L/R/VIDEO

jacks (7)

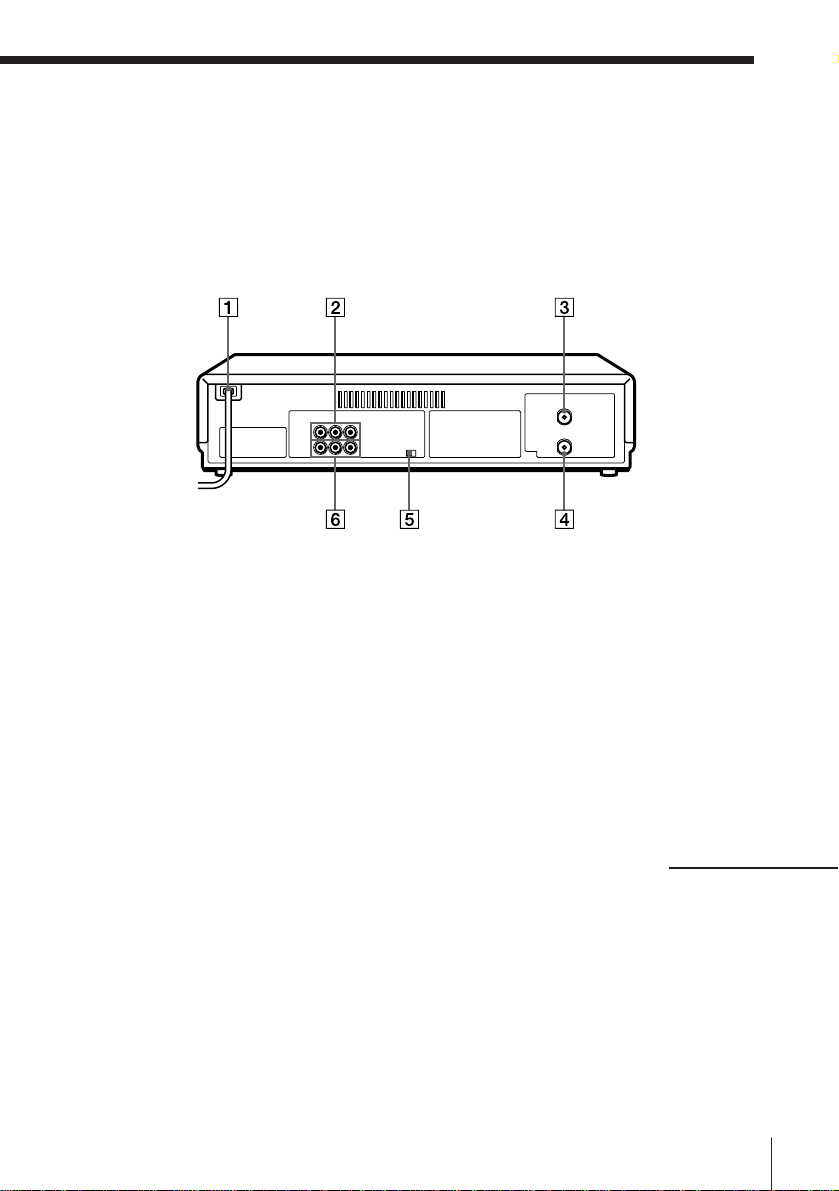

SL V-K867CH/PS

1 Mains lead (6)
2 LINE-1 IN AUDIO L/R/VIDEO

jacks (62)

3 AERIAL IN connector (6)

4 AERIAL OUT connector (6)
5 NTSC PB switch (28)
6 LINE-1 OUT AUDIO L/R/VIDEO

jacks (7)

continued

Additional Information

79

Index to parts and controls (continued)

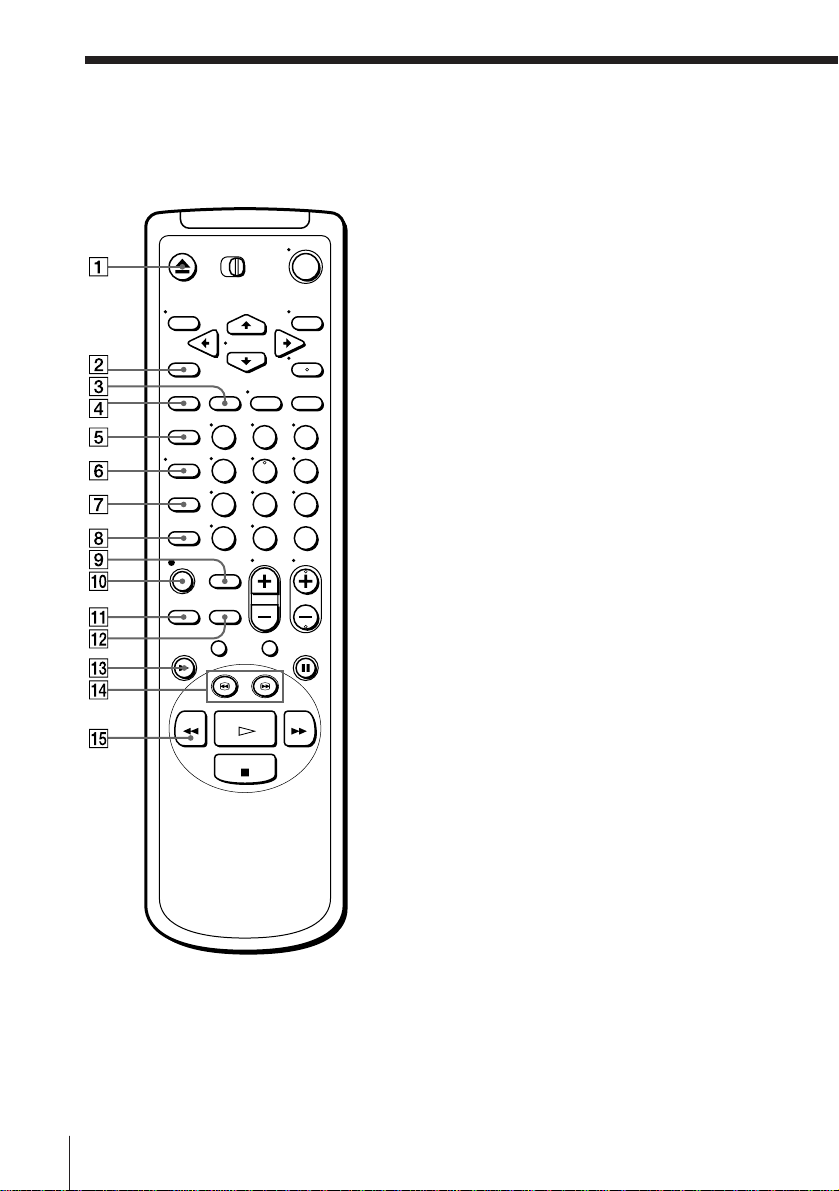

Remote commander (SLV-K877MN/PS)

1 6 EJECT button (28)
2 TIMER CLEAR button (24, 35, 43)
3 K. PROG button (49)
4 SCORE button (55)
5 EFFECT button (59)
6 DISPLAY button (32)

123
456
789

0

7 COUNTER RESET button (29)
8 INPUT SELECT button (33, 37)
9 AUDIO DUB button (64)
!º r REC button (32)
!¡ TRINITRON TV SYNCHRO PLAY

button (30)

!™ TAPE SPEED button (32)
!£ & SLOW button (40)
!¢ 3/# SEARCH buttons (40)
!∞ 0 REW button (28, 40)

80

Additional Information

!§ TV / VIDEO remote control switch

(5)

!¶ u (on/standby) switch (10)
!• Menu buttons (10)

MENU button
CURSOR >/./?// buttons
EXECUTE button

123
456
789

0

!ª AUDIO MONITOR button (44, 65)
@º TV/VIDEO button (for TV) (5)
@¡ G-CODE button (34)
@™ Programme number/? (ten’s

digit) buttons (33, 35)

@£ SET button (35)
@¢ VOL +/– buttons (for TV)
@∞ PROG +/– buttons (17, 31)
@§ =/+ SEARCH AMS/INDEX

buttons (57)

@¶ P PAUSE button (28)
@• · PLAY button (27)
@ª ) FF button (28, 40)
#º p STOP button (28)

continued

Additional Information

81

Index to parts and controls (continued)

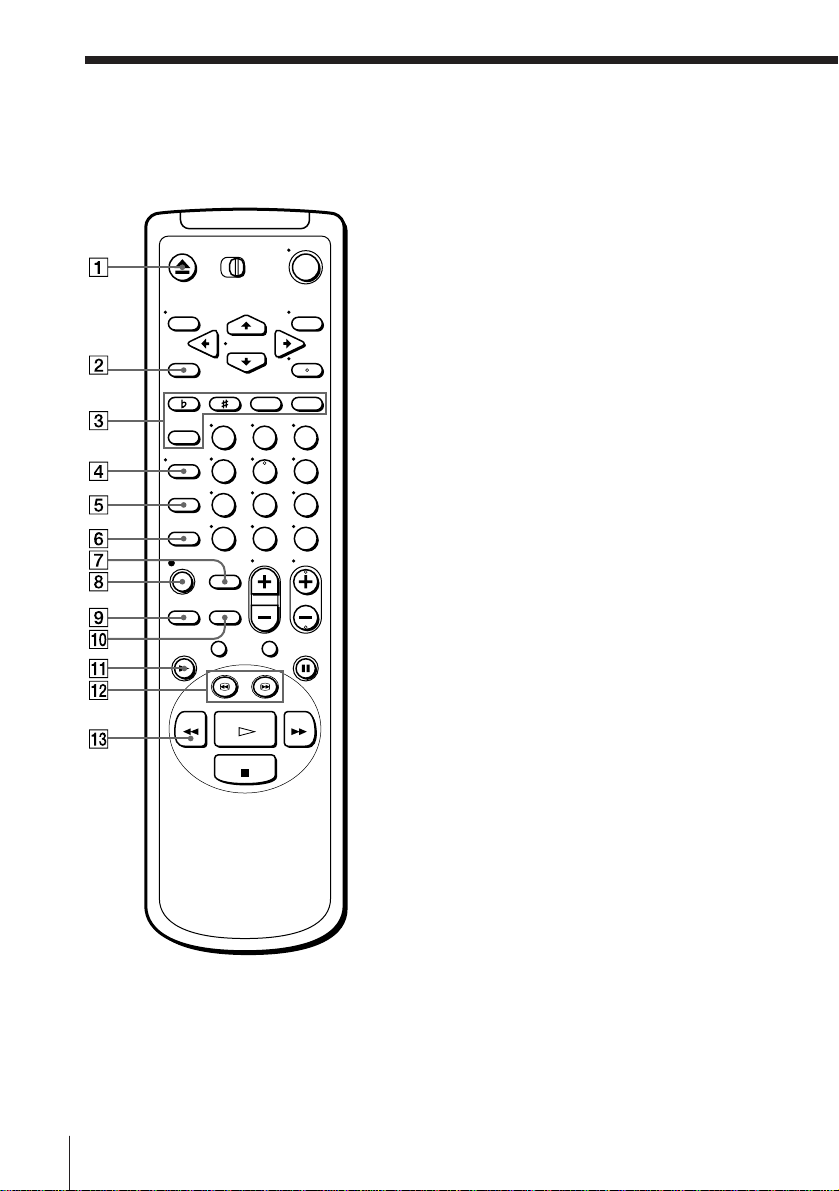

Remote commander (SLV-K867CH/PS)

1 6 EJECT button (28)
2 TIMER CLEAR button (24, 35, 43)
3 Karaoke buttons

˜/n buttons (52, 53)
SCORE button (55)
KEY/S.D. button (52, 53)
K.PROG button (49)

123
456
789

0

4 DISPLAY button (32)
5 COUNTER RESET button (29)
6 INPUT SELECT button (33, 37)
7 AUDIO DUB button (64)
8 r REC button (32)
9 TRINITRON TV SYNCHRO PLAY

button (30)

0 TAPE SPEED button (32)
!¡ & SLOW button (40)
!™ 3/# SEARCH buttons (40)
!£ 0 REW button (28, 40)

82

Additional Information

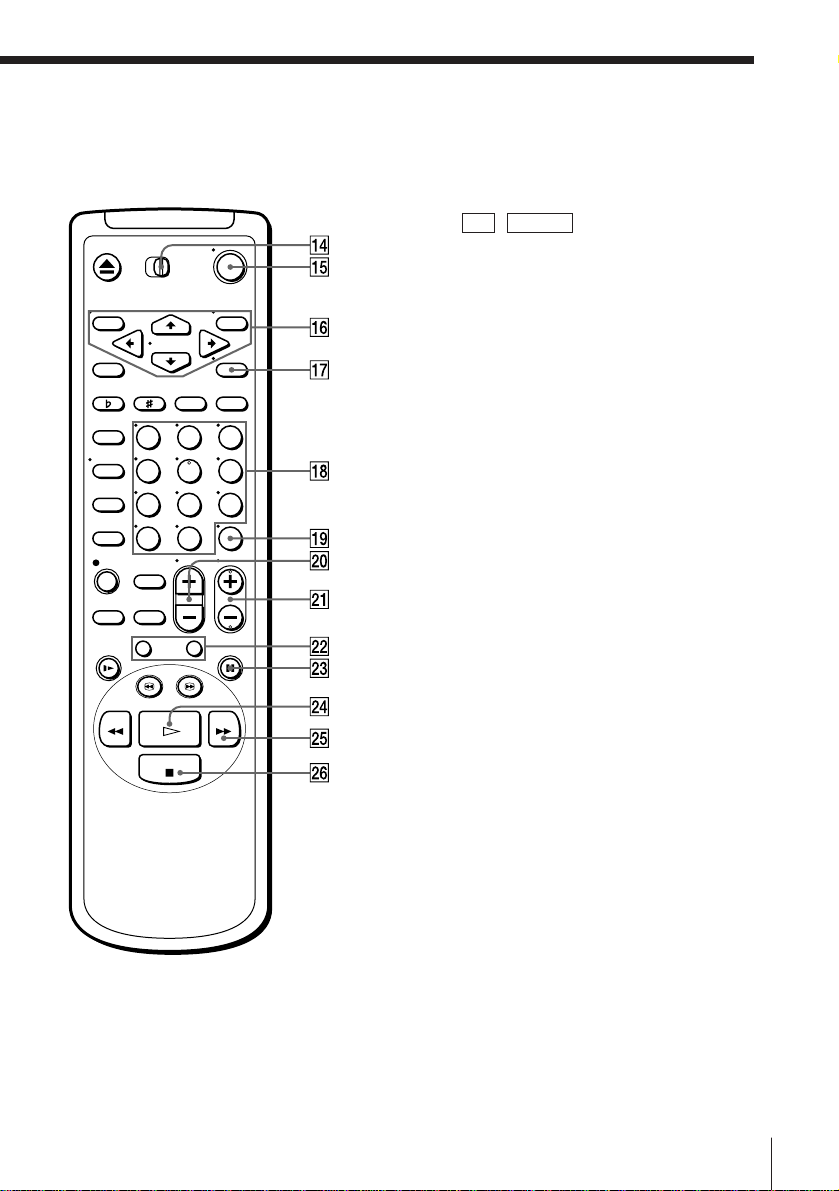

!¢ TV / VIDEO remote control switch

(5)

!∞ u (on/standby) switch (10)
!§ Menu buttons (10)

MENU button
CURSOR >/./?// buttons
EXECUTE button

123
456
789

0

!¶ AUDIO MONITOR button (44, 65)
!• Programme number/? (ten’s

digit) buttons (33, 35)

!ª TV/VIDEO button (for TV) (5)
@º VOL +/– buttons (for TV)
@¡ PROG +/– buttons (17, 31)
@™ =/+ SEARCH AMS/INDEX

buttons (57)

@£ P PAUSE button (28)
@¢ · PLAY button (27)
@∞ ) FF button (28, 40)
@§ p STOP button (28)

Additional Information

83

84

Additional Information

Additional Information

85

Index

A, B

Accessories supplied 4
Adjusting

picture 18, 40, 60

tracking 40, 60
Aerial hookup 6
AFT (Auto Fine Tuning) 18
AMS searching 57
APC (Adaptive Picture

Control) 60
Audio dubbing 64
Audio track 46
AV connection 7

C

Cancelling timer settings 43
Changing timer settings 43
Cleaning the video

heads 67
Clock setting 25
Colour system

compatible colour

systems 2

setting 28
Connecting

to a stereo system 7

to a TV with an aerial

cable 6

to a TV with audio/

video jacks 7
Counter 29

D

Disabling programme
position 18, 24

Dubbing. See Editing

E, F

EASY SET UP 10
Editing 62
EP mode 33

Sony Corporation

G

G-CODE

recording 34
setting 19

Guide channel setting
up 19

H

Hi-fi audio track 46

I, J

Index searching 57

K

Karaoke sing along 47

competing for the
loudest voice 56

grading your
singing 55

Karaoke Pon 54
Karaoke Programme 49
Key Control 51
Self Duet 52
V ocal Assist 54

L

Language selecting 13
LP mode 32

M

Monitoring

during playback 45
during recording 44

N, O

NICAM broadcasts 44
Normal audio track 46
NTSC-recorded tapes 28

P

Picture adjustment. See
Adjusting

Playback 27

at various speeds 40
slow motion 40

Presetting channels 14

Q

Quick timer 42

R

Recording 31

bilingual
programmes 44

saving 33
stereo programmes 44
using G-CODE 34
while watching another

programme 33

Remote commander 5

S

Safety tab 33
Searching

at various speeds 40
using the index/AMS

function 57

SP mode 32

T, U

Timer recording 37

cancelling timer
settings 43

changing timer
settings 43

checking timer
settings 43

daily/weekly
recording 38

overlapping timer
recordings 42

using G-CODE 34

Tracking adjustment. See
Adjusting

Trinitron TV Synchro
Play 30

V, W, X, Y

Virtual Sound 59

Z

ZWEITON broadcasts 44
