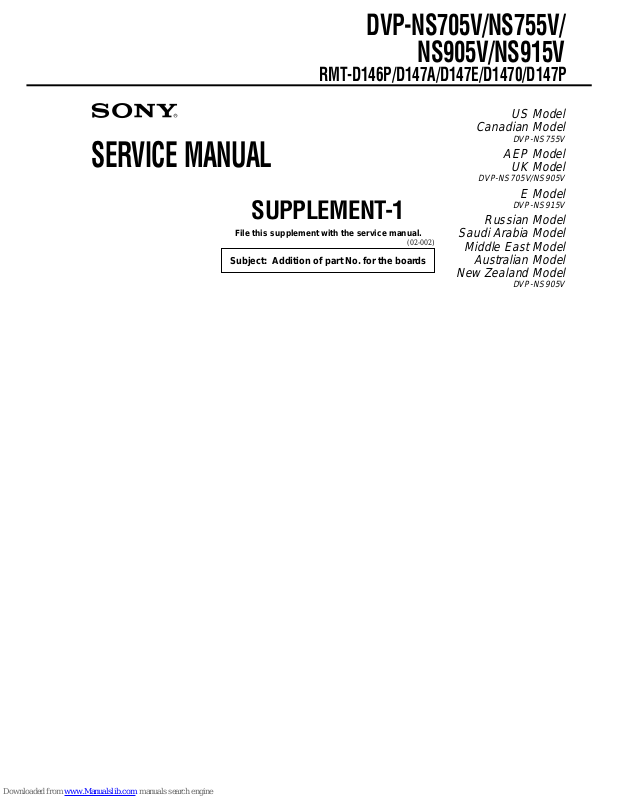

SERVICE MANUAL
SUPPLEMENT-1
File this supplement with the service manual.
Subject: Addition of part No. for the boards
(02-002)
US Model
Canadian Model
AEP Model
UK Model
DVP-NS705V/NS905V
E Model
Russian Model
Saudi Arabia Model
Middle East Model
Australian Model
New Zealand Model
DVP-NS705V/NS755V/
NS905V/NS915V
RMT-D146P/D147A/D147E/D1470/D147P
Page 2
– 2 –
52
55
51
53
64
60
54
66
65
not supplied
4
5
6
3
2
17
N
S
NS755V
15
1
not supplied
8-1. EXPLODED VIEWS
SECTION 8
REPAIR PARTS LIST
55 A-6060-879-A LE-34ST (E) BOARD, COMPLETE (NS905V)
Former Type New Type
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
not supplied
8-1-2. FRONT PANEL ASSEMBLY
(NS905V/NS915V) (Service manual page 8-2)
17 A-6060-879-A LE-34ST (E) BOARD, COMPLETE (NS705V)
Former Type New Type
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
not supplied
=
=
DVP-NS705V/NS755V/NS905V/NS915V
•Abbreviation AUS: Australian model EA : Saudi Arabia model
RUS: Russian model LA : Latin-American model
NZ : New Zealand model ME : Middle East model
8-1-1. FRONT PANEL ASSEMBLY
(NS705V/NS755V) (Service manual page 8-1)
- : Points changed portion.
Page 3
– 3 –
107 A-6060-877-A IF-94ST (E) BOARD, COMPLETE (NS705V) 107 A-6060-887-A IF-94UP (U) BOARD, COMPLETE (NS755V) 108 A-6060-875-A AV-64ST (E) BOARD, COMPLETE (NS705V) 108 A-6060-885-A AV-64UP (U) BOARD, COMPLETE (NS755V) 109 A-6060-881-A ER-19ST (E) BOARD, COMPLETE (NS705V)
109 A-6060-891-A ER-19UP (U) BOARD, COMPLETE (NS755V) 110 A-6060-873-A MB-105ST (E) BOARD, COMPLETE (NS705V) 110 A-6060-883-A MB-105UP (U) BOARD, COMPLETE (NS755V)
Former Type New T ype
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
not supplied not supplied not supplied not supplied not supplied
not supplied not supplied not supplied
102
102
101
102
NS 705V
105
105
105
105
102
108
102
110
109
not supplied
not supplied
not supplied
mechanism deck
105
not supplied
NS-705V
102
107
106
8-1-3. CHASSIS ASSEMBLY (NS705V/NS755V)
(Service manual page 8-3)
=
[
-
[
Page 4
– 4 –
156 A-6060-887-A IF-94UP (U) BOARD, COMPLETE (NS915V) 156 A-6060-909-A IF-94UNI (E) BOARD, COMPLETE (NS905V) 157 A-6060-895-A AV-64UP (LA) BOARD, COMPLETE (NS915V) 157 A-6060-907-A AV-64UNI (E) BOARD, COMPLETE
(NS905V: AEP, UK, RUS)
157 A-6060-919-A AV-64UNI (ME) BOARD, COMPLETE
(NS905V: EA, ME, AUS, NZ)
158 A-6060-891-A ER-19UP (U) BOARD, COMPLETE
(NS905V: EA, ME, AUS, NZ/NS915)
158 A-6060-913-A ER-19UNI (E) BOARD, COMPLETE
(NS905V: AEP, UK, RUS)
159 A-6060-893-A MB-105UP (LA) BOARD, COMPLETE
(NS915V: LA)
159 A-6060-901-A MB-105UP (LA) BOARD, COMPLETE
(NS915V: EXCEPT LA)
159 A-6060-905-A MB-105UNI (E) BOARD, COMPLETE
(NS905V: AEP, UK)
159 A-6060-915-A MB-105UNI (RU) BOARD, COMPLETE
(NS905V: RUS)
159 A-6060-917-A MB-105UNI (ME) BOARD, COMPLETE
(NS905V: EA, ME)
159 A-6060-921-A MB-105UNI (OC) BOARD, COMPLETE
(NS905V: AUS, NZ)
Former Type New Type
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
not supplied not supplied not supplied not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
152
152
151
152
156
AEP, UK, RU
AEP, UK, R U
155
155
155
155
152
152
152
158
159
157
160
not supplied
not supplied
not supplied
not supplied
mechanism deck
55
155
8-1-4. CHASSIS ASSEMBLY (NS905V/NS915V)
(Service manual page 8-4)
[
=
\
=
Page 5
– 5 –
8-2. ELECTRICAL PARTS LIST
AV-64ST (E) BOARD, COMPLETE
(NS705V)
AV-64UP (U) BOARD, COMPLETE
(NS755V)
AV-64UNI (E) BOARD, COMPLETE
(NS905V: AEP, UK, RUS)
AV-64UNI (ME) BOARD, COMPLETE
(NS905V: EA, ME, AUS, NZ)
AV-64UP (LA) BOARD, COMPLETE
(NS915V)
*****************************
(Ref. No.: 1, 000 Series)
ER-19 BOARD, COMPLETE (NS705V) ER-19 BOARD, COMPLETE
(NS905V: AEP, UK, RUS)
**********************
(Ref. No.: 1, 000 Series)
IF-94 BOARD, COMPLETE (NS705V) IF-94 BOARD, COMPLETE
(NS755V/NS915V)
IF-94 BOARD, COMPLETE (NS905V)
*********************
(Ref. No.: 1, 000 Series)
LE-34 BOARD, COMPLETE
*********************
(Ref. No.: 1, 000 Series)
MB-105ST (E) BOARD, COMPLETE
(NS705V)
MB-105UP (U) BOARD, COMPLETE
(NS755V)
MB-105UNI (E) BOARD, COMPLETE
(NS905V: AEP, UK)
MB-105UNI (RU) BOARD, COMPLETE
(NS905V: RUS)
MB-105UNI (ME) BOARD, COMPLETE
(NS905V: EA, ME)
MB-105UNI (OC) BOARD, COMPLETE
(NS905V: AUS, NZ)
MB-105UP (LA) BOARD, COMPLETE
(NS915V: LA)
MB-105UP (LA) BOARD, COMPLETE
(NS915V: EXCEPT LA)
*******************************
(Ref. No.: 2, 000 Series)
A-6060-875-A AV-64ST (E) BOARD, COMPLETE
(NS705V)
A-6060-885-A AV-64UP (U) BOARD, COMPLETE
(NS755V)
A-6060-907-A AV-64UNI (E) BOARD, COMPLETE
(NS905V: AEP, UK, RUS)
A-6060-919-A AV-64UNI (ME) BOARD, COMPLETE
(NS905V: EA, ME, AUS, NZ)
A-6060-895-A AV-64UP (LA) BOARD, COMPLETE
(NS915V)
*****************************
(Ref. No.: 1, 000 Series)
A-6060-881-A ER-19ST (E) BOARD, COMPLETE
(NS705V)
A-6060-891-A ER-19UP (U) BOARD, COMPLETE
(EXCEPT NS705V/NS905V: AEP, UK, RUS)
A-6060-913-A ER-19UNI (E) BOARD, COMPLETE
(NS905V: AEP, UK, RUS)
****************************
(Ref. No.: 1, 000 Series)
A-6060-877-A IF-94ST (E) BOARD, COMPLETE (NS705V) A-6060-887-A IF-94UP (U) BOARD, COMPLETE
(NS755V/NS915V)
A-6060-909-A IF-94UNI (E) BOARD, COMPLETE
(NS905V)
***************************
(Ref. No.: 1, 000 Series)
A-6060-879-A LE-34ST (E) BOARD, COMPLETE
(NS705V/NS905V)
***************************
(Ref. No.: 1, 000 Series)
A-6060-873-A MB-105ST (E) BOARD, COMPLETE
(NS705V)
A-6060-883-A MB-105UP (U) BOARD, COMPLETE
(NS755V)
A-6060-905-A MB-105UNI (E) BOARD, COMPLETE
(NS905V: AEP, UK)
A-6060-915-A MB-105UNI (RU) BOARD, COMPLETE
(NS905V: RUS)
A-6060-917-A MB-105UNI (ME) BOARD, COMPLETE
(NS905V: EA, ME)
A-6060-921-A MB-105UNI (OC) BOARD, COMPLETE
(NS905V: AUS, NZ)
A-6060-893-A MB-105UP (LA) BOARD, COMPLETE
(NS915V: LA)
A-6060-901-A MB-105UP (LA) BOARD, COMPLETE
(NS915V: EXCEPT LA)
*******************************
(Ref. No.: 2, 000 Series)
Page Former Type New Type
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
8-6
8-10
8-11
•Abbreviation AUS: Australian model EA : Saudi Arabia model
RUS: Russian model LA : Latin-American model
NZ : New Zealand model ME : Middle East model
8-13
Page 6
– 6 –
Sony Corporation
Home Video Company
9-929-729-81
2002J0500-1
© 2002. 10
Published by Quality Assurance Dept.
DVP-NS705V/NS755V/NS905V/NS915V
