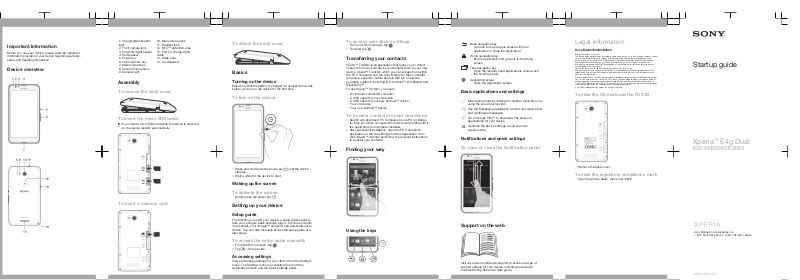

Sony PM0855, PM0851 Startup Guide
Important Information
Before you use your device, please read the
Important
Information
provided in your device regarding warranty,
safety and handling information.
Device overview
21 34
5
6
7
8 9 10
11
12
13
14
15
1. Charging/Notification
light
2. Front camera lens
3. Proximity/Light sensor
4. Ear Speaker
5. Power key
6. Volume/Zoom key
7. Main microphone
8. Second microphone
9. Camera light
10. Main camera lens
11. Headset jack
12. NFC™ detection area
13. Port for charger/USB
cable
14. Strap hole
15. Loudspeaker
Assembly
To remove the back cover
To insert the micro SIM cards
If you insert a micro SIM card while the device is powered
on, the device restarts automatically.
SIM 1
OFF
SIM 2
To insert a memory card
SIM 1
OFF
SIM 2
To attach the back cover
Basics
Turning on the device
Make sure that the battery is charged for at least 30 minutes
before you turn on the device for the first time.
To turn on the device
1
Press and hold down the power key until the device
vibrates.
2
Wait a while for the device to start.
Waking up the screen
To activate the screen
•
Briefly press the power key
.
Setting up your device
Setup guide
The first time you start your device, a setup guide opens to
help you configure basic settings, sign in to some accounts
(for example, your Google™ account), and personalise your
device. You can also manually access the setup guide at a
later stage.
To access the setup guide manually
1
From the Home screen, tap
.
2
Tap > Setup guide.
Accessing settings
View and change settings for your device from the Settings
menu. The Settings menu is accessible from both the
Application screen and the Quick settings panel.
To access your device settings
1
From your Home screen, tap .
2
Find and tap .
Transferring your contacts
Xperia™ Transfer is an application that helps you to collect
contacts from your old device and transfer them to your new
device. Xperia™ Transfer, which you can access from within
the PC Companion and the Sony Bridge for Mac computer
programs, supports mobile devices that run on several
operating systems, including iOS, Android™, Windows® and
BlackBerry™.
To use Xperia™ Transfer, you need:
•
An Internet-connected computer.
•
A USB cable for your old device.
•
A USB cable for your new Android™ device.
•
Your old device.
•
Your new Android™ device.
To transfer contacts to your new device
1
Search and download PC Companion (on a PC) or Bridge
for Mac (on a Mac computer) from
www.sonymobile.com
if
the application is not already installed.
2
After successful installation, open the PC Companion
application or the Sony Bridge for Mac application, then
click
Xperia™ Transfer
and follow the relevant instructions
to transfer your contacts.
Finding your way
Using the keys
Back navigation key
•
Go back to the previous screen within an
application or close the application.
Home navigation key
•
Exit an application and go back to the Home
screen.
Task navigation key
•
Open the recently used applications window and
the small apps bar.
Application screen
•
Open the Application screen.
Basic applications and settings
Make phone calls by dialling the number manually or by
using the smart dial function.
Use the Messaging application to send and receive text
and multimedia messages.
Go to Google Play™ to download free and paid
applications for your device.
Optimise the device settings to suit your own
requirements.
Notifications and quick settings
To open or close the Notification panel
Support on the web
Visit
www.sonymobile.com/support
to access a range of
support options for your device, including downloads,
troubleshooting tips and a User guide.
Legal information
Sony E2033/E2043/E2063
Publication number: xxxx-xxxx.1
This Startup guide is published by Sony Mobile Communications Inc. or its local affiliated company, without
any warranty. Improvements and changes to this Startup guide necessitated by typographical errors,
inaccuracies of current information, or improvements to programs and/or equipment, may be made by
Sony Mobile Communications Inc. at any time and without notice. Such changes will, however, be
incorporated into new editions of this Startup guide. All illustrations are for illustration only and may not
accurately depict the actual device.
Remove the back cover to see regulatory information such as the CE mark.
All product and company names mentioned herein are the trademarks or registered trademarks of their
respective owners. Any rights not expressly granted herein are reserved. Visit
www.sonymobile.com/us/
legal/
for more information.
Product compliance: This product has been manufactured by or on behalf of Sony Mobile Communications
Inc., 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan. Inquiries related to product compliance based on
national legislation shall be addressed to Sony Mobile Quality Office, Sony Mobile Communications Inc.,
1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan. For any service or guarantee matters, please refer to the
contact details provided in the separate service or guarantee documents.
© 2014 Sony Mobile Communications Inc. All rights reserved.
To view the CE mark and the FCC ID
SIM 1
OFF
SIM 2
•
Remove the back cover.
To view the regulatory compliance mark
•
Open the phone dialer, then enter *#07#.
Startup guide
Xperia™ E4g Dual
E2033/E2043/E2063
Sony Mobile Communications Inc.
1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan
xxxx-xxxx.1
