Sony PCV-R558DS, PCV-R556DS, PCV-R553DS User Manual

Download

™

™™

VVVVAIO Digital Studio

AIO Digital Studio

AIO Digital StudioAIO Digital Studio

Computer User Guide

Computer User GuideComputer User Guide

PCV-R553DS/PCV-R556DS/PCV-R558DS

PCV-R553DS/PCV-R556DS/PCV-R558DSPCV-R553DS/PCV-R556DS/PCV-R558DS

VAIO Digital Studio™ Computer User Guide

NOTICE

NOTICENOTICE

© 2000 Sony Electronics Inc. Reproduction in whole or in part without written permission is prohibited. All rights reserved. This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written approval.

SONY ELECTRONICS INC. PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR SUCH OTHER INFORMATION. IN NO EVENT SHALL SONY ELECTRONICS INC. BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF.

Sony Electronics Inc. reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.

This product contains software owned by Sony and licensed by third parties. Use of such software is subject to the terms and conditions of license agreements enclosed with this product. Some of the software may not be transported or used outside the United States. Software specifications are subject to change without notice and may not necessarily be identical to current retail versions.

Updates and additions to software may require an additional charge. Subscriptions to online service providers may require a fee and credit card information. Financial services may require prior arrangements with participating financial institutions.

Sony, VAIO, the VAIO logo, VAIO Smart, VAIO Digital Studio, Media Park, DVgate, Media Bar, Handycam, Mavica, PictureGear and i.LINK are trademarks of Sony. Intel, Pentium, and Celeron are trademarks of Intel Corporation. Microsoft, Windows, and the Windows 98 logo are registered trademarks of Microsoft Corporation.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

All other trademarks are trademarks or registered trademarks of their respective owners.

Owner’s Record

Owner’s RecordOwner’s Record

The model number and serial number are located on the back of your Sony VAIO Digital Studio™ computer. Record the serial number in the space provided here. Refer to the model and serial numbers when you call your Sony Service Center.

Model Number:

R558DS

Serial Number:______________________

PCV-R553DS/PCV-R556DS/PCV-

2222

Safety Information and Caution

Safety Information and CautionSafety Information and Caution

DVD Laser diode properties

DVD Laser diode propertiesDVD Laser diode properties

Laser output

Laser outputLaser output

Wave Length

Wave LengthWave Length

CDRW Laser diode properties

CDRW Laser diode propertiesCDRW Laser diode properties

Laser output

Laser outputLaser output

Wave Length

Wave LengthWave Length

To prevent fire or shock hazard,

❑

40mW(DVD)

0.14mW (CD)

650nm (DVD)

780nm (CD)

1.0mW(Read)

35mW (Write)

777–787nm

do not expose your desktop to rain or moisture.To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Never install modem or telephone

❑

wiring during a lightning storm. Never install telephone jacks in

❑

wet locations unless the jack is specifically designed for wet locations.

Never touch uninsulated

❑

telephone wire or terminals unless the telephone line has been disconnected at the network interface.

Use caution when installing or

❑

modifying telephone lines. Avoid using the modem during an

❑

electrical storm.

Do not use the modem or a

❑

telephone to report a gas leak in the vicinity of the leak.

The socket outlet shall be

❑

installed near the equipment and shall be easily accessible.

! To change the backup battery,

please contact your nearest Sony Service Center.

! Caution - The use of optical

instruments with this product will increase eye hazard. As the laser beam used in this product is harmful to the eyes, do not attempt to disassemble the drive cabinet. Refer servicing to qualified personnel only.

! Danger - Visible and invisible

laser radiation when open. Avoid direct exposure to beam.

! For CD-RW: Danger - Invisible

laser radiation when open. Avoid direct exposure to beam.

! Caution: For ADSL modem

models, to reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.

! Pour changer la pile de rechange,

veuillez contacter votre centre de service Sony le plus près.

3333

VAIO Digital Studio™ Computer User Guide

! Avertissement - L'utilisation

d'instruments optiques avec ce produit augmente les risques pour les yeux. Puisque le faisceau laser utilisé dans ce produit est dommageable pour les yeux, ne tentez pas de désassembler le boîtier. Adressez-vous à un agent de service qualifié.

! Danger : Radiation laser visible et

invisible si ouvert. Évitez l’exposition directe au faisceau.

! Pour les CD-RW : Danger :

Radiation laser visible et invisible si ouvert. Évitez l'exposition directe au faisceau.

! Attention : Pour ADSL modele

modem, afin de réduire les risques d'incendie, n'utilisez qu'un cordon de communication N0. 26 AWG ou plus gros.

❑

Soyez très prudent lorsque vous installez ou modifiez les lignes téléphoniques.

❑

Évitez d’utiliser le modem durant un orage électrique.

❑

N'utilisez pas le modem ni le téléphone pour prévenir d'une fuite de gaz vous êtes près de la fuite.

❑

L’appareil doit être le plus près possible d’une prise murale pour en faciliter l’accès.

For questions regarding your product or for the Sony Service Center nearest you, call 1-888476-6972 in the United States or 1-800-9617669 in Canada.

Sony Customer Support can be reached at www.sony.com.pcsupport

❑

Pour prévenir tout risque d’incendie ou d’électrocution, garder cet appareil à l’abri de la pluie et de l’humidité.

❑

Pour prévenir tout risque d’électrocution, ne pas ouvrir le châssis de cet appareil et ne confier son entretien qu’à une personne qualifiée.

❑

Ne jamais effectuer l’installation de fil modem ou téléphone durant un orage électrique.

❑

Ne jamais effectuer l’installation d’une prise téléphonique dans un endroit mouillé à moins que la prise soit conçue à cet effet.

❑

Ne jamais toucher un fil téléphonique à découvert ou un terminal à moins que la ligne téléphonique n’ait été débranché de l’interface réseau.

4444

RRRRegulatory Informatio

egulatory Informationnnn

egulatory Informatioegulatory Informatio

Declaration of Conformity

Declaration of ConformityDeclaration of Conformity

Trade Name: SONY

Model No.: PCV-R553DS/

Responsible Party:

Address: 1 Sony Drive

Telephone: 201-930-6972

This phone number is for FCC-related matters only.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and

PCV-R556DS/ PCV-R558DS/

Sony Electronics Inc.

Park Ridge, NJ 07656

on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving

❑

antenna. Increase the separation between

❑

the equipment and the receiver. Connect the equipment into an

❑

outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an

❑

experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Only peripherals (computer input/output devices, terminals, printers, etc.) that comply with FCC Class B limits may be attached to this computer product. Operation with noncompliant peripherals is likely to result in interference to radio and television reception.

All cables used to connect peripherals must be shielded and grounded. Operation with cables, connected to peripherals, that are not shielded and grounded, may result in interference to radio and television reception.

FCC Part 68

FCC Part 68FCC Part 68

This equipment complies with Part 68 of the FCC rules. The FCC Ringer Equivalence Number (REN) for this equipment is 0.7. If requested, this information must be provided to the telephone company.

This modem uses the USOC RJ-11 telephone jack.

5555

VAIO Digital Studio™ Computer User Guide

The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total RENs, contact the telephone company to determine the maximum REN for the calling area.

If the terminal equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operations of the equipment. If this happens, the telephone company will provide advance notice in order for you to make the necessary modifications in order to maintain uninterrupted service.

If trouble is experienced with this modem, for repair or warranty information, please contact 1-888-4SONY-PC, or write to the Sony Customer Information Center, 12451 Gateway Blvd., Fort Myers, FL 33913. If the trouble is causing harm to the telephone network, the telephone company may request that you remove the equipment from the network until the problem is resolved.

Repair of this equipment should be made only by a Sony Service Center or Sony authorized agent. For the Sony Service Center nearest you, call 1-888-4SONYPC (1-888-476-6972).

This equipment cannot be used on public coin service provided by the telephone company. Connection to Party Line Service is subject to state and possible provincial tariffs. (Contact

the state or provincial utility service commission, public service commission, or corporation commission for information.)

Telephone Consumer

Telephone Consumer Telephone Consumer Protection Act of 1991

Protection Act of 1991

Protection Act of 1991Protection Act of 1991 (United States)

(United States)

(United States)(United States)

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone facsimile machine unless such message clearly contains, in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business, other entity, or individual sending the message, and the telephone number of the sending machine or such business, other entity, or individual.

In order to program this information into your facsimile machine, see your fax software documentation.

Telephone Consumer

Telephone Consumer Telephone Consumer Guidelines (Canada)

Guidelines (Canada)

Guidelines (Canada)Guidelines (Canada)

Please refer to your telephone directory under ‘Privacy Issues’ and/or ‘Terms of Service.’ For more detailed information, please contact:

CRTC Terrasses de la Chaudiére, Tour centrale 1 promenade du Portage, 5 étage Hull PQ K1A 0N2.

This Class B digital apparatus complies with Canadian ICES-003.

Cet àppareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

6666

DISPOSAL OF LITHIUM ION

DISPOSAL OF LITHIUM ION DISPOSAL OF LITHIUM ION BATTERY

BATTERY

BATTERYBATTERY

You can return your unwanted lithium ion batteries to your nearest Sony Service Center or Factory Service Center.

In some areas the disposal of lithium

✍

ion batteries in household or business trash may be prohibited.

For the Sony Service Center nearest you, call 1888-476-6972 in the United States or 1-800961-7669 in Canada.

! Do not handle damaged or leaking

lithium ion batteries.

! Ne pas manipuler les batteries au

lithium-ion qui fuient ou sont endommagées.

! Danger of explosion if battery is

incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

! Une batterie non conforme

présente un danger d'explosion. La remplacer seulement par une batterie identique ou de type équivalent recommandé par le fabricant. Évacuer les batteries usées selon les directives du fabricant.

! The battery pack used in this

device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 212°F (100°C) or incinerate. Dispose of used battery promptly. Keep away from children.

! La manutention incorrecte du

module de batterie de cet appareil présente un risque d'incendie ou de brûlures chimiques. Ne pas démonter, incinérer ou exposer à une température de plus de 100°C. Évacuer promptement la batterie usée. Garder hors de portée des enfants.

INDUSTRY CANADA

INDUSTRY CANADA INDUSTRY CANADA NOTICE

NOTICE

NOTICENOTICE

NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the userís satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection.

The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be coordinated by a representative designated by

7777

VAIO Digital Studio™ Computer User Guide

the supplier. Equipment malfunctions or any repairs or alterations made by the user to this equipment may give the telecommunications company cause to request that the user disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

CAUTION: Users should not attempt to make such connections themselves, but should contact the appropriate electrical inspection authority, or electrician, as appropriate.

NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5. The Ringer Equivalence Number for this equipment is 0.7.

AVIS DE L’INDUSTRIE

AVIS DE L’INDUSTRIE AVIS DE L’INDUSTRIE CANADA

CANADA

CANADACANADA

AVIS: L’étiquette d’Industrie Canada identifie le matériel homologué.

Cette étiquette certifie que le matériel est conforme aux normes de protection, d’exploitation et de sécurité des réseaux de télécommunications, comme le prescrivent les documents concernant les exigences techniques relatives au matériel terminal. Le Ministère n’assure toutefois pas que le matériel fonctionnera à la satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est permis de le raccorder aux installations de l’entreprise locale de télécommunication. Le matériel doit également

être installé en suivant une méthode acceptée de raccordement. L’abonné ne doit pas oublier qu’il est possible que la conformité aux conditions énoncées ci-dessus n’empêche pas la dégradation du service dans certaines situations.

Les réparations de matériel homologué doivent être coordonnées par un représentant désigné par le fournisseur. L’entreprise de télécommunications peut demander à l’utilisateur de débrancher un appareil à la suite de réparations ou de modifications effectuées par l’utilisateur ou à cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous les fils de mise à la terre de la source d’énergie électrique, des lignes téléphoniques et des canalisations d’eau métalliques, s’il y en a, sont raccordés ensemble. Cette précaution est particulièrement importante dans les régions rurales.

Avertissement: L’utilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit avoir recours à un service d’inspection des installations électriques, ou à un électricien, selon le cas.

AVIS: L’indice d’équivalence de la sonnerie (IES) assigné à chaque dispositif terminal indique le nombre maximal de terminaux qui peuvent être raccordés à une interface.

La terminaison d’une interface téléphonique peut consister en une combination de quelques dispositifs, à la seule condition que la somme d’indices d’équivalence de la sonnerie de tous les dispositifs n’excède pas 5. L’indice d’équivalence de la sonnerie de ce matériel est de 0.7.

8888

Contents

Welcome

Welcome ....................................................

Welcome Welcome

Choosing an Ergonomic Location ............................11

Front Panel Overview ...............................................12

Back Panel Overview ...............................................14

VAIO Action Setup

VAIO Action Setup .....................................

VAIO Action Setup VAIO Action Setup

Pre-setting i.LINK devices .......................................18

Changing the Window Design of Sony Software ....19

Sony Digital Media Park Applications

Sony Digital Media Park Applications .........

Sony Digital Media Park Applications Sony Digital Media Park Applications

Movie Shaker ...........................................................21

Importing Images and Sound Clips ..................................21

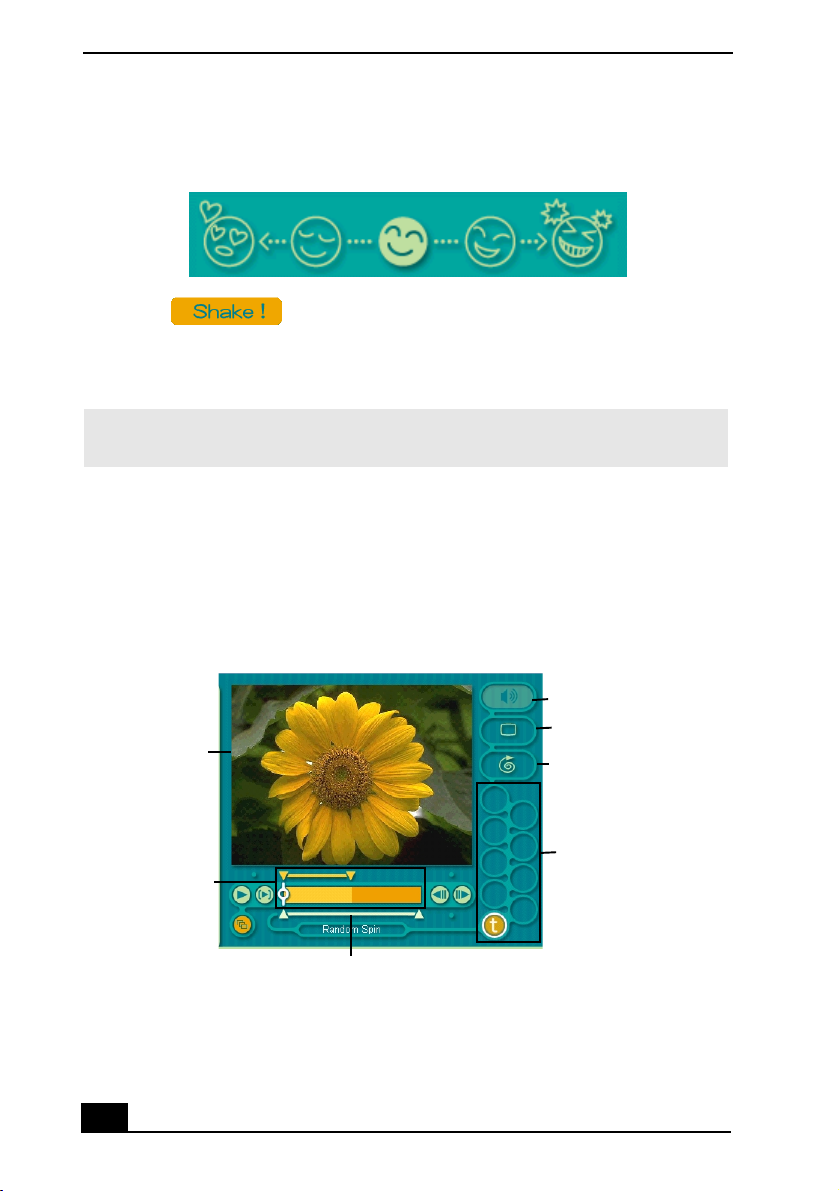

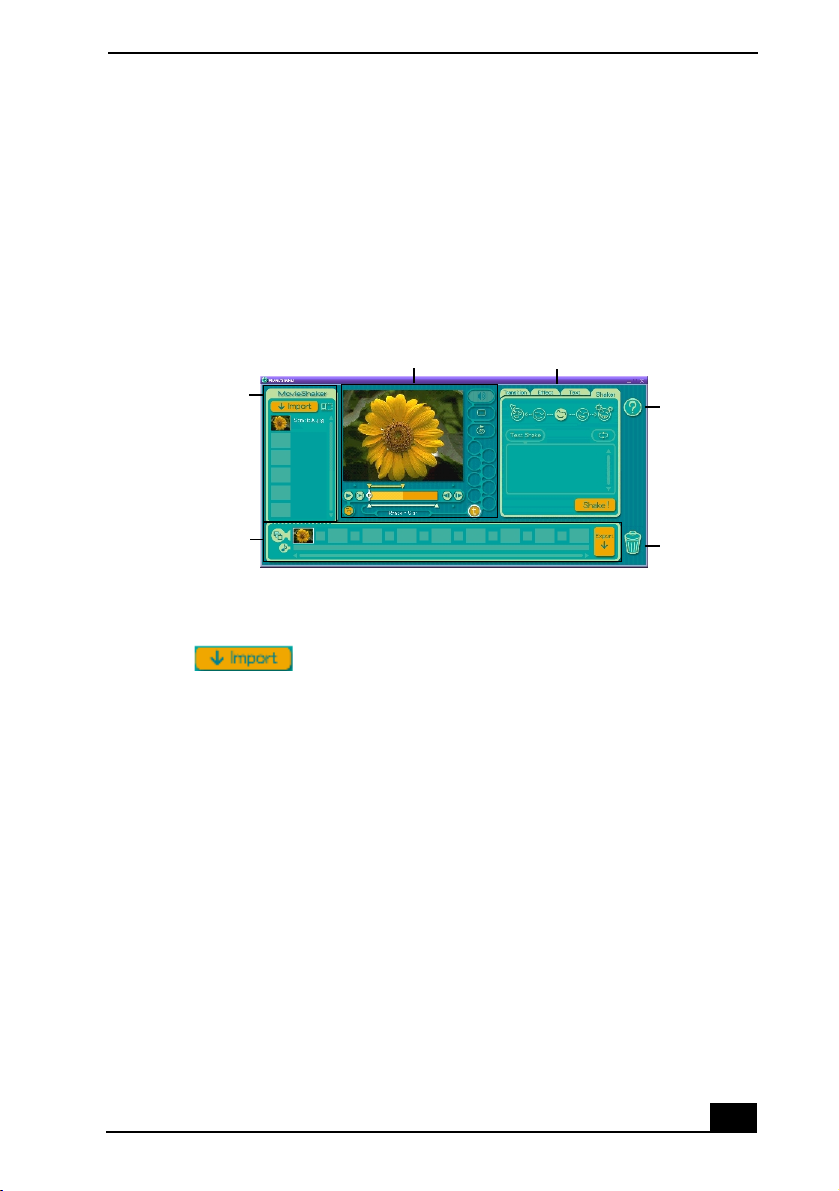

Create a Movie using Shaker ............................................21

Editing Clips and Scenes ..................................................22

Saving a Movie .................................................................23

PictureGear™ ...........................................................24

Managing Your Pictures ...................................................24

Creating a Photo Album ...................................................24

Using Panorama Maker ....................................................24

Making Still Images and Panoramic from MPEG ............25

Using Digital Video .................................................26

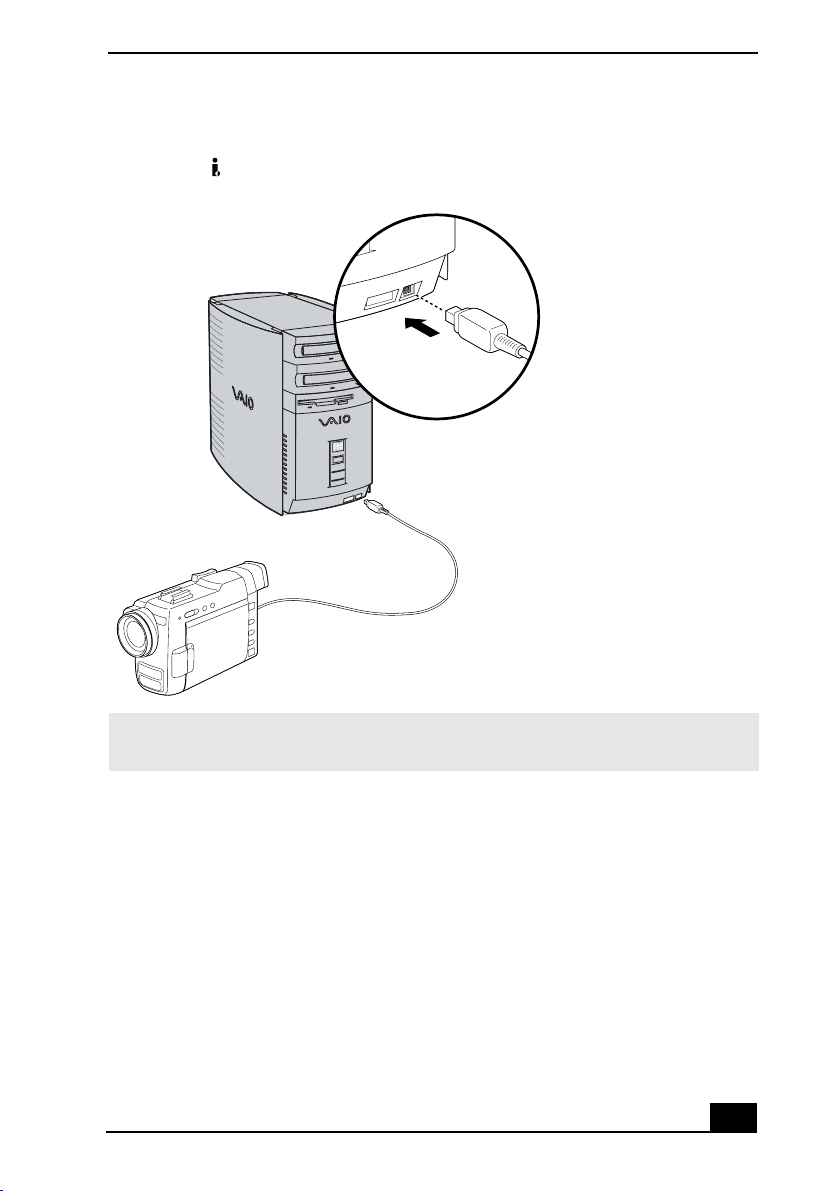

Connecting a Digital Video Recorder ...............................26

Using DVgate ...................................................................26

Hard Drive Partition .................................................27

....................................................11

........................................................................................................

.....................................17

..........................................................................

.........20

..................

1111

1717

2020

9999

VAIO Digital Studio™ Computer User Guide

Defragmenting your Hard Disk Drive .....................27

i.LINK (IEEE1394) Compatibility .......................... 28

Enabling Smart Connect .......................................... 29

Enabling Ethernet ....................................................30

System and Application Recovery CD(s)

System and Application Recovery CD(s) ....

System and Application Recovery CD(s)System and Application Recovery CD(s)

Using the System Recovery CD(s) .......................... 31

Using the Application Recovery CD(s) ................... 33

Troubleshooting

Troubleshooting .........................................

Troubleshooting Troubleshooting

To Reach Sony ................................................................. 45

Notes on Use ............................................................ 45

On the Power Source ........................................................ 45

On Disposal of the Lithium Battery ................................. 47

On Handling ..................................................................... 47

On Installation .................................................................. 47

On Moisture Condensation .............................................. 48

On Upgrading the System ................................................ 48

On Handling a CRT Display ............................................ 49

On Using the Hard Disk Drive ......................................... 49

On Handling Diskettes ..................................................... 50

On Handling CD or DVD Media ..................................... 50

On Cleaning CD or DVD Media ...................................... 50

Resources ................................................................. 51

For Answers to Your Software Questions ...............52

Sony Service Center ......................................................... 52

Specifications PCV-R553DS ................................... 55

Specifications PCV-R556DS/R558DS ....................57

.........................................34

..................................................................................

....31

........

3131

3434

Index

Index ..........................................................

Index Index

1010

..........................................................59

....................................................................................................................

5959

Choosing an Ergonomic Location

Welcome

Thank you for purchasing your Sony VAIO computer! Your new computer is a superb blend of high technology and easy-to-use functionality. This contains information about the applications included with your system, contact information for software vendors, and the specifications for your computer.

Choosing an Ergonomic Location

Choosing an Ergonomic LocationChoosing an Ergonomic Location

Before you get started, find the best location for your new computer. Here are some things to consider when planning your workspace:

Stable work surface

Stable work surface —

❑

Stable work surfaceStable work surface the computer and other equipment.

Ventilation

Ventilation —

❑

VentilationVentilation of your computer to enable proper ventilation.

Placement of the keyboard, mouse, and other input devices

Placement of the keyboard, mouse, and other input devices —

❑

Placement of the keyboard, mouse, and other input devicesPlacement of the keyboard, mouse, and other input devices your keyboard, mouse, and other input devices so that your arms and hands are in a relaxed, comfortable position. The keyboard should be directly in front of you. Adjust the level of the keyboard so that your lower arms are parallel to the floor. Keep your wrists in a relaxed position when you are using the keyboard—not angled up or down. Use the palmrest only briefly, for resting. While typing, never use the palmrest or rest your hands on the table. Position the mouse at the same level as the keyboard. Hold the mouse with a relaxed hand, and use your whole arm to move it. Take breaks during sessions with your computer. Excessive use of the mouse or a joystick may strain muscles or tendons.

Furniture and posture

Furniture and posture —

❑

Furniture and postureFurniture and posture armrests. Adjust the level of the chair so your feet are flat on the floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture— avoid slouching forward or leaning far backward.

Viewing angle of the display

Viewing angle of the display —

❑

Viewing angle of the displayViewing angle of the display directly in front of you, with the top of the screen at or a little below eye level. Use the display’s tilting feature to find the best position. You can reduce eye strain and muscle fatigue by placing the display in the proper position.

— Leave at least eight inches of space on the left and back sides

— —

— Use a stable work surface large enough to support

— —

— Sit in a chair with good back support and

— —

— Position the display 18 to 26 inches

— —

User Guide

— Place

— —

1111

VAIO Digital Studio™ Computer User Guide

Lighting

Lighting —

❑

LightingLighting

— Choose a location where windows and lights do not create glare

— — and reflection on the display. Use indirect lighting to avoid bright spots on the display. You can also purchase accessories for your display that help reduce glare. Proper lighting adds to your comfort and work effectiveness.

Front Panel Overview

Front Panel OverviewFront Panel Overview

The front panel of your VAIO Digital Studio Computer allows for access to the diskette, DVD, and CD-RW drives. It also includes USB and i.LINK ports to connect USB devices, digital equipment, or other components.

Digital Studio front panel

Digital Studio front panelDigital Studio front panel

Emergency Eject Hole

DVD-ROM Drive

Optical Drive

CD-RW Drive

Diskette Drive Diskette Drive

Access Indicator Light

Diskette

Eject Button

Optical Drive Indicator Light

1212

Power/Standby Switch

Power/Standby Indicator Light

Hard Disk Drive Access Indicator Light

i.LINK

USB

1 HD (drive) access indicator light

Lights in amber while reading/writing data from/to the hard disk.

2 Power switch and indicator light

Turns on/off the computer. The indicator light is green while the power is on and amber when the computer is in standby mode.

3 Floppy disk drive

Reads/writes data from/to a 3.5-inch floppy disk.

4 FD (Floppy disk drive) access indicator light

Lights in green while reading/writing data from/to a floppy disk.

5 Floppy disk eject button

Ejects the floppy disk.

6 DVD eject button

Ejects a DVD or CD.

7DVD drive

Reads data from a DVD or CD.

6 CD-RW eject button

Ejects a CD.

7 CD-RW drive

Reads data from a CD.

8 Emergency eject hole

If the DVD or CD does not come out when you press the eject button, insert a thin, pointed object into this hole to eject the disc manually.

Front Panel Overview

For your convenience, your computer includes USB and i.LINK connectors on both the

✍

front and back panels, allowing you to connect to either set of connectors. The i.LINK connector on the front of your system is a 4-pin connector.

1313

VAIO Digital Studio™ Computer User Guide

Back Panel Overview

Back Panel OverviewBack Panel Overview

The back panel of your computer contains the connectors where you plug in supplied and optional accessories. The icons on the back panel serve as a map to help you locate the connectors on your computer.

PCV-R553DS back panel

PCV-R553DS back panelPCV-R553DS back panel

PS/2 Mouse

Keyboard

USB

Printer/Parallel

Headphones

i.LINK (IEEE1394)

1414

Serial

Monitor

Games/MIDI

LINE IN

Microphone

Ethernet

Power

Line Telephone

PCV-R556DS/PCV-R558DS back panel

PCV-R556DS/PCV-R558DS back panelPCV-R556DS/PCV-R558DS back panel

PS/2 Mouse

Keyboard

USB

Back Panel Overview

Ethernet

Serial

Printer/Parallel

i.LINK (IEEE1394)

Games/MIDI

Headphones

LINE IN

Microphone

Monitor

Power

Line Telephone

1 TELEPHONE jack

Connects the phone to the computer.

2 LINE jack

Connects a phone cable to the wall jack.

3 i.LINK 6-pin connector (IEEE1394)

Connects a digital device such as a Sony Digital Handycam

Camcorder.

4 EMPTY PCI SLOTS (One filled with ADSL Modem card on custom models)

For a PCI Add-On Card (not supplied).

5 MIC (Microphone) connector*

Connects a microphone (not supplied).

1515

VAIO Digital Studio™ Computer User Guide

6 LINE IN connector

Connects an audio device.

7 PHONES (Headphones) connector*

Connects headphones (not supplied).

8 Games/MIDI connector

Connects a game or MIDI device.

9 MONITOR connector

Connects a standard CRT display.

10 PRINTER connector

Connects a parallel device, such as a printer or scanner.

11 SERIAL connector

Connects a serial device, such as a digital still camera.

12 USB (Universal Serial Bus) connector (one for R553, two for R556/R558)

Connects a USB device.

13 ETHERNET connector

10Base-T/100Base-TX Fast Ethernet interface.

! The connector marked with (Network) is for LAN connections.

14 KEYBOARD connector

Connects a keyboard.

15 PS/2 mouse connector

Connects a PS/2 mouse.

16 AC INPUT connector

Connects the supplied power cord.

1616

VAIO Action Setup

VAIO Action Setup manages the settings for your computer’s Shortcut keys (S Keys) and i.LINK interface. The programmable S Keys come with the following applications as their default settings:

S1 —

— Outlook Express

❑

S1S1

— —

S2 —

— Internet Explorer

❑

S2S2

— —

S3 —

— Media Bar

❑

S3S3

— —

S4 —

— Picture Gear

❑

S4S4

— —

S5 —

— DVGate Motion

❑

S5S5

— —

S6 —

— Help/Demo

❑

S6S6

— —

All six buttons are reprogrammable.

To change the settings of the S Keys:

1111 From the Start menu, select Programs > VAIO Action Setup > VAIO Action

Setup.

You can also double-click on the Windows taskbar to open VAIO Action Setup.

✍

2222 Click the S Key you want to change.

3333 From the Select Application dialog box, click the radio button for the desired

type of function. The corresponding applications appear in the list box on the right.

You may also use the drag and drop feature to place any application into the list box.

✍

4444 The Confirmation Application Name window appears showing you the

application you have selected. Click Next.

5555 You may now type a new name and description, if desired. Then click Finish.

1717

VAIO Digital Studio™ Computer User Guide

Pre-setting i.LINK devices

Pre-setting i.LINK devicesPre-setting i.LINK devices

You can pre-set your i.LINK-equipped devices to launch desired functions, such as automatically starting DVgate applications or connecting two VAIO computers.

To pre-set your i.LINK device to launch a desired function:

1111 From the Start menu, select Programs > VAIO Action Setup > VAIO Action

Setup.

2222 Click i.LINK.

3333 Click the Advanced Setting tab.

4444 Click the Enable i.LINK launcher function checkbox and click Apply.

5555 Connect the device to your computer with your i.LINK cable.

6666 Turn on the device.

The VAIO Action Setup dialog box appears.

7777 Click OK.

8888 To modify the device name, click the current device name in the list box and

click Modify device name.

9999 Type the desired name and click Apply.

10 To assign an application, click Modify.

1010

The Select Application dialog box appears.

11 Select the desired application and click Next.

1111

12 Click Next to confirm the application name.

1212

The Input Application Name dialog box appears. You may change the name and description of the application you want to launch.

13 Click Finish to complete this step.

1313

The next time the device is connected and turned on, the assigned application will launch automatically.

1818

Changing the Window Design of Sony Software

Changing the Window Design of Sony SoftwareChanging the Window Design of Sony Software

To change the window design of Sony software:

1111 Click the Start button, point to Settings, and then click Control Panel.

2222 Click UI Design Selector.

3333 Click << or >> and select the desired design.

4444 Click Apply.

5555 The “UI Design Selector” window design changes. The window design for

your Sony software will match the “UI Design Selector” window.

6666 To try another selection, click << or >>. Then, click OK.

7777 The UI Design Selector closes and the Sony software window design

displays.

You may use the feature with UI Design Selector-compatible software only.

✍

1919

VAIO Digital Studio™ Computer User Guide

Sony Digital Media Park Applications

You r VAI O® computer comes with a collection of applications that make it easy to use advanced multimedia formats. This section highlights the Media Park applications and the digital video capabilities.

Media Bar™

Media Bar™Media Bar™

Media Bar software is your all-in-one solution for audio/video playback. Media Bar software handles all common computer multimedia formats, and controls selected Sony devices. Media Bar software encompasses audio/video library cataloging and playlist management, in addition to digital video quality control and effects features. Media Bar seamlessly integrates a variety of new media formats with an easy-to-use software interface.

DVgate™

DVgate™DVgate™

DVgate makes it easy to edit digital videos. You can capture, edit, and grab digital video clips and then assemble them into a polished home video everyone will enjoy. You can also use DVgate to capture individual frames from digital video clips, and then save them as graphic files. Enhance your Web page, send family and friends your favorite stills, create your own wallpaper. The possibilities are endless.

PictureGear™

PictureGear™ PictureGear™

PictureGear is a digital image management application that allows you to see all the images stored in any directory on your computer. Thumbnail views provide quick reminders of your pictures. Brighten, contrast, enhance, resize, crop, and color-correct your pictures. Create panoramic views, animations, screen savers, wallpaper, and even HTML photo albums.

Smart Capture

Smart CaptureSmart Capture

Smart Capture is a fun new way to send multimedia messages via e-mail. Smart Capture manages the i.LINK® connection between your computer and a Sony Digital Handycam Camcorder, or other cameras that support the i.LINK interface. Smart Capture allows you to capture and compress video or still images that you can save or share via e-mail. Captures are low resolution, making it ideal for e-mail. For high-quality captures, use DVgate.

2020

Movie Shaker

Movie ShakerMovie Shaker

This application can be used to create fun and innovative movies without any knowledge of film editing. In a few simple steps, motion pictures can be combined with special effects, still images (pictures), and music files and then saved in a format most computers can play.

Main Window

Main WindowMain Window

Working Panel

Working PanelWorking Panel

Clip tray

Clip trayClip tray

Product tray

Product trayProduct tray

Importing Images and Sound Clips

Importing Images and Sound ClipsImporting Images and Sound Clips

Editing trays

Editing traysEditing trays

Help

HelpHelp

Tr a sh

Tr a shTr a s h

1111Click .

2222 Find the file you want to add.

3333 Select the file.

4444 Click Open. The file is added to the Clip tray.

Create a Movie using Shaker

Create a Movie using ShakerCreate a Movie using Shaker

After adding clip(s) to the Clip tray, you can create a short movie using the Shaker feature. Shaker randomly select clips from the Clip tray to create a 30second scene.

2121

VAIO Digital Studio™ Computer User Guide

1111 Click the Shake tab.

2222 Select a mood by clicking a face in the Shaker tray.

3333 Click . A thirty second scene is automatically generated and

saved to the Product tray.

4444 To preview, switch the Work Panel to Product tray mode and press play.

Scenes created with Shaker begin with black frame and after processing are placed

✍

in the first available slot on the Product tray.

Editing Clips and Scenes

Editing Clips and ScenesEditing Clips and Scenes

You can edit your movie by adding effects and text, adjusting the color and contrast, and modifying the length of clips.

Working Panel

Working PanelWorking Panel

Tr i m Pa l et t e

Tr i m Pa l et t eTr i m P al e tt e

2222

Monitor

MonitorMonitor

Effect Knobs

Effect KnobsEffect Knobs

Sound

SoundSound

Color

ColorColor

Speed

SpeedSpeed

Effect Palette

Effect PaletteEffect Palette

Movie Shaker

Adding effects to a scene or a clip:

1111 Double-click the clip or scene to move it to the Working Panel.

2222 Select the Effects tab from the Editing tray.

3333 Drag and drop the Effect you want to add from the Effects tray to the Effects

palette on the Working Panel.

To preview an Effect, click on the clip in the Working panel monitor. Your clip displays

✍

with the new effect on the Effect tray monitor.

4444 See help for instructions on adjusting effect duration and replaying clips/

scenes.

Saving a Movie

Saving a MovieSaving a Movie

1111 Verify that the clip(s) you want to save is on the Product tray. See Help for

more details on saving movies.

2222Click Export.

3333 Select the format in which you want the document to be saved.

4444Click Next.

5555 Locate the folder to which you want the file saved.

6666 Name the file.

7777 Click Save.

! Exporting movies may take a long time to complete—Save movie as DV (Digital

Video) takes the longest and Quick-Save is the fastest.

For DV playback or smooth video playback, we recommend the following resolution/

✍

refresh rates: 1024×768/75Hz or lower.

2323

VAIO Digital Studio™ Computer User Guide

PictureGear™

PictureGear™PictureGear™

Managing Your Pictures

Managing Your PicturesManaging Your Pictures

Use the collection feature to manage your pictures.

1111 Click the Folder tab and browse to locate your pictures.

2222 Select the pictures you want to have in a collection.

3333 From Collection menu, select Create New Collection.

4444 Enter a name for the collection and then click okay.

Creating a Photo Album

Creating a Photo AlbumCreating a Photo Album

1111 Select the pictures you want to use to make an album.

2222 From the Utilities menu, select Album Maker.

3333 Choose the type of Album you want and click Okay.

4444 Now add more pictures, frames, text, and effects.

5555 When you are finished, select Create Album in File menu or click the Create

Album icon on the toolbar.

6666 Designate the folder you where want to save the Album.

7777 Enter the Target Album name, select Thumbnails and click Okay.

8888 The new album can be viewed using most internet browsers.

Using

Using Panorama Maker

Using Using

Panorama Maker stitches a group of still images into a 360 degree panoramic picture. The source images should be the same size and overlap 20%.

Panorama Maker

Panorama MakerPanorama Maker

2424

PictureGear™

How to stitch a panoramic picture:

1111 Gather the source images into the same folder or collection.

2222 Select the images you want to use.

We recommend 12 landscaped or 16 portrait pictures.

✍

3333 From the Utilities menu select Panorama Maker.

4444 Select the correct lens and click Okay. (If 35mm lens is selected the prompt,

does not appear; to select a different lens, click the lens icon.)

5555 Click the panoramic icon, near the bottom of the window.

6666 Click Full Stitch.

Making Still Images and Panoramic from MPEG

Making Still Images and Panoramic from MPEGMaking Still Images and Panoramic from MPEG

1111 Select the MPEG file.

2222 From the Movie/Sound menu, select Scene break down.

3333 Then select Movie Stitch, to create a panoramic picture.

2525

VAIO Digital Studio™ Computer User Guide

Using

Using Digital Video

Using Using

Connecting a Digital Video Recorder

Connecting a Digital Video RecorderConnecting a Digital Video Recorder

Before connecting a digital video camera recorder to your computer, turn off the power on the camera. After connecting the camera, turn the power back on. You do not need to turn off the computer when connecting a camera.

Using

Using DVgate

Using Using

When capturing clips:

❑

Digital Video

Digital VideoDigital Video

DVgate

DVgateDVgate

Do not use DVgate when the connected digital video peripheral is in Timer Recording mode, as this could produce a malfunction in the peripheral.

Captures larger than 2 GB (9 minutes and 30 seconds) are automatically continued in a second file.

You can record stereo audio (stereo 1) while capturing video. You cannot add audio on the stereo 2 track after capturing the video data.

You cannot use different audio modes on the same tape. You should perform a separate capture for each audio mode you wish to use.

DVgate does not support hard disk compression. You should not use disk compression if you are planning to work with DVgate.

Title data is saved in the flash memory of a digital video camera and is not transferred to tape by DVgate.

To avoid interruption of capture sessions, you should disable the screen saver.

The drop frame compensation feature does not provide accurate compensation adjustments for tapes recorded in LP mode.

For tapes that include a mixture of both SP and LP mode, the information displayed by the capture progress indicator may not be accurate.

Make sure the video head of your digital video device is properly cleaned. Anomalies that you see in captured data could be due to dust or other particles on the video head.

The last frame captured is one frame before your selected [OUT] point. The frame you see immediately after clicking the [OUT] button is not captured.

2626

Hard Drive Partition

When recording AVI files to tape:

Do not use DVgate when the connected digital video peripheral is in Timer

❑

Recording mode, as this could produce a malfunction in the peripheral.

You can record only AVI files. MPEG files cannot be recorded.

✍

To avoid recording problems, such as a single frame appearing in multiple

❑

frames, close other applications on your system while recording. You cannot use different audio modes on the same tape. If you have AVI files

❑

that use different audio modes, they cannot be recorded at the same time, but must be recorded separately.

Do not attempt to work with AVI files that are smaller than 4 MB.

❑

DVgate does not support hard disk compression. Do not use disk

❑

compression if you are planning to work with DVgate. In order to maximize recording capabilities, video and audio data are not

❑

available while you are recording. If DVgate indicates that frames have been dropped, close all open

❑

applications, or defragment your hard drive.

Hard Drive Partition

Hard Drive PartitionHard Drive Partition

In order to improve the performance of your computer’s DVgate software, the hard disk drive on your computer has been formatted with two partitions, C and D. DVgate saves files to the D partition. This prevents large video captures from consuming the available space on your C partition. To maintain optimum performance of DVgate, you should defragment your D partition regularly.

Defragmenting your Hard Disk Drive

Defragmenting your Hard Disk DriveDefragmenting your Hard Disk Drive

If you encounter frame dropping while recording digital video onto your hard disk drive, defragmentation may be necessary.

To defragment your hard disk drive:

1111 Deactivate your screen saver, if applicable.

2222 From the Start menu, select Programs > Accessories > System Tools > Disk

Defragmenter.

2727

VAIO Digital Studio™ Computer User Guide

3333 Run Disk Defragmenter.

It may take more than a couple of hours to complete defragmentation, depending

✍

on the data capacity and utilization of your computer’s hard disk drive(s).

i.LINK

i.LINKi.LINK

Your VAIO computer includes a 4-pin i.LINK connector on the front of the system and a 6-pin i.LINK connector on the back of the system.

A 6-pin i.LINK connector can:

❑

! The total power supplied by the 6-pin i.LINK connector cannot exceed 6 watts.

A 4-pin i.LINK connector cannot supply power to a connected device.

The following Sony i.LINK 400 Mbps cables are available and recommended for use with your computer: VMC-IL4415, VMC-IL4435, VMC-IL4615, VMCIL4635, VMC-IL6615, and VMC-IL6635. Sony computer supplies, accessories, and peripherals can be purchased from your dealer or by contacting Sony at http:/ /www.sony.com/accessories.

(IEEE1394) Compatibility

(IEEE1394) Compatibility(IEEE1394) Compatibility

supply power from the computer to the connected device if the device is equipped with a 6-pin connector, and

supply 10V to 12V.

2828

To connect an i.LINK (IEEE1394) device

Enabling Smart Connect

Use the symbol to locate the

❑

this connector.

See the manual that came with your i.LINK (IEEE1394)-equipped device for more

✍

information on setting it up and using it.

LLLLIIIINNNNKKKK

connector. Plug the i.LINK cable into

iiii....

Enabling

Enabling Smart Connect

Enabling Enabling

Your computer comes with preinstalled Smart Connect software. To enable faster startup, your computer ships with this software disabled.

To enable Smart Connect:

1111 From the Start menu, select Settings > Control Panel.

The Control Panel window appears.

Smart Connect

Smart ConnectSmart Connect

2929

VAIO Digital Studio™ Computer User Guide

2222 Click the System icon.

The System Properties window appears.

3333 Click the Device Manager tab.

4444 Click Sony i.LINK(1394) Adapter.

The Sony i.LINK(1394) Adapter window appears.

5555 Click the Enable Device button.

6666 Click OK.

The Sony i.LINK(1394) Adapter icon should no longer have an “X” on it. This means Smart Connect is now enabled.

7777 Close all windows and restart your computer in order for the new settings to

take effect.

Now your Smart Connect software is ready to use.

When you use Smart Connect to connect two VAIO computers, you must assign each

✍

computer a unique name by which it can be identified when the two computers are networked. See the Smart Connect online Help for more information.

Enabling

Enabling Ethernet

Enabling Enabling

Your computer comes with a preinstalled Ethernet interface. To enable faster startup, your computer ships with this function disabled. You may, however, enable Ethernet connectivity by following the instructions below.

To enable the Ethernet connection:

1111 Right-click My Computer on the desktop and select Properties.

2222 Click the Device Manager tab.

3333 Select “Realtek RTL8139 (A/B/C/8130) PCI Fast Ethernet NIC” under the

Network Adapters category.

4444 Click Properties.

5555 Click Enable Device and then click OK.

6666 Click Close.

3030

Ethernet

EthernetEthernet

System and Application Recovery CD(s)

System Recovery CD(s)

System Recovery CD(s)System Recovery CD(s)

Sony Electronics

The System Recovery CD program allows you to restore the software titles that shipped with your computer if they become corrupted or are erased accidentally. It can be used only to restore the hard disk of the Sony computer you purchased.

Application Recovery CD(s)

Application Recovery CD(s)Application Recovery CD(s)

Sony Electronics

The Application Recovery CD program allows you to reinstall individual applications and device drivers. Use it to restore corrupted or accidentally erased files.

Using the System Recovery CD(s)

Using the System Recovery CD(s) Using the System Recovery CD(s)

You can reinstall software titles that shipped with your computer if they are corrupted or accidentally erased. You may not need to recover the entire contents of your hard drive. If you experience a problem with your computer, reinstalling an individual device driver or software title may correct the problem.

Use the Application Recovery CD program to reinstall individual applications or device

✍

drivers.

The System Recovery utility provides three options:

Full Restore without Format

Full Restore without Format —

❑

Full Restore without FormatFull Restore without Format originally came with your computer without formatting the hard disk.

! If you choose the Full Restore without Format option, you may need to reinstall

applications that were not included with the computer when you purchased it. If you have any questions on using the System Recovery CD(s), contact Sony Customer Support.

Full Restore with Format

Full Restore with Format —

❑

Full Restore with FormatFull Restore with Format all the original software. If your hard drive is partitioned into C and D drives, the computer will offer you the option to reformat the drive into a single partition.

— restores all the software titles that

— —

— formats the hard disk drive and then restores

— —

3131

VAIO Digital Studio™ Computer User Guide

Operating System Only

Operating System Only —

❑

Operating System OnlyOperating System Only

— formats the hard disk drive and restores the

— — Windows operating system and the device drivers that shipped with your computer. This option is recommended for advanced users only.

! If you choose the Full Restore with Format or Operating System Only option, your

hard disk will be formatted, which removes all the information on the hard disk drive. You will lose any software you have installed and any other files you have created since you started to use your computer. You must reinstall any applications that were not included with the computer when you purchased it.

To use the System Recovery CD(s):

You need to complete the Windows registration process when you use the System

✍

Recovery CD(s).

1111 Insert the Sony System Recovery CD in the DVD-ROM drive.

The System Recovery utility boots from the DVD-ROM drive. It must be in the

✍

drive when you turn on the computer.

2222 Shut down your computer.

3333 Wait 30 seconds and turn on your computer.

4444 Click OK to signify you have read and accept the Microsoft End-User

License Agreement.

5555 When the System Recovery menu appears, follow the on-screen instructions

to complete the recovery process.

Your system may include one or two System Recovery CDs. If you have two System

✍

Recovery CDs, insert the first CD to run the System Recovery program. You are prompted to insert the second CD once the information from the first CD has been installed.

The recovery process takes 30 to 60 minutes to complete.

After recovering your system using the System Recovery CD(s), you may be prompted to insert your Application Recovery CD(s) after restarting Windows. Insert the Application Recovery CD(s) to complete full recovery of your system.

3232

Using the Application Recovery CD(s)

Using the Application Recovery CD(s)Using the Application Recovery CD(s)

The Application Recovery CD program allows you to reinstall individual applications and device drivers if they are corrupted or accidentally erased. Reinstalling an individual device driver or software title may correct a problem you are experiencing with your computer, and you may not need to recover the entire contents of your hard drive.

If you do need to reinstall all the software titles that shipped with your computer, use

✍

the System Recovery CD(s).

You must be in Windows to run the Application Recovery CD(s). The application will not run from DOS. If you have any questions on using the Application Recovery CD(s), contact Sony Customer Support.

To use the Application Recovery CD(s):

1111 Turn on your computer. If your computer is already on, close all

applications.

2222 When the Windows desktop appears, insert the Sony Application Recovery

CD in the DVD-ROM drive. The Application Recovery utility loads automatically.

3333 When the Application Recovery menu appears, follow the on-screen

instructions to complete the recovery process.

Your system may include one or two Application Recovery CDs. If you have two

✍

Application Recovery CDs, insert the first CD to run the Application Recovery program. You may be prompted to insert the second CD, depending on the application you wish to restore.

3333

VAIO Digital Studio™ Computer User Guide

Troubleshooting

This section describes how to solve common problems you may encounter when using your computer. Many problems have simple solutions, so try these suggestions before you call Sony Customer Support.

Topic:

Topic: My computer does not start.

My computer does not start.

Topic: Topic:

My computer does not start. My computer does not start.

Check that the computer is plugged into a power source and that it is turned

❑

on. Check that the power light is lit on the front panel of the computer. Confirm that a diskette is not in the diskette drive (unless you are using a

❑

bootable diskette). Confirm that the power cord and all cables are connected firmly, as described

❑

on the color poster. If you plugged the computer into a power strip or Universal Power

❑

Supply (UPS), make sure the power strip or UPS is turned on and working. Check that the display is plugged into a power source and turned on. Check

❑

that the brightness and contrast controls are adjusted correctly. See the manual that came with your display for details.

Check that the computer is not in standby mode.

❑

Topic:

Topic: My files are corrupted or deleted and I want to recover applications

My files are corrupted or deleted and I want to recover applications

Topic: Topic:

My files are corrupted or deleted and I want to recover applications My files are corrupted or deleted and I want to recover applications

or drivers that came with my computer.

or drivers that came with my computer.or drivers that came with my computer.

See “Using the Application Recovery CD(s)” in this manual.

Topic:

Topic: My computer or software program “locks up.”

My computer or software program “locks up.”

Topic: Topic:

My computer or software program “locks up.”My computer or software program “locks up.”

1111 Press Ctrl+Alt+Delete to close the application that is currently “locked up.”

2222 In the Close Program dialog box, scroll down until you locate “(Not

responding)” next to an application.

3333 Select this application and click End Task. Windows attempts to close the

application. If the attempt is unsuccessful, a second dialog box appears.

4444 Select End Task again.

If you are unable to “unlock” the application, repeat the above steps but

❑

select Shut Down when the Close Program dialog box appears.

3434

Troubleshooting

If the above steps fail to “unlock” your computer, try the following steps:

❑

1 Save any unsaved work, if possible. 2 Press Alt+F4. 3 Select Restart. 4 Click OK. If you cannot restart as described in the preceding steps, you can restart the

❑

computer by pressing Ctrl+Alt+Delete or by pressing the power switch for more than six seconds.

Pressing Ctrl+Alt+Delete twice consecutively may result in the loss of changes

✍

made to files that are currently open.

Contact the software publisher or designated provider for technical support.

❑

See the contact information in this manual.

Topic:

Topic: Why does Windows lock up during shutdown?

Why does Windows lock up during shutdown?

Topic: Topic:

Why does Windows lock up during shutdown?Why does Windows lock up during shutdown?

The Windows® operating system may not shut down properly for many reasons, including incompatible or conflicting drivers, damaged files, or non-responsive hardware. For troubleshooting information, you can search Windows Help.

1111 From the Start menu, select Help.

2222 Click the Contents tab.

3333 Click Troubleshooting and then click Windows 98 Troubleshooters.

4444 Click the subject for which you want information, and then answer the

questions that are appropriate for your problem.

Topic:

Topic: How do I change the parallel port type to ECP, EPP, or bi-

How do I change the parallel port type to ECP, EPP, or bi-

Topic: Topic:

How do I change the parallel port type to ECP, EPP, or bi-How do I change the parallel port type to ECP, EPP, or bi-

directional?

directional?directional?

You can change the parallel port type using the System Setup utility (CMOS Setup Utility). To access System Setup:

1111 From the Start menu, select Shut Down, and then select Restart.

2222 When the Sony screen displays, press the F2 key on your keyboard.

3333 Select the Advanced tab from the CMOS Setup Utility screen.

3535

VAIO Digital Studio™ Computer User Guide

4444 Select “I/O Device Configuration” and use the arrow keys to highlight

Parallel Port Mode.

You can toggle between the Normal (bi-directional), EPP, ECP, and ECP+EPP options

✍

using the Plus (+) or Minus (-) keys.

5555 When the desired setting displays, press the Escape key.

Topic:

Topic: My CD drive tray does not open.

My CD drive tray does not open.

Topic: Topic:

My CD drive tray does not open.My CD drive tray does not open.

Use the eject button

❑

1 Make sure the computer is turned on. 2 Press the Eject button on the drive. Use the My Computer icon

❑

1 Click the My Computer icon on the Windows

desktop. 2 Right-click the CD-ROM icon. 3 Select the Eject option from the pop-up menu.

Topic:

Topic: I cannot play a CD-ROM.

I cannot play a CD-ROM.

Topic: Topic:

I cannot play a CD-ROM.I cannot play a CD-ROM.

After inserting your CD, wait a few seconds for it to be detected before

❑

trying to access it. Make sure you place the disc in the tray with the label side facing up.

❑

Make sure the software is installed according to the program’s instructions.

❑

If your drive reads some CDs, but not others, check the shiny side of the disc

❑

for dirt or scratches. You may also need to clean the disc drive lens with an appropriate cleaner.

Topic:

Topic: I cannot play a DVD-ROM.

I cannot play a DVD-ROM.

Topic: Topic:

I cannot play a DVD-ROM.I cannot play a DVD-ROM.

If a region code warning appears when you are using the DVD player, it

❑

could be that the DVD-ROM you are trying to play is incompatible with the DVD-ROM drive in your VAIO Digital Studio

™

Computer. The region code is listed on the disc’s packaging. Region code indicators such as “1” or “ALL” are labeled on some DVDs to indicate what type of player can play the disc. Unless a “1” or “ALL” appears on the DVD or on the packaging, you cannot play the disc on this computer.

3636

Troubleshooting

If you hear audio but cannot see video, your computer’s video resolution

❑

may be set too high. For best results, change the screen area to 800 x 600 using 16-bit color. To change this setting:

1 Click the My Computer icon on your desktop. 2 Click Control Panel. 3Click Display. 4 Click the Settings tab. 5 Change the screen area and color. 6 Click OK. If you see video but cannot hear audio, check all of the following:

❑

1 Make sure your DVD player’s mute setting is off. 2 Check the master volume setting in the audio Mixer. 3 Check the volume settings on your computer speakers. 4 Check the connections between your speakers and the computer. 5 Check the Windows

Control Panel > System > Device Manager to see

that the drivers are installed properly.

A dirty or damaged disc may cause the computer to “hang” while it tries to

❑

read the disc. If necessary, remove the disc and check that it is not dirty or damaged.

Topic:

Topic: I want to play a CD with my Microsoft CD Player.

I want to play a CD with my Microsoft CD Player.

Topic: Topic:

I want to play a CD with my Microsoft CD Player.I want to play a CD with my Microsoft CD Player.

When you insert a music CD, the Sony Media Bar™ automatically launches to play your CD. When the Sony Media Bar is running, the Microsoft CD Player does not have access to the CD. Close Media Bar to use the Microsoft CD Player. If you do not hear any music, check all your volume controls.

Topic:

Topic: When I click an application icon, a message such as “You must insert the

When I click an application icon, a message such as “You must insert the

Topic: Topic:

When I click an application icon, a message such as “You must insert the When I click an application icon, a message such as “You must insert the

application CD into your drive” appears and the software does not start.

application CD into your drive” appears and the software does not start.application CD into your drive” appears and the software does not start.

Some titles require specific files that are located on the application’s CD-

❑

ROM. Insert the disc and try starting the program again. Check to make sure you inserted the CD-ROM with the label side facing up.

❑

3737

VAIO Digital Studio™ Computer User Guide

Topic:

Topic: Why doesn't my CD-RW drive record at the highest speed?

Why doesn't my CD-RW drive record at the highest speed?

Topic: Topic:

Why doesn't my CD-RW drive record at the highest speed?Why doesn't my CD-RW drive record at the highest speed?

You must use 4x CD-RW or 8x CD-R media to achieve optimum performance.

If you must use other media and are having difficulty formatting non-4x CD-RW media, change the write speed from 4x to a lower setting. To change the write speed from the default to a lower speed:

1 Click the My Computer icon on your desktop. 2 Right-click the CD-RW drive icon.

Your CD-RW drive is assigned drive H as its default.

✍

3 Select Properties. 4 Select the Settings tab. 5 Change the “Current Write Speed” field to 1x or 2x. 6 Click OK.

Topic:

Topic: How do I change the video resolution of my display?

How do I change the video resolution of my display?

Topic: Topic:

How do I change the video resolution of my display?How do I change the video resolution of my display?

1111 From the Start menu, select Settings > Control Panel.

2222 Click the Display icon and select the Settings tab.

3333 Move the Display area slider to change the resolution.

4444 Click OK.

Topic:

Topic: Why is there no sound in any application?

Why is there no sound in any application?

Topic: Topic:

Why is there no sound in any application?Why is there no sound in any application?

There are independent controls for your system volume.

Check that the speakers are plugged into the

❑

If the speakers have a mute button, make sure it is off.

❑

If the speakers are powered by batteries, check that the batteries are inserted

❑

HHHHEEEEAAAADDDDPPPPHHHHOOOONNNNEEEESSSS

connector.

properly and that they are charged. If the speakers use an external power source, make sure that the power cord

❑

is plugged into a grounded wall outlet or power strip. If the speakers have their own volume control, check the volume level.

❑

If the program you are using has its own volume control, check that the

❑

volume is turned up.

3838

Troubleshooting

Check the volume controls in the application, in the audio mixer, and in

❑

Windows. There is a volume control on the Windows

taskbar. Click the

icon and slide the level bar up to increase the volume. Check that the Mute check box is not selected in the Windows volume

❑

control . If you connected headphones to the computer, you will not hear sound from

❑

the speakers.

Topic:

Topic: My modem connection is slow.

My modem connection is slow.

Topic: Topic:

My modem connection is slow.My modem connection is slow.

The computer’s modem uses Lucent 1648 technology/V.90. Many factors influence modem connection speed, including telephone line noise or compatibility with telephone equipment (such as fax machines or other modems). If you think your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider, check the following:

Have your phone company check that your phone line is free from any line

❑

noise. If your problem is fax-related, check that there are no problems with the fax

❑

machine you are calling and that it is compatible with fax modems. For optimum performance, ensure you are calling an Internet Service

❑

Provider number that is V.90-compliant. If you are having a problem connecting with your Internet Service Provider,

❑

check that the ISP is not experiencing technical problems. If you have a second phone line available, try connecting the modem to this

❑

line.

3939

VAIO Digital Studio™ Computer User Guide

Topic:

Topic: My modem does not work.

My modem does not work.

Topic: Topic:

My modem does not work.My modem does not work.

Check that the phone line is plugged into the

❑

Check that the phone line is working. You can check the line by plugging in

❑

LLLLIIIINNNNEEEE

jack.

an ordinary phone and listening for a dial tone. Check that the phone number the program is dialing is correct.

❑

Verify that the software you are using is appropriately configured to

❑

recognize and interact with the Sony computer modem. Call the software publisher if you do not know how to configure the software to recognize the modem. All programs preinstalled by Sony are compatible.

If you suspect your modem is not functioning, you can perform a simple test

❑

to find out. 1 Click the My Computer icon on your desktop. 2 Click Control Panel. 3 Click Modems. 4 Click the Diagnostics tab. 5 Select COM2. 6 Click More Info. If your modem is functioning, a More Info dialog box will display. If your

modem is not functioning, an error message will appear.

Topic:

Topic: How do I change my modem to rotary or Touch-Tone dialing?

How do I change my modem to rotary or Touch-Tone dialing?

Topic: Topic:

How do I change my modem to rotary or Touch-Tone dialing?How do I change my modem to rotary or Touch-Tone dialing?

1111 Click the My Computer icon on your desktop.

2222 Click Control Panel and then click Modems.

3333 Click Dialing Properties.

4444 Select the Tone dial or Pulse dial radio button next to “Dial using.”

5555 Click OK.

4040

Troubleshooting

Topic:

Topic: How do I set up faxing capability in Windows

How do I set up faxing capability in Windows

Topic: Topic:

How do I set up faxing capability in WindowsHow do I set up faxing capability in Windows

®®®®

98 Second Edition?

98 Second Edition? 98 Second Edition?

Windows® 98 Second Edition does not provide a built-in fax utility. Sony has included the Symantec WinFax

™

Basic Edition software for your faxing needs.

1111 From the Start menu, select Programs > Symantec WinFax Basic Edition >

Configure WinFax Basic Edition.

2222 Follow the on-screen instructions to configure the fax utility.

Topic:

Topic: My microphone does not work.

My microphone does not work.

Topic: Topic:

My microphone does not work.My microphone does not work.

Check that the microphone is plugged into the

Topic:

Topic: My microphone is too sensitive to background noise.

My microphone is too sensitive to background noise.

Topic: Topic:

My microphone is too sensitive to background noise.My microphone is too sensitive to background noise.

MMMMIIIICCCC

connector.

If you find there is too much background noise when you record sound, you should adjust the microphone gain by following these steps:

1111 Right-click the speaker icon (Volume) in the lower-right Windows

task

tray.

2222 Click Open Volume Controls.

The Volume Control screen appears.

3333 In the Options menu, select Properties.

The Properties screen appears.

4444 Change the setting for “Adjust volume for” from Playback to Recording,

then click OK.

5555 Decrease the microphone level.

6666 If available, click the Advanced button under Microphone Balance.

The Advanced Controls for Microphone screen appears.

7777 Deselect the check box for 1 Mic Gain (+20dB), then click the Close button.

8888 Close the Recording Control window.

4141

VAIO Digital Studio™ Computer User Guide

Topic:

Topic: My mouse does not work.

My mouse does not work.

Topic: Topic:

My mouse does not work.My mouse does not work.

Check that the mouse is plugged into the

❑

There may be dust or dirt inside the mouse mechanism. To clean the mouse,

❑

MMMMOOOOUUUUSSSSEEEE

connector.

follow these steps: 1 Turn off your computer and turn the mouse upside down. 2 Remove the mouse ball cover on the back of the mouse by turning

clockwise the ring that covers the mouse ball. 3 Turn the mouse upright, and drop the mouse ball into your hand. 4 Using a piece of tape, remove any dust or dirt on the mouse ball and

inside the mouse ball socket. 5 Return the mouse ball to the socket, and replace the mouse ball cover.

Secure the cover by turning the ring counter-clockwise.

Topic:

Topic: My mouse needs to be set up for left-hand use.

My mouse needs to be set up for left-hand use.

Topic: Topic:

My mouse needs to be set up for left-hand use.My mouse needs to be set up for left-hand use.

1111 Click the My Computer icon on your desktop.

2222 Click Control Panel, and then click Mouse.

The Mouse Properties dialog box appears.

3333 In the Quick Setup tab, click Device Setup.

4444 In the Device Setup Wizard dialog box, click Next.

5555 Select the radio button next to “Left side of the keyboard.”

6666 Click Next three times, and then click Finish.

7777 Click Apply.

Topic:

Topic: My keyboard does not work.

My keyboard does not work.

Topic: Topic:

My keyboard does not work.My keyboard does not work.

Check that the keyboard is plugged into the

Topic:

Topic: I cannot find the Windows

I cannot find the Windows

Topic: Topic:

I cannot find the WindowsI cannot find the Windows

Check that the taskbar is not hidden or shrunken.

❑

Use the mouse to point to the left, right, top, and bottom edges of the screen.

❑

4242

®®®®

taskbar.

taskbar. taskbar.

KKKKEEEEYYYYBBBBOOOOAAAARRRRDDDD

connector.

Troubleshooting

Topic:

Topic: Why is my system running slowly?

Why is my system running slowly?

Topic: Topic:

Why is my system running slowly?Why is my system running slowly?

The system responsiveness varies depending on the number of applications

❑

that are open and running. Close any applications that you are not currently using.

Increasing the system memory may also help. The computer has two

❑

memory slots. For memory upgrades, use only 3.3V 64-bit PC-100 (PC-133 for R556/R558) SDRAM DIMM modules. For information on installing memory, please see the online document

VA I O

Computer

Sony computer supplies, accessories and peripherals can be purchased from your dealer or by contacting Sony at http://www.sony.com/accessories.

Upgrading and Maintaining Your

Topic:

Topic: My i.LINK

My i.LINK

Topic: Topic:

My i.LINKMy i.LINK

1111 Turn off and disconnect your peripheral.

2222 Reconnect your peripheral.

3333 Then turn on the power.

Topic:

Topic: My connected printer doesn't function after the computer resumes

My connected printer doesn't function after the computer resumes

Topic: Topic:

My connected printer doesn't function after the computer resumes My connected printer doesn't function after the computer resumes

from a power saving mode.

from a power saving mode. from a power saving mode.

When this occurs, follow the procedures below to reset the printer connection:

1111 Right-click the My Computer icon on the desktop, and then select

Properties.

2222 Click the Device Manager tab.

3333 Select Refresh, and then click OK.

4444 The printer should now function properly.

Topic:

Topic: How do I enable my Ethernet interface?

How do I enable my Ethernet interface?

Topic: Topic:

How do I enable my Ethernet interface?How do I enable my Ethernet interface?

1111 Right-click My Computer on the desktop and select Properties.

2222 Click the Device Manager tab.

3333 Select “Realtek RTL8139 (A/B/C/8130) PCI Fast Ethernet NIC” under the

Network Adapters category.

®®®®

peripheral does not appear on the desktop.

peripheral does not appear on the desktop. peripheral does not appear on the desktop.

4343

VAIO Digital Studio™ Computer User Guide

4444 Click Properties.

5555 Click Enable Device and then click OK.

6666 Click Close.

Topic:

Topic: How do I install a printer?

How do I install a printer?

Topic: Topic:

How do I install a printer?How do I install a printer?

Always check the printer manufacturer's website for the latest drivers for Windows

✍

98 before proceeding. Some printers do not function properly without updated drivers for Windows 98.

If the printer has a USB connection, do not follow the steps below. Have the

✍

customer contact the manufacturer of their printer as they may have updates, other devices, or other information that the customer may need.

1111 From the Start menu, select Settings > Printers.

2222 Click Add Printer.

3333 Click Next.

4444 Select Local Printer and click Next.

5555 Select the appropriate manufacturer and model and click Next.

If the printer is not included in the list and the printer manufacturer included a

✍

disk with a Windows 98 Printer driver, choose Have Disk, enter the appropriate

path for the disk or CD and click OK.

If the printer is not included on the list and no drivers are included with the

printer, choose a driver for a printer that the printer emulates (acts like). Refer to

the printer user's manual for specific emulation information.

6666 Select LPT1 and click Next.

7777 Click Yes to have Windows-based programs use this as the default printer.

8888 Click Next.

9999 Click No and then click Finish.

If prompted for a path to the windows files, use C:\Windows\Options\Cabs.

✍

4444

Notes on Use

Topic:

Topic: Why is there unusual activity on my floppy disk drive?

Why is there unusual activity on my floppy disk drive?

Topic: Topic:

Why is there unusual activity on my floppy disk drive?Why is there unusual activity on my floppy disk drive?

If you notice that your system is slow to respond due to unusual floppy disk drive activity, it could be due to Find Fast. Removing Find Fast, if present, may help.

1111 Right-click on the Windows taskbar and select Properties.

The Taskbar Properties dialog box appears.

2222 Click the Start Menu Programs tab.

3333 Click the Remove button.

The Remove Shortcuts/Folders dialog box appears.

4444 Click on Startup to see its list of shortcuts.

5555 Click Microsoft Find Fast.

6666 Click the Remove button.

7777 Click Close.

8888 Click OK.

To Reach Sony

To Reach Sony To Reach Sony

For further assistance, call 1-888-4SONYPC (1-888-476-6972).

Notes on Use

Notes on UseNotes on Use

On the Power Source

On the Power SourceOn the Power Source

Your computer operates on 100–120 V AC 50/60 Hz only. If you are

❑

operating this computer outside of North America or Japan, please verify that the local AC specifications match before plugging in the computer.

The total power draw of installed add-in cards must not exceed the

❑

specifications for the power supply. Do not overload the system by installing add-in cards that draw excessive current. The system is designed to provide 2 amps (average) of 5V power for each card in the system not to exceed a total of 10 amps. The total from +5V current draw in a fully-loaded system (with all the add-in card slots filled) must not exceed 10 amps. If you add components to the system that draw current from the power supply, the maximum combined +3.3V and +5V output must not exceed 70 watts.

4545

VAIO Digital Studio™ Computer User Guide

Plug all the power cords for your computer and its peripheral equipment into

❑

the same AC supply line. AC derived from different supply lines may result in voltage differences that can cause unstable operation or unwanted weak currents at the time of connection.

Do not share the AC outlet with any other power-consuming equipment,

❑

such as copying machines or shredders. You can purchase a power strip with a surge protector. This device prevents

❑

damage to your computer caused by sudden power surges such as those that may occur during an electrical storm.

If you live in an area that experiences frequent power fluctuations, you may

❑

want to purchase a UPS (Uninterrupted Power Supply). This device contains both a surge protector and a battery backup. The surge protector prevents damage to your computer caused by power surges. The battery backup safeguards your data during a brief period of power loss.

The power control button on the front panel does not turn off the system AC

❑

power. To remove power from the system, you must shut down the computer as described in the User Guide and then unplug the AC power cord from the wall outlet or power strip.

Do not place heavy objects on the power cord.

❑

Do not operate the system with the cover removed. Always reinstall the

❑

cover before turning on the system. To disconnect the cord, pull it out by the plug. Never pull the cord itself.

❑

Unplug your computer from the wall outlet if you will not be using the

❑

computer for a long time. Before touching anything inside the computer, turn the system off and let it

❑

cool for ten minutes. This will ensure that the processor heat sink will not be hot.

Do not attempt to open the power supply. There are no user-serviceable parts

❑

in the power supply. To avoid personal injury or damage to your equipment, refer the repair or replacement of the power supply to qualified personnel only.

4646

Notes on Use

On Disposal of the Lithium Battery

On Disposal of the Lithium BatteryOn Disposal of the Lithium Battery

Dispose of the lithium battery properly. In some areas, the disposal of lithium batteries in household or business trash may be prohibited. You can return your unwanted lithium batteries to your nearest Sony Service Center or Factory Service Center. For the Sony Service Center nearest you, call 1-888-4SONY-PC (1-888-476-6972).

! Do not handle damaged or leaking lithium batteries. ! The lithium battery may explode if mistreated. Do not disassemble it or

dispose of it in fire.

! Replace the battery with a Sony CR2032 lithium battery. Using a type of

battery other than a CR2032 may present a risk of fire or explosion.

On Handling

On HandlingOn Handling

Clean the cabinet with a soft, dry cloth or a soft cloth lightly moistened with

❑

a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as it may damage the finish of your Sony computer.

Should any solid object or liquid fall into the cabinet, keyboard, or mouse,

❑

shut down your computer and then unplug it. You may want to have the computer checked by qualified personnel before operating it any further.

On Installation

On InstallationOn Installation

Do not place your Sony computer in a location subject to:

❑

Heat sources, such as radiators or air ducts

❑

Direct sunlight

❑

Excessive dust

❑

Mechanical vibration or shock

❑

Strong magnets or speakers that are not magnetically shielded

❑

Ambient temperature of more than 95ºF (35ºC) or less than 50ºF (10ºC)

❑

High humidity, moisture, or rain

❑

Do not place electronic equipment near your computer. The computer’s

❑

electromagnetic field may cause a malfunction.

4747

VAIO Digital Studio™ Computer User Guide

Provide adequate air circulation to prevent internal heat build-up. Do not

❑

place your computer on loose surfaces (such as rugs or blankets) or near materials (such as curtains or draperies) that may block its ventilation slots. Leave a space of at least 8 inches from the back panel of your computer.

The computer uses high-frequency radio signals and may cause interference

❑

to radio or TV reception. Should this occur, relocate the computer a suitable distance away from the set.

Use only specified peripheral equipment and interface cables; otherwise,

❑

problems may result. Do not use cut or damaged connection cables.

❑

Always switch the power off before connecting your computer to peripheral

❑

equipment; otherwise, damage may occur to the integrated circuits in your computer.

Your computer, keyboard, and mouse consist of high-precision electronic

❑

parts. Do not drop them or bump them against other objects. Your Sony computer will not work with party lines, cannot be connected to a

❑

coin-operated telephone, and may not work with multiple phone lines or a private branch exchange (PBX).

If the telephone company makes a service call to your home or office and

❑

determines that your computer is responsible for the problem, the telephone company may bill you for the service call. Also, if you do not disconnect your computer when it is adversely affecting the telephone line, the telephone company has the right to disconnect your service until you correct the problem.

On Moisture Condensation

On Moisture CondensationOn Moisture Condensation

If your computer is brought directly from a cold location to a warm one, moisture may condense inside your computer. In this case, allow at least an hour before turning on your computer. If any problem occurs, unplug your computer, and contact your Sony Service Center.

On Upgrading the System

On Upgrading the SystemOn Upgrading the System

The procedures described in the online document

❑

Maintaining Your VAIO

Computer”

assume familiarity with the general

“Upgrading and

terminology associated with personal computers and with the safety

4848

Notes on Use

practices and regulatory compliance required for using and modifying electronic equipment.

Disconnect the system from its power source and from any

❑

telecommunications links, networks, or modems before you open the system or follow any of the procedures described in the online document

“Upgrading and Maintaining Your VAIO® Computer”

. Failure to do so may

result in personal injury or equipment damage. Electrostatic discharge (ESD) can damage disk drives, add-in cards, and

❑

other components. Follow the procedures described in the online document

“Upgrading and Maintaining Your VAIO® Computer”

only at an ESD workstation. If such a station is not available, do not work in a carpeted area, and do not handle materials that produce or hold static electricity (cellophane wrappers, for example). Ground yourself by maintaining contact with an unpainted metal portion of the chassis while performing the procedure.

When removing a slot cover, be careful not to damage components on the

❑

system board or add-in cards. You may need to temporarily remove add-in cards that are next to the slot cover you want to remove.

Using the computer in low temperature conditions may produce a residual

❑

image on the screen. This is not a malfunction. When the computer returns to normal temperature, the screen returns to normal.

A residual image may appear on the screen if the same image is displayed

❑

for a lengthy period of time. The image disappears after a period of time. You can use a screen saver to prevent residual images.

The screen becomes warm during operation. This is normal and does not

❑

indicate a malfunction.

On Handling a CRT Display

On Handling a CRT DisplayOn Handling a CRT Display

Do not place the display near a strong magnetic force.

❑

Do not block the ventilation slots on the display.

❑

On Using the Hard Disk Drive

On Using the Hard Disk DriveOn Using the Hard Disk Drive

Do not place the computer in a location that is subject to vibration or shock.

❑

Do not move the computer during operation.

❑

Do not subject the computer to sudden changes in temperature.

❑

4949

VAIO Digital Studio™ Computer User Guide

Do not turn off the power while the computer is accessing the hard disk

❑

drive.

On Handling Diskettes

On Handling DiskettesOn Handling Diskettes

Do not open the shutter manually and touch the surface of the diskette.

❑

Keep diskettes away from magnets.

❑

Keep diskettes away from direct sunlight and other heat sources.

❑

On Handling CD or DVD Media

On Handling CD or DVD Media On Handling CD or DVD Media

Do not touch the surface of the disc.

❑

Do not drop or bend the disc.

❑

On Cleaning CD or DVD Media

On Cleaning CD or DVD Media On Cleaning CD or DVD Media

Fingerprints and dust on the surface of a disc may cause read errors. Proper

❑

care of the disc is essential to maintain its reliability. Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray, as they may cause damage to the disc.

For normal cleaning, hold the disc by its edge and use a soft cloth to wipe the

❑

surface from the center out. If the disc is badly soiled, moisten a soft cloth with water, wring it out well,

❑

and use it to wipe the surface of the disc from the center out. Wipe off any remaining moisture with a dry soft cloth.

5050

Resources

ResourcesResources

Sony provides several support options for your Sony computer. When you have questions about your computer and the preinstalled software, check these sources for answers, in the following sequence:

1111 Quick Start

2222User Guide

3333 Electronic

Documentation

4444 Manuals and online

help files that may accompany your preinstalled software

5555Knowledge

Database

6666 Sony Fax-on-

Demand

7777 Software Updates

8888 VAIO Computer

Reference Manual

Contains information on how to set up your computer quickly and easily.

Contains information on how to get the most from your computer, find help, and solve common problems. Also includes product specifications.

QuickStart

on your hard drive. Two additional documents,

and Maintaining Your VAIO Troubleshooting Help are also available.

documents, click the Start button, point to Help Center, and then point to the desired document.

Most manuals for preinstalled software are located on your hard disk drive as online help files. You can access online help files from the Help menu in a specific application. A printed manual is available for some applications.

Provides instant access to information on commonly encountered problems. Enter a description of your problem and the Knowledge Database searches for the corresponding solutions online. You can access the Sony Knowledge Database at http://www.sony.com/pcsupport

This service provides you with answers to commonly asked questions. You can use this automated service to request a list of available topics and then select the topics that you want to receive. To contact the Sony fax-on-demand service, call 1-888-4SONYPC (1-888-476-6972). (Requires a fax machine or fax software.)

You can download the latest software updates and software patches for your Sony computer by selecting Software Updates on the Sony PC Support web page at http:// www.sony.com/pcsupport

Provides detailed technical information about your computer's hardware. This document is available from Sony's website at http://www.sony.com/pcsupport

and the

User Guide

are available electronically

“Upgrading

Computer”

and

To access these

5151

VAIO Digital Studio™ Computer User Guide

For Answers to Your Software Questions

For Answers to Your Software QuestionsFor Answers to Your Software Questions

Sony Service Center

Sony Service CenterSony Service Center

For the Sony Service Center nearest you, call 1-888-4SONYPC (1-888-476-

6972). This service is free of charge for 90 days after the original date of purchase.

Acrobat

AcrobatAcrobat Systems Incorporated)

Systems Incorporated)

Systems Incorporated)Systems Incorporated)

Web site http://www.adobe.com/ phone 206-628-2746 (fee-based support) fax 206-628-5737 e-mail techdocs@adobe.com hours M - F, 6 AM - 5 PM PT

America Online

America OnlineAmerica Online

Web site http://www.aol.com/ phone 800-827-3338 hours 7 days a week, 6 AM - 2 PM ET

AT& T Wo rl d Ne t

AT& T Wo rl dN et

AT& T Wo rl dN etAT& T Wo rl d Ne t

Web site http://www.att.net/ phone 800-400-1447 e-mail worldnet@attmail.com hours 7 days a week, 24 hours a day

* You must be a WorldNet Service customer to access online support.

CompuServe

CompuServeCompuServe

Web site http://www.compuserve.com/ phone 800-848-8990

®®®®

Reader, Adobe PhotoDeluxe

Reader, Adobe PhotoDeluxeReader, Adobe PhotoDeluxe

®®®®

(America Online)

(America Online) (America Online)

® ®

Service (AT&T)

Service (AT&T)Service (AT&T)

®®®®

2000 (CompuServe Interactive Services)

2000 (CompuServe Interactive Services) 2000 (CompuServe Interactive Services)

®®®®

, Adobe

, Adobe, Adobe

Premiere

PremierePremiere

®®®®

LE (Adobe

LE (Adobe LE (Adobe

5252

For Answers to Your Software Questions

DirectCD, Easy CD Creator

DirectCD, Easy CD CreatorDirectCD, Easy CD Creator

Web site http://www.adaptec.com/ phone 408-945-8600 hours M - F, 8AM - 5 PM PT

EarthLink TotalAccess

EarthLink TotalAccessEarthLink TotalAccess

Web site http://help.earthlink.net/techsupport/ phone 800-395-8410 e-mail support@earthlink.net hours 7 days a week, 24 hours a day

McAfee’s VirusScan

McAfee’s VirusScanMcAfee’s VirusScan

Web site http://support.mcafee.com phone 408-988-3832 e-mail cybr@nai.com hours M - F, 9 AM - 5 PM CT

PhotoPrinter

PhotoPrinterPhotoPrinter

Web site http://www.arcsoft.com; www.photoisland.com phone 510-440-9901 e-mail techsupport@arcsoft.com hours M - F, 8:30 AM - 5:30 PM PT

Quicken

QuickenQuicken

™™™™

2000 Pro (ArcSoft, Inc.)

2000 Pro (ArcSoft, Inc.) 2000 Pro (ArcSoft, Inc.)

®®®®

Basic (Intuit, Inc.)

Basic (Intuit, Inc.) Basic (Intuit, Inc.)

™™™™

(Adaptec, Inc.)

(Adaptec, Inc.) (Adaptec, Inc.)

™™™™

(EarthLink Network, Inc.)

(EarthLink Network, Inc.)(EarthLink Network, Inc.)

®®®®

(Network Associates, Inc.)

(Network Associates, Inc.) (Network Associates, Inc.)

Web site http://www.intuit.com/support/ phone 900-555-4688 hours 7 days a week, 24 hours a day

Sony Applications (Sony Electronics, Inc.)

Sony Applications (Sony Electronics, Inc.)Sony Applications (Sony Electronics, Inc.)

Web site http://www. sony.com/pcsupport phone 888-4SONYPC (888-476-6972) hours 7 days a week, 24 hours a day

* Support from 1-888-4SONYPC is free of charge for 90 days after the original date of purchase.

5353

VAIO Digital Studio™ Computer User Guide

Sound Forge

Sound ForgeSound Forge

Web site http://www.sonicfoundry.com/support/ phone 608-256-5555 fax 608-256-7300 e-mail support@sonicfoundry.com hours M - F, 8 AM - 7 PM CT

Windows

WindowsWindows Outlook

Outlook

OutlookOutlook

Web site http://www. sony.com/pcsupport phone 888-4SONYPC (888-476-6972) hours 7 days a week, 24 hours a day

* Support from 1-888-4SONYPC is free of charge for 90 days after the original date of purchase.

WinFax

WinFaxWinFax

Web site http://www.symantec.com/techsupp/ phone 800-798-0850 fax 800-554-4403 in North America

®®®®

(Sonic Foundry)

(Sonic Foundry) (Sonic Foundry)

®®®®

98 Second Edition Operating System, Internet Explorer,

98 Second Edition Operating System, Internet Explorer, 98 Second Edition Operating System, Internet Explorer,

®®®®

Express, Word 2000 (Microsoft Corporation)

Express, Word 2000 (Microsoft Corporation) Express, Word 2000 (Microsoft Corporation)

™™™™

Basic Edition (Symantec Corporation)

Basic Edition (Symantec Corporation) Basic Edition (Symantec Corporation)

541-984-2490 outside North America

5454

Specifications PCV-R553DS

Specifications PCV-R553DSSpecifications PCV-R553DS

Model PCV-R553DS

Processor

Hard Disk Drive

Standard SDRAM

Video RAM

MPEG

Graphics

Sound Capabilities

Diskette Drive

CD-RW Drive

DVD-ROM Drive

Modem

Expansion Capabilities

Connection Capabilities (Front)

Connection Capabilities (Rear)

650 MHz 30 GB 128 MB PC-100 SDRAM,

expandable to 256 MB Shared with system memory “Sony Tuned” MPEG Digital Video supports full-screen

video playback Intel 810 Yamaha AC-XG Audio

3.5” 1.44 MB FDD 32X max. CD-ROM reading,

8X max. CD-R writing, 32X max. CD-R reading, 4X max. CD-RW writing, 20X max. CD-RW reading

16X max. DVD-ROM (40X max. CD-ROM) Lucent 1648 technology/V.90 compatible data/fax

modem (REN 0.7) HDD bay USB port

i.LINK port (4-pin) USB port

PS/2 (2) VGA Monitor port Serial port Parallel (printer) Game/MIDI Headphones Line In Microphone i.LINK (6-pin) Modem line (RJ-11) Phone line (RJ-11) 10Base-T/100Base-TX Fast Ethernet LAN (RJ-45)

Pentium®III

†

Specifications PCV-R553DS

‡

5555

VAIO Digital Studio™ Computer User Guide

Model PCV-R553DS

Supplied Accessories

VAIO Smart Keyboard PS/2 Wheel Mouse Speakers (SRS- Z050V) Power cord Modem cable

Service

Limited Warranty

Power Requirements

Voltage

Dimensions

90-day limited service. See Warranty Card. 90-day parts/labor standard. See Warranty Card. 200 watts maximum 100-120V~3A

8.6”(w) x 14”(h) x 15.5”(d) (220mm x 358mm x

††

‡‡

394mm)

Weight

Operating Temperature

* MHz denotes microprocessor internal clock speed; other factors may affect application

performance. † GB means one billion bytes when referring to hard drive capacity. Accessible capacity may vary. ‡ The DVD-ROM data transfer standard 1X rate is 1385 kbytes/s.

Data on a DVD-ROM is read at a variable transfer rate, ranging from 6.6X at the innermost track to

16X at the outermost track. The average data transfer rate is 11.3X(15255 kbytes/s).

The CD-RW/CD-R/CD-ROM data transfer standard 1X rate is 150 kbytes/s.

Data on a CD-RW is read at a variable transfer rate, ranging from 8X at the innermost track to 20X

at the outermost track. The average data transfer rate is 14X(2100 kbytes/s).

Data on a CD-R/CD-ROM is read at a variable transfer rate, ranging from 13X at the innermost track

to 32X at the outermost track. The average data transfer rate is 22.5X(3375 kbytes/s).

Data on a CD-RW/CD-R is written at a constant transfer rate of 1X, 2X, 4X (max for CD-RW), or

8X depending on the speed you select. **Maximum speed for faxing is 14.4 kbytes/s. Your modem is capable of downloading at 56 kbytes/s

using K56flex technology or V.90. Your phone service, online service, or Internet Service Provider,

however, may not support this technology or operate at this speed. ††Certain restrictions apply ‡‡Certain restrictions apply

Specifications are subject to change without notice.

25.3lbs (11.5kg) 50ºF to 95ºF (+10ºC to 35ºC)

5656

Specifications PCV-R556DS/R558DS

Specifications PCV-R556DS/R558DSSpecifications PCV-R556DS/R558DS

Model PCV-R556DS/PCV-R558DS

Processor

Hard Disk Drive

Standard SDRAM

Video RAM

MPEG

Graphics

Sound Capabilities

Diskette Drive

CD-RW Drive

DVD-ROM Drive

Modem

Expansion Capabilities

Connection Capabilities (Front)

Connection Capabilities (Rear)

733 MHz 30 GB/40 GB 128 MB PC-133 SDRAM,

expandable to 256 MB 16 MB SDRAM “Sony Tuned” MPEG Digital Video supports full-screen

video playback NVIDIA RIVA TNT2 Pro 4X AGP Yamaha AC-XG Audio

3.5” 1.44 MB FDD 32X max. CD-ROM reading,

8X max. CD-R writing, 32X max. CD-R reading, 4X max. CD-RW writing, 20X max. CD-RW reading

16X max. DVD-ROM (40X max. CD-ROM) Lucent 1648 technology/V.90 compatible data/fax

modem (REN 0.7) HDD bay USB port

i.LINK port (4-pin) USB port (2)

PS/2 (2) VGA Monitor port Serial port Parallel (printer) Game/MIDI Headphones Line In Microphone i.LINK (6-pin) Modem line (RJ-11) Phone line (RJ-11) 10Base-T/100Base-TX Fast Ethernet LAN (RJ-45)

Pentium®III/866 MHz† Pentium®III

‡

††

5757

VAIO Digital Studio™ Computer User Guide

Model PCV-R556DS/PCV-R558DS

Supplied Accessories

VAIO Smart Keyboard PS/2 Wheel Mouse Speakers (SRS- Z050V) Power cord Modem cable i.LINK cable (PCV-R556DS/PCV-R558DS only)

Service

Limited Warranty

Power Requirements

Voltage

Dimensions

90-day limited service. See Warranty Card. 90-day parts/labor standard. See Warranty Card. 200 watts maximum 100-120V~3A

8.6”(w) x 14”(h) x 15.5”(d) (220mm x 358mm x

‡‡

***

394mm)

Weight

Operating Temperature

* MHz denotes microprocessor internal clock speed; other factors may affect application

performance. † MHz denotes microprocessor internal clock speed; other factors may affect application

performance. ‡ GB means one billion bytes when referring to hard drive capacity. Accessible capacity may vary. **The DVD-ROM data transfer standard 1X rate is 1385 kbytes/s.
