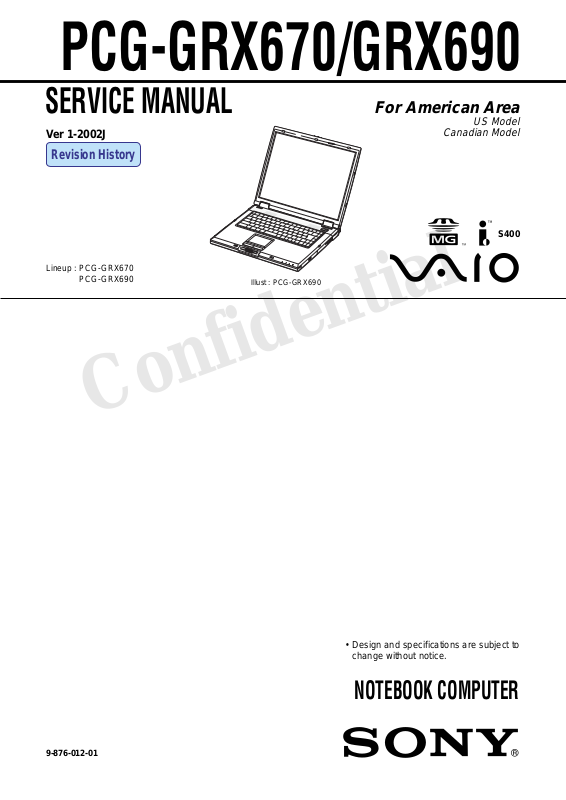

Sony PCG-GRX690, PCG-GRX670 User Manual

PCG-GRX670/GRX690

SERVICE MANUAL

Ver 1-2002J

Revision History

Lineup : PCG-GRX670

PCG-GRX690

Illust : PCG-GRX690

For American Area

US Model

Canadian Model

S400

Confidential

• Design and specifications are subject to change without notice.

9-876-012-01

NOTEBOOK COMPUTER

Information in this document is subject to change without notice.

Sony, VAIO and CLIE are trademarks or registered trademarks of Sony. Microsoft, Windows, Windows Media, Outlook, Bookshelf and other Microsoft products are trademarks or registered trademarks of Microsoft Corporation in the United States and other countries. The word Bluetooth and the Bluetooth logo are trademarks of Bluetooth SIG, Inc. AMD, AMD logo, AMD Duron and combinations thereof, 3DNow!, are trademarks of Advanced Micro Devices, Inc. Intel Inside logo, Pentium and Celeron are trademarks or registered trademarks of Intel Corporation. Transmeta, the Transmeta logo, Crusoe Processor, the Crusoe logo and combinations thereof are trademarks of Transmeta Corporation in the USA and other countries. Graffiti, HotSync, PalmModem, and Palm OS are resistered trademarks, and the Hotsync logo and Palm are trademarks of Palm, Inc. or its subsidiaries. (M) and Motrola are trademarks of Motrora, Inc. Other Motrola products and services with (R) mark like Dragomball are the trademarks of Motrola, Inc.

All other names of systems, products and services in this manual are trademarks or registered trademarks of their respective o wners. In this manual, the (TM) or (R) mark are not specified.

Caution Markings for Lithium/Ion Battery - The following or similar texts shall be provided on battery pack of equipment or in both the operating and the service instructions.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

CAUTION: The battery pac k used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100°C (212°F) or incinerate. Dispose of used battery promptly. Keep away from children.

CAUTION: Changing the back up battery.

• Overcharging, short circuiting, reverse charging, multilation or incineration of the cells must be avoided to prev ent one or more of the following occurrences; release of toxic materials, release of hydrogen and/or oxygen gas, rise in surface temperature.

• If a cell has leaked or vented, it should be replaced immediately while avoiding to touch it without any protection.

Service and Inspection Precautions

1. Obey precautionary markings and instructions

Labels and stamps on the cabinet, chassis, and components identify areas requiring special precautions. Be sure to observe these precautions, as well as all precautions listed in the operating manual and other associated documents.

2. Use designated parts only

The set’s components possess important safety characteristics, such as noncombustibility and the ability to tolerate large voltages. Be sure that replacement parts possess the same safety characteristics as the originals. Also remember that the 0 mark, which appears in circuit diagrams and parts lists, denotes components that have particularly important safety functions; be extra sure to use only the designated components.

3. Always follow the original design when mounting parts and routing wires

The original layout includes various safety features, such as inclusion of insulating materials (tubes and tape) and the mounting of parts above the printer board. In addition, internal wiring has been routed and clamped so as to keep it away from hot or high-voltage parts. When mounting parts or routing wires, therefore, be sure to duplicate the original layout.

4. Inspect after completing service

After servicing, inspect to make sure that all screws, components, and wiring have been returned to their original condition. Also check the area around the repair location to ensure that repair work has caused no damage, and confirm safety.

5. When replacing chip components...

Never reuse components. Also remember that the negati ve side of tantalum capacitors is easily damaged by heat.

6. When handling flexible print boards...

• The temperature of the soldering-iron tip should be about 270C.

• Do not apply the tip more than three times to the same pattern.

• Handle patterns with care; never apply force.

Caution: Remember that hard disk drives are easily damaged by vibration. Always handle with care.

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS P AR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMA TIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.

— 2 —

Confidential

PCG-GRX670/GRX690 (AM)

Section Title Page

CHAPTER 1. BLOCK DIAGRAM............................... 1-1

(to 1-2)

CHAPTER 2. FRAME HARNESS DIAGRAM........ 2-1

(to 2-2)

CHAPTER 3. EXPLODED VIEWS AND

PARTS LIST............................................3-1

3-1. Main Section.................................................................... 3-3

3-2. LCD Section – Made by HI –.......................................... 3-7

3-3. Connector Section (CH Type only).................................3-9

(to 3-10)

CHAPTER 4. OTHERS

4-1. Replacing the CPU .......................................................... 4-1

1. Removing the CPU .......................................................... 4-1

2. Installing the CPU............................................................4-1

History of the changes is shown as the

“Revision History” at the end of this data.

— 3 —

Confidential

PCG-GRX670/GRX690 (AM)

CHAPTER 1.

BLOCK DIAGRAM

USB Right

CONN

USB Left

CONN

USB Rear

CONN

EEPROM

On DIMM1

EEPROM

RJ45

For SPD

EEPROM

On DIMM1

EEPROM

For VID

Pentium 4

Processor

512KB L2

478pins

uFCPGA

USB3

USB2

Memory

Stick

Module

For SPD

EEPROM

On DIMM2

EEPROM

On DIMM2

EEPROM

For Password

RJ-45

Port-0

Port-3 Port-3

Port-2 Port-2

Port-4

SMBUS2

EEPROM

For ClockGEN

CPU Loc

Port-1

Port-5

Port0-5

IDE(ATA100)

Primary

Internal

HDD

al Bus

Reserved

Secondary

Memory

CONTROLLER

HUB (MCH)

593 FCBGA

AGP x 4

IO Control Hub

ICH3-m

FW82801CAM

266MHz Memory Bus

(DDR)

DDR(SO-DIMM)

DDR(SDRAM) Video Memory

Video Memory

K4D623238B

x 2pcs

Ether

PHY

EEPROM

For LAN

PHY

RJ-45

LPC

SMBUS2

Refer to Clock Generator

Graphics

M7-P

(ATI)

CARDBUS

& i.LINK

RICOH

R5C552

Bus #2 Dev #5

PCG-GRX Series BLOCK DIAGRAM Rev.0.10

CLKGEN

9870GTD

Block Diagram

M7-P (ATI)

For i.LI NK

EEPROM

i.LINK0

IMI

EEPROM

SMBUS2

LCD CONN

TV-Out

PCI BUS(3.3V)

CardBus/16bitCard

PC Card

Connector

16inch UXGA

15inch XGA

TV-Out

Dock-VGA DB-15

S-Video-Out

2 Slot

SONY

Cable

TV-Out

Audio-Out

VGA DSUB-15

i.LINK

i.LINK0

Out

Port Repricator

TV-Out

LineOut

S-Video-Out

Video-

Audio

Out

L-out

R-out

RJ11

DC Jack

DCin

RJ-11

Multi Purpose Bay

2nd

Battery

BATTERY2

Power

Circuit

1st

Battery

Optical

Drive

BATTERY1

MDC

(Modem

Daughter Card)

Card)

Module

Daughter

RJ-11

AC LINK

Out

Line

LINE-OUT

Audio

YMF753

(Yamaha)

adphone

AMP, etc.

PHONE

OUT

MIC

Spea

ker

FWH

8Mb

(Flash BIOS

ROM)

Speaker

L&R

Super I/O

SMsC

LPC47N227

Parallel

Serial

Internal KeyBoard

Membrane

PS/2

H8S/2149

KBC/EC

SPIC

TouchPad

JOG

Controller

JOG

SMBUS1

LID

& SM BUS MUX

SMBUS0

I/O Expander

& SM BUS MUX

BATTERY1

Parallel

FAN0

BATTERY2

ATF0

FAN1 ATF1

Other

Control

Parallel

1-21-1

(END)

Dock-VGA DB-15

RJ-45

Serial

Parallele

PS/2

USB3

USB2

DCin

VGA

DB-15

RJ45

Serial

Parallele

PS/2

USB

CONN

USB

CONN

DC Jack

Confidential

PCG-GRX670/GRX690 (AM)
