Sony PCG-FX410 User Guide

Download

Welcome.......................................................7

Using Your VAIO Notebook........................9

Using the Keyboard...................................................10

Functions of the keyboard keys .........................................11

Combinations and functions with the Windows key .........12

Indicators ...........................................................................13

Indicator lights...................................................................13

Combinations and functions with the Fn key ....................14

Using the Touchpad ..................................................16

Using the Floppy Disk Drive ....................................18

To insert a floppy disk .......................................................18

To remove a floppy disk ....................................................18

To remove the floppy disk drive........................................19

To reinsert the floppy disk drive........................................20

Using the Optical Disc Drive ....................................21

To insert a disc...................................................................21

To remove a disc................................................................22

To play a DVD...................................................................23

To play an audio CD ..........................................................24

Notes on CD and DVD media ...........................................25

To write data to a CD-RW or CD-R disc...........................26

Using PC Cards .........................................................27

To insert a PC card.............................................................27

To remove a PC Card.........................................................28

Notes on PC Cards.............................................................29

Using a Second Battery Pack ....................................30

To insert a second battery pack..........................................30

To charge the second battery pack.....................................31

To remove the second battery pack ...................................32

Change text in this variable definition to document title.

Using the Weight Saver ............................................34

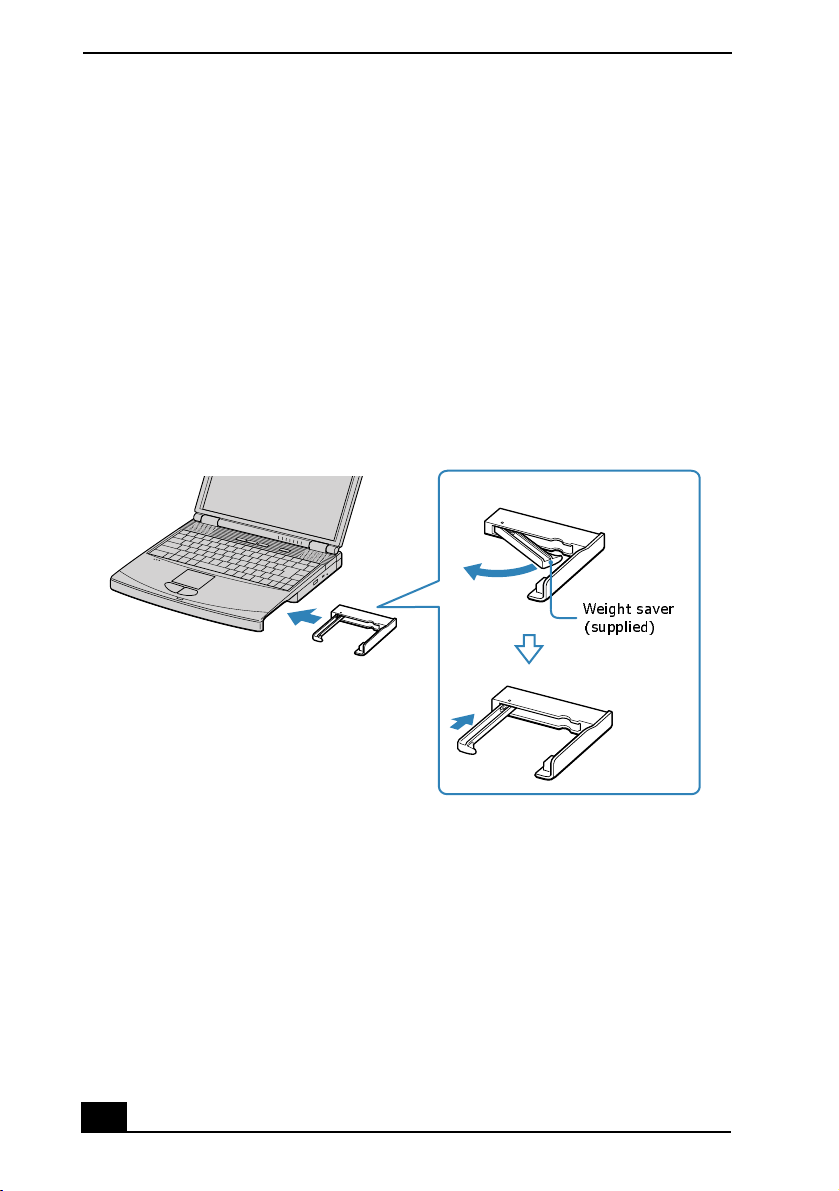

To attach the weight saver ................................................ 34

To remove the weight saver.............................................. 34

Using Power Saving Modes......................................36

Normal mode..................................................................... 36

Standby mode.................................................................... 36

Hibernate mode................................................................. 36

Notes on power saving modes .......................................... 37

Connecting a Phone Line..........................................38

Connecting to a LAN................................................ 39

To set up your ethernet connection ................................... 39

Connecting Peripheral Devices ...............41

Connecting a Port Replicator....................................42

To attach your notebook to the port replicator.................. 42

To remove your notebook from the port replicator........... 44

Connecting an External Mouse or Keyboard............46

To connect an external mouse or keyboard ...................... 46

Connecting a Parallel Port Printer ............................47

To connect a printer .......................................................... 47

Connecting a USB Printer.........................................48

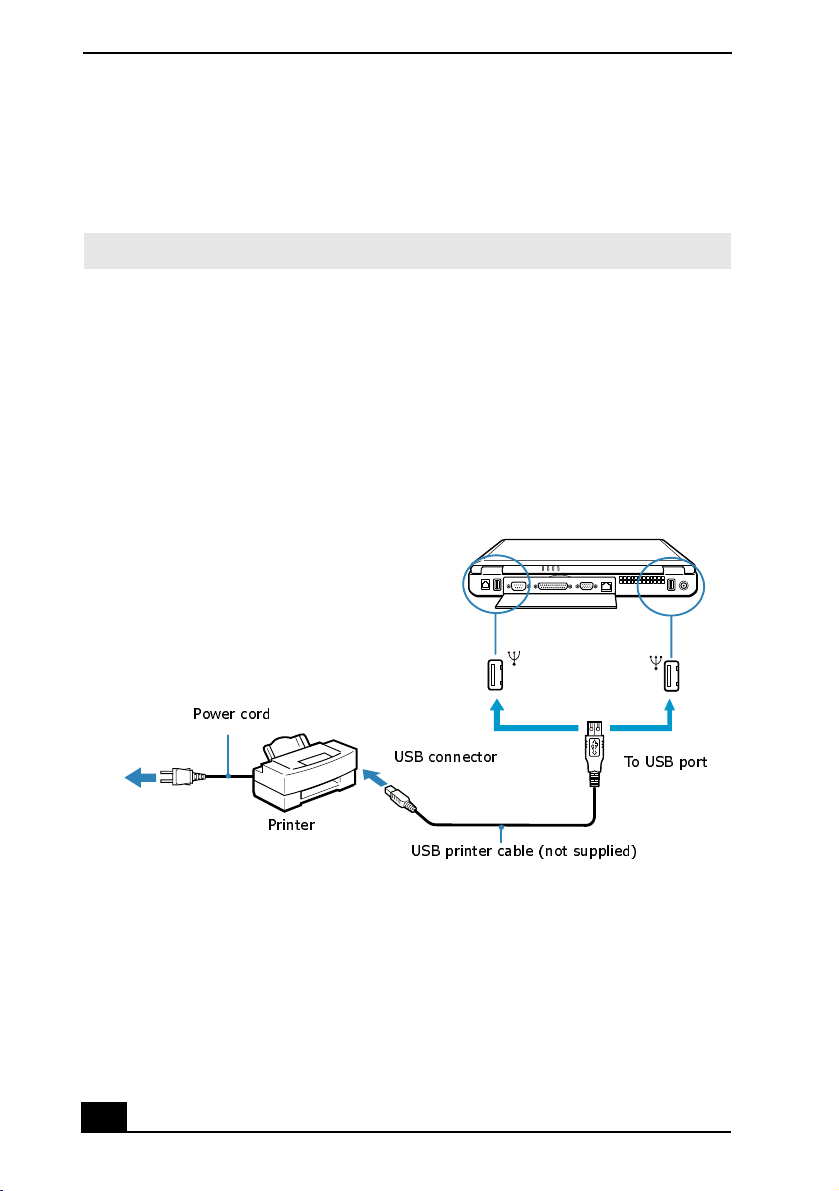

To connect a USB printer.................................................. 48

Connecting an External Display ...............................49

To connect a computer display ......................................... 49

To connect a multimedia computer display ...................... 49

To connect a projector....................................................... 50

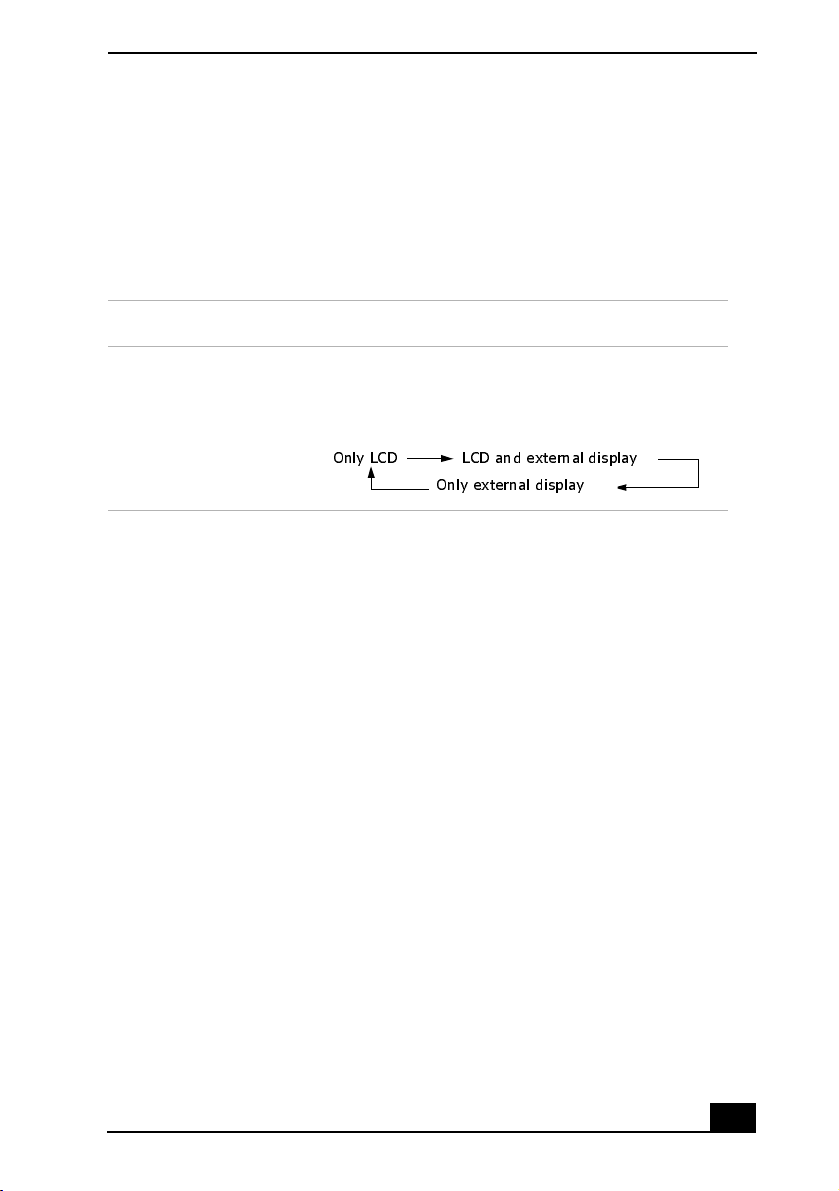

To select a display............................................................. 51

Connecting a TV Display..........................................52

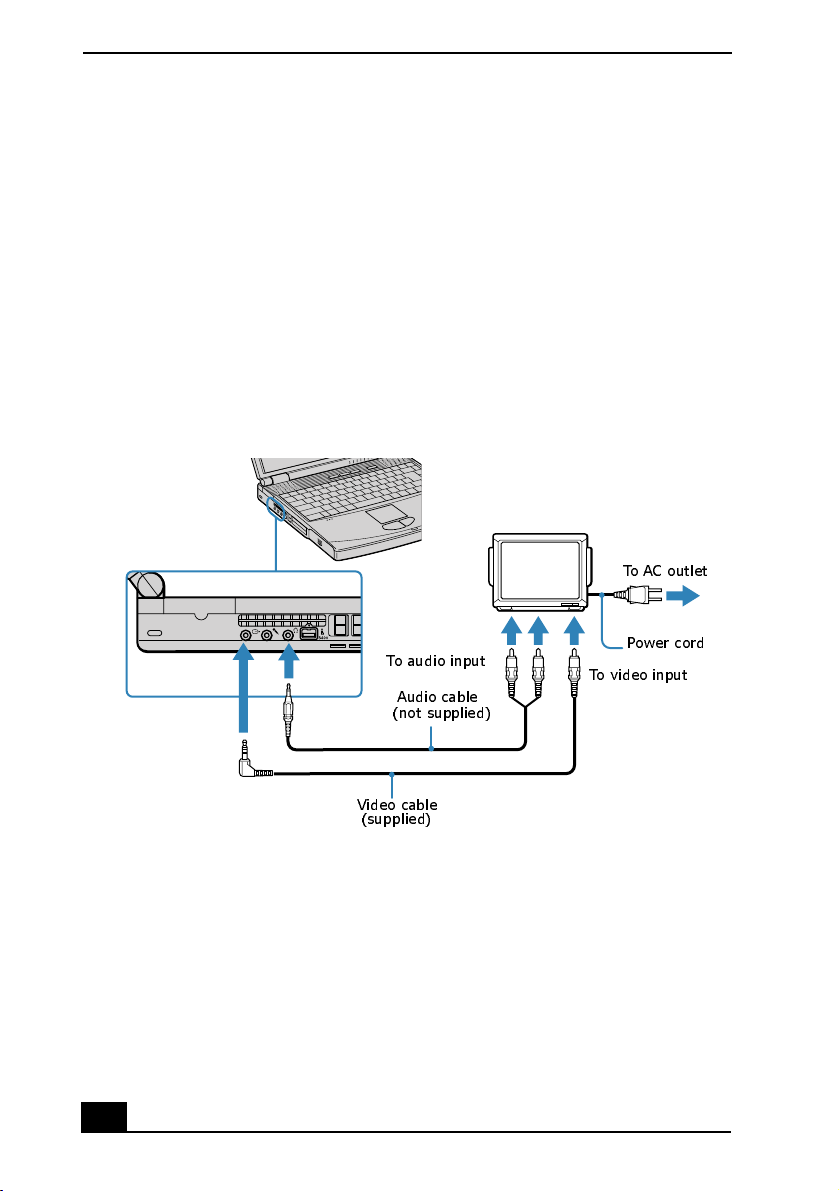

To connect a TV ................................................................52

Changing the display resolution for TV Out .....................52

Notes on TV display ..........................................................53

Connecting a USB Device.........................................54

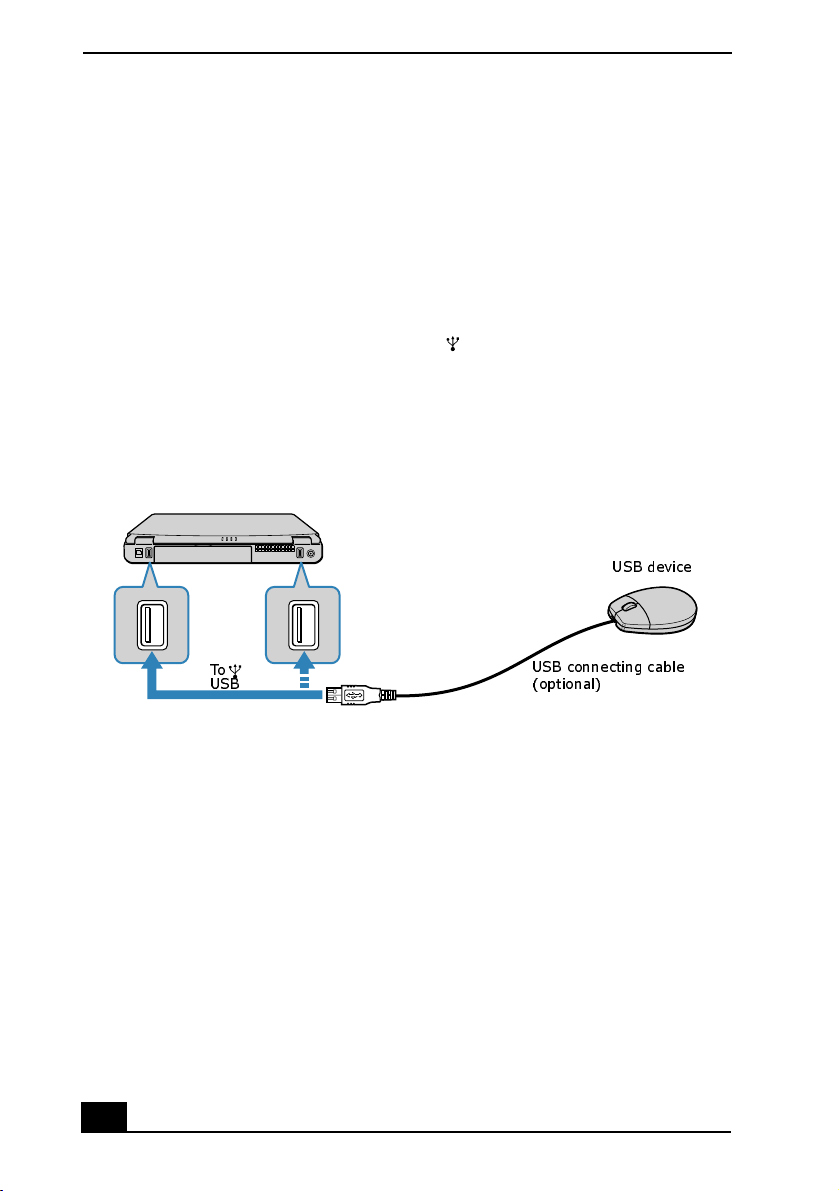

To connect a USB device...................................................54

Connecting an i.LINK Device...................................55

To connect a digital video camera recorder.......................55

Notes on i.LINK devices ...................................................56

Connecting VAIO computers....................................58

Connecting with i.LINK ....................................................58

Connecting External Speakers ..................................59

Before connecting your external speakers .........................59

To connect external speakers.............................................59

Connecting an External Microphone.........................60

To connect an external microphone ...................................60

Expanding Your Notebook Capabilities ...................61

Personal Digital Assistant..................................................61

Wireless LAN Access Point ..............................................61

Wireless LAN PC Card......................................................62

Customizing Your VAIO Notebook ..........63

Displaying the Sony Notebook Setup Screen ...........64

To display the Sony Notebook Setup screen .....................64

Sony Notebook Setup Tabs................................................65

Controlling Power Management ...............................66

To view the Power Management status icons....................66

Power Management profiles ..............................................67

Power management commands .........................................69

Conserving battery power..................................................70

Change text in this variable definition to document title.

Displaying Battery Information................................71

To activate the Battery Information toolbar...................... 71

Battery icon descriptions................................................... 71

To display detailed battery information............................ 72

To customize the Battery Information toolbar and alarm sys-

tem..................................................................................... 73

Selecting the Display Mode......................................74

To select the display mode................................................ 74

To change the Window Design of Sony software............. 76

Adding Memory to Your VAIO Notebook 77

Precautions and Procedures ......................................78

Typical expansion memory configuration ........................ 78

Removing a Memory Module...................................80

Installing a Memory Module ....................................82

Viewing the Amount of Memory.............................. 84

About the Software on Your Notebook...85

Software Overview ...................................................86

Application, Driver, and System Recovery CDs ......92

Using Your Recovery CDs .......................................93

To use the Application Recovery CD(s) ........................... 93

To use the Driver Recovery CD(s) ................................... 93

To use the System Recovery CD(s) .................................. 98

Troubleshooting......................................101

Troubleshooting Your Notebook ............................102

My notebook does not start..............................................102

My notebook starts, but a BIOS error is displayed..........102

My notebook starts, but the message “Operating system not

found” appears and Windows does not start....................103

My notebook stops responding or does not shut down....104

The Power Management setting is not responding. .........104

The sound of my notebook’s fan is too loud. ..................105

Why does the System Properties dialog box display a slower

CPU speed than advertised? ............................................105

Troubleshooting the LCD Screen............................106

My LCD screen is blank. .................................................106

My LCD screen continues to show the previous screen. .106 The image on my connected external display is not centered

or sized properly. .............................................................106

I want to change the video resolution of my display. ......106

I want to change the display resolution for TV Out ........106

I cannot switch the LCD display to TV, and vice versa. .107

Troubleshooting the Mouse and Touchpad.............108

My mouse does not work. ................................................108

My touchpad does not work properly. .............................108

The pointer does not move while I am using the Touchpad or

Mouse...............................................................................109

Troubleshooting Drives, PC Cards and Peripheral De-

vices.........................................................................110

My floppy disk drive cannot write to a floppy disk.........110

My optical drive is not playing a CD or DVD properly. .110

My optical drive tray does not open. ...............................111

I cannot use Digital Video (DV) devices. The message “DV equipment seems to be disconnected or turned off” appears.

Change text in this variable definition to document title.

111

My PC Card is not working. ........................................... 111

Troubleshooting Software....................................... 112

My software program stops responding or crashes......... 112

When I click an application icon, the message “You must insert the application CD into your optical drive” appears and

the software does not start............................................... 112

I cannot use the DVgate software. .................................. 112

Troubleshooting the Modem................................... 113

My modem does not work. ............................................. 113

My modem connection is slow. ...................................... 113

Troubleshooting Audio ........................................... 114

My speakers make no sound. .......................................... 114

My microphone does not work. ...................................... 114

Troubleshooting the Printer ....................................115

I cannot print. .................................................................. 115

Troubleshooting i.LINK devices ............................116

I cannot establish a connection between two VAIO comput-

ers when using an i.LINK cable. ..................................... 116

Getting Help.............................................117

Support Options ......................................................118

Software Support Information ................................120

Sony Service Center................................................122

Welcome

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the VAIO Notebook User Guide. This User Guide provides detailed information on all aspects of using your new VAIO computer, from keyboard functions to preinstalled software applications. In the left navigation window, click the topics you want to learn more about, and that information will be displayed in this main window.

Change text in this variable definition to document title.

Using Your VAIO Notebook

This section describes the following aspects of your new computer:

❑ Using the Keyboard

❑ Using the Touchpad

❑ Using the Floppy Disk Drive

❑ Using the Optical Disc Drive

❑ Using PC Cards

❑ UsingaSecondBatteryPack

❑ Using the Weight Saver

❑ Using Power Saving Modes

❑ Connecting a Phone Line

❑ ConnectingtoaLAN

Change text in this variable definition to document title.

Using the Keyboard

Your keyboard is very similar to a typewriter’s, but the keyboard has additional keys that perform specific computer-related tasks.

Keyboard

Correction keys

Navigation keys

Shift key

Ctrl key

Fn key

Escape key Function keys Print Screen key

Applications key

Alt key

Windows® key

Numeric keypad area

Functions of the keyboard keys

Key Description

Using the Keyboard

Numeric keypad area

Navigation keys Several keys are devoted to moving the cursor on the screen.

Correction keys The Insert, Back Space, and Delete keys enable you to make

Function keys The twelve function keys along the top of the keyboard are

Escape key The Esc (Escape) key is used to cancel commands.

Print Screen key The Print Screen key takes an electronic snapshot of the

Operator keys (Shift, Ctrl, Alt keys)

Contains the keys found on a typical calculator. Use the numeric keypad area to type numbers or to perform mathematical calculations such as addition and subtraction. Note that you must press the Num Lock key to activate the numeric keypad. (When you do so, the Num Lock light will be on.)

corrections in your documents.

used to perform designated tasks. For example, in many applications, F1 is the Help key. The task associated with each function key may vary from one application to the next.

screen and places it in the Windows® Clipboard. You can then paste the screen shot into a document and print it.

Several keys are always used with at least one other key: Ctrl, Alt,andShift.Whenhelddownwithanotherkey,theCtrl (Control) and Alt (Alternate) keys offer another way to give commands. For example, in many applications, instead of choosing the Save command from a menu, you can hold down Ctrl and press S (referred to as Ctrl+S). The Shift key operates the same way as on a typewriter; it is used to produce capital letters or special symbols, such as @ and $.

Change text in this variable definition to document title.

Key Description

Windows key The key with the Windows® logo displays the Windows Start

menu; it is the equivalent of clicking the Start button on the taskbar. See “Combinations and functions with the Windows key” for more information.

Fn key The Fn key is used in combination with other keys to issue

commands. See “Combinations and functions with the Fn key” for more information.

Applications key The Applications key displays a shortcut menu of context-

sensitive choices. Pressing this key is the equivalent of clicking the right mouse button.

Combinations and functions with the Windows key

Combination Function

+ F1 Displays VAIO® Help and Support Center.

+ Tab Switches the selected button on the taskbar.

+ D Displays the Desktop.

+ E Displays Windows Explorer.

+ F Displays the Search window to find a file or folder. This is

the equivalent of selecting Search from the Start menu.

+ Ctrl + F Displays the Search Results: Computers window where you

can locate other computers. This is the equivalent of selecting Search and then Computers from the Start menu.

+ M Minimizes all displayed windows.

Using the Keyboard

Combination Function

Shift + + M Returns all minimized windows to their previous size.

+ R Displays the Run window. This is the equivalent of selecting

Run from the Start menu.

Fn + + Insert Displays the System Properties window. This is the

equivalent of selecting Control Panel and then System from the Start menu.

Indicators

Indicator Function

Power Light is green when the power to the notebook is turned on,

flashes amber in Standby mode, and turns off when the notebook is in Hibernate mode or powered off.

Battery 1 Indicates the status of the battery inserted in the battery bay

on the left side of the notebook.

Battery 2 Indicates the status of the battery inserted in the multipurpose

drive bay on the right side of the notebook.

Hard disk Lights when data is being read from or written to the hard

drive. Do not enter Standby mode or turn off the notebook when this indicator light is on.

Indicator lights

Change text in this variable definition to document title.

Light On Off

Num Lock

Caps Lock

Scroll Lock

The number keys in the numeric keypad are active.

The letters appear in uppercase as you type. The Shift key lowers the case of typed letters when Caps Lock is on.

The screen scrolls differently. (Exactly how it scrolls depends on the specific application. It has no effect in many applications.)

The alphanumeric character keys in the keypad area are active.

Letters appear in lower case as you type (unless you hold down the Shift key).

Information moves across the display normally.

Combinations and functions with the Fn key

✍ If you switch user identities during a computing session, the Fn+F7 and Fn+F8 key

functionality (if available on your computer) will be interrupted. To switch to an external display or monitor, see “Selecting the Display Mode” for more information.

Combinations/ Feature Function

Fn+ (ESC) Standby

Puts the system into Standby mode, a power management state. To return the system to the active state, press any key.

Fn+ (F3) Mute On/Off

Fn+ (F4) Speaker volume

Fn+ (F5) Brightness control

Toggles the built-in speaker off and on.

Adjusts the built-in speaker volume. To increase volume, press Fn+F4, then or . To decrease volume, press Fn+F4, then or .

Adjusts the brightness of the LCD. To increase light intensity, press Fn+F5 and then or . To decrease light intensity, press Fn+F5 and then or .

Combinations/ Feature Function

Using the Keyboard

LCD

Fn+ / (F7)

Toggles through the LCD, external display (connected to the

Monitor port) and both LCD and external display. Switch to the external monitor/LCD

LCD

Fn+ only/

(F8)

Control TV Out

Only LCD

Toggles between LCD-only and dual LCD/TV display modes.

Only LCD

LCD and external display

Only external display

LCD and external display

Only external display

Connect the cable before you turn on the notebook, otherwise Fn + F8 will not work.

Fn+ (F12) Hibernate

Provides for the lowest level of power consumption. When you execute this command, the state of the system and state of the peripheral devices are written to the hard disk and the system power is turned off. To return the system to its original state, use the power button to turn on power.

Fn+ F Display control. Minimizes and maximizes the LCD screen.

If the default display resolution is reduced, this function maximizes the display resolution to fit the screen size. Maximizing the display screen enables you to view the display at a greater resolution.

✍ Some functions are not available until Windows® launches.

Change text in this variable definition to document title.

Using the Touchpad

The keyboard contains a cursor-pointing device called a touchpad. You can point to, select, drag, and scroll objects on the screen using the built-in touchpad.

Touchpad

Pointer

Tou c hpad

Right button

Left button

Action Description

Point Slide one finger on the touchpad to place the pointer on an

item or object.

Click Press the left button once.

Double-click Press the left button twice.

Using the Touchpad

Action Description

Right-click Press the right button once. In many applications, this action

displays a shortcut menu of context-sensitive choices.

Drag Slide one finger while pressing the left button.

Scroll Move your finger along the right edge of the touchpad to

scroll vertically. Move your finger along the bottom to scroll horizontally. (The scroll function is available only with applications that support a touchpad scroll feature.)

See Mouse Properties for information on touchpad features, such as clicking both buttons simultaneously, adjusting touchpad speed, and Easy Launcher functions. To access Mouse Properties, go to Start, select Control Panel, and click the Mouse icon.

Change text in this variable definition to document title.

Using the Floppy Disk Drive

Your notebook is supplied with the floppy disk drive in the multipurpose bay.

To insert a floppy disk

1 Hold the floppy disk with the label side facing up.

2 Gently push the floppy disk into the drive until it clicks into place.

Inserting a floppy disk

Floppy disk

Floppy disk drive

To remove a floppy disk

1 After you finish using the floppy disk, wait until the LED indicator turns off.

2 Press the Eject button to remove the floppy disk.

Using the Floppy Disk Drive

Removing a floppy disk

Eject button

LED indicator

✍ Do not push the eject button when the LED indicator is turned on. Otherwise, data may

be lost.

To remove the floppy disk drive

1 Turn off the notebook.

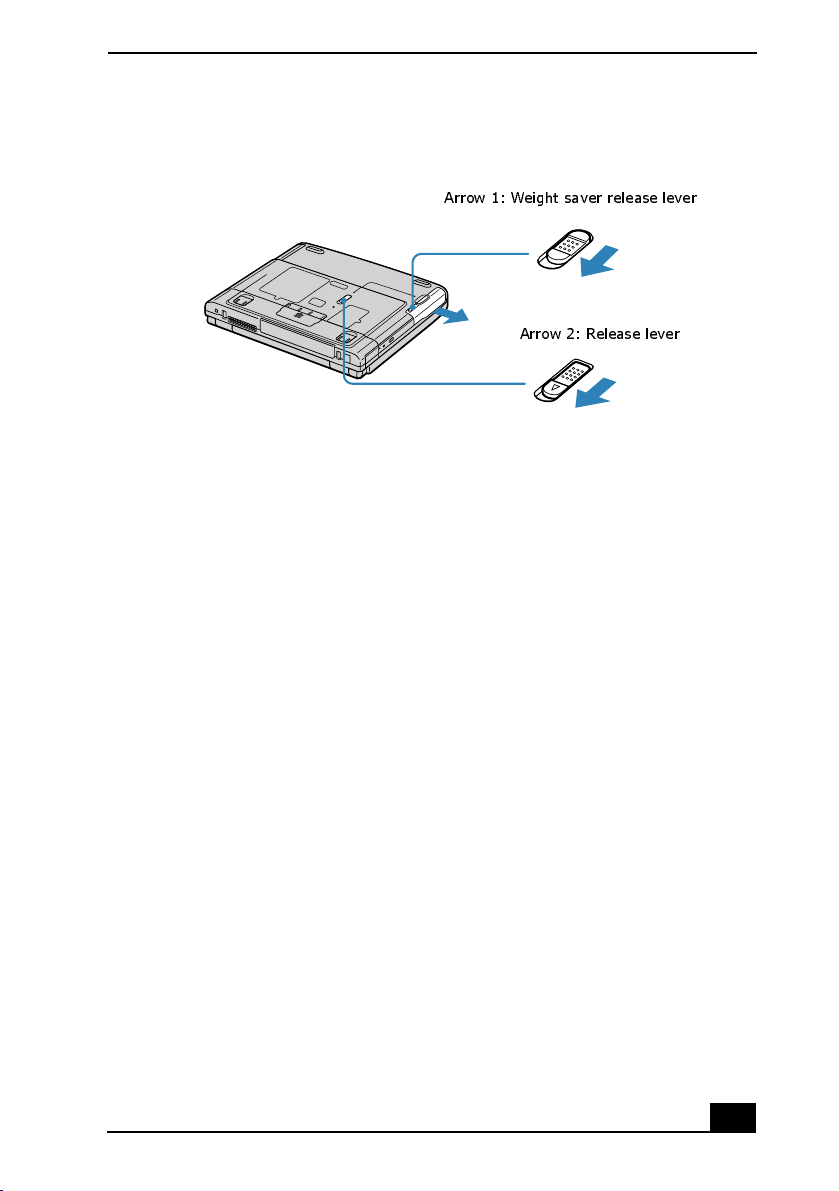

2 Locate the release lever on the bottom of the notebook.

3 Slide the lever in the direction of the arrow.

Multipurpose bay release lever

4 Slide the floppy disk drive out of the multipurpose bay.

5 Insert the weight saver. See “Using the Weight Saver” for more information.

Change text in this variable definition to document title.

To reinsert the floppy disk drive

1 Turn off the notebook.

2 If another device is in the multipurpose bay, remove the device. See “To

remove the second battery pack” for more information.

3 Insert the floppy disk drive into the multipurpose bay with the VAIO label

facing up.

4 Continue pushing the drive into the bay until the release lever locks into

place.

Inserting the floppy disk drive

Multipurpose bay

Floppy disk drive

Using the Optical Disc Drive

Your notebook comes with an optical disc drive, either a CD-RW/DVD Combo Drive or DVD-ROM drive, depending on the model you purchased.

Do not use adhesive labels to identify your discs. Adhesive labels may come off while the disc is in use in the optical drive, and may cause damage to the drive.

To insert a disc

When the notebook is in Standby or Hibernate mode, you cannot insert a disc. See “Controlling Power Management” for more information on Standby and Hibernate modes.

1 Turn on the notebook.

2 Press the Eject button to open the optical drive. The tray slides out.

Ejecting the tray

Eject button

3 Place an optical disc on the tray with the label side facing up. For DVDs that

can be played on both sides, the side of the disc facing up is the side that plays.

4 Push the disc onto the hub until the disc clicks securely into place.

Change text in this variable definition to document title.

Be sure to seat the disc firmly over the hub fingers. If you do not seat the disc firmly, you could damage the optical drive and you may not be able to open the tray.

Inserting an optical disc

5 Close the tray by pushing it gently.

Label side facing up

To remove a disc

When the notebook is in power saving modes, you cannot remove a disc. See “Controlling Power Management” for more information about power saving modes.

1 After you finish using a disc, wait until the LED indicator turns off.

2 Press the Eject button to remove the disc.

3 If the disc does not come out when you press the Eject button, turn off the

notebook and insert a thin, straight object (such as a paper clip) into the manual eject hole.

Manually removing a disc

Using the Optical Disc Drive

To play a DVD

To play a DVD, you may use the optical disc drive and the preinstalled WinDVD® software. For more information on WinDVD, see the Help menu in the WinDVD application.

✍ Before you use the optical disc drive to play a DVD, quit any open applications.

Your optical disc drive can read most DVD-R media. When you are ready to play a DVD, read the suggestions below to maximize your video viewing experience.

❑ When playing a DVD on battery power, set the power management profile to

DVD. You can also set the power management profile to Automatic Profile Selection if the display is not clear when using other profiles.

✍ Automatic Profile Selection sets the power management profile to DVD whenever a

DVD is inserted. See “Controlling Power Management” for more information.

Change text in this variable definition to document title.

❑ If you connect your notebook to a TV display, you may need to adjust the

display resolution. Read the suggestions below to set the display resolution to the proper dimensions. Also see “Selecting the Display Mode” for more information.

❑ If the notebook is set to the default display setting, part of the video screen

will not appear. To view the entire screen, adjust the display resolution to 640 x 480. See “Connecting a TV Display” for more information.

❑ The screen resolution must be set to 640 x 480 dots in order to play a DVD

while using the TV Out jack. See “Connecting a TV Display” for more information.

Some discs recorded at 20 or 24 bits may produce noise while playing. If you have audio devices connected, this may cause damage to your hearing and the speakers. Reduce the volume before playing a DVD.

You cannot use the Fn + F8 function to switch between LCD and TV once a DVD is inserted into the optical drive.

Do not switch between LCD and the external display while the DVD is playing. This may cause a malfunction, and you may need to restart the DVD software.

To play an audio CD

To play an audio CD, make sure the audio function is turned on. To do this, complete the following procedure.

1 Click Start, click Control Panel, click Performance and Maintenance, and

then click System. The System Properties window appears.

2 Select the Hardware tab and then click Device Manager in the Device

Manager box. A window appears, listing your notebook hardware devices.

3 Double-click DVD/CD-ROM drives. From the drop-down list, double-click

the drive name. A properties window appears.

4 Click the Properties tab. Select the “Enable digital CD audio for this CD-

ROM device” check box if it is not already selected, and then click OK.

You can play DVDs using the optical drive and the WinDVD

software. See the

help file that comes with the WinDVD software for details.

❑ To achieve optimum performance when playing DVDs, it is recommended

that your notebook not be connected to the port replicator while playing

Using the Optical Disc Drive

DVD movies or using DVD applications. Close any open applications before playing a DVD movie.

❑ When playing DVD movies on battery power, set the power management

profile to DVD. With other profiles, the movies are choppy. As an alternative, you can set the power management profile to Automatic Profile Selection, which will cause the DVD profile to be selected automatically whenever you insert a DVD. See “Controlling Power Management” for information on how to set the power management profile.

Notes on CD and DVD media

❑ Do not switch the power saving modes while you are playing the DVD disc.

❑ Disable the screen saver and the virus checker (if it is active).

❑ Do not use memory-resident utility software to speed up disc access. This

may cause the notebook to malfunction.

❑ Do not drop or bend the disc.

❑ Do not touch the surface of the disc. Fingerprints and dust on the surface of a

disc may cause data errors. Proper care of the disc is essential to maintain its reliability. Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray, as they may cause damage to the disc.

❑ For normal cleaning, hold the disc by its edge and use a soft cloth to wipe the

surface from the center out.

❑ If the disc is badly soiled, moisten a soft cloth with water, wring it out well,

and use it to wipe the surface of the disc from the center out. Wipe off any remaining moisture with a dry soft cloth.

When using your notebook to play DVDs on your TV

❑ If you connect a TV to your notebook to play DVDs, see “Selecting the

Display Mode” for instructions.

❑ The screen resolution must be set to 640 x 480 dots in order to play a DVD

while using the TV Out jack. See “Connecting a TV Display” for more information.

Change text in this variable definition to document title.

To write data to a CD-RW or CD-R disc

You can use Sony SonicStage and Microsoft® Windows® XP to write data to a CD-RorCD-RWdisc.TocreateaCD-RdiscthatisreadableinaCD-ROM drive, make sure you finish the writing process before ejecting it. For more information, see the instructions included with Windows® XP.

❑ For optimal writing speed, deactivate the screen saver and exit anti-virus

software before writing data to a disc.

❑ For best results, use CD-Rs that are compatible with 8x speed.

❑ Do not put your notebook into power saving mode while writing data to a

CD-R or CD-RW disc.

Do not strike or shake the notebook while writing data to a disc.

Memory-resident disc utilities, such as the screen saver and virus checker, may cause unstable operation or data loss. Deactivate these utilities before writing data to a disc.

Always use the AC adapter as the power source for your notebook when you are writing data to a CD-R or CD-RW. Using battery power may result in data transfer failure.

* For notebook models equipped with a CD-RW/DVD Combo Drive.

Using PC Cards

Your notebook includes two PC Card slots. PC Cards enable you to connect portable external devices such as another hard disk drive, or to connect to a network.

The PC Card slots can accommodate two Type I/II PC Cards, or one Type III PC Card. These slots are compatible with CardBus. Use the lower slot for Type III PC Cards. You do not need to shut down your notebook before inserting or removing a PC Card.

To insert a PC card

1 Push the Release button. The Release button pops out.

PC Card release button

Release button

2 Press the Release button a second time. The PC Card slot protector pops out.

✍ When you use a Type III PC Card, you need to remove both the top and bottom PC

Card slot protectors.

Change text in this variable definition to document title.

PC Card slot protector

3 Insert the PC Card into the PC Card slot.

4 Verify that the front label of the PC Card is facing up.

5 Push the PC Card slot gently into the port. Your system automatically detects

the PC Card. The Unplug or Eject Hardware icon appears in the taskbar.

Inserting a PC Card

Insert with the arrow facing toward the slot

PC Card

Do not force a PC Card into the slot as this may damage the connector pins.

Touching the head of the PC Card will not cause damage to the connector pins, but damage can occur if the head of the PC Card is sticking out of the notebook while the unit is being transported.

To remove a PC Card

If your notebook is turned off, you do not have to follow these instructions.

Using PC Cards

1 Double-click in the taskbar. The “Safely remove ... PC Card” dialog box

appears.

2 Click the dialog box. The message, “Safe to Remove Hardware” appears.

3 Clicktoclosethemessage.

4 Push the Release button. The Release button pops out.

5 Push the Release button a second time. The PC Card pops out.

6 Gently grasp the card and pull it out of the slot.

7 Insert the PC Card slot protector into the empty slot.

Notes on PC Cards

❑ For some PC Cards, if you alternate between normal power operation and

the Standby or Hibernate power management modes while the card is inserted, you may find that a device connected to your system is not recognized. Reboot your system to correct the problem.

❑ Some PC Cards may require that you disable idle devices when using the PC

Card. You can use Sony Notebook Setup to disable devices. See “Displaying the Sony Notebook Setup Screen” for more information.

❑ Be sure to use the most recent software driver provided by the PC Card

manufacturer.

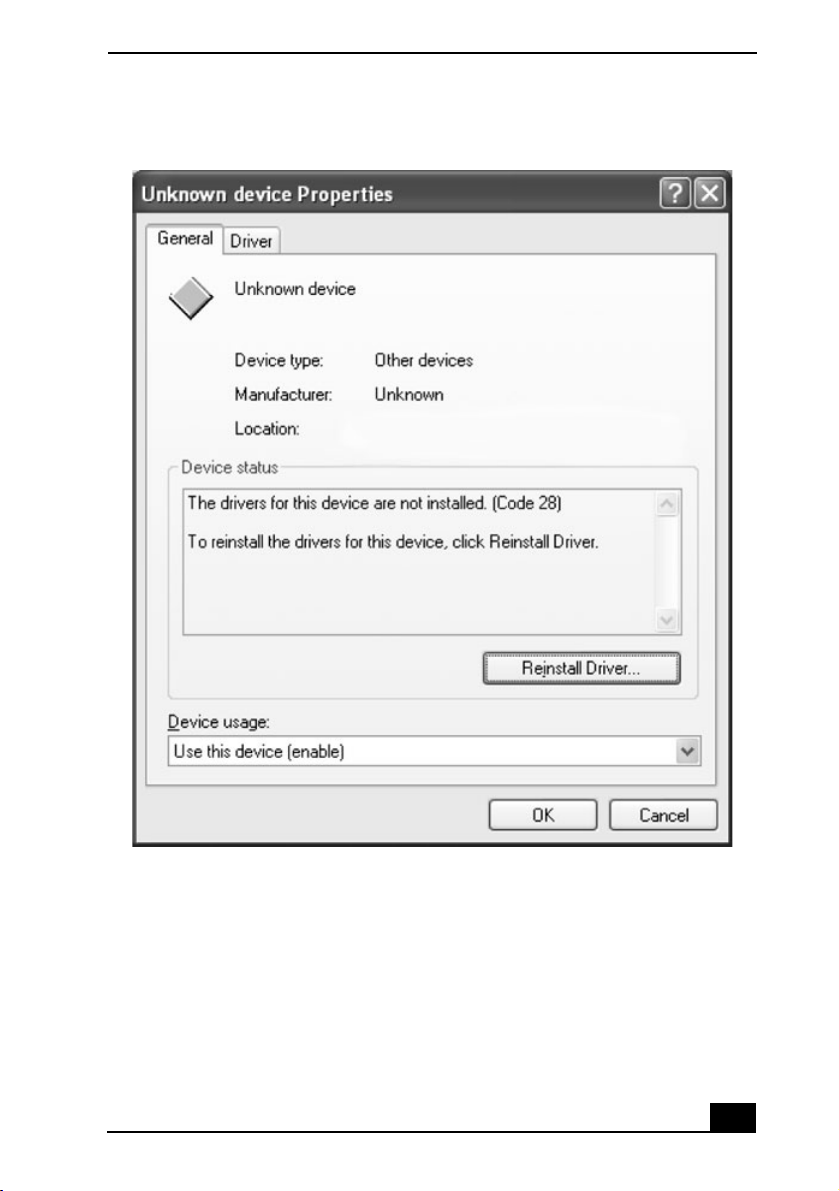

❑ If an exclamation mark (!) appears on the Device Manager tab in the System

Properties dialog box, remove the software driver and then reinstall it.

❑ You may not be able to use some PC Cards or some functions of the PC Card

with this notebook. If you have difficulty inserting a card, check that you are orienting the card correctly. See the manual that came with your PC Card for more information on use.

Change text in this variable definition to document title.

Using a Second Battery Pack

You can purchase a second rechargeable battery pack. With two battery packs, you can extend the time that you use your notebook with battery power. When using two battery packs, the battery pack you insert first charges first. The second battery pack you insert charges when the first battery pack is 85 percent full. You can monitor which battery pack is charging by observing the battery indicators.

To insert a second battery pack

1 If another device is in the multipurpose bay, remove the device.

2 Insert the battery pack into the multipurpose bay.

✍ If the battery is being used, the battery 2 indicator turns on.

Second battery in multipurpose bay

Multipurpose bay

Battery pack

Label side facing down

3 Attach the weight saver to the notebook to stabilize the battery pack.

4 Locate the release lever on the bottom of the weight saver.

5 Slide the lever toward the front of the notebook to lock the weight saver. See

also “Using the Weight Saver” for more information.

Using a Second Battery Pack

Using weight saver for second battery cover

Battery pack

Weight saver

To charge the second battery pack

Keep the battery pack in the notebook while it is connected to AC power. The battery automatically charges as long as the notebook is connected to AC power and turned on. The battery indicator flashes while the battery is charging.

To charge the battery pack

1 Connect the AC adapter to the notebook.

2 Insert the battery pack.

The notebook automatically charges the battery. The battery indicator flashes in a double-blink pattern as the battery charges.

3 When the battery is 85 percent full, the battery indicator turns off.

✍ To charge the battery completely, continue charging for an additional hour. See

“Displaying Battery Information” for more information.

Change text in this variable definition to document title.

Charging the second battery

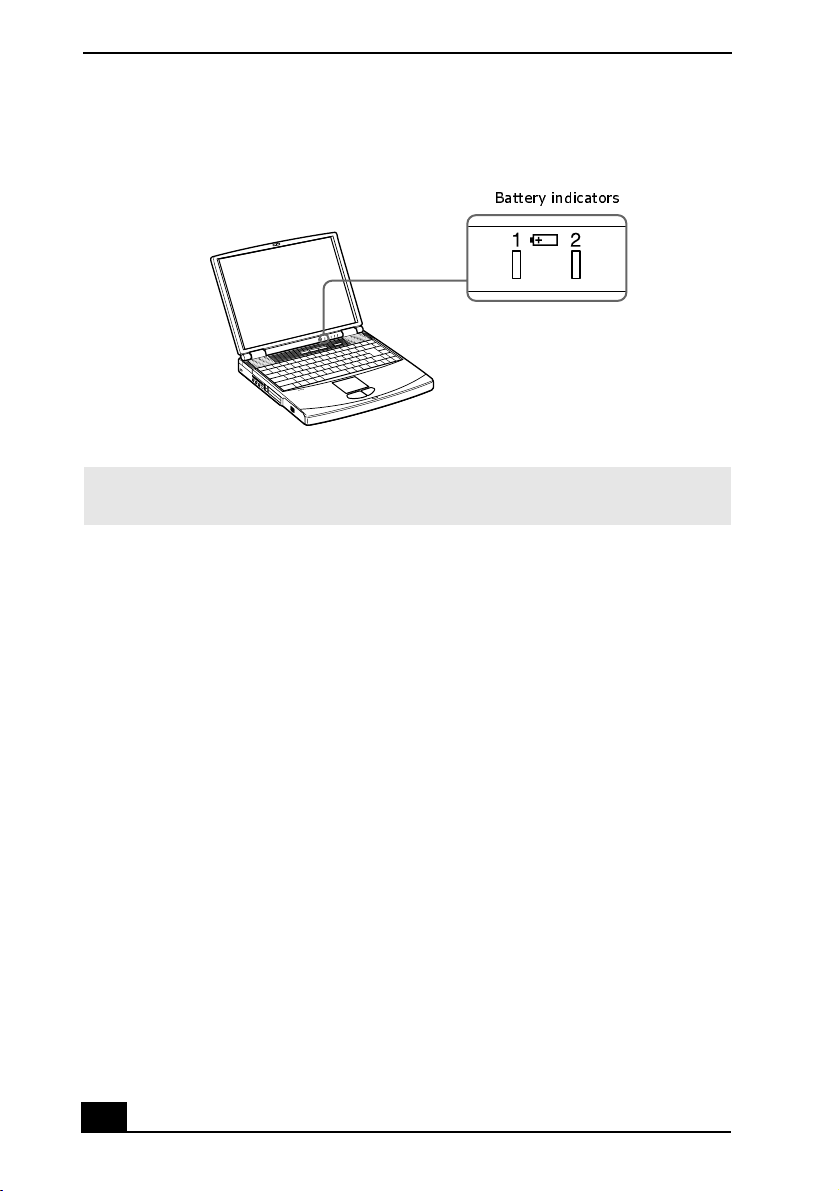

Battery indicators

✍ To determine the amount of time the battery lasts, see “Displaying Battery

Information” for more information.

To remove the second battery pack

If you attach two battery packs, you can remove either of them without shutting down the notebook.

1 When removing one battery pack, verify that the other battery pack’s

indicator is on.

2 If the indicator of the battery pack you are removing is on, right-click the

battery icon on the task tray and click the “Switch discharge battery” option.

3 Locate the release lever on the bottom of the weight saver.

4 Slide the lever in the direction of arrow 1, then slide the release lever on the

bottom of the notebook in the direction of arrow 2.

Using a Second Battery Pack

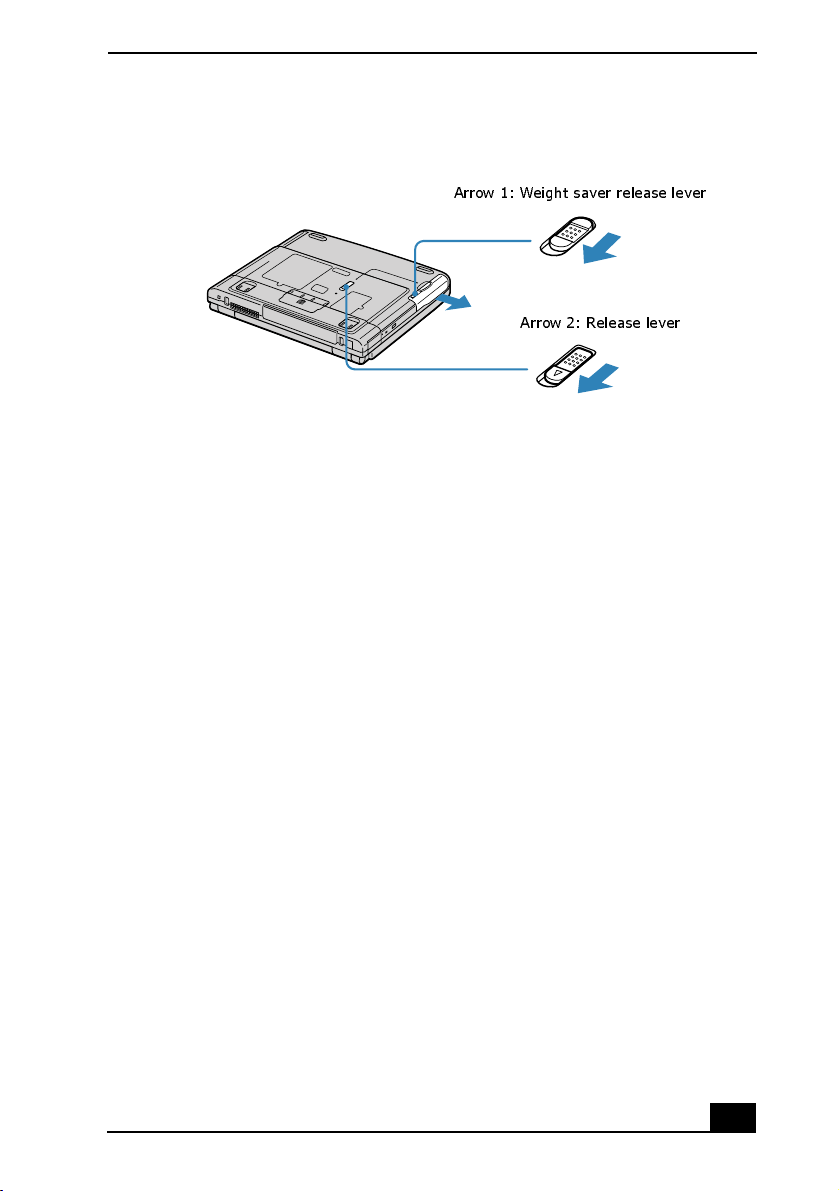

Multipurpose bay release levers

Arrow 1: Weight saver release lever

Arrow 2: Release lever

5 Remove the weight saver, and then pull out the battery pack.

6 Reinsert the weight saver. See “Using the Weight Saver” for more

information.

Change text in this variable definition to document title.

Using the Weight Saver

The weight saver protects the multipurpose bay when it is empty.

To attach the weight saver

1 If another device is in the multipurpose bay, remove the device. See “To

remove the second battery pack” for more information.

2 Fold out the hinged arm of the weight saver and then push on the hinged arm

to lock it into place. Slide the weight saver in the direction of the arrow until it clicks.

Attaching the weight saver

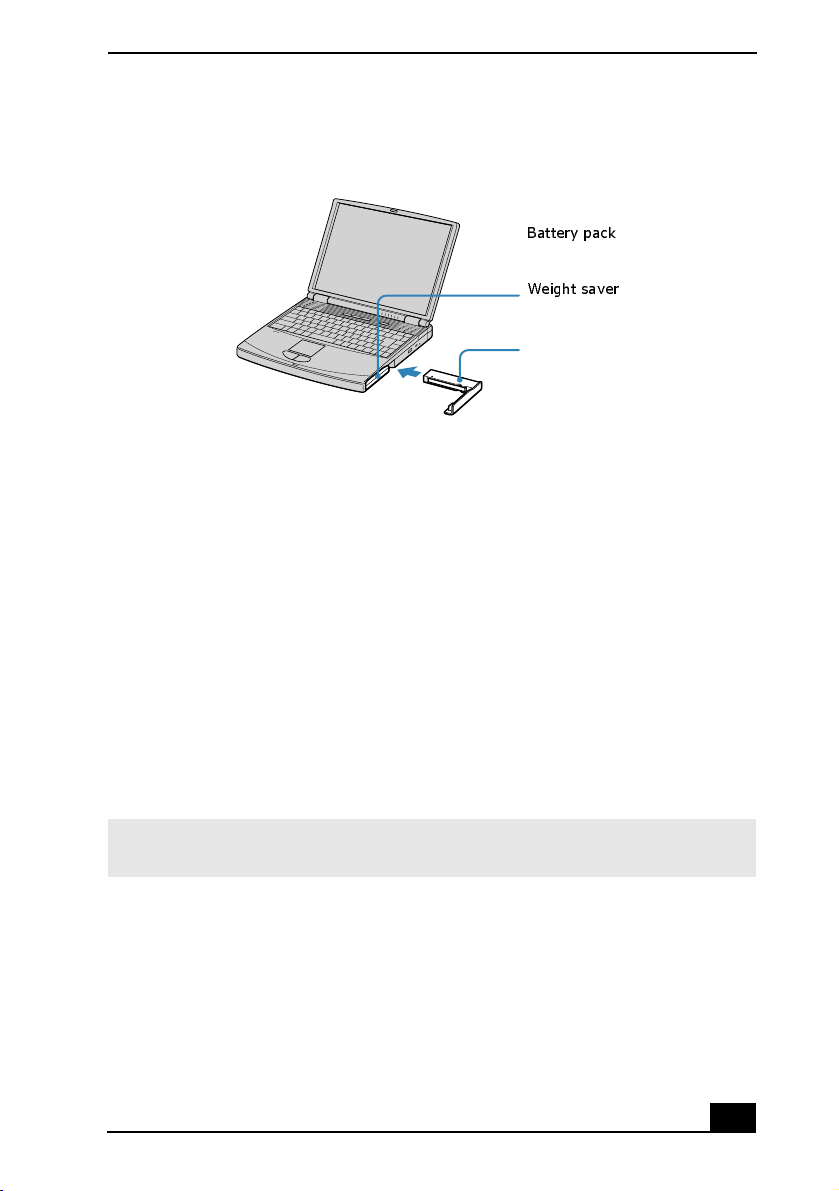

Weight saver

(supplied)

3 Manually lock the weight saver’s release lever.

To remove the weight saver

1 Locate the release lever on the bottom of the weight saver.

2 Slide this lever in the direction of arrow 1, then slide the release lever on the

bottom of the notebook in the direction of arrow 2.

Using the Weight Saver

Multipurpose bay release levers

Arrow 1: Weight saver release lever

Arrow 2: Release lever

3 After removing the weight saver, pull out the weight saver’s hinged arm and

fold it into the weight saver.

Change text in this variable definition to document title.

Using Power Saving Modes

When you use a battery as the source of power for your notebook, you can take advantage of power management settings to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your notebook has two distinct power saving modes: Standby and Hibernate. When using battery power, be aware that the notebook automatically enters Hibernate mode when the remaining battery charge drops below 5 percent, regardless of the power management setting you select.

✍ If the battery level falls below 10 percent, you should either attach the AC adapter to

recharge the battery or shut down your notebook and insert a fully charged battery.

Normal mode

Normal mode is the normal state of your notebook when it is in use. The power indicator displays green when your notebook is in this mode. To save power, you can turn off a specific device such as the LCD or the hard disk drive.

Standby mode

In Standby Mode the notebook saves the current state of the system in RAM and switches off power to the CPU. The amber power indicator flashes in this mode.

To activate Standby mode

1 Press the key combination Fn+Esc. You can also use the PowerPanel™

utility to enter Standby mode.

2 Pressanykeytoreturntonormalmode.

Hibernate mode

In the Hibernate mode, the state of the system is saved on the hard drive and power is turned off. The power indicator is off in this mode.

Using Power Saving Modes

To activate Hibernate mode

1 To activate Hibernate mode, press the key combination Fn+F12, or press the

power button and release it immediately. The “Save to Disk Manager” screen appears and the notebook enters Hibernate mode.

✍ Do not move the notebook until its power indicator turns off.

2 Press on the power button to return to normal mode.

Notes on power saving modes

❑ When returning from Hibernate mode, the system status stored on the hard

disk is erased and the notebook starts normally if you press the power button and hold it for more than four seconds.

❑ Standby uses more power than Hibernate.

❑ Standby requires less time than Hibernate to return to normal mode.

Change text in this variable definition to document title.

Connecting a Phone Line

You need to connect a phone cable (supplied with selected models) to take advantage of online services and the Internet.

✍ In order to register your Sony VAIO

Sony Customer Support, you must connect to a phone line.

Notebook, register your software online, and use

1 Plug one end of the phone cable into the modem jack on the notebook.

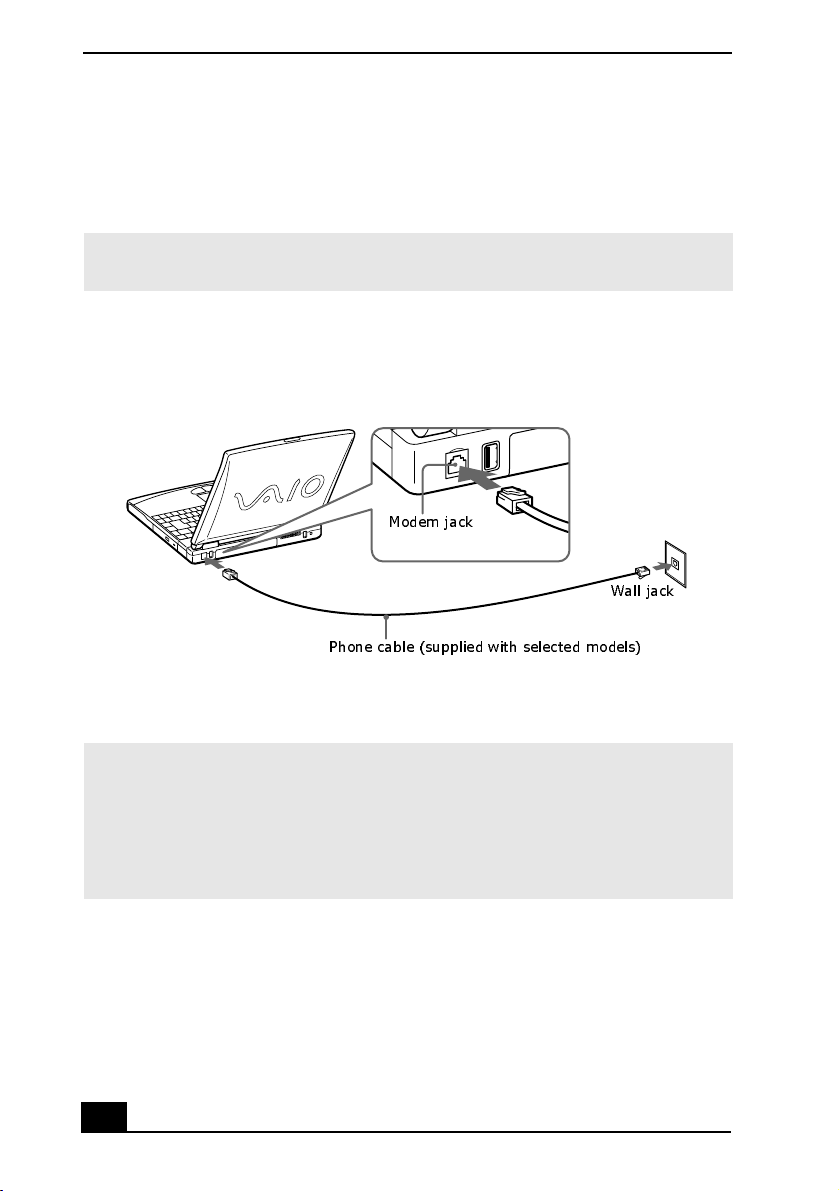

Connecting phone cable

Modem jack

Wall jack

Phone cable (supplied with selected models)

2 Plug the other end into the wall jack.

✍ Your notebook does not work with party lines, cannot be connected to a coin-operated

telephone, and may not work with multiple phone lines or a private branch exchange (PBX). Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.

If you connect a phone line coming through a splitter, the modem or connected device may not work properly.

Connecting to a LAN

You can connect your notebook to 10BASE-T and 100BASE-TX-type Local Area Networks (LANs). For the detailed settings and devices needed to connect to the network, ask your network administrator.

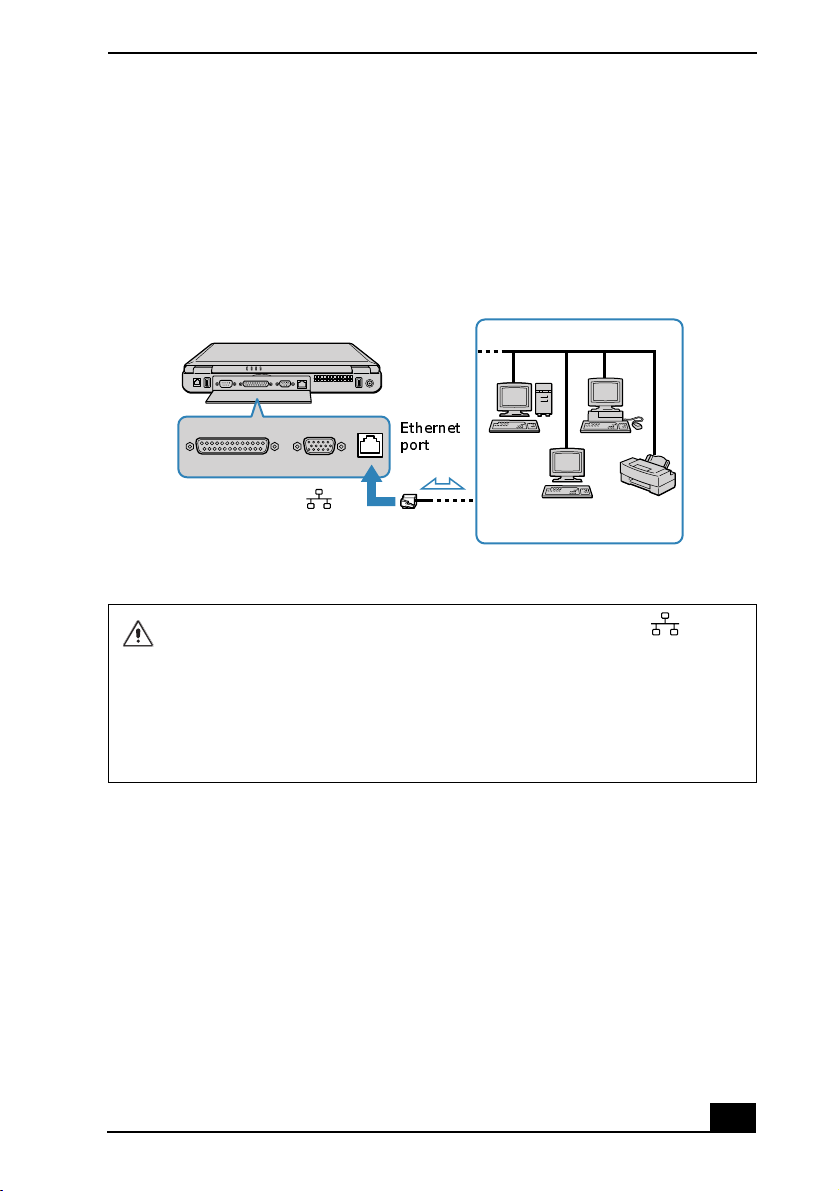

Connecting to LAN

Ethernet port

Warning: Only connect 10BASE-T and 100BASE-TX cables to the Ethernet port. Do not connect any other type of network cable or any telephone line. Connecting cables other than those listed above may result in an electric current overload and could cause a malfunction, excessive heat, or fire in the port. To connect the unit to the network, contact your network administrator.

If you enable Wake on LAN, the power saving mode will be switched to Standby mode.

To set up your ethernet connection

To connect to the network

1 Click Start, select My Computer, and click My Network Places under the

Other Places header.

2 Click “Add a network place” under the Network Tasks header, or click “Set

up a home or small office network,” depending on your configuration.

3 Depending on your choice, either the The Add Network Place Wizard or

Network Setup Wizard is displayed.

Change text in this variable definition to document title.

4 Follow the step-by-step instructions that appear on the screen.

Connecting Peripheral Devices

You can add functionality to your notebook by connecting a variety of peripherals, as discussed in the following sections:

❑ Connecting a Port Replicator

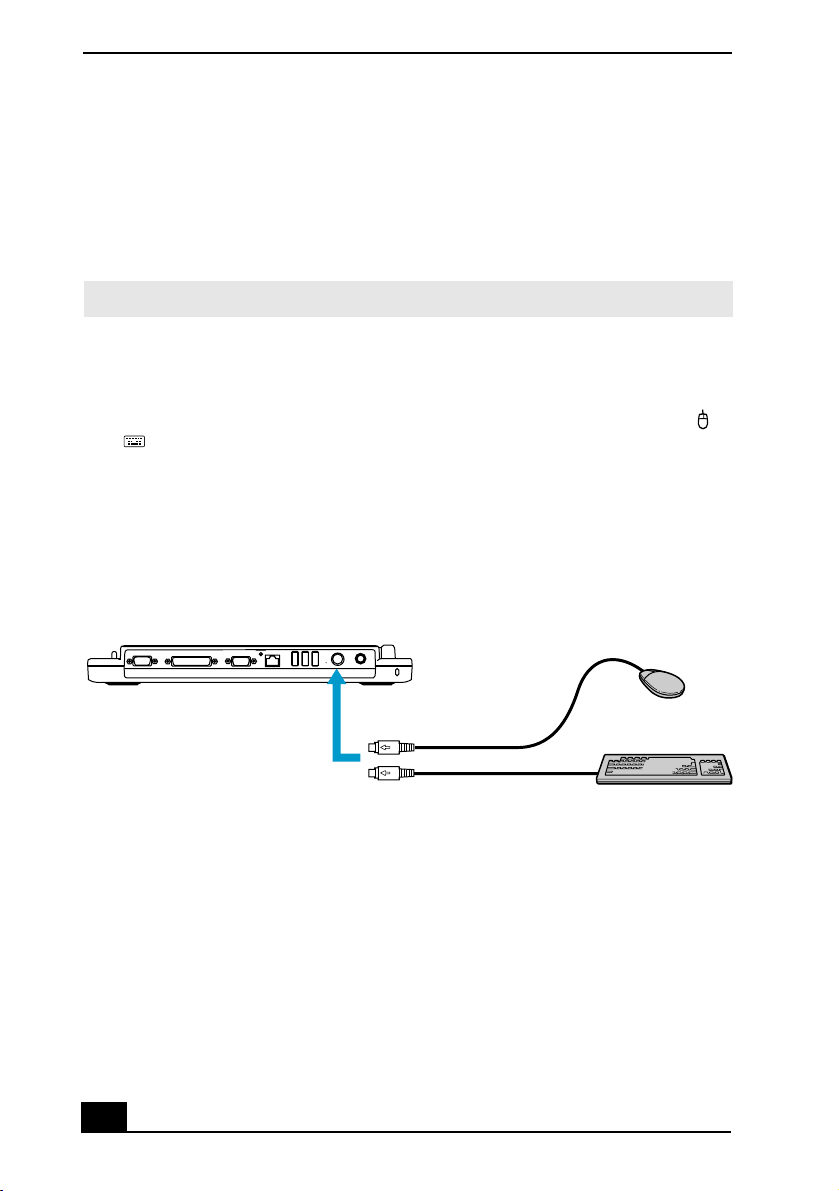

❑ Connecting an External Mouse or Keyboard

❑ Connecting a Parallel Port Printer

❑ Connecting a USB Printer

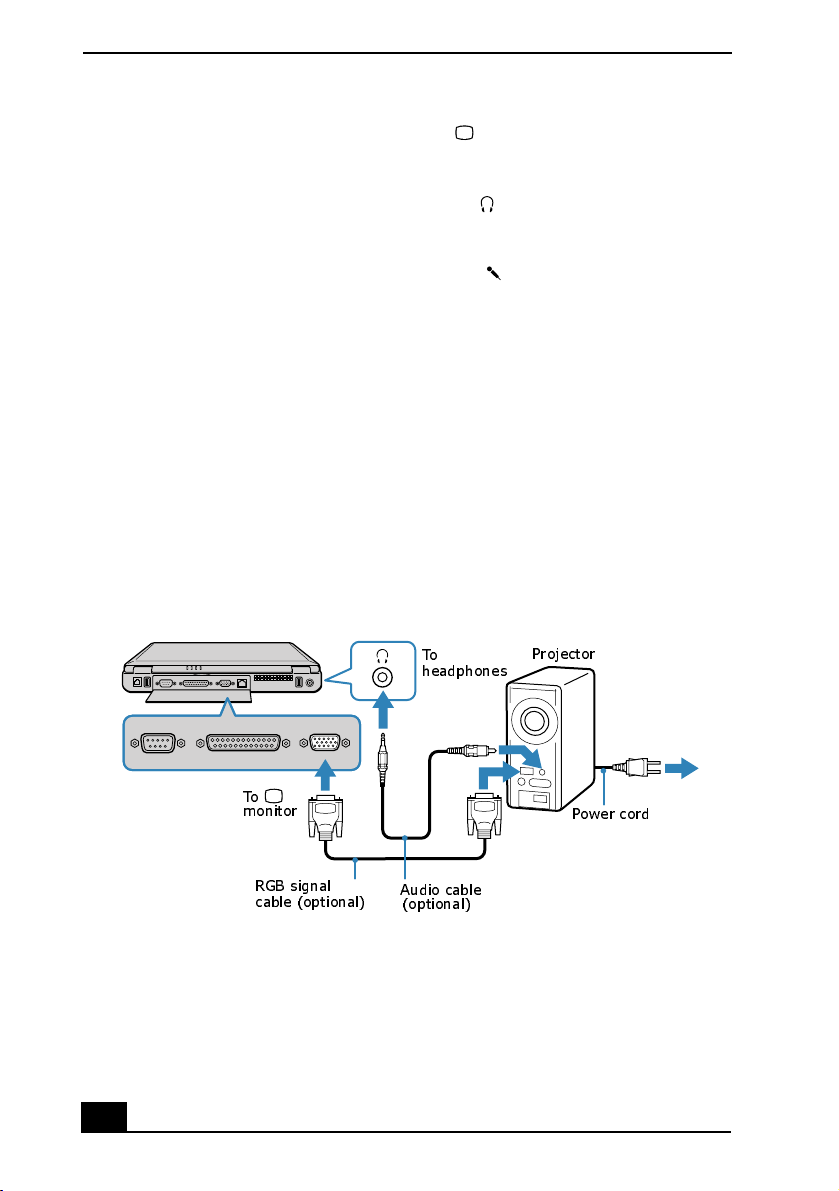

❑ Connecting an External Display

❑ Connecting a TV Display

❑ Connecting a USB Device

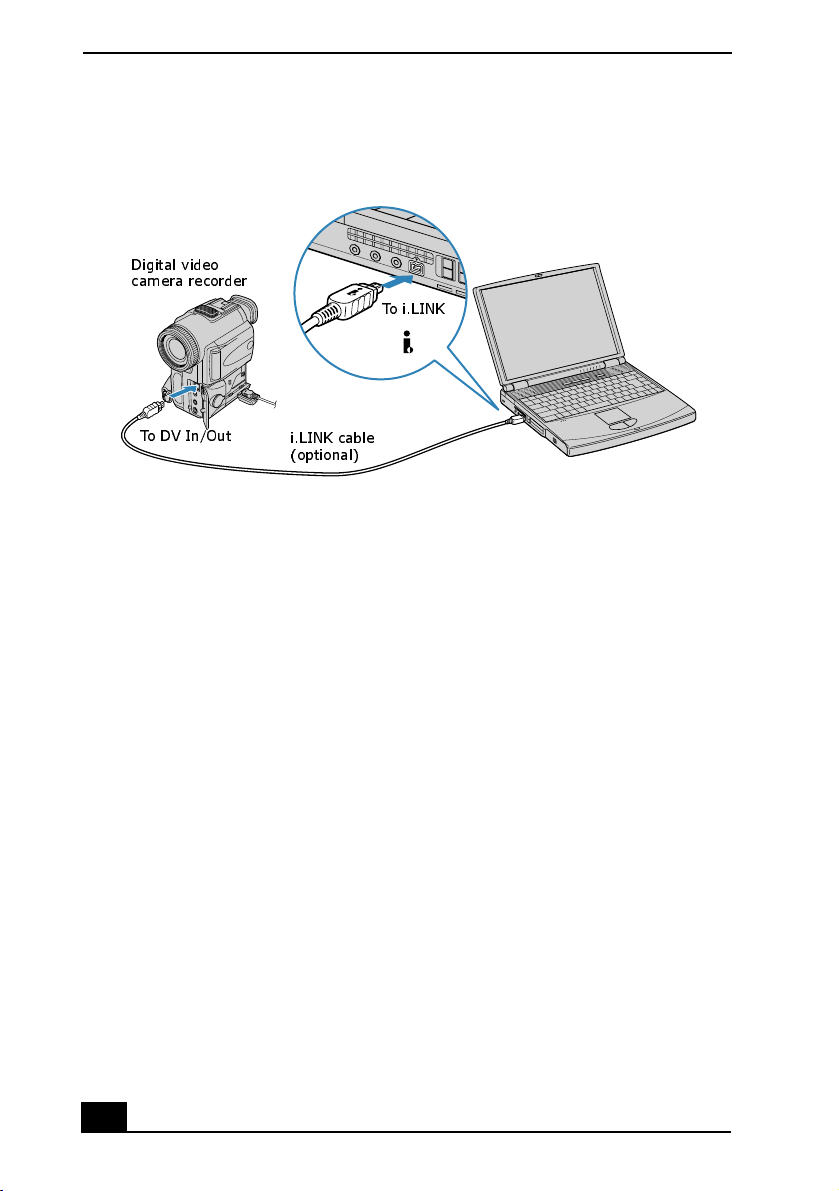

❑ Connectingani.LINKDevice

❑ Connecting VAIO computers

❑ Connecting External Speakers

❑ Connecting an External Microphone

❑ Expanding Your Notebook Capabilities

Change text in this variable definition to document title.

Connecting a Port Replicator

Your notebook supports the use of an optional port replicator (such as the Sony PCGA-PRFX1 model). Attaching a port replicator enables you to connect additional peripherals to your notebook.

Port replicator

654

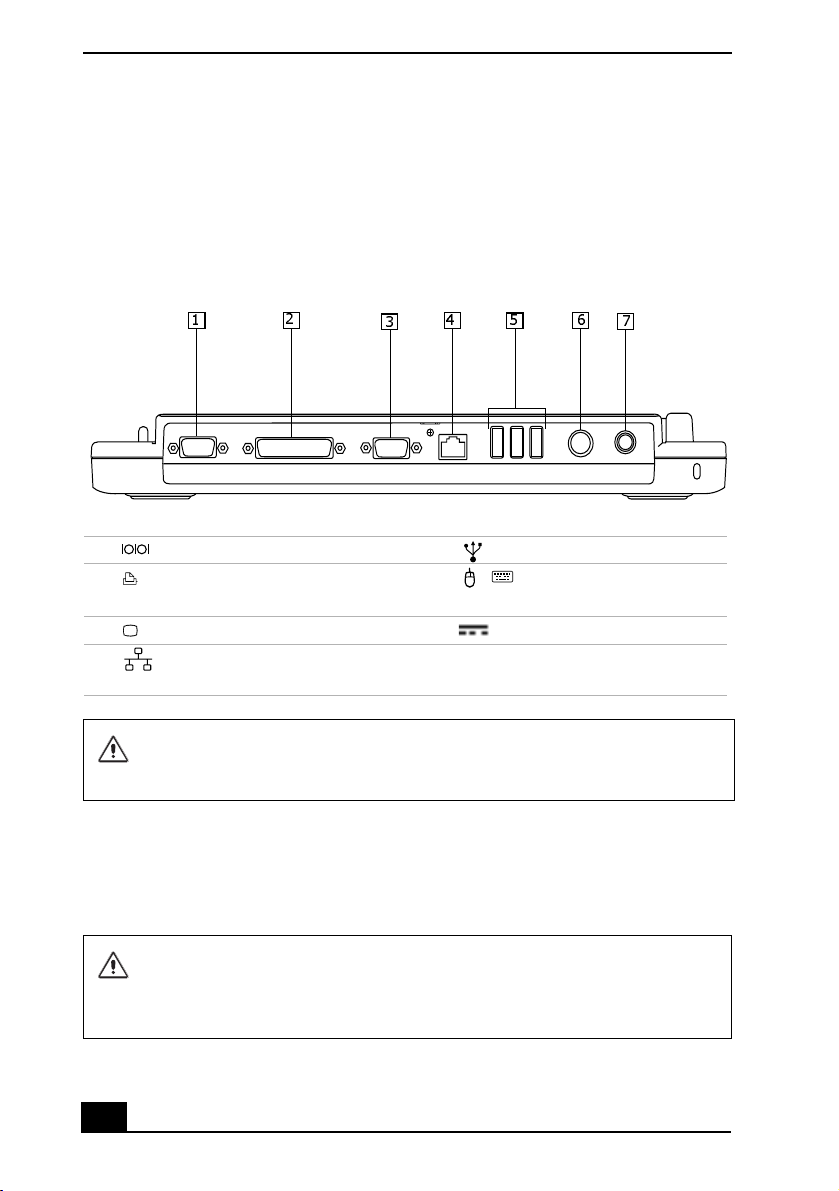

1 Serial port 5 USB ports 2 Printer port 6 / Mouse/Keyboard (PS/2

port)

3 Monitor port 7 DC In jack 4 Network (Ethernet 10BASE-T)

port

The port replicator can be powered only with an AC power adapter. Do not remove the AC adapter from the port replicator or the AC outlet while using the port replicator; this may cause data damage or hardware malfunctions.

To attach your notebook to the port replicator

To supply power to your notebook while it is connected to the port replicator, you can connect the AC adapter directly to the port replicator.

When attaching your notebook to the port replicator, do not attempt to insert or remove the battery pack. Lifting and turning the notebook with an attached port replicator could cause a temporary loss of power, and may result in data loss.

Connecting a Port Replicator

1 Turn off your notebook and disconnect all peripheral devices.

2 On the bottom of the notebook, slide the port replicator connector cover

open.

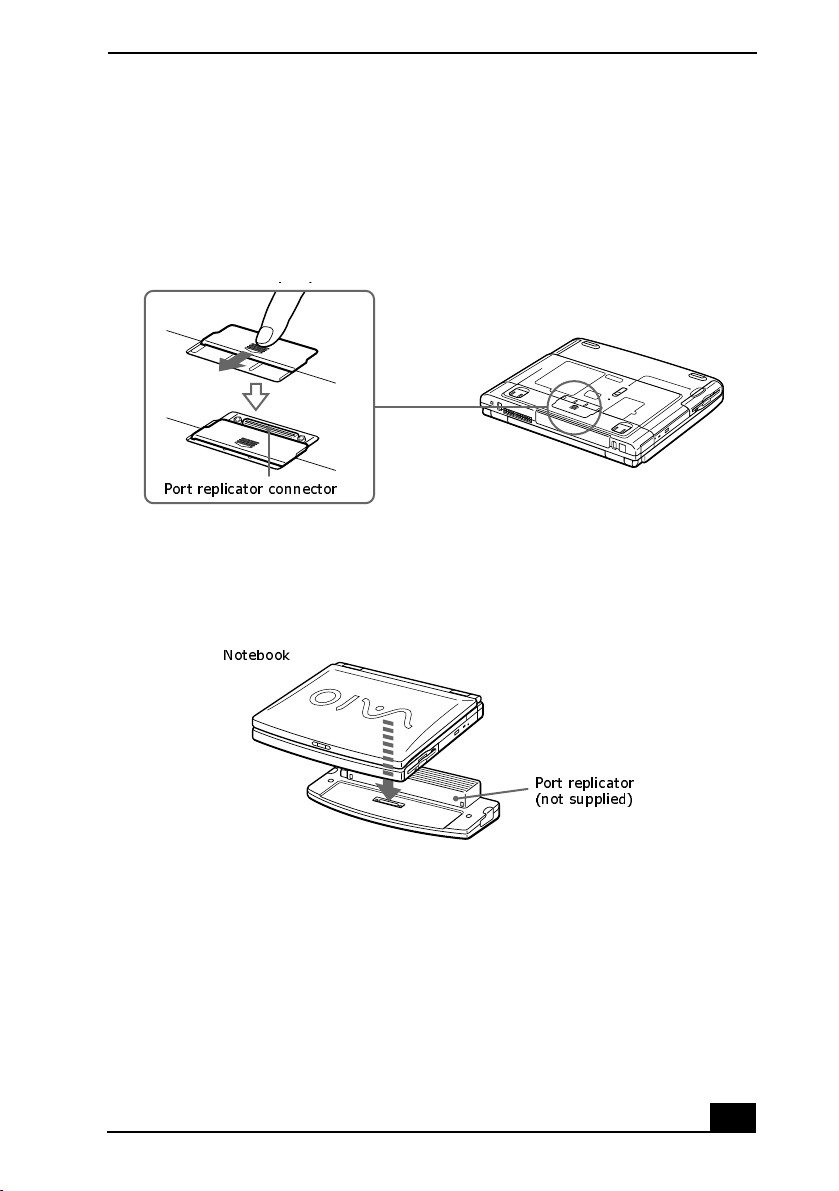

Port replicator connector

3 Attach the bottom of the notebook to the port replicator connector until it

clicks.

Attaching notebook to port replicator

oteboo

Port replicator (not supplied)

4 Plug the cable attached to the AC adapter into the DC IN jack on the port

replicator.

5 Plug the power cord into the AC adapter and an AC outlet. The power

indicator turns green.

Change text in this variable definition to document title.

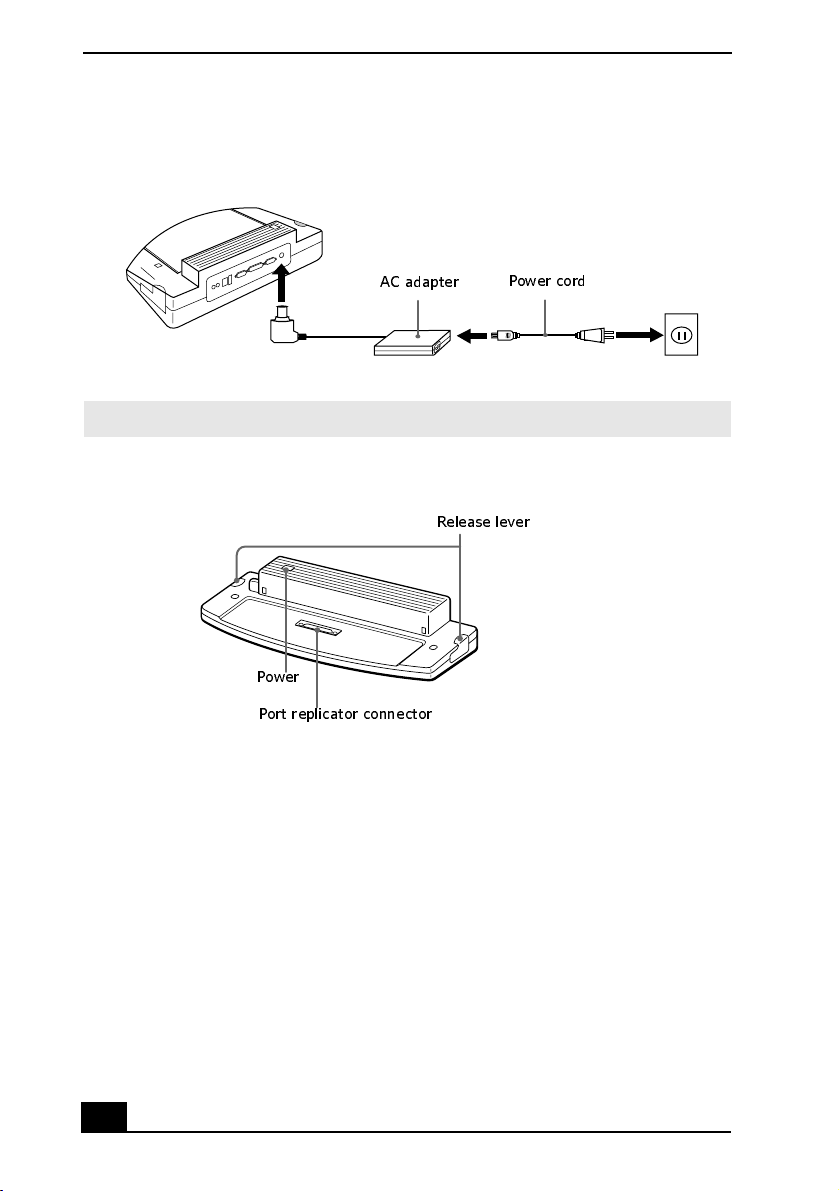

Connecting AC adapter to port replicator

AC adapter

Power cord

✍ Use the AC adapter that comes with your notebook, or an optional Sony adapter.

Power indicator

ease lever

Power

Port replicator connector

6 Turn on the notebook.

To remove your notebook from the port replicator

1 Turn off your notebook and the connected peripherals.

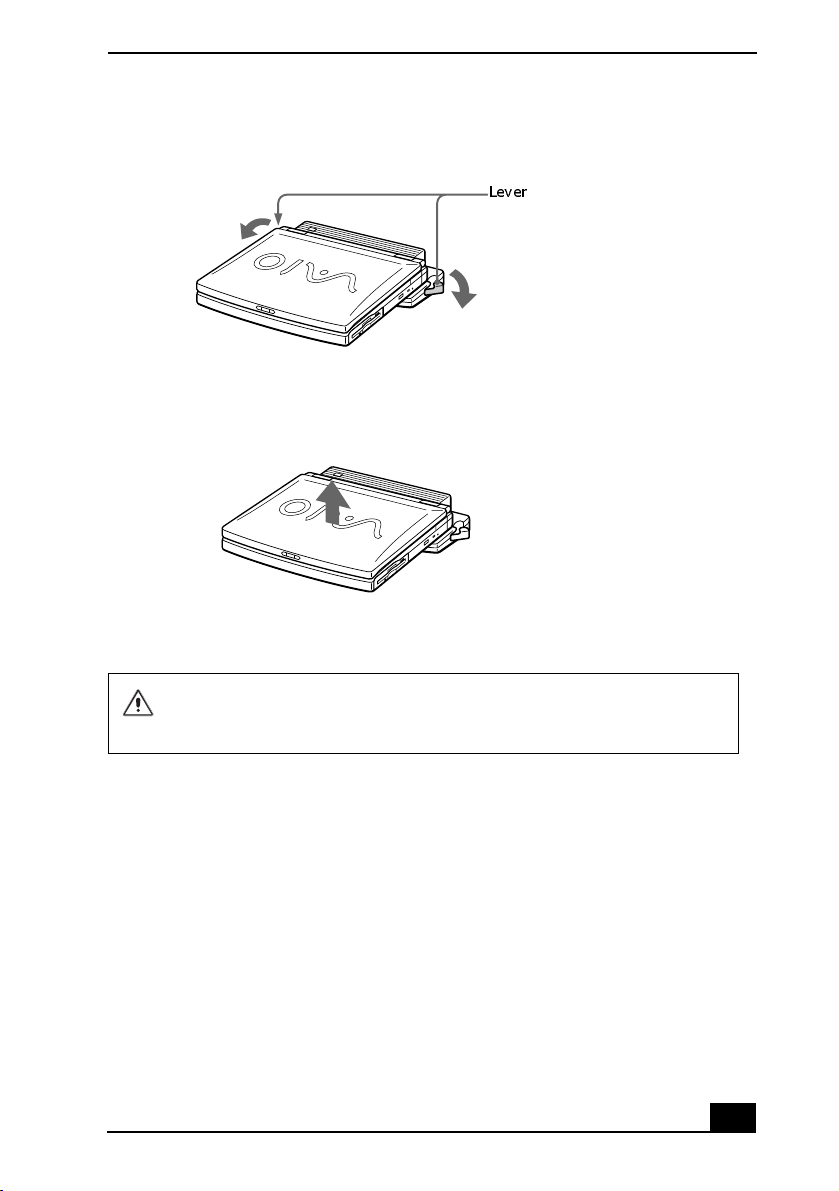

2 Pull the levers on each side of the port replicator to disengage the notebook

from the port replicator.

Connecting a Port Replicator

Disengaging notebook from port replicator

Lever

3 Lift the notebook away from the port replicator.

Lifting notebook

4 Close the port replicator connector cover on the bottom of your notebook.

Close the port replicator connector cover after removing your notebook from the port replicator. If the cover is left open, dirt may get inside and damage the notebook.

Change text in this variable definition to document title.

Connecting an External Mouse or Keyboard

You can connect an external mouse or keyboard to the optional port replicator using a similar type PS/2 device at a time. Therefore, you cannot connect both a PS/2 mouse and PS/2 keyboard simultaneously.

plug or adapter. You can only connect one external

✍ Before you connect or disconnect the mouse or keyboard, turn off the notebook.

To connect an external mouse or keyboard

1 Turn off your notebook.

2 Locate the mouse/keyboard port on the port replicator identified by the

symbols.

3 Plug the mouse or the keyboard cable into this port with the arrow facing up.

4 See the manual supplied with your mouse or keyboard for more information

on its installation and use

Connecting external mouse or keyboard to port replicator

Connecting a Parallel Port Printer

You can connect a Windows® compatible printer to your notebook to print documents.

To connect a printer

1 Locate the Printer port identified by the symbol.

2 Plug the printer cable (supplied with the printer) into this port on the

notebook.

3 See the manual supplied with your printer for more information on its

installation and use.

Printer port

Printer

to Printer

Printer cable (supplied with the printer)

Power cord

✍ Before using the printer, you may need to change the Printer setting in the Sony

Notebook Setup software. See “Displaying the Sony Notebook Setup Screen” for more information.

If your printer stops functioning after resuming from a power-saving mode, see “Troubleshooting the Printer” for more information.

Change text in this variable definition to document title.

Connecting a USB Printer

You can connect a Windows® compatible Universal Serial Bus (USB) printer to either of your notebook’s two USB ports to print documents.

✍ To use a printer, first install the driver software supplied with your printer.

To connect a USB printer

1 Plug the optional USB printer cable into one of the two USB ports on your

notebook and the USB port on your printer.

2 See the manual that came with your printer for more information on its

installation and use.

Connecting a USB Printer

Power cord

Printer

USB connector

USB printer cable (not supplied)

To USB port

Connecting an External Display

You can connect external display devices such as a computer display (monitor), multimedia computer display, and projector to your notebook.

✍ A 1400 x 1050 screen resolution and 16-bit color mode when using an external

display may not be fully supported on some external displays.

To connect a computer display

1 Locate the Monitor jack identified by the symbol on the back of the

notebook.

2 Plug the display cable (not supplied) into this jack.

3 If necessary, plug one end of the display power cord into the display, and the

other end into an AC outlet.

4 See the manual that came with your computer display for more information

on its installation and use.

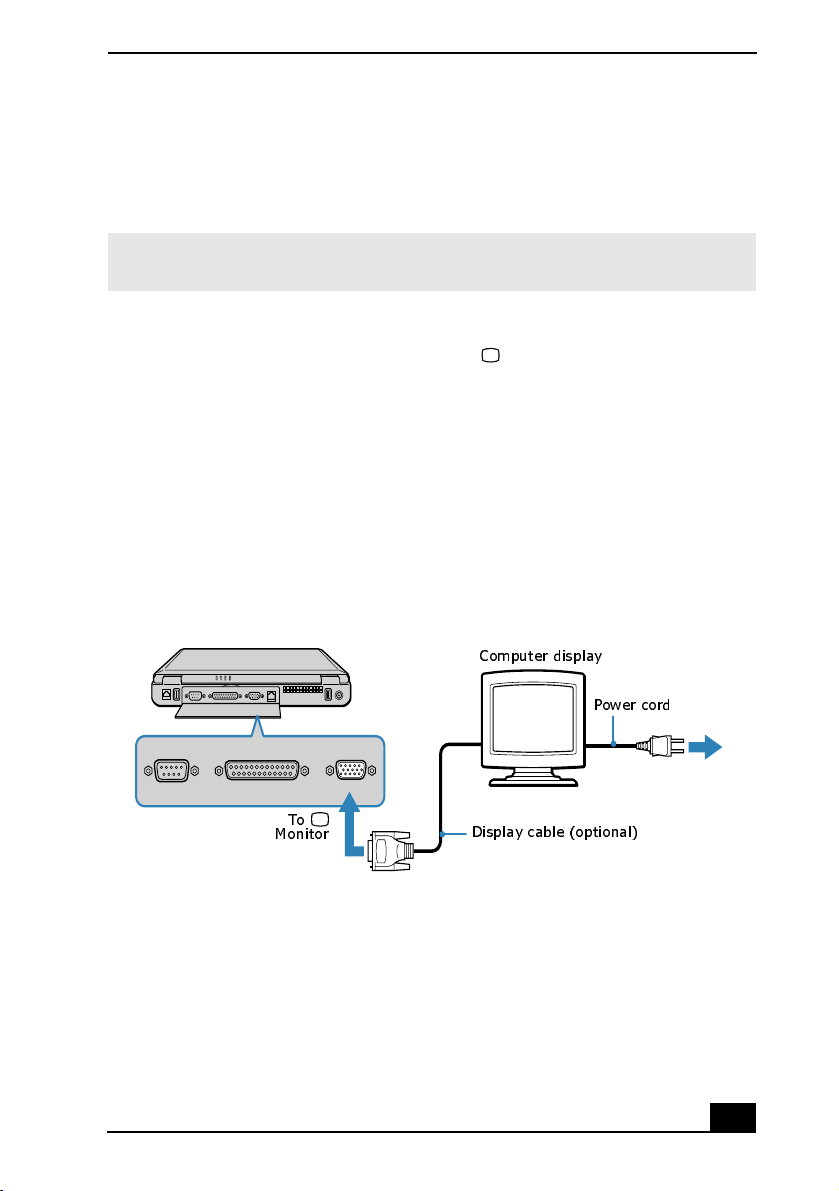

Connecting an external computer display

Computer display

Power cord

Monitor

Display cable (optional)

To connect a multimedia computer display

You can connect the notebook to a multimedia computer display that includes built-in speakers and a microphone.

Change text in this variable definition to document title.

1 Locate the Monitor jack identified by the symbol.

2 Plug the display cable into this jack.

3 Locate the Headphone jack identified by the symbol.

4 Plug the speaker cable into this jack.

5 Locate the Microphone jack identified by the symbol.

6 Plug the microphone cable into this jack.

7 See the manual that came with your multimedia computer display for more

information on its installation and use.

To connect a projector

You can use a projector, such as the Sony LCD Projector, as an external display.

❑ See the manual that came with your projector for more information on its

installation and use.

Connecting a projector

To monitor

RGB signal cable (optional)

To headphones

Audio cable

(optional)

Projector

Power cord

Connecting an External Display

To select a display

When you connect an external display to the monitor jack, you can toggle the output between the Liquid Crystal Display (LCD), the external monitor, or both devices.

Use the Fn+F7 keys to select a display. See also “Selecting the Display Mode” for more information.

To Press Result

Switch to an external display

Fn+F7 Toggles between the LCD, the external display

connected to the Monitor jack, or both the LCD and external display.

Only LCD

LCD and external display

Only external display

Change text in this variable definition to document title.

Connecting a TV Display

You can enjoy playing audio/video by connecting optional AV devices to your notebook. See also the manuals supplied with your AV devices for more information on their installation and use.

To connect a TV

1 Connect the notebook to a TV using audio/video cables.

2 Switch the input channel of the TV to external input.

Connecting a TV

To AC outlet

To audio input

Audio cable

(not supplied)

Video cable

(supplied)

To video input

Changing the display resolution for TV Out

Follow this procedure to change the video resolution of your display:

Power cord

Connecting a TV Display

1 First ensure that your notebook has been started with the TV Out jack

plugged in.

2 Click Start, select Control Panel, and then click the Display icon. The

Display Properties dialog box appears.

3 Click on the Settings tab, and click the Advanced button. The Sony

Notebook LCD Graphics Properties dialog box appears.

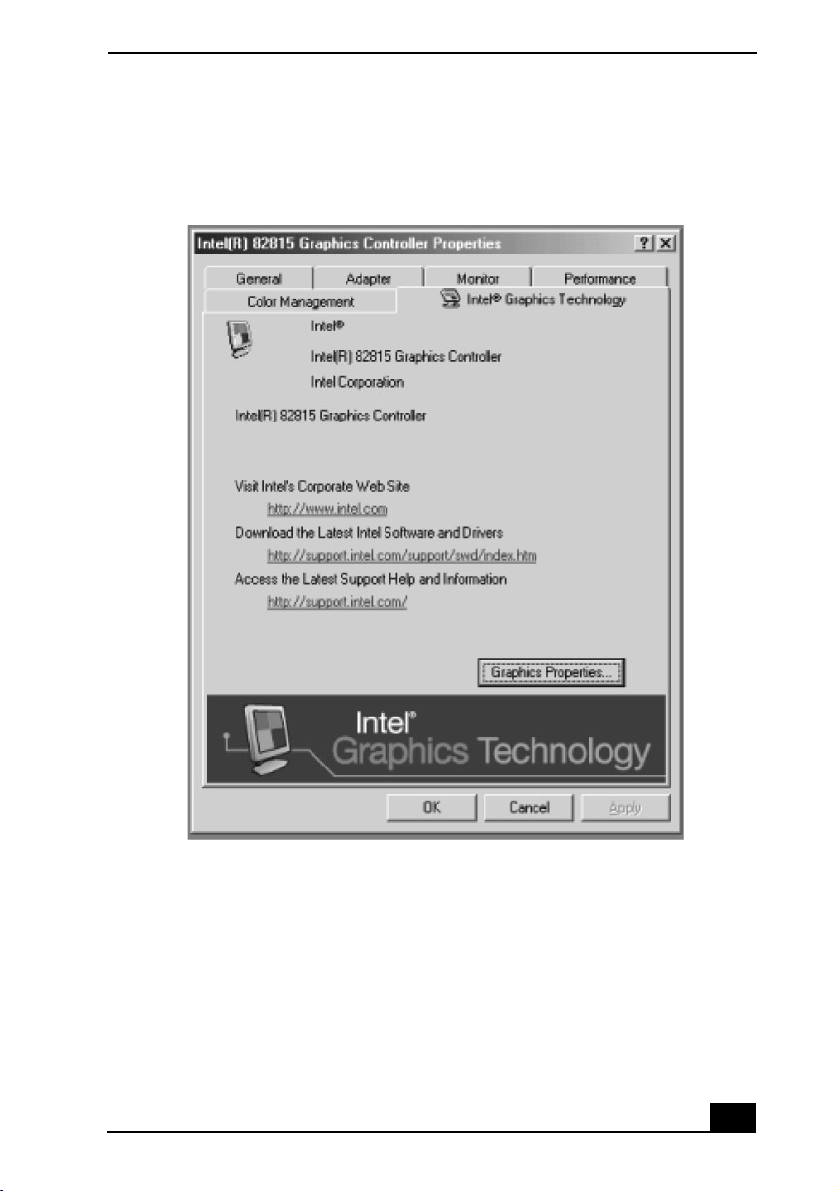

4 Click on the Intel® Graphics Technology tab.

5 Click on the Graphics Properties button. The Intel® Graphics Controller

Properties dialog box appears.

6 Click the Television icon and choose 640 x 480 as the Screen Area display

resolution.

✍ The screen resolution must be set to 640 x 480 dots in order to play a DVD while

using the TV Out jack. See “Connecting a TV Display” for more information.

Notes on TV display

❑ TV Out does not work unless you start your notebook with the TV Out jack

plugged in.

❑ If you insert a DVD in your optical drive to watch a video on your TV, the

Fn+F8 key combination might not activate the function to toggle between your LCD and TV. Perform the following steps:

1 Connect the TV to the notebook.

2 Restart the notebook and wait until it finishes.

3 Toggle between your LCD and your TV with the Fn+F8 key

combination.

Your image is now displayed on both the LCD and the TV. Re-insert your DVD to launch your DVD software.

Change text in this variable definition to document title.

Connecting a USB Device

You can connect USB devices such as an external mouse, keyboard, speaker, and microphone to your notebook.

To connect a USB device

The following steps describe the procedure for connecting a USB mouse to your notebook. Use the same procedure for connecting all USB devices.

1 Locate the USB device identified by the symbol.

2 Plug one end of the USB cable into this port and the other end into the USB

device.

Connecting USB device to USB port

USB device

To USB

USB connecting cable (optional)

You can use an optional Sony USB mouse such as the PCGA-UMS1 series (not supplied) with this notebook. Since the USB mouse software driver is preinstalled in the notebook, you simply plug the USB mouse into the USB port to use it. One USB port supports one USB device.

See the manual supplied with your USB device for more information on its installation and use.

Connecting an i.LINK Device

Your VAIO®Notebook includes an i.LINK®*S400 (IEEE1394) port, which you can use to connect a compatible i.LINK device, such as an i.LINK enabled digital video camera recorder. See the manual supplied with your digital video camera recorder for more information on its installation and use.

✍ You can purchase compatible i.LINK cables from your local retailer, through the Sony

VAIO® Direct Web site (http://www.sonystyle.com/vaio), or by calling 1-888-315-7669 (toll free).

To connect a digital video camera recorder

1 Plug one end of the i.LINK cable (not supplied) into the i.LINK port on the

left side of the notebook

2 Next, plug the other end into the DV In/Out port on the digital video camera

recorder.

* i.LINK is a Sony trademark used only to designate that a product contains an IEEE 1394 con-

nection. The i.LINK connection may vary, depending on the software applications, operating system, and compatible i.LINK devices. All products with an i.LINK connection may not communicate with each other. Refer to the documentation that came with your compatible i.LINK device for information on operating conditions and proper connection. Before connecting compatible i.LINK PC peripherals to your system, such as a CD-RW or hard disk drive, confirm their operating system compatibility and required operating conditions.

Change text in this variable definition to document title.

Connecting digital video camera recorder to i.LINK port

Digital video camera recorder

To i.L I NK

To D V In / Out

i.LINK cable

(optional)

Notes on i.LINK devices

❑ The above figure displays a connection to a Sony digital video camera

recorder; your digital video camera recorder may need to be connected differently.

❑ Only Sony digital video camera ports labeled “DV In/Out” or “i.LINK” are

compatible i.LINK devices.

❑ Do not connect more than one digital video camera at a time. The software

supplied with your notebook will not recognize multiple cameras.

❑ The i.LINK port on the notebook does not supply power to external devices.

If the external device requires power from the i.LINK port, you cannot use the device with the notebook.

❑ The notebook supports transfer rates up to 400 Mbps; however, the actual

transfer rate is the lowest transfer rate of the external device.

❑ The i.LINK features available may vary depending on the software

applications you use. See the documentation that accompanied your software for more information.

❑ The i.LINK cables compatible with your VAIO notebook include cables with

the following part numbers: VMC-IL4415 (a 1.5-meter cable with a 4-pin connector at each end), VMC-IL4615 (a 1.5 meter-cable with a 4-pin

Connecting an i.LINK Device

connector at one end and a 6-pin connector at the other), and VMC-IL4408A (a 0.8-meter cable with a 4-pin connector at each end). You can purchase these cables from your local retailer, through the Sony VAIO

Direct Web site

(http://www.sonydirect.com), or by calling 1-888-315-7669 (toll free).

Change text in this variable definition to document title.

Connecting VAIO computers

Connecting with i.LINK

You can use an optional i.LINK®*cable to connect your VAIO® notebook to another VAIO computer that has the preinstalled Microsoft® Windows® operating system or the Sony Smart Connect software preinstalled. You may use an i.LINK cable (not supplied) to connect the two systems and then use one computer to edit, copy, or delete files on the other computer. You can also print from a printer that is attached to either computer.

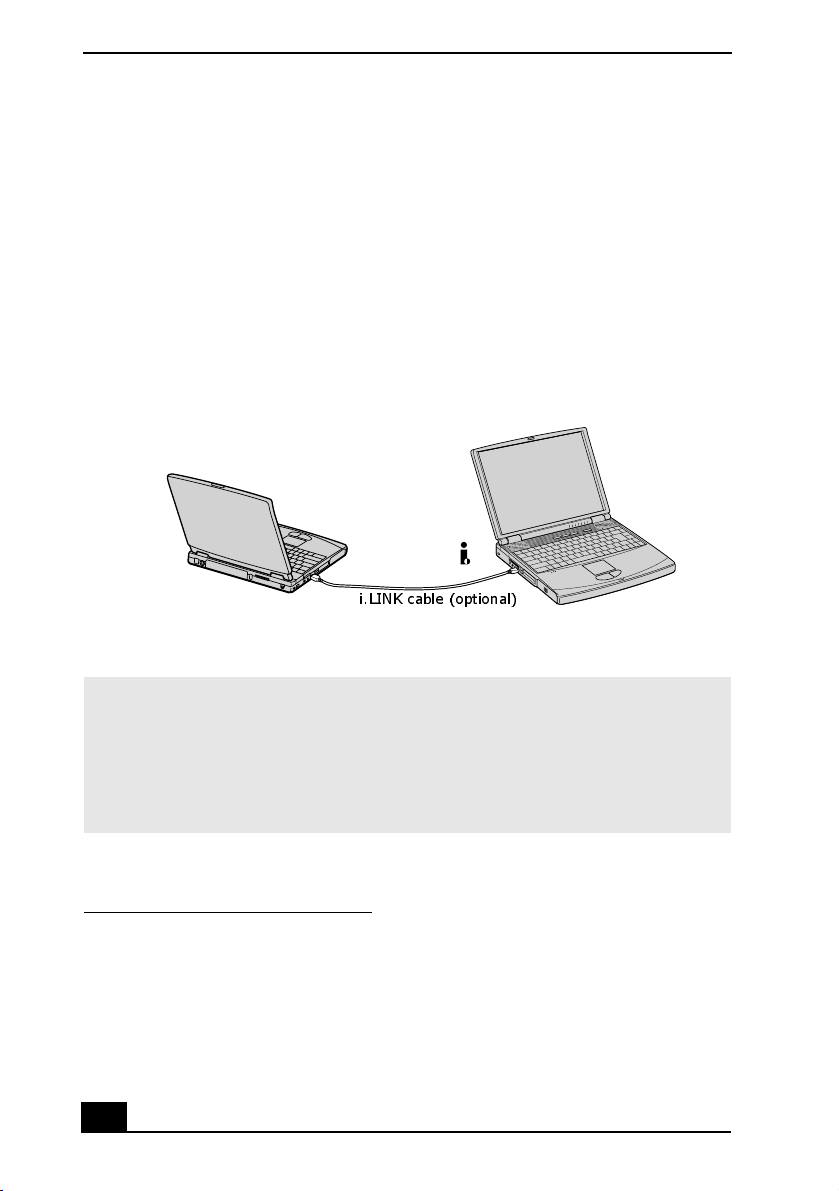

Connecting with an i.LINK cable

i.LINK cable (optional)

✍ When you connect two VAIO computers, you must assign each computer a unique

name. The computers can be identified by this unique name when the two computers are networked together.

To connect VAIO computers that do not have the latest Windows® operating system, Smart Connect software may be necessary. Consult the Sony Web site for support options (http://www.sony.com/pcsupport).

* i.LINK is a Sony trademark used only to designate that a product contains an IEEE 1394 con-

Connecting External Speakers

You can enhance the sound quality of your notebook by connecting external speakers. See the manual that accompanied your speakers for more information on their installation and use.

Do not place floppy disks on the speakers; the speakers’ magnetic field may damage the data on the floppy disks.

Before connecting your external speakers

❑ Verify your speakers are designed for computer use.

❑ Turn down the volume of the speakers before you turn them on.

To connect external speakers

1 Locate the Headphone jack identified by the symbol on the side of the

notebook.

2 Plug the speaker cable into this jack.

Connecting speakers to the headphone jack

To Headphones

Speakers

Speaker cable (supplied with speakers)

Change text in this variable definition to document title.

Connecting an External Microphone

You can enhance the quality of sound input by using an external microphone. See the manual that accompanied your microphone for more information on its installation and use.

✍ Verify that your microphone is designed for computer use. The microphone should be

compliant with the plug-in power microphone.

To connect an external microphone

1 Locate the Microphone jack identified by the symbol on the side of the

notebook.

2 Plug the microphone cable into this jack.

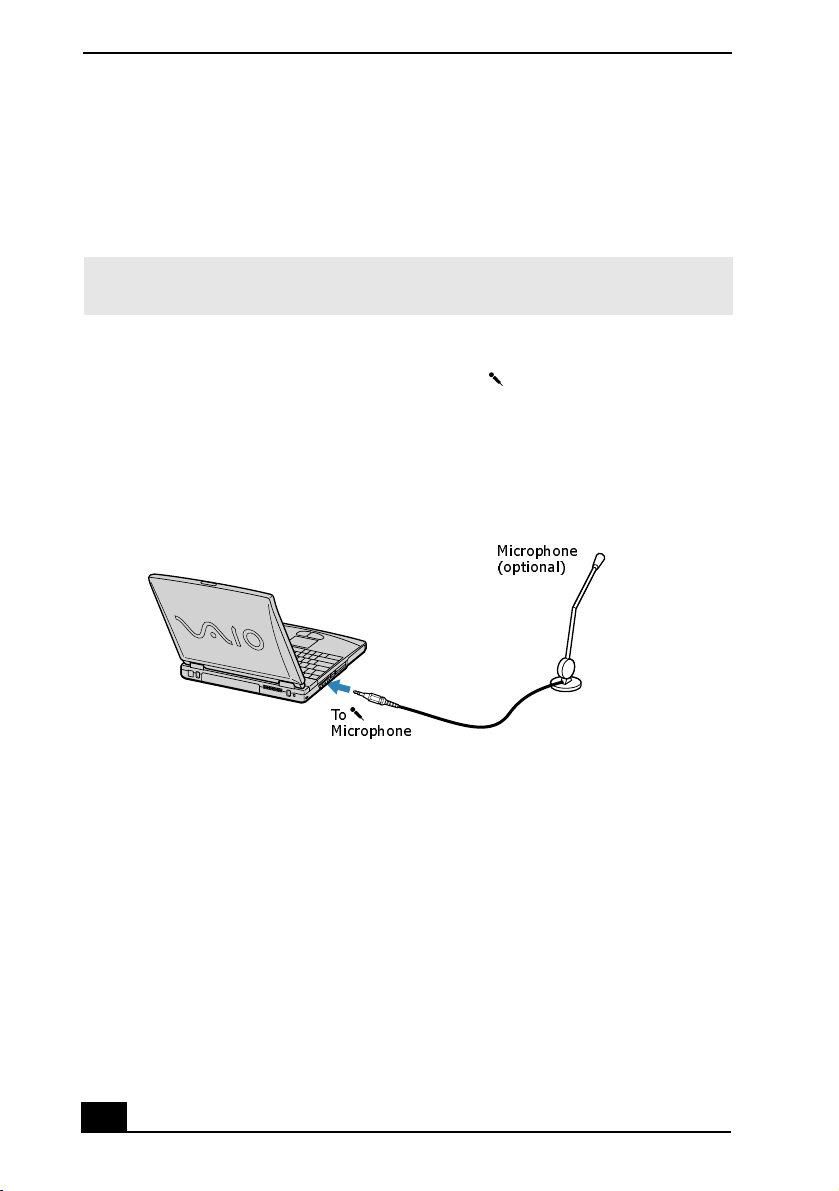

Connecting microphone to microphone jack

Microphone (optional)

To Microphone

Expanding Your Notebook Capabilities

A Personal Digital Assistant (PDA), Wireless LAN Access Point, and Wireless LAN PC Card peripheral device can be connected to your notebook, to expand the capabilities of your computer and enhance its versatility to meet your various business or personal needs.

Personal Digital Assistant

A handheld PDA is the quintessential personal planner and entertainment center that fits in your pocket. With a PDA, you can easily perform the following functions:

❑ Enter your schedule details in the calendar and view them by the day, week,

or month, and even set an alarm to remind you of important events.

❑ Keep your contact names, addresses, phone numbers, and other details in the

address book, and find them when you need them.

❑ Add tasks to the To Do List, prioritize them, and assign them due dates.

❑ Synchronize your data with the software on your notebook, to back up your

data.

❑ Track expenses when you are out of the office, then transfer the data to your

notebook.

❑ Exchange data with your notebook.

Wireless LAN Access Point

The Wireless LAN Access Point, which is also called the Access Point, is designed for building a wireless Local Area Network (LAN) environment. The Access Point comes with the Wireless LAN PC Card and required software. You can easily build a wireless LAN environment by plugging the Access Point into an AC power outlet, installing the Wireless LAN PC Card in your notebook, and using the provided software. Because a wireless LAN configuration requires no wiring, you can operate multiple computers more freely than ever before.

You can also connect your Access Point to a telephone line, Integrated Services Digital Network (ISDN) router, cable modem, or Digital Subscriber Line (xDSL) modem to share access to the Internet among multiple computers.

Change text in this variable definition to document title.

Wireless LAN PC Card

The Wireless LAN PC Card, which comes with the Wireless LAN Access Point, can be purchased separately and is designed for building a wireless LAN environment. The Wireless LAN PC Card can be used with or without the Access Point. With the Access Point, you can build a wireless LAN between computers that are equipped with the Wireless LAN PC Card and gain access to the Internet. Without the Access Point, you can achieve direct communication (Peer to Peer mode) between computers.

✍ For information on available Sony products, go to:

http://www.sonystyle.com/wirelesslan.

Customizing Your VAIO Notebook

The following sections briefly describe how to change your notebook’s default settings:

❑ Displaying the Sony Notebook Setup Screen

❑ Controlling Power Management

❑ Displaying Battery Information

❑ Selecting the Display Mode

Change text in this variable definition to document title.

Displaying the Sony Notebook Setup Screen

To display the Sony Notebook Setup screen

1 Click the Start button on the Windows®taskbar.

2 Point to All Programs, select Sony Notebook Setup, and click Sony

Notebook Setup.

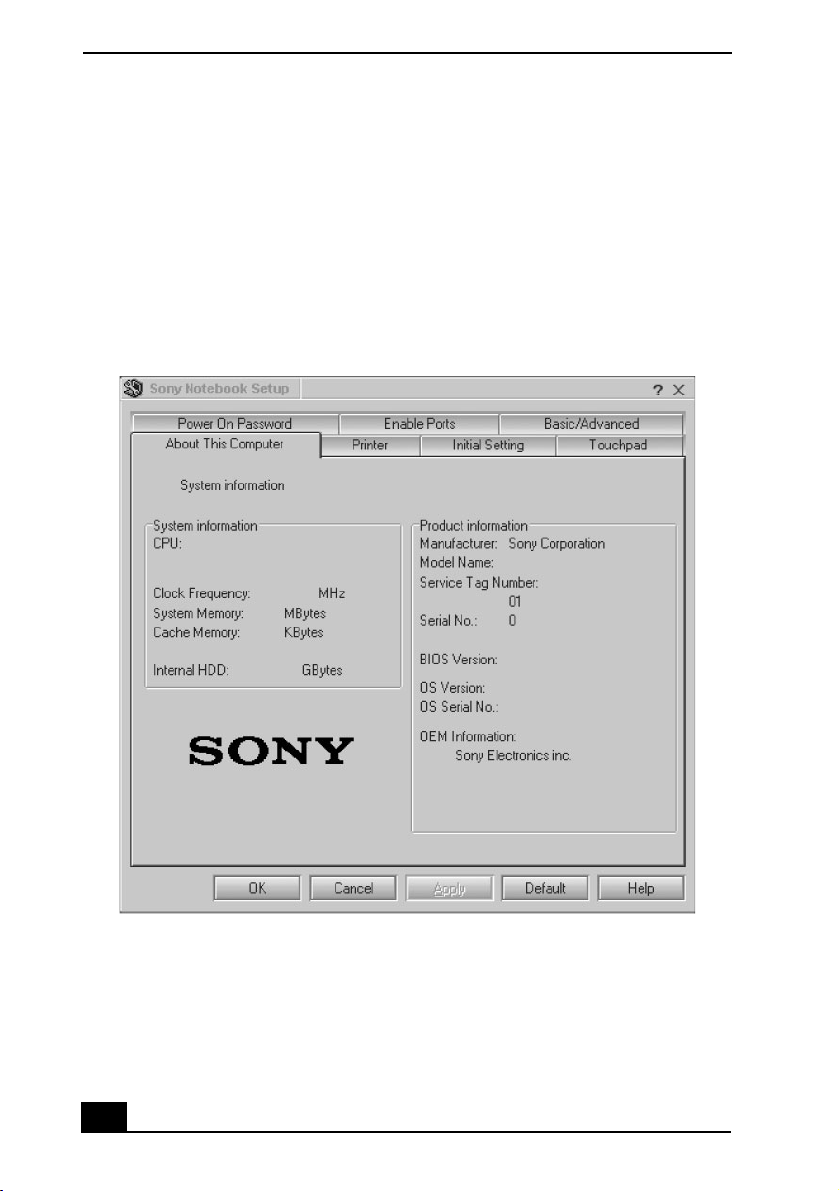

Sony Notebook Setup Screen

3 Select the tab for the item you want to change. See “Sony Notebook Setup

Tabs” for more information.

4 After you finish making your changes, click OK.

Displaying the Sony Notebook Setup Screen

Sony Notebook Setup Tabs

Tab Description

About This Computer Display system information, including memory

capacity, serial number, and BIOS version.

Printer Select printer port mode settings.

Initial Setting Change the volume of the sounds that play while the

operating system is loading. Select the order of drives and devices from which you want to load the operating system. You can specify the hard drive as well as other drives inserted into your notebook.

Touchpad When you connect an optional mouse to your

notebook, you can make your touchpad inactive. You can also customize the settings of your mouse using the mouse utility.

Power On Password Set the password to secure your notebook.

Enable Ports Enable or disable ports. Disabling ports releases

resources to the system. To change the serial settings, click Advanced on the Basic/Advanced tab.

Basic/Advanced Switch between Advanced mode (additional screens

with advanced settings) and Basic mode of display.

✍ For more information about each option, click Help on the Sony Notebook Setup

screen to display the help file.

Change text in this variable definition to document title.

Controlling Power Management

The PowerPanel™ utility allows you to control the power management of your notebook and provides key information about system activity and battery life. The following sections briefly describe how to conserve your notebook’s battery power. You can also refer to PowerPanel Help for more detailed information. To activate a profile or command, see “Displaying Battery Information” for more information.

To view the Power Management status icons

The Power Management status icons are displayed in the task tray at the lower right side of your screen. Move the pointer over the icons to see the tool tip that displays information about the active profile. The CPU status icon indicates the performance level of the CPU.

To activate the Power Management Toolbar

1 Right-click on the taskbar at the bottom of the screen.

2 Select Toolbars from the pop-up menu, and then click Power Management.

The Power Management toolbar appears on the taskbar.

The current profile icon is highlighted on the Power Management toolbar. It is the first icon farthest to the left, and its appearance changes depending on which power management profile is currently selected. To change the power management profile, click the current profile icon, and then select a profile from the pop-up list. See “Power Management profiles” for a description of available options. To select another power management profile, click that icon in the Power Management toolbar.

✍ When you use the battery pack to power your notebook, your system selects the

Maximum Battery Life power management profile by default. If you select a different power management profile while using battery power, that profile is selected automatically the next time you use the battery pack to power your notebook.

Refer to PowerPanel Help for information on customizing the Power Management toolbars.

You can change the power management settings, such as the system timer and the brightness of the screen.

Controlling Power Management

To customize Power Management settings

1 Click the Current Profile icon on the Power Management toolbar.

2 Select Edit/Create Profiles from the menu.

3 Click a profile whose setting you want to change from the list in the left

field.

4 Double-click an item whose setting you want to change from the list in the

right field.

5 Click the desired setting.

6 Click the File menu, and then click Save.

7 Click the File menu, and then click Exit.

Power Management profiles

The PowerPanel utility provides several predefined Power Management profiles. Each profile consists of a group of Power Management settings that are designed to meet specific Power Management goals—ranging from maximum Power Management to no Power Management. You can change the settings for any of the predefined profiles (except for the Disable Power Management profile), or you can create your own profile to suit your portable computing needs. The predefined profiles are:

Icon Description

Maximum Performance

Provides the best system performance while still conserving power.

Maximum Battery Life

Provides power saving features to give you maximum battery life and good performance. It slows the notebook and puts it into Standby mode after a specified time period.

Disable Power Management

Turns off all power management features such as Standby and Hibernate modes. You can not change the settings of this profile.

Change text in this variable definition to document title.

Icon Description

AC Power

The power management state when AC power is in use. Similar to the Power Management Off setting. Power Management automatically loads the AC profile unless you disable this feature.

Games

Disables the display and the Hard Disk Standby timer.

Presentation

Keeps the display on at all times while it conserves power. This option is ideal for slide show presentations. You can establish settings for LCD (Video) Standby, Hard Disk Standby, and Standby mode to optimize power management for your system.

Camera

Optimizes performance and power requirements for camera usage.

DVD

Optimizes performance and power requirements for DVD usage.

Word Processing

Optimizes power management with longer timeouts on the hard disk and display screen. You can also establish settings for LCD (Video) Standby, Hard Disk Standby, and Standby mode to optimize power management for your system.

Controlling Power Management

Icon Description

Spreadsheet

Optimizes performance and power requirements for spreadsheet applications.

Communications

Extends battery life by initiating a quick display timeout. The Internal modem remains powered. You can also establish settings for LCD (Video) Standby, Hard Disk Standby, and Standby mode to optimize power management for your system.

Automatic Profile Selection

Automatically switches to a profile suitable for active applications.

✍ Do not choose the Automatic Profile Selection when connected to AC power.

Power management commands

The PowerPanel™ utility also provides power management commands that you can use to activate specific power management functions and to control power for a specific device. You can use these commands to override a profile setting or initiate an immediate action.

Icon Description

Standby

Puts the system into Standby mode, a power management state that saves the state of the system and peripheral devices in memory (RAM). Power consumption reduces to a minimum, and the system remains on. To return the system to the active state press any key.

Hibernate

Provides for the lowest level of power consumption. The system writes the state of the system and peripheral devices to the hard disk and turns off the system power. To return the system to the original state, use the power button to turn on power. The system saves the data in the Save to Disk Partition on the hard drive.

Change text in this variable definition to document title.

Conserving battery power

When using the notebook with a battery, the LCD display and the hard drive can be set to switch off automatically to conserve battery power.

See “Power Management profiles” for more information.

Displaying Battery Information

You can display information for each of the batteries in your notebook. The following sections briefly describe how to display your notebook’s general battery information. Refer to PowerPanel™ Help for more detailed information.

To activate the Battery Information toolbar

1 Right-click on the taskbar at the bottom of the screen.

2 Select Toolbars from the pop-up menu, then click Battery Information. The

Battery Information toolbar appears on the taskbar.

To view the total capacity remaining in the battery, place the pointer over the battery status icon in the task tray on the lower right side of the screen.

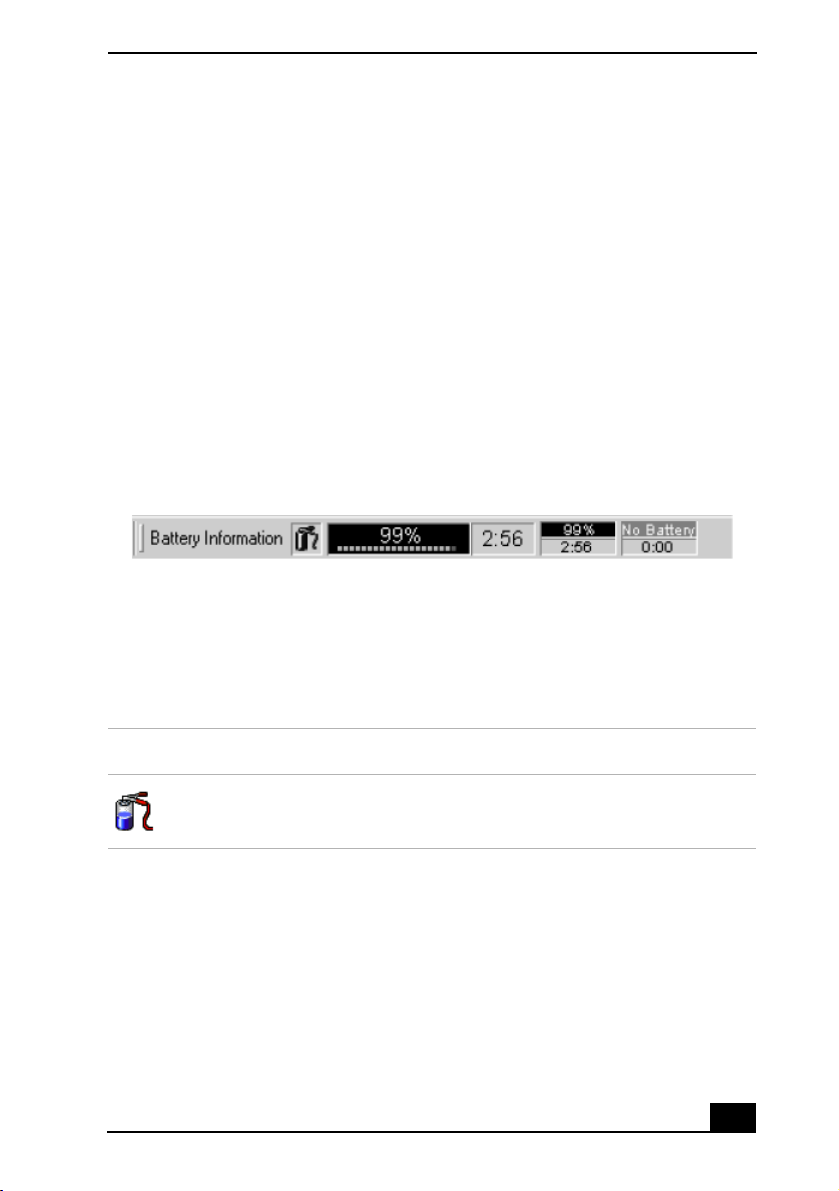

Battery Information Toolbar

❑ Percentage indicator — Displays the percentage of the remaining capacity.

❑ Time indicator — Displays estimated time (hours:minutes) remaining

before the battery fully drains, also known as the time-to-empty.

Battery icon descriptions

Battery icon Battery status

Charging

Change text in this variable definition to document title.

Battery icon Battery status

Fully charged

Discharging

No battery

To display detailed battery information

Double-click the battery icon on the task tray to display the Battery Information window. The screen appears displaying the Battery tab, which contains information such as the estimated time-to-empty and charging time.

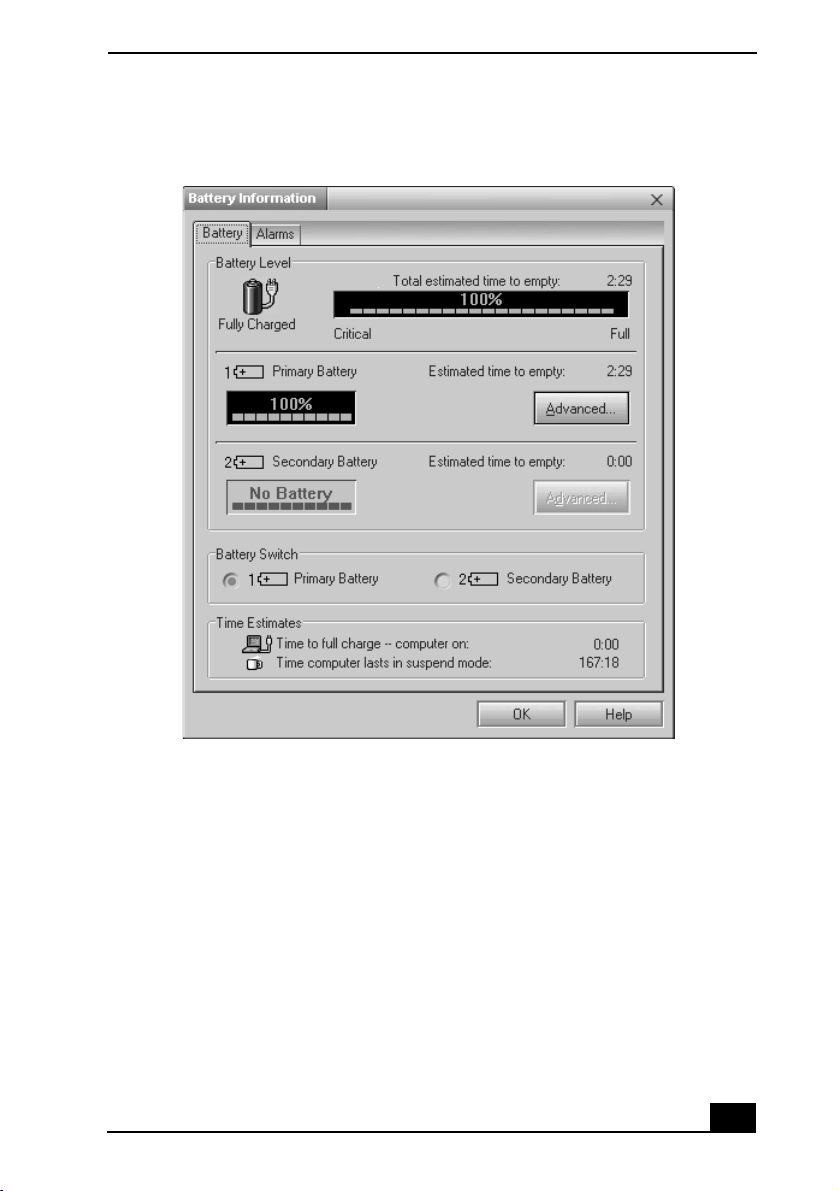

Battery Information Window

Displaying Battery Information

To customize the Battery Information toolbar and alarm system

You can customize the Battery Information toolbar and modify the alarm settings, to suit your portable computing needs. Refer to PowerPanel™ Help for more information.

Change text in this variable definition to document title.

Selecting the Display Mode

This notebook uses the Intel®video controller, which enables you to select the desired display when the notebook is connected to an external monitor. When you connect an external display, you can switch the display mode between your notebook’s LCD display and the external monitor.

To select the display mode

✍ See “Connecting an External Display” for more information.

1 Click Start, point to Control Panel, and click Appearance and Themes.

2 Click Display to access the Display Properties window.

Selecting the Display Mode

3 Click the Settings tab, then click the Advanced button, to display the Intel

82815 Graphics Controller Properties dialog box.

Intel® 82815 Graphics Controller Properties Screen

4 Click the Intel

Graphics Technology tab, then click the Graphics Properties button. If you want to use the TV as a display, deselect the Synchronous Display Mode box and click Apply. You cannot use the TV and another display simultaneously.

5 Click the Device tab.

6 Select the type of display.

Change text in this variable definition to document title.

✍ You may not be able to display the notebook LCD screen and an external display or

projector at the same time, depending on the types of computer displays and projectors you are using.

Turn on the notebook after you turn on the peripheral devices.

To change the Window Design of Sony software

1 Click the Start button, then select Control Panel.

2 In the left window pane of Control Panel, click “Switch to Classic View.”

3 Double-click UI Design Selector.

4 Click << or >> and select the desired design.

5 Click Apply. The “UI Design Selector” window design changes. The

window design for your Sony software will match the “UI Design Selector” window.

6 To try another selection, click << or >> and then click OK to close the UI

Design Selector.

✍ This feature is available with UI Design Selector-compatible software only.

Adding Memory to Your VAIO Notebook

In the future you may want to install memory modules to expand the functionality of your notebook. The amount of memory on your notebook will vary depending on the model you purchased. See the Specifications flyer supplied with your notebook for the amount of memory pre-installed. Expansion memory modules are available as options. For memory upgrades, use only unbuffered PC100 (CL2) SDRAM SO-DIMM (gold lead contacts). This section describes how to replace memory modules in your computer:

❑ Precautions and Procedures

❑ Removing a Memory Module

❑ Installing a Memory Module

❑ Viewing the Amount of Memory

VAIO® FX All-in-one Notebook Quick Start

Precautions and Procedures

The procedures described below assume you are familiar with the general terminology associated with personal notebooks and with common safety practices required for using and modifying electronic equipment. Personal injury or equipment damage may result from failure to take these precautions.

Observe the proper safety precautions when installing memory modules in your notebook. See the bulleted list below. Use care when adding memory. Mistakes made when installing or removing a memory module may cause a malfunction.

❑ Disconnect your system from its power source and from any

telecommunications links, networks, or modems before you open the system.

❑ Electrostatic discharge (ESD) can damage memory modules and other

components. Perform the procedures described below only at an ESD workstation. If such a station is not available, do not work in a carpeted area, and do not handle materials that produce or hold static electricity (cellophane wrappers, for example). Ground yourself by maintaining contact with an unpainted metal portion of the chassis while performing the procedure.

❑ Do not open the memory module package until you are ready to install the

module. The package protects the module from ESD.

❑ Use the special bag for preventing ESD or use aluminum foil when you store

the memory module.

Typical expansion memory configuration

To determine the exact amount of memory pre-installed on your computer, refer to the Specifications flyer supplied with your computer.

✍ Depending on the specific model you purchased, a single 256 MB memory module or

two 128 MB memory modules may be preinstalled.

Precautions and Procedures

128 MB Memory Models

Total System Memory (MB) Slot 1 (MB) Slot 2 (MB)

128 128

192 128 64

256 128 128

384

512

* The 384 MB and 512 MB memory configurations may require the removal and replacement

of original factory-installed memory modules.

256 128

256 256

256 MB Memory Models

Total System Memory (MB) Slot 1 (MB) Slot 2 (MB)

256 256

384 256 128

512

* The 384 MB and 512 MB memory configurations may require the removal and replacement

of original factory-installed memory modules.

256 256

VAIO® FX All-in-one Notebook Quick Start

Removing a Memory Module

1 Shut down your notebook and disconnect all peripheral devices, such as your

printer.

2 Unplug the notebook and remove the battery pack(s).

3 After the notebook has cooled, loosen and remove the screw that secures the

cover of the memory bay on the bottom of your notebook. Use an appropriate screwdriver.

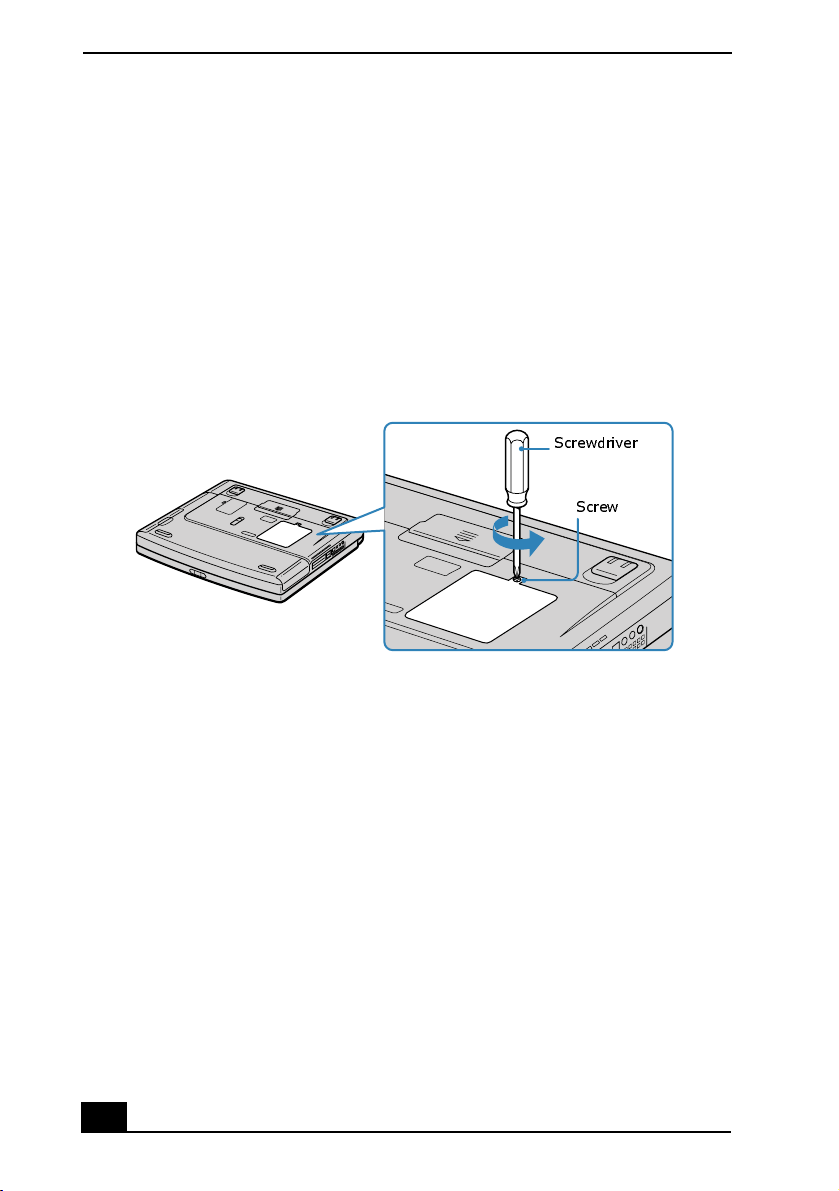

Removing the memory module cover

Screwdriver

Screw

4 Touch a metal object (such as the connector panel on the back of your

notebook) to discharge any static electricity.

5 Remove the memory module.

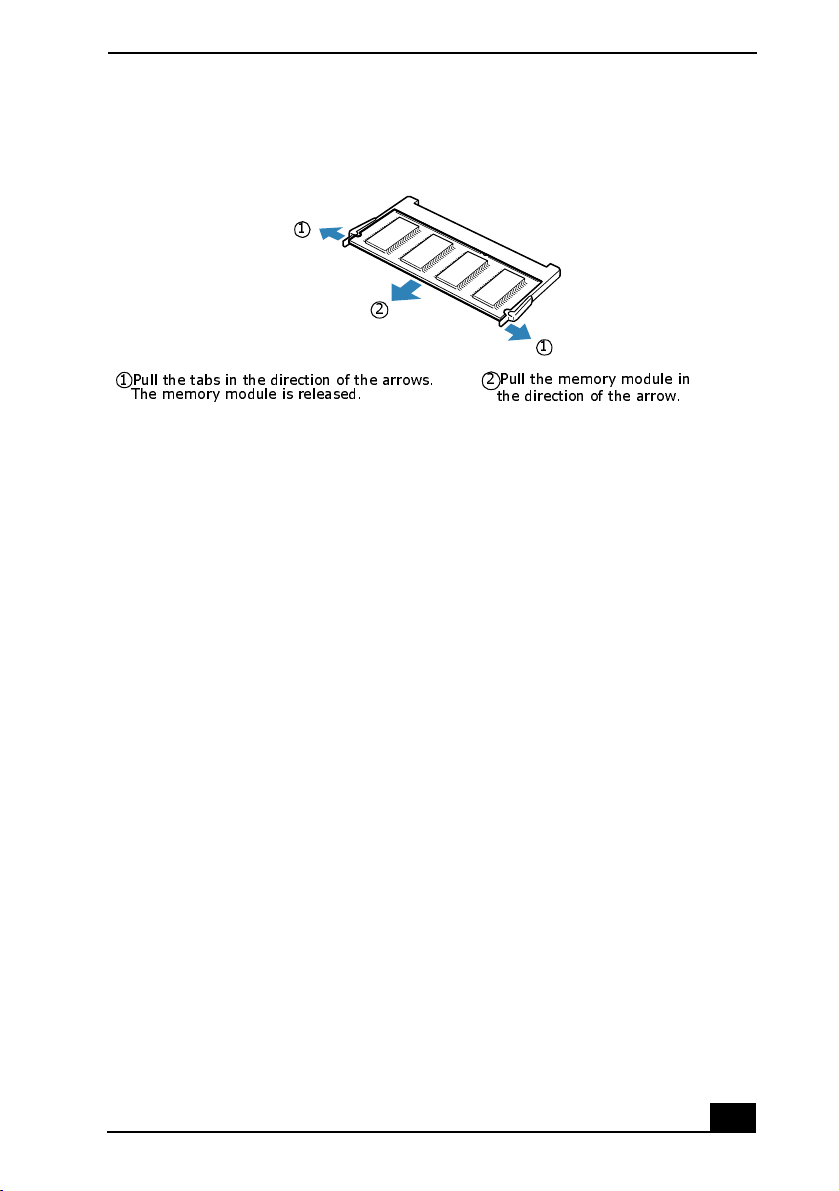

Removing memory module

1 Pull the tabs in the direction of the arrows.

The memory module is released.

6 Replace the memory bay cover.

7 Tighten the screw on the memory bay cover.

Removing a Memory Module

2 Pull the memory module in

the direction of the arrow.

VAIO® FX All-in-one Notebook Quick Start

Installing a Memory Module

1 Shut down your notebook and disconnect all peripheral devices, such as your

printer.

2 Unplug the notebook and remove the battery pack(s).

3 After the notebook has cooled, loosen and remove the screw that secures the

cover of the memory bay on the bottom of your notebook. Use an appropriate screwdriver.

Removing the memory module cover

Screwdriver

Screw

4 Touch a metal object (such as the connector panel on the back of your

notebook) to discharge any static electricity.

5 Remove the memory module from its packaging.

6 Slide the memory module into the empty slot.

7 Press the module into place until it clicks.

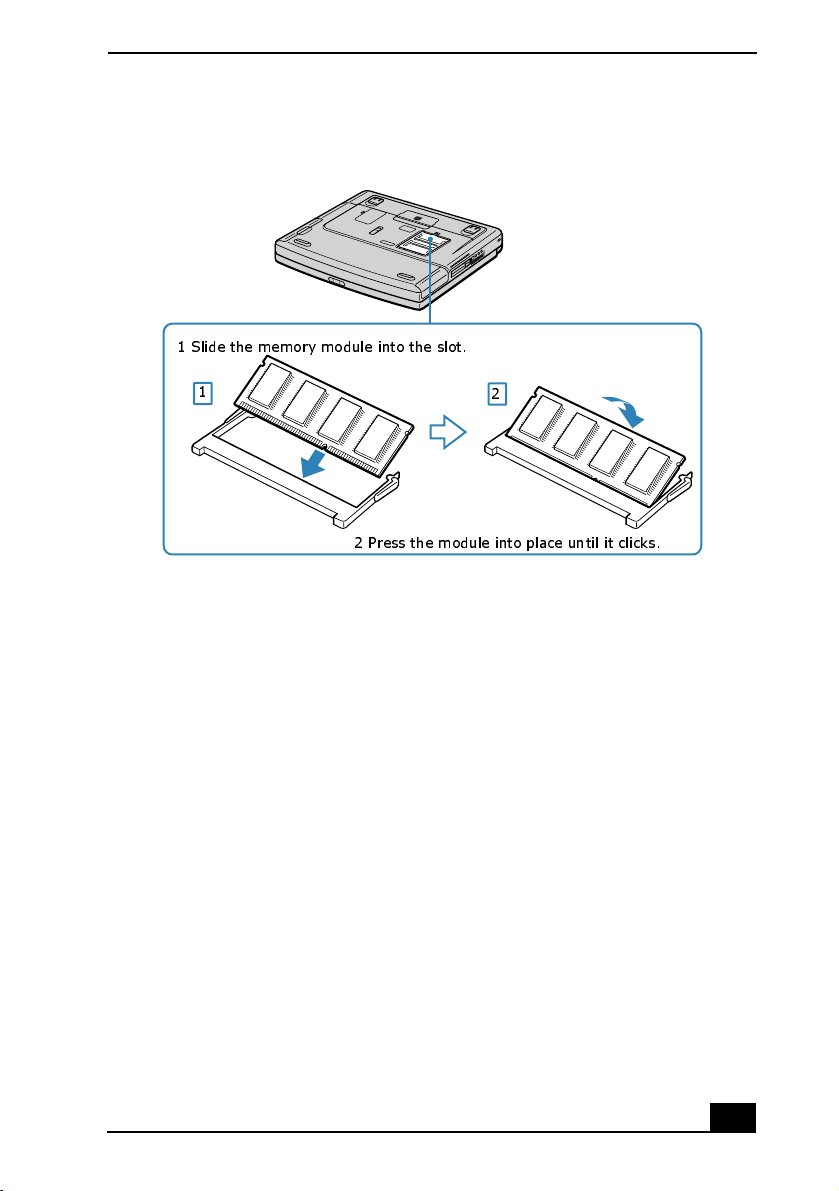

Installing memory module

1 Slide the memory module into the slot.

Installing a Memory Module

2 Press the module into place until it clicks.

8 Replace the memory bay cover.

9 Tighten the screw on the cover of the memory bay.

VAIO® FX All-in-one Notebook Quick Start

Viewing the Amount of Memory

1 Restart the notebook.

2 Click Start on the Windows® task bar, select All Programs, and click “Sony

Notebook Setup.” The Sony Notebook Setup screen appears.

3 Click the "About This Computer" tab to view the amount of system memory.

If the additional memory is not shown, remove and reinstall the memory module.

✍ The amount of memory displayed in the Sony Notebook Setup screen is not always

correct. The video adapter uses some system memory, and that amount of memory does not appear as part of the total memory shown in the Sony Notebook Setup screen.

About the Software on Your Notebook

Your VAIO®Notebook is ready to help you work, play, learn, and communicate as soon as you turn it on. This section provides the following information:

❑ An overview of the various software that come with your notebook and the

activities you can perform with your software

❑ Details on your Sony application, driver, and system recovery CDs

Change text in this variable definition to document title.

Software Overview

Your computer may not be supplied with all of the software listed below, depending on the configuration you purchased. Preinstalled software may not be identical to retail versions, or include supporting documentation.

Adobe Acrobat® Reader

Adobe Systems Inc.

Acrobat Reader software enables you to view, navigate, and print electronic documents in Adobe Portable Document Format (PDF), an open file format that is intended to preserve the fidelity of documents created on all major computer platforms.

Adobe Photoshop® Elements (On selected models)

Adobe Systems Inc.

Using state-of-the-art image editing tools, you can unleash your artistic ability and create digital images for print, e-mail and posting to the Web. The versatile image capturing options allow you to start working with digital and traditional photos immediately. Explore endless creative possibilities for your personal images with Adobe Photoshop Elements.

Apple QuickTime™

Apple Computer, Inc.

QuickTime is the Apple technology that makes video, sound, music, 3D, and virtual reality come alive for our Internet browser and Windows.

ArcSoft PhotoPrinter® 2000 Pro

ArcSoft, Inc.

ArcSoft PhotoPrinter Pro software is an easy-to-use, yet advanced printing program that lets you quickly lay out multiple images in multiple sizes on a single sheet of paper. ArcSoft PhotoPrinter Pro software offers a wide selection of templates including landscape, portrait, free-style, mixed sizes, custom templates and more. The application includes enhancement tools and special effects for improving photos while giving you the ability to add text to any image. With ArcSoft PhotoPrinter 2000 Pro software you can create business cards, handouts, calendars, mailing labels, and much more.

Software Overview

Digital Print

Sony Electronics Inc.

This image management software makes it fun and easy to edit, import, and organize your digital pictures in a photo album for rich digital printing to any standard color laser or inkjet printer. Digital Print can also be used to make custom CD labels for your audio CDs.

DVgate™

Sony Electronics Inc.

Connect a compatible digital video camera recorder to the i.LINK

®*

connector and capture your own video clips and still images. You can edit clips from your video, add others, and combine clips into new movie segments. You can also save your images in a variety of popular file formats.

Microsoft

Internet Explorer

Microsoft Corp.

Internet Explorer delivers the Web the way you want it. It is safe, easy to use, and you can personalize how you access the Web. Outlook Express and other tools in Internet Explorer also help you have a great experience when you are on the Web .

Microsoft® Office XP Professional (On selected models)

Microsoft Corp.

Microsoft Office XP redefines the relationship between people and software by providing a smarter, simpler way of working. New Office XP features include context-sensitive smart tags, enhanced formatting options, and more, that enable you to continually integrate additional services into Office and access information anytime.

* i.LINK is a Sony trademark used only to designate that a product contains an IEEE 1394 con-

Change text in this variable definition to document title.

Microsoft® Office XP Small Business (On selected models)

Microsoft Corp.

With Microsoft Office XP you’ll find a powerful new technology that will help you get work done more quickly by providing real-time, context-sensitive options for important actions, from formatting to error correction. Task panes consolidate important tasks into a single integrated view, enabling you to conduct searches, launch and format documents, and view the contents of your Clipboard from one location.

Microsoft

Wor d

Microsoft Corp.

Microsoft Word makes it easy to create shared Web, e-mail, and print documents for use around the world. It embraces HTML as a first-class file format and extends Word’s ease-of-use to the Web and e-mail. Word also extends that easeof-use to international users, making it simple to create multilingual documents.

MovieShaker™

Sony Electronics Inc.

Sony’s original MovieShaker software creates personal movies that have transitions, background music and text. Just import your video clips and “shake” with a click of the mouse. Your personal movies are easy to create and fun to share with family and friends.

PC-Cillin®

Tren d Micro, I nc.

PC-Cillin provides portable, easy-to-use, real-time antivirus security at your computer’s entry point (beaming, synchronization, Internet access) to defend against potential threats hidden inside files, e-mail, or on the Web.

PictureGear™

Sony Electronics Inc.

This image management software displays images from your hard drive, a Sony digital still camera, or a Sony Mavica

camera. The images appear in a convenient light-table format, so that you can easily view the contents of an entire folder.

Software Overview

Quicken

Intuit Inc.

Quicken is a fast, easy way to organize your finances. Quicken works just like your checkbook, so it is easy to learn and use. Quicken manages all your finances, bank accounts, credit cards, investments, and loans. You can even pay your bills online.

RealJukebox

Real Networks Inc.

RealJukebox is one of the world’s most widely used personal music management systems. Using RealJukebox, you can capture the contents of a music CD, manage and play back your music, and view various music-related information via the Internet. This Custom RealJukebox for Sony allows seamless check-out capabilities to a wide range of Sony personal audio devices, and offers convenient links to Sony product and music service home pages.

✍ If you are using an external CD-ROM drive connected with a PC Card, be sure to

connect your external CD-ROM drive before starting RealJukebox. Additionally, do not remove your CD-ROM drive while using RealJukebox. Either of these actions may cause RealJukebox to shut down improperly.

RealPlayer

Real Networks Inc.

RealPlayer is the RealNetworks video and audio player which lets you access 2,500 radio stations featuring music, news and sports.

Smart Capture

Sony Electronics Inc.

Smart Capture is a fun new way to send multimedia messages via e-mail. Smart Capture manages the i.LINK Digital Handycam

Camcorder that supports the i.LINK interface. It allows you

connection between your computer and a Sony

to capture compressed video or still images that you can save or share via e-mail. A smart solution to computer, digital audio/video and network convergence.

Change text in this variable definition to document title.

SonicStage

Sony Electronics Inc.

This new jukebox application adds a host of new features to its predecessor, OpenMG™ Jukebox. Continuing to take advantage of Sony’s copyrightprotected ATRAC3™ format for high-quality digital audio storage, SonicStage sports a new Music Visualizer, a sleek new player skin design, audio CD burning capability, and a parametric equalizer for fine-tuning audio playback.

Sony on Yahoo!

Yahoo! Inc.

Personalize your own web portal with Sony on Yahoo! Get a free webmail account, customized news and local weather reports, comics, and more.

SonyStyle Connect

Sony Electronics Inc.

SonyStyle Connect provides excellent dial-up, as well as DSL, Internet connection services. To find out which plan is best for you, visit http://www.sonystyleconnect.com and find out what is available in your area.

VAIO Action Setup

Sony Electronics Inc.

VAIO Action Setup manages the settings for your notebook’s Shortcut keys and i.LINK interface.

VAIO Support Agent

Sony Electronics Inc.

VAIO Support Agent provides immediate, interactive online support.

VisualFlow™

Sony Electronics Inc.

VisualFlow software is a state-of-the-art Sony multimedia browser designed specifically for Memory Stick

media. It displays any still picture, movie, or sound file stored in a Memory Stick® media in a visually pleasing, artistic manner. VisualFlow software not only plays a selected movie or sound file, but also enables playback of files by other applications such as PictureGear™, Memory Stick Slideshow, and Windows® Explorer.

Software Overview

WinDVD

InterVideo Inc.

WinDVD is a simple-to-use DVD player including all the features you would expect to find in a standard consumer DVD player, while also offering advanced display and navigation features such as zoom, pan, bookmark, and time search.

Change text in this variable definition to document title.

Application, Driver, and System Recovery CDs

Your notebook comes with the following application, driver, and system recovery CDs. To use your recovery CDs, see “Using Your Recovery CDs” for more information.

Application Recovery CD(s)

Sony Electronics Inc.

This CD enables you to reinstall individual applications if they become corrupted or are erased.

Driver Recovery CD(s)

Sony Electronics Inc.

This CD enables you to reinstall individual device drivers if they become corrupted or are erased.

System Recovery CD(s)

Sony Electronics Inc.

This CD enables you to format the C:\ partition of the hard disk drive, then reinstall the operating system and software titles that shipped with your notebook, if they become corrupted or are erased. Use it to restore the hard disk of the VAIO original state, so user data and applications will be lost.

Notebook you purchased. This CD restores your notebook to its

Using Your Recovery CDs

The following sections describe how to use the Application Recovery, Driver Recovery, and System Recovery utilities.

To use the Application Recovery CD(s)

The Application Recovery CD(s) allows you to reinstall individual applications if they become corrupted or are accidentally erased. Reinstalling an individual software title may correct a problem you are experiencing with your notebook or software application; you may not need to reinstall the entire contents of your hard drive. If you need to reinstall all the software titles that shipped with your notebook, use the System Recovery CD(s). See “To use the System Recovery CD(s)” for more information. If you have any questions on using the Application Recovery CD, contact Sony Customer Support.

✍ You must be in Windows® to run the Application Recovery CD. If you have any

questions on using the Application Recovery CD, contact Sony Customer Support.

1 Turn on your notebook. If your notebook is already on, close all

applications.

2 When the Windows desktop appears, insert the Sony Application Recovery

CD in the optical drive. The Application Recovery utility loads automatically.

3 When the Application Recovery menu appears, select the icon for the

application you want to restore and then follow the on-screen instructions to complete the recovery process.

✍ Your system may include one or two Application Recovery CDs. If you have two

Application Recovery CDs, insert the first CD to run the Application Recovery program. You may be prompted to insert the second CD, depending on the application you wish to restore.

To use the Driver Recovery CD(s)

The Driver Recovery CD utility enables you to reinstall individual drivers and repair software applications if they become corrupted or are erased. You can reinstall an individual driver to correct a problem that you are experiencing with

Change text in this variable definition to document title.

your computer, hardware, or software application. VAIO Support Agent, an application repair utility, uses a vault feature on the Driver Recovery CD during its software healing process.

✍ If you need to reinstall all of the software applications that shipped with your

computer, use the System Recovery CD.

You must be in Windows® to run the Driver Recovery CD utility.

Reinstalling specific drivers with the Driver Recovery CD

1 Turn on your computer. If your computer is already on, close all

applications.

2 When the Windows desktop appears, insert the Driver Recovery CD into the

optical disc drive.

3 Click Start in the Windows taskbar, then Control Panel. The Control Panel

window appears.

4 Click Performance and Maintenance, then System. The System Properties

dialog box appears.

5 From the Hardware tab, click Device Manager.

6 Click with the left mouse button to highlight the unknown device (identified

by a yellow question mark) or the device for which you wish to reinstall the driver.

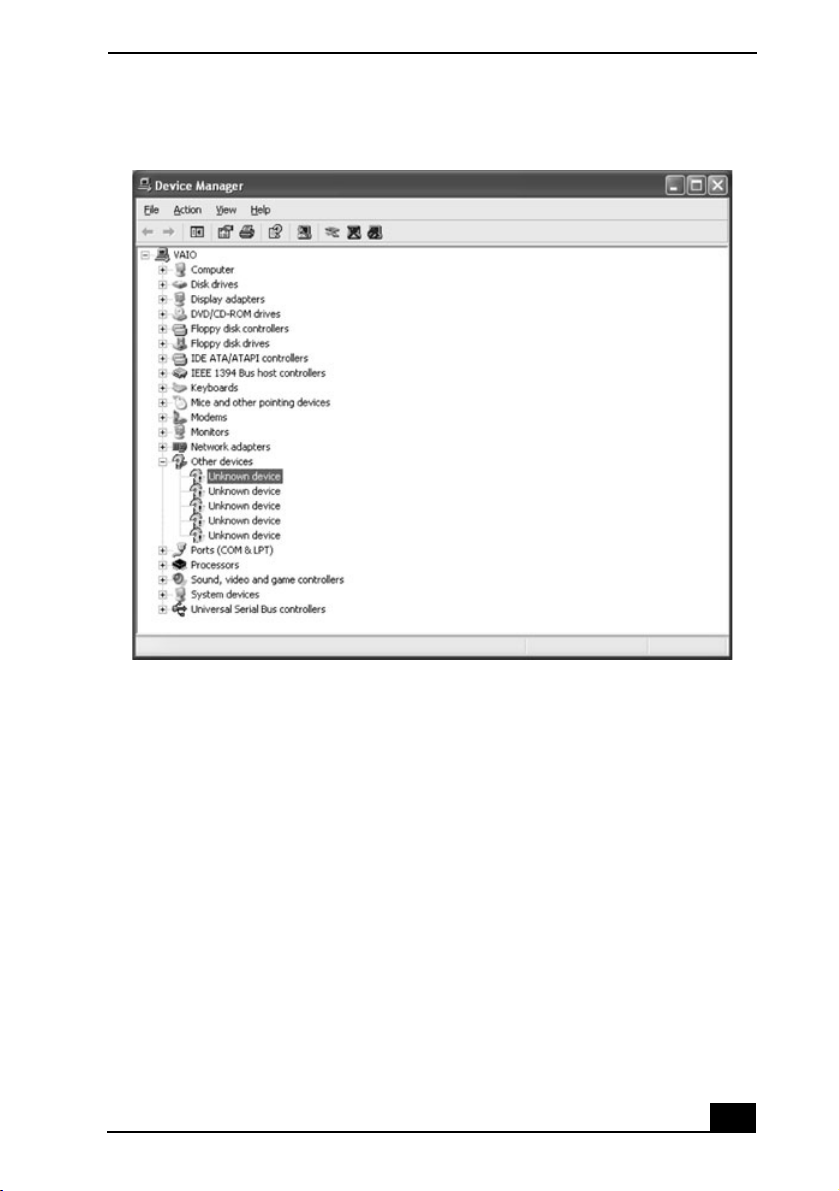

Device Manager screen

Using Your Recovery CDs

7 From the Action menu, click Uninstall. This will remove the device driver

from your system. Click OK to confirm this action. Repeat as necessary.

8 Reboot your computer. Click Start in the Windows taskbar, and click Turn

Off Computer, then Restart.

9 When the Windows desktop reappears, Windows will automatically reinstall

the device driver(s) from the Driver Recovery CD.

Reinstalling all drivers with the Driver Recovery CD

1 Turn on your computer. If your computer is already on, close all

applications.

2 When the Windows desktop appears, insert the Driver Recovery CD into the

optical disc drive.

Change text in this variable definition to document title.

3 Click Start in the Windows taskbar, then Control Panel. The Control Panel

window appears.

4 Click Performance and Maintenance, then System. The System Properties

dialog box appears.

5 From the Hardware tab, click Device Manager.

6 Click with the left mouse button to highlight the device for which you wish

to reinstall the driver.

7 From the Actions menu, choose Properties. Properties dialog box for that

device appears.

Properties dialog box

Using Your Recovery CDs

8 Click Reinstall Driver. The Hardware Update Wizard appears.

9 Click Next. The wizard will search for the correct driver on your Driver

Recovery CD.

10 When the recovery process is complete, click Finish. Some drivers will

require that you reboot the computer to complete installation.

Change text in this variable definition to document title.

To use the System Recovery CD(s)

This CD restores your notebook to its original state, so user data and applications will be lost.

You can use the System Recovery CD(s) to reinstall the operating system and software titles that shipped with your notebook if they become corrupted or erased. You may not need to reinstall the entire contents of your hard drive. If you experience a problem with your notebook, reinstalling an individual device driver or software title may correct the problem. Use the Application Recovery CD(s) to reinstall individual applications or use the Driver Recovery CD(s) to reinstall device drivers. See “To use the Application Recovery CD(s)” for more information.

The System Recovery CD contains a backup copy of all the software originally installed on your hard disk drive. It can be used only to recover the hard disk of the notebook you purchased.

The System Recovery utility will perform a Full Restore with Format. It formats the hard disk drive, then restores all the original software.

Full Restore with Format removes all the information on the hard disk drive. You will lose any software you have installed and any other files you have created since you started to use your notebook. This means you will have to reinstall any applications that were not included with the notebook when you purchased it. If you have any questions on using the System Recovery CD, contact Sony Customer Support.

1 Insert the Sony System Recovery CD in the optical drive.

2 Shut down your notebook as described in the “Shutting Down Your

Notebook” section of your printed Quick Start.

3 Wait four seconds and turn on your notebook.

4 Click OK to signify you have read and accept the Microsoft® End-User

License Agreement.

5 When the System Recovery menu appears, follow the on-screen instructions

to complete the recovery process.

Using Your Recovery CDs

If your notebook does not start from the Recovery CD

1 Press the power button and hold it for more than four seconds to turn off the

notebook.

2 Turn on the notebook. When the Sony logo is displayed, press the F2 key.

The BIOS setup menu screen appears.

3 Press the arrow keys to select the Exit menu.

4 Press the arrow keys to select “Get Default Values” and then press the Enter

key. The message “Load default configuration now?” appears.

5 Check that “Yes” is selected, then press the Enter key.

6 Press the arrow keys to select “Exit” (Save Changes) and then press the

Enter key. The message “Save configuration changes and exit now?” appears.

7 Check that “Yes” is selected, then press the Enter key. The notebook restarts

from the Recovery CD.

✍ Your system may include one or more System Recovery CDs. If you have two System

Recovery CDs, insert the first CD to run the System Recovery program. You are prompted to insert the next CD once the information from the previous CD has been installed.

The recovery process takes from 30 minutes to 60 minutes to complete.

After recovering your system using the System Recovery CD(s), you may be prompted to insert your Application Recovery CD(s) after restarting Windows. Insert the Application Recovery CD to automatically complete recovery of your system.

Change text in this variable definition to document title.

100

Sony PCG-FX410 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Welcome

Using Your VAIO Notebook

Using the Keyboard

Functions of the keyboard keys

Combinations and functions with the Windows key

Indicators

Indicator lights

Combinations and functions with the Fn key

Using the Touchpad

Using the Floppy Disk Drive

To insert a floppy disk

To remove a floppy disk

To remove the floppy disk drive

To reinsert the floppy disk drive

Using the Optical Disc Drive

To insert a disc

To remove a disc

To play a DVD

To play an audio CD

Notes on CD and DVD media

To write data to a CD-RW or CD-R disc

Using PC Cards

To insert a PC card

To remove a PC Card

Notes on PC Cards

Using a Second Battery Pack

To insert a second battery pack

To charge the second battery pack

To remove the second battery pack

Using the Weight Saver

To attach the weight saver

To remove the weight saver

Using Power Saving Modes

Normal mode

Standby mode

Hibernate mode

Notes on power saving modes

Connecting a Phone Line

Connecting to a LAN

To set up your ethernet connection

Connecting Peripheral Devices

Connecting a Port Replicator

To attach your notebook to the port replicator

To remove your notebook from the port replicator

Connecting an External Mouse or Keyboard

To connect an external mouse or keyboard

Connecting a Parallel Port Printer

To connect a printer

Connecting a USB Printer

To connect a USB printer

Connecting an External Display

To connect a computer display

To connect a multimedia computer display

To connect a projector

To select a display

Connecting a TV Display

To connect a TV

Changing the display resolution for TV Out

Notes on TV display

Connecting a USB Device

To connect a USB device

Connecting an i.LINK Device

To connect a digital video camera recorder

Notes on i.LINK devices

Connecting VAIO computers

Connecting with i.LINK

Connecting External Speakers

Before connecting your external speakers

To connect external speakers

Connecting an External Microphone

To connect an external microphone

Expanding Your Notebook Capabilities

Personal Digital Assistant

Wireless LAN Access Point

Wireless LAN PC Card

Customizing Your VAIO Notebook
