Hardware Guide

PCG-FR Series

Read this first

Hardware Guide

Read this first

Notice

This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machinereadable form without prior written approval.

Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties or merchantability or fitness for any particular purpose with regard to this manual, the software or such other information. In no event shall Sony Corporation be liable for any incidental, consequential, or special damages, whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the software, or other information contained herein or the use thereof.

Macrovision: This product incorporates copyright protection technology that is protected by U.S.patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user licence agreement.

Read this first

Hardware Guide

ENERGY STAR

As an ENERGY STAR® Partner, Sony has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

The International ENERGY STA R® Office Equipment Program is an international program that promotes energy saving through the use of computers and their office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles and copiers. Their standards and logos are uniform among participating nations.

ENERGY STAR is a U.S. registered mark.

Read this first

Hardware Guide

Safety information

Owner's record

The serial number and model number are located on the bottom of your Sony notebook. Record the serial number and the model number and refer to them if you call VAIO-Link. Read the printed Specifi cations document.

Warnings

General

❑ Opening the unit, for whatever reason, could lead to damages that are not covered by the guarantee. ❑ To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. ❑ To prevent fire or shock hazard, do not expose your VAIO notebook to rain or moisture. ❑ Avoid using the modem during a severe electrical storm. ❑ Do not use the modem or a telephone to report a gas leak in the vicinity of the leak. ❑ To change the backup battery, please contact your nearest Sony Service Center. ❑ Before you connect peripherals, turn off the computer and all peripherals. ❑ Connect the power cord only after connecting all cables. ❑ Turn on the computer only after turning off all peripherals. ❑ Do not move your computer while the system is in Standby mode. ❑ The magnetic properties of some objects can have serious consequences for your hard disk drive. They can

erase the data on the hard disk drive and cause the computer to malfunction. Do not place your computer near or on any objects which emit magnetic fields, mainly:

❑ TV sets ❑ Speakers ❑ Magnets ❑ Magnetic bracelets.

Read this first

Audio/video

❑ Audio and picture distortion may occur if this equipment is positioned in close proximity to any

equipment emitting electromagnetic radiation.

Hardware Guide

Connectivity

❑ Never install modem or telephone wiring during a severe lightning storm. ❑ Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. ❑ Be cautious when installing or modifying telephone lines. ❑ Use your notebook only with the supplied AC adapter. To disconnect your notebook completely from

mains voltage, unplug the AC adapter.

❑ Please make sure that the socket outlet is easily accessible. ❑ Never touch uninsulated telephone wire or terminals unless the telephone line has been disconnected

at the network interface.

Optical disc drive

❑ Misuse of the optical instruments supplied with your notebook can cause eye hazard. As the laser beam

used in this product is harmful to eyes, do not attempt any disassembling process. For servicing, refer to qualified personnel only.

❑ There are visible and invisible radiations when the optical disc drive is open: avoid direct exposure to the

laser beam.

Read this first

Hardware Guide

Regulatory information

Sony hereby declares that this product is in compliance with the essential requirements and other relevant provisions of European Directive 1999/5/EC (radio equipment and telecommunications terminal equipment Directive).

Declaration of Conformity

The European Union is targeting the free movement of goods for the internal market and to prevent technical barriers to trade. This effort has resulted in several EU Directives asking that manufacturers make their products comply with essential standards. Manufacturers are required to affix the "CE" mark on the products they sell and to draw up a "Declaration of Conformity" (DoC).

Primarily, the Declarations of Conf or mity are intended for the mar ket surveillance authorities as proof that product s satisfy the requi red standards. Additionally, Sony provides these EU DoC's on the website http://www.compliance.sony.de as a service to our customers.

You can search for all Declarations of Conformity available for a specific product by typing in the model name in the search box. A list of matching documents w ill be displayed and can be downloaded. Please note that the availability of declarations depends on the scope of the EU Directives and the individual product specifications.

This product complies with EN 55022 Class B and EN 55024 for use in following areas: residential, commercial and light-industrial.

This product has been tested and found compliant with the limits set out in the EMC Directive for using connection cables not longer than 3 metres (9.8 feet).

The optical disc drive is classified as a CLASS 1 LASER PRODUCT and complies with the Laser Product Safety Standard EN 60825-1. Repair and maintenance only by authorized Sony technicians. Improper repairs and use can create safety hazards.

CLASS 1

LASER PRODUCT

TO EN 60825-1

Before activating the built-in modem, you are invited to read the Modem Regulations flyer leaflet.

Read this first

Hardware Guide

Disposing of lithium ion batteries

❑ Do not handle damaged or leaking lithium ion batteries. Dispose of promptly and properly at end-of-life. ❑ Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type

recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

❑ The battery pack used in this device may present a fire or chemical burn hazard if mistreated. Do not

disassemble, heat above 60°C (140°F) or incinerate.

❑ Dispose of used batteries promptly and properly. ❑ Keep away from children. ❑ In some areas the disposal of lithium ion batteries in household or business waste may be prohibited. ❑ Use the public collection system.

Disposing of internal memory backup battery

❑ Your notebook is equipped with an internal memory backup battery that should not have to be replaced

during the lifetime of the product. For changing this battery, please contact VAIO-Link.

❑ Danger of explosion if the battery is incorrectly replaced. ❑ Dispose of properly at end-of-life. ❑ In some areas the disposal of lithium ion and other non-hazardous batteries in household or business

waste may be prohibited.

❑ Please use the public collection system.

Welcome

Hardware Guide

Welcome

Congratulations on purchasing a Sony VAIO notebook. Sony has combined leading-edge technology in audio, video, computing and communications to provide you with state-of-the-art personal computing.

Here are just some of the features your VAIO notebook has to offer.

❑ Exceptional performance - Your PC includes a fast processor, a fast CD-RW/DVD-ROM or DVD±RW*

drive and an internal modem.

❑ Portability - The rechargeable battery pack provides hours of use without AC power. ❑ Sony audio and video quality - A high-resolution LCD screen enables you to take advantage of today’s

advanced multimedia applications, games, and entertainment software.

❑ Multimedia features – Enjoy audio and video CDs. ❑ Interconnectivity – Your computer has Ethernet and i.LINK™ functionalities. i.LINK™ is a bidirectional

digital interface for exchanging data. With the Memory Stick™ you can easily exchange and share digital data with compatible products.

❑ Windows

Pack 1 operating system*.

❑ Communications - Access popular online services, send and receive e-mails, browse the Internet. ❑ Excellent customer support - If you are experiencing any problems with your computer, please check

the VAIO-Link website for a possible solution:

http://www.vaio-link.com

Before contacting VAIO-Link, you should try to solve the problem by reading this Hardware Guide or the manuals and help files for the peripherals or software.

* Depending on your model. Read the printed Specifications document for more information.

- Your system includes Microsoft’s Windows® XP Professional or Home Edition* with Service

Welcome

Hardware Guide

Documentation pack

Your Documentation Pack contains printed information and user guides to read on your computer. Depending on your model, the user guides are compiled in the VAIO Info Centre on the VAIO Recovery and Documentation Disc or on your hard disk drive.

Printed documentation

❑ A Getting Started brochure, where you will find a brief description of the items in your box, and how

to setup your notebook;

❑ A Specifications sheet, containing a table of specifications and a list of bundled software. ❑ A Guide to Troubleshooting and Using the VAIO Recovery and Documentation Disc*, where you

will find solutions to common problems, an explanation of the purpose and use of the VAIO Recovery and Documentation Disc delivered with your computer, and VAIO-Link information.

OR: A Guide to Troubleshooting and Recovering your VAIO system*, where you will find solutions to common problems, an explanation of the VAIO hard disk drive recovery, and VAIO-Link information;

❑ A Dual Language Operating System leaflet**; ❑ A Triple Language Operating System leaflet***, ❑ Yo u r Sony Guarantee conditions; ❑ A Safety Regulations leaflet; ❑ A Modem Regulations leaflet.

* Depending on your model. ** Depending on your country. Dual Language Operating Systems are available in Belgiu m and the Netherlands.

*** Depending on your country. Triple Language Operating Sytems are available in Switzerland.

Welcome

Hardware Guide

Non-printed documentation

The documentation available in the VAIO Info Centre includes the following guides:

❑ The Ha rdwa re Guide (this guide): ❑ The Software Guide, which contains short descriptions of the software features available with VAIO

systems.

Further sources

1 Consult the Online Help files of the software you are using for detailed information on features and

troubleshooting.

2 Go to http://www.club-vaio.com to find online tutorials about your favourite VAIO software.

Welcome

Hardware Guide

Your notebook and its accessories

The following hardware items are in the box:

1 Main unit 5 Phone cable

2 VAIO Recovery and Documentation Disc* 6 Power cord

3 AC adapter 7 Phone plug**

4 Rechargeable battery pack 8 Documentation pack

✍ If you find an extra phone plug in the box, see Using the correct phone plug (page 55).

* Depending on your model. If there is a disc in the box, see the printed Guide to Troubleshooting and Using the VAIO Recovery and Documentation Disc for details. If there is no disc in the box, see the printed Guide to Troubleshooting and Recovering your VAIO system.

**Not available with models sold in Belgium or Spain.

Welcome

Hardware Guide

Ergonomic considerations

You will be using your notebook as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations to both stationary and portable environments:

❑ Positioning your computer – Place the computer directly in front of you (1). Keep your forearms

horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touchpad, or external mouse. Let your upper arms hang naturally at your sides. Have breaks during sessions with your computer. Excessive use of the computer may strain muscles or tendons.

Welcome

Hardware Guide

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet

are flat on the floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

❑ Viewing angle of the computer’s display – Use the display’s tilting feature to find the best position.

You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well.

❑ Lighting – Choose a location where windows and lights do not create glare and reflection on the

display. Use indirect lighting to avoid bright spots on the display. You can also purchase accessories for your display that help reduce glare. Proper lighting adds to your comfort and work effectiveness.

❑ Positioning an external display – When using an external display, set the display at a comfortable

viewing distance. Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.

Using your notebook

This section describes how to start using your computer and how to use your computer’s internal and external devices.

Hardware Guide

❑ Locating controls and connectors (page 14) ❑ Connecting a power source (page 19) ❑ Starting your notebook (page 23) ❑ Setting up your notebook with Sony Notebook Setup (page 24) ❑ Changing the video memory size (page 26) ❑ Shutting down your notebook (page 27) ❑ Using the keyboard (page 28) ❑ Using the touchpad (page 33) ❑ Using the disc drive (page 34) ❑ Using the floppy disk drive (page 38) ❑ Using PC Cards (page 40) ❑ Using Memory Stick™ (page 43) ❑ Using the modem (page 54) ❑ Using power saving modes (page 56)

Using your notebook

Locating controls and connectors

Right

Hardware Guide

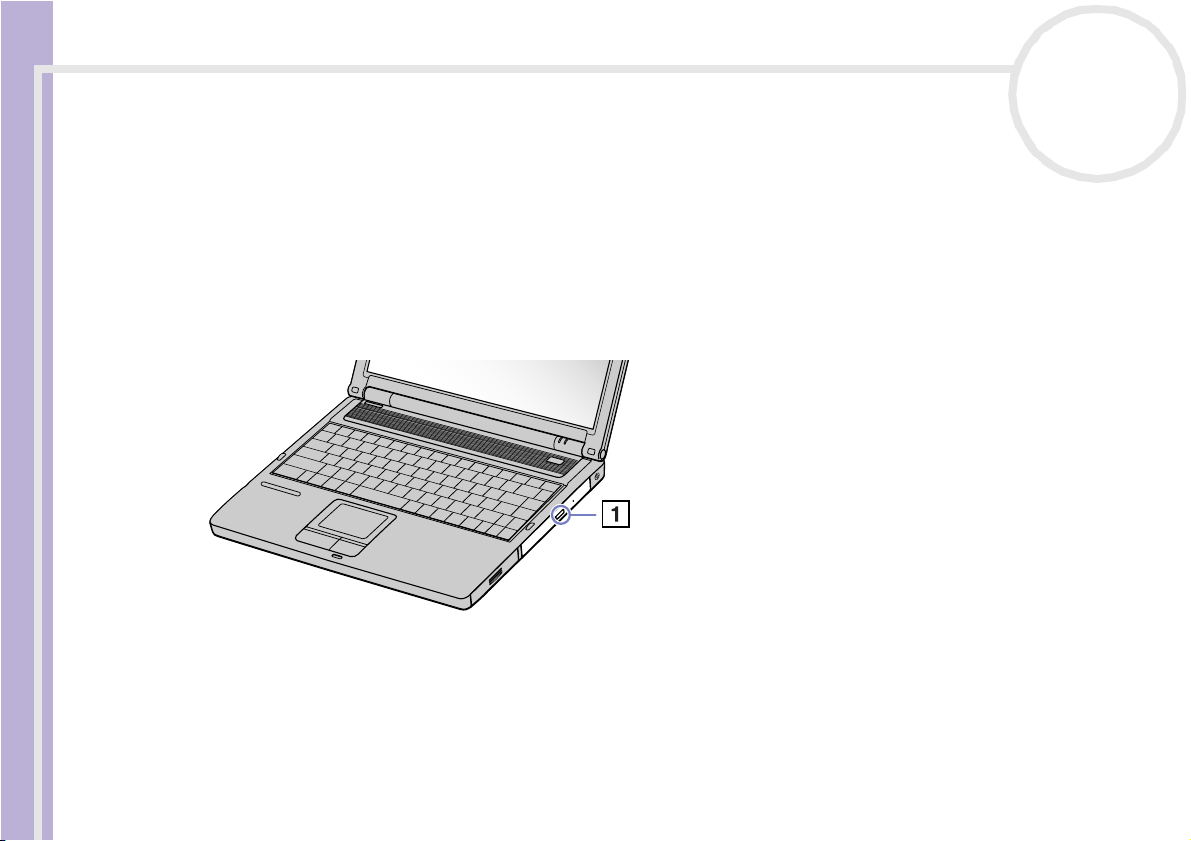

1 Power button (page 23)

2 DC In connector (page 19)

3 CD-RW/DVD-ROM or DVD±RW drive* (page 34)

4Battery bay (page 20)

* Depending on your model. Read the printed Specifications document for more information.

Using your notebook

Left

Hardware Guide

1 2 USB 2.0 ports (High-

speed/Full-speed/Lowspeed)*

2 AV out j ack (for TV and

line out)

3 Microphone connector (page 69)

4 Headphone connector (page 68)

5 i.LINK™ connector (page 73)

6 Ventilation slot (page 15)

7 PC Card slots (page 40)

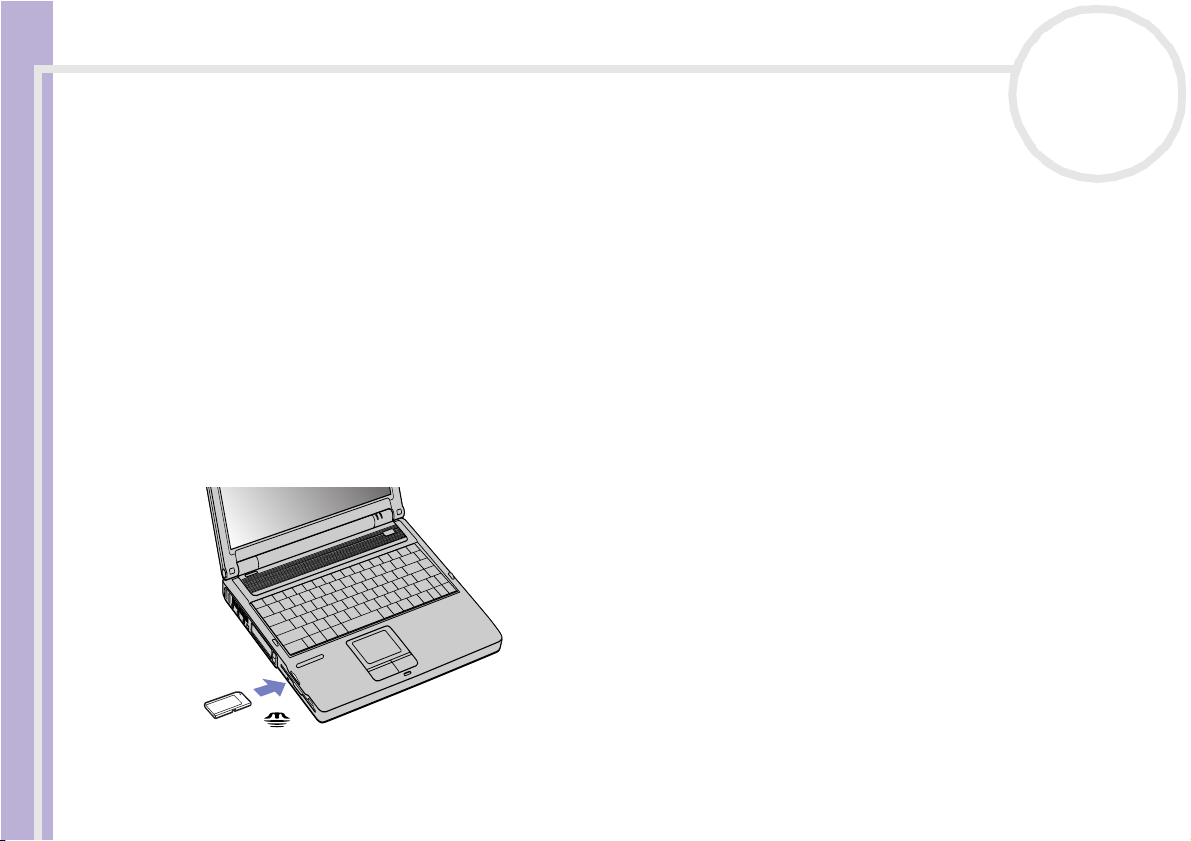

8 Memory Stick slot (page 43)

9 Floppy disk drive (page 38)

(page 70)

(page 62)

✍ Do not cover the ventilation slot when the computer is on.

* This USB connector supports USB 2.0 standard. USB 2.0 is a new USB (Universal Serial Bus) standard which supports hig her data transfer speed than USB 1.1. Connectors which support USB 2.0 support products with USB 1.1. There are 3 transfer modes:

- High-speed: 480Mbps, this is the highest speed.

- Full-speed: 12Mbps transfer mode.

- Low-speed: 1.5Mbps transfer mode. Used for low-speed devices such as mouse and keyboards.

Using your notebook

Front

Hardware Guide

1 Power indicator (page 31)

2 Battery indicator (page 31)

3 Har d disk drive indicator (page 31)

4 Num Lock indicator (page 31)

5 Caps Lock indicator (page 31)

6 Scroll Lock indicator (page 31)

7 LCD screen (page 32)

8 Speakers (page 32)

9 Model name /

10 Memory Stick indicator (page 31)

11 Left/right buttons (page 33)

12 Touchpad (page 33)

13 Keyboard (page 28)

Using your notebook

Back

Hardware Guide

1 Modem connector (page 54)

2 Ethernet connector (page 75)

3 Monitor/VGA connector (page 60)

4 Printer connector (page 71)

5 Ventilation slot (page 15)

6 1 USB 2.0 port

(High-speed/Full-speed/ Low-speed)

(page 70)

Using your notebook

Bottom

Hardware Guide

1 Reset button /

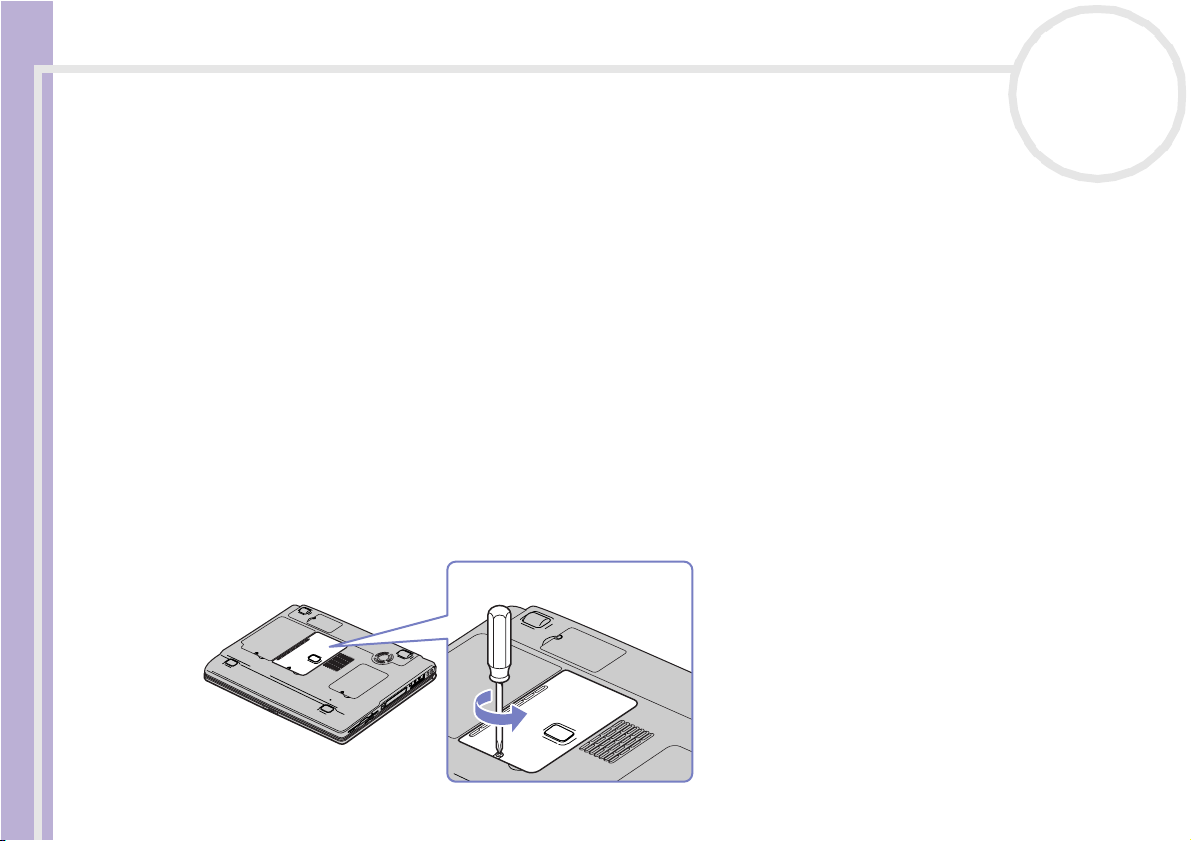

2 Memory module cover (page 94)

3 Modem module cover (page 54)

Using your notebook

Connecting a power source

You can use either an AC adapter or a rechargeable battery pack as a power source.

Hardware Guide

Using the AC adapter

To use the AC adapter, proceed as follows:

1 Plug the cable attached to the AC adapter (1) into the DC In connector (2) on the computer. 2 Plug one end of the power cord (3) into the AC adapter. 3 Plug the other end of the power cord into an AC outlet.

✍ Use your notebook only with the supplied AC adapter.

To disconnect your notebook completely from mains voltage, unplug the AC adapter.

Make sure that the socket outlet is easily accessible.

Using your notebook

Using the battery pack

You can use one battery as a source of power. The battery pack supplied with your computer is not fully charged at the time of purchase.

Hardware Guide

Inserting the battery pack

To insert the battery pack, proceed as follows:

1 Open the cover of the battery bay.

2 Insert the battery pack with the label facing down into the battery bay on the right side of the computer.

3 Close the cover of the battery bay until it clicks.

✍ When the computer is directly connected to AC power and has a battery pack inserted in the battery bay, it uses power from the AC outlet.

Using your notebook

Charging the battery pack

To charge the battery pack, proceed as follows:

1 Connect the AC adapter to the computer.

Hardware Guide

2 Insert the battery pack.

The computer automatically charges the battery (the battery indicator light flashes in a double blink pattern as the battery charges). When the battery is 85% full, the battery indicator light turns off. This process takes approximately 2.5 hours if your notebook is on. To charge the battery completely, continue charging for an additional hour.

Indicates the status of the battery pack in the battery bay.

battery indicator light status

On The computer is using battery power.

Single blink The battery is running out of power.

Double blink The battery is charging.

Off The computer is using AC power.

meaning

✍ Keep the battery pack in the computer while it is directly connected to

AC power. The battery pack continues to charge while you are using the computer.

If the battery level falls below 10%, you should either attach the AC adapter to recharge the battery or shut down your computer and insert a fully charged battery.

Using your notebook

Hardware Guide

Removing the battery pack

To remove the battery pack, proceed as follows:

1 Turn off the computer. 2 Open the cover of the battery bay. 3 Pull out the battery pack.

The battery pack supplied with your computer is a lithium ion battery and can be recharged any time. Charging a partially discharged battery does not affect battery life.

The battery indicator light is on while you use the b attery pack as a power source. When the battery life is nearly depleted, both the battery and power indicators start flashing.

For some software applications and some peripheral devices, your computer may not enter Hibernate mode even when battery life is low. To avoid loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such as Standby or Hibernate.

When the computer is directly connected to AC power and has a battery pack inserted in the battery bay, it uses power from the AC outlet.

4 Close the cover of the battery bay.

✍ You may lose data if you remove the battery pack while the computer is on and not connected to the AC adapter or if you remove the battery while

the computer is in Standby mode.

Using your notebook

Starting your notebook

To start your computer, proceed as follows:

1 Slide the LCD lock lever (1) in the direction of the

Hardware Guide

2 Press the power button (2) of the computer until

3 If necessary, adjust the brightness on the LCD

✍ If you press the power button for more than four seconds, the

arrow, and lift the cover.

the green power indicator (3) light turns on.

display. To increase the brightness, hold down the <Fn> key and <F5> and press the up or right arrow key. To decrease brightness, hold down the <Fn> key and <F5> and press the left or down arrow key.

computer will turn off.

Using your notebook

Setting up your notebook with Sony Notebook Setup

The Sony Notebook Setup utility allows you to consult system information, specify preferences for system behaviour, and set up password protection for your VAIO notebook.

Hardware Guide

To use Sony Notebook Setup, proceed as follows:

1 Click the Start button on the Windows® taskbar. 2 In All Programs, select Sony Notebook Setup and then click Sony Notebook Setup.

The Sony Notebook Setup window appears.

Tab Des cription

About This Computer

Initial Setting

Power On Password

Device Disables ports or devices to r elease resources

Displays system information, including memory capacity, serial number, and BIOS version.

Selects the drive and device order you wish to use for loading the operating system. You can specify the hard drive as well as other drives inserted into your computer. You can change the volume of the sounds played while the operating system is loading.

Sets the password to secure your computer. If you use this option, remember the password at all times. If you forget the password, you cannot change this setting anymore, and you will not be able to start your computer.

to the system. To change the port settings, select a port and click Settings in the Device tab.

Using your notebook

3 Select the tab for the item you want to change. 4 Once finished, click OK.

Hardware Guide

✍ For more information about each option, click Help on the Sony Notebook Setup screen to display the help file.

The item has been changed.

If you open Sony Notebook Setup as a limited user, then only the About This Computer tab will be visible.

Using your notebook

Changing the video memory size

You can change the video memory size of your computer in the BIOS (Basic Input/Output System). Changing the video memory size will automatically modify the main memory size of your computer.

Hardware Guide

Increasing the video memory size will speed up graphically intensive applications, such as image editors or computer games. However, the higher you choose to set the video memory, the less conventional memory you will have. Less conventional memory may slow down switching between open applications.

To change the video memory size of your computer, proceed as follows:

1 Turn on you computer.

2 When the Sony logo appears, press the <F2> key.

3 Choose the Advanced tab by using the right arrow key. 4 On the Advanced tab sheet, choose UMA Video Memory size by using the down arrow key. 5 Press Enter.

6 In the pop-up window, choose a memory size. 7 Press Enter.

8 To quit the BIOS setup window, press the <Esc> key. 9 Choose Exit (save Changes) and press Enter.

10 Choose Yes to save you changes and exit.

✍ You can check the video memory size on the About the Computer tab sheet in VAIO Notebook Setup.

Make sure that no peripheral devices (apart from the AC adapter) are connected.

The BIOS setup window appears.

A pop-up window appears, containing three memory sizes: 32 MB, 64 MB and 128 MB.

The memory size is changed.

A pop-up window appears, containing the question: Save configuration and exit now?.

Your computer will restart.

-orchoose No to return to the BIOS setup window.

Using your notebook

Shutting down your notebook

It is important that you shut down your computer properly so you do not lose unsaved data.

To shut down your computer, proceed as follows:

Hardware Guide

1 Click the Start button on the Windows® taskba r. 2 Click Turn Off Computer.

3 Select Turn Off.

4 Turn off any peripheral connected to your computer.

✍ Respond to any prompts warning you to save documents or to consider other users.

The Turn off computer dialog box appears.

Wait for your computer to turn off automatically. The power indicator turns off.

If you are unable to shut down your computer:

- Clos e all software in us e.

- If applicable, remove the PC Card. To do so, double-click the Safely Remove Hardware icon in the taskbar. Select the hardware you want to unplug and click Stop.

- Disconnect any USB devices.

- Press the <Ctrl>+<Alt>+<Delete> keys at the same time. If you have not changed the default settings, the Ta s k M a na ger will appear. Select Shut Down then Tu rn Off.

- Press <Alt>+<F4> and select Tu rn O ff from the screen that appears. If this does not work, you can press the power button for more than four seconds. This will shut down the computer. This operatio n may resu lt in data loss.

If you are not using the computer for a short period of time, you can save power by using the Hibernate mode. To enter Hibernate mode, press the <Fn> and <F12>-keys simultaneously. For more details on power management, see Using power saving modes (page 56).

Using your notebook

Using the keyboard

Your keyboard is very similar to a desktop computer’s, but has additional keys that perform specific notebook-related tasks.

Hardware Guide

Using your notebook

Keys Descriptions

Escape key (1) The <Esc> (Escape) key is used to cancel commands.

Hardware Guide

Function keys (2) The twelve function keys along the top of the keyboard are used to perform designated tasks.

For example, in many applications, <F1> is the Help key. The tasks associated with each function key may vary from one application to the other.

Print Screen key (3) The <Print Screen> key takes an electronic snapshot of the screen and moves it to the

Windows® Clipboard. You can then paste the screenshot into a document and print it.

Correction keys (4) The <Insert>, <Back Space> and <Delete> keys enable you to make corrections.

Navigation keys (5) These keys enable you to move the cursor on the screen.

Application key (6)

Numeric keypad area (7) Contains the keys found on a typical calculator. Use the numeric keypad area to type numbers or

Operator keys ( 8-11-12) Several keys are always used with at l east one other key: <Ctrl>, <A lt> , and <Shift>. When held

Windows® key (9)

<Fn> key (10) The <Fn> key is used in combination with other keys to execute commands.

The Application key displays a shortcut menu; pressing this key is equivalent to clicking the right mouse button.

to perform mathematical calculations such as addition and subtraction. Note that you must press the <Num Lock> key to activate the numeric keypad. When you do so, the Num Lock light illuminates.

down with another key, the <Ctrl> (Control) and <Alt> (Alternate) keys offer another way to execute commands. For example, in many applications, instead of choosing the Save command from a menu, you can hold down <Ctrl> and press <S> ( referred to as <Ctrl>+<S>). The <Shift> key is used to produce capital letters or special symbols such as @ and $.

The key with the Windows®logo displays the Windows®Start menu; it is equivalent to clicking the Start button on the taskbar.

Using your notebook

Combinations and functions with the Windows® key

Combinations Functions

Hardware Guide

+ <F1> Displays the Windows® Help and Support Center.

+ <Tab> Switches the selected button on the taskbar.

+ <D>

+ <E> Displays My Computer.

+ <F> Displays the Search Results window to find a file or

+ <Ctrl> + <F> Displays the Search Results - Computers window

+ <M> Minimizes all displayed windows.

<Shift> + + <M> Returns all minimized windows to their previous size.

+ <R> Displays the Run window. This is equivalent to selecting

<Fn> + + <Insert> Displays the System Properties window. This is

Displays the desktop.

folder. This is equivalent to selecting Search from the Start menu.

where you can locate other computers.

Run from t he St art menu.

equivalent to double-clicking the Syste m icon in the Control Panel or right-clicking My Computer (then click Properties) from the Start menu.

Using your notebook

Indicators

Indicator Functions

Hardware Guide

Power

Battery

Memory Stick™ Turns on when the Memory Stick™ is in use.

Light On Off

Hard disk

Num Lock

Caps Lock

Scroll Lock

Power on: lights green. Standby mode: flashes umber.

Indicates the status of the battery inserted in the battery bay on the left side of the computer.

Turns off when the Memory Stick™ is no longer in use.

Data is read from or written to the hard drive. The hard drive is not being accessed.

Turns on when the number keys in the numeric keypad are active.

Turns on when the characters appear in uppercase as you type. The <Shift> key lowers the case of typed letters when Caps Lock is on.

Turns on when the screen scrolls differently (depends on the application, no effect in many applications).

Turns off when the alphanumeric character keys in the keypad area are active.

Turns off when the characters appear in lowercase as you type (unless you hold down the <Shift> key).

Turns off when the information moves across the display normally.

Using your notebook

Combinations and functions with the <Fn> key

Combinations/ Feature Functions

Hardware Guide

<Fn> + (F3): speaker switch

<Fn> + (F4): speaker volume

<Fn> + (F5): brightness control

<Fn> + (F7)*: switch to the

external display

<Fn> + (F12): Hibernate Puts the system into Hiberna te mode, the lowest level of power consumption. To return the

* This function can only be used by the first user to log on. It will not work if you have switched to another user account. If another user wants to display on an external monitor or TV, use the monitor properties to switch to an external monitor or TV.

✍ Some functions are not available until Windows

Toggles the built-in speaker on and off.

Adjusts the built-in speaker volume. To increase volume, press <Fn>+<F4> and then or .

To decrease volume, press <Fn >+<F4> and then or .

Adjusts the brightness of the LCD. To increase lightness intensity, press <Fn>+<F5> and then or .

To decrease lightness intensity, press <Fn>+<F5> and then or .

You can see the brightness changing immediately on the screen.

Toggles between the LCD, external device (monitor or TV depending on which device is connected) and both LCD and external device. This function can only be used by the first user to log in. It will not work under a second user account.

system to the active state, press the power button. For details on power management, see the section Using power saving modes (page 56).

is launched.

Using your notebook

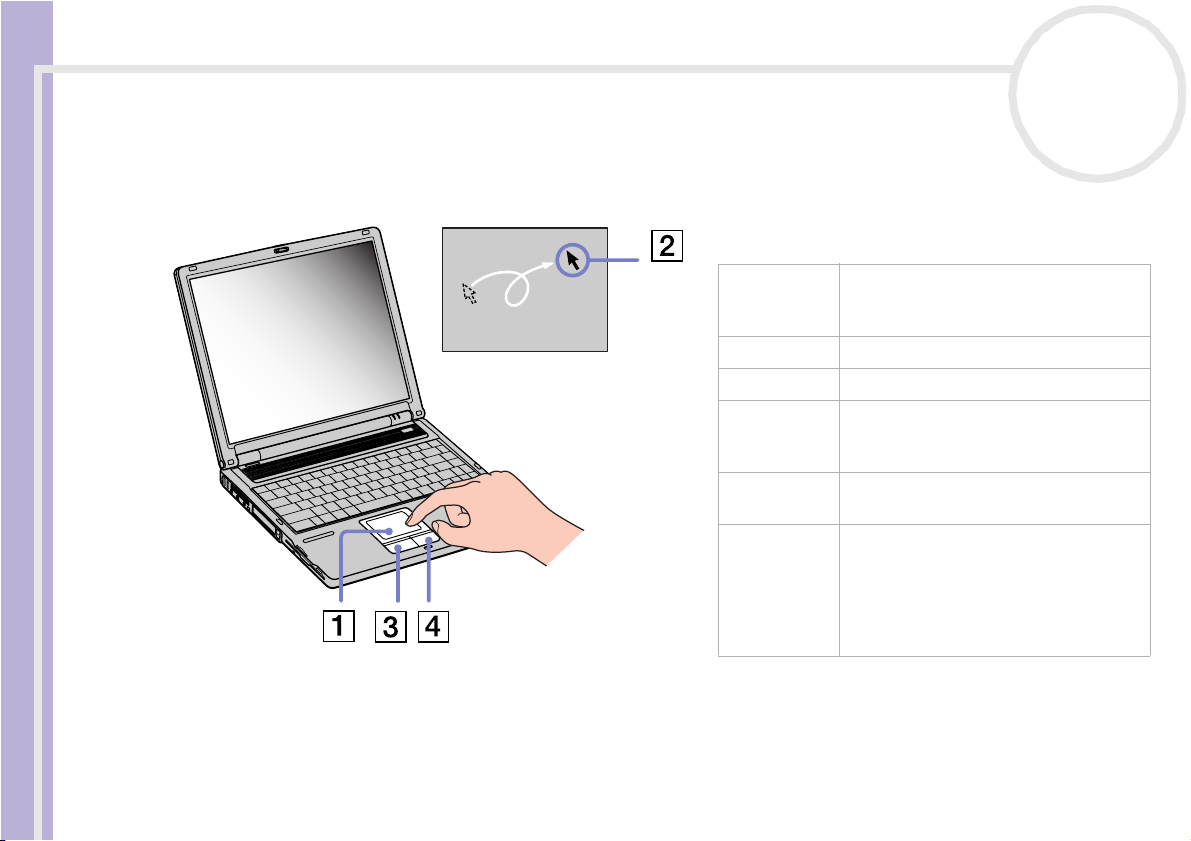

Using the touchpad

The keyboard contains a cursor-pointing device, your touchpad (1). You can point to, select, drag, and scroll objects on the screen using the built-in touchpad.

Hardware Guide

Action Description

Point Slide one finger on the touchpad to

place the pointer (2) on an item or object.

Click Press the left button (3) once.

Double-click Press the left button twice.

Right-click Press the right button (4) once. In many

applications, this action displays a shortcut menu.

Drag Slide one finger while pressing the left

button.

Scroll Move your finger along the right edge

of the touchpad to scroll vertically. Move your finger along the bottom to scroll horizontally (the scroll function is available only with applications that support a touchpad scroll feature).

Using your notebook

Using the disc drive

Your computer is equipped with either a DVD±RW drive or a CD-RW/DVD-ROM combined drive. Check the printed Specifications sheet for details on your model.

Hardware Guide

See the glossary at the end of this guide for more information on CD-RW and DVD±RW.

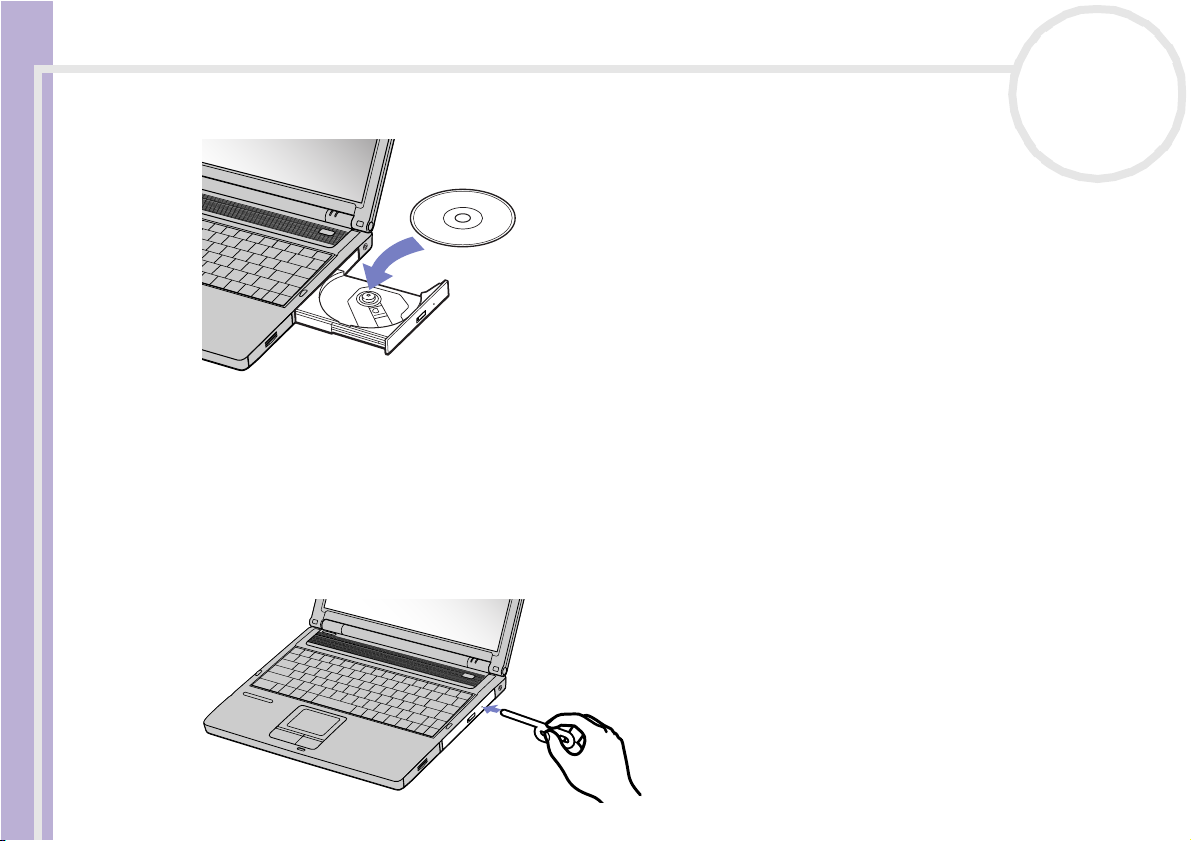

To insert a disc, proceed as follows:

1 Turn on the computer. 2 Press the eject button (1) to open the drive.

The tray slides out.

3 Place a disc in the middle of the tray with the label side facing up until the disc clicks into place.

Using your notebook

4 Close the tray by pushing it gently.

Hardware Guide

✍ When the computer is in Standby or Hibernate mode, you cannot insert or remove a disc.

Be sure to seat the disc firmly over the disc drive hub fingers. If you do no t seat the disc firmly, you could damage your disc drive and you may not be able to open the tray.

When you finish using a disc, wait until the LED indicator turns off and then press the eject button to remove the disc.

If the disc does not come out when you press the eject button, go to Windows Explorer or My Computer. Select the drive, click the right button of your mouse and select Eject to open the disk tray. If it still does not work, turn off the computer and insert a thin, pointed object (e.g. a paper clip) into the manual eject hole.

Using your notebook

Using the disc recording function*

Your notebook is equipped with a CD-RW/DVD-ROM or a DVD±RW drive. To burn CDs, you can use DVD/CD-RW and/or DVD/CD-Rs**:

Hardware Guide

❑ The -RW (-ReWriteable) disc is a data memory medium that can be used to write, erase and rewrite a

❑ The -R (-Recordable) disc is a data memory medium that can be used to write a program or other data,

To achieve optimum performance when writing data on a CD-RW disc, follow these recommendations :

❑ To make a CD-R’s data readable on a CD-ROM drive, you need to close the session when you eject it. To

❑ Only use circular discs. Do not use discs with any other shape (star, heart, card, etc.), as this may damage

❑ Do not strike or shake the computer while writing data to a disc. ❑ For optimal writing speed, deactivate the screensaver before writing data to a disc. ❑ Memory-resident disc utilities may cause unstable operation or data loss. Deactivate these utilities before

❑ Your VAIO notebook does not support 1x writing speed. ❑ When using your software application to burn CDs, be sure to exit and close all other applications. ❑ Never touch the surface of the disc. Fingerprints and dust on the surface of a disc may cause writing

❑ Do not put your VAIO notebook into a power saving mode while using the pre-installed software and

* Ultra Speed CD-RW is not supported.

program or other data.

but once only.

complete this process, follow the instructions included with your software.

the CD-RW drive.

writing data to a disc.

errors.

while using the CD burning software.

** DVD or CD depends on your type of disc drive.

Using your notebook

Using the DVD function

To achieve optimum performance when playing DVD-ROM discs, you should follow these recommendations.

❑ You can play DVDs using the DVD-ROM or DVD±RW* drive and the WinDVD for VAIO software. See the

Hardware Guide

❑ Close all open applications before playing a DVD-ROM movie. ❑ Do not use resident disc utilities or resident utilities to speed up the access of discs, because they may

❑ Make sure that the screensaver is deactivated. ❑ Region codes indicators are labelled on the DVD discs to indicate in which region and on what type of

❑ Do not try to change the region code settings of the DVD-ROM or DVD±RW* drive. Any difficulties

❑ When a TV is connected, a part of the video screen will not appear with the factory settings. Adjust the

❑ When playing a DVD movie, you can use the <Fn>+<F7> combination to view the movie at the same time

* Depending on your model. Read the printed Specifications document for more information.

help file on the WinDVD for VAIO software for details.

cause the system to become unstable.

player you can play the disc. Unless a '2' (Europe belongs to region '2') or 'all' (this means that you can play this DVD everywhere in the world) is labelled on your DVD disc or on the packaging, you cannot play the disc on this player.

caused by changing the region code settings of the DVD-ROM or DVD±RW* drive are out of warranty.

display resolution to 800 x 600 or 1024 x 768.

on the notebook display and a connected external display. See Using the Dual Display function

(page 65) for more details on customizing the display.

Using your notebook

Using the floppy disk drive

Your computer is equipped with a floppy disk drive.

Hardware Guide

Inserting a floppy disk

To insert a floppy disk, proceed as follows:

1 Hold the disk (1) with the label side facing up. 2 Gently push the disk into the floppy disk drive (2) until it clicks into place.

Using your notebook

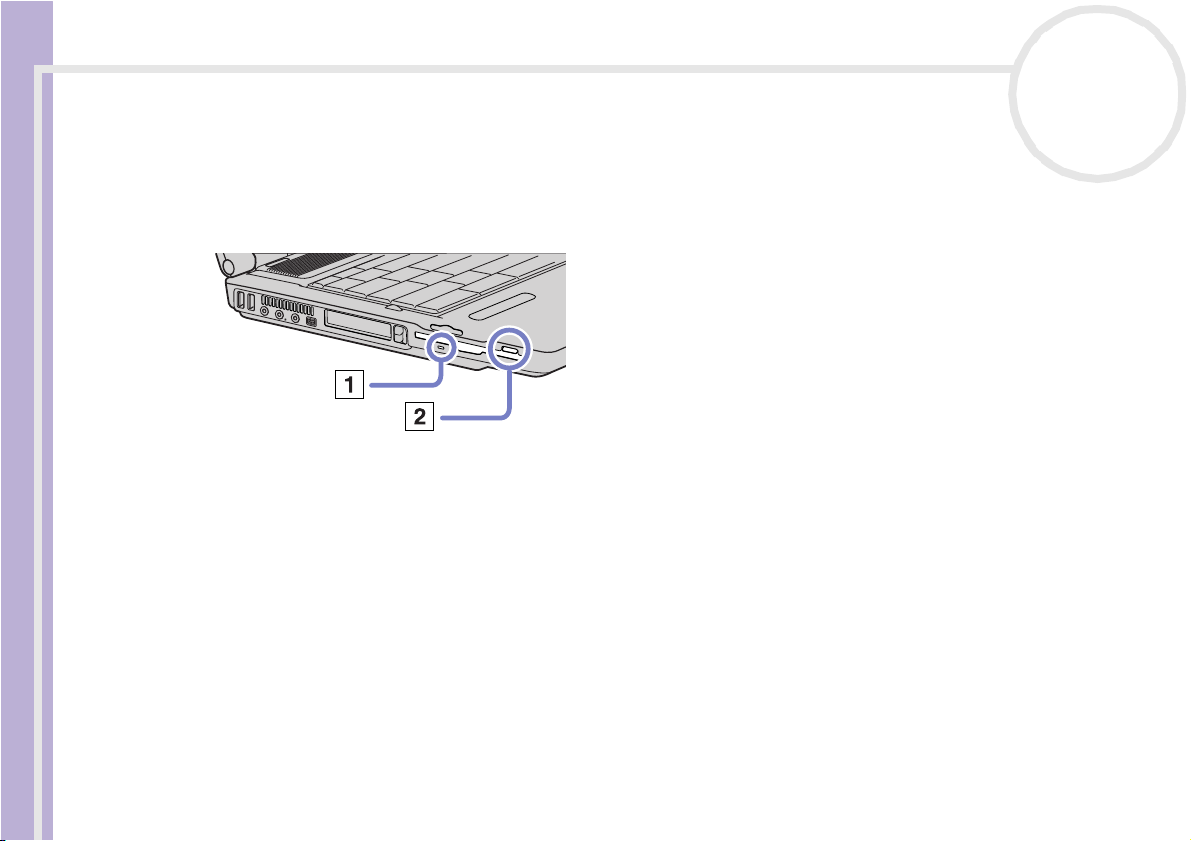

Removing a floppy disk

To remove a floppy disk, proceed as follows:

1 Wait until the LED indicator (1) turns off.

Hardware Guide

2 Press the eject button (2) to remove the floppy disk.

✍ Do not press the eject button when the LED indicator is turned on. Otherwise, data may be lost.

Using your notebook

Using PC Cards

This computer has a PC Card slot that supports Type I, II and III PC Cards. PC Cards allow you to connect portable external devices.

Hardware Guide

You do not need to shut down your computer when inserting a PC Card.

Inserting a PC Card

To insert a PC Card, proceed as follows:

1 Insert the PC Card into one of the PC Card slots with the label facing upwards.

2 Gently push the PC Card slot into the connector.

✍ Some d evices may not function properly if you repeat Returning to Normal mode from Standby mode or Hibernate mode.

The PC Card is automatically detected by your system. The Safely Remove Hardware icon appears in the system tray.

The computer will return to its original state if you restart it.

The PC Card slots can accommodate two Type I or II PC Cards (at the same time) or one Type III PC Card. These slots are compatible with CardBus ports.

Use the lower slot for Type III PC Cards.

Using your notebook

Hardware Guide

Some P C Cards may require you to disable idle d evices when using the PC Card.

Make sure you use the most recent software driver provided by the PC Card manufacturer.

If an “!” mark appears in the Device Manager dialog box, remove the software driver and then reinstall it.

You do not need to shut down the computer before inserting or removing a PC Card .

Do not force a PC Card into the slot. It may damage the connector pins. If you have difficulty inserting a PC Card, check that you are inserting the PC Card in the correct direction. See the manual supplied with your PC Card for more information on use.

For some PC Cards, if you alternate between Normal power operation and Standby or Hibernate power management modes while the card is inserted, you may find that a device connected to your system is not recognised. Reboot your system to correct the problem.

Do not carry your notebook while touching the head of a PC Card, as pressure or shock may damage the connector pins.

It is recommended that you always use the same slot for a PC Card as switching slots can cause problems with some PC Cards.

Using your notebook

Removing a PC Card

Follow the steps below to remove the PC card while your computer is on. If it is not removed correctly, your system may not work properly. If you want to remove a PC Card when your computer is off, skip steps 1 to 7.

Hardware Guide

To remove a PC Card, proceed as follows:

1 Double-click the Safely Remove Hardware icon in the taskbar.

The Safely Remove Hardware dialog box appears.

2 Select the hardware you want to unplug. 3 Click Stop. 4 In the Stop a Hardware device dialog box, confirm that the device can be safely removed from the

system.

5 Click OK.

You get a message saying that it is safe to remove the device.

6 Click OK. 7 Click Close. 8 Press the PC Card release button so that it pops out. 9 Push the PC Card release button to eject the card. 10 Gently grasp the card and pull it out. 11 If the PC Card release button is still out, push it back in to close the front panel cover.

✍ If y ou unpl ug the P C Card from the co mputer when this is still tu rned on, yo ur system might crash and you might lo se data th at you did not sa ve before.

Before you remove the PC Card, right-click the PC Card icon in the taskbar and close the card. Close any applications that use the PC Card before removing the card. Otherwise, data may be lost.

While the card is inserted, your computer may not enter the Hibernate power management mode. It may enter Standby mode. It is recommended that you remove the card before you manually enter Hibernate mode, or when your computer is set to enter Hibernate automatically while using a battery as the source of power.

Some PC Cards or their functions may not be compatible with this computer.

Using your notebook

Using Memory Stick™

Your VAIO computer is designed to support the Memory Stick™. The Memory Stick™ is a compact, portable, and versatile device especially designed for exchanging and sharing digital data with compatible products.

Hardware Guide

Because it is removable, it can be used for external data storage. Use the flash memory technology to download anything that can be converted into digital data, such as pictures, music, words, sounds, movies and photographs. Foreseen as the universal data storage device of the future, the Memory Stick™ can already be used with an ever-increasing range of compatible products, including:

❑ Audio systems ❑ Visual devices ❑ VAIO products ❑ CLIE handhelds ❑ Mobile phones.

There are currently three different types of Memory Stick™ supported by your VAIO:

❑ The generic Memory Stick™, coloured blue. ❑ The MagicGate Memory Stick™, coloured white. ❑ The Memory Stick PRO™.

✍ You can purchase Memory Sticks™ from the Sony Style website (http://www.sonystyle-europe.com), or from your local Sony dealer.

Using your notebook

Why Memory Stick™?

Sony's vision is to expand the world of communication, promoting the portability of digital data. The Memory Stick™ is the resulting medium, through which digital devices can be instantly connected. With it,

Hardware Guide

you can download data from any compatible device, then transfer it to another in a single and instant transfer.

The main advantages of the Memory Stick™ are its:

❑ Compactness: with dimensions of just 21.5 mm (W) x 2.8 mm (H) x 50 mm (D), compatible products can

❑ Capacity: Its data capacity far exceeds that of a floppy disk. ❑ Security: its lock option means you can protect your data from accidental erasure. ❑ Versatility: memory capacity ranges from 4 MB up to 128 MB (the equivalent capacity of 88 floppy disks)

❑ Reliability: by way of protecting the hardware and its contents, the number of terminals is reduced to

❑ Durability: the same Memory Stick™ can be used tens of thousands of times. ❑ Forward compatibility: the Memory Stick's™ current format is designed to be compatible with future

also be small, lightweight and attractive in their design.

and up to 1GB for Memory Stick PRO™.

only 10 pins. This, and the overall robust structure of the stick, gives it a longer lifespan than other storage devices.

products and higher capacity Memory Sticks™.

Using your notebook

Generic Memory Stick™

The original Memory Stick™, blue in colour, can be used to record image data taken with digital still cameras, etc. or data from the PC. With it, you can record, play back and transfer various kinds of data at

Hardware Guide

any given time.

Because it is easy to remove and transport safely, you can use Memory Stick™ anywhere by inserting it into any compatible device to transfer and share the information you have saved.

For you, this means you can expand the capabilities of your VAIO computer in the following scenarios:

❑ With your still digital camera, share your holiday pictures instantly by e-mail. ❑ From your handycam to your VAIO, make the most of your captured moments with the VAIO's movie

❑ Carry pictures on you by copying image files from the Internet to your VAIO or to your CLIE handheld. ❑ With your voice recorder, add your voice to e-mails so your tone is never misunderstood.

The blue Memory Stick™ is currently available with a 4, 8, 16, 32, 64 or a 128 MB memory (the equivalent capacity of 88 floppy disks).

✍ Generic Memory Sticks™ cannot be used with the Memory Stick™ Walkman, or with data that is protected by copyright.

editing tools.

Using your notebook

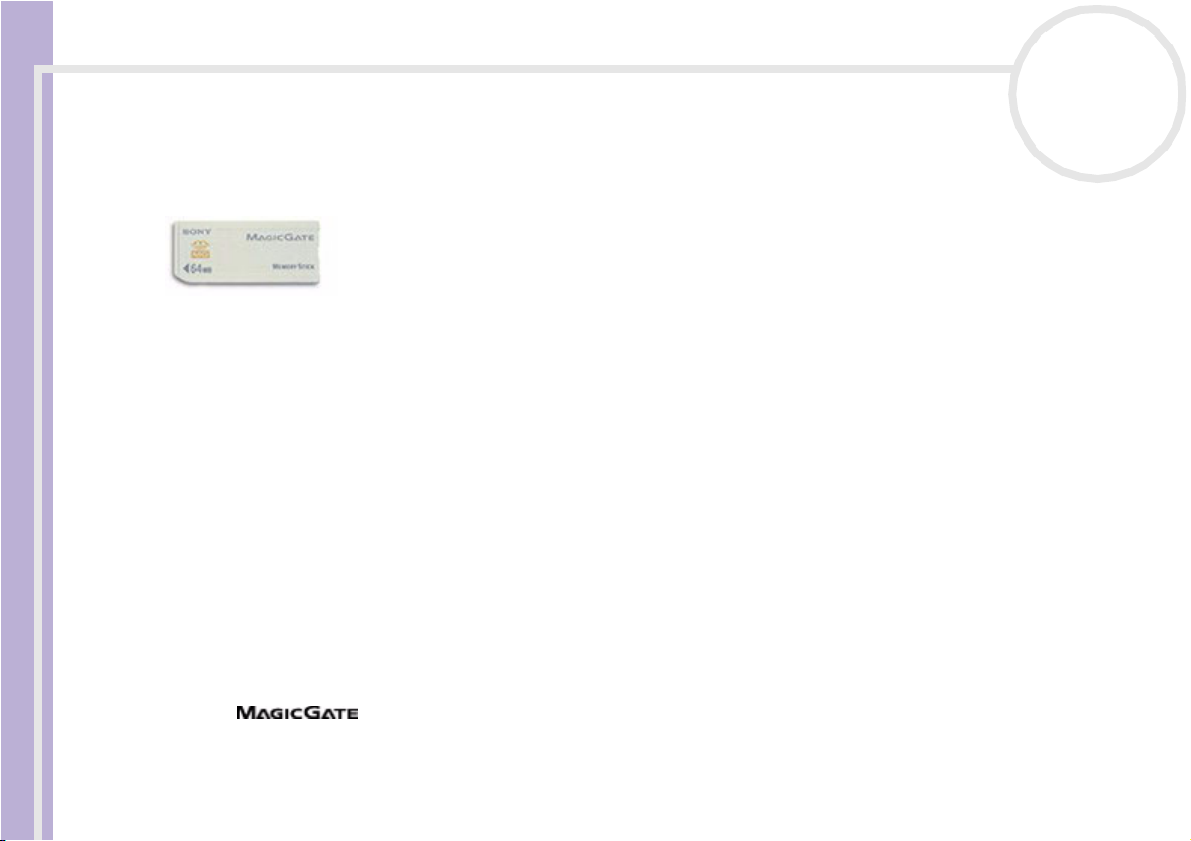

MagicGate Memory Stick™

The MagicGate Memory Stick™, white in colour, records PC and image data just like its blue counterpart; the difference is it uses the MagicGate copyright protection technology.

Hardware Guide

With this type of Memory Stick™, also called the MG Memory Stick™, you can enjoy the following features:

❑ 32, 64 and 128 MB capacity versions. ❑ Storage of up to 120 minutes of audio data. ❑ Download and save:

❑ Combine data files to add music to your home movies, for example. ❑ Transfer and share data between several digital products. ❑ MagicGate Copyright Protection Technology. ❑ SDMI (Secure Digital Music Initiative) Compliance. ❑ SonicStage software.

So that you further distinguish a MagicGate Memory Stick™ from a generic one, look for:

❑ the logo printed on it ❑ a protruding dot located on the back.

❑ digital music ❑ pictures ❑ movies, and more.

Using your notebook

✍ MagicGate is a copyright protection technology that complies with the standards set by SDMI (Secure Digital Music Initiative, an organiz ation work ing

to draw up industry standard specifications in order to protect copyrights of digital music).

The logo indicates the copyright protection system devised by Sony. It is not meant to guarantee compatibility with other media.

Hardware Guide

MagicGate

MagicGate refers to the copyright protection technology used by the MagicGate Memory Stick™ and other MagicGate Memory Stick™ compatible devices. The Memory Stick™ Walkman and MagicGate Memory Stick™ work together to check the data and ensure it complies with copyright protection. If no problems are detected, the data is exchanged in encrypted form; if authentication is not passed, data cannot be exchanged or played back.

SonicStage

SonicStage uses copyright protection technology designed to manage the digital music content downloaded to the PC from CDs, the Internet and/or other sources. Software installed on the PC records music content in encrypted form onto the hard disk. As well as allowing you to enjoy music on the PC, this technology protects against unauthorized distribution on the Internet. Since it is compatible with MagicGate, you can use SonicStage to transfer music that you have downloaded onto your PC to your white MG Memory Stick™, and playback on other MagicGate-equipped devices and media.

Copyright protection

People who create artistic works such as music are entitled to a "copyright", meaning that they have exclusive rights to dictate how their work is used. When they are created, artistic works are automatically protected by a copyright without having to submit notification or registration, and may not be used without the permission of the person who created the work. In the music world, however, illegal acts of distributing music without the permission of the artist,

Using your notebook

particularly on the Internet, have recently been on the increase. That is why the Recording Industry Association of America (RIAA) took the initiative to organize a forum called Secure Music Digital Initiative (SDMI) to study technology for protecting copyrights during the electronic distribution of music. Sony offers the MagicGate Memory Stick™ and Memory Stick™ Walkman with a copyright protection

Hardware Guide

function that complies with SDMI standards, thereby providing an environment where individuals can record and enjoy third-party music data without worrying about copyright infringement.

✍ Literary works that are recorded by individuals are permitted for private usage only.

Compatible devices

There are nearly 80 Memory Stick™-enabled products on the market or announced for introduction worldwide, ranging from camcorders and portable music players to voice recorders and many other electronic devices.

You can currently use Memory Sticks™ with the following Sony products:

Visual:

❑ Cybershot digital camera ❑ Mavica digital camera ❑ PC, TRV and VX series digital video cameras ❑ LC data projector

Audio:

❑ MS Walkman ❑ MS Hi-fi system ❑ Network Walkmans ❑ Voice recorders

Using your notebook

Other:

❑ VAIO notebooks ❑ VAIO desktops

Hardware Guide

❑ CLIE Handheld Entertainment Organiser ❑ Sony mobile phones ❑ Digital printers ❑ AIBO the Sony Entertainment Robot

To find out more about the products available in your country, go to:

http://www.sonystyle-europe.com

Using your notebook

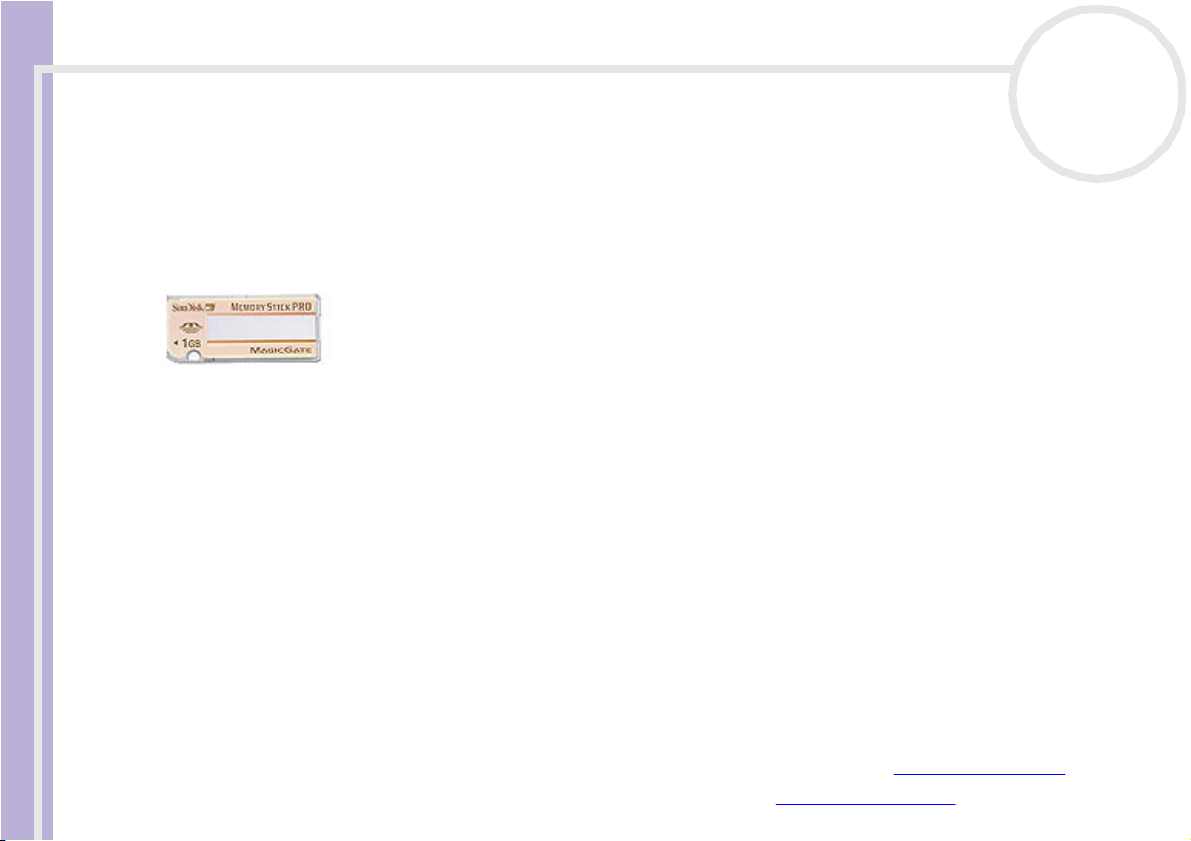

Memory Stick PRO™

The Memory Stick PRO™ records PC and image data just like its blue and white counterpart. However, the Memory Stick PRO™ provides you with a capacity of up to 1 GB. It also exists in 256MB and 512 MB.

Hardware Guide

A 1 GB Memory Stick PRO™ card enables users to enjoy a staggering 6 hours of MPEG4 (384 Kbps) moving images or 24 minutes of DVD quality MPEG2 video. This equates to around sixteen audio CDs, assuming 64 MB per CD, or 360 JPEG images in 5.0 Megapixel quality, more than ten rolls of 24/36 film.

Compatible devices

You can currently use the Memory Stick PRO™ with the following Sony products:

Visual:

❑ Cyber-shot DSC-F717, -F77 and FX77 digital camera ❑ DPP-EX5 and -EX7 digital photo printers ❑ Digital camcorders DCR-TRV355, -TRV22, -TRV33, -TRV60 and -TRV80

Other:

❑ MSAC-US20 USB Memory Stick adapter ❑ MSAC-US70 USB optical mouse and Memory Stick adapter ❑ MSAC-PC3 PC Card Memory Stick adapter ❑ MSAC-US7 USB optical mouse and Memory Stick adapter ❑ MSAC-US2 USB Memory Stick adapter

Devices that can be upgraded to accept the Memory Stick PRO™ media via a software patch are:

❑ Sony CLIÉ PEG-NX70V handheld. Detailed information will be available on www.clie-link.com. ❑ Some VAIO models. Detailed information will be available on www.vaio-link.com.

Using your notebook

LOCK

LOCK LOCK

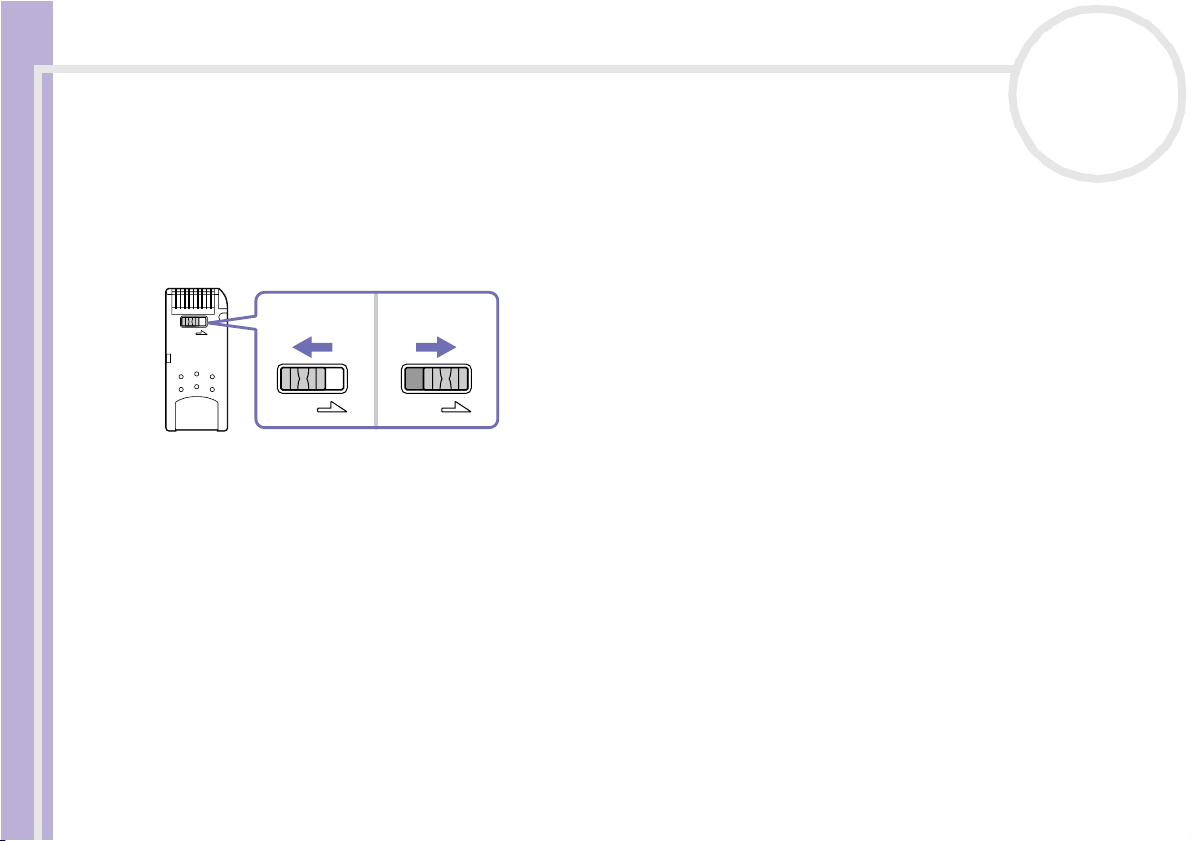

Write-protecting a Memory Stick™

Memory Sticks™ are designed with an erasure prevention switch to protect valuable data from accidental erasure or overwriting.

Hardware Guide

Move the tab to the right or left* to set or release write-protection. When the erasure prevention switch is off, data can be saved on the Memory Stick™. When the erasure prevention switch is on, data can be read from but not saved on the Memory Stick™.

* The 128 MB Memory Stick™ has a vertical lock.

Using your notebook

Inserting a Memory Stick™

There are 2 ways you can insert a Memory Stick™ in your notebook:

❑ Using the Memory Stick™ slot;

Hardware Guide

❑ Using one of the PC Card slots. To do this, you need an optional PC Card adapter.

You can only insert one Memory Stick™ at a time.

To insert a Memory Stick™ using the Memory Stick™ slot, proceed as follows:

1 Once you have stored your data from your digital device, insert the Memory Stick™ with the arrow

2 Carefully slide the Memory Stick™ into the slot until it clicks in place.

facing up and toward the Memory Stick™ slot.

The Memory Stick™ is automatically detected by your system and appears in your My Computer window as a local drive, under the appropriate letter (depending on the configuration of your computer).

! Hold the Memory Stick™ with the arrow pointing in the correct direction when you insert it into the slot. To avoid damaging the computer or the

Memory Stick™, do not force the Memory Stick™ into the slot if it does not insert smoothly.

Using your notebook

Removing a Memory Stick™

To remove a Memory Stick™ using the Memory Stick™ slot, proceed as follows:

1 Check that the access light is off.

Hardware Guide

2 Push the Memory Stick™ in towards the notebook.

3 Pull the Memory Stick™ out of the slot.

✍ Always remove the Memory Stick™ gently, or it may pop out unexpectedly.

The Memory Stick™ ejects.

It is recommended that you remove the Memory Stick™ before shutting down the computer.

Using your notebook

Using the modem

Your notebook is equipped with an internal modem. You need to connect a phone line to take advantage of online services and the Internet, to register your computer and software online, and to contact VAIO-Link.

Hardware Guide

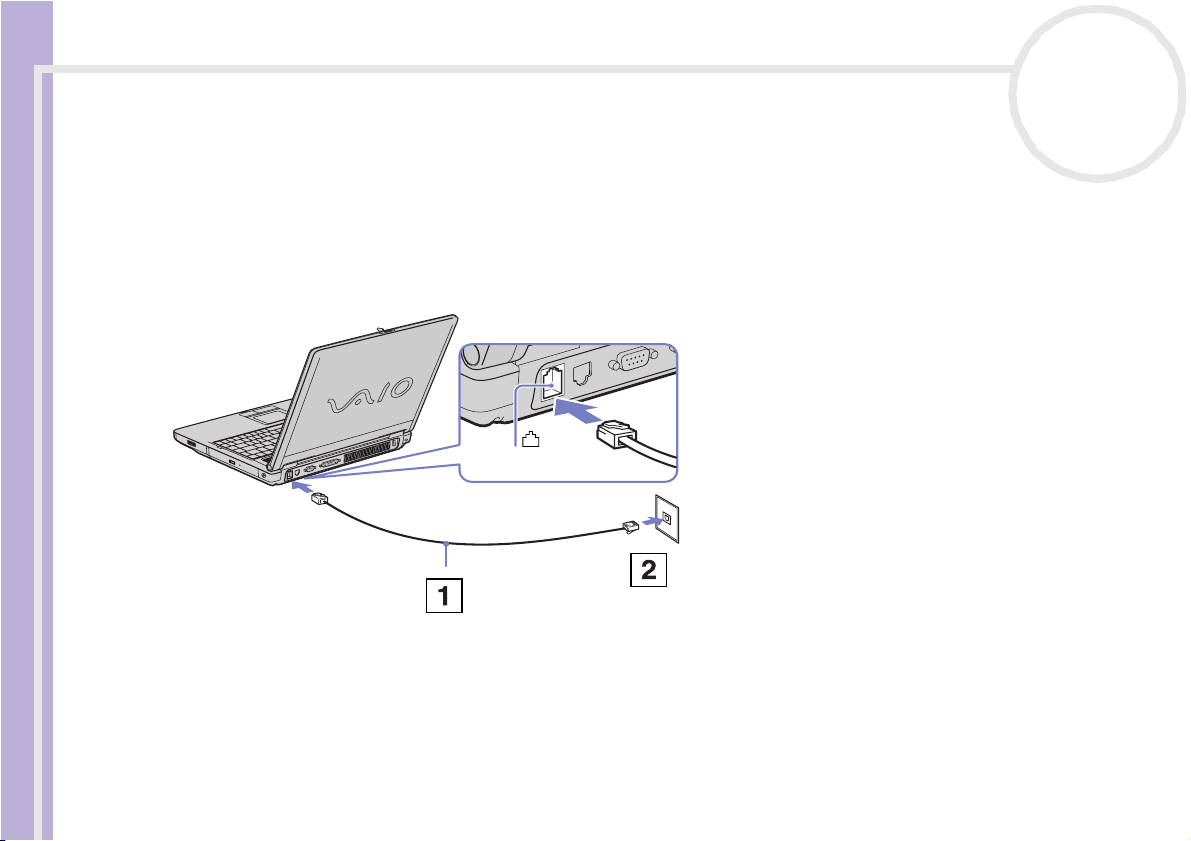

To connect a phone line, proceed as follows:

Plug one end of the phone cable (1) into the phone line jack on the computer and plug the other end into the wall jack (2).

✍ Your co mputer can not be c onnected to a c oin-operate d telepho ne,

and may n ot work with m ultiple phone line s or a private branch exchange (PBX). If you connect the modem to a parallel connected phone line, the modem or the other connected device may not function properly. Some of these connections may result in excess electrical current and could cause a malfunction in the internal modem.

Only DTMF (Dual Tone Multi Frequency) signalling (tone dialling) is supported.

A country-specific phone plug is supplied with your VAIO notebook, allowing you to plug the phone line into the wall jack. We recommend you to use the supplied plug, because the usage of any other phone plug can decrease the connection quality.

Before using the modem, it will be necessary to select the country where you are actually using it. The detailed procedure for selecting your present location is explained in Configuring your modem in the Software User Guide.

Using your notebook

Using the correct phone plug

If there are two phone plugs in the box, make sure you use the correct one for the country you are in, as follows:

Hardware Guide

UK: The connector can be identified by its cuboid shape and flat pins.

The Netherlands: The connector can be identified by its protruding pins.

Using your notebook

Using power saving modes

When you use a battery as the source of power for your computer, you can take advantage of power management settings to conserve battery life. In addition to the normal operating mode, which allows you

Hardware Guide

to turn off specific devices, your computer has two distinct power saving modes: Standby and Hibernate. When using battery power, you should be aware that the computer automatically enters Hibernate mode when the remaining battery charge drops below 5 percent, regardless of the power option settings you select.

✍ If the battery level falls to below 10 percent, you should either attach the AC adapter to recharge the battery or shut down your computer and insert

Using Normal mode

This is the normal state of your computer when it is in use. The green power indicator light is on in this mode. To save power, you can turn off a specific device such as the LCD or the hard disk.

Using Standby mode

Standby mode turns off the LCD screen and sets the hard disk and the CPU to a low power consumption mode. The umber power light flashes in this mode.

To activate Standby mode, proceed as follows:

Go to Start/Turn Off Computer and press Stand By. To return to Normal mode, press any key.

✍ If you press the power button for more than four seconds, the computer will switch off automatically.

a fully charged battery.

When the computer is in Standby mode, you cannot insert a disc.

The computer comes out of Standby mode quicker than out of Hibernate mode. Standby uses more power than Hibernate.

Using your notebook

Using Hibernate mode

The state of the system is saved on the hard disk and power is turned off. The power indicator light is off in this mode.

Hardware Guide

To activate Hibernate mode, proceed as follows:

1 Go to Start and click Turn Off Computer. 2 Hold down the <Shift> key and press Hibe rnate.

Alternatively, Press <Fn>+<F12>. To return to Normal mode, press the power button. The computer returns to its previous state.

✍ If you press the power button for longer than 4 seconds, the computer will turn off.

When the computer is in Hibernate mode, you cannot insert a disc.

It takes more time to return to normal mode from Hibernate mode than from Standby mode.

Hibernate mode u ses less power than Standby mode.

Do not move the notebook until its power indicator turns off.

Connecting peripheral devices

You can add functionality to your computer by connecting or using any of these peripherals. Before you connect peripherals, turn off the computer and all peripherals.

Hardware Guide

Connect the power cord only after connecting all cables. Turn on the computer only after turning on all peripherals.

❑ Connecting an external display (page 59) ❑ Selecting display modes (page 64) ❑ Using the Dual Display function (page 65) ❑ Connecting external speakers (page 68) ❑ Connecting an external microphone (page 69) ❑ Connecting a Universal Serial Bus (USB) mouse (page 70) ❑ Connecting a printer (page 71) ❑ Connecting an i.LINK™ device (page 73) ❑ Connecting to a network (LAN) (page 75)

✍ Hot plug and play devices should be plugged when the computer is switched on .

USB d evic es are hot plu g and play device s. You do not ne ed to s hut down yo ur computer prior to connecting these d evices unless the manual supplied with the device states otherwise.

Connecting peripheral devices

Connecting an external display

You can connect an external display to your notebook. For example, you can use your computer with the following devices:

Hardware Guide

❑ Computer display (monitor); ❑ Multimedia computer display; ❑ TV; ❑ Projector.

✍ Turn off your computer and the peripherals, unplug the AC adapter and the power cord before connecting the external display.

Connect the power cord after connecting all other cables.

Turn on the peripherals, then turn on your computer.

Connected external displays are used as second screens.

On Windows

systems only, you can also use an external display to set up a virtual desktop.

Connecting peripheral devices

Connecting a computer display

To connect a computer display, proceed as follows:

1 Plug the display cable (1) in the monitor (VGA) connector (2) on the computer.

Hardware Guide

2 If necessary, plug one end of the display’s power cord (3) into the display, and the other end into an AC

outlet.

Connecting peripheral devices

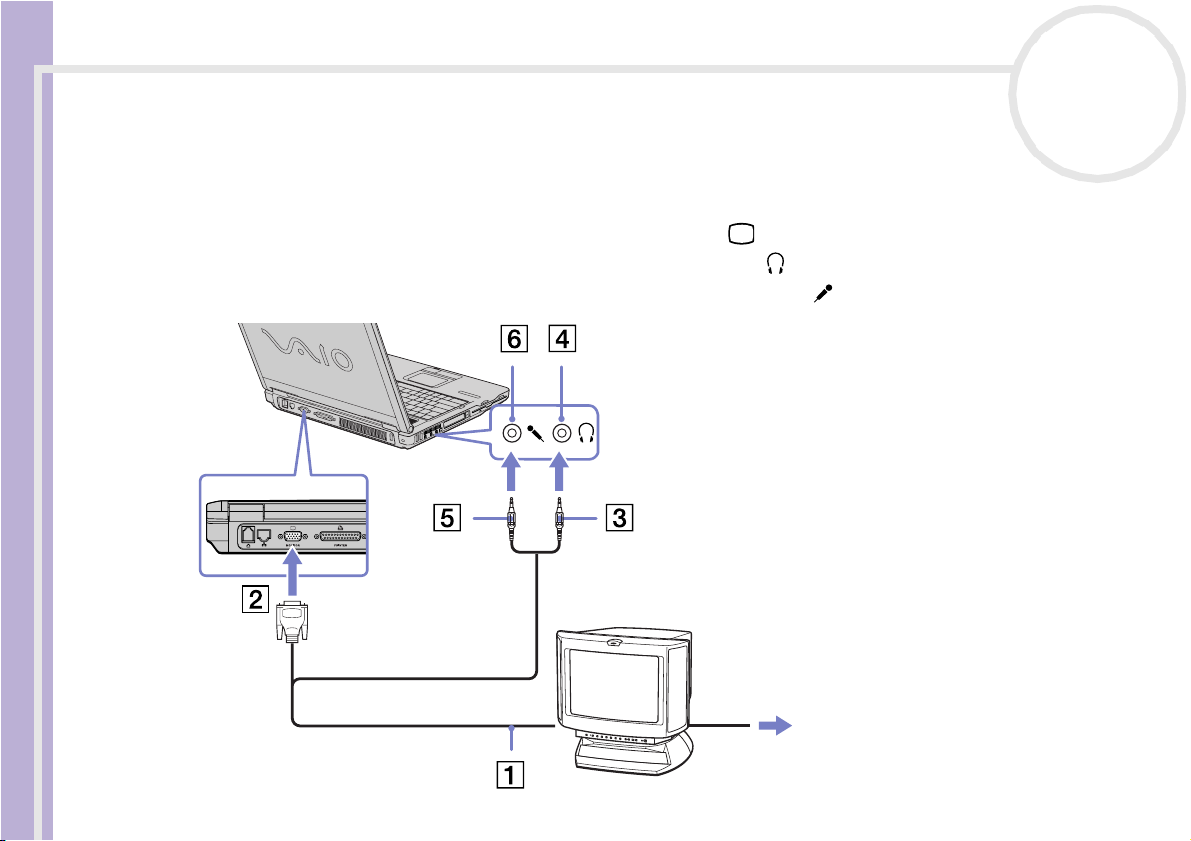

Connecting a multimedia computer display

You can connect the notebook to a multimedia computer display that includes built-in speakers and a microphone.

Hardware Guide

To connect a multimedia computer display, proceed as follows:

1 Plug the display cable (1) into the monitor connector (2) on the computer. 2 Plug the speaker cable (3) into the headphone connector (4) on the computer. 3 Plug the microphone cable (5) into the microphone connector (6) on the computer.

Connecting peripheral devices

Connecting a TV

To connect a TV, proceed as follows:

1 Plug one end of the audio/ video cable (1) (optional) into the AV out jack (for TV (NTSC/PAL) and line out)

Hardware Guide

(2) and the other end into the TV.

2 Plug the power cord of the TV (3) into an AC outlet. 3 Switch the input channel of the TV to external input.

4 Set up the TV configuration system.

✍ See the manual supplied with your peripheral for more information on

installation and use.

If the display resolution of your computer is more than 1024 x 768 dots, a part of the image cannot be displayed on your TV. The hidden area on your TV can be seen by moving the cursor on your computer. If you want to display the full image, change the display resolution of your computer to 800 x 600 or 1024 x 768 dots.

Connecting peripheral devices

Connecting a projector

You can use a projector as an external display, such as the Sony LCD Projector.

To connect a projector, proceed as follows:

Hardware Guide

1 Plug the RGB signal cable (1) into the

monitor connector (2) identified by the

symbol.

2 Plug the audio cable (3) (not supplied)

into the headphone connector (4) identified by the symbol.

3 Plug the RGB signal cable and the

audio cable into the connector of the projector (5).

4 Connect the power cord (6) of the

projector into an AC outlet.

✍ Under certain circumstances, you may not be able to

display the notebook LCD screen and an external display or a projector at the same time.

You can toggle the output between the notebook LCD screen and the external monitor by pressing the <Fn>+<F7> key combination.

Connecting peripheral devices

Selecting display modes

This notebook uses the ATI RADEON™ IGP 345M Chipset. You can select which display is used when the computer is connected to an external display.

Hardware Guide

To select a display, proceed as follows:

1 Click the Start button, and then Control Panel.

The Control Panel appears.

2 Click Appearance and Themes. 3 Click Display.

The Display Properties dialog box appears.

4 Click the Settings tab. 5 Click the Advanced button.

The ATI RADEON™ IGP 345M Properties dialog box appears.

6 Click the Displays tab.

Select the Monitor, Panel or TV icon.

7 Click Apply and then OK.

✍ Under certain circumstances, you may not be able to display the notebook LCD screen and an external display or a projector at the same time.

Turn on the computer after you turned off the peripheral devices.

Connecting peripheral devices

Using the Dual Display function

The dual display function allows you to distribute portions of your desktop across separate displays. For example, if you have an external monitor attached to the monitor connector, your LCD display and the

Hardware Guide

monitor can function as a single desktop. You can move the cursor from one display to the other. This allows you to drag objects, such as an open

application window or a toolbar, from one display to the other. This configuration of a single desktop distributed across separate displays, is referred to as a virtual desktop.

✍ Your monitor or TV hard ware may not support the Dual Display function.

Certain software applications may not be compatible with Dual Display settings.

Make sure that your computer does not enter Standby or Hibernate mode while you are using Dual Display mode, otherwise your computer may not return to Normal mode.

If you set different colours on each display, do not divide one single window on two displays, otherwise your software may not work properly.

Set fewer colours or a lower resolution for each display.

Connecting peripheral devices

Selecting the Dual Display mode

To select the Dual Display mode, proceed as follows:

1 Click the Start button on the Windows® taskbar.

Hardware Guide

2 Click Control Panel. 3 Click Appearance and Themes. 4 Click the Display icon. 5 Select the Settings tab. 6 Click the display marked 2. 7 Select the Extend my Windows desktop onto this monitor check box. 8 Click Apply and then OK.

✍ Your monitor or TV hardware may not support the Dual Display function.

Setting the colours and resolution for each display

You can set the display colours and resolution for each display that is part of a virtual desktop.

To set the display colours and resolution for each display, proceed as follows:

1 Click the Start button on the Windows® taskbar. 2 Click Control Panel. 3 Click Appearance and Themes. 4 Click the Display icon. 5 Select the Settings tab. 6 Select the display you want to change (1 or 2). 7 Select an option from the Color quality list to change colours. 8 Use the slider in the Screen resolution to adjust the resolution. 9 Click Apply and then OK.

Connecting peripheral devices

Customizing the virtual desktop

You can customize the Dual Display mode by changing the position of the two monitors comprising the virtual desktop.

Hardware Guide

To customize Dual Display mode, proceed as follows:

1 Click the Start button on the Windows® taskbar. 2 Click Control Panel. 3 Click Appearance and Themes. 4 Click the Display icon. 5 Click the Settings tab. 6 Drag the monitor icons to match the physical arrangement of your monitors. The two monitor icons must

be connected to create a virtual desktop.

7 Click Apply and then OK.

Deactivating the Dual Display function

To deactivate the Dual Display function, proceed as follows:

1 Click the Start button on the Windows® taskbar. 2 Click Control Panel. 3 Click Appearance and Themes. 4 Click the Display icon. 5 Click the Settings tab. 6 Click the display 2. 7 Deselect the Extend my Windows desktop onto this monitor option. 8 This will disable the Dual Display.

✍ For switching from Primary to Secondary display, see the section Selecting display modes.

Connecting peripheral devices

Connecting external speakers

You can enhance the sound quality of your computer by connecting external speakers.

To connect external speakers, proceed as follows:

Hardware Guide

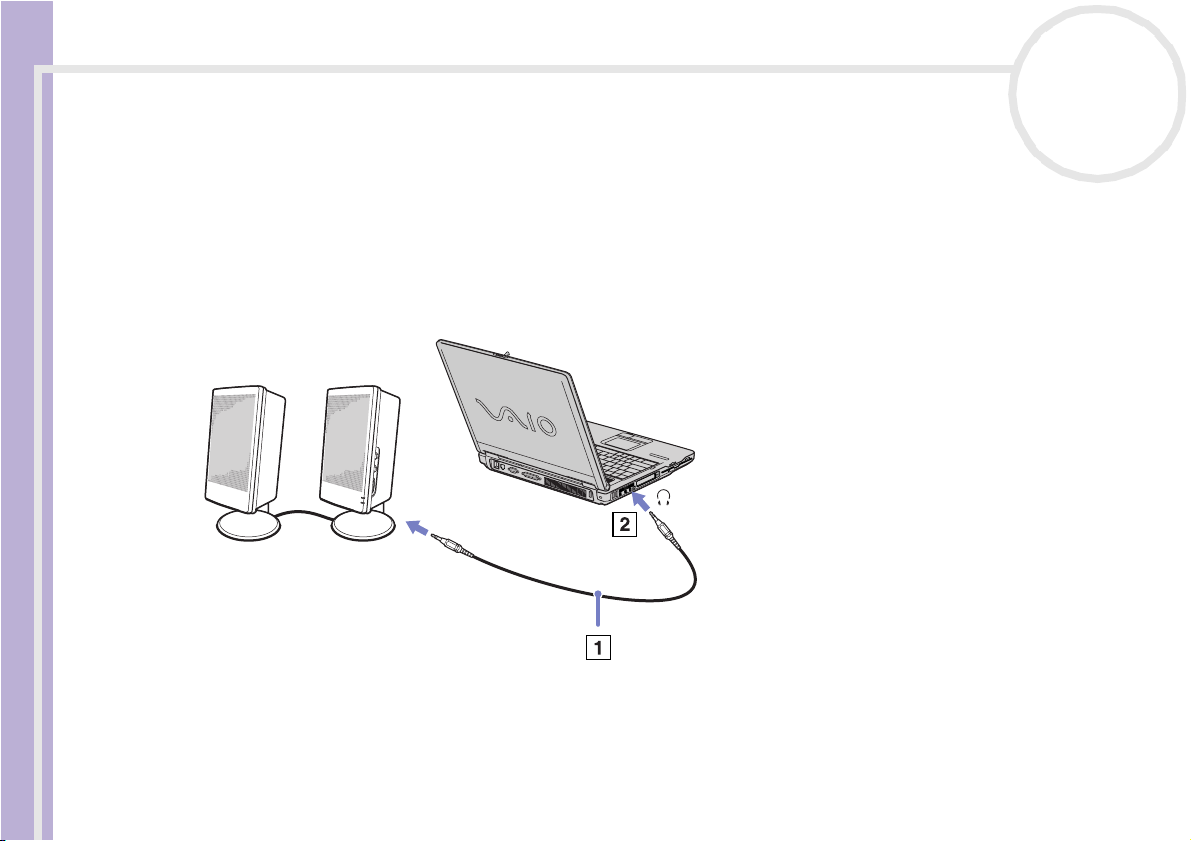

1 Plug the speaker cable (1) into the headphone connector (2). 2 Plug the other end of the speaker cable into the external speaker. 3 Turn down the volume of the speakers before you turn them on.

✍ Make sure your speakers are designed for computer use.

Do not place floppy disks on the speakers; their magnetic field may damage the data on the disks.

Connecting peripheral devices

Connecting an external microphone

Your VAIO notebook does not contain an internal microphone. If you need to use a sound input device, for example to chat on the Internet, you need to plug in an external microphone.

Hardware Guide

To connect an external microphone, proceed as follows:

Plug the microphone cable (1) into the microphone connector (2) identified by the symbol.

✍ Make sure your microphone is designed for computer use.

Connecting peripheral devices

Connecting a Universal Serial Bus (USB) mouse

You can connect a USB device (e.g. mouse, floppy disk drive, keyboard, printer, …) to your computer. Before connecting or disconnecting a USB peripheral, you do not need to shut down the computer.

Hardware Guide

You may need to install software (device drivers) supplied with your USB device before using the USB device. There are 2 USB 2.0 ports at the left of your notebook and 1 at the back.

To connect a USB mouse, proceed as follows:

1 Select the USB port (1) of your choice. 2 Plug the USB mouse cable (2) into the USB connector.

You can use your USB mouse (3).

✍You do not need to shut down the computer before connecting or

disconnecting a USB periph eral.

The USB mouse software driver is preinstalled on your notebook, therefore, you only need to plug the USB mouse into the USB connector and you can start working.

You may need to install software (device drivers) supplied with your USB device before using the USB device.

Connecting peripheral devices

Connecting a printer

You can connect a Windows®-compatible printer to your computer to print documents.

Hardware Guide

Connecting a printer using the USB connector

You can connect a USB printer compatible with your version of Windows® to your computer.

To connect a printer using the USB connector, proceed as follows:

1 Plug an optional USB printer cable (1) into the USB connector (2) identified by the symbol on your

computer and printer.

2 Plug the printer (3) power cord into an AC outlet.

Connecting peripheral devices

Connecting a printer using the printer connector

To connect a printer using the printer connector, proceed as follows:

1 Plug the printer cable (1) supplied with the printer into the printer connector (2) identified by

Hardware Guide

the symbol.

2 Plug the printer power cord (3) into an AC outlet.

✍ Before using the printer, you may need to change the Printer settings in the Sony Notebook Setup software.

Turn off your computer and the printer, unplug the AC adapter and the power cord before connecting the printer.

Connecting peripheral devices

Connecting an i.LINK™ device

Your computer includes an i.LINK™ (IEEE1394) connector, which you can use to connect to an i.LINK™ device such as a digital video camera recorder or to connect two VAIO notebooks in order to copy, delete or edit

Hardware Guide

files. The i.LINK™ connector of your notebook does not supply power to external devices generally powered by i.LINK™ connectors. The i.LINK™ connector supports transfer rates up to 400 Mbps; however, the actual transfer rate depends on the transfer rate of the external device. The i.LINK™ features available may vary depending on the software applications you use. Refer to the documentation that came with your software for more information. i.LINK™ cables compatible with your VAIO notebook include cables with the following part numbers: VMC-IL4415 (a 1.5 meter cable with a 4-pin connector at each end), VMC-IL4408Series (a 0.8 metre cable with a 4-pin connector at each end).

❑ Connecting two VAIO computers (page 74) ❑ Connecting a digital video camera recorder (page 74)

✍ An i.LINK™ connection with other compatible devices is not fully guaranteed.

The i.LINK™ connection varies depending on the software applications, operating system and i.LINK™ compatible devices you use. Refer to the documentation that came with your software for more information. Check the working conditions and OS compatibility of i.LINK™-compatible PC peripherals (HDD, CD-RW drive etc.) before you connect them to your notebook.

Connecting peripheral devices

Connecting two VAIO computers

You can copy, edit or delete files on another VAIO computer to your computer with an optional i.LINK™ cable. You can also print a document on a printer connected to another VAIO computer.

Hardware Guide

Connecting a digital video camera recorder

To connect a digital video camera recorder, proceed as follows:

1 Plug one end of the optional i.LINK™ cable

(1) into the i.LINK™ connector (2) of the computer and the other end into the DV Out connector (3) on the digital video camera recorder.

2 Launch the DVgate application.

✍ On Sony digital video cameras, connectors labelled DV Out, DV

In/Out or i.LINK™ are i.LINK™-compatible.

The Sony digital video camera recorder is an example; your digital video camera recorder may need to be connected differently. If your digital video camera recorder includes a Memory Stick™ slot, you can copy images from it to your compute r via a Mem ory Stick™. To do so, s impl y copy im ages on the Memory Stick™, then insert it into the Memory Stick™ slot of your computer.

You cannot access the pictu res stored on a Memo ry Stick™ when us ing an i.LINK™ connection.

Connecting peripheral devices

Connecting to a network (LAN)

You can connect your computer to 10BASE-T/100BASE-TX-type networks via an Ethernet network cable. For the detailed settings and devices needed to connect to the network, consult your Network Administrator.

Hardware Guide

✍ The default settings make your computer able to connect to the network.

For more information about connecting your notebook to the n etwork, please consult the Hardware troubleshooting section of the VAIO-Link website:

How to troubleshoot network problems

! Do not plug a phone cable into your computer network jack.

Getting help

Hardware Guide

Getting help

This section describes how to get help and support from Sony, as well as troubleshooting tips for your computer.

Sony provides several support options for your computer.

Sony support options

Please see the section Documentation pack (page 8) for details on the printed and online documentation delivered with your computer, as well as further sources of reference.

Other sources of information

❑ The online help files that accompany your software for instructions on using the software. ❑ VAIO-Link website: if you have any problem with your computer, you can access the VAIO-Link website

for troubleshooting. Go to: http://www.vaio-link.com

❑ e- Support: This interactive part of our website http://www.vaio-link.com allows you to get in contact

with our dedicated support team over the internet. Using a personalised account, you can log your technical queries with ease.

❑ VAIO-Link help lines: Before contacting VAIO-Link by telephone, try to solve the problem by reading

the printed and printed documentation.

❑ Visit the other Sony websites:

❑ www.club-vaio.com if you want to know more about VAIO and become part of the growing VAIO

community.

❑ www.sonystyle-europe.com for online purchases. ❑ www.sony.com for other Sony products.

✍ You need to set up an Internet connection before you can access the online features described here.

Getting help

e-Support

What is e-Support?

Hardware Guide

You have searched our user guides and website (www.vaio-link.com) but have not found an answer to your question/issue? e-Support is the ideal solution for you!

Our e-Support Web Portal is an interactive website on which you can submit any technical query you may have regarding your VAIO and receive answers from our dedicated support team.

Every submitted query will result in a unique 'case number' to ensure smooth communication between yourself and the e-Support Team.

Who can use e-Support?

All registered VAIO customers are entitled to unlimited access to the VAIO-Link e-Support Web Portal.

How can I access the e-Support portal?

When you register your VAIO computer online at Club-VAIO (www.club-vaio.com), you will automatically receive an email with the link to the e-Support Web Portal, your Customer ID and some basic explanation a few hours later.

All you need to do is activate your account by clicking on the provided link in the email. You are now ready to create your first case! You can access the e-Support Web Portal from any computer with an active Internet connection. A complete help file is available on the e-Support Web Portal to help you use our e-Support Service.

Getting help

Can I submit questions in my native language?

Since you are interacting with our e-Support Team through a portal, which connects you directly to our central database, e-Support will only accept and deal with queries submitted in English.

Hardware Guide

Can I submit my questions at any time?

Yes, you can submit your questions 24/7, but please keep in mind that our e-Support Team can only treat your queries from Monday till Friday between 8am and 6pm.

Is there a cost involved for using e-Support?

No, this is a complete free of charge service offered to all registered VAIO customers!

How do I know when the e-Support Team has handled my query/case?

As soon as your case has been dealt with by our e-Support Team, you will receive an email, notifying you that your case has been updated.

Getting help

Hardware Guide

Troubleshooting

This section describes how to solve common problems you might encounter when using your notebook. Many problems have simple solutions. Please try these suggestions before contacting VAIO-Link.

❑ About the computer and software (page 80) ❑ About the display (page 84) ❑ About discs and floppy disks (page 85) ❑ About sound (page 88) ❑ About the modem (page 89) ❑ About peripherals (page 90) ❑ About digital video captures and DVgate (page 92) ❑ About power management (page 92)

Getting help

Hardware Guide

About the computer and software

My computer does not start

❑ Check that the battery pack is inserted properly and that it is charged. If it is and you still cannot start

the computer, take out the battery and make sure your computer is running on the AC power supply only.

❑ Check that the computer is plugged directly into a power source (without an extension cord) and that it

is turned on.

❑ Check the power socket is working by testing it with another device (e.g. a lamp or radio). ❑ Check that the power indicator on the front panel of the computer indicates that the power is on. ❑ Check that you are using the supplied Sony AC adapter. ❑ Check cables for signs of wear and tear (which can occur if the cable is twisted around the AC adapter

during transport).

❑ If you cannot start Windows ❑ Confirm that the power cord and all cables are connected firmly. ❑ If you have plugged the computer into a UPS (Uninterruptible Power Supply), make sure the UPS is

turned on and works.

❑ Unplug all external devices and cables, including the Internet connection. ❑ Remove any extra memory modules you may have inserted since purchase.

❑ If you are using an external display, check that it is plugged into a power source and turned on. Check

that you have switched to the external display and that the brightness and contrast controls are adjusted correctly.

❑ Moisture condensation may have occurred. Do not use the computer for at least one hour and then turn

it on.

❑ If the message Press <F1> to resume, <F2> to set up appears at the bottom of the display, you need

to initialise the BIOS (Basic Input/Output System).

, make sure there is no disk in the floppy disk drive.

Getting help

Hardware Guide

When I turn on my computer, the message Press <F1> to resume, <F2> to setup appears

This message is telling you to initialise the BIOS (Basic Input/Output System).

If the floppy disk drive is empty, proceed as follows to initialise the BIOS:

1 Turn off the computer. 2 Remove any peripheral devices connected to the computer. 3 Turn on the computer and press <F2> when the Sony logo appears.

The BIOS setup menu screen appears.

4 Set the date (month/day/year). 5 Press Enter. 6 Press the arrow keys to select System Time. 7 Set the time (hour:minute:second). 8 Press Enter. 9 Press the arrow keys to select the Exit menu. 10 Press the arrow keys to select Get Default Values and then press <Enter>. The Load default

configuration now? message appears.

11 Make sure that Yes is selected and then press <Enter>. 12 Press the arrow keys to select Exit (save changes) and then press <Enter>.

The Save configuration changes and exit now? message appears.

13 Make sure that Yes is selected and then press <Enter>.

Getting help

My computer does not shut down

It is recommended that you shut down your computer using the Turn Off Computer command on the Windows® Start menu. Using other methods, including those listed here, may result in loss of unsaved data.

Hardware Guide

If the Turn Off command does not work properly, proceed as follows:

1 Turn off the computer by pressing <Ctrl>+<Alt>+<Delete>. If you have not changed the default

settings, the Windows Task Manager dialog box appears.

2 Click Shut Down and then Tu r n O f f.

❑ If this does not work, press the power button and hold it for at least four seconds.

This turns off the power.

❑ Unplug the computer from the AC adapter and remove the battery pack from your computer.

My computer or software program is not responding

If you suspect one application is locking your system, you can try to stop it, as follows:

1 Press <Ctrl>+<Alt>+<Delete> simultaneously.

The Windows Task Manager screen appears.

2 Scroll down until you see an application with the status Not responding. 3 Select this application from the list and click End Task.

Windows® tries to close the application. If it fails to do so, a second dialog box appears.

4 Select End Task again.

❑ If the above method does not work or you do not know which application is locking your system, restart

the computer:

1 Click the Start button. 2 Select Turn Off Computer, and then Turn off in the dialog box that appears.

Getting help

Hardware Guide

❑ If the above method does not work, press the power button and hold it for at least four seconds. This

turns off the power, risking the loss of unsaved data. Then unplug the notebook from the mains.

❑ If your computer locks up while playing a disc, stop the disc by pressing the eject button on the disc drive,

then restart your computer.

❑ If the message Application not responding appears, click End Now. Please be warned that you will

lose unsaved data.

❑ If this happens regularly:

❑ Contact the software publisher or designated provider for technical support. ❑ Make sure the software is compatible with your equipment and operating system. ❑ Try reinstalling the software.

My touchpad interprets a single tap as a double-click

Open the Mouse icon in the Control Panel and change the button assignments in the Mouse Properties dialog box. One of the buttons is assigned to the double-click action.

My mouse does not work

❑ If you are using a USB mouse, check that the appropriate driver and software are properly installed. ❑ Check that the USB mouse is plugged into the USB connector.

Getting help

Hardware Guide

About the display

My screen does not display anything

❑ Check that the power indicator on the front panel of the computer is on. ❑ Check that the battery pack(s) are inserted properly and that they are charged. If using AC power, check

that the connection to the mains is secure.

❑ If you are using an external display, check that it is plugged into a power source and turned on. ❑ Adjust the brightness of the screen. ❑ The computer display may be in Standby mode. If so, press any key to activate the display. It will take a

few seconds for the screen content to appear.

❑ The computer display may be in Hibernate mode. If so, press the power button to activate the system.

It will take a few seconds for the screen content to appear.

❑ The display mode may be set to external display mode. Press and hold the <Fn> key while pressing <F7>

several times.

The window I have just closed is still on the screen

❑ Press <F5> to refresh the screen, or ❑ Press the Windows

key + <D> twice to clean up the screen.

The screen image on my external display is not centred or sized properly

Use the controls on your external display to adjust the image.

Getting help

Hardware Guide

About discs and floppy disks

My disc drive tray does not open

❑ Make sure the computer is turned on and press the eject button on the drive. ❑ Click Start, and select My Computer. Right-click the optical disc drive and select Eject. ❑ If this does not work, try the following:

When the computer is OFF, open the tray by inserting a sharp, pointed object (for example a paperclip) into the hole next to the eject button.

I cannot play a disc

❑ After inserting the disc, wait for a few seconds for the system to detect it before you try to access it. ❑ Make sure the label of the disc is facing up. ❑ If the disc requires software, make sure the software is installed according to the instructions of the

program.

❑ Check the volume of your speakers. ❑ Clean the disc with an appropriate cleaner. ❑ Make sure your computer is running on AC power supply only and try the disc again. ❑ There may be condensation in the drive. Remove the disc and leave the drive open for approximately

one hour. Remove the battery while you wait for the condensation to disappear.

Getting help

Hardware Guide

I cannot play a DVD

❑ If a region code warning appears when you are using the DVD player, it could be that the DVD you are

trying to play is incompatible with the DVD drive on your notebook. The region code is listed on the packaging of the disc.

❑ Change the resolution under Control Panel - Display to a lower resolution. ❑ If you hear sound but cannot see video, the video resolution may be set too high. Choose a lower

resolution under Control Panel - Display.

❑ If you see video but cannot hear sound, check all of the following:

❑ Make sure the mute setting is off on your DVD player. ❑ Check the Master Volume settings of the Sounds and Audio Device Properties. If you have

connected speakers externally, check the volume settings of your computer speakers and check the connections between your speakers and the computer.

❑ In the Device Manager, check that the correct drivers are installed properly. To display the Device

Manager, click Start, then Control Panel. Double-click the System icon. On the Hardware tab, click the Device Manager button.

❑ A dirty or damaged disc may cause the computer to 'hang' while it tries to read the disc. If necessary,

reboot the computer, remove the disc and then check that it is not dirty or damaged.

❑ Check your PG settings (Parental Guidance) in the DVD software as they might be preventing you from

playing certain DVDs when they are activated.

✍ On your computer, the default DVD region code is 2. Do not change this setting using the Region Code Change function in Windows

other software applications. System malfunctions originating from the user changing the DVD region code are beyond the scope of your warranty and will result in service charges for repair.

If you do not immediately see the Display icon after clicking Control Panel, click Switch to Classic View on the left.

, or using any

Getting help

Hardware Guide

My floppy disk drive cannot write to a disk

❑ The disk may be write-protected. Disable the write-protect feature or use a floppy disk that is not write-

protected.

❑ Check that the disk is properly inserted into the floppy disk drive. ❑ Your floppy disk may be corrupt. Try to insert another disk.

The reading speed of CD/DVD-RWs is very slow

Generally, the reading speed of a CD/DVD-RW is slower than that of a -ROM or -R. The reading speed can also vary depending on the type of format.

The disc tray ejects even when it has been locked into place

❑ Ensure that the disc is placed with the label side facing up. ❑ Clean the disc and the disc drive lens with an appropriate cleaner. ❑ The disc may be scratched. Place another disc to see if that is the reason. ❑ There may be condensation in the drive. Remove the disc and leave the drive open for approximately

one hour. Remove the battery while you wait for the condensation to disappear.

Getting help

Hardware Guide

About sound

My speakers are not producing sound

❑ The built-in speakers may be turned off. Press <Fn>+<F3> to turn on the speakers. ❑ The speaker volume may be turned to the minimum. Press <Fn>+<F4> and then or to increase the

volume.

❑ If your computer is powered by battery, check that the battery is inserted properly and that it is charged. ❑ If you are using an application that has its own volume control, check that the volume is turned up. ❑ Check the volume controls in Windows ❑ If you use external speakers, check that the speakers are properly connected and the volume is turned

up. If the speakers have a mute button, make sure it is off. If batteries power the speakers, check that the batteries are inserted properly and that they are charged.

❑ If you have connected an audio cable to the headphone connector, disconnect the cable.

My microphone does not work

Check that the external microphone (optional) is plugged into the microphone connector.

Getting help

Hardware Guide

About the modem

My internal modem does not work or cannot establish a connection

❑ Check that the phone line is plugged into your computer. ❑ Make sure that the modem is the only device connected to your phone line. ❑ Check that the phone line is working. You can check the line by plugging in an ordinary phone and

listening for a dial tone.

❑ Check that the phone number the program is dialling is correct. ❑ The modem dialling mode may be incompatible with your telephone line. ❑ The modem may not work properly if you are with a Private Automatic Branch eXchange (PABX). ❑ In the Phone and Modem Options dialog box (Control Panel / Phone and Modem Options), check

that your modem is listed in the Modems tab, and that the location information is correct on the Dialing Rules tab .

✍ If you do not see the Phone and Modem Options icon, click Switch to Classic View on the left side.

My modem connection is slow

Many factors influence modem connection speed, including telephone line noise or compatibility with telephone equipment (such as fax machines or other modems). If you think your modem is not connecting properly to other PC-based modems, fax machines, or your Internet Service Provider, check the following:

❑ Have your phone company check that your phone line is free from any line noise. ❑ If your problem is fax-related, check that there are no problems with the fax machine you are calling and

that it is compatible with fax modems.

❑ If you are having a problem connecting with your Internet Service Provider, check that the ISP is not

experiencing technical problems.

❑ If you have a second phone line available, try connecting the modem to that line.

Getting help

Hardware Guide

About peripherals

I cannot establish an i.LINK™ connection between two VAIO computers

❑ Disconnect then reconnect the i.LINK™ cable. If you still have no connection after waiting for a while,

restart both computers.

❑ If either computer has just returned from a power saving mode, the connection may be affected. In this

case, make sure you perform a full restart before connecting them.

I cannot use DV devices. The message ’DV equipment seems to be disconnected or turned off’ appears

❑ Check that the DV device is turned on and that the cables are properly connected. ❑ If you are using multiple i.LINK™ devices, the combination of the connected devices may cause unstable

operation. In this case, turn off the power of all connected devices and disconnect unused devices. Check the connection and then turn on the power again.

❑ Use the manual import/export in DVgate Motion if the problems occur with third party cameras. ❑ You are strongly advised to use only Sony i.LINK™ cables, as using other brands may cause problems with

the i.LINK™ devices.

My PC Card is not working

❑ Make sure the PC card is compatible with your version of Windows

I cannot print

❑ Check that all the cables of the printer are properly connected. ❑ Check the cable to see if the pins/connectors are not bent or missing completely. ❑ Check the manual supplied with your printer for troubleshooting solutions. ❑ Try a printer self test (if available) to see if the printer itself is still working properly. For more

information, please consult the manual supplied with your printer.

Getting help

Hardware Guide

❑ Try reinstalling the printer. Some printers have a specific installation procedure. Please check the manual

supplied with your printer.

❑ Check that your printer is correctly configured and that you have up-to-date drivers. If necessary, contact

your dealer.

❑ The default setting for the printer port mode is correct for most printers. If you cannot print, try

changing the printer port mode, as follows:

1 Restart your computer. 2 When you see the Sony logo, press <F2>.

The BIOS setup menu screen appears.

3 Use the keyboard’s arrow keys to select the Advanced menu. 4 The documentation delivered with your printer should give you the relevant port option. 5 Notebooks: If the printer port mode is set to ECP, change it to Bidirectional (for HP printers).

If the printer port is set to Bidirectional, change it to ECP. Desktops: Select I/O Device Configuration or On board device Configuration, then press the <Enter> key.

6 Select Parallel Port Mode, then press the <Enter> key. 7 Select a printer port option using the arrow keys, then press <Enter>. 8 Press <F10> and save the new configuration.

Your computer restarts.

❑ If you still cannot print, try resetting the printer connection, as follows:

1 Click the icon of the printer installed on your computer. 2 In the Printer Tasks menu, which has now expanded, click Set printer properties. 3 Have a look through the different tabs and check for abnormalities that you may be aware of. If you are

unsure, check with the printer manufacturer's support service about the correct installation for the printer.

4 Restart your computer.

Getting help

Hardware Guide

About digital video captures and DVgate

While I am recording images to a digital video device using DVgate, my system displays the message

Recording to DV device failed. Check the power and cable connections to the DV device and try the operation again...

❑ Close all open applications and restart your computer. Frequent recording of images to a digital video

device while using DVgate sometimes causes this error.

❑ Your DV device will need to have DV In/Out in order to be able to transfer your files to the DV device.

About power management

The power management setting is not responding

Your notebook’s operating system may become unstable if a lower power state, such as Hibernate is initiated, and then changed before the notebook completely enters the lower power state.

To restore the notebook to its normal operating stability, proceed as follows:

1 Close all open applications. 2 Push and hold the power button for four seconds or longer to shut down the notebook.

Precautions

Hardware Guide

Precautions

This section describes safety guidelines and precautions to help you protect your computer from potential damage.

Your notebook and memory modules use high precision components and electronic connectors technology. To avoid the invalidation of your guarantee by mishandling, it is recommended that:

❑ You contact your dealer to install a new memory module. ❑ You do not install it yourself, if you are not familiar with upgrading memory on a notebook. ❑ You do not touch the connectors or open the memory panel.

Please contact VAIO-Link if you need assistance.

Precautions

Hardware Guide

Changing or adding memory

In the future you may want to change or add memory modules in order to expand the functionality of your computer. You can increase the memory by installing optional memory modules.

Be careful when changing memory. Mistakes on installation or removal of the memory module may cause a malfunction.

For memory upgrades, use only DDR266 (CL=2.5) DDR-SDRAM SO-DIMM (gold leaf contacts). Electrostatic discharge can damage electronic components. Before touching a memory expansion board,

ensure the following:

❑ Handle the memory module gently. ❑ The procedures described in this document assume familiarity with the general terminology associated

with personal computers and with the safety practices and regulatory compliance required for using and modifying electronic equipment.

❑ Disconnect the system from its power source (that is, battery or AC adapter) and from any

telecommunication links, networks, or modems before you open the system. Failure to do so may result in personal injury or equipment damage.

❑ Electrostatic Discharge (ESD) can damage memory modules and other components. Install the memory

Module only at an ESD workstation. If such a station is not available, do not work in a carpeted area, and do not handle materials that produce or hold static electricity (cellophane wrappers, for example). Ground yourself by maintaining contact with an unpainted metal portion of the chassis while performing the procedure.

❑ Do not open the memory module package until you are ready to change the module. The package

protects the module from ESD.

! Use the special bag delivered with the memory module or wrap the module in aluminium foil to protect it from electrostatic discharge.

✍ Depending on the configuration of your notebook, the number of available slots can vary.

Introducing any liquids or any foreign substances or objects into the memory slots, or other internal components of the computer, wi ll resu lt in damag e to the computer and any repairs will be out of warranty.

Precautions

Hardware Guide

! Do not place the memory module in places subject to:

- Heat sources such as radiators or air ducts,

- Direct sunlight,

- Excessive dust,

- Mechanical vibration or shock,

- Strong magnets or speakers that are not magnetically shielded,

- Ambient temperature of more than +35°C or less than +5°C,

- High humidity.

Removing and installing a memory module

To change or add a memory module, proceed as follows:

1 Shut down your computer and disconnect all peripheral devices. 2 Unplug the computer and remove the battery pack(s). 3 Wait until the computer cools down. 4 Turn the computer upside down. 5 Open the memory compartment cover on the bottom by unscrewing the screw (turn anti-clockwise), as

shown.

Precautions

Hardware Guide

6 To remove the memory module, pull the tabs in the direction of the

arrows numbered 1. The memory module is released.

7 Pull the memory module out in the direction of arrow 2. 8 To replace or add memory, remove the new memory module from its

packaging.

9 Place the memory module carefully into the slots, as shown, making

sure the notches are aligned properly.

10 Close the memory compartment cover and tighten the screw. 11 Reinsert the battery pack(s) and turn on the computer.

Precautions

Hardware Guide

Other precautions

❑ On handling the hard disk (page 98) ❑ On handling the LCD screen (page 98) ❑ On using power source (page 99) ❑ On handling your notebook (page 99) ❑ On handling floppy disks (page 101) ❑ On handling discs (page 101) ❑ On using the battery pack (page 101) ❑ On using headphones (page 102) ❑ On handling the Memory Stick™ (optional accessory) (page 103)

Precautions

Hardware Guide

On handling the hard disk

The hard disk has a high storage density and reads or writes data in a short time. On the other hand, it may be easily damaged by mechanical vibration, shock or dust.

Although the hard disk has the safety device in itself to prevent losing data due to mechanical vibration, shock or dust, you should be careful when handling your computer.

To avoid damaging your hard disk:

❑ Do not give a shock to your computer. ❑ Keep away from magnets. ❑ Do not place your computer in a location subject to mechanical vibration or in unstable situation. ❑ Do not move your computer while the power is on. ❑ Do not turn off the power or restart the computer while reading or writing data. ❑ Do not use your computer in a place subject to extreme change of temperature. ❑ If the hard disk is damaged, the data cannot be restored. ❑ Do not move your computer while the system is in Standby mode.

On handling the LCD screen

❑ Do not leave the LCD facing the sun as it can damage the LCD. Be careful when using the computer near

a window.

❑ Do not scratch the LCD or exert pressure on it. This could cause malfunction. ❑ Using the computer in low temperature conditions may produce a residual image on the screen. This is

not a malfunction. When the computer returns to normal temperature, the screen returns to normal.

❑ A residual image may appear on the screen if the same image is displayed for a lengthy period of time.

The residual image disappears in a while. You can use a screensaver to prevent residual images.

❑ The screen becomes warm during operation. This is normal and does not indicate a malfunction.

Precautions

Hardware Guide

❑ The LCD is manufactured using high-precision technology. You may, however, see tiny black points and/

or bright points (red, blue, or green) that continuously appear on the LCD. This is a normal result of the manufacturing process and does not indicate a malfunction.

❑ Avoid rubbing the LCD screen, as this can damage the screen. Use a soft, dry cloth to wipe the LCD screen.

On using power source

❑ Your computer operates on 100V-240V AC 50/60 Hz. ❑ Do not share the AC outlet with other power-consuming equipment, such as a photocopier or shredder. ❑ You can purchase a power strip with a surge protector. This device prevents damage to your computer

caused by sudden power surges such as those that may occur during an electrical storm.

❑ Do not place heavy objects on the power cord. ❑ To disconnect the cord, pull it out by the plug. Never pull the cord itself. ❑ Unplug your computer from the wall outlet, if you will not be using the computer for a long time. ❑ When the AC adapter is not used, unplug it from the AC outlet. ❑ Use only the supplied AC adapter. Do not use any other AC adapter.

On handling your notebook

❑ Clean the cabinet with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution.

Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.

❑ Should any solid object or liquid fall into the computer, shut down your computer and then unplug it.

You may want to have the computer checked by qualified personnel before operating it any further.

❑ Do not drop the computer or place heavy objects on top of the computer.

Sony PCG-FR105, PCG-FR315B, PCG-FR415M, PCG-FR215S, PCG-FR295MP Hardware Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Read this first

Notice

Safety information

Owner's record

Warnings

General

Audio/video

Connectivity

Optical disc drive

Regulatory information

Disposing of lithium ion batteries

Disposing of internal memory backup battery

Welcome

Documentation pack

Printed documentation

Non-printed documentation

Further sources

Your notebook and its accessories

Ergonomic considerations

Using your notebook

Locating controls and connectors

Right

Left

Front

Back

Bottom

Connecting a power source

Using the AC adapter

Using the battery pack

Inserting the battery pack

Charging the battery pack

Removing the battery pack

Starting your notebook

Setting up your notebook with Sony Notebook Setup

Changing the video memory size

Shutting down your notebook

Using the keyboard

Combinations and functions with the Windows® key

Indicators

Combinations and functions with the <Fn> key

Using the touchpad

Using the disc drive

Using the disc recording function*

Using the DVD function

Using the floppy disk drive

Inserting a floppy disk

Removing a floppy disk

Using PC Cards

Inserting a PC Card

Removing a PC Card

Using Memory Stick™

Why Memory Stick™?

Generic Memory Stick™

MagicGate Memory Stick™

MagicGate

SonicStage

Copyright protection

Compatible devices

Memory Stick PRO™

Compatible devices

Write-protecting a Memory Stick™

Inserting a Memory Stick™

Removing a Memory Stick™

Using the modem

Using the correct phone plug

Using power saving modes

Using Normal mode

Using Standby mode

Using Hibernate mode

Connecting peripheral devices

Connecting an external display

Connecting a computer display

Connecting a multimedia computer display

Connecting a TV

Connecting a projector

Selecting display modes
